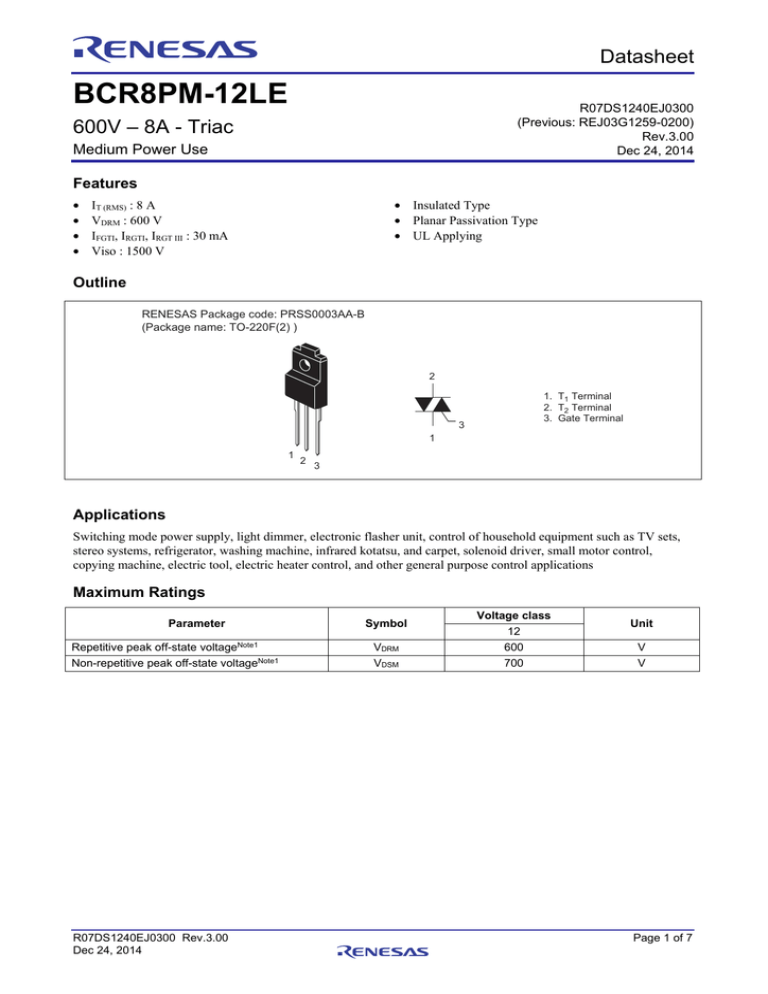

Preliminary Datasheet
BCR8PM-12LE
R07DS1240EJ0300
(Previous: REJ03G1259-0200)
Rev.3.00
Dec 24, 2014
600V – 8A - Triac
Medium Power Use
Features
•
•
•
•
• Insulated Type
• Planar Passivation Type
• UL Applying
IT (RMS) : 8 A
VDRM : 600 V
IFGTI, IRGTI, IRGT III : 30 mA
Viso : 1500 V
Outline
RENESAS Package code: PRSS0003AA-B
(Package name: TO-220F(2) )
2
1. T1 Terminal
2. T2 Terminal
3. Gate Terminal
3
1
1
2
3
Applications
Switching mode power supply, light dimmer, electronic flasher unit, control of household equipment such as TV sets,
stereo systems, refrigerator, washing machine, infrared kotatsu, and carpet, solenoid driver, small motor control,
copying machine, electric tool, electric heater control, and other general purpose control applications
Maximum Ratings
Parameter
Repetitive peak off-state voltageNote1
Non-repetitive peak off-state voltageNote1
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
Symbol
VDRM
VDSM
Voltage class
12
600
700
Unit
V
V
Page 1 of 7
BCR8PM-12LE
Preliminary
Symbol
Ratings
Unit
RMS on-state current
Parameter
IT (RMS)
8
A
Commercial frequency, sine full wave
360° conduction, Tc = 82°C
Surge on-state current
ITSM
80
A
60Hz sinewave 1 full cycle, peak value,
non-repetitive
I2t
26
A2s
PGM
PG (AV)
VGM
IGM
Tj
Tstg
—
Viso
5
0.5
10
2
– 40 to +125
– 40 to +125
2.0
1500
W
W
V
A
°C
°C
g
V
I2t for fusing
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction temperature
Storage temperature
Mass
Isolation voltage
Conditions
Value corresponding to 1 cycle of half
wave 60Hz, surge on-state current
Typical value
Ta = 25°C, AC 1 minute,
T1·T2·G terminal to case
Notes: 1. Gate open.
Electrical Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
IDRM
VTM
—
—
—
—
2.0
1.6
mA
V
Repetitive peak off-state current
On-state voltage
Test conditions
Tj = 125°C, VDRM applied
Tc = 25°C, ITM = 12 A,
Instantaneous measurement
Gate trigger voltageNote2
Ι
ΙΙ
ΙΙΙ
VFGTΙ
VRGTΙ
VRGTΙΙΙ
—
—
—
—
—
—
1.5
1.5
1.5
V
V
V
Tj = 25°C, VD = 6 V, RL = 6 Ω,
RG = 330 Ω
Gate trigger currentNote2
Ι
ΙΙ
ΙΙΙ
IFGTΙ
IRGTΙ
IRGTΙΙΙ
—
—
—
—
—
—
30
30
30
mA
mA
mA
Tj = 25°C, VD = 6 V, RL = 6 Ω,
RG = 330 Ω
VGD
Rth (j-c)
0.2
—
—
—
—
4.3
V
°C/W
Tj = 125°C, VD = 1/2 VDRM
Junction to caseNote3
(dv/dt)c
10
—
—
V/μs
Tj = 125°C
Gate non-trigger voltage
Thermal resistance
Critical-rate of rise of off-state
commutating voltageNote4
Notes: 2. Measurement using the gate trigger characteristics measurement circuit.
3. The contact thermal resistance Rth (c-f) in case of greasing is 0.5°C/W.
4. Test conditions of the critical-rate of rise of off-state commutating voltage is shown in the table below.
Test conditions
1. Junction temperature
Tj = 125°C
2. Rate of decay of on-state commutating current
(di/dt)c = – 4.0 A/ms
3. Peak off-state voltage
VD = 400 V
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
Commutating voltage and current waveforms
(inductive load)
Supply Voltage
Time
Main Current
(di/dt)c
Time
Main Voltage
(dv/dt)c
Time
VD
Page 2 of 7
BCR8PM-12LE
Preliminary
Performance Curves
Maximum On-State Characteristics
Rated Surge On-State Current
10
7
5
3
2
100
Tj = 125°C
101
7
5
3
2
Tj = 25°C
0
10
7
5
3
2
10
Surge On-State Current (A)
On-State Current (A)
2
–1
50
40
30
20
10
2 3
5 7 10
1
2 3
5 7 10
Gate Trigger Current vs.
Junction Temperature
PG(AV) = 0.5 W
PGM = 5 W
IGM = 2 A
VGT = 1.5 V
IFGT I IRGT I, IRGT III
VGD = 0.2 V
7
5
101 2 3 5 7102 2 3 5 7103 2 3 5 7104
Gate Trigger Current (Tj = t°C)
× 100 (%)
Gate Trigger Current (Tj = 25°C)
Gate Characteristics (I, II and III)
103
7
5
3
2
2
Typical Example
IRGT III
102
IRGT I, IFGT I
7
5
3
2
101
–60 –40–20 0 20 40 60 80 100 120 140
Gate Current (mA)
Junction Temperature (°C)
Gate Trigger Voltage vs.
Junction Temperature
Maximum Transient Thermal Impedance
Characteristics (Junction to case)
3
10
7
5
Typical Example
3
2
102
7
5
3
2
1
10
–60 –40–20 0 20 40 60 80 100 120 140
Junction Temperature (°C)
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
Transient Thermal Impedance (°C/W)
Gate Voltage (V)
Gate Trigger Voltage (Tj = t°C)
× 100 (%)
Gate Trigger Voltage (Tj = 25°C)
60
Conduction Time (Cycles at 60Hz)
100
7
5
3
2
10
70
On-State Voltage (V)
3
2 VGM = 10 V
–1
80
0 0
10
0.6 1.0 1.4 1.8 2.2 2.6 3.0 3.4 3.8
101
7
5
3
2
90
102 2 3 5 7103 2 3 5 7
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0 –1
10 2 3 5 7100 2 3 5 7101 2 3 5 7102
Conduction Time (Cycles at 60Hz)
Page 3 of 7
BCR8PM-12LE
Preliminary
No Fins
14
12 360° Conduction
Resistive,
10 inductive loads
8
6
4
2
0
0
10 2 3 5 7102 2 3 5 7103 2 3 5 7104 2 3 5 7105
2
4
6
8
10 12 14 16
Conduction Time (Cycles at 60 Hz)
RMS On-State Current (A)
Allowable Case Temperature vs.
RMS On-State Current
Allowable Ambient Temperature vs.
RMS On-State Current
Curves apply regardless
of conduction angle
140
120
100
80
60
40
360° Conduction
20 Resistive,
inductive loads
0
0
2
4
6
8
10
12
14
160
Ambient Temperature (°C)
Case Temperature (°C)
16
On-State Power Dissipation (W)
10
7
5
3
2
102
7
5
3
2
101
7
5
3
2
100
7
5
3
2
10–1 1
160
120 × 120 × t2.3
120
100 × 100 × t2.3
100
60 × 60 × t2.3
80
Curves apply
regardless of
conduction angle
Resistive,
inductive loads
Natural convection
60
40
20
0
0
16
All fins are black painted
aluminum and greased
140
2
4
6
8
10 12 14 16
RMS On-State Current (A)
RMS On-State Current (A)
Allowable Ambient Temperature vs.
RMS On-State Current
Repetitive Peak Off-State Current vs.
Junction Temperature
160
Ambient Temperature (°C)
Maximum On-State Power Dissipation
3
Natural convection
No Fins
Curves apply regardless
of conduction angle
Resistive, inductive loads
140
120
100
80
60
40
20
0
0
0.5
1.0
1.5
2.0
2.5
RMS On-State Current (A)
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
3.0
Repetitive Peak Off-State Current (Tj = t°C)
× 100 (%)
Repetitive Peak Off-State Current (Tj = 25°C)
Transient Thermal Impedance (°C/W)
Maximum Transient Thermal Impedance
Characteristics (Junction to ambient)
105
7
5
3
2
Typical Example
104
7
5
3
2
3
10
7
5
3
2
2
10
–60 –40–20 0 20 40 60 80 100 120 140
Junction Temperature (°C)
Page 4 of 7
BCR8PM-12LE
Preliminary
103
7
5
Latching Current vs.
Junction Temperature
Latching Current (mA)
Typical Example
3
2
102
7
5
3
2
101
–60 –40–20 0 20 40 60 80 100 120 140
100
80
60
40
20
0
–60 –40–20 0 20 40 60 80 100 120 140
Breakover Voltage (dv/dt = xV/μs)
× 100 (%)
Breakover Voltage (dv/dt = 1V/μs)
120
7
5
3
2
101
7
5
3
+ +
2 T2–, G– Typical Example
T2 , G
100
–40
0
40
80
120
160
160
Typical Example
Tj = 125°C
140
120
100
80
60
III Quadrant
40
20
I Quadrant
0 1
10 2 3 5 7102 2 3 5 7103 2 3 5 7104
Junction Temperature (°C)
Rate of Rise of Off-State Voltage (V/μs)
Commutation Characteristics
Gate Trigger Current vs.
Gate Current Pulse Width
Time
Main Voltage
(dv/dt)c
VD
Main Current
(di/dt)c
IT
τ
Time
1
10
7
5 Minimum
Characteristics
Value
100
7 0
10
T2+, G–
Typical Example
Breakover Voltage vs.
Rate of Rise of Off-State Voltage
140
3
2
102
Breakover Voltage vs.
Junction Temperature
Typical Example
3
2
Distribution
Junction Temperature (°C)
160
7
5
103
7
5
3
2
Junction Temperature (°C)
Typical Example
Tj = 125°C
IT = 4 A
τ = 500 μs
VD = 200 V
f = 3 Hz
I Quadrant
III Quadrant
2 3
5 7 10
1
2 3
5 7 10
Rate of Decay of On-State
Commutating Current (A/ms)
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
2
Gate Trigger Current (tw)
× 100 (%)
Gate Trigger Current (DC)
Critical Rate of Rise of Off-State
Commutating Voltage (V/μs)
Breakover Voltage (Tj = t°C)
× 100 (%)
Breakover Voltage (Tj = 25°C)
Holding Current (Tj = t°C)
× 100 (%)
Holding Current (Tj = 25°C)
Holding Current vs.
Junction Temperature
3
10
7
5
Typical Example
IFGT I
IRGT I
IRGT III
3
2
2
10
7
5
3
2
101 0
10
2 3
5 7 101
2 3
5 7 102
Gate Current Pulse Width (μs)
Page 5 of 7
BCR8PM-12LE
Preliminary
Gate Trigger Characteristics Test Circuits
6Ω
6Ω
A
6V
330 Ω
V
Test Procedure I
A
6V
V
330 Ω
Test Procedure II
6Ω
A
6V
V
330 Ω
Test Procedure III
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
Page 6 of 7
BCR8PM-12LE
Preliminary
Package Dimensions
Package Name
TO-220F(2)
JEITA Package Code
SC-67
RENESAS Code
PRSS0003AA-B
Previous Code
T220F(2)
MASS[Typ.]
2.0g
Unit: mm
10.5Max
2.8
17
8.5
5.0
1.2
5.2
φ3.2 ± 0.2
13.5Min
3.6
1.5Max
0.8
2.54
0.5
2.6
4.5
2.54
Order Code
Lead form
Straight type
Lead form
Standard packing
Quantity
Vinyl sack
Plastic Magazine (Tube)
100
50
Standard order code
Type name
Type name – Lead forming code
Standard order
code example
BCR8PM-12LE
BCR8PM-12LE-A8
Note : Please confirm the specification about the shipping in detail.
R07DS1240EJ0300 Rev.3.00
Dec 24, 2014
Page 7 of 7
Notice
1.
Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for
the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the
use of these circuits, software, or information.
2.
Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics
3.
Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or
assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.
technical information described in this document. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or
others.
4.
You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. Renesas Electronics assumes no responsibility for any losses incurred by you or
5.
Renesas Electronics products are classified according to the following two quality grades: "Standard" and "High Quality". The recommended applications for each Renesas Electronics product depends on
third parties arising from such alteration, modification, copy or otherwise misappropriation of Renesas Electronics product.
the product's quality grade, as indicated below.
"Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic
equipment; and industrial robots etc.
"High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anti-crime systems; and safety equipment etc.
Renesas Electronics products are neither intended nor authorized for use in products or systems that may pose a direct threat to human life or bodily injury (artificial life support devices or systems, surgical
implantations etc.), or may cause serious property damages (nuclear reactor control systems, military equipment etc.). You must check the quality grade of each Renesas Electronics product before using it
in a particular application. You may not use any Renesas Electronics product for any application for which it is not intended. Renesas Electronics shall not be in any way liable for any damages or losses
incurred by you or third parties arising from the use of any Renesas Electronics product for which the product is not intended by Renesas Electronics.
6.
You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage
range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the
use of Renesas Electronics products beyond such specified ranges.
7.
Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and
malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the
possibility of physical injury, and injury or damage caused by fire in the event of the failure of a Renesas Electronics product, such as safety design for hardware and software including but not limited to
redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult,
please evaluate the safety of the final products or systems manufactured by you.
8.
Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics
products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. Renesas Electronics assumes
no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.
9.
Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or
regulations. You should not use Renesas Electronics products or technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the
development of weapons of mass destruction. When exporting the Renesas Electronics products or technology described in this document, you should comply with the applicable export control laws and
regulations and follow the procedures required by such laws and regulations.
10. It is the responsibility of the buyer or distributor of Renesas Electronics products, who distributes, disposes of, or otherwise places the product with a third party, to notify such third party in advance of the
contents and conditions set forth in this document, Renesas Electronics assumes no responsibility for any losses incurred by you or third parties as a result of unauthorized use of Renesas Electronics
products.
11. This document may not be reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.
(Note 1)
"Renesas Electronics" as used in this document means Renesas Electronics Corporation and also includes its majority-owned subsidiaries.
(Note 2)
"Renesas Electronics product(s)" means any product developed or manufactured by or for Renesas Electronics.
http://www.renesas.com
SALES OFFICES
Refer to "http://www.renesas.com/" for the latest and detailed information.
Renesas Electronics America Inc.
2801 Scott Boulevard Santa Clara, CA 95050-2549, U.S.A.
Tel: +1-408-588-6000, Fax: +1-408-588-6130
Renesas Electronics Canada Limited
1101 Nicholson Road, Newmarket, Ontario L3Y 9C3, Canada
Tel: +1-905-898-5441, Fax: +1-905-898-3220
Renesas Electronics Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K
Tel: +44-1628-585-100, Fax: +44-1628-585-900
Renesas Electronics Europe GmbH
Arcadiastrasse 10, 40472 Düsseldorf, Germany
Tel: +49-211-6503-0, Fax: +49-211-6503-1327
Renesas Electronics (China) Co., Ltd.
Room 1709, Quantum Plaza, No.27 ZhiChunLu Haidian District, Beijing 100191, P.R.China
Tel: +86-10-8235-1155, Fax: +86-10-8235-7679
Renesas Electronics (Shanghai) Co., Ltd.
Unit 301, Tower A, Central Towers, 555 Langao Road, Putuo District, Shanghai, P. R. China 200333
Tel: +86-21-2226-0888, Fax: +86-21-2226-0999
Renesas Electronics Hong Kong Limited
Unit 1601-1613, 16/F., Tower 2, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong
Tel: +852-2265-6688, Fax: +852 2886-9022/9044
Renesas Electronics Taiwan Co., Ltd.
13F, No. 363, Fu Shing North Road, Taipei 10543, Taiwan
Tel: +886-2-8175-9600, Fax: +886 2-8175-9670
Renesas Electronics Singapore Pte. Ltd.
80 Bendemeer Road, Unit #06-02 Hyflux Innovation Centre, Singapore 339949
Tel: +65-6213-0200, Fax: +65-6213-0300
Renesas Electronics Malaysia Sdn.Bhd.
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No. 18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: +60-3-7955-9390, Fax: +60-3-7955-9510
Renesas Electronics Korea Co., Ltd.
12F., 234 Teheran-ro, Gangnam-Ku, Seoul, 135-920, Korea
Tel: +82-2-558-3737, Fax: +82-2-558-5141
© 2014 Renesas Electronics Corporation. All rights reserved.
Colophon 4.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
