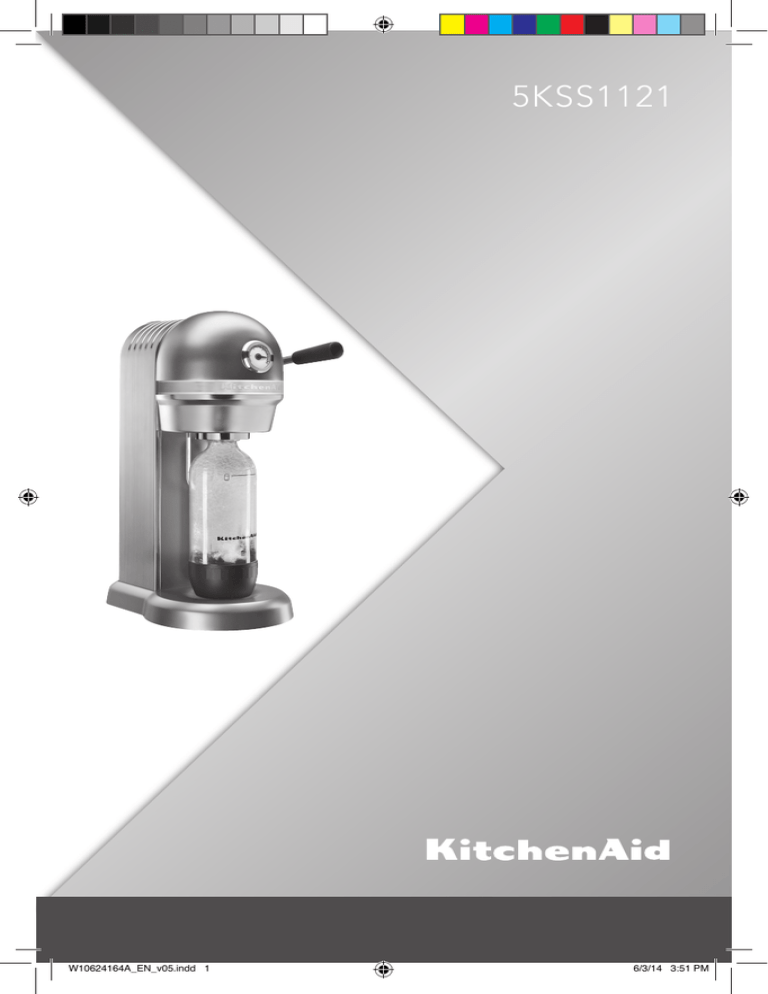

KitchenAid 5KSS1121 Instructions For Use Manual

5KSS1121

W10624164A_EN_v05.indd 1 6/3/14 3:51 PM

W10624164A_EN_v05.indd 2 6/3/14 3:51 PM

English ................................................................................ 5

Deutsch ............................................................................ 00

Français ............................................................................ 00

Italiano .............................................................................. 00

Nederlands ...................................................................... 00

Español ............................................................................. 00

Português ......................................................................... 00

Ελληνικά ........................................................................... 00

Svenska ............................................................................ 00

Norsk ................................................................................ 00

Suomi ................................................................................ 00

Dansk ................................................................................ 00

Íslenska ............................................................................. 00

Русский ............................................................................ 00

Polski ................................................................................. 00

Český ................................................................................ 00

............................................................................... 00

W10624164A_EN_v05.indd 3 6/3/14 3:51 PM

W10624164A_EN_v05.indd 4 6/3/14 3:51 PM

SPARKLING BEVERAGE MAKER INSTRUCTIONS

SPARKLING BEVERAGE MAKER SAFETY

Important safeguards ...........................................................................................6

Safe handling of your Sparkling Beverage Maker .................................................7

Machine rating specifications ...............................................................................8

User licence for one SodaStream CO

Cylinder ..................................................8

PARTS AND FEATURES

Parts and accessories ...........................................................................................9

ASSEMBLING THE SPARKLING BEVERAGE MAKER

Installing the SodaStream CO

Cylinder ............................................................10

USING THE SPARKLING BEVERAGE MAKER

Making sparkling beverages ...............................................................................11

Making soda: adding flavouring (optional) .........................................................12

CARE AND CLEANING

Replacing the batteries ......................................................................................13

Cleaning the Sparkling Beverage Maker ............................................................14

Cleaning the bottles ...........................................................................................14

Replacing the SodaStream CO

Removing the SodaStream CO

Cylinder ..........................................................15

TROUBLESHOOTING ..........................................................................................16

WARRANTY AND SERVICE ................................................................................18

W10624164A_EN_v05.indd 5

6/3/14 3:51 PM

SPARKLING BEVERAGE MAKER SAFETY SPARKLING BEVERAGE MAKER SAFETY

IMPORTANT SAFEGUARDS

WARNING: When using this appliance, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. To reduce the risk of injury, close supervision is necessary when an appliance is used near children.

3. Use only attachments recommended or sold by the manufacturer.

4. Store Sparkling Beverage Maker indoors.

5. Do not use the CO

bottle if the bottle head valve assembly is damaged.

SAVE THESE INSTRUCTIONS

W10624164A_EN_v05.indd 6 6/3/14 3:51 PM

SPARKLING BEVERAGE MAKER SAFETY SPARKLING BEVERAGE MAKER SAFETY

Safe Handling of your Sparkling Beverage Maker

It is important that you read and understand all use and care instructions and the important safety information before operating this Sparkling Beverage Maker.

IMPORTANT SAFETY INFORMATION

CARBONATING BOTTLE:

• WARNING: NEVER WASH THE CARBONATING BOTTLE IN THE DISHWASHER

OR OTHERWISE EXPOSE IT TO HEAT ABOVE 49°C OR EXTREME COLD BELOW 1°C.

DO NOT rinse the bottle in hot water. DO NOT place the bottle next to a heat source such as your kitchen stove. DO NOT leave the bottle in your car.

DO NOT place the bottle in the freezer. Doing so will compromise the integrity of the carbonating bottle material and may result in serious personal injury.

• WARNING: DO NOT use a carbonating bottle if changes in shape have occurred, as that indicates that the bottle is damaged. IF CARBONATING BOTTLES ARE MISTAKENLY

WASHED IN THE DISHWASHER, DO NOT USE THEM. THROW THEM AWAY. USING

BOTTLES THAT HAVE BEEN WASHED IN THE DISHWASHER OR BOTTLES THAT ARE

SCRATCHED, WORN, DISCOLOURED, OR DAMAGED IN ANY WAY MAY RESULT IN

SERIOUS PERSONAL INJURY.

• WARNING: DO NOT USE THE SPARKLING BEVERAGE MAKER TO CARBONATE ANY

LIQUIDS OTHER THAN PLAIN WATER. ADD FLAVOUR ONLY AFTER CARBONATION.

• WARNING: DO NOT carbonate with any bottle not specifically designed to work with this Sparkling Beverage Maker.

• WARNING: The carbonating bottle must be properly installed before operating the

Sparkling Beverage Maker.

• WARNING: DO NOT carbonate an empty carbonating bottle.

• WARNING: Each carbonating bottle is clearly marked with an expiration date near the bottom of the bottle. DO NOT use bottles after their expiration date. Recycle and replace expired bottles in accordance with local recycling laws.

SODASTREAM CO

CYLINDER:

• DANGER: A CO

leak can lead to carbon dioxide poisoning. In the event of a CO

leak, ventilate the area, breathe fresh air and if feeling unwell seek immediate medical attention.

• WARNING: The SodaStream CO

Cylinder should be inspected prior to use for any dents, punctures, or other damage. If any are detected DO NOT use the cylinder and contact a SodaStream-authorised service representative.

• WARNING: Mishandling the cylinder can result in serious personal injury.

• WARNING: Use caution when removing the cylinder as it may be very cold immediately after use.

• WARNING: Always keep the cylinder away from any heat source and out of direct sunlight.

• WARNING:DO NOT transport the Sparkling Beverage Maker with the CO

2 in place.

cylinder

• WARNING: DO NOT tamper with the CO

2 cylinder in any way.

• WARNING: DO NOT attempt to puncture or incinerate the CO

2 cylinder.

• WARNING: DO NOT throw the CO

2 cylinder or cause it to fall.

• WARNING: DO NOT handle a CO

2 cylinder while it is discharging CO

GENERAL WARNINGS:

• DANGER: Misuse of this Sparkling Beverage Maker may result in serious personal injury.

• WARNING: Use the Sparkling Beverage Maker in an upright position on a flat, stable surface away from sources of heat. DO NOT place the Sparkling Beverage Maker on a hot surface (e.g. stove top).

• WARNING: DO NOT move the Sparkling Beverage Maker during the carbonation process.

W10624164A_EN_v05.indd 7 6/3/14 3:51 PM

SPARKLING BEVERAGE MAKER SAFETY

Machine rating specifications

Maximum working pressure: 145 PSI / 10 Bar.

Maximum allowed operating temperature: 40°C.

Bottle capacity at fill line will be in the range of 400 ml / 1.0 litre

(varies by size and shape of carbonating bottle used).

Brimful bottle capacity will be in the range of 480 ml – 1.1 litre

(varies by size and shape of carbonating bottle used).

USER LICENCE FOR ONE SODASTREAM CO

CYLINDER

NOT FOR SALE

PROPERTY OF SODA-CLUB (CO2) SA - UNDER LICENCE

This is a legally binding document between Soda-Club (CO2) SA of Switzerland or its affiliates and the consumer regarding the right to use a Soda-Club/SodaStream CO

Cylinder

(the “CO

Cylinder”).

To protect users’ safety and health, various directives and regulations govern and regulate the use, refilling, maintenance, retesting, and repair of carbon dioxide pressure containers (CO

Cylinders).

SodaStream possesses the legally required knowledge and expertise to be responsible for strict legal compliance. This can only be guaranteed if the CO examined, retested, and refilled by SodaStream. Thus, each CO

Cylinders are mantained,

Cylinder remains the

property of Soda-Club (CO2) SA, or its affiliates, and is provided under licence.

1. When empty, please return the CO

Cylinder to either SodaStream or an authorised

SodaStream retailer, either in exchange for a full CO

Cylinder.

Cylinder, for the price of the

refill only, or for safe disposal. This Licence will continue to bind the use of each subsequent CO

2. Refilling empty CO

Cylinders by third parties could be extremely risky. Unauthorised refilling might violate the law and SodaStream’s rights. SodaStream warrants the safety only of CO the valve.

Cylinders refilled by it, bearing a SodaStream safety seal on

3. If you return the CO

Cylinder to SodaStream or an authorised SodaStream retailer, in good condition, without exchanging it for a full one, a return fee will be payable to you. Contact your local SodaStream representative for details.

4. The CO

Cylinder, together with this User Licence, may be transferred to a third party provided the third party agrees to be obligated by the conditions and ownership rights expressed herein. Possession of the User Licence proves the right of its holder to use one CO

Cylinder under the terms herein.

The laws of the country in which the SodaStream CO

2 this licence.

Cylinder was supplied will govern

For questions or comments, please contact SodaStream International BV, Provinciënbaan16,

5121 DL Rijen (NL).

PARTS AND FEATURES

W10624164A_EN_v05.indd 8 6/3/14 3:51 PM

SPARKLING BEVERAGE MAKER SAFETY PARTS AND FEATURES

Parts and accessories

Carbonation lever

Carbonation gauge

SodaStream

Cylinder

Sturdy die-cast construction

Carbonating tube

Bottle loading lever

W10624164A_EN_v05.indd 9

1 L Carbonating bottle

6/3/14 3:51 PM

ASSEMBLING THE SPARKLING BEVERAGE MAKER

Installing the SodaStream CO

Cylinder

Before First Use

Place the Sparkling Beverage Maker on a flat, sturdy surface, in an upright position.

Remove packaging materials.

The Sparkling Beverage Maker uses

3 AAA batteries. To replace batteries, see the “Care and Cleaning” section.

To remove back cover: Grasp back cover and pull away from unit. Set cover aside.

USING THE SPARKLING BEVERAGE MAKER

Remove seal and cap from SodaStream

Cylinder. Insert 60 L* SodaStream

Cylinder into the Sparkling

Beverage Maker. First tip downward into the base and then push upward into the valve fitting.

Turn the SodaStream CO

Hand-tighten only.

Cylinder counterclockwise until it stops.

To reinstall back cover: tilt back cover toward you; insert bottom tab into slot and push cover into place.

* The 60 L

SodaStream

Cylinder produces up to 60 litres of sparkling water, depending on the level of carbonation.

W10624164A_EN_v05.indd 10 6/3/14 3:51 PM

ASSEMBLING THE SPARKLING BEVERAGE MAKER USING THE SPARKLING BEVERAGE MAKER

Making sparkling water

Rinse the carbonating bottle before use.

Prior to making sparkling water, fill bottle with water up to the fill line. For best results, carbonate chilled water. To avoid product damage, carbonate water only.

WARNING: Do not carbonate an empty bottle.

To insert bottle, make sure that the carbonation lever is in its fully upward position and the bottle loading lever is angled forward. If not angled forward, pull it toward you until it clicks. Do not pull carbonating tube.

Insert bottle neck into the snap-lock. Firmly push bottle up and back. The snap-lock mechanism will catch the bottle firmly.

Carbonate in short pulses by pulling the carbonation lever down firmly and then allowing the lever to return to a middle rest position before repeating. Continue until the desired level of carbonation is achieved.

Do not move the Sparkling Beverage Maker during the carbonation process.

W10624164A_EN_v05.indd 11

6/3/14 3:51 PM

USING THE SPARKLING BEVERAGE MAKER

To release bottle, push Carbonation lever to its fully upward position. You will hear the sound of excess CO

discharge.

Pull bottle toward you to release bottle from snap-lock; the bottle will be released automatically.

WARNING: Do not remove the bottle until after you hear the sound of excess

finish discharging.

Making sparkling beverages: adding flavouring (optional)*

All SodaStream flavours, including from

SodaStream Caps* and Sodamix* can be added to the sparkling water in the carbonating bottles after using the

Sparkling Beverage Maker.

After carbonating, add your favourite flavour. See Sodamix package for instructions.

*Additional flavouring options sold separately.

CARE AND CLEANING

W10624164A_EN_v05.indd 12 6/3/14 3:51 PM

USING THE SPARKLING BEVERAGE MAKER CARE AND CLEANING

Replacing the batteries

To remove back cover: Grasp back cover and pull away from unit. Set cover aside.

Use a Phillips screwdriver to loosen the screw holding the battery compartment cover plate in place.

Replace three AAA batteries in the battery compartment, put the cover plate in place and secure with the screw.

W10624164A_EN_v05.indd 13

6/3/14 3:51 PM

CARE AND CLEANING

Cleaning the Sparkling Beverage Maker

Never use abrasive cleaners or sharp tools to clean. If needed, use a mild hand dishwashing liquid and a soft, damp cloth to clean. Dry thoroughly.

Wipe the exterior of the Sparkling

Beverage Maker with a soft cloth.

Wipe spills in base to keep base dry.

WARNING: Do not place in water or in a dishwasher. Doing so will seriously damage your Sparkling Beverage Maker.

To avoid damaging the Sparkling Beverage Maker, do not place or store close to a heat source such as a stove top.

Cleaning the bottles

Do not wash carbonating bottles in the dishwasher. If desired, rinse carbonating bottles with cold or lukewarm water, but never rinse with hot water. If needed, use a mild hand dishwashing liquid and a soft-bristled brush to clean.

WARNING

• Do not use bottle if damaged or deformed.

• Do not expose bottle to temperatures below 1°C or above 49°C.

• Do not wash bottle in dishwasher or hot water.

• Do not place bottles in the freezer.

• Do not use the carbonating bottle after the expiration date printed on the bottle.

See the “Sparkling Beverage Maker Safety” section for more information.

CARE AND CLEANING

W10624164A_EN_v05.indd 14 6/3/14 3:51 PM

CARE AND CLEANING CARE AND CLEANING

Replacing the SodaStream CO

Cylinder

The SodaStream CO

One SodaStream CO

SodaStream CO

Cylinder is provided to you under licence. See “User Licence for

Cylinder” section. The licence allows you to exchange your empty

Cylinder for a full one at a participating SodaStream authorised retailer near you. For a list of SodaStream authorised retailers near you visit www.sodastream.com.

See “Installing the SodaStream CO the new SodaStream CO

Cylinder.

Cylinder” section for instructions on how to install

Removing the SodaStream CO

Cylinder

First remove the 1 L Carbonating bottle from the Sparkling Beverage Maker if you have already installed it.

Detach the SodaStream CO unscrewing towards the left.

Cylinder from the Sparkling Beverage Maker by

W10624164A_EN_v05.indd 15

6/3/14 3:51 PM

TROUBLESHOOTING

IMPORTANT: Before you call for service, check the list of problems and solutions below:

1. Sparkling Beverage Maker does not work:

• You might be out of CO

Cylinder by exchanging it for a full SodaStream 60 L CO

; replace your

Cylinder.

• Check that the carbonating bottle has been filled up with water to the fill line.

• Ensure that the Sparkling Beverage Maker is always in the upright position.

• CO

Cylinder may be loose. Do not use tools. Detach the bottle, open the rear cover, and retighten the CO

Cylinder.

Apply firm pressure but do not over tighten. If the CO

Cylinder is already firmly in place, it may be empty. Replace with a full 60 L SodaStream CO cylinder as it may be very cold.

Cylinder.

WARNING: Use caution when removing

2. Cannot pull bottle loader tab:

• Make sure Carbonation lever is in its fully upward position.

• Pull bottle loader tab firmly towards you.

3. Cannot install the carbonating bottle:

• Make sure the carbonating lever is in its fully upward position.

• Pull the bottle loader tab toward you until it clicks.

• Insert bottle into Snap-Lock

• Push bottle up and back until it locks.

4. You hear CO

escaping from the bottle during carbonation:

• Bottle may not be properly attached.

Allow the Sparkling Beverage Maker to finish the carbonation process and then you can detach the bottle and reconnect it following the instructions in the “Making sparkling water” section.

• It is normal to hear a small amount of CO

discharge at the end of the carbonating process.

5. You want to re-carbonate a drink that was already carbonated:

WARNING: Never carbonate again after you have added the flavour. You may recarbonate only unflavoured sparkling water.

6. If your Sparkling Beverage Maker continues to release CO

carbonation is finished:

after

WARNING: Do not remove the cylinder or the bottle. Leave the Sparkling Beverage

Maker in an upright position. Do not touch it until you no longer hear CO

escaping.

When the Sparkling Beverage Maker is no longer releasing CO

, remove the carbonating bottle, and call for service.

See “Warranty and service” section for more information.

W10624164A_EN_v05.indd 16 6/3/14 3:51 PM

TROUBLESHOOTING

7. You hear CO

2 the Cylinder:

escaping from

• There may be a pressure leak between the CO

Cylinder holder and the valve.

Screw the CO

Cylinder tighter into its fitting. Do not use tools.

8. If you experience poor carbonation:

• If you have not yet added flavour, try to carbonate to a higher carbonation level.

• Check the CO be out of CO

Cylinder. You might

• Make sure that you are carbonating chilled water.

9. Water overflows from the carbonating bottle during carbonation:

• Check that the carbonating bottle is filled just to the fill line.

• Verify that the carbonating bottle is firmly installed in the Snap-Lock. Check by gently pulling the bottom of the bottle. If it feels loose, then remove and reinsert.

10. If your sparkling drink is not flavourful enough:

• Just add more flavour to taste.

• Do not re-carbonate after adding the flavour.

11. Small pieces of ice appear in the water during carbonation:

• This might happen when carbonating very cold water. If this happens, shorten the time of each press until the ice stops appearing or it can affect the carbonation.

Any ice created will simply melt.

• Ice can form and restrict the flow of

into the bottle during repeated heavy carbonation. Allow a few minutes between carbonating several bottles to maintain normal carbonation time.

WARNING: If you suspect your

Sparkling Beverage Maker is damaged, stop using it immediately and call for service.

See “Warranty and service” section for more information.

12. The gauge is not working:

You may need to replace the batteries as shown in the “Care and cleaning’” section.

W10624164A_EN_v05.indd 17

6/3/14 3:51 PM

WARRANTY AND SERVICE

KitchenAid Sparkling Beverage Maker warranty

Length of

Warranty:

Europe, Middle East and Africa:

Two years full warranty from date of purchase.

KitchenAid Will Pay

For:

KitchenAid Will Not

Pay For:

The replacement parts and repair labour costs to correct defects in materials or workmanship.

Service must be provided by an Authorised

KitchenAid Service

Center.

A. Repairs when Sparkling

Beverage Maker is used for operations other than normal household food preparation.

B. Damage resulting from accident, alterations, misuse, abuse, or installation/operation not in accordance with local electrical codes.

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT

DAMAGES.

Customer service

In U.K. and Ireland:

For any questions, or to find the nearest KitchenAid Authorised Service Center, please find our contact details below.

NOTE: All service should be handled locally by an Authorised KitchenAid Service Center.

Contact number for U.K. and Northern Ireland:

Freephone number 0800 988 1266 (calls from mobile phones are charged standard network rate) or call 01942605504.

Contact number for Ireland:

Freephone number +44 (0) 20 8616 5148

E-mail contact for U.K. and Ireland:

Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom of the page.

Address for U.K. and Ireland:

KitchenAid Europa, Inc.

PO BOX 19

B-2018 ANTWERP 11

BELGIUM

In other countries:

For all product related questions and after sales matters, please contact your dealer to obtain the name of the nearest Authorised KitchenAid Service/Customer Center.

www.KitchenAid.eu

W10624164A_EN_v05.indd 18

Specifications subject to change without notice.

6/3/14 3:51 PM

WARRANTY AND SERVICE

W10624164A_EN_v05.indd 19 6/3/14 3:51 PM

W10624164A

Specifications subject to change without notice.

W10624164A_EN_v05.indd 20

06/14

6/3/14 3:51 PM

Thank you for your participation!
