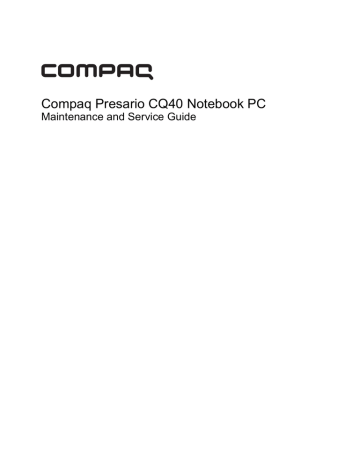

Compaq Presario CQ40 Notebook PC
Maintenance and Service Guide
© Copyright 2009 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel, Core, and
Pentium are trademarks of Intel Corporation
in the U.S. and other countries. Microsoft,
Windows, and Windows Vista are U.S.
registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: April 2009
Document Part Number: 519816-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv
Safety warning notice
Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 4
TouchPad ............................................................................................................................ 4
Lights ................................................................................................................................... 5
Buttons and speakers .......................................................................................................... 7
Keys ..................................................................................................................................... 8
Display ................................................................................................................................. 9
Wireless antennas ............................................................................................................. 10
Front components .............................................................................................................................. 11
Left-side components ......................................................................................................................... 12
Rear component ................................................................................................................................. 13
Right-side components ....................................................................................................................... 13
Bottom components ........................................................................................................................... 14
3 Illustrated part numbers catalog
Service tag ......................................................................................................................................... 15
Computer major components ............................................................................................................. 16
Display assembly components ........................................................................................................... 20
Plastics Kit .......................................................................................................................................... 21
Mass storage devices ......................................................................................................................... 22
Miscellaneous parts ............................................................................................................................ 23
Sequential part number listing ............................................................................................................ 24
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 27
Tools required .................................................................................................................... 27
Service considerations ....................................................................................................... 27
Plastic parts ....................................................................................................... 27
Cables and connectors ..................................................................................... 28
Drive handling ................................................................................................... 28
Grounding guidelines ......................................................................................................... 29
v
Electrostatic discharge damage ........................................................................ 29
Packaging and transporting guidelines ............................................. 30
Workstation guidelines ..................................................................... 30
Equipment guidelines ....................................................................... 31
Component replacement procedures ................................................................................................. 32
Service tag ......................................................................................................................... 32
Computer feet .................................................................................................................... 33
Battery ............................................................................................................................... 34
Optical drive ....................................................................................................................... 35
Hard drive .......................................................................................................................... 36
WLAN module .................................................................................................................... 38
RTC battery ....................................................................................................................... 40
Memory module ................................................................................................................. 42
Keyboard ........................................................................................................................... 44
Keyboard cover .................................................................................................................. 46
Power button board ........................................................................................................... 48
Speaker assembly ............................................................................................................. 49
Display assembly ............................................................................................................... 51
Camera module ................................................................................................................. 57
Microphone module ........................................................................................................... 58
Top cover ........................................................................................................................... 59
TouchPad button board ..................................................................................................... 62
Bluetooth module ............................................................................................................... 64
Modem module (select models only) ................................................................................. 66
Audio board ....................................................................................................................... 68
USB board ......................................................................................................................... 70
Power connector cable ...................................................................................................... 72
System board ..................................................................................................................... 74
Heat sink ............................................................................................................................ 77
Processor ........................................................................................................................... 79
Fan ..................................................................................................................................... 81
5 Setup Utility
Starting the Setup Utility ..................................................................................................................... 83
Changing the language of the Setup Utility ........................................................................................ 84
Navigating and selecting in the Setup Utility ...................................................................................... 84
Displaying system information ............................................................................................................ 85
Restoring default settings in the Setup Utility ..................................................................................... 85
Exiting the Setup Utility ...................................................................................................................... 86
Setup Utility menus ............................................................................................................................ 87
6 Specifications
Computer specifications ..................................................................................................................... 89
vi
14.1-in, WXGA BrightView display specifications .............................................................................. 90
Hard drive specifications .................................................................................................................... 91
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications .................................. 92
Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive specifications ............................................. 93
System DMA specifications ................................................................................................................ 94
System interrupt specifications ........................................................................................................... 95
System I/O address specifications ..................................................................................................... 96
System memory map specifications ................................................................................................... 98
7 Screw listing
Phillips PM2.0×2.0 broadhead screw ............................................................................................... 100
Phillips PM2.0×3.0 screw (black) ..................................................................................................... 101
Phillips PM2.0×3.0 screw (silver) ..................................................................................................... 102
Phillips PM2.0×4.0 screw ................................................................................................................. 103
Phillips PM2.0×10.0 captive screw ................................................................................................... 105
Phillips PM2.5×3.0 screw ................................................................................................................. 106
Phillips PM2.5×4.0 screw ................................................................................................................. 109
Phillips PM2.5×5.0 screw ................................................................................................................. 110
Phillips PM2.5×5.0 captive screw ..................................................................................................... 113
Phillips PM2.5×6.0 screw ................................................................................................................. 114
Phillips PM2.5×7.0 captive screw ..................................................................................................... 116
Phillips PM2.5×10.0 screw ............................................................................................................... 117
Phillips PM2.5×18.0 screw ............................................................................................................... 118
Phillips PM3.0×3.0 screw ................................................................................................................. 119
8 Backup and recovery
Recovering system information ........................................................................................................ 120
Creating recovery discs ................................................................................................... 121
Backing up your information ............................................................................................ 121
When to back up ............................................................................................. 121
Backup suggestions ........................................................................................ 122
Using system restore points ............................................................................ 122
When to create restore points ........................................................ 122
Create a system restore point ........................................................ 123
Restore to a previous date and time ............................................... 123
Performing a recovery ..................................................................................................... 124
Recovering from the recovery discs ................................................................ 124
Recovering from the dedicated recovery partition (select models only) .......... 124
9 Connector pin assignments
Audio-in (microphone) ...................................................................................................................... 125
Audio-out (headphone) ..................................................................................................................... 125
External monitor ............................................................................................................................... 126
vii
HDMI ................................................................................................................................................ 127
RJ-11 (modem) (select models only) ............................................................................................... 128
RJ-45 (network) ................................................................................................................................ 128
Universal Serial Bus ......................................................................................................................... 129
10 Power cord set requirements
Requirements for all countries or regions ......................................................................................... 130
Requirements for specific countries or regions ................................................................................ 131
11 Recycling
Battery .............................................................................................................................................. 132
Display .............................................................................................................................................. 132
Index ................................................................................................................................................................. 138
viii
1
Product description
Category
Description
Product Name
Compaq Presario CQ40 Notebook PC
Processors
Intel® Core™2 Duo mobile processors
T9550 2.66 GHz, 6-MB L2 cache, 1066-MHz front-side bus (FSB)
P8700 2.53 GHz, 3-MB L2 cache, 1066-MHz FSB
P8600 2.4 GHz, 3-MB L2 cache, 1066-MHz FSB
P8400 2.26 GHz, 3-MB L2 cache, 1066-MHz FSB
P7450 2.13 GHz, 3-MB L2 cache, 1066-MHz FSB
T5800 2.0 GHz, 2-MB L2 cache, 800-MHz FSB
T6400 2.0 GHz, 2-MB L2 cache, 800-MHz FSB
T6600 2.2 GHz, 2-MB L2 cache, 800-MHz FSB
Intel Pentium® processor for mobile
T3400 2.16 GHz, 1-MB L2 cache, 800-MHz FSB
T4200 2.0 GHz, 1-MB L2 cache, 800-MHz FSB
Chipset
Northbridge: Intel PM45
Southbridge: Intel ICH9M
Graphics
Discrete graphics
nVIDIA N1OM-GE2-S with 512 MB of dedicated video memory
Panel
14.1-in, WXGA BrightView (1280 × 800) display panel
16:10 Wide Aspect Ratio
Memory
2 SODIMM slots
Customer-accessible and upgradable
Supports up to 4 GB of system RAM
PC2-6400 800-MHz, DDR2
1
Category
Description
Supports the following configurations:
Hard drives
●
4096 MB total system memory (2048 × 2)
●
3072 MB total system memory (2048 + 1024)
●
2048 MB total system memory (2048 × 1)
●
2048 MB total system memory (1024 × 2)
●
1024 MB total system memory (1024 × 1)
Supports 9.5-mm, 6.35-mm (2.5-in) SATA hard drives
Supports the following configurations:
Optical drives
●
500 GB, 5400 rpm
●
320 GB, 5400 rpm
●
250 GB, 5400 rpm
●
160 GB, 5400 rpm
Fixed (removal of one screw required)
Serial ATA (SATA)
12.7-mm tray load
Supports the following drives:
●
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with
LightScribe
●
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive
Diskette drive
Supports external USB drive only
Webcam
VGA camera
Fixed (no tilt)
640 × 480 at 24 frames per second
Microphone
Single analog microphone
Audio
High Definition (HD) audio
Supports Windows Vista® Premium Logo requirements
Presario-branded Altec Lansing speakers
Modem
56K MDC V.92 data/fax modem (select models only)
Ethernet
Integrated 10/100/1000M network interface card (NIC)
Wireless
Integrated wireless local area network (WLAN) options by way of wireless
module:
Broadcom 4322 802.11a/b/g/n WLAN module
Broadcom 4312 802.11b/g WLAN module
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
2
Chapter 1 Product description
Category
Description
External media card
Digital Media Slot, supports SD, MMC, MS, MSP, xD
Internal media card
One full-sized Mini Card slot
Ports
Audio-in (stereo microphone)
Audio-out (stereo headphone)
RJ-11 (Modem, select models only)
RJ-45 (Ethernet, includes link and activity lights)
USB 2.0 (3 ports)
Smart-pin AC adapter plug
VGA (Dsub 15-pin) supporting 1920 × 1200 external resolution at 75-Hz,
1600 × 1200 external resolution at 75-Hz (hot plug/unplug with autodetect)
HDMI v1.3 supporting 1080p with HDCP key
Keyboard/pointing devices
Full-sized 14.1-in keyboard
TouchPad with 2 buttons and 2-way scroll (taps enabled by default)
Power requirements
6-cell Li-Ion battery (2.2-Ah, 47-Wh)
90-W AC adapter with localized cable support (Smart-Pin DC connector)
Security
Security cable slot
Operating system
Preinstalled:
Windows Vista Home Basic (32 bit)
Windows Vista Home Premium (32 bit)
Windows Vista Business (32 bit)
FreeDOS
Serviceability
End-user replaceable parts:
AC adapter
Battery (system)
Memory module
Optical drive
Mini Card
3
2
External component identification
Top components
TouchPad
Component
Description
(1)
TouchPad on/off button
Enables/disables the TouchPad.
(2)
TouchPad*
Moves the pointer and selects or activates items on the screen.
(3)
Left TouchPad button*
Functions like the left button on an external mouse.
(4)
TouchPad light
●
White: TouchPad is enabled.
●
Amber: TouchPad is disabled.
(5)
TouchPad scroll zone*
Scrolls up or down.
(6)
Right TouchPad button*
Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Hardware
and Sound > Mouse.
4
Chapter 2 External component identification
Lights
Component
Description
(1)
Caps lock light
On: Caps lock is on.
(2)
Power lights (2)*
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
Blue: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●
Amber: All wireless devices are off.
(3)
Wireless light
(4)
Num lock light
On: Num lock is on or the embedded numeric keypad is enabled.
(5)
Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
●
Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
Top components
5
Component
Description
(6)
●
Blinking: The hard drive or optical drive is being accessed.
●
On: HP ProtectSmart Hard Drive Protection has temporarily
parked the internal hard drive.
Drive light
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
6
Chapter 2 External component identification
Buttons and speakers
Component
Description
(1)
Speakers (2)
Produce sound.
(2)
Power button*
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, briefly press the button to initiate
Sleep.
●
When the computer is in the Sleep state, briefly press the
button to exit Sleep.
●
When the computer is in Hibernation, briefly press the button
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(3)
Wireless button
Turns the wireless feature on or off but does not establish a
wireless connection.
NOTE: A wireless network must be set up in order to establish a
wireless connection.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Top components
7
Keys
NOTE:
8
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
esc key
Displays system information when pressed in combination with
the fn key.
(2)
fn key
Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3)
Windows logo key
Displays the Windows Start menu.
(4)
Function keys
Execute frequently used system functions when pressed in
combination with the fn key.
(5)
Embedded numeric keypad keys
Can be used like the keys on an external numeric keypad.
(6)
Windows applications key
Displays a shortcut menu for items beneath the pointer.
(7)
Navigation keys (home, pg up, pg down)
Execute volume mute, volume up, or volume down when pressed
in combination with the fn key.
Chapter 2 External component identification
Display
NOTE:
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
Integrated webcam light
On: The integrated webcam is in use.
(2)
Integrated webcam
Records video and captures still photographs.
(3)
Internal microphone
Records sound.
NOTE: If there is a microphone icon next to each microphone
opening, your computer has internal microphones.
(4)
Internal display switch
Turns off the display if the display is closed while the computer is
turned on.
Top components
9
Wireless antennas
On select computer models, at least 2 antennas send and receive signals from one or more wireless
devices.
NOTE: The antennas are not visible from the outside of the computer. For optimal transmission, keep
the areas immediately around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
10
Chapter 2 External component identification
Front components
NOTE:
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
●
Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a low
battery level.
●
Blinking: The hard drive or optical drive is being accessed.
●
On: HP ProtectSmart Hard Drive Protection has temporarily
parked the internal hard drive.
(2)
(3)
Power light
Battery light
Drive light
(4)
Audio-in (microphone) jack
Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(5)
Audio-out (headphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
Front components
11
Left-side components
NOTE:
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
Attaches an optional security cable to the computer.
Security cable slot
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
12
(2)
External monitor port
Connects an external VGA monitor or projector.
(3)
RJ-45 (network) jack
Connects a network cable.
(4)
HDMI port
Connects an optional video or audio device, such as a highdefinition television, or any compatible digital or audio component.
(5)
USB port
Connects an optional USB device.
(6)
Digital Media Slot light
On: A digital card is being accessed.
(7)
Digital Media Slot
Supports the following optional digital card formats:
Chapter 2 External component identification
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMedia Card (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
Rear component
Component
Description
Vent
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal fan to
cycle on and off during routine operation.
Right-side components
NOTE:
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
Optical drive light
Blinking: The optical drive is being accessed.
(2)
Optical drive
Reads optical discs and, on select models, also writes to optical
discs.
(3)
USB ports (2)
Connect optional USB devices.
(4)
RJ-11 (modem) jack (select models only)
Connects a modem cable.
(5)
Power connector
Connects an AC adapter.
Rear component
13
Bottom components
Component
Description
(1)
Battery bay
Holds the battery.
(2)
Battery release latch
Releases the battery from the battery bay.
(3)
RTC battery compartment
Holds the RTC battery.
(4)
Memory module compartment
Contains the 2 memory module slots.
(5)
Hard drive and WLAN module compartment
Holds the hard drive and the wireless LAN (WLAN) device.
CAUTION: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for use in
the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(6)
Vents (3)
Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
14
Chapter 2 External component identification
3
Illustrated part numbers catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the device.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support
for the device.
(5) Warranty period: This number describes the duration of the warranty period for the device.
Service tag
15
Computer major components
16
Chapter 3 Illustrated part numbers catalog
Item
Description
Spare part number
(1)
14.1-in, WXGA BrightView display assembly
487281-001
NOTE: See Display assembly componentson page 20 for more display assembly
internal component spare part information.
(2)
(3)
Keyboard cover (includes power button board and cable)
487299-001
Power button board (not illustrated)
492249-001
Keyboard
South Korea
486904-AD1
Taiwan
486904-AB1
Thailand
486904-281
The United States
486904-001
(4)
Top cover
487300-001
(5)
USB board
486842-001
USB board cable (not illustrated)
486843-001
(6)
TouchPad
494960-001
(7)
Power connector cable (includes power connector and cable)
486864-001
(8)
TouchPad bracket
494962-001
(9)
TouchPad button board
494965-001
(10)
Audio board (includes audio connectors and audio board cable)
487344-001
Audio board cable (not illustrated)
486841-001
(11)
Modem module (select models only)
For use in all countries and regions except Australia and New Zealand
461749-001
For use in Australia and New Zealand
461749-011
Modem module cable (includes RJ-11 connector, not illustrated)
494981-001
Plastics Kit
486862-001
(12a)
Real time clock (RTC) battery compartment cover
(12b)
Hard drive cover
(12c)
Memory module compartment cover
(13)
Heat sink (includes thermal material)
530614-001
(14)
System board (includes thermal material)
532327-001
(15)
Speaker assembly
486865-001
(16)
Fan
486844-001
(17)
RTC battery (includes two-sided tape)
486835-001
(18)
WLAN module
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions
480985-001
Computer major components
17
Item
Description
Spare part number
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use in all countries and regions
482957-001
Broadcom 4312 802.11 WLAN b/g module for use in Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-001
Broadcom 4322 802.11 a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria,
487330-002
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria,
Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgaria, Burkina,
Faso Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad, Chile,
People's Republic of China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus,
Czech Republic, Zaire, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador,
Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya,
Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, British
Virgin Islands, French Guiana, Guadeloupe, Nether Antilles, Aruba, Bermuda, Syria,
Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau,
Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Qatar,
Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and
Principe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia,
Slovenia, Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts
and Nevis, St. Lucia, St. Vincent and Grenadines, Suriname, Swaziland, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, East Timor, Togo, Tonga, Trinidad
and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, United Arab
Emirates, The United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam,
Yemen, Zambia, and Zimbabwe
(19)
(20)
(21)
Optical drive (includes bezel)
●
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
532342-001
●
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive
532341-001
Base enclosure
For use in computer models with a modem module
492248-001
For use in computer models without a modem module
487359-001
Processor (includes thermal material)
Intel Core2 Duo mobile processor:
●
T9550 (2.66 GHz, 6-MB L2 cache)
507953-001
●
P8700 (2.53 GHz, 3-MB L2 cache)
507960-001
●
P8600 (2.40 GHz, 3-MB L2 cache)
507963-001
●
P8400 (2.26 GHz, 3-MB L2 cache)
507964-001
●
P7450 (2.13 GHz, 3-MB L2 cache)
507965-001
●
T5800 (2.06 GHz, 2-MB L2 cache)
515040-001
●
T6400 (2.00 GHz, 2-MB L2 cache)
513592-001
●
T6600 (2.20 GHz, 2-MB L2 cache)
513593-001
Intel Pentium processor for mobile:
18
Chapter 3 Illustrated part numbers catalog
Item
(22)
(23)
(24)
(25)
Description
Spare part number
●
T3400 (2.16 GHz, 1-MB cache)
509549-001
●
T4200 (2.00 GHz, 1-MB cache)
513599-001
Bluetooth module
483113-001
Bluetooth module cable (not illustrated)
488130-001
Memory modules (PC2-6400, 800-MHz, DDR2)
●
1024 MB
532331-001
●
2048 MB
532332-001
Hard drive (includes hard drive bracket)
●
160 GB, 5400 rpm
532337-001
●
250 GB, 5400 rpm
532338-001
●
320 GB, 5400 rpm
532339-001
●
500 GB, 5400 rpm
532340-001
Hard Drive Hardware Kit (contains screws and hard drive bracket; not illustrated)
482158-001
Battery, 6-cell Li-Ion (2.2-Ah, 47-Wh)
487296-001
Computer major components
19
Display assembly components
20
Item
Description
Spare part number
(1)
Display bezel
487286-001
Display Hinge Kit
486737-001
(2a)
Left/right display panel brackets
(2b)
Left/right display hinges
(3)
Camera module
487287-001
(4)
14.1-in, WXGA TFT BrightView display panel (includes display panel cable)
487279-001
(5)
Display inverter (includes Mylar™ shield)
486736-001
(6)
Microphone module and cable
517629-001
(7)
Display enclosure
487284-001
Display cable (not illustrated)
486735-001
Display Screw Kit (not illustrated)
486730-001
Display Rubber Kit (not illustrated; includes rubber screw covers and LCD rubber pads)
487283-001
Chapter 3 Illustrated part numbers catalog
Plastics Kit
Item
Description
Spare part number
Plastics Kit
486862-001
(1)
Hard drive cover (includes 2 screws)
(2)
Memory module compartment cover (includes 1 screw)
(3)
RTC battery compartment cover
Plastics Kit
21
Mass storage devices
Item
Description
(1)
Hard drive (includes hard drive bracket)
●
160 GB, 5400 rpm
532337-001
●
250 GB, 5400 rpm
532338-001
●
320 GB, 5400 rpm
532339-001
●
500 GB, 5400 rpm
532340-001
Hard Drive Hardware Kit (contains screws and hard drive bracket; not illustrated)
(2)
22
Spare part number
482158-001
Optical drive (includes bezel)
●
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
532342-001
●
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive
532341-001
Chapter 3 Illustrated part numbers catalog
Miscellaneous parts
Description
Spare part number
90-W PFC AC adapter
463955-001
Internal display switch module
489862-001
Power cord:
Australia
490371-011
Brazil
490371-201
India
490371-D61
North America
490371-001
South Korea
490371-AD1
Taiwan
490371-AB1
The People's Republic of China
490371-AA1
The United Kingdom and Singapore
490371-031
Screw Kit
487298-001
●
Phillips PM2.0×2.0 broadhead screws
●
Phillips PM2.0×3.0 screws
●
Phillips PM2.0×4.0 screws
●
Phillips PM2.0×10.0 captive screws
●
Phillips PM2.5×3.0 screws
●
Phillips PM2.5×4.0 screws
●
Phillips PM2.5×5.0 screws
●
Phillips PM2.5×5.0 captive screws
●
Phillips PM2.5×6.0 screws
●
Phillips PM2.5×7.0 captive screws
●
Phillips PM2.5×10.0 screws
●
Phillips PM2.5×18.0 screws
●
Phillips PM3.0×3.0 screws
Rubber Kit (includes 6 rubber computer feet)
486863-001
Miscellaneous parts
23
Sequential part number listing
24
Spare part
number
Description
459263-001
Broadcom 4312 802.11 WLAN b/g module for use in Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
461749-001
Modem module for use in all countries and regions except Australia and New Zealand (select models only)
461749-011
Modem module for use in Australia and New Zealand (select models only)
463955-001
90-W PFC AC adapter
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions
482158-001
Hard Drive Hardware Kit (contains screws and hard drive bracket)
482957-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use in all countries and regions
483113-001
Bluetooth module
486730-001
Display Screw Kit
486735-001
Display assembly cable
486736-001
Display inverter (includes Mylar shield and bracket)
486737-001
Display Hinge Kit (includes left and right display hinges and display switch module)
486835-001
RTC battery (includes two-sided tape)
486841-001
Audio board cable
486842-001
USB board
486843-001
USB board cable
486844-001
Fan
486862-001
Plastics Kit (see Plastics Kit on page 21 for more information)
486863-001
Rubber Kit (includes 6 rubber computer feet)
486864-001
Power connector cable (includes power connector)
486865-001
Speaker assembly
488130-001
Bluetooth module cable
486904-001
Keyboard for use in the United States
486904-281
Keyboard for use in Thailand
486904-AB1
Keyboard for use in Taiwan
486904-AD1
Keyboard for use in South Korea
487281-001
14.1-in, WXGA TFT BrightView display panel (includes display panel cable)
487283-001
Display Rubber Kit (includes rubber screw covers and LCD rubber pads)
487284-001
Display enclosure
487286-001
Display bezel
487287-001
Camera module
Chapter 3 Illustrated part numbers catalog
Spare part
number
Description
487298-001
Screw Kit
487299-001
Keyboard cover (includes power button board and cable)
487300-001
Top cover
487330-002
Broadcom 4322 802.11 a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola,
Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
Brunei, Bulgaria, Burkina, Faso Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad,
Chile, People's Republic of China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic,
Zaire, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, British Virgin Islands, French Guiana,
Guadeloupe, Nether Antilles, Aruba, Bermuda, Syria, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, Philippines, Poland, Portugal, Qatar, Republic of Moldova, Romania, Russia, Rwanda,
Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St.
Kitts and Nevis, St. Lucia, St. Vincent and Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Thailand, East Timor, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan,
Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
487344-001
Audio board (includes audio connectors and audio board cable)
487359-001
Base enclosure for use only in computer models without a modem module (includes wireless on/off switch)
489862-001
Internal display switch module
490371-001
Power cord for use in the United States
490371-011
Power cord for use in Australia
490371-031
Power cord for use in the United Kingdom and Singapore
490371-201
Power cord for use in Brazil
490371-281
Power cord for use in Thailand
490371-AA1
Power cord for use in the People's Republic of China
490371-AB1
Power cord for use in Taiwan
490371-AD1
Power cord for use in South Korea
490371-D61
Power cord for use in India
491832-001
Intel T7350 Core2 Duo mobile processor (2.00 GHz, 3-MB L2 cache)
492248-001
Base enclosure for use only in computer models with a modem module (select models only)
492249-001
Power button board
494960-001
TouchPad
494962-001
TouchPad bracket
494965-001
TouchPad button board
494981-001
Modem module cable (includes RJ-11 connector)
Sequential part number listing
25
26
Spare part
number
Description
504781-001
320 GB, 5400-rpm hard drive (includes hard drive bracket)
507953-001
Intel T9550 Core2 Duo mobile processor (2.66 GHz, 6-MB L2 cache)
507960-001
Intel P8700 Core2 Duo mobile processor (2.53 GHz, 3-MB L2 cache)
507963-001
Intel P8600 Core2 Duo mobile processor (2.40 GHz, 3-MB L2 cache)
507964-001
Intel P8400 Core2 Duo mobile processor (2.26 GHz, 3-MB L2 cache)
507965-001
Intel P7450 Core2 Duo mobile processor (2.13 GHz, 3-MB L2 cache)
509549-001
Intel T3400 Pentium processor for mobile (2.16 GHz, 1-MB L2 cache)
513592-001
Intel T6400 Core2 Duo mobile processor (2.00 GHz, 2-MB L2 cache)
513593-001
Intel T6600 Core2 Duo mobile processor (2.20 GHz, 2-MB L2 cache)
513599-001
Intel T4200 Pentium processor for mobile (2.00 GHz, 1-MB L2 cache)
515040-001
Intel T5800 Core2 Duo mobile processor (2.06 GHz, 2-MB L2 cache)
517629-001
Microphone module and cable
530614-001
Heat sink (includes thermal material)
532327-001
System board (includes thermal material)
532331-001
1024-MB memory module (PC2-6400, 800-MHz, DDR2)
532332-001
2048-MB memory module (PC2-6400, 800-MHz, DDR2)
532337-001
160 GB, 5400-rpm hard drive (includes bracket)
532338-001
250 GB, 5400-rpm hard drive (includes bracket)
532339-001
320 GB, 5400-rpm hard drive (includes bracket)
532340-001
500 GB, 5400-rpm hard drive (includes bracket)
532341-001
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive (includes bezel)
532342-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe (includes bezel)
536436-001
6-cell Li-Ion battery (2.2-Ah, 47-Wh)
Chapter 3 Illustrated part numbers catalog
4
Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use
care when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.
Preliminary replacement requirements
27
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme
care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
28
Chapter 4 Removal and replacement procedures
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some protection,
but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described
in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION:
A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
Preliminary replacement requirements
29
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials are
selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
30
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools
and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
Chapter 4 Removal and replacement procedures
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips must
be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material
Use
Voltage protection level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
Preliminary replacement requirements
31
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 80 screws, in 13 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the device.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support
for the device.
(5) Warranty period: This number describes the duration of the warranty period for the device.
32
Chapter 4 Removal and replacement procedures
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare
part number 486863-001. There are 6 rubber feet that attach to the base enclosure in the locations
illustrated below.
Component replacement procedures
33
Battery
Description
Spare part number
6-cell Li-Ion battery (2.2-Ah, 47-Wh)
536436-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside down on a flat surface.
2.
Slide the battery release latch (1) to release the battery.
3.
Pivot the battery (2) upward and lift it out of the computer (3).
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge
downward until the battery is seated. The battery release latch automatically locks the battery into place.
34
Chapter 4 Removal and replacement procedures
Optical drive
NOTE:
The optical drive spare part kit includes an optical drive bezel.
Description
Spare part number
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive
532341-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
532342-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
Remove the optical drive:
1.
Position the computer with the right side toward you.
2.
Remove the Phillips PM2.5×5.0 screw (1) that secures the optical drive to the computer.
3.
Insert a thin tool, such as a paper clip, into the release access (2). (The optical drive media tray is
partially ejected from the optical drive.)
4.
Use the media tray frame to remove the optical drive (3).
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures
35
Hard drive
NOTE:
The hard drive spare part kit includes a hard drive bracket.
Description
Spare part number
160 GB, 5400 rpm
532337-001
250 GB, 5400 rpm
532338-001
320 GB, 5400 rpm
532339-001
500 GB, 5400 rpm
532340-001
Before removing the hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
Remove the hard drive:
36
1.
Position the computer with the front toward you.
2.
Loosen the two Phillips PM2.5×5.0 captive screws (1) that secure the hard drive cover to the
computer.
3.
Lift the left side (2) of the hard drive cover, swing it to the right, and remove the cover (3). The hard
drive cover is included in the Plastics Kit, spare part number 486862-001.
4.
Remove the three Phillips PM2.0×4.0 screws (1) that secure the hard drive to the computer.
Chapter 4 Removal and replacement procedures
5.
Use the Mylar tab (2) to slide the hard drive (3) to the left until it disconnects from the connector,
and then lift the hard drive up and out of the computer (4).
6.
If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×3.0
screws (1) that secure the hard drive bracket to the hard drive.
7.
Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures
37
WLAN module
Description
Spare part number
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use in all countries and regions
482957-001
Broadcom 4312 802.11 WLAN b/g module for use in Canada, the Cayman Islands, Guam, Puerto
Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-001
Broadcom 4322 802.11 a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas,
Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, Brunei, Bulgaria, Burkina, Faso Burundi, Cambodia, Cameroon,
Cape Verde, Central African Republic, Chad, Chile, People's Republic of China, Colombia,
Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Zaire, Denmark, Djibouti, Dominica,
Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Martinique, British Virgin Islands,
French Guiana, Guadeloupe, Nether Antilles, Aruba, Bermuda, Syria, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique,
Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal,
Qatar, Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and
Principe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St.
Lucia, St. Vincent and Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Thailand, East Timor, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, Ukraine, United Arab Emirates, The United Kingdom, Uruguay, Uzbekistan,
Vanuatu, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe
487330-002
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the hard drive cover (see Hard drive on page 36).
Remove the WLAN module:
38
1.
Position the computer with the front toward you.
2.
Disconnect the two WLAN antenna cables (1) from the WLAN module.
3.
Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
Chapter 4 Removal and replacement procedures
4.
Remove the WLAN module (3) by pulling it away from the slot at an angle.
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore computer functionality, and then contact technical support through
Help and Support.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN
module slot.
Reverse this procedure to install a WLAN module.
Component replacement procedures
39
RTC battery
Description
Spare part number
RTC battery (includes two-sided tape)
486835-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
Remove the RTC battery:
40
1.
Loosen the two Phillips PM2.5×5.0 captive screws (1) that secure the RTC battery compartment
cover to the computer.
2.
Lift the right side of the RTC battery compartment cover (2), swing it to left, and remove the
cover (3).
3.
Disconnect the RTC battery cable (1) from the system board.
Chapter 4 Removal and replacement procedures
4.
Remove the RTC battery (2).
Reverse this procedure to install the RTC battery.
Component replacement procedures
41
Memory module
Description
Spare part number
1024 MB (PC2-6400, 800-MHz, DDR2)
532331-003
2048 MB (PC2-6400, 800-MHz, DDR2)
532332-003
Before removing the memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
Remove the memory module:
42
1.
Position the computer with the front toward you.
2.
Loosen the Phillips PM2.5×7.0 captive screw (1) that secures the memory module compartment
cover to the computer.
3.
Lift the right side of the cover (2), swing it to the left, and lift the cover off the computer (3). The
memory module compartment cover is included in the Plastics Kit, spare part number
486862-001.
4.
Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
Chapter 4 Removal and replacement procedures
5.
Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
Component replacement procedures
43
Keyboard
For use in:
Spare part number
South Korea
486904-AD1
Taiwan
486904-AB1
Thailand
486904-281
The United States
486904-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the RTC battery compartment cover.
Remove the keyboard:
44
1.
Remove the three Phillips PM2.5×18.0 screws that secure the keyboard to the computer.
2.
Turn the computer display-side up, with the front toward you.
3.
Open the computer as far as possible.
4.
Release the top edge of the keyboard by lifting it up to disengage the keyboard from the tabs on
the keyboard cover.
5.
Lift the top edge (1) of the keyboard until it rests at an angle.
Chapter 4 Removal and replacement procedures
6.
Lift the keyboard (2) up until the tabs on the bottom of the keyboard are clear of the keyboard cover.
7.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
8.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures
45
Keyboard cover
Description
Spare part number
Keyboard cover (includes power button board and cable)
487299-001
Before removing the keyboard cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Hard drive (see Hard drive on page 36)
c.
Keyboard (see Keyboard on page 44)
Remove the keyboard cover:
46
1.
Turn the computer upside down, with the rear toward you.
2.
Remove the Phillips PM2.0×2.0 broadhead screw (1) from the optical drive bay, the
Phillips PM2.5×5.0 screw (2) from the hard drive bay, the four Phillips PM2.0×3.0 screws (3) from
the battery bay, and the two Phillips PM2.5×10.0 screws (4) from the base enclosure rear corners
that secure the keyboard cover to the computer.
3.
Turn the computer display-side up, with the front toward you.
4.
Remove the Phillips PM2.5×6.0 screw (1) from the front left corner of the keyboard cover.
5.
Open the computer as far as possible.
Chapter 4 Removal and replacement procedures
6.
Release the ZIF connector to which the power button board cable (2) is connected and disconnect
the cable from the system board.
7.
Lift the front edge of the keyboard cover to disengage it from the computer, pull the keyboard cover
toward the display until the light pipe on the front of the keyboard cover clears the top cover, and
then lift the cover up and out of the computer (3).
Reverse this procedure to install the keyboard cover.
Component replacement procedures
47
Power button board
Description
Spare part number
Power button board
492249-001
Before removing the power button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Hard drive (see Hard drive on page 36)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
Remove the power button board:
1.
Turn the keyboard cover display-side down.
2.
Remove the Phillips PM2.5×3.0 screw (1) from the power button board.
3.
Lift the power button board (2) up and away from the keyboard cover.
Reverse this procedure to install the power button board.
48
Chapter 4 Removal and replacement procedures
Speaker assembly
Description
Spare part number
Speaker assembly
486865-001
Before removing the speaker assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Keyboard (see Keyboard on page 44)
c.
Keyboard cover (see Keyboard cover on page 46)
Remove the speaker assembly:
1.
Disconnect the speaker cable (1) from the system board.
2.
Release the zero insertion force (ZIF) connector for the num lock cable (2) from the system board.
3.
Remove the two Phillips PM2.5×3.0 screws (1) that secure the speaker assembly to the computer.
Component replacement procedures
49
4.
Lift the speaker assembly (2) straight up to remove it from the computer.
Reverse this procedure to install the speaker assembly.
50
Chapter 4 Removal and replacement procedures
Display assembly
Description
Spare part number
14.1-in, WXGA BrightView display (includes display panel cable)
487281-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Disconnect the wireless antenna cables from the WLAN module (see WLAN module on page 38).
6.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Keyboard (see Keyboard on page 44)
c.
Keyboard cover (see Keyboard cover on page 46)
d.
Speaker assembly (see Speaker assembly on page 49)
Remove the display assembly:
1.
Turn the computer display-side up, with the front toward you.
2.
Open the display as far as possible.
3.
Remove the wireless antenna cable (1) from the hole in the system board and the routing channels
and clips built into the top cover.
4.
Disconnect the display panel cable (2) that runs along the left side.
Component replacement procedures
51
5.
Remove the microphone cable (1) from the hole in the system board and the routing channels and
clips built into the top cover.
6.
Disconnect the microphone cable from the system board (2).
CAUTION: Support the display assembly when removing the following screws. Failure to support
the display assembly can result in damage to the display assembly and other computer
components.
52
7.
Remove the four black Phillips PM2.5×6.0 screws (1) that secure the display assembly to the
computer.
8.
Remove the display assembly (2).
Chapter 4 Removal and replacement procedures
9.
If it is necessary to replace any of the display assembly internal components, remove the following
screw covers and screws. The display rubber screw covers are included in the Display Rubber Kit,
spare part number 487283-001.
(1) Two Mylar screw covers on the display bezel bottom edge
(2) Two Phillips PM2.5×5.0 screws
10. Flex the top side (1), the left and right sides (2), and the bottom (3) of the display bezel until the
bezel disengages from the display enclosure.
11. Remove the display bezel (4). The display bezel is available using spare part number
487286-001.
12. If it is necessary to replace the inverter, release the inverter (1) from the clips in the display
enclosure as far as the display panel cable and the backlight cable will allow.
Component replacement procedures
53
13. Disconnect the backlight cable (2) and the display panel cable (3) from the display inverter. The
display inverter is available using spare part number 486736-001.
14. Remove the inverter.
15. If it is necessary to replace the display panel, remove the six black Phillips PM2.5×5.0 screws (1)
that secure the display panel to the display enclosure, and then lift the panel from the
enclosure (2). The display panel is available using the spare part number 487279-001.
16. If it is necessary to replace the display cable, follow these steps:
54
a.
Peel back the plastic (1) that covers the cable.
b.
Remove the tape (2) that secures the cable to the display.
c.
Unplug the cable (3) from the display.
d.
Remove the cable from the display (4).
Chapter 4 Removal and replacement procedures
The display cable is available using spare part number 486735-001.
17. If it is necessary to replace the display hinges, remove the four silver Phillips PM2.0×3.0
screws (1) that secure each hinge to the display.
18. Remove the display hinges (2) from the display. The display hinges are available using spare part
number 486737-001.
19. If it is necessary to replace the wireless antenna transceivers and cables, remove the
Phillips PM2.5×3.0 screw (1) that secures each transceiver to the display enclosure.
20. Detach the wireless antenna transceivers (2) from the display enclosure. The transceivers are
secured by a foil wrapping.
21. Remove the wireless antenna cables from the clips (3) built into the display enclosure.
Component replacement procedures
55
22. Remove the wireless antenna transceivers and cables (4) from the display enclosure.
Reverse this procedure to reassemble and install the display assembly.
56
Chapter 4 Removal and replacement procedures
Camera module
Description
Spare part number
Camera module
487287-001
Before removing the camera module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Keyboard (see Keyboard on page 44)
c.
Keyboard cover (see Keyboard cover on page 46)
d.
Speaker assembly (see Speaker assembly on page 49)
e.
Display assembly (see Display assembly on page 51)
Remove the camera module:
1.
Disconnect the cable (2) and remove the camera module from the display enclosure.
2.
Release the camera module (1) from the display enclosure.
Reverse this procedure to install the camera module.
Component replacement procedures
57
Microphone module
Description
Spare part number
Microphone module and cable
517629-001
Before removing the microphone module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Optical drive (see Optical drive on page 35)
b.
Keyboard (see Keyboard on page 44)
c.
Keyboard cover (see Keyboard cover on page 46)
d.
Speaker assembly (see Speaker assembly on page 49)
e.
Display assembly (see Display assembly on page 51)
Remove the microphone module:
1.
Release the tabs (1) built into the display enclosure.
2.
Release the microphone receiver (2) from the display enclosure. The microphone receiver is
secured by two-sided tape.
3.
Remove the microphone cable (3) and receiver from the display enclosure.
Reverse this procedure to install the microphone module.
58
Chapter 4 Removal and replacement procedures
Top cover
Description
Spare part number
Top cover (includes TouchPad and cable)
487300-001
Before removing the top cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
Remove the top cover:
1.
Turn the computer upside down, with the front toward you.
2.
Remove the seven screws that secure the top cover to the computer.
●
(1) Three Phillips PM2.5×10.0 screws
●
(2) Two Phillips PM2.5×5.0 screws
●
(3) Two Phillips PM2.0×3.0 screws
Component replacement procedures
59
60
3.
Turn the computer right-side up, with the front toward you.
4.
Disconnect the following cables from the system board:
●
Bluetooth module cable (1)
●
TouchPad cable (2) with zero insertion force (ZIF) connector
5.
Remove the two Phillips PM2.5×6.0 screws (1) that secure the top cover to the computer.
6.
Lift up the rear edge of the top cover until it releases from the base (2).
Chapter 4 Removal and replacement procedures
7.
Remove the top cover (3).
Reverse this procedure to install the top cover.
Component replacement procedures
61
TouchPad button board
Description
Spare part number
TouchPad bracket
494962-001
TouchPad button board
494965-001
Before removing the TouchPad button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the TouchPad button board:
62
1.
Turn the top cover upside down with the front toward you.
2.
Release the zero insertion force (ZIF) connector for the TouchPad button board cable (1).
3.
Remove the three black Phillips PM2.5×3.0 screws (2) and one silver Phillips PM2.5×4.0
screw (3) that secure the TouchPad assembly to the top cover.
4.
Remove the TouchPad bracket (4) from the top cover.
Chapter 4 Removal and replacement procedures
5.
Remove the TouchPad button board (5) from the TouchPad bracket.
Reverse this procedure to reassemble and install the TouchPad button board.
Component replacement procedures
63
Bluetooth module
Description
Spare part number
Bluetooth module
483113-001
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the Bluetooth module:
64
1.
Turn the top cover upside down with the front toward you.
2.
Disconnect the Bluetooth module cable (1) from the system board.
3.
Remove the two silver PM2.0×3.0 screws (2) and the tab (3) that secure the Bluetooth module to
the top cover.
4.
Release the cable from the routing channels built into the system board (4).
Chapter 4 Removal and replacement procedures
5.
Remove the Bluetooth module (5) from the top cover.
Reverse this procedure to install the Bluetooth module.
Component replacement procedures
65
Modem module (select models only)
Description
Spare part number
Modem module for use in all countries and regions except Australia and New Zealand
461749-001
Modem module for use only in Australia and New Zealand
461749-011
Modem module cable (includes RJ-11 connector)
494981-001
Before removing the modem module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the modem module:
66
1.
Turn the computer display-side up, with the front toward you.
2.
Remove the two Phillips PM2.0×4.0 screws (1) that secure the modem module to the system board.
3.
Disconnect the modem module cable (2) from the modem module.
Chapter 4 Removal and replacement procedures
4.
Lift up on the front of the modem module (3) to disconnect it from the system board.
5.
Remove the modem module.
Reverse this procedure to install the modem module.
NOTE: When replacing the modem module, be sure that the connector on the bottom of the modem
module connects firmly into the system board.
Component replacement procedures
67
Audio board
Description
Spare part number
Audio board (includes audio connectors and audio board cable)
487344-001
Before removing the audio board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the audio board:
68
1.
Turn the computer display-side up, with the front toward you.
2.
Disconnect the audio board cable (1) from the system board.
3.
Remove the cable from between the components that secure it in the base (2).
4.
Remove the two Phillips PM2.5×3.0 screws (3) that secure the audio board to the computer.
5.
Lift the rear edge of the audio board and raise it until the audio connectors disengage from the
base enclosure.
Chapter 4 Removal and replacement procedures
6.
Remove the audio board (4).
Reverse this procedure to install the audio board.
Component replacement procedures
69
USB board
Description
Spare part number
USB board
486842-001
USB board cable
486843-001
Before removing the USB board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the USB board:
70
1.
Turn the computer display-side up, with the right side toward you.
2.
Disconnect the USB board cable (1) from the system board.
3.
Remove the cable from the base enclosure clips (2).
4.
Remove the Phillips PM2.5×3.0 screw (3) that secures the USB board to the computer.
Chapter 4 Removal and replacement procedures
5.
Lift the USB board (4) straight up to remove it from the computer.
Reverse this procedure to install the USB board.
Component replacement procedures
71
Power connector cable
Description
Spare part number
Power connector cable (includes power connector)
486864-001
Before removing the power connector cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the power connector cable:
72
1.
Turn the computer display-side up, with the right side toward you.
2.
Disconnect the power connector cable (1) from the bottom of the system board.
3.
Remove the power connector (2) from the clip built into the base enclosure. The power connector
is secured by two-sided tape.
Chapter 4 Removal and replacement procedures
4.
Remove the cable from the base enclosure clips (3).
Reverse this procedure to install the power connector cable.
Component replacement procedures
73
System board
Description
Spare part number
System board (includes thermal material)
532327-001
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
RTC battery (see RTC battery on page 40)
●
Memory module (see Memory module on page 42)
●
WLAN module (see WLAN module on page 38)
●
Modem module (select models only, see Modem module (select models only) on page 66)
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
Remove the system board:
74
1.
Turn the computer display-side up, with the right side toward you.
2.
Disconnect the following cables from the system board:
●
(1) Modem cable (see Modem module (select models only) on page 66)
●
(2) Audio board cable (see Audio board on page 68)
●
(3) Fan cable (see Fan on page 81)
Chapter 4 Removal and replacement procedures
●
(4) USB board cable (see USB board on page 70)
3.
Disconnect the power connector cable.
4.
Remove the two black Phillips PM2.5×5.0 screws that secure the system board to the computer.
5.
Lift the right side of the system board (1) until it rests at an angle (2).
Component replacement procedures
75
6.
Release the system board by sliding it to the right at an angle (3) until the connectors on the left
side of the system board disengage from the base enclosure, and then remove the system board.
7.
If it is necessary to replace the modem module cable, remove the RJ-11 connector (1) from the
clip built into the base enclosure.
8.
Remove the modem module cable (2) from the routing channel built into the base enclosure. The
modem module cable is available using spare part number 494981-001.
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
Heat sink (see Heat sink on page 77)
●
Processor (see Processor on page 79)
Reverse this procedure to install the system board.
76
Chapter 4 Removal and replacement procedures
Heat sink
Description
Spare part number
Heat sink (includes thermal material)
530614-001
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the right side
and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is controlled
by a temperature sensor and is designed to turn on automatically when high temperature conditions
exist. These conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software requirements.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.
NOTE: Thermal pads and thermal paste are included with all heat sink, system board, and processor
spare part kits.
Before removing the heat sink, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
h.
System board (see System board on page 74)
Remove the heat sink:
1.
Turn the system board upside down with the external monitor port toward you.
2.
Loosen the four Phillips PM2.0×10.0 captive screws (1) that secure the heat sink to the system
board.
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
system board components, it may be necessary to move the heat sink from side to side to detach
the assembly.
Component replacement procedures
77
3.
Remove the heat sink (2).
NOTE: The thermal material must be thoroughly cleaned from the surface of the heat sink (1) and the
processor (2) each time the heat sink is removed. Thermal pads and thermal paste must also be installed
on all surfaces before the heat sink is reinstalled. Thermal pads must be placed in all of the following
locations on the heat sink: the four specifically marked areas (3), the nVIDIA video chip (4), the
Northbridge chip (5), and the capacitors (6).
Reverse this procedure to install the heat sink.
78
Chapter 4 Removal and replacement procedures
Processor
NOTE:
The processor spare part kit includes thermal material.
Description
Spare part number
Intel T9550 Core2 Duo mobile processor (2.66 GHz, 6-MB L2 cache)
507953-001
Intel P8700 Core2 Duo mobile processor (2.53 GHz, 3-MB L2 cache)
507960-001
Intel P8600 Core2 Duo mobile processor (2.40 GHz, 3-MB L2 cache)
507963-001
Intel P8400 Core2 Duo mobile processor (2.26 GHz, 3-MB L2 cache)
507964-001
Intel P7450 Core2 Duo mobile processor (2.13 GHz, 3-MB L2 cache)
507965-001
Intel T5800 Core2 Duo mobile processor (2.06 GHz, 2-MB L2 cache)
515040-001
Intel T6400 Core2 Duo mobile processor (2.00 GHz, 2-MB L2 cache)
513592-001
Intel T6600 Core2 Duo mobile processor (2.20 GHz, 2-MB L2 cache)
513593-001
Intel T3400 Pentium processor for mobile (2.16 GHz, 1-MB cache)
509549-001
Intel T4200 Pentium processor for mobile (2.00 GHz, 1-MB cache)
513599-001
Before removing the processor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
h.
System board (see System board on page 74)
i.
Heat sink (see Heat sink on page 77)
Remove the processor:
1.
Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
Component replacement procedures
79
2.
Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
80
Chapter 4 Removal and replacement procedures
Fan
Description
Spare part number
Fan
486844-001
Before removing the fan, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 34).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 36)
b.
Optical drive (see Optical drive on page 35)
c.
Keyboard (see Keyboard on page 44)
d.
Keyboard cover (see Keyboard cover on page 46)
e.
Speaker assembly (see Speaker assembly on page 49)
f.
Display assembly (see Display assembly on page 51)
g.
Top cover (see Top cover on page 59)
h.
System board (see System board on page 74)
Remove the fan:
1.
Position the base enclosure with the front toward you.
2.
Remove the two black Phillips PM2.5×5.0 screws (1) that secure the fan to the computer.
Component replacement procedures
81
3.
Lift the fan from the base enclosure (2).
Reverse this procedure to install the fan.
82
Chapter 4 Removal and replacement procedures
5
Setup Utility
WARNING! Only authorized technicians trained by HP must repair this equipment. All troubleshooting
and repair procedures are detailed to allow repair at only the subassembly or module level. Because of
the complexity of the individual boards and subassemblies, do not attempt to make repairs at the
component level or modify any printed wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board modification may void any warranty or
exchange allowances.
Starting the Setup Utility
The Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows® operating system is not working.
The utility reports information about the computer and provides settings for startup, security, and other
preferences.
To start the Setup Utility:
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc.
2.
When the Startup Menu is displayed, press f10.
Starting the Setup Utility
83
Changing the language of the Setup Utility
The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is
not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
Use the arrow keys to select System Configuration > Language, and then press enter.
3.
Use the arrow keys to select a language, and then press enter.
4.
When a confirmation prompt with your language selected is displayed, press enter.
5.
To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter.
Your change goes into effect immediately.
Navigating and selecting in the Setup Utility
Because the Setup Utility is not Windows based, it does not support the TouchPad. Navigation and
selection are by keystroke.
84
●
To choose a menu or a menu item, use the arrow keys.
●
To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the
arrow keys or f5 or f6.
●
To select an item, press enter.
●
To close a text box or return to the menu display, press esc.
●
To display additional navigation and selection information while the Setup Utility is open,
press f1.
Chapter 5 Setup Utility
Displaying system information
The following procedure explains how to display system information in the Setup Utility. If the Setup
Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
Select the Main menu. System information such as the system time and date, and identification
information about the computer is displayed.
3.
To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit
Discarding Changes, and then press enter.
Restoring default settings in the Setup Utility
The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is
not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.
3.
When the Setup Confirmation is displayed, press enter.
4.
To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter.
The Setup Utility default settings go into effect when the computer restarts.
NOTE: Your password, security, and language settings are not changed when you restore the factory
default settings.
Displaying system information
85
Exiting the Setup Utility
You can exit the Setup Utility with or without saving changes.
●
To exit the Setup Utility and save your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.
●
To exit the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.
After either choice, the computer restarts in Windows.
86
Chapter 5 Setup Utility
Setup Utility menus
The menu tables in this section provide an overview of Setup Utility options.
NOTE: Some of the Setup Utility menu items listed in this section may not be supported by your
computer.
Main menu
Select
To do this
System information
●
View and change the system time and date.
●
View identification information about the computer.
●
View specification information about the processor, memory size,
system BIOS, and keyboard controller version (select models only).
Security menu
Select
To do this
Administrator password
Enter, change, or delete an administrator password.
Power-On Password
Enter, change, or delete a power-on password.
System Configuration menu
Select
To do this
Language Support
Change the Setup Utility language.
Button Sound (select models only)
Enable/disable the capacitive button tapping sound.
Virtualization Technology
Enable/disable the processor Virtualization Technology.
Processor C6 State (select models only)
Enable/disable the processor C6 sleep state.
LAN Power Saving (select models only)
Enable/disable LAN Power Saving. When enabled, saves power when
the computer is in DC mode.
Card Reader/1394 Power Saving (select models
only)
Enable/disable Card Reader/1394 Power Saving. When enabled, saves
power when the computer is in DC mode.
Fan Always On
Enable/disable Fan Always On. When enabled, the computer fan will
always be on.
Boot Options
Set the following boot options:
●
f9 and f10 Delay (sec.)―Set the delay for the f9 and f10 functions
of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).
●
CD-ROM boot―Enable/disable boot from CD-ROM.
●
Floppy boot―Enable/disable boot from diskette.
●
Internal Network Adapter boot―Enable/disable boot from Internal
Network Adapter.
●
Boot Order―Set the boot order for:
Setup Utility menus
87
Select
To do this
◦
USB Floppy
◦
Internal CD/DVD ROM drive
◦
USB CD/DVD ROM drive
◦
Hard drive
◦
USB Diskette on Key
◦
USB Hard drive
◦
Network adapter
Diagnostics menu
Select
To do this
Hard Disk Self Test
Run a comprehensive self-test on the hard drive.
NOTE: On models with two hard drives, this menu option is called the
Primary Hard Disk Self Test.
88
Secondary Hard Disk Self Test (select models
only)
Run a comprehensive self-test on a secondary hard drive.
Memory Test
Run a diagnostic test on the system memory.
Chapter 5 Setup Utility
6
Specifications
Computer specifications
Metric
U.S.
Height (front to back)
3.33 to 3.97 cm
1.31 to 1.56 in
Width
33.40 cm
13.15 in
Depth
23.70 cm
9.33 in
Weight (with optical drive, hard drive, panel, battery,
and 1 DIMM)
2.30 kg
5.07 lb
Dimensions
Input power
Operating voltage
18.5 V dc to 19.0 V dc
Operating current
3.5 A or 4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C
32°F to 95°F
Operating (writing to optical disc)
5°C to 35°C
41°F to 95°F
Non-operating
-20°C to 60°C
-4°F to 140°F
Relative humidity
Operating
10% to 90%
Non-operating
5% to 95%
Maximum altitude (unpressurized)
Operating
-15 m to 3,048 m
-50 ft to 10,000 ft
Non-operating
-15 m to 12,192 m
-50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this
range of temperatures.
Computer specifications
89
14.1-in, WXGA BrightView display specifications
Metric
U.S.
Height
30.37 cm
11.96 in
Width
18.98 cm
7.47 in
Diagonal
35.82 cm
14.10 in
Number of colors
More than 262,144
Contrast ratio
More than 300:1
Brightness
200 nits (typical)
Dimensions
Pixel resolution
90
Pitch
0.2373 × 0.2373 mm
Format
1280 × 800
Configuration
RGB vertical stripe
Backlight
Edge lit
Character display
80 × 25
Total power consumption
5.2 W
Viewing angle
+/-40° horizontal, +15/-35° vertical (typical)
Chapter 6 Specifications
Hard drive specifications
500 GB*
320 GB*
250 GB*
160 GB*
Height
9.5 mm
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
70 mm
Weight
101 g
101 g
102 g
102 g
Interface type
SATA
SATA
SATA
SATA
Synchronous (maximum)
300 MB/sec
300 MB/sec
100 MB/sec
100 MB/sec
Security
ATA security
ATA security
ATA security
ATA security
Single track
1.5 ms
1.5 ms
3 ms
3 ms
Average
12 ms
12 ms
13 ms
13 ms
Maximum
22 ms
22 ms
24 ms
24 ms
Logical blocks
976,773,168
625,142,448
488,397,168
312,581,808
Dimensions
Transfer rate
Seek times (typical read, including setting)
Disk rotational speed
Operating temperature
NOTE:
5400 rpm
5°C to 55°C (41°F to 131°F)
Certain restrictions and exclusions apply. Consult technical support for details.
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications
may differ slightly.
Hard drive specifications
91
DVD±RW and CD-RW SuperMulti Double-Layer Combo
Drive specifications
Applicable disc
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT,
CD-ROM, CD-ROM XA, MIXED MODE
CD, CD-I, CD-I Bridge (Photo-CD, Video
CD), MultiSession CD (Photo-CD,
CD-EXTRA, Portfolio, CD-R, CD-RW),
CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R and CD-RW
Access time
CD
DVD
Random
< 175 ms
< 230 ms
Cache buffer
2 MB
Data transfer rate
92
24X CD-ROM
3,600 KB/sec
8X DVD
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
Transfer mode
MultiWord DMA Mode
Chapter 6 Specifications
DVD+R, DVD+RW, DVD-R, DVD-RW,
DVD-RAM
Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive
specifications
Applicable disc
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CDTEXT,
CD-ROM, CD-ROM XA,
MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), MultiSession CD
(Photo-CD, CD-EXTRA, Portfolio,
CD-R, CD-RW), CD-R, CD-RW,
DVD-ROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM, HDROM (Single Layer), HD-ROM (Dual
Layer), HD DVD-R, HD DVD-R for
Dual Layer, HD DVD-RW, BD-ROM,
BD-R, BD-RE
CD-R and CD-RW, DVD+R, DVD+R(9),
DVD+RW, DVD-R, DVD-R(9), DVD-RW,
DVD-RAM
Access time
CD
DVD
HD
Random
< 170 ms
< 170 ms
< 230 ms
Cache buffer
8 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
1X BD-ROM
4,500 KB/sec
1X BD-R read
4,500 KB/sec
1X BD-RE read
4,500 KB/sec
Transfer mode
MultiWord DMA Mode
Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive specifications
93
System DMA specifications
Hardware DMA
System function
DMA0
Not applicable
DMA1
Not applicable
DMA2
Not applicable
DMA3
Not applicable
DMA4
Direct memory access controller
DMA5
Available for PC Card
DMA6
Not assigned
DMA7
Not assigned
NOTE: The Compaq Presario CQ40 does not include a PC card.
94
Chapter 6 Specifications
System interrupt specifications
Hardware IRQ
System function
IRQ0
System timer
IRQ1
Standard 101-/102-Key or Microsoft® Natural Keyboard
IRQ8
System CMOS/real-time clock
IRQ9
Microsoft ACPI-compliant system
IRQ11
Intel (ICH9 Family) SMBus Controller
IRQ12
Alps PS/2 TouchPad pointing device (2-way) for 14-in LCD
IRQ13
Numeric data processor
IRQ16
Intel (ICH9 Family) USB Universal Host Controller—2937
Intel (ICH9 Family) PCI Express Port 1—2940
Intel (ICH9 Family) PCI Express Port 5—2948
Mobile Intel 4 Series Express Chipset PCI Express Port 2—2A41
nVIDIA GeForce G103 M
IRQ17
Intel (ICH9 Family) PCI Express Port 2—2942
Intel (ICH9 Family) PCI Express Port 6—294A
Intel (ICH9 Family) USB Universal Host Controller—2938
IRQ18
Intel (ICH9 Family) USB Universal Host Controller—2936
Intel (ICH9 Family) USB2 Enhanced Host Controller—293C
IRQ19
Intel (ICH9 Family) PCI Express Port 4—2946
Intel (ICH9 Family) USB Universal Host Controller—2939
Realtek RTL8168C(P)/8111C(P) Family PCI-E Gigabit Ethernet NIC (NIDS 6.0)
IRQ20
Intel (ICH9 Family) USB2 Enhanced Host Controller—293A
IRQ21
Intel (ICH9MM/M-E Family) 4-port SATA AHCI Controller—2929
IRQ22
Intel (ICH9 Family) USB Universal Host Controller—2935
High-definition audio controller
System interrupt specifications
95
System I/O address specifications
96
I/O address (hex)
System function (shipping configuration)
000 – 01F
Direct memory access controller
020 – 021
Programmable interrupt controller
024 – 025
Programmable interrupt controller
028 – 029
Programmable interrupt controller
02C – 03D
Programmable interrupt controller
02E – 02F
Motherboard resources
030 – 031
Programmable interrupt controller
034 – 035
Programmable interrupt controller
038 – 039
Programmable interrupt controller
03C – 03D
Programmable interrupt controller
040 – 043
System timer
04E – 04F
Motherboard resources
050 – 053
System timer
060 – 060
Standard 101-/102-Key or Microsoft Natural Keyboard
061 – 061
Motherboard resources
062 – 062
Microsoft ACPI-Compliant Embedded Controller
063 – 063
Motherboard resources
064 – 064
Standard 101-/102-Key or Microsoft Natural Keyboard
065 – 065
Motherboard resources
066 – 066
Microsoft ACPI-Compliant Embedded Controller
067 – 067
Motherboard resources
070 – 070
Motherboard resources
070 – 077
System CMOS/real time clock
080 – 080
Motherboard resources
081 – 091
Direct memory access controller
092 – 092
Motherboard resources
093 – 09F
Direct memory access controller
0A0 – 0A1
Programmable interrupt controller
0A4 – 0A5
Programmable interrupt controller
0A8 – 0A9
Programmable interrupt controller
0AC – 0AD
Programmable interrupt controller
0B0 – 0B1
Programmable interrupt controller
0B2 – 0B3
Motherboard resources
Chapter 6 Specifications
I/O address (hex)
System function (shipping configuration)
0B4 – 0B5
Programmable interrupt controller
0B8 – 0B9
Programmable interrupt controller
0BC – 0BD
Programmable interrupt controller
0C0 – 0DF
Direct memory access controller
0F0 – 0F0
Numeric data processor
200 – 27F
Motherboard resources
3B0 – 3BB
Mobile Intel 4 Series Express Chipset PCI Express Port 1—2A41
3B0 – 3BB
nVIDIA GeForce G 103M
3C0 – 3DF
Mobile Intel 4 Series Express Chipset PCI Express Port 1—2A41
3C0 – 3DF
nVIDIA GeForce G 103M
CF8 – CFB
PCI configuration index register (PCIDIVO-1)
CFC – CFF
PCI configuration data register (PCIDIVO-1)
System I/O address specifications
97
System memory map specifications
Size
Memory address
System function
640 KB
00000000-0009FFFF
Base memory
128 KB
000A0000-000BFFFF
Video memory
64 KB
000C0000-000CFFFF
Video BIOS
64 MB
000E8000-00FFFFFF
System BIOS
01000000-XFFFFFFF
Extended memory (based on memory
installed)
(X+1)00000000-FEDFFFFF
PCI bus and motherboard resources
FFFF0000-FFFFFFFF
System BIOS
64 KB
98
Chapter 6 Specifications
7
Screw listing
This section provides specification and reference information for the screws used in the computer. All
screws listed in this section are available in the Screw Kit (spare part number 487298-001) and the
Display Screw Kit (spare part number 486730-001).
99
Phillips PM2.0×2.0 broadhead screw
Color
Quantity
Length
Thread
Head diameter
Black
1
2.0 mm
2.0 mm
7.0 mm
Where used: One broadhead screw that secures the keyboard cover to the base enclosure.
100 Chapter 7 Screw listing
Phillips PM2.0×3.0 screw (black)
Color
Quantity
Length
Thread
Head diameter
Black
6
3.0 mm
2.0 mm
4.6 mm
Where used: 4 screws that secure the keyboard cover to the base enclosure.
Where used: 2 screws that secure the top cover to the base enclosure.
Phillips PM2.0×3.0 screw (black) 101
Phillips PM2.0×3.0 screw (silver)
Color
Quantity
Length
Thread
Head diameter
Silver
10
3.0 mm
2.0 mm
4.6 mm
Where used: 8 screws that secure the display panel hinges and brackets to the display panel.
Where used: 2 screws that secure the Bluetooth module to the top cover.
102 Chapter 7 Screw listing
Phillips PM2.0×4.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
7
4.0 mm
2.0 mm
4.6 mm
Where used: 2 screws that secure the WLAN module to the base enclosure.
Where used: 2 screws that secure the modem module (select models only) to the system board.
Phillips PM2.0×4.0 screw 103
Where used: 3 screws that secure the hard drive to the base enclosure.
104 Chapter 7 Screw listing
Phillips PM2.0×10.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
4
10.0 mm
2.0 mm
5.0 mm
Where used: 4 captive screws (secured by C-clips) that secure the heat sink to the system board.
Phillips PM2.0×10.0 captive screw 105
Phillips PM2.5×3.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
11
3.0 mm
2.5 mm
5.5 mm
Where used: One screw that secures the power button board to the keyboard cover.
Where used: 2 screws that secure the speakers to the top cover.
106 Chapter 7 Screw listing
Where used: 2 screws that secure the wireless antenna transceivers and cables to the display
enclosure.
Where used: 3 screws that secure the TouchPad button board to the TouchPad bracket.
Where used: 2 screws that secure the audio board to the base enclosure.
Phillips PM2.5×3.0 screw 107
Where used: One screw that secures the USB board to the base enclosure.
108 Chapter 7 Screw listing
Phillips PM2.5×4.0 screw
Color
Quantity
Length
Thread
Silver
1
4.0 mm
2.5 mm
Head diameter
5.5 mm
Where used: One screw that secures the TouchPad button board to the TouchPad bracket.
Phillips PM2.5×4.0 screw 109
Phillips PM2.5×5.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
16
5.0 mm
2.5 mm
5.5 mm
Where used: One screw that secures the keyboard cover to the base enclosure.
Where used: 2 screws that secure the top cover to the base enclosure.
110 Chapter 7 Screw listing
Where used: 6 screws that secure the display panel to the display enclosure.
Where used: One screw that secures the optical drive to the base enclosure.
Where used: 2 screws that secure the bezel to the display enclosure.
Phillips PM2.5×5.0 screw 111
Where used: 2 screws that secure the system board to the base enclosure.
Where used: 2 screws that secure the fan to the base enclosure.
112 Chapter 7 Screw listing
Phillips PM2.5×5.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
4
5.0 mm
2.5 mm
5.5 mm
Where used: 4 captive screws (secured by C-clips) that secure the hard drive and RTC battery
compartment covers to the base enclosure.
Phillips PM2.5×5.0 captive screw 113
Phillips PM2.5×6.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
7
6.0 mm
2.5 mm
5.5 mm
Where used: 2 screws that secure the top cover to the base enclosure.
Where used: 4 screws that secure the display assembly to the base enclosure.
114 Chapter 7 Screw listing
Where used: One screw that secures the keyboard cover to the base enclosure.
Phillips PM2.5×6.0 screw 115
Phillips PM2.5×7.0 captive screw
Color
Quantity
Length
Thread
Black
1
7.0 mm
2.5 mm
Head diameter
5.5 mm
Where used: One captive screw (secured by a C-clip) that secures the memory module compartment
cover to the base enclosure.
116 Chapter 7 Screw listing
Phillips PM2.5×10.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
5
10.0 mm
2.5 mm
5.5 mm
Where used: 2 screws that secure the keyboard cover to the base enclosure.
Where used: 3 screws that secure the top cover to the base enclosure.
Phillips PM2.5×10.0 screw 117
Phillips PM2.5×18.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
3
18.0 mm
2.5 mm
5.5 mm
Where used: 3 screws that secure the keyboard to the base enclosure.
118 Chapter 7 Screw listing
Phillips PM3.0×3.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
4
3.0 mm
3.0 mm
5.5 mm
Where used: 4 screws that secure the hard drive bracket to the hard drive.
Phillips PM3.0×3.0 screw 119
8
Backup and recovery
Recovering system information
Recovery after a system failure is as complete as your most current backup. HP recommends that you
create recovery discs immediately after software setup. As you add new software and data files, you
should continue to back up your system on a regular basis to maintain a reasonably current backup.
Tools provided by the operating system and Recovery Manager software are designed to help you with
the following tasks for safeguarding your information and restoring it in case of a system failure:
●
Creating a set of recovery discs (Recovery Manager software feature). Recovery discs are used
to start up (boot) your computer and restore the operating system and software programs to factory
settings in case of system failure or instability.
●
Backing up your information regularly to protect your important system files.
●
Creating system restore points (operating system feature). System restore points allow you to
reverse undesirable changes to your computer by restoring the computer to an earlier state.
●
Recovering a program or driver (Recovery Manager software feature). This feature helps you
reinstall a program or driver without performing a full system recovery.
●
Performing a full system recovery (Recovery Manager software feature). With Recovery Manager,
you can recover your full factory image if you experience system failure or instability. Recovery
Manager works from a dedicated recovery partition (select models only) on the hard drive or from
recovery discs you create.
NOTE: If your computer includes a solid-state drive (SSD), you may not have a recovery partition.
Recovery discs have been included for computers that do not have a partition. Use these discs to
recover your operating system and software. To check for the presence of a recovery partition,
select Start > Computer. If the partition is present, an HP Recovery drive is listed in the Hard Disk
Drives section of the window.
120 Chapter 8 Backup and recovery
Creating recovery discs
NOTE: HP recommends that you create recovery discs to be sure that you can restore your system
to its original factory state if you experience serious system failure or instability. Create these discs after
setting up the computer for the first time.
NOTE: Handle these discs carefully and keep them in a safe place. The software allows the creation
of only one set of recovery discs.
Note the following guidelines before creating recovery discs:
●
You will need high-quality DVD-R, double-layer DVD-R, DVD+R, double-layer DVD+R, BD-R
(writable Blu-ray), or CD-R discs. All these discs are purchased separately. DVDs and BDs have
a much higher capacity than CDs. If you use CDs, up to 20 discs may be required, whereas only
a few DVDs or BDs are required.
NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE
(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.
●
The computer must be connected to AC power during this process.
●
Only one set of recovery discs can be created per computer.
●
Number each disc before inserting it into the optical drive.
●
If necessary, you can exit the program before you have finished creating the recovery discs. The
next time you open Recovery Manager, you will be prompted to continue the disc creation process.
To create a set of recovery discs:
1.
Select Start > All Programs > Recovery Manager > Recovery Manager.
Recovery Manager opens.
2.
Click Advanced Options.
NOTE: If you are operating the computer on battery power, you will be prompted to connect to
AC power before you can go to the next step.
3.
Click Recovery disc creation, and then click Next.
4.
Follow the on-screen instructions.
Backing up your information
When to back up
●
On a regularly scheduled basis
NOTE:
Set reminders to back up your information periodically.
●
Before the computer is repaired or restored
●
Before you add or modify hardware or software
Recovering system information 121
Backup suggestions
●
Create a set of recovery discs using Recovery Manager.
●
Create system restore points using the Windows® System Restore feature, and periodically copy
them to disc.
●
Store personal files in the Documents folder and back up this folder periodically.
●
Back up templates stored in their associated programs.
●
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your settings.
The screen shot can be a time-saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document, follow these steps:
a.
Display the screen.
b.
Copy the screen:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
c.
Open a word-processing document, and then select Edit > Paste.
Using system restore points
When you back up your system, you are creating a system restore point. A system restore point allows
you to save and name a snapshot of your hard drive at a specific point in time. You can then recover
back to that point if you want to reverse subsequent changes made to your system.
NOTE: Recovering to an earlier restore point does not affect data files saved or emails created since
the last restore point.
You also can create additional restore points to provide increased protection for your system files and
settings.
When to create restore points
●
Before you add or extensively modify software or hardware
●
Periodically, whenever the system is performing optimally
NOTE:
If you revert to a restore point and then change your mind, you can reverse the restoration.
122 Chapter 8 Backup and recovery
Create a system restore point
1.
Select Start > Control Panel > System and Maintenance > System.
2.
In the left pane, click System Protection.
3.
Click the System Protection tab.
4.
Under Automatic restore points, select the disk for which you want to create a restore point.
5.
Click Create.
The System Protection window opens.
6.
Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning
optimally, follow these steps:
1.
Select Start > Control Panel > System and Maintenance > System.
2.
In the left pane, click System protection.
3.
Click the System Protection tab.
4.
Click the System Restore button, and then click Next.
The System Restore window opens.
5.
Follow the on-screen instructions.
Recovering system information 123
Performing a recovery
NOTE: You can recover only files that you have previously backed up. HP recommends that you use
Recovery Manager to create an entire drive backup as soon as you set up your computer.
Recovery Manager software allows you to repair or restore the system if you experience system failure
or instability. Recovery Manager works from recovery discs or from a dedicated recovery partition (select
models only) on the hard drive. However, if your computer includes a solid-state drive (SSD), you may
not have a recovery partition. If that is the case, recovery discs have been included with your computer.
Use these discs to recover your operating system and software.
NOTE: Windows has its own built-in repair features, such as System Restore and driver roll-back
capabilities. If you have not already tried these features, try them before using Recovery Manager.
NOTE: Recovery Manager recovers only software that was preinstalled at the factory. Software not
provided with this computer must be downloaded from the manufacturer's Web site or reinstalled from
the disc provided by the manufacturer.
Recovering from the recovery discs
To restore the system from the recovery discs:
1.
Back up all personal files.
2.
Insert the first recovery disc into the optical drive and restart the computer.
3.
Follow the on-screen instructions.
Recovering from the dedicated recovery partition (select models only)
NOTE: If your computer includes an SSD, you may not have a recovery partition. You will not be able
to recover using this procedure. Recovery discs have been included for computers that do not have a
partition. Use these discs to recover your operating system and software.
On some models, you can perform a recovery from the partition on the hard drive from either the Start
button or f11. This restores the computer to its factory condition.
To restore the system from the partition, follow these steps:
1.
Access Recovery Manager in either of the following ways:
●
Select Start > All Programs > Recovery Manager > Recovery Manager.
–or–
●
Restart the computer and press f11 while the “Press <F11> for recovery” message is displayed
on the screen. Then select Recovery Manager.
Recovery Manager opens.
2.
Click Advanced Options.
3.
Click System recovery, and then click Next.
4.
Follow the on-screen instructions.
124 Chapter 8 Backup and recovery
9
Connector pin assignments
Audio-in (microphone)
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
Audio-in (microphone) 125
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
126 Chapter 9 Connector pin assignments
HDMI
Pin
Signal
1
Transition minimized differential signal (TMDS) data 2+
2
TMDS data 2 shield
3
TMDS data 2-
4
TMDS data 1+
5
TMDS data 1shield
6
TMDS data 1-
7
TMDS data 0+
8
TMDS data 0 shield
9
TMDS data 0-
10
TMDS clock+
11
TMDS clock shield
12
TMDS clock-
13
Consumer electronic control (CEC)
14
Not connected
15
DDC clock
16
DDC data
17
Ground
18
+5V power
19
Hot plug detect
HDMI 127
RJ-11 (modem) (select models only)
Pin
Signal
1
Unused
2
Tip
3
Ring
4
Unused
5
Unused
6
Unused
RJ-45 (network)
Pin
Signal
1
Transmit +
2
Transmit -
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
128 Chapter 9 Connector pin assignments
Universal Serial Bus
Pin
Signal
1
+5 VDC
2
Data -
3
Data +
4
Ground
Universal Serial Bus 129
10 Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120
volts AC or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.
Power cord sets for use in other countries or regions must meet the requirements of the country or region
where the computer is used.
Requirements for all countries or regions
The requirements listed below are applicable to all countries or regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage
rating of 125 or 250 V AC, as required by each country or region.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard
Sheet C13 connector for mating with the appliance inlet on the back of the computer.
130 Chapter 10 Power cord set requirements
Requirements for specific countries or regions
Country/region
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People's Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
2.
The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding
type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3.
The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4.
The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
5.
The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
Requirements for specific countries or regions 131
11 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general household
waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Caution must be exercised when removing and handling
the backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight.
When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly
that might require special handling at end-of-life. Disposal of mercury may be regulated because of
environmental considerations. For disposal or recycling information, contact your local authorities, or
see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
This section provides disassembly instructions for the display assembly. The display assembly must be
disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details,
such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one
computer model to another.
132 Chapter 11 Recycling
Perform the following steps to disassemble the display assembly:
1.
Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
display bezel until the bezel disengages from the display assembly.
3.
Remove the display bezel (3).
Display 133
4.
Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
5.
Remove all screws (1) that secure the display panel assembly to the display enclosure.
6.
Remove the display panel assembly (2) from the display enclosure.
7.
Turn the display panel assembly upside down.
8.
Remove all screws that secure the display panel frame to the display panel.
9.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display
panel frame.
134 Chapter 11 Recycling
10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
Display 135
15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Turn the display panel upside down.
17. Remove the backlight frame from the display panel.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
136 Chapter 11 Recycling
18. Remove the backlight from the backlight frame.
19. Disconnect the display cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
Display 137
Index
Symbols/Numerics
1394 Power Saving 87
90-W PFC AC adapter
spare part number 24
A
administrator password 87
antenna
removal 55
spare part number 56
applications key, Windows 8
audio board
illustrated 17
removal 68
spare part number 25, 68
audio board cable, spare part
number 24
audio, product description 2
audio-in (microphone) jack
identifying 11
pin assignments 125
audio-out (headphone) jack
identifying 11
pin assignments 125
B
backing up
customized window, toolbar,
and menu bar settings 122
personal files 122
templates 122
backup suggestions 122
base enclosure
illustrated 18
spare part number 25
battery
illustrated 19
removal 34
spare part number 26, 34
battery bay, identifying 14
138 Index
battery light, identifying 5, 11
battery release latch,
identifying 14
bay
battery 14
hard drive 14
bezel
illustrated 17, 20
spare part number 24, 53
Blu-ray ROM with LightScribe DVD
±RW SuperMulti Double-Layer
Drive
precautions 28
spare part number 35
specifications 93
Bluetooth module
illustrated 19
removal 64
spare part number 24, 64
Bluetooth module cable, spare part
number 24
boot options 87
boot order 87
button sound 87
buttons
power 7
TouchPad 4
TouchPad on/off 4
wireless 7
C
cables, service considerations 28
camera module
illustrated 20
product description 2
removal 57
spare part number 24
caps lock light, identifying 5
Card Reader Power Saving 87
changing the Setup Utility
language 84
chipset, product description 1
compartments
memory module 14
RTC battery 14
components
bottom 14
front 4, 11
left-side 12
rear 13
right-side 13
top 4
computer feet
locations 33
spare part number 23, 33
computer specifications 89
connector
power 13
service considerations 28
connector pin assignments
audio-in 125
audio-out 125
external monitor 126
HDMI 127
headphone 125
microphone 125
modem 128
monitor 126
network 128
RJ-11 128
RJ-45 128
USB 129
D
Diagnostics menu 88
Digital Media Slot light,
identifying 12
Digital Media Slot, identifying 12
diskette drive
precautions 28
product description 2
display assembly
illustrated 17
removal 51
spare part number 51
display bezel
illustrated 17, 20
spare part number 24, 53
display cable 20
display components
illustrated 17
recycling 132
spare part number 17
display enclosure
illustrated 17, 20
spare part number 24
display hinge
illustrated 20
removal 55
spare part number 55
Display Hinge Kit
illustrated 20
spare part number 24
display inverter
illustrated 17, 20
spare part number 24
display panel
illustrated 17, 20
product description 1
removal 54
spare part number 24, 54
Display Rubber Kit, spare part
number 24
Display Screw Kit, spare part
number 24
display specifications 90
display switch, identifying 9
displaying system information 85
drive light, identifying 6, 11
drives
boot order 87
preventing damage 28
DVD±RW and CD-RW SuperMulti
Double-Layer Combo Drive with
LightScribe
precautions 28
spare part number 35
specifications 92
E
electrostatic discharge 29
esc key, identifying 8
Ethernet, product description 2
exiting the Setup Utility 86
external media cards, product
description 3
external monitor port
identifying 12
pin assignments 126
F
fan
illustrated 17
removal 74, 81
spare part number 24
fan always on 87
feet
locations 33
spare part number 23, 33
fn key, identifying 8
front components 4
full system recovery 120
function keys, identifying 8
G
graphics, product description
grounding equipment and
methods 31
H
hard drive
illustrated 19, 22
precautions 28
product description 2
removal 36
self test 88
spare part number 26, 36
specifications 91
hard drive bay, identifying 14
hard drive cover
illustrated 17, 21
removal 36
Hard Drive Hardware Kit
illustrated 19
spare part number 24
HDMI port
identifying 12
pin assignments 127
1
headphone (audio-out) jack
identifying 11
pin assignments 125
heat sink
illustrated 17
removal 76
spare part number 26, 76
hinge
illustrated 20
removal 55
spare part number 24, 55
I
I/O address specifications 96
integrated webcam light,
identifying 9
integrated webcam, identifying 9
internal display switch module,
spare part number 23, 25
internal display switch,
identifying 9
internal microphones,
identifying 9
interrupt specifications 95
inverter
illustrated 17, 20
removal 53
spare part number 24, 54
J
jacks
audio-in (microphone) 11
audio-out (headphone) 11
RJ-11 (modem) 13
RJ-45 (network) 12
K
keyboard
illustrated 17
product description 3
removal 44
spare part number 44
keyboard cover
illustrated 17
removal 46
spare part number 25, 46
keypad, identifying 8
keys
esc 8
fn 8
function 8
Index 139
keypad 8
navigation 8
Windows applications 8
Windows logo 8
kits
Display Hinge Kit 20
Display Rubber Kit 24
Display Screw Kit 24
Hard Drive Hardware Kit 24
Plastics Kit 21
Screw Kit 99
L
LAN Power Saving 87
language support 87
latch, battery release 14
LCD rubber pads, spare part
number 24
lights
battery 5, 11
caps lock 5
Digital Media Slot 12
drive 6, 11
num lock 5
optical drive 13
power 5, 11
TouchPad 4
webcam 9
wireless 5
M
main menu 87
mass storage devices, spare part
number 22
memory map specifications 98
memory module
illustrated 19
product description 1
removal 42
spare part number 26, 42
memory module compartment
cover
identifying 14
illustrated 17, 21
removal 42
spare part number 42
memory test 88
microphone (audio-in) jack
identifying 11
pin assignments 125
140 Index
microphone cable
illustrated 20, 26
microphone module, removal 58
microphone, product
description 2
model name 1
modem jack
identifying 13
pin assignments 128
modem module
illustrated 17
product description 2
removal 66
spare part number 24, 66
spare part number, AU and NZ
only 24
modem module cable
illustrated 17
removal 76
spare part number 25
monitor port
external 12
pin assignments 126
N
navigating in the Setup Utility 84
navigation keys, identifying 8
network jack
identifying 12
pin assignments 128
num lock light, identifying 5
O
operating system, product
description 3
optical drive
illustrated 18, 22
precautions 28
product description 2
spare part number 35
specifications 92, 93
optical drive light, identifying 13
P
packing guidelines 30
performing a recovery 124
plastic parts 27
Plastics Kit
contents 21
illustrated 21
spare part number 24
pointing device, product
description 3
ports
external monitor 12
HDMI 12
product description 3
USB 12, 13
power button board
removal 48
spare part number 25, 48
power button, identifying 7
power connector cable
illustrated 17
removal 72
spare part number 24, 72
power connector, identifying 13
power cord set requirements 130
power cords 23
power lights, identifying 5, 11
power requirements, product
description 3
power-on password 87
processor
illustrated 18
product description 1
removal 76
spare part numbers 76
Processor C6 State 87
product description
audio 2
camera 2
chipset 1
diskette drive 2
display panel 1
Ethernet 2
external media cards 3
graphics 1
hard drives 2
keyboard 3
memory module 1
microphone 2
modem module 2
operating system 3
optical drives 2
pointing devices 3
ports 3
power requirements 3
processors 1
product name 1
security 3
serviceability 3
wireless 2
product name 1
R
recovery
recovering a program or
driver 120
system recovery 124
using the dedicated recovery
partition 124
using the recovery discs 124
recovery discs 120, 121
Recovery Manager 120, 124
recovery partition 120
removal/replacement
preliminaries 27
procedures 32
restore points 122
restoring default settings 85
RJ-11 (modem) jack
identifying 13
pin assignments 128
RJ-45 (network) jack
identifying 12
pin assignments 128
RTC battery
illustrated 17
removal 40
spare part number 24, 40
RTC battery compartment cover
identifying 14
illustrated 17
rubber feet, spare part
number 33
Rubber Kit, spare part number 23
rubber pads, LCD
spare part number 24
rubber screw covers
spare part number 24
S
Screw Kit
complete list 23
contents 99
spare part number 25
scrolling regions, TouchPad 4
secondary hard drive self test 88
security cable slot, identifying 12
Security menu 87
security, product description 3
selecting in the Setup Utility 84
serial number 15, 32
service considerations 27
service tag 15, 32
serviceability, product
description 3
Setup Utility
Diagnostics menu 88
Main menu 87
overview 83
Security menu 87
starting 83
System Configuration
menu 87
slots
Digital Media 12
memory module 14
security cable 12
solid-state drive (SSD) 120,
124
speaker assembly
illustrated 17
removal 49
spare part number 24, 49
speakers, identifying 7
specifications
Blu-ray ROM with LightScribe
DVD±RW SuperMulti DoubleLayer Drive 93
computer 89
display 90
DVD±RW and CD-RW
SuperMulti Double-Layer
Combo Drive with
LightScribe 92
hard drive 91
I/O addresses 96
interrupts 95
memory map 98
optical drive 92, 93
system DMA 94
static-shielding materials 31
supported discs 121
system board
illustrated 17
removal 74
spare part number 26, 74
System Configuration menu 87
system DMA 94
system failure or instability 120
system information 87
system memory map 98
system recovery 124
system restore points 120, 122
T
thermal paste, replacement
tools required 27
top cover
illustrated 17
removal 59
spare part number 25,
TouchPad
buttons 4
identifying 4
illustrated 17
removal 62
scrolling regions 4
spare part number 25
TouchPad bracket
illustrated 17
spare part number 25
TouchPad button board
illustrated 17
spare part number 25,
TouchPad light, identifying
TouchPad on/off button 4
transporting guidelines 30
78
59
62
4
U
USB board
illustrated 17
removal 70
spare part number 24, 70
USB board cable
illustrated 17
spare part number 24
USB ports
identifying 12, 13
pin assignments 129
using system restore 122
V
vents, identifying 13, 14
Virtualization Technology 87
W
webcam light, identifying 9
webcam, identifying 9
Index 141
Windows applications key,
identifying 8
Windows logo key, identifying 8
wireless antenna
removal 55
spare part number 56
wireless button, identifying 7
wireless light, identifying 5
wireless, product description 2
WLAN module
illustrated 17
removal 38
spare part number 38
workstation guidelines 30
142 Index
Download PDF
