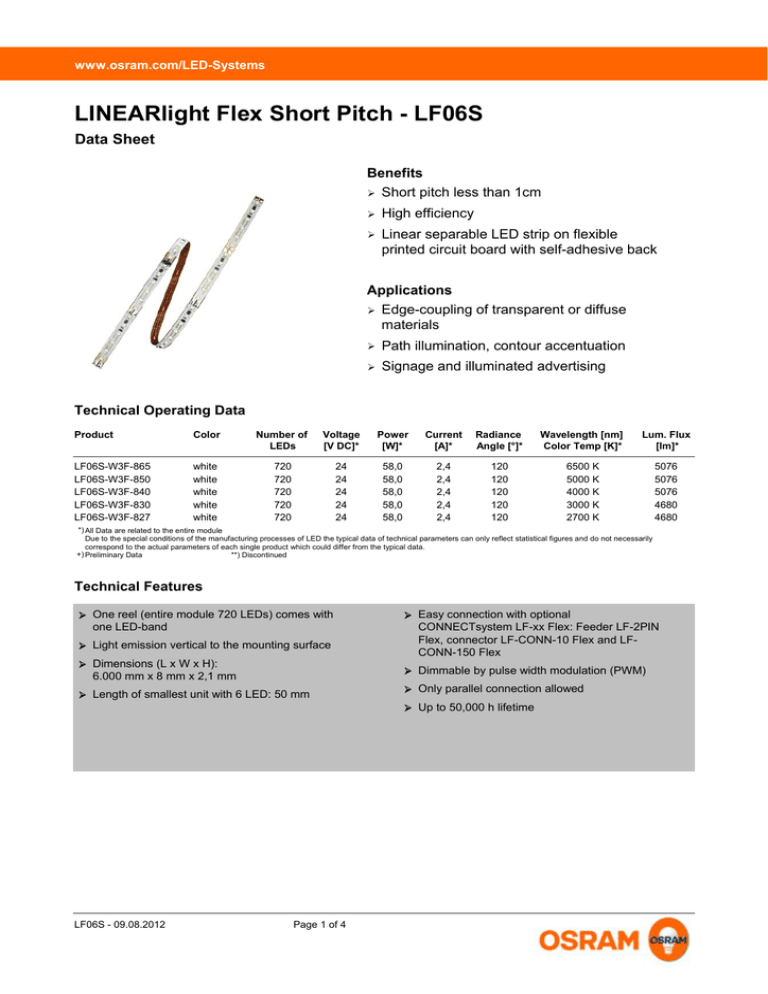

LINEARlight Flex Short Pitch - LF06S
Data Sheet
Benefits
Picture for
Datasheet
is missing
!!!
¾
Short pitch less than 1cm
¾
High efficiency
¾
Linear separable LED strip on flexible
printed circuit board with self-adhesive back
Applications
¾
Edge-coupling of transparent or diffuse
materials
¾
Path illumination, contour accentuation
¾
Signage and illuminated advertising
Technical Operating Data
Product
Color
Number of
LEDs
Voltage
[V DC]*
Power
[W]*
Current
[A]*
Radiance
Angle [°]*
Wavelength [nm]
Color Temp [K]*
Lum. Flux
[lm]*
LF06S-W3F-865
LF06S-W3F-850
LF06S-W3F-840
LF06S-W3F-830
LF06S-W3F-827
white
white
white
white
white
720
720
720
720
720
24
24
24
24
24
58,0
58,0
58,0
58,0
58,0
2,4
2,4
2,4
2,4
2,4
120
120
120
120
120
6500 K
5000 K
4000 K
3000 K
2700 K
5076
5076
5076
4680
4680
*) All Data are related to the entire module
Due to the special conditions of the manufacturing processes of LED the typical data of technical parameters can only reflect statistical figures and do not necessarily
correspond to the actual parameters of each single product which could differ from the typical data.
+) Preliminary Data
**) Discontinued
Technical Features
¾ One reel (entire module 720 LEDs) comes with
one LED-band
¾ Light emission vertical to the mounting surface
¾ Dimensions (L x W x H):
¾ Easy connection with optional
CONNECTsystem LF-xx Flex: Feeder LF-2PIN
Flex, connector LF-CONN-10 Flex and LFCONN-150 Flex
¾ Dimmable by pulse width modulation (PWM)
6.000 mm x 8 mm x 2,1 mm
¾ Length of smallest unit with 6 LED: 50 mm
¾ Only parallel connection allowed
¾ Up to 50,000 h lifetime
LF06S - 09.08.2012
Page 1 of 4
Minimum and Maximum Ratings
Product
Operating Temperature
at Tc-Point [ °C ] *
Storage Temperature
[ °C ] *
Voltage Range
[ V dc ] *
Reverse Voltage
[ V dc ] *
LF06S-W3F-865
-30 ... 75
-40 ... 85
23 ... 25
25
LF06S-W3F-850
-30 ... 75
-40 ... 85
23 ... 25
25
LF06S-W3F-840
-30 ... 75
-40 ... 85
23 ... 25
25
LF06S-W3F-830
-30 ... 75
-40 ... 85
23 ... 25
25
LF06S-W3F-827
-30 ... 75
-40 ... 85
23 ... 25
25
*)
Exceeding maximum ratings for operating and storage temperature will reduce expected life time or destroy the LED Module.
Exceeding maximum ratings for operating voltage will cause hazardous overload and will likely destroy the LED Module.
The temperature of the LED module must be measured at the Tc-point according to EN60598-1 in a thermally constant status with a temperature sensor or a temperature
sensitive label. For exact location of the Tc-point see drawing below.
Drawings
Drawing is missing !!!
LF06S - 09.08.2012
Page 2 of 4
Safety Information
¾ The LED module itself and all its components must not be mechanically stressed.
¾ Assembly must not damage or destroy conducting paths on the circuit board.
In order to drive OSRAM LED-Modules safely, it is absolutely necessary to operate them with an electronically stabilised power
supply protecting against short circuits, overload and overheating.
To also ease the luminaire/installation approval, electronic control gear for LED or LED modules should carry the CE mark and be ENE
certified. In Europe the declarations of conformity must include the following standards:
CE: EC 61374-2-13, EN 55015, IEC 61547 and IEC 61000-3-2 - ENEC: 61374-2-13 and IEC/EN 62384.
Also check for the mark of an independent authorized certification institute.
Please see the relevant brochure for more detailed information (see "Related and Further Information")
OSRAM OPTOTRONIC® electronic control gear complies to all relevant standards and guarantees safe operation.
¾ Installation of LED modules (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only
qualified personnel should be allowed to perform installations.
¾ Observe correct polarity!
Depending on the product incorrect polarity will lead to emission of red or no light. The module can be destroyed! Correct polarity
immediatelly! (see "reverse voltage", page 2)
¾ Parallel connection is highly recommended as safe electrical operation mode.
Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the LED module.
¾ Please ensure that the power supply is of adequate power to operate the total load.
¾ When mounting on metallic or otherwise conductive surfaces, there needs to be a electrical isolation at soldering points between mod
and the mounting surface.
¾ The maximum length of a coherently operable unit is 6m.
By two-pole feed in the middle or from both ends the length can be doubled.
¾ Pay attention to standard ESD precautions when installing the module.
¾ The module, as manufactured, has no conformal coating and therefore offers no inherent protection against corrosion. The ability to
customize the length of the module by cutting at specifically marked points is a key feature of the product and hence the reason for no
factory installed conformal coating. For these reasons, it is recommended that the user complete all module modifications first (cutting
wiring) and then apply a conformal coating in the final stages of installation.
¾ Damage by corrosion will not be honored as a materials defect claim. It is the user's responsibility to provide suitable protection again
corrosive agents such as moisture and condensation and other harmful elements.
¾ For applications involving exposure to humidity and dust the module must be protected by a fixture or housing with a suitable protectio
class. The module can be protected against condensation water by treatment with an appropriate circuit board grade conformal coatin
The conformal coating should have the following features:
- Optical transparency
- UV-resistance
- thermal expansion matching the thermal expansion of the module 15-30*10^-6 cm/cm/K
- low permeability of steam for all climatic conditions
- resistance against corrosive environment
LF06S - 09.08.2012
Page 3 of 4
Assembly Information
¾ Connection with soldering wires on unmounted module: Do not pretin the solderpads but pretin the wires and solder for max 4 s at 30
°C. Allow solderpoints to completely cool down before the next soldering. Prevent shear- or peel forces.
¾ Soldering of wires with the module mounted on a heatsink: Pretin solderpads and wires and solder for max 3 s at 350 °C. Allow
solderpoints to completely cool down before the next soldering. Prevent shear- or peel forces.
¾ The smallest unit (50 mm - 6 LEDs) can be removed by cutting with scissors before or after the designated solder pad.
¾ The mounting of the module is facilitated by means of the double-sided adhesive on the back-surface of the module. Care must be tak
to provide a clean even and dry mounting surface, free of oils or silicone coatings as well as dirt particles. The mounting substrate mu
have sufficient structural integrity. Take care to completely remove the adhesive backing. Once the module is appropriately positioned
press on the module with about 20 N/cm² (refer to application techniques of 3M adhesive transfer tapes).
¾ The minimum bending radius is 2 cm.
¾ The thermal length expansion coefficient of the modul is 17*10^-6cm/cm/K. When installing in environments with large variations in
temperature (e.g. outdoor applications) and operating length of more than 2 m, the use of metallic mounting surfaces is necessary.
Otherwise it is advisable to use an additional thicker adhesive tape to absorb the stress of any mismatch in expansion coefficients.
Ordering Guide
S-Unit *
Productgroup
Productname
EAN *
LINEARlight Flex Short Pitch
LF06S-W3F-865
4008321973924
8
LINEARlight Flex Short Pitch
LF06S-W3F-850
4008321973917
8
LINEARlight Flex Short Pitch
LF06S-W3F-840
4008321973900
8
LINEARlight Flex Short Pitch
LF06S-W3F-830
4008321973894
8
LINEARlight Flex Short Pitch
LF06S-W3F-827
4008321973887
8
*) EAN: Ordering number per single module
S-Unit: Modules per shipping unit
Note: Typical performance data are subject to change without any further notice, particularly as LED technology evolves.
Sales and Technical Support
OSRAM GmbH
Hellabrunner Strasse 1
D - 81536 München
Germany
www.osram.com
+49 (0)89 6213-0
LF06S - 09.08.2012
Sales and technical support is given by the
local OSRAM subsidiaries.
On our world wide homepage all OSRAM
subsidiaries are listed with complete
address and phone numbers.
Page 4 of 4
