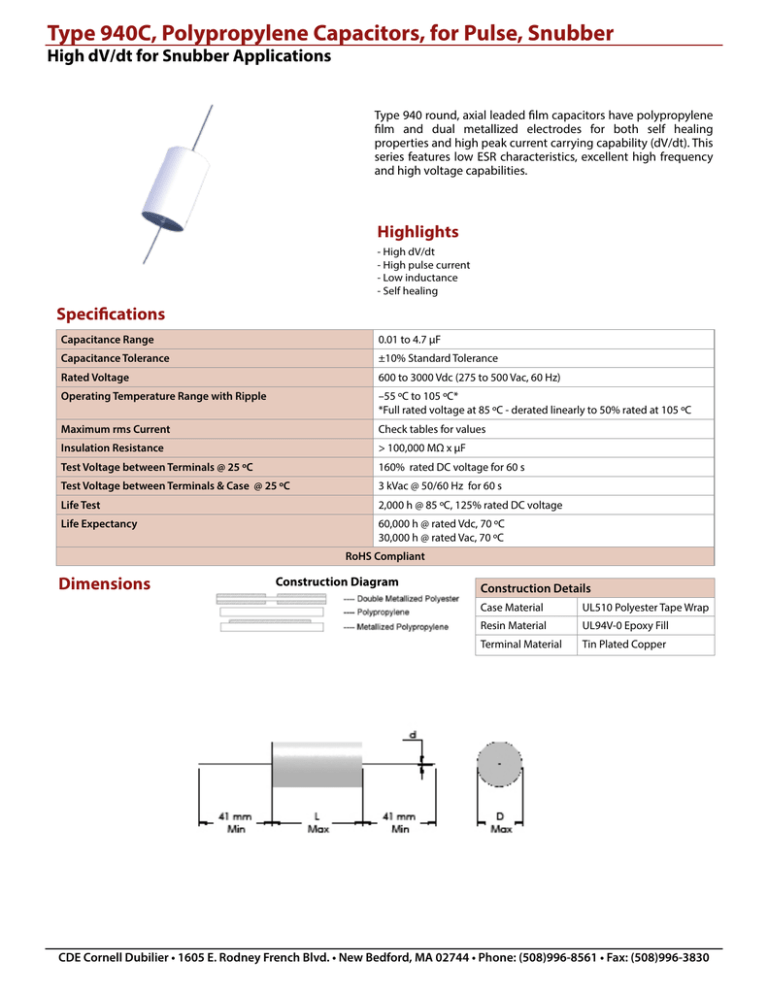

Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
Type 940 round, axial leaded film capacitors have polypropylene
film and dual metallized electrodes for both self healing
properties and high peak current carrying capability (dV/dt). This
series features low ESR characteristics, excellent high frequency
and high voltage capabilities.
Highlights
- High dV/dt
- High pulse current
- Low inductance
- Self healing
Specifications
Capacitance Range
0.01 to 4.7 µF
Capacitance Tolerance
±10% Standard Tolerance
Rated Voltage
600 to 3000 Vdc (275 to 500 Vac, 60 Hz)
Operating Temperature Range with Ripple
–55 ºC to 105 ºC*
*Full rated voltage at 85 ºC - derated linearly to 50% rated at 105 ºC
Maximum rms Current
Check tables for values
Insulation Resistance
> 100,000 MΩ x µF
Test Voltage between Terminals @ 25 ºC
160% rated DC voltage for 60 s
Test Voltage between Terminals & Case @ 25 ºC
3 kVac @ 50/60 Hz for 60 s
Life Test
2,000 h @ 85 ºC, 125% rated DC voltage
Life Expectancy
60,000 h @ rated Vdc, 70 ºC
30,000 h @ rated Vac, 70 ºC
RoHS Compliant
Dimensions
Construction Diagram
Construction Details
Case Material
UL510 Polyester Tape Wrap
Resin Material
UL94V-0 Epoxy Fill
Terminal Material
Tin Plated Copper
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
Part Numbering System
940
C
6
P
22
K
Capacitance
Termination
Series
Code
940
C =Tinned Copper Wire
Capacitance
Voltage Code
16 = 1600 Vdc
S = 0.0
8 = 800 Vdc
20 = 2000 Vdc
P = 0.
10 = 1000 Vdc
30 = 3000 Vdc
W = No decimal
F = Insulated Stranded
Wire
Ratings
H = Tinned Lugs
Decimal Point
6 = 600 Vdc
12 = 1200 Vdc
Significant
figures in µF
Tolerance
–F
RoHS
Compliant
Indicator
Code
K = ±10%
point
NOTE: Other ratings, sizes and performance specifications are available. Contact us.
IRMS
Catalog
Cap.
Part Number
(µF)
Typical
Typical
70 ºC
D
L
d
ESR
ESL
dV/dt
I peak
100 kHz
mm
mm
mm
(mΩ)
(nH)
V/µs
(A)
(A)
600 Vdc (275 Vac)
.10
940C6P1K-F
9.0
34.0
0.8
28
19
196
20
2.5
.15
940C6P15K-F
10.5
34.0
0.8
13
20
196
29
4.0
.22
940C6P22K-F
11.5
34.0
0.8
12
20
196
43
4.4
.33
940C6P33K-F
13.5
34.0
0.8
9
21
196
65
5.6
.47
940C6P47K-F
15.5
34.0
1.0
7
22
196
92
6.9
.68
940C6P68K-F
18.0
34.0
1.0
6
23
196
134
8.1
1.00
940C6W1K-F
21.0
34.0
1.0
6
24
196
196
8.9
1.50
940C6W1P5K-F
25.0
34.0
1.2
5
26
196
295
10.9
2.00
940C6W2K-F
23.5
46.0
1.2
5
31
128
255
11.8
3.30
940C6W3P3K-F
27.0
54.0
1.2
4
36
105
346
15.3
4.70
940C6W4P7K-F
31.5
54.0
1.2
4
38
105
492
16.8
850 Vdc (450 Vac)
.15
940C8P15K-F
13.0
34.0
0.8
8
21
713
107
5.8
.22
940C8P22K-F
15.5
34.0
1.0
8
22
713
157
6.4
.33
940C8P33K-F
18.0
34.0
1.0
7
23
713
235
7.5
.47
940C8P47K-F
21.0
34.0
1.0
5
24
713
335
9.8
.68
940C8P68K-F
24.5
34.0
1.2
4
26
713
485
12.0
1.00
940C8W1K-F
22.5
46.0
1.2
5
30
400
400
11.5
1.50
940C8W1P5K-F
27.0
46.0
1.2
4
32
400
600
14.3
2.00
940C8W2K-F
30.5
46.0
1.2
3
34
400
800
17.9
2.20
940C8W2P2K-F
32.0
46.0
1.2
3
34
400
880
18.4
2.50
940C8W2P5K-F
34.0
46.0
1.2
3
35
400
1000
19.1
.15
940C10P15K-F
15.0
34.0
1.0
7
22
856
128
6.7
.22
940C10P22K-F
17.5
34.0
1.0
7
23
856
188
7.4
.33
940C10P33K-F
20.5
34.0
1.0
6
24
856
283
8.8
.47
940C10P47K-F
24.0
34.0
1.2
5
26
856
402
10.6
1000 Vdc (500 Vac)
.68
940C10P68K-F
28.0
34.0
1.2
5
27
856
582
11.7
1.00
940C10W1K-F
26.0
46.0
1.2
5
32
480
480
12.5
1.50
940C10W1P5K-F
31.0
46.0
1.2
4
34
480
720
15.6
2.00
940C10W2K-F
35.5
46.0
1.2
3
36
480
960
19.6
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
IRMS
Cap.
Catalog
D
L
(µF)
Part Number
mm
mm
Typical
Typical
d
ESR
ESL
dV/dt
I peak
100 kHz
70 ºC
mm
(mΩ)
(nH)
V/µs
(A)
(A)
22
1142
114
6.1
1200 Vdc (500 Vac)
.10
940C12P1K-F
15.5
34.0
1.0
9
.15
940C12P15K-F
18.5
34.0
1.0
7
23
1142
171
7.6
.22
940C12P22K-F
21.5
34.0
1.0
7
24
1142
251
8.4
.33
940C12P33K-F
20.0
46.0
1.0
7
29
640
211
9.0
.47
940C12P47K-F
23.0
46.0
1.2
7
30
640
301
9.8
.68
940C12P68K-F
27.0
46.0
1.2
6
32
640
435
11.7
1.00
940C12W1K-F
33.0
46.0
1.2
5
35
640
640
14.5
1.50
940C12W1P5K-F
35.0
54.0
1.2
4
39
502
754
17.9
.10
940C16P1K-F
18.0
34.0
1.0
7
23
1427
143
7.5
.15
940C16P15K-F
21.5
34.0
1.0
5
24
1427
214
9.9
1600 Vdc (500 Vac)
.22
940C16P22K-F
25.5
34.0
1.2
7
26
1427
314
9.3
.33
940C16P33K-F
23.5
46.0
1.2
7
31
800
264
10.0
.47
940C16P47K-F
27.5
46.0
1.2
6
32
800
376
11.8
.68
940C16P68K-F
32.5
46.0
1.2
6
35
800
544
13.1
1.00
940C16W1K-F
39.0
46.0
1.2
5
37
800
800
16.2
1.50
940C16W1P5K-F
42.0
54.0
1.2
4
42
628
942
20.1
2000 Vdc (500 Vac)
.022
940C20S22K-F
11.5
34.0
0.8
35
6
1712
38
2.6
.033
940C20S33K-F
13.5
34.0
0.8
20
21
1712
57
3.8
.047
940C20S47K-F
15.0
34.0
1.0
12
22
1712
80
5.2
.068
940C20S68K-F
17.5
34.0
1.0
8
23
1712
116
6.9
.100
940C20P1K-F
21.0
34.0
1.0
7
24
1712
171
8.3
.150
940C20P15K-F
19.5
46.0
1.0
7
29
960
144
8.9
.220
940C20P22K-F
22.0
46.0
1.0
8
30
960
211
9.0
.330
940C20P33K-F
27.0
46.0
1.2
8
32
960
317
10.1
.470
940C20P47K-F
32.0
46.0
1.2
6
34
960
451
13.0
.560
940C20P56K-F
31.0
54.0
1.2
7
37
754
422
12.6
.680
940C20P68K-F
34.0
54.0
1.2
6
39
754
513
14.3
1.00
940C20W1K-F
41.0
54.0
1.2
5
42
754
754
17.7
3000 Vdc (500 Vac)
.010
940C30S1K-F
11.5
34.0
0.8
60
20
2568
26
2.0
.015
940C30S15K-F
13.5
34.0
0.8
40
21
2568
39
2.7
.022
940C30S22K-F
15.5
34.0
1.0
25
22
2568
57
3.6
.033
940C30S33K-F
18.0
34.0
1.0
14
23
2568
85
5.3
.047
940C30S47K-F
16.5
46.0
1.0
14
28
1440
68
5.7
.068
940C30S68K-F
19.0
46.0
1.0
12
29
1440
98
6.7
.100
940C30P1K-F
22.5
46.0
1.2
10
30
1440
144
8.1
.150
940C30P15K-F
27.0
46.0
1.2
8
32
1440
216
10.1
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
RMS Voltage vs Frequency @ 25 ºC
940C/ 941C - 600 Vdc
300
940C/ 941C - 850 Vdc
500
250
400
200
Vrms
Vrms
300
0.1 µF
0.47 µF
1 µF
150
0.15 µF
0.68 µF
2.2 µF
200
100
100
50
0
0
10
100
1000
10000
10
100000
100
940C/ 941C - 1000 Vdc
500
500
400
400
300
0.15 µF
0.47 µF
2 µF
200
300
100000
0.1 µF
0.47 µF
1 µF
200
100
100
0
0
10
100
1000
10000
10
100000
100
940C/ 941C - 1600 Vdc
600
400
400
Vrms
500
0.1 µF
0.47 µF
1.5 µF
200
10000
100000
940C/ 941C - 2000 Vdc
600
500
300
1000
Frequency (Hz)
Frequency (Hz)
Vrms
10000
940C/ 941C - 1200 Vdc
600
Vrms
Vrms
600
1000
Frequency (Hz)
Frequency (Hz)
300
0.022 µF
0.22 µF
1 µF
200
100
100
0
10
100
1000
Frequency (Hz)
10000
100000
0
10
100
1000
10000
100000
Frequency (Hz)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be required.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Cornell Dubilier:
940C16W1P5K-F 940C12W1K-F 940C16P1K-F 940C20S22K-F 940C8W1P5K-F 940C8W2K-F 940C16P15K-F
940C10P15K-F 940C16W1K-F 940C20P56K-F 940C6W4P7K-F 940C30S1K-F 940C30S47K-F 940C20S47K-F
940C16P33K-F 940C10P33K-F 940C20P33K-F 940C20P68K-F 940C30P15K-F 940C8W2P5K-F 941C6W1K-F
940C8W2P2K-F 940C6P22K-F 940C8W1K-F 940C8P47K-F 940C30S22K-F 940C12P15K-F 940C10P68K-F
940C20W1K-F 940C10W1K-F 940C20P47K-F 940C16P47K-F 940C12P47K-F 940C10P47K-F 940C10W2K-F
940C30P1K-F 940C20P1K-F 940C12P1K-F 940C20P22K-F 940C16P22K-F 940C12P22K-F 940C10P22K-F
940C30S33K-F 940C12P33K-F 940C8P68K-F 940C30S15K-F 940C20P15K-F 940C6P15K-F 940C8P33K-F
940C20S33K-F 940C6W1K-F 940C6P1K-F 940C6P68K-F 940C6W3P3K-F 940C16P68K-F 940C8P15K-F
940C12P68K-F 940C10W1P5K-F 940C8P22K-F 940C12W1P5K-F 940C6W2K-F 940C6W1P5K-F 940C6P33K-F
940C6P47K-F 940C30S68K-F 940C20S68K-F 940C8P22K
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
