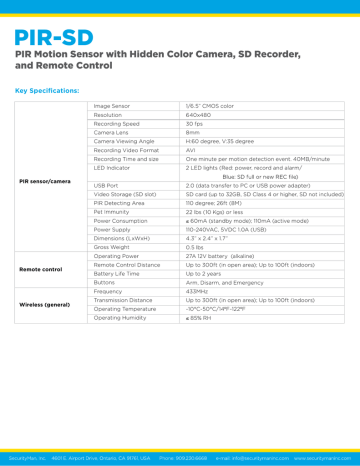

PIR-SD Spec
PIR-SD
PIR Motion Sensor with Hidden Color Camera, SD Recorder,
and Remote Control
Key Specifications:
PIR sensor/camera
Remote control
Wireless (general)
Image Sensor
1/6.5” CMOS color
Resolution
640x480
Recording Speed
30 fps
Camera Lens
8mm
Camera Viewing Angle
H:60 degree, V:35 degree
Recording Video Format
AVI
Recording Time and size
One minute per motion detection event. 40MB/minute
LED Indicator
2 LED lights (Red: power, record and alarm/
USB Port
2.0 (data transfer to PC or USB power adapter)
Video Storage (SD slot)
SD card (up to 32GB, SD Class 4 or higher, SD not included)
PIR Detecting Area
110 degree; 26ft (8M)
Pet Immunity
22 lbs (10 Kgs) or less
Power Consumption
≤ 60mA (standby mode); 110mA (active mode)
Power Supply
110~240VAC, 5VDC 1.0A (USB)
Dimensions (LxWxH)
4.3” x 2.4” x 1.7”
Gross Weight
0.5 lbs
Operating Power
27A 12V battery (alkaline)
Remote Control Distance
Up to 300ft (in open area); Up to 100ft (indoors)
Battery Life Time
Up to 2 years
Buttons
Arm, Disarm, and Emergency
Frequency
433MHz
Transmission Distance
Up to 300ft (in open area); Up to 100ft (indoors)
Operating Temperature
-10°C~50°C/14ºF~122ºF
Operating Humidity
≤ 85% RH
