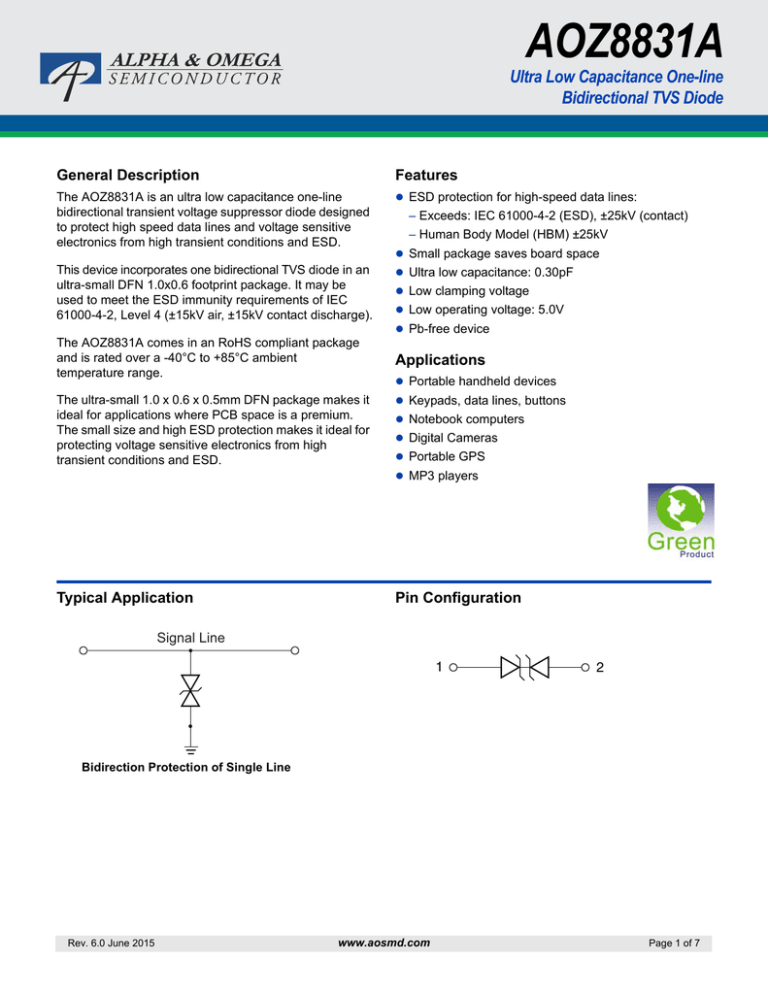

AOZ8831A
Ultra Low Capacitance One-line
Bidirectional TVS Diode
General Description
Features
The AOZ8831A is an ultra low capacitance one-line
bidirectional transient voltage suppressor diode designed
to protect high speed data lines and voltage sensitive
electronics from high transient conditions and ESD.
 ESD protection for high-speed data lines:
This device incorporates one bidirectional TVS diode in an
ultra-small DFN 1.0x0.6 footprint package. It may be
used to meet the ESD immunity requirements of IEC
61000-4-2, Level 4 (±15kV air, ±15kV contact discharge).
 Ultra low capacitance: 0.30pF
– Exceeds: IEC 61000-4-2 (ESD), ±25kV (contact)
– Human Body Model (HBM) ±25kV
 Small package saves board space
 Low clamping voltage
 Low operating voltage: 5.0V
 Pb-free device
The AOZ8831A comes in an RoHS compliant package
and is rated over a -40°C to +85°C ambient
temperature range.
The ultra-small 1.0 x 0.6 x 0.5mm DFN package makes it
ideal for applications where PCB space is a premium.
The small size and high ESD protection makes it ideal for
protecting voltage sensitive electronics from high
transient conditions and ESD.
Applications
 Portable handheld devices
 Keypads, data lines, buttons
 Notebook computers
 Digital Cameras
 Portable GPS
 MP3 players
Typical Application
Pin Configuration
Signal Line
1
2
Bidirection Protection of Single Line
Rev. 6.0 June 2015
www.aosmd.com
Page 1 of 7
AOZ8831A
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8831ADI-05
-40°C to +85°C
DFN 1.0 x 0.6
Green Product
RoHS Compliant
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter
Rating
VP – VN
5V
Peak Pulse Current (IPP), tP = 8/20µs
2.5A
Peak Pulse Power, tP = 8/20µs
40W
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2,
ESD Rating per Human Body
Contact(1)
±25kV
Model(2)
±25kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Maximum Operating Conditions
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter
Rating
Junction Temperature (TJ)
Rev. 6.0 June 2015
-40°C to +125°C
www.aosmd.com
Page 2 of 7
AOZ8831A
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
IPP
Parameter
Diagram
Maximum Reverse Peak Pulse Current
(100ns Transmission Line Pulse (TLP))
VCL
Clamping Voltage @ IPP
VSURGE_MAX
Peak Voltage at ISURGE = 2A
(IEC61000-40-5 8/20µs pulse current)
VRWM
Working Peak Reverse Voltage
IR
Maximum Reverse Leakage Current
VBR
Breakdown Voltage
PPK
Peak Power Dissipation
CJ
Capacitance @ VR = 0 and f = 1MHz
Device
AOZ8831ADI-05
Rev. 6.0 June 2015
I
IPP
VCL VBR VRWM
IR
IT
VRWM VBR VCL
V
IPP
VBR (V)
VCL Max.
CJ (pF)
IR (nA) VSURGE (V)
Device VRWM (V)
IPP = 1A IPP = 2A IPP = 5A Typ. Max.
Max.
Max.
Marking
Min. Max. Max.
T
5.0
6.0
10.0
50.0
15.5
www.aosmd.com
14.0
16.0
19.5
0.30
0.45
Page 3 of 7
AOZ8831A
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
5
0
25
Insertion Loss (dB)
Clamping Voltage, VCL (V)
Insertion Loss (S21) vs. Frequency
(tperiod = 100ns, tr = 1ns)
30
20
15
-5
-10
-15
-20
-25
10
0
2
4
6
8
10
1
12
10
100
1000
10000
Frequency (MHz)
Peak Pulse Current, IPP (A)
Typical Variation of CIN vs. VR
(f = 1MHz, T = 25C)
0.8
Input Capacitance (pF)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
1
2
3
4
5
Input Voltage (V)
Rev. 6.0 June 2015
www.aosmd.com
Page 4 of 7
AOZ8831A
Package Dimensions, DFN 1.0 x 0.6
5 Index Area
(E/4xD)
2x
aaa C
3
e
A
aaa C 2x
D
ddd
C AB
B
E
Pin#1 ID
0.125x45°
2x b
L2
ddd
C AB
BOTTOM VIEW
TOP VIEW
6
A
Seating Plane
2x
7
ccc C
A1
C
SIDE VIEW
RECOMMENDED LAND PATTERN
1.00
0.30
0.55
0.40
0.125 x 45°
Dimensions in millimeters
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.47
0.00
0.45
Nom.
0.51
0.02
0.50
0.60 BSC
1.00 BSC
0.65 BSC
0.20
0.25
0.05
0.03
0.10
Max.
0.55
0.05
0.55
0.30
Dimensions in inches
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.019
0.000
0.018
0.008
Nom.
0.020
0.001
0.020
0.024
0.039
0.026
0.010
0.002
0.001
0.004
Max.
0.022
0.002
0.022
0.012
0.30
UNIT: mm
Notes:
1. Dimensions and tolerancing conform to ASME Y14.5-2009.
2. All dimensions are in milliteters.
3. “e” represents the terminal grid pitch.
4. N isthe total number of terminals.
5. A visual index feature must be located within the hatched area. Typical index feature (chamfer) must be located on the edge
of the Pin#1 feature.
6. This dimension includes stand-off height “A1” and packaged body thickness, but does not include attached feature e.g. external
heatsink or chip capacitors, an internal heatslug is not considered as attached feature.
7. Dimension “A1” is primarily terminal plating, and does not include small metal protrusions.
Rev. 6.0 June 2015
www.aosmd.com
Page 5 of 7
AOZ8831A
Tape and Reel Dimensions, DFN 1.0 x 0.6
Carrier Tape
P1
P2
T
D1
E1
E2
E
B0
K0
P0
D0
A0
UNIT: mm
Option
A
Package
B0
A0
K0
DFN 1.0x0.6/ 0.69 1.19
0.66
DFN 1.0x0.6A ±0.05 ±0.05 ±0.05
(8 mm)
D0
0.40
±0.05
D1
E
E1
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
E2
3.50
±0.05
P0
2.00
±0.05
P1
4.00
±0.10
T
P2
0.23
2.00
±0.05 ±0.02
B
0.61
DFN 1.0x0.6/ 0.65 1.05
DFN 1.0x0.6A ±0.04 ±0.04 ±0.04
(8 mm)
0.40
±0.05
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
3.50
±0.05
2.00
±0.10
4.00
±0.10
2.00
0.20
±0.05 ±0.05
Reel
W1
S
G
N
M
K
V
R
H
W
UNIT: mm
Tape Size Reel Size
8mm
ø178
M
ø178
±0.5
N
ø55
±1
W
8.4
+1.5/-0
W1
Max.
14.4
H
ø13.0
±0.5
K
Max.
10.1
S
2.0
±0.5
G
N/A
R
N/A
V
N/A
Leader / Trailer & Orientation
TVS
Unit Per Reel:
10000pcs
Trailer Tape
300mm Min.
Rev. 6.0 June 2015
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm Min.
Page 6 of 7
AOZ8831A
Part Marking
T X
Product Number Code
Date Code
