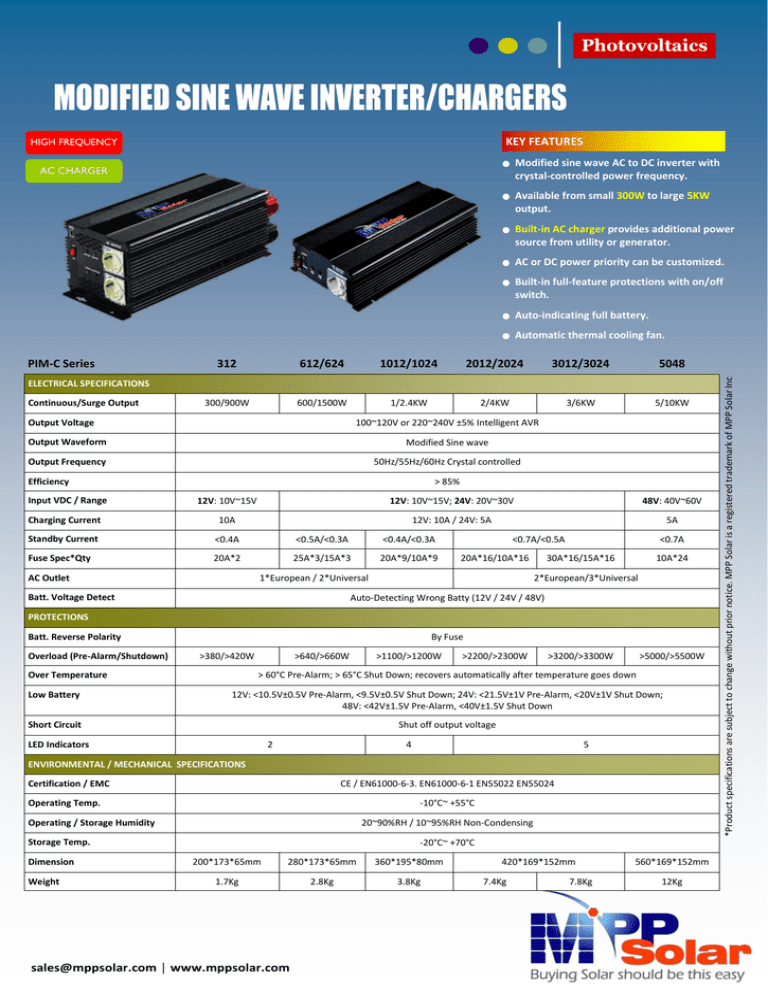

PIM-C Series Catalog PDF
Photovoltaics
HIGH FREQUENCY
KEY FEATURES
PIM-C Series
●
Modified sine wave AC to DC inverter with
crystal-controlled power frequency.
●
Available from small 300W to large 5KW
output.
●
Built-in AC charger provides additional power
source from utility or generator.
●
AC or DC power priority can be customized.
●
Built-in full-feature protections with on/off
switch.
●
Auto-indicating full battery.
●
Automatic thermal cooling fan.
312
612/624
1012/1024
2012/2024
3012/3024
5048
300/900W
600/1500W
1/2.4KW
2/4KW
3/6KW
5/10KW
ELECTRICAL SPECIFICATIONS
Continuous/Surge Output
Output Voltage
100~120V or 220~240V ±5% Intelligent AVR
Output Waveform
Modified Sine wave
Output Frequency
50Hz/55Hz/60Hz Crystal controlled
Efficiency
Input VDC / Range
> 85%
12V: 10V~15V
12V: 10V~15V; 24V: 20V~30V
48V: 40V~60V
Charging Current
10A
12V: 10A / 24V: 5A
5A
Standby Current
<0.4A
<0.5A/<0.3A
<0.4A/<0.3A
Fuse Spec*Qty
20A*2
25A*3/15A*3
20A*9/10A*9
AC Outlet
<0.7A/<0.5A
20A*16/10A*16
1*European / 2*Universal
Batt. Voltage Detect
<0.7A
30A*16/15A*16
10A*24
2*European/3*Universal
Auto-Detecting Wrong Batty (12V / 24V / 48V)
PROTECTIONS
Batt. Reverse Polarity
Overload (Pre-Alarm/Shutdown)
By Fuse
>380/>420W
Over Temperature
>640/>660W
>1100/>1200W
>2200/>2300W
>3200/>3300W
>5000/>5500W
> 60°C Pre-Alarm; > 65°C Shut Down; recovers automatically after temperature goes down
Low Battery
12V: <10.5V±0.5V Pre-Alarm, <9.5V±0.5V Shut Down; 24V: <21.5V±1V Pre-Alarm, <20V±1V Shut Down;
48V: <42V±1.5V Pre-Alarm, <40V±1.5V Shut Down
Short Circuit
Shut off output voltage
LED Indicators
2
4
5
ENVIRONMENTAL / MECHANICAL SPECIFICATIONS
Certification / EMC
CE / EN61000-6-3. EN61000-6-1 EN55022 EN55024
Operating Temp.
-10°C~ +55°C
Operating / Storage Humidity
20~90%RH / 10~95%RH Non-Condensing
Storage Temp.
Dimension
Weight
-20°C~ +70°C
200*173*65mm
280*173*65mm
360*195*80mm
1.7Kg
2.8Kg
3.8Kg
[email protected] │ www.mppsolar.com
420*169*152mm
7.4Kg
7.8Kg
560*169*152mm
12Kg
*Product specifications are subject to change without prior notice. MPP Solar is a registered trademark of MPP Solar Inc
