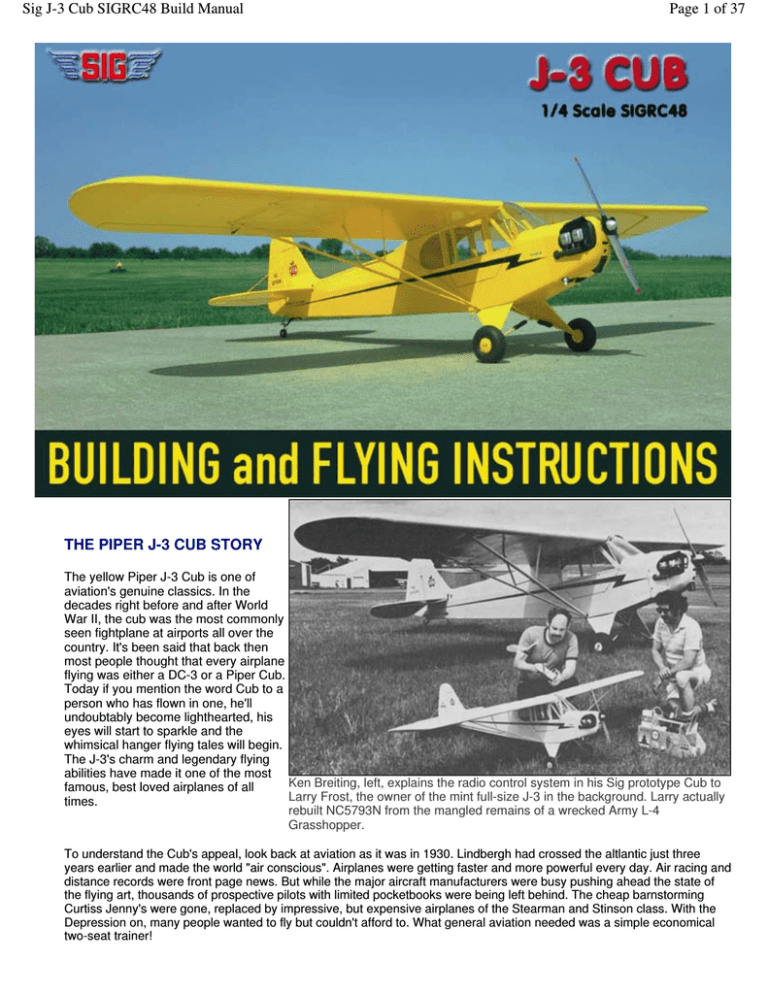

Sig J-3 Cub SIGRC48 Build Manual Page 1 of 37 THE PIPER J-3 CUB STORY The yellow Piper J-3 Cub is one of aviation's genuine classics. In the decades right before and after World War II, the cub was the most commonly seen fightplane at airports all over the country. It's been said that back then most people thought that every airplane flying was either a DC-3 or a Piper Cub. Today if you mention the word Cub to a person who has flown in one, he'll undoubtably become lighthearted, his eyes will start to sparkle and the whimsical hanger flying tales will begin. The J-3's charm and legendary flying abilities have made it one of the most Ken Breiting, left, explains the radio control system in his Sig prototype Cub to famous, best loved airplanes of all Larry Frost, the owner of the mint full-size J-3 in the background. Larry actually times. rebuilt NC5793N from the mangled remains of a wrecked Army L-4 Grasshopper. To understand the Cub's appeal, look back at aviation as it was in 1930. Lindbergh had crossed the altlantic just three years earlier and made the world "air conscious". Airplanes were getting faster and more powerful every day. Air racing and distance records were front page news. But while the major aircraft manufacturers were busy pushing ahead the state of the flying art, thousands of prospective pilots with limited pocketbooks were being left behind. The cheap barnstorming Curtiss Jenny's were gone, replaced by impressive, but expensive airplanes of the Stearman and Stinson class. With the Depression on, many people wanted to fly but couldn't afford to. What general aviation needed was a simple economical two-seat trainer! Sig J-3 Cub SIGRC48 Build Manual Page 2 of 37 . The basic Cub design emerged in 1930 as the open cockpit Taylor E-2 Cub. It was the product of a fledging company in Pennsylvania headed by designer C.G. Taylor and buinessman William T. Piper. Taylor left the partnership in 1935 to start his own Taylorcraft company, but his self-taught design genius had made the E-2 a perfect foundation for Piper's business talents to expand on. In 1936 the J-2 Cub was introduced with an enclosed cabin and 40 h.p. engine. Sales picked up impressively over the E-2. In 1937 a further improved version of the Cub was introduced, the legendary J-3. It became the first really successful commercial lightplane - 14,125 were produced between 1937 and 1947. At last fixed base operators had a simple economical trainer that could take all of the abuse students gave it. America's weekend pilots found an affordable basic stick and rudder machine that set a new standard for fun and docility. Being equally at home on wheels, floats or skis, the J-3 could be flown in and out of places other airplanes couldn't get close to. The Cub also found work towing gliders and banners, and even doing small-time crop dusting. J-3s have always been at home at airshows too. Crazy "drunken" Cub acts, landing and taking off from moving automobiles, and aerobatics in clipped wing versions are just a few of the things the J-3 could do to entertain. Piper seemed to follow Henry Ford's lead when it came to factory paint jobs for the J-3. "You can have any color you like as long as its yellow!" Standard factory markings were black lightning bolts down the fuselage sides, black registration numbers, and the Cub bear emblem. Today, it's hard to imagine a Cub painted any other way. The Army used a version of the Cub, the L-4, for utility work during World War II. The L-4 was little more than an olive drab J-3 with a greenhouse style cabin. 5,673 L-4s were produced between 1942-1945. Nicknamed the "Grasshopper", they were used for observation, aerial photography, artillery spotting, as transports, and as ambulances. Even though the J-3 has been out of production since 1947, they are still in great demand by pilots who want a superior, no frills, fun flying machine. As long as there are pilots around who still fly purely for the adventure of flight, and who don't care about all the latest gadgets, dials, horns, and whistles, there will always be yellow Piper Cubs! COMPLETE KIT PARTS LIST Die-Cut Balsa Sheets 4 Sheet No.1 W4 ribs 3 Sheet No.2 W3, T-1, W3A 1 Sheet No.3 W1, T-4 2 Sheet No.5 W5, T-2, T-3, WS-2 2 Sheet No.6 R1, WS-1, T-5, T-6, Tail Fairing 2 Sheet No.7 F8, F9, F10, F11, W6, WG-1 1 Sheet No.8 F2, F3, F4, F12, F13, W4B 1 Sheet No.4 W2, W4A 1 Sheet No.10 MF-1, MF-2, F5G, CF-1, CF-2 2 Sheet No.11 MF-3, MF-4, MF-5, Stab Mount Blocks 1 Sheet No.12 F7A, CF-3, FSM-2, RSM-2, Windows 4 3/32"x1-1/2"x43-1/2" T.E. Sheeting 4 3/32"x1-1/2"x30" Aileron Top and Bottom Sheeting 4 3/32"x3"x43-1/2" L.E. Sheeting 1 3/16"x4-7/16"x1-1/2" Left Wing Spar Web 1 3/16"x6"x7-1/8" Landing Gear Farings 7 1/8"x1/4"x36" Fuse Side Stringers, Former Stiffners 2 1/8"x7/8"x43-1/2" Leading Edges Printed Balsa Sheets 1 Sheet No.9 Tail Surface Parts Sheet Balsa 1 1/16"x4-1/8"x36" Spar Webs 4 3/32"x4"x36" Sheeting for 1 1/8"x4"x18" Nose Top Center-Section, W1-W2 Rib Bay, Sheeting Wing Tip Leading Edge Stick Balsa 8 1/16"x3/4"x24" Wingtip Laminations 14 3/32"x1/4"x36" Capstrips 2 3/16"x3/8"x36" Cabin Tops, Top 3 1/4"x1/4"x43-1/2" Rear 4 1/4"x1/4"x36" Center Section Spas, Stringer, F7 Fill-In Bottom Spas, Spar Doubler Nose Stringer, Corner Stringer, FSM Cross Supports, T.E. Cross piece 6 1/4"x3/8"x36" Center Section Fill-In, Tail Surface Ribs 3 1/4"x1/2"x36" Window Braces, F5 & F6 Fill-In, Parts of F5, F6, F7 4 1/4"x1-1/2"x30" Aileron 16 5/16"x5/16"x36" Main Frame Sides and 1 5/16"x1-1/8"x18" Leading Edge, Wing Aileron, Cross Pieces, Windshield Braces Shaped Trailing Edge Cutout Liner Stock 3 3/8"x1/2"x36" Stab. L.E., Elev.L.E., Rudder L.E., Fin T.E. 1 3/8"x5/8"x36" Fin L.E., 2 3/8"x1"x44-7/8" Leading Edge Cap Rudder T.E., Rudder Bottom 1 1"x1"x5-3/4" Triangular Stock Wing Bolt Support Block Balsa 2 1-34"x2-1/4"x3-1/2" Cabin Blocks 1 5/8"x6-1/4"x7" Nose Bottom Block Sawn Plywood 3 1/8"x1"x6" L.G. Block Doublers, 1 1/4"x1/2"x24" Former F5 Strut Mount Insert Parts 1 1/4"x2-1/4"x6-1/4" F5 Top 1 1/4"x3/4"x8" Ply Rear Tongue 1 1/4"x7/8"x15-3/4" Front Dihedral Brace Music Wire 1 set 5/32" Dia. Formed Cabin Wires 1 3/16" Dia. Formed Mail L.G. 1 3/16" Dia. Formed L.G. Brace Wire 1 1/8" Dia. Formed L.G. Bottom Shock Strut Wire 2 1/16" Dia. Straight Elev. & Rudder Pushrod Ends 1 1/8" Dia.Formed L.G. Top Shock Strut Wire Sig J-3 Cub SIGRC48 Build Manual Page 3 of 37 . Hardwoods 1 3/8"x1-1/2"x5-3/8" Basswood Wing Bolt Block 2 1/2"x1"x6" Basswood L.G. BlocksWing Bolt Blocks 1 1/2"x1/2"x6" Basswood Cowl Mount Blocks 1 3/8"x1-7/16"x1" Basswood Elevator Horn Insert 1 3/8"x3/8"x4" Spruce Elevator Joiner 8 1/4"x1/4"x43-1/2" Spruce Wing Spars 1 1/4"x1/4"x9" Spruce for Dihedral Brace Box 1 1/4"x3/8"x36" Spruce Cabin Tops, Hatch Supports 1 1/4"x3/8"x18" Spruce Hatch 2 1/4"x1/2"x31" Spruce Rear 2 1/4"x5/8"x30-11/16" Supports Wing Struts Spruce Front Wing Struts 1 1/4" Dia.x2" Dowel Wing Front Hold Down 4 3/16" Dia.x2-1/2" Dowel Fiberglass Pushrod Ends Brass and Aluminum 2 Brass Tubing Jury Strut Cross Pieces 4 Brass Tubing Jury Strut Sides 2 Aluminum Fuse Strut Fittings 4 Aluminum Upper Strut Fittings 1 030 ABS Formed Air Cleaner, 1 set 090 ABS Formed Cowl Bungee Covers Halves 1 030x5/16"x17" ABS Cowl Joiner Strip 1 set 060 ABS Formed Dummy Engine Cylinders 1 set 060 ABS Formed Dummy 1 030 Clear Windshield Top Engine Top Shrouds Window 2 030 Clear Side Windows 2 Aluminum Lower Strut Fittings Plastic Hardware 4 4-40 Heavy Duty RC linksAilerons(2), Elevator(1), Rubber(1) 4 4-40x8" Threaded Rods for 3 Long Nylon Control HornsAilerons, Elevator and Ailerons(2), Elevator(1) Rudder 2 #2x3/4" Sheet Metal Screws- 14 #4x1/2" Sheet Metal Elevator Horn Screws- L.G. Attachment (8), Cowel Mounting(6) 4 2-56x10" Threaded RodsTail Brace Wires 8 #2x3/8" Sheet Metal Screws - Aileron Horns(2), Tail Brace Wires(2), Hatches(4) 4 2-56 RC Links - Tail Brace Wire Ends 6 Solder Links- Tail Brace Wire 3 2-56x1/2" Bolts- Tail Brace 7 2-56 Hex Nuts- Tail Brace 10 4-40x3/8" Bolts- Top of Jury Struts Wire Attach(3), Jam Nuts on Ends(4), Rudder/Elevator, Wire Attach (4), Fuse Strut Fitting Attach(4), Pushrods(2) Brace Wires(4) Wing Strut Linkage to Fuse Strut Fitting(2) 4 4-40x3/4" Bolts- Wing Strut Attach to Wing 4 4-40x1/2" Flat Head Bolts - 12 4-40 Blind Nuts- Fuse Strut 6 4-40 Hex Nuts- Bottom of Jury Struts Bottom of Jury Struts Fit(4), Jury & Wing Struts(8) (4), Wing Strut Linkage to Fuse(2) 4 Molded Nylon Landing Gear Straps 2 1/4-20x1" Nylon Wing Bolts 1 6-32x3/4" Socket Head Bolt- Right Wing Panel Attachment 1 #6 Flat Metal Washer- Right 1 Roll of Soft Copper Wire Wing Panel Attachment 1 6-32 Blind Nuts- Right Wing Panel Attachment 1 Bag 20 Complete Hinges 1 Bag Complete Tailwheel Assembly Miscellaneous 1 Decal Sheet 1 Instruction Book 1 Plan Plate 1 1 Plan Plate 2 1 Plan Plate 3 1 Plan Plate 4 2 5/16" od.x32" Fiberglass Pushrod Tubes 1 3/16"od.x36 Nylon Tubing Internal Antenna Mount Sig J-3 Cub SIGRC48 Build Manual Page 4 of 37 . Engines The 1/4 scale Piper J-3 Cub can be flown with a wide variey of engines. In fact, there is such a vast number of good quality motors available on the market today for a model of this size and type that it is impossible for us to recommend one particular motor over all others. The engines shown here are just a few that we have tried in the Cub. Generally speaking, we've found that any glow model engine, either a .60-.90 size 2-stroke or a .90-1.60 size 4-stroke, can be recommended for the 1/4 scale Cub. Any brand glow engine that you choose, within these limits, should provide your Cub with good flight performance. 2-Stroke or 4-Stroke? The first choice you must make in selecting an engine for your Cub is to decide whether you want to use a 2-stroke or 4stroke motor. From the reports that we have received from our customers, 4-stroke engines have proven to be much more popular for the Cub than 2-strokes. In fact, a 4-stroke engine seems to bring out the best in a slow flying airplane like the Cub. That's because a 4-stroke model engine produces its maximum power at a relatively low r.p.m., just like the full-scale Cub's engine. In other words, it more closely duplicates the power curve of the full-scale motor. While a typical 2-stroke R/C sport engine will normally run at between 10,000 to 13,000 r.p.m. in high throttle, a 4-stroke model engine runs about 7,000 to 9,000 r.p.m. in high. That enables the 4-stroke to turn a larger, more scale size propellor than the 2-stroke model engine could. The large, slow turning prop provides more pulling power for a slow flying airplane like the Cub, giving it an excellent rate of climb without having excessive airspeed in level flight. A 4-stroke engine is the best choice if you want your Cub to have super realistic flight performance. In testing 2-stroke engines in the Cub, we found that a .78-.90 size 2-stroke provided the best all round performance. Fly it throttled back for realistic speed in level flight and go to full power for aerobatics. We also tried a schneurle-ported .60 2stroke in one of our Cubs. While it provided very realistic airspeed, most modelers would feel it was underpowered. Even though it would loop out of level flight with no preliminary dive needed, and would cruise in level flight at near scale speed with 3/4 throttle, the climbouts and turns had to be kept very gentle to avoid a stall. A .78-.90 size 2-stroke provides an extra margin of safety. In conclusion, while a 2-stroke engine can fly the 1/4-scale Cub very well, they do tend to fly the model faster in level flight than a 4-stroke would. You have to run them fast in level flight in order to have good climb performance. We do not recommend converted "chain saw type" gas engines for this model. They tend to vibrate more than a precision made glow engine and are usually too bulky to fit inside the cowling. Regardless of what size and type of engine you decide to use, strive to keep your Cub as light as possible for best flight performance. ENYA .90 4-stroke represents typical installation of a single-cylinder 4-stroke engine in the Cub. Motor is sidemounted for easy starting and dependable Idle. Uses a J'Tee #JT-64 Aluminum Engine Mount, J'Tee #JT-ENS Muffler, and 15-6 prop. No dummy engine needed on this side of the cowling. O.S. GEMINI 1.20 twin-cylinder 4stroke engine mounted in the Cub. Note 3/8" thick spacer between back of engine mount and firewall, to provide correct firewall-to-prop distance. Cowl is modified to come apart In two pieces, ala the full-scale Cub (upper section is removed in pboto). Webra .91 2-stroke engine mounted inverted in the Cub. C.B. Associates 15310 Aluminum Engine Mount, Slimline #3401 Sport Scale Muffler with homemade copper tubing exhaust extensions (plumbing variety copper tubing from hardware store). Inverted engines can be difficult to start. Mounts No motor mounts are supplied in this kit because of the wide range of engines that can be used. A suitable radial firewalltype mount (such as Tatone, Fox, CB, Hayes,etc.) should be available for just about any mass produced engine. The distance from the front of the cowl to the firewall is adequate for most all .60 to .90 glow engines. Less common engines may require some preplanning and modification in this area. Sig J-3 Cub SIGRC48 Build Manual Page 5 of 37 . Mufflers There is no one type of muffler that is best suited for the Cub. It all depends on the particular engine that you've elected to use. You will have to figure out your own muffler installation. We have had good luck adapting the "exhaust manifold" type mufflers (such as made by Tatone and Slimline) to most .60 to .90 glow engines. Usually they can be made to fit with just slight alterations. Use copper or heat-proof rubber tubing to extend the exhaust pipes to the outside of the cowling. Recommended Glues Sig-Bond (alphatic resin type) glue works best for the majority of the general framework construction. Areas subjected to unusual strain, or including metal pieces, should be epoxied with Sig Epoxy Glue (slow drying) or Sig Kwik-Set (5-minute) Epoxy Glue. You will also find that the cyanoacrylate type adhesives (Hot Stuff, Jet, etc.) can be extremely quick and handy for some applications. Some of the steps in this instruction sequence call out the specific type of glue to use for that particular assembly. In other areas you can use your own judgement as to which type is best suited to the purpose and your building schedule. About The Building Sequence The quickest and most efficient way to complete a model is to work on several pieces at the same time. While the glue is drying on one section you can start on or proceed with another part. The numbering sequence used in this book was chosen as the best way of explaining the building of each major assembly and is not intended to be followed in exact onetwo-three fashion. It may be desirable, for example, to start building the wing or tail while the preliminary parts of the fuselage are drying. It is suggested that you read the instruction book and study the plan carefully before beginning to build. That will help make it clear where construction out of the descriptive sequence can be done. Notes Before Beginning Construction Any reference to right or left refers to right or left as if you were seated in the cockpit. Building large airplanes requires a large building board! For this Cub, you will need a board that is at least 18" wide x 72" long. It must be perfectly flat and untwisted. If you don't have one that big, go to the local lumber yard and purchase a "door core" of at least these dimensions. Door cores are normally very straight and true (be sure to inspect it before buying), and they are not too expensive. A piece of thin foam board or celotex-type wallboard makes a handy top surface for your building board, into which pins can be easily pushed. Don't be afraid to use plenty of pins while building, particularily when gluing planking on the top curve of the wing or the round top of the nose. Due to their large size, the full-size fuselage and wing plans had to be drawn in two pieces. Cut out the adjoining pieces and carefully tape them together along the break lines. Wax paper should be used to protect the plans during building. Be careful where you use a ball point pen for making marks on the model during construction. If not sanded off, these marks may bleed through many coats of dope and show on the finished model. Cut all long pieces of balsa first, followed by medium lengths, before cutting up any full length strips into short pieces. Leave the die-cut parts in the sheets until needed in construction. Remove pieces from the sheets carefully. If difficulty is encountered, do not force the part from the sheet. Use a modeling knife to cut it free. A jig saw is best for cutting out the printed balsa parts. Cut just outside the lines, leaving all of the line on the part. When fitting the piece into the structure, use a sanding block to bring the edges to an exact fit. Sig J-3 Cub SIGRC48 Build Manual Page 6 of 37 . FUSELAGE CONSTRUCTION 1. Building The Fuselage Formers Due to their large size, some of the fuselage formers could not be furnished in one-piece, but need to be built up from several pieces. Take great care in the next few steps to insure that these formers are built accurately. How well you make them match the plan will determine how well other fuselage parts will fit together later a. Refer to Cross-Section F5 of the full size plans. Former F5 consists of one 1/4" ply Top, two 1/4"x1/2" ply Sides, and one 1/4"x1/2" balsa Bottom. Cut the 1/4"x1/2" ply pieces from the 24" long stock provided. Cut the 1/4"x1/2" balsa Bottom from 36" long stock. A piece of 1/4"x2-1/4"x6-1/4" plywood is provided for the former Top. Cut two 1/2"x15/16" notches in the bottom corners of the top as shown here. b. Cover the Cross-Section F5 drawing with waxed paper and epoxy the pieces of F5 together directly over the drawing. c. Build former F6 directly over plan Cross-Section F6. This former consists simply of four pieces of 1/4"x1/2" balsa, cut from 36" stock. d. Former F7 consists of two 1/4"x1/2" balsa Sides, one 1/4"x1/2" balsa Bottom, one printed balsa part F7A, and one die-cut lite-ply Cabin Bulkhead. Cut out these parts and glue together over the F7 CrossSection drawing. e. The die-cut balsa rear fuselage formers F8, F9, F10, and F11 each come in two pieces. Glue the halves together at the center. F8, F9, and F10 should each be reinforced with a piece of 1/8"x1/4" balsa, as shown. 2. Fuselage Frame Assembly a. Cut the MF-1, MF-2, MF-3, MF-4 and MF-5 pieces from the 5/16" printed balsa sheets. Cover the Fuselage Main Frame drawing with wax paper or plastic wrap for protection. Using the printed parts and 5/16" square balsa stick, construct two identical main frame sides directly over the drawing. When dry, pin both main frame sides together and lightly even up the edges with a sanding block. b. Epoxy the die-cut lite-ply Fuse Side Sheeting onto the main frame sides. Be sure to make a right and leftl And try not to get excess epoxy in the cutouts in the main frame for the landing gear blocks. c. With a sanding block, bevel the inside rear ends of the fuselage sides where they will join together later. d. The top structure of the cabin/window area, where the wing will sit, is a lamination of 1/4"x3/8" spruce to 3/16"x3/8" balsa. From 36" long stock, cut two spruce and two balsa pieces to proper length. Glue the balsa pieces to the spruce pieces in a manner which will give you a Right and Left Cabin Top piece. e. Pin the Right Cabin Top piece in place on the Side View plan (balsa side up). Pin the Right Fuselage Side in place on the plan (plywood side down). Carefully draw lines on these parts to mark the exact locations of formers F5, F6 and F7. Sig J-3 Cub SIGRC48 Build Manual Page 7 of 37 . f. Epoxy formers F5, F6 and F7 to the Right Fuselage Side and Cabin Top piece. Glue them on one at a time with 5-minute epoxy. Use a triangle to get them on square. g. Epoxy the Left Cabin Top piece in place along the top of the formers. When dry, measure at each former from the bottom of the Right Cabin Top to the top edge of the Right Fuse Side. Then transfer this measurement onto the left side of the formers, this time measuring down from the bottom of the just-installed Left Cabin Top. These marks will come in handy as a guide when aligning the Left Fuse Side in the next step. h. Epoxy the Left Fuselage Side onto the formers. Accurate positioning during this assembly is very critical in building a straight fuselage! It's best to mark the former locations on the inside of the Fuse Side before gluing them on. We prefer to use slow drying epoxy and lots of pins for this assembly so that there is plenty of time for getting an accurate alignment of the fuse sides to each other before the glue dries. And don't forget to check that the sides will properly line up with each other at the tail end. Let dry before proceeding. i. Epoxy 1/8"x1"x6" plywood Landing Gear Block Doublers to the top side of the Grooved Landing Gear Blocks. When dry, epoxy the blocks in place in the fuselage. Make sure that the grooves in the blocks are 5-7/8" apart as shown in the side view fuselage plan. j. Epoxy the 1/8"x1"x6" plywood Strut Mount Insert in front of the rear Landing Gear Block k. Set the fuselage on the Top View plan, pinning down the area between formers F6 and F7. Pull in the rear ends of the fuse sides and glue together parts MF-5 where they meet on the center line of the plan. Let dry. NOTE: With the rear half of the fuselage down against the plan, the length and curve of the sides won't match that drawn on the plan. This isn't a mistake but is simply because the Top View plan shows the fuselage as it would look from above when the fuselage is sitting level not like it is now with the upswept rear half sitting flat on the plan. l. Consequently, to join the remainder of the rear fuselage, first unpin the fuselage from the plan after the MF-5 joint is dry. Then cut the 5/16" square balsa cross-pieces to length according to the patterns for each that are drawn alongside the Top View. Glue and pin these in place starting with the F13 cross-pieces, and then working forward. Sig J-3 Cub SIGRC48 Build Manual Page 8 of 37 . 3. Nose Assembly a. Epoxy the die-cut plywood firewall parts F1A, F1B and F1C together. Make certain that F1C is centered on the back. Carefully mark the vertical centerline and the thrust line on the front of the firewall assembly. Position your engine mount on the front of the firewall, drill holes for mounting, and install blind nuts. b. Join the nose main frame sides at the top with the die-cut lite-ply Nose Joiner. Note that the Joiner should not be flush with the front of the sides, but leaves clearance room for F1C. c. Epoxy the nose assembly to the fuselage main frame. Make sure that the nose main frame sides are lined up with the fuse main frame not flush with the lite-ply fuse side sheeting. The nose will have its own lite-ply side sheeting added later. d. Epoxy the firewall assembly in place. Double check with the Side View plan that you get it correctly located vertically. The easiest way is to draw the thrust line on the main frame sides and match up the line on the firewall with it. e. Refer to the F5 cross-section drawing. Make a 5/32"x5/16" hole in the top of plywood former F5 where the 5/32" Cabin Wires will pass through. f. Cut a groove through the top 5/16" square main frame pieces so the Cabin Wires can enter the slot that is between MF-1 and MF-2. g. Trial fit the Cabin Wires in place and rebend them slightly if necessary to get a good fit in your model. Take coarse grit sandpaper and sand the wires in the areas where they will be glued into the model structure. This will improve glue adhesion. When satisfied with the fit, epoxy the Cabin Wires into the side slots in the nose main frame. Use the glue liberally, to completely cover the wire where it imbeds into the structure. Be careful that the wire doesn't stick out past the surface of the main frame since lite-ply sheeting must still be applied later. h. Wrap with copper wire and solder the Cabin Wires together where they meet at the front of former F5. When cool, clean any excess solder flux off the wires and surrounding plywood with dope thinner and a stiff nylon brush. Let the thinner evaporate out. Smear a fillet of epoxy around the wire binding and onto the front of F5 where they meet. SPECIAL NOTE: It is best to make provisions now for the fuel tank mounting, while you still have easy access through the bottom of the nose. Refer ahead to "Tips On Tanks" (section 20), for some recommendation on the type of setup to use. At this time you should drill any necessary fuel line holes in the firewall, and make any provisions you prefer for securing the tank in position. Sig J-3 Cub SIGRC48 Build Manual Page 9 of 37 . i. Glue in place balsa formers F2, F3 and F4, and the 1/4" square balsa stringer that goes between them. Check the exact locations of the formers carefully. When dry, lightly touch up the edges of the formers by running a sanding block over all three and the ply firewall at the same time. j. Sand the sides of the firewall flush with the main frame. Glue on the die-cut lite-ply Nose Side Sheeting. k. A 1/8"x4"x18" balsa sheet is provided for planking over the top of the nose formers. It may be necessary to wet the outside of the sheeting slightly with water to get it to bend easily around the formers. 4. Cabin Area a. Add 3/16"x3/8" balsa fill-in pieces to each side of former F7. b. Cut out and glue in place the 1/4" printed balsa Window Outlines. They should be glued in flush with the outer surface of the lite-ply Fuse Sides and the spruce Cabin Tops. c. Fill in along both sides of formers F5 and F6 with 1/4"x1/2" balsa. These will stick out past the surface of the lite-ply and spruce slightly, but will be sanded flush later. d. Add 1/4"x1/2" balsa Window Braces to both sides of the cabin, where shown on the plan just ahead of former F6. Glue these in flush with the Fuse Sides and Cabin Tops. e. Install F5G gussets on the back of former F5, to brace it to the Cabin Top pieces. f. Cut and glue in place the 5/16" sq. balsa front Windshield Braces. They should also be glued in flush with the lite-ply Sides and spruce Cabin Tops. You'll have to hollow out the bottom inside corner of the Windshield Braces slightly so that they will clear the Cabin Wires. g. Block sand all the window area flush with the surface of the fuse sides and cabin tops. h. Wood for cabin floor pieces CF-1 and CF-2, that go around the landing gear blocks, is available on printed sheet #10. The lines drawn there are not exact size - cut the wood oversize and sand the edges down until the pieces slip into place between the main frame sides. Then glue in flush with the bottom of the fuselage. i. Cut out and glue in the CF-3 Nose Fill-In piece j. Add the 5/8" balsa Nose Bottom Block. Note proper grain direction. Sig J-3 Cub SIGRC48 Build Manual Page 10 of 37 . 5. Completing The Fuselage a. Glue rear formers F8 through F13 in place on the main frame. They must be centered side-to-side. Note in the side view plan how these formers should be sitting straight up and down when the fuselage is propped up level - not installed 90° to the main frame itself. b. Glue in place the 1/4" sq. balsa Top Corner Stringers and the 1/4" sq. T.E. Cross-piece that goes on top of former F7. It may be necessary to soak the Corner Stringers in water to bend into shape between formers F7 and F9. c. d. Steerable Tailwheel Unit Assembly 1. Temporarily bolt the two formed metal Leaf Springs together using the 6-32x1/2" Mounting Bolts and the 6-32 Square Anchor Nuts provided. Note in the drawing that the shorter leaf spring goes on top. 2. Push the bottom end of the long Leaf Spring in place inside the Nylon Tailwheel Bearing. Bolt securely with the 4-40x3/8" Mounting Bolts & 4-40 Lock Nuts. 3. Prepare the Formed Tailwheel Wire for installation by first grinding or filing any burrs from both ends of the wire. Next clamp the entire bottom fork of the Add the 3/16"x3/8" balsa Top Stringer. tailwheel wire in a vice and bend the top shaft backward slightly, so that when installed the tailwheel will be swept back slightly as shown in the fullsize side-view drawing on Plan Plate 1. Put scrap balsa gussets on each stringer where they connect to the back of former F7. 4. Solder a Flat Metal Washer just above the top bend of the Formed Tailwheel Wire. The purpose of this washer is to keep the wire from riding up too high into the Nylon Tailwheel Bearing and causing a bind. A second Flat Metal Washer is provided to solder onto the axle portion of the tailwheel wire to keep the tailwheel itself from binding against the bend of the wire. 5. Install a 1-1/2" diameter Tailwheel (not furnished) on the axle. Use the 3/32" Wheel Collar and Headless Set Screw provided to hold the tailwheel in place. e. Glue on the 1/8"x1/4" balsa Side Stringers. When dry, use a sanding block to taper them near the front and the back as shown in the Fuselage Top View. f. 6. Push the other 3/32" Wheel Collar Glue on the 1/8"x1/4" balsa Bottom provided into the round cavity in Corner Stringers. Notice in the crossthe molded nylon Steering Arm. section drawings that these are glued on Make sure that the set screw hole flat against the main frame - not on edge in the wheel collar is lined up with as were the Side Stringers. Taper these the hole molded into the steering stringers also, aft of F13, to blend into arm. Thread the 4-40 x 3/16" Set the end of the fuselage. Screw (round head) into the wheel collar. Add 1/8" sheet balsa fill-in on the sides of former F13. 7. Insert the top of the Formed Tailwheel Wire thru the Nylon Tailwheel Bearing and secure in place with the Steering Cut the Stab Mount Blocks out of the Arm. Be sure to file or grind a small flat spot on the wire printed balsa sheet. Make sure that where the 4-40 x 3/16" Set Screw will make contact. these are cut out very accurately and that they match each other. Glue them in place on the fuselage, allowing them to 8. During final assembly of the model, after all covering and painting is done, link the Steering Arm to the Rudder stick out slightly past the already-tapered Control Horn with the two Steering Springs provided. Use Side Stringers. When dry, shape the a needle nose pliers to bend a hook in each end of the sides of the Blocks down to blend into springs to attach in the outermost holes of the steering the stringers. Remember to maintain a arm and the back edge of the control horn (see photo in constant 3/8" width at the end of fuse section 23) where the rudder will be hinged. g. h. Sig J-3 Cub SIGRC48 Build Manual Page 11 of 37 . i. Next you must prepare the die-cut plywood Tailwheel Mount (TWM) for installationon the bottom of the fuselage. Refer to the instructions on assembly of the Steerable Tailwheel Unit. Once you have the tailwheel assembled, hold it in position on plywood TWM and mark the hole locations for the 6-32 Mounting Bolts. Then epoxy the 6-32 Square Anchor Nuts to the top side of TWM. When dry, carefully inlet the bottom of the fuselage to accept TWM, and then glue it in place. Be careful not to get any glue in the threads of the anchor nuts. j. Shape the entire fuselage with a knife and sanding block to match the crosssections. You will need to have the cowl at hand in order to get the shape of the nose area just right for a good cowl fit. Thus, refer below to the "Cowling" instructions and complete the cowl through step (6h.) at this time. Then come back and finish shaping the fuselage. 6. Cowling a. Lay the left cowl half on the Fuselage Side View plan and scribe a small mark on the outside of it with a knife to indicate the exact location of the thrust line. This mark won't be needed until after the cowl halves are joined, but it is much easier to mark it now while the cowl will sit flat on the plan. b. Butyrate dope thinner, MEK, or cyanoacrylate adhesive can be used to assemble the cowl. Hold the plastic joiner in place on the inside of one cowl half. Leave half of the joiner strip extending over the edge so as to lap onto the other cowl half when it is attached. Flow a few drops of adhesive under the edge of the strip. It will spread along the seam by capillary action. Squeeze and hold together any area of the strip that is not down tight against the cowl. Be careful not to let the adhesive get under you finger, it will leave a finger print that may be hard to remove. c. After the joiner strip has dried in the first cowl half, hold the second half in place and carefully flow adhesive into the seam. Squeeze and hold together any areas of the seam that are open. Allow to dry thoroughly. d. Even up the back edge of the cowl with a sanding block. e. Due to its large size, the cowl needs to be strengthened by lining the inside with fiberglass cloth, stuck down with slow-drying epoxy glue or polyester glass resin. The first step is to sand the inside of the cowl with 80 grit garnet or similar grained sandpaper. Remove as much of the gloss from the plastic as possible. Don't worry about scratches in the plastic, a rough surface on the inside will help the cloth and glue stick better. CAUTION: Never use.sandpaper coarser than 220 grit on the outside of the cowl! It will cut deep scratches in the plastic that may open up wider when paint is applied. Refer to section "Sanding and Painting Plastic Parts", in section 22. f. Cut a piece of Sig Regular Weight Glass Cloth (SIGGF001, not supplied) that will cover approximately half of the inside of the cowl. The cloth is stretchy and will flow most of the contours of the cowl easily. Trial fit the piece of cloth inside the cowl without any glue to see if you can get it to lay down without any bad wrinkles. If you have had no experience in applying cloth before, you might consider doing the cowl in 3, or even 4, separate pieces of cloth and batches of glue. It will take a little longer that way, but you'll probably do a better job. g. Mix up a batch of glue large enough for the area you've decided to cover in one step. Brush the glue onto the inside of the cowl, putting on as smooth a coat as you can. Lay the cloth in place and pat down until it's well saturated with the glue. Smooth out the cloth, pulling out any wrinkles. When satisfied with the job, mix up another small batch of glue and apply the next piece of cloth. (Note: An alcohol soaked rag is handy for wiping excess epoxy off your hands or off the outside of the cowL) After the entire inside of the cowl is covered, let dry thoroughly. h. When dry, trim off any excess cloth along the back edge of the cowl with a single edge razor blade or sharp X-Acto knife. If there are any big uneven spots or ridges inside the cowl, sand them down smooth so that they will not interfere with the fit of the cowl to the fuselage. Sig J-3 Cub SIGRC48 Build Manual Page 12 of 37 . i. Scrape the seam on the outside of the cowl to take out any rough spots or flaws. Low spots in the seam can be filled with Sig Epoxolite putty. Don't put on too much Epoxolite and expect to sand away the excess later. Epoxolite dries very hard and must be worked into its final desired shape before it hardens. Use your finger or a single-edge razor blade, dipped in water, to smooth the Epoxolite into the low spots along the seam. Let dry overnight, then sand the entire cowl smooth and scratch free with fine sandpaper. j. With a Dremel tool or X-Acto knife, cut an opening in the front of the cowl large enough for the engine's prop shaft and drive washer to fit through. Locate this hole according to the thrust line mark that you made on the cowl at the start of this section. k. Cut out the two small air intake openings in the front of the cowl. Refer to the Fuselage Front View plan for the exact size and location. l. A piece of 1/2"x1/2"x6" basswood is provided for making six equal 1" long Cowl Mount Blocks. After cutting them to length, epoxy the blocks in place on the front of the firewall, letting them stick out past the edge of the nose planking slightly. Mount the engine on the firewall. Slip the cowl over the engine and up to the Cowl Mount Blocks. Now you should be able to see where the blocks need to be taken down in order to fit properly inside the cowl. Use a sanding block to bevel and reshape the blocks as necessary until the cowl will slide back over the blocks and onto the fuselage. m. Tape the cowl in correct alignment on the fuselage. Drill pilot holes for the Cowl Mount Screws (#4 sheet metal type, furnished) through the cowl and into the Cowl Mount Blocks at the same time. Take the cowl off and open up the holes in it large enough to pass the mounting screws. Then put the cowl back on and thread the mounting screws into the blocks. n. Trim out the molded plastic Air Cleaner Cover to fit on the chin of the cowl. Leave a small flange around the edges for gluing. Hold the Cover in position on the cowl and draw around the outside of it with a pencil. Cut out the cowl plastic about 1/8" inside of the lines, so that cooling air will be able to flow through the Air Cleaner Cover and into the engine compartment. After this is done, glue the Cover in place and then cut open the front of it (within the framed area) with an X-Acto knife. This opening can be left wide open, or if you want a more scale appearance you can glue in a piece of plastic window screen (wait until after all painting is done). o. Trim out the Right and Left Dummy Engine Cylinder moldings along the lines shown in the photo. Leave a small flange, about 1/16" to 1/8" wide, along the back of the part where it will match the curvature of the cowl. The best procedure for trimming is to rough out the part with a heavy-duty scissors or shears, and' then finish the edges with a sanding block or Dremel tool. Next, carefully position the Right and Left Cylinders on the cowl using the plans and photos as a guide. Mark their location on the cowl with a pencil. Then carefully bond the cylinder moldings in place with dope thinner, MEK, or cyanoacrylate adhesive. Again, avoid getting adhesive on your fingers and making finger prints on the plastic. p. Trim out the Right and Left Top Shrouds according to the trim lines molded into them. The trim lines are not very prominent. Holding the parts up to a light will make the lines more visible. You can trial fit the Top Shrouds onto the Cylinders at this time in order to fine-tune the fit of the trimmed edges, but it is best if they are not glued on permanently until after the Cylinders and Cowl are completely painted. The Top Shrouds can be painted after they are in place. q. Make any small openings or other provisions where necessary to allow access to the needle valve and for hooking up the glow plug. Sig J-3 Cub SIGRC48 Build Manual Page 13 of 37 . Engine Cooling Notes The most important factor in cooling a fully cowled model engine is to keep a constant stream of fresh, cool air moving through the cowling. Large volumes of air aren't necessary, just a steady flow of new air. This is accomplished by having more exit area for the air than incoming area. Inadequate exit space can cause heated air to be trapped in the cowl, and this is what causes overheating and engine failure. Consequently, on our prototype models, we provided for additional exit space by: 1. opening up the bottom of the cowl at the rear, and 2. cutting away the cowl plastic that is inside the dummy engine cylinders and then opening up the back of the cylinders themselves. As an extra precaution, we also installed a baffle (made of sheet balsa) in the bottom of the cowl. It directs all of the air that comes in through the Air Cleaner Cover upward towards the engine cylinder before it can exit out the bottom opening in the cowl. Soldering Hint When soldering a flat metal washer onto a wire part, it is very helpful to first slip a short piece of Sig HeatProof Silicone Fuel Line Tubing onto the wire and push it up tight against the washer to hold it in correct position for soldering (the following photo is not actually of the Cub's tailwheel assembly but does show a typical example of the method we're describing). The heat-proof tubing will not melt from the heat of soldering, and it will also keep excess solder from getting on the wrong side of the washer. After the solder cools, cut the fuel tubing off of the wire. With the setup described here, we have never experienced any overheating problems with glow engines from .60 to .90 cu. in. You may need to use a little ingenuity with some similar tricks to insure that your engine installation runs cool. 7. Main Landing Gear Assembly of the main gear requires the completed fuselage. a. Place the 3/16" Main Gear wire and the 3/16" Rear Brace wire into the grooved L.G. Blocks in the bottom of the fuselage. Note on the plan that the Main Gear wire should be perpendicular to the bottom of the fuselage while the Rear Brace wire should be angled forward to meet it near the axle. You will have to trim the groove in the rear L.G. Block slightly to allow the Rear Brace wire to swing forward. b. Using the soft copper wire supplied, bind the ends of the two 3/16" wires together near the axle, along with the 1/8" dia. Bottom Shock Strut wire that goes between them. Use tape, clamps, or whatever you can come up with to help hold the three wires in alignment while you wrap them. If the wires don't line up exactly right with each other, rebend as necessary to get them to fit properly. Make the copper wire wrappings as tight as you can, with each strand of copper wire right next to the previous one. There should be no gaps between the strands of copper wire. Don't worry about running out of copper wire, as we have included extra to help insure that you can make these bindings very strong. c. When you have the wires bound together in proper alignment, solder them securely with normal rosin core solder. It is not necessary to have them brased or welded - just be sure to use a soldering iron or torch with enough heat output to get the wires and bindings hot enough for the solder to flow smoothly. Also, use plenty of soldering paste to help the solder flow completely around and thru the bindings. Protect the fuselage during the soldering operation with a cloth so that dripping solder or paste will not fall on the wood. After both axles are soldered and cooled off, carefully remove the wires from the grooved blocks. d. Next bind and solder the 1/8" dia. Top Shock Strut wire in place at the top of the 3/16" Main Gear wire. Position this wire carefully before soldering - note in the front view on plan plate 4 that the middle bend of this Top Shock Strut wire should contact the middle bend of the Bottom Shock Strut wire so that they can later be bound together by rubber bands for flying. The rubber bands will serve as an effective shock absorber. e. After all the solder joints are cool, file and sand them to smooth out any prominent bulges in the bindings. Clean all joints with dope thinner or other suitable solvent. Sig J-3 Cub SIGRC48 Build Manual Page 14 of 37 . f. Cut a 1" long piece of wire, about 1/16" dia. or so, from left-over scrap pieces you undoubtedly have in your workshop. Form it into a shallow "V". Bind and solder it into the bottom of the Top Shock Strut. This serves as a hook for wrapping the rubber bands around both shock strut wires to as a shock absorber. (You can see this scrap wire hook in the pictures under "Bungee Cover Simulations". Bungee Cover Simulations Factory fresh J-3 Cubs had "leather boots" covering the bungee shock chords of the landing gear. Some recently restored J-3's have gone to airfoil shaped fiberglass or metal covers. You can easily simulate either type on your model. Leather Boots: Cut two pieces of scrap balsa to approximately 3/4"x1"x2·1/2". Cut a groove halfway into each and epoxy them in place on the Bottom Shock Strut wire. Fill the groove with putty or epoxy glue. Carve and sand the balsa blocks to resemble the leather boots. Smear a thin coat of epoxy glue on the blocks. Sand smooth when dry. Finish as you do the rest of the landing gear. g. A single sheet of 3/16" x 6" x 7" balsa is provided for fairing in the sides of the Main Gear. Cut out a right and a left fairing to fit between the 3/16" wires. Note proper grain direction on the plan. Epoxy the fairings in place and allow to dry. h. For maximum strength, we recommend that you completely cover the balsa fairings with regular weight fiberglass cloth and slow-drying epoxy glue (applying it like you did on the inside of the cowl). Lap the cloth past the edges of the wood, completely around the 3/16" wires, and onto the back side of the fairings. Sand smooth when dry. i. Set the completed landing gear in place on the fuselage. The wires are to be held in the grooved blocks with the four Nylon Landing Gear Straps provided. Notice in the next photo that the straps should be installed all the way to the ends of the grooved blocks, right up against the wire where it exits the block. This is done to insure that the landing gear cannot shift sideways in a rough landing. Airfoil Covers: (See drawing on plan plate 4) Four molded plastic Bungee Cover halves are provided. Trim each out leaving a small flange around the outside. Notch the ends to fit over the L.G. wire. Groove 1/4"x 1/2"x2·1/2" balsa sticks and epoxy onto the wire. Shape the balsa pieces as needed to slip the Cover halves over them. When right. epoxy the Covers together and to the balsa and wire at the same time. To install the straps, first mark the hole locations.on the grooved blocks. Then use a 1/16" drill bit to drill a pilot hole in the blocks. Next screw the straps in place using the #4 x 1/2" Sheet Metal Screws provided. 8. Stabilizer And Elevators Carefully cut all of the stabilizer "S" parts and the elevator "E" parts from the 3/8" printed balsa sheet #9. A jig saw works best for cutting these out. Cut just outside the lines, leaving all of the line on the parts. When fitting into place in the structure, use a sanding block to bring the edges of the parts to an exact fit. Cover the plan with waxed paper or plastic wrap. Pin all of the parts to the plan, gluing them to each other in the following order: a. Pin down the 3/8" x 1/2" balsa stabilizer trailing edge. b. Add the 3/8" x 1/2" balsa elevator leading edges and the 3/8" sq. spruce elevator joiner. Be careful not to glue these parts to the stab trailing edge while gluing them to each other. c. Fit in Sl-A and Sl-B. d. Add printed parts S2, S3, S4, S5, S6, S7 and S8. e. Fit in E1, E6, and the 3/8" basswood elevator horn insert. f. Add printed parts E2, E3, E4, E5, E7, E8, E9 and E10. Sig J-3 Cub SIGRC48 Build Manual Page 15 of 37 . g. Cut to length and glue in all 1/4" x 3/8" balsa ribs. h. Add 1/8" x 1/4" balsa braces where called for on the plan. i. When dry, unpin from the plan. Carve and sand all the outside edges round - remember the tail surfaces on the full-size Cub are constructed out of steel tubing, thus the leading and trailing edges are all perfectly round. j. Install the hinges where shown on the plan. NOTE: Many modelers feel that the tail surfaces are easiest to cover before they are hinged. If you elect to do this, first test assemble the tail surfaces on their hinges without glue, to insure that a good edge and end match has been obtained in the sanding operation. Then refer to "Covering and Painting the Framework", section 19, and prepare all the tail surfaces (except the fin) through the point of covering and applying at least 2 coats of clear dope. After that, epoxy in the hinges permanently. 9. Fin And Rudder The fin and rudder are assembled over the plan in the same manner as the stab and elevators were. a. Pin the 3/8"x 1/2" balsa Fin Trailing Edge and Rudder Leading Edge to the plan. Do not glue to each other. b. Add R1 and R2 printed pieces. c. Shape and install the 3/8"x5/8" balsa Fin Leading Edge and Rudder Trailing Edge. d. Add R3 and R4 printed pieces. e. Shape and install the 3/8"x5/8" balsa Rudder Bottom. f. Cut to length and glue in all 1/4"x3/8" balsa ribs. g. Add RG-1, RG-2, and the 1/8"x1/4" balsa brace. h. When dry, unpin from the plan and sand the outside edges round. i. Inlet the bottom of the Rudder to accept the rudder horn. Epoxy the horn in place. Reinforce the installation with glass cloth and epoxy glue. j. Install the hinges where shown on the plan. Dana Anderson warms up the Continential in his beautifully restored Piper J-3 Cub before departing Sig Airfield after a tour of our plant. Dana is a crop duster from Nebraska who likes to fly the J-3 just for fun. He's also an avid model builder. Sig J-3 Cub SIGRC48 Build Manual Page 16 of 37 . WING CONSTRUCTION NOTE: The basic structure of the Cub wing consists of three separately built components - a flat Center-Section, a Right Wing Panel, and a Left Wing Panel. The Left Wing Panel will be permanently joined to the Center-Section, but the Right Wing Panel will remain removable for ease of transport. Follow the instruction sequence carefully and you'll find that this 2piece wing design is simple and easy to construct. 10. Center-Section Cut the full-size Center-Section drawing out of plan plate 4. Pin it to the building board and cover with wax paper. a. Carefully remove the four R1 ribs from the die-cut balsa sheets. Pin them into a stack and true up the edges with a sanding block. Also run the sanding block along the trailing edges of the ribs to make them all the same length. Check the original rib length against the plan. CAUTION: Do not try to sand the entire stack perfectly flush - just sand enough to take off any prominent high spots or burrs. Excessive sanding may make the spar notches in the ribs too small. b. While the R1 ribs are still stacked together, use a small sanding "file" to clean up the hole in the ribs where the 1/4"x3/4"x8" Ply Rear Tongue must slide through. Strive for a nice tight fit - not sloppy! When done unpin the stack. c. Remove the 1/16" ply ribs R2 and W1A from their die-cut sheet. Hold them together and lightly run the sanding block around the edges to remove any splinters. Set W1A aside until needed in the Right Wing Panel construction. d. Glue one of the R1 balsa ribs onto the left side of ply rib R2. Position it carefully to allow for the 3/32" balsa top and bottom sheeting which will be added later. When dry, alter the Rear Tongue cutout in R2 if necessary to match that in R1. e. Cut 3/32"x4" sheet balsa to cover the bottom of the Center-Section. Pin in place on the plan being careful not to let the edges of the sheeting extend past the side lines of the drawing. Don't forget to cut the window opening. f. Cut to length a 1/4"x3/8" balsa stick and glue it onto the front edge of the bottom sheeting. g. All of the spars in the Center-Section are 1/4" square balsa. Cut them to length and glue onto the sheeting using the R1 ribs for spacing them out. h. Glue and pin all four R1 ribs and the WS-1 balsa pieces in place. Use a small 90 deg. triangle to assure that the ribs are glued on straight. When dry, sand the tops of the WS-1 pieces down flush with the tops of the ribs. i. Add the 1/4" square balsa top spars. j. Slide the 1/4"x3/4"x8" Rear Tongue through the R1 ribs and epoxy in place. k. Epoxy the 1/4"x7/8"x15-3/4" ply Front Dihedral Brace in place at the front of the ribs. Make sure the brace is centered spanwise so that it will extend an equal distance into both wing panels. Sig J-3 Cub SIGRC48 Build Manual Page 17 of 37 . l. When dry, unpin the center-section assembly from the plan so that you can see the locations for the ply P3 and the balsa WS-2 pieces. Glue these pieces in place. When dry, sand them down flush with the tops of the ribs. m. Cut to length another 1/4"x3/8" balsa stick and glue it onto the top of the Front Dihedral Brace. Carve the excess down flush with the tops of the ribs. n. Fill in between the R1 ribs, where the wing bolts will go through, with 5/15"x1-1/8" Tapered T.E. Stock. Carve or sand down flush with the tops of the ribs. o. Trial fit the 3/32" die-cut ply CenterSection T.E. Top sheet in place. If you find that there is a gap between it and the bottom T.E. Sheeting, sand down the ends of the ribs and the fill-in stock further until it does fit properly. When satisfied, glue it in place. p. Cover the top of the Center-Section with 3/32"x4" sheet balsa. q. Locate under the 3/32" balsa bottom sheeting the chamber between the WS-2 pieces. Cut out the bottom sheeting over the chamber. Also cut out a portion of the adjoining R1 balsa rib in the window area. This opening is to allow access to the 6-32 bolt that will be used to hold the Right Wing Panel and Center-Section together. Do not block sand the Center-Section yet! 11. Right Wing Panel Cut the Right Wing Panel drawing out of plan plate 3. Pin it to the building board and cover with wax paper. a. Carefully remove all of the wing ribs that are required for this wing panel from the die-cut balsa sheets. Pin them together into one stack and block sand, just as you did for the Center-Section ribs. Put scrap 1/4" square sticks in the spar notches to help hold the stack in alignment while sanding. Don't forget to run the sanding block along the trailing edges, as shown here, to make them all the same length. b. Laminate one of the W1 balsa ribs to the right side of ply rib W1A. Position W1 carefully to allow for the 3/32" balsa top and bottom sheeting. Add the ply pieces P-1 and P-2 at the location shown on the plans. When dry, trial fit the W1 rib assembly over the Rear Tongue and Dihedral Brace that are sticking out of the right side of the Center-Section - trim the openings in the rib carefully as necessary for a perfect fit. c. While holding the W1 rib assembly up tight against the Center-Section, drill a 5/32" diameter hole through the center of P2 and on into the Center-Section, going completely through P3 also. Epoxy a 6-32 blind nut into P2. Set the Center-Section and W1 ribs aside temporarily. Sig J-3 Cub SIGRC48 Build Manual Page 18 of 37 . d. Cut two 1/4" Spruce Bottom Spars to length and set in place on the plan. e. Cut the 1/4" square Balsa Bottom Spar and Spar Doubler to length. Glue the spar doubler to the spar and pin the assembly to the plan. f. Cut to length and pin to the plan the 1/4" square balsa Cross-Support that goes between the two W5 ribs. g. Pin and glue all the W2, W3, W4, and W5 ribs in place on the spars. Use a triangle to insure that the ribs are perpendicular to the board. Note: Do not glue on the W1 rib yet! Let all joints dry thoroughly, then unpin the assembly from the board and set it aside while you do the next step. h. Trim to length and pin in place on the plan the following pieces: 3/32"x1-1/2" Balsa Bottom T.E. Sheeting 3/32"x1-1/2" Balsa Bottom Aileron Sheeting 3/32"x3" Balsa Bottom L.E. Sheeting 3/32"x3" Balsa Bottom Sheeting between ribs W1 and W2. i. Glue and pin the rib/spar assembly back in place on top of the bottom sheeting pieces. Be certain of getting the positioning correct. You'll need to shim under the front edge of the 3/32"x3" Balsa L.E. Sheeting to make it follow the contours of the rib. j. Slide the W1/W1A rib back onto the Center-Section. Now place the Center-Section against the end of the wing panel by inserting the tip of the Front Dihedral Brace into the opening in the rib W2 and setting the W1/W1A rib onto the bottom spars and sheeting. Note that the center-section should not set flat against the building board - the difference between the openings in the W1 and W2 ribs automatically sets the proper dihedral angle. Once satisfied with the fit, glue the bottom of the W1/W1A rib onto the bottom spars and sheeting. Leave the Center-Section in position while the glue dries so that it holds the W1 rib at the proper angle. k. With the Center-Section still in place, add the 1/4" square Spruce Top Spars. Glue all joints securely. l. Glue in the 1/16" Spar Webbing where indicated on the plan. A single piece of 1/16"x4-1/8"x36" balsa is provided for making all the spar webs for both wing panels. Note that the webs should be installed with the grain running vertically. Note: Once steps j, k, and l are dry, unpin the Center-Section and try sliding it out and then back into the wing panel a couple of times to insure that there is no binding up to this point. Leave the wing panel pinned to the board. m. One piece of 1/4" square x 9" spruce and two P4 die-cut ply pieces are provided for building a box between ribs W1 and W2 for the Front Dihedral Brace to slide into. First cut the stick into two lengths that fit snugly between the ribs, one on top and one on the bottom of the Dihedral Brace. Then with the Brace in position, tack glue the sticks to the ribs. Be careful not to get any excess glue on the dihedral brace or it may become permanently stuck. n. Sand the ends of the ply P4 pieces down until they fit perfectly between the wing ribs and up tight against the front and rear of the Dihedral Brace. When satisfied with the fit, glue them to the spruce sticks and to the ribs. Hold tightly until dry. Sig J-3 Cub SIGRC48 Build Manual Page 19 of 37 . o. Take apart and then reassemble the wing panel and center-section a few times to check the fit. A tight, but not binding fit is needed. If it seems too tight, take some very fine sandpaper and sand the entire Dihedral Brace slightly to smooth out any rough spots. Rounding all of the corners of the Brace will also make it easier to slide it into the box. If the fit of your wing panel and centersection is sloppy and loose, find out where the problem is and fix it before preceeding. Once satisfied with the fit, double glue the box structure securely to the W1 and W2 ribs. p. Glue in place the small die-cut balsa riblets W3A, W4A and W4B, and the ply riblet W5A. Be careful about their exact locations. Extend a line off of the die-cut slits in ribs W4 and W5 to use for alignment. q. Cut to length and glue in place the 5/16"x1-1/8" balsa Tapered T.E. Stock Fill-In between the last two full length W4 ribs at the wing tip. Take down the top surface with a small sanding block until it's flush with the tops of the ribs. r. Glue on the 3/32"x1-1/2" balsa Top Trailing Edge Sheeting. Epoxy glue is recommended here for two reasons: First, it will have less tendancy to bow or warp the trailing edge than would a water based glue. Second, it gives you plenty of time to get the top sheeting pinned down sequrely, absolutely flat on the board, before the glue dries. s. Add the 3/32"x1-1/2" balsa Top Aileron Sheeting. Check the location carefully with the aileron cross section drawing. t. Glue gusset WG-1 in place against rib W3 and inside the trailing edge sheets. u. Cut to length and glue the 1/8"x7/8" Balsa Leading Edge in place along the front of the wing ribs and against the Bottom L.E. Sheeting. When dry, trim and sand flush with the tops of the ribs. v. Glue on the 3/32"x3" Balsa Top Leading Edge Sheeting. Also add the sheeting that goes over rib W1 and W2 (cut from 3/32"x4"x36" stock). w. When dry, unpin the wing from the plan. Cut to length and glue on all of the 3/32"x1/4" balsa Capstrips for the top and bottom of the wing. Note on the plan that the capstrips over the W3 and W4 ribs that are located near the ends of the ailerons are not centered directly over the ribs - they are flush with one side of the rib. x. Install the die-cut ply Jury Strut Mounts, JSM-1 and JSM-2, on the bottom of the wing. JSM-1 must be inset flush into the bottom L.E. Sheeting. See the wing cross-section on plan plate 3 for a good view of the FSM and RSM pieces in place. y. Install the Front Strut Mount pieces in the following sequence: 1. Insert FSM-1 flush with the bottom Leading Edge Sheeting. 2. Add FSM-2, a balsa filler block going between the bottom front Spruce Spar & the 1/4" square balsa Cross-Support. 3. Then glue FSM-3 across the top of FSM-2, the Spruce Spar, and the balsa Cross-Support. Sig J-3 Cub SIGRC48 Build Manual Page 20 of 37 . z. Install the Rear Strut Mount pieces in the same fashion as you just did the FSM pieces - only this time they got between the bottom rear Spruce Spar and the Balsa Bottom Spar. Do not block sand the right wing panel yet! 12. Left Wing Panel Important Note Many of the construction steps for building this Left Wing Panel are the same as those used for the Right Wing Panel. However, since the Left Wing Panel will be permanently attached to the Center-Section, there are a few differences. The following is an exact listing of the best procedure for building the Left Wing Panel. Whenever the construction required is the same as for the Right Wing Panel, it has been noted as such. Follow this sequence to the later to avoid problems. Cut the Left Wing Panel drawing out of plan plate 3. Pin it to the building board and cover with wax paper. a. Same as Right Wing Panel instruction (a) b. Same as Right Wing Panel instruction (d) c. Same as Right Wing Panel instruction (e) d. Same as Right Wing Panel instruction (f) e. Same as Right Wing Panel instruction (g) f. Same as Right Wing Panel instruction (h) g. Same as Right Wing Panel instruction (i) h. Trial fit the balsa W1 rib over the Rear Tongue and Front Dihedral Brace that are sticking out of the left side of the CenterSection. The edges of the W1 rib must line up exactly with the edges of the R1 rib of the Center-Section. Trim the openings in the W1 rib carefully as required for a perfect fit. Then glue the W1 rib to the R1 rib. i. Slide the Center-Section in position against the end of the wing panel by inserting the tip of the Front Dihedral Brace into the opening in rib W2 and setting the W1 rib onto the panel's bottom spas and sheeting. Check the fit carefully! When satisfied that the Center-Section will mate up smoothly to the wing panel, glue the bottom of the W1 rib onto the bottom spars and sheeting. Also glue the end of the Dihedral Brace into rib W2. j. Cut to length and glue in the 1/4" square Spruce Top Spars. Glue all the joints securely. k. Glue in the 1/16" Spar Webbing where indicated on the plan. The webs should be installed with the grain running vertically. l. A single piece of 3/16"x4-7/16"x1-1/2" balsa is provided for the Spar Web that goes between the Front Dihedral Brace and the Spruce Spars in rib bay W1-W2 Finish the construction of the Left Wing Panel by completing Right Wing Panel instructions (p) through (z). Do not block sand the Left Wing Panel yet! Sig J-3 Cub SIGRC48 Build Manual Page 21 of 37 . 13. Wing Tips a. Glue die-cut balsa parts T-4, T-5, T-6 and W6 in place on the die-cut ply wingtip plate WTP. b. Study the Wingtip Alignment Drawing carefully in preparation for gluing the Tip Plate onto the end of the wing panel. Proper positioning of it against the W4 end rib is important for correct assembly of the rest of the wingtip parts in subsequent steps. First trial fit the Tip Plate assembly in place, noting that the tops of T-4 and T-5 should line up with the top of W4, not with the top of the capstrip. Also note that the front edge of WTP should be flush with the front of the 1/8" balsa Leading Edge. Use a straight edge to draw guidelines on the end rib to help line up the Tip Plate. Then glue it on. c. Glue die-cut balsa parts T-l and T-2 in place. Note that they should line up with the top and bottom edges of W4, leaving room for the 3/32" balsa top and bottom sheeting to be added later. Since W4 was stack sanded with the rest of the fulllength wing ribs, and T-1 and T-2 were not, it may be necessary to alter the curved sides of T-1 and T-2 to exactly the same curvature as W4, before gluing them on. d. Glue on part T-3. e. 1/16"x3/4"x24" balsa strips are provided for laminating around the edges of the tip. Thanks to the large radius of the curve, it should not be necessary to soak the strips in water before laminating - thus Jet, Hot Stuff, or other cyanacrylate adhesives can be used. Carefully bend and glue the first strip to WTP. Add the other strips, one at a time, firmly gluing them to each other without gaps. You'll notice that the strips are way oversize to allow for final shaping later. f. When the laminated edge is dry, sand flush with the front of the wing panel and glue on the 3/8" x 1" balsa Leading Edge Cap. g. Cut a small gusset, from scrap balsa, to go in the corner of the wingtip near the trailing edge. Glue on the top side of WTP only. h. Sheet the top and bottom of the Tip Leading Edge with 3/32" balsa. i. Capstrip the top and bottom of rib W6. j. Carve and sand the wing Leading Edge Cap and the tip laminated edge to shape. Study the photos and drawings carefully for guidance. Do not sand the rest of the wing, especially the top and bottom sheeting or capstrips, at this time - it's best to wait until the center section is done! 14. Block Sanding The Wing Carefully block sand the entire wing until all joints are smooth and even. Use as large a sanding block as possible to avoid sanding down any one area too much. Carve and sand the trailing edges round. Sig J-3 Cub SIGRC48 Build Manual Page 22 of 37 . 15. Cutting Out The Ailerons a. Locate the 1/4" sq. balsa Bottom Spar under the Top and Bottom Aileron Sheeting. Draw guidelines on both sheets about 1/32" behind the spar. Use a straight edge and a sharp knife to cut through the Aileron Sheeting along the guidelines. Make sure you are not cutting into the spar. b. Take an X-Acto razor saw and pry the crimped metal backing off of the blade with a screwdriver. Insert the saw blade into the slits just cut in the Aileron Sheeting and saw through each of the ribs of the aileron. c. Saw through the trailing edge and carefully remove the aileron. d. Trim and sand the back of the wing cutout until all ribs and planking are flush with the back of the balsa spar. e. Trim the front of the aileron in line with the angled die-cut slits in the ribs. Use a sanding block to straighten the front and ends of the aileron. f. Glue 1/4"x1-1/2" balsa into the wing cutout and to the front of the aileron. Trim and sand these pieces to wing contour. g. With a razor saw, cut the base off one of the long nylon control horns that are supplied. Drill some random glue anchor holes in the top area of the horn. h. Inlet the bottom leading edge of the aileron to allow the nylon horn to be slid in place alongside the plywood riblet W5A. Refer to the aileron cross-section drawing to see how far in the horn should be installed. Hold the horn in position and drill a small pilot hole (for a #2x3/8" sheet metal screw) through one of the glue anchor holes and into the ply rib. Screw and epoxy the horn securely in place. i. Fill in behind the horn, on the bottom of the aileron, with 3/32" sheet balsa. Sand flush. This will give you somewhere to attach the covering material. If you wish to cover the ailerons before hinging, do it now. j. Cut slots in the aileron leading edge and the wing cutout to accept the nylon hinges. Use 4 hinges per aileronl Check the fit and movement of the aileron by dry fitting it into the wing first without any glue on the hinges. If there is any mismatch or binding, alter the slots as necessary to correct. Then epoxy the hinges in. Repeat these steps to complete the other aileron. 16. Mating The Wing To The Fuselage a. Epoxy the 3/8"x1-1/2"x5-3/8" basswood Wing Bolt Block in place. Brace it to the lite-ply Cabin Bulkhead with 1" triangular balsa. Let dry. Sig J-3 Cub SIGRC48 Build Manual Page 23 of 37 . b. Set the wing on the fuselage, sliding it forward as far as possible. Mark and drill a 5/32"x5/16" hole in the wing's Front Dihedral Brace for the Cabin Wires to go through. The wing should then slide all the way forward with the trailing edge dropping down in front of the T.E Crosspiece. If necessary, adjust the hole slightly with a rat-tail file to eliminate any binding that keeps the wing from setting flat on the cabin. c. Tape or pin the wing in correct alignment with the fuselage measure from the wingtip to the back end of the fuselage. Determine the correct spots on the top of the wing to drill through and hit the Wing Bolt Block in the desired locations for the nylon bolts. Drill through the wing and Wing Bolt Block at the same time with a No.7 drill. Take the wing off and tap the Block with a 1/4-20 tap. Enlarge the holes in the wing to 1/4" diameter to pass the nylon bolts. d. Mark the locations for the 1/4" Dowels that go in former F5 (see cross-section F5). With the wing in place on the fuselage, drill 1/4" diameter holes completely through both F5 and the wing's Front Dihedral Brace at the same time. Remove the wing and epoxy the dowels in place in F5. Wipe any excess glue from the wing side of F5. e. 1-3/4"x2-1/4"x2-1/2" balsa blocks are supplied for making the Cabin Blocks. Study the Front, Top, and Side views of the Cabin Blocks on the fuselage plans. Trim the blocks supplied roughly to match these three viewpoints. Leave them slightly oversize. Then glue them in place on the front of former F5. Sand and trim to match the contour of the wing. 17. Wing Struts Assembly of the wing struts requires the completed wing and fuselage. a. Locate the two 1/16"x1/2"x2" aluminum strips supplied for the Fuse Strut Fittings. Round all four corners of the strips with a file or grinder, and drill three holes through each with a #33 drill bit (see plan for exact locations). Draw a line across the middle of each strip. clamp it in a vise up to the line, and bend it to the angle shown. b. Mount the finished Fuse Strut Fittings in place on the bottom of the fuselage with 4-40x3/8" mounting bolts and blind nuts. Epoxy the blind nuts on the inside of the fuselage. c. Two pieces of 1/16"x1" (tapered) x2" aluminum are supplied for making the Lower Strut Fittings. On each piece, round the corners of the narrow end and drill a #33 hole in the location shown on the plan. Also drill several random glue anchor holes along the sides where the spruce struts will be glued on. Sig J-3 Cub SIGRC48 Build Manual Page 24 of 37 . d. Taper the fuselage end of each 1/4"x5/8" Spruce Front Strut so it will fit onto the aluminum Lower Fitting along with the 1/4"x1/2" Spruce Rear Strut. Then epoxy one Front and one Rear Strut onto each of the Lower Strut Fittings. Make two identical assemblies. Work directly over the Wing Strut plan to insure that the angle between the spruce struts will be correct. (NOTE: At this point, there is no "right" or "left" difference between the two wing strut assemblies, as is called for on the plan.) e. Four pieces of 1/16"x1/2"x2-1/4" aluminum are provided for making the Upper Strut Fittings. Drill, shape, and bend these pieces as shown on the plan to make two #1 and two #2 Upper Strut Fittings. (The difference between the finished right and left wing strut assemblies will be in these Upper Strut Fittings. That's why they are called #1 and #2 on the plan notice that the slant of their bend lines go in opposite directions.) f. Bolt the wing in place on the fuselage. Fasten the wing strut assemblies in position, one on each side of the fuse, by bolting the Lower Strut Fittings to the Fuse Strut Fittings. Make sure you have the shorter front strut of each assembly facing the front of the airplane. Trial fit, without glue, the finished Upper Strut Fittings into the notches in the spruce Struts as follows: RIGHT WING STRUT ASSEMBLY - A #2 Upper Strut Fitting goes in the Front Spruce Strut A #1 Upper Strut Fitting goes in the Rear Spruce Strut LEFT WING STRUT ASSEMBLY - A #1 Upper Strut Fitting goes in the Front Spruce Strut A #2 Upper Strut Fitting goes in the Rear Spruce Strut Check that the Upper Fittings mate smoothly to their ply mounting inserts that are built into the wing. If they don't, double check to see that you've got the correct Upper Fitting in the correct strut. You may also have to readjust the bend angles of the Upper Fittings and/or Fuse Fittings slightly to get a good fit. When satisfied, take the struts off the model and epoxy the Upper Fittings into their proper notches. g. When dry, bolt the strut assemblies back on the model. Hold the Upper Fittings up against the bottom of the wing and mark the locations for the 4-40 mounting bolts onto the ply mounting insert FSM and RSM. Take the struts back off. Drill holes through the ply inserts and epoxy 4-40 blind nuts in from the inside. h. Carve and sand the edges of the struts round. See cross-section on strut plan. i. Reinforce the ends of the spruce struts with a layer of fiberglass cloth and epoxy glue. Also cover the areas in the center of each strut where the jury struts will go. When dry, sand smooth. j. Mark on the spruce struts the locations for the 4-40 flat-head bolts that hold the bottoms of the brass jury struts. Drill a #33 hole through the spruce struts at these locations, countersink the holes so that the heads of the bolts will be flush with the spruce, and then thread the bolts in place. k. With a pencil, mark a center-line down the middle of each JSM-1 and JSM-2 plywood insert that are built into the bottoms of the wing. Reassemble the wing, fuselage, and spruce strut assemblies in preparation for the next step. l. Four pieces of 3/16" o.d.x6-1/2" long brass tubing are provided for making the Front and Rear Jury Struts. There are patterns and instructions on the plan to use as a guide for bending them to shape. A regular hand pliers works best for flattening and bending the ends of the tubing. Try to bend them exactly along the lines drawn. Sig J-3 Cub SIGRC48 Build Manual Page 25 of 37 . m. Use the 4-40 hex nuts provided to fasten the bottom ends of the finished Front and Rear Jury Struts to the bolts in the spruce struts. Swing the top ends of the Jury Struts into position to line up with the center-lines drawn on the JSM pieces. Be careful not to bow the spruce struts out of shape - just move the top ends of the jury struts fore and aft along the pencil lines until you find the spots where they fit perfectly. Then mark and drill holes through the JSM pieces at these spots and install 4-40 bolts and blind nuts. Epoxy the blind nuts in place. n. Remove the hex nuts that are holding the bottom of the brass jury struts in place. Two 4-1/2" long pieces of brass tubing are provided for making the bottom crosspieces of the jury struts. Due to small differences between models, it's impossible to give you a useable pattern for these pieces. You'll have to tailor them to fit on your own model. Simply cut the tubing to length, flatten the ends as far as needed to clear the spruce, and drill a #33 hole in each end to slip over the mounting bolts. o. Make a final assembly of all the strut pieces to the model. Epoxy the flat head bolts into the spruce struts; epoxy together the lower ends of the brass pieces where they overlap each other; and epoxy on the 4-40 hex nuts that hold them all together. Let dry before taking off the model. 18. Attaching The Tail Surfaces If you've precovered the stabilizer, remove the covering material from the bottom center area where it will contact the fuselage. a. With the wings mounted to the fuselage, pin the hinged stab/elevator assembly in place. Note that the fuse will need to be trimmed slightly under the elevator joiner to permit adequate movement of the elevators. Carefully align the stab with the wings from the top and front views. Mark the location of the fuse on the top and bottom of the stab center section. Remove the stab and apply epoxy glue. Slow drying epoxy (not 5-minute) is recommended to allow adequate time to get the stab in exact alignment before the glue hardens. Pin the stab back in place using the markings to get it in approximate alignment. Before the glue hardens, recheck the alignment carefully by measurement and shift the stab position slightly if necessary. b. Epoxy the hinged fin/rudder assembly in place, installing the bottom hinge into the rear of the fuselage at the same time. Align carefully. c. Glue the die-cut 1/8" balsa Tail Fairings in place. They should be flush with the fuselage sides at the stab leading edge and touching the fin at the back. Sig J-3 Cub SIGRC48 Build Manual Page 26 of 37 . FINISHING 19. Radio Installation It's best to mount all your radio equipment and pushrods before covering and painting, while you still have easy access inside the model. Once the initial installation has been made and all the bugs are worked out, you can take the radio system back out while the painting is being done. In spite of some of the things you may have heard or read, putting a radio in your 1/4-scale Cub need not be much different than for a smaller model. This section describes the control system installations that have worked best in our prototype Cubs and that we recommend. Except for the use of some "heavy-duty" parts, you'll find that the installation is pretty straight forward. As with any size model, the QUALITY of the installation more than anything else will determine how well it flys the model. Always double check all control hookups! Locate the source of any binding, rubbing, or sticking and eliminate it. No radio gear or servo mounting materials are supplied in this kit. Any other parts called for in the following instructions that we do not furnish are marked with an (*). Elevator And Rudder Hookup The elevator and rudder are each actuated by one "heavy-duty" servo. Almost every radio manufacturer produces heavyduty servos specifically designed to handle the increased control surface weights and air loads of 1/4-scale models. Standard size servos (35 oz./in. torque or less) are not recommended for the elevator or rudder of the Cub. If in doubt about the ability of the servos you have to handle the job, consult the manufacturer of the radio gear. The most convenient method of installing servos in the fuselage is on the plastic mounts (*) that are offered by most radio manufacturer for their equipment. These are screwed to hardwood mounting rails (*) that are epoxied across the inside of the cabin area. Mount your servos anywhere between formers F5 and F6. Further instructions on the use of servo trays are usually included with them. A long nylon control horn is supplied for the elevator. Install it on the bottom of the left elevator with #2 x 3/4" sheet metal screws. Once installed, cut off the excess ends of the screws flush with the top of the nylon retainer plate. Pushrod Assembly Materials are supplied for building fiberglass pushrods to link the elevator and rudder servos to their control horns. Make the control surface ends of the pushrods first. Put a 90° bend in the unthreaded end of the 4-40 x 8" threaded rod. Drill a 3/32" diameter hole 2" from the end of the fiberglass pushrod tube. Slide the 4-40 rod into the tube, sticking the 90° bend through the hole. Sand a flat spot on one side of the 3/16"x2-1/2" dowel until it can be squeezed into the tube alongside the 4-40 rod. When you get the fit right, final assemble the parts into the tubes with epoxy glue. It should not be necessary to put any bends in the 4-40 wires of either the elevator or rudder pushrod to get them to feed through the fuselage and hook up to the control horns. It's a pretty straight shot if your servos are positioned side by side as shown in a previous photo. However you may have to trim out a portion of the diagonal 5/16" sq. main frame balsa under the stab to clear the elevator pushrod wire. Assemble the servo ends of both pushrods in the same fashion, only use 1/16" dia. x 8" music wire and solder links instead of the 4-40 size hardware. After you've got the 1/16" wires and dowels epoxied into the tubes, feed the pushrods back into the fuselage and hook up to the control surfaces. Center the 4-40 links on the threads at the tail end. Then measure and cut off the 1/16" wires at the front, to the length which will allow the solder links to reach the servo arms. Protect the servos with a rag while soldering the links onto the ends of the wires. Sig J-3 Cub SIGRC48 Build Manual Page 27 of 37 . Your elevator and rudder pushrods should now be complete and operating freely. Fill in around the 4-40 pushrod wires where they exit the fuselage with scrap sheet balsa, glued in flush with the stringers. Brace the pushrods in the middle (near former F9) with 1/4" sq. scrap balsa to eliminate any possibility of in-flight vibration or bowing problems. Criss-cross pieces of 1/4" sq. stick on all four sides of each push rod. Glue them to the 5/16" sq. main frame balsa. Have the braces touching the pushrods, but not creating a bind. Throttle Hookup Either a standard or heavy-duty servo can be used for the throttle control on a .60 to .90 glow engine. A flexible steel cable pushrod with nylon outer tubing (*, such as SIGSH559) is best for hookup of the throttle servo to the carburetor. Follow the assembly instructions on the pushrod package. Battery Pack Due to the larger than normal battery drain from using heavy-duty servos, a 1000 mah receiver battery pack (*) is recommended. Wrap the battery pack in foam rubber (*, such as SIGRF240) held on with rubber bands or masking tape, to protect it from engine vibration. Secure it as far forward as possible in the nose under the fuel tank. Receiver The receiver should also be wrapped in foam rubber and stowed as far forward as possible. Make certain that it is somehow fastened in place so it will not move around during flight. A 36" long piece of large (3/16" o.d. approx.) nylon tubing is provided for making an internal antenna mount. Glue the tube in a bottom corner of the fuselage, from the cabin area back to the tail, and slide the antenna wire into it. Switch The receiver on/off switch may be mounted wherever it is convenient. Some servo trays have a slot along the front for holding the switch. Then run a short length of music wire (*) from the switch to the outside of the model. Aileron Hookup You can choose between two completely different methods for hooking up the aileron in the cub. Method 1: Use two separate servos, one for each aileron, mounted out in the wing panels between the W5 ribs and linked to the receiver via long extension cords and a "Y" harness. Method 2: Use one heavy-duty servo mounted in the center-section of the wing operating both ailerons at the same time via 90 deg. bellcranks and long pushrods. While we have used both methods in our prototype models with good results, we recommend the two-servo method first because it is simpler and easier to install properly. Sig J-3 Cub SIGRC48 Build Manual Page 28 of 37 . : If you elect to try this method in your Cub write to Sig for more detailed instructions on making the installation. Method 1- 2 Servos The full-size wing plan shows this type of installation and all the necessary structural parts for it are included in this kit. In addition to a fifth servo(*), you'll need to purchase two long extension chords(*) and a "Y" harness(*) to link the aileron servos to the radio receiver in the fuselage. All radio manufacturers have these items available as stock equipment or will make them on order. It is best to keep the extension chords as short as possible - 18" should be long enough when the "Y" harness length is added to it. Excessively long chords have been known to cause radio interference under certain conditions. Consult the manufacturer of your particular radio about the need and availability of "chokes" in the extension chords to eliminate possible interference. Double check to see if the holes that are in the wing ribs are large enough to allow the plugs on your extension cords to pass freely through. If not, enlarge the holes until they will. By the way, it's not necessary to permanently install the extension cords in the wing panels as you may have thought. It is quite easy to feed the cords through even after the wing has been covered and painted. Simply feed a long piece of music wire(*) or dowel(*) through the holes first, then tape the end of the aileron cord to the wire and pull the wire back through. Dry fit the two die-cut 3/32" ply Servo Mounts and your aileron servos into position between the W5 ribs in each wing panel. Bend the 4-40x8" threaded rods to the shape shown in the wing cross-section drawing on the plan. Screw the 4-40 links halfway into the threaded ends of the rods and snap the links into the nylon aileron control horns. Pin the ailerons in neutral position and get the pushrods and servos into alignment with the horns. Determine the exact angle of installation needed for the ply Mounts and whether the top of the servos will clear the 3/32" ply Hatches when they are installed later. Then epoxy the ply Servo Mounts to the W5 ribs. When dry, realign the servos and pushrods to the aileron horns. Mount the servos onto the ply mounts using a side-mount type servo tray(*). Because of the large diameter of the 4-40 rods, it's pretty impractical to link them directly into the servo output arms. So cut off the rods near the arms and bend two small "Z" shaped spur wires out of scrap 1/16"dia. music wire (*). Bind the spur wires onto the cutoff ends of the 4-40 rods with soft copper wire(*) and solder the bindings securely. Cut to length and epoxy in place the 1/4"x3/8" spruce Hatch supports. Use the 3/32" ply Hatch to guage the proper depth for gluing in the two Supports that go along the sides of the WS ribs. The Hatch should be flush with the capstrips when it's screwed down onto those side Supports. #2x3/8" sheet metal screws are provided for holding the Hatch in place. Cut to shape and glue in place 3/32" sheet balsa fairings for around the aileron pushrod exits. Method 2- 1 Servo with Bellcranks (*no materials are supplied for this option) One heavy-duty servo, such as recommended for the elevator and rudder, can safely operate both ailerons at the same time from the center of the wing through the use of 90° aileron bellcranks and long pushrods. The difficulty with this method is in making it operate smooth without any bending. However, it can be done if you are very careful with installation. Mount the 90 deg. bellcranks between the W5 ribs on the same 3/32" plywood that is supplied in this kit for the Servo Mounts in Method 1. Use the 4-40 threaded rods and links in the kit to connect the bellcranks to the aileron horns. Mount the servo in the window opening of the Center_Section and use a 1/16" diameter wire plastic-sleeved pushrod(*) to connect it to the bellcranks. Sig J-3 Cub SIGRC48 Build Manual Page 29 of 37 . 20. Tips On Tanks A 16 oz. rectangular plastic clunk tank is recommended for use with most all .60 to .90 cu. in. glow engines. Refer to the engine manufacturer's instructions for any special notes they may have on fuel tank or pump/pressure requirements for your particular engine. The simplest, most trouble free, tank set-up to use with a fully cowled in engine is normal suction feed, without any pump or crankcase pressure. If you can run your engine on suction, assemble the fuel tank hardware as shown in the photo. There are 3 tubes installed through the rubber stopper - 1 for fuel feed, and 2 for vents. Both vent tubes should curve upwards inside the tank. The clunk line on the fuel feed tube must swing freely without hitting the back of the tank. (If your tank, as supplied, does not come with silicone tubing for the internal fuel feed line, substitute a piece of Sig Heat-Proof Silicone Tubing, SIGSH290 Large. With it installed, the tank can be left in the fuselage indefinitely since this line will not harden or deteriorate when immersed in raw fuel.) With an inverted engine installation, the tank will be correctly located for proper fuel draw and idle characteristics if it is mounted onto the bottom of the ply Nose Joiner. Simply glue four J-Bolts (SIGSH123, not supplied) into the bottom of the NoseJoiner, and use rubber bands hooked between them to hold the tank in place, as shown. Drill holes through the firewall large enough to pass the fuel lines through. Once the tank is installed permanently, after painting the model, seal the holes in the firewall against leakage of the exhaust oil into the fuselage with silicone rubber sealer. Run fuel tubing from both vents downward and out the bottom of the cowl at the back. Connect the fuel feed line to the carburetor. To refuel, simply pump fuel into either of the vent lines until it runs out the other. Then plug one of the vents with a short 4-40 bolt to keep the fuel from siphoning out. It's not necessary to remove the feed line from the carb to refuel. 21. Covering And Painting The Framework The completed Cub framework can be covered with Sig Koverall, Sig Silk or an iron-on type of covering material (either plastic or fabric). Whatever type of covering you desire to use, it will not conceal a rough framework. Be sure all surfaces are smooth before proceeding! The manufacturer's directions for applying iron-on coverings are packed with the material. Follow these closely, for different types of material have different iron temperatures and techniques of application. The rest of these instructions describe the use of Sig Koverall, which is a polyester based synthetic fabric ideally suited to quarter-scale models due to its low cost, workability, and toughness. Silk is applied in the same way, but it costs much more per yard. Koverall is highly recommended for the Cub - all of our prototype models were covered with it. Brush an unthinned coat of clear Sig Supercoat or Sig Lite-Coat Dope over all parts of the framework that will contact the covering. When dry, resand with fine sandpaper to remove any fuzz or raised grain. Brush on a second coat and sand again. The bottom of the wing is a good place to start covering. Cut a piece of Koverall about 1/2" larger all around than half of the wing, with the grain running lengthwise. (The grain of woven materials run parallel to the finished bias edge.) Dip the piece of covering in water, let the excess water run off, and then lay it on the wing. Go around the edges, pulling out the wrinkles and stretching the material smooth. Brush clear dope around the edges. This will soak through the fabric and adhere it to the dope already dried into the framework. Let dry before trimming off the excess material with a sharp razor blade. Check for any rough areas or places that are not stuck down properly and apply more dope. Use the same process to cover the top of the wing, the fuselage, and the tail surfaces. Be sure to read "Hints on Covering the Fin Fillet". After all covering is done, allow the water to dry out of the fabric and wood. If the Koverall is slack or baggy in any places, use a hot air gun or hair dryer to shrink it tight (read Koverall package instructions). Sig J-3 Cub SIGRC48 Build Manual Page 30 of 37 . Next give the entire model a coat of LiteCoat clear dope. Thin the dope until it brushes on easily and flows out smoothly. Brush the dope on sparingly over the open framework areas. If too much is applied, the excess dope may rub off the brush, run completely through the covering and puddle against the covering surface on the other side. When these puddles dry, the large amounts of dope solids in them cause more shrinkage than in the rest of the covering and a scarred area results. So apply dope very lightly the first time over. The second coat will seal most of the pores of the Koverall, and from that point running through will not be a serious problem. You can put anywhere from 3 to 5 total coats of clear dope on the Koverall before going to color. It depends somewhat upon how heavy a coat you are putting on. Keep the dope thinned out enough to flow on smoothly. Sand well between the later coats of dope with 220 grit Tri-MIte paper. Don't bear down on the edges of the balsa structure or the fabric may be cut. Use your own judgement about when you've put on enough coats. The goal is a completely smooth and even base for the color paint. Keep in mind that weight can build up fast in finishing and restraint must be used in application. Don't try to completely fill the grain of the fabric like you would on a smaller model. The weave will not be very noticeable as long as the edges are smooth - it may even look more realistic. Sanding sealer or primer is not necessary or advisable. Best results can usually be obtained by spraying on the color finish coats. It is also much faster than brushing would be on this large a model. Reduce the dope for spraying fifty-fifty with Sig Supercoat Thinner. Two coats of your base color should give good coverage if the surface preparation was sufficient. If any light sanding between base color coats is needed, use 360 Tri-M-Ite or 400 or finer wet paper. Hints On Covering The Fin Fillet On the full-size Piper Cubs, the fuselage and fin are covered with one continuous piece of fabric. It bridges from the top stringers of the fuselage sides up to the fin bottom rib, producing a beautiful fillet. The construction of this model Cub duplicates this feature. Your covering material should bridge from the sheet balsa Tail Fairings up to the fin bottom rib. This may at first appear to be a difficult job to do, but it's much easier than you'd think. If you're using a dope-on type covering, proceed as follows: 1. Cut a piece of material that will cover the entire left side of the fin and left side of the fuselage top (all the way forward to the wing T. E. Crosspiece). 2. Dope the edges of the covering down along the fuse 3/16" x 3/8" Top Stringer, the 1/4" sq. Corner Stringer, and the T.E. Crosspiece. Pull out any large wrinkles or sags in the fabric. 3. Straighten out the rear end of the covering and adhere the bottom of it to the Tail Fairing. Work the material smooth and dope it down to R4 and the fin bottom rib. Use plenty of pins to hold securely until dry. 4. Apply three extra coats of clear dope along the fabric stuck to the fin bottom rib. Let dry between coats. 5. Finish sticking down the remainder of the covering piece ot the top of the fin. 6. Now repeat the steps to cover the right side of the fin and the fuselage top in the same manner. When dry, resume following the rest of the written instructions for dopedon coverings. Be careful when applying the pre-color clear dope coats over the entire model that you don't soften the bond of the fabric to the bottom rib and let it pop loose. It's best not to put any dope of the fin bottom rib while painting the surrounding fin and fillet areas. If you're using an iron-on type of covering, apply it basically the same as described above with one exception. Lap and adhere the fillet covering piece over onto the top side of the fin bottom rib and cut it off there. Then, after shrinking the fillet area tight, cover the top part of the fin with a separate piece. Overlap it slightly onto the fillet covering. If you try to do the job in one piece, the heat of shrinking the entire area will always pop the covering loose from the fin rib. When the base color has dried, mask off the edges of the color trim areas with "drafting tape" (3M Scotch brand is available at most office and art supply stores). Completely cover with paper and tape all areas that should remain base color. Brush or spray the edges of the tape with clear dope. This seals the tape, preventing leakage of the trim color underneath the tape. Spray on two coats of trim paint. When dry, carefully remove the tape. Complete the job by spraying a coat of Lite-Coat clear dope over the entire color scheme to protect the colors from scuffing and to give the entire model a uniform gloss. For best results, it is not a good idea to try to mix different brands of paint. Use SIG products from the start. Sig J-3 Cub SIGRC48 Build Manual Page 31 of 37 . 22. Sanding And Painting The Plastic Parts CAUTION: Do not try to cover any of the plastic parts with Monokote, Coverite, or other iron-on types of covering material. The heat can damage the plastic parts. The cowling, dummy engine, and bungee covers are molded out of ABS plastic. We recommend that they be painted with Sig Supercoat Dope for best results. Hobbypoxy, K & B Superpoxy, and Dulux Enamel have also been proven compatible with the ABS plastic and can be used if desired. Do not use other paints, dopes, or finishes without first testing on scrap plastic to make certain that they are compatible. In preparation for painting, the plastic parts should be sanded to remove as much of the surface gloss on them as possible. Do not use coarse sandpaper which will cut deeply into the plastic. Deep scratches will often open up wider during painting. Use 220 grit or finer 3M Tri-M-Ite Fre-Cut Finishing Paper or its equivalent. Color paint can be put directly on the sanded plastic. Primer type coats are not necessary if a thorough sanding job was done with fine paper. Brush or spray the color paint onto the plastic parts. Do not apply heavy, wet coats which can cause an "orange peel" effect. Put on light coats and allow them to dry before applying a second coat. The "stand way off scale" detailing of the dummy engines on our prototype models was done by painting with 3 basic colors: Silver for the cylinder heads. Black for the top shrouds, the cylinder fins, and for any recessed or shadowy areas. Steel for the exhaust pipes and the cylinders. This isn't a standard color, you'll have to mix your own by slowly adding black paint to silver until you get the shade you want. It shouldn't be too light colored, but must provide adaquate contrast with the black painted area. The silver painted areas should be glossy when dry. The black and steel areas should be flat, non-glossy. 23. Painting The Landing Gear And Wing Struts We recommend that the completed landing gear and wing struts should be painted with epoxy type paint (such as Hobbypoxy or K & B Superpoxy) because of the large areas of metal to be covered. Dopes do not stick well to metal, but epoxy paint does and it's use here is not recommended. Start by brushing or spraying a coat of epoxy primer on the entire part. When dry sand smooth. Make repeat applications of primer, sanding thoroughly when dry, until the surface of the wood and fiberglassed areas are smooth. Then spray on two coats of color epoxy paint, letting it dry between coats. For best results, follow the paint manufacturer's instructions closely. 24. Self-Adhesive Decals Cut out the decal you wish to apply with a sharp scissors, modeling knife, or single-edge razor blade. Trim close to the image, leaving about 1/32" to 1/16" of clear edge around the decal. Smaller designs (2 - 3 sq. in. or less) can be put on the model by "dry application", whereas larger decals go on easier using the "wet application" instructions. Sig J-3 Cub SIGRC48 Build Manual Page 32 of 37 . Instructions for Dry Application Peel the paper backing sheet completely off the decal, being careful not to let the sticky side double over and adhere to itself. Hold the decal in position just above the surface of the model while you double check to make certain it is exactly where you want it. Don't let the decal contact the surface of the model until you are sure of its location! Once it is stuck down, it can't be moved! Start the actual application by pressing just one edge of the decal into contact with the surface of the model, and then carefully work towards the opposite edge, slowly rubbing the remainder of the decal in place. Be careful not to trap air under the decal. If air is trapped under the surface, puncture the air bubble with a pin and press down. Instructions for Wet Application Here's a little trick that allows application of self-adhesive decals to a model without the danger of trapping air bubbles. Start by wetting the surface of the model where the decal will be placed with a generous quantity of soapy water solution (a little dish soap in water, or a commercial cleaner like Sig Blue Magic Model Airplane Cleaner, "409", or "Fantastic" brand cleaners will all work equally well). Peel the paper backing sheet completely off the decal, being careful not to let the sticky side double over and adhere to itself. Place the decal onto the wet surface of the model. The soapy water will keep the decal from actually sticking to the model until you have had time to shift it around into exact alignment. Once you have it in exact position, use a small paddle of scrap sheet balsa to squeegee the excess soapy water out from under the decal. Squeegee repeatedly to get as much of the soapy water out from under the decal as possible. Allow to dry overnight. When completely dry, wash off the soap smears with a clean wet rag. NOTE: These decals are completely fuel proof and cannot be harmed by any common model -airplane glow fuel containing less than 20% nitromethane. Higher quantities of nitromethane may cause slight deterioration of the decal over extended periods of time. WARNING: Do not try to paint over these decals. Model cement, butyrate dope, lacquer, epoxy, and enamel paints may dissolve the decals. If you wish to top coat your decals, be sure to test for compatibility on a scrap decal before applying the paint. Frankly, Sig Mfg. Co. does not recommend top coating and will assume no liability for problems you may encounter. 25. Attaching The Tail Brace Wires Four 2-56x10" threaded rods are provided for the Brace Wires. Cut two of them off at 8-3/4" long for the bottom brace wires. Leave the other two at 10" long for the top brace wires. Four standard RC links (2-56 thread inside) and four solder links (unthreaded) are provided for the ends of the Tail Brace Wires. Take each link and cut off the side that has the pin in it. (A Dremel tool with an abrasive cut-off wheel works best.) Enlarge the hole in the remaining half with a #44 drill bit. Screw one threaded link and jam nut onto the threaded end of each rod. Solder one of the unthreaded links to the other end of each. Drill #44 holes through the stab and fin trailing edges at the brace wire attachment points drawn on the plans. Fit the wires to the model. Bend the ends of the links as needed to make them fit flat against the model surface. Use 256x1/2" bolts and hex nuts to fasten the links through the stab and fin. Use #2x3/8" sheet metal screws to hold the bottom of the lower brace wires to the plywood tailwheel mount. Adjust the threaded links and jam nuts until the wires are snug, but not pulling the tail surfaces out of shape. Paint the tail brace wires after installation with epoxy paint. Sig J-3 Cub SIGRC48 Build Manual Page 33 of 37 . 26. Installing The Windshield And Side Windows Cut the windshield from the 1-1/12"x17" clear plastic sheet, using the pattern on the plan. Cyanoacrylate adhesives (Hot Stuff, Jet, etc.) work best for gluing the windshield in place on the fuselage. This is a tedious and sometimes frustrating job - but a little patience and thought will usually be rewarded with a good fitting installation. First pin the windshield in place as well as possible for a trial fit. Readjust where necessary. Then go around the edges and tack glue in several places. It's best to start gluing near the middle of the nose top and at the top of F5. Then work out towards the sides and the Windshield Braces. Don't try to bend the plastic around the Braces, just glue it to the front edge. When satisfied with the fit, glue all the edges permanently. When dry, trim off the excess plastic along the Windshield Braces. Two 5-1/2"x17" pieces of clear plastic are provided for the side windows. One piece is to cover all the window area on one side of the airplane with no seams. Lay the plastic sheets on the fuselage and mark them about 1/8" larger than the outline of the windows. Cut out and glue on the outside surface of the model. 27. Preflight Balance your model at the point indicated on the plan. If it balances further back, add weight to the nose as necessary. Trying to fly with the C.G. too far back is much more dangerous than the slight increase in wing loading caused by adding lead to the nose. Balance with an empty fuel tank. Why Models Must Be Individually Balanced It is impossible to produce a kit that will automatically have the correct balance point. Balsa wood varies in weight and it is easily possible for the wood in the tail of a model this large to be 2 or more ounces lighter or heavier than average. One ounce of extra weight in the tail has to be countered by about 3 ounces in the nose. Don't use a lot of finish or excess glue on the tail surfaces. The motor you choose, what form of muffler is fitted, the size and placement of your radio equipment, etc. all affect the balance. Don't feel that whatever C.G. the model builds out to as "good enough". Check carefully and make whatever adjustments that are required. With the C.G. properly located, the Cub should fly with only minor trim changes required. Be certain to carefully range check your radio equipment and see how it operates with the engine running before attempting test flights. A lot of problems can be avoided if the engine has been well broken in and the idle adjustment perfected on a test block or in another airplane before installation in the new model. A properly balanced and aligned model with a reliable engine and radio is assured of successful flights. 28. Flying The Cub is not difficult to manage on the ground or in the air. However, being 1/4-scale and a taildragger, there are some differences you should be aware of between flying the Cub and flying most trainer or pattern type models. It handles more like a full size airplane than most smaller models. When taxiing the Cub on the ground be prepared to use the elevators and ailerons in addition to the obvious rudder steering and throttle inputs. When the winds are calm, hold full up elevator while taxiing in any direction, to keep the tailwheel in firm contact with the ground for effective steering. Leave the ailerons in neutral, steer with the rudder, and control ground speed with the throttle. Sig J-3 Cub SIGRC48 Build Manual Page 34 of 37 . Under windy conditions, also hold up elevator when taxiing either upwind or crosswind. When going downwind, put the elevators in neutral or partly down to keep the wind from getting under the tail and flipping the Cub on its nose. Aileron deflection may also be needed while taxiing crosswind to keep the upwind wing from lifting off the ground. Line the Cub up in the middle of the runway for takeoff. If you haven't had much taildragger time, it's best to stand directly behind the model so you can easily see any changes in heading that will need to be corrected during the takeoff run. Leave the elevator in neutral. Advance the throttle smoothly to full open. As the tail lifts up on its own, the Cub will try to drift to the left from torque. Feed in right rudder as needed to keep the model going straight. When you have flying speed, pull back slightly on elevator stick for a gentle liftoff. During the takeoff run, try not to overcontrol the rudder (the most common rookie tailwheel pilot's mistake) which will start the Cub swerving from one side of the runway to the other. If you find yourself in that situation, pull the throttle back to full low and get the model stopped. Taxi it back for a fresh start. Never try to hurry the model off the ground by pulling full up elevator just because the model isn't going straight! The damage from a premature snap roll on takeoff would be much more severe than anything that could happen on the ground. Actually the Cub is one of the easiest taildraggers to takeoff that you'll find. Just keep practicing your takeoff run without lifting off until you learn to use the throttle, elevators, and rudder together. In the air you'll find the Cub smooth, stable, and responsive. With practice it is capable of doing most basic aerobatic manuevers such as inside loops, rolls, spins, and snaps. After you've had a chance to get the model all trimmed out, practice making your turns by coordinating rudder commands in with the ailerons, as is done in a full size airplane. Proper coordination of the rudder with the ailerons will make for a more graceful turn. Landing the Cub directly into the wind or under calm conditions is pretty much like landing any other scale model. Be careful not to let the nose get too high during banks with the power off. Either wheel landings or three-point landings can be made with the Cub. Just remember to fly the model even after it touches down (or you'll ground loop so fast it will make your head spin). Once the tailwheel gets back on the ground you'll have good steering and the model will slow down fast. If there is any amount of crosswind, even quartering, landing the Cub (or any other taildragger) becomes a little trickier. Proper coordination of the ailerons and rudder is again needed to maintain your heading. After the model is turned onto final approach, use the rudder to hold the model on a straight heading with the runway and feed in aileron to correct any drifting to the side. For example, with a crosswind from the left, you'll need to hold a little right rudder to correct any "crab" angle (the model will be trying to weathervane into the crosswind) and put in left aileron to keep the model from drifting to the right. If all these hints make it sound as if the Cub is difficult to fly, it really isn't! In many ways flying quarter-scale is easier than flying a faster, smaller model. The Cub can be safely flown by anyone who is capable of handling a multi-channel model. Once you get a few flights under your belt, you'll find rudder/aileron coordinated flying becoming second nature - and you'll be a better pilot with all types of models. GOOD LUCK! Sig J-3 Cub SIGRC48 Build Manual . Page 35 of 37 Sig J-3 Cub SIGRC48 Build Manual . Page 36 of 37 Sig J-3 Cub SIGRC48 Build Manual Page 37 of 37 . If you have any technical questions or comments about this kit, or any other SIG product, please call us. SIG MODELER'S HOTLINE 1-800-524-7805 Weekdays, 7:00am - 4.30pm Central © Copyright SIG Manufacturing Co .,Inc. 1982 SIG MANUFACTURING CO., INC............Montezuma, Iowa 50171-0520 LIMIT OF LIABILITY: In use of our products, Sig Manufacturing Co.'s only obligation shall be to replace such quantity of the product proven to be defective. User shall determine the suitability of the product for his or her intended use and shall assume all risk and liability in connection therewith.
