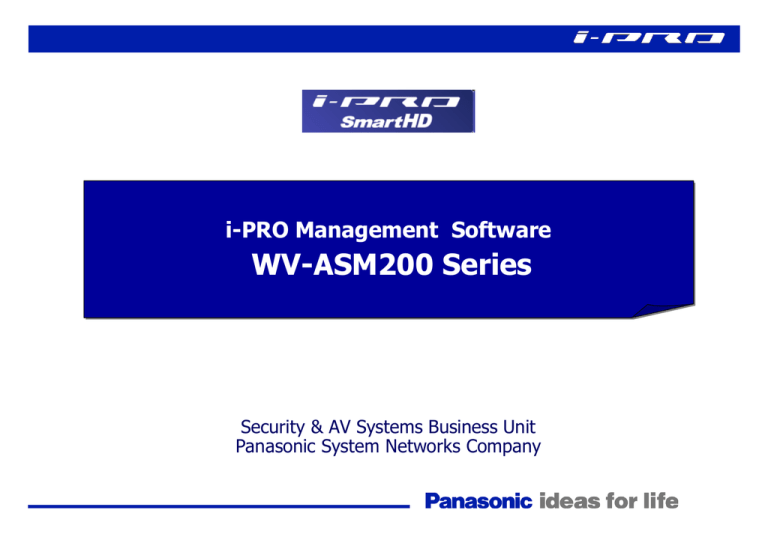

i-PRO Management Software

WV-ASM200 Series

Security & AV Systems Business Unit

Panasonic System Networks Company

2

What is WV

-

ASM200 series?

WV-ASM200 series is designed for integrated management, control, live image display and playback of recorded images for multiple Panasonic network disk recorders* and digital disk recorders.**

More efficient operation and management are possible by using an operation window, a map window

*** and a live window*** at a time when three monitors are used with a PC.

* WJ-NV200, WJ-ND400, WJ-ND300A, WJ-ND200.

** WJ-HD716/616 and WJ-HD316A/HD309A.

*** Extension software “WV-ASE201” is required in addition to “WV-ASM200”.

System diagram

WJ-HD316A/HD309A

WJ-HD716 /HD 616

WJ-ND400

WJ-ND300A

WJ-NV200

WJ-ND200

WV-ASM200 Series

Operation Window Map Window Live Window

Network

Management, Live/Playback ctrl, Search, Download

i-Pro series network camera

PTZ ctrl, Live view

1 Cameras are registered on network recorders

2 Recorders are connected by a single port configuration.

Cameras can be directly viewed. (i-Pro series cameras)

PC

WV-ASM200 Series

3

WV

-

ASM200 Product Line up and functions

Extension Software n

Product

Basic Function

WV-ASM100L

Light

WV-ASM100

Full

Live Window

MAP Window

CU950 Controller

Additional

Extension Software

*

(Future)

Extension Software 4

Extension Software 2

Extension Software 1

Extension

Software

*

WV-ASE201

Live Window

MAP Window

CU950 controller

WV-ASM200

Additional Features from ASM100L

+ 16:9 Stream & HD monitor support

+ File Conversion

+ Internet Mode (Camera)

+ NV200, ND400 Smooth Playback

**

+ SDHC H.264 Download

ASM100 Series

Functions

ASM200 Series

*To use functions of extension software such as WV-ASE201, WV-ASM200 is required as base software.

** NV200 ver. 1.2 or later, ND400 ver. 2.5 or later are required.

4

WV

-

ASM200 Series Major Features

*

*

The multi-monitor function using up to three PC monitors is available, and it enables surveillance operation more efficient.

It is possible to display live images from a camera by clicking the respective camera’s icon on the map.

*

*

It is possible to display multi-screen live images to handle large bit rate** such as 1.5Mbps (VGA 30 ips) x 16 cameras for H.264, 2 Mbps (VGA 30 ips) x 16 cameras for MPEG-4.

Up to 100 recorders can be registered.

Cameras registered at a recorder can be viewed not only viewed via the recorder but also by direct access to the cameras from ASM200.

 Alarm notification by Panasonic alarm protocol.

 Up to 20 screens can be displayed for the operation window and the Live window.

 Operation using the system controller WV-CU950

*

*

Extension Software WV-ASE201 is required in addition to WV-ASM200.

**

This is possible when a recommended PC with enough performance is used.

5

WV

-

ASM200 Series Major Features

The display area of images can be set as 16:9 so that the 16:9 resolution images are displayed.

The streams of the Internet mode (H.264/MPEG-4) from cameras and recorders are handled.

It is possible to convert a .n3r file to an mp4 file that is standard of Windows. The converted file can be played back by QuickTime, Widows Media Player (Only Windows 7) and so on.

It is possible to download an H.264 file on a SD memory card of a camera to a PC.

Full frame playback is possible for STEP2 and STEP3 of high-speed playback.

The setup data of WV-ASM100/100L can be loaded to WV-ASM200 for migration.

6

WV

-

ASM200 Series Multi

-

monitor function

There is a multi-monitor function using up to three PC monitors to display the operation window, the live window* and the map window* simultaneously on each monitor. It is also possible to display the operation window, the live window* and the map window* overlapped on one or two PC monitors.

Operation window

Map window*

Live window*

•Selection displayed camera

•Camera control

•Recorder control

(Recording, Playback)

•Switching screens

(multi-screen, sequence)

• Search and download

• Camera switch to be displayed by clicking an icon on a map.

• Switch a map.

• Display an alarm camera changing the icon with blinking and red color.

*

Extension Software WV-ASE201 is required in addition to WV-ASM200.

• Live display for a group by group (1, 4, 9, 16 screens)

• Sequential live display

(Mixture of 1, 4, 9 ,16 screens is possible)

7

WV

-

ASM200 Series Multi

-

monitor Display Operation

Display sample

1 PC monitor (Not use the live window)

Configuration

When using a single PC monitor,

Operation with the operation window and the map window

* without using the live window is suitable.

Set the value of the maximum screens of

Live window to “--”.

2 PC monitors (Use the live window)

<When using two PC monitors>

Operation while displaying the operation window and the map window on one of the two PC monitors and the live window on the other PC monitor is suitable.

The number of screens of the operation window and live window can be changed.

3 PC monitors (Use the live window)

<When using three PC monitors>

Operation while displaying the operation window, the live window and the map window on each of three PC monitors is suitable. The number of screens of the operation window and live window can be changed.

* Extension Software WV-ASE201 is required in addition to WV-ASM200 when the map window is used.

** Extension Software WV-ASE201 is required in addition to WV-ASM200.

8

The number of screens of the operation window and the live window* can be arbitrarily set as far as the total number of screens is 20 or less than 20.

Operation Window Live Window*

[Setup Software] => [System]

Maximum number of the screens of the operation window

Select 1/4/9/16-screen

1 screen

1 screen

Total has to be 20 or less than 20.

Maximum number of the screens of the live window

Select 1/4/9/16-screen

The number of the screens of the Operation window and the Live window has to be 20 or less than 20.

* Extension Software WV-ASE201 is required in addition to WV-ASM200.

9

WV

-

ASM200 Series Operation window

The shortcut icons of the menu items are shown

[Functions]

Save still image/ print/ Logout/ 1-16 screen display/ Full screen display/

Search/ Format transformation

Show registered recorders and cameras

Display images by a registered group

Sequence operation

Playback operation by

Easy playback panel

Playback from search

panel

Download images

Show alarm logs

Show error logs

Show NW error logs

Camera operation panel

Pan/tilt

Zoom

Focus

Auto mode

Camera operation

by control pad

Brightness

Preset

AUX

Display SD list

Download

On the status bar.

Recorder camera name

• Alarm button

Error button

• Presence or absence of

SD memory data in the

SD memory card

Live/Rec/Playback

button

• Time and date

10

WV

-

ASM200 Series Map window*

Select the desired map from the drop-down list. (Up to 20 maps can be used among up to 100 registered maps.)

When a map icon displayed on the map is clicked, the respective map will be displayed on the map window.

Actions at alarm input

1. A map is switch to the map where the camera that sent an alarm, is plotted. (When Alarm setting is auto map switch : ON)

2. Corresponding camera icon starts blinking.

*

Extension Software WV-ASE201 is required in addition to WV-ASM200.

When the camera icon on the map is clicked, live images from the selected camera will be displayed in the selected area on the operation window. Up to 64 cameras’ icons can be plotted.

A pop-up menu appears by right click, then it is possible to switch open/close status of a device connected to the AUX terminal from the submenu.

11

WV

-

ASM200 Series Live window*

Group information

Camera information

*

Extension Software WV-ASE201 is required in addition to WV-ASM200.

12

WV

-

ASM200 Series License Key Activation (No dongle)

WV-ASM200 Series changes the activation way from Dongle, HASP key, to Software License Key.

ASM100 Series

HASP Key

ASM200 Series

Internet

Key Management System

Software install

Activate by HASP key connection

Activate Software

Activate by registration of

“Registration key” issued by Key management System

Activation Key Card

Activate Software

Software install

13

Before getting an official license/licenses, ASM200 Series can be used as 90 days demo edition free of charge by registering the registration key for demo edition.

The user can continue to use ASM200 Series by purchasing an official license/

Licenses, and registering the official registration key(s) within 90 days.

Registration Key for demo edition

WV-ASM200: 0000-0010-0000-0001

WV-ASE201: 0000-0030-0000-0001

When ASM200 is running as demo edition mode, the following message appears every one hour.

14

Registering cameras and encoders to WV -

ASM200 Series

Cameras

1

WV series cameras

Cameras

Images come directly from cameras.

Streams are received directly from cameras for live view.

Camera information registration

Device information registration

SW

recorder

WV-ASM200 series

The above is to register NWDR(s) to WV-ASM200 Series. The

information of cameras and encoders is handed over to WV-

ASM200 series. When there are many cameras to be registered, this is very efficient way.

There are two ways how the images from cameras are

received. They are shown in the right figures and one of them is selected* * In the case of BB/BL model cameras, only second way (No2 in the right figure) is possible.

2

Cameras

Live images

Playback

WV-ASM200

Series

Images come through recorders.

Streams are received through recorders for live view and playback.

WV and BB/BL

Series cameras

Playback

Live images WV-ASM200 series

3

Cameras

WV series cameras

SW

ASM200 Series

Device information registration

This is the way to register cameras and encoders

to

WV-ASM200 Series

independently from a recorder.

15

The maximum number of PCs that can be connected to a recorder depends on types of connected recorders and usage of the live monitor.

Recorder

ND300 series

ND200

HD316A, HD309A

ND400

HD616/HD716

NV200

8

4

4

2

Connected PCs

Live Monitor is used

Live Monitor is not used

6

4

2* 3**

16

8

1 2***

* If 16 or 9-screen display is done, the number of PC that can be connected becomes 1.

** If 16-screen display is done, the number of PCs that can be connected becomes 2.

*** In this case, the total number of screens displayed on 2 PCs is limited depending on NV200’s throughput (Max: approximate 110

Mbps).

If the total bit rate of NV200 is over the throughput limit, some phenomenon such as slowing down of displaying images may happen.

16

Recorders’ firmware versions that can be compatible with WV-ASM200 Series

*

Product Number

WJ-ND300

WJ-ND300A

WJ-ND200

Firmware version

Ver 5.20 or later

Ver 3.30 or later

Compression format

M-JPEG

H.264

MPEG-4

M-JPEG

H.264

MPEG-4

WJ-HD300A series

(HD316A, HD309A)

Ver 3.44 or later

Proprietary format

WJ-ND400

Ver 2.20 or later

M-JPEG

H.264

MPEG-4

WJ-HD616

WJ-HD716

Ver 2.06 or later

H.264

WJ-NV200

Ver 1.04 or later

M-JPEG

H.264

MPEG-4

* WJ-RT416, WJ-HD300 series are not supported.

17

Cameras’ firmware versions that can be set as WV-ASM200 Series direct access.

Product Number

WV-NP502

WV-NW502

WV-SP302

WV-SP305

WV-SP306

WV-SF332 /SF342

WV-SF335

WV-SF336/SF346

WV-SP102/SP105

WV-SC385

WV-SW395

WV-SC384

WV-SW352/SW355

WV-GXE500

Firmware version

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.30 or later

Ver 1.31 or later

Ver 1.06 or later

Ver 1.06 or later

Ver 1.03 or later

Ver 1.04 or later

Ver 1.30 or later

Compression format

H.264

MPEG-4

M-JPEG

* As far as the same functions are used, new cameras can be supported by capability function.

18

Cameras’ firmware versions that can be set as WV-ASM200 series direct access.

Product Number

WV-NP244

Firmware version

Ver 1.80 or later

Compression format

WV-NP1000/1004

WV-NS202

WV-NS202A

WV-NF284

WV-NW484

WV-NS950/NS954

WV-NW960/NW964

WV-NP304

WV-NF302

WV-NT304

WV-NT314

Ver 1.25 or later

Ver 1.11 or later

Ver 2.70 or later

Ver 1.60 or later

Ver 1.61or later

Ver 1.61 or later

Ver 1.61 or later

Ver 1.61 or later

Ver 1.61 or later

Ver 1.32 or later

Ver 1.32or later

MPEG-4

M-JPEG

19

Microsoft® Windows® 7 Professional SP1 32-bit

Microsoft® Windows® 7 Professional SP1 64-bit

Microsoft® Windows Vista® Business SP2 32-bit

Microsoft® Windows Vista® Business SP2 64-bit

* Windows XP isn’t supported.

IBM PC/AT Compatible

Intel® Core

TM i5-2400, 2500

Intel® Core

TM i7-860 or higher spec.

20

Image size : VGA, Transmission Priority is “Frame rate”

PC’s CPU

Intel® Core TM i5-2400

Recommended bit rate per 1 camera

768kbps(30fps) * except NP502 and NW502

1,024kbps(30fps) ** NP502 and NW502

Image size : VGA, Image quality : Normal

PC’s CPU Recommended bit rate per 1 camera

Intel® Core

TM i5-2400 2,048kbps(30 fps)

21

Resolutions supported by WV

-

ASM200

Aspect Ratio 4:3

Aspect Ratio 16:9

Supported

2048x1536(QXGA)

1280x960(SXVGA)

800x600(SVGA)

640x480(VGA)

320x240(QVGA)

1920x1080

1280x720

640x360

320x180

Not supported

-

-

Other resolutions -

D1(720x480NTSC)

D1(720x576PAL)

Remarks: In the above table, there are some resolutions in “not supported” cells that can be displayed. However, lower display performance, distortion of aspect ratio or some problems might occur.

22

Multi

-

monitor function*

WV-ASM200 has multi-monitor functions. The operation window, the live window* and the map window* are simultaneously displayed on up to three

Operation Window

Live Window*

Map Window*

It is necessary to add a graphics board to the PC to use the multi-monitor function.

*

Extension Software WV-ASE201 is required in addition to WV-ASM200.

23

Operation Window ’

’ s structure

Operation Window

Menu Bar

Tool Bar

Function Panel

Operation Panel

Status Bar

Information display area

Image display area

24

The following screen patterns can be displayed on the operation window and the live window.

• Multi-screen display (1,4,9,16 screens)

• Full screen display

25

ASM200 Series keeps the same aspect ratio of the streams from cameras and mixture of 16:9 and 4:3 screens in a window is possible.

The Operation window and the Live window can display the following display patterns without changing the aspect ratio of each image.

•Multi screen display (1 screen, 4 screen, 9 screen, 16 screen)

•Full screen

*The aspect ratio of images from WJ-HD300A series can’t be kept.

All are displayed with enlargement or reduction.

Setting Image display area (Selection)

-Aspect ratio

-Scaling (Images are enlarged or reduced in the whole of image area.)

4 screen

When Aspect ratio is selected

Full screen

26

* When all the 4:3 aspect images are displayed at non HD monitor (4:3 resolution), The same pattern display with ASM100 can be done by selecting “scaling”.

4 screen

When Scaling is selected

Full screen

27

Display function

-

Reference

-

-

There are cases that the window may have black areas or distorted images due to the difference of the aspect ratio of a monitor and that of images.

Image of aspect ratio 16:9 Image of aspect ratio 4:3

Keep aspect ratio

4:3

Aspect ratio of images

4:3

16:9

Black areas at right, left, up and down.

Aspect ratio of a monitor

Scaling

16:9 (16:10)

Keep aspect ratio Scaling

Black areas at right and left.

Distorted horizontally.

Black areas at up and down.

Distorted vertically.

28

Register frequently viewed cameras in a group, and it becomes easier to display the desired cameras’ images quickly by selecting the group.

Operation Window

“group” can be registered from

Function panel’s group. Registered groups are shown. They are icons and group names.

Clicking one of them, images in the group are displayed.

1 screen icon

4 screen icon

9 screen icon

16 screen icon

Live Window

A pop-up menu is displayed by right clicking.

Select a group in the group name list from sub-menu to display the images in the image display area.

29

Images from the registered groups can be displayed on a full screen in a automatic sequential manner.

•Select the "Sequence" bar on the function panel.

・・・

Group 1

Group 2

Group 3

Registration of sequence display is done in advance by WV-ASM200 setup software.

30

The screen pattern can be selected among 1, 4, 9, 16 screen. Live images from cameras and recorders can be displayed in a selected screen pattern.

This operation can be done only by the operation window.

31

Camera control can be done such as adjustment of display position, zooming and focusing by operating the camera during live display. *1

Pan/Tilt *

2

: Adjust the camera position horizontally or vertically.

Zoom : The camera images expand or they are reduced.

Focus : The focus of the camera images are adjusted.

Brightness : The diaphragm of the lens is adjusted.

Preset *

2

: Select a preset number from the following.

When the [Program] button is clicked after selecting a preset number, the current position will be registered as the preset position of the selected preset position number.

Auto mode

: Selected auto mode function is activated.

AUX : The device that is connected to the AUX terminal is open or closed.

*1 There is a case that the operation can not be done depending types of camera.

*2 This can work for PTZ dome cameras.

32

ASM200 can download H.264 videos (MP4) saved in SD/SDHC card of network cameras*. Viewer

Software such as QuickTime, WMP (Only Windows 7) can playback the downloaded data. The cameras have to be registered by camera registration (not via a recorder) to use this function.

* Only H.264 i-PRO SmartHD cameras

When displaying live view of the camera registered independently from a recorder, the following operation panel is shown at the operation window.

1. Click “List” button

2. Select “Alarm data” or

“Manual/Schedule data”

3. Select records and Click “Download”

33

ASM200 can receive live images from both cameras directly and recorders via the Internet.

*ASM100 ver8.0 can receive live image only from Recorders via internet

WJ-HD616/716

(Ver.2.04 or later)

WJ-ND400

(Ver.2.40 or later)

WJ-NV200

(Ver.1.04 or later) live image from Recorder

Over HTTP

Internet

live image from Camera

Over HTTP

IP cameras

(SmartHD camera only)

ASM200 Series

ASM100 Ver8.0

34

When H.264 or MPEG-4 live video and audio are received via the Internet, the

HTTP port is used instead of the UDP port.

Remarks Supported

Recorder

ND400

NV200

HD716/616

Version

2.4 or later

1.04 or later

2.04 or later

Whether or not the internet mode of the recorder is “ON”,

ASM200 can receive video and audio streams of H.264 or MPEG-

4 by HTTP as far as the Internet mode is “ON” at ASM200. No recorder setting change is required.

In this case, the all live image sources change to via recorder.

Internet mode

“ON” or “OFF”

* In case if the firmware version is older than the required version, this button becomes gray out.

35

Supported cameras

WV-NP502

WV-NW502

WV-SP302

WV-SP305

WV-SP306

WV-SF332/342

WV-SF335

WV-SF336/346

WV-SP102/105

WV-GXE500

WV-SC385

WV-SW395

WV-SC384

WV-SW355/352

Version

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.30 or later

Ver. 1.06 or later

Ver. 1.06 or later

Ver. 1.03 or later

Ver. 1.04 or later

Remarks

When the camera setting isn’t

Internet mode, ASM200 Series changes it to the Internet mode.

Changing the setting of the camera isn’t required.

Camera setting has to be changed to the Internet mode by camera set up menu.

*

Internet mode

ON/OFF

* In case if a camera doesn’t support the Internet mode, the button becomes gray out.

*

This camera setting won’t be required from the next version upgraded by the firmware in fall 2011.

36

Bi-directional audio transmission between the camera sites and PC (WV-

ASM200 Series) can be done

WV-ASM200 series

Camera to PC

PC to Camera

WV-ND400

WJ-ND300/300A

WV-ND200

WV-HD316A

Playback recorded audio

Playback audio after download

Image Source

WJ-ND400

WJ-ND300/

300A

WJ-ND200

WJ-HD616/716

WJ-HD316A

From the recorder

From the camera

From the recorder

From the camera

From the recorder

From the camera

Audio camera to PC

*2

YES

YES

NO

YES

NO

YES

YES

NO

Audio

PC to camera*1

NO

YES*3

NO

YES*3

NO

YES*3

NO

NO

Playback recorded audio

YES

YES

NO

NO

YES

YES

YES

NO

Playback audio after download

YES

YES

NO

NO

YES

YES

YES

YES

*1 When Multicasting is used for the transmission, only one way of

“camera to PC” is available.

*2 The camera needs to have an audio function.

*3 The camera needs to have a bidirectional audio function.

Camera Direct YES YES*3

- -

* In order to use this function, audio transmission/receiving has to be enabled at camera setting.

37

Audio setup on WV

-

ASM200 Series

Setup Software’s system tab

Audio

ON / OFF

Audio icons are displayed on the operation window.

Microphone is “ON”

(transmission from a

PC to a camera)

Speaker is “ON”

(Transmission from a camera to a PC)

Upper side of the operation window

38

• Single screen playback

• Multi-screen playback

39

High

-

Speed Playback Smooth mode

ASM200 Series supports WJ-ND400/NV200 Smooth Playback to avoid skipping important scenes.

ASM100

Series

Step 2

4 times speed

I frame only

Step 3

8 times speed

I frame only

Step 4-7

16, 32, 64, 96

I frame only

ASM200

Series

2 times speed

I frame + P frame

4 times speed

I frame + P frame

8, 16, 32, 48

I frame only

(*Increase the number of I frame for smooth playback so that smoother playback is possible compared to ASM100 Series.)

* ND400 V2.5 or later needed

** NV200 V1.20 or later needed

*** Available on 1 or 4 split screen

**** To use this function, more bandwidth is used than before. Consider the bandwidth availability of the network and ND400’s output stream.

40

1. Event Search

The following 9 types of events can be searched for each unit of a recorder, a group or a map.

1. manual 2. Schedule 3. Emergency 4. Site alarm 5. Terminal alarm 6. Command alarm

7. VMD 8. Video loss 9. SD Memory

In addition, in the case of the system that consists of SD5 cameras and

WJ-HD616/716, the following i-VMD search are possible.

10. Terminal alarm 11. Object removal/abandonment 12. intrusion direction 13. Scene change detection 14. Motion detection 15. Loitering detection

2. Playback VMD Search

Search date and time when the images have motions from a recorder.

This is supported for WJ-ND400, WJ-NV200 and WJ-HD616/716.

To do this, VMD information addition has to be “ON” for i-Pro series camera’s setup.

(This is not applicable for WV-NP1000/NP1004 and BB/BL series cameras.)

41

This function is available only for WJ-ND400, WJ-NV200 and WJ-HD616/716

Click Search button

Display images

Make whole areas as the motion detection area

Select a recorder and a camera

Set search period

Start search

The search result are shown in list form here.

The way to display the result is the same as the event search.

Specify frames for motion detection by 320 x 240 dots.

Playback VMD search can be done only for the recorded images whose aspect ratio is 4:3. When the images’ aspect ratio is 16:9, this can’t be used. The search result always becomes no record for the 16:9 images.

42

• Download recorded images

The name of the image file downloaded is decided as follows. example : 01_070209121500_0515.n3r

(Ch number : 1, Starting date and time : February 9 th , 2007, 12:15:00, Duration : 5 min 15 sec.)

• Playback is done by Viewer software.

Viewer software

• Up to 64 cameras’ images can be downloaded at a time.

• When more than one camera channel are specified, download is done for each camera.

• One recorder can be specified for download at a time.

• The maximum duration of downloaded images is 24 hours.

• The downloading duration is divided into every 10 minutes. So, the downloaded file is divided into pieces every 10 minutes duration.

*When the aspect ratio of downloaded images is 16:9, playback images by the viewer software are vertically distorted.

43

A downloaded file of n3r format can be converted to a standardized mp4 file.

A converted mp4 file can be played back by QuickTime, Windows Media

Player, (Only under Windows 7) and so on.

There is no restriction for n3r files. Any format n3r files can be converted. Converted files’ formats become

H.264. Conversion time depends on the size of original images and the size of converted images.

Click convert tool button.

Specify downloaded files by drag and drop.

(It can be selected from add button, too)

When a n3r file exists, specify whether this is converted together. After conversion, it becomes a mp4 system file.

Image size is specified after the conversion.

1920*1080/1280*960/1280*720/

960*720/800*600/720*576/

720*480/640*480/320*240

When files are connected, the order is the same as in the list. Use up and down button to change the order of files if necessary.

Selection whether more than one files are connected into one file.

44

• EL-zoom (1,2,4 times)

When right-clicking on the image display area, the pop-up menu will be displayed. (*Selection from the displayed pop-up menu is available only when right-clicking on a 1-screen.)

For example in the right figure, select EL zoom from x1, x2 or x4.

• Saving still images

Still images can be saved as JPEG format.

• Printing

Printing live images or recorded images is possible.

*When a still image is save or printed during EL-zoom, the zoomed image is saved or printed. (Except for WJ-HD316A and WJ-HD309A)

45

If an alarm occurs, an alarm notification message window is popped up on the operation window. Several actions will take place to notify an alarm occurred.

• The buzzer starts sounding.

• A pop-up window is displayed.

• Alarm images are displayed.

• Alarm indication on a map

(The camera icon blinks 10 seconds, after that, becomes red color.)

• Recorded in the alarm Log

• Playback can be done based on the alarm log

Alarm notification

If the map window or the live window is displayed on the operation window, an alarm pop-up window can not be displayed on the top of all the windows.

46

A event notification message window is popped up to provide a notification message of a device error, a network error occurrence or an message that an error is recovered. Several actions will take place to notify an error occurred or has been recovered.

• The buzzer starts sounding.

• An error pop-up window will be displayed.

• An error is show on the map.

• The error information is logged.

Event Notification

If the map window or the live window is displayed on the operation window, an pop-up window can not be displayed on the top of all the windows.

47

Controller WV

-

CU950 working with WV

-

ASM200 Series*

*

Extension Software WV-ASE201 is required to use WV-CU950 in addition to WV-ASM200.

WV-CU950

• Controller for network connection

• WV-CU950 is used to operate PTZ dome cameras as a controller for WV-ASM200 Series.

• Some part of recorder operations can also be done from the controller.

Network Disk Recorder

Digital Disk Recorder i-PRO PTZ cameras

Network

Operation of cameras

(PAN, TILT, ZOOM, Pre-set)

Operation of cameras

(PAN, TILT, ZOOM, Pre-set)

WV-CS950

WV-CW960

WV-CU950

PC

ASM200 + ASE201

48

Ethernet System Controller WV

-

CU950

Camera/Recorder/Display control can be made with a hardware system controller

WV-CU950 allowing intuitive operation.

Group select

Sequence

(start/stop)

AUX open/close

Multiscreen selection

Camera Control

-Pan/Tilt

-Zoom

-Focus

-Auto pan on/off

-Auto track on/off

Recorder Control

Camera select

Preset position select

Preset program

Ethernet System Controller with 3D-Joystick & Jog/Shuttle

WV-CU950

49

Camera/Group/Sequence Selection by WV

-

CU950

- A camera can be selected by NUM key and CAM (SET) key.

- A group or a sequence can be selected by NUM key and GROUP or TOUR SEQ key.

- 1/4A/4B/4C/4D/9/16 screen mode can be selected by the F1 ~ F4 button.

- Pressing the MULTISCREEN button will switch the multiscreen mode

(1/4A/4B/4C/4D/9/16).

- +/- keys on WV-CU950 controller can be used for camera channel switching of live image on an operation window. Camera channel increments (with + key) / decrements

(with - key) along camera number setting in setup tool.

[ASM200 setup software : Controller – Camera number menu]

WV-ASM200 Operation window

TOUR SEQ

F1/F2/F3/F4

ASM100

Group select

(recorder )

Numeric key

ZOOM

Slide Volume

PAN/TILT

MULTISCREEN CAM (SET)

WV-CU950

50

ITEM

Registration of the settings

Display the current settings

Alarm reset / error reset

Print / Save as JPEG file

File Conversion

Download

Manual recording

Recorder control

Preset position registration

Operation of SD memory card

Camera control

Audio (Transmission)

Display the alarm log

Display the device error log

Display the network error log

Administrator

LV1

LV2

Registered User

LV3 LV4 LV5

The administrator can define each user level for LV2 to LV5.

51

User authentication, user level restriction, auto login function, operation log management, password’s validation period management and operable cameras, etc. can be set by the user management menu.

52

There are roughly two types of logs. One is an application log and the other is a recorder log. The recorder log is made by a recorder.

Application log

The application log records alarm information taken from recorders, device error information and system information of this software. The application log has the following log types.

Alarm log, Device error log, Network error log, System log and Operation log.

Recorder log

The recorder log records errors and events that occur in the recorders. The recorder log is made by a recorder. It is possible to download the recorder logs filed in each recorder and display/save them.

The logs downloaded from the recorder and their contents are as follows.

Error log, Access log, Event log and Network log.

53

Loading ASM100 ’

’ s setup data by ASM200

All versions of WV-ASM100 and WV-ASM100L.

ASM200 can’t load the setup data of WV-ASM10.

The following table shows the compatibility of the setup date between ASM100 series and ASM200 series.

To ASM200 ASM200+ASE201

From

ASM100

ASM100L

YES (*)

YES

YES

YES

*The setup data for the functions supported by WV-ASE201 is migrated from ASM100, but the functions don’t work and they aren’t shown at setup software’s screen if the license of WV-ASE201 hasn’t been registered. When the license of WV-ASE201 is additionally registered, these functions and setup operations are enabled.

54

WV

-

ASM200 series software package

Folder structure

1.SQLServer2005

PC Software package

WV-ASM200

Install

2.Recoder Management Software

A setup software’s screen

1. Setup Software

Device registration, User registration and other setting up.

(By the administrator)

An operation software’s screen

2. Operation Software

Operation and Control. (By users)

PC

55

Confirm if the Operating System’s service pack version is the same as that shown in the table. If it is old, apply the service pack to the OS at first.

OS

Windows Vista

Windows 7

Required Service Pack

SP2

SP1

Before installing this software, make sure that no other Panasonic disk recorder management software such as WV-AS65, WV-ASM10 or WV-ASM100/ASM100L is installed on the PC.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
