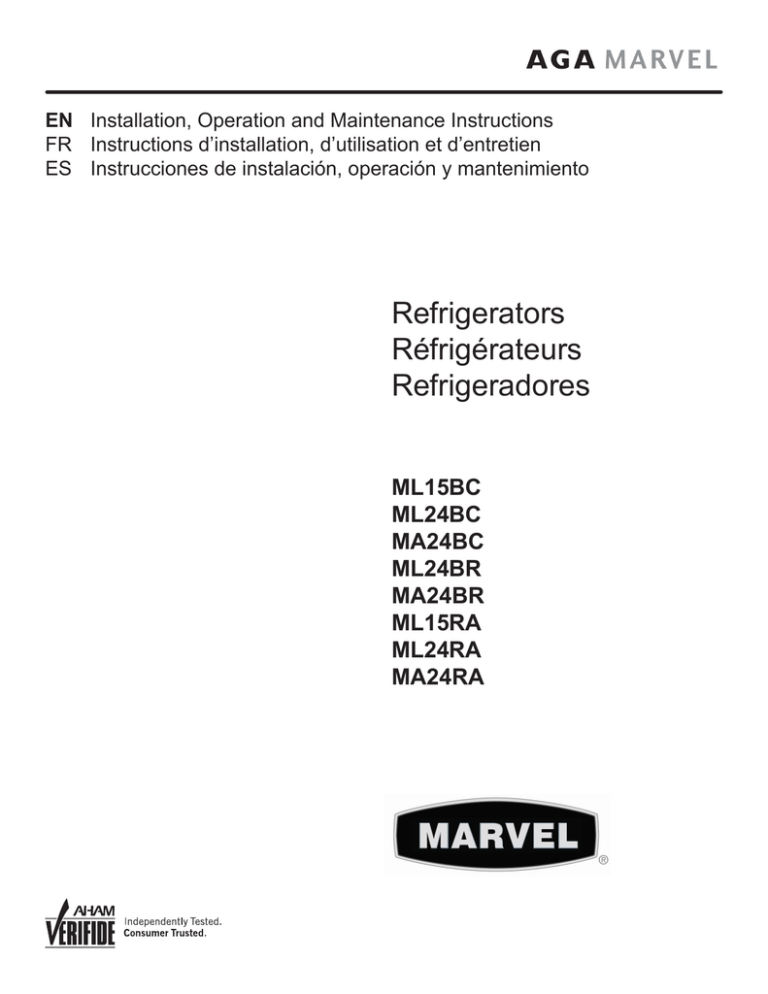

EN Installation, Operation and Maintenance Instructions

FR Instructions d’installation, d’utilisation et d’entretien

ES Instrucciones de instalación, operación y mantenimiento

Refrigerators

Réfrigérateurs

Refrigeradores

ML15BC

ML24BC

MA24BC

ML24BR

MA24BR

ML15RA

ML24RA

MA24RA

CONTENTS

Contents:

Safety information ...............................................................2

Unpacking your appliance ..................................................3

Warranty registration .....................................................3

Installing your appliance ......................................................4

Cabinet clearances .........................................................4

Leveling the appliance ....................................................4

Electrical connection ......................................................5

Installing the anti-tip device .................................................6

Product Dimensions ...........................................................8

Using your Electronic control ............................................10

Starting your appliance ..................................................10

Sleep mode ...................................................................10

Turning your appliance "ON" or "OFF" ..........................10

Adjusting the temperature .............................................11

Interior display lighting ...................................................11

Temperature mode ........................................................11

Control lock ....................................................................11

Alarms ............................................................................12

Door ajar ...................................................................12

Power failure .............................................................12

Temperature alarm ....................................................12

Vacation mode .............................................................13

Overlay door panel installation .........................................14

Shelving configurations .....................................................21

Care and cleaning .............................................................24

Energy saving tips ............................................................24

Door alignment .................................................................25

Obtaining service .............................................................25

Troubleshooting ................................................................26

Warranty ...........................................................................27

Important Safety Instructions

Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Recognize Safety Symbols,

!

Words, and Labels.

!

WARNING

WARNING-

You can be killed or seriously injured if you do not follow these instructions.

CAUTION

CAUTION-

Hazards or unsafe practices which could result in personal injury or property / product damage.

NOTE

NOTE-

Important information to help assure a problem free installation and operation.

State of California Proposition 65 Warnings:

WARNING:

This product contains one or more chemicals known to the State of California to cause cancer.

WARNING:

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..

2

is committed to building a quality product in an environmentally friendly manner. Our processes are tightly controlled and closely monitored. We have achieved certifications in ISO 9001 for quality assurance, ISO 14001 for environmental management, and OHSAS 18001 for occupational health and safety from Lloyd’s Register Quality

Assurance.

UNPACKING YOUR APPLIANCE

!

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Warranty Registration

It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened.

Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

!

CAUTION

Dispose of the plastic bags which can be a suffocation hazard.

The following information will be required when registering your appliance.

Service Number

Serial Number

Date of Purchase

Dealer’s name and address

Online registration available at www.agamarvel.com

The service number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. (See figure 1).

XXXXXXXXXXXX

XXXXXXXXXXXX

Note to Customer

This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.

Figure 1

NOTE

DO NOT RETURN DAMAGED MERCHANDISE TO THE

MANUFACTURER - FILE THE CLAIM WITH THE

RETAILER.

!

CAUTION

If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor.

Plugging the appliance in immediately may cause damage to internal parts.

!

CAUTION

Help Prevent Tragedies

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous

- even if they sit out for "just a few days".

If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors or remove the drawers.

• Leave the shelves in place so children may not easily climb inside.

3

INSTALLING YOUR APPLIANCE

Select Location

The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifications, the recommended installation location temperature range is from 55 to 100°F (13 to 38°C).

Front Grille, keep this area open.

Cabinet Clearance

Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions.

Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed. Overlay door models with articulated hinges are intended for built-in applications only.

!

WARNING

An optional stacking kit, shown in Table "A", is required to stack products. Failure to use a stacking kit could result in personal injury. Contact your dealer or Aga

Marvel customer service at 800-223-3900 to order.

Color

Stainless Steel

Stainless Steel

Black

Black

White

White

Door Swing

Left Hand

Right Hand

Left Hand

Right Hand

Left Hand

Right Hand

Table A

Kit Part Number

42249095

42249096

42249097

42249098

42249099

42249100

Front Leveling

Legs

Figure 2

Rear

Leveling

Legs

Leveling Legs

Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The overall height of your Marvel appliance may be adjusted higher

(by turning the leveling leg out, CCW) and lower (by turning the leveling leg in, CW) dimensions as shown in Table "B".

To adjust the leveling legs, place the appliance on a solid surface and protect the floor beneath the legs to avoid scratching the floor. With the assistance of another person, lean the appliance back to access the front leveling legs.

Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 3).

!

CAUTION

Front Grille

Do not obstruct the front grille. The openings within the front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area not be obstructed and the grille openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air flow may be restricted. (See Figure 2).

4

Model Door Style

ML(15)(24)* (S) or (G)

ML(15)(24)*

MA24*

MA24*

(P or (F)

(S) or (G)

(P or (F)

Table B

Minimum

Height

33

3

4

"

(85.7 cm)

34"

(86.4 cm)

31

1/8

"

(79.1 cm)

31

3

8

"

(79.7 cm)

Maximum

Height

34

3

4

"

(88.3 cm)

35"

(88.9 cm)

32

1

8

"

(81.6 cm)

32

3

8

"

(82.2 cm)

Figure 3

INSTALLING YOUR APPLIANCE

Front grille

Front grille screw

!

WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance.

They can be hazardous and can degrade product performance.

• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.

• Do not remove the grounding prong from the power cord.

• Do not use an adapter.

• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 4). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed.

Figure 4

5

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down.

GFCI’s are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.

INSTALLING THE ANTI TIP DEVICE

!

WARNING

• ALL APPLIANCES CAN TIP

RESULTING IN INJURY.

• INSTALL THE ANTI-TIP

BRACKET PACKED WITH

THE APPLIANCE.

• FOLLOW THE INSTRUC-

TIONS BELOW

Anti-Tip

Bracket

21

1

2

"

(54.6 cm)

Leveling Leg

Bottom View of

Refrigerator

Front of cabinet

NOTE

If installing on a concrete floor, concrete fasteners are required, (not included with the anti-tip kit).

Figure 5

Anti-Tip Device

!

CAUTION

If your refrigerator is not located under a counter top (free standing), you must use an anti-tip device installed as per these instructions. If the refrigerator is removed from its location for any reason, make sure that the device is properly engaged when you push the refrigerator back into the original location. If the device is not properly engaged, there is a risk of the refrigerator tipping over with the potential for property damage or personal injury.

Step by step instructions for locating the position of the bracket:

1) Decide where you want to place the refrigerator. Slide it into place, being careful not to damage the floor, leaving 1"

(2.5 cm) of clearance from the rear wall to allow room for the anti-tip bracket.

2) Raise the rear leveling legs approximately

1

4

" (6 mm) to allow engagement with the anti-tip bracket. Level the unit by adjusting all the leveling legs as required. Turning the leveling leg counterclockwise will raise the unit and clockwise will lower the unit.

3) Make sure the refrigerator is in the desired location, then mark on the floor the rear and side corner of the cabinet where the anti-tip bracket will be installed. If the installation does not allow marking the rear corner of the cabinet, then make temporary lines on the floor marking the front corner of the cabinet, excluding the door. Slide the refrigerator out of the way. From the temporary line extend the sidewall line back 21

1

2

" (54.6 cm) as shown in Figure 6.

4) Align the anti-tip bracket to the marks on the floor so the side of the bracket lines up with the side of the cabinet mark, and the "V" notches on the anti-tip bracket line up with the end of the 21

1

2

" (54.6 cm) line (Rear of cabinet line).

!

CAUTION

Any finished flooring should be protected with appropriate material to avoid damage when moving the unit.

5) Fasten the anti-tip bracket to the floor using the supplied screw. (See Figure 6).

Floor Mount Installation

The anti-tip bracket is to be located on the floor in the left or right rear corner of the refrigerator as shown in Figure 5.

6

6) Slide the cabinet back into position, making sure the rear cabinet leveling leg slides under the anti-tip bracket engaging the slot.

INSTALLING THE ANTI TIP DEVICE

!

WARNING

TIP OVER HAZARD:

One of the rear cabinet leveling legs must be engaged under an anti-tip bracket.

NOTE

When the floor mounted anti-tip bracket is used the minimum adjusted height of the cabinet is increased by

3

8

" (9 mm).

Front of cabinet line

Side of cabinet line

Rear Leveling leg

21

1

2

"

(54.6 cm)

Screw

Figure 6

Rear of cabinet line

"V" notches in bracket

Figure 6a

"V" notches in bracket

7

PRODUCT DIMENSIONS

MODEL

ML15**(G) or (S)

ML15**(P) or (F)

ML24**(G) or (S)

ML24**(P) or (F)

MA24**(G) or (S)

MA24**(P) or (F)

ROUGH-IN OPENING DIMENSIONS

"A" "B" "C"

15"

(38.1 cm)

**34" to 35"

(86.4 to 88.9 cm)

*

15"

(38.1 cm)

24"

(61 cm)

24"

(61 cm)

**34

1

4

" to 35

1

4

"

(87 to 89.5 cm)

**34" to 35"

(86.4 to 88.9 cm)

**34

1

4

" to 35

1

4

"

(87 to 89.5 cm)

*

*

*

24"

(61 cm)

24"

(61 cm)

** 31

3

8

" to 32

3

8

"

(79.7 to 82.2 cm)

** 31

5

8

" to 32

5

(80.3 to 82.9)

8

"

*

*

DOOR STYLE

(G) Glass Frame Door

(S) Solid Door

(P) Solid Overlay Door (no handle)

(F) Frame Glass Overlay Door (no handle)

"D"

14

7

8

"

(37.8 cm)

14

7

8

"

(37.8 cm)

23

7

8

"

(60.7 cm)

23

7

8

"

(60.7 cm)

23

7

8

"

(60.7 cm)

23

7

8

"

(60.7 cm)

"E"

33

3

4

" to 34

3

4

"

(85.7 to 88.3 cm)

CABINET DIMENSIONS

"F" "G"

23

23

32

"

(60.2 cm)

25

21

32

"

(65.2 cm)

34" to 35"

(86.4 to 88.9 cm)

33

3

4

" to 34

3

4

"

(85.7 to 88.3 cm)

34" to 35"

(86.4 to 88.9 cm)

22

(58.1 cm)

23

(60.2 cm)

22

7

23

32

"

7

8

8

"

"

(58.1 cm)

25

-

-

21

32

"

(65.2 cm)

31

1

8

" to 32

1

8

"

(79.1 to 81.6 cm)

31

3

8

" to 32

3

8

"

(79.7 to 82.2 cm)

23

23

32

"

(60.2 cm)

22

7

8

"

(58.1 cm)

25

21

32

"

(65.2 cm)

-

"H"

37

13

32

"

(95 cm)

37

1

2

"

(95.2 cm)

46

13

32

"

(117.9 cm)

46

1

2

"

(118.1 cm)

46

13

32

"

(117.9 cm)

46

1

2

"

(118.1 cm)

"J"

16

11

16

"

(42.4 cm)

14

1

8

"

35.9 cm)

25

11

16

"

(65.2 cm)

23

1

8

"

(58.7 cm)

25

11

16

"

(65.2 cm)

23

1

8

"

(58.7 cm)

"C"

"B"

"A"

"E"

Figure 7

"D"

Figure 7a

Figure 8

8

If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug.

Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 8).

PRODUCT DIMENSIONS

MODEL

ML15**(G) or (S)

ML15**(P) or (F)

ML24**(G) or (S)

ML24**(P) or (F)

MA24**(G) or (S)

MA24**(P) or (F)

PRODUCT DATA

ELECTRICAL

REQUIREMENTS #

PRODUCT

WEIGHT

115V/60Hz/15A

105 lbs

(47.7 kg)

115V/60Hz/15A

115V/60Hz/15A

115V/60Hz/15A

105 lbs

(47.7 kg)

140 lbs

(63.6 kg)

140 lbs

(63.6 kg)

115V/60Hz/15A

140 lbs

(63.6 kg)

115V/60Hz/15A

140 lbs

((63.6 kg)

"J"

"D"

"H"

"G"

"E"

* Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F" dimension plus 1" (2.5 cm) for thickness of power cord plug is required.

** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.

Figure 8

"F"

21

1

2

"

(54.6 cm)

APPLIES TO THE FOLLOWING MARVEL MODELS

ML15BC MA24BC

ML15RA MA24BR

MA24RA

ML24BC

ML24BR

ML24RA

!

WARNING

9

Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications.

USING YOUR ELECTRONIC CONTROL

Temp

Minus keypad

On/Off keypad

Temp

Plus keypad Display Area

Lights keypad

(glass door only)

Lock keypad

System Status indicators

Power Failure

Figure 9

Electronic single zone control

ALARM RESET

To wake the display press any keypad. A confirm tone will sound, and the current storage compartment temperature will be displayed.

Starting your appliance:

Plug the appliance power cord into a 115 volt wall outlet.

Your appliance is shipped from the factory in the "On" position and will begin start-up of cooling as soon as power is supplied. If the appliance does not start, confirm that the wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below).

The control display is covered with a clear plastic film. This film may be removed by carefully lifting the film at a corner.

On initial power up, the control display will indicate a

"Power Failure" alarm. This is a normal condition as the appliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the

"On/Off" keypad will reset this alarm condition. (See Alarms section on page 12).

The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" keypad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP".

Sleep mode:

If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indicator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 12).

Turning your appliance ON and OFF:

If the appliance is "On", (and out of sleep mode) the temperature will be shown in the display area of the control.

To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control.

To make the following changes to the control settings

(turning the appliance ON/OFF, adjusting the temperature, changing the interior lights, and activating vacation mode), the control must be awake.

10

To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds.

USING YOUR ELECTRONIC CONTROL

Adjusting the temperature:

To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and flash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will timeout in 10-seconds accepting the displayed temperature as the new set-point.

Interior display lighting:

(Glass door models only)

Your appliance is equipped with a dual light level display lighting feature. With the control out of sleep mode press the "Light" keypad once to activate the interior lighting display feature at full illumination. A confirmation tone will sound, and the light bulb "Icon" will illuminate. Pressing the "Light" keypad a 2nd time will dim the lighting to 50%.

A 3rd press will deactivate the display lighting feature. The display lighting will automatically deactivate after 4-hours.

The available set-point temperature range for your appliance is 34°F (1.2°C) to 42°F (5.7°C). If you attempt to adjust the temperature outside of this range you will receive an audible notification.

When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment temperature to stabilize.

When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature.

Temperature mode:

The temperature mode is preset from the factory in Fahrenheit (°F) but you have the option to change it to Centigrade

(°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad.

The temperature will now be displayed in Centigrade (°C).

Repeat the procedure to change the temperature mode back to Fahrenheit (°F).

Factors that affect the storage compartment stabilized temperature:

• Changes to temperature setting.

• Room temperature changes.

• Temperature of stored contents.

- Loading warm contents.

- Cold content load will delay the change to a warmer

set-point temperature.

- Warm content load will delay the change to a colder

set-point temperature.

• Usage, (number and duration of the door openings).

• Use of the storage compartment display lighting, (glass door product only).

• Installation of the appliance in direct sunlight or next to a heat source.

Control lock:

The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" keypad until the display reads "Loc" then release your finger from the keypad. The lock icon will flash 3-times and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator, and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc".

11

USING YOUR ELECTRONIC CONTROL

Alarms:

The control will alert you to conditions that could adversely affect the performance of the appliance.

Temp

ALARM RESET

Door Ajar

ALARM RESET

• Door ajar -

If the door is open, or not closed properly, for more than 5-minutes the System Status OK indicator will turn-off, the "Door Ajar" indicator will flash, and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. This alarm condition can be reset by closing the door or momentarily pressing the "On/

Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists.

• Temperature alarm -

If the storage compartment temperature exceeds 10°F from set-point for more than a 1-hour duration, the System Status indicator will turn off, the "Temp" indicator will flash, and an audible tone will sound every 60-seconds. Additionally, an "ALARM

RESET" indicator will be displayed below the "On/Off" keypad. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temperature has recovered, as prolonged temperature excursions could spoil perishables.

Power Failure

ALARM RESET

NOTE

Door Ajar

Temp

• Power failure -

If power to the appliance is interrupted the System Status indicator will turn-off and the "Power Failure" indicator will flash. Additionally, an

"ALARM RESET" indicator will be displayed below the

"On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the

"On/Off" keypad. If this alarm occurs, it is recommended that you check the condition of any perishables, even if the appliance is operating normally and the temperature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.

Multiple alarms are possible, i.e.- "Door Ajar" for a prolonged period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate.

12

USING YOUR ELECTRONIC CONTROL

Vacation mode:

This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close the door at any time to access contents without concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones, or alarms.

When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are disabled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacationmode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode.

To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will flash

"VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited.

A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature.

13

OVERLAY DOOR PANEL INSTALLATION

If you purchased an overlay panel model, your unit is equipped with articulated hinges to allow fully integrated built-in installations. Custom panel thicknesses of

5

8

" (15 mm) and

3

4

" (18 mm) are accommodated.

!

WARNING

Use extreme caution with the articulated hinges. The hinge is self closing and many pinch points exist prior to built-in installation.

Do not remove the cabinet "Z" bracket from the top of the cabinet.

!

CAUTION

It is important to use the factory provided grille that came with the product to assure proper air flow is maintained through the condenser. The use of a custom grille is not recommended and will void the warranty.

!

WARNING

Overlay panel models are designed for use with

built-

in installations only. Use in freestanding installations could result in personal injury.

Loosen (do not remove ) these

2 phillips head screws on the top and bottom hinges

Figure 10a

Step 1: Removing the Door

With a phillips screwdriver remove the screw and "P" clamp from the bottom of the door near the hinge. See Figure 10b.

Disconnect the door wire harness by pressing and holding down the locking tab on the wire connector and pulling the connector apart. See Figure 11.

Open the door and loosen the screws holding the hinges to the cabinet (2 at the top and 2 at the bottom hinge). Do not remove the screws but loosen them enough so the hinges can be slipped off of the screws when sliding the door to the side.

!

WARNING

The articulated hinges have many pinch points. Carefully close / collapse the hinges as soon as the door is removed from the cabinet.

With a helper, and being careful not to scratch the cabinet or the door, slide the door to the side about

1

2

inch and remove the hinges and door from the unit.

Cabinet

"Z" Bracket

Figure 10

"P" clamp and screw

Figure 10b

Bottom of door

14

Wire connector see Figure 11

OVERLAY DOOR PANEL INSTALLATION

Step 2: Remove the door gasket

With the door laying on a flat surface and starting at a corner of the door remove the magnetic door gasket from the interior side of the door, see Figure 12. Set the gasket aside on a flat surface.

There are 10 holes in the gasket retainer extrusions, (3 on each side and 2 at the top and bottom which are used to fasten the panel to the front of the door. The screws are provided in the literature pack along with the door lock, which is provided on certain models.

Holes in gasket retainer.

Figure 12a

Press and hold down this tab on the wire connector and pull the connector apart.

Figure 11

Overlay panel flush with top of door.

Overlay panel to be centered on width of door.

Magnetic Gasket remove starting at a corner, grasp and pull away from the door.

Figure 12

15

Step 3: Cut and drill the overlay panel

Depending on your model cut the overlay door panel to the dimensions shown in Figures 13 to 20. Also see Table "D" for the height dimension and door styles. The window cut out is for glass door models only. If your appliance has a lock also drill the lock hole in the panel, see Figure 22.

Clearance for screw head,

4 places

OVERLAY DOOR PANEL INSTALLATION

Top of door

Clearance for screw head,

4 places

Figure 13

Left Hand Hinged Door

15" (38.1 cm) wide appliance

Figure 15

Right Hand Hinged Door

15" (38.1 cm) wide appliance

Clearance for hinge

2 places

14

3

4

"

(37.5 cm)

1 ⁄

4

" (6 mm)

Deep

1" (25.4 mm) diameter counter bore

1

4

" (6 mm) deep 4 places.

5"

(12.7 cm)

4

7

8

"

(12.4 cm)

1

3

16

"

(3 cm)

3

1

8

"

(7.9 cm)

1

3

4

"

(4.4 cm)

3

27

32

"

(9.8 cm)

1

4

" (6 mm) radius is permissible

"A"

(See Table D)

3 1 ⁄

8

"

(7.9 cm)

Minimum

3 1 ⁄

8

"

(7.9 cm)

Minimum

4

1

8

"

(10.5 cm)

Minimum

1

5

32

"

(2.9 cm)

This side facing interior

1

4

" (6 mm)

Deep

Clearance for hinge

2 places

14

3

4

"

(37.5 cm)

1 3 ⁄

4

"

(4.4 cm)

3

1

8

"

(7.9 cm)

4

7

8

"

(12.4 cm)

5"

(12.7 cm)

1

3

16

"

(3 cm)

"A"

(See Table D)

3 1 ⁄

8

"

(7.9 cm)

Minimum

1

4

" (6 mm) radius is permissible

This side facing interior

1" (25.4 mm) diameter counter bore 1 deep 4 places.

4

" (6 mm)

3

27

32

"

(9.8 cm)

3

1

8

"

(7.9 cm)

Minimum

1

5

32

"

(2.9 cm)

1

11

16

"

(4.3 cm)

1

1

2

"

(3.8 cm) typical

3

11

16

"

(9.4 cm)

Figure 14

Left Hand Hinged Door

15" (38.1 cm) Wide Appliance

2"

(5.1 cm)

16

2"

(5.1 cm)

3

11

16

"

(9.4 cm)

1

1

2

"

(3.8 cm) typical

1

11

16

"

(4.3 cm)

Figure 16

Right Hand Hinged Door

15" (38.1 cm) wide appliance

4 1 ⁄

8

"

(10.5 cm)

Minimum

Clearance for screw head,

4 places

Top of door

OVERLAY DOOR PANEL INSTALLATION

!

CAUTION

Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.

Clearance for screw head,

4 places

Top of door

Figure 17

Left Hand Hinged Door

24" (61 cm) wide appliance

Clearance for hinge at top and bottom

23

3

4

"

(60.3 cm)

1

4

"

(6 mm)

Deep

Figure 19

Right Hand Hinged Door

24" (61 cm) wide appliance

3

1

8

"

(7.9 cm)

4

7

8

"

(12.4 cm)

14"

(35.6 cm)

1

3

16

"

(3 cm)

3

27

32

"

(9.8 cm)

1

4

" (6 mm) radius is permissible

3

1

8

"

(7.9 cm)

1

3

4

"

(4.4 cm)

3

1

8

"

(7.9 cm)

3

1

8

"

(7.9 cm)

"A"

(See Table D)

"A"

(See Table D)

1

4

"

(6 mm)

Deep

1

3

4

"

(4.4 cm)

3

1

8

"

(7.9 cm)

Clearance for hinge at top and bottom

23

3

4

"

(60.3 cm)

14"

(35.6 cm)

1

3

16

"

(3 cm)

3

27

32

"

(9.8 cm)

4

7

8

"

(12.4 cm)

1

4

" (6 mm) radius is permissible

3

1

8

"

(7.9 cm)

1

5

32

"

(2.9 cm)

1

11

16

"

(4.3 cm)

1

5

32

"

(2.9 cm)

1

11

16

"

(4.3 cm)

1

1

2

"

(3.8 cm) typical

This side facing interior

4

1

8

"

(10.5 cm)

1" (2.5 cm) diameter x

1

4

" (6 mm) deep

4 places

3

11

16

"

(9.4 cm)

Figure 18

Left Hand Hinged Door

24" (61 cm) wide appliance

This side facing interior

4

1

8

"

(10.5 cm)

3

11

16

"

(9.4 cm)

1" (2.5 cm) diameter x

1

4

" (6 mm) deep

4 places

Figure 20

Right Hand Hinged Door

24" (61 cm) wide appliance

1

1

2

"

(3.8 cm) typical

17

OVERLAY DOOR PANEL INSTALLATION

Step 4: Assemble the panel to the door

The preferred method of attaching the panel to the door is to clamp the panel to the door so it cannot move while drilling the screw pilot holes. Use bar clamps or "C" clamps with pads on the clamping surfaces that will not mar the panel or the door. The custom overlay panel should be flush with the top of the door and centered along the width of the door. See Figure 12a. Drill holes through the gasket extrusion using the 10 holes as pilot holes. Use the drill size from the chart in Table "C", being careful not to drill through the front surface of the panel, drill no deeper than

1

2

" (12.7 mm) deep. If the overlay panel is thinner than

5

8

" (16 mm) thick shorter screws will have to be obtained.

Fasten the panel to the door with the 10 screws provided in the literature pack. (See Figure 22a). Remove the clamps and replace the gasket in the gasket extrusion channels of the door. Some force may be required to seat the gasket into the channels. Be sure the gasket corners are seated properly.

Material Type

Hardwood

Softwood

#10 Wood Screw

1

8

" (3.2 mm) Diameter. Pilot Hole

7

64

(2.8 mm) Diameter. Pilot Hole

Table C

MODEL

DOOR

DESCRIPTION

ML15RAP*RP Solid, Right Hand

ML15RAP*LP Solid, Left Hand

ML15BCF*RP Glass, Right Hand

ML15BCF*LP Glass, Left Hand

ML15BCP*RP Solid, Right Hand

ML15BCP*LP Solid, Left Hand

ML24RAP*RP Solid, Right Hand

ML24RAP*LP Solid, Left Hand

ML24BRF*RP Glass, Right Hand

ML24BRF*LP Glass, Left Hand

ML24BRP*RP Solid, Right Hand

ML24BRP*LP

MA24BRF*RP

Solid, Left Hand

Glass, Right Hand with Lock

MA24BRF*LP

MA24RAP*RP

MA24RAP*LP

Glass, Left Hand with Lock

Solid, Right Hand with Lock

Solid, Left Hand with Lock

30

11

DIM "A"

32

" (77.1 cm)

27

23

32

" (70.4 cm)

Table D

18

OVERLAY DOOR PANEL INSTALLATION

Step 5: Assemble lock parts

Two (2) lock extensions are provided with the lock. Use the longer extension for

3

4

" thick overlay panels and the shorter one for

5

8

" thick overlay panels. Assemble the lock extension, cam stop washer, spring washer, and set screw to the lock as shown in Figure 21 and 23.

Install this lock assembly into the lock hole in the overlay panel and secure with the retaining nut on the back side with a 15 mm socket and ratchet. Make sure the key slot in the front of the lock is vertical.

#10 x 1/2" screw

17

32

"

(13.7 mm)

3

1

/

2

"

(89 mm)

BRASS EXTENSION

SPRING WASHER

NUT

LOCK

CAM

13/16 COUNTER

BORE 7/16 DEEP

1/2 HOLE

PHILLIPS SCREW

Counter bore lock hole on back side.

Figure 22a

1

2

" (13 mm) diameter drill through door panel, from other side (see detail above)

13

16

" (20.5 mm) counter bore,

7

16

" (11 mm) deep.

INNER

DOOR

SECTION A-A

SCALE 1 : 1

Figure 21

Figure 22

Step 6: Install lock cam

Attach the lock cam to the back of the lock assembly with the phillips head screw provided. Orient the lock cam vertically when installing on the lock.

19

OVERLAY DOOR PANEL INSTALLATION

1.234" (31.3 mm)

.991" (25.2 mm)

Figure 23

Step 7: Install the door

Carefully open the top and bottom hinges on the door being careful as there are many pinch points. Place the hinges over the 4 screws in the cabinet, 2 at the top and 2 at the bottom and slide the door into position. Tighten the 4 hinge screws with a phillips screwdriver. (See Figures 10 and

10a). Place wire harness from the grille and mount to the bottom of the door with the screw and "P" clamp removed in step 1. (See Figure 10b). Reconnect the wire harness,

(See Figure 11).

Step 8: Secure the cabinet

Use the #8 x

3

4

" black screws from the literature pack to secure the counter top to the cabinet top through the holes in the cabinet "Z" bracket.

Cabinet

"Z" bracket

#8 x

3

4

" black screws

(3 places)

20

Figure 24

SHELVING CONFIGURATIONS

Loading Tips and Suggestions

Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below.

Beverage Refrigerator:

24" (61 cm) Wide Models:

Shown with a glass door. Figure 27.

Beverage Center:

15" (38.1 cm) Wide Models:

Shown with a glass door. Figure 25.

(1) half width flat glass cantilever shelf. (See Figure 32).

(1) wine cutout and flat glass cantilever shelf. (See Figure 34).

(1) frame and flat glass crisper cover.

(1) roll-out crisper pan

Figure 27

(2) frame and flat glass cantilever shelves. (See Figure 33).

Refrigerator:

15" (38.1 cm) Wide Models:

Shown with a solid door.

Figure 28.

Figure 25

(2) frame and flat glass cantilever shelves. (See Figure 33).

Beverage Center:

24" (61 cm) Wide Models:

Shown with a glass door. Figure 26.

(2) wine cutout and flat glass cantilever shelf.

(See Figure 34).

(1) half depth roll-out

4 bottle wine shelf.

Figure 28

Refrigerator:

24" (61 cm) Wide Models:

Shown with a solid door. Figure 29.

(2) perforated metal cantilever shelves.

(See Figure 31).

Figure 26

Figure29

21

SHELVING CONFIGURATIONS

Refrigerator:

24" (61 cm) Wide Models:

Shown with a solid door with door racks. Figure 30.

(1) half width flat glass cantilever shelf. (See

Figure 33).

(1) frame and slumped glass cantilever shelf.

(1) frame and flat glass crisper cover.

(1) roll-out crisper pan.

(1) full width door storage rack.

(1) half width door storage rack.

Figure 30

Wine shelf underneath glass

Figure 34

Wine cutout and flat glass shelf with vibration dampening mat, all or part of the glass can be removed to increase or decrease wine storage and beverage areas.

Tall bottle storage area

Figure 31

Perforated metal shelf

Figure 32

Frame and flat glass shelf

Half width shelf shown

Door storage racks

To remove the crisper :

Pull out until it stops. Lift up on the front of the pan, and remove it from the frame.

Figure 35

Figure 33

Frame and flat glass shelf

Half width shelf shown

22

SHELVING CONFIGURATIONS

!

CAUTION

Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading.

Shelf support slot

Installed shelf tang

To Add or Remove a Shelf

Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with both hands, rotate the front upward and lift out. (See Figure

36b). To install a shelf insert the shelf in the appliance and insert the hooks into the shelf support slots and drop the shelf down so the hooks drop over the bottom of the slots.

Rear tang

(hook) on shelf

Figure 36a

Tall bottle storage area

Figure 36

Figure 36b

Grasp the shelf by the front with both hands and rotate the front of the shelf up, then lift the shelf up and remove the shelf from the shelf ladders.

!

CAUTION

23

Never try to move a loaded shelf, remove everything from the shelf before moving. Use both hands when moving the shelf.

CARE AND CLEANING AND ENERGY SAVING TIPS

Front Grille

Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).

!

CAUTION

SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet

The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners.

Interior

Wash interior compartment with mild soap and water. Do

NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.

Care of Appliance

1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.

2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the grille can occur.

3. Periodically clean the interior of the appliance as needed.

4. Periodically check and/or clean the front grille as needed.

In the Event of a Power Failure

If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.

Light assembly replacement

All models use LED lamps to illuminate the interior of the appliance. This component is very reliable, but should one fail, contact a qualified service technician for replacement of the LED.

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance

(cooker, dishwasher, etc.), heating air duct, or other heat sources.

2. Install product out of direct sunlight.

3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.

4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).

5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.

6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compartment.

7. Ensure door closing is not obstructed by contents stored in your appliance.

8. Allow hot items to reach room temperature before placing in product.

9. Minimize door openings and duration of door openings.

10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.

11. When on vacation or away from home for extended pe-

riods, set the appliance to warmest acceptable tem-

perature for the stored contents.

12. Set the control to the “off” position if cleaning the

appliance requires the door to be open for an extended

period of time.

13. For wine storage products:

When serving temperatures are not required,

return the compartment(s) set temperature to the

ideal red and white wine long term storage tem-

perature of 13°C / 55°F.

24

DOOR ALIGNMENT AND OBTAINING SERVICE

Door alignment for solid and glass door models:

The door should be parallel to the sides and top of the appliance. If alignment is necessary the door may be adjusted by loosening the 2 screws which secure the door adjustment bracket on the bottom of the door (see Figure 37a) and adjusting the door side to side. Use a

5

32

” allen wrench for this procedure. (See Figure 37 below). When finished aligning the door, tighten the screws securely.

If Service is Required:

• If the product is within the first year warranty period please contact your dealer or call AGA MARVEL Customer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area.

• If the product is outside the first year warranty period,

AGA MARVEL Customer Service can provide recommendations of service centers in your area. A listing of authorized service centers is also available at www.

agamarvel.com under the service and support section.

• In all correspondence regarding service, be sure to give the service number, serial number, and proof of purchase.

• Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.

• Table "E" is provided for recording pertinent information regarding your product for future reference.

For Your Records

Date of Purchase

Dealer’s name

Dealer’s Address

Dealer’s City

Dealer’s State

Dealer’s Zip Code

Appliance Serial Number

Appliance Service Number

Date Warranty Card Sent (Must be within 10 days of purchase).

Table E

Door should be parallel to top and sides of the appliance.

Figure 37

Door adjustment bracket

Bottom of door

25

Loosen (don't remove) these two screws.

Figure 37a

TROUBLESHOOTING

Before You Call for Service

If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service.

The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualified service technician.

!

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.

• Replace all parts and panels before operating.

Appliance not cold enough

(See “Adjusting the temperature" on page 11)

Problem

Appliance too cold

(See “Adjusting the Temperature” on page 11)

No interior light.

Light will not go out when door is closed

Noise or Vibration

Appliance will not run.

Possible Cause

• Control set too warm

• Content temperature not stabilized.

• Excessive usage or prolonged door openings.

• Airflow to front grille blocked.

• Door gasket not sealing properly.

• Control set too cold

• Door gasket not sealing properly.

Remedy

• Adjust temperature colder. Allow 24 hours for temperature to stabilize.

• Allow temperature to stabilize for at least 24 hours.

• Airflow must not be obstructed to front grille. See “clearances” on

page 4.

• Check door alignment and/or replace door gasket.

• Adjust temperature warmer.

Allow 24 hours for temperature to

stabilize.

• Check door alignment and/or replace door gasket.

• Contact a qualified service technician.

• Turn off display light, shut door.

• Failed LED light assembly or light switch.

• Display light is turned on. (Glass door models only.

• Door not activating light switch.

• Failed light switch

• Appliance not level

• Fan hitting tube obstruction.

• Appliance turned off

• Power cord not plugged in.

• No power at outlet.

• Appliance not level, level appliance, (See page 4, “leveling legs”)

• Verify the door is aligned properly, refer to page 25 for instructions.

• Contact a qualified service technician.

• Level appliance, see “Leveling

Legs” on page 4.

• Contact a qualified service technician.

• Turn appliance on. See “Starting your appliance” on page 10.

• Plug in power cord.

• Check house circuit.

26

HOUSEHOLD PRODUCT WARRANTY

Entire Product

Limited One Year Parts and Labor Warranty

AGA MARVEL warrants that it will supply all necessary parts and labor to repair or replace in the end user’s home or office, any component which proves to be defective in material or workmanship, subject to the condition and exclusions stated below, for a period of one year from the date of purchase by the end user.

Additional Second Through Fifth Year

Limited Parts Only Warranty

During the four years following expiration of the one year limited warranty, AGA MARVEL will supply replacement parts for the hermetically sealed refrigeration system which consists of the compressor, condenser, drier, accumulator, bypass valve, connecting tubing and the evaporator that are proven to be defective due to workmanship or materials subject to the conditions and exclusions below.

Parts or Service

Not Supplied or Designated by AGA MARVEL

The above warranties also do not apply if:

• The original bill of sale, deliver date, or serial number cannot be verified.

• Defective parts are not returned for inspection if so requested by AGA MARVEL.

• The refrigeration equipment is not in the possession of the original end use purchaser.

The warranties set forth herein are the only warranties extended by AGA MARVEL. Any implied warranties, including the implied warranty of merchantability, are limited to the duration of these express warranties. In no event shall

AGA MARVEL be liable for any consequential or incidental damages or expenses resulting from breach of these or any other warranties, whether express or implied.

The above warranties do not cover:

• Shipping costs of replacement parts or returned defective parts.

• Customer education or instructions on how to use the appliance.

• Any content loss due to product failure.

• Removal or installation of product.

Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may have other rights that may vary from state to state.

Nor do the above warranties cover failure of this product or its components due to:

No person, firm, or corporation is authorized to make any other warranty or assume any other obligation for AGA

MARVEL. These warranties apply only to products used in any of the fifty states of the United States and the District of

Columbia.

• Transportation or subsequent damages.

• Commercial use or use other than normal household or small office.

• Improper installation, misuse, abuse, accident or alteration, use of wiring not conforming to electrical codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.

To obtain performance of this warranty, report any defects to:

1260 E. VanDeinse St.

Greenville MI 48838

Phone: 800.223.3900

27

www.agamarvel.com

1260 E. VanDeinse St.

Greenville MI 48838

800.223.3900

41013316-EN Rev F

11/5/14

All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
