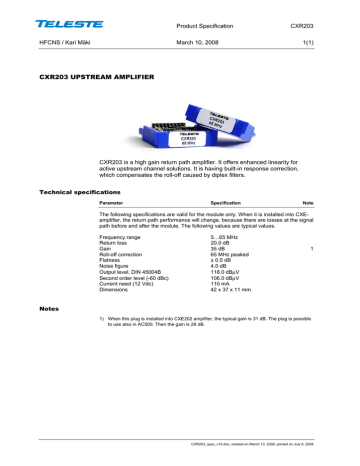

CXR203 UPSTREAM AMPLIFIER
Product Specification
HFCNS / Kari Mäki
CXR203
March 10, 2008
1(1)
CXR203 UPSTREAM AMPLIFIER
CXR203 is a high gain return path amplifier. It offers enhanced linearity for
active upstream channel solutions. It is having built-in response correction,
which compensates the roll-off caused by diplex filters.
Technical specifications
Parameter
Specification
Note
The following specifications are valid for the module only. When it is installed into CXEamplifier, the return path performance will change, because there are losses at the signal
path before and after the module. The following values are typical values.
Frequency range
Return loss
Gain
Roll-off correction
Flatness
Noise figure
Output level, DIN 45004B
Second order level (-60 dBc)
Current need (12 Vdc)
Dimensions
5…65 MHz
20.0 dB
35 dB
65 MHz peaked
± 0.5 dB
4.0 dB
118.0 dBμV
106.0 dBμV
110 mA
42 x 37 x 11 mm
1
Notes
1) When this plug is installed into CXE202 amplifier, the typical gain is 31 dB. The plug is possible
to use also in AC500. Then the gain is 28 dB.
CXR203_spec_v10.doc, created on March 10, 2008, printed on July 8, 2008
