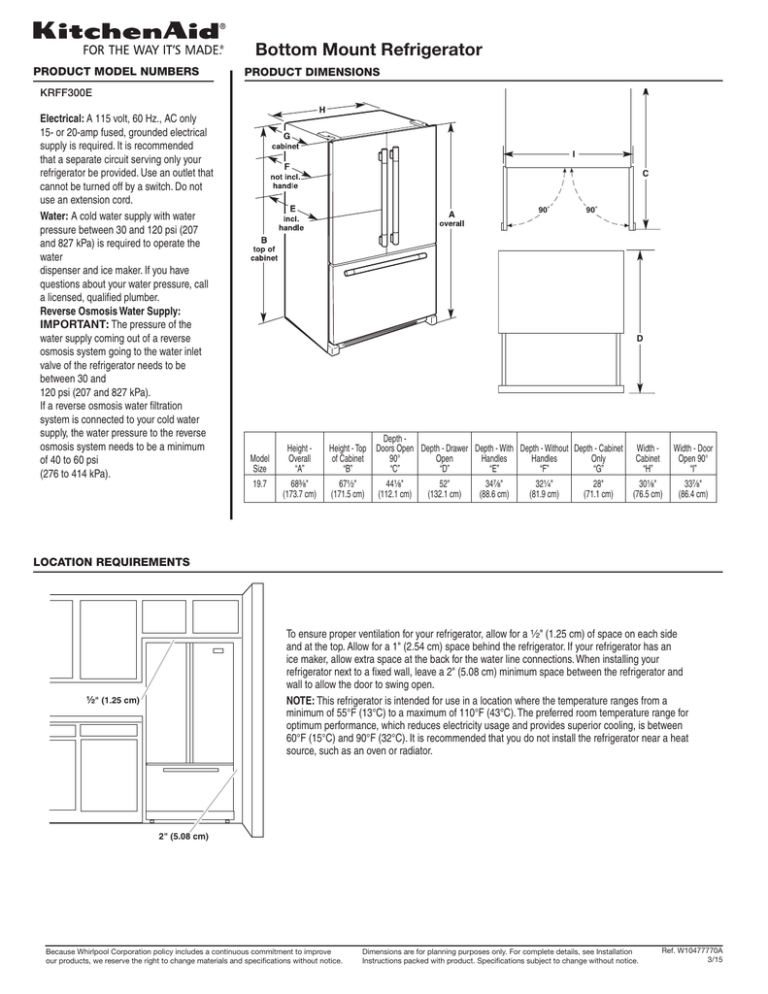

KitchenAid KRFF300ESS, KRFF300EWH Specification

KitchenAid KRFF300ESS, KRFF300EWH Specification
Bottom Mount Refrigerator
PRODUCT MODEL NUMBERS
PRODUCT DIMENSIONS
KRFF300E
Electrical: A 115 volt, 60 Hz., AC only
15- or 20-amp fused, grounded electrical
supply is required. It is recommended
that a separate circuit serving only your
refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not
use an extension cord.
Water: A cold water supply with water
pressure between 30 and 120 psi (207
and 827 kPa) is required to operate the
water
dispenser and ice maker. If you have
questions about your water pressure, call
a licensed, qualified plumber.
Reverse Osmosis Water Supply:
IMPORTANT: The pressure of the
water supply coming out of a reverse
osmosis system going to the water inlet
valve of the refrigerator needs to be
between 30 and
120 psi (207 and 827 kPa).
If a reverse osmosis water filtration
system is connected to your cold water
supply, the water pressure to the reverse
osmosis system needs to be a minimum
of 40 to 60 psi
(276 to 414 kPa).
I
C
90˚
90˚
D
Model
Size
19.7
Height Overall
“A”
68C⁄,"
(173.7 cm)
Depth Height - Top Doors Open Depth - Drawer Depth - With Depth - Without Depth - Cabinet
of Cabinet
90°
Open
Handles
Handles
Only
“B”
“C”
“D”
“E”
“F”
“G”
67¹⁄x"
(171.5 cm)
44Z\,"
(112.1 cm)
52"
(132.1 cm)
34M⁄,"
(88.6 cm)
32Z\v"
(81.9 cm)
28"
(71.1 cm)
Width Cabinet
“H”
Width - Door
Open 90°
“I”
30Z⁄,"
(76.5 cm)
33M⁄,"
(86.4 cm)
LOCATION REQUIREMENTS
To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm) of space on each side
and at the top. Allow for a 1" (2.54 cm) space behind the refrigerator. If your refrigerator has an
ice maker, allow extra space at the back for the water line connections. When installing your
refrigerator next to a fixed wall, leave a 2" (5.08 cm) minimum space between the refrigerator and
wall to allow the door to swing open.
NOTE: This refrigerator is intended for use in a location where the temperature ranges from a
minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred room temperature range for
optimum performance, which reduces electricity usage and provides superior cooling, is between
60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat
source, such as an oven or radiator.
¹⁄₂" (1.25 cm)
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10477770A
3/15
