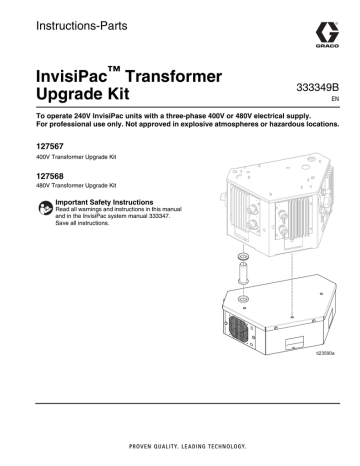

Instructions-Parts
InvisiPac™ Transformer
Upgrade Kit
333349B
EN
To operate 240V InvisiPac units with a three-phase 400V or 480V electrical supply.
For professional use only. Not approved in explosive atmospheres or hazardous locations.
127567
400V Transformer Upgrade Kit
127568
480V Transformer Upgrade Kit
Important Safety Instructions
Read all warnings and instructions in this manual
and in the InvisiPac system manual 333347.
Save all instructions.
WLD
Installation
Installation
6. Mount main electrical enclosure onto transformer
enclosure (4) and tighten screws (1).
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
1
1
This transformer must be installed by a qualified electrician to operate 240V InvisiPac units with a three-phase
480V electrical supply.
NOTE: Installing the transformer kit changes the model
of the InvisiPac system. Refer to the InvisiPac system
manual 333347 for model information.
1. Turn main power switch OFF.
2. Remove front access panel from electrical enclosure.
155
3. Remove cables from J2 on AWB board to main
power switch (H) and main enclosure ground (G).
J2
WLD
4
H
2
7. Remove fan panel (155) on transformer enclosure
(4).
8. Insert plastic cable bushing (3) through grommet in
the top of the transformer enclosure (4) into the bottom of the main electrical enclosure.
G
WLD
4. Remove the knockout hole below main power
switch (H).
5. Insert grommet (2) in knockout hole.
3
4
WLD
2
333349B
Parts
9. Run wires/cabling from transformer enclosure (4)
through plastic cable bushing (3) into main electrical
enclosure.
10. Connect fan connector from transformer enclosure
into J7 on AWB.
J2
J7
Parts
400V Transformer Upgrade, 127567
480V Transformer Upgrade, 127568
H
1
1
2
G
3
WLD
11. Connect black wires from transformer enclosure (4)
to J2 on AWB board according to the table below:
AWB
Terminal
W1
W2
W3
W4
Wire Label
AWB-W1
AWB-W2
AWB-W3
AWB-W4
12. Connect ground wire from the transformer
enclosure (4) into GND on J2 of AWB and main
enclosure ground (G).
13. Connect red wires from transformer enclosure (4) to
main power switch (H) according to the following
table:
Main Power
Switch Terminal
Wire Label
4T2
6T3
N
P1
P2
P3
4
Ref.
1
2
3
4
Part
113802
16C252
16X916
24V015
24V018
WLD
Description
SCREW, hex hd, flanged
GROMMET, air fitting
BUSHING, cable
TRANSFORMER, assembly
480V (Kit 127568)
400V (Kit 127567)
Qty.
3
1
1
1
14. Re-attach fan panel (155) to transformer
enclosure (4).
15. Replace front access panel on electrical enclosure.
333349B
3
