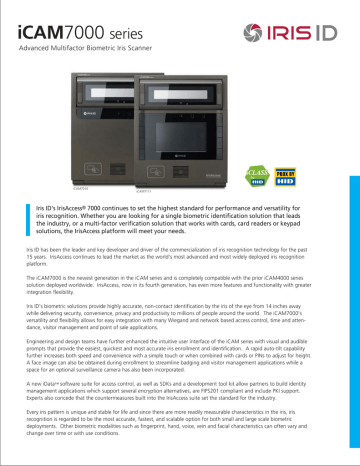

iCAM7000 Data Sheet
iCAM7000 series
Advanced Multifactor Biometric Iris Scanner
iCAM7010
iCAM7111
Iris ID’s IrisAccess® 7000 continues to set the highest standard for performance and versatility for
iris recognition. Whether you are looking for a single biometric identification solution that leads
the industry, or a multi-factor verification solution that works with cards, card readers or keypad
solutions, the IrisAccess platform will meet your needs.
Iris ID has been the leader and key developer and driver of the commercialization of iris recognition technology for the past
15 years. IrisAccess continues to lead the market as the world’s most advanced and most widely deployed iris recognition
platform.
The iCAM7000 is the newest generation in the iCAM series and is completely compatible with the prior iCAM4000 series
solution deployed worldwide. IrisAccess, now in its fourth generation, has even more features and functionality with greater
integration flexibility.
Iris ID’s biometric solutions provide highly accurate, non-contact identification by the iris of the eye from 14 inches away
while delivering security, convenience, privacy and productivity to millions of people around the world. The iCAM7000’s
versatility and flexibility allows for easy integration with many Wiegand and network based access control, time and attendance, visitor management and point of sale applications.
Engineering and design teams have further enhanced the intuitive user interface of the iCAM series with visual and audible
prompts that provide the easiest, quickest and most accurate iris enrollment and identification. A rapid auto-tilt capability
further increases both speed and convenience with a simple touch or when combined with cards or PINs to adjust for height.
A face image can also be obtained during enrollment to streamline badging and visitor management applications while a
space for an optional surveillance camera has also been incorporated.
A new iData™ software suite for access control, as well as SDKs and a development tool kit allow partners to build identity
management applications which support several encryption alternatives, are FIPS201 compliant and include PKI support.
Experts also concede that the countermeasures built into the IrisAccess suite set the standard for the industry.
Every iris pattern is unique and stable for life and since there are more readily measurable characteristics in the iris, iris
recognition is regarded to be the most accurate, fastest, and scalable option for both small and large scale biometric
deployments. Other biometric modalities such as fingerprint, hand, voice, vein and facial characteristics can often vary and
change over time or with use conditions.
Technical Specifications
The iCAM7000 series has features no other iris system offers. iCAM7000 enables
rapid iris acquisition with greater image quality for superior enrollment and
recognition. A holographic targeting aid is just one part of an intuitive and
interactive interface that includes voice and visual feedback for increased speed.
All models feature the robust Iris ID countermeasure package experts agree sets
the standard in the industry.
Benefits:
• High Accuracy 1:N and 1:1 Capability
• Exceptional Flexibility and Ease of Integration
• High Speed - High Throughput
• Non-contact - Clean and Hygienic
Features:
•
•
•
•
•
•
•
•
•
•
•
•
•
Fast Fully Automatic Dual Iris Capture
Easy Non-intrusive, Non-contact User Interface
Integrated High Resolution Face Capture Camera
Integrated Contactless Smart Card Reader
Leverage Existing Infrastructure
Capacity for Optional Third-party Surveillance Camera
Easy Installation and Maintenance
Backwards Compatible with IrisAccess 4000 System
Remote Management
Stand-alone Door Access Capability
Time and Attendance Ready
Flush or Recess Mounting
Capable of 1:N Matching of Millions Depending on Architecture
iCAM7000 series
Dimensions (W x H x D)
Weight
Power Input / Consumption
Status LED
Iris Operating Range Indicator
Voice Indication
Iris Capture Range
User Input
Touch Screen LCD Display
Pin Pad
Flash
Face Image Camera
Transaction Log Capacity
Relays x 2
External Media Device Connectivity
Operating Temperature
Storage Temperature
Humidity
Iris & Face Camera Rotation Angle
Communications
Inputs / Outputs
Architecture:
Equipment Supplied with iCAM7000
IrisAccess EAC Server, iData SDK
• Identity control panels (ICU4000s) and iris enroll and matching software (EAC) may be
required depending on the project requirements.
7.01” x 8.31” x 2.52” (178mm x 211mm x 64mm)
3.5lbs (1.6kg)
12~24 VDC, 2.0 Amps @ 12 VDC / 24W
Multi Color - Red, Green, Blue for status indication
Dual Color - Orange (out of range), Green (in range)
English standard, others available by download
12“~14” (31cm~35cm)
Function keys six user definable (iCAM7100)
4.3” (480 x 272 pixels) (iCAM7100)
Pop-up on screen pin pad (iCAM7100)
High output flash for face capture
Face camera - 5MP
Up to 100K FIFO transactions stored on device, unlimited on server
Control for user defined operations
Secure user accessible USB port
32°F~113°F (0°C~45°C)
-4°F~203°F (-20°C~95°C)
Up to 90% non-condensing
+35°/-25°
Ethernet (LAN, WAN), RS422 (output only), RS232 (input only from external
card readers)
Proximity Card Reader (Wiegand In), Embedded Smart Card Reader (Optional),
Wiegand In, Wiegand Out, Dry Contact Relay x 2, Programmable GPIO x 4
Instruction Manual - Hardware Guide
Refer to IrisAccess Control Software specifications
User Interface
12~14”
(31-35cm)
Tilt up +35°
•
•
•
•
Tilt down -25°
iCAM activates when user approaches or when card is presented.
Picture capture range is 12~14 inches (31~35cm) away.
Self or auto/set height adjustment.
Placing dot over the bridge of nose, easily helps alignment.
•
•
•
•
Orange turns to green when user is at correct distance.
Visual indication is amplified with friendly audio prompts.
Right and left irides are acquired.
A face picture can also be captured.
Use of IrisAccess
Orange dot = Out of range
Installation and Dimension
7.01”
(178mm)
Bottom of
Mirror
Building Security
Green dot = In range
Transportation Security
Laboratory Security
Infrastructure Security
61”
(155cm)
54”
(138cm)
2.52”
(64mm)
8.31”
(211mm)
NOTE
This is based
on the assumption
that users’ average
height is 5‘7”(170cm)
Public Safety & Justice
Time & Attendance
Border Control
Data Center Security
Floor
Suggested mounting height and dimensions.
Surface Mount: Back plate included.
Recess Mount: Recess/Trim kit sold separately.
Eye Safety
Iris ID’s success as a designer and manufacturer of high quality iris recognition solutions for over 15 years is reflected by the global leadership and adoption of Iris ID products.
Continual review of market needs, human factors requirements and precise engineering enable Iris ID to deliver market leading solutions. Iris ID products have always met or
exceeded all US and international eye safety requirements. The optics and subtle illumination produced by IrisAccess products have been thoroughly tested and found to fall
well within UL and ANSI eye safety standards.
iData™ EAC Software Features
Enrollment: Simple and flexible administrative user interface for enrollment.
Setup:
Improved software setup and configuration tools for ease of installation.
Reporting: Individuals are identified as their biometrics are presented. Transactions are stored in the system
log and can be downloaded by a system administrator. Logs can also be integrated into an HR
time keeping system. IrisMonitor™ provides real time access reporting for multiple iCAM7000
series devices.
Iris ID, Inc.
7 Clarke Drive, Cranbury, NJ 08512, USA
Tel. 609-819-IRIS(4747) Fax. 609-819-4736
www.irisid.com
©2012 Iris ID, Inc. All rights reserved. Design and specification subject to change without notice.
Document # IRISIDIA7000-0312
