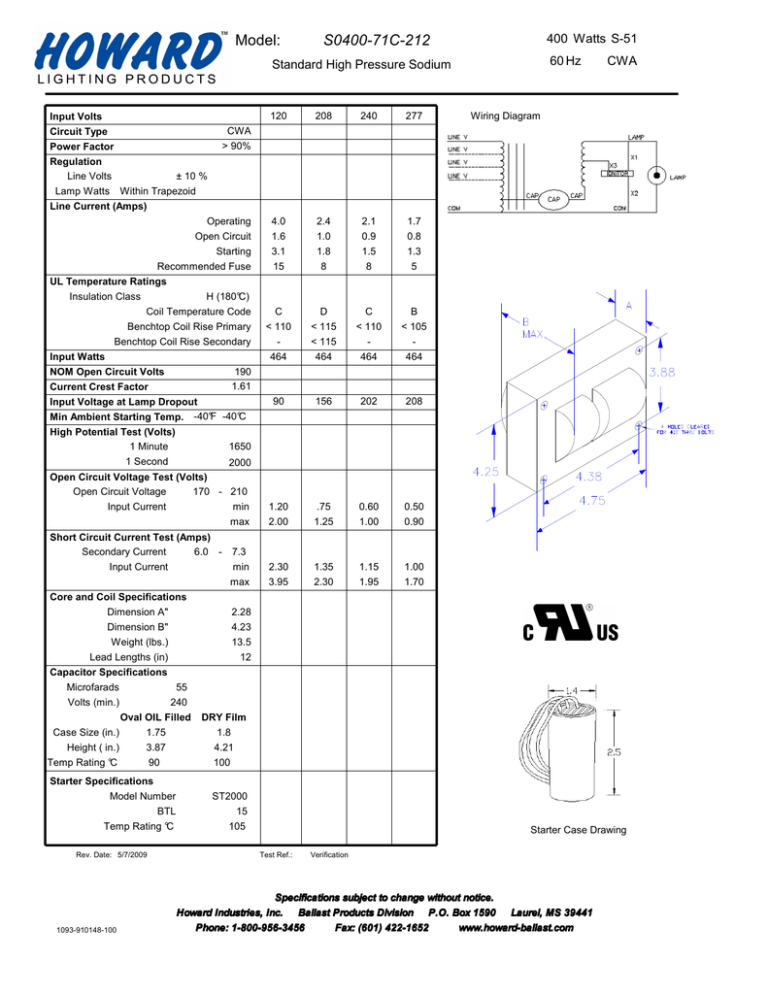

S0400-71C-212 Model: S-51 400

S0400-71C-212 Model: S-51 400
Model:
400 Watts S-51
S0400-71C-212
60 Hz
Standard High Pressure Sodium
Input Volts
120
208
240
277
CWA
Wiring Diagram
CWA
Circuit Type
> 90%
Power Factor
Regulation
Line Volts
± 10 %
Lamp Watts
Within Trapezoid
Line Current (Amps)
Operating
4.0
2.4
2.1
1.7
Open Circuit
1.6
1.0
0.9
0.8
Starting
3.1
1.8
1.5
1.3
Recommended Fuse
15
8
8
5
UL Temperature Ratings
Insulation Class
H (180°C)
Coil Temperature Code
Benchtop Coil Rise Primary
Benchtop Coil Rise Secondary
Input Watts
C
D
C
B
< 110
< 115
< 110
< 105
-
< 115
-
-
464
464
464
464
90
156
202
208
190
1.61
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -40°F -40°C
High Potential Test (Volts)
1 Minute
1650
1 Second
2000
Open Circuit Voltage Test (Volts)
170 - 210
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
6.0 -
min
1.20
.75
0.60
0.50
max
2.00
1.25
1.00
0.90
min
2.30
1.35
1.15
1.00
max
3.95
2.30
1.95
1.70
7.3
Input Current
Core and Coil Specifications
Dimension A"
2.28
Dimension B"
4.23
Weight (lbs.)
13.5
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
55
Volts (min.)
240
Case Size (in.)
Height ( in.)
Oval OIL Filled
1.75
DRY Film
1.8
3.87
4.21
90
100
Temp Rating °C
Starter Specifications
Model Number
ST2000
BTL
15
Temp Rating °C
105
Rev. Date: 5/7/2009
1093-910148-100
Starter Case Drawing
Test Ref.:
Verification
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
Phone: 1-800-956-3456
Fax: (601) 422-1652
www.howard-ballast.com
