Dual IFB Console Option Board For interrupted Talk-Back and intercom applications. DUAL-IFB

Dual IFB Console Option Board For interrupted Talk-Back and intercom applications. DUAL-IFB
For Assy:
DUAL-IFB
Rev: Oct 2010

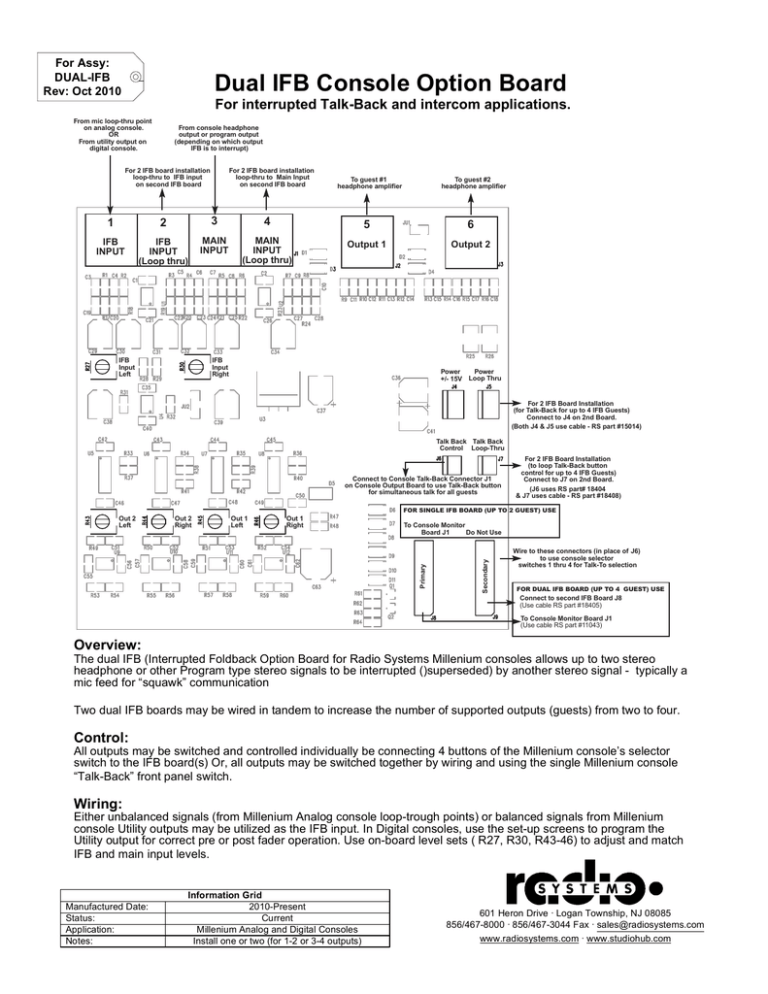

Dual IFB Console Option Board
For interrupted Talk-Back and intercom applications.
From mic loop-thru point
on analog console.
OR
From utility output on
digital console.
From console headphone
output or program output
(depending on which output
IFB is to interrupt)
For 2 IFB board installation
loop-thru to IFB input
on second IFB board
For 2 IFB board installation
loop-thru to Main Input
on second IFB board
To guest #1
headphone amplifier
To guest #2
headphone amplifier
1
2
3
4
5
6
IFB
INPUT
IFB
INPUT
(Loop thru)
MAIN
INPUT
MAIN
INPUT
(Loop thru)
Output 1
Output 2
IFB
Input
Right
IFB
Input
Left
Power
Power
+/- 15V Loop Thru
For 2 IFB Board Installation
(for Talk-Back for up to 4 IFB Guests)
Connect to J4 on 2nd Board.
(Both J4 & J5 use cable - RS part #15014)
Talk Back Talk Back
Control Loop-Thru
Connect to Console Talk-Back Connector J1
on Console Output Board to use Talk-Back button
for simultaneous talk for all guests
For 2 IFB Board Installation
(to loop Talk-Back button
control for up to 4 IFB Guests)
Connect to J7 on 2nd Board.
(J6 uses RS part# 18404
& J7 uses cable - RS part #18408)
FOR SINGLE IFB BOARD (UP TO 2 GUEST) USE
Out 1
Left
Out 1
Right
To Console Monitor
Board J1
Do Not Use
Secondary
Out 2
Right
Primary
Out 2
Left
Wire to these connectors (in place of J6)
to use console selector
switches 1 thru 4 for Talk-To selection
FOR DUAL IFB BOARD (UP TO 4 GUEST) USE
Connect to second IFB Board J8
(Use cable RS part #18405)
To Console Monitor Board J1
(Use cable RS part #11043)
Overview:
The dual IFB (Interrupted Foldback Option Board for Radio Systems Millenium consoles allows up to two stereo
headphone or other Program type stereo signals to be interrupted ()superseded) by another stereo signal - typically a
mic feed for “squawk” communication
Two dual IFB boards may be wired in tandem to increase the number of supported outputs (guests) from two to four.
Control:
All outputs may be switched and controlled individually be connecting 4 buttons of the Millenium console’s selector
switch to the IFB board(s) Or, all outputs may be switched together by wiring and using the single Millenium console
“Talk-Back” front panel switch.
Wiring:
Either unbalanced signals (from Millenium Analog console loop-trough points) or balanced signals from Millenium
console Utility outputs may be utilized as the IFB input. In Digital consoles, use the set-up screens to program the
Utility output for correct pre or post fader operation. Use on-board level sets ( R27, R30, R43-46) to adjust and match
IFB and main input levels.
Manufactured Date:
Status:
Application:
Notes:
Information Grid
2010-Present
Current
Millenium Analog and Digital Consoles
Install one or two (for 1-2 or 3-4 outputs)
601 Heron Drive · Logan Township, NJ 08085
856/467-8000 · 856/467-3044 Fax · [email protected]
www.radiosystems.com · www.studiohub.com
