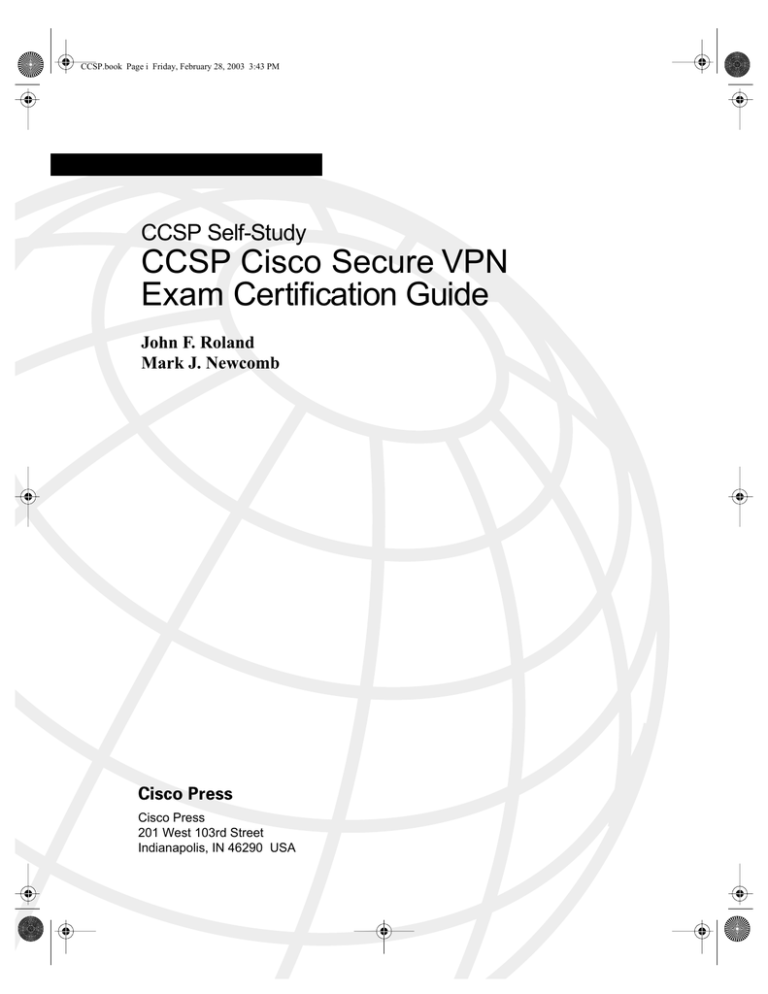

CCSP.book Page i Friday, February 28, 2003 3:43 PM
CCSP Self-Study
CCSP Cisco Secure VPN
Exam Certification Guide
John F. Roland
Mark J. Newcomb
Cisco Press
Cisco Press
201 West 103rd Street
Indianapolis, IN 46290 USA
CCSP.book Page ii Friday, February 28, 2003 3:43 PM
ii
CCSP Self-Study
CCSP Cisco Secure VPN Exam Certification Guide
John F. Roland and Mark J. Newcomb
Copyright © 2003 Cisco Systems, Inc.
Published by:
Cisco Press
201 West 103rd Street
Indianapolis, IN 46290 USA
All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, or by any information storage and retrieval system, without written
permission from the publisher, except for the inclusion of brief quotations in a review.
Printed in the United States of America 1 2 3 4 5 6 7 8 9 0
First Printing April 2003
Library of Congress Cataloging-in-Publication Number: 2002108141
ISBN: 1-58720-070-8
Warning and Disclaimer
This book is designed to provide information about selected topics for the CCSP Cisco Secure VPN exam. Every effort
has been made to make this book as complete and as accurate as possible, but no warranty or fitness is implied.
The information is provided on an “as is” basis. The authors, Cisco Press, and Cisco Systems, Inc., shall have neither
liability nor responsibility to any person or entity with respect to any loss or damages arising from the information
contained in this book or from the use of the discs or programs that may accompany it.
The opinions expressed in this book belong to the authors and are not necessarily those of Cisco Systems, Inc.
Trademark Acknowledgments
All terms mentioned in this book that are known to be trademarks or service marks have been appropriately capitalized.
Cisco Press or Cisco Systems, Inc., cannot attest to the accuracy of this information. Use of a term in this book should
not be regarded as affecting the validity of any trademark or service mark.
Feedback Information
At Cisco Press, our goal is to create in-depth technical books of the highest quality and value. Each book is crafted
with care and precision, undergoing rigorous development that involves the unique expertise of members from the
professional technical community.
Readers’ feedback is a natural continuation of this process. If you have any comments regarding how we could
improve the quality of this book, or otherwise alter it to better suit your needs, you can contact us through e-mail at
[email protected] Please make sure to include the book title and ISBN in your message.
We greatly appreciate your assistance.
CCSP.book Page iii Friday, February 28, 2003 3:43 PM
iii
Publisher
Editor-In-Chief
Cisco Representative
Cisco Press Program Manager
Manager, Marketing Communications, Cisco Systems
Cisco Marketing Program Manager
Executive Editor
Acquisitions Editor
Production Manager
Development Editor
Senior Editor
Copy Editor
Technical Editors
Team Coordinator
Book Designer
Cover Designer
Composition
Indexer
Media Developer
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 526-4100
European Headquarters
Cisco Systems Europe
11 Rue Camille Desmoulins
92782 Issy-les-Moulineaux
Cedex 9
France
http://www-europe.cisco.com
Tel: 33 1 58 04 60 00
Fax: 33 1 58 04 61 00
John Wait
John Kane
Anthony Wolfenden
Sonia Torres Chavez
Scott Miller
Edie Quiroz
Brett Bartow
Michelle Grandin
Patrick Kanouse
Dayna Isley
Sheri Cain
PIT, John Edwards
Scott Chen, Gert Schauwers, Thomas Scire
Tammi Ross
Gina Rexrode
Louisa Adair
Octal Publishing, Inc.
Tim Wright
Jay Payne
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-7660
Fax: 408 527-0883
Asia Pacific Headquarters
Cisco Systems Australia,
Pty., Ltd
Level 17, 99 Walker Street
North Sydney
NSW 2059 Australia
http://www.cisco.com
Tel: +61 2 8448 7100
Fax: +61 2 9957 4350
Cisco Systems has more than 200 offices in the following countries. Addresses, phone numbers, and fax numbers are listed on
the Cisco Web site at www.cisco.com/go/offices
Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China • Colombia • Costa
Rica • Croatia • Czech Republic • Denmark • Dubai, UAE • Finland • France • Germany • Greece • Hong Kong
Hungary • India • Indonesia • Ireland • Israel • Italy • Japan • Korea • Luxembourg • Malaysia • Mexico
The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal • Puerto Rico • Romania
Russia • Saudi Arabia • Scotland • Singapore • Slovakia • Slovenia • South Africa • Spain • Sweden
Switzerland • Taiwan • Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam
Zimbabwe
Copyright © 2000, Cisco Systems, Inc. All rights reserved. Access Registrar, AccessPath, Are You Ready, ATM Director, Browse with Me, CCDA, CCDE, CCDP, CCIE, CCNA,
CCNP, CCSI, CD-PAC, CiscoLink, the Cisco NetWorks logo, the Cisco Powered Network logo, Cisco Systems Networking Academy, Fast Step, FireRunner, Follow Me Browsing,
FormShare, GigaStack, IGX, Intelligence in the Optical Core, Internet Quotient, IP/VC, iQ Breakthrough, iQ Expertise, iQ FastTrack, iQuick Study, iQ Readiness Scorecard, The
iQ Logo, Kernel Proxy, MGX, Natural Network Viewer, Network Registrar, the Networkers logo, Packet, PIX, Point and Click Internetworking, Policy Builder, RateMUX,
ReyMaster, ReyView, ScriptShare, Secure Script, Shop with Me, SlideCast, SMARTnet, SVX, TrafficDirector, TransPath, VlanDirector, Voice LAN, Wavelength Router,
Workgroup Director, and Workgroup Stack are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, Empowering the Internet Generation, are
service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, Cisco, the Cisco Certified Internetwork Expert Logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco
Systems, Cisco Systems Capital, the Cisco Systems logo, Collision Free, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastLink, FastPAD, IOS, IP/TV, IPX,
LightStream, LightSwitch, MICA, NetRanger, Post-Routing, Pre-Routing, Registrar, StrataView Plus, Stratm, SwitchProbe, TeleRouter, are registered trademarks of Cisco Systems,
Inc. or its affiliates in the U.S. and certain other countries.
All other brands, names, or trademarks mentioned in this document or Web site are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (0010R)
CCSP.book Page iv Friday, February 28, 2003 3:43 PM
iv
About the Authors
John F. Roland, CCNA, CCDA, CCNP, CCDP, CSS-1, MCSE, is a security specialist who works for Ajilon Consulting.
John has worked in the IT field for more than 22 years, from COBOL programming on IBM mainframes to LAN/WAN
design and implementation on United States military networks and, more recently, to the development of Cisco and
Microsoft certification training materials. John’s current assignment has him designing and implementing enterprise
network certification testing at one of the largest banks in America.
John holds a bachelor’s degree in accounting from Tiffin University, Tiffin, Ohio, with minors in math and electrical
engineering from General Motors Institute, Flint, Michigan.
Mark J. Newcomb is the owner and lead security engineer for Secure Networks in Spokane, Washington. Mark has
over 20 years of experience in the networking industry, focusing on the financial and medical industries. The last six
years have been devoted to designing security solutions for a wide variety of clients throughout the Pacific Northwest.
Mark was one of the first people to obtain the CCNA certification from Cisco and has since obtained CCDA, CCNP, and
CCDP certifications. He is the co-author of Cisco Secure Internet Security Solutions, published by Cisco Press, and two
other networking books. He has been a technical reviewer on over 20 texts regarding networking for a variety of publishers. He can be reached by e-mail at [email protected]
About the Technical Reviewers
Scott Chen has worked in the IT field for the past seven years holding various positions, including senior NT engineer,
senior network engineer, and lead network engineer/network manager. Scott is currently a lead network engineer/network manager at Triad Financial Corporation, which is a wholly owned subsidiary of Ford Motor. He has implemented
VPN solutions for remote access and LAN-to-LAN for several enterprises. Scott has extensive experience designing,
implementing, and supporting enterprise networks and working with various technologies that Cisco offers, including
routing, switching, security, content switching, wireless, BGP, EIGRP, and NAT. Scott graduated from the University of
California, Irvine, with a bachelor’s degree. He also holds several certifications, including MCSE, CCNA, CCNP, and
CCIE Written/Qualification. Scott can be reached through e-mail at [email protected]
Gert Schauwers is a triple Cisco Certified Internet Expert (CCIE No. 6942)—Routing and Switching, Security, and
Communication and Services. He has more than four years experience in internetworking and holds an Engineering
degree in Electronics/Communication. Gert is currently working in the Brussels CCIE lab where he’s a proctor and
content engineer for the Routing and Switching, Security, and Communication and Services exams.
Thomas Scire has been working in the network infrastructure industry since 1996. Thomas specializes in LAN, WAN,
security, and multiservice infrastructure from Cisco Systems, Checkpoint, and Nokia. Thomas works for Accudata Systems, Inc., an independent IT professional services and solutions firm that specializes in enterprise network and security
infrastructure. Some of his more notable projects include enterprise VPN and IP telephony deployments and an international Voice over Frame Relay network deployment. Thomas holds a bachelor’s degree in Computer Engineering from
Polytechnic University and holds several certifications, including Cisco CCNA/CCDA, Cisco IP Telephony Design
Specialist, Checkpoint Certified Security Engineer, Checkpoint Certified Security Instructor, and Nokia Security
Administrator.
CCSP.book Page v Friday, February 28, 2003 3:43 PM
v
Dedications
From John Roland:
This book is dedicated to my wife of 28 years, Mariko, and to our son, Michael, for their understanding and support.
Their steady love and encouragement has kept me on target through some trying times during the development of this
book. You’re the greatest! I further dedicate this book to my late parents, Hazel and Forrest Roland, for nurturing me,
teaching me right from wrong, setting a shining example of a loving partnership, and showing me the benefits of a good
day’s work. I like to believe that they will be kicking up their heels together throughout eternity.
From Mark Newcomb:
This book is dedicated to my wife, Jacqueline, and my daughter, Isabella Rumiana. Jacqueline’s patience and understanding while I am in the process of writing never fails to amaze me.
CCSP.book Page vi Friday, February 28, 2003 3:43 PM
vi
Acknowledgments
From John Roland:
Writing this book has provided me with an opportunity to work with some very fine individuals. I want to thank Brett
Bartow from Cisco Press for believing in the project and for getting the ball rolling. I would also like to thank him for
turning this project over to Michelle Grandin, Cisco Press, for editorial support. Michelle helped me in many ways during this project and was always there to lend an encouraging word or a guiding hand. Dayna Isley, Cisco Press, provided
developmental guidance and feedback and was way too easy on my less-than-perfect submissions, and I want to thank
her for turning the work into a professional document. It has been a real pleasure to work with you three over these
several months.
Next, I would like to thank my co-author, Mark Newcomb, for stepping in to author half of this book when personal
problems brought me to a standstill. Thank you, Mark, for your professionalism and expertise and for helping to bring
this project to fruition.
I would also like to thank the technical reviewers, Gert Schauwers, Scott Chen, and Thomas Scire for their comments,
suggestions, and careful attention to detail. Without their help, this book would not be the valuable resource that it
has become. Thank you all.
From Mark Newcomb:
I heartily acknowledge John Roland’s contribution to this effort and thank him for inviting me to assist in this endeavor.
No text of any size is ever truly a work of just the authors. After nearly five years of writing, technical editing, and working with a variety of publishers, I commend every employee of Cisco Press. Michelle Grandin, Dayna Isley, John Kane,
and Brett Bartow are people at Cisco Press I have come to know and respect for their professional efforts. I also want to
give special thanks to Tammi Ross. Within any organization, there is one individual that seems to be able to solve any
unsolvable problem. Tammi has proven herself to be that person at Cisco Press.
The technical reviewers working with Cisco Press are world class. Technical reviewers are the most valuable assets a
good publisher can have. They do not receive the recognition or compensation that they so richly deserve. I thank Gert
Schauwers, Scott Chen, and Thomas Scire for their efforts to make this work what it is today.
CCSP.book Page vii Friday, February 28, 2003 3:43 PM
vii
Contents at a Glance
Introduction
xvii
Chapter 1
All About the Cisco Certified Security Professional
Chapter 2
Overview of VPN and IPSec Technologies
Chapter 3
Cisco VPN 3000 Concentrator Series Hardware Overview
Chapter 4
Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Chapter 5
Configuring Cisco VPN 3000 for Remote Access Using Digital
Certificates 215
Chapter 6
Configuring the Cisco VPN Client Firewall Feature
Chapter 7
Monitoring and Administering the VPN 3000 Series Concentrator
Chapter 8
Configuring Cisco 3002 Hardware Client for Remote Access
Chapter 9
Configuring Scalability Features of the VPN 3002 Hardware Client
Chapter 10
Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Chapter 11
Scenarios
Appendix A
Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
Index 551
3
15
79
125
259
303
359
399
443
473
489
CCSP.book Page viii Friday, February 28, 2003 3:43 PM
viii
Table of Contents
Introduction
xvii
Chapter 1 All About the Cisco Certified Security Professional
3
How This Book Can Help You Pass the CCSP Cisco Secure VPN Exam
Overview of CCSP Certification and Required Exams
The Cisco Secure VPN Exam
5
6
Topics on the Cisco Secure VPN Exam
8
Recommended Training Path for the CCSP Certification
Using This Book to Pass the Exam
Final Exam Preparation Tips
11
11
Chapter 2 Overview of VPN and IPSec Technologies
How to Best Use This Chapter
15
15
“Do I Know This Already?” Quiz
Cisco VPN Product Line
10
16
21
Enabling VPN Applications Through Cisco Products
Typical VPN Applications 21
Using Cisco VPN Products 26
21
An Overview of IPSec Protocols 36
The IPSec Protocols 39
Security Associations 46
Existing Protocols Used in the IPSec Process 47
Authenticating IPSec Peers and Forming Security Associations
Combining Protocols into Transform Sets 54
Establishing VPNs with IPSec 57
Step 1: Interesting Traffic Triggers IPSec Process 59
Step 2: Authenticate Peers and Establish IKE SAs 61
Step 3: Establish IPSec SAs 61
Step 4: Allow Secured Communications 61
Step 5: Terminate VPN 62
Table of Protocols Used with IPSec
IPSec Preconfiguration Processes
Creating VPNs with IPSec
65
63
65
54
5
CCSP.book Page ix Friday, February 28, 2003 3:43 PM
ix
Chapter 3 Cisco VPN 3000 Concentrator Series Hardware Overview
How to Best Use This Chapter
79
79
“Do I Know This Already?” Quiz
80
Major Advantages of Cisco VPN 3000 Series Concentrators
Ease of Deployment and Use 87
Performance and Scalability 87
Security 90
Fault Tolerance 94
Management Interface 94
Ease of Upgrades 99
85
Cisco Secure VPN Concentrators: Comparison and Features 100
Cisco VPN 3005 Concentrator 101
Cisco VPN 3015 Concentrator 102
Cisco VPN 3030 Concentrator 103
Cisco VPN 3060 Concentrator 104
Cisco VPN 3080 Concentrator 104
Cisco VPN 3000 Concentrator Series LED Indicators 105
Cisco Secure VPN Client Features 108
Cisco VPN 3002 Hardware Client 108
Cisco VPN Client 109
Table of Cisco VPN 3000 Concentrators
111
Table of Cisco VPN 3000 Concentrator Capabilities
112
Chapter 4 Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
How to Best Use This Chapter
125
125
“Do I Know This Already?” Quiz
126
Using VPNs for Remote Access with Preshared Keys
Unique Preshared Keys 132
Group Preshared Keys 133
Wildcard Preshared Keys 133
132
VPN Concentrator Configuration 134
Cisco VPN 3000 Concentrator Configuration Requirements 135
Cisco VPN 3000 Concentrator Initial Configuration 136
Configuring IPSec with Preshared Keys Through the VPN 3000 Concentrator
Series Manager 152
Advanced Configuration of the VPN Concentrator 169
CCSP.book Page x Friday, February 28, 2003 3:43 PM
x
Installing and Configuring the VPN Client
Overview of the VPN Client 174
VPN Client Features 175
VPN Client Installation 177
VPN Client Configuration 181
Types of Preshared Keys
174
186
VPN 3000 Concentrator CLI Quick Configuration Steps
186
VPN 3000 Concentrator Browser-Based Manager Quick Configuration Steps
VPN Client Installation Steps
187
VPN Client Configuration Steps
VPN Client Program Options
188
188
Limits for Number of Groups and Users
189
Complete Configuration Table of Contents
189
Complete Administration Table of Contents
Complete Monitoring Table of Contents
Scenario 4-1
207
Scenario 4-2
208
Scenario 4-1 Answers
210
Scenario 4-2 Answers
211
187
192
193
Chapter 5 Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
How to Best Use This Chapter
215
216
“Do I Know This Already?” Quiz
217
Digital Certificates and Certificate Authorities 221
The CA Architecture 221
Simple Certificate Enrollment Process Authentication Methods 228
CA Vendors and Products that Support Cisco VPN Products 231
Digital Certificate Support Through the VPN 3000 Concentrator Series Manager
Certificate Generation and Enrollment 232
Certificate Validation 237
Certificate Revocation Lists 237
IKE Configuration 239
232
CCSP.book Page xi Friday, February 28, 2003 3:43 PM
xi
Configuring the VPN Client for CA Support
PKCS #10 Certificate Request Fields
X.509 Identity Certificate Fields
Types of Digital Certificates
Types of CA Organization
241
245
245
246
246
Certificate Validation and Authentication Process
Internet-Based Certificate Authorities
247
Certificate Management Applications
247
Scenario 5-1
255
Scenario 5-2
255
Scenario 5-1 Answers
256
Scenario 5-2 Answers
257
246
Chapter 6 Configuring the Cisco VPN Client Firewall Feature
How to Best Use This Chapter
259
259
“Do I Know This Already?” Quiz
260
Cisco VPN Client Firewall Feature Overview
Firewall Configuration Overview 267
The Stateful Firewall (Always On) Feature
The Are You There Feature 269
265
267
Configuring Firewall Filter Rules 269
Name, Direction, and Action 273
Protocol and TCP Connection 273
Source Address and Destination Address 274
TCP/UDP Source and Destination Ports 274
ICMP Packet Type 276
Configuring the Stateful Firewall
276
Configuring the VPN Concentrator for Firewall Usage
Firewall Setting 278
Firewall 279
Custom Firewall 279
Firewall Policy 280
277
CCSP.book Page xii Friday, February 28, 2003 3:43 PM
xii
Monitoring VPN Client Firewall Statistics
281
Enabling Automatic Client Update Through the Cisco VPN 3000 Concentrator Series
Manager 283
Cisco VPN Client Firewall Feature Overview
Stateful Firewall (Always On) Feature
Cisco Integrated Client
288
288
Configuring Firewall Filter Rules
Action
287
288
Centralized Protection Policy
Are You There Feature
285
288
289
Configuring the Stateful Firewall
290
Configuring the VPN Concentrator for Firewall Usage
Firewall
290
291
Firewall Policy
291
Monitoring VPN Client Firewall Statistics
Scenario 6-1
291
299
Scenario 6-1 Answers
299
Chapter 7 Monitoring and Administering the VPN 3000 Series Concentrator
How Best to Use This Chapter
303
“Do I Know This Already?” Quiz
304
Administering the Cisco VPN 3000 Series Concentrator
Administer Sessions 310
Software Update 310
System Reboot 313
Ping 315
Monitoring Refresh 315
Access Rights 316
File Management 322
Certificate Manager 323
Monitoring the Cisco VPN 3000 Series Concentrator
Routing Table 326
Event Log Screen 326
System Status 327
307
324
303
CCSP.book Page xiii Friday, February 28, 2003 3:43 PM
xiii
Sessions 328
Statistics 330
Administering the Cisco VPN 3000 Series Concentrator
Administer Sessions
338
340
Software Update 341
Concentrator 342
Clients 342
System Reboot
Ping
343
344
Monitoring Refresh
Access Rights
344
345
Administrators
345
Access Control List
Access Settings
AAA Servers
346
347
347
Authentication
347
File Management
347
Certificate Manager
347
Monitoring the Cisco VPN 3000 Series Concentrator
System Status
Sessions
349
349
Top Ten Lists
Statistics
348
350
351
MIB II Statistics
352
Chapter 8 Configuring Cisco 3002 Hardware Client for Remote Access
How to Best Use This Chapter
359
360
“Do I Know This Already?” Quiz
361
Configure Preshared Keys 366
Verify IKE and IPSec Configuration 368
Setting debug Levels 369
Configuring VPN 3002 Hardware Client and LAN Extension Modes
Split Tunneling 374
371
CCSP.book Page xiv Friday, February 28, 2003 3:43 PM
xiv
Unit and User Authentication for the VPN 3002 Hardware Client 375
Configuring the Head-End VPN Concentrator 376
Configuring Unit and User Authentication 380
Interactive Hardware Client and Individual User Authentication 381
Configure Preshared Keys
Troubleshooting IPSec
386
386
Client and LAN Extension Modes
Split Tunnel
387
387
Configuring Individual User Authentication on the VPN 3000 Concentrator
Scenario 8-1
395
Scenario 8-2
396
Scenario 8-1 Answers
397
Scenario 8-2 Answers
397
Chapter 9 Configuring Scalability Features of the VPN 3002 Hardware Client
How to Best Use This Chapter
399
“Do I Know This Already?” Quiz
400
VPN 3002 Hardware Client Reverse Route Injection 407
Setting Up the VPN Concentrator Using RIPv2 407
Setting Up the VPN Concentrator Using OSPF 408
Configuring VPN 3002 Hardware Client Reverse Route Injection
VPN 3002 Hardware Client Backup Servers
412
VPN 3002 Hardware Client Load Balancing
414
Overview of Port Address Translation
Configuring Auto-Update for the VPN 3002 Hardware Client
Monitoring Auto-Update Events
Backup Servers
429
Load Balancing
430
426
429
409
416
IPSec on the VPN 3002 Hardware Client 418
IPSec Over TCP/IP 418
UDP NAT Transparent IPSec (IPSec Over UDP) 419
Troubleshooting a VPN 3002 Hardware Client IPSec Connection
Table of RRI Configurations
399
423
420
388
CCSP.book Page xv Friday, February 28, 2003 3:43 PM
xv
Comparing NAT and PAT
IPSec Over TCP/IP
IPSec Over UDP
430
431
Troubleshooting IPSec
Auto-Update
431
Scenario 9-1
440
430
Scenario 9-1 Answers
431
441
Chapter 10 Cisco VPN 3000 LAN-to-LAN with Preshared Keys
How to Best Use This Chapter
444
“Do I Know This Already?” Quiz
Overview of LAN-to-LAN VPN
445
449
LAN-to-LAN Configuration 449
Configuring Network Lists 449
Creating a Tunnel with the LAN-to-LAN Wizard
SCEP Overview 454
Certificate Management 454
Root Certificate Installation via SCEP
Maximum Certificates
Enrollment Variables
Chapter 11 Scenarios
464
464
473
Example Corporation
473
Site Descriptions 474
Detroit 474
Portland 474
Seattle 474
Memphis 474
Richmond 475
Terry and Carol 475
Scenario 11-1—The Basics
IKE Policy 475
IPSec Policy 476
Scenario 11-2—Portland
475
476
443
455
451
CCSP.book Page xvi Friday, February 28, 2003 3:43 PM
xvi
Scenario 11-3—Seattle
476
Scenario 11-4—Memphis
Scenario 11-5—Richmond
476
477
Scenario 11-6—Terry and Carol
Scenario 11-1 Answers
IKE Policy 478
IPSec Policy 479
477
478
Scenario 11-2 Answers 479
Detroit VPN 3030 Concentrator and Router (Generic for All)
Detroit VPN 3030 Concentrator for Portland 480
Portland VPN 3002 Hardware Client 481
Scenario 11-3 Answers 482
Detroit VPN 3030 Concentrator for Seattle
Seattle VPN 3002 Hardware Client 482
479
482
Scenario 11-4 Answers 483
Detroit VPN 3030 Concentrator for Memphis 483
Memphis VPN 3005 Concentrator and Router 483
Scenario 11-5 Answers 484
Detroit VPN 3030 Concentrator for Richmond 484
Richmond VPN 3005 Concentrator and Router 484
Scenario 11-6 Answers 484
Detroit VPN 3030 Concentrator for Terry and Similar Users 485
Terry VPN Client and Browser 485
Detroit VPN 3030 Concentrator for Carol and Similar Users 485
Carol VPN Client and Browser 486
Appendix A Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
Index 551
489
CCSP.book Page xvii Friday, February 28, 2003 3:43 PM
xvii
Introduction
The Cisco Systems series of certifications provide you with a means of validating your expertise in certain core
areas of study to current or prospective employers and to your peers. More network professionals are pursuing the Cisco Certified Security Professional (CCSP) certification because network security has become a
critical element in the overall security plan of 21st-century businesses. This book is designed to help you
attain this prestigious certification.
Goals and Methods
The primary goal of this book is to help you prepare to pass either the 9E0-121 or 642-511 Cisco Secure
VPN (CSVPN) exams as you strive to attain the CCSP certification or a focused VPN certification. Adhering
to the premise that, as individuals, we each retain information better through different media, this book provides
a variety of formats to help you succeed in passing this exam. Questions make up a significant portion of
this book, because they are what you are confronted with on the exam and because they are a useful way
to gauge your understanding of the material. The accompanying CD-ROM provides additional questions to
help you with your exam preparation.
Along with the extensive and comprehensive questions within this book and on the CD, this book also covers all the published topics for the exam in detail, using charts, diagrams, and screenshots as appropriate to
help you understand the concepts. The book assumes that you have a moderate understanding of networking
(Cisco’s prerequisite for CCSP certification is that you possess the CCNA certification and pass five additional exams), and does not attempt to bore you with material that you should already know. Some published topics are stated with the assumption that you possess certain knowledge that the CCNA certification
did not bestow upon you. In those cases, this book attempts to fill in the missing material to catch you up to
the material covered by the exam topic. Because this is an exam certification guide, the goal is to provide
you with enough information to understand the published topics and to pass the exam, in effect right-sizing
the material to the topics of the exam.
This book can help you pass the Cisco Secure VPN exam using the following methods:
• Self-assessment questions at the beginning of each chapter help you discover what you need to study.
•
•
•
Detailed topic material is provided to clarify points that you might not already understand.
End-of-chapter exercises and scenarios help you determine what you learned from the chapter’s material.
Additional questions on the CD give you a chance to look at the material from different perspectives.
Who Should Read This Book?
This book was designed as an aid to help you pass the CCSP Cisco Secure VPN exam. Because that is the
primary goal of this book, it stands to reason that the CCSP candidate will derive the most benefit from this
book. Everyone who attempts to obtain the CCSP certification must take the Cisco Secure VPN exam, making every CCSP candidate a potential beneficiary of the material in this book.
CCSP.book Page xviii Friday, February 28, 2003 3:43 PM
xviii
That doesn’t mean that this is just another one of those cramming aids that you use to pass the test and then
place on your shelf to collect dust. The material covered in this book provides practical solutions to 80–90%
of the VPN configuration challenges that you can encounter in your day-to-day networking experiences.
This book can become a valuable reference tool for the security-conscious network manager. Designers can
also find the foundation material and foundation summaries valuable aids for network design projects.
The Organization of This Book
Although this book could be read cover to cover, it is designed to be flexible and allows you to easily move
between chapters and sections of chapters to cover just the material that you need more work with. Chapter
1 provides an overview of the CCSP certification and offers some strategies for how to prepare for the
exams. Chapters 2 through 11 are the core chapters and can be covered in any order. If you intend to read
all the chapters, their order in this book is an excellent sequence to use.
The core chapters—Chapters 2 through 11—cover the following topics:
• Chapter 2, “Overview of VPN and IPSec Technologies”—This chapter discusses VPN protocols and
concepts, concentrating on the IPSec protocol. Exam objectives covered in this chapter include the
following:
— 1 Cisco products enable a secure VPN
— 2 IPSec overview
— 3 IPSec protocol framework
— 4 How IPSec works
• Chapter 3, “Cisco VPN 3000 Concentrator Series Hardware Overview”—This chapter looks at the
Cisco VPN 3000 Concentrator Series and describes the capabilities of each VPN concentrator model.
Exam objectives covered in this chapter include the following:
— 5 Overview of the Cisco VPN 3000 Concentrator Series
— 6 Cisco VPN 3000 Concentrator Series models
— 7 Benefits and features of the Cisco VPN 3000 Concentrator Series
— 8 Cisco VPN 3000 Concentrator Series Client support
• Chapter 4, “Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys”—This chapter
describes the process of configuring VPN concentrators for remote access with preshared keys. Initial CLI
and browser configuration of the concentrator are covered. Advanced configuration issues are discussed.
Installation and configuration of the Cisco VPN Client for Windows is also discussed in this chapter.
Exam objectives covered in this chapter include the following:
— 9 Overview of remote access using preshared keys
— 10 Initial configuration of the Cisco VPN 3000 Concentrator Series for remote access
— 11 Browser configuration of the Cisco VPN 3000 Concentrator Series
— 12 Configuring users and groups
— 13 Advanced configuration of the Cisco VPN 3000 Series Concentrator
— 14 Configuring the IPSec Windows Client
CCSP.book Page xix Friday, February 28, 2003 3:43 PM
xix
•
•
•
•
Chapter 5, “Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates”—This
chapter discusses digital certificates and Certificate Authority (CA) support. Enrolling and installing
certificates, generating public/private key pairs, and validating certificates are also discussed. The VPN
concentrator and VPN Client are configured to use digital certificates in this chapter. Exam objectives
covered in this chapter include the following:
— 15 CA support overview
— 16 Certificate generation
— 17 Validating certificates
— 18 Configuring the Cisco VPN 3000 Concentrator Series for CA support
Chapter 6, “Configuring the Cisco VPN Client Firewall Feature”—This chapter discusses the VPN
Client’s firewall feature set, including the Are You There feature, central policy protection, and
monitoring firewall statistics. Exam objectives covered in this chapter include the following:
— 19 Overview of software client’s firewall feature
— 20 Software client’s Are You There feature
— 21 Software client’s Stateful Firewall feature
— 22 Software client’s Central Policy Protection feature
— 23 Client firewall statistics
— 24 Customizing firewall policy
Chapter 7, “Monitoring and Administering the Cisco VPN 3000 Series Concentrator”—Earlier
chapters in this book work with the Configuration menus of the VPN Manager. This chapter works with
the remaining sections of the VPN Manager, the Monitoring and Administration sections. Exam
objectives covered in this chapter include the following:
— 25 Monitoring the Cisco VPN 3000 Series Concentrator
— 26 Administering the Cisco VPN 3000 Series Concentrator
Chapter 8, “Configuring Cisco 3002 Hardware Client for Remote Access”—The Cisco VPN 3002
Hardware Client is thoroughly discussed in this chapter. Interactive and integrated hardware and client
authentication are discussed. Client statistics monitoring is also covered in this chapter. Exam objectives
covered in this chapter include the following:
—
—
—
—
—
27
28
29
30
31
Cisco VPN 3002 Hardware Client remote access with preshared keys
Overview of VPN 3002 interactive unit and user authentication feature
Configuring VPN 3002 integrated unit authentication feature
Configuring VPN 3002 user authentication
Monitoring VPN 3002 user statistics
CCSP.book Page xx Friday, February 28, 2003 3:43 PM
xx
•
•
•
Chapter 9, “Configuring Scalability Features of the VPN 3002 Hardware Client”—The Cisco VPN
3002 Hardware Client is well suited to large organizations. This chapter discusses the scalability features
of load balancing, PAT, auto-update, and backup server. Exam objectives covered in this chapter include
the following:
— 32 Overview of the VPN 3002 Reverse Route Injection feature
— 33 Configuring the VPN 3002 backup server feature
— 34 Configuring the VPN 3002 load-balancing feature
— 35 Overview of the VPN 3002 Auto-Update feature
— 36 Configuring the VPN 3002 Auto-Update feature
— 37 Monitoring VPN 3002 Auto-Update events
— 38 Overview of Port Address Translation
— 39 Configuring IPSec over UDP
— 40 Configuring IPSec over TCP
Chapter 10, “Cisco VPN 3000 LAN-to-LAN with Preshared Keys”—While ideal for remote access
implementations, the Cisco VPN 3000 Concentrator Series is also an excellent platform for LAN-to-LAN
VPN connections. This chapter discusses the LAN-to-LAN concept and shows you how to configure the
VPN concentrator for that role. Exam objectives covered in this chapter include the following:
— 41 Cisco VPN 3000 IPSec LAN-to-LAN
— 42 LAN-to-LAN configuration
— 43 SCEP support overview
— 44 Root certificate installation
— 45 Identity certificate installation
Chapter 11, “Scenarios”—This chapter presents scenarios that test your ability to analyze various VPN
situations and to apply your knowledge to solving problems and implementing solutions.
CCSP.book Page xxi Friday, February 28, 2003 3:43 PM
xxi
Icons and Symbols Used in This Book
Cisco uses the following standard icons to represent different networking devices.
You will encounter several of these icons within this book.
Switch
Router
Multilayer Switch
PIX Firewall
ATM Switch
Content Switch
Route/Switch
Processor
Local Director
PC
Concentrator
Cisco 7500
Series Router
Access
Server
Laptop
Phone
ISDN/Frame
Relay switch
CiscoSecure
Scanner
Cisco Works
Workstation
Gateway
Fax
Hub
Bridge
IP/TV
Broadcast
Server
Cisco
CallManager
Web
Browser
Web
Server
File Server
Printer
NetRanger
Intrusion Detection
System
Cisco
Directory Server
Network Cloud
VPN Concentrator
Command Syntax Conventions
The conventions used to present command syntax in this book are the same conventions used in the IOS Command
Reference. The Command Reference describes these conventions as follows:
•
•
•
•
Vertical bars (|) separate alternative, mutually exclusive elements.
Square brackets [ ] indicate optional elements.
Braces { } indicate a required choice.
Braces within brackets [( )] indicate a required choice within an optional element.
CCSP.book Page xxii Friday, February 28, 2003 3:43 PM
xxii
•
Boldface indicates commands and keywords that are entered literally as shown. In actual configuration
examples and output (not general command syntax), boldface indicates commands that are manually
input by the user (such as a show command).
•
Italics indicate arguments for which you supply actual values.
Features of Each Chapter
Example test questions allow simulated exams for final practice. Each of these chapters uses several features
to help you make the best use of your time in that chapter. The features are as follows:
• “Do I Know This Already?” Quiz and Quizlets—Each chapter begins with a quiz that helps you
determine the amount of time you need to spend studying that chapter. The quiz is broken into
subdivisions, called “quizlets,” that correspond to a section of the chapter. Following the directions at the
beginning of each chapter, the “Do I Know This Already?” quiz directs you to study all or parts of the
chapter.
•
Foundation Topics—This is the core section of each chapter that explains the protocols, concepts, and
configuration for the topics in the chapter.
•
Foundation Summary—Near the end of each chapter, a summary collects the most important tables and
figures from the chapter. This section helps you review the key concepts in the chapter if you score well
on the “Do I Know This Already?” quiz, and these concepts are excellent tools for last-minute review.
•
Q&A—These end-of-the-chapter questions focus on recall, covering subjects in the “Foundation Topics”
section by using several types of questions. Because the “Do I Know This Already?” quiz questions
can help increase your recall as well, these questions are restated in the Q&A section. Restating these
questions, along with presenting new questions, provides a larger set of practice questions for testing your
knowledge when you finish a chapter and for final review when your exam date is approaching.
•
Scenarios—Located at the end of most chapters, the scenarios allow a more in-depth examination of a
network implementation. Rather than posing a simple question asking for a single fact, the scenarios let
you design and build networks (at least on paper) without the inherent clues of a multiple-choice quiz
format.
About the CD-ROM
The companion CD-ROM contains more than 200 questions that are not included in this book. You can
answer these questions by using the simulated exam feature or by using the topical review feature. This is
the best tool to help you prepare for the test-taking process.
CCSP.book Page xxiii Friday, February 28, 2003 3:43 PM
CCSP.book Page 2 Friday, February 28, 2003 3:43 PM
CCSP.book Page 3 Friday, February 28, 2003 3:43 PM
CHAPTER
1
All About the Cisco Certified
Security Professional
Network security is a hot topic, and network security specialists are hot commodities in
today’s job market. It’s no surprise, then, that the Cisco Certified Security Professional
(CCSP) distinguishes itself as one of the most sought-after networking certifications
available today.
The CCSP was promoted in late 2002 from a Cisco Qualified Specialist program to a fullfledged track, paralleling Cisco Certified Network Professional (CCNP), Cisco Certified
Design Professional (CCDP), and Cisco Certified Internetworking Professional (CCIP).
Like the other three primary certification tracks, the CCSP has the CCNA exam as a
prerequisite.
Accomplishing the CCSP certification requires you to pass five challenging exams, which
cover a wide range of Cisco hardware and application software. You work with routers and
firewalls at your network perimeter or in your demilitarized zone (DMZ). You establish
Virtual Private Network (VPN) concentrators for your remote access users. Intrusion
detection systems can covertly keep tabs on your network, and you learn how to configure
and administer those systems. You work with Cisco Works components, such as Cisco
Secure Policy Manager (CSPM) and Cisco Secure Access Control Server (CSACS). You
use web browser applications to configure the hardware devices that protect your network.
You ensure secure connectivity in small and medium networks, based on the SAFE
blueprint.
Some of the information contained in this book overlaps material from the other four topics
covered by the CCSP series of exams. VPN technology is an important element in network
security, and it is no accident that more than one CCSP course includes additional information on Internet Protocol Security (IPSec) VPNs.
The exam is a computer-based exam that has multiple-choice, fill-in-the-blank, and dragand-drop matching and ordering questions. The CCSP series of exams are some of the most
interesting exams to take because of the variety of presentation methods used during the
questioning. When you are required to enter a command, you must be precise in your
syntax, and you must not use abbreviations.
CCSP.book Page 4 Friday, February 28, 2003 3:43 PM
4
Chapter 1: All About the Cisco Certified Security Professional
You can take the exam at any Thompson Prometric or VUE testing center. Both of these testing
organizations have websites that allow you to find a testing center and register for tests online.
You can also call them to accomplish the same thing. Cisco’s website has information about
registering for the exams, including links and telephone numbers for Prometric and VUE. Go
to Cisco’s website and search for “registering for exams.” The first search result should contain
the most recent information regarding exam registration.
Both organizations have an official registration process that you need to complete the first time
you work with them. When you arrive at the testing facility to take your exam, be absolutely
sure that you have a photo ID on hand. You will not be allowed to take an exam without positive
identification. Also, be aware that you will not be permitted to take materials into the testing
booth—instead, the test proctor provides you with a pencil and supply of scratch paper.
As you take the exam, remember to read each question carefully before selecting your answer.
Understand what the question is asking before attempting to answer it. Some electronic
certification tests allow you to review and modify your answers if you finish before time
expires. Cisco exams are not of that variety. You have one opportunity to answer each question.
Take your time, and be sure to supply an answer for each question. If you don’t understand the
question, try restating it to see if you can figure out what is being asked. If a question stumps
you, try to eliminate obviously false answers and make an educated guess from the remaining
choices. Be sure to jot down “stumper” topics on your scratch paper.
You will most likely be given little more than an hour to complete the exam. Passing scores
vary—typically, somewhere in the range of 790 or 800 on a scale of 300 to 1000 points is
considered passing. If you turn that into a percentage, you need to answer slightly more than 70
percent of the questions correctly to pass the exam.
NOTE
Certification candidates should check the Cisco Systems certification website frequently
(www.cisco.com/go/training) as exam criteria such as time allotted, number of questions, and
passing scores are subject to change without notice.
You might not pass the exam the first time. If that is the case, use the experience as a learning
tool. Now you know what the test looks like, and you don’t need to worry about the mechanics
of the test. Make notes to yourself of the questions that were asked, especially the ones that
stumped you. You can make notes on your scratch paper during the exam.
At the end of the exam, you don’t have to leave the testing booth immediately, and you can
review your notes several times to remember them. (Remember that the proctor collects your
scratch paper before you leave.) After you leave the test facility, try to write down as many
questions and topics as you can remember from the exam. Be prepared by bringing a notebook
to jot down your answers. Use these brain dumps as your study guide in preparation for the next
time you take the exam. Although you will not get exactly the same questions each time you
take the exam, the questions are pulled from a pool, and you will most likely see some of the
same questions each time you take the test. You will certainly see similar questions.
CCSP.book Page 5 Friday, February 28, 2003 3:43 PM
Overview of CCSP Certification and Required Exams
5
Stick with it if you don’t succeed the first time. You can do it, and you will find the CCSP
material interesting and on target for the needs of most businesses. Also, the exams are a
refreshing change from those you might have taken in the past.
How This Book Can Help You Pass the CCSP Cisco
Secure VPN Exam
The primary focus of this book is to crystallize knowledge that you might have gained from
instructor-led or on-the-job training into the facts and procedures you need to know to pass the
CCSP Cisco Secure VPN exam. Material is not covered to the depth that you might see in an
instructor-led class. This book concentrates on the core material and does not delve too deeply
into the more esoteric aspects of this topic.
The audience for this book includes candidates who have successfully completed the Cisco
Secure Virtual Private Networks (CSVPN) class or those who gained some experience in VPNs
through other means. If you have taken the CSVPN class, you will find that much of the material
is familiar, and you can benefit most from the prechapter and postchapter questions and from
the scenarios that you find throughout this book. If you have not taken the CSVPN class, you are
going to find those questions and scenarios especially beneficial as you prepare for the exam.
The most recent version of the CSVPN exam has been greatly modified from the original. You
no longer need to be able to configure VPNs on routers and firewalls; this exam concentrates on
remote access VPNs through VPN Concentrators, including the Cisco VPN 3002 Hardware
Client, which was not covered on the original exam.
Overview of CCSP Certification and Required Exams
The CCSP certification is a main certification track, beginning at the CCNA and ending at the
CCIE level, as do the CCNP and CCIP certifications.
The CCSP certification requires you to pass five exams. The prerequisite for being awarded
your CCSP certification upon completion of these exams is that you hold a current CCNA
certification. Table 1-1 contains a list of the exams in the CCSP certification series. Because all
exam information is managed by Cisco Systems and is therefore subject to change, candidates
should continually monitor the Cisco Systems website for course and exam updates at
www.cisco.com/go/training.
The CCSP certification is valid for 3 years, after which you must perform the requirements for
recertification. Currently, the requirement is that you retake the current version of the appropriate
exams. You can find out more about the Cisco Certified Security Professional track at the Cisco
website, www.cisco.com, where you can search for “Career Certifications.”
CCSP.book Page 6 Friday, February 28, 2003 3:43 PM
6
Chapter 1: All About the Cisco Certified Security Professional
Table 1-1
CCSP Certification Exams
Exam Number Exam Name
Comments on Upcoming Exam Changes
640-100
MCNS 3.0, Managing Cisco
Network Security
In Summer 2003, a new exam, SECUR 642-501,
will become available. This exam will eventually
replace the 640-100 exam. If recertification
candidates pass this exam, they will be considered
recertified at the CCNA or CCDA level.
9E0-111
CSPFA 3.0, Cisco Secure PIX
Firewall Advanced Exam
By Summer 2003, a new exam will be available
to certification candidates taking the PIX exam:
642-521. Note that the renumbering signifies
that those that pass this exam will be considered
recertified at the CCNA or CCDA level. There
are no significant changes between the 9E0-111
exam and the 642-521 exam.
9E0-100
CSIDS 3.0, Cisco Secure
Intrusion Detection Systems
There are no anticipated changes to this exam as
of the time that this book was printed. Be sure to
refer to the Cisco Systems website for current
information regarding exam numbers and
content.
9E0-121
CSVPN 3.0, Cisco Secure
Virtual Private Networks
By Summer 2003, a new exam will be available
to certification candidates taking the VPN
exam: 642-511. Note that the renumbering
signifies that those that pass this exam will be
considered recertified at the CCNA or CCDA
level. There are no significant changes between
the 9E0-121 exam and the 642-511 exam.
9E0-131
CSI 1.0, Cisco SAFE
Implementation
There are no anticipated changes to this exam as
of the time that this book was printed. Be sure to
refer to the Cisco Systems website for current
information regarding exam numbers and
content.
The Cisco Secure VPN Exam
The Cisco Secure VPN exam was designed to test your knowledge of configuring, monitoring,
and administering Cisco’s purpose-built VPN 3000 Series Concentrators. Because IPSec is the
VPN tunneling protocol of choice for these products, the exam deals mostly with the IPSec
protocol on these devices. The CSVPN exam covers the concentrators, software clients, and the
Cisco VPN 3002 Hardware Client.
You will most likely be given little more than an hour to complete the exam. Passing scores vary—
typically, somewhere in the range of 790 or 800 on a scale of 300 to 1000 points is considered
passing. The exam is a mixture of multiple-choice questions with a single answer, multiple-choice
CCSP.book Page 7 Friday, February 28, 2003 3:43 PM
The Cisco Secure VPN Exam
7
questions with multiple answers, drag-and-drop questions, simulation questions, and fill-in-theblank questions. All CCSP exams now contain a simulation lab item. For this exam, this means that
you may have to actually configure a VPN 3000 Concentrator for remote access. This exam item
is worth multiple points and you may qualify for partial credit. There are no true-or-false questions.
(Remember that exam criteria such as time allotted, number of questions, and passing scores, are
subject to change without notice. Test takers should frequently refer to the Cisco Systems
certification site for the latest information at www.cisco.com/go/training.)
Once you are in the testing booth in front of the workstation, you are asked to log in. Next, you
are asked to complete a short survey about how you prepared for the exam and what you consider
your expertise level to be. The time you take for the survey is not deducted from the time allotted
for the exam. After you complete the survey, you are asked to accept the terms of Cisco’s nondisclosure agreement (which is the reason that the authors cannot tell you about actual test
questions). If you decline to accept the agreement, you are not permitted to take the exam. Upon
accepting the nondisclosure agreement, the exam begins.
You are presented with one question at a time. A timer and a counter are running to show you
how many minutes you have remaining for the exam and how many questions you have attempted.
The questions in Cisco exams tend to be straightforward, for example, “How do you configure
the. . .,” “What do you call the. . .,” “What is the command to. . .,” and so on. The questions are
comprehensive, however, so you need to know your material. A multiple-choice question might
encompass two or three topics. Some of the trickier questions tend to be the drag-and-drop
questions. However, you can undo your answers to those questions and reposition your choices
if you find you’ve made a mistake before committing your answer.
Always take a couple of seconds to review your answer before moving on to the next question.
You are not permitted to review your answers or to change them once you go to the next
question. If you get to the end before time runs out, click the Finish button to end the exam. If
time expires, the testing software does that for you.
At the end of the exam, you are allowed to make comments to Cisco about any of the questions
in the exam. If you find questions that don’t work properly, are poorly worded, seem unfair, or
are wrong, this is your opportunity to tell Cisco about them. Be sure to keep notes as you take
the exam if you want to make comments at the end.
Once you finish the comments section, the software presents a “thank you for taking the exam”
screen. When you clear that, the system displays your score and declares whether you have
passed the exam. When you have spent many hours preparing for an exam, you can’t believe
the relief you feel when the word PASS is shown on the screen!
At the same time you see the results of your exam, a copy of the results is printed at the proctor’s
desk. When you leave the testing booth, the proctor presses a seal onto the exam results and
stamps them DO NOT LOSE THIS REPORT. You also receive a printed copy of the nondisclosure agreement that you consented to prior to taking the exam.
A few weeks after you have completed all the requirements for a given certification, you receive
your certification through the mail. You also receive a laminated card that you can carry with
you attesting to the fact that you are, indeed, a Cisco Certified Security Professional.
CCSP.book Page 8 Friday, February 28, 2003 3:43 PM
8
Chapter 1: All About the Cisco Certified Security Professional
Topics on the Cisco Secure VPN Exam
Although you might not know what questions you are going to see on the exam, you do have
access to the exam topics. If you study these topic areas, you should do well on this exam. The
design of this book is based on the exam topics. Each chapter in this book corresponds to a
major topic area and contains the information that you need to study to thoroughly cover the
exam topic material. Table 1-2 shows the topics for the Cisco Secure VPN exam.
Table 1-2
CSVPN Exam Topics
Chapter and Chapter Title
Exam Topics
Chapter 2
1 Cisco products enable a secure VPN
Overview of VPN and IPSec Technologies
2 IPSec overview
3 IPSec protocol framework
4 How IPSec works
Chapter 3
Cisco VPN 3000 Concentrator Series Hardware
Overview
5 Overview of the Cisco VPN 3000 Concentrator
Series
6 Cisco VPN 3000 Concentrator Series models
7 Benefits and features of the Cisco VPN 3000
Concentrator Series
8 Cisco VPN 3000 Concentrator Series Client
support
Chapter 4
9 Overview of remote access using preshared keys
Configuring Cisco VPN 3000 for Remote Access
Using Preshared Keys
10 Initial configuration of the Cisco VPN 3000
Concentrator Series for remote access
11 Browser configuration of the Cisco VPN 3000
Concentrator Series
12 Configure users and groups
13 Advanced configuration of the Cisco VPN
3000 Series Concentrator
14 Configure the IPSec Windows Client
Chapter 5
15 CA support overview
Configuring Cisco VPN 3000 for Remote Access
Using Digital Certificates
16 Certificate generation
17 Validating certificates
18 Configuring the Cisco VPN 3000 Concentrator
Series for CA support
CCSP.book Page 9 Friday, February 28, 2003 3:43 PM
Topics on the Cisco Secure VPN Exam
Table 1-2
9
CSVPN Exam Topics (Continued)
Chapter and Chapter Title
Exam Topics
Chapter 6
19 Overview of software client’s firewall feature
Configuring the Cisco VPN Client Firewall
Feature
20 Software client’s Are You There feature
21 Software client’s Stateful Firewall feature
22 Software client’s Central Policy Protection
feature
23 Client firewall statistics
24 Customizing firewall policy
Chapter 7
Monitoring and Administering the Cisco VPN
3000 Series Concentrator
Chapter 8
Configuring Cisco 3002 Hardware Client for
Remote Access
25 Monitoring the Cisco VPN 3000 Series
Concentrator
26 Administering the Cisco VPN 3000 Series
Concentrator
27 Cisco VPN 3002 Hardware Client remote
access with preshared keys
28 Overview of VPN 3002 interactive unit and
user authentication feature
29 Configuring VPN 3002 integrated unit
authentication feature
30 Configuring VPN 3002 user authentication
31 Monitoring VPN 3002 user statistics
Chapter 9
Configuring Scalability Features of the VPN 3002
Hardware Client
32 Overview of the VPN 3002 Reverse Route
Injection feature
33 Configuring the VPN 3002 backup server
feature
34 Configuring the VPN 3002 load balancing
feature
35 Overview of the VPN 3002 Auto-Update
feature
36 Configuring the VPN 3002 Auto-Update
feature
37 Monitoring VPN 3002 Auto-Update events
38 Overview of Port Address Translation
39 Configuring IPSec over UDP
40 Configuring IPSec over TCP
continues
CCSP.book Page 10 Friday, February 28, 2003 3:43 PM
10
Chapter 1: All About the Cisco Certified Security Professional
Table 1-2
CSVPN Exam Topics (Continued)
Chapter and Chapter Title
Exam Topics
Chapter 10
41 Cisco VPN 3000 IPSec LAN-to-LAN
Cisco VPN 3000 LAN-to-LAN with Preshared
Keys
42 LAN-to-LAN configuration
43 SCEP support overview
44 Root certificate installation
45 Identity certificate installation
Recommended Training Path for the CCSP Certification
The Cisco recommended training path for the CCSP certification is to attend the instructor-led
training courses offered by Cisco Learning Partner. The following courses are designed around
lots of lab work so that you can get practical experience configuring or managing the devices
that you are studying:
•
Securing Cisco IOS Networks (SECUR)—This five-day course is an update to Version 3.0
of the Managing Cisco Network Security (MCNS) course. This task-oriented course
teaches the knowledge and skills needed to secure Cisco IOS router networks.
•
Cisco Secure PIX Firewall Advanced (CSPFA)—This four-day course teaches you how
to describe, configure, verify, and manage all aspects of the PIX Firewall product.
•
Cisco Secure Intrusion Detection System (CSIDS)—This three-day course teaches you
how to use the Cisco Intrusion Detection System to detect and respond to network attacks.
Additionally, you learn how to manage, administer, and monitor your intrusion detection
systems.
•
Cisco Secure VPN (CSVPN)—This four-day course teaches you how to describe,
configure, verify, and manage the Cisco VPN 3000 Concentrator, the Cisco VPN 3.1
Software Client, and the Cisco VPN 3002 Hardware Client.
•
Cisco SAFE Implementation (CSI)—This four-day course teaches you how to
understand and apply the axioms described in the SAFE blueprint as applied to small,
medium, and remote user networks.
Many students find the labs an invaluable learning aid. That fact, coupled with knowledgeable
instructors, helps to make these courses popular and effective. You can couple these training
classes with the associated Cisco Press Exam Certification Guide or Self-Study Guide to obtain
broad knowledge and experience with the subject material in the class and then target that
knowledge and experience toward the specific topics of the exam.
CCSP.book Page 11 Friday, February 28, 2003 3:43 PM
Final Exam Preparation Tips
11
Using This Book to Pass the Exam
Each of the following chapters in this book contains four components, and many contain a fifth
optional component. The four main components within each chapter and the optional
component are as follows:
•
•
•
•
•
A short preassessment quiz titled “Do I Know This Already?”.
A “Foundation Topics” section that contains the major topics of the chapter.
A “Foundation Summary” section that summarizes the key points of the chapter.
A longer postassessment quiz entitled “Q&A”.
The optional section includes scenarios and scenario-related questions and exercises.
Scenarios are included in chapters where the content lends itself to hands-on, criticalthinking exercises. The scenarios section is not included in chapters that are conceptual in
nature; these chapters do not lend themselves to scenario-based questions and exercises.
You should begin each chapter by honestly taking the “Do I Know This Already?” quiz at the
beginning. The questions are all fill-in-the-blank types that ask for objective—rather than
subjective—answers. You can find the answers to the questions in Appendix A. If you miss only
one or two of the questions, you already have a good understanding of the chapter’s material,
and you can opt to skip the chapter and move on to the next.
If you only miss a few questions on the prechapter test, you should plan on studying the
Foundation Summary and completing the Q&A and the Scenarios sections at the end of the
chapter. These three areas should provide the extra information that would allow you to master
the chapter’s material. If you miss any more than four or five questions in the “Do I Know This
Already?” quiz, plan on devoting time to study the entire chapter.
Do not skip the chapter quizzes! You are preparing for an exam that consists of questions about
the subject of VPNs and VPN concentrators. The more questions you attempt that cover the
same topics, the better the odds that you will have seen most of the questions that are on the
exam. Just as a baseball hitter gains confidence by taking batting practice before stepping up to
the plate to face a pitcher, you too can gain confidence by attempting the chapter quizzes before
taking the exam.
Final Exam Preparation Tips
This book contains most of the material that you need to pass the Cisco Secure VPN exam.
Remember, you do not need to know all the answers to pass the exam. Few individuals become
certified having received 100 percent on any of the required exams. For the record, the tests are
only graded Pass or Fail. Passing by one point is just as good as passing with 100 percent as far
as the certification process is concerned.
Although you do not need to answer 100 percent of the questions correctly, you should study
all the material in this book because you do not know what areas will be covered by the test you
CCSP.book Page 12 Friday, February 28, 2003 3:43 PM
12
Chapter 1: All About the Cisco Certified Security Professional
are given. The questions that you get for your exam are drawn from a large pool. The tests
attempt to cover most of the published objectives, but a given test might skip questions for some
objectives.
Take the chapter quizzes. If you do poorly on these quizzes, review the material and take the
quizzes again. Once you can answer 85–90 percent of the questions correctly, move on to the
next chapter. The questions in the chapters are representative of the questions that you encounter
on the exam, but they probably do not cover everything that you will see on the exam. If you
can accept the notion that it’s okay not to ace the CSVPN exam, you will most likely do well.
Try to spend no more than a few days on each chapter, and keep a consistent study schedule.
Information is volatile, and the shorter you can keep your preparation period, the fresher the
information is when you take the exam. If you get off schedule, review the summaries from each
chapter you have completed thus far, retake the end-of-chapter Q&A quizzes for those chapters,
and then move on. When you are within two weeks of completing your study, schedule your
exam so that you have a fixed date to keep you motivated and on target. Before you take the
exam, spend a day reviewing the Foundation Summary material from each chapter and retaking
the “Do I Know This Already?” tests at the beginning of each chapter.
If you can do consistently well on the chapter quizzes, you will pass the CSVPN exam. The
authors wish you good luck in achieving your career certification goals.
CCSP.book Page 13 Friday, February 28, 2003 3:43 PM
CCSP.book Page 14 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
1
Cisco products enable a secure VPN
2
IPSec overview
3
IPSec protocol framework
4
How IPSec works
CCSP.book Page 15 Friday, February 28, 2003 3:43 PM
CHAPTER
2
Overview of VPN and IPSec
Technologies
The Internet is an integral part of business communications today. Corporations use it as
an inexpensive extension of their local- or wide-area networks. A local connection to an
Internet service provider (ISP) enables far-reaching communications for e-commerce,
mobile users, sales personnel, and global business partners. The Internet is cheap, easily
enabled, stable, resilient, and omnipresent. But it is not secure, at least not in its native state.
As a corporate user, you want to shield your communications from misdirection, misappropriation, and misuse, especially if you are discussing trade secrets, personnel issues, or
financial information. Ideally, you want to be able to establish a pipeline through the Internet cloud that goes from point A to point B and shields your data from prying eyes along
the way. TCP/IP is the foundation of the Internet and provides little in the way of security.
That is where Virtual Private Networks (VPNs) come to the rescue. This clever concept can
provide the security that you need with a variety of features. VPNs can provide security
through point-to-point encryption of data, data integrity by ensuring that the data packets
have not been altered en route, and authentication to ensure that the packets are coming
from the right source. VPNs enable an efficient and cost-effective method for secure
communications across the Internet’s public infrastructure. Internet Protocol Security (IPSec)
is the Cisco protocol of choice for establishing VPNs. This chapter provides an overview
of VPNs and IPSec and discusses the technologies that Cisco products bring to this useful
technology.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show that retention is significantly increased through writing facts and concepts
down, even if you never look at the information again.
•
Use the diagram in Figure 2-1 to guide you to the next step.
CCSP.book Page 16 Friday, February 28, 2003 3:43 PM
16
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 16-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into four smaller “quizlets,” which correspond to the four major topic headings in the
chapter. Figure 2-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 2-1 to record your scores.
CCSP.book Page 17 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 2-1
17
Score Sheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section
Covering These Questions
Questions
1
Cisco products enable a secure VPN
1–4
2
IPSec overview
5–8
3
IPSec protocol framework
9–12
4
How IPSec works
13–16
All questions
Score
1–16
1 Which Cisco hardware product families support IPSec VPN technology?
2 What are the two IPSec protocols?
3 Which type of VPNs use a combination of the same infrastructures that are used by the
other two types of VPNs?
4 Which of the Cisco VPN 3000 Series Concentrators is a fixed-configuration device?
5 What key element is contained in the AH or ESP packet header?
CCSP.book Page 18 Friday, February 28, 2003 3:43 PM
18
Chapter 2: Overview of VPN and IPSec Technologies
6 What are the two modes of operation for AH and ESP?
7 How many Security Associations (SAs) does it take to establish bidirectional IPSec
communications between two peers?
8 What is a message digest?
9 Which current RFCs define the IPSec protocols?
10 What message integrity protocols does IPSec use?
11 What is the triplet of information that uniquely identifies a security association?
CCSP.book Page 19 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
19
12 You can select to use both authentication and encryption when using the ESP protocol.
Which is performed first when you do this?
13 What five parameters are required by IKE Phase 1?
14 What is the difference between the deny keyword in a crypto Access Control List (ACL)
and the deny keyword in an access ACL?
15 What transform set would allow SHA-1 authentication of both AH and ESP packets and
would also provide Triple Data Encryption Standard (3DES) encryption for ESP?
16 What are the five steps of the IPSec process?
CCSP.book Page 20 Friday, February 28, 2003 3:43 PM
20
Chapter 2: Overview of VPN and IPSec Technologies
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
2 or less score on any quizlet—Review the appropriate portions of the “Foundation
Topics” section of this chapter, based on Table 2-1. Proceed to the “Foundation Summary”
section and the “Q&A” section.
•
8 or less overall score—Read the entire chapter, including the “Foundation Topics,”
“Foundation Summary” sections, and the “Q&A” section.
•
9 to 12 overall score—Read the “Foundation Summary” section and the “Q&A” section.
If you are having difficulty with a particular subject area, read the appropriate portion of
the “Foundation Topics” section.
•
13 or more overall score—If you feel that you need more review on these topics, go to
the “Foundation Summary” section, then to the “Q&A” section. Otherwise, skip this
chapter and go to the next chapter.
CCSP.book Page 21 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
21
Foundation Topics
Cisco VPN Product Line
1
Cisco products enable a secure VPN
VPNs are typically deployed to provide improved access to corporate resources while providing
tighter control over security at a reduced cost for WAN infrastructure services. Telecommuters,
mobile users, remote offices, business partners, clients, and customers all benefit because
corporations see VPNs as a secure and affordable method of opening access to corporate
information.
Surveys have shown that most corporations implementing VPNs do so to provide access for
telecommuters to access the corporate network from home. They cite security and reduced cost
as the primary reasons for choosing VPN technology and single out monthly service charges as
the cost justification for the decision.
VPN technology was developed to provide private communication wherever and whenever
needed, securely, while behaving as much like a traditional private WAN connection as
possible. Cisco offers a variety of platforms and applications that are designed to implement
VPNs. The next section looks at these various products and Cisco’s recommended usage in the
deployment of VPNs.
Enabling VPN Applications Through Cisco Products
Through product development and acquisitions, Cisco has a variety of hardware and software
components available that enable businesses of all sizes to quickly and easily implement secure
VPNs using IPSec or other protocols. The types of hardware and software components you
choose to deploy depend on the infrastructure you already have in place and on the types of
applications that you are planning to use across the VPN.
This section covers the following topics:
•
•
Typical VPN applications
Using Cisco VPN products
Typical VPN Applications
The business applications that you choose to run on your VPNs go hand in hand with the type
of VPN that you need to deploy. Remote access and extranet users can use interactive applications such as e-mail, web browsers, or client/server programs. Intranet VPN deployments are
designed to support data streams between business locations.
CCSP.book Page 22 Friday, February 28, 2003 3:43 PM
22
Chapter 2: Overview of VPN and IPSec Technologies
The benefits most often cited for deploying VPNs include the following:
•
Cost savings—Elimination of expensive dedicated WAN circuits or banks of dedicated
modems can provide significant cost savings. Third-party Internet service providers (ISPs)
provide Internet connectivity from anywhere at any time. Coupling ISP connectivity with
the use of broadband technologies, such as digital subscriber line (DSL) and cable, not
only cuts the cost of connectivity but can also deliver high-speed circuits.
•
Security—The cost savings from the use of public infrastructures could not be recognized
if not for the security provided by VPNs. Encryption and authentication protocols keep
corporate information private on public networks.
•
Scalability—With VPN technologies, new users can be easily added to the network.
Corporate network availability can be scaled quickly with minimal cost. A single VPN
implementation can provide secure communications for a variety of applications on
diverse operating systems.
VPNs fall into three basic categories:
•
•
•
Remote access
Intranet
Extranet
The following sections cover these three areas in more detail.
Remote Access VPNs
Telecommuters, mobile workers, and remote offices with minimal WAN bandwidth can all
benefit from remote access VPNs. Remote access VPNs extend the corporate network to these
users over publicly shared infrastructures, while maintaining corporate network policies all the
way to the user. Remote access VPNs are the primary type of VPN in use today. They provide
secure access to corporate applications for telecommuters, mobile users, branch offices, and
business partners. These VPNs are implemented over common public infrastructures using
ISDN, dial, analog, mobile IP, DSL, and cable technology. These VPNs are considered ubiquitous
because they can be established any time from practically anywhere over the Internet. E-mail
is the primary application used by these connections, with database and office automation applications following close behind.
Some of the advantages that might be gained by converting from privately managed networks
to remote access VPNs are as follows:
•
•
Modems and terminal servers, and their associated capital costs, can be eliminated.
•
Deployments of new users are simplified, and the increased scalability of VPNs allows
new users to be added without increased infrastructure expenses.
Long-distance and 1-800 number expenses can be dramatically reduced as VPN users dial
in to local ISP numbers, or connect directly through their always-on broadband connections.
CCSP.book Page 23 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
•
23
Turning over the management and maintenance of the dial-up network to third parties
allows a corporation to focus on its business objectives rather than on circuit maintenance.
Although there are many advantages, be aware of the following disadvantages when implementing a VPN solution:
•
IPSec has a slight overhead because it has to encrypt data as they leave the machine and
decrypt data as they enter the machine via the tunnel. Though the overhead is low, it can
impact some applications.
•
For users with analog modem connections to the Internet at 40 kbps or less, VPNs can
cause a slight reduction to throughput speed because the overhead of IPSec takes time to
process the data.
•
IPSec is sensitive to delays. Because the public Internet infrastructure is used, there is no
guarantee of the amount of delay that might be encountered on each connection leg as the
tunneled data traverse the Internet. This should not cause major problems, but it is something to keep in mind. Users might need to periodically reestablish connections if delay
thresholds are exceeded.
Remote access VPNs can initiate tunneling and encryption either on the dial-up client or on the
network access server (NAS). Table 2-2 outlines some of the differences between the two
approaches.
Table 2-2
Remote Access Models
Model Type
Characteristics
Client-initiated
model
Uses IPSec, Layer 2 Tunnel Protocol (L2TP), or Point-to-Point Tunneling Protocol
(PPTP) for establishing the encrypted tunnel at the client.
Ubiquitous. ISP network is used only as a transport vehicle for the encrypted data,
permitting the use of multiple ISPs.
Data is secured end to end from the point of origin (client) to the destination,
permitting the establishment of VPNs over any infrastructure without fear of
compromise.
Third-party security software packages, such as Cisco’s VPN Client, can be used to
provide more enhanced security than system-embedded security software like PPTP.
A drawback is that you must install a VPN Client onto every remote user’s system.
The initial configuration and subsequent maintenance require additional resources
from an organization.
NAS-initiated
model
VPNs are initiated at the service provider’s point of presence (POP) using L2TP or
Layer 2 Forwarding (L2F).
Eliminates the need for client-based VPN software, simplifying installation and
reducing administrative cost.
A drawback is that the data circuits from the POP to the client remain unprotected.
Another drawback is that you must use the same service provider end to end,
eliminating the Internet as a transport vehicle.
CCSP.book Page 24 Friday, February 28, 2003 3:43 PM
24
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-2 depicts the two types of remote access VPNs that can be accommodated by Cisco
equipment and software.
Figure 2-2
Remote Access VPNs
Client-Initiated
VPN
Home
Office
IPSec - PPTP - L2TP - Tunnel
VPN Cloud
(Internet, IP)
L2TP - L2F - Tunnel
NAS
Public
Switched
Telephone
Network
NAS-Initiated
VPN
Site-to-Site Intranet VPNs
You can use site-to-site intranet VPNs to connect remote offices and branch offices to the
headquarters internal network over a shared infrastructure. These connections typically use
dedicated circuits to provide access to employees only. These VPNs still provide the WAN
characteristics of scalability, reliability, and support for a variety of protocols at a reduced cost
in a flexible manner.
Intranet VPNs are typically built across service provider-shared network infrastructures like
Frame Relay, Asynchronous Transfer Mode (ATM), or point-to-point circuits. Some of the
benefits of using intranet VPNs include the following:
•
•
Reduction of WAN costs, especially when used across the Internet.
•
Ease of connecting new sites to the existing infrastructure.
Partially or fully meshed networks can be established, providing network redundancy
across one or more service providers.
CCSP.book Page 25 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
25
Figure 2-3 shows a diagram of a typical intranet VPN network. The corporation manages the
edge routers, providing flexible management and maintenance opportunities over intranet
VPNs.
Figure 2-3
Intranet VPNs
Remote
Office
Home
Office
VPN
Remote
VPN
Office
Internet/IP
VPN
Business-to-Business Extranet VPNs
Business-to-business extranet VPNs are the VPNs that give corporate network access to
customers, suppliers, business partners, or other interested communities who are not employees
of the corporation. Extranet VPNs use a combination of the same infrastructures that are used
by remote access and intranet VPNs. The difference is found in the privileges that are extended
to the extranet users. Security policies can limit access by protocol, ports, user identity, time of
day, source or destination address, or other controllable factors.
Fixed, business-to-business connections and ubiquitous dial-up or broadband Internet
connections are depicted in Figure 2-4.
CCSP.book Page 26 Friday, February 28, 2003 3:43 PM
26
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-4
Extranet VPNs
Business
Partner
Home
Office
VPN
NAS
Internet/IP
VPN
Public
Switched
Telephone
Network
Dial-Up
Business
Partner
Using Cisco VPN Products
Cisco can supply hardware and software to cover almost every possible VPN requirement.
From routers and firewalls for intranet applications to VPN concentrators and clients for
remote access applications, this section introduces you to some of the key features of Cisco
VPN products.
CCSP.book Page 27 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
27
Cisco VPN Routers
Cisco VPN routers are the best choice for constructing intranet or extranet site-to-site VPNs.
These routers use Cisco IOS Software and can be used to deliver multicast, routing, and multiprotocol across the VPN. You can enable quality of service (QoS) on these devices, and the
firewall feature option can turn these routers into robust firewalls. Some routers also have integrated DSL and cable modems to provide VPN access to small offices/home offices (SOHOs).
Some VPN routers can be equipped with special modules to handle encryption processing for
VPN tunnels. These modules free memory and CPU cycles that can then be used for switching
packets, which is the routers’ primary function.
These VPN routers offer the full range of VPN protocols and services. Table 2-3 shows some
of the Cisco routers that are available for VPN service and identifies the application where they
would most likely be applied.
Table 2-3
Cisco VPN Routers
Site
Model
SOHO
Cisco 827H ADSL
Remote access VPN Router
VPN Performance Features
384 kbps
Fixed configuration
Up to 50 tunnels
Integrated DSL modem
Extranet VPN
4-port 10BaseT hub
Support for EzVPN Remote
SOHO
Cisco uBR905 Cable
Remote access VPN Router
6 Mbps
Fixed configuration
Up to 50 tunnels
Integrated cable modem
Extranet VPN
4-port 10BaseT hub
Support for EzVPN Remote
and Server
SOHO
Cisco 806 Broadband
Remote access VPN Router
384 kbps
Fixed configuration
Up to 50 tunnels
Installed behind broadband
modem
Extranet VPN
10BaseT Ethernet WAN
interface
4-port 10BaseT LAN hub
Support for EzVPN Remote
SOHO
Remote access VPN
Extranet VPN
Cisco 1710 Router
3 Mbps
Fixed configuration
Up to 100 tunnels
10/100 Fast Ethernet port
10BaseT Ethernet port
Support for EzVPN Remote
and Server
continues
CCSP.book Page 28 Friday, February 28, 2003 3:43 PM
28
Chapter 2: Overview of VPN and IPSec Technologies
Table 2-3
Cisco VPN Routers (Continued)
Site
Model
VPN Performance Features
Small remote office
4 Mbps
Modular configuration
Support for VPN Module
Intranet VPN
Up to 100 tunnels
with VPN Module
14 Mbps
Modular configuration
Up to 800 tunnels
with VPN Module
Support for VPN Module
40 Mbps
Modular configuration
Up to 1800 tunnels
with VPN Module
Support for VPN Module
145 Mbps
Modular configuration
Up to 5000 tunnels
with VPN
Acceleration Module
(VAM)
Supports VAM
145 Mbps
Modular configuration
Up to 5000 tunnels
with VAM
Supports VAM
Cisco 1700 Router
Remote access VPN Series
Extranet VPN
Branch office
Intranet VPN
Cisco 2600 Router
Series
Extranet VPN
Large branch office
Intranet VPN
Cisco 3600 Router
Series
Extranet VPN
Central hub site
Intranet VPN
Cisco 7100 Router
Series
Extranet VPN
Central hub site
Intranet VPN
Extranet VPN
Cisco 7200 Router
Series
Support for EzVPN Remote
and Server
Support for EzVPN Server
Support for EzVPN Server
Support for EzVPN Server
Support for EzVPN Server
Cisco PIX Firewalls
The next set of major hardware components that support VPNs are the series of Cisco PIX Firewalls. The PIX Firewalls feature a hardened, purpose-built operating system and provide a wide
range of security and networking services. Along with IPSec VPN support, the PIX Firewalls
also support PPTP and L2TP VPNs from Microsoft Windows clients. Network Address Translation (NAT), Port Address Translation (PAT), content and URL filtering, Remote Authentication Dial-In User Service (RADIUS) and Terminal Access Controller Access Control System
Plus (TACACS+) AAA support, Dynamic Host Configuration Protocol (DHCP), and X.509
Public Key Infrastructure (PKI) are some of the features that are supported on these devices.
Some of the PIX Firewalls can accept special VPN modules to handle the CPU- and memoryintensive IPSec encryption process. Cisco PIX Firewalls support a range of operating systems
as VPN Clients as well as Cisco’s hardware VPN 3002 Client. Table 2-4 depicts the current
series of PIX Firewalls, identifies their VPN capabilities, and shows some of the features of the
devices.
CCSP.book Page 29 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
Table 2-4
29
Cisco PIX Firewalls
Site
Model
VPN Performance Features
SOHO
3 Mbps
Fixed configuration
Intranet VPN
Up to 5
simultaneous VPN
peers
Up to 10 Mbps of firewall
throughput
Cisco PIX 501
Remote access VPN Firewall
Extranet VPN
Ideal for securing always-on
broadband connections
10BaseT outside interface
Integrated 4-port 10/100 switch
Support for EzVPN Client
Remote
office/branch office
(ROBO)
Cisco PIX 506E
Firewall
Remote access VPN
16 Mbps
Fixed configuration
Up to 25
simultaneous VPN
peers
Up to 20 Mbps of firewall
throughput
63 Mbps
Modular configuration
Up to 2000 tunnels
with VPN
Accelerator Card
(VAC)
Support for up to 125,000
concurrent connections
Intranet VPN
10BaseT outside and inside
interfaces
Extranet VPN
Small- to mediumsize business
Intranet VPN
Extranet VPN
Cisco PIX 515E
Firewall
Capacity for up to 6 10/100
Fast Ethernet (FE) interfaces
Support for 2 single-port FE
modules or one 4-port FE
module
Failover port for high
availability
Support for VAC
continues
CCSP.book Page 30 Friday, February 28, 2003 3:43 PM
30
Chapter 2: Overview of VPN and IPSec Technologies
Table 2-4
Cisco PIX Firewalls (Continued)
Site
Model
VPN Performance Features
Enterprise and
service provider
Cisco PIX 525
Firewall
70 Mbps
Modular configuration
Up to 2000 tunnels
with VAC
Support for up to 280,000
concurrent connections
Intranet VPN
Extranet VPN
Support for single-port or fourport 10/100 Fast Ethernet
interfaces
Support for Gigabit Ethernet
interfaces
Failover port for high
availability
Support for VAC
Enterprise and
service provider
Cisco PIX 535
Firewall
Intranet VPN
Extranet VPN
95 Mbps
Modular configuration
Up to 2000 tunnels
with VAC
Support for up to 500,000
concurrent connections
Support for single-port or fourport 10/100 Fast Ethernet
interfaces
Support for 66-MHz Gigabit
Ethernet interface
Failover port for high
availability
Support for VAC
Cisco VPN 3000 Concentrators
Cisco identified the need for a purpose-built, remote access VPN device and developed the
Cisco VPN 3000 Series Concentrator family of products. While much of the rest of this book
deals with these devices, this section introduces them along with the other VPN products.
The Cisco VPN 3000 Series Concentrator was designed to be a high-performance, scalable
solution offering high availability and state-of-the-art encryption and authentication techniques.
Scalable Encryption Processor (SEP) modules can be easily used to add capacity and
throughput.
The Cisco VPN 3000 Series Concentrator comes in a variety of models that can support small
offices of 100 or fewer VPN connections to large enterprises of 10,000 or more simultaneous
VPN connections. Redundant and nonredundant configurations are available to help ensure the
high reliability of these devices. Cisco VPN 3000 Concentrators also support wireless clients
such as Personal Digital Assistants (PDAs) and Smart Phones. Mobile professionals using
CCSP.book Page 31 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
31
Cisco Mobile Office can quickly and securely connect to the Cisco VPN 3000 Series
Concentrator from airports, hotels, client offices, or other remote locations.
Table 2-5 describes the current Cisco VPN 3000 Series Concentrator line.
Table 2-5
Cisco VPN 3000 Series Concentrators
Concentrator
Features
Cisco VPN 3005 Concentrator
Fixed configuration
Supports up to 100 simultaneous sessions
Cisco VPN 3015 Concentrator
Upgradeable to 3030 Concentrator
Supports up to 100 simultaneous sessions
Cisco VPN 3030 Concentrator
Accepts SEP modules
Upgradeable to 3060 Concentrator
Supports up to 1500 simultaneous sessions
Redundant and nonredundant configurations available
Cisco VPN 3060 Concentrator
Accepts SEP modules
Upgradeable to 3080 Concentrator
Supports up to 5000 simultaneous sessions
Redundant and nonredundant configurations available
Cisco VPN 3080 Concentrator
Accepts SEP modules
Supports up to 10,000 simultaneous sessions
Fully redundant configuration only
VPN Clients
Cisco has several VPN Clients available that can simplify the administration and maintenance
of VPN connections. This section covers the software and hardware VPN Clients offered by
Cisco.
Cisco VPN Client
Sometimes called the Unity Client, the Cisco VPN Client is the current iteration of the Cisco
VPN 3000 Client. This software comes bundled as a no-cost extra with Cisco VPN 3000 Series
Concentrators and allows end stations to establish IPSec VPNs to any Cisco remote access VPN
product at a central site. Although relatively easy to configure, the client can be preconfigured
for mass deployments, making the initial configuration even easier. This method of installation
is performed by pushing the client to the user’s system upon initial login to the network, making
the application of the Cisco VPN Client scalable. The Cisco VPN Client supports an assortment
of operating systems, including versions of Linux, Solaris, MAC OS, and Windows 95, 98, Me,
CCSP.book Page 32 Friday, February 28, 2003 3:43 PM
32
Chapter 2: Overview of VPN and IPSec Technologies
NT 4.0, 2000, and XP. This client is covered more extensively in Chapter 3, “Cisco VPN 3000
Concentrator Series Hardware Overview,” and Chapter 4, “Configuring Cisco VPN 3000 for
Remote Access Using Preshared Keys.”
Cisco VPN 3002 Hardware Client
An alternative solution to deploying software clients on every connecting workstation is to use
the Cisco VPN 3002 Hardware Client. These devices are deployed at remote office facilities and
can provide a VPN tunnel for the entire facility and any operating system that communicates in
IP, including Windows, Solaris, MAC, and Linux.
The Cisco VPN 3002 Hardware Client supports Easy VPN (EzVPN) Remote, allowing the
device to establish IPSec VPN connections with any EzVPN Server system. These hardware
clients can be configured to operate like a software client or to establish a permanent, secure
VPN connection with the central site. The Cisco VPN 3002 Hardware Client can be configured
with or without an integrated 8-port 10/100 Ethernet switch.
Cisco Easy VPN
In the past, configuring VPNs between devices was a chore. Both ends of the VPN connection
had to be configured identically, or the VPN tunnel could not be established. With the introduction of Easy VPN (EzVPN), Cisco has changed that. EzVPN has two components: Cisco Easy
VPN Remote and Cisco Easy VPN Server. Once you have configured EzVPN Server on a
device, you can configure an EzVPN Remote device to establish IPSec with it by simply supplying the correct password. Table 2-6 identifies the devices that support each of the EzVPN
components.
Table 2-6
Cisco Easy VPN
Component
Cisco Easy VPN Remote
Cisco Model
Cisco 800 Series Routers
Cisco 1700 Series Routers
Cisco uBR900 Series Routers
Cisco PIX 501 Firewalls
Cisco VPN 3002 Hardware Clients
Cisco Easy VPN Server
Cisco IOS Software version 12.2(8)T Routers, including 1700 Series,
7100 Series, 7200 Series, as well as other Cisco IOS Routers.
Cisco PIX Firewalls
Cisco VPN 3000 Series Concentrators
Because the EzVPN Remote and Server are built upon the Cisco Unified Client Framework, a
Cisco Easy VPN Server can terminate Cisco VPN Client connections that originate with mobile
CCSP.book Page 33 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
33
users or telecommuters. EzVPN is an ideal solution for businesses with many remote facilities
and little or no IT support at those facilities. EzVPNs are a highly scalable and secure method
of deploying VPNs across widely dispersed organizations.
Wireless Client Support
Also bundled with Cisco VPN 3000 Series Concentrators is a trial copy of Certicom Corporation’s Movian VPN Client. This client is an Elliptic Curve Cryptosystem (ECC)–compliant
VPN client for use with IP-enabled wireless devices such as PDAs and Smart Phones. All Cisco
VPN 3000 Series Concentrators support ECC, which is a new Diffie-Hellman group that allows
faster processing of keying information. Ideal for devices with limited processing power, these
ECC-compliant VPN clients open the world of secure VPN connectivity to a new class of users.
Cisco Internet Mobile Office
The Cisco Internet Mobile Office is a program that aims to bring secure, flexible, manageable,
and scalable VPN support to users on the road, at home, and at work. In fact, the three phases
of Cisco Mobile Office are called On The Road, At Home, and At Work.
Cisco Mobile Office On The Road is a global collaborative effort designed to provide secure,
high-speed Internet and intranet access from public facilities such as airports and hotels. Using
wireless LANs and many of the routers, firewalls, and concentrators that have been discussed
in this chapter, accompanied by similar Cisco Mobile Office At Work networks and remote
access devices for at-home connectivity, the Cisco Mobile Office provides a seamless
networking environment for mobile professionals.
Management Software
Cisco provides a robust selection of management tools to help manage and maintain Cisco
devices and supported protocols, including VPNs. There is some overlap in the capabilities of
these tools, and you might want to choose one product over another. Many of these tools are
web based, using standard web browsers and simplifying their administration and maintenance.
The following sections discuss several of those tools.
Cisco VPN Device Manager
The Cisco VPN Device Manager (VDM) is an embedded device manager that is installed
directly into a supporting router’s flash memory. VDM then allows management of that router
from a web browser using wizards to simplify the management process. VDM is currently
supported on Cisco 7100, 7200, and 7400 Series Routers, allowing the simplified configuration
of VPNs. A monitoring and graphing capability allows an administrator to view and graph
statistics on VPN tunnel throughput, traffic volume, system utilization, tunnel counts, and
CCSP.book Page 34 Friday, February 28, 2003 3:43 PM
34
Chapter 2: Overview of VPN and IPSec Technologies
errors. VDM is a no-cost option for these routers and can either be ordered with the router or
downloaded from Cisco.com.
CiscoWorks 2000
CiscoWorks 2000 is a family of network management tools that enable you to manage the
protocols and Cisco products in your network. This comprehensive set of tools is modular, with
overlapping components in some areas. The following list identifies some of the components
found in the CiscoWorks family:
•
•
•
•
•
•
•
•
•
•
•
•
•
Cisco Catalyst 6500 Network Analysis Module (NAM)
Cisco Hosting Solution Engine
Cisco Secure Access Control Server (ACS)
Cisco User Registration Tool (URT)
CiscoWorks for Windows
CiscoWorks LAN Management Solution (LMS)
CiscoWorks QoS Policy Manager (QPM)
CiscoWorks Routed WAN (RWAN) Management Solution
CiscoWorks Small Network Management Solution (SNMS)
CiscoWorks Voice Manager (CVM)
CiscoWorks VoIP Health Monitor (VoIP-HM)
CiscoWorks VPN/Security Management Solution (VMS)
CiscoWorks Wireless LAN Solution Engine (WLSE)
These products provide extensive monitoring and management capabilities for your Cisco
network. Two of these product families have more direct ties to VPN control than the others:
Cisco Secure Access Control Server (ACS) and CiscoWorks VMS.
Part of the CiscoWorks product line, the Cisco Secure ACS is Cisco’s Authentication,
Authorization, and Accounting (AAA) server. This device supports both TACACS+ and
RADIUS. Sporting a web-based, graphical interface, this product is easy to install and
administer.
AAA is supported on a many products and services, including routers, firewalls, concentrators,
VPNs, switches, DSL and cable solutions, voice over IP (VoIP), and wireless solutions. You
can team up Cisco Secure ACS servers to provide failover support with automatic database
synchronization between servers. Cisco Secure ACS allows you to establish groups for easy
application of restrictions, such as time of day and day of week.
CCSP.book Page 35 Friday, February 28, 2003 3:43 PM
Enabling VPN Applications Through Cisco Products
35
Cisco Secure ACS comes in the following configurations:
•
Cisco Secure for NT—Cisco Secure ACS for NT version 3.0 requires either a Microsoft
Windows NT 4.0 Server or a Microsoft Windows 2000 Server. Cisco Secure ACS for
NT version 3.1 operates only on the Windows 2000 platform.
•
Cisco Secure for UNIX—Cisco Secure ACS for UNIX runs on the Sun Solaris operating
system, versions 2.51, 2.6, 7, and 8.
CiscoWorks VPN/Security Management Solution (VMS) is a highly scalable solution for
configuring, monitoring, and troubleshooting remote access, intranet, and extranet VPNs for
small- and large-scale VPN deployments. VMS can also be used to configure network perimeter
security. This CiscoWorks bundled solution consists of CiscoWorks VPN Monitor, Cisco IDS
Host Sensor, CiscoWorks Auto Update Server Software, CiscoWorks CiscoView, CiscoWorks
CD One, CiscoWorks Common Services Software, CiscoWorks Management Center for IDS
Sensors, CiscoWorks Management Center for PIX Firewalls, CiscoWorks Management Center
for VPN Routers, CiscoWorks Monitoring Center for Security, and CiscoWorks Resource
Manager Essentials. Some of these products are discussed in more depth in the following list:
•
CiscoWorks VPN Monitor—This is a web-based management tool that supports Cisco
VPN 3000 Series Concentrators as well as the 1700, 2600, 3600, 7100, and 7200 VPN
Routers. VPN Monitor collects, stores, and presents information on IPSec VPN connections used in remote access or site-to-site configurations. Graphical monitoring lets
administrators view IPSec VPN status at a glance and helps troubleshoot problems
through drill-down and graphing capabilities.
•
Cisco IDS Host Sensor—This is a system of agent and console components that turn
critical Windows or Sun servers into intrusion detection sensors. Cisco IDS Host Sensor
detects and prevents attacks before unauthorized transactions can occur.
IDS Host Sensor agents are available for Microsoft Windows NT or 2000 Server, and for
Sun Solaris Ultrasparc systems running Solaris versions 2.6, 7, and 8. IDS Host Sensor
consoles are available for Microsoft Windows NT or 2000 Server.
The agent software running on a critical server obtains configuration and attack signatures
from the console systems. If an attack occurs, the agent takes appropriate action to thwart
the attack and reports the attempt to the console for immediate alerts or subsequent
reporting.
•
CiscoView—This is a web-based management tool that displays a physical representation
of each managed device. Modules, ports, and indicators are depicted with color coding to
indicate the current, dynamically updated status of the element. Performance and other
statistics can be viewed through comprehensive monitoring capabilities. Administrators
with the appropriate security privileges can also modify configurations on monitored
devices.
CCSP.book Page 36 Friday, February 28, 2003 3:43 PM
36
Chapter 2: Overview of VPN and IPSec Technologies
•
CiscoWorks Resource Management Essentials (RME)—Cisco switches, access
servers, and routers can be managed through this product. RME is a suite of applications
designed to provide central management of these devices. RME includes Inventory
Manager, Change Audit, Device Configuration Manager, Software Image Manager,
Availability Manager, Syslog Analyzer, and Cisco Management Connection.
An Overview of IPSec Protocols
2
IPSec overview
3
IPSec protocol framework
IP Security Protocol (IPSec) is a collection of open standards that work together to establish
data confidentiality, data integrity, and data authentication between peer devices. These peers
can be pairs of hosts or pairs of security gateways (routers, firewalls, VPN concentrators, and
so on), or they can be between a host and a security gateway, as in the case of remote access
VPNs. IPSec can protect multiple data flows between peers, and a single gateway can support
many simultaneous, secure IPSec tunnels between different pair partners.
IPSec works at the IP layer and can use the Internet Key Exchange (IKE) protocol to negotiate
protocols between peers and generate encryption and authentication keys to be used by IPSec.
IPSec was first described in a series of Requests for Comment (RFCs) from RFC 1825 through
RFC 1829. RFCs 1825, 1826, and 1827 have since been updated by subsequent RFCs. Table 2-7
presents a list of the IPSec-related RFCs.
Table 2-7
IPSec RFCs
RFC
Title
Topic
Author
Date
1825
Security Architecture for the Internet
(obsolete) Protocol
IPSec
R. Atkinson
Aug. 1995
1826
IP Authentication Header
(obsolete)
AH
R. Atkinson
Aug. 1995
1827
IP Encapsulating Security Payload (ESP)
(obsolete)
ESP
R. Atkinson
Aug. 1995
1828
MD5
P. Metzger
Aug. 1995
IP Authentication Using Keyed MD5
W. Simpson
1829
The ESP DES-CBC Transform
DES
P. Karn
P. Metzger
W. Simpson
Aug. 1995
CCSP.book Page 37 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
Table 2-7
37
IPSec RFCs (Continued)
RFC
Title
Topic
2104
HMAC: Keyed-Hashing for Message
Authentication
HMAC
Author
Date
K. Krawczyk
Feb. 1997
M. Bellare
R. Canetti
2202
2401
2402
Test Cases for HMAC-MD5 and
HMAC-SHA-1
HMAC-MD5
Security Architecture for the Internet
Protocol
IPSec
IP Authentication Header
AH
P. Cheng
Sep. 1997
HMAC-SHA-1 R. Glenn
S. Kent
Nov. 1998
R. Atkinson
S. Kent
Nov. 1998
R. Atkinson
2403
2404
2405
2406
The Use of HMAC-MD5-96 within ESP
and AH
HMAC-MD5
C. Madson
The Use of HMAC-SHA-1-96 within
ESP and AH
HMAC-SHA-1 C. Madson
The ESP DES-CBC Cipher Algorithm
With Explicit IV
DES
IP Encapsulating Security Payload (ESP)
ESP
Nov. 1998
R. Glenn
Nov. 1998
R. Glenn
C. Madson
Nov. 1998
N. Doraswamy
S. Kent
Nov. 1998
R. Atkinson
2407
The Internet IP Security Domain of
Interpretation for ISAKMP
ISAKMP
D. Piper
Nov. 1998
2408
Internet Security Association and Key
Management Protocol
ISAKMP
D. Maughan
Nov. 1998
M. Schertler
M. Schneider
J. Turner
2409
The Internet Key Exchange (IKE)
IKE
D. Harkins
Nov. 1998
D. Carrel
2410
2451
The NULL Encryption Algorithm and Its
Use With IPSec
NULL
The ESP CBC-Mode Cipher Algorithms
CBC
R. Glenn
Nov. 1998
S. Kent
R. Periera
R. Adams
Nov. 1998
CCSP.book Page 38 Friday, February 28, 2003 3:43 PM
38
Chapter 2: Overview of VPN and IPSec Technologies
This is not an exhaustive list of IPSec-related RFCs, but you can find these RFCs and others at
the Internet Engineering Task Force (IETF) website:
www.ietf.org/rfc.html
Specific RFCs that relate to IPSec can be found at the following website:
www.ietf.org/html.charters/ipsec-charter.html
Notice that just three years after IPSec was introduced, a veritable army of IPSec tools was
developed and quickly accepted by the networking industry.
Some things to remember when you are planning an IPSec deployment are as follows:
•
IPSec supports High-Level Data-Link Control (HDLC), ATM, Point-to-Point Protocol
(PPP), and Frame Relay serial encapsulation.
•
IPSec also works with Generic Routing Encapsulation (GRE) and IP-in-IP (IPinIP)
Encapsulation Layer 3 tunneling protocols. IPSec does not support the data-link switching
(DLSw) standard, source-route bridging (SRB), or other Layer 3 tunneling protocols.
•
•
IPSec does not support multipoint tunnels.
•
IPSec is slower than Cisco Encryption Technology (CET) because IPSec provides perpacket data authentication.
•
IPSec provides packet expansion that can cause fragmentation and reassembly of IPSec
packets, creating another reason that IPSec is slower than CET.
•
When using NAT, be sure that NAT occurs before IPSec encapsulation so that IPSec has
global addresses to work with.
IPSec works strictly with unicast IP datagrams only. It does not work with multicast or
broadcast IP datagrams.
Table 2-7 shows the major protocols that you can encounter when working with IPSec. The
following is a quick review of these standard protocols:
•
IP Security Protocol (IPSec)
— Authentication Header (AH)
— Encapsulating Security Payload (ESP)
•
Message Encryption
— Data Encryption Standard (DES)
— Triple DES (3DES)
•
Message Integrity (Hash) Functions
— Hash-based Message Authentication Code (HMAC)
— Message Digest 5 (MD5)
— Secure Hash Algorithm-1 (SHA-1)
CCSP.book Page 39 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
•
39
Peer Authentication
— Rivest, Shamir, and Adelman (RSA) Digital Signatures
— RSA Encrypted Nonces
•
Key Management
— Diffie-Hellman (D-H)
— Certificate Authority (CA)
•
Security Association
— Internet Key Exchange (IKE)
— Internet Security Association and Key Management Protocol (ISAKMP)
NOTE
IKE and ISAKMP are interchangeable in Cisco implementations.
These protocols are examined in more detail in the following sections.
The IPSec Protocols
The protocols that IPSec uses to provide traffic security are Authentication Header (AH)
and Encapsulating Security Payload (ESP). These two protocols are considered purely IPSec
protocols and were developed strictly for IPSec. Each protocol is described in its own RFC,
which was identified in Table 2-7. You can use AH and ESP independently on an IPSec
connection, or you can combine their use.
IKE and IPSec negotiate encryption and authentication services between pairs. This negotiation
process culminates in establishing Security Associations (SAs) between security pairs. IKE
SAs are bidirectional, but IPSec SAs are unidirectional and must be established by each
member of the VPN pair to establish bidirectional traffic. There must be an identical SA on each
pair to establish secure communications between pairs. The information associated with each
SA is stored in a Security Association Database, and each SA is assigned a Security Parameters
Index (SPI) number that, when combined with the destination IP address and the security
protocol (AH or ESP), uniquely identifies the SA.
The key to IPSec is the establishment of these SAs. SAs are negotiated once at the beginning
of an IPSec session and periodically throughout a session when certain conditions are met. To
avoid having to negotiate security for each packet, there had to be a way to communicate the
use of an already agreed upon SA between security pairs.
That is where the AH and ESP protocols come into use. These two protocols are simply a means
of identifying which prenegotiated security features to use for a packet going from one peer to
another. Both of these protocols add an extra header to the IP datagram between the Layer 3
CCSP.book Page 40 Friday, February 28, 2003 3:43 PM
40
Chapter 2: Overview of VPN and IPSec Technologies
(IP) and Layer 4 (usually TCP or UDP) protocol headers. A key element contained in each
protocol’s header is the SPI, giving the destination peer the information it needs to authenticate
and decrypt the packet.
Authentication Header
The Authentication Header (AH) protocol is defined in RFCs 1826 and 2402 and provides for
data integrity, data origin authentication, and an optional antireplay service. AH does not
provide encryption, which means that the packets are sent as clear text. AH is slightly quicker
than ESP, so you might choose to use AH when you need to be certain of the source and integrity
of the packet but confidentiality is not a concern.
Devices configured to use AH insert an extra header into the IP datagrams of “interesting
traffic,” between the IP header and the Layer 4 header. Because a processing cost is associated
with IPSec, VPNs can be configured to choose which traffic to secure, and IPSec and non-IPSec
traffic can coexist between security pairs. You might choose to secure e-mail traffic but not web
traffic, for example. The process of inserting the AH header is shown in Figure 2-5.
Figure 2-5
AH Header in IPSec Datagram
Original IP
Original Layer 4
Header
Header
Original IP
Header
IPSec AH
Next Header
Data
Original Layer 4
Data
Header
Payload Length
Reserved
Security Parameters Index (SPI)
Sequence Number Field
Authentication Data (Variable Length - Integral Multiple of 32 Bits)
32 Bits
CCSP.book Page 41 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
41
The fields included in the AH are as follows:
•
Next Header (8 bits)—This field contains the protocol number of the Layer 4 header that
follows the IPSec header. If the Layer 4 protocol were TCP, this field would contain the
number 6. For UDP, it would contain the number 17.
The Next Header or Protocol value within the IP header preceding the IPSec header
contains the value of 51 when AH is used as the IPSec protocol.
NOTE
•
Payload Length (8 bits)—This field contains the length of the IPSec header in 32-bit
words, minus 2. The fixed portion of the header is 96 bits long, or 3 words. The
Authentication Data portion is of variable length but has a standard length of 96 bits,
also 3 words. That makes a total of six 32-bit words. Deduct 2 and the value entered in
the Payload Length field would be 4.
•
•
Reserved (16 bits)—Currently unused, this portion of the header must be filled with 0s.
•
Sequence Number Field (32 bits)—This is an unsigned, monotonically increasing
counter that enables antireplay services for a specific SA. This information does not have
to be used by the receiving peer, but it must be included by the sender. This number is
initialized to 0 when an SA is established. If antireplay is used, this number can never be
allowed to repeat. Because the sender does not know if the receiver is using the antireplay
function, the fact that this number cannot be repeated requires that the SA be terminated
and a new one established prior to transmitting the 232 packet.
•
Authentication Data (Variable)—This field contains the Integrity Check Value (ICV) for
the packet. The field must be an integral multiple of 32 bits and can contain padding to fill
it out to the next 32-bit increment.
Security Parameters Index (SPI) (32 bits)—The destination IP address, the IPSec
protocol, and this number uniquely identify the SA for this packet.
The ICV is computed using authentication algorithms, including keyed Message Authentication Codes (MACs). MACs are based on symmetric encryption algorithms, such as
DES and 3DES, or on one-way functions, such as MD5 or SHA-1. When computing the
ICV, the computation is done using the entire new packet. To keep the elements aligned
properly, any mutable fields that cannot be predicted and the Authentication Data field of
the IPSec header are set to 0. Predictable, mutable fields are set to their predictable value.
Upper-layer data are assumed to be immutable. A shared secret key is used in the MAC
calculation, making it difficult to spoof.
Each peer at the end of the VPN calculates this ICV independently. If these ICVs do not
match, the packet is discarded, thereby assuring that the packet has not been tampered
with during transit.
CCSP.book Page 42 Friday, February 28, 2003 3:43 PM
42
Chapter 2: Overview of VPN and IPSec Technologies
Encapsulating Security Payload
The other IPSec protocol is the Encapsulating Security Payload (ESP) protocol. This protocol
provides confidentiality by enabling encryption of the original packet. Additionally, ESP
provides data origin authentication, integrity, antireplay service, and some limited traffic flow
confidentiality. This is the protocol to use when you require confidentiality in your IPSec
communications.
ESP acts differently than does AH. As its name implies, ESP encapsulates all or portions of the
original IP datagram by surrounding it with both a header and a trailer. Figure 2-6 shows this
encapsulation process.
Figure 2-6
ESP Encapsulation Process
Original IP
Original Layer 4
Header
Header
Data
Original IP
IPSec ESP
Original Layer 4
Header
Header
Header
SPI
IPSec ESP
Data
Sequence
Trailer
Padding
Number
Pad
Next
Length
Header
ICV
Figure 2-7 shows more detail about the lengths and placement of the various ESP components.
Encapsulating Security Payload
Security Parameters Index (SPI)
Sequence Number Field
Payload Data (Variable Length - Integral Number of Bytes)
Padding (0-255 Bytes)
Pad Length
Authentication Data (Variable Length) (Optional)
32 Bits
Next Header
Encryption
Coverage
Authentication
Coverage
Figure 2-7
CCSP.book Page 43 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
43
The fields included in the ESP are as follows:
•
Security Parameters Index (SPI) (32 bits)—The destination IP address, the IPSec
protocol, and this number uniquely identify the SA for this packet.
•
Sequence Number Field (32 bits)—This is an unsigned, monotonically increasing
counter that enables antireplay services for a specific SA. This information does not have
to be used by the receiving peer, but it must be included by the sender. This number is
initialized to 0 when an SA is established. If antireplay is used, this number can never be
allowed to repeat. Because the sender does not know if the receiver is using the antireplay
function, the fact that this number cannot be repeated requires that the SA be terminated
and a new one established prior to transmitting the 232 packet.
•
Payload (Variable)—This is the original IP datagram or portions of that datagram.
Whether this is the entire datagram depends on the mode used. When using tunnel mode,
this Payload includes the entire original IP datagram. In transport mode, it includes only
the upper-layer portions of the original IP datagram. IPSec modes are discussed in an
upcoming section. The length of the Payload is always an integral number of bytes.
•
Padding (0–255 bytes)—The Pad Length and Next Header fields must be right aligned
within a 4-byte (32-bit) boundary, as shown in Figure 2-7. If the Payload does not
accomplish this, padding must be added to ensure this alignment. Additionally, padding
can be added to support the multiple block size requirements of encryption algorithms.
Padding can also be added to conceal the true length of the Payload.
•
Pad Length (8 bits)—This field contains the number of bytes of padding that were
included in the previous field.
•
Next Header (8 bits)—This field contains the protocol number of the Layer 4 header that
follows the IPSec header. If the Layer 4 protocol were TCP, this field would contain the
number 6. For UDP, it would contain the number 17.
The Next Header or Protocol value within the IP header preceding the IPSec header
contains the value of 50 when ESP is used as the IPSec protocol.
NOTE
•
Authentication Data (Variable)—This field contains the ICV for the packet. The field
must be an integral multiple of 32 bits and can contain padding to fill it out to the next
32-bit increment. This field is optional when authentication has been specified in the SA.
Figure 2-7 shows the data areas that are covered by encryption and authentication. If encryption
is specified in the SA, the fields from Payload through Next Header are encrypted. If authentication is specified, that occurs on the immutable fields from the SPI field through the Next
Header field.
CCSP.book Page 44 Friday, February 28, 2003 3:43 PM
44
Chapter 2: Overview of VPN and IPSec Technologies
AH and ESP Modes of Operation
The previous discussion talked about the AH and ESP protocols using several examples that
showed sliding the IP header of an IP datagram to the left, inserting either an AH or ESP header,
and then appending the upper-layer portion of the datagram to that. This is a classic description
of one of the modes of operation for IPSec, namely the Transport mode. The other mode of
operation for IPSec is the Tunnel mode.
These two modes provide a further level of authentication or encryption support to IPSec. The
next sections discuss these two IPSec modes.
Transport Mode
Transport mode is primarily used for end-to-end connections between hosts or devices acting
as hosts. Tunnel mode is used for everything else. An IPSec gateway (that is, a Cisco IOS
Software router, Cisco PIX Firewall, or Cisco VPN 3000 Series Concentrator) might act as
a host when being accessed by an administrator for configuration or other management
operations.
Figure 2-8 shows how the Transport mode affects AH IPSec connections. The Layer 3 and
Layer 4 headers are pried apart, and the AH is added between them. Authentication protects all
but mutable fields in the original IP header.
Figure 2-8
AH Transport Mode
Original Packet
IP Header
IP Header
AH
Data
Data
Authenticated Portion
Figure 2-9 shows ESP Transport mode. Again, the IP header is shifted to the left, and the ESP
header is inserted. The ESP trailer and ICV are then appended to the end of the datagram. If
encryption is desired (not available with AH), only the original data and the new ESP trailer are
encrypted. Authentication extends from the ESP header through the ESP trailer.
Even though the original header has been essentially left intact in both situations, the AH
Transport mode does not support NAT because changing the source IP address in the IP header
causes authentication to fail. If you need to use NAT with AH Transport mode, you must ensure
that NAT happens before IPSec.
Notice that this problem does not exist with ESP Transport mode. The IP header remains
outside of the authentication and encryption areas for ESP Transport mode datagrams.
CCSP.book Page 45 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
Figure 2-9
45
ESP Transport Mode
Original Packet
IP Header
IP Header
Data
ESP Header
Data
ESP Trailer
ICV
Encrypted Portion
Authenticated Portion
Tunnel Mode
IPSec tunnel mode is used between gateways such as Cisco IOS Software routers, Cisco PIX
Firewalls, and Cisco VPN 3000 Series Concentrators. It is also typically used when a host
connects to one of these gateways to gain access to networks controlled by that gateway, as
would be the case with most remote access users dialing in to a router or concentrator.
In Tunnel mode, instead of shifting the original IP header to the left and then inserting the IPSec
header, the original IP header is copied and shifted to the left to form the new IP header. The
IPSec header is then placed between the original and the copy of the IP header. The original
datagram is left intact and is wholly secured by authentication or encryption algorithms.
Figure 2-10 shows the AH Tunnel mode. Once again, notice that the new IP header is under the
auspices of the authentication algorithm and that it does not support NAT.
Figure 2-10 AH Tunnel Mode
Original Packet
IP Header
New IP Header
AH
IP Header
Data
Data
Authenticated Portion
In Figure 2-11, you see a depiction of the ESP Tunnel mode. The entire original datagram can
be encrypted and/or authenticated with this method. If you select to use both ESP authentication
and encryption, encryption is performed first. This allows authentication to be done with
assurance that the sender does not alter the datagram before transmission, and the receiver can
authenticate the datagram before decrypting the package.
CCSP.book Page 46 Friday, February 28, 2003 3:43 PM
46
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-11 ESP Tunnel Mode
Original Packet
IP Header
New IP Header
ESP Header
IP Header
Data
Data
ESP Trailer
ICV
Encrypted Portion
Authenticated Portion
ESP supports NAT in either Tunnel or Transport mode, and only ESP supports encryption. If
you need encryption, you must use ESP. If you also want authentication with ESP, you must
select ESP HMAC service. HMAC uses the MD5 and SHA-1 keyed hashing algorithms.
Security Associations
Depending on the IPSec protocol you choose to use, you can ensure data integrity and source
authenticity, provide encryption, or do both. Once you decide the service you need, the peers
then begin a negotiation process to select a matching set of algorithms for authentication,
encryption, and/or hashing as well as a matching SA lifetime. This negotiation process is done
by comparing requested services from the source peer with a table of acceptable services
maintained on the destination peer.
Once the negotiation process has been completed, it would be convenient not to have to do it
again for a while. The IETF named this security service relationship between two or more entities
to establish secure communications the Security Association (SA). When traffic needs to flow
bidirectionally across a VPN, IKE establishes a bidirectional SA and then IPSec establishes two
more unidirectional SAs, each having their own lifetime. Get into the habit of identifying these
SAs as either IKE SAs or IPSec SAs because they each have their own configuration attributes
and they are each maintained separately. IKE SAs are used when IPSec tries to establish a connection. IPSec SAs are used with every secure packet.
SAs are only good for one direction of data across an IPSec connection. Because SAs are
simplex, establishing conversations between peers requires two IPSec SAs, one going and one
coming, for each peer and two underlying IKE SAs. IPSec SAs are also protocol specific. If you
are going to be using both AH and ESP between security pairs, you need separate SAs for each.
Each SA is assigned a unique random number called a Security Parameters Index (SPI). This
number, the destination IP address of a packet, and the IPSec protocol used create a unique
triplet that identifies a security association. When a system wants to send IPSec traffic to a peer,
CCSP.book Page 47 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
47
it checks to see if an SA already exists for that peer using the desired security services. If it finds
an existing SA, it places the SPI of the SA into the IPSec header and sends the packet. The
destination peer takes the SPI, combines it with the IPSec protocol and the destination IP
address (itself), and locates the existing SA in the Security Association Database it maintains
for incoming traffic on that interface. Once it finds the SA, the destination peer knows how to
unwrap the data for use.
Existing Protocols Used in the IPSec Process
IPSec makes use of numerous existing encryption, authentication, and key exchange standards.
This approach maintains IPSec as a standards-based application, making it more universally
acceptable in the IP community. Many of these standard protocols are described in the
following sections.
Message Encryption
Available when using the ESP IPSec protocol, message encryption enables you to send highly
sensitive information across the public networks without fear of having those data easily
compromised. Two encryption standards are available with Cisco VPN equipment, the Data
Encryption Standard (DES) and its more robust cousin, the Triple Data Encryption Standard
(3DES or Triple DES).
Data Encryption Standard
The standard encryption method used by many VPN deployments is the Data Encryption
Standard (DES) method of encryption. DES applies a 56-bit key to every 64 bits of data. DES
provides over 72,000,000,000,000,000 (72 quadrillion) possible encryption keys. Developed by
IBM in 1977 and adopted by the U.S. Department of Defense, DES was once considered such
a strong encryption technique that it was barred from export from the continental United States.
It was considered unbreakable at the time of its adoption, but faster computers have rendered
DES breakable within a relatively short period of time (less than a day), so DES is no longer in
favor in high-security applications.
Cisco products support 56-bit DES-CBC with Explicit IV. Cipher Block Chaining (CBC) is one
of several methods of implementing DES. CBC requires an initialization vector (IV) to start
encryption. IPSec ensures that both VPN peers have the same IV or shared secret key. The
shared secret key is input into the DES encryption algorithm, and clear text is then supplied in
64-bit blocks. The clear text is converted to ciphertext and is passed to ESP for transmission to
the waiting peer, where the process is reversed using the same shared secret key to reproduce
the clear text message.
CCSP.book Page 48 Friday, February 28, 2003 3:43 PM
48
Chapter 2: Overview of VPN and IPSec Technologies
Triple DES
One version of the Data Encryption Standard is Triple DES (3DES) so named because it performs three encryption operations on the data. It performs an encryption process, a decryption
process, and then another encryption process, each with a different 56-bit key. This triple process
produces an aggregate 168-bit key, providing strong encryption. Cisco VPN products and software all support the 168-bit 3DES encryption algorithm as well as the 56-bit DES algorithm.
Message Integrity
Message integrity is accomplished by using a hashing algorithm to compute a condensed
representation of a message or data file. These condensed representations are called message
digests (MDs) and are of a fixed length that depends on the hashing algorithm used. All or part
of this message digest is transmitted with the data to the destination host, which executes the
same hashing algorithm to create its own message digest. The source and destination message
digests are then compared. Any deviation means that the message has been altered since the
original message digest was created. A match means that you can be fairly certain that the data
have not been altered during transit.
When using the IPSec AH protocol, the message digest is created using the immutable fields
from the entire IP datagram, replacing mutable fields with 0s or predictable values to maintain
proper alignment. The computed MD is then placed into the Authentication Data (or ICV) field
of the AH. The destination device then copies the MD from the AH and zeroes out the Authentication Data field to recalculate its own MD. Refer to Figures 2-8 and 2-10 to refresh your
memory about the structure of the AH datagram.
With the IPSec ESP protocol, the process is similar. The message digest is created using the
immutable data in the portion of the IP datagram from the beginning of the ESP header to the
end of the ESP trailer. The computed MD is then placed into the ICV field at the end of the
datagram. With ESP, the destination host does not need to zero out the ICV field because it sits
outside of the scope of the hashing routine. Refer to Figures 2-9 and 2-11 for the structure of
the ESP datagram.
Cisco VPN products support Message Digest 5 (MD5) and Secure Hash Algorithm-1 (SHA-1)
algorithms, which use a keyed hashing mechanism called Hashed Method Authentication Code
(HMAC). These three message integrity tools are described in the following sections.
Hash-Keyed Message Authentication Code
RFC 2104 describes the HMAC algorithm, because it was developed to work with existing
hashing algorithms like MD5 and SHA-1. Many security processes involved in sharing data
involve the use of secret keys and a mechanism called Message Authentication Codes (MACs).
One party creates the MAC using the secret key and transmits the MAC to its peer partner. The
peer partner creates its own MAC using the same secret key and compares the two MACs.
MD5 and SHA-1 share a similar concept, except that they do not use secret keys. That is where
HMAC comes in. HMAC was developed to add a secret key into the calculation of the message
CCSP.book Page 49 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
49
digests produced by standard hashing algorithms. The secret key added to the formula is the
same length as the resulting message digest for the hashing algorithm used.
Message Digest 5—HMAC Variant
Message Digest 5 (MD5) was developed by Ronald Rivest of the Massachusetts Institute of
Technology and RSA Data Security Incorporated. MD5 takes any message or data file and
creates a 128-bit condensed representation (message digest) of the data.
The HMAC variant used by Cisco is designated HMAC-MD5-96. This version uses a 128-bit
secret key to produce a 128-bit MD. AH and ESP-HMAC only use the left-most 96 bits, placing
them into the authentication field. The destination peer then calculates a complete 128-bit
message digest but then only uses the left-most 96 bits to compare with the value stored in the
authentication field.
MD5 creates a shorter message digest than does SHA-1 and is considered less secure but offers
better performance. MD5 without HMAC has some known weaknesses that make it a poor
choice for high-security applications. HMAC-MD5 has not yet been successfully attacked.
Secure Hash Algorithm-1
The Secure Hash Algorithm was developed by the National Institute of Standards and Technology (NIST) and was first documented in the Federal Information Processing Standards (FIPS)
Publication 180. The current version is SHA-1, as described in FIPS 180-1 and RFC 2404.
SHA-1 produces a 160-bit message digest, and the HMAC-SHA-1 variant uses a 160-bit secret
key. Cisco’s implementation of HMAC-SHA1-96 truncates the 160-bit MD to the left-most 96
bits and sends those in the authentication field. The receiving peer re-creates the entire 160-bit
message digest using the same 160-bit secret key but then only compares the leading 96 bits
against the MD fragment in the authentication field.
The 160-bit SHA-1 message digest is more secure than the 128-bit MD5 message digest. There
is a price to pay in performance for the extra security, but if you need to use the most secure
form of message integrity, you should select the HMAC-SHA-1 algorithm.
Peer Authentication
One of the processes that IKE performs is the authentication of peers. This is done during IKE
Phase 1 using a keyed hashing algorithm with one of three possible key types:
•
•
•
Preshared
RSA digital signatures
RSA encrypted nonces
These three key types and their associated authentication processes are outlined in the next
sections.
CCSP.book Page 50 Friday, February 28, 2003 3:43 PM
50
Chapter 2: Overview of VPN and IPSec Technologies
Preshared Keys
The process of sharing preshared keys is manual. Administrators at each end of the IPSec VPN
agree on the key to use and then manually enter the key into the end device, either host or
gateway. This method is fairly secure, but it does not scale well to large applications.
RSA Digital Signatures
Ronald Rivest, Adi Shamir, and Leonard Adelman developed the RSA public-key cryptosystem
in 1977. Ronald Rivest also developed the MD5 hashing algorithm. A Certificate Authority
(CA) provides RSA digital certificates upon registration with that CA. These digital certificates
allow stronger security than do preshared keys. Once the initial configuration has been
completed, peers using RSA digital certificates can authenticate with one another without
operator intervention.
When an RSA digital certificate is requested, a public and a private key are generated. The host
uses the private key to create a digital signature. The host sends this digital signature along with
its digital certificate to its IPSec peer partner. The peer uses the public key from the digital
certificate to validate the digital signature received from the peer.
RSA Encrypted Nonces
A twist in the way digital signatures are used is the process of using RSA encrypted nonces for
peer authentication. A nonce is a pseudorandom number. This process requires registration with
a CA to obtain RSA digital certificates. Peers do not share public keys in this form of authentication. They do not exchange digital certificates. The process of sharing keys is manual and
must be done during the initial setup.
RSA encrypted nonces permit repudiation of the communication, where either peer can plausibly
deny that it took part in the communication. Cisco is the only vendor that offers this form of
peer authentication.
Key Management
Key management can be a huge problem when working with IPSec VPNs. It seems like there
are keys lurking everywhere. In reality, only five permanent keys are used for every IPSec peer
relationship. These keys are described as follows:
•
Two are private keys that are owned by each peer and are never shared. These keys are
used to sign messages.
•
Two are public keys that are owned by each peer and are made available to anyone. These
keys are used to verify signatures.
CCSP.book Page 51 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
•
51
The fifth key is the shared secret key. Both peer members use this key for encryption and
hashing functions. This is the key created by the Diffie-Hellman protocol, which is
discussed in the next section.
That does not seem like many keys. In fact, the private and public keys are used for multiple
IPSec connections on a given peer. In a small organization, these keys could all probably be
managed manually. The problem arises when trying to scale the processes to support hundreds
or thousands of VPN sessions. The next sections discuss the Diffie-Hellman protocol and
Certificate Authorities, which are two excellent ways of automatically managing this potential
nightmare.
Diffie-Hellman Protocol
In 1976, Whitfield Diffie and Martin Hellman developed the first public key cryptographic
technique. The Diffie-Hellman (D-H) key agreement protocol allows two peers to exchange a
secret key without having any prior secrets. This protocol is an example of an asymmetrical key
exchange process in which peers exchange different public keys to generate identical private
keys. This protocol is over 20 years old and has withstood the test of time.
The Diffie-Hellman protocol is used in IPSec VPNs, but you have to look hard to find it. It is
used in the process of establishing the secure channel between peers that IPSec rides on. The
trail is as follows:
1 IPSec uses the Internet Security Association and Key Management Protocol (ISAKMP)
to provide a framework for authentication and key exchange.
2 ISAKMP uses the IKE Protocol to securely negotiate and provide authenticated keying
material for security associations.
3 IKE uses a protocol called OAKLEY, which describes a series of key exchanges and
details the service provided by each.
4 OAKLEY uses Diffie-Hellman to establish a shared secret key between peers.
Symmetric key encryption processes then use the shared secret key for encryption or authentication of the connection. Peers that use symmetric key encryption protocols must share the
same secret key. Diffie-Hellman provides an elegant solution for providing each peer with a
shared secret key without having to keep track of the keys used.
Diffie-Hellman is such a clean process that you might wonder why we need symmetric key
encryption processes. The answer is that asymmetric key encryption processes are much too
slow for the bulk encryption required in high-speed VPN circuits. That is why the Diffie-Hellman
protocol has been relegated to creating the shared secret key used by symmetric key encryption
protocols.
IPSec peers use the Diffie-Hellman Protocol to generate the shared secret key that is used by
AH or ESP to create authentication data or to encrypt an IP datagram. The receiving peer uses
the D-H shared secret key to authenticate the datagram and decrypt the payload.
CCSP.book Page 52 Friday, February 28, 2003 3:43 PM
52
Chapter 2: Overview of VPN and IPSec Technologies
No discussion of Diffie-Hellman would be complete without showing the mechanisms involved
in creating the shared secret key. Table 2-8 shows the Diffie-Hellman process of creating the
key between two IPSec peers called Able and Baker. Notice that the shared secret key never
travels over the network between the peers.
NOTE
Recall from your high school math that the modulus operation returns the remainder that results
from dividing one number by another. For example, 7 mod 4 returns the number 3.
Table 2-8
Diffie-Hellman Process
ABLE
NETWORK BAKER
Agrees with BAKER to use a large prime
number:
→←
P
Agrees with ABLE to use a large prime
number:
P
Further agrees on an integer to use as a
generator:
→←
Further agrees on an integer to use as a
generator:
G
G
Picks a secret number:
Picks a secret number:
A
B
Computes a public number:
Computes a public number:
X = GA mod P
Y = GB mod P
Sends X to BAKER
X→←Y
Sends Y to ABLE
Now knows:
Now knows:
P, G, A, X, Y
P, G, B, X, Y
Computes:
Computes:
KA
= YA
KB = XB mod P
mod P
Now knows shared secret key:
Now knows shared secret key:
KA = KB = K
KB = KA = K
Proof:
Proof:
KA = (GB mod P)A mod P
KB = (GA mod P)B mod P
KA = (GB)A mod P
=
KB = (GA)B mod P
KA = GBA mod P
KB = GAB mod P
KA
KB
CCSP.book Page 53 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
53
Certificate Authorities
Another method of handling keys that does not take a lot of administrative support is to use
Certificate Authorities (CAs) as a trusted entity for issuing and revoking digital certificates and
for providing a means to verify the authenticity of those certificates. CAs are usually third-party
agents such as VeriSign or Entrust, but for cost savings, you could also set up your own CA
using Windows 2000 Certificate Services.
The following list describes how CAs work:
1 A client that wants to use digital certificates creates a pair of keys, one public and one
private. Next, the client prepares an unsigned certificate (X.509) that contains, among
other things, the client’s ID and the public key that was just created. This unsigned
certificate is then sent to a CA using some secure method.
2 The CA computes a hash code of the unsigned certificate. The CA then takes that hash and
encrypts it using the CA’s private key. This encrypted hash is the digital signature, and the
CA attaches it to the certificate and returns the signed certificate to the client. This
certificate is called an Identity Certificate and is stored on the client device until it expires
or is deleted. The CA also sends the client its own digital certificate, which becomes the
root certificate for the client.
3 The client now has a signed digital certificate that it can send to any other peer partner. If
the peer partner wants to authenticate the certificate, it decrypts the signature using the
CA’s public key.
It is important to note that a CA only sends a client’s certificate to that client itself. If the client
wants to establish IPSec VPNs with another client, it trades digital certificates with that client,
thereby sharing public keys.
When a client wants to encrypt data to send to a peer, it uses the peer’s public key from the
digital certificate. The peer then decrypts the package with its private key.
When a client wants to digitally sign a package, it uses its own private key to create a “signed”
hash of the package. The receiving peer then uses the client’s public key to create a comparison
hash of the package. When the two hash values match, the signature has been verified.
Another function of a CA is to periodically generate a list of certificates that have expired or
have been explicitly voided. The CA makes these Certificate Revocation Lists (CRLs) available
to its customers. When a client receives a digital certificate, it checks the CRL to find out if the
certificate is still valid.
You learn more about CAs and digital certificates in Chapter 5, “Configuring Cisco VPN 3000
for Remote Access Using Digital Certificates.”
CCSP.book Page 54 Friday, February 28, 2003 3:43 PM
54
Chapter 2: Overview of VPN and IPSec Technologies
Authenticating IPSec Peers and Forming Security Associations
The protocol that brings all the previously mentioned protocols together is the Internet Key
Exchange (IKE) Protocol. IKE operates in two separate phases when establishing IPSec VPNs.
In IKE Phase 1, it is IKE’s responsibility to authenticate the IPSec peers, negotiate an IKE
security association between peers, and initiate a secure tunnel for IPSec using the Internet
Security Association and Key Management Protocol (ISAKMP).
In IKE Phase 2, the peers use the authenticated, secure tunnel from Phase 1 to negotiate the set
of security parameters for the IPSec tunnel. Once the peers have agreed on a set of security
parameters, the IPSec tunnel is created and stays in existence until the Security Associations
(SAs) (either IKE or IPSec) are terminated or until the SA lifetimes expire.
Combining Protocols into Transform Sets
Configuring IPSec in Cisco devices is fairly simple. You need to identify the five parameters
that IKE uses in Phase 1 to authenticate peers and establish the secure tunnel. Those five
parameters and their default settings for the VPN 3000 Concentrator Series are as follows:
•
•
•
Encryption algorithm—56-bit DES (default) or the stronger 168-bit 3DES.
•
Key exchange method—768-bit Diffie-Hellman Group 1 (default) or the stronger 1024-bit
Diffie-Hellman Group 2.
•
IKE SA lifetime—The default is 86,400 seconds or 1 day. Shorter durations are more
secure but come at a processing expense.
Hash algorithm—MD5 (default) or the stronger SHA-1.
Authentication method—Preshared keys, RSA encrypted nonces, or the most secure,
RSA digital signatures (also the default).
Whatever parameters you choose for IKE Phase 1 must be identical on the prospective peer, or
the connection is not established. Once you have these configured, the only other values you
need to supply to establish the IPSec tunnel in IKE Phase 2 are as follows:
•
•
•
NOTE
IPSec protocol—AH or ESP
Hash algorithm—MD5 or SHA-1 (These are always HMAC assisted for IKE Phase 2.)
Encryption algorithm if using ESP—DES or 3DES
The AH Protocol is seldom used in production environments today. SHA-HMAC and MD5HMAC are now available to provide additional packet integrity for ESP. A second argument for
not using AH is that AH does not support NAT or PAT, essential components of secure networks
and useful tools for extending IPv4 addresses into private networks.
CCSP.book Page 55 Friday, February 28, 2003 3:43 PM
An Overview of IPSec Protocols
55
In a VPN network environment, you can have different security requirements for each VPN. If
you are going router to router within a physically secured building, you might not want the
added processing expense of ESP on that VPN. VPN connections to one of the routers from the
Internet, however, might need ESP’s encryption.
To facilitate the configuration process for devices that need to support a variety of IPSec VPNs,
the IPSec parameters are grouped into predefined configurations called transforms. The
transforms identify the IPSec protocol, hash algorithm, and when needed, the encryption
algorithm. Only a handful of valid transforms are available; they are identified in Table 2-9.
Table 2-9
IPSec Transforms
Type
Transform
AH authentication transforms ah-md5-hmac
ESP encryption transforms
ESP authentication
transforms
Description
IPSec AH Protocol using HMAC-MD5 for message
integrity.
ah-sha-hmac
IPSec AH Protocol using HMAC-SHA-1 for
message integrity.
ah-rfc1828
IPSec AH Protocol using MD5 for message integrity.
This transform is used to support older RFC 1828
IPSec implementations.
esp-des
IPSec ESP Protocol using DES encryption.
esp-3des
IPSec ESP Protocol using 3DES encryption.
esp-null
IPSec ESP Protocol with no encryption. This can be
used in test environments in combination with either
of the ESP authentication transforms to provide ESP
authentication with no encryption. esp-null should
not be used in production environments.
esp-rfc1829
IPSec ESP Protocol using DES-CBC encryption.
This transform is used to support older RFC 1829
IPSec implementations.
esp-md5-hmac IPSec ESP Protocol using HMAC-MD5 for message
integrity.
esp-sha-hmac
IPSec ESP Protocol using HMAC-SHA-1 for
message integrity.
Transforms are used to identify the types of IPSec tunnels that a host supports. A specific IPSec
tunnel can support up to three transforms in a strictly regulated structure called a transform set.
You can configure multiple transform sets within a device’s crypto policy to identify acceptable
combinations that can be used for establishing IPSec tunnels. A transform set can be any of the
following valid combinations.
CCSP.book Page 56 Friday, February 28, 2003 3:43 PM
56
Chapter 2: Overview of VPN and IPSec Technologies
•
One AH authentication transform:
— ah-md5-hmac
— ah-sha-hmac
— ah-rfc1828
•
One ESP encryption transform:
— esp-des
— esp-3des
— esp-null
— esp-rfc1829
•
One ESP encryption transform <AND> one ESP authentication transform:
— esp-des esp-md5-hmac
— esp-des esp-sha-hmac
— esp-3des esp-md5-hmac
— esp-3des esp-sha-hmac
— esp-null esp-md5-hmac
— esp-null esp-sha-hmac
•
One AH authentication transform <AND> one ESP encryption transform in the following
combination only:
— ah-rfc1828 esp-rfc1829
•
One AH authentication transform <AND> one ESP encryption transform <AND> one
ESP authentication transform:
— ah-md5-hmac esp-des esp-md5-hmac
— ah-md5-hmac esp-des esp-sha-hmac
— ah-md5-hmac esp-3des esp-md5-hmac
— ah-md5-hmac esp-3des esp-sha-hmac
— ah-md5-hmac esp-null esp-md5-hmac
— ah-md5-hmac esp-null esp-sha-hmac
— ah-sha-hmac esp-des esp-md5-hmac
— ah-sha-hmac esp-des esp-sha-hmac
— ah-sha-hmac esp-3des esp-md5-hmac
— ah-sha-hmac esp-3des esp-sha-hmac
— ah-sha-hmac esp-null esp-md5-hmac
— ah-sha-hmac esp-null esp-sha-hmac
CCSP.book Page 57 Friday, February 28, 2003 3:43 PM
Establishing VPNs with IPSec
NOTE
57
One additional transform can be used with Cisco VPN devices, and that is the comp-lzs
transform. This transform activates the Stacker LZS compression algorithm on the VPN. LZS
was designed to be used on slow-speed WAN connections to enable conservation of bandwidth
resources. This transform is not well documented in Cisco reference materials, and this book
does not mention it again, other than to say that you might see it as an option when configuring
transform sets on Cisco devices.
Establishing VPNs with IPSec
4
How IPSec works
As you can see from the previous discussion, IPSec was designed to use a robust set of protocols
and processes. You could establish VPNs without knowing much about these protocols, but the
results would be haphazard at best. Good practice dictates a sequence of preparation steps that
you should take before you can effectively configure a device for IPSec. Those preconfiguration
steps are as follows:
Step 1 Establish an IKE policy—This policy must be identical on both ends of a
VPN. The following elements go into the IKE policy:
— Key distribution method—Manual or certificate authority.
— Authentication method—Mostly determined by the key distribution
method you select. Manual distribution uses preshared keys. Certificate
authority distribution uses RSA encrypted nonces or RSA digital
signatures.
— IP address and host names of peers—IP needs to know where to
locate potential peers, and access control lists on intermediate devices
need to permit the peers to communicate. IPSec configuration requires
the fully qualified domain name (FQDN) of the device as well as the IP
address.
— IKE policy parameters—Used by ISAKMP to establish the secure
tunnel of IKE Phase 1. IKE policies consist of the following five
parameters:
Encryption algorithm (DES/3DES)
Hash algorithm (MD5/SHA-1)
Authentication method (Preshared, RSA encryption, RSA signatures)
Key exchange (D-H Group 1/D-H Group 2)
IKE SA lifetime (86,400 seconds by default)
CCSP.book Page 58 Friday, February 28, 2003 3:43 PM
58
Chapter 2: Overview of VPN and IPSec Technologies
Step 2 Establish an IPSec policy—The IPSec security and authentication
capabilities are applied to certain traffic that passes between peers. You can
choose to send all traffic between peers through the IPSec tunnel, but there is
a significant performance penalty when using IPSec, so you should be
selective in its application. However you choose to implement the IPSec
tunnel, both ends of the tunnel must implement identical IPSec policies.
Careful planning and documentation can simplify this process. You need the
following information for your IPSec policy:
— IPSec protocol—AH or ESP
— Authentication—MD5 or SHA-1
— Encryption—DES or 3DES
— Transform or transform set—ah-sha-hmac esp-3des esp-md5-hmac
or one of the other allowable combinations
— Identify traffic to be protected—Protocol, source, destination, and port
— SA establishment—Manual or IKE
Step 3 Examine the current configuration—Avoid issues with conflicting
configuration parameters by checking existing IPSec settings on your device.
Step 4 Test the network before IPSec—Can you ping the peers that are going to
participate in IPSec with your device? If not, you must fix that before you go
any further.
Step 5 Permit IPSec ports and protocols—If you have enabled ACLs on any
devices along the path of the proposed IPSec VPN, be sure that those devices
permit IPSec traffic. You must ensure that the following are permitted
through the network:
— UDP port 500—ISAKMP, identified by the keyword isakmp
— Protocol 50—ESP, identified by the keyword esp
— Protocol 51—AH, identified by the keyword ahp
NOTE
Protocols 50 and 51 are actual protocols within the TCP/IP stack. They are not ports used within
a protocol, such as port 500 for ISAKMP within UDP.
After you have ensured network connectivity, cleaned up your existing configuration, enabled
IPSec traffic, and established your IKE and IPSec policies, you can begin the configuration
process. Configuration processes for the Cisco VPN 3000 Series Concentrators are covered in
detail throughout the remainder of this book.
CCSP.book Page 59 Friday, February 28, 2003 3:43 PM
Establishing VPNs with IPSec
59
You can think of the IPSec process as the following five-step process:
Step 1 Interesting traffic initiates the setup of an IPSec tunnel.
Step 2 IKE Phase 1 authenticates peers and establishes a secure tunnel for IPSec
negotiation.
Step 3 IKE Phase 2 completes the IPSec negotiations and establishes the IPSec
tunnel.
Step 4 Once the tunnel has been established, secured VPN communications occur.
Step 5 When there is no more traffic to use IPSec, the tunnel is torn down, either
explicitly or through timeout of the SA lifetimes.
The following sections examine these five processes in more detail.
Step 1: Interesting Traffic Triggers IPSec Process
As previously stated, you have absolute control over the traffic that gets processed by IPSec.
You might want certain traffic between peers authenticated only, for example, for mail or
intranet traffic. You might want to encrypt client/server traffic that interacts with your financial
server. Maybe you want to encrypt everything going from peer A to peer B.
Whatever your security policy dictates is mirrored in access lists. Peers must contain the same
access lists, and you can have multiple access lists for different purposes between peers. These
ACLs are called crypto ACLs because of their application. They are simply extended IP access
lists, but they work slightly differently because the permit and deny keywords have a different
purpose for crypto ACLs. Figure 2-12 shows the effect of permit and deny statements on
source and destination peers.
The permit and deny keywords have different functions on the source and destination devices.
The following list describes those functions:
•
permit at the source peer—Passes the traffic to IPSec for authentication, encryption, or
both. IPSec modifies the packet by inserting an AH or ESP header and possibly encrypting
some of or all of the original packet and then places it on the wire to the destination.
•
deny at the source peer—Bypasses IPSec and puts the clear-text packet on the wire to
the destination.
•
permit at the destination peer—Passes the traffic to IPSec for authentication,
decryption, or both. The ACL uses the information in the header to make its decision. In
ACL logic, if the header contains the correct source, destination, and protocol, the packet
must have been processed by IPSec at the sender and must now be processed by IPSec at
the receiver.
•
deny at the destination peer—Bypasses IPSec and assumes that the traffic has been sent
in the clear.
CCSP.book Page 60 Friday, February 28, 2003 3:43 PM
60
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-12 Crypto ACLs
Clear-Text
Destination
Clear-Text
Packet
Peer
Packet
Source
Peer
IPSec
Crypto
ACL
deny
permit
deny
AH or ESP
permit
Packets
Crypto
IPSec
ACL
AH or ESP
AH, ESP, or
Packets
Clear-Text
Packets
When these permit and deny keywords are used in the proper combinations, data are
successfully protected and transferred. When they are not used in the proper combinations, data
are discarded. Table 2-10 shows the various permit and deny keyword combinations and the
actions that result from the combinations.
Table 2-10
Crypto ACL Actions
Source
Destination
Action
permit
permit
Packet processed correctly
permit
deny
Packet misunderstood and dropped
deny
permit
Packet misunderstood and dropped
deny
deny
Packet processed correctly
You can readily see why it is so important for crypto ACLs to match on both ends of the IPSec
VPN. Remember that Cisco ACLs always have an implicit deny all as the last entry. If your
permit statements do not match on both ends, the destination is not able to process the packet
information and the packet is discarded.
CCSP.book Page 61 Friday, February 28, 2003 3:43 PM
Establishing VPNs with IPSec
NOTE
61
Remember that IPSec is an IP-only function. All your crypto ACLs must be extended IP ACLs,
permitting you to identify source, destination, and protocol.
Step 2: Authenticate Peers and Establish IKE SAs
IKE Phase 1 uses two different mode types to authenticate IPSec peers and establish an IKE SA
policy between peers. These two modes are the Main mode and the Aggressive mode.
Main mode protects the identity of both peers during key exchange. This is the mode that is used
by default on Cisco VPN products. When using Main mode, IKE performs three bidirectional
exchanges between peers. Those three exchanges are as follows:
•
•
•
Algorithms and hashes are agreed upon.
Diffie-Hellman exchange is made, producing matching shared secret keys.
Verification of the other peer’s identity is made.
Only three messages are exchanged during Aggressive mode. More information is packed into
the first message, providing key information to eavesdroppers that might be watching the traffic
before the connection has been secured. Cisco products answer in Aggressive mode to products
that initiate IKE Phase 1 in Aggressive mode, but their preference is for Main mode operation.
Whether using Main mode or Aggressive mode, the end result of IKE Phase 1 is a secure tunnel
between peers that protects the ISAKMP exchanges of IKE Phase 2 as the IPSec SA is
negotiated.
Step 3: Establish IPSec SAs
IKE Phase 2 has one mode of operation, Quick mode, which begins immediately after the
secured tunnel is established in IKE Phase 1. The following tasks are accomplished during IKE
Phase 2:
1 IPSec SA parameters are negotiated and agreed on by both peers within the protection of
the IKE SA established in Phase 1.
2 IPSec SAs are established.
3 IPSec SAs are renegotiated periodically as needed.
4 IPSec SAs an optionally perform an additional Diffie-Hellman key exchange.
Step 4: Allow Secured Communications
Once the IPSec SAs have been established in Step 3, secured traffic can be exchanged over the
connection. IP packets across this IPSec tunnel are authenticated and/or encrypted, depending
on the transform set selected. Figure 2-13 shows the use of a secure IPSec tunnel between peers.
CCSP.book Page 62 Friday, February 28, 2003 3:43 PM
62
Chapter 2: Overview of VPN and IPSec Technologies
Figure 2-13 IPSec Secure Tunnel
Peer A
Peer B
Router
Router
A
B
IPSec Tunnel
Step 5: Terminate VPN
In normal operation, IPSec VPN tunnels can be terminated when one of the peers goes away,
as might be the case in remote access VPNs when the mobile user packs up his system for the
day. More frequently, however, they out based on the negotiated SA lifetimes in the IPSec SA
and the IKE SA. When the SA terminates, keys are discarded.
When an IPSec SA times out and IPSec traffic still exists, the peers immediately go into IKE
Phase 2 negotiations and reestablish the IKE SA using new keys. If the IKE SA times out, the
peers must start with IKE Phase 1 negotiations to establish new IKE SAs and then renegotiate
IPSec SAs.
CCSP.book Page 63 Friday, February 28, 2003 3:43 PM
Table of Protocols Used with IPSec
63
Foundation Summary
The Foundation Summary is a collection of tables, figures, and best practices that provide a
convenient review of many key concepts in this chapter. For those who are already comfortable
with the topics in this chapter, this summary could help you recall a few details. For those who
just read this chapter, this review should help solidify some key facts. For anyone doing final
preparation before the exam, these tables and figures are a convenient way to review the day
before the exam.
Table of Protocols Used with IPSec
IPSec was designed to be able to use existing protocols and multipurpose protocols. The only
two that are considered strictly IPSec protocols are Authentication Header and Encapsulating
Security Payload. Table 2-11 outlines the protocols discussed in this chapter.
Table 2-11
Protocols Used with IPSec
Process
Protocol
Description
IP Security (IPSec)
Protocol
Authentication Header
(AH)
A security protocol that provides data
authentication and optional antireplay services. AH
is embedded in the data to be protected (a full IP
datagram).
Encapsulating Security
Payload (ESP)
Security protocol that provides data privacy
services, optional data authentication, and
antireplay services. ESP encapsulates the data to be
protected.
Message encryption Data Encryption Standard
(DES)
Message integrity
(hash) functions
Standard cryptographic algorithm developed by the
U.S. National Bureau of Standards using 56-bit
key.
Triple DES (3DES)
Standard cryptographic algorithm based on DES,
using 168-bit key.
Hash-based Message
Authentication Code
(HMAC)
A mechanism for message authentication using
cryptographic hash functions. HMAC can be used
with any iterative cryptographic hash function, for
example, MD5 or SHA-1, in combination with a
secret shared key. The cryptographic strength of
HMAC depends on the properties of the underlying
hash function.
continues
CCSP.book Page 64 Friday, February 28, 2003 3:43 PM
64
Chapter 2: Overview of VPN and IPSec Technologies
Table 2-11
Protocols Used with IPSec (Continued)
Process
Protocol
Description
Message integrity
(hash) functions
(continued)
Message Digest 5 (MD5)
A one-way hashing algorithm that produces a 128bit hash. Both MD5 and Secure Hash Algorithm
(SHA) are variations on MD4 and are designed to
strengthen the security of the MD4 hashing
algorithm. Cisco uses hashes for authentication
within the IPSec framework.
Secure Hash Algorithm-1
(SHA-1)
Algorithm that takes a message of less than 264 bits
in length and produces a 160-bit message digest.
The large message digest provides security against
brute-force collision and inversion attacks. SHA-1
[NIS94c] is a revision to SHA that was published in
1994.
Preshared keys
A shared secret key that must be communicated
between peers through some manual process.
RSA digital signatures
Public-key cryptographic system that can be used
for encryption and authentication. The digital
signature is a value computed with the RSA
algorithm and appended to a data object in such a
way that any recipient of the data can use the
signature to verify the data’s origin and integrity.
RSA encrypted nonces
Nonces are random numbers used in security
protocols to prove recentness of messages, but they
can also be used as symmetric session keys.
Diffie-Hellman (D-H)
A public-key cryptography protocol that allows two
parties to establish a shared secret over insecure
communications channels. Diffie-Hellman is used
within Internet Key Exchange (IKE) to establish
session keys. Diffie-Hellman is a component of
OAKLEY key exchange. Cisco IOS Software
supports 768-bit and 1024-bit Diffie-Hellman
groups.
Peer authentication
Key management
Certificate Authority (CA) Entity that issues digital certificates (especially
X.509 certificates) and vouches for the binding
between the data items in a certificate.
CCSP.book Page 65 Friday, February 28, 2003 3:43 PM
Creating VPNs with IPSec
Table 2-11
65
Protocols Used with IPSec (Continued)
Process
Protocol
Description
Security
Association (SA)
Internet Key Exchange
(IKE)
IKE establishes a shared security policy and
authenticates keys for services (such as IPSec) that
require keys. Before any IPSec traffic can be
passed, each router/firewall/host must verify the
identity of its peer. This can be done by manually
entering preshared keys into both hosts or by a CA
service.
Internet Security
Association and Key
Management Protocol
(ISAKMP)
Internet IPSec protocol [RFC 2408] that negotiates,
establishes, modifies, and deletes security
associations. It also exchanges key generation and
authentication data (independent of the details of
any specific key generation technique), key
establishment protocol, encryption algorithm, or
authentication mechanism.
IPSec Preconfiguration Processes
Most projects go much easier if you spend some careful planning time before you begin. The
same is true for implementing IPSec security. Take the following steps before you begin the task
of configuring IPSec on your Cisco devices:
Step 1 Establish an IKE policy.
Step 2 Establish an IPSec policy.
Step 3 Examine the current configuration.
Step 4 Test the network before IPSec.
Step 5 Permit IPSec ports and protocols.
Creating VPNs with IPSec
After you configure your Cisco devices for IPSec, the setup and termination of IPSec happens
automatically. The following steps are involved in that process:
Step 1 Interesting traffic triggers IPSec process.
Step 2 Authenticate peers and establish IKE SAs (IKE Phase 1).
Step 3 Establish IPSec SAs (IKE Phase 2).
Step 4 Allow secured communications.
Step 5 Terminate VPN.
CCSP.book Page 66 Friday, February 28, 2003 3:43 PM
66
Chapter 2: Overview of VPN and IPSec Technologies
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter.
antireplay A security service where the receiver can reject old or duplicate packets to protect
itself against replay attacks. IPSec provides this optional service by use of a sequence number
combined with the use of data authentication.
Cisco Unified Client Framework A consistent connection, policy, and key management
method across Cisco routers, security appliances, and VPN Clients.
data authentication Process of verifying that data have not been altered during transit (data
integrity), or that the data came from the claimed originator (data origin authentication).
data confidentiality A security service where the protected data cannot be observed.
data flow A grouping of traffic, identified by a combination of source address/mask,
destination address/mask, IP next protocol field, and source and destination ports, where the
protocol and port fields can have the values of any. In effect, all traffic matching a specific
combination of these values is logically grouped together into a data flow. A data flow can
represent a single TCP connection between two hosts, or it can represent all the traffic between
two subnets. IPSec protection is applied to data flows.
Elliptic Curve Cryptography (ECC) A public-key encryption technique based on elliptic
curve theory that can be used to create faster, smaller, and more efficient cryptographic keys.
ECC generates keys through the properties of the elliptic curve equation instead of using the
traditional method of generation as the product of large prime numbers. The technology can be
used in conjunction with most public-key encryption methods, such as RSA and Diffie-Hellman.
peer In the context of this document, a router, firewall, VPN concentrator, or other device that
participates in IPSec.
Perfect Forward Secrecy (PFS) A cryptographic characteristic associated with a derived
shared secret value. With PFS, if one key is compromised, previous and subsequent keys are not
compromised, because subsequent keys are not derived from previous keys.
Scalable Encryption Processing (SEP) Cisco VPN 3000 Series Concentrator modules that
enable users to easily add capacity and throughput.
Security Association (SA) An IPSec security association (SA) is a description of how two or
more entities use security services in the context of a particular security protocol (AH or ESP)
to communicate securely on behalf of a particular data flow. It includes things such as the
transform and the shared secret keys to be used for protecting the traffic.
CCSP.book Page 67 Friday, February 28, 2003 3:43 PM
Chapter Glossary
67
Security Parameters Index (SPI) This is a number that, together with an IP address and
security protocol, uniquely identifies a particular security association. When using IKE to
establish the security associations, the SPI for each security association is a pseudo-randomly
derived number. Without IKE, the SPI is manually specified for each security association.
transform A transform lists a security protocol (AH or ESP) with its corresponding
algorithms. For example, one transform is the AH protocol with the HMAC-MD5
authentication algorithm; another transform is the ESP protocol with the 56-bit DES encryption
algorithm and the HMAC-SHA authentication algorithm.
tunnel In the context of this document, a secure communication path between two peers, such
as two routers. It does not refer to using IPSec in Tunnel mode.
CCSP.book Page 68 Friday, February 28, 2003 3:43 PM
68
Chapter 2: Overview of VPN and IPSec Technologies
Q&A
As mentioned in Chapter 1, these questions are more difficult than what you should experience
on the CCSP exam. The questions do not attempt to cover more breadth or depth than the exam;
however, the questions are designed to make sure you know the answer. Rather than allowing
you to derive the answer from clues hidden inside the question itself, your understanding and
recall of the subject are challenged. Questions from the “Do I Know This Already?” quiz from
the beginning of the chapter are repeated here to ensure that you have mastered the chapter’s
topic areas. Hopefully, these questions will help limit the number of exam questions on which
you narrow your choices to two options and guess!
1 What are the Cisco hardware product families that support IPSec VPN technology?
2 What are the two IPSec protocols?
3 What are the three major VPN categories?
4 What is an SEP module used for?
5 What are the primary reasons cited for choosing VPN technology?
CCSP.book Page 69 Friday, February 28, 2003 3:43 PM
Q&A
69
6 Why are remote access VPNs considered ubiquitous?
7 What types of VPNs are typically built across service provider shared network
infrastructures?
8 Which type of VPNs use a combination of the same infrastructures that are used by the
other two types of VPNs?
9 What hardware would you use to build intranet and extranet VPNs?
10 Which Cisco routers provide support for Cisco EzVPN Remote?
11 Which Cisco router series supports VAMs?
12 Which Cisco router series supports ISMs?
CCSP.book Page 70 Friday, February 28, 2003 3:43 PM
70
Chapter 2: Overview of VPN and IPSec Technologies
13 Which of the Cisco PIX Firewall models are fixed-configuration devices?
14 Which Cisco PIX Firewall models offer a failover port for high availability and support
VACs?
15 Which series of Cisco hardware devices are purpose-built remote access VPN devices?
16 Which of the Cisco VPN 3000 Series Concentrators is a fixed-configuration device?
17 Which of the Cisco VPN 3000 Series Concentrators can accept SEP modules?
18 What feature of the Cisco Unity Client makes it scalable?
19 Which of Cisco’s VPN clients can be used with any operating system that communicates
in IP?
CCSP.book Page 71 Friday, February 28, 2003 3:43 PM
Q&A
71
20 What protocol enables IP-enabled wireless devices such as PDAs and Smart Phones to
participate in VPN communications?
21 What are the three phases of Cisco Mobile Office?
22 What is the distinctive characteristic of Cisco VPN Device Manager?
23 What is Cisco’s AAA server, and what AAA systems does it support?
24 Which web-based management tool can display a physical representation of each
managed device?
25 What are the current RFCs that define the IPSec protocols?
CCSP.book Page 72 Friday, February 28, 2003 3:43 PM
72
Chapter 2: Overview of VPN and IPSec Technologies
26 What are three shortcomings of IPSec?
27 What message encryption protocols does IPSec use?
28 What message integrity protocols does IPSec use?
29 What methods does IPSec use to provide peer authentication?
30 What methods does IPSec use for key management?
31 What is the key element contained in the AH or ESP packet header?
32 Which IPSec protocol does not provide encryption services?
CCSP.book Page 73 Friday, February 28, 2003 3:43 PM
Q&A
73
33 What is the triplet of information that uniquely identifies a Security Association?
34 What is an ICV?
35 What IPSec protocol must you use when confidentiality is required in your IPSec
communications?
36 What is the primary difference between the mechanisms used by AH and ESP to modify
an IP packet for IPSec use?
37 What are the two modes of operation for AH and ESP?
38 Which IPSec protocol should you use if your system is using NAT?
CCSP.book Page 74 Friday, February 28, 2003 3:43 PM
74
Chapter 2: Overview of VPN and IPSec Technologies
39 You can select to use both authentication and encryption when using the ESP protocol.
Which is performed first when you do this?
40 How many SAs does it take to establish bidirectional IPSec communications between two
peers?
41 Which encryption protocol was considered unbreakable at the time of its adoption?
42 What process does 3DES use to obtain an aggregate 168-bit key?
43 What is a message digest?
44 What does HMAC-MD5-96 mean?
CCSP.book Page 75 Friday, February 28, 2003 3:43 PM
Q&A
45 What does HMAC-SHA1-96 mean?
46 How are preshared keys exchanged?
47 What does the Diffie-Hellman key agreement protocol permit?
48 Why is D-H not used for symmetric key encryption processes?
49 What is a CRL?
50 What are the five parameters required by IKE Phase 1?
51 What are the valid AH authentication transforms?
75
CCSP.book Page 76 Friday, February 28, 2003 3:43 PM
76
Chapter 2: Overview of VPN and IPSec Technologies
52 What transform set would allow for SHA-1 authentication of both AH and ESP packets
and would also provide 3DES encryption for ESP?
53 What steps should you take before you begin the task of configuring IPSec on a Cisco
device?
54 What are the five steps of the IPSec process?
55 What is the difference between the deny keyword in a crypto ACL and the deny keyword
in an access ACL?
CCSP.book Page 77 Friday, February 28, 2003 3:43 PM
CCSP.book Page 78 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
5
Overview of the Cisco VPN 3000 Concentrator Series
6
Cisco VPN 3000 Concentrator Series models
7
Benefits and features of the Cisco VPN 3000 Concentrator Series
8
Cisco VPN 3000 Concentrator Series Client support
CCSP.book Page 79 Friday, February 28, 2003 3:43 PM
CHAPTER
3
Cisco VPN 3000 Concentrator
Series Hardware Overview
Ever striving to meet the needs of its customers, Cisco has put together a complete lineup
of VPN products. As you learned in Chapter 2, “Overview of VPN and IPSec Technologies,”
the Cisco IOS Software feature set used on Cisco routers offers robust IP Security (IPSec)
capability for site-to-site VPN requirements. The Cisco Secure PIX Firewall also provides
VPN capability, moving the CPU-intensive encryption operations away from the busy
border routers.
With the introduction of the Cisco VPN 3000 Concentrator Series, Cisco has implemented
solutions that are built for the unique purpose of remote access VPNs. These versatile,
reliable systems are designed to only process VPNs, and to process them quickly and
efficiently.
Five models are available in the Cisco VPN 3000 Concentrator line: 3005, 3015, 3030,
3060, and 3080. The 3005 is a fixed configuration, while the others share the same chassis
and are configurable, providing an unrestricted upgrade path from the 3015 model all the
way to the 3080 model. These configurable models also allow for the use of multiple
Scalable Encryption Processor (SEP) modules that offload processor-intensive encryption
activities from the central processor of the concentrator.
This chapter present the products in this concentrator series and analyzes their benefits and
features. Additionally, the chapter introduces the clients that support these products.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show retention is significantly increased through writing facts and concepts down,
even if you never look at the information again.
•
Use Figure 3-1 to guide you to the next step.
CCSP.book Page 80 Friday, February 28, 2003 3:43 PM
80
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Figure 3-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 18-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into three smaller “quizlets,” which correspond to the three major topic headings in
the chapter. Figure 3-1 outlines suggestions on how to spend your time in this chapter based on
your quiz score. Use Table 3-1 to record your scores.
CCSP.book Page 81 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 3-1
81
Score Sheet for Quiz and Quizlets
Quizlet
Number
Foundations Topics Section Covering These
Questions
Questions
1
Overview of the Cisco VPN 3000 Concentrator Series
1–6
Score
Cisco VPN 3000 Concentrator Series models
2
Benefits and features of the Cisco VPN 3000 Concentrator
Series
7–12
3
Cisco VPN 3000 Concentrator Series Client support
13–18
All questions
1–18
1 What models are available in the Cisco VPN 3000 Concentrator Series?
2 What is the maximum number of simultaneous sessions that can be supported on the
Cisco VPN 3015 Concentrator?
3 What is the maximum number of simultaneous sessions that can be supported on the
Cisco VPN 3080 Concentrator?
4 On a Cisco VPN 3005 Concentrator, what does a blinking green system LED indicate?
CCSP.book Page 82 Friday, February 28, 2003 3:43 PM
82
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
5 What is the maximum encryption throughput rate for the VPN 3000 series?
6 What tunneling protocols do Cisco VPN 3000 Concentrators support?
7 How do VPN concentrators reduce communications expenses?
8 What other authentication capability exists if standard authentication servers are not
available?
9 What routing protocols do the Cisco VPN 3000 Concentrators support?
10 What protocol permits multichassis redundancy and failover?
CCSP.book Page 83 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
83
11 List some of the methods that can be used to interface with the embedded Cisco VPN
Manager software on VPN concentrators?
12 What four options are available under the Configuration menu of the VPN Manager?
13 What mechanism is used by Cisco VPN Clients to monitor firewall activity between the
client and the concentrator?
14 What optional feature on the Cisco VPN 3002 Hardware Client allows you to connect
Ethernet devices to the client?
15 During large-scale implementations, how can VPN 3000 Concentrators be configured to
simplify client configuration?
16 Which of Cisco’s client offerings has no limitations with regard to the types of client
operating systems it can support?
CCSP.book Page 84 Friday, February 28, 2003 3:43 PM
84
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
17 What two operating modes can a Cisco VPN 3002 Hardware Client be configured to
support?
18 What operating systems does the Cisco VPN Client support?
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
10 or less overall score—You should read the entire chapter, including the “Foundation
Topics” and “Foundation Summary” sections, as well as the “Q&A” section.
•
11 to 14 overall score—Read the “Foundation Summary” section and the “Q&A”
section. If you are having difficulty with a particular subject area, read the appropriate
section in the “Foundation Topics” section.
•
15 or more overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, then the “Q&A” section. Otherwise, skip this chapter and
go to the next chapter.
CCSP.book Page 85 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
85
Foundation Topics
In January 2000, Cisco purchased Altiga Networks of Franklin, Massachusetts. With that
purchase, Cisco acquired Altiga’s nifty line of VPN concentrators, client software, and webbased management software. These products became the Cisco VPN 3000 Series Concentrators
and supporting software. Since that time, Cisco has enhanced the product line by adding a topend concentrator and a hardware client, and has made improvements to the software client. This
chapter explores the advantages, features, and specifications of the Cisco VPN 3000
Concentrator Series.
Major Advantages of Cisco VPN 3000 Series
Concentrators
5
Overview of the Cisco VPN 3000 Concentrator Series
7
Benefits and features of the Cisco VPN 3000 Concentrator Series
The Cisco VPN 3000 Series Concentrators are extremely versatile, delivering high performance, security, and fault tolerance. The centralized management tool is standards-based and
enables real-time statistics gathering and reporting. These devices allow corporations to reduce
communications expenses by permitting clients to connect to corporate assets through local ISP
connections to the Internet rather than through long-distance or 800 number connections to
access servers. VPNs provide the productivity-enhancing ability to access corporate network
assets while reducing expenses.
Dial-up connections using modems are prevalent throughout many corporate communities,
especially on laptop systems. For some types of users, however, broadband VPN services
provide speed and always-on connectivity that permit corporations to extend their office LANs
into small office/home office (SOHO) environments. The popularity of cable modems and DSL
modems has made broadband services commonplace for the home office user. Connecting these
high-speed networks to the corporate network via IPSec tunnels gives SOHO users secure, full
access to network assets at speeds up to 25 times faster than 56-kbps modems. Figure 3-2 shows
typical modem and broadband connectivity to a VPN concentrator.
CCSP.book Page 86 Friday, February 28, 2003 3:43 PM
86
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Figure 3-2
Remote Access Types
Desktop
Laptop
Internet
Low-Speed Remote User
High-Speed Remote User
VPN Access
VPN Access
Via Modem
Via Broadband
Cable Modem / DSL
VPN
Concentrator
Corporate Network
Private Enterprise Network
Not shown in Figure 3-2, wireless VPN clients provide an additional layer of encryption
security to wireless communications. IPSec encryption end-to-end between client and
concentrator can be combined with the encryption provided by the wireless Wired Equivalent
Privacy (WEP) standard to enable a high level of security for wireless communications. IPSec
with 3DES encryption for wireless communications is one of the recommendations of Cisco’s
SAFE security guidelines.
NOTE
SAFE is the Cisco secure blueprint for enterprise networks that provides information to
interested parties on the best practices to use for designing and implementing secure networks.
The Cisco VPN 3000 Series Concentrators are versatile, full-featured systems. Some of the
characteristics that make them so popular are as follows:
•
•
•
•
•
•
Ease with which you can deploy them
Performance and scalability
Security
Fault tolerance
Management interface
Ease with which you can upgrade them
The following sections cover these areas in more detail.
CCSP.book Page 87 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
87
Ease of Deployment and Use
The Cisco VPN 3000 Series Concentrators were designed to be inserted into the current
network without forcing infrastructure changes. These concentrators work with existing
Remote Authentication Dial-In User Service (RADIUS), Terminal Access Controller Access
Control System Plus (TACACS+), NT Domain, or Security Dynamics servers. This capability
presents the same authentication interface to the users as they attempt to connect to the network.
When these authentication servers are not available, the VPN concentrators have the ability to
authenticate users from an internal database.
One of the interesting capabilities of the Cisco VPN 3000 Concentrator is its flexibility in
placement. These systems can be installed in front of, behind, or in parallel with a firewall. The
Cisco VPN Concentrator has firewall features that make it possible to customize the access
permitted to individual connections coming through the concentrator. To avoid static route
configurations on neighboring devices when inserting these concentrators into routed networks,
the Cisco VPN 3000 Series Concentrators are routers, supporting RIP versions 1 and 2 and
OSPF.
The VPN concentrators are equipped with numerous LED indicator lights that make it easy to
verify system status. These indicators can even be “viewed” remotely through the web-based
VPN 3000 Concentrator Series Manager software so that you can perform a quick system
health check from your desk.
The Cisco VPN 3000 Series Concentrators are standards-based systems that can easily mesh
with existing tunneling protocols such as Point-to-Point Tunneling Protocol (PPTP) in the
Microsoft environment, or IPSec when more security is desired. The Cisco VPN concentrators
can push the client policies to the user when they first connect through the concentrator. The
Cisco VPN Client is shipped with the VPN concentrators and includes an unlimited distribution
license, which means you do not have to worry about whether you have enough client licenses.
Performance and Scalability
The 3DES-encrypted throughput on the Cisco VPN Concentrators is rated at up to 100 Mbps
without performance degradation. This is accomplished by using Scalable Encryption Processors (SEPs) on the modular devices. These SEPs are powered by programmable digital signal
processors (DSPs) in the encryption engine. Each SEP provides 25 Mbps of 3DES encryption,
making the VPN concentrators scalable.
The software-based DSPs give Cisco the ability to respond to changing standards without the
need for customers to replace cards or chipsets in the VPN devices. DSPs also enable Cisco
developers to tune the software to maximize performance for various applications. For the
Cisco VPN 3000 Series Concentrators, that means maximizing the remote access performance
characteristics. Hardware-assisted encryption makes these VPN concentrators extremely fast in
comparison to software-based encryption devices.
CCSP.book Page 88 Friday, February 28, 2003 3:43 PM
88
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
The Cisco VPN Concentrators were designed specifically as VPN communication devices.
They are not performing the function as an afterthought. Cisco VPN Concentrators have been
optimized for connectivity, throughput, management, and standards support.
The Cisco VPN Concentrators support the following tunneling protocols:
•
•
•
•
•
Internet Protocol Security (IPSec)
Point-to-Point Tunneling Protocol (PPTP)
Layer 2 Tunneling Protocol (L2TP)
L2TP/IPSec
Network Address Translation (NAT) Transparent IPSec
The Cisco VPN 3000 Series Concentrators are true routers and offer the following routing
options:
•
•
•
•
•
•
•
•
RIP
RIP2
OSPF
Static
Automatic endpoint discovery
Network Address Translation (NAT)
Classless interdomain routing (CIDR)
Reverse Route Injection (RRI)
Table 3-2 lists additional important features of these concentrators.
Table 3-2
Cisco VPN 3000 Concentrator Series Capabilities
Description
Specification
Compatibility Client Software
Compatibility
Cisco VPN Client (IPSec) for Windows 95, 98, Me,
NT 4.0, and 2000, including centralized split-tunneling
control and data compression.
Cisco VPN 3002 Hardware Client.
Microsoft Point-to-Point Tunneling Protocol
(PPTP)/Microsoft Point-to-Point Encryption
(MPPE)/Microsoft Point-to-Point Compression (MPPC).
Microsoft L2TP/IPsec for Windows 2000.
MovianVPN (Certicom) Handheld VPN Client with ECC.
CCSP.book Page 89 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
Table 3-2
89
Cisco VPN 3000 Concentrator Series Capabilities (Continued)
Description
Specification
Compatibility Encryption/Authentication IPSec Encapsulating Security Payload (ESP) using
(Continued)
DES/3DES (56/168-bit) with Message Digest 5 (MD5)
or Secure Hash Algorithm (SHA); MPPE using the
40/128-bit RC4 encryption algorithm from RSA.
Key Management
Internet Key Exchange (IKE).
Perfect Forward Secrecy (PFS).
Third-Party Compatibility
High Availability
Certicom, iPass Ready, Funk Steel Belted RADIUS
certified, NTS TunnelBuilder VPN Client (Mac and
Windows), Microsoft Internet Explorer, Netscape
Communicator, Entrust, GTE Cybertrust, Baltimore,
RSA Keon, VeriSign.
VRRP protocol for multichassis redundancy and failover.
Destination pooling for client-based failover and
connection reestablishment.
Redundant SEP modules (optional), power supplies, and
fans (3015–3060).
Redundant SEP modules, power supplies, and fans
(3080).
Management
Configuration
Embedded management interface is accessible via
console port, Telnet, Secure Shell (SSH), and Secure
HTTP.
Administrator access is configurable for five levels
of authorization. Authentication can be performed
externally via TACACS+.
Role-based management policy separates functions for
service provider and end-user management.
Monitoring
Event logging and notification via e-mail (SMTP).
Automatic FTP backup of event logs.
SNMP MIB-II support.
Configurable SNMP traps.
Syslog output.
System status.
Session data.
General statistics.
continues
CCSP.book Page 90 Friday, February 28, 2003 3:43 PM
90
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Table 3-2
Cisco VPN 3000 Concentrator Series Capabilities (Continued)
Description
Security
Specification
Authentication and
Accounting Servers
Support for redundant external authentication servers:
• RADIUS
• Microsoft NT Domain authentication
• RSA Security Dynamics (SecurID Ready)
Internal Authentication server for up to 100 users.
TACACS+ Administrative user authentication.
X.509v3 Digital Certificates.
RADIUS accounting.
Internet-Based Packet
Filtering
Source and destination IP address.
Port and protocol type.
Fragment protection.
FTP session filtering.
Policy Management
By individual user or group:
• Filter profiles
• Idle and maximum session timeouts
• Time and day access control
• Tunneling protocol and security authorization profiles
• IP Pool
• Authentication servers
Security
Because the Cisco VPN Concentrators have such a high throughput level for encrypted communications, you can set up all your users for the highest security levels without a loss of
functionality or performance. Currently, the highest security option would be IPSec with 3DES
encryption. Robust authentication options permit you to set up authentication using either an
internal database or external authentication servers. Digital certificates and tokens can also be
used to add an extra measure of security.
With the integral firewall capabilities, you have options in where you can locate the concentrators.
You can augment the protection of your existing firewall by placing the VPN concentrator in
front of or behind the existing firewall. Additionally, you can allow the concentrator to provide
its own firewall protection by placing the VPN concentrator in parallel with your existing firewall.
CCSP.book Page 91 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
91
Many firewalls also provide an isolated network called a demilitarized zone (DMZ), which is
often used to house public access facilities such as Internet web servers. When the firewall does
provide a DMZ, the VPN concentrator can be placed there, providing a fourth method of installing the Cisco VPN 3000 Concentrator in conjunction with a firewall. The following figures
illustrate the four methods of implementing a VPN concentrator with a firewall.
Figure 3-3 shows the VPN concentrator placed in front of the firewall.
Figure 3-3
VPN Concentrator in Front of Firewall
Internet
Internet
Router
VPN
Concentrator
DMZ
Firewall
Internal LAN
Web
Server
Application
Server
Figure 3-4 shows the VPN concentrator placed behind the firewall.
CCSP.book Page 92 Friday, February 28, 2003 3:43 PM
92
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Figure 3-4
VPN Concentrator Behind Firewall
Internet
Internet
Router
DMZ
Firewall
Web
Server
Internal LAN
VPN
Concentrator
Application
Server
Figure 3-5 shows the VPN concentrator placed parallel with the firewall.
Figure 3-5
VPN Concentrator Parallel with Firewall
Internet
Internet
Router
DMZ
Firewall
Web
Server
Internal LAN
Application
Server
VPN
Concentrator
CCSP.book Page 93 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
93
Figure 3-6 shows the VPN concentrator placed in the firewall’s DMZ.
Figure 3-6
VPN Concentrator in DMZ
Internet
Internet
Router
DMZ
Firewall
VPN
Concentrator
Web
Server
Internal LAN
Application
Server
You can establish filters to permit or deny almost any kind of traffic, and you can handshake
with client-based firewalls. The Cisco VPN 3000 Series Concentrators can push firewall
settings to the VPN Client, which then monitors firewall activity through an enforcement
mechanism called Are You There (AYT). The AYT policy causes the client to poll the firewall
every 30 seconds. If the firewall doesn’t respond, the VPN client drops the connection.
Centralized management of concentrators and clients is another powerful security feature. The
VPN manager is a web-based management tool that can be secured using HTTPS or through
an encrypted tunnel.
The Cisco VPN 3000 Concentrators and the Cisco VPN Client also provide additional security
by providing 3DES encryption over IPSec for wireless transmissions. While the wireless WEP
protocol provides some encryption for a portion of the connection, IPSec with 3DES enables
end-to-end encryption security from the client to the concentrator.
CCSP.book Page 94 Friday, February 28, 2003 3:43 PM
94
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Fault Tolerance
As more of your network users connect through the VPN concentrator, you might begin to
wonder what happens if the device fails. Cisco thought about that too, and built in redundant
system images, redundant fans, optional load-sharing redundant power supplies, and support
for optional multiple hardware encryption modules. The mean time between failure (MTBF)
rating of the Cisco VPN 3000 Series Concentrators is 200,000 hours, or slightly over 22 years,
making them reliable products.
However, even with that kind of reliability, systems can fail. If your installation requires 99.9%
uptime, simply trusting the lifetime rating of the device might not suffice for you. Cisco has
an answer for that, too: the Virtual Router Redundancy Protocol (VRRP). With VRRP, two
concentrators are placed into the network in parallel, as shown in Figure 3-7. One of the devices
becomes the online unit and the other the hot standby unit. The VPN concentrators constantly
monitor the health of each other. If the standby unit detects a failure of the primary unit, it
assumes the IP address and MAC address of the primary unit and takes over as the connecting
device. This process happens without administrator intervention. When failover occurs, alerts
are sent so that the failed device can be repaired.
Figure 3-7
VPN Concentrators and VRRP
Group 1
Group Shared Private Address
10.20.20.1
Group Shared Public Address
194.20.20.111
Internet
Server
Master
194.20.20.111
10.20.20.1
194.20.20.112
10.20.20.2
PIX
Firewall
Private Network
Border
Router
Public Network
Hot Standby
Workstation
Access
Switch
Distribution
Router
Mobile User
Management Interface
Versatile management options make the VPN 3000 Concentrators easy to administer. They can
be managed using the command-line interface (CLI), and in fact, some CLI administration is
necessary during the initial configuration stages. The login screen and main menu of the CLI
CCSP.book Page 95 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
95
are shown in Example 3-1. But the web interface is the tool that you want to use. Intuitive menu
systems, onscreen help, drop-down-box selection windows, error checking, and security make
this one of the slickest management interfaces in Cisco’s product line.
Example 3-1 VPN Concentrator Command Line Interface
Login: admin
Password:
Welcome to
Cisco Systems
VPN 3000 Concentrator Series
Command Line Interface
Copyright (C) 1998-2002 Cisco Systems, Inc.
1)
2)
3)
4)
5)
6)
Configuration
Administration
Monitoring
Save changes to Config file
Help Information
Exit
Main ->
The VPN Concentrator Manager breaks the concentrator management process into three
management areas: Configuration, Administration, and Monitoring. Figure 3-8 shows the main
menu screen of the manager.
Figure 3-8
VPN Concentrator Manager Main Page
CCSP.book Page 96 Friday, February 28, 2003 3:43 PM
96
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Configuration changes are stored within the memory of the VPN concentrator and take effect
immediately. This feature allows the administrator to make configuration modifications on the
fly without having to reboot the system or disrupt users. The next sections take a little closer
look at the three major management areas of the VPN Concentrator Manager.
Configuration
Figure 3-9 shows the Configuration menu that appears when you click that option from the main
menu. This menu identifies the four subheadings under the Configuration portion of the
manager: Interfaces, System, User Management, and Policy Management.
Figure 3-9
VPN Concentrator Manager—Configuration
Clicking the Interfaces option brings up the window shown in Figure 3-10. This window shows
an image of the concentrator and allows you to select the interface that you need to configure.
This screen gives a quick synopsis of the status of the interfaces and shows their IP configuration
properties.
Figure 3-10 VPN Concentrator Manager—Configuration | Interfaces
CCSP.book Page 97 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
97
The other three options on the Configuration menu cover the following areas:
•
System—Server access, address assignment, tunneling protocols, IP routing, built-in
management servers, system events, and system identification
•
User Management—Attributes for groups and users that determine their access to and
use of the VPN
•
Policy Management—Policies that control data traffic through the VPN via filters, rules,
and IPSec Security Associations; network lists; access times; and NAT
A hierarchy in the User Management section determines the inherited properties that groups
and users assume. The root of all inherited properties is the group called the Base Group. The
properties within this group are the default properties for all users, unless the users are members
of specific groups. When specific groups are defined, for example, Accounting, Topeka Sales,
or Network, those groups inherit their default settings from the Base Group. Those settings can
be overridden within the specific groups. Users inherit the properties of the group when they
are added to specific groups. If a user is not a member of a specific group, he or she defaults to
the settings of the Base Group. It is a simple yet effective method of assigning properties to
groups and users.
The following two sections present an overview of the Administration and Monitoring sections
of the VPN Manager. Chapter 7, “Monitoring and Administering the Cisco VPN 3000 Series
Concentrator,” provides more detail on these topics.
Administration
The Administration screen is shown in Figure 3-11.
Figure 3-11 VPN Concentrator Manager—Administration
CCSP.book Page 98 Friday, February 28, 2003 3:43 PM
98
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
The administration functions available from this menu are as follows:
•
•
Administer Sessions—View statistics for logout and ping sessions.
Software Update—Update concentrator and client software images to the most current
versions using the appropriate choice from these two selections:
— Concentrator—Upload and update the VPN concentrator software image.
— Clients—Upload and update the VPN client software image.
•
•
•
System Reboot—Set options for VPN concentrator shutdown and reboot.
•
Access Rights—Configure administrator profiles, access, and sessions. The Access
Rights option provides these four selections:
Ping—Use Internet Control Message Protocol (ICMP) ping to determine connectivity.
Monitoring Refresh—Enable automatic refresh of status and statistics in the Monitoring
section of the Manager.
— Administrators—Configure administrator usernames, passwords, and rights.
— Access Control List—Configure IP addresses for workstations with access
rights.
— Access Settings—Set administrative session idle timeout and limits.
— AAA Servers—Set administrative authentication using TACACS+.
•
File Management—Manage system files in flash memory. The File Management option
provides these four selections:
— Files—Copy, view, and delete system files.
— Swap Configuration Files—Swap backup and boot configuration files.
— TFTP Transfer—Use TFTP to transfer files to and from the VPN concentrator.
— File Upload—Use HTTP to transfer files to the VPN concentrator.
•
Certificate Management—Install and manage digital certificates. The Certificate
Management option provides these three selections:
— Enrollment—Create a certificate request to send to a Certificate Authority.
— Installation—Install digital certificates.
— Certificates—View, modify, and delete digital certificates.
Monitoring
The Monitoring screen is shown in Figure 3-12.
CCSP.book Page 99 Friday, February 28, 2003 3:43 PM
Major Advantages of Cisco VPN 3000 Series Concentrators
99
Figure 3-12 VPN Concentrator Manager—Monitoring
The monitoring functions available from this menu are as follows:
•
•
Routing Table—Current valid routes, protocols, and metrics.
Filterable Event Log—Current event login memory, filterable by event class, severity, IP
address, and so on. Within this monitoring section, you also find access to current log
entries from the following selection:
— Live Event Log—Current event log, continuously updated.
•
System Status—Current software revisions, uptime, SEP modules, system power
supplies, Ethernet interfaces, front-panel LEDs, and hardware sensors. To monitor
the LED status indicator panel, select the following System Status option:
— LED Status—Current status of the VPN Concentrator front-panel LED
indicators.
•
Sessions—Currently active sessions sorted by protocol, SEP, and encryption. “Top ten”
sessions sorted in descending order by data (total bytes transmitted and received), duration
(total time connected), and throughput (average bytes per second).
•
Statistics—Current statistics for PPTP, L2TP, IPSec, HTTP, events, Telnet, DNS,
authentication, accounting, filtering, VRRP, SSL, DHCP, address pools, SSH, load
balancing, and data compression. MIB-II statistics for interfaces, TCP/UDP, IP, RIP,
OSPF, ICMP, the ARP table, Ethernet traffic, and SNMP.
Ease of Upgrades
There are only two basic chassis for the Cisco VPN 3000 Series Concentrators: the 1U-high
fixed-configuration box, used for the 3005 Concentrator, and the 2U-high modular box, used
for all others. The 3005 is not upgradeable, but it is still a powerful performer capable of
supporting up to 100 simultaneous sessions.
CCSP.book Page 100 Friday, February 28, 2003 3:43 PM
100
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
The 2U-high modular system used for the other four concentrator models is clever. If you begin
with the 3015 Concentrator, it is progressively upgradeable to the 3030 and then to the 3060
simply by adding additional memory and SEP modules. This elegant migration approach allows
you to go from supporting 100 sessions at 4-Mbps encrypted throughput to 5000 sessions at
100-Mbps encrypted throughput. The Cisco VPN 3080 Concentrator is the top of the line and
cannot be upgraded.
Cisco Secure VPN Concentrators: Comparison
and Features
6
Cisco VPN 3000 Concentrator Series models
Now that you’ve learned about some of the features of the Cisco VPN 3000 Series Concentrators,
this section takes a closer look at the individual products in the series. Each of the concentrators
in this series is shipped with the Cisco VPN Client, with unlimited distribution licensing.
Additionally, each of these concentrators contains the powerful Cisco VPN Manager software
in memory. These systems come as a complete package, ready to drop into your network.
Figure 3-13 shows one of the 3015–3080 systems.
Figure 3-13 Cisco VPN Concentrator
This section covers the following topics:
•
•
•
•
•
•
Cisco VPN 3005 Concentrator
Cisco VPN 3015 Concentrator
Cisco VPN 3030 Concentrator
Cisco VPN 3060 Concentrator
Cisco VPN 3080 Concentrator
Cisco VPN 3000 Concentrator Series LED indicators
CCSP.book Page 101 Friday, February 28, 2003 3:43 PM
Cisco Secure VPN Concentrators: Comparison and Features
101
Cisco VPN 3005 Concentrator
Designed for small- to medium-sized organizations, the Cisco VPN 3005 Concentrator can
deliver up to full-duplex T1/E1, 4 Mbps of encryption throughput, and support for up to 100
simultaneous sessions. Figure 3-14 shows front and rear views of the 3005 chassis.
Figure 3-14 Cisco VPN 3005 Concentrator
CISCO VPN 3005 CONCENTRATOR Series
Table 3-3 shows the major features of the Cisco VPN 3005 Concentrator. Notice that encryption
is performed in software on this system and that the system is not upgradeable.
Table 3-3
Cisco VPN 3005 Concentrator
Feature
Cisco 3005
Typical application
Small to medium
Simultaneous sessions
100
Encryption throughput
4 Mbps
Encryption method
Software
Encryption (SEP) module
0
Redundant SEP
N/A
Available expansion slots
0
Upgrade capability
No
System memory
32 MB (fixed)
Hardware
1U, fixed
Power supply
Single
Client license
Unlimited
Processor
Motorola PowerPC
Console port
Async DB9
Flash
32 MB SRAM
Memory
Fixed
CCSP.book Page 102 Friday, February 28, 2003 3:43 PM
102
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Cisco VPN 3015 Concentrator
Also designed for small- to medium-sized organizations, the Cisco VPN 3015 Concentrator can
deliver up to full-duplex T1/E1, 4 Mbps of encryption throughput, and support for up to 100
simultaneous sessions. The biggest difference between the 3005 and 3015 concentrators is the
fact that the 3015 is upgradeable, whereas the 3005 is not. Figure 3-15 shows front and rear
views of the 3015, 3030, 3060, and 3080 chassis. These models all share the same case.
Figure 3-15 Cisco VPN 3015 Concentrator
CISCO VPN 3015 CONCENTRATOR Series
Table 3-4 shows the major features of the Cisco VPN 3015 Concentrator. Notice that, like the
VPN 3005 Concentrator, encryption is performed in software on this system; however, this
system is upgradeable.
Table 3-4
Cisco VPN 3015 Concentrator
Feature
Cisco 3015
Typical application
Small to medium
Simultaneous sessions
100
Encryption throughput
4 Mbps
Encryption method
Software
Encryption (SEP) module
0
Redundant SEP
N/A
Available expansion slots
4
Upgrade capability
Yes
System memory
128 MB
Hardware
2U, scalable
Power supply
Single or dual
CCSP.book Page 103 Friday, February 28, 2003 3:43 PM
Cisco Secure VPN Concentrators: Comparison and Features
Table 3-4
103
Cisco VPN 3015 Concentrator (Continued)
Feature
Cisco 3015
Client license
Unlimited
Processor
Motorola PowerPC
Console port
Async DB9
Flash
Redundant
Memory
Variable
Cisco VPN 3030 Concentrator
Designed for medium- to large-sized organizations, the Cisco VPN 3030 Concentrator can
deliver from full-duplex T1/E1 through T3/E3, 50 Mbps of encryption throughput, and support
for up to 1500 simultaneous sessions.
Table 3-5 shows the major features of the Cisco VPN 3030 Concentrator. The 3030 VPN
Concentrator uses SEPs to perform hardware encryption and can be purchased in either
redundant or nonredundant configurations. This system is field-upgradeable to the Cisco
3060 Concentrator.
Table 3-5
Cisco VPN 3030 Concentrator
Feature
Cisco 3030
Typical application
Medium to large
Simultaneous users
1500
Encryption throughput
50 Mbps
Encryption method
Hardware
Encryption (SEP) module
1
Redundant SEP
Option
Available expansion slots
3
Upgrade capability
Yes
System memory
128 MB
Hardware
2U, scalable
Power supply
Single or dual
Client license
Unlimited
Processor
Motorola PowerPC
Console port
Async DB9
Flash
Redundant
Memory
Variable
CCSP.book Page 104 Friday, February 28, 2003 3:43 PM
104
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Cisco VPN 3060 Concentrator
Designed for large organizations requiring high performance and reliability, the Cisco VPN
3060 Concentrator can deliver from fractional T3 through T3/E3 or greater, 100 Mbps of
encryption throughput, and support for up to 5000 simultaneous sessions.
Table 3-6 shows the major features of the Cisco VPN 3060 Concentrator. The 3060 VPN
Concentrator uses SEPs to perform hardware encryption and can be purchased in either
redundant or nonredundant configurations. This system is field-upgradeable to the Cisco
3080 Concentrator.
Table 3-6
Cisco VPN 3060 Concentrator
Feature
Cisco 3060
Typical application
Large
Simultaneous users
5000
Encryption throughput
100 Mbps
Encryption method
Hardware
Encryption (SEP) module
2
Redundant SEP
Option
Available expansion slots
2
Upgrade capability
N/A
System memory
256 MB
Hardware
2U, scalable
Power supply
Single or dual
Client license
Unlimited
Processor
Motorola PowerPC
Console port
Async DB9
Flash
Redundant
Memory
Variable
Cisco VPN 3080 Concentrator
Designed for large organizations demanding the highest level of performance and reliability, the
Cisco VPN 3080 Concentrator delivers 100 Mbps of encryption throughput and support for up
to 10,000 simultaneous sessions.
Table 3-7 shows the major features of the Cisco VPN 3080 Concentrator. The 3080 VPN
Concentrator uses SEPs to perform hardware encryption and is available only in a fully
redundant configuration. The 3080 is the top of the line and is not upgradeable.
CCSP.book Page 105 Friday, February 28, 2003 3:43 PM
Cisco Secure VPN Concentrators: Comparison and Features
Table 3-7
105
Cisco VPN 3080 Concentrator
Feature
Cisco 3080
Typical application
Large
Simultaneous users
10,000
Encryption throughput
100 Mbps
Encryption method
Hardware
Encryption (SEP) module
4
Redundant SEP
Yes
Available expansion slots
N/A
Upgrade capability
N/A
System memory
256 MB
Hardware
2U
Power supply
Dual
Client license
Unlimited
Processor
Motorola PowerPC
Console port
Async DB9
Flash
Redundant
Memory
Variable
Cisco VPN 3000 Concentrator Series LED Indicators
While the LED indicator panel for the 3005 Concentrator only provides information for system
status, the front panel on the 3015 through 3080 Concentrators, shown in Figure 3-16, has
numerous LEDs that you can use to quickly check the health of the unit.
Figure 3-16 Cisco VPN Concentrator 3015–3080 Front LED Display Panel
System
Ethernet Link Status
Expansion Modules
Insertion Status
Run Status
1
2
3
4
CPU Utilization
Fan Status
Active Sessions
A
Throughput
B
CCSP.book Page 106 Friday, February 28, 2003 3:43 PM
106
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
A description of the LEDs on the front panel of the Cisco 3000 Series Concentrators is given
in Table 3-8.
Table 3-8
Cisco VPN Concentrator Front Panel LEDs
LED Indicator
Green
Amber
Off
System has crashed
and halted. Error.
Power off. (All other LEDs are
also off.)
The following details pertain to Model 3005.
System
Power on. Normal.
Blinking green—
System is in a
shutdown (halted)
state, ready to power
off.
The following details pertain to Models 3015–3080.
Ethernet Link Status Connected to network
123
and enabled.
N/A
Not connected to network or
not enabled.
Blinking green—
Connected to network
and configured, but
disabled.
Expansion Modules
Insertion Status
1234
SEP module installed
in system.
N/A
Module not installed in system.
Expansion Modules
Run Status
1234
SEP module
operational.
Module failed during
operation. Error.
If installed, module failed
diagnostics, or encryption code
is not running. Error.
Fan Status
Operating normally.
Not running or RPM
below normal range.
Error.
N/A
Power Supplies
AB
Installed and
operating normally.
Voltage(s) outside of
normal ranges.
Error.
Not installed.
CPU Utilization
This statistic selected
for usage gauge
display.
N/A
Not selected.
Active Sessions
This statistic selected
for usage gauge
display.
N/A
Not selected.
Throughput
This statistic selected
for usage gauge
display.
N/A
Not selected.
CCSP.book Page 107 Friday, February 28, 2003 3:43 PM
Cisco Secure VPN Concentrators: Comparison and Features
107
The rear panel on the 3015 through 3080 Concentrators also has numerous indicator LEDs that
you can use to quickly check the health of the unit. Figure 3-17 shows the typical LED indicator
configuration that is associated with each Ethernet port on a concentrator.
Figure 3-17 Cisco VPN Concentrator Ethernet Port LEDs
Private
Link
Coll
Tx
100
A description of the LEDs on this display is given in Table 3-9.
Table 3-9
Cisco VPN Concentrator Rear Panel LEDs
LED Indicator Green
Amber
Off
Link
Carrier detected. Normal.
N/A
No carrier detected. Error.
Tx
Transmitting data. Normal.
Intermittent on.
N/A
Not transmitting data. Idle.
Intermittent off.
Coll
N/A
Data collisions
detected.
No collisions. Normal.
100
Speed set at
100 Mbps.
N/A
Speed set at
10 Mbps.
SEP modules that are included on VPN Concentrator Models 3015 through 3080 have
additional LEDs. Table 3-10 describes those LEDs.
Table 3-10
Cisco VPN Concentrator SEP LEDs
SEP Module LED
Green
Amber
Off
Power
Power on. Normal.
N/A
Power is not reaching the
module. It might not be
seated correctly. Error.
Status
Encryption code is
running. Normal.
Module failed during
operation. Error.
Module failed diagnostics,
or encryption code is not
running. Error.
CCSP.book Page 108 Friday, February 28, 2003 3:43 PM
108
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Cisco Secure VPN Client Features
8
Cisco VPN 3000 Concentrator Series Client support
Cisco now offers two types of clients that can be used to negotiate and maintain IPSec VPN
tunnels with Cisco VPN 3000 Series Concentrators, as well as equipment from other hardware
vendors that support the full standards-based implementation of IPSec. The Cisco VPN Client
is shipped with every VPN concentrator that Cisco sells. The Cisco VPN Client is supplied at
no extra charge, is licensed for an unlimited number of installations, and can be used on most
popular operating systems.
A new entry into the field, the Cisco VPN 3002 Hardware Client has no limitations as far as the
operating systems it can support. As long as the attaching client can support TCP/IP, the VPN
3002 Hardware Client can provide secure IPSec communications. The next sections provide a
brief overview of the VPN 3002 Hardware Client and the Cisco VPN Client. More information
on the VPN Client is given in Chapter 4, “Configuring Cisco VPN 3000 for Remote Access
Using Preshared Keys,” and Chapter 6, “Configuring the Cisco VPN Client Firewall Feature.”
The VPN 3002 Hardware Client is discussed in Chapter 8, “Configuring Cisco 3002 Hardware
Client for Remote Access,” and Chapter 9, “Configuring Scalability Features of the Cisco VPN
3002 Hardware Client.”
This section covers the following topics:
•
•
Cisco VPN 3002 Hardware Client
Cisco VPN Client
Cisco VPN 3002 Hardware Client
The Cisco VPN 3002 Hardware Client was designed for remote office environments that
normally have little direct IT support. These facilities need an easy-to-install, scalable, reliable,
stable platform that can support any attached TCP/IP device, regardless of the operating system.
The VPN 3002 is just such a device. Figure 3-18 shows the Cisco VPN 3002 Hardware Client
equipped with the optional 8-port Ethernet switch.
CCSP.book Page 109 Friday, February 28, 2003 3:43 PM
Cisco Secure VPN Client Features
109
Figure 3-18 Cisco VPN 3002 Hardware Client
The Cisco VPN 3002 Hardware Client is a full-featured VPN client. It supports IPSec and other
VPN protocols. With IPSec, it supports both DES and 3DES encryption, providing either
56-bit or 168-bit encryption. The client can be configured in either a client mode or a network
mode. The VPN 3002 uses Easy VPN and uses a push policy that enables it to scale to large
numbers. The optional 8-port 10/100BaseTX switch allows immediate connection to local
network devices.
Cisco VPN Client
The client that is included with every VPN concentrator, the Cisco VPN Client, is easy to deploy
and operate. The client can connect with any Easy VPN server and can be preconfigured to
simplify mass deployments, requiring little user intervention. For these deployments, the VPN
access policies and configurations are pulled from the central gateway and pushed to the client
upon initial connection. This highly scalable client supports the full range of Microsoft
Windows operating systems, including Windows 95, 98, Me, NT 4.0, 2000, and XP. The Cisco
VPN Client also supports Linux (Intel), Solaris (UltraSparc-32bit), and MAC OS X 10.1.
Figure 3-19 shows the initial screen of the Windows version of the Cisco VPN Client.
The VPN client is easy to deploy throughout a large corporation. The client installation is
customizable, where the configuration can be preconfigured and installation can be automated.
In addition, installation via CD-ROM can be automatically started using the autorun feature. By
using this autorun feature, it requires no intervention from the user. Whenever possible, the
client should connect to the VPN concentrator using the Cisco VPN Client because it provides
the highest available security mechanism using IPSec and 3DES encryption.
CCSP.book Page 110 Friday, February 28, 2003 3:43 PM
110
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Figure 3-19 Cisco VPN Client
Other Client Software
Non-Cisco client software can also be used to establish a VPN connection to the Cisco VPN
3000 Concentrator. Microsoft provides a client called Microsoft L2TP/IPSec client that can be
used to connect to the concentrator. However, using this client limits the client to an L2TP
connection with IPSec. Microsoft also has the capability to establish a connection with the
concentrator using Point-to-Point Tunneling Protocol (PPTP).
CCSP.book Page 111 Friday, February 28, 2003 3:43 PM
Table of Cisco VPN 3000 Concentrators
111
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those of you who are already comfortable with the
topics in this chapter, this summary can help you recall a few details. For those of you who just
read this chapter, this review should help solidify some key facts. For anyone doing his or her
final preparation before the exam, these tables and figures are a convenient way to review the
material the day before the exam.
Table of Cisco VPN 3000 Concentrators
The features of the Cisco VPN 3000 Concentrators are shown in Table 3-11.
Table 3-11
Cisco VPN 3000 Series Concentrators
Feature
Cisco 3005
Cisco 3015
Cisco 3030
Cisco 3060
Cisco 3080
Typical application
Small to
medium
Small to
medium
Medium to
large
Large
Large
Simultaneous users
100
100
1500
5000
10,000
Encryption
throughput
4 Mbps
4 Mbps
50 Mbps
100 Mbps
100 Mbps
Encryption method
Software
Software
Hardware
Hardware
Hardware
Encryption (SEP)
module
0
0
1
2
4
Redundant SEP
N/A
N/A
Option
Option
Yes
Available
expansion slots
0
4
3
2
N/A
Upgrade capability
No
Yes
Yes
N/A
N/A
System memory
32 MB (fixed) 128 MB
128 MB
256 MB
256 MB
Hardware
1U, fixed
2U, scalable
2U, scalable
2U, scalable
2U
Power supply
Single
Single or dual
Single or dual
Single or dual
Dual
Client license
Unlimited
Unlimited
Unlimited
Unlimited
Unlimited
Processor
Motorola
PowerPC
Motorola
PowerPC
Motorola
PowerPC
Motorola
PowerPC
Motorola
PowerPC
Console port
Async DB9
Async DB9
Async DB9
Async DB9
Async DB9
Flash
32 MB
SRAM
Redundant
Redundant
Redundant
Redundant
Memory
Fixed
Variable
Variable
Variable
Variable
CCSP.book Page 112 Friday, February 28, 2003 3:43 PM
112
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Table of Cisco VPN 3000 Concentrator Capabilities
Table 3-12 shows the various protocols that are supported by the Cisco VPN 3000 Series
Concentrators.
Table 3-12
Cisco VPN 3000 Concentrator Series Capabilities
Description
Specification
Compatibility Client Software
Compatibility
Cisco VPN Client (IPSec) for Windows 95, 98, Me,
NT 4.0, 2000, and XP, including centralized splittunneling control and data compression.
Cisco VPN 3002 Hardware Client.
Microsoft PPTP/MPPE/MPPC.
Microsoft L2TP/IPsec for Windows 2000.
MovianVPN (Certicom) Handheld VPN Client
with ECC.
Tunneling Protocols
IPSec, PPTP, L2TP, L2TP/IPsec, NAT Transparent
IPSec.
Encryption/Authentication
IPSec Encapsulating Security Payload (ESP) using
DES/3DES (56/168-bit) with MD5 or SHA; MPPE
using 40/128-bit RC4.
Key Management
Internet Key Exchange (IKE).
Perfect Forward Secrecy (PFS).
Routing Protocols
RIP, RIP2, OSPF, Static, automatic endpoint discovery,
Network Address Translation (NAT), classless
interdomain routing (CIDR).
Third-Party Compatibility
Certicom, iPass Ready, Funk Steel Belted RADIUS
certified, NTS TunnelBuilder VPN Client (Mac and
Windows), Microsoft Internet Explorer, Netscape
Communicator, Entrust, GTE Cybertrust, Baltimore,
RSA Keon, VeriSign.
High Availability
VRRP protocol for multichassis redundancy and
failover.
Destination pooling for client-based failover and
connection reestablishment.
Redundant SEP modules (optional), power supplies,
and fans (3015–3060).
Redundant SEP modules, power supplies, and fans
(3080).
CCSP.book Page 113 Friday, February 28, 2003 3:43 PM
Table of Cisco VPN 3000 Concentrator Capabilities
Table 3-12
113
Cisco VPN 3000 Concentrator Series Capabilities (Continued)
Description
Management
Specification
Configuration
Embedded management interface is accessible via
console port, Telnet, SSH, and Secure HTTP.
Administrator access is configurable for five levels of
authorization. Authentication can be performed
externally via TACACS+.
Role-based management policy separates functions for
service provider and end-user management.
Monitoring
Event logging and notification via e-mail (SMTP).
Automatic FTP backup of event logs.
SNMP MIB-II support.
Configurable SNMP traps.
Syslog output.
System status.
Session data.
General statistics.
Security
Authentication and
Accounting Servers
Support for redundant external authentication servers:
• RADIUS
• Microsoft NT Domain authentication
• RSA Security Dynamics (SecurID Ready)
Internal Authentication server for up to 100 users.
TACACS+ Administrative user authentication.
X.509v3 Digital Certificates.
RADIUS accounting.
Internet-Based Packet
Filtering
Source and destination IP address.
Port and protocol type.
Fragment protection.
FTP session filtering.
Policy Management
By individual user or group
• Filter profiles
• Idle and maximum session timeouts
• Time and day access control
• Tunneling protocol and security authorization
profiles
• IP pool
• Authentication servers
CCSP.book Page 114 Friday, February 28, 2003 3:43 PM
114
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter:
Are You There (AYT) A process where the VPN Client enforces firewall policy defined on
the local firewall by monitoring that firewall to make sure it is running. The client sends periodic
“Are you there?” messages to the firewall. If no response is received, the VPN Client terminates
the connection to the VPN concentrator.
classless interdomain routing (CIDR) Technique supported by BGP4 and based on route
aggregation. CIDR allows routers to group routes together to reduce the quantity of routing
information carried by the core routers. With CIDR, several IP networks appear to networks
outside the group as a single, larger entity. With CIDR, IP addresses and their subnet masks are
written as four octets, separated by periods, followed by a forward slash and a two-digit number
that represents the subnet mask.
demilitarized zone (DMZ) Network that is isolated from a corporation’s production environment. The DMZ is often used as a location for public-access servers, where the effects of
successful intrusion attempts can be minimized and controlled.
digital signal processor (DSP) Segments the voice signal into frames and stores them in
voice packets.
Elliptic Curve Cryptosystem (ECC) A public-key cryptosystem for mobile/wireless
environments. ECC uses smaller key sizes to provide security equivalent to cryptosystems like
RSA, resulting in faster computations, lower power consumption, and reduced memory and
bandwidth use. ECC is particularly well suited for mobile devices that have limited CPU and
memory capabilities.
Internet Engineering Task Force (IETF) Task force consisting of over 80 working groups
responsible for developing Internet standards. The IETF operates under the auspices of the
ISOC.
Layer 2 Forwarding Protocol (L2FP) Protocol that supports the creation of secure virtual
private dial-up networks over the Internet.
Layer 2 Tunneling Protocol (L2TP) An Internet Engineering Task Force (IETF) standards
track protocol defined in RFC 2661 that provides tunneling of PPP. Based on the best features
of L2F and PPTP, L2TP provides an industry-wide interoperable method of implementing
VPDN.
Microsoft Point-to-Point Compression (MPPC) A compression protocol used to compress
Point-to-Point Protocol (PPP) packets between Cisco and Microsoft client devices. This
protocol optimizes bandwidth usage to support multiple simultaneous connections.
CCSP.book Page 115 Friday, February 28, 2003 3:43 PM
Chapter Glossary
115
Microsoft Point-to-Point Encryption (MPPE) An encryption technology that was developed to encrypt point-to-point links over dial-up lines or VPN tunnels. MPPE works as a
subfeature of MPPC.
Network Address Translation (NAT) Mechanism for reducing the need for globally unique
IP addresses. NAT allows an organization with addresses that are not globally unique to connect
to the Internet by translating those addresses into globally routable address space. Also known
as Network Address Translator.
Open Shortest Path First (OSPF) Link-state, hierarchical IGP routing algorithm proposed
as a successor to RIP in the Internet community. OSPF features include least-cost routing,
multipath routing, and load balancing. OSPF was derived from an early version of the
Intermediate System–to–Intermediate System (IS-IS) Protocol.
Perfect Forward Secrecy (PFS) Cryptographic characteristic associated with a derived
shared secret value. With PFS, if one key is compromised, previous and subsequent keys are not
compromised because subsequent keys are not derived from previous keys.
Point-to-Point Tunneling Protocol (PPTP) A protocol that enables secure data transfer
between remote clients and enterprise servers by creating on-demand, multiprotocol VPNs
across TCP/IP-based public data networks, such as the Internet.
Remote Authentication Dial-In User Service (RADIUS) A standards-based protocol for
authentication, authorization, and accounting (AAA).
Reverse Route Injection (RRI) Used to populate the routing table of an internal router
running OSPF or RIP for remote VPN clients or LAN-to-LAN sessions.
Scalable Encryption Processing (SEP) VPN concentrator modules that perform hardwarebased cryptographic functions, including random number generation, hash transforms (MD5
and SHA-1) for authentication, and encryption and decryption (DES and Triple-DES).
Secure Shell (SSH) Sometimes called Secure Socket Shell, a UNIX-based command
interface and protocol for gaining access to a remote computer securely.
Secure Sockets Layer (SSL) Encryption technology for the web used to provide secure
transactions, such as the transmission of credit card numbers for e-commerce.
Terminal Access Controller Access Control System Plus (TACACS+) A Cisco proprietary
protocol for authentication, authorization, and accounting (AAA).
Virtual Router Redundancy Protocol (VRRP) In installations of two or more VPN concentrators in a parallel, redundant configuration, VRRP provides automatic switchover to a backup
system in case the primary system is out of service, thus ensuring user access to the VPN.
Wired Equivalent Privacy (WEP) An encryption protocol used on data signals transmitted
between wireless LAN (WLAN) devices.
CCSP.book Page 116 Friday, February 28, 2003 3:43 PM
116
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
Q&A
As mentioned in Chapter 1, these questions are more difficult than what you should experience
on the CCSP exam. The questions do not attempt to cover more breadth or depth than the exam;
however, the questions are designed to make sure you know the answer. Rather than allowing
you to derive the answer from clues hidden inside the question itself, your understanding and
recall of the subject are challenged. Questions from the “Do I Know This Already?” quiz from
the beginning of the chapter are repeated here to ensure that you have mastered the chapter’s
topic areas. Hopefully, these questions will help limit the number of exam questions on which
you narrow your choices to two options and guess!
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.”
1 How do VPN concentrators reduce communications expenses?
2 What are two of the standard authentication servers that Cisco VPN 3000 Concentrators
can use for authentication?
3 What other authentication capability exists if standard authentication servers are not
available?
4 With respect to firewalls, where can you install Cisco VPN 3000 Concentrators?
CCSP.book Page 117 Friday, February 28, 2003 3:43 PM
Q&A
117
5 What routing protocols do the Cisco VPN 3000 Concentrators support?
6 During large-scale implementations, how can Cisco VPN 3000 Concentrators be
configured to simplify client configuration?
7 What is the maximum encryption throughput rate for the VPN 3000 Concentrator Series?
8 What hardware device is required to achieve maximum encryption throughput on the
Cisco VPN 3000 Concentrators?
9 What element on SEPs permits them to be so fast and flexible?
10 Why are Cisco VPN Concentrators so good at supporting VPN communications?
11 What tunneling protocols do Cisco VPN 3000 Concentrators support?
CCSP.book Page 118 Friday, February 28, 2003 3:43 PM
118
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
12 In addition to RIP and OSPF, what other routing capabilities do Cisco VPN Concentrators
have?
13 What encryption and authentication protocols do Cisco VPN 3000 Concentrators support?
14 What protocol permits multichassis redundancy and failover?
15 What hardware items can be made redundant on Cisco VPN 3000 Concentrators?
16 What are some of the methods that can be used to interface with the embedded Cisco VPN
Manager software on VPN concentrators?
17 What are the most secure forms of authentication that can be used with Cisco VPN 3000
Series Concentrators?
CCSP.book Page 119 Friday, February 28, 2003 3:43 PM
Q&A
119
18 What mechanism is used by Cisco VPN Clients to monitor firewall activity between the
client and the concentrator?
19 What is the rated mean time between failure (MTBF) for Cisco VPN 3000 Concentrators?
20 You have installed two Cisco VPN 3000 Concentrators in parallel on your network. Both
devices have redundant power supplies, fans, and SEPs. You need to ensure 99.9% uptime.
How can you achieve this rate of fault tolerance?
21 During the initial configuration of the VPN concentrators, what management interface
must you use?
22 What do you need to do to activate configuration changes to Cisco VPN Concentrators that
are made through the Cisco VPN Manager?
23 What four options are available under the Configuration menu of the VPN Manager?
CCSP.book Page 120 Friday, February 28, 2003 3:43 PM
120
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
24 What is the hierarchical order of property inheritance on Cisco VPN Concentrators?
25 What options are available on the Administration menu of the Cisco VPN Manager?
26 What options are available on the Monitoring menu of the Cisco VPN Manager?
27 Where in the Cisco VPN Manager could you go to view the current IP address for the
private interface on a Cisco VPN 3000 Concentrator?
28 What models are available in the Cisco VPN 3000 Concentrator Series?
29 Which of the Cisco VPN 3000 Series Concentrators is a fixed configuration that is not
upgradeable?
CCSP.book Page 121 Friday, February 28, 2003 3:43 PM
Q&A
121
30 How can purchasers of a Cisco VPN 3000 Series Concentrator obtain a license for the
Cisco VPN Client?
31 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3005 Concentrator?
32 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3015 Concentrator?
33 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3030 Concentrator?
34 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3060 Concentrator?
35 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3080 Concentrator?
CCSP.book Page 122 Friday, February 28, 2003 3:43 PM
122
Chapter 3: Cisco VPN 3000 Concentrator Series Hardware Overview
36 Which of the Cisco VPN 3000 Series Concentrators is only available in a fully redundant
configuration?
37 On a Cisco VPN 3005 Concentrator, what does a blinking green system LED indicate?
38 On a Cisco VPN 3000 Concentrator, what does a blinking amber system LED indicate?
39 What does a blinking green Ethernet link status LED indicate on a Cisco VPN
Concentrator?
40 What does an amber SEP status LED indicate?
41 Which of Cisco’s client offerings has no limitations with regard to the types of client
operating systems it can support?
CCSP.book Page 123 Friday, February 28, 2003 3:43 PM
Q&A
123
42 What optional feature on the Cisco VPN 3002 Hardware Client allows you to connect
Ethernet devices to the client?
43 What two operating modes can a Cisco VPN 3002 Hardware Client be configured to
support?
44 What operating systems does the Cisco VPN Client support?
CCSP.book Page 124 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
9
Overview of remote access using preshared keys
10 Initial configuration of the Cisco VPN 3000 Concentrator Series for
remote access
11 Browser configuration of the Cisco VPN 3000 Concentrator Series
12 Configuring users and groups
13 Advanced configuration of the Cisco VPN 3000 Concentrator Series
14 Configuring the IPSec Windows Client
CCSP.book Page 125 Friday, February 28, 2003 3:43 PM
CHAPTER
4
Configuring Cisco VPN 3000
for Remote Access Using
Preshared Keys
From a procedural perspective, it is easier to configure the Cisco VPN 3000 Concentrator
Series for remote access using preshared keys. While the alternative method is to use
the services of a Certificate Authority (CA), that method entails additional steps. Using
preshared keys, the client only needs to know the address of the VPN concentrator and
the shared secret key.
While VPN configuration is relatively easy with preshared keys, this manual process does
not scale well for large implementations. The VPN administrator must provide the password and implementation instructions to prospective users. This could be accomplished by
preconfiguring client software on a floppy disk or CD-ROM, but even that process can be
labor intensive in large implementations.
Once all of your users have successfully configured their remote systems with the current
shared key, the process of changing passwords periodically, as every good security plan
requires, would require notifying all users of the new password and providing modification
instructions. You can imagine how it would be easy to forget about this important security
consideration.
While scaling VPN implementations can be better handled by using CA support and digital
certificates, preshared keys are easy to implement and can be used in many applications.
This chapter discusses the process of implementing Internet Protocol Security (IPSec)
using preshared keys on the Cisco VPN 3000 Series Concentrators. The clever graphical
user interface (GUI) makes the implementation process easy.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show retention is significantly increased through writing facts and concepts down,
even if you never look at the information again.
•
Use the diagram in Figure 4-1 to guide you to the next step.
CCSP.book Page 126 Friday, February 28, 2003 3:43 PM
126
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 24-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into six smaller “quizlets,” which correspond to the six major topic headings in the
chapter. Figure 4-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 4-1 to record your scores.
CCSP.book Page 127 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 4-1
127
Score Sheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section Covering These
Questions
Questions
1
Overview of remote access using preshared keys
1–4
2
Initial configuration of the Cisco VPN 3000
Concentrator Series for remote access
5–8
3
Browser configuration of the Cisco VPN 3000
Concentrator Series
9–12
4
Configuring users and groups
13–16
5
Advanced configuration of the Cisco VPN 3000
Concentrator Series
17–20
6
Configuring the IPSec Windows Client
21–24
All questions
Score
1–24
1 What methods can you use for user authentication on the Cisco VPN 3000 Series
Concentrators?
2 What methods can you use for device authentication between VPN peers?
3 What are the three types of preshared keys?
4 What is a unique preshared key?
CCSP.book Page 128 Friday, February 28, 2003 3:43 PM
128
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
5 When you boot up a Cisco VPN 3000 Concentrator with the default factory configuration,
what happens?
6 What information do you need to supply in the command-line interface (CLI) portion of
Quick Configuration?
7 Which interface do you need to configure using the browser-based VPN Manager?
8 What is the default administrator name and password for VPN concentrators?
9 How do you get your web browser to connect to the VPN concentrator’s Manager
application?
10 What is the default administrator name and password for the GUI VPN Manager?
CCSP.book Page 129 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
129
11 What are the three major sections of the VPN Manager system?
12 What hot keys are available in the standard toolbar of the VPN Manager?
13 From where do users inherit attributes on the VPN concentrator?
14 How many groups can a user belong to in the VPN concentrator’s internal database?
15 What is an external group in the VPN Manager system?
16 When reviewing the list of attributes for a group, what does it mean when an attribute’s
Inherit? box is checked?
17 What are the nine subcategories under the Configuration | System option in the VPN
Manager’s table of contents?
CCSP.book Page 130 Friday, February 28, 2003 3:43 PM
130
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
18 Where would you configure information for Network Time Protocol (NTP) and Dynamic
Host Configuration Protocol (DHCP) servers within the VPN Manager?
19 What tunneling protocol can you configure on the VPN concentrator to support the
Microsoft Windows 2000 VPN Client?
20 What dynamic routing protocols are available on the VPN 3000 Concentrators?
21 What Microsoft Windows operating systems can support the Cisco VPN Client?
22 How do you start the Cisco VPN Client on a Windows system?
23 How do you start the Cisco VPN Client installation process?
24 What variables can you supply during the installation process of the Cisco VPN Client?
CCSP.book Page 131 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
131
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
2 or less score on any quizlet—Review the appropriate parts of the “Foundation Topics”
section of this chapter, based on Table 4-1. Then proceed to the section, “Foundation
Summary,” the section, “Q&A,” and the scenarios at the end of the chapter.
•
12 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, the “Q&A” section, and the scenarios at the end of the
chapter.
•
13 to 18 overall score—Begin with the section, “Foundation Summary,” continue with
the section, “Q&A,” and read the scenarios. If you are having difficulty with a particular
subject area, read the appropriate section in the “Foundation Topics” section.
•
19 or more overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, then to the “Q&A” section, then to the scenarios.
Otherwise, skip this chapter and go to the next chapter.
CCSP.book Page 132 Friday, February 28, 2003 3:43 PM
132
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Foundation Topics
Using VPNs for Remote Access with Preshared Keys
9
Overview of remote access using preshared keys
For site-to-site VPN connections, peer devices must authenticate one another before IPSec
communications can occur. In addition to requiring device authentication, remote access VPN
connections require user authentication to make certain that the user is permitted to use the
applications that are protected by the IPSec connection.
User authentication can be handled in a variety of ways. You can configure Remote Authentication
Dial-In User Service (RADIUS), NT Domain, and Security Dynamics International (SDI)
authentication on most Cisco devices, and the VPN 3000 Concentrators have the additional
ability to authenticate users through an internal database.
If you want to use internal authentication, create a username and password for each user and
assign the users to the group that is to be used for IPSec device authentication. Once the devices
have established the IPSec tunnel, the user is prompted to enter a username and password to
continue. Failure to authenticate causes the tunnel to drop. A similar login prompt is displayed
if you are using RADIUS, NT Domain, or SDI authentication.
You can establish device authentication by using either preshared keys or digital certificates.
(For more information, see Chapter 5, “Configuring Cisco VPN 3000 for Remote Access Using
Digital Certificates.”) With preshared keys, the system administrator chooses the key and then
shares that key with users or other system administrators. Combining a preshared key with
some other metric establishes three different uses for preshared keys, as follows:
•
•
•
Unique
Group
Wildcard
The following sections describe each type of preshared key in more detail.
Unique Preshared Keys
When a preshared key is tied to a specific IP address, the combination makes the preshared
key unique. Only the peer with the correct IP address can establish an IPSec session using this key.
Ideal for site-to-site VPNs where the identity of the peer devices is always known, unique
preshared keys are not recommended for remote access VPNs. Unique preshared keys scale
particularly poorly because each new user requires a new key and the administrative burden
that entails.
CCSP.book Page 133 Friday, February 28, 2003 3:43 PM
Using VPNs for Remote Access with Preshared Keys
133
While this type of preshared key is the most secure of the three types, it is not practical for
remote access applications, where users are typically connecting through a commercial Internet
service provider (ISP). Most users are not willing to pay for the luxury of a permanently
assigned IP address from their ISP and are assigned an IP address from an available pool of
addresses when they connect to the service. If you had a large installed base of VPN users,
keeping up with these dynamically assigned IP addresses to provide this level of security would
be a maintenance nightmare.
Group Preshared Keys
If you begin using unique preshared keys, at some point you can decide to just use the same
password for discrete groups of users. If you decide to do that, and shed the association with
the IP address, you have begun to use the next type of preshared key, the group preshared key.
A group preshared key is simply a shared key that is associated with a specific group. In a VPN
3000 Concentrator configuration, the group can be the Base Group or any other group that you
define.
A group preshared key is well suited for remote access VPNs and is the method used by Cisco
VPN 3000 Concentrators. It is good practice to use groups to establish Internet Key Exchange
(IKE) and IPSec settings and to provide other capabilities that are unique to a specific set of
users. If you choose to use the Cisco VPN 3000 Concentrator’s internal database for user
authentication, you can assign your users to specific groups, making the process of managing
preshared keys much easier.
Wildcard Preshared Keys
The final type of preshared key classification is the wildcard preshared key. This type of key
does not have an IP address or group assigned to it and can be used by any device holding
the key to establish an IPSec connection with your VPN concentrator. When you set up your
concentrator to use wildcard preshared keys, every device connecting to the concentrator must
also use preshared keys. If any device is compromised, you must change the key for all the
devices in your network. This type of key is also open to man-in-the-middle attacks and should
not be used for site-to-site applications.
NOTE
Man-in-the-middle attacks happen when an intruder has access to data packets that are in transit
between connection endpoints. The intruder can then modify information within the packets in
an attempt to gain access to the endpoints or for some other nefarious purpose. The intruder
might just extract information from the packets. Obtaining a wildcard preshared key this way
would permit an attacker to establish a VPN connection to the host from any other system.
CCSP.book Page 134 Friday, February 28, 2003 3:43 PM
134
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
VPN Concentrator Configuration
10 Initial configuration of the Cisco VPN 3000 Concentrator Series for
remote access
11 Browser configuration of the Cisco VPN 3000 Concentrator Series
12 Configuring users and groups
13 Advanced configuration of the Cisco VPN 3000 Series Concentrator
Three major categories of activities that should be performed on network devices are
configuration, administration, and monitoring. The browser-based VPN 3000 Concentrator
Series Manager was designed with those functions in mind. The remainder of this chapter
focuses on the configuration capabilities of the VPN concentrator.
Remote access VPNs can be established with minimal equipment. Most of your users connect
through the Internet, so their infrastructure costs are minimal. While you should place the
concentrator behind or in parallel with a firewall, you could establish a robust VPN network
with just a border router and your concentrator.
Administration requirements for the Cisco VPN 3000 Concentrator Series are fairly standard. You
could configure the concentrators completely from the CLI using either a directly connected
console monitor or by Telnetting to the concentrator. However, the best option for configuring this
series of concentrators is through the GUI that you access through a web browser.
Microsoft Internet Explorer version 4.0 or higher is the recommended browser to use, but you
can also use Netscape Navigator/Communicator version 4.0 or higher. You must enable the
use of JavaScript and cookies in the browser application in order for the Cisco VPN 3000
Concentrator Manager to work properly. Nothing needs to be installed on your workstation
other than the browser software.
This section covers the following topics:
•
•
•
Cisco VPN 3000 Concentrator configuration requirements
•
Advanced configuration of the VPN concentrator
Cisco VPN 3000 Concentrator initial configuration
Configuring IPSec with preshared keys through the VPN 3000
Concentrator Series Manager
CCSP.book Page 135 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
135
Cisco VPN 3000 Concentrator Configuration Requirements
Figure 4-2 shows a typical VPN concentrator configuration using a Cisco VPN 3005 Concentrator.
The Public interface connects to the Internet through a security device such as a firewall or
border router (not shown in this diagram). The Private interface connects to the local network,
in this case supporting Domain Name System (DNS), Windows Internet Naming Service (WINS),
and DHCP servers. On those models that have a third interface, you can establish a demilitarized
zone (DMZ), which could contain some of these elements and, most likely, your Internet server.
Connection to the Public and Private 10/100-Mbps Ethernet interfaces is done using UTP/STP
CAT-5 cabling with RJ-45 connectors.
Figure 4-2
VPN 3005 Concentrator Configuration
Internet
VPN Client PC
193.14.233.107
172.16.1.0
VPN
Public Network
192.168.1.0
VPN
Private Network
Console
DNS
WINS
DHCP
Administrator
192.168.1.20
192.168.1.22
192.168.1.24
Workstation
192.168.1.103
You need to attach a console for the initial configuration. The console port takes a standard
straight-through RS-232 serial cable with a female DB-9 connector, which Cisco supplies with
the system. Once the Private interface has been configured, you can access the concentrator
from your administrator workstation using a web browser such as Internet Explorer or Netscape
Navigator.
In addition to the physical connections, you also need to plan your IKE phase 1 and phase 2
settings. If you are going to be using preshared keys, you must select that key as well. The
CCSP.book Page 136 Friday, February 28, 2003 3:43 PM
136
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
following is a list of the data values you need to obtain to completely configure your Cisco VPN
3000 Series Concentrator:
•
•
•
•
•
•
•
•
•
Private interface IP address, subnet mask, speed, and duplex mode.
•
(Optional) IP address or host name of your DHCP server, if your concentrator will be
using DHCP to assign addresses to remote users.
•
(Optional) A pool of IP addresses if the VPN concentrator will be assigning addresses to
remote users.
•
(Optional) For external RADIUS user authentication, the IP address or host name, port
number, and server secret or password for the RADIUS server.
•
(Optional) For external Windows NT Domain user authentication, the IP address, port
number, and Primary Domain Controller (PDC) host name for your domain.
•
(Optional) For external SDI user authentication, the IP address and port number for the
SDI server.
•
(Optional) For internal VPN concentrator user authentication, the username and password
for each user. If you specify per-user address assignment, you also need the IP address and
subnet mask for each user.
•
(Optional) For the IPSec tunneling protocol, a name and password for the IPSec tunnel
group.
Public interface IP address, subnet mask, speed, and duplex mode.
VPN concentrator’s device or system name.
System date and time of day.
VPN tunnel protocol that you will use, either IPSec, PPTP, or L2TP.
Your local DNS server’s IP address.
Your registered domain name.
The IP address or host name for the concentrator’s default gateway.
(Optional) Additional interfaces (for example, for a DMZ, on models 3015–3080 only),
IP addresses, subnet masks, speed, and duplex mode.
Cisco VPN 3000 Concentrator Initial Configuration
When the Cisco VPN 3000 Concentrator is powered on for the first time, it boots up the factory
default configuration, which offers a Quick Configuration option. The data requested by the
Quick Configuration mode are enough to make the concentrator operational. Once you have the
basic configuration entered through this mode, you can fine-tune the configuration through
normal menu options.
CCSP.book Page 137 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
137
The Quick Configuration can be accomplished from the CLI, but the HTML version of the
concentrator manager provides a more intuitive tool for performing the essential configuration
of the concentrator. The Quick Configuration steps are as follows:
Step 1 CLI: Set the system time, date, and time zone.
Step 2 CLI: Enable network access for your web browser by setting the Private
interface’s IP address, subnet mask, speed, and duplex mode.
Step 3 Browser: Configure the Public interface and any other Ethernet or WAN
interfaces of the concentrator. To do that, you need to set the IP address,
subnet mask, speed, and duplex mode for each of these interfaces.
Step 4 Browser: Identify the system by supplying system name, date, time, DNS,
domain name, and default gateway.
Step 5 Browser: Select the tunneling protocol to use and the encryption options.
Step 6 Browser: Identify the method the concentrator is to use for assigning IP
addresses to clients as a tunnel is established.
Step 7 Browser: Select the type of user authentication to use, and provide the
identity of the authentication server. You can choose to authenticate from the
internal server, RADIUS, NT Domain, or SDI.
Step 8 (Optional) Browser: When using the internal authentication server, populate
the internal user database with group and user identities.
Step 9 (Optional) Browser: When using IPSec as the tunneling protocol, assign a
name and password to the IPSec tunnel group.
Step 10 (Optional, but recommended) Browser: Change the admin password for
security.
Step 11 Browser: Save the configuration settings.
Quick Configuration Using the CLI
The VPN 3000 Concentrator enters into Quick Configuration mode the first time it is powered
up. Quick Configuration is a configuration wizard that guides you through the initial configuration
settings. To begin performing the 11 steps outlined above from the CLI, connect your console
to the concentrator and power on the concentrator. As the system boots, various information is
displayed on the console screen. After the system has performed the boot functions, you should
see the login prompt. When prompted, supply the default administrator login name of admin
and the default password, which is also admin. Note that the password is not displayed on the
console screen as you type it, as shown in the following CLI output.
Login: admin
Password:
CCSP.book Page 138 Friday, February 28, 2003 3:43 PM
138
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Once you have entered the correct login name and password, the concentrator displays a
welcome screen, as shown in Example 4-1.
Example 4-1 Quick Configuration Welcome Screen
Welcome to
Cisco Systems
VPN 3000 Concentrator Series
Command Line Interface
Copyright (C) 1998-2001 Cisco Systems, Inc.
-- : Set the time on your device. The correct time is very important,
-- : so that logging and accounting entries are accurate.
-- : Enter the system time in the following format:
-- :
HH:MM:SS. Example 21:30:00 for 9:30 PM
> Time
Quick -> [ 08:57:13 ]
Setting the System Time, Date, and Time Zone
At this point, the concentrator is waiting for you to verify the current time by pressing Enter
or to type in a new time, as shown in Example 4-2. Notice that the system prompt changes to
Quick -> to indicate that the system is waiting for you to confirm or enter data. The following
example also shows the entries that are required (in boldface type) to complete the configuration
of the date, time zone, and daylight-savings time support information.
Example 4-2 Setting the System Time and Date
Quick -> [ 08:57:13 ] 08:15:22
-- : Enter the date in the following format.
-- : MM/DD/YYYY Example 06/12/1999 for June 12th 1999.
> Date
Quick -> [ 03/29/2002 ] 09/01/2002
-- : Set the time zone on your device. The correct time zone is very
-- : important so that logging and accounting entries are accurate.
-----
: Enter the time zone using the hour offset from GMT:
: -12 : Kwajalein -11 : Samoa
-10 : Hawaii
-9 : Alaska
: -8 : PST
-7 : MST
-6 : CST
-5 : EST
: -4 : Atlantic
-3 : Brasilia -2 : Mid-Atlantic -1 : Azores
CCSP.book Page 139 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
139
Example 4-2 Setting the System Time and Date (Continued)
-----
:
0
: +4
: +8
: +12
:
:
:
:
GMT
+1 : Paris
Abu Dhabi
+5 : Karachi
Singapore
+9 : Tokyo
Marshall Is.
+2 : Cairo
+6 : Almaty
+10 : Sydney
+3 : Kuwait
+7 : Bangkok
+11 : Solomon Is.
> Time Zone
Quick -> [
0 ] -6
1) Enable Daylight Savings Time Support
2) Disable Daylight Savings Time Support
Quick -> [ 1 ] 2
Configuring the Private LAN Interface
The next phase of the CLI Quick Configuration steps is to configure the Private LAN interface.
This is simply a matter of setting the IP address and subnet mask information and then specifying the speed and duplex mode to use for the interface. Those steps are shown in the output
in Example 4-3, which is displayed as soon as you enter your preference for daylight-savings
support.
Example 4-3 Configuring the Private Interface
This table shows current IP addresses.
Intf
Status
IP Address/Subnet Mask
MAC Address
------------------------------------------------------------------------------Ether1-Pri|Not Configured|
0.0.0.0/0.0.0.0
|
Ether2-Pub|Not Configured|
0.0.0.0/0.0.0.0
|
------------------------------------------------------------------------------DNS Server(s): DNS Server Not Configured
DNS Domain Name:
Default Gateway: Default Gateway Not Configured
** An address is required for the private interface. **
> Enter IP Address
Quick Ethernet 1 -> [ 0.0.0.0 ] 192.168.1.3
Waiting for Network Initialization...
> Enter Subnet Mask
Quick Ethernet 1 -> [ 255.255.255.0 ]
1) Ethernet Speed 10 Mbps
continues
CCSP.book Page 140 Friday, February 28, 2003 3:43 PM
140
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Example 4-3 Configuring the Private Interface (Continued)
2) Ethernet Speed 100 Mbps
3) Ethernet Speed 10/100 Mbps Auto Detect
Quick Ethernet 1 -> [ 3 ] 2
1) Enter Duplex - Half/Full/Auto
2) Enter Duplex - Full Duplex
3) Enter Duplex - Half Duplex
Quick Ethernet 1 -> [ 1 ] 2
1)
2)
3)
4)
5)
Modify Ethernet 1 IP Address (Private)
Modify Ethernet 2 IP Address (Public)
Save changes to Config file
Continue
Exit
In Example 4-3, the administrator wanted to use a 24-bit subnet mask. When he entered a Class
C IP address for the interface, the system automatically brought up the 24-bit Class C default
subnet mask. The administrator simply pressed Enter to accept this subnet mask setting. Also
notice that the administrator explicitly set the speed of the interface to 100 Mbps and to Full
Duplex rather than accepting the default automatic detection settings.
From the menu displayed at the end of the previous output display, you can see that you have
the option of also configuring the Public interface. If the hardware configuration had additional
interfaces, you would see menu options for configuring those interfaces, too.
The browser-based manager is the configuration tool of choice for the VPN 3000 Concentrator.
The CLI is used only to enable network connectivity so that you can communicate with the
concentrator through the network from your administration workstation. Configuration of
additional interfaces and all remaining concentrator settings is accomplished through the
browser-based manager.
To finish the CLI initial configuration of the VPN concentrator, simply save your changes to the
Config file and then exit the Quick Configuration mode. Those steps are shown in the output in
Example 4-4.
Example 4-4 Saving Configuration Settings and Exiting the CLI
1)
2)
3)
4)
5)
Modify Ethernet 1 IP Address (Private)
Modify Ethernet 2 IP Address (Public)
Save changes to Config file
Continue
Exit
Quick -> 3
1) Modify Ethernet 1 IP Address (Private)
CCSP.book Page 141 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
141
Example 4-4 Saving Configuration Settings and Exiting the CLI (Continued)
2)
3)
4)
5)
Modify Ethernet 2 IP Address (Public)
Save changes to Config file
Continue
Exit
Quick -> 5
The concentrator only presents the Quick Configuration process upon initial bootup using the
default configuration. After you have configured the concentrator, the normal CLI menus look
as follows:
Model 3005 menu:
1)
2)
3)
4)
5)
6)
Modify Ethernet 1 IP Address (Private)
Modify Ethernet 2 IP Address (Public)
Configure Expansion Cards
Save changes to Config file
Continue
Exit
Quick -> _
Model 3015–3080 menu:
1)
2)
3)
4)
5)
6)
7)
Modify Ethernet 1 IP Address (Private)
Modify Ethernet 2 IP Address (Public)
Modify Ethernet 3 IP Address (External)
Configure Expansion Cards
Save changes to Config file
Continue
Exit
Quick -> _
If you need to go through the Quick Configuration again for any reason, simply select the
Reboot with Factory/Default Configuration option from the Administration | System
Reboot menu in the VPN 3000 Concentrator Manager.
This finishes the CLI configuration steps. The remainder of the configuration steps are
completed using the Cisco VPN 3000 Concentrator Manager application that is resident on
each VPN concentrator and is accessible using the web browser on your administrator PC.
Quick Configuration Using the Browser-Based Manager
Now that you have configured the Private interface on the VPN concentrator, make sure that
your workstation has an IP address on the same subnet as the concentrator and verify that
you can reach the concentrator by pinging to it from the workstation. Once you have verified
connectivity, open your web browser application and connect to the concentrator by entering
the IP address of the concentrator in the Address field of the browser, as shown in Figure 4-3.
CCSP.book Page 142 Friday, February 28, 2003 3:43 PM
142
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-3
HTTP Addressing for VPN 3000 Concentrator Series Manager
The browser connects to the VPN concentrator and presents the initial login screen, as shown
in Figure 4-4.
Figure 4-4
VPN 3000 Concentrator Series Manager Login Screen
Notice the hotlink option on the screen labeled Install SSL Certificate. You can use Secure
Sockets Layer (SSL) encryption to establish a secure session between your management
workstation and the concentrator. Using this secure session capability encrypts all VPN
Manager communications with the concentrator at the IP socket level. SSL uses the HTTPS
protocol and uses https:// addressing on the browser. You might want to use SSL if your VPN
Manager workstation connects to the concentrator across a public network. There can be a
slight performance penalty when using SSL, depending on the capability of the administration
workstation, but it should not be a serious consideration for management functions.
When the VPN concentrator boots for the first time, it generates a self-signed SSL server
certificate. To use SSL with your browser, install this server certificate into the browser. If you
have multiple concentrators, you must install the certificate from each of the concentrators into
your browser, but you only need to do that once for each concentrator. Once the SSL server
certificate is installed, you can begin using HTTPS for communications with the concentrator.
CCSP.book Page 143 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
143
Clicking the Install SSL Certificate hotlink takes you to the browser’s certificate installation
wizard. Netscape and Microsoft browsers have slightly different installation routines, but in
either case, accept the default settings presented, supply a nickname for the certificate if
requested, and continue through the installation process by clicking Next or Finish. You can
then immediately connect to the concentrator using HTTPS once the installation wizard has
finished.
To continue with the Quick Configuration that you started from the CLI, log in with the
administrator login name and password. Using the login screen shown in Figure 4-4, follow
these steps:
Step 1 Position your cursor in the Login field.
Step 2 Type admin and the press Tab.
Step 3 With the cursor in the Password field, type admin again. The window
displays *****.
Step 4 Click the Login button to initiate the login process.
If you make a mistake, click on the Clear button to refresh the screen so that you can start over.
After the VPN concentrator has accepted your administrator login, the screen shown in
Figure 4-5 is displayed in your browser window.
Figure 4-5
First-Time Quick Start Option Menu
Applicaton
Toolbar
CCSP.book Page 144 Friday, February 28, 2003 3:43 PM
144
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
The top portion of the screen is the application toolbar, and it is displayed on every other
manager screen. Because this is a consistent header, it is not shown in subsequent screen
displays.
On the right-hand portion of the header, you see the standard toolbar, which contains the
following elements:
•
Hotlinks to the following items:
— Main menu
— Manager’s Help system
— A support page that provides web addresses and phone numbers to Cisco
support sites
— Logout, so that you can exit the system or log in as a different user
•
•
Information on the login name of the current user
Hotlinks to the Main Menu screen for the three major sections of the VPN 3000
Concentrator Manager system:
— Configuration
— Administration
— Monitoring
The first time that you enter the VPN Manager after booting from the default configuration, you
are presented with a screen that allows you to enter the Quick Configuration mode to continue
the process that you started at the CLI. Figure 4-5 shows this screen.
If you click here to start Quick Configuration, the VPN Manager leads you through a series
of screens to complete the 11 initial configuration steps. This is a continuation of the Quick
Configuration wizard that was started at the CLI. You only have this opportunity once.
If you click here to go to the Main Menu, you can configure the same settings, but you must
select the configuration windows from the table of contents. After you have completed the
Quick Configuration, this screen is not displayed again, and the system boots into the standard
VPN Manager window.
Configuring Remaining Interface Settings
When you click to start Quick Configuration, the VPN Manager displays the IP Interfaces
screen. If your system is a 3005 series with only two fixed interfaces, the screen looks like that
shown in Figure 4-6. Notice that the screen’s title bar shows the complete path to this screen
(Configuration | Quick | IP Interfaces), as it would be shown if you had worked down to this
screen through the table of contents. This 3005 display shows that the Private interface is
configured and operational and that the Public interface is not yet configured.
CCSP.book Page 145 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
Figure 4-6
145
3005 Concentrator—Configuration | Quick | IP Interfaces
Figure 4-7 shows the IP Interfaces screen for the Model 3015–3080 VPN Concentrator. This
system has two unconfigured Ethernet interfaces and two unconfigured WAN interfaces. The
listings in the Interface column are hotlinks to the configuration screen for each of the
interfaces.
Figure 4-7
3015–3080 Concentrator—Configuration | Quick | IP Interfaces
If you click the hotlink to Ethernet 1 (Private), the configuration screen for Ethernet 1 appears,
as shown in Figure 4-8. You can select to disable the interface, to obtain addressing from a
DHCP server, or to assign static IP addressing.
CCSP.book Page 146 Friday, February 28, 2003 3:43 PM
146
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-8
Configuration | Quick | IP Interfaces | Ethernet 1
NOTE
If you disable the Private interface, you lose your browser connection to the concentrator.
The Speed and Duplex settings were configured from the CLI in this example. The default
settings for these two fields are 10/100 Auto and Auto, respectively, allowing the systems to
negotiate speed and duplex mode.
When you have completed entering the configuration settings for an interface, click the Apply
button to save the settings and return to the IP Interfaces screen. Once you have configured all
the interfaces, click the Continue button to proceed to the next Quick Configuration screen.
Configuring System Information
The System Info screen is the next screen displayed. Figure 4-9 shows this screen. The date and
time settings were entered during the CLI configuration steps. You can enter a system name here
along with DNS server, domain name, and default gateway information.
CCSP.book Page 147 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
Figure 4-9
147
Configuration | Quick | System Info
Configuring the Tunneling Protocol
Clicking the Continue button takes you to the Protocols screen, as shown in Figure 4-10. You
can select all protocols, if you like. The configuration described in this chapter works with
IPSec only, so that is the only protocol selected on this screen.
Figure 4-10 Configuration | Quick | Protocols
Configuring Address Assignment Method
After you have selected the protocol to use, you must select the method the VPN concentrator
is to use to assign an address to clients as they establish tunnels with the concentrator. The
method of address assignment selected in Figure 4-11 is to use a DHCP server. You could select
multiple methods; the concentrator tries each method in order until it is successful in assigning
an address to the client.
CCSP.book Page 148 Friday, February 28, 2003 3:43 PM
148
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-11 Configuration | Quick | Address Assignment
Configuring User Authentication Method
Next, you determine how users connecting over the VPN tunnel are to be authenticated.
Figure 4-12 shows the selection screen. Users can be authenticated from RADIUS servers,
NT Domain controllers, external SDI servers, and the concentrator’s internal server. The option
you select brings up the appropriate next screen so that you can continue configuring user
authentication.
Figure 4-12 Configuration | Quick | Authentication
Configuring Users for Internal Authentication
The example shown in Figure 4-12 has selected the Internal Server option and brings up the
User Database screen, shown in Figure 4-13, so that you can enter the usernames and passwords. This screen also requests an IP address and subnet mask because, in this case, the
concentrator’s administrator selected Per User address assignment on the screen displayed in
Figure 4-11.
CCSP.book Page 149 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
149
Figure 4-13 Configuration | Quick | User Database
There is a maximum combined number of groups and users that you can configure on a VPN
3000 Concentrator. The number varies by concentrator model, as shown in Table 4-2.
Table 4-2
Maximum Number of Combined Groups and Users per VPN Model
Model
Maximum Combined Number of Groups and Users
3005
100
3015
100
3030
500
3060
1000
3080
1000
Configuring the IPSec Tunnel Group
When you select IPSec as the tunneling protocol from the screen shown in Figure 4-10, the
concentrator prompts you to define a group during the Quick Configuration phase. This group
is used by every user unless you change the association later from the standard configuration
section of the VPN Manager. Figure 4-14 shows the configuration information for the IPSec
group. The password for this group becomes the preshared key for remote access users.
CCSP.book Page 150 Friday, February 28, 2003 3:43 PM
150
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-14 Configuration | Quick | IPSec Group
Configuring the Admin Password
The final setting that you should configure during the Quick Configuration is the password for
the admin user. Figure 4-15 shows the Quick Configuration screen for completing this task and
displays the message that strongly recommends changing the admin password. For maximum
password security, select a password containing at least eight characters that are a mixture of
uppercase and lowercase letters, numbers, and special characters.
Figure 4-15 Configuration | Quick | Admin Password
Saving Configuration Settings
When you click the Continue button after changing the admin password, the VPN Manager
presents you with the Quick Configuration Done screen, as shown in Figure 4-16. At this point,
you have configured the system information, LAN and WAN interfaces, users, and IPSec group,
completing the basic configuration of the VPN concentrator.
CCSP.book Page 151 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
151
Figure 4-16 Configuration | Quick | Done
Notice the Save Needed icon in the upper-right corner of the main screen. Click that icon to
save the active configuration changes you have made to the boot configuration. As you continue
with additional configuration steps, this icon appears from time to time. As you can see from
Figure 4-16, the icon can display Save, Save Needed, or Refresh depending on the type of
screen you are on and whether you have made modifications to the active configuration.
As with most Cisco products, configuration changes are done to the active configuration and
take effect immediately. To ensure that your changes are still in effect after a system reboot, you
must copy the active configuration to the boot configuration. The VPN Manager’s Save Needed
reminder is a nice touch, providing a gentle reminder and an easy method of execution.
Clicking the Save Needed icon executes the requested save and provides you with a status
screen. Figure 4-17 shows the screen that is returned upon the completion of a successful save.
After you clear this screen by clicking the OK button, VPN Manager displays the Main Menu.
In addition to the Save, Save Needed, and Refresh options, the Configuration | Quick | Done
screen shows Configuration, Administration, and Monitoring in the upper-left corner (refer to
Figure 4-16). These three keys are the primary navigation tools for the daily VPN Manager
functions. Similar to a directory display from a product such as Microsoft Windows Explorer,
CCSP.book Page 152 Friday, February 28, 2003 3:43 PM
152
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
the plus sign indicates that the indicated function has subfunctions. Clicking the plus sign
displays an indented list of the subfunctions, and clicking the option takes you to the window
for that function.
Figure 4-17 Save Successful Message
Configuring IPSec with Preshared Keys Through the VPN 3000
Concentrator Series Manager
The Quick Configuration allows you to configure the basic operational settings of the concentrator, but the IPSec settings have not been established yet. Those settings are made using
features in the Configuration portion of the Cisco VPN 3000 Concentrator Manager.
Figure 4-18 shows the Main screen that appears after you log in to the concentrator through
VPN Manager. Normally the root Configuration, Administration, and Monitoring levels are the
only options displayed in the table of contents. In this case, each of those major sections has
been opened to the first layer of subfunctions. You can see the following major subfunctions
under the Configuration option:
•
•
Interfaces—Ethernet interfaces and power supplies
•
•
User Management—Groups and users
System—System-wide parameters: servers, address assignment, tunneling protocols,
IP routing, management protocols, events, and identification
Policy Management—Access hours, network lists, rules, security associations, filters,
and NAT
CCSP.book Page 153 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
153
Figure 4-18 IPSec Configuration
The interfaces have already been configured using the Quick Configuration option. If you
chose to use internal authentication, the Quick Configuration wizard then asked you to enter
usernames and passwords and then requested a group name to use for IPSec traffic.
Recall from previous chapters that there is a hierarchy to the way groups are used on the Cisco
VPN 3000 Concentrator. The following basic rules govern group usage:
•
Groups and users have attributes that can be modified to control how they can use the
services of the concentrator.
•
Users are always members of groups, and groups are always members of the Base Group.
The Base Group is a default group that cannot be deleted but which can be modified.
•
Inheritance rules state that, by default, users inherit rights from groups, and groups inherit
rights from the Base Group.
•
A user can only be a member of one concentrator group and, if not explicitly assigned to
a different group, is a member of the Base Group by default.
•
•
•
Users and groups have names and passwords.
If you change the attributes of a group, it affects all group members.
If you delete a group, user membership reverts to the Base Group.
CCSP.book Page 154 Friday, February 28, 2003 3:43 PM
154
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Because the Base Group had not been modified before Quick Configuration set up the new
group for IPSec use, that new group has default settings that it inherited from the Base Group.
Additionally, all the users that you created were placed in this single group. That might be
adequate for your organization. The final step you need to perform to set up the concentrator
for remote access using preshared keys is to validate the entries that were placed in the IPSec
group.
NOTE
The discussions in this chapter assume that you would be performing the configuration on a new
concentrator. You could be setting up remote access services on a concentrator that has been
used for other purposes, such as LAN-to-LAN VPNs. In that case, you would start at this point
in the configuration process. While this discussion looks at modifying the group that was
established through Quick Configuration, you would simply need to add a new group from the
Configuration | User Management | Groups screen.
To modify the settings for the IPSec group previously created, work down to the Configuration |
User Management | Groups screen (see Figure 4-19). In this screen, you find the vpngroup02
group listed in the Current Groups window. There are internal and external groups. External
groups are those that would be used with external authentication servers such as RADIUS or
NT Domain. The vpngroup02 group is an internal group and is to be used with internal database
users.
Figure 4-19 Configuration | User Management | Groups
CCSP.book Page 155 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
155
Modify Groups—Identity Tab
To modify the group, click the group to highlight it, and then click the Modify Group button.
The screen shown in Figure 4-20 shows the Modify screen for an internal group. Internal groups
have multiple tabs. External groups only have the Identity tab. The information in this screen
should match the data you entered during Quick Configuration. If not, you can correct it here.
When everything looks correct, click the General tab.
Figure 4-20 Configuration | User Management | Groups | Modify > Identity
Modify Groups—General Tab
Figure 4-21 depicts the General tab for the group’s Modify function. Notice that each attribute
listed has a Value, Inherit?, and Description column. If the Inherit? box is checked, that
attribute’s value is inherited from the Base Group, regardless of what you enter into the Value
field. To change the value for an attribute, uncheck the Inherit? box.
The following information is shown on the General tab:
•
Access Hours—Selected from the drop-down menu, this attribute determines when the
concentrator is open for business for this group. Currently set to No Restrictions, you
could also select Never, Business Hours (9 a.m. to 5 p.m., Monday through Friday), or
named access hours that you created elsewhere in the VPN Manager.
•
Simultaneous Logins—Default is 3. Minimum is 0. There is no upper limit, but you
should limit this value to 1 for security purposes.
•
Minimum Password Length—The allowable range is 1 to 32 characters. A value of 8
provides a good level of security for most applications.
•
Allow Alphabetic-Only Passwords—Notice that the Inherit? box has been unchecked.
The default is to allow alphabetic-only passwords, which is not a good idea. This value
has been modified.
•
Idle Timeout—A value of 30 minutes is good here. The minimum allowable value is 1
and the maximum is a value that equates to over 4000 years! 0 disables idle timeout.
CCSP.book Page 156 Friday, February 28, 2003 3:43 PM
156
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
Maximum Connect Time—0 disables maximum connect time. The range here is again
1 minute to over 4000 years.
•
Filter—Filters determine whether IPSec traffic is permitted or denied for this group.
There are three default filters: Public, Private, and External. You can select from those
or from any that you can define in the drop-down box. The default None option permits
IPSec to handle all traffic.
•
Primary/Secondary DNS/WINS—These have been modified from the Base Group’s
default settings.
•
SEP Card Assignment—Some models of the VPN concentrator can contain up to four
Scalable Encryption Processing (SEP) modules that handle encryption functions. This
attribute allows you to steer the IPSec traffic for this group to specific SEPs to perform
your own load balancing.
•
Tunneling Protocols—IPSec has been selected, but you could allow the group to use
Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP), and L2TP
over IPSec as well.
•
Strip Realm—The default operation of the VPN concentrator verifies users against
the internal database using a combination of the username and realm qualifier, as in
[email protected] The @group portion is called the realm. You can have the VPN
concentrator use name only by checking the value for this attribute.
Figure 4-21 Configuration | User Management | Groups | Modify > General
CCSP.book Page 157 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
157
Modify Groups—IPSec Tab
Clicking the IPSec tab brings up the screen shown in Figure 4-22. The attributes on this screen
are as follows:
•
IPSec SA—For remote access clients, you must select an IPSec Security Association
(SA) from this list of available combinations. If you have created additional SA types,
those are also displayed here as selection options. The client and server negotiate an SA
that governs authentication, encryption, encapsulation, key management, and so on based
on your selection here.
The following are the default selections supplied by the VPN concentrator:
— None—No SA is assigned.
— ESP-DES-MD5—This SA uses DES 56-bit data encryption for both the IKE
tunnel and IPSec traffic, ESP/MD5/HMAC-128 authentication for IPSec traffic,
and MD5/HMAC-128 authentication for the IKE tunnel.
— ESP-3DES-MD5—This SA uses Triple-DES 168-bit data encryption and
ESP/MD5/HMAC-128 authentication for IPSec traffic, and DES-56 encryption
and MD5/HMAC-128 authentication for the IKE tunnel.
— ESP/IKE-3DES-MD5—This SA uses Triple-DES 168-bit data encryption for
both the IKE tunnel and IPSec traffic, ESP/MD5/HMAC-128 authentication for
IPSec traffic, and MD5/HMAC-128 authentication for the IKE tunnel.
— ESP-3DES-NONE—This SA uses Triple-DES 168-bit data encryption and no
authentication for IPSec traffic, and DES-56 encryption and MD5/HMAC-128
authentication for the IKE tunnel.
— ESP-L2TP-TRANSPORT—This SA uses DES 56-bit data encryption and
ESP/MD5/HMAC-128 authentication for IPSec traffic (with ESP applied only
to the transport layer segment), and it uses Triple-DES 168-bit data encryption
and MD5/HMAC-128 for the IKE tunnel. Use this SA with the L2TP over IPSec
tunneling protocol.
— ESP-3DES-MD5-DH7—This SA uses Triple-DES 168-bit data encryption and
ESP/MD5/HMAC-128 authentication for both IPSec traffic and the IKE tunnel.
It uses Diffie-Hellman Group 7 (ECC) to negotiate Perfect Forward Secrecy.
This option is intended for use with the movianVPN client, but you can use it
with other clients that support D-H Group 7 (ECC).
•
IKE Peer Identity Validation—This option applies only to VPN tunnel negotiation
based on certificates. This field enables you to hold clients to tighter security
requirements.
CCSP.book Page 158 Friday, February 28, 2003 3:43 PM
158
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
IKE Keepalives—Monitors the continued presence of a remote peer and notifies the
remote peer that the concentrator is still active. If a peer no longer responds to the
keepalives, the concentrator drops the connection, preventing hung connections that could
clutter the concentrator.
•
Tunnel Type—You can select either LAN-to-LAN or Remote Access as the tunnel type.
If you select LAN-to-LAN, you do not need to complete the remainder of this screen.
•
Group Lock—Checking this field forces the user to be a member of this group when
authenticating to the concentrator.
•
Authentication—This field selects the method of user authentication to use. The
available options are as follows:
— None—No user authentication occurs. Use this with L2TP over IPSec.
— RADIUS—Uses an external RADIUS server for authentication. The server
address is configured elsewhere.
— RADIUS with Expiry—Uses an external RADIUS server for authentication. If
the user’s password has expired, this method gives the user the opportunity to
create a new password.
— NT Domain—Uses an external Windows NT Domain system for user
authentication.
— SDI—Uses an external RSA Security, Inc., SecurID system for user
authentication.
— Internal—Uses the internal VPN concentrator authentication server for user
authentication.
•
IPComp—This option permits the use of the Lempel Zif Stac (LZS) compression
algorithm for IP traffic developed by Stac Electronics. This can speed connections for
users connecting through low-speed dial-up circuits.
•
Reauthentication on Rekey—During IKE phase 1, the VPN concentrator prompts the
user to enter an ID and password. When you enable reauthentication, the concentrator
prompts for user authentication whenever a rekey occurs, such as when the IKE SA
lifetime expires. If the SA lifetime is set too short, this could be an annoyance to your
users, but it provides an additional layer of security.
•
Mode Configuration—During SA negotiations, this option permits the exchange of
configuration parameters with the client. To pass configuration information to the client,
such as DNS or WINS addresses, you must enable this option. If you check this box, you
need to continue to the Mode Config tab to complete the selection of attributes there.
CCSP.book Page 159 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
159
Figure 4-22 Configuration | User Management | Groups | Modify > IPSec
Modify Groups—Client Config Tab
The Client Config tab screen is shown in Figure 4-23. Configuration of the attributes on this
screen is only necessary if you selected Mode Configuration from the IPSec tab screen. The
attributes on this page have the following meanings:
•
Banner—You can enter up to a 510-character greeting banner that is displayed to IPSec
software clients each time they log in to the system.
•
Allow Password Storage on Client—This option allows the client PC to store the user’s
password. For security reasons, this is not a good policy. The default is to have this
capability disabled.
•
IPSec over UDP—This option permits clients to connect to the VPN concentrator via
UDP through a firewall or router using NAT.
•
IPSec over UDP Port—This attribute lets you set the port to use through the firewall. The
default is 10,000.
CCSP.book Page 160 Friday, February 28, 2003 3:43 PM
160
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
IPSec Backup Servers—This attribute is used on Cisco VPN 3002 Hardware Clients and
is not required for remote access users.
•
Intercept DHCP Configure Message—Enable DHCP intercept to permit Microsoft
Windows XP clients to perform split tunneling with the VPN concentrator. When you
enable this field, the VPN concentrator replies to the Microsoft Windows XP client DHCP
Inform message. This capability allows the VPN concentrator to provide the client with a
subnet mask, domain name, and classless static routes for the tunnel IP address when a
DHCP server is not available.
•
Subnet Mask—Enter a valid subnet mask for Microsoft Windows clients requesting
DHCP services.
•
Split Tunneling Policy—This option, disabled by default, permits clients to specify some
types of traffic as not requiring IPSec protection. This traffic is sent in clear text. The
options within this attribute are as follows:
— Tunnel everything—All data use the secure IPSec tunnel.
— Allow networks in list to bypass the tunnel—All data use the secure IPSec
tunnel except for data being sent to addresses on the network list. This option
gives users who have elected to tunnel all traffic the ability to access devices
such as printers on their local networks without having that traffic encrypted.
— Only tunnel networks in list—Uses the secure IPSec tunnel for data sent to
addresses on the network list. All other traffic is sent as clear text. This option
allows remote users to access public networks without requiring IPSec
tunneling through the corporate network.
•
Split Tunneling Network List—If you select the Allow networks in list to bypass the
tunnel option, then this list is an exclusion list, allowing traffic to pass over the network
without going through IPSec. If you select the Only tunnel networks in list option, then
this list is an inclusion list that determines which traffic is handled via IPSec. You can
establish these lists elsewhere in the concentrator, or you can use the VPN Client Local
LAN option.
•
Default Domain Name—If you supply a domain name here, the concentrator passes this
name to the client. Fully qualified domain names sent over the IPSec tunnel have this
domain name appended to the end.
•
Split DNS Names—Enter a list of domain names that you want the VPN concentrator’s
internal DNS server to resolve for traffic going over the tunnel. This option is useful in
split-tunneling connections, permitting the internal DNS server to resolve domain names
for traffic through the tunnel. The ISP-assigned DNS servers resolve DNS requests that
travel in the clear to the Internet.
CCSP.book Page 161 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
Figure 4-23 Configuration | User Management | Groups | Modify > Client Config
161
CCSP.book Page 162 Friday, February 28, 2003 3:43 PM
162
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
That is all that you need to configure on the VPN concentrator. Click the Modify button to save
your work to the active configuration and return to the Groups screen shown in Figure 4-19. Be
sure to click the Save Needed icon to save your configuration changes to the boot configuration.
To configure the client firewall capability or hardware client features, or if you are using either
the PPTP or L2TP tunneling protocols, continue configuring the group settings using the Client
FW, HW Client, and PPTP/L2TP tabs discussed in the following sections.
Modify Groups—Client FW Tab
The Client FW tab permits you to configure firewall options for Cisco VPN Clients running on
a Microsoft Windows platform. Client firewall support is disabled by default but can be enabled
on this tab. A stateful firewall is built into the VPN Client, but other commercially available
firewalls can be used and operate as a separate application that runs on the Windows platform.
Firewalls inspect each inbound and outbound packet to determine if the packet should be
forwarded toward its destination or whether the packet should be dropped. These decisions are
made using rules defined in firewall policies. Firewalls provide an extra measure of protection
to systems and corporate networks, especially when split tunneling is used.
The VPN concentrator can support client firewalls in three different ways:
•
•
•
Each client can individually manage its own personal firewall policy.
The VPN concentrator can push a centralized firewall policy to each client.
A separate, standalone firewall server can be used to manage and enforce firewall policy
usage on VPN Client devices.
Figure 4-24 shows the configuration options that are available on the Client FW tab for these
three types of firewall management. The following bulleted items discuss the options shown on
the Client FW tab screen:
•
Firewall Setting—This attribute is used to enable or disable firewall support for the users
connecting through this group. The available settings are as follows:
— No Firewall—This is the default setting for a new group. When this option is
checked, the VPN concentrator ignores VPN Client firewall settings.
— Firewall Required—When this option is checked, every VPN Client peer that
connects through this group must use the firewall specified for this group. If the
peer is not using the correct firewall, the VPN concentrator drops the connection
and notifies the VPN Client of the mismatch.
— Firewall Optional—Setting the firewall to optional can be used when all your
VPN Client users are not currently running firewalls on their systems. Choosing
this option lets users without firewalls connect, giving them a warning message.
Those users with firewalls installed must be using the correct firewall; the VPN
concentrator and VPN Client then manage the firewall policy according to the
settings contained on this Client FW tab.
CCSP.book Page 163 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
•
Firewall—Select the firewall that members of the group are to use. The available options
are as follows:
— Cisco Integrated Client Firewall—The stateful firewall built into the VPN
Client.
— Network ICE BlackICE Defender—The Network ICE BlackICE Agent or
Defender personal firewall.
— Zone Labs ZoneAlarm—The Zone Labs ZoneAlarm personal firewall.
— Zone Labs ZoneAlarm Pro—The Zone Labs ZoneAlarm Pro personal
firewall.
— Zone Labs ZoneAlarm or ZoneAlarm Pro—Either the Zone Labs ZoneAlarm personal firewall or the Zone Labs ZoneAlarm Pro personal firewall.
— Zone Labs Integrity—The Zone Labs Integrity Client.
— Custom Firewall—This option is primarily for future use. Choose this option
when you cannot use any of the previous options or when you want to combine
two or more of these options. When you choose this option, you must detail your
firewall selection(s) in the Custom Firewall attribute settings.
•
Custom Firewall—All the supported options are currently selectable from the list
available in the Firewall attribute setting. In the future, additional options might be
available. At that time, you could use this section to identify those new firewalls.
— Vendor ID—You can only enter one vendor ID code in this field. Currently, the
available vendor codes are Cisco Systems (Vendor ID 1), Zone Labs (Vendor ID
2), and Network ICE (Vendor ID 3).
— Product ID—For the vendor selected, you can enter multiple product ID codes
in this field. When entering multiple code numbers, separate them with a comma
or use a hyphen to designate a range, such as 1-3 for Zone Labs. To use all
available products for a given vendor, enter 255 as the Product ID. Table 4-3
shows the current product codes.
Table 4-3
163
Custom Firewall Product Codes
Vendor
Product
Product Code
Cisco
Cisco Integrated Client (CIC)
1
Zone Labs
Zone Alarm
1
Zone Alarm Pro
2
Zone Labs Integrity
3
BlackIce Defender/Agent
1
Network ICE
— Description—You can enter an optional description for your custom firewall in
this field.
CCSP.book Page 164 Friday, February 28, 2003 3:43 PM
164
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
Firewall Policy—You can select from three different methods for administering the
firewall policy for your VPN Client systems. Those methods are as follows:
— Policy Defined by Remote Firewall (AYT)—The user of the VPN Client
system has established firewall policy settings for a personalized firewall that
runs on the user’s system. That firewall can be a third-party firewall that works
with the Cisco VPN Client and VPN concentrator. The VPN Client uses the Are
You There (AYT) enforcement mechanism to periodically poll the firewall. If
the firewall doesn’t respond to the periodic “Are you there?” messages, the VPN
Client drops the connection to the VPN concentrator. A system administrator
can initially configure and install the firewall for these users, but each user is
allowed to configure his or her own policies beyond the initial settings. This
option is available for use with the Network ICE BlackIce Defender, Zone Labs
ZoneAlarm, and Zone Labs ZoneAlarm Pro firewall products.
— Policy Pushed (CPP)—When a corporation’s security policy mandates that
all VPN Clients use the same firewall policy, the system administrator can
configure the VPN concentrator to push a centralized, standardized firewall
policy to each VPN Client, which then passes the policy on to the local firewall
for enforcement. The administrator creates a set of traffic management rules on
the VPN concentrator, associates the rules with a filter, and designates the filter
as the firewall policy from the drop-down window for this attribute. This type of
firewall policy management is called push policy or Central Protection Policy
(CPP). This option is available for use with the Cisco Integrated Client Firewall,
Zone Labs ZoneAlarm, and Zone Labs ZoneAlarm Pro firewall products.
— Policy from Server—You can use the Zone Labs Integrity Server (IS), a standalone firewall server, to manage firewall policy management and enforcement
through the VPN Client. A centralized firewall policy is maintained on the IS.
The IS then pushes this policy to each monitored VPN Client host and then
monitors the use of the policy on those hosts. The Zone Labs IS also communicates with the VPN concentrator to manage connections and share session, user,
and status information. This option is only available for the Zone Labs Integrity
Server firewall product.
Modify Groups—HW Client Tab
Cisco VPN 3002 Hardware Clients provide additional authentication capabilities for peer and
user authentication. The VPN 3002 Hardware Client communicates with the VPN concentrator
to establish the tunnel and the user systems connect to the hardware client via Ethernet
connections. The user systems do not require the VPN Client.
CCSP.book Page 165 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
165
Figure 4-24 Configuration | User Management | Groups | Modify > Client FW
When you configure the VPN 3002 Hardware Client for the IPSec tunneling protocol, you enter
the IPSec group name and password that you configured on the VPN concentrator onto the
Configuration | System | Tunneling Protocols | IPSec screen of the VPN 3002 Hardware Client.
You must also enter a single username and password on that same screen, which are used to
establish user authentication for all users connected to the VPN 3002 Hardware Client. Both the
group name and username must be valid to establish the IPSec tunnel. Once the VPN 3002
Hardware Client and the VPN concentrator have established the VPN tunnel, any users
connected to the hardware client can use the secure tunnel.
To provide additional security, you can enable interactive authentication for the establishment of
the IPSec tunnel and for interactive user authentication. The HW Client tab, shown in Figure 4-25,
permits you to enable the following authentication features:
•
Require Interactive Hardware Client Authentication—When this field is checked, the
username and password that were configured on the VPN 3002 Hardware Client are
ignored. The first user connected to the VPN 3002 Hardware Client that wants to begin
using secure IPSec communications is prompted to enter a valid username and password.
The method of authentication was selected earlier on the group’s IPSec tab. Once the
initial user establishes the IPSec tunnel, no other users are prompted for the tunnel
authentication username and password.
CCSP.book Page 166 Friday, February 28, 2003 3:43 PM
166
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
Require Individual User Authentication—You can also require all other users connected to the VPN 3002 Hardware Client to authenticate before using the IPSec tunnel by
checking this attribute box. Each user is prompted for a username and password and is
authenticated using whatever method the IPSec group requires.
•
User Idle Timeout—The default idle timeout for a user’s connection is 30 minutes. The
smallest idle timeout period you can use is 1 minute. You can enter 0 to tell the concentrator
to never drop an idle connection. When a user’s connection has been idle for the period of
time specified by the idle timeout period, the concentrator drops the connection.
•
Cisco IP Phone Bypass—Checking this field tells the VPN concentrator not to negotiate
individual user authentication for IP phones.
•
Allow Network Extension Mode—You can configure the VPN 3000 Concentrator
to support Network Extension mode with VPN 3002 Hardware Clients in site-to-site
networks by checking this field. The VPN 3002 Hardware Client must also be configured
to support network extension mode, or the two devices can never connect to one another.
The default connection mode is Port Address Translation (PAT).
Figure 4-25 Configuration | User Management | Groups | Modify > HW Client
Modify Groups—PPTP/L2TP Tab
If you selected PPTP, L2TP, or L2TP over IPSec as an allowable tunneling protocol to be used
for VPN connections, you might need to make adjustments to the attributes displayed on the
PPTP/L2TP Tab, shown in Figure 4-26. Client and VPN concentrator settings must match
during VPN tunnel negotiations, or the tunnel is not established. The following attributes are
shown on this screen:
•
Use Client Address—You can allow clients to supply their own address for the client end
of the VPN tunnel. This is not a good idea from a security perspective, so be careful about
CCSP.book Page 167 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
167
enabling this capability. The default mode for this attribute is disabled, forcing the VPN
concentrator to supply the address through one of the various means available to the
concentrator.
•
PPTP Authentication Protocols—During tunnel negotiation, prospective peers
generally authenticate one another through some mechanism. By checking none of the
available options, you can permit the tunnel to be negotiated with no authentication, but
you should only use that for test purposes. The available authentication protocols are as
follows:
— PAP—The Password Authentication Protocol (PAP) passes the username and
password in clear text and is therefore not secure. Although this is the default
setting, it is not a recommended choice for a secure environment. PAP does not
provide data encryption.
— CHAP—The Challenge-Handshake Authentication Protocol (CHAP) is also
permitted by default, but is also not particularly secure. In response to a
challenge from the server, the client encrypts the challenge plus password and
returns that to the server along with the clear text username. CHAP does not
provide data encryption.
— MSCHAPv1—The Microsoft Challenge-Handshake Authentication Protocol
version 1 (MSCHAPv1) is more secure than CHAP because the server only
stores and compares encrypted passwords. MSCHAPv1 can encrypt data using
the Microsoft Point-to-Point Encryption (MPPE) Protocol.
— MSCHAPv2—The Microsoft Challenge-Handshake Authentication Protocol
version 2 (MSCHAPv2) is a step up from MSCHAPv1 because it requires
mutual client-server authentication. MPPE can also be used here for data
encryption using keys that are unique for each session. MSCHAPv2 also uses
different keys for the send and receive functions.
— EAP Proxy—The Extensible Authentication Protocol (EAP) Proxy lets the
VPN concentrator offload the authentication process to an external RADIUS
server, providing additional authentication services such as EAP/MD5,
Smartcards and certificates (EAP/TLS), and RSA SecurID (EAP/SDI). EAP
Proxy does not support encryption.
•
PPTP Encryption—Select the type of PPTP encryption that you want to use from
these options:
— Required—If you select this option, clients must use MPPE encryption. This
means that you can only select MSCHAPv1 and MSCHAPv2 as the allowable
authentication protocols when using this option. You must also select either
40-bit and/or 128-bit encryption in this category.
— Require Stateless—Under this encryption scheme, the encryption key is
changed with each packet transferred.
CCSP.book Page 168 Friday, February 28, 2003 3:43 PM
168
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
— 40-bit—Clients can use the RSA RC4 encryption algorithm using a 40-bit key
when this option is checked.
— 128-bit—Clients can use the RSA RC4 encryption algorithm using a 128-bit
key when this option is checked.
•
PPTP Compression—If many of your clients connect via dial-up connections, you might
want to enable PPTP compression to decrease the amount of data being transferred. If
you enable compression, the Microsoft Point-to-Point Compression (MPPC) algorithm
is used.
•
L2TP Authentication Protocols—L2TP authentication protocol options are the same as
the PPTP options previously discussed.
•
L2TP Encryption—L2TP encryption options are the same as the PPTP options
previously discussed.
•
L2TP Compression—L2TP compression options are the same as the PPTP options
previously discussed.
Figure 4-26 Configuration | User Management | Groups | Modify > PPTP/L2TP
CCSP.book Page 169 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
169
Advanced Configuration of the VPN Concentrator
The previous sections of this chapter looked at a small part of the Configuration portion of the
VPN Manager. There is much more to the Manager than installing groups, users, or system
identification. This section looks at the other aspects of the Configuration portion of the VPN
Manager.
Configuration | System
The functions that fall under the Configuration | System section have to do with configuring
parameters for system-wide functions in the VPN concentrator. The following subcategories
under System let you control the VPN concentrator:
•
•
•
•
•
•
•
•
•
•
•
Configuration | System | Servers
Configuration | System | Address Management
Configuration | System | Tunneling Protocols
Configuration | System | IP Routing
Configuration | System | Management Protocols
Configuration | System | Events
Configuration | System | General
Configuration | System | Client Update
Configuration | System | Load Balancing Cisco VPN Clients
Configuration | User Management
Configuration | Policy Management
The following sections describe each subcategory in more detail.
Configuration | System | Servers
The Configuration | System | Servers section of the VPN Manager allows you to configure the
various types of servers that communicate with the concentrator. Those servers include the
following:
•
•
•
•
•
Authentication Servers—Used for user authentication
Accounting Servers—Used for RADIUS user accounting
DNS Servers—Domain Name System address lookup functions
DHCP Servers—Dynamic Host Configuration Protocol to assign IP addresses for client
connections
Firewall Servers—Firewall enforcement by means of the Zone Labs Integrity Server
CCSP.book Page 170 Friday, February 28, 2003 3:43 PM
170
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
NTP Servers—Network Time Protocol to ensure that all systems use the same time for
ease of synchronizing log entries
•
Internal Authentication—Used for user authentication
Configuration | System | Address Management
When an IPSec tunnel is established between a VPN concentrator and client, a new set of IP
addresses is required to identify the endpoints of the tunnel. This section of the VPN Manager
allows you to define how these addresses are managed.
The Assignment portion of Address Management allows you to select the methods that can be
used to assign addresses. Quick Configuration used this portion as part of its setup steps.
The Pools portion of Address Management allows you to define a pool of internal addresses that
the concentrator draws from when assigning addresses to clients.
Configuration | System | Tunneling Protocols
Cisco VPN 3000 Concentrators are capable of establishing tunnels using the three most popular
VPN tunneling protocols:
•
•
•
PPTP
L2TP
IPSec
To provide support for the Microsoft Windows 2000 VPN client, the VPN concentrators also
support L2TP over IPSec.
This section of the VPN Manager allows you to configure the parameters that are associated
with each of these protocols.
Configuration | System | IP Routing
Cisco VPN 3000 Concentrators have the ability to act as routers for IP traffic. This allows the
concentrator to communicate with other routers in the network to determine the best path for
traffic to take. This section of the VPN Manager allows you to configure the following:
•
•
•
•
•
Static Routes—Manually configured routing tables
Default Gateways—Routes for traffic for which routes cannot be determined
OSPF—Open Shortest Path First routing protocol
OSPF Areas—Subnet areas within the OSPF domain
DHCP—Dynamic Host Configuration Protocol global parameters
CCSP.book Page 171 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
•
•
171
Redundancy—Virtual Router Redundancy Protocol parameters
Reverse Route Injection—Reverse Route Injection global parameters
Routing Information Protocol (RIP) and interface-specific OSPF parameters are configured on
the network interfaces. You access the interfaces to make those configurations through the
Configuration | Interfaces screen.
Configuration | System | Management Protocols
The Configuration | System | Management Protocols portion of the VPN Manager allows you
to control various management protocols and servers. These utilities can be an asset to you in
managing your total network. Those management protocols are as follows:
•
•
FTP—File Transfer Protocol
•
•
•
•
•
•
•
TFTP—Trivial File Transfer Protocol
HTTP/HTTPS—Hypertext Transfer Protocol and HTTP over SSL (Secure Sockets
Layer) protocol
Telnet—Terminal emulation protocol and Telnet over SSL
SNMP—Simple Network Management Protocol
SNMP Community Strings—Identifiers for valid SNMP clients
SSL—Secure Sockets Layer Protocol
SSH—Secure Shell
XML—Extensible Markup Language
Configuration | System | Events
Significant occurrences within or that could affect a VPN 3000 Concentrator are classified as
events. Typical events include alarms, traps, error conditions, network problems, task completions, breaches of threshold levels, and status changes. Events are stored in an event log in
nonvolatile memory. Events can also be sent to a backup server via FTP or to Syslog servers.
Events can be identified to trigger console messages, send e-mail messages, or send SNMP
system traps.
Event attributes include class and severity level, as follows:
•
Event Class—Specifies the source of the event and refers to a specific hardware or
software subsystem within the VPN concentrator.
•
Event Severity Level—Indicates how serious or significant the event is. Level 1 is the
most significant.
CCSP.book Page 172 Friday, February 28, 2003 3:43 PM
172
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Configuration | System | General
The General section of the VPN Manager enables you to configure these general VPN
concentrator parameters:
•
•
•
•
Identification—System name, contact person, system location
Time and Date—System time and date
Sessions—The maximum number of sessions
Authentication—General authentication parameters
Configuration | System | Client Update
You can configure the Cisco VPN 3000 Concentrators to manage client updates for VPN Client
and VPN 3002 Hardware Clients. In the case of the software clients, the concentrator notifies
the clients of the acceptable client versions and provides the location where the appropriate
versions can be obtained. For VPN 3002 Hardware Clients, the concentrator pushes the correct
version to the client via TFTP.
This section of the VPN 3000 Concentrator Manager lets you configure the client update
feature, as follows:
•
•
Enable—Enables or disables client update
Entries—Configures updates by client type, acceptable firmware and software versions,
and their locations
Configuration | System | Load Balancing Cisco VPN Clients
When you have two or more VPN 3000 Concentrators on the same subnet handling remote
access VPN services, you can group those devices together to perform load balancing across
the devices. The private and public subnets are grouped into a virtual cluster. One of the
concentrators acts as the cluster master and directs incoming calls to the device that has the
smallest load, including itself. If, for any reason, the master fails, one of the other concentrators
in the cluster takes over the role.
Clients first connect to the virtual IP address of the cluster. The cluster master intercepts the call
and sends the client the public IP address of the least-loaded available concentrator. The client
then uses that IP address to initiate the VPN tunnel with the concentrator. If a concentrator in
the cluster fails, the terminated clients immediately try to reconnect with the virtual IP, and the
cluster master reassigns them to available devices.
After you have made certain that the public and private interfaces have been fully configured
and are operational, you use this section of the VPN 3000 Concentrator Manager to define the
load-sharing cluster.
CCSP.book Page 173 Friday, February 28, 2003 3:43 PM
VPN Concentrator Configuration
173
Configuration | User Management
Configuration | User Management is the section that you used in the “Configuring IPSec with
Preshared Keys Through the VPN 3000 Concentrator Series Manager” section of this chapter
to configure the group for remote access with preshared keys. In addition to working with
specific groups, this section is used to configure the Base Group and to manage user accounts
for the internal authentication database.
With the default settings, new groups inherit the attributes of the Base Group. Those attributes
can be individually overridden for each group so that you can have a variety of groups with
different properties. You could have a group using L2TP, one using IPSec with preshared keys,
another using IPSec with digital certificates, another using RADIUS for user authentication,
and still another using the concentrator’s internal database for user authentication.
If you are using the concentrator for internal authentication and have defined your groups, this
section of the VPN Manager also allows you to create and manage user accounts. User accounts
inherit the attributes of their group, and user accounts can only belong to one group. If you do
not explicitly assign a user account to a group, it inherits the attributes of the Base Group.
Configuration | Policy Management
Policies control the actions of users as they connect to the VPN concentrator. User management
determines which users are allowed to use the device. Policy management determines when
users can connect, from where they can connect, and what kind of data are permitted in the
tunnels. The section of the VPN Manager established filters that determine whether to forward
or drop packets and whether to pass the traffic through a tunnel or to send it in the clear. Filters
are applied to interfaces, groups, and users.
The Policy Management section contains the following sections:
•
•
Access Hours—Establishes when remote users can access the VPN concentrator.
Traffic Management—Controls what data traffic can flow through the VPN concentrator.
Traffic Management is further divided into the following configuration sections:
— Network Lists—Allows you to group lists of networks together as single
objects.
— Rules—Provides detailed parameters that let you specify the handling of data
packets.
— SAs—Lets you choose the options to be used in establishing IPSec Security
Associations. This is where you set the authentication, encryption, encapsulation, and SA lifetime. You can modify predefined SAs or create your own.
— Filters—Lets you combine the network lists, rules, and SAs into single
packages that you can then apply to interfaces, groups, and users.
— NAT—The Cisco VPN 3000 Concentrators can perform Network Address
Translation, which you would configure in this section.
CCSP.book Page 174 Friday, February 28, 2003 3:43 PM
174
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Installing and Configuring the VPN Client
14 Configuring the IPSec Windows Client
The Cisco VPN Client is packaged with every VPN concentrator sold by Cisco. The VPN Client
can be installed on several different operating systems, including Linux, Sun Solaris, Apple
MAC OS X, and Microsoft Windows. This section looks at the Microsoft Windows version of
the VPN Client.
The following topics are covered in this section:
•
•
•
•
Overview of the VPN Client
VPN Client features
VPN Client installation
VPN Client configuration
Overview of the VPN Client
The Microsoft Windows version of the VPN Client runs on Windows 95, 98, 98 SE, Me, NT,
2000, and XP platforms. The client is designed to work as a remote access client connecting
through a secure data tunnel to an enterprise network over the Internet. This permits remote
users to access the services of a private network as though the users were attached directly to
the network, with the security of encrypted communications between the client and the host.
To use the VPN Client after it has been installed, the user first connects to the Internet and then
starts the VPN Client to negotiate a tunnel with the VPN host. For remote access services, that
host is most commonly a VPN concentrator, but it could be a router or firewall, or some other
network device.
To start the VPN Client from a Windows-based PC, select Start, Programs, Cisco Systems
VPN Client, and then select one of the following programs:
•
Certificate Manager—Manage digital certificates for the client to be used when
authenticating with VPN devices.
•
Help—View the complete online manual with full instructions on using the VPN Client
application.
•
•
Log Viewer—View events from the log file.
Set MTU—Control the maximum transmission unit (MTU) size that the VPN Client is to
use to communicate with the host.
CCSP.book Page 175 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
175
•
Uninstall VPN Client—Uninstall the application. You can choose to retain connection
and certificate information.
•
VPN Dialer—Manage connection information and start a connection with a VPN host
device. This poorly named function is the main functional area of the VPN Client.
You can use the VPN Client with dial-up, ISDN, cable, or DSL modems as well as with direct
LAN connections. How you get to the Internet does not matter to the VPN Client. The only
requirement is that the client device can “see” the host device using TCP/IP.
VPN Client Features
The VPN Client is a feature-packed application. Most of the functions of the client are handled
automatically and require little configuration. This section describes the important features of
the Cisco VPN Client.
Program features include the following:
•
•
•
•
•
•
•
•
•
•
•
Browser-based, context-sensitive HTML help
VPN 3000 Series Concentrator support
Command-line interface to the VPN Dialer application
Access to local LAN resources while connected through a secure VPN
Automatic VPN Client configuration option
Log Viewer application to collect, view, and analyze events
Ability to set the MTU size
Application launcher
Automatic connection via Microsoft Dial-Up Networking and other third-party dialers
Software update notifications from the connecting VPN device
Launch software update site from update notification
NT features include the following:
•
•
Password expiration information from RADIUS authentication servers
•
Automatic disconnect disable when logging off to allow for roaming profile
synchronization
Start Before Logon, providing the ability to establish a VPN connection before logging on
to a Windows NT platform
IPSec features include the following:
•
•
•
IPSec tunneling protocol
Transparent tunneling
IKE key management protocol
CCSP.book Page 176 Friday, February 28, 2003 3:43 PM
176
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
•
•
IKE keepalives
Split tunneling
LZS data compression
Authentication features include the following:
•
User authentication via the following:
— VPN concentrator internal database
— RADIUS
— NT Domain (Windows NT)
— RSA (formerly SDI) SecurID or SoftID
•
•
•
Certificate Manager to manage client identity certificates
Ability to use Entrust Entelligence certificates
Ability to authenticate using smart cards with certificates
Firewall features include the following:
•
•
Support for Cisco Secure PIX Firewall platforms
Support for the following personal firewalls:
— Cisco Integrated Firewall (CIF)
— ZoneAlarmPro 2.6.3.57
— ZoneAlarm 2.6.3.57
— BlackIce Agent and BlackIce Defender 2.5
•
Centralized Protection Policy provides support for firewall policies pushed to the VPN
Client from the VPN 3000 Concentrator.
VPN Client IPSec attributes include the following:
•
Main and aggressive modes for negotiating phase 1 of establishing ISAKMP Security
Associations
•
Authentication algorithms:
— HMAC (Hashed Message Authentication Coding) with MD5 (Message Digest
5) hash function
— HMAC with SHA-1 (Secure Hash Algorithm) hash function
•
Authentication modes:
— Preshared keys
— X.509 Digital Certificates
•
Diffie-Hellman Groups 1, 2, and 5
CCSP.book Page 177 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
•
177
Encryption algorithms:
— 56-bit DES
— 168-bit Triple-DES
•
•
•
•
Extended Authentication (XAUTH)
Mode Configuration (also known as ISAKMP Configuration Method)
Tunnel Encapsulation Mode
IP compression (IPCOMP) using LZS
VPN Client Installation
Installing the VPN Client is a simple task. System requirements call for 10 MB of hard drive
space and up to 64 MB of RAM for Windows 2000 systems. Once you have confirmed those
requirements, simply insert the Cisco VPN Client CD-ROM into the system and allow the
Autorun program to start, as shown in Figure 4-27.
Figure 4-27 Cisco VPN Client Autorun
Click the option to Install Cisco VPN Client. The system might respond with a message like
the one shown in Figure 4-28, stating that the installer needs to disable the IPSec Policy Agent.
Simply click the Yes button to continue the installation process.
Figure 4-28 Initial Warning Message
CCSP.book Page 178 Friday, February 28, 2003 3:43 PM
178
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
The Welcome screen appears, as shown in Figure 4-29. Click Next to continue.
Figure 4-29 VPN Client Install Setup Welcome
Figure 4-30 shows the next screen to be displayed, the license agreement screen. Scroll down
through the agreement, and then click Yes to continue if you agree to the terms of the license
agreement.
Figure 4-30 VPN Client License Agreement
CCSP.book Page 179 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
179
The file location screen is displayed, as shown in Figure 4-31. To accept the default location,
click Next. If not, click Browse to select the folder where the installation wizard is to install the
client application.
Figure 4-31 VPN Client Install File Location
The next screen to be displayed, shown in Figure 4-32, asks you to select the Windows folder
for the application. Click Next to accept the default, or select another location for the
application.
Figure 4-32 VPN Client Install Windows Folder Selection
CCSP.book Page 180 Friday, February 28, 2003 3:43 PM
180
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
The installation wizard then copies the files from the CD to your system, as shown in
Figure 4-33. This portion of the installation takes less than a minute.
Figure 4-33 Cisco VPN Client Installation
The installation wizard then updates the Windows Registry settings. While it does this, the
wizard presents the message shown in Figure 4-34. While the message indicates that it can take
several minutes, the wizard is, in fact, fast in accomplishing this task.
Figure 4-34 VPN Client Install Network Settings
The final screen of the installation process is shown in Figure 4-35. After the installation has
been completed, you must reboot the Windows system. The completion screen gives you the
option of rebooting when you click the Finish button or waiting until a later time to restart the
system. Make your selection and click Finish.
This is a simple installation process. As a systems administrator, you could provide the
application to your users with simple instructions, especially if you want them to use the default
settings.
CCSP.book Page 181 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
181
Figure 4-35 VPN Client Installation Complete
VPN Client Configuration
The configuration process is almost as easy as the installation process. The user must enter
several pieces of information. Your installation instructions should provide all the entries that
your users must make.
To start the configuration process, start the VPN Client application. From the Windows
Desktop, choose Start, Programs, Cisco Systems VPN Client to display the Option menu
shown in Figure 4-36. The next step is not self-evident. To start the client, click the VPN Dialer
menu option.
Figure 4-36 Starting the Cisco VPN Client
Figure 4-37 shows the main interface screen for the VPN Client. Notice that the Connection
Entry window is blank, indicating that you have not yet configured the connection information.
The Connect button is also grayed out and stays that way until you have a valid connection
defined. Create the first connection entry; click New to begin that process.
CCSP.book Page 182 Friday, February 28, 2003 3:43 PM
182
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Figure 4-37 Connection Entry Screen
The first screen of the creation process is shown in Figure 4-38. On this screen, you identify the
connection by supplying a name and a brief description. The screen is initially blank. The name
CorpConnect and the description Connection to the Corporate Network via VPN were
added to describe the connection. Try to make the name fairly descriptive because it is used to
make the connection. After you have entered a name and description, click Next.
Figure 4-38 Create New Connection
Figure 4-39 shows the next screen to be displayed. This screen asks you to identify the VPN
server to which you will be connecting. In this case, you are connecting to the VPN 3000
Concentrator that you configured in the “Configuring IPSec with Preshared Keys Through the
CCSP.book Page 183 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
183
VPN 3000 Concentrator Series Manager” section of this chapter. Enter either the IP address of
the device or the fully qualified domain name (FQDN), if you know it. The public IP address
of the VPN concentrator is required, so enter 172.16.1.3 to reach the concentrator you
configured earlier. Click Next after you have identified the host server.
Figure 4-39 New Connection Address
Because you have not yet installed any digital certificates onto your PC, the next screen presents
only one option to use for authenticating the IPSec connection. In Figure 4-40 you can see that
the Certificate option is grayed out. To configure the client to use a preshared key for the IPSec
connection, simply enter the IPSec group name and password in the appropriate fields of the
Group Access Information section.
Figure 4-40 Entering the Preshared Key
CCSP.book Page 184 Friday, February 28, 2003 3:43 PM
184
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
The group name that you established earlier was vpngroup02. Enter that in the Name field and
the associated password into the Password and Confirm Password fields. The password for
the IPSec group is the preshared key for the IPSec connection authentication. Click Next to
continue.
That’s all there is to it. Figure 4-41 shows that the new VPN connection, CorpConnect, has been
successfully created. Notice that you did not enter any IKE or IPSec configuration information.
Those values are pushed from the VPN concentrator during the initial connection.
Because anyone with the VPN Client and the correct group name and password can now create
a secure connection to your VPN 3000 Concentrator, you can see how important the group
password is to the security of the system. Be sure to use a strong password for this purpose,
and exercise strict control over issuing the password. Also, consider changing the password
frequently, even though your user community might object.
Click Finish to complete the creation process.
Figure 4-41 New Connection Complete
Clicking Finish returns you to the main VPN Client window, shown in Figure 4-42. Notice that
CorpConnect now shows in the Connection Entry window and the IP address of the remote
server shows in the lower window. Also notice that the Connect button is now active.
If you had additional connections defined to different servers or for different purposes (for
example, stricter security), you could access those other connections by clicking the arrow to
open the drop-down menu.
CCSP.book Page 185 Friday, February 28, 2003 3:43 PM
Installing and Configuring the VPN Client
185
Figure 4-42 Using the New VPN Connection
To connect to the VPN 3000 Concentrator, simply click the Connect button. The client attempts
to negotiate IKE and IPSec SAs with the concentrator. If that is successful, the IPSec tunnel is
created and the client prompts you for your username and password. Once that has been
authenticated, you can begin using the VPN Client for secure remote access to the VPN
concentrator.
CCSP.book Page 186 Friday, February 28, 2003 3:43 PM
186
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those of you already comfortable with the topics in
this chapter, this summary could help you recall a few details. For those of you who just read
this chapter, this review should help solidify some key facts. For anyone doing his or her final
preparation before the exam, these tables and figures are hopefully a convenient way to review
the material the day before the exam.
Types of Preshared Keys
The types of preshared keys are as follows:
•
•
•
Unique—Tied to a specific IP address
Group—Tied to a group
Wildcard—Not tied to anything
VPN 3000 Concentrator CLI Quick Configuration Steps
The steps to VPN 3000 Concentrator CLI Quick Configuration are as follows:
Step 1 Boot the VPN concentrator with default configuration.
Step 2 Login as admin/admin.
Step 3 Set the system time.
Step 4 Set the system date.
Step 5 Set the time zone.
Step 6 Set the daylight-savings time support.
Step 7 Enter an IP address for the Private interface.
Step 8 Enter a subnet mask for the Private interface.
Step 9 Select the speed of the interface.
Step 10 Select the duplex mode of the interface.
Step 11 Save and exit the CLI.
CCSP.book Page 187 Friday, February 28, 2003 3:43 PM
VPN Client Installation Steps
187
VPN 3000 Concentrator Browser-Based Manager Quick
Configuration Steps
The steps to the VPN 3000 Concentrator browser-based Manager Quick Configuration are as
follows:
Step 1 Ping the VPN concentrator from the administrator PC to verify connectivity.
Step 2 Start the web browser.
Step 3 Enter the address of the VPN concentrator (be sure to use https:// if you need
to enable the VPN concentrator’s SSL Certificate on your browser).
Step 4 Log in as admin/admin.
Step 5 Select Click here to start Quick Configuration.
Step 6 Select hotlink to Ethernet 2 (Public) interface.
Step 7 Enter the IP address, subnet mask, speed, and duplex mode.
Step 8 Verify the system name, date, time, time zone, and DST support.
Step 9 Enter the DNS server address.
Step 10 Enter the domain name.
Step 11 Enter the default gateway address.
Step 12 Select the tunneling protocols to use—IPSec.
Step 13 Select the methods of assigning IP address for the IPSec tunnel endpoints.
Step 14 Choose the method for user authentication (Internal Server).
Step 15 Add usernames and passwords.
Step 16 Supply the IPSec group name and password.
Step 17 Change the admin password.
Step 18 Click the Save Needed icon to save the configuration changes.
VPN Client Installation Steps
The steps for installing the VPN Client are as follows:
Step 1 Insert the Cisco VPN Client CD into your CD-ROM drive.
Step 2 View the CD’s menu after Autorun starts the CD.
Step 3 Select Install Cisco VPN Client.
CCSP.book Page 188 Friday, February 28, 2003 3:43 PM
188
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Step 4 Click Yes to permit disabling IPSec Policy Agent (if asked).
Step 5 Click Next on the Welcome screen.
Step 6 Read and accept the license agreement.
Step 7 Click Next to accept the default file location.
Step 8 Click Next to accept the default application location.
Step 9 Select the reboot option (now or later) and click Finish.
VPN Client Configuration Steps
The steps for configuring the VPN Client are as follows:
Step 1 Choose Start, Programs, Cisco Systems VPN Client, VPN Dialer to start
the application.
Step 2 Click New to create a new connection.
Step 3 Enter the connection name and description.
Step 4 Enter the IP address or host name of the VPN concentrator.
Step 5 Enter the IPSec group name and password that you created on the VPN
concentrator.
Step 6 Click Finish to complete the connection creation.
NOTE
You can customize the installation process to suit different client configurations. See the Cisco
website, www.cisco.com, for more information.
VPN Client Program Options
VPN Client program options include the following:
•
•
•
•
•
•
Certificate Manager
Help
Log Viewer
Set MTU
Uninstall VPN Client
VPN Dialer
CCSP.book Page 189 Friday, February 28, 2003 3:43 PM
Complete Configuration Table of Contents
189
Limits for Number of Groups and Users
Table 4-4 shows the maximum number of groups and users.
Table 4-4
Maximum Combined Groups and Users per VPN Model
Model
Maximum Combined Number of Groups and Users
3005
100
3015
100
3030
500
3060
1000
3080
1000
Complete Configuration Table of Contents
Table 4-5 shows the complete configuration table of contents (TOC).
Table 4-5
Complete Expansion of the Configuration TOC
Configuration
>
Interfaces
>
System
>
>
Servers
>
Authentication
>
Accounting
>
DNS
>
DHCP
>
NTP
>
Parameters
>
Hosts
Address Management
>
Assignment
>
Roots
continues
CCSP.book Page 190 Friday, February 28, 2003 3:43 PM
190
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Table 4-5
Complete Expansion of the Configuration TOC (Continued)
Configuration (Continued)
>
System (Continued)
>
>
>
Tunneling Protocols
>
PPTP
>
L2TP
>
IPSec
>
LAN-to-LAN
>
IKE Proposals
>
IPSec over TCP
IP Routing
>
Static Routes
>
Default Gateways
>
OSPF
>
OSPF Areas
>
DHCP
>
Redundancy
>
Reverse Route Injection
Management Protocols
>
FTP
>
HTTP/HTTPS
>
TFTP
>
Telnet
>
SNMP
>
SNMP Communities
>
SSL
>
SSH
>
XML
CCSP.book Page 191 Friday, February 28, 2003 3:43 PM
Complete Configuration Table of Contents
Table 4-5
191
Complete Expansion of the Configuration TOC (Continued)
Configuration (Continued)
>
System (Continued)
>
>
>
>
>
>
Events
>
General
>
FTP Backup
>
Classes
>
Trap Destinations
>
Syslog Servers
>
SMTP Servers
>
E-mail Recipients
>
Identification
>
Time and Date
>
Sessions
>
Authentication
>
Enable
>
Entries
General
Client Update
Load Balancing
User Management
>
Base Group
>
Groups
>
Users
Policy Management
>
Access Hours
>
Traffic Management
>
Network Lists
>
Rules
>
SAs
continues
CCSP.book Page 192 Friday, February 28, 2003 3:43 PM
192
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Table 4-5
Complete Expansion of the Configuration TOC (Continued)
Configuration (Continued)
>
Policy Management (Continued)
>
Traffic Management (Continued)
>
Filters
>
NAT
Complete Administration Table of Contents
Table 4-6 shows the complete administration table of contents (TOC).
Table 4-6
Complete Expansion of the Administration TOC
Administration
>
Administer Sessions
>
Software Update
>
Concentrator
>
Clients
>
System Reboot
>
Ping
>
Monitoring Refresh
>
Access Rights
>
Administrators
>
Access Control List
>
Access Settings
>
AAA Servers
>
>
File Management
>
Swap Config File
>
TFTP Transfer
>
File Upload
>
XML Export
Authentication
>
Enable
>
Rules
CCSP.book Page 193 Friday, February 28, 2003 3:43 PM
Complete Monitoring Table of Contents
Table 4-6
193
Complete Expansion of the Administration TOC (Continued)
Administration (Continued)
>
Certificate Management
>
Enrollment
>
Installation
Complete Monitoring Table of Contents
Table 4-7 shows the complete monitoring table of contents (TOC).
Table 4-7
Complete Expansion of the Monitoring TOC
Monitoring
>
Routing Table
>
Filterable Event Log
>
>
System Status
>
Sessions
>
Live Event Log
>
Protocols
>
Encryption
>
Top Ten Lists
>
Data
>
Duration
>
Throughput
Statistics
>
PPTP
>
L2TP
>
IPSec
>
HTTP
>
Events
>
Telnet
>
DNS
>
Authentication
>
Accounting
>
Filtering
continues
CCSP.book Page 194 Friday, February 28, 2003 3:43 PM
194
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Table 4-7
Complete Expansion of the Monitoring TOC (Continued)
Monitoring (Continued)
>
Statistics (Continued)
>
VRRP
>
SSL
>
DHCP
>
Address Pools
>
SSH
>
Load Balancing
>
Compression
>
Administrative AAA
>
NAT
>
MIP-II Stats
>
Interfaces
>
TCP/UDP
>
IP
>
RIP
>
OSPF
>
ICMP
>
ARP Table
>
Ethernet
CCSP.book Page 195 Friday, February 28, 2003 3:43 PM
Chapter Glossary
195
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter.
cookie A piece of information sent by a web server to a web browser that the browser is
expected to save and send back to the web server whenever the browser makes additional
requests of the web server.
Extensible Markup Language (XML) A standard maintained by the World Wide Web
Consortium (W3C). It defines a syntax that lets you create markup languages to specify
information structures.
JavaScript Interpreted programming language from Netscape. Used on websites for such
things as pop-up windows and image change during mouse rollover.
Network Time Protocol (NTP) Protocol built on top of TCP that ensures accurate local
timekeeping with reference to radio and atomic clocks located on the Internet. This protocol
is capable of synchronizing distributed clocks within milliseconds over long time periods.
Remote Authentication Dial-In User Service (RADIUS) Database for authenticating
dial-up users and for tracking connection time.
Reverse Route Injection (RRI) Used to populate the routing table of an internal router
running OSPF or RIP for remote VPN clients or LAN-to-LAN sessions.
Scalable Encryption Processing (SEP) VPN concentrator modules that perform hardwarebased cryptographic functions, including random number generation, hash transforms (MD5
and SHA-1) for authentication, and encryption and decryption (DES and Triple-DES).
Security Dynamics International (SDI) authentication Third-party authentication services
using token cards.
Secure Shell (SSH) Sometimes called Secure Socket Shell, a UNIX-based command
interface and protocol for gaining access to a remote computer securely.
Secure Sockets Layer (SSL) Encryption technology for the web used to provide secure
transactions, such as the transmission of credit card numbers for e-commerce.
Virtual Router Redundancy Protocol (VRRP) In installations of two or more VPN
concentrators in a parallel, redundant configuration, VRRP provides automatic switchover
to a backup system in case the primary system is out of service, thus ensuring user access to
the VPN.
VPN concentrator Any of the Cisco VPN 3000 Series Concentrators.
VPN Manager Cisco VPN 3000 Concentrator Manager.
CCSP.book Page 196 Friday, February 28, 2003 3:43 PM
196
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Q&A
As mentioned in Chapter 1, “All About the Cisco Certified Security Professional,” these
questions are more difficult than what you should experience on the CCSP exam. The questions
do not attempt to cover more breadth or depth than the exam; however, the questions are
designed to make sure you know the answer. Rather than allowing you to derive the answer
from clues hidden inside the question itself, your understanding and recall of the subject are
challenged. Questions from the “Do I Know This Already?” quiz from the beginning of the
chapter are repeated here to ensure that you have mastered the chapter’s topic areas. Hopefully,
these questions will help limit the number of exam questions on which you narrow your choices
to two options and guess!
You can find the answers to these questions in Appendix A, “Answers to the “Do I Know This
Already” Quizzes and Q&A Sections.”
1 Where would you normally use unique preshared keys?
2 To use a web browser to access the VPN Manager application on VPN concentrators, what
features must you enable on the browser?
3 What information is required to configure a LAN interface on the VPN concentrator?
4 What is the default administrator name and password for the GUI VPN Manager?
CCSP.book Page 197 Friday, February 28, 2003 3:43 PM
Q&A
197
5 What options are available for addressing an IP interface on the IP Interfaces screen?
6 What is the maximum number of combined groups and users that can be supported on a
VPN 3015 Concentrator?
7 What are the four subcategories under the Configuration option of the VPN Manager’s
TOC?
8 On the General tab of a group’s Add screen, what options can you select for Access Hours?
9 What IPSec protocols are available from the default IPSec SA settings on the IPSec tab of
the Group Add screen?
10 What are the nine subcategories under the Configuration | System option in the VPN
Manager’s table of contents?
CCSP.book Page 198 Friday, February 28, 2003 3:43 PM
198
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
11 Where does the VPN concentrator store system events?
12 What areas can be configured under the Traffic Management section of the Configuration |
Policy Management section?
13 Where do you enter the preshared key so that a VPN Client can connect to a VPN
concentrator?
14 What are the three types of preshared keys?
15 What types of interfaces are the Public and Private VPN interfaces?
16 Which interface do you need to configure using the browser-based VPN Manager?
CCSP.book Page 199 Friday, February 28, 2003 3:43 PM
Q&A
199
17 What would you do if you needed to re-enter the Quick Configuration mode after you have
completed the initial configuration of the VPN concentrator?
18 When the VPN Manager’s Main window is displayed, how do you continue with the
Quick Configuration that was started at the CLI?
19 What methods can be selected for assigning IP addresses to the tunnel endpoints from the
Quick Configuration Address Assignment screen?
20 When using the VPN Manager, how can you tell that you have made changes to the active
configuration?
21 What is an external group in the VPN Manager system?
22 What is the purpose of the SEP card assignment attribute on the General tab of the Group
Add screen?
CCSP.book Page 200 Friday, February 28, 2003 3:43 PM
200
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
23 You would like to be able to pass DNS and WINS information from the VPN concentrator
to the VPN Client. What Group option can you use to accomplish this?
24 What dynamic routing protocols are available on the VPN 3000 Concentrators?
25 What protocol does the VPN concentrator use to update software versions on Cisco VPN
3002 Hardware Clients?
26 How do you start the Cisco VPN Client installation process?
27 What methods can you use for user authentication on the Cisco VPN 3000 Series
Concentrators?
28 What is a group preshared key?
CCSP.book Page 201 Friday, February 28, 2003 3:43 PM
Q&A
201
29 When you boot up a Cisco VPN 3000 Concentrator with the default factory configuration,
what happens?
30 If you supply an address of 144.50.30.24 and want to use a 24-bit subnet mask for the
Private interface on a VPN concentrator, are you able to accept the default subnet mask
offered by the VPN Manager?
31 What are the three major sections of the VPN Manager system?
32 The Quick Configuration system has displayed the System Info screen. What information,
other than system date and time, can you enter on this screen?
33 What is the maximum number of combined groups and users that can be supported on a
VPN 3060 Concentrator?
34 From where do users inherit attributes on the VPN concentrator?
CCSP.book Page 202 Friday, February 28, 2003 3:43 PM
202
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
35 What is the default number of simultaneous logins available to group members?
36 What is the purpose of IKE keepalives?
37 Where would you configure information for NTP and DHCP servers within the VPN
Manager?
38 What is the most significant event severity level?
39 What Microsoft Windows operating systems can support the Cisco VPN Client?
40 What programs are available within the VPN Client installation?
41 What is a unique preshared key?
CCSP.book Page 203 Friday, February 28, 2003 3:43 PM
Q&A
203
42 What type of cable does the console port require on VPN concentrators?
43 What is the default administrator name and password for VPN concentrators?
44 How do you get your web browser to connect to the VPN concentrator’s manager
application?
45 What is the first screen that appears when you click the Click here to start Quick
Configuration option in the VPN Manager?
46 If you select Internal Server as the method of user authentication, what additional screen
does the Quick Configuration system give you?
47 When do configuration changes become active on the Cisco VPN 3000 Series
Concentrators?
CCSP.book Page 204 Friday, February 28, 2003 3:43 PM
204
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
48 When reviewing the list of attributes for a group, what does it mean when an attribute’s
Inherit? box is checked?
49 What is a realm in relation to user authentication?
50 What is split tunneling?
51 What management protocols can you configure on the VPN concentrator?
52 What is the process a VPN Client uses to connect to a VPN concentrator when load
balancing is used between two or more VPN concentrators?
53 What variables can you supply during the installation process of the Cisco VPN Client?
CCSP.book Page 205 Friday, February 28, 2003 3:43 PM
Q&A
205
54 What methods can be used for device authentication between VPN peers?
55 What is a wildcard preshared key?
56 What information do you need to supply in the CLI portion of Quick Configuration?
57 What is the last step you must take before moving from the CLI Quick Configuration
mode to the browser-based Quick Configuration mode?
58 What hot keys are available in the standard toolbar of the VPN Manager?
59 What tunneling protocols does the VPN concentrator support?
CCSP.book Page 206 Friday, February 28, 2003 3:43 PM
206
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
60 When you select IPSec as the tunneling protocol, what screen does Quick Configuration
present?
61 How many groups can a user belong to in the VPN concentrator’s internal database?
62 What is the size range for user authentication passwords for internal users?
63 What does the Authentication option RADIUS with Expiry provide?
64 What tunneling protocol can be configured on the VPN concentrator to support the
Microsoft Windows 2000 VPN client?
65 How does the VPN 3000 Concentrator handle software updates for VPN Software Clients?
66 How do you start the VPN Client on a Windows system?
CCSP.book Page 207 Friday, February 28, 2003 3:43 PM
Scenario 4-1
207
Scenarios
The following scenarios and questions are designed to draw together the content of the chapter
and exercise your understanding of the concepts. There might be more than one correct answer.
The thought process and practice in manipulating each concept in the scenario are the goals of
this section.
Scenario 4-1
Users at one of your small branch facilities dial in to your corporate access server for access to
the Internet, e-mail, and other network services. This four-user group is one of your research
and development teams, and each of the four users dials in to the access server using 56-kbps
modems for network services. Their work is considered top secret by upper management.
Because of the sensitive nature of their communications, you want to establish a VPN for them
using IPSec.
At the same time, other users at other branch sites—your sales staff and other key personnel—
frequently use laptops and home computers to connect to the corporate network through the Internet or through the access server. These users discuss sales figures and development projects and
also require IPSec protection on their MS Exchange messaging and MS SQL database traffic.
You had considered using your router as a VPN server, but decided to use a Cisco VPN
Concentrator because of its ability to authenticate users internally. You don’t anticipate ever
having more than 50 VPN clients active in your user community at any given time, and your
employee base is stable.
As the senior security architect for your organization, how would you answer these questions?
1 Which VPN 3000 Concentrator would you purchase and install?
2 Would you use preshared keys or digital certificates for device authentication?
3 Would you depend on the internal authentication services of the VPN device, or would
you use some other user authentication method?
4 How would you assign VPN addresses?
5 Would you permit split tunneling?
6 Would you use multiple IPSec groups? If so, why?
7 Which IPSec protocol would you use?
8 Which encryption protocol would you use?
9 Would you allow unrestricted access hours?
10 What would you set for idle timeout and maximum connect time?
CCSP.book Page 208 Friday, February 28, 2003 3:43 PM
208
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Scenario 4-2
Your company sells donuts and has 60 shops located in a three-state area. These shops are each
connected to the Internet using DSL circuits. You want to establish IPSec VPN connections
from each shop through the Internet to the corporate network for sending/receiving e-mail,
reporting sales, and ordering supplies.
You will be using a Cisco VPN 3030 Concentrator with no SEP modules. Device authentication
is accomplished using preshared keys. User authentication is done through the NT Domain. The
IP addresses of the DNS servers are 192.168.44.20 and 192.168.63.20. The IP addresses of the
WINS servers are 192.168.44.25 and 12.168.63.25. No changes have been made to the default
Base Group.
Create a group for the shops called DonutShops.
1 Indicate the settings that you would make on the group’s General tab for each of the
following attributes, and specify whether you would uncheck the Inherit? box.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Access Hours
Simultaneous Logins
Minimum Password Length
Allow Alphabetic-Only Passwords
Idle Timeout
Maximum Connect Time
Filter
Primary DNS
Secondary DNS
Primary WINS
Secondary WINS
SEP Card Assignment
Tunneling Protocols
Strip Realm
2 Indicate the settings that you would make on the group’s IPSec tab for each of the
following attributes, and specify whether you would uncheck the Inherit? box.
•
•
•
IPSec SA
IKE Peer Identity Validation
IKE Keepalives
CCSP.book Page 209 Friday, February 28, 2003 3:43 PM
Scenario 4-2
•
•
•
•
•
•
Reauthentication on Rekey
Tunnel Type
Group Lock
Authentication
IPComp
Mode Configuration
209
CCSP.book Page 210 Friday, February 28, 2003 3:43 PM
210
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
Scenario Answers
The answers provided in this section are not necessarily the only correct answers. They merely
represent one possibility for each scenario. The intention is to test your base knowledge and
understanding of the concepts discussed in this chapter.
Should your answers be different (as they likely will be), consider the differences. Are your
answers in line with the concepts of the answers provided and explained here? If not, reread the
chapter, focusing on the sections that are related to the problem scenario.
Scenario 4-1 Answers
1 Concentrator model? The Cisco VPN 3005 Concentrator is probably adequate for this
installation. If your company were growing quickly, you might opt for the 3015. It has
about the same capabilities but is expandable, all the way to a 3080, if you ever needed
the additional capacity.
2 Type of device authentication? Because this is a chapter on preshared keys, you would opt
to use preshared keys. For this small user base, the maintenance for preshared keys should
not be a big concern.
3 Authentication? Internal authentication was one of the reasons for choosing the
concentrator over the router. The internal database keeps authentication on the same
device and is flexible enough to meet the needs of this application.
4 Address assignment? Set aside a pool of 100 IP addresses and let the VPN concentrator
assign the IP addresses from the pool. You could use DHCP, but that brings another
network device into the picture. Keep it simple.
5 Split tunneling? Yes. The R&D group is going to need the Internet for research and the
56-kbps modems are going to be killers. Eliminate the need for encryption on trivial traffic
to help this group out.
6 Multiple IPSec groups? It would make sense to use multiple IPSec groups. Some of your
users might not need split tunneling, and you could use different rules for access time, idle
timeout, or maximum connect times. You might want to set up functional groups such as
R&D, Sales, Engineering, Accounting, Execs, and so on. You are only constrained by the
100 combined users and groups limitation on the concentrator.
7 IPSec protocol? ESP. AH is authentication only with no encryption. You would want to
encrypt some of these data, especially for the R&D group.
8 Encryption? Probably Triple-DES. You could choose DES, but the extra security does not
cost that much more in performance.
CCSP.book Page 211 Friday, February 28, 2003 3:43 PM
Scenario 4-2 Answers
211
9 Unlimited access? This would be a group-by-group decision. Does the R&D team work
around the clock or just during business hours? Do you need to set aside a regular
maintenance window for network upgrades? Do the execs need unlimited access?
10 Idle timeout and maximum connect time? You probably want to drop connections after
they have been idle for 20 to 30 minutes. There is no overpowering reason to establish
limits on connect time. If you close the connection when it is idle, you should not have to
worry about lengthy connections.
Scenario 4-2 Answers
1 General tab settings for the DonutShops group:
•
•
•
•
•
•
•
•
•
•
•
•
Access Hours—No Restrictions
•
•
Tunneling Protocols—Check only IPSec, uncheck Inherit?
Simultaneous Logins—1, uncheck Inherit?
Minimum Password Length—8
Allow Alphabetic-Only Passwords—No, uncheck Inherit?
Idle Timeout—30
Maximum Connect Time—0
Filter—None
Primary DNS—192.168.44.20, uncheck Inherit?
Secondary DNS—192.168.63.20, uncheck Inherit?
Primary WINS—192.168.44.25, uncheck Inherit?
Secondary WINS—192.168.63.25, uncheck Inherit?
SEP Card Assignment—You can leave these checked. Without SEP modules, this
attribute has no effect.
Strip Realm—Leave unchecked. You will be using an external authentication
service, so this field has no effect.
2 IPSec tab settings for the DonutShops group:
•
•
•
•
IPSec SA—ESP-3DES-MD5
IKE Peer Identity Validation—If supported by certificate
IKE Keepalives—Enabled
Reauthentication on Rekey—Enabled, uncheck Inherit?
CCSP.book Page 212 Friday, February 28, 2003 3:43 PM
212
Chapter 4: Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys
•
•
•
•
•
Tunnel Type—Remote access
Group Lock—Disabled
Authentication—NT Domain, uncheck Inherit?
IPComp—None
Mode Configuration—Enabled
CCSP.book Page 213 Friday, February 28, 2003 3:43 PM
CCSP.book Page 214 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
15 CA support overview
16 Certificate generation
17 Validating certificates
18 Configuring the Cisco VPN 3000 Concentrator Series for CA support
CCSP.book Page 215 Friday, February 28, 2003 3:43 PM
CHAPTER
5
Configuring Cisco VPN 3000 for
Remote Access Using Digital
Certificates
Chapter 4, “Configuring Cisco VPN 3000 for Remote Access Using Preshared Keys,”
discussed the opportunity of using preshared keys for device authentication between VPN
peers, specifically between a remote access client and the VPN 3000 Concentrator. An
IPSec group was defined on the VPN concentrator, and that group and its associated
password were used as the preshared key for the VPN Client application.
While the process of using preshared keys is simple when using the Cisco VPN Concentrator
and VPN Client, it is a process that does not scale well for large VPN applications. The
Cisco application of preshared keys requires little work to implement initially. You just set
up a group on the concentrator and supply the group name and password to your VPN user
community. You could put everyone into one group to make it simple.
So where’s the problem of scale? It’s not with user authentication. The concentrator has
finite limitations on the number of groups and users it can support for internal authentication.
You will probably be using an external authentication service, and the per-user maintenance
required for that does not change.
The official line is that as your user base grows, the number of passwords that you have to
keep track of becomes unmanageable. But that’s not really so. Cisco makes keeping track
of passwords simple. You do not have to keep track of a unique key for each user, just for a
group. If you only have a handful of groups, then that is how many passwords you have to
keep track of. It’s not a big problem.
The real problem of scale occurs because the passwords are compromised from time to
time, and you have to change them. That is an easy task on the VPN concentrator, but you
cannot change those passwords until you coordinate the change with all your users. These
users might be using the Cisco VPN Client, but they are most likely also using a variety of
operating systems. The logistics of changing device authentication passwords for a large
user base would be difficult.
Security best practice says that you should be changing these passwords regularly, even if
they are not compromised (in fact, that is one of the best ways to protect against compromised
passwords). In this case, regularly means semiannually, quarterly, or better still, every
30 days.
What’s the alternative to preshared keys? That’s what this chapter is all about. The alternative to using preshared keys for device authentication is to use Certificate Authorities (CAs)
and digital certificates.
CCSP.book Page 216 Friday, February 28, 2003 3:43 PM
216
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
Figure 5-1
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies show
retention is significantly increased through writing facts and concepts down, even if you
never look at the information again.
•
Use the diagram in Figure 5-1 to guide you to the next step.
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
CCSP.book Page 217 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
217
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 16-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into four smaller “quizlets,” which correspond to the four major topic headings in the
chapter. Figure 5-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 5-1 to record your scores.
Table 5-1
Score Sheet for Quiz and Quizlets
Quizlet
Number
Foundations Topics Section Covering These
Questions
Questions
1
CA support overview
1–4
2
Certificate generation
5–8
3
Validating certificates
9–12
4
Configuring the Cisco VPN 3000 Concentrator Series for
CA support
13–16
All questions
Score
1–16
1 What Public Key Cryptography Standard (PKCS) is used to enroll with a CA?
2 What field in the certificate request should match the IPSec group name on the VPN
concentrator?
3 What elements make up the X.500 distinguished name?
CCSP.book Page 218 Friday, February 28, 2003 3:43 PM
218
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
4 What default algorithm type and key size does the VPN concentrator use on the certificate
request?
5 What entity is responsible for generating the Public Key Infrastructure (PKI)
public/private key pair for a requesting host?
6 When are Secure Sockets Layer (SSL) certificates required on a VPN concentrator?
7 What is the first certificate that must be installed on a VPN concentrator before you can
install any other certificates from a given CA?
8 What two enrollment methods are available on a VPN concentrator?
9 Where does a VPN concentrator obtain the root CA’s public key?
CCSP.book Page 219 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
219
10 During the authentication process, where does a VPN concentrator find the original hash
that the CA calculated for an identity certificate?
11 When you select to cache Certificate Revocation Lists (CRLs) on the VPN concentrator,
where are they stored?
12 With CRL caching disabled, how does a VPN concentrator check a certificate’s serial
number against a CRL?
13 Using the VPN Manager, where would you look to check the status of a certificate
enrollment process?
14 When configuring digital certificate support on a VPN concentrator, where do you identify
which certificate to use for Internet Key Exchange (IKE) Phase 1 negotiations?
15 What must be in place on a client’s PC before you can configure the VPN Client for
certificate support?
CCSP.book Page 220 Friday, February 28, 2003 3:43 PM
220
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
16 Which screen do you use to enable the use of digital certificates for device authentication
during IKE Phase 1 negotiations?
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
2 or less score on any quizlet—Review the appropriate sections of the “Foundation Topics”
section of this chapter, based on Table 5-1. Proceed to the “Foundation Summary” section,
the “Q&A” section, and then the scenarios at the end of the chapter.
•
8 or less overall score—You should read the entire chapter, including the “Foundation
Topics” and “Foundation Summary” sections, the “Q&A” section, and the scenarios at the
end of the chapter.
•
9 to 12 overall score—Begin with the “Foundation Summary” section, continue with the
“Q&A” section, and then read the scenarios. If you are having difficulty with a particular
subject area, read the appropriate section in the “Foundation Topics” section.
•
13 or more overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, then to the “Q&A” section, then the scenarios.
Otherwise, skip this chapter and go to the next chapter.
CCSP.book Page 221 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
221
Foundation Topics
Digital Certificates and Certificate Authorities
15 CA support overview
Digital certificates are the basis of a strong Public Key Infrastructure (PKI) and provide an
excellent tool for VPN device authentication. Digital certificates are the mechanism used to
distribute and store public keys, and they usually take the form of X.509 certificates.
The PKI structure is based on the use of two keys, a public key and a private key. You can use
these keys for a variety of functions, such as authentication, digital signatures, and encryption.
The host holds the private key tightly but shares the public key with a variety of partners by
sending them the host’s digital certificate. The partner authenticates the certificate by using the
public key of the CA.
This section covers the following topics:
•
•
•
The CA architecture
Simple Certificate Enrollment Process authentication methods
CA vendors and products that support Cisco VPN products
The CA Architecture
Certificate Authorities (CAs) are usually third-party agents such as VeriSign or Entrust, but you
could also set up your own CA using applications, such as Windows 2000 (W2K) Certificate
Services. If your organization already uses Windows, implementing a W2K CA is a simple
matter and would allow you to completely manage the certificate process for your organization.
CAs provide the following services to an organization:
•
Device registration (enrollment)—Each device is required to submit unique identifying
information to the CA. For example, these items can include a common name, organization,
and administrator’s e-mail address and phone number. The CA verifies that all requested
information has been supplied before issuing certificates.
•
Certification—CAs issue certificates to requesting devices using a standard format.
Three certificate types are important to the smooth operation of a PKI system:
— Root—Identifies the overarching authority in the CA network, usually the
issuing CA.
CCSP.book Page 222 Friday, February 28, 2003 3:43 PM
222
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
— Identity—Required by every device, these are signed by either the root CA or
by a subordinate CA. The root CA must self-sign its own identity certificate.
— Issuing (or subordinate)—Serves the same purpose as the root certificate but
is issued by a subordinate CA instead of the root CA. Subordinate CAs do not
self-sign their own identity certificate.
•
Key generation—Most Cisco devices generate their own public/private key pairs. Some
devices do not have that capability and depend on the CA to generate key pairs. The
private key is returned to the requesting device through some secure method, possibly
even through some manual process.
•
Key recovery—An optional service provided by some CAs is the ability to store private
keys for devices that can be used in case the original key is lost.
•
Certificate revocation—Another service that CAs render is the publication of lists of
identity certificates that have been revoked prior to their expiration date. Revocation can
occur for a variety of reasons, such as a name change, removal from service, or change of
organization, or because of a suspected or real security compromise.
•
Cross-certification—CAs in one organization might need to authenticate certificates
issued by a second CA organization. This can be accomplished by using cross-certifications,
which are a type of subordinate certificate.
The following sections review certificate requests, the enrollment process, the authentication
process, CA hierarchies, and certificate revocation.
Certificate Requests
When two hosts want to use digital certificates to secure communications between them, each
host must contact the same CA and enroll its identity and public key with the CA. Enrollment
is a multistep process on many systems. First, a host that wants to use digital certificates creates
a pair of keys, one public and one private. Next, the host prepares a Public Key Cryptography
Standards (PKCS) #10 certificate request. Finally, this PKCS #10 certificate request and the
host’s public key are then sent to the CA.
On the Cisco VPN 3000 Concentrator, the process is combined into one operation. The administrator simply fills out the PKCS #10 certificate request form, which includes a field to select
the size of the key to generate. When the form is submitted, the VPN concentrator generates the
key pair and then sends the certificate request and public key to the CA. Table 5-2 describes the
fields that are contained on a VPN concentrator PKCS #10 certificate request.
CCSP.book Page 223 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
Table 5-2
223
Cisco VPN 3000 Concentrator PKCS #10 Certificate Request
Field Name and Abbreviation
Description
Examples
Common Name (CN)
The name for the host that identifies it
in your organization. Spaces are
allowed, but you must enter a name in
this field.
Accounting 10
Must match the configured IPSec
group name on VPN concentrators.
Spaces are allowed.
vpngroup02
Enter the host’s company name or
organization. Spaces are allowed.
Cisco Systems
Organizational Unit (OU)
Organization (O)
Sales_VA
Bridgeport_VPN
IPSECGRP1
SECUREVPN20
Parker Pumps
Jones Shoes
Locality (L)
Enter the city or town where this host
is located. Spaces are allowed.
San Francisco
Detroit
Riverport
State/Province (SP)
Country (C)
Enter the state or province where this
host is located. Spell out the name
completely; do not abbreviate. Spaces
are allowed.
North Carolina
Enter the country where this host is
located. Use two characters, no
spaces, and no periods. This twocharacter code must conform to ISO
3166 country abbreviations.
US for United States
Ohio
New Mexico
JP for Japan
CA for Canada
MX for Mexico
GB for United Kingdom
Subject Alternative Name (FQDN) Enter the fully qualified domain name
for this host. This field is optional.
The alternative name is an additional
data field in the certificate, and it
provides interoperability with many
Cisco IOS and PIX systems in LANto-LAN connections.
vpn3030.cisco.com
Key Size
RSA 512 bits
The algorithm for generating the
public-key/private-key pair, and the
key size. Select from drop-down
menu.
Sales10.parma.com
Mobile47.widgets.com
RSA 768 bits
RSA 1024 bits
DSA 512 bits
DSA 768 bits
DSA 1024 bits
CCSP.book Page 224 Friday, February 28, 2003 3:43 PM
224
NOTE
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
In the Key Size field, RSA keys are generated using Rivest, Shamir, and Adelman (RSA)
algorithms and are supported by almost all CAs. Directory System Agent (DSA) algorithms
are backed by the U.S. Government but are not supported by as many CAs. The default, RSA
512 bits, is the most common, providing sufficient security and requiring the least processing by
host systems. The 768-bit keys provide normal security but take 2 to 4 times more processing
than 512-bit keys. The 1024-bit keys provide high security, but take 4 to 8 times more
processing than 512-bit keys.
The contents of the first six fields—CN, OU, O, L, SP, and C—make up a host’s X.500 distinguished name. Using a mixture of the examples given in Table 5-2, for example, you could
construct an X.500 distinguished name like this:
cn=Accounting 10, ou=vnpgroup02, o=Parker Pumps, l=Riverport, sp=New Mexico, c=US
Enrollment Process
The CA computes a hash code of the unsigned PKCS #10 certificate request. The CA then takes
that hash and encrypts it using the CA’s private key. This encrypted hash is the digital signature,
and the CA attaches it to the certificate and returns the signed certificate to the client. This
certificate is called an identity certificate and is stored on the client device until it expires or
is deleted. The CA also sends the client its own digital certificate, which becomes the root
certificate for the client.
The client now has a signed digital certificate that it can send to any other peer partner. If the
peer partner wants to authenticate the certificate, it decrypts the signature using the CAs public
key.
The standard format for the identity and root certificates is the X.509 certificate.
The PKI is based on trust. In Figure 5-2, Alpha and Theta, a VPN concentrator and a VPN
Client, for example, want to communicate, but they do not know or trust each other. However,
they each know Omega, a CA, and trust its good judgment. Omega says that Alpha and Theta
are okay and presents each of them with a certificate to that effect, the identity certificate.
Additionally, Omega sends each of them a self-signed root certificate that Alpha and Theta can
use to validate one another’s identity.
Figure 5-2 shows the process of enrolling with a CA using the PKCS #10 certificate request and
receiving the identity and root certificates in return.
CCSP.book Page 225 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
Figure 5-2
225
CA Enrollment Process
PKCS
#10
Root
Host
Alpha
Root
CA
Omega
PKCS
#10
Root
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
Identity
Identity
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
Host
Theta
Authentication Process
As part of the process of establishing the IPSec connection between Alpha and Theta, they each
need to authenticate the identity of the other. Alpha sends its identity certificate to Theta. Theta
performs a hashing algorithm on the certificate and calculates a hash value. Alpha’s certificate
says that Omega signed the certificate, so Theta then takes the CA’s public key from the root
certificate that Theta received from Omega and uses that public key to decrypt the signature of
Alpha’s identity certificate. The decryption process produces a hash of the certificate. If this
hash matches the one that Theta calculated on its own, Theta can trust that Alpha is exactly who
it says it is. This process is depicted in Figure 5-3 and would be repeated on Alpha using Theta’s
identity certificate.
Once Theta has authenticated Alpha’s identity, Theta is now free to use the contents of Alpha’s
identity certificate. The most important element in the ID certificate is Alpha’s public key. Theta
can now use that key to authenticate digital signatures from Alpha or to encrypt data that are
being sent to Alpha.
CA Hierarchies
There are two basic types of CA structures: central and hierarchical. When the root CA creates
and issues the identity certificate directly from PKCS #10 requests, as shown in Figure 5-2, that
is called a central CA structure. The root CA generates all identity certificates in a central CA
structure.
Hierarchical CA structures occur when subordinate CAs are involved in the process of issuing
certificates. The subordinate CAs enroll with the root CA and receive identity and root certificates. The subordinate CAs then work directly with requesting hosts or subordinate CAs of their
own and provide identity and subordinate CA certificates. Figure 5-4 shows a typical hierarchical CA structure and the certificates held at each level of the hierarchy.
CCSP.book Page 226 Friday, February 28, 2003 3:43 PM
226
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Figure 5-3
Authentication Process on Theta
Alpha’s
Identity
Certificate
Identity
Digital Certificate
is hereby granted to:
CA Signature is
stripped from
ID Certificate.
CA Signature
Remainder is
passed to
hashing algorithm.
CA
Omega’s
Root
Certificate
Then passed to
decryption
algorithm.
Root
Hashing
Algorithm
Decryption
Algorithm
Calculates
Calculates
Hash
Hash
Digital Certificate
is hereby granted to:
CA Public Key
pulled from
Root Certificate.
This resultant hash is the
original hash that CA Omega
calculated for the ID
certificate.
When the hash values
match, the peer identity has
been authenticated.
Certificate Revocation
Whenever a VPN concentrator receives an identity certificate from a peer during IKE Phase 1,
the concentrator performs three tests on the certificate before going through the authentication
process shown in Figure 5-3. Those three tests are as follows:
•
Did a trusted CA sign the certificate?—The concentrator must hold a root certificate
from the CA before it can accept identity certificates that were created by that CA.
•
Has the certificate expired?—The concentrator checks the Valid From date and time and
the Valid To date and time. If the current date and time fall between those valid endpoints,
the certificate has not expired.
•
Has the certificate been revoked?—Many CAs issue CRLs periodically. VPN
concentrators check the certificate’s serial number against the CRLs.
CCSP.book Page 227 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
Figure 5-4
227
Hierarchical CA Organization
Identity
Digital Certificate
is hereby granted to:
Root
CA
Root
Root
Root
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Identity
Identity
Identity
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Subordinate
CA
Subordinate
CA
Subordinate
CA
Subordinate CA
Subordinate CA
Subordinate CA
Subordinate CA
Subordinate CA
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Identity
Identity
Identity
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Host
C
Host
A
Host
E
Subordinate CA
Subordinate CA
Subordinate CA
Subordinate CA
Subordinate CA
Subordinate CA
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Identity
Identity
Identity
Digital Certificate
Digital Certificate
Digital Certificate
is hereby granted to:
is hereby granted to:
is hereby granted to:
Host
B
Host
D
Host
F
Changes occur frequently in organizations and can cause digital certificates to become invalid.
This happens more often in the user community because of employees leaving the organization
or due to something changing to affect the user’s distinguished name, such as changing the last
name when someone gets married. Less frequently, keys can become compromised, or hardware gets taken out of service.
For whatever reason, CAs have the responsibility of notifying their clientele when digital
certificates become invalid and get revoked. CAs do that by issuing CRLs. CRLs contain an
effective date and a list of identity certificate serial numbers that have been revoked. Associated
with each serial number is a revocation date. The CA digitally signs the CRLs and distributes
them to its clients.
Whenever a device receives its identity certificate or a CRL from the CA, the device performs
an authentication check on the document. It does this by using the CAs public key from the root
certificate to perform the authentication checking routine depicted in Figure 5-3.
CCSP.book Page 228 Friday, February 28, 2003 3:43 PM
228
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Simple Certificate Enrollment Process Authentication Methods
For Cisco VPN 3000 Concentrators to work with CAs, the CAs must support Cisco’s Public
Key Infrastructure (PKI) Protocol and the Simple Certificate Enrollment Process (SCEP). VPN
concentrators support the use of SCEP to automate the exchange of certificates with a CA
server.
Cisco sponsored SCEP as an Internet Engineering Task Force (IETF) draft as a way of managing
the certificate life cycle. SCEP uses the PKCS #7 standard from RSA Security Inc. to encrypt
and sign certificate enrollment messages. SCEP further uses PKCS #10 for standardizing
certificate requests. PKCS #10 certificate requests were described in the section, “The CA
Architecture.”
SCEP is the mechanism that permits a CA to trust a host, such as the VPN concentrator, and
that permits the host to trust the CA. Because the entire concept of CAs is built on this trust, it
helps to be able to build this trust efficiently. SCEP provides the tool to do just that, enabling
the CA and requesting host to authenticate one another.
You must first install the CA’s root certificate onto the concentrator before you can request an
identity certificate from that CA. SCEP provides the following two authentication methods to
facilitate this certificate installation process:
•
•
Manual authentication
Authentication based on a preshared secret
The following sections describe both authentication methods in greater detail.
Manual SCEP Authentication
In the manual mode, you, as the VPN administrator, submit a request to the CA using the
Internet, e-mail, or a floppy disk. The CA operator then verifies your identity through some
reliable out-of-band method. Upon verification, the CA returns a CA root certificate to you,
which you then copy to your VPN Manager workstation. From there, you begin the process of
installing the certificate on the concentrator using the Administration | Certificate Management
option of the VPN Manager. Figure 5-5 shows the screen that is displayed by this option the
first time you bring up this screen.
The Click here to install a CA certificate option only appears on this screen before you have
installed any CA certificates. Clicking that option brings up the screen shown in Figure 5-6.
CCSP.book Page 229 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
Figure 5-5
Administration | Certificate Management
Figure 5-6
Administration | Certificate Management | Install | CA Certificate
229
For the manual SCEP option, you have the following two choices: You can cut and paste the
certificate from text, or you can upload the file from your management workstation. To install
the file using the cut-and-paste method, open the CA certificate file in a text editor such as
Notepad or WordPad and select and copy the contents of the file. Click the option Cut & Paste
Text from the menu shown in Figure 5-6, and the VPN Manager displays the screen shown in
Figure 5-7.
CCSP.book Page 230 Friday, February 28, 2003 3:43 PM
230
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Figure 5-7
Administration | Certificate Management | Install | CA Certificate | Cut & Paste Text
Paste the copied file into the Certificate Text area, and click Install to install the CA certificate.
You could also choose the Upload File from Workstation option, shown in Figure 5-6. When
you do that, the screen shown in Figure 5-8 is displayed.
Figure 5-8
Administration | Certificate Management | Install | CA Certificate | Upload File from Workstation
Certificate files usually have the cer extension. Insert the full path and name of the file in the
Filename field using DOS notation; for example, c:\Certs\cacert.cer. Click Install to continue
with the installation of the CA certificate.
Preshared Key SCEP Authentication
The alternative to using manual SCEP authentication is to authenticate using preshared keys.
When using preshared keys, the server distributes a shared key to the end entity that can uniquely
associate the enrollment request with the given end entity. The distribution of the key must be
private; only the end entity should know this key. When creating the enrollment request, the end
entity is asked to provide a challenge password. When using preshared keys, the end entity must
type in the preshared key as the password.
Choosing the SCEP option from the screen shown in Figure 5-6 allows you to install the CA
certificate onto the VPN concentrator using the preshared key SCEP method. When you select
this method, the screen shown in Figure 5-9 is displayed.
CCSP.book Page 231 Friday, February 28, 2003 3:43 PM
Digital Certificates and Certificate Authorities
Figure 5-9
231
Administration | Certificate Management | Install | CA Certificate | SCEP
Enter the complete URL to the SCEP area of your CA’s server. If you had your own Microsoft
CA server whose IP address is 192.168.1.34, for example, you would enter the following URL:
http://192.168.1.34/certsrv/mscep/mscep.dll
The CA Descriptor is just a single word used to describe the certificate.
At this point, the preshared key has not been used. The key is used during the enrollment with
SCEP process, which is discussed in the upcoming section, “Enrolling Via SCEP.”
CA Vendors and Products that Support Cisco VPN Products
The Cisco VPN 3000 Concentrator Series works with the following Internet-based CAs:
•
•
•
Entrust Technologies (www.entrust.com)
VeriSign, Inc. (www.verisign.com)
Baltimore Technologies (www.baltimoretechnologies.com)
These vendors provide digital certificates and all the associated management and maintenance
support, for a fee. Well-established and reliable, these services can fill the needs of small- to
mid-sized businesses without the need to set up internal CA support.
As your business grows, you will want to install your on CA server or servers. The following
three products are available and are certified to work with the Cisco VPN Concentrator series:
•
•
•
Microsoft Certificate Services for Windows 2000
RSA Keon Certificate Authority for Solaris, Windows 2000, and Windows NT
Netscape Certificate Management System for Solaris, Windows 2000, and Windows NT
CCSP.book Page 232 Friday, February 28, 2003 3:43 PM
232
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Digital Certificate Support Through the VPN 3000
Concentrator Series Manager
16 Certificate generation
17 Validating certificates
18 Configuring the Cisco VPN 3000 Concentrator Series for CA support
The previous sections of this chapter have covered some of the VPN 3000 Concentrator
Manager processes that support digital certificates. This section discusses the basic functions
that you need to perform to support digital certificate authentication for IPSec VPNs on the
Cisco VPN 3000 Concentrator Series, including the following:
•
•
•
•
Generating and enrolling a certificate
Validating a certificate
Revoking certificates
Configuring IKE
Certificate Generation and Enrollment
CAs do not create public/private key pairs for hosts. CAs only provide a means to share public
keys (digital certificate) and attest to the authenticity of the keys. The responsibility for generating
the key pairs resides with the host, so the host software must be capable of generating the key
pairs and storing the private key, root certificate, and identity certificate. Cisco VPN Concentrators
and the Cisco VPN Client have that capability.
Normally, the process of generating the keys and then enrolling the public key with a CA are
two separate functions. On VPN concentrators, that two-step process has been condensed
into the single enrollment process. To begin the process, select Administration | Certificate
Management | Enroll from the VPN Manager’s table of contents. When you do that, the screen
shown in Figure 5-10 is displayed.
You can enroll either an Identity certificate or an SSL certificate from this screen. SSL
certificates are required when you want to establish secure communications between your
browser and the VPN concentrator. The processes related to the identity and SSL certificates
are similar. The following portions of this section of the chapter go through the processes that
are related to the identity certificate and note any differences that can be required for SSL
certificates.
CCSP.book Page 233 Friday, February 28, 2003 3:43 PM
Digital Certificate Support Through the VPN 3000 Concentrator Series Manager
233
Figure 5-10 Administration | Certificate Management | Enroll
Notice the caveat in Figure 5-10 that states that the CA’s certificate must be installed before
installing any other certificates from that CA. To begin the process of enrolling an Identity
certificate, click the Identity certificate option, which brings up the screen shown in Figure 5-11.
Figure 5-11 Administration | Certificate Management | Enroll | Identity Certificate
Enroll via SCEP. . . options are only available on this screen if you installed the CA certificate
using SCEP. In this case, two CA certificates were installed using SCEP.
Enrolling Via PKCS #10
Selecting Enroll via PKCS10 Request (Manual) from the Identity Certificate screen displays
the screen shown in Figure 5-12. This is the same information that was shown in Table 5-2. Again,
notice the caveat at the top of the screen, warning that the CA certificate must be installed first.
CCSP.book Page 234 Friday, February 28, 2003 3:43 PM
234
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Figure 5-12 Administration | Certificate Management | Enroll | Identity Certificate | PKCS10
After you fill in the information on this screen, click Enroll and the concentrator performs the
following steps:
Step 1 Generates a public/private key pair and attaches the public key to the PKCS
#10 request
Step 2 Converts the PKCS #10 request to Privacy Enhanced Mail (PEM) format
Step 3 Opens a browser window
Step 4 Places the PEM-formatted request in the browser window
Step 5 Presents the screen shown in Figure 5-13 to show the successful generation
of the enrollment request
NOTE
PEM was an early standard for securing e-mail. Although never widely adopted as an Internet
mail standard, it is used for CA correspondence. PEM takes the object (PKCS #10, PKCS #7,
certificate, and so on), performs base64 encoding on it, and places the output in US-ASCII
format between a standard PEM header and trailer.
CCSP.book Page 235 Friday, February 28, 2003 3:43 PM
Digital Certificate Support Through the VPN 3000 Concentrator Series Manager
235
Figure 5-13 Administration | Certificate Management | Enrollment | Request Generated
While the browser window shown in Figure 5-14 is opening to display the PEM-formatted
certificate request, you can choose one of the following options from the Request Generated
screen:
•
If you feel you made a mistake in the PKCS #10 request, select Go to Certificate
Management to view and manage the request.
•
•
To enroll another certificate, select Go to Certificate Enrollment.
To begin the manual process of installing the certificate, select Go to Certificate
Installation.
Figure 5-14 PEM-Formatted Certificate Request
With the PEM version of the certificate request in hand, you now contact your CA operator and
transmit the request. You could do that via HTTP, FTP, or e-mail, or by copying the request to
a portable medium and physically transporting the request to the CA operator. Once the CA
operator has accepted your request and enrolled it in the CA system, the CA operator returns
CCSP.book Page 236 Friday, February 28, 2003 3:43 PM
236
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
the completed identity certificate to you in PEM format. Installation of the certificate is then
completed in the same manner in which the CA certificate was handled in the previous section,
“Manual SCEP Authentication” (see Figures 5-6, 5-7, and 5-8).
Enrolling Via SCEP
The SCEP process of enrolling with the CA follows the same process as the PKCS #10 process,
except that the concentrator contacts the CA, sends the request, receives the certificate, and
installs the certificate automatically. The process starts by selecting one of the Enroll via SCEP. . .
options shown in Figure 5-11. The screen shown in Figure 5-15 opens. Notice that this screen
is similar to the PKCS #10 screen shown in Figure 5-12. The difference is that this screen asks
for the challenge (preshared key) password to be used with the SCEP-capable CA.
Figure 5-15 Administration | Certificate Management | Enroll | Identity Certificate | SCEP
The process of contacting the CA, submitting the request, receiving the certificate, validating
the certificate, and installing the certificate is completed for you when you complete the form
and click Enroll. The VPN Manager returns the Request Generated screen shown in Figure 5-13.
From there, you can go to the Certificate Management screen to verify the status of your identity
certificate.
CCSP.book Page 237 Friday, February 28, 2003 3:43 PM
Digital Certificate Support Through the VPN 3000 Concentrator Series Manager
237
Certificate Validation
Once the CA returns the identity certificate to the concentrator, the certificate must be validated
before it can be installed. The concentrator does this for you by performing the authentication
steps shown in Figure 5-3. To restate those steps, the concentrator calculates a hash of the
certificate while decrypting the signature using the CA’s public key to discover the hash created
by the CA. If the two hash values match, the certificate has been authenticated as to origin.
Before performing the authentication process on the certificate, the concentrator must verify
that a trusted CA signed the certificate, and that the current date and time fall within the validity
window of the certificate. Additionally, the concentrator checks to see if the serial number of
the certificate is listed on a CRL. Once the certificate passes these tests and has been authenticated, it can be used for further processing.
Certificate Revocation Lists
The Administration | Certificate Management screen, shown in Figure 5-16, is a starting point
for many certificate functions. As you study the screen, you can see that it is separated into four
different sections, one for each of the three certificate types and one for pending certificates in
the enrollment process. This screen provides a quick overview of the certificates, including the
certificate expiration date.
The Certificate Management screen is the starting point for configuring CRL operability on a
CA. Clicking the Configure hotlink in the Actions column for one of the CA certificates brings
up the screen shown in Figure 5-17.
VPN concentrators use No CRL Checking as the default setting. This means that, by default,
the VPN concentrator does not retrieve or check certificate revocation lists.
When you enable CRL checking for a certificate, every time the VPN concentrator uses the
certificate for authentication during IKE Phase 1 negotiation, it also checks the CRL to ensure
that the certificate being verified has not been revoked. If the certificate has been revoked, the
tunnel is not established.
CRLs are stored at distribution points on external servers maintained by CAs. When verifying
the revocation status of a certificate, a VPN concentrator retrieves the CRL from one of the distribution points and checks the serial number of the certificate against the list of serial numbers
in the CRL. If there is a match, the certificate has been revoked and is invalidated by the concentrator. The VPN concentrator can be configured to retrieve the CRL from the distribution
points specified in the certificate being checked, from a static list of CRL distribution points, or
from a combination of these.
CCSP.book Page 238 Friday, February 28, 2003 3:43 PM
238
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Figure 5-16 Administration | Certificate Management
You can also select to enable CRL caching from the Administration | Certificate Management |
Configure CA Certificate screen. With caching enabled, the first time the VPN concentrator
retrieves a CRL from a distribution point, it stores the CRL in volatile memory. The concentrator
looks first in memory for the CRL it needs. If the CRL is found in memory, the concentrator
checks for the subject certificate’s serial number. The VPN concentrator looks for a new CRL
if the cached CRL has expired or if the refresh time you established has elapsed. Caching can
save network resources on busy networks and can minimize timeout problems during IKE
negotiations while waiting to retrieve the latest CRL.
CCSP.book Page 239 Friday, February 28, 2003 3:43 PM
Digital Certificate Support Through the VPN 3000 Concentrator Series Manager
239
Figure 5-17 Administration | Certificate Management | Configure CA Certificate
IKE Configuration
Now that you have the digital certificate portion of the VPN concentrator configured, you must
set up the concentrator to use the certificates during IKE negotiations. You need to tweak just
two places to use digital certificates: the IKE proposal that you will use and the IPSec SA that
you will use.
Figure 5-18 shows the screen used to modify IKE proposal configurations. You can modify an
existing proposal, as is shown here, or create a new one.
CCSP.book Page 240 Friday, February 28, 2003 3:43 PM
240
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Figure 5-18 Configuration | System | Tunneling Protocols | IPSec | IKE Proposals | Modify
Notice the shaded Authentication Mode area on this form. That is the field used to determine
whether you are using preshared keys, digital certificates, or some other authentication method.
Click the Authentication Mode drop-down menu button, and choose RSA Digital Certificate
from the available options. Include the name of this IKE proposal into the IPSec Security
Association that you will be using. Figure 5-19 shows the IPSec SA screen.
Notice the highlighted area in the IKE Parameters section at the bottom of the screen. Select the
identity certificate in the Digital Certificate field that you want this IPSec SA to use during IKE
Phase 1 negotiations. The drop-down box displays the certificates that you have installed on the
VPN concentrator. You can then select from these certificates.
In this same area, enter the name of the IKE proposal that you modified on the IPSec IKE
Proposals screen in Figure 5-18. You can select this proposal from the drop-down box.
You also have the option of which certificates to send to the peer during negotiations. You can
select to send only the identity certificate (default action) or to send the entire certificate chain,
which would be the identity, root, and any subordinate CA certificates the VPN concentrator
holds.
That concludes the configuration of the VPN concentrator to support digital certificates. The
next step is to configure the VPN Client for digital certificate support, as described in the next
section.
CCSP.book Page 241 Friday, February 28, 2003 3:43 PM
Configuring the VPN Client for CA Support
241
Figure 5-19 Configuration | Policy Management | Traffic Management | Security Associations | Modify
Configuring the VPN Client for CA Support
18 Configuring the Cisco VPN 3000 Concentrator Series for CA support
Because you will now be using digital certificates for authentication on the VPN concentrator,
you must modify the configuration of your user’s VPN Client connection entries from using a
preshared key to using a digital certificate. All your clients must have a root certificate and an
identity certificate installed in the browser application of their VPN client system.
As the system administrator, you can manually enroll each of your users and copy the identity
certificate and the issuing root CA certificate for them to floppy disk. These can then be imported
into the browser. Figures 5-20 and 5-21 show the user’s personal identity certificate and the root
certificate in Microsoft’s Internet Explorer.
CCSP.book Page 242 Friday, February 28, 2003 3:43 PM
242
NOTE
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
When you generate the PKCS #10 certificate request for your users, the OU field must match
the group name you defined for them on the VPN concentrator. You might also need to mark the
keys as exportable. The enrollment process is not depicted in Figures 5-20 and 5-21.
To complete the process, modify the VPN connection in the VPN Client software to use the
identity certificate shown in Figure 5-20. To do that, start the VPN Client by choosing Start,
Programs, Cisco Systems VPN Client, VPN Dialer. Select the correct connection entry, and
click the Options button. Select Properties from the Options menu, and click the Authentication
tab, as shown in Figure 5-22.
Now that you have digital certificates installed, the Certificate area is no longer grayed out. Select
the Certificate button, and then select your identity certificate from the Name drop-down box.
You can check the Send CA Certificate Chain option to have your VPN Client send the identity,
subordinate CA, and root certificates instead of just the identity certificate during IKE negotiations.
This option is disabled by default.
Figure 5-20 Personal Certificates—Internet Explorer
CCSP.book Page 243 Friday, February 28, 2003 3:43 PM
Configuring the VPN Client for CA Support
Figure 5-21 Trusted Root Certification Authorities—Internet Explorer
Figure 5-22 Authentication Selection—VPN Client
243
CCSP.book Page 244 Friday, February 28, 2003 3:43 PM
244
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
You can also check to see if the certificate is still valid by clicking the Validate Certificate
button. A report is generated that lets you know if the certificate is still valid.
Once you have completed the changes on the Authentication tab, click OK to save the changes
and return to the VPN Dialer screen, where you can now connect to the VPN concentrator using
digital certificates instead of preshared keys.
CCSP.book Page 245 Friday, February 28, 2003 3:43 PM
X.509 Identity Certificate Fields
245
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those of you who are already comfortable with the
topics in this chapter, this summary could help you recall a few details. For those who just read
this chapter, this review should help solidify some key facts. For anyone doing his or her final
preparation before the exam, these tables and figures can be a convenient way to review the
material the day before the exam.
PKCS #10 Certificate Request Fields
The following list outlines the VPN concentrator’s PKCS #10 Certificate Request fields:
•
•
•
•
•
•
•
•
Common Name (CN)
Organization Unit (OU)
Organization (O)
Locality (L)
State/Province (SP)
Country (C)
Subject Alternative Name (FQDN)
Key Size
X.509 Identity Certificate Fields
The following list outlines the X.509 Identity Certificate fields:
•
•
•
•
•
•
•
•
•
Certificate Format Version
Certificate Serial Number
Signature Algorithm
Issuer’s X.500 Distinguished Name
Validity Period
Subject’s X.500 Distinguished Name
Subject’s Public Key Information
Extensions
CA Signature
CCSP.book Page 246 Friday, February 28, 2003 3:43 PM
246
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Types of Digital Certificates
The types of digital certificates are as follows:
•
•
Root—Identifies the overarching authority in the CA network.
•
Issuing (or subordinate)—Serves the same purpose as the root certificate, but is issued
by a subordinate CA instead of the root CA. Subordinate CAs do not self-sign their own
identity certificate.
Identity—Required by every device, these are signed by either the root CA or by a
subordinate CA. The root CA must self-sign its own identity certificate.
Types of CA Organization
The types of CA organizations are as follows:
•
•
Central CA—The root CA issues certificates directly to all clients.
Hierarchical CA—The root CA delegates signature authority to subordinate CAs.
Subordinate CAs can further delegate signature authority to additional subordinates.
Certificate Validation and Authentication Process
The following list outlines the certificate validation and authentication process:
Step 1 Certificate signed by trusted CA? Has a CA certificate been installed on the
concentrator for this CA?
Step 2 Certificate still valid? Does the current date fall within the start and end dates
of the certificate?
Step 3 Certificate revoked? Does the certificate’s serial number exist on the CA’s
CRL?
Step 4 Certificate authenticated? Reasonable assurance that the certificate has not
been altered.
(a) Calculate hash of signature.
(b) Retrieve CA’s original hash of signature.
•
•
Decrypt digital signature on certificate.
Use root CA’s key from root certificate.
(c) Do the two hash values match? Certificate authenticated.
CCSP.book Page 247 Friday, February 28, 2003 3:43 PM
Certificate Management Applications
247
Internet-Based Certificate Authorities
The Cisco VPN 3000 Concentrator series works with the following Internet-based CAs:
•
•
•
Entrust Technologies (www.entrust.com)
VeriSign, Inc. (www.verisign.com)
Baltimore Technologies (www.baltimoretechnologies.com)
Certificate Management Applications
Certificate management applications are as follows:
•
•
•
Microsoft Certificate Services for Windows 2000
RSA Keon Certificate Authority for Solaris, Windows 2000, and Windows NT
Netscape Certificate Management System for Solaris, Windows 2000, and Windows NT
CCSP.book Page 248 Friday, February 28, 2003 3:43 PM
248
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter:
Directory System Agent (DSA) Software that provides the X.500 Directory Service for a
portion of the directory information base. Generally, each DSA is responsible for the directory
information for a single organization or organizational unit.
Public Key Cryptography Standards (PKCS) Series of specifications published by RSA
Laboratories for data structures and algorithm usage for basic applications of asymmetric
cryptography.
Public Key Infrastructure (PKI) System of CAs (and optionally, RAs and other supporting
servers and agents) that perform some set of certificate management, archive management, key
management, and token management functions for a community of users in an application of
asymmetric cryptography.
Rivest, Shamir, and Adelman (RSA) The inventors of the technique of a public-key
cryptographic system that can be used for encryption and authentication.
CCSP.book Page 249 Friday, February 28, 2003 3:43 PM
Q&A
249
Q&A
As mentioned in Chapter 1, these questions are more difficult than what you should experience
on the CCSP exam. The questions do not attempt to cover more breadth or depth than the exam;
however, the questions are designed to make sure you know the answer. Rather than allowing
you to derive the answer from clues hidden inside the question itself, your understanding and
recall of the subject are challenged. Questions from the “Do I Know This Already?” quiz from
the beginning of the chapter are repeated here to ensure that you have mastered the chapter’s
topic areas. Hopefully, these questions will help limit the number of exam questions on which
you narrow your choices to two options and guess!
1 What must be in place on a client’s PC before you can configure the VPN Client for
certificate support?
2 What two methods are available on the VPN concentrator for installing certificates
obtained through manual enrollment?
3 What could cause a digital certificate to be revoked by the CA?
4 What are the two types of CA structures?
CCSP.book Page 250 Friday, February 28, 2003 3:43 PM
250
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
5 During the authentication process, where does a VPN concentrator find the original hash
that the CA calculated for an identity certificate?
6 During manual SCEP authentication, how is the request transmitted to the CA?
7 What Public Key Cryptography Standard is used to request enrollment with a CA?
8 What is the first certificate that must be installed on a VPN concentrator before you can
install any other certificates from a given CA?
9 When configuring digital certificate support on a VPN concentrator, where do you identify
which certificate to use for IKE Phase 1 negotiations?
10 After a VPN peer receives an identity certificate from its partner during IKE Phase 1, the
peer calculates a hash of the certificate. What does the peer compare this hash against to
verify that the certificate has not been altered?
CCSP.book Page 251 Friday, February 28, 2003 3:43 PM
Q&A
251
11 Where does a VPN concentrator obtain the root CA’s public key?
12 What entity is responsible for generating the PKI public/private key pair for a requesting
host?
13 In the VPN Manager, where do you identify that you want to use RSA Digital Certificates
for IKE Phase 1 authentication?
14 What three tests does a VPN concentrator perform on a partner’s identity certificate before
performing the authentication process?
15 Which version of the X.509 standard identity certificate permits extensions?
16 What is RSA Keon?
CCSP.book Page 252 Friday, February 28, 2003 3:43 PM
252
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
17 When does the Click here to install a CA certificate option appear on the Administration |
Certificate Management screen of the VPN Manager?
18 The VPN concentrator is certified to work with three Internet-based CAs. Which CAs are
they?
19 What elements make up the X.500 distinguished name?
20 Which screen do you use to enable the use of digital certificates for device authentication
during IKE Phase 1 negotiations?
21 What two enrollment methods are available on a VPN concentrator?
22 What field in the certificate request should match the IPSec group name on the VPN
concentrator?
CCSP.book Page 253 Friday, February 28, 2003 3:43 PM
Q&A
253
23 When are SSL certificates required on a VPN concentrator?
24 What are the three types of certificates involved in the digital certificate process?
25 What is a CRL?
26 When you select to cache CRLs on the VPN concentrator, where are they stored?
27 What default algorithm type and key size does the VPN concentrator use on the certificate
request?
28 Using the VPN Manager, where would you look to check the status of a certificate
enrollment process?
CCSP.book Page 254 Friday, February 28, 2003 3:43 PM
254
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
29 What is a root certificate?
30 Where are you asked to supply a challenge password during the enrollment process?
31 How is the validity period of a digital certificate specified?
32 With CRL caching disabled, how does a VPN concentrator check a certificate’s serial
number against a CRL?
33 SCEP has two authentication methods available between a requester and the CA. What are
those two methods?
CCSP.book Page 255 Friday, February 28, 2003 3:43 PM
Scenario 5-2
255
Scenarios
The following scenarios and questions are designed to draw together the content of the chapter
and exercise your understanding of the concepts. There might be more than one correct answer.
The thought process and practice in manipulating each concept in the scenario are the goals of
this section.
Scenario 5-1
You have just configured a new Microsoft Windows 2000 Certificate Server in your network.
You want to test the CA services before you roll out the service to your entire network. You are
currently using a Cisco VPN 3005 Concentrator for remote access VPNs with 65 certificates
installed. User authentication is handled through the NT domain. You will be using SCEP on
the CA server. You will be using two laptop clients for testing. The laptops are using the Cisco
VPN Client software.
1 Describe the steps you need to take to configure the VPN concentrator to use the new
CA server.
2 Describe the steps you need to take to configure the clients to use the new CA server.
Scenario 5-2
You have been using a Cisco VPN 3030 Concentrator for some time to manage VPN
connections for remote access users. You want to use a CA server that does not support SCEP.
Describe the steps you need to take to configure the VPN concentrator to use the new CA server.
CCSP.book Page 256 Friday, February 28, 2003 3:43 PM
256
Chapter 5: Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates
Scenario Answers
The answers provided in this section are not necessarily the only correct answers. They
represent one possibility for each scenario. The intention is to test your base knowledge and
understanding of the concepts discussed in this chapter.
Should your answers be different (as they likely will be), consider the differences. Are your
answers in line with the concepts of the answers provided and explained here? If not, reread the
chapter, focusing on the sections that are related to the problem scenario.
Scenario 5-1 Answers
1 The steps you need to take to configure the VPN concentrator to use the new CA server
are as follows:
Step 1 Install a CA certificate for the new CA onto the concentrator using SCEP.
Step 2 Enroll the VPN concentrator with the CA server using SCEP.
Step 3 Select the IKE proposal you will be using, and configure the
authentication mode to use RSA digital certificates.
Step 4 Select the IPSec SA you will be using, and identify the IKE proposal and
certificate to use.
2 The steps required to configure the clients to use the new CA server are as follows:
Step 1 From the VPN concentrator:
(a) Enroll the clients manually with the CA server to obtain their
identity certificates.
(b) Copy the CA root certificate and the identity certificates to
floppy disk.
Step 2 From the VPN Client:
(a) Import the root and identity certificates into the browser on
each client. Be sure to import only one identity certificate
onto each client.
(b) Open the VPN Dialer, and select the connection to the VPN
concentrator.
(c) Click Options and select Properties.
CCSP.book Page 257 Friday, February 28, 2003 3:43 PM
Scenario 5-2 Answers
257
(d) Select the Authentication tab, and modify Choose to use
Certificates for authentication. Select the name of the identity
certificate from the drop-down menu.
(e) Test the connection.
Scenario 5-2 Answers
The steps required to configure the VPN concentrator to use the new CA server are as follows:
Step 1 Install a CA certificate for the new CA onto the concentrator manually as
follows:
(a) Copy the CA root certificate to your management workstation. You
can do this from floppy disk or through file transfer from the CA.
(b) Install the CA certificate by choosing to upload the file from the
workstation.
Step 2 Enroll the VPN concentrator with the CA server manually as follows:
(a) Prepare a PKCS #10 certificate request in PEM format.
(b) Transport the request to the CA server (electronically or physically).
(c) Receive the identity certificate from the CA server (electronically or
physically).
(d) Select to install the identity certificate by uploading the file from the
workstation.
Step 3 Select the IKE proposal you will be using, and configure the authentication
mode to use RSA digital certificates.
Step 4 Select the IPSec SA you will be using, and identify the IKE proposal and
certificate to use.
CCSP.book Page 258 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
19 Overview of software client’s firewall feature
20 Software client’s Are You There feature
21 Software client’s Stateful Firewall feature
22 Software client’s Central Policy Protection feature
23 Client firewall statistics
24 Customizing firewall policy
CCSP.book Page 259 Friday, February 28, 2003 3:43 PM
CHAPTER
6
Configuring the Cisco VPN Client
Firewall Feature
This chapter deals with configuring the Cisco VPN Client firewall feature set. You learn
about the Cisco VPN Client’s basic configuration, how to create filters on the concentrator,
and how to configure firewall features.
The VPN Client has an integrated Stateful Firewall feature as part of the client package.
This client can be enabled to block all traffic coming into the user’s system that does not
originate from the head-end concentrator’s network. This provides a good measure of
security against intrusion from the Internet.
Cisco’s VPN Client also works with third-party private firewalls from Zone Labs and
Network ICE. These third-party firewalls provide additional features that are not found
in the Stateful Firewall feature.
When connecting to a Cisco VPN 3000 Series Concentrator, the VPN Client receives
instructions from the concentrator on how to configure and use the private firewall, if any,
that can be installed with the VPN Client. The VPN concentrator can be configured to
supply a firewall policy to the VPN Client so that every VPN Client connecting to the VPN
concentrator has a centrally administered firewall policy for maximum protection of
network resources.
This chapter discusses the various personal firewalls that can be used in conjunction
with the VPN Client. The chapter also discusses the configuration steps necessary on the
VPN concentrator and the VPN Client to make the best use of personal firewalls on VPN
networks.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show retention is significantly increased through writing facts and concepts down,
even if you never look at the information again.
•
Use the diagram in Figure 6-1 to guide you to the next step.
CCSP.book Page 260 Friday, February 28, 2003 3:43 PM
260
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Figure 6-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 18-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into six smaller “quizlets,” which correspond to the six major topic headings in the
chapter. Figure 6-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 6-1 to record your scores.
CCSP.book Page 261 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 6-1
261
Score Sheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section Covering These
Questions
Question
1
Overview of software client’s firewall feature
1–3
2
Software client’s Are You There feature
4–6
3
Software client’s Stateful Firewall feature
7–9
4
Software client’s Central Policy Protection feature
10–12
5
Client firewall statistics
13–15
6
Customizing firewall policy
16–18
Score
1 You have a number of clients running Windows 98 and a remote VPN 3002 Hardware
Client assigned to the same group. Your supervisor wants you to force everyone on this
group connecting to have a firewall running on his or her machine. Can you do this?
2 How is the Always On option set on the VPN Client?
3 In addition to IPSec, what tunneling protocols does the VPN Client support?
4 How often does the VPN Client poll the personal firewall when using Are You There
(AYT)?
CCSP.book Page 262 Friday, February 28, 2003 3:43 PM
262
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
5 You are using BlackICE as a client firewall. You are presently connected through the VPN.
What happens if you stop the service running BlackICE? Does the VPN remain
connected? If so, for how long? Can you connect again if BlackICE is not running?
6 Which two products from Zone Labs work with the VPN Client to enable the Are You
There (AYT) capability?
7 What protocols are not automatically blocked when using the Stateful Firewall (Always
On) feature?
8 You want to have secure VPN connections to the private network of the head-end
concentrator and unsecured communications to the Internet. How would you configure
the VPN Client’s Stateful Firewall feature to support this split tunneling?
9 What is another name for the Stateful Firewall client that is a part of the Cisco VPN
Client?
10 Where are the rules set for a client when using Central Protection Policy (CPP) with Zone
AlarmPro?
CCSP.book Page 263 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
263
11 Why is CPP not used with the Tunnel Everything option?
12 On what screen do you configure CPP?
13 On the VPN Client, where do you see the current compression used for a VPN connection?
14 From the VPN Client, where can you view the secured routes that are enabled to the
client?
15 What is meant by the term Packets bypassed on the Statistics tab of the Connection Status
screen?
CCSP.book Page 264 Friday, February 28, 2003 3:43 PM
264
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
16 What debug classes do you use when creating a rule with the following options:
a. Drop
b. Drop and Log
c. Forward
d. Forward and Log
e. Apply IPSec
f. Apply IPSec and Log
17 How do you allow clients to use either of two firewalls? What is the only vendor you can
do this with?
18 On the VPN 3000 Concentrator Series devices, you configure the client firewall properties
on the Client FW tab of the Configuration | User Management | Groups | Add (or Modify)
screen. You can only select one firewall policy from that screen. What are the three types
of firewall policies that you can choose from on the Client FW tab?
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
9 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, the “Q&A” section, and the scenarios at the end of the
chapter.
•
10–15 overall score—Begin with the “Foundation Summary” section, continue with the
“Q&A” section, and then read the scenarios. If you are having difficulty with a particular
subject area, read the appropriate section in the “Foundation Topics” section.
•
15–18 overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, then to the “Q&A” section, then to the scenarios.
Otherwise, skip this chapter and go to the next chapter.
CCSP.book Page 265 Friday, February 28, 2003 3:43 PM
Cisco VPN Client Firewall Feature Overview
265
Foundation Topics
Cisco VPN Client Firewall Feature Overview
19 Overview of software client’s firewall feature
The Cisco VPN Client version 3.6 is a software product that enables the use of secure tunnels
from workstations to any Cisco Easy VPN Server. Currently, these servers include the Cisco
PIX Firewall (version 6.0 and later), the Cisco IOS Software–based platforms (versions 12.2(8)T
and later), and the Cisco VPN 3000 Series Concentrators (version 3.0 and later). The client is
available for use on Windows-based workstations, including Windows 95 (OSR2+), 98, Me,
4.0, 2000, and XP. It is also available on Linux running the Intel chip set, Solaris UltraSparc
(both 32- and 64-bit), and Macintosh computers running OS X 10.1. Table 6-2 highlights the
abilities of the VPN Client.
Table 6-2
VPN Client Abilities
Client Ability
Description
Tunneling protocols
Tunneling protocols supported are as follows:
• IP Security–Encapsulating Security Payload (IPSec-ESP)
• L2TP
• L2TP/IPSec
• NAT
• NAT Transparent IPSec
• Ratified IPSec/UDP
• IPSec/TCP
• PPTP
Encryption and authentication protocols Encryption and authentication methods supported include
the following:
• IPSec(ESP) with Data Encryption Standard
(DES)/3DES(56/168 bits)
• AES(126/256-bit) with Message Digest (MD5) or SHA
continues
CCSP.book Page 266 Friday, February 28, 2003 3:43 PM
266
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Table 6-2
VPN Client Abilities (Continued)
Client Ability
Key management capabilities
Description
Key management capabilities include the following:
• Internet Key Exchange (IKE)—Aggressive and Main
mode (digital certificates)
• Diffie-Hellman (DH) Groups 1, 2, and 5
• PFS
• Rekeying
Compression method
LZS (Lempel-Ziv standard)
Authentication methods
Authentication methods include the following:
• XAUTH (eXtended AUTHentication)
• Remote Authentication Dial-In User Service (RADIUS)
with the following:
— MSCHAPv2 (NT password expiration)
— State/Reply message attributes (token cards)
— RSA SecurID (Security Dynamics)
— Windows NT Domain Authentication
— MX.509v3 digital certificates
Digital certificates
Digital certificates supported include the following:
• Simple Certificate Enrollment Protocol (SCEP)
• Entrust Entelligence
• Smartcards through MS CAPI:
— Activcard
— eAladdin
— Gemplus
— Datakey
• Internet Explorer Certificate Enrollment
• Authorities include the following:
— Baltimore
— Entrust
— GTE Cybertrust
— Microsoft
— RSA Keon
— VeriSign
CCSP.book Page 267 Friday, February 28, 2003 3:43 PM
Firewall Configuration Overview
267
The VPN Client software is bundled with every Cisco VPN 3000 Series Concentrator, and
customers can download upgrades from Cisco Systems if they have a maintenance (Smartnet)
contract for their concentrator.
Firewall Configuration Overview
20 Software client’s Are You There feature
21 Software client’s Stateful Firewall feature
22 Software client’s Central Policy Protection feature
This section discusses two options on the firewall configuration: the optional and the required
firewall. In essence, the VPN concentrator can require that the VPN Client use a particular
configuration (required), or the VPN concentrator can allow a different configuration (optional).
When the VPN Client attempts to establish a connection, the concentrator looks at its own rules
and acts accordingly. If the VPN concentrator has been set with a required configuration and
the client’s configuration is not correct, no tunnel is established. If the VPN concentrator uses
the optional mode, it allows the client to connect and download the desired firewall with the
correct configuration onto the client’s PC.
The VPN concentrator does not permit a VPN tunnel to be established if the concentrator
requires a firewall on the connecting device but one does not exist. The VPN concentrator does,
however, allow the connecting device to run a firewall even when the concentrator does not
require one. This permits the client’s system to be protected in cases where communications
might not be protected by a VPN tunnel. The next section discusses the VPN Client’s Stateful
Firewall feature.
This section covers the following topics:
•
•
The Stateful Firewall (Always On) feature
The Are You There feature
The Stateful Firewall (Always On) Feature
The Stateful Firewall feature is configured on the VPN Client. The VPN concentrator does not
control the Stateful Firewall feature. Enabling this feature prevents inbound connections from
all other networks without regard to tunneling or encryption. In this mode, the PC does not
respond to connection requests, with the following exceptions:
•
Traffic originating from the head-end network—The purpose of the client is to allow
secure communication with the head-end network.
CCSP.book Page 268 Friday, February 28, 2003 3:43 PM
268
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
•
DHCP requests—Dynamic Host Configuration Protocol (DHCP) requests are sent from
the client on one port to the DHCP server and received on a different port.
•
ESP—Encapsulating Security Payload (ESP) is VPN data that are allowed from the secure
gateway because ESP rules are always packet filters, as opposed to session-based filters.
Turning off the Always On option allows the user to have a secure VPN connection to the headend network while still having nonsecured connections to other networks, such as the Internet.
This merging of secured and nonsecured traffic on the same wire is called split tunneling. The
Stateful Firewall (Always On) feature provides protection for nonsecured traffic when split
tunneling is in use.
Cisco Integrated Client
The VPN Client used on the Windows platforms includes a stateful firewall that is transparent
to the user. Designed by Zone Labs, this firewall is called the Cisco Integrated Client (CIC).
Although the Always On option of the VPN Client allows the user to choose whether to have
basic firewall protection in place, the CIC can still be controlled by the concentrator using the
Central Protection Policy (CPP). CPP allows the VPN concentrator to define rules for use
during split-tunnel operation. Because the Tunnel Everything option already blocks all nontunneled traffic, CPP is not used in this mode.
The Zone Labs Integrity Server, commonly refereed to as IS, is a stand-alone server that communicates with the VPN concentrator to maintain policies for the remote PCs. The IS also ensures
policy enforcement by communicating with the concentrator to allow or drop connections,
exchange session and user information, and report the status of connections.
Centralized Protection Policy
CPP, which is also known as a push policy because it is pushed from the concentrator down to
the client, allows you to define additional rules to allow or deny Internet traffic while the client
is connected to the concentrator.
During the VPN connection negotiation, the concentrator sends a predefined policy to the VPN
Client. The client then passes this policy to the CIC, which in turn enforces the policy. If the
Always On option has been chosen on the client, more restrictive rules can be used regarding
Internet traffic while the tunnel is established.
CPP can use a number of firewalls to enforce these rules, including CIC, Zone Alarm, and Zone
AlarmPro. CPP allows finer tuning of the firewall than the Stateful Firewall feature because you
can allow or deny specific ports and protocols.
CCSP.book Page 269 Friday, February 28, 2003 3:43 PM
Configuring Firewall Filter Rules
269
The Are You There Feature
An alternative to using the CPP method of defining policies on the personal firewall is where
the VPN Client polls a firewall installed on the client PC every 30 seconds. This process is
called Are You There (AYT). If the firewall does not answer these polls, the VPN Client drops
the tunnel. Using this method, the VPN Client does not enforce a policy but rather ensures that
a software firewall on the PC is running.
AYT is usable with BlackICE, Zone Alarm, or Zone AlarmPro. The only messages passed
between the concentrator and the firewall are these AYT polls.
Configuring Firewall Filter Rules
24 Customizing firewall policy
Before you can use filter rules from the concentrator, you must configure those rules. Although
the concentrator’s default configuration comes with some rules, these are not meant for production networks. The default rules are too open for a truly secure environment because they were
designed merely to facilitate the building of rules for your individual network. Rules, which are
specifications that allow or deny specific types of traffic, can be applied to either an interface
or a VPN group. This section discusses how to build rules and filters for use with the VPN
concentrator.
Rules are configured from the Configuration | Policy Management | Traffic Management | Rules
screen, as shown in Figure 6-2.
Figure 6-2
The Configuration | Policy Management | Traffic Management | Rules Screen
CCSP.book Page 270 Friday, February 28, 2003 3:43 PM
270
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
On this screen, you can add, modify, copy, or delete rules. The list shown consists of the default
rules and those rules that the administrator has added, minus the deleted rules. Notice that each
of these rules has text inside parentheses. The text within the parentheses describes the action
and direction. The meaning of this action and direction text is discussed in the section describing the creation of a rule, “Name, Direction, and Action.”
The default rules are listed in Table 6-3. For the default rules, the action is almost always
forward and the source address is always Use IP Address/Wildcard mask, which is set to any
address (0.0.0.0 255.255.255.255). The destination IP address is always Use IP Address/Wildcard
mask, which is set to any address (0.0.0.0/255.255.255.255). The exceptions to these rules are
with Virtual Router Redundancy Protocol (VRRP) In and VRRP Out, which use the Internet
Assigned Numbers Authority (IANA)–assigned multicast IP address of 224.0.0.18/0.0.0.0.
Table 6-3
Default Rules
Rule
Direction Protocol
TCP/UDP
TCP
Source
Connection Port
TCP/UDP
Connection
Port
ICMP
Packet
Type
Any In
Inbound
Any
Don’t care
0–65535
0–65,535
0–255
Any Out
Outbound
Any
Don’t care
0–65635
0–65,635
0–255
Certificate
Revocation List
(CRL) checking
over LDAP In
Inbound
TCP
Don’t care
389
0–65,535
N/A
CRL checking
over LDAP Out
Outbound
TCP
Don’t care
0–65535
389
N/A
Generic Routing
Encapsulation
(GRE) In
Inbound
GRE
N/A
N/A
N/A
N/A
GRE Out
Outbound
GRE
N/A
N/A
N/A
N/A
ICMP In
Inbound
ICMP
N/A
N/A
N/A
0–18
ICMP Out
Outbound
ICMP
N/A
N/A
N/A
0–18
IKE In
Inbound
UDP
N/A
0–65,535
500
N/A
IKE Out
Outbound
UDP
N/A
500
65,535
N/A
Incoming HTTP
In
Inbound
TCP
Don’t care
0–65,535
80
N/A
Incoming HTTP
Out
Outbound
TCP
Don’t care
80
65,535
N/A
Incoming
HTTPS In
Inbound
TCP
Don’t care
0–65,535
443
N/A
CCSP.book Page 271 Friday, February 28, 2003 3:43 PM
Configuring Firewall Filter Rules
Table 6-3
271
Default Rules (Continued)
Rule
Direction Protocol
TCP/UDP
TCP
Source
Connection Port
TCP/UDP
Connection
Port
ICMP
Packet
Type
Incoming
HTTPS Out
Outbound
TCP
Don’t care
443
0–65,535
N/A
IPSec-ESP In
Inbound
ESP
N/A
N/A
N/A
N/A
L2TP In
Inbound
UDP
N/A
0–65,535
1701
N/A
L2TP Out
Outbound
UDP
N/A
1701
0–65,535
N/A
LDAP In
Inbound
TCP
Don’t care
0–65,535
389
N/A
LDAP Out
Outbound
TCP
Don’t care
389
0–65,535
N/A
OSPF In
Inbound
OSPF
N/A
N/A
N/A
N/A
OSPF Out
Outbound
OSPF
N/A
N/A
N/A
N/A
Outgoing HTTP
In
Inbound
TCP
Don’t care
80
0–65,535
N/A
Outgoing HTTP
Out
Outbound
TCP
Don’t care
0–65,535
80
N/A
Outgoing HTTPS
In
Inbound
TCP
Don’t care
443
0–65,535
N/A
Outgoing HTTPS
Out
Outbound
TCP
Don’t care
0–65,535
443
N/A
PPTP In
Inbound
TCP
Don’t care
0–65,535
1723
N/A
PPTP Out
Outbound
TCP
Don’t care
1723
0–65,535
N/A
RIP In
Inbound
UDP
N/A
520
520
N/A
RIP Out
Outbound
UDP
N/A
520
520
N/A
Secure Shell
(SSH) In
Inbound
TCP
Don’t care
0–65,535
22
N/A
SSH Out
Outbound
TCP
Don’t care
22
0–65,535
N/A
Telnet/SSL In
Inbound
TCP
Don’t care
0–65,535
992
N/A
Telnet/SSL Out
Outbound
TCP
Don’t care
992
0–65,535
N/A
Virtual Cluster
Agent (VCA) In
Inbound
UDP
N/A
0–65,535
9023
N/A
VCA Out
Outbound
UDP
N/A
9023
0–65,535
N/A
continues
CCSP.book Page 272 Friday, February 28, 2003 3:43 PM
272
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Table 6-3
Default Rules (Continued)
TCP/UDP
TCP
Source
Connection Port
TCP/UDP
Connection
Port
ICMP
Packet
Type
Rule
Direction Protocol
VRRP In
Inbound
Other (112) N/A
N/A
N/A
N/A
VRRP Out
Outbound
Other (112) N/A
N/A
N/A
N/A
To configure a new rule, click the Add button, which takes you to the Configuration | Policy
Management | Traffic Management | Rules | Add screen, as shown in Figure 6-3. While
configuring rules, remember that the rule is based on the viewpoint of the VPN concentrator.
This means that if the rule is to be used on a VPN Client, you must verify that the rule is set for
the client, not the head-end concentrator.
Figure 6-3
The Configuration | Policy Management | Traffic Management | Rules | Add Screen
CCSP.book Page 273 Friday, February 28, 2003 3:43 PM
Configuring Firewall Filter Rules
273
When you create a rule, the rule is read from the top of the screen down. Therefore, if one
parameter does not match, the rest of the rule is not considered. Because this discussion focuses
on configuring rules as applied to the VPN Client, the TCP Connection and Internet Control
Message Protocol (ICMP) Packet Type are not relevant. The other relevant portions and fields
within this screen are described in the following sections.
This section covers the following topics:
•
•
•
•
•
Name, Direction, and Action
Protocol and TCP connection
Source address and destination address
TCP/UDP source and destination ports
ICMP packet type
Name, Direction, and Action
In the Rule Name field, enter a unique rule name with a maximum of 48 characters. The
Direction pull-down menu has two options: Inbound and Outbound. Remember that this rule
is applied in reference to the VPN Client, not from the head-end concentrator.
The Action pull-down menu is used to determine how the concentrator deals with a packet that
matches this rule. Only Drop and Forward are applicable when setting a filter for a VPN Client.
The Action options are as follows:
•
•
Drop—Discards the packet.
•
•
Forward—Allows the packet to leave the interface.
•
Apply IPSec—Applies IPSec to the packet. You must apply a Security Association (SA)
to use this choice.
•
Apply IPSec and Log—Applies IPSec to the packet and logs a filtering event to the
FILTERDBG event class. You must apply an SA to use this choice.
Drop and Log—Discards the packet and logs a filtering event to the FILTERDBG event
class.
Forward and Log—Allows the packet to leave the interface and logs a filtering event to
the FILTERDBG event class.
Protocol and TCP Connection
You either choose the protocol from the pull-down menu or place the IANA protocol number
in the Other box. Table 6-4 shows the protocols, followed by the IANA-assigned number
available from the pull-down menu.
CCSP.book Page 274 Friday, February 28, 2003 3:43 PM
274
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Table 6-4
Protocols
Protocol
IANA Number
Any Protocol
255
ICMP
1
TCP
6
EGP
8
IGP
9
UDP
17
ESP
50
AH
51
GRE
47
RSVP
46
IGMP
2
OSPF
89
Other protocols not listed
Appropriate IANA number
The TCP Connection field is ignored for client firewall rules.
Source Address and Destination Address
The source address and destination address sections work in the same manner. The pull-down
menu lists all the network lists that are configured on the concentrator. Leaving the default of
Use IP Address/Wildcard mask allows you to enter an IP address and wildcard mask combination
to define the range of IP addresses to which this list applies.
TCP/UDP Source and Destination Ports
The TCP/UDP source and destination ports sections work in a similar manner. You can choose
to leave Range as the setting, in which case you enter two port numbers. If the port numbers are
different, a range is used. If both port numbers are the same, that single port is used. The port
numbers entered are the IANA-assigned port numbers. Otherwise, you can click the pull-down
menu that brings up a list of the predefined ports with their associated IANA numbers, as shown
in Table 6-5.
CCSP.book Page 275 Friday, February 28, 2003 3:43 PM
Configuring Firewall Filter Rules
Table 6-5
275
TCP and UDP Ports
Port
IANA Number
Echo
7
Discard
9
FTP-Data
20
FTP
21
SSH
22
Telnet
23
SMTP
25
DNS
53
TFTP
69
Finger
79
HTTP
80
POP3
110
NNTP
119
NTP
123
NetBIOS Name Service
137
NetBIOS
138
NetBIOS Session
139
IMAP
143
SNMP
161
SNMP-TRAP
162
BGP
179
LDAP
389
HTTPS
443
SMTPS
465
IKE
500
SYSLOG
514
RIP
520
NNTPS
563
LDAP/SSL
636
continues
CCSP.book Page 276 Friday, February 28, 2003 3:43 PM
276
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Table 6-5
TCP and UDP Ports (Continued)
Port
IANA Number
Telnet/SSL
992
LapLink
1547
L2TP
1701
PPTP
1723
ICMP Packet Type
Finally, you configure the ICMP Packet Type if you are not using the client firewall. Make sure
that you save the configuration, or you run the risk of losing your configuration due to loss of
power. The VPN Client ignores any configurations that you make in this field.
Configuring the Stateful Firewall
21 Software client’s Stateful Firewall feature
The Stateful Firewall feature is easily configured on the Cisco VPN Client. Open the client, as
shown in Figure 6-4.
Figure 6-4
VPN Dialer
CCSP.book Page 277 Friday, February 28, 2003 3:43 PM
Configuring the VPN Concentrator for Firewall Usage
277
Choose the Options pull-down menu, as shown in Figure 6-5. If the Stateful Firewall (Always
On) option does not have a check mark in front of it, click it once. Because the Options pulldown menu disappears, choose it again, and make sure that there is a check mark in front of the
Stateful Firewall (Always On) option, as shown in Figure 6-5.
Figure 6-5
VPN Client Options Menu
Configuring the VPN Concentrator for Firewall Usage
24 Customizing firewall policy
Configuration of the firewall for the VPN Client is done on the Configuration | User Management
| Groups | Modify screen under the Client FW tab (see Figure 6-6). This screen is used for
configuring all firewall options other than the Stateful (Always On) option, which is configured
on the VPN Client itself. The following sections describe each of the options that are shown in
the Client FW tab.
CCSP.book Page 278 Friday, February 28, 2003 3:43 PM
278
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Figure 6-6
The Client FW Tab
Firewall Setting
The default setting is No Firewall, which means that there is no requirement for any firewall,
including the Stateful Firewall (Always On) feature. The other two choices, Firewall Required
and Firewall Optional, both work with the Firewall field discussed in the next section.
Choosing Firewall Required means that all the users within this group must use the specified
firewall. Additionally, this firewall must be running during the time that the tunnel is active.
Should the firewall software terminate, the tunnel is dropped. The VPN concentrator notifies the
client that the firewall configuration does not match the required settings. Choose this option
only when all the clients are Windows-based PCs. No other types of clients, including the VPN
3002 Hardware Client, can use this option and successfully connect.
Choosing Firewall Optional means that a client connecting with the specified firewall running
can connect using that firewall. If the specified firewall is not installed or running, the client can
still connect, but it receives a warning message. VPN 3002 Concentrators and non-Windowsbased clients can also connect with this setting.
CCSP.book Page 279 Friday, February 28, 2003 3:43 PM
Configuring the VPN Concentrator for Firewall Usage
279
Firewall
This Firewall pull-down menu allows you to choose the specified firewall for the group. The
firewall specified determines the policy options that are supported. The options are listed in
Table 6-6.
Table 6-6
Firewall Options
Choice
Usage
Cisco Integrated Client Firewall
The Stateful Firewall feature built into the VPN Client.
Network ICE BlackICE Defender
A third-party personal firewall.
Zone Labs Zone Alarm
A third-party personal firewall.
Zone Labs Zone AlarmPro
The professional version of the Zone Labs Alarm personal
firewall.
Zone Labs Zone Alarm or Zone Labs
Zone AlarmPro
Allows the user to use either of the two firewalls.
Zone Labs Integrity Client
A policy pushed from a server to the client system that works
with the Zone Labs Zone Alarm and Zone AlarmPro.
Custom Firewall
As of this writing, this feature is included for future use. This
option will eventually allow the administrator to choose from
any compliant firewall. Currently, this option allows you to
choose only those firewalls previously listed, but you can use
any combination of these firewalls by entering the associated
numbers separated by commas in the product ID. You must
have only a single vendor, although you can choose multiple
products from that vendor.
Custom Firewall
Should you choose to use the Custom Firewall option when it becomes available, Table 6-7
provides you with the necessary codes to be input into the Vendor ID and Product ID fields.
Table 6-7
Vendor and Product ID Codes
Vendor
Vendor ID
Product
Product ID
Cisco Systems
1
Cisco Integrated Client (CIC)
1
Zone Labs
2
Zone Alarm
1
Zone Labs
2
Zone AlarmPro
2
Zone Labs
2
Integrity
3
Network ICE
3
BlackICE Defender/Agent
1
CCSP.book Page 280 Friday, February 28, 2003 3:43 PM
280
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Should you wish to combine, for example, Zone Alarm, Zone AlarmPro, and Integrity into a
single firewall option, you would enter 2 into the Vendor ID field and 1,2,3 into the Product ID
field. You cannot use multiple vendors.
You can enter an optional description if you are using a custom firewall.
Firewall Policy
The Firewall Policy option allows you to select the firewall protection provided by the client
firewall. The options are as follows:
•
•
•
Policy defined by remote firewall (AYT)
Policy Pushed (CPP)
Policy from Server
The following sections describe each of these options in more detail.
Policy Defined by Remote Firewall (AYT)
The Policy Defined by Remote Firewall (AYT) option allows policies defined by the remote
firewall. The firewall must be running. A poll is sent from the VPN Client to the firewall service
on the workstation every 30 seconds. If the firewall does not answer, the connection is dropped.
Policy Pushed (CPP)
The Policy Pushed (CPP) option causes the concentrator to push the policy defined down to the
client. The list shown depends on the filters you have defined on the concentrator. If the VPN
Client has a firewall, these rules are added to the local firewall’s rules. This means that the more
restrictive of the two sets of rules applies. For example, if the VPN concentrator’s rule allows
web browsing but the client’s firewall does not, no web browsing is allowed.
Policy from Server
The Policy from Server option causes the users within the group to use a Zone Labs Integrity
Server (IS) to mange their security settings on the firewall. If you choose this option, make sure
that the Configuration | System | Servers | Firewall Server screen has the appropriate IP address
of the IS and that the IS is reachable from the VPN concentrator.
CCSP.book Page 281 Friday, February 28, 2003 3:43 PM
Monitoring VPN Client Firewall Statistics
281
Monitoring VPN Client Firewall Statistics
23 Client firewall statistics
Viewing the VPN Client firewall statistics is easy. When you first connected the client, an icon
was placed in the Windows System tray. Click the icon shaped like a padlock on the lower-right
side of your screen. This brings up the General screen. This should be similar to the screen
shown in Figure 6-7.
Figure 6-7
The Cisco Systems VPN Client Connection Status | General Screen
This screen shows the client IP address and the server IP address. Next, you see the encryption
and authentication used for this connection. Then, you see whether transparent tunneling is
active. If it is, the tunneling port number is shown. This is followed by the compression in use
and a notation regarding the local LAN access. If a personal firewall were in effect, it would be
listed here. Any firewall policy in use, such as AYT or CPP, is shown.
To look at the statistics for this connection, click the Statistics tab. An example of this screen is
shown in Figure 6-8. On this screen, you can see the bytes in and out as well as the networks.
CCSP.book Page 282 Friday, February 28, 2003 3:43 PM
282
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Figure 6-8
The Cisco Systems VPN Client Connection Status | Statistics Screen
The top of the Statistics screen shows a number of items, as described in Table 6-8.
Table 6-8
Connection Statistics
Statistic
Meaning
Bytes in
The total amount of secure data received
Bytes out
The total amount of encrypted data transmitted through the tunnel
Packets decrypted
The total number of encrypted packets received and decrypted on the port
Packet encrypted
The total number of encrypted packets transmitted out the port
Packets bypassed
The total number of data packets that the VPN client did not process because
they did not need to be encrypted
Packets discarded
The total number of data packets that the VPN client rejected because they did
not originate from the gateway
The Secured routes section of this screen lists the IPSec SAs. Notice the key icon that is on the
left of the networks listed. This icon indicates that the network is protected. The lack of a key
indicates no protection for that network. The Bytes column shows the total amount of data that
this SA has processed.
CCSP.book Page 283 Friday, February 28, 2003 3:43 PM
Enabling Automatic Client Update Through the Cisco VPN 3000 Concentrator Series Manager
283
Enabling Automatic Client Update Through the Cisco
VPN 3000 Concentrator Series Manager
One last topic needs to be discussed that does not fall under the firewall character of this chapter,
but it does relate to the VPN Client. That topic is the Automatic Client Update feature of the
Cisco VPN 3000 Concentrator Series, which can help ensure that all your users’ systems
are running the same client, making the implementation of firewall policies that much easier
for you.
The CSVPN Client software can be upgraded by pushing the configuration from any of the
devices in the VPN 3000 Concentrator Series. This means that the administrator needs to make
a single change at the head-end VPN concentrator instead of manually upgrading each individual CSVPN from. This is especially efficient on large installations. Using the Automatic Client
Update feature lets you control the version of the client that is used and control the initial configuration of the client.
The CSVPN Client is sent an ISAKMP message when it connects to the head-end concentrator,
receiving notification that a software upgrade is pending. This ISAKMP message contains the
IP address of a TFTP server, the directory path on the server, and filename to download.
Setting up the head-end VPN 3000 Series Concentrator for automatically updating CSVPN is
simple through the GUI. Configuring the concentrator for Automatic Client Update consists of
the following steps:
Step 1 Navigate to Configuration | User Management | Groups, and select the group.
This example uses rtpvpn1 (Internally Configured).
Step 2 Choose Modify Client Update (see Figure 6-9).
Step 3 Choose Add from the Client Update screen to add a new client package.
Step 4 On the next screen, shown in Figure 6-10, enter Windows as the client type,
enter tftp://IP address of server/filename as the URL, and enter the revision
number.
Step 5 Select Apply to finish the setup at the head-end.
CCSP.book Page 284 Friday, February 28, 2003 3:43 PM
284
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Figure 6-9
The Configuration | User Management | Groups Screen
Figure 6-10 The Configuration | User Management | Groups | Client Update | Modify Screen
The next time that CSVPN connects, the user receives a message indicating that a software
update is pending and prompting him/her through the process. When the user is notified, the
user has the option to launch the install or cancel and perform the installation the next time
the user connects to the concentrator.
CCSP.book Page 285 Friday, February 28, 2003 3:43 PM
Cisco VPN Client Firewall Feature Overview
285
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient
review of many key concepts in this chapter. For those who are already comfortable with the
topics in this chapter, this summary could help you recall a few details. For those who just read
this chapter, this review should help solidify some key facts. For anyone doing final preparation
before the exam, these tables and figures are a convenient way to review the day before
the exam.
Cisco VPN Client Firewall Feature Overview
Table 6-9 highlights the abilities of the VPN Client.
Table 6-9
VPN Client Abilities
Client Ability
Description
Tunneling protocols
Tunneling protocols supported are as follows:
• IP Security–Encapsulating Security Payload
(IPSec-ESP)
• L2TP
• L2TP/IPSec
• NAT
• NAT Transparent IPSec
• Ratified IPSec/UDP
• IPSec/TCP
• PPTP
Encryption and authentication protocols
Encryption and authentication methods supported include
the following:
• IPSec(ESP) with Data Encryption Standard
(DES)/3DES(56/168 bits)
• AES(126/256-bit) with Message Digest (MD5) or SHA
Key management
Key management capabilities include the following:
• Internet Key Exchange (IKE)—Aggressive and Main
mode (digital certificates)
• Diffie-Hellman (DH) Groups 1, 2, and 5
• PFS
• Rekeying
continues
CCSP.book Page 286 Friday, February 28, 2003 3:43 PM
286
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Table 6-9
VPN Client Abilities (Continued)
Client Ability
Description
Compression
LZS (Lempel-Ziv standard)
Authentication methods
Authentication methods include the following:
• XAUTH (eXtended AUTHentication)
• Remote Authentication Dial-In User Service (RADIUS)
with the following:
— MSCHAPv2 (NT password expiration)
— State/Reply message attributes (token cards)
— RSA SecurID (Security Dynamics)
— Windows NT Domain Authentication
— MX.509v3 digital certificates
Digital certificates
Digital certificates supported include the following:
• Simple Certificate Enrollment Protocol (SCEP)
• Entrust Entelligence
• Smartcards through MS CAPI:
— Activcard
— eAladdin
— Gemplus
— Datakey
• Internet Explorer Certificate Enrollment
• Authorities include the following:
— Baltimore
— Entrust
— GTE Cybertrust
— Microsoft
— RSA Keon
— VeriSign
CCSP.book Page 287 Friday, February 28, 2003 3:43 PM
Stateful Firewall (Always On) Feature
287
Table 6-10 describes the available products and the policies that are available on these products.
Table 6-10
VPN Policies and Products
Policy/Product
Device
Stateful Firewall (Always On)
VPN Client
Purpose
Blocks all traffic except for the following:
• From the head-end network
• DHCP
• ESP
CPP with CIC
VPN concentrator
Centralized control:
• Concentrator defines the rules
• Pushed rules
Used with split tunnels
CPP with Zone Alarm and Zone
AlarmPro
VPN concentrator
Centralized control:
• Concentrator defines the rules
• Pushed rules
Used with split tunnels
Personal Firewall Enforcement
(AYT)
VPN Client
Used when you have a personal firewall
Rules are based on the personal firewall’s
rules
Tunnel is dropped if firewall does not answer
polls
Used with the following:
• Zone Alarm
• Zone AlarmPro
• BlackICE
Stateful Firewall (Always On) Feature
Remember the following key points about the Stateful Firewall (Always On) feature:
•
•
•
•
Uses only firewall with no control from the concentrator
Configured at the client
Split tunnel by turning off
Allows DHCP and ESP in even when on
CCSP.book Page 288 Friday, February 28, 2003 3:43 PM
288
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Cisco Integrated Client
Remember the following key points about CIC:
•
•
Defines rules for use with split tunnel
Uses CPP
Centralized Protection Policy
CPP functions as follows:
•
•
•
•
Pushes policy
Enforces pushed policy
Sends client predefined policy
Uses the following:
— CIC
— Zone Alarm
— Zone AlarmPro
•
Allows or denies specific ports
Are You There Feature
Remember the following key points about the AYT feature:
•
•
•
•
Is an alternative to CPP
VPN Client polls firewall every 30 seconds
Is also called “Are You There”
Makes sure the client has a policy
Configuring Firewall Filter Rules
Guidelines for configuring firewall filtering rules are as follows:
•
•
•
•
Do not use the default rules in a real network.
For default rules, the source and destination addresses are 0.0.0.0 255.255.255.255.
VRRP uses 224.0.0.18/0.0.0.0.
Rule for client is from the client’s point of view.
CCSP.book Page 289 Friday, February 28, 2003 3:43 PM
Action
289
•
The filter is read from the top down until it finds a rule that matches the data and other
conditions or until the end of the filter is reached.
•
Configured on the Configuration | Policy Management | Traffic Management | Rules | Add
(or Modify) screen. See Figure 6-11.
Figure 6-11 The Configuration | Policy Management | Traffic Management | Rules | Add Screen
Action
On the Action pull-down menu, only the Drop and Forward options are applicable when setting
a filter for a VPN Client. The Action pull-down menu options are as follows:
•
•
Drop—Discards the packet
Forward—Allows the packet to leave the interface
CCSP.book Page 290 Friday, February 28, 2003 3:43 PM
290
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Configuring the Stateful Firewall
Configure the Stateful Firewall feature by following these steps:
Step 1 Open the client.
Step 2 Choose the Options menu.
Step 3 Choose Stateful Firewall (Always On). This prevents split tunneling.
Configuring the VPN Concentrator for Firewall Usage
Configuration is done on the Configuration | User Management | Groups | Modify screen under
the Client FW tab, as shown in Figure 6-12.
Figure 6-12 The Client FW Tab
CCSP.book Page 291 Friday, February 28, 2003 3:43 PM
Monitoring VPN Client Firewall Statistics
291
Firewall
Table 6-11 describes firewall options.
Table 6-11
Firewall Options
Choice
Usage
Cisco Integrated Client Firewall
The Stateful Firewall feature built into the VPN Client.
Network ICE BlackICE Defender
A third-party personal firewall.
Zone Labs Zone Alarm
A third-party personal firewall.
Zone Labs Zone AlarmPro
The professional version of the Zone Labs Zone Alarm
personal firewall.
Zone Labs Zone Alarm or Zone Labs
Zone AlarmPro
Allows the user to use either of the two firewalls.
Zone Labs Integrity Client
A policy pushed from a server to the client system that works
with the Zone Labs Zone Alarm and Zone AlarmPro.
Custom firewall
As of this writing, this feature is included for future use. This
will eventually allow the administrator to choose from any
compliant firewall. Currently, this option allows you to choose
only those firewalls listed above, but you can use any combination of these firewalls by entering the associated numbers
separated by commas in the product ID. You must have only a
single vendor, although you can choose multiple products
within that vendor.
Firewall Policy
Firewall policy has the following options:
•
•
•
•
Policy defined by remote firewall (AYT)
Policy pushed (CPP)
Policy from Server
Always On/Stateful inspection
Monitoring VPN Client Firewall Statistics
The General tab shows the following options:
•
•
•
Your IP address
VPN concentrator IP address
Encryption used
CCSP.book Page 292 Friday, February 28, 2003 3:43 PM
292
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
•
•
•
•
•
Authentication used
Tunneling port
Compression
Local LAN access
Firewall policy in use
Table 6-12 describes the Statistics tab.
Table 6-12
Connection Statistics
Statistic
Meaning
Bytes in
The total amount of secure data received.
Bytes out
The total amount of encrypted data transmitted through the tunnel.
Packets decrypted The total number of encrypted packets received and decrypted on the port.
Packet encrypted
The total number of encrypted packets transmitted out the port.
Packets bypassed
The total number of data packets that the VPN Client did not process because they
did not need to be encrypted.
Packets discarded
The total number of data packets that the VPN Client rejected because they did not
originate from the gateway.
CCSP.book Page 293 Friday, February 28, 2003 3:43 PM
Chapter Glossary
293
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter.
eXtended AUTHentication (XAUTH) XAUTH permits Cisco VPN Client systems to be
authenticated by TACACS+ or RADIUS external servers during IKE Phase 1 negotiations
when establishing an IPSec secure tunnel. When XAUTH is configured on the VPN Client, the
user of that device is prompted for a username and password, which must be authenticated by
the remote authentication server before the IPSec tunnel can be established.
firewall Device or software package designated as a buffer between any connected public
networks and a private network. A firewall uses access lists and other methods to ensure the
security of the private network.
Generic Routing Encapsulation (GRE) Tunneling protocol developed by Cisco that can
encapsulate a variety of protocol packet types inside IP tunnels, creating a virtual point-to-point
link to Cisco routers at remote points over an IP internetwork. By connecting multiprotocol
subnetworks in a single-protocol backbone environment, IP tunneling using GRE allows
network expansion across a single-protocol backbone environment.
head-end End point of a broadband network. All stations transmit toward the head-end; the
head-end then transmits toward the destination stations.
Internet Assigned Numbers Authority (IANA) Organization operated under the auspices of
the Internet Society (ISOC) as a part of the Internet Architecture Board (IAB). IANA delegates
authority for IP address-space allocation and domain-name assignment to the InterNIC and
other organizations. IANA also maintains a database of assigned protocol identifiers used in the
TCP/IP stack, including autonomous system numbers.
split tunneling The ability to direct packets over the Internet in clear text while simultaneously
encrypting other packets through an IPSec tunnel. The VPN server provides either a list of networks whose traffic must be tunneled or a list of networks whose traffic must not be tunneled.
You enable split tunneling on the VPN Client and configure the network list on the VPN server,
such as the VPN concentrator.
stateful firewall Denies or permits WAN traffic based on a session’s state. Packets relating to
dialogs initiated from within the firewall are permitted passage through the firewall, while those
initiating from outside the firewall are denied passage through the firewall.
Virtual Router Redundancy Protocol (VRRP) In installations of two or more VPN concentrators in a parallel (redundant configuration) VRRP provides automatic switchover to a backup
system in case the primary system is out of service, thus ensuring user access to the VPN.
CCSP.book Page 294 Friday, February 28, 2003 3:43 PM
294
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
Q&A
As mentioned in Chapter 1, “All About the Cisco Certified Security Professional,” these
questions are more difficult than what you should experience on the CCSP exam. The questions
do not attempt to cover more breadth or depth than the exam; however, the questions are designed
to make sure you know the answer. Rather than allowing you to derive the answer from clues
hidden inside the question itself, your understanding and recall of the subject are challenged.
Questions from the “Do I Know This Already?” quiz from the beginning of the chapter are
repeated here to ensure that you have mastered the chapter’s topic areas. Hopefully, these
questions will help limit the number of exam questions on which you narrow your choices
to two options and guess!
1 You have a number of clients running Windows 98 and a remote VPN 3002 Hardware
Concentrator assigned to the same group. Your supervisor wants you to force everyone on
this group connecting to have a firewall running on his or her machine. Can you do this?
2 What firewalls can be used within the Custom Firewall option on the concentrator?
3 Where are the rules set for a client when using CPP with Zone AlarmPro?
4 What protocols are not automatically blocked when using the Stateful Firewall (Always
On) feature?
CCSP.book Page 295 Friday, February 28, 2003 3:43 PM
Q&A
5 Why is CPP not used with the Tunnel Everything option?
6 How often does the VPN Client poll the personal firewall when using AYT?
7 How is the Always On option set on the VPN Client?
8 Where is CPP configured?
9 What debug classes are used when creating a rule with the following options:
a. Drop
b. Drop and Log
c. Forward
d. Forward and Log
e. Apply IPSec
f. Apply IPSec and Log
295
CCSP.book Page 296 Friday, February 28, 2003 3:43 PM
296
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
10 By default, what IP address and wildcard mask does VRRP use?
11 How do you allow clients to use either of two firewalls? What is the only vendor you can
do this with?
12 You are using CPP and pushing a policy to a firewall at the client. The client’s firewall
allows FTP access. The concentrator’s policy does not allow FTP access. Is FTP access
allowed?
13 You are using BlackICE as a client firewall. You are presently connected through the VPN.
What happens if you stop the service running BlackICE? Does the VPN remain connected?
If so, for how long? Can you connect again if BlackICE is not running?
14 On the VPN Client, where do you see the current compression used for a VPN connection?
15 While configuring a filter, you want to apply this filter to all protocols. What number do
you use?
CCSP.book Page 297 Friday, February 28, 2003 3:43 PM
Q&A
297
16 When using the VPN Client, what ICMP should be set?
17 What authentication methods are allowed with the VPN Client?
18 What types of key management can the VPN Client use?
19 In addition to IPSec, what tunneling protocols does the VPN Client support?
20 Which two products from Zone Labs work with the VPN Client to enable the Are You
There (AYT) capability?
21 You want to have secure VPN connections to the private network of the head-end
concentrator and unsecured communications to the Internet. How would you configure
the VPN Client’s Stateful Firewall feature to support this split tunneling?
CCSP.book Page 298 Friday, February 28, 2003 3:43 PM
298
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
22 What is another name for the Stateful Firewall client that is a part of the Cisco VPN
Client?
23 From the VPN Client, where can you view the secured routes that are enabled to the
client?
24 What is meant by the term Packets bypassed on the Statistics tab of the Connection Status
screen?
25 On the VPN 3000 Concentrator Series devices, you configure the client firewall properties
on the Client FW tab of the Configuration | User Management | Groups | Add (or Modify)
screen. You can only select one firewall policy from that screen. What are the three types
of firewall policies that you can choose from the Client FW tab?
CCSP.book Page 299 Friday, February 28, 2003 3:43 PM
Scenario 6-1 Answers
299
Scenarios
Scenario 6-1
In Scenario 6-1, you connect a VPN Client to the VPN concentrator. You do this with and
without a firewall installed on the client.
Your tasks are as follows:
1 Configure the concentrator to accept a VPN connection with an optional firewall on the
client.
2 Configure the client with the Stateful Firewall feature off and then connect. Did you get a
message stating that a firewall should be used?
3 Reconfigure the client with the Stateful Firewall feature on and retest the connection. Did
you still get the message regarding the firewall usage? Why not?
4 Configure a filter on the concentrator.
5 Configure the concentrator to require a firewall and push the filter to the client. Test both
configurations on the client. What happens? Why?
6 Reconfigure the concentrator to use AYT. Test both configurations on the client. What
happens? Why?
Scenario 6-1 Answers
The following answers pertain to the tasks presented in the previous section:
1 Configure the concentrator to accept a VPN connection with an optional firewall on the
client in accordance with the text. Choose the Custom Firewall option on the Client FW
tab on the Configuration | User Management | Groups | Modify screen to set the firewall
option.
2 You should receive a message because the Firewall Optional configuration sends a
message to the client stating that a firewall should be used if it is not there. However, you
should be able to connect.
3 Setting the Stateful Firewall (Always On) feature to be enabled should have eliminated
the message received from the concentrator.
4 See Number 5.
CCSP.book Page 300 Friday, February 28, 2003 3:43 PM
300
Chapter 6: Configuring the Cisco VPN Client Firewall Feature
5 See the section “Configuring Firewall Filter Rules” for the procedures on these items. The
key is to remember that if you are pushing the filter to the client, you must build the client
from the filter’s point of view. The filter has no effect on the client because the Stateful
Firewall feature stands alone, and you cannot push a configuration from the concentrator
to the client with a stateful firewall.
6 This configuration enables you to connect and remain connected only if the Stateful
Firewall feature is enabled.
CCSP.book Page 301 Friday, February 28, 2003 3:43 PM
CCSP.book Page 302 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
25 Monitoring the Cisco VPN 3000 Series Concentrator
26 Administering the Cisco VPN 3000 Series Concentrator
CCSP.book Page 303 Friday, February 28, 2003 3:43 PM
CHAPTER
7
Monitoring and Administering the
VPN 3000 Series Concentrator
This chapter deals with administering and monitoring the VPN 3000 Series Concentrator.
Among these tasks are using preshared keys, configuring policies, and automatically
updating the client, which are all tasks that you should master in order to pass the exam.
This text will guide you through most of the administering and monitoring options on the
3000 concentrators. Although every single screen is not examined, the vast majority of the
screens and options are shown within this chapter. What have been skipped are those items
with other screens that are so similar that their inclusion becomes redundant or of little
value. One example of this is within the statistics section, where only a sample of the
statistics screens available is shown; however, it will still benefit you in your daily activities
to familiarize yourself with all of the available screens and options. The more thorough
your knowledge of the system, the easier it becomes to use.
How Best to Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show retention is significantly increased through writing facts and concepts down,
even if you never look at the information again.
•
Use the diagram in Figure 7-1 to guide you to the next step.
CCSP.book Page 304 Friday, February 28, 2003 3:43 PM
304
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not necessarily need to
answer these questions now.
This 10-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into 2 smaller “quizlets,” which correspond to the two major topic headings in the
chapter. Figure 7-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 7-1 to record your scores.
CCSP.book Page 305 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 7-1
305
Score Sheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section Covering These
Questions
Question
1
Administering the Cisco VPN 3000 Series
Concentrator
1–5
2
Monitoring the Cisco VPN 3000 Series
Concentrator
6–10
All questions
Score
1–10
1 What screen is used to set the password for the administrator?
2 You wish to limit HTTP access to the concentrator to hosts on the same subnet as the
inside interface of the concentrator. What is the format of the access control list?
3 What types of AAA servers can the VPN 3000 Series Concentrator use for authenticating
management sessions?
4 What is the upper limit for a management session timeout?
5 What form of encryption may be used on a configuration file?
CCSP.book Page 306 Friday, February 28, 2003 3:43 PM
306
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
6 On what screen can routes be cleared?
7 Where can you see the CPU utilization on a Cisco 3000 Series Concentrator?
8 Where can you troubleshoot an IPSec connection?
9 Where can you troubleshoot TCP/IP connections?
10 Where can you see the number of collisions on an Ethernet interface?
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
6 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, and the “Q&A” section.
•
7–8 overall score—Begin with the “Foundation Summary” section, and continue with the
“Q&A” section. If you are having difficulty with a particular subject area, read the
appropriate section in “Foundation Topics” section.
•
9–10 overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, and then to the “Q&A” section. Otherwise, skip this
chapter and go to the next chapter.
CCSP.book Page 307 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
307
Administering the Cisco VPN 3000 Series Concentrator
26 Administering the Cisco VPN 3000 Series Concentrator
To administer the Cisco VPN Concentrator, set the URL of your web browser to the IP address
of your concentrator. Alternatively, if your DNS server will resolve the host name, you may
enter the host name of the concentrator. You will see a screen similar to that shown in Figure 7-2.
Once this screen is shown, enter a username and password. Later in this chapter you learn how
to administer users and passwords. Click the Login button to continue.
Figure 7-2
Concentrator Login
Once you have logged into the concentrator, you will be presented with the main screen,
as shown in Figure 7-3. This screen allows you to configure, administrate, or monitor the
concentrator. For purposes of this chapter, you will focus on the Administration and Monitoring
options. Click the Administration link to start administering the concentrator.
Figure 7-3
Main Screen
CCSP.book Page 308 Friday, February 28, 2003 3:43 PM
308
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
You should now be on the main administration screen, as shown in Figure 7-4. You will use this
screen to navigate between all the administration options. From this point forward, with one
general exception, in order to access a specific screen, you may choose to either click the link
on the main part of the screen or to click one of the links shown in the menu system on the left.
The general exception to this is when a parameter is being added or modified. For example, you
cannot go directly to modifying an access list without first choosing the access list to modify.
Therefore, there are no Modify submenus on the left side of the screen. The submenus shown
on the left may be expanded by clicking on the + sign. Choosing the option from the left side
of the screen or from the link on the main screen makes no difference because, either way, you
will be brought to the same screen.
Figure 7-4
Administration Screen
You are initially presented with eight options, each of which brings you to an associated screen
as described in Table 7-2. Any of these screens may have subscreens associated with them. Take
a moment to study Table 7-2, which lists all the menu and submenu options. Knowing how to
navigate through the system will make administration easier. Knowing what options are controlled on individual screens will help you to pass the exam. After studying the table, continue
to the next sections, which explore each individual item.
CCSP.book Page 309 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
Table 7-2
309
Administration Menu System
Menu Option
Level Usage
Administration
1
Main screen for administering the VPN 3000 Concentrator. Enables all
of the Administration submenus.
Administer Sessions 2
Shows all of the current sessions. Should you choose, you may filter
the sessions shown by group.
Software Update
2
Enables submenu, allowing you to choose to update either the
concentrator or clients.
Concentrator
3
Updates the concentrator to which you are currently logged on.
Clients
3
Updates all of the clients or clients based on groups.
System Reboot
2
Allows you to reboot the system either immediately or at a scheduled
time. This is also the screen used to reboot without using the current
configuration.
Ping
2
Allows you to check connectivity with a remote system by either name
or IP address.
Monitoring Refresh
2
Sets if the screens should automatically refresh and, if so, how often.
Access Rights
2
Enables submenu used for setting username/password/rights
combinations, access control lists for configuring the concentrator,
setting session timeouts, and enables the submenu for AAA servers.
Administrators
3
Sets usernames, passwords, and rights.
Access Control List
3
Sets those IP addresses allowed to access the concentrator for
administration and configuration.
Access Settings
3
Sets the session timeouts, limits the number of connections, and allows
for encryption of the configuration file.
AAA Servers
3
Enables the submenu for setting the Authentication Servers.
Authentication
4
Allows the addition, modification, configuration, or deletion of
TACACS+ servers.
File Management
2
Enables the submenu, allowing for swapping the backup and boot files,
file transfers using TFTP, file uploads using HTTP, and exporting the
configuration to an XML file.
Swap Config File
3
Allows swapping the boot and backup boot files.
TFTP Transfer
3
Allows uploading or downloading via a remote TFTP server.
File Upload
3
Allows uploading a file via HTTP.
XML Export
3
Allows a configuration file to be exported to an XML file.
continues
CCSP.book Page 310 Friday, February 28, 2003 3:43 PM
310
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Table 7-2
Administration Menu System (Continued)
Menu Option
Level Usage
Certificate Manager
2
Enables the submenu, allowing enrollment and installation of
certificates.
Enrollment
3
Enrolls certificates.
Installation
3
Installs certificates.
Administer Sessions
The Administration | Administer Sessions screen, shown in Figure 7-5, shows the session
statistics for all connected sessions. You are able to filter the sessions by group using the Group
pull-down menu. In this case, only those sessions belonging to the group chosen are shown.
Figure 7-5
Administration | Administer Sessions
The Administer Session screen shows the peak connections by connection type as well as the
limits on that connection type and the total number of sessions completed since the system was
started. You are also able to log out sessions based on the session type. Clicking on a session’s
name will give more information regarding that session.
Software Update
The Administration | Software Update screen consists of two submenu options. This is an
intermediate screen that is used to navigate to the software update screens for the concentrator
and clients. This screen is shown in Figure 7-6.
CCSP.book Page 311 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
Figure 7-6
311
Administration | Software Update
Concentrator
The Administration | Software Update | Concentrator screen is shown in Figure 7-7. This screen
shows the current version of the software and allows you to upload a new version to the
concentrator.
Figure 7-7
Administration | Software Update | Concentrator
CCSP.book Page 312 Friday, February 28, 2003 3:43 PM
312
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
The Browse button is used to find the file you wish to upload on the workstation being used for
configuration or from the network. After uploading the file, you will be prompted to move to
the Administration | System Reboot screen shown later in Figure 7-9. The new software will not
be activated until the system is rebooted.
During the download process, it is possible to corrupt the memory by failing to wait for the file
transfer to complete. Therefore, you are advised to wait until the transfer is completed before
doing any operations that can cause changes to the flash memory, such as listing, viewing,
copying, deleting, or writing files.
Updating the software will not cause any disruption in current sessions, although rebooting the
system will drop all sessions. Make sure that the current configuration is saved before
rebooting, or it will be lost.
NOTE
Before loading any new software, it is wise to check for caveats and bugs related to the new
software. This will help eliminate surprises caused by subtle differences between software
versions. If you are loading new software in order to solve an existing problem, checking the
notes on the new software lets you know in advance if the new software will fix your problem.
Additionally, you are also cautioned to test any new software versions before deploying them
throughout the enterprise. Features such as automatically downloading software to all clients
may have disastrous effects if that software has not been tested within your organization.
After the new software is loaded, Cisco strongly urges that you clear the browser’s cache,
temporary files, and history files. This will ensure that the next update of software does not use
an old copy. The authors prefer to clear these items both before and after updating software to
ensure that there is absolutely no possibility that an old file is chosen, even if one of the
clearings is forgotten.
Clients
The Administration | Software Update | Clients screen is used to update hardware and software
clients when they become connected to the concentrator. This screen is shown in Figure 7-8.
The Group pull-down menu allows you to update all groups or any one group.
The process for updating the client is the same as on the concentrator. You choose a file using
a Browse function. The requirement to update the client is controlled through the Configuration
| User Management | Groups screen. This is discussed in Chapter 9, “Configuring Scalability
Features of the Cisco VPN 3002 Hardware Client.”
CCSP.book Page 313 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
Figure 7-8
313
Administration | Software Update | Clients
System Reboot
The Administration | System Reboot screen allows you to reboot the system in a controlled
manner. As shown in Figure 7-9, there are a number of rebooting options available, which are
broken down into three sections:
•
•
•
Action
Configuration
When to Reboot/Shutdown
Each of these is discussed in the following sections.
Action
In the Action section, there are three straightforward choices:
•
•
•
Reboot—Reboots the concentrator
Shutdown —Shuts down without automatically rebooting
Cancel—Cancels a pending shutdown or reboot
CCSP.book Page 314 Friday, February 28, 2003 3:43 PM
314
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-9
Administration | System Reboot
Configuration
The configuration section allows you to control what happens during the shutdown and startup
processes with the following three options:
•
Save the active configuration at time of reboot—Is the most widely used because it
saves the current configuration when the system is shut down
•
Reboot without saving the active configuration—Usually used when you wish to revert
to a previously saved configuration after attempting some unsuccessful configuration
changes
•
Reboot ignoring the configuration file—Allows you to bypass the configuration file
upon rebooting, which is useful when you wish to change a very large amount of the
configuration
When to Reboot/Shutdown
The third section schedules a reboot or shutdown. You have four options:
•
Now—Causes the concentrator to take the previously chosen action immediately with no
considerations given for anyone who is presently connected to the concentrator
•
Delayed by minutes—Allows the action to be delayed for a specific amount of time
CCSP.book Page 315 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
•
•
315
At time—Allows the action to be delayed until a specific time
Wait for session to terminate—Takes the previously chosen action when the last
connection becomes inactive, with no new connections allowed until the action has been
taken, which allows for all users to disconnect in a normal manner before the action is
taken
Clicking the Apply button enables the choices you have made.
Ping
The Administration | Ping screen, shown in Figure 7-10, is used to test connectivity. You may
enter the IP address of the remote device, or you may use the host name if you are using a DNS
server. This device sends Internet Control Message Protocol (ICMP) echo requests to the
remote device and shows the results of those requests.
Figure 7-10 Administration | Ping
Monitoring Refresh
The Administration | Monitoring Refresh screen is shown in Figure 7-11. There are only
two options available on this screen. The first option, the Enable check box, sets whether the
statistics screens should be refreshed. If this box is not checked, the statistics shown on a screen
will remain the same despite the fact that the statistics are actually changing. Should the Enable
check box be checked, the statistics screens will be refreshed at the time (in seconds) specified
by the refresh period. The default for the refresh period is 30 seconds.
CCSP.book Page 316 Friday, February 28, 2003 3:43 PM
316
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-11 Administration | Monitoring Refresh
Access Rights
The Administration | Access Rights screen is shown in Figure 7-12. This screen enables the
submenu used for setting username, password, and rights combinations; configuring the
concentrator with access control lists; and setting session timeouts. This screen also enables the
submenu for AAA servers.
Figure 7-12 Administration | Access Rights
CCSP.book Page 317 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
317
Administrators
The Administration | Access Rights | Administrators screen, shown in Figure 7-13, is used to
add those users who are allowed to access the concentrator’s Configuration, Administration,
and Monitoring functions. Up to five users may be allowed this type of access. To add a user,
click the Modify button next to a username that is blank. Modifying a user is accomplished by
clicking the Modify button next to a username that is not blank. Enabling the Administrator
option gives the user full rights to the system. If the Enabled check box is not checked, the user
will not be able to log on to the concentrator.
Figure 7-13 Administration | Access Rights | Administrators
Once the Modify button is chosen, the Administration | Access Rights | Administrators | Modify
Properties screen is shown, as shown in Figure 7-14. The username is entered, followed by the
password. The password is also verified.
The Access Rights section of the Modify Properties screen contains four pull-down menus.
These menus set the permissions for their associated titles as follows:
•
•
•
•
Authentication—Sets the rights for the user regarding authentication
General—Sets rights for most of the concentrator
SNMP—Deals with SNMP-related issues
Files—Sets rights regarding reading and writing of files
CCSP.book Page 318 Friday, February 28, 2003 3:43 PM
318
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-14 Administration | Access Rights | Administrators | Modify Properties
The pull-down menus for all of these options are the same. Shown in Figure 7-15, each of the
pull-down menus has four options:
•
None—The concentrator will not allow the user to access the section in any manner,
including viewing and changing.
•
•
Stats Only—This option restricts the user to those screens where statistics are displayed.
•
Modify Config—This option allows the user to change items within the section.
View Config —This options allows the user to view, but not change, the current
configuration.
This system gives a great deal of flexibility with very little complexity. For example, imagine a
user who has Modify Config access on Authentication, but None access on files. This user could
change the configuration but would not be able to save that configuration. This would allow
another administrator to review the changes made before committing those changes to the file
system.
Access Control List
The Administration | Access Rights | Access Control List screen allows for adding, modifying,
and prioritizing access lists. These access lists are used to determine those IP addresses that may
access the concentrator for management functions. It is important to note that this access is not
limited to HTTP and Telnet access. The access lists are also used to define those IP addresses
that may be used for SNMP, FTP, and TFTP purposes. If the list is empty, as shown in Figure 7-16,
then all stations will be allowed all access.
CCSP.book Page 319 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
319
Figure 7-15 Access Rights Choices
Figure 7-16 Administration | Access Rights | Access Control List
The access lists are very similar to the access lists used on the Cisco PIX firewall. That is, they
rely on subnet masks, not on wildcard masks. Using 255.255.255.255 for the subnet mask specifies a single host, while using 0.0.0.0 for the subnet mask specifies all hosts. Choosing Add or
Modify will bring up a screen where the IP address and subnet mask are entered. Additionally,
the group that this access list is applied to is entered.
CCSP.book Page 320 Friday, February 28, 2003 3:43 PM
320
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Moving an entry up or down will modify the order of the lists. This way, you may create lists
in any order and then move them to their proper position.
Access Settings
The Administration | Access Rights | Access Settings screen, shown in Figure 7-17, sets the
session idle timeout, sets the session limit, and enables configuration file encryption.
Figure 7-17 Administration | Access Rights | Access Settings
The Session Idle Timeout is entered in seconds. This specifies the amount of time that a
connection is maintained without any activity on that session. After the timeout period without
any activity, the session will be disconnected. The maximum allowable time is 1800 seconds,
which calculates to 30 minutes. The default is 600 seconds (10 minutes).
The Session Limit is entered next. This option limits the number of concurrent management
sessions. The default is 10 sessions.
The configuration file may also be encrypted using the RC4 encryption algorithm. This option
is especially useful when storing configuration files on a remote server.
AAA Servers
The Administration | Access Rights | AAA Servers screen, shown in Figure 7-18, is an entry
screen used to navigate to the authentication screen. Click the Authentication link to continue.
CCSP.book Page 321 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
Figure 7-18 Administration | Access Rights | AAA Servers
Authentication
The Administration | AAA Servers | Authentication screen is used to add, modify, and test
TACACS+ servers. A sample screen is shown in Figure 7-19.
Figure 7-19 Administration | AAA Servers | Authentication
321
CCSP.book Page 322 Friday, February 28, 2003 3:43 PM
322
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
As with other screens of this type, choosing Add will allow you to add a new item, while Modify
will allow changes to a chosen item. You may also move the order of the server entries and
delete server entries, as well as test a connection to a TACACS+ server.
NOTE
Remember that the Cisco VPN 3000 Series Concentrators only use TACACS+ for administrator
authentication. There are no provisions for these concentrators to use RADIUS or TACACS for
the authentication.
Adding a new TACACS+ server is accomplished by clicking the Add button. You are taken to
the Administration | Access Rights | AAA Servers | Authentication | Add screen, as shown in
Figure 7-20. On this screen, you first enter the IP address or host name of the TACACS+ server.
This is followed by the port, timeout (in seconds), and number of retries. Leaving the port
number set to zero will use the default port. Finally, enter and verify the server secret.
Figure 7-20 Administration | Access Rights | AAA Servers | Authentication | Add
File Management
The Administration | File Management screen is shown in Figure 7-21. This screen enables the
submenu used to access the screens used for swapping the configuration file, TFTP transfers,
file uploads using HTTP, and exporting the configuration to an XML file. You may also view,
delete, or copy the configuration or log files.
CCSP.book Page 323 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
323
Figure 7-21 Administration | File Management
The VPN 3000 Series Concentrators merely need an IP address entered in order to transfer the
files. Because multiple copies of the configuration file are available, you are able to move
quickly between different configurations for testing purposes.
Certificate Manager
The Administration | Certificate Management screen allows you to see all of your current certificates and enroll or install new certificates. Under this screen, you have an Enrollment and
Installation screen. These comprise the final screens under the Administration section. As shown
in Figure 7-22, the Certificate Manager screen will list all of your certificates. Chapter 5,
“Configuring Cisco VPN 3000 for Remote Access Using Digital Certificates,” provides a full
explanation of working with certificates.
CCSP.book Page 324 Friday, February 28, 2003 3:43 PM
324
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-22 Administration | Certificate Management
Monitoring the Cisco VPN 3000 Series Concentrator
Assuming that you have logged into the concentrator, you will be presented with the main
screen. For purposes of this section, you will be focusing on the Monitoring options. Click the
Monitoring link to start monitoring the concentrator.
You should now be on the main monitoring screen, as shown in Figure 7-23. This screen will
be used to navigate between all the monitoring options.
You are initially presented with six options, each of which brings you to an associated screen
as described in Table 7-3. Any of these screens may have subscreens associated with them. Take
a moment to study Table 7-3, which lists all of the menu and submenu options. Knowing how
to navigate through the system will make administration easier. Knowing what options are
controlled on individual screens will help you pass the exam. After studying the table, the next
sections explore each individual item.
Next, you begin to explore some of the options available through the Monitoring menu system.
CCSP.book Page 325 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
325
Figure 7-23 Monitoring Screen
Table 7-3
Monitoring Menu System
Menu Option
Level Usage
Monitoring
1
Main screen for monitoring the VPN 3000 Concentrator. Enables all of
the Monitoring submenus.
Routing Table
2
Shows the currently configured routes.
Filterable Event Log 2
Allows you to show events as defined by the debugging options set
within the configuration. These events may be filtered. This screen is
updated periodically based on the setting in the Administration |
Monitoring Refresh screen.
Live Event Log
3
Shows all events for which logging is enabled. These events are not
filterable and show up in real time.
System Status
2
Shows the status and the serial number of the concentrator.
Sessions
2
Allows you to see the statistics for all the current sessions on the
concentrator. This screen also enables the submenus for monitoring the
sessions by protocol or encryption as well as the “top ten” list.
Statistics
3
Is similar to the Monitoring | Protocols screen, but allows you to
choose the protocol on which to filter the statistics.
Encryption
3
Is similar to the Monitoring | Protocols screen, but allows you to
choose the encryption on which to filter the statistics.
continues
CCSP.book Page 326 Friday, February 28, 2003 3:43 PM
326
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Table 7-3
Monitoring Menu System (Continued)
Menu Option
Level Usage
Top Ten Lists
3
Enables the submenu that allows you to see the statistics for the 10
most active sessions sorted by total bytes transmitted, total time
connected, or average throughput.
Statistics
2
Enables the submenu for statistics. These statistics are divided into
several submenus.
MIB-II Stats
3
Enables the submenu for those statistics that are reported through
the MIB system.
Routing Table
The Monitoring | Routing Table screen, shown in Figure 7-24, shows your current routes and
allows you to clear routing entries. Note that, after clearing the routes, those routes that are
learned by routing protocols will eventually be learned again by those protocols. Static routes
are not affected by clearing routes. Be aware that clearing routes may disrupt user connectivity.
Figure 7-24 Monitoring | Routing Table
Event Log Screen
The Filterable Event Log screen is used to see any events that have previously been defined as
an event that should be logged. This screen, shown in Figure 7-25, allows you to filter these
events by class and severity. You may also filter based upon the client’s IP address. The output
is shown in the bottom half of the screen. This screen is refreshed based on the values specified
in the Administration | Monitoring Refresh screen.
CCSP.book Page 327 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
327
Figure 7-25 Monitoring | Filterable Event Log
The Live Event Screen log, which is accessed by the link on the left side of the screen, does not
allow for filtering but does have an advantage and a disadvantage when compared to the Filterable Event Log. The advantage is that events are shown immediately. The disadvantage is that
monitoring these events, as in any debugging, may cause excessive CPU cycle utilization.
System Status
The Monitoring | System Status screen is shown in Figure 7-26. This screen is the closest
equivalent available on the concentrator to the show version command on a router. This screen
shows the concentrator type, the serial number, and the software revisions being run. The time
that the system has been active, the boot time, and the RAM size is also shown.
Similar to the graphical user interface (GUI) available for the Cisco switches, you may click on
a module to find the details of the status for that module. The fan speeds, as well as the
temperature for the interior of the concentrator, are shown. There are three graphs on the bottom
of the screen, indicating the CPU utilization, the concentrator’s throughput, and the number of
active sessions.
CCSP.book Page 328 Friday, February 28, 2003 3:43 PM
328
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-26 Monitoring | System Status
Sessions
The Monitoring | Sessions screen, as seen in Figure 7-27, shows the statistics for the currently
connected sessions. On this screen, you are able to limit the connections seen by group.
Figure 7-27 Monitoring | Sessions
CCSP.book Page 329 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
329
The screen is divided into four sections as follows. The following sections describe each in
greater detail:
•
•
•
•
Session Summary
LAN-to-LAN Sessions
Remote Access Sessions
Management Sessions
This screen also provides you with a link to the top ten lists.
Sessions Summary
The Session Summary section displays a summary of all the active sessions and the peak
concurrent sessions. The sessions limit and cumulative sessions are also displayed. This
information is useful when determining how heavily you are utilizing the concentrator.
LAN-to-LAN Sessions
The LAN-to-LAN section allows you to see all the current LAN-to-LAN sessions. Noted in this
section are the IP address and protocol used for connecting to the remote LAN as well as the
encryption used. The time the tunnel was initiated and the duration the tunnel has been active
are displayed next, followed by the bytes transmitted (Bytes Tx) and the bytes received (Bytes
Rx). The Bytes Tx and Bytes Rx are useful when debugging a LAN-to-LAN connection. See
Chapter 10, “Cisco VPN 3000 LAN-to-LAN with Preshared Keys,” for more information.
Remote Access Sessions
The Remote Access Sessions section shows the username, assigned IP address, and the public
IP address for each of the connected remote access sessions.
The group to which this user belongs and the protocol encryption type are seen next. The
duration of the connection, the client version, client type, and the Bytes Tx and Bytes Rx
over the connection are shown.
Management Sessions
The Management Sessions Section shows those users connected to the concentrator for
management purposes. The IP address, protocol used, and encryption type are shown, as
well as the login time and the duration of the connection.
CCSP.book Page 330 Friday, February 28, 2003 3:43 PM
330
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Top Ten Lists
The Top Ten Lists screen is shown in Figure 7-28. This screen enables the submenu system that
allows you to see statistics for the top ten sessions. The choice of which sessions are included
on these lists is based on data (the total amount of data sent and received), duration (the total
time the session has been established), or throughput (the average amount of data throughput
in bytes per second).
Figure 7-28 Monitoring | Sessions | Top Ten Lists
Choosing any of the three options brings you to the respective screen. All of these screens look
virtually identical. The difference in them is merely the criteria for being selected for the list.
As shown in Figure 7-29, groups may further filter the data. Choosing a group through the pulldown menu will show the top ten users for that individual group.
Statistics
Shown in Figure 7-30, the Monitoring | Statistics screen is used to move further down the menu
structure to an individual statistic.
CCSP.book Page 331 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
Figure 7-29 Monitoring | Sessions | Top Ten List | Data
Figure 7-30 Monitoring | Statistics
Following is a list of the Monitoring | Statistics submenu options:
•
•
•
Accounting
Address Pools
Administrative AAA
331
CCSP.book Page 332 Friday, February 28, 2003 3:43 PM
332
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Authentication
Bandwidth Management
Compression
DHCP
DNS
Events
Filtering
HTTP
IPSec
L2TP
Load Balancing
NAT
PPTP
SSH
SSL
Telnet
VRRP
When you wish to view statistics based on any of the items shown in the preceding list, you
merely need to click the appropriate link. For example, if you wish to see the address pools data,
click the Address Pools link. You will be shown a screen similar to the one shown in Figure 7-31.
Figure 7-31 Monitoring | Statistics | Address Pools
CCSP.book Page 333 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
333
Events
If you want to see what events have occurred since the last reboot, you would click the Events
link. This causes the screen shown in Figure 7-32 to be displayed. This screen lists all of the
events.
Figure 7-32 Monitoring | Statistics | Events Screen
IPSec
One of the most important screens for statistics is the Monitoring | Statistics | IPSec screen. As
seen in Figure 7-33, this screen gives you a wealth of information regarding the IPSec protocol.
This screen is split into two areas: IKE (Phase 1) Statistics and IPSec (Phase 2) Statistics.
The IPSec screen may be the most useful of all the statistics because of the amount the IPSec
protocol is relied on to form connections to your concentrator. Notice that not only are the
successful connections shown, but also items such as Failed Initiated Tunnels and Failed
Inbound Authentications. Because these types of information are shown on this screen, you are
able to quickly troubleshoot connection failures. For example, should you have a problem
connecting from a remote device, watching how the counters on this screen change as
connections are attempted will reveal to you the cause of the failure.
CCSP.book Page 334 Friday, February 28, 2003 3:43 PM
334
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-33 Monitoring | Statistics | IPSec
MIB-II Statistics
The Monitoring | Statistics | MIB-II screen, as seen in Figure 7-34, is used to move further down
the menu structure to an individual MIB statistics screen.
Figure 7-34 Monitoring | Statistics | MIB-II
CCSP.book Page 335 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
335
The MIB-II Statistics submenu system is shown in the following list so that you can familiarize
yourself with the options available:
•
•
•
•
•
•
•
•
•
Interfaces
TCP/UDP
IP
RIP
OSPF
ICMP
ARP Table
Ethernet
SNMP
Notice that the available options here refer to more fundamental aspects of the concentrator than
those available within the Monitoring | Statistics screen. This is important for you to remember
for both the exam and for your daily work. If, for example, you want to see the statistics on an
interface port, you will look in the MIB-II section. However, if you want statistics regarding
load balancing, you will look in the Statistics section. Basically, if you think in terms of the ISO
layers, you will see all the Layer 1, Layer 2, Layer 3, and Layer 4 statistics here. You will also
see your routing protocols and TCP/UDP and SNMP packets here. Virtually everything else is
seen in the Statistics screen.
Interfaces
A common task is to determine whether your interfaces are up. The Interfaces link allows you
to see the state of your interfaces. As shown in Figure 7-35, this screen shows the state of your
interface and the number of packets traversing the interface broken down by unicast, multicast,
and broadcast types.
IP
The IP screen is another critical screen on this submenu (see Figure 7-36). This screen shows
IP packets sent, received, and discarded. You also see items such as fragmentation successes and
failures.
CCSP.book Page 336 Friday, February 28, 2003 3:43 PM
336
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-35 Monitoring | Statistics | MIB-II | Interfaces
Figure 7-36 Monitoring | Statistics | MIB-II | IP
RIP
Figure 7-37 shows the RIP screen. This screen shows you any errors regarding the RIP protocol.
Should you experience issues regarding routes that should be known through RIP, refer to this
screen when troubleshooting.
CCSP.book Page 337 Friday, February 28, 2003 3:43 PM
Monitoring the Cisco VPN 3000 Series Concentrator
337
Figure 7-37 Monitoring | Statistics | MIB-II | RIP
The whole of the Monitoring submenu system is used to find where issues in connectivity and
performance lie. It is important for you to know where you can look to find that information.
Take a few minutes and review Table 7-3 and the submenu lists for statistics and MIB II.
Memorizing the contents of these tables will serve you well in quickly and efficiently
troubleshooting connectivity.
CCSP.book Page 338 Friday, February 28, 2003 3:43 PM
338
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those who are already comfortable with the topics in
this chapter, this summary could help you recall a few details. For those who just read this chapter,
this review should help solidify some key facts. For anyone doing final preparation before the
exam, these tables and figures are a convenient way to review the day before the exam.
Administering the Cisco VPN 3000 Series
Concentrator
Figure 7-38 shows the main screen you will see after logging into the concentrator. This screen
allows you to configure, administer, or monitor the concentrator.
Figure 7-38 Main Screen
Figure 7-39 shows the main administration screen, which you use to navigate between all the
administration options.
CCSP.book Page 339 Friday, February 28, 2003 3:43 PM
Administering the Cisco VPN 3000 Series Concentrator
339
Figure 7-39 Administration Screen
Table 7-4 details the administration menu options.
Table 7-4
Administration Menu System
Menu Option
Level Usage
Administration
1
Main screen for administering the VPN 3000 Concentrator. Enables all
of the Administration submenus.
Administer Sessions 2
Shows all the current sessions. Should you choose, you may filter the
sessions shown by group.
Software Update
2
Enables submenu, allowing you to choose to update either the
concentrator or clients.
Concentrator
3
Is used to update the concentrator to which you are currently
logged on.
Clients
3
Updates all the clients or clients based on groups.
System Reboot
2
Allows you to reboot the system either immediately or at a scheduled
time. This is also the screen used to reboot without using the current
configuration.
Ping
2
Allows you to check connectivity with a remote system by either name
or IP address.
Monitoring Refresh
2
Sets if the screens should automatically refresh and, if so, how often.
continues
CCSP.book Page 340 Friday, February 28, 2003 3:43 PM
340
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Table 7-4
Administration Menu System (Continued)
Menu Option
Level Usage
Access Rights
2
Enables submenu used for setting username/password/rights
combinations, Access-Control lists for configuring the concentrator,
setting session timeouts, and enables the submenu for AAA servers.
Administrators
3
Sets usernames, passwords, and rights.
Access Control List
3
Sets those IP addresses allowed to access the concentrator for
administration and configuration.
Access Settings
3
Sets the session timeouts, limits the number of connections, and allows
for encryption of the configuration file.
AAA Servers
3
Enables the submenu for setting the Authentication Servers.
Authentication
4
Allows the addition, modification, configuration, or deletion of
TACACS+ Servers.
File Management
2
Enables the submenu, allowing for swapping the backup and boot files,
file transfers using TFTP, file uploads using HTTP, and exporting the
configuration to an XML file.
Swap Config File
3
Allows swapping the boot and backup boot files.
TFTP Transfer
3
Allows uploading or downloading via a remote TFTP server.
File Upload
3
Allows uploading a file via HTTP.
XML Export
3
Allows a configuration file to be exported to an XML file.
Certificate Manager
2
Enables the submenu, allowing enrollment and installation of
Certificates.
Enrollment
3
Enrolls Certificates.
Installation
3
Installs Certificates.
Administer Sessions
Figure 7-40 presents the Administration | Administer Sessions screen, which shows the session
statistics for all connected sessions. Filter the sessions by group using the Group pull-down
menu.
CCSP.book Page 341 Friday, February 28, 2003 3:43 PM
Software Update
341
Figure 7-40 Administration | Administer Sessions
Software Update
The Administration | Software Update screen, shown in Figure 7-41, consists of the submenu
options.
Figure 7-41 Administration | Software Update
CCSP.book Page 342 Friday, February 28, 2003 3:43 PM
342
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Concentrator
The Administration | Software Update | Concentrator screen, seen in Figure 7-42, shows the
current version of the software and allows you to upload a new version to the concentrator.
Figure 7-42 Administration | Software Update | Concentrator
Cisco strongly urges that you clear the browser’s cache, temporary files, and history files after
updating.
Clients
The Administration | Software Update | Clients screen, shown in Figure 7-43, is used to update
hardware and software clients when they become connected to the concentrator.
CCSP.book Page 343 Friday, February 28, 2003 3:43 PM
System Reboot
343
Figure 7-43 Administration | Software Update | Clients
System Reboot
The Administration | System Reboot screen, shown in Figure 7-44, allows you to reboot the
system in a controlled manner.
Figure 7-44 Administration | System Reboot
CCSP.book Page 344 Friday, February 28, 2003 3:43 PM
344
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Ping
The Administration | Ping screen, shown in Figure 7-45, is used to test connectivity.
Figure 7-45 Administration | Ping
Monitoring Refresh
The Administration | Monitoring Refresh screen is shown in Figure 7-46. The Enable check box
sets whether the statistics screens should be refreshed. The statistics screens will be refreshed
at the time (in seconds) specified by the refresh period. The default for the refresh period is
30 seconds.
CCSP.book Page 345 Friday, February 28, 2003 3:43 PM
Administrators
345
Figure 7-46 Administration | Monitoring Refresh
Access Rights
The Access Rights screen enables the submenu used for setting username, password and rights
combinations, access control lists for configuring the concentrator, setting session timeouts, and
enables the submenu for AAA servers.
Administrators
The Administration | Access Rights | Administrators screen is used to add those users who are
allowed to access the concentrator’s Configuration, Administration, and Monitoring functions
(see Figure 7-47). Up to five users may be allowed this type of access.
CCSP.book Page 346 Friday, February 28, 2003 3:43 PM
346
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-47 Administration | Access Rights | Administrators
Access Control List
The Administration | Access Rights | Access Control List screen allows for adding, modifying,
and prioritizing access lists (see Figure 7-48). These access lists are used to determine those
IP addresses that may access the concentrator for management functions.
Figure 7-48 Administration | Access Rights | Access Control List
CCSP.book Page 347 Friday, February 28, 2003 3:43 PM
Certificate Manager
347
Access Settings
The Administration | Access Rights | Access Settings screen sets the session idle timeout, sets
the session limit, and enables configuration file encryption.
The Session Idle Timeout is entered in seconds. The maximum allowable time is 1800 seconds.
The default is 600 seconds. The session limit default is 10 sessions. The configuration file may
also be encrypted using the RC4 encryption algorithm.
AAA Servers
The Administration | AAA Servers screen is an entry screen used to navigate to the
authentication screen.
Authentication
The Administration | AAA Servers | Authentication screen is used to add, modify, and test
TACACS+ servers.
Remember that the Cisco VPN 3000 Series Concentrators only use TACACS+ for administrator
authentication. There are no provisions for these concentrators to use RADIUS or TACACS for
the authentication.
File Management
The Administration | File Management screen enables the submenu.
The submenu options are
•
•
•
•
Swap configuration files
TFTP transfers
File uploads
Export to XML
Certificate Manager
The Administration | Certificate Manager screen allows you to
•
•
•
See current certificates
Enroll certificates
Install certificates
CCSP.book Page 348 Friday, February 28, 2003 3:43 PM
348
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Monitoring the Cisco VPN 3000 Series Concentrator
Figure 7-49 shows the Monitoring screen.
Figure 7-49 Monitoring Screen
Table 7-5 describes the Monitoring screen menu options.
Table 7-5
Monitoring Menu System
Menu Option
Level Usage
Monitoring
1
Main screen for monitoring the VPN 3000 Concentrator. Enables all of
the Monitoring submenus.
Routing Table
2
Shows the currently configured routes.
Filterable Event Log 2
Allows you to show events as defined by the debugging options set
within the configuration. These events may be filtered. This screen is
updated periodically based on the setting in the Administration |
Monitoring Refresh screen.
Live Event Log
3
Shows all events for which logging is enabled. These events are not
filterable and show up in real time.
System Status
2
Shows the status and the serial number of the concentrator.
Sessions
2
Allows you to see the statistics for all of the current sessions on the
concentrator. This screen also enables the submenus for monitoring the
sessions by protocol or encryption, as well as the “top ten” list.
Statistics
3
Is similar to the Monitoring | Protocols screen but allows you to choose
the protocol on which to filter the statistics.
CCSP.book Page 349 Friday, February 28, 2003 3:43 PM
Sessions
Table 7-5
349
Monitoring Menu System (Continued)
Menu Option
Level Usage
Encryption
3
Is similar to the Monitoring | Protocols screen, but allows you to
choose the encryption on which to filter the statistics.
Top Ten Lists
3
Enables the submenu that allows you to see the statistics for the 10
most active sessions sorted by total bytes transmitted, total time
connected, or average throughput.
Statistics
2
Enables the submenu for statistics. These statistics are divided into a
great number of submenus.
MIB-II Stats
3
Enables the submenu for those statistics that are reported through the
MIB system.
System Status
The System Status screen is the closest equivalent available on the concentrator to the show
version command on a router. See Figure 7-50.
Figure 7-50 System Status
Sessions
The Sessions screen shows the statistics for the currently connected sessions (see Figure 7-51).
CCSP.book Page 350 Friday, February 28, 2003 3:43 PM
350
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
Figure 7-51 Sessions
Top Ten Lists
The Top Ten Lists screen is shown in Figure 7-52.
Figure 7-52 Top Ten Lists
Figure 7-53 shows the Top Ten Lists Data screen.
CCSP.book Page 351 Friday, February 28, 2003 3:43 PM
Statistics
Figure 7-53 Top Ten Lists | Data
Statistics
Following is a list of the Monitoring | Statistics submenu options:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Accounting
Address Pools
Administrative AAA
Authentication
Bandwidth Management
Compression
DHCP
DNS
Events
Filtering
HTTP
IPSec
L2TP
Load Balancing
NAT
351
CCSP.book Page 352 Friday, February 28, 2003 3:43 PM
352
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
•
•
•
•
•
PPTP
SSH
SSL
Telnet
VRRP
MIB II Statistics
The MIB-II Statistics submenu system is shown in the following list in order for you to
familiarize yourself with the options available:
•
•
•
•
•
•
•
•
•
Interfaces
TCP/UDP
IP
RIP
OSPF
ICMP
ARP Table
Ethernet
SNMP
Basically, if you think in terms of the ISO layers, you will see all of the Layer 1, Layer 2, Layer 3,
and Layer 4 statistics here. You will also see your routing protocols and TCP/UDP and SNMP
packets here. Virtually everything else is seen in the Statistics screen.
CCSP.book Page 353 Friday, February 28, 2003 3:43 PM
Q&A
353
Q&A
As mentioned in Chapter 1, “All About the Cisco Certified Security Professional,” these
questions are more difficult than what you should experience on the CCSP exam. The questions
do not attempt to cover more breadth or depth than the exam; however, the questions are designed
to make sure you know the answer. Rather than allowing you to derive the answer from clues
hidden inside the question itself, your understanding and recall of the subject are challenged.
Questions from the “Do I Know This Already?” quiz from the beginning of the chapter are
repeated here to ensure that you have mastered the chapter’s topic areas. Hopefully, these
questions will help limit the number of exam questions on which you narrow your choices to
two options and guess!
1 What screen is used to set the password for the administrator?
2 You wish to limit HTTP access to the concentrator to hosts on the same subnet as the
inside interface of the concentrator. What is the format of the access control list?
3 What types of AAA servers can the VPN 3000 Series Concentrator use for authenticating
management sessions?
4 What is the upper limit for a management session timeout?
5 What form of encryption may be used on a configuration file?
CCSP.book Page 354 Friday, February 28, 2003 3:43 PM
354
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
6 On what screen can routes be cleared?
7 Where can you see the CPU utilization on a Cisco 3000 Series Concentrator?
8 Where can you troubleshoot an IPSec connection?
9 Where can you troubleshoot TCP/IP connections?
10 Where can you see the number of collisions on an Ethernet interface?
11 What is the major difference between the Monitoring | Statistics and the Monitoring |
Statistics | MIB II sections?
12 You wish to limit the number of concurrent management connections. Where is this done?
CCSP.book Page 355 Friday, February 28, 2003 3:43 PM
Q&A
355
13 You wish to use a AAA server to authenticate management access to the concentrator.
What must you use?
14 What are the differences between the Filterable Event Log screen and the Live Event Log
screen?
15 On what screen can you see if a certificate has been requested but has not yet been
received?
16 What section should you look in if you want to see the number of pings sent and received?
From where on the concentrator do you send a ping?
17 Name two places that you can see the current software version on a concentrator.
18 What are the access control lists as defined in the Administration | Access Rights | Access
Control Lists screen used for?
CCSP.book Page 356 Friday, February 28, 2003 3:43 PM
356
Chapter 7: Monitoring and Administering the VPN 3000 Series Concentrator
19 You find out that your assistant has changed the configuration and saved that new
configuration. However, something was configured incorrectly. None of remote sites or
remote users can connect to the concentrator. What is the quickest way to resolve the
issue?
20 A remote client with a VPN 3002 Hardware Client calls you on the phone saying that he
is unable to connect to your network. He says that he may have incorrectly configured the
preshared key on his end. You have access through HTTP to your concentrator. Where is
the first place you look to see if this is a preshared key issue?
CCSP.book Page 357 Friday, February 28, 2003 3:43 PM
CCSP.book Page 358 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
27 Cisco VPN 3002 Hardware Client remote access with preshared keys
28 Overview of VPN 3002 interactive unit and user authentication feature
29 Configuring VPN 3002 integrated unit authentication feature
30 Configuring VPN 3002 user authentication
31 Monitoring VPN 3002 user statistics
CCSP.book Page 359 Friday, February 28, 2003 3:43 PM
CHAPTER
8
Configuring Cisco 3002 Hardware
Client for Remote Access
This chapter deals with configuring the VPN 3002 Hardware Client for remote access.
These configuration tasks include using preshared keys, setting the VPN 3002 Hardware
Client to use client and LAN Extension modes, and setting up individual authentication.
Chapter 3, “Cisco VPN 3000 Concentrator Series Hardware Overview,” gave a brief
overview of Cisco’s VPN 3002 Hardware Client. From that discussion, you might remember
that the VPN 3002 Hardware Client is a full-featured VPN client designed for a small
office/home office (SOHO) environment, supports a single IPSec tunnel from its public
interface, and can be purchased with an integral 8-port 10/100-Mbps auto-sensing switch.
The private interface supports standard Ethernet and Fast Ethernet and does not require a
VPN software client on connecting user devices such as workstations and printers. That
means that almost any device running any operating system that supports Ethernet can
be used to connect to the VPN 3002 Hardware Client. This permits a small office to use a
mixture of operating systems, such as Windows, MAC, Linux, Solaris, NetWare, or others,
through a common Ethernet interface to transmit across a secure VPN tunnel. The VPN
3002 Hardware Client can support up to 253 concurrent users across the single VPN tunnel.
The VPN 3002 Hardware Client establishes the VPN tunnel with the head-end concentrator
and performs all IPSec functions, relieving attached PCs of that processing load. This
configuration simplifies administrative functions at the remote site because the individual
user workstations do not need to be high-end machines and do not require an IPSec client.
IPSec software or hardware updates need only to be accomplished on the VPN 3002
Hardware Client.
You can configure the VPN 3002 Hardware Client in one of two different operating modes:
Client and Network Extension modes. In Client mode, all the end-user devices connecting
to the VPN 3002 Hardware Client are invisible to the public network because their DHCPacquired IP addresses are converted to a single IP address with Port Address Translation (PAT).
The VPN 3002 Hardware Client acts as a software client when operating in Client mode.
CCSP.book Page 360 Friday, February 28, 2003 3:43 PM
360
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
In Network Extension mode, workstations attached to the VPN 3002 Hardware Client are each
assigned an individual IP address. Network Address Translation (NAT) is not performed on the
data in Network Extension mode. The addressing schemes on both sides of the secure tunnel are
permitted to traverse the tunnel, simulating a connection via a private leased-line. This capability
allows these devices to interact with network resources as though they were connected locally
to those devices. The VPN 3002 Hardware Client acts as a site-to-site device when operating in
Network Extension mode.
The following list is a quick look at some of the other capabilities of this handy device:
•
Point-to-Point Protocol (PPP) over Ethernet (PPPoE) support for use with digital
subscriber line (DSL) connections. This eliminates the need for PPPoE clients on the
attached PCs.
•
Auto-upgrade of the VPN 3002 Hardware Client’s operating system from a central Trivial
File Transfer Protocol (TFTP) server.
•
Supports H.323 communications in Client mode, enabling the use of H.323 applications
such as NetMeeting.
•
•
Integral DHCP server for use in Client mode.
Support for the major encryption, key management, and encryption algorithms used with
IPSec. Protocols such as DES, 3DES, AES, MD5, SHA-1, HMAC with MD5, and HMAC
with SHA-1 are all available on these devices.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies show
retention is significantly increased through writing facts and concepts down, even if you
never look at the information again.
•
Use the diagram in Figure 8-1 to guide you to the next step.
CCSP.book Page 361 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Figure 8-1
361
How To Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not need to answer these
questions now.
This 15-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into six smaller “quizlets,” which correspond to the six major topic headings in this
chapter. Figure 8-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 8-1 to record your scores.
CCSP.book Page 362 Friday, February 28, 2003 3:43 PM
362
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Table 8-1
Score Sheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section Covering These
Questions
Questions
1
Cisco VPN 3002 Hardware Client remote access
with preshared keys
1–3
2
Overview of VPN 3002 interactive unit and user
authentication feature
4–6
3
Configuring VPN 3002 integrated unit
authentication feature
7–9
4
Configuring VPN 3002 user authentication
10–12
5
Monitoring VPN 3002 user statistics
13–15
All questions
Score
1–15
1 What screen is used on the head-end concentrator to demand the use of preshared keys?
2 You need to allow the main office to use PC Anywhere to connect to three separate
machines at the remote office over the VPN. What mode must you use?
3 You are using individual authentication in PAT mode. Your tunnel is established but the
user cannot log in. What is the first item you should examine?
4 What are the disadvantages in a large network (over 100 users) of using individual
authentication with the internal authentication server in a VPN 3005 Concentrator?
CCSP.book Page 363 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
363
5 You are the second user to connect through a VPN 3002 Hardware Client for which
interactive hardware client and individual user authentication have been configured. What
authentication information will you be required to enter?
6 You can use a static configuration for authenticating the VPN 3002 Hardware Client with
the head-end concentrator. Why would you want to use interactive hardware client
authentication?
7 Where is interactive hardware client authentication configured?
8 What authentication method is used for interactive hardware client authentication?
9 What must you configure on the VPN 3002 Hardware Client in order to use interactive
hardware client authentication?
10 The HW Client tab of the Configuration | User Management | Groups | Modify (or Add)
screen is used to configure individual user authentication. What other two attributes for
individual user authentication can you set on this screen?
CCSP.book Page 364 Friday, February 28, 2003 3:43 PM
364
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
11 What is the default session idle timeout when using individual user authentication?
12 When individual user authentication is enabled, what initial screen are you directed to
when you first try to establish a browser connection to an address in the private network
of the head-end concentrator?
13 What VPN 3002 Hardware Client Manager screen can you use to quickly try to connect
to the head-end concentrator?
14 What VPN 3002 Hardware Client Manager screen can you use when you want to view
IKE Phase 1 and IPSec Phase 2 connection statistics?
15 What VPN 3002 Hardware Client Manager screen can you use if you suspect that DNS
problems are interfering with user communications?
CCSP.book Page 365 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
365
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
9 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, the “Q&A” section, and the scenarios at the end of the
chapter.
•
10–11 overall score—Begin with the “Foundation Summary” section, continue with the
“Q&A” section, and then the scenarios. If you are having difficulty with a particular
subject area, read the appropriate section in “Foundation Topics” section.
•
12–15 overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, the “Q&A” section, and then the scenarios. Otherwise,
skip this chapter and go to the next chapter.
CCSP.book Page 366 Friday, February 28, 2003 3:43 PM
366
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Foundation Topics
Configure Preshared Keys
27 Cisco VPN 3002 Hardware Client remote access with preshared keys
31 Monitoring VPN 3002 user statistics
Setting the head-end concentrator and the VPN 3002 Hardware Client to use preshared keys is
easy. Preshared keys must be at least 4 characters and no more than 32 characters in length and
can contain a combination of letters and numbers, but not special characters. Start on the headend concentrator. Navigate to the Configuration | System | Tunneling Protocols | IPSec LANto-LAN | Add screen, as shown in Figure 8-2. (Actually, you will go to either the Modify or the
Add screen depending on whether you are modifying or creating a new connection. Both
screens are identical except for the title.)
On this screen, name the connection to_seattle. Then, choose the interface, set the IP address
of the peer, and choose to use preshared keys. Set the preshared key to mysharedkey. Choose to
use ESP/MD5/HMAC-128 packet authorization and set the encryption to 168-bit 3DES.
On the VPN 3002 Hardware Client, navigate to the Configuration | System | Tunneling
Protocols | IPSec screen, as shown in Figure 8-3. Here, you enter the remote server IP address
and whether to use IPSec over TCP and the port to use. The default is to use IPSec over UDP.
Make sure that the Use Certificate box is not checked, because you will be using preshared keys.
The Certificate Transmission choices do not matter because you are not using certificates. Enter
the group, password for the group, and verify the password. Next, enter the user, user password,
and verify the password. This completes the configuration process.
CCSP.book Page 367 Friday, February 28, 2003 3:43 PM
Configure Preshared Keys
Figure 8-2
Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Add
367
CCSP.book Page 368 Friday, February 28, 2003 3:43 PM
368
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Figure 8-3
Configuration | System | Tunneling Protocols | IPSec
Verify IKE and IPSec Configuration
Now that you have the IPSec tunnel created between the head-end VPN 3000 Series Concentrator
and the VPN 3002 Hardware Client, you need to verify that the tunnel is operating correctly.
The first step you should take is to ping the private interface of the VPN 3000 Series Concentrator
from the VPN 3002 Hardware Client Manager’s Administration | Ping screen. If this is successful,
but you are unable to ping anything else, you might have an internal routing issue. In this case,
make sure that the device you are attempting to ping knows how to reach your private network.
Another tool that you can use to verify that IKE and IPSec are functioning properly can be
found in the VPN 3002 Hardware Client’s Manager. Bring up the manager and proceed to the
Monitoring | Statistics | IPSec screen, shown in Figure 8-4. This screen tells you if you have
active IKE and IPSec tunnels and also provides statistics for these two protocols since the last
time the VPN 3002 Hardware Client was booted up.
The VPN 3002 Hardware Client Manager monitors additional statistics for a variety of protocols.
In addition to providing activity information since the last system was boot up or reset, these
statistics also show active session information for any of these protocols that are currently in
use on the VPN 3002 Hardware Client. If you are troubleshooting a problem, you can watch
the counters for these protocols to help you identify what may be causing the problem. These
additional screens are all found under Monitoring | Statistics, and were discussed in Chapter 7,
“Monitoring and Administering the Cisco VPN 3000 Series Concentrator.”
CCSP.book Page 369 Friday, February 28, 2003 3:43 PM
Configure Preshared Keys
Figure 8-4
369
Monitoring | Statistics | IPSec
Setting debug Levels
One of the tools that you can use when troubleshooting IPSec connections is debug, which can
be implemented on both the VPN 3000 Series Concentrator and the VPN 3002 Hardware Client
by modifying the way these devices handle events. Be careful when implementing debug on
these devices because debug traffic can quickly fill up available memory and consume CPU
cycles. Plan on short duration debug tests unless you are using a Syslog server, and even then
the excess traffic generated could affect your network services. Cisco recommends that you
only use debug under the guidance of a Cisco technical support representative.
If you do have a need to use debug, however, set the severity log to 1–13 on both devices for
the following:
•
•
•
•
IKE—ISAKMP/Oakley (IKE) subsystem
IKEDBG—ISAKMP/Oakley (IKE) debugging
IPSEC—IP Security subsystem
IPSECDBG—IP Security debugging
CCSP.book Page 370 Friday, February 28, 2003 3:43 PM
370
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
These settings are made under the Configuration | System | Events series of screens on the
VPN 3000 Concentrator Series and on the VPN 3002 Hardware Client. You can view the live
event logs or filterable event logs using the Monitor portion of the managers of these devices.
After you have debug enabled, try to reestablish the VPN tunnel and then look at the logs. Here
are a few of the items worth noting:
•
•
•
•
•
•
IKE failures on Phase 1
Incorrect group password
Work group name incorrect
Incorrect username
Incorrect password
Unable to ping with an established tunnel
The following sections describe each of these potential problems in more detail.
IKE Failures on Phase 1
If you are experiencing failures during IKE Phase 1 negotiations, check the following issues:
•
•
•
•
•
Xauth is required, but the proposal does not support Xauth.
Check the priorities of IKE Xauth proposals in the IKE proposal list.
Check the VPN 3002 Hardware Client group.
Check the group on the VPN Concentrator.
Check that all SA proposals are acceptable.
Incorrect Group Password
On the VPN 3002 Hardware Client, you will see an error similar to the following:
Group [192.168.100.1]
Rxed Hash is incorrect:Pre-shared key or Digital Signature mismatch
Work Group Name Incorrect
If the work group name is incorrect, the VPN Concentrator logs show a message similar to the
following:
No Group found 3002group for Pre-shared key peer 192.168.100.1
Incorrect Username
If the username is incorrect, the VPN Concentrator log will show a message similar to the
following:
Authentication rejected: Reason = User was not found
CCSP.book Page 371 Friday, February 28, 2003 3:43 PM
Configure Preshared Keys
371
Incorrect User Password
If the password is incorrect, the VPN Concentrator log will show a message similar to the
following:
Authentication rejected: Reason = Invalid password
Unable to ping with an Established Tunnel
If you have an established tunnel and you are still unable to ping the private interface on the
VPN Concentrator, you could have overlapping Security Associations (SAs) or you could be
incorrectly filtering out the IPSec packets. In the VPN 3002 Hardware Client Manager, go to the
Monitoring | System Status screen and note the Octets Out field. Next, go to the Monitoring |
Statistics | IPSec screen shown in Figure 8-4 and note the Received Bytes counter. Attempt to
ping the VPN Concentrator’s inside interface again and recheck these counters. Based on this
information, you will be able to see which of the two issues is causing the problem.
The first issue might be that there is an overlapping SA configured. An overlapping SA is where
two or more VPN clients have the same network on the private side. For example, you might
have a VPN 3002 Hardware Client with the 192.168.100.0/24 network and a VPN Software
Client with an IP address of 192.168.100.4. If both of these counters are incrementing, this is
the case. If only the Octets Out counter is incrementing on the VPN 3002 Hardware Client, but
the Received Bytes is not, IPSec is being filtered. If UDP is enabled, make sure that the UDP
port chosen, a default value of 10000, is not being blocked. If the VPN 3002 Hardware Client
is behind a PAT device, make sure to enable IPSec through NAT.
Configuring VPN 3002 Hardware Client and LAN Extension Modes
You can configure two different modes for the VPN 3002 Hardware Client to use. Client mode,
also called Port Address Translation (PAT) mode, and LAN Extension mode (also called
Network Extension mode) are useful depending upon what you are attempting to accomplish.
PAT mode, the default, is used to isolate all the clients behind the VPN 3002 Hardware Client
(on the private side) from the corporate network. Enabling PAT mode disables LAN Extension
mode. Disabling PAT mode enables LAN Extension mode. The mechanism used to select either
of the two modes ensures that only one mode is enabled at any given time.
When using PAT mode, IPSec encapsulates all traffic traveling between the private network of
the VPN 3002 Hardware Client to the network behind the IKE peer, usually a central-site VPN
Concentrator. Utilizing NAT, the client’s IP addresses on the private network are translated to
the VPN 3002 Hardware Client’s public interface IP address. Therefore, all traffic from the
private network is seen at the head-end network with a single IP address. Because the VPN 3002
Hardware Client keeps track of the translations without advertising what these translations are,
devices at the head-end cannot directly access the devices on the VPN 3002 Hardware Client’s
CCSP.book Page 372 Friday, February 28, 2003 3:43 PM
372
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
private network with utilities such as ping. However, there is no reason that a device on the VPN
3002 Hardware Client’s private network cannot ping or otherwise connect to a device at the
head-end.
The word client refers to the fact that the IPSec tunnel is not always active. The tunnel becomes
active in one of the following two circumstances:
•
•
When data attempts to travel from the private network (the client) to the head-end
When the administrator purposefully brings up the tunnel by clicking the Connect Now
button on the Monitoring | System Status screen
Configuring PAT is simple. Because enabling or disabling PAT is a traffic policy issue, start on
the Configuration | Policy Management screen, shown in Figure 8-5. This is also the method
used to disable PAT and move into LAN Extension mode. Choose Traffic Management. This
brings you to the Configuration | Policy Management | Traffic Management screen, as shown in
Figure 8-6.
Figure 8-5
Configuration | Policy Management
Figure 8-6
Configuration | Policy Management | Traffic Management
On the Configuration | Policy Management | Traffic Management screen, choose PAT to configure Port Address Translation. This brings you to the Configuration | Policy Management |
Traffic Management | PAT screen, as shown in Figure 8-7. Choose Enable to enable (or
disable) PAT.
CCSP.book Page 373 Friday, February 28, 2003 3:43 PM
Configure Preshared Keys
Figure 8-7
373
Configuration | Policy Management | Traffic Management | PAT
You are brought to the Configuration | Policy Management | Traffic Management | PAT | Enable
screen, as shown in Figure 8-8. On this screen, checking the PAT Enabled box causes PAT to
become enabled, whereas removing the check from the box causes your VPN 3002 Hardware
Client to enter into Network Extension mode.
Figure 8-8
Configuration | Policy Management | Traffic Management | PAT | Enable
By default, a VPN Concentrator allows PAT connections only. If you choose to use Network
Extension mode on the VPN 3002 Hardware Client, ensure that the head-end VPN Concentrator
is configured to allow Network Extension mode. Failure to do so will cause the VPN 3002
Hardware Client to fail to connect. Because the VPN 3002 Hardware Client will attempt to
connect every four seconds and be rejected every time, you will actually launch a minor form
of a denial of service (DoS) attack on your own network.
There are some requirements for using both PAT and Network Extension modes. Table 8-2
outlines the requirements.
Table 8-2
Requirements for PAT and LAN Extension Modes
PAT Mode
Network Extension Mode
The head-end concentrator must be running
version 3.x or later.
The head-end concentrator must be running
version 3.x or later.
You must configure a group, user, and password
on the head-end concentrator.
You must configure a group, user, and password
on the head-end concentrator.
You must enable addresses consistent with the
head-end concentrator. For example, if one side
runs DHCP, the other side must also run DHCP.
A static route or default route to the head-end
concentrator must be configured.
CCSP.book Page 374 Friday, February 28, 2003 3:43 PM
374
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
The Network Extension mode allows the VPN 3002 Hardware Client to present a single
encrypted network over the tunnel to the head-end concentrator. In addition to removing the
checkmark from the PAT Enabled box, the default IP address of the inside interface must also
be changed from 192.168.10.1. Any other IP address will work.
Unlike PAT mode, the devices do not have NAT applied, and are, therefore, directly accessible
from devices at the head-end with utilities such as ping. Only when you have not enabled split
tunneling and are in Network Extension mode can the head-end concentrator send initial data. In
all other circumstances, the VPN 3002 Hardware Client’s network must send the initial data. These
can be crucial considerations when deciding whether to use Network Extension or PAT mode.
In PAT mode, the VPN tunnel is created when data tries to travel to the IKE peer. The tunnel is
dropped after the timeout period expires with no traffic over the tunnel. In Network Extension
mode, the tunnel is always active.
Split Tunneling
Split tunneling is where some traffic becomes encrypted while other traffic does not become
encrypted. Specifically, the traffic headed for any destination other than those within the
network lists is not encrypted while traffic destined for networks within the network lists is
encrypted.
NOTE
Split tunneling creates a potential security issue if the client is not behind a firewall or does not
support its own firewall. Because traffic is allowed outside of the secure VPN tunnel during split
tunneling, that unsecured traffic path could be used to access client systems.
If you are in PAT mode, all devices on the private side have their addresses translated. In LAN
Extension mode, NAT is applied only to those destinations not in the network lists.
Split tunneling is configured at the head-end concentrator. If the group to which the VPN 3002
Hardware Client belongs has split tunneling enabled, then split tunneling will be used. The
following section gives you more information regarding how to set up split tunneling.
CCSP.book Page 375 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
375
Unit and User Authentication for the VPN 3002
Hardware Client
28 Overview of VPN 3002 interactive unit and user authentication feature
29 Configuring VPN 3002 integrated unit authentication feature
30 Configuring VPN 3002 user authentication
When two devices begin negotiations to establish an IPSec VPN connection between them, they
must perform an authentication process during IKE Phase 1. This authentication process is
structured around preshared keys or digital signatures. Additionally, the Cisco VPN 3000 Series
Concentrators and the VPN 3002 Hardware Client require a unique username and password
with the preshared key or digital signature as further security for the setup process. This username and password might be statically configured on the devices or you can choose to setup
interactive hardware client authentication.
With interactive hardware client authentication, when a VPN 3002 Hardware Client tries to set
up an IPSec tunnel with a VPN 3000 Concentrator, the user who initiated the request for VPN
services will be prompted to enter a unique unit username and password. After the VPN 3002
Hardware Client is authenticated with this username and password, other users of the VPN 3002
Hardware Client can use the IPSec tunnel without being prompted for the username and password.
You can choose to use internal authentication or external server authentication when you configure interactive hardware client authentication on the VPN 3000 Concentrator. This interactive process provides an extra layer of security when establishing VPN tunnels.
After the hardware devices have authenticated one another, the individual users must be
authenticated before they will be permitted to access network resources. You can choose to set
up individual user authentication when users enter the network through a VPN 3002 Hardware
Client. With individual user authentication enabled, each user must open a web browser to enter
a valid username and password. You can use the browser in two different ways to utilize this
individual user authentication:
•
Point the browser at a uniform resource locator (URL) on the private network of the headend concentrator. The VPN 3002 Hardware Client will present the interactive individual
user authentication screen requesting the user’s username and password. After authentication is successfully accomplished, the browser will be directed to the original URL.
•
Point the browser at the private interface of the head-end concentrator using the IP address
of that interface. The user will be prompted to enter their username and password and,
once authenticated, can utilize other network applications across the secure VPN tunnel.
CCSP.book Page 376 Friday, February 28, 2003 3:43 PM
376
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Configuring interactive hardware authentication and individual user authentication for users
connecting through a VPN 3002 Hardware Client requires configuration settings on the headend concentrator as well as the VPN 3002 Hardware Client. The head-end concentrator settings
for unit and user authentication are performed on the attributes of the VPN group. The next
section discusses modifying a group on a VPN 3000 Concentrator to support communications
with a VPN 3002 Hardware Client.
Configuring the Head-End VPN Concentrator
Starting on the head-end VPN 3000 Series Concentrator, modify a group. This is done by going
to the Configuration | User Management | Groups | Modify screen and choosing the VPN 3002
Hardware Client group you want to use. The group you use will eventually have individual
users entered into it along with their respective passwords. This brings you to the Identity screen
shown in Figure 8-9. Set the password and choose Internal as the authentication type. Click
Add and select the General tab.
Figure 8-9
Configuration | User Management | Groups | Modify > Identity
On the General tab screen, set the options as shown in Figure 8-10. You can see that most of the
entries for the fields on this screen are inherited from the root group. You will need to make sure
to set your WINS and DNS to entries that make sense on your own network. Also, make sure
that you choose IPSec as the Tunneling Protocol. The only other entry that is modified from the
root group’s settings is the attribute to Allow Alphabetic-Only Passwords. In this case, it is
disabled. Be sure to follow your own organization’s security plan when making entries on these
configuration screens. Click Add and then click the IPSec tab.
CCSP.book Page 377 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
377
Figure 8-10 Configuration | User Management | Groups | Modify > General
Figure 8-11 shows the IPSec tab screen. For this configuration, use ESP-3DES-MD5 for the
IPSec Security Association. 3DES encryption is preferred when your data will be traversing the
Internet. Ensure that the tunnel type is set to Remote Access and that the Mode Configuration
box is checked. In this example, use the internal server. You could have used a RADIUS or other
external server. If you choose to use an external server, you must also ensure that this external
server contains the user’s name and password.
Click Add and choose the Mode Config tab.
CCSP.book Page 378 Friday, February 28, 2003 3:43 PM
378
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Figure 8-11 Configuration | User Management | Groups | Modify > IPSec
The Mode Config tab of previous versions of the VPN Manager has become the Client Config
tab in the most recent release of the VPN Manager. On the Client Config tab screen shown in
Figure 8-12, select the Tunnel Everything radio button. Earlier in this section, you learned that
the VPN 3000 Concentrator is configured to either allow or disallow split tunneling. Use the
Client Config screen to allow or disallow split tunneling. Here you have a few choices, as
follows:
•
Tunnel everything—This means that the VPN 3002 Hardware Client will encrypt all data
to all destinations.
•
Allow the networks in the list to bypass the tunnel—You can select this option to use
the network list to define what is or is not tunneled. Checking the box means that those
networks within the network list do not get tunneled.
•
Only tunnel networks in the list—By selecting this option, you can use the network list
to define where to tunnel your data.
CCSP.book Page 379 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
Figure 8-12 Configuration | User Management | Groups | Modify > Client Config
379
CCSP.book Page 380 Friday, February 28, 2003 3:43 PM
380
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Configuring Unit and User Authentication
Clicking the HW Client tab brings up the screen for configuring both interactive hardware
client authentication and individual user authentication for VPN 3002 Hardware Clients (see
Figure 8-13). Recall that interactive hardware client authentication will prompt the user for
a specific username and password that must be authenticated by the head-end concentrator
before the VPN tunnel will be established. IPSec tunnels are usually only maintained for
specified periods of time. When SA lifetimes expire or tunnel time out values are reached,
the IPSec tunnels are terminated. When a VPN tunnel does not exist between the VPN 3002
Hardware Client and the head-end concentrator, the first user that requires VPN services
through the VPN 3002 Hardware Client will cause the VPN devices to begin establishing the
tunnel. If interactive hardware client authentication has been specified, this initial user will be
required to enter the username and password for hardware authentication.
Individual user authentication forces the users connecting through a VPN 3002 Hardware
Client to use a web browser for initial VPN access in order to authenticate through the headend concentrator. VPN 3002 Hardware Clients can support many users across a single IPSec
tunnel. When individual user authentication is enabled, each user will need to establish their
credentials through a web browser. In the case where both interactive hardware client authentication and individual user authentication are required, the initial user that brings up the VPN
tunnel will need to enter two different username and password combinations: one for the hardware client, and one for themselves.
On the screen shown in Figure 8-13, checking the Require Individual User Authentication
forces the VPN 3002 Hardware Client to prompt the end user for the username and password.
This is also the screen that determines the length of time that a tunnel in PAT mode will remain
active without any data being passed over the connection. The User Idle Timeout box is used to
enter the time in minutes before a connection is dropped for the individual user or the remote
site when using PAT mode.
Note the bottom button, which is labeled Cisco IP Phone Bypass. It is imperative that this box
be checked if you want to use IP Telephony over your tunnels and you have chosen to require
individual user authentication. Failure to check this box will cause the VPN 3002 Hardware
Client to attempt to display a web page on the phone, which will fail anytime a user attempts to
place a call over the tunnel. Click Add.
You have one more task to accomplish on the VPN Concentrator. That task is to set up your
user with a valid name, password, and group assignment. Go to the Configuration | User
Management | Users | Add screen and add a user (see Figure 8-14). Set the username and
password. Ensure that the group is the same as the group that was just modified.
CCSP.book Page 381 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
Figure 8-13 Configuration | User Management | Groups | Modify > HW Client
Figure 8-14 Configuration | User Management | Users | Add
Interactive Hardware Client and Individual User Authentication
After you enable interactive hardware client authentication and/or individual user
authentication, the next step is to test the system. From the private side of the VPN 3002
Hardware Client, open a web browser and point it to either the inside IP address of the
VPN 3002 Hardware Client or to any IP address reachable through the tunnel. You will be
redirected to the VPN 3002 Hardware Client Manager screen.
381
CCSP.book Page 382 Friday, February 28, 2003 3:43 PM
382
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Because you have chosen to use individual authentication, anytime a user wants to access a
remote network, they must first open the browser and log in. If the user attempts to, for example,
ping a remote device through the tunnel without first opening the browser and logging in, the
remote device will never receive the Internet Control Message Protocol (ICMP) packets and the
ping will time out. The user must log in again if the connection for that user has been idle for a
period longer than the timeout period defined for the group.
Click the Connection/Login Status hotlink to go to the Connection/Login Status screen. This
screen is shown in Figure 8-15. This is the screen that the first user sees when interactive
hardware client authentication has been requested. The screen shows that the VPN 3002 is
disconnected. Because of that, the VPN 3002 Hardware Client is unable to determine the status
of the user authentication. Click the Connect Now button to bring up the VPN 3002 Interactive
Authentication screen shown in Figure 8-16.
Figure 8-15 Connection/Login Status Showing Disconnected Status
Figure 8-16 VPN 3002 Interactive Authentication
CCSP.book Page 383 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
383
Enter the unique username and password that has been set up specifically for this hardware
client authentication and click the Connect button. The head-end concentrator will authenticate
the hardware client and the VPN 3002 Hardware Client and the head-end concentrator will now
negotiate and establish the IPSec tunnel. The browser screen will change to that shown in
Figure 8-17. Notice that the VPN 3002 is now connected but that the user is not logged in. Click
the Log In Now button and the system will take you to the Individual User Authentication
screen, as shown in Figure 8-18.
Figure 8-17 Connection/Login Status with User Not Logged In
Figure 8-18 Individual User Authentication
After you enter the username and password in this screen, click the Login button to authenticate
the user through the head-end VPN 3000 Concentrator’s internal user database. The system will
now return a Connection/Login Status screen similar to that shown in Figure 8-19. The VPN
3002 Hardware Client and the user are now both connected.
CCSP.book Page 384 Friday, February 28, 2003 3:43 PM
384
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Figure 8-19 Connection/Login Status
Attempt to ping the inside interface of the head-end concentrator. If you are successful, you
have established a tunnel. If you are able to reach the network directly attached to the head-end
concentrator’s private interface, but are not able to reach anything beyond that network, the
issue is probably related to routing. Make sure that any interior routers know about your IP
addresses and that these addresses are reachable through the head-end concentrator.
Assume for a moment that the tunnel was not established. There are a few places you can check
to determine where the problem resides. Because you are already on the VPN 3002 Hardware
Client side, start there. Click the Connection/Login Status link.
There are three possible reasons why the tunnel was not established, as follows:
•
The VPN Tunnel is connected but the user is not logged in. This is usually related to
incorrect rights for the user or an incorrect username/password combination. An example
of this condition was shown in Figure 8-17.
•
The tunnel might not be connected and the user will not be logged in. This is usually an
issue regarding connectivity between the head-end concentrator and the VPN 3002
Hardware Client. Go to the Monitoring | System Status screen, shown in Figure 8-20,
to check this. You should see that a tunnel is established.
•
The head-end concentrator and the VPN 3002 Hardware Client do not agree on a
parameter. For example, the preshared keys may be different, or one side is expecting a
certificate while the other side is expecting a preshared key. Go back through the
configurations and make sure that everything is set the same on both sides.
You will never see that the user is logged in but the tunnel is not connected unless there is
a hardware error.
CCSP.book Page 385 Friday, February 28, 2003 3:43 PM
Unit and User Authentication for the VPN 3002 Hardware Client
Figure 8-20 Monitoring | System Status
385
CCSP.book Page 386 Friday, February 28, 2003 3:43 PM
386
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those aho are already comfortable with the topics in
this chapter, this summary could help you recall a few details. For those who just read this chapter,
this review should help solidify some key facts. For anyone doing final preparation before the
exam, these tables and figures are a convenient way to review the day before the exam.
Configure Preshared Keys
To configure preshared keys, follow these steps:
Step 1 On the concentrator, go to the Configuration | System | Tunneling Protocols |
IPSec LAN-to-LAN | Modify screen.
Step 2 Set the IP address of the peer.
Step 3 Set the preshared key.
Step 4 On the VPN 3002 Hardware Client, go to the Configuration | System |
Tunneling Protocols | IPSec screen.
Step 5 Make sure that the Use Certificate box is not checked.
Step 6 Enter the group and password.
Step 7 Enter the user, username, and password.
Troubleshooting IPSec
Follow these steps to troubleshoot IPSec:
Step 1 Ping the private interface of the remote concentrator. If you can get there,
IPSec works. If your ping fails, you should proceed to Steps 2 and 3.
Step 2 Set the debug levels for 1–13 on both sides (IKE, IKEDBG, IPSEC,
IPSECDBG).
Step 3 Read and understand the log. It will tell you where the problem lies.
CCSP.book Page 387 Friday, February 28, 2003 3:43 PM
Split Tunnel
387
Client and LAN Extension Modes
Table 8-3 compares Client mode and LAN Extension mode.
Table 8-3
Client Versus LAN Extension Mode
Client (PAT) Mode
LAN Extension Mode
All devices appear at the head-end as one device
with the IP address of the outside interface of the
VPN 3002 Hardware Client.
Each device is seen at the head-end with its
individual IP address.
This is the default on the head-end concentrator.
This must be configured at the head-end and on
the VPN 3002 Hardware Client.
Tunnel is initiated by the administrator or when a
device attempts to connect to the head-end.
Tunnel is always active.
Remote site must send initial data.
When not using split tunnel, head-end may send
initial data.
Table 8-4 describes the requirements for PAT mode and LAN Extension mode.
Table 8-4
Requirements for Client and LAN Extension Modes
Client (PAT) Mode
Network Extension Mode
The head-end concentrator must be running
version 3.x or later.
The head-end concentrator must be running
version 3.x or later.
You must configure a group, user, and password
on the head-end concentrator.
You must configure a group, user, and password
on the head-end concentrator.
You must enable addresses consistent with the
head-end concentrator. For example, if one side
runs DHCP, the other side must also run DHCP.
A static route or default route to the head-end
concentrator must be configured.
Split Tunnel
Remember the following key points about split tunneling:
•
•
•
Configured on the head-end VPN 3000 Series Concentrator.
Permits specific traffic to bypass the VPN tunnel.
Options for split tunneling are
— Tunnel all traffic.
— Tunnel only traffic contained within a specified network list.
— Do not tunnel traffic contained within a specified network list.
CCSP.book Page 388 Friday, February 28, 2003 3:43 PM
388
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Configuring Individual User Authentication on the
VPN 3000 Concentrator
Follow these steps to configure individual user authentication on the VPN 3000 Series
Concentrator:
Step 1 Use the Configuration | User Management | Groups | Modify screen and
choose the appropriate group.
Step 2 Choose the General tab and set the WINS and DNS.
Step 3 Choose the IPSec tab, set the tunnel type to Remote Access, and choose your
authentication type.
Step 4 Click the Mode Config tab and select what to tunnel.
Step 5 Click the HW Client tab and check Require Individual User Authentication.
Step 6 Go to the Configuration | User Management | Users | Modify screen and set
the group, user, and passwords. Repeat for each user.
CCSP.book Page 389 Friday, February 28, 2003 3:43 PM
Chapter Glossary
389
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter.
head-end End point of a broadband network. All stations transmit toward the head-end; the
head-end then transmits toward the destination stations.
LAN Extension mode A mode used on a concentrator that does not rely upon NAT. Each
individual device behind the VPN 3002 Hardware Client retains its IP address when seen at the
head-end network. This is the opposite of PAT mode.
PAT mode A mode used on a concentrator where all the devices behind that concentrator
have their IP addresses translated to the IP address of the outside interface of the VPN 3002
Hardware Client. This is the opposite of LAN Extension mode.
CCSP.book Page 390 Friday, February 28, 2003 3:43 PM
390
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Q&A
As mentioned in Chapter 1, these questions are more difficult than what you should experience
on the CCSP exam. The questions do not attempt to cover more breadth or depth than the exam;
however, the questions are designed to make sure you know the answer. Rather than allowing
you to derive the answer from clues hidden inside the question itself, your understanding and
recall of the subject are challenged. Questions from the “Do I Know This Already?” quiz from
the beginning of the chapter are repeated here to ensure that you have mastered the chapter’s
topic areas. Hopefully, these questions will help limit the number of exam questions on which
you narrow your choices to two options and guess!
1
What screen is used on the head-end concentrator to demand the use of preshared keys?
2 Name five items to check when you are unable to connect a VPN tunnel and you are
receiving IKE failures on Phase 1.
3 You need to allow the main office to use PC Anywhere to connect to three separate
machines at the remote office over the VPN. What mode must you use?
4 You need to have a device behind the head-end concentrator to send data as soon as the
VPN tunnel is established. Which mode should you use? Can you use split tunneling
under these circumstances?
CCSP.book Page 391 Friday, February 28, 2003 3:43 PM
Q&A
391
5 What are the disadvantages in a large network (over 100 users) of using individual
authentication with the internal server?
6 You are using individual authentication in PAT mode. Your tunnel is established but the
user cannot log in. What is the first item you should examine?
7 What screen do you use on the VPN 3002 Hardware Client to configure preshared keys?
8 You appear to be experiencing a DoS attack that is initiating from the IP address assigned
to one of your VPN 3002 Hardware Clients. What is the problem?
9 You need to allow the remote office to use PC Anywhere to connect to three separate
machines at the main office over the VPN. What mode must you use?
10 Some of your remote sites can use split tunneling and others cannot. How is this
controlled?
CCSP.book Page 392 Friday, February 28, 2003 3:43 PM
392
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
11 Your remote site has an ISDN connection to the Internet. You are charged on a per-minute
basis for connecting to the Internet. Which mode should you use?
12 What version of software must be running on the head-end concentrator to use PAT mode?
What version is required for Network Extension mode?
13 You are the second user to connect through a VPN 3002 Hardware Client for which
interactive hardware client and individual user authentication have been configured. What
authentication information will you be required to enter?
14 You can use a static configuration for authenticating the VPN 3002 Hardware Client with
the head-end concentrator. Why would you want to use interactive hardware client
authentication?
15 Where is interactive hardware client authentication configured?
16 What authentication method is used for interactive hardware client authentication?
CCSP.book Page 393 Friday, February 28, 2003 3:43 PM
Q&A
393
17 What must you configure on the VPN 3002 Hardware Client in order to use interactive
hardware client authentication?
18 The HW Client tab of the Configuration | User Management | Groups | Modify (or Add)
screen is used to configure individual user authentication. What other two attributes for
individual user authentication can you set on this screen?
19 What is the default session idle timeout when using individual user authentication?
20 When individual user authentication is enabled, what initial screen are you directed to
when you first try to establish a browser connection to an address in the private network
of the head-end concentrator?
21 What VPN 3002 Hardware Client Manager screen can you use to quickly try to connect
to the head-end concentrator?
22 What VPN 3002 Hardware Client Manager screen can you use when you want to view
IKE Phase 1 and IPSec Phase 2 connection statistics?
CCSP.book Page 394 Friday, February 28, 2003 3:43 PM
394
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
23 What VPN 3002 Hardware Client Manager screen can you use if you suspect that DNS
problems are interfering with user communications?
CCSP.book Page 395 Friday, February 28, 2003 3:43 PM
Scenario 8-1
395
Scenarios
Scenario 8-1
Your task in this scenario is to set up a VPN Concentrator and two VPN 3002 Hardware Clients
as shown in Figure 8-22. Enable communications between the concentrators and the VPN 3002
Hardware Clients.
Figure 8-21 Remote Access VPN Network
IBM Compatible
VPN 3000 Series
Concentrator
Frame Relay
Cloud
3002A
VPN 3002 Hardware Client
IBM Compatible
3002B
VPN 3002 Hardware Client
IBM Compatible
After you enable communications between the devices, you have seven tasks:
Step 1 Set up 3002A to use Client mode. Set the timeout to a low value, such as
5 or 10 minutes.
Step 2 Set up 3002B to use LAN Extension mode.
Step 3 Initiate the tunnels on both networks.
CCSP.book Page 396 Friday, February 28, 2003 3:43 PM
396
Chapter 8: Configuring Cisco 3002 Hardware Client for Remote Access
Step 4 Get a cup of coffee and relax for 10 or 20 minutes.
Step 5 Check the tunnels. Which one is still up? Why?
Step 6 From each remote side, ping a device behind the head-end concentrator. Can
you see the device?
Step 7 From the head-end, ping a device at each remote site. Can you see devices at
each site? Why?
Scenario 8-2
Keep your existing configuration from Scenario 8-1 and complete the following tasks:
Step 1 Break the VPN tunnel on both sites.
Step 2 From the head-end, ping a device at each remote site. Can you see the
devices? Why?
Step 3 Set both sites to use split tunneling.
Step 4 From the head-end, ping a device at each remote site. Can you see the
devices? Why?
Step 5 Set up individual authentication for the 3002B sites. Do not log in.
Step 6 From each remote side, ping a device behind the head-end concentrator.
Can you see the device? Why?
Step 7 Log in at each site and retry Step 6. What are the results?
CCSP.book Page 397 Friday, February 28, 2003 3:43 PM
Scenario 8-2 Answers
397
Scenario Answers
The following answers pertain to the tasks presented in the previous section.
Scenario 8-1 Answers
The PAT (Client mode) tunnel should have dropped because the timeout has expired (assuming
you didn’t drink your coffee too fast). Because the LAN Extension mode always keeps the
tunnel active, this tunnel will not drop.
You should be able to see individual devices at the head-end from each remote site. However,
from the head-end, you should not be able to see any device on the site that is using PAT mode
because the true IP address is hidden.
Scenario 8-2 Answers
From the head-end, you will not be able to see anything at the remotes sites. The remote sites
“bring up” the tunnel, not the head-end site. Split tunneling will not change this behavior. It is
only after the tunnel is established and data flows from the remote site that the head-end can see
anything at the remote sites. The exception to this is when LAN extension mode is enabled and
split tunneling is not enabled.
A user should not be able to see the head-end if individual authentication is enabled and they
have not logged in. If you can see something at the head-end, you are not using individual
authentication. Only after you have logged in will you be able to see any devices at the head-end.
CCSP.book Page 398 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Specialist:
32 Overview of the VPN 3002 Reverse Route Injection feature
33 Configuring the VPN 3002 backup server feature
34 Configuring the VPN 3002 load balancing feature
35 Overview of the VPN 3002 Auto-Update Feature
36 Configuring the VPN 3002 Auto-Update Feature
37 Monitoring VPN 3002 Auto-Update Events
38 Overview of Port Address Translation
39 Configuring IPSec over UDP
40 Configuring IPSec over TCP
CCSP.book Page 399 Friday, February 28, 2003 3:43 PM
CHAPTER
9
Configuring Scalability Features
of the VPN 3002 Hardware Client
A major issue on any network design is planning for the ability of the network to grow as
the needs of the company grow. This chapter deals with some of the issues you will face
when planning and implementing networks using the Cisco VPN 3002 Hardware Client.
By combining hardware and software, the VPN 3002 Hardware Client provides for the
scalability of software while the hardware provides stability and reliability. This combination
makes the VPN 3002 Hardware Client an ideal solution that will fit in environments where
a large number of remote sites exist. The VPN 3002 Hardware Client has the capability
to provide for 56-bit DES encryption or 168-bit 3DES (triple DES) encryption, also known
as IPSec.
Reverse Route Injection, backup servers, load balancing and auto-update are all features
that help you to easily administer large sites with the least amount of intervention. This
chapter discusses these features.
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies
show retention is significantly increased through writing facts and concepts down,
even if you never look at the information again.
•
Use the diagram in Figure 9-1 to guide you to the next step.
CCSP.book Page 400 Friday, February 28, 2003 3:43 PM
400
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Figure 9-1
How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not necessarily need to
answer these questions now.
This 27-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into nine smaller “quizlets,” which correspond to the nine major topic headings in the
chapter. Figure 9-1 outlines suggestions on how to spend your time in this chapter based on your
quiz score. Use Table 9-1 to record your scores.
CCSP.book Page 401 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
Table 9-1
401
Scoresheet for Quiz and Quizlets
Quizlet Number
Foundations Topics Section Covering These
Questions
Question
1
Overview of the VPN 3002 Reverse Route Injection
Feature
1–3
2
Configuring the VPN 3002 Backup Server Feature
4–6
3
Configuring the VPN 3002 Load-Balancing Feature
7–9
4
Overview of the VPN 3002 Auto-Update Feature
10–12
5
Configuring the VPN 3002 Auto-Update Feature
13–15
6
Monitoring VPN 3002 Auto-Update Events
16–18
7
Overview of Port Address Translation (PAT)
19–21
8
Configuring the Cisco VPN 3002 Series
Concentrator for IPSec over UDP
22–24
9
Configuring the Cisco VPN 3002 Series
Concentrator for IPSec over TCP
25–27
Score
1 What are the ramifications an administrator should consider when planning to use Virtual
Router Redundancy Protocol (VRRP) along with Reverse Route Injection (RRI)?
2 You wish to inject a route from the VPN concentrator to the VPN 3002 Hardware Client.
What routing protocol must you use?
3 You wish to use RIPv1 with Reverse Route Injection. Can this be done?
CCSP.book Page 402 Friday, February 28, 2003 3:43 PM
402
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
4 You are using a backup IPSec server because the primary server was down when the initial
tunnel was initiated. The primary server is now up. Will the VPN 3002 Hardware Client
restore a connection to the primary? If so, when?
5 What is the timeout period used when attempting to connect to the primary concentrator
before a connection will be attempted to a secondary concentrator?
6 You tried to connect to your primary concentrator from your VPN 3002 Hardware Client
but were unsuccessful. Your 3002 Hardware Client then attempted to connect to your
backup concentrator without success. When will the VPN 3002 Hardware Client try again?
7 How is load balancing enabled on the VPN 3002 Hardware Client?
8 You have three VPN 3015 Concentrators on the same network. Assuming default priority
settings, which one will be elected to balance the load?
9 What factors are considered for VPN 3000 Concentrator load balancing with VPN 3002
Hardware Clients or remote access VPN Clients?
CCSP.book Page 403 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
403
10 Which debug class or classes should you enable in order to debug an auto-update?
11 What types of clients may use the auto-update feature?
12 When a software update is pending, during the connection process, the concentrator sends
a message indicating the IP address of the TFTP server and the software version to be
downloaded. What type (protocol) is this message?
13 What client type(s) are permissible to be set on the VPN concentrator for upgrading clients
when using the VPN 3002 Hardware Client?
14 On the VPN concentrator, what is the syntax used to specify the TFTP server and the
filename used for updating the client software?
15 You have configured auto-update to occur. Which device, the VPN concentrator or the
VPN 3002 Hardware Client, recognizes that the software must be updated?
CCSP.book Page 404 Friday, February 28, 2003 3:43 PM
404
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
16 How is the VPN 3000 Concentrator configured to notify VPN 3002 Hardware Clients that
a new software upgrade is available?
17 Your VPN 3002 Hardware Client attempts to auto-update. The system appears to “hang”
and eventually times out on the download portion of the process. What are two likely
causes?
18 You have tried to upgrade your VPN 3002 Hardware Client. However, the VPN 3002
Hardware Client keeps trying to upgrade without success. You know that you have
connectivity. You can see in the logs that you have been downloading the file. What is
the problem?
19 Why will some applications not work with either NAT or PAT?
20 Why will PAT cause problems with some applications whereas NAT does not cause these
problems?
21 What are two main differences between NAT and PAT?
CCSP.book Page 405 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
405
22 Why is UDP Transparent IPSec (IPSec over UDP) usable with either NAT or PAT when
IPSec over TCP is not usable over PAT?
23 You are using UDP Transparent IPSec on your VPN 3002 Hardware Client. How are
filters applied to inbound traffic? How are filters applied to outbound traffic?
24 What minimum version does the VPN concentrator have to be running in order to use
UDP NAT Transparent IPSec? What version is required on the VPN 3002 Hardware
Client?
25 What is the default port for IPSec over UDP?
26 When using IPSec over TCP, how are IKE and IPSec protocols handled in relation
to NAT?
27 You are planning on terminating your VPN 3002 Hardware Client’s VPN tunnel on a
Microsoft Proxy Server. Should you use UDP NAT Transparent IPSec (IPSec over UDP)
or IPSec over TCP?
CCSP.book Page 406 Friday, February 28, 2003 3:43 PM
406
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
2 or less overall score—Review the appropriate sections of the “Foundation Topics”
section of this chapter, based on Table 9-1. Then proceed to the “Foundation Summary”
section, the “Q&A” section, and then the scenarios at the end of the chapter.
•
16 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, the “Q&A” section, and the scenarios at the end of the
chapter.
•
17 to 22 overall score—Begin with the “Foundation Summary” section, continue with the
“Q&A” section, and then the scenarios. If you are having difficulty with a particular
subject area, read the appropriate section in “Foundation Topics” section.
•
23 or more overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, then to the “Q&A” section, and then the scenarios.
Otherwise, skip this chapter and go to the next chapter.
CCSP.book Page 407 Friday, February 28, 2003 3:43 PM
VPN 3002 Hardware Client Reverse Route Injection
407
Foundation Topics
VPN 3002 Hardware Client Reverse Route Injection
32 Overview of the VPN 3002 Reverse Route Injection feature
Reverse Route Injection (RRI) is the process by which routes are added to a VPN concentrator
and these routes are then advertised to remote clients, such as the VPN 3002 Hardware Client.
Using either RIP or Open Shortest Path First (OSPF) while in network extension mode, the
VPN 3002 Hardware Client automatically adds hosts on the private network to the VPN concentrator’s routing table for redistribution. It is important to understand that, because the VPN
3002 Hardware Client is considered a client, it cannot advertise RRI, but it can inject network
extensible routes back to the concentrator. The only device that can advertise RRI is the VPN
concentrator.
There is no configuration requirement, other than being in Network Extension mode (NEM),
on the VPN 3002 Hardware Client for RRI to occur. Therefore, this section will cover the
configurations necessary on the VPN concentrator.
RRI will work only with RIP and OSPF. Using Virtual Routing Redundancy Protocol (VRRP)
with RRI will probably cause routing loops because both the primary and the backup servers
will advertise the same routes.
Setting Up the VPN Concentrator Using RIPv2
In order for the VPN concentrator to advertise the routes learned through RRI, there must be at
least outbound RIP (version 2) configured on the private interface. When using Autodiscovery, both
inbound and outbound RIP will need to be configured. This is done through the Configuration
| Interfaces screen (see Figure 9-2). Note that client RRI can be used by all VPN devices connected to the VPN concentrator.
CCSP.book Page 408 Friday, February 28, 2003 3:43 PM
408
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Figure 9-2
Enabling RIP
Setting Up the VPN Concentrator Using OSPF
If you choose to use OSPF instead of RIP, go to the Configuration | System | IP Routing | OSPF
screen (see Figure 9-3). There, you enable OSPF, place in the router ID or IP address, and
specify if this is an Autonomous System Boundary Router (ASBR). The OSPF process on the
VPN concentrator must be defined as an autonomous system. Specifying an ASBR when the
router is not an ASBR or vice versa will generate unexpected results.
Figure 9-3
Configuration | System | IP Routing | OSPF
CCSP.book Page 409 Friday, February 28, 2003 3:43 PM
VPN 3002 Hardware Client Reverse Route Injection
409
Configuring VPN 3002 Hardware Client Reverse Route Injection
RRI can be configured in one of the following four ways:
•
LAN-to-LAN remote network definitions are the injected routes as either a single network
or a network list.
•
The VPN 3002 Hardware Client connects using Network Extension mode, injecting its
protected network address.
•
•
VPN software clients inject their own IP address as host routes (Client RRI).
RRI provides a hold-down route for the VPN client pool.
In addition to the preceding four options, the following sections also discuss configuring LANto-LAN with Autodiscovery.
Configuring LAN-to-LAN Network RRI
After navigating to the Configuration | System | Tunneling Protocols | IPSec | LAN-to-LAN |
Modify screen on the VPN concentrator, which is shown in Figure 9-4, configure RRI by
following these steps:
Step 1 Fill in the name, interface, and peer.
Step 2 Choose the type of digital certificate.
Step 3 Enter the pre-shared key.
Step 4 Choose the authentication type, encryption, and IKE proposal.
Step 5 Choose Reverse Route Injection in the routing field. The VPN concentrator
will advertise the learned routes to the interior routers.
This process is necessary to establish RRI on the VPN concentrator. Remember that RRI will
only work with RIP or OSPF. When RIP is used, the remote network can only advertise routes
to the VPN concentrator. Only when using OSPF can the VPN concentrator advertise routes to the
VPN 3002 Hardware Client.
Configuring LAN-to-LAN with Autodiscovery
The only configuration change necessary to enable Autodiscovery is made through the
Configuration | System | Tunneling Protocols | IPSec | LAN-to-LAN | Modify screen. Here,
you choose Autodiscovery instead of Network Lists. Remember that RIP is the only protocol
available for use with Autodiscovery.
CCSP.book Page 410 Friday, February 28, 2003 3:43 PM
410
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Figure 9-4
Configuration | System | Tunneling Protocols | IPSec | LAN-to-LAN | Modify
Configuring Network Extension Mode RRI
The Network Extension mode RRI is configured on the Configuration | System | IP Routing |
Reverse Route Injection screen (see Figure 9-5). Select the Network Extension Reverse Route
Injection check box to add the RRI.
Figure 9-5
Configuration | System | IP Routing | Reverse Route Injection
Configuring Client RRI
Client RRI, where the client injects its routes into the VPN concentrator, is configured through
the Configuration | System | IP Routing | Reverse Route Injection screen on the VPN concentrator (see Figure 9-6). Select the Client Reverse Route Injection checkbox to enable this
feature.
CCSP.book Page 411 Friday, February 28, 2003 3:43 PM
VPN 3002 Hardware Client Reverse Route Injection
Figure 9-6
411
Configuration | System | IP Routing | Reverse Route Injection
Configuring Hold-Down Routes
Hold-down routes are used to make remote VPN connections appear as if they were active
even when there is no VPN tunnel active. This way, the stability and speed of network topology
calculations by the routing protocols is enhanced. Since the networks appear to be available
at all times, the routing protocols do not have to recalculate the topology every time a VPN
connection is established or dropped.
Hold-down routes are entered on the Configuration | System | IP Routing | Reverse Route
Injection screen in the Address Pool Hold-Down Routes box on the VPN concentrator (see
Figure 9-7). Double-click on an empty line on the box and enter the IP address/Subnet mask
combination. Note that a backslash (/) should be used between the IP address and the subnet
mask and that the subnet mask must be entered in standard octet notation.
Figure 9-7
Address Pool Hold-Down Routes
CCSP.book Page 412 Friday, February 28, 2003 3:43 PM
412
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
VPN 3002 Hardware Client Backup Servers
33 Configuring the VPN 3002 backup server feature
Backup servers allow VPN 3002 Hardware Clients to connect to an alternative site when the
primary site fails. You can configure backup servers either on a group basis at the central VPN
concentrator or on an individual basis on the VPN 3002 Hardware Client. Configuration done
on a group basis is pushed to the individual VPN 3002 Hardware Clients defined in the relevant
group.
As an example, suppose that a company has two main offices and that each one has a VPN 3030
Concentrator. The IP address of the concentrator at the primary office is 161.44.246.15 and
the IP address of the remote concentrator is 192.156.10.1, as shown in the configuration of
a VPN 3002 Hardware Client’s remote and backup servers in Figure 9-8. In the event that
the VPN 3002 Hardware Client is unable to connect to 161.44.246.15, it will next attempt to
connect to the concentrator at 192.156.10.1.
Figure 9-8
The Configuration | System | Tunneling Protocols | IPSec screen
If the initial Internet Key Exchange (IKE) packet to 161.44.246.15 is not responded to within
8 seconds, the connection is considered to have timed out. The 8-second timeout period is a
default parameter that is not configurable. The VPN 3002 Hardware Client will attempt to
CCSP.book Page 413 Friday, February 28, 2003 3:43 PM
VPN 3002 Hardware Client Backup Servers
413
connect to the next server defined, in this case, Boston. If there are other servers on the list, the
next server will be tried after 8 seconds without a connection. Up to 10 backup servers may be
listed in the backup server list, each being tried in turn. If all of the servers are tried unsuccessfully, the attempts to connect are stopped without automatically retrying the list.
There are nine items you need to remember regarding backup servers:
•
A backup server list can only be downloaded from a primary VPN concentrator, never
from a backup.
•
If the primary VPN concentrator is unavailable, a backup concentrator will be contacted
ONLY if a backup list is already configured.
•
The VPN 3002 Hardware Client will be unaware of changes made to servers unless that
VPN 3002 Hardware Client is connected to the primary VPN concentrator.
•
On the VPN 3002 Hardware Client, the backup servers are set on the Configuration |
System | Tunneling Protocols | IPSec screen, which only applies if Use Client Configured
List is set. The Configuration | System | Tunneling Protocols | IPSec screen is shown in
Figure 9-8.
•
On the VPN concentrator, the configuration of the backup servers is done through the Configuration | User Management | Base Group | Mode Configuration or the Configuration | User
Management | Groups | Mode Configuration screens. An example of the Configuration |
User Management | Base Group | Mode Config screen is shown in Figure 9-9.
•
The group name, username, and password must be identical on the primary and backup
servers.
•
In Network Extension Mode, the VPN 3002 Hardware Client will attempt to connect to a
backup server after the default of 4 seconds.
•
In Client mode, the VPN 3002 Hardware Client only attempts a connection when the user
clicks the Connect Now button on the Monitoring | System Status screen or when data
passes through the VPN 3002 Hardware Client.
•
VPN 3002 Hardware Clients have no knowledge of each other, only of the primary and
backup servers.
CCSP.book Page 414 Friday, February 28, 2003 3:43 PM
414
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Figure 9-9
Configuration | User Management | Base Group | Mode Config
VPN 3002 Hardware Client Load Balancing
34 Configuring the VPN 3002 load balancing feature
The devices in the VPN 3000 Concentrator series have the ability to load balance connections
from remote clients or VPN 3002 Hardware Clients. VPN 3002 Hardware Clients do not
actually perform the load balancing function; they are merely beneficiaries of the results.
Load balancing and Virtual Router Redundancy Protocol (VRRP) cannot be used at the same
time with the same concentrators. With VRRP, the backup device stays in an idle state until it
is required to become active to assume the duties of the primary device. With load balancing,
all of the devices in the virtual load balancing cluster are active.
Load balancing can occur between two or more VPN concentrators that are located on the same
network to process remote access VPN connections. Load balancing only works with Cisco
VPN Clients running version 3.0 or later, and with Cisco VPN 3002 Hardware Clients running
version 3.5 or later. Other clients and LAN-to-LAN devices can still establish VPN connections
to VPN concentrators participating in load balancing, but these clients and devices will not
participate in load balancing by being directed away from their primary device.
CCSP.book Page 415 Friday, February 28, 2003 3:43 PM
VPN 3002 Hardware Client Load Balancing
415
In Cisco’s implementation of load balancing on the VPN concentrators, the concentrators form
a virtual load-balancing cluster with one of the devices acting as the virtual cluster master. The
cluster is assigned a virtual IP address that is the peer address configured on software and
hardware clients. When these clients attempt to connect to the cluster’s address, the master
concentrator intercepts the request, determines which concentrator in the cluster (including the
master concentrator itself) is the least heavily loaded, and returns the physical IP address of that
concentrator to the client. The client then takes the newly acquired IP address and reinitiates
IKE negotiations with that concentrator. This process permits VPN activity to be distributed
among the concentrators in the cluster.
The task of being the virtual cluster master is not tied to any specific concentrator. An election
process based on a priority setting and time since last reboot occurs to determine which
concentrator will be the master for the cluster. Each VPN concentrator model has a specific
priority that can be overridden on the Configuration | System | Load Balancing screen. The
device with the highest priority (the range is 0 to 10) becomes the virtual cluster master. In the
case of a tie, the device that comes on line first acts as the master. The factory assigned priority
settings are as follows:
•
•
•
•
•
VPN 3005 Concentrator—Priority 1
VPN 3015 Concentrator—Priority 3
VPN 3030 Concentrator—Priority 5
VPN 3060 Concentrator—Priority 7
VPN 3080 Concentrator—Priority 9
There is some overhead involved with being the virtual cluster master, so the most capable
device should take that responsibility. If the virtual cluster master should fail for any reason, the
election process will occur among the remaining cluster participants to elect a new virtual
cluster master. Any clients that were connected to the failed device will renegotiate their VPN
tunnel by once again contacting the virtual IP address of the cluster.
Because the VPN 3002 Hardware Client series is a beneficiary of VPN concentrator load
balancing, there is really nothing to configure on those devices except for using the virtual IP
address of the cluster as the address of the peer. All of the configuration steps necessary for load
balancing are done on the VPN concentrator using the Configuration | System | Load Balancing
screen of the VPN 3000 Concentrator Series Manager. The fields on that screen are
•
Cluster Configuration—This section is used to define the common elements of the loadbalancing cluster. All of the devices in the cluster must have identical settings in this
section and must all be on the same public and private IP networks.
— VPN Virtual Cluster IP Address—A single IP address from the public subnet
that will be used to represent the load-balancing cluster to potential clients.
— VPN Virtual Cluster UDP Port—The default UDP port used for load
balancing is 9023, but you can choose another port for the cluster if 9023 is
in use by another application.
CCSP.book Page 416 Friday, February 28, 2003 3:43 PM
416
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
— Encryption—Virtual cluster communications are handled over LAN-to-LAN
tunnels between VPN concentrators in the virtual cluster. Checking the
encryption field forces that communication to be encrypted. The default setting
is to have encryption enabled.
— IPSec Shared Secret—When you have selected to use encryption in the
previous field, you will need to enter a password in this field that will be
used as the preshared key when the cluster concentrators establish IPSec
communication tunnels with their cluster peers.
— Verify Shared Secret—Re-enter the password in this field for verification of
the entry.
•
Device Configuration—This section is used to define device-specific parameters for
VPN concentrators participating in load-balancing virtual clusters.
— Load Balancing Enable—This VPN concentrator will not participate in load
balancing unless this field is checked. The default setting for this field is
unchecked, disabling load balancing.
— Priority—This field is used to set the priority of the device. Election of the
virtual cluster master uses this field as one of the determining factors in the
election process. The default setting here is specific to the VPN concentrator
model and was described in an earlier list within this section. The value can be
a number from 1 to 10. The higher the value, the more likely the chance that the
device will be selected as the virtual cluster master. When all the concentrators in
the cluster are of the same model, set the priority to 10 on all of them to shorten
the election process.
— NAT Assigned IP Address—The default setting for this field is 0.0.0.0, which
indicates that the concentrator is not using NAT. Enter the NAT IP address here
if the concentrator is protected by a firewall using NAT.
When a client attempts to connect to a load-sharing cluster, it will use the IPSec group settings
to negotiate and establish the working VPN tunnel. Different clients might use different IPSec
groups in order to provide different classes of service. Each VPN concentrator in the virtual
load-balancing cluster must have a matching group for any potential client, and the settings for
the group must be identical on every VPN concentrator in the cluster.
Overview of Port Address Translation
38 Overview of Port Address Translation
In order to understand the issues involved when using Port Address Translation (PAT), you first
need to understand how Network Address Translation (NAT) works. NAT is the process of
changing the source IP address on all packets sent out by a host and changing the destination
CCSP.book Page 417 Friday, February 28, 2003 3:43 PM
Overview of Port Address Translation
417
IP address of all incoming packets for that host. This prevents hosts outside of the LAN from
knowing the true IP address of a local host. While not a true security method in itself, NAT may
help security efforts through hiding the true IP address of the client. NAT may be configured in
two differing ways. When NAT uses a specific global IP address for a given host, this is referred
to as a static NAT. The other method of configuring NAT is to use a pool of IP addresses for all
local hosts. Local hosts are assigned a global IP address on a first-come–first-served basis. The
IP address of a specific local host will receive changes based on the availability of global IP
addresses.
During the NAT process for a packet traveling outbound through the NAT device, the source IP
within the IP packet is replaced with a global IP address. The NAT device tracks the inside
IP address that is associated with the global IP address. For a packet traveling inbound through
the NAT device, the destination address is replaced with the locally known IP address.
PAT is a form of NAT. When PAT is employed, not only does the source or destination address
of an IP packet change, but the TCP or UDP source port is also changed. This way, the PAT
device can allow multiple local devices to appear as a single global IP device with the differing
source ports providing the unique identification necessary to translate the incoming packets to
their respective local IP addresses. In essence, a NAT translation is a one-to-one translation of
the IP address, where a PAT translation is a one-to-many translation of the IP address using the
port to differentiate between the connections.
The first issue raised when using PAT is that some older programs will not work because the
ports are translated. This is especially true when dealing with some Microsoft DOS programs.
This can usually be overcome by upgrading the operating system and/or programs affected.
The second, and more severe issue is that traditional IPSec, discussed in the next section, relies
heavily on the ports in use. As in some older DOS programs, IPSec will not work when combined with PAT. Cisco has come up with a solution when using the VPN 3002 Hardware Client
that allows IPSec to run through a PAT connection. Cisco’s solution is to use either IPSec over
TCP/IP or UDP NAT Transparent IPSec. Both will be discussed shortly.
You usually have fewer global IP addresses that you can use than you have local hosts. The most
common way of dealing with this is to assign static global addresses to those hosts that need to
be reached from the Internet at a known IP address. Next, local hosts are assigned IP addresses
from the global pool on a first-come–first-served basis. After all but one of the allotted global
addresses have been assigned, you use PAT with the final global address for all the remaining
local hosts.
CCSP.book Page 418 Friday, February 28, 2003 3:43 PM
418
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
IPSec on the VPN 3002 Hardware Client
39 Configuring IPSec over UDP
40 Configuring IPSec over TCP
Internet Protocol Security (IPSec) is the standard that enables the VPN 3002 Hardware Client
to connect securely to the centralized VPN concentrator. IPSec security methods include
address data privacy, authentication, integrity, key management, and tunneling.
With the VPN 3002 Hardware Client, two IPSec options are available to you: IPSec over
TCP/IP and IPSec over UDP. You may choose one of these, which will automatically disable
the other option. The next sections describe both options in more detail.
IPSec Over TCP/IP
The Cisco VPN Client and the Cisco VPN 3002 Hardware Client both fully support IPSec over
TCP, encapsulating the encrypted data within the TCP packet. In this mode, the VPN 3002
Hardware Client is able to work where standard Encapsulating Security Payload (ESP)
(protocol 50) or Internet Key Exchange (IKE) (UDP 500) cannot operate because of factors
such as PAT. IPSec over TCP encapsulates both the IKE and IPSec protocols within the TCP
packet, enabling the new packet to pass through NAT and PAT devices. This feature, however,
will not work if the VPN termination on the other end is proxy based, such as in Microsoft
Proxy Server.
There are three requirements for both the VPN concentrator and the VPN 3002 Hardware Client
when using IPSec over TCP:
•
•
•
Run version 3.5 or later software.
IPSec over TCP must be enabled.
The VPN concentrator and the VPN 3002 Hardware Client must use the same port.
To enable IPSec over TCP/IP, you must make configuration changes on both the VPN
concentrator and the VPN 3002 Hardware Client. IPSec over TCP/IP is configured on the
VPN 3002 Hardware Client under the Configuration | System | Tunneling Protocols | IPSec
screen. On the VPN concentrator, configuration settings for IPSec over TCP/IP are made on the
Configuration | System | Tunneling Protocols | IPSec | IPSec over TCP screen, as shown in
Figure 9-10.
CCSP.book Page 419 Friday, February 28, 2003 3:43 PM
IPSec on the VPN 3002 Hardware Client
419
Figure 9-10 Configuration | System | Tunneling Protocols | IPSec | IPSec over TCP
On either hardware client or concentrator, you simply check the box to enable IPSec over TCP
and then select the TCP port to use between the devices. The default port is 10,000, but you can
select any port between 1 and 65,635. If you select a well-known port, such as 80 for HTTP, the
system will present a warning telling you that the protocol associated with the well-known port
number will no longer be available on the public interface. On the VPN concentrator, you can
enter up to 10 ports, separated by commas, so that you can use a different port for each hardware
client that connects to the concentrator. The configuration screen for the VPN 3002 Hardware
Client only permits you to enter one TCP port number.
UDP NAT Transparent IPSec (IPSec Over UDP)
The VPN 3002 Hardware Client fully supports User Datagram Protocol Network Address
Translation Transparent IPSec (UDP NAT Transparent IPSec). In this mode, the VPN 3002
Hardware Client encapsulates the data traffic within new UDP packets, bypassing the effects of
NAT and PAT. This method sends keepalives on a regular basis to ensure the NAT mappings
remain active. While this method does slightly increase the amount of bandwidth overhead, it
is necessary because UDP is a connectionless protocol. There is a limitation on using UDP NAT
Transparent IPSec; only a single VPN device may be behind the NAT device. In other words,
you may have only a single VPN 3002 Hardware Client behind a PIX firewall.
Some of the workings of IPSec transparent mode are not readily visible to the administrator.
For example, the VPN concentrator creates a filter rule, applying it to the public filter and passes
this along to the VPN 3002 Hardware Client transparently. From the inbound side, the UDP
traffic goes directly to the IPSec processing for decryption and deencapsulation before being
routed. On the outbound side, the IPSec process encrypts, encapsulates, and then adds a new
UDP header if required. These rules may be removed from the filter under one of three
conditions:
•
•
•
When a group is deleted
When the last active IPSec over UDP Security Association (SA) for that group is deleted
When IPSec over UDP is disabled for the group
CCSP.book Page 420 Friday, February 28, 2003 3:43 PM
420
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
UDP NAT Transparent IPSec, which disables IPSec over UDP, is the default configuration for
the VPN 3002 Hardware Client, so no configuration is necessary. However, there are three
requirements for running UDP NAT Transparent IPSec:
•
•
•
Run version 3.0.3 or later software.
The concentrator and the VPN 3002 Hardware Client must use the same port.
You must configure IPSec over UDP for the group on the VPN concentrator through the
Configuration | User Management | Groups | Modify screen, as shown in Figure 9-11.
Clicking the IPSec over UDP box causes the VPN concentrator to expect IPSec over
UDP (UDP NAT Transparent IPSec) instead of IPSec over TCP. The administrator may
optionally change the default port of 10,000. Allowable port numbers for IPSec over UDP
configurations are 4001 through 49,151. Be sure that IPSec over TCP has been disabled
on the VPN 3002 Hardware Client’s Configuration | System | Tunneling Protocols | IPSec
screen.
Figure 9-11 Configuration | User Management | Groups | Modify
Troubleshooting a VPN 3002 Hardware Client IPSec Connection
Testing the IPSec tunnel is fairly easy. The first step is to ping the private interface of the VPN
concentrator from the Administration | Ping screen. If this is successful, but you are unable to
ping anything else, the issue is internal routing. In this case, make sure that the device you are
attempting to ping knows how to reach your private network. In other words, if you are not able
to ping the inside interface of the VPN concentrator, the issue is probably within IPSec.
CCSP.book Page 421 Friday, February 28, 2003 3:43 PM
IPSec on the VPN 3002 Hardware Client
421
Setting Debug Levels
The next action to be accomplished in debugging IPSec is to turn on debugging on both the
VPN concentrator and the VPN 3002 Hardware Client. Set the severity log to 1-13 on both
devices for the following:
•
•
•
•
NOTE
IKE
IKEDBG
IPSEC
IPSECDBG
The debugging levels may be set starting with Level 1-1 (Severe Error) through any of the levels
up to Level 1-13 (Debugging Information). As with any Cisco logging, higher logging numbers
give more detail than lower logging numbers. The reason you choose to log debugging
information (Level 1–13) is that this level shows the most information available.
Try to reestablish the VPN tunnel and then look at the logs. Here are a few of the items worth
noting:
•
•
•
•
•
•
IKE failures on Phase 1
Incorrect password
Incorrect work name
Incorrect username
Incorrect password on the concentrator
Unable to ping with an established tunnel
The following sections elaborate on each of these points.
Errors on Phase 1
If you are experiencing failures during Phase 1, check these issues:
•
•
•
•
•
XAUTH is required, but the proposal does not support XAUTH
The priorities of IKE XAUTH proposals in the IKE proposal list
The IPSec group
The group on the VPN concentrator
All SA proposals are acceptable
CCSP.book Page 422 Friday, February 28, 2003 3:43 PM
422
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Identifying an Incorrect Password at the VPN 3002 Hardware Client
On the VPN 3002 Hardware Client, you will see an error similar to the following if the
password is incorrect:
Group [192.168.100.1]
Rxed Hash is incorrect:Preshared key or Digital Signature mismatch
Identifying an Incorrect Work Group Name
If the work group name is incorrect, the VPN concentrator logs will show a message similar to
the following:
No Group found 3002group for Preshared key peer 192.168.100.1
Identifying an Incorrect Username
If the username given by the client is incorrect, the VPN concentrator log will show a message
similar to the following:
Authentication rejected: Reason = User was not found
Incorrect Password on the Concentrator
If the password is incorrect, the VPN concentrator log will show a message similar to the
following:
Authentication rejected: Reason = Invalid password
Unable to Ping with an Established Tunnel
If you have an established tunnel and you are still unable to ping the private interface on the
VPN concentrator, there are two possibilities: overlapping SA or IPSec filtering. In the VPN
3002 Hardware Client, go to the Monitoring | System Status screen and note the Octets Out
field. Next, go to the Monitoring | Sessions screen and note the Bytes Receiving counter. Attempt
to ping the VPN concentrator’s inside interface again and recheck these counters. Based on this
information, you will be able to see which of two issues is causing the problem.
The first issue may be that there is an overlapping SA configured. An overlapping SA is where
two or more VPN clients have the same network on the private side. For example, you may have
a VPN 3002 Hardware Client with the 192.168.100.0/24 network and a VPN Software Client
with an IP address of 192.168.100.4. If both of these counters are incrementing, this is the case.
If only the Octets Out counter is incrementing on the VPN 3002 Hardware Client, but the Bytes
Received is not, then IPSec is being filtered. If UDP is enabled, make sure that the UDP port
chosen, a default value of 10,000, is not being blocked. If the VPN 3002 Hardware Client is
behind a PAT device, make sure to enable IPSec through NAT.
CCSP.book Page 423 Friday, February 28, 2003 3:43 PM
Configuring Auto-Update for the VPN 3002 Hardware Client
423
Configuring Auto-Update for the VPN 3002
Hardware Client
35 Overview of the VPN 3002 Auto-Update Feature
36 Configuring the VPN 3002 Auto-Update Feature
Auto-update is a process by which the VPN concentrator requires that the connecting clients
use a specific version of software. A client attempting to connect to the VPN concentrator with
an incorrect software version will be denied access until after the software version becomes
current. The VPN concentrator provides VPN Client users a link to the download server where
the software can be obtained. Once the clients have the correct software version, they may once
again connect in a normal fashion.
The VPN 3002 Hardware Client software can be upgraded automatically once the administrator
copies the new version of the operating system to a TFTP server. The head-end VPN concentrator notifies the hardware client of the upgrade availability. Once the secure VPN tunnel has
been established, the VPN 3002 Hardware Client copies the upgrade from the TFTP server and
then performs a reload to activate the new version. This means that the administrator only needs
to make changes at the head-end VPN concentrator instead of manually upgrading each individual VPN 3002 Hardware Client from the graphical user interface (GUI). This is especially
efficient on large installations.
NOTE
The VPN 3000 Concentrator series client auto-update feature works only with the Windowsbased VPN Client or with the VPN 3002 Hardware Client, not with any of the other VPN
Clients, such as Linux or Macintosh.
The VPN 3002 Hardware Client is sent ISAKMP messages when it connects to the head-end
concentrator, delivering notification that a software upgrade is pending. These ISAKMP
messages contain the IP address of a TFTP server and filename to download, and they are sent
in batches of 10 identical ISAKMP messages every 5 minutes. The VPN concentrator continues
to send these messages until upgrade notification is disabled on the concentrator. VPN 3002
Hardware Clients that are already operating at the correct version level ignore the update
messages.
VPN 3002 Hardware Clients store software images in two different locations, backup storage
and active storage. During initial bootup, the hardware client copies the software image from
backup storage into active storage. When the VPN 3002 Hardware Client copies the upgrade
file from the TFTP server, it stores the file in backup storage. The update process then performs
CCSP.book Page 424 Friday, February 28, 2003 3:43 PM
424
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
an integrity check of the copied file. If the file is damaged, the update process retries the file
copy, performing this copy and check activity up to 20 times at 3-minute intervals until a good
copy is received or the count of 20 is reached. Once a good file has been received, the update
process issues a reload command to reboot the VPN 3002 Hardware Client and activate the
new release.
VPN activities are not disturbed during the notification and download process. They are disrupted during the reboot, however, so the VPN tunnel to the head-end concentrator will need to
be reestablished once the VPN 3002 Hardware Client as rebooted.
Setting up the head-end VPN 3000 Series Concentrator for automatically updating the VPN
3002 Hardware Client is accomplished through the VPN 3000 Concentrator Series Manager.
The five steps follow:
Step 1 Navigate to the Configuration | User Management | Groups screen and select
the group. Figure 9-12 shows that TCL Group (Internally Configured) was
chosen.
Step 2 Choose Modify Client Update.
Step 3 Choose Add from the Client Update screen to add a new client package.
Step 4 On the next screen, enter vpn3002 as the client type, enter tftp://{IP address
of server}/{filename} as the URL, and enter the revision number (see
Figure 9-13).
Step 5 Select Add to finish the setup at the head-end concentrator.
Figure 9-12 Configuration | User Management | Groups
CCSP.book Page 425 Friday, February 28, 2003 3:43 PM
Configuring Auto-Update for the VPN 3002 Hardware Client
425
Figure 9-13 Modifying Client Update Information
The Client Type has specific acceptable options and is case sensitive. The following list shows
the available options:
•
•
Windows—Provides update service to all Windows-based clients.
•
WinNT—Provides update service to Windows NT, Windows 2000, and Windows XP
clients.
•
vpn3002—Provides update service to VPN 3002 Hardware Clients.
Win9X—Provides update service to all Windows 95, Windows 98, and Windows ME
clients.
The TFTP server must be located within the private network of the head-end VPN concentrator.
The VPN 3002 Hardware Client reaches the TFTP server through the secure tunnel. In other
words, the TFTP server IP address cannot be on the outside network of the public interface or
routed in such a way that it needs to pull the image through the outside interface of the VPN
concentrator without encryption.
The version number is derived from the filename you have specified to be downloaded. In this
example, you used the file name vpn3002-3.0.3.A-k9.bin. The revision (3.0.3.A) is the part
between the two dashes. Be sure you have entered the correct revision number. An incorrect
or missing revision number will cause the VPN 3002 Hardware Client to enter an infinite cycle
of attempting and failing to upgrade.
You may enter more than one revision number into the Revisions field, separating the entries
by commas to indicate that you will support more than one client software release. The entry
that you include in the URL field must be represented in the list of acceptable revisions. If the
attaching client already operates with one of the versions listed in the revisions list, no action
will be taken.
CCSP.book Page 426 Friday, February 28, 2003 3:43 PM
426
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
The next configuration step you need to do is to set up notification to VPN 3002 Hardware
Clients (and software clients) about the upgrade. There are only three steps:
Step 1 Using the VPN 3000 Concentrator Series Manager, go to Administration |
Software Update | Clients.
Step 2 Choose the group. In this example, the group is rtpvpnl.
Step 3 Select Upgrade Clients Now (see Figure 9-14).
Figure 9-14 Updating Client Software
Monitoring Auto-Update Events
37 Monitoring VPN 3002 Auto-Update Events
In case the upgrade is not successful, debugging may be enabled to help determine the cause
of failure. You should check the log file first to see if it contains any information on why the
upgrade was unsuccessful. In the event that the log file does not provide enough information,
configure debugging by following these steps:
Step 1 Go to the Configuration | System | Events | Classes | Add screen, shown in
Figure 9-15.
Step 2 Choose the class named AUTOUPDATE.
Step 3 Set the severity of the log to 1-13.
Step 4 Retrieve the log by going to the Monitoring | Live Event Log screen.
CCSP.book Page 427 Friday, February 28, 2003 3:43 PM
Monitoring Auto-Update Events
427
Step 5 If you are also attached to the console, the console severity may also be set
to 1-13.
Step 6 Likewise, the Syslog and Trap severities may be set if you are using a Syslog
Server or an SNMP server such as CiscoWorks.
Figure 9-15 Configuration | System | Events | Classes | Add
A sample output from the log is shown in Example 9-1. Table 9-2 explains the fields in the logs
after this example.
Example 9-1 Sample Debugging Output
12 08/21/2002 11:19:23.225 SEV=4 AUTOUPDATE/6 RPT=1
Current version 3.0.2 does not match 3.0.3.A
13 08/21/2002 11:19:23.225 SEV=4 AUTOUPDATE/7 RPT=1
Updating firmware to 3.0.3.A from 3.0.2
14 08/21/2002 11:19:23.225 SEV=4 AUTOUPDATE/12 RPT=1
Update firmware will now begin using file
vpn3002-3.0.3.A-k9.bin on server 192.268.101.3 [0A204964]
15 08/21/2002 11:35:00.700 SEV=4 AUTOUPDATE/5 RPT=1
Current version 3.0.3.A is up to date
Table 9-2
Field Descriptions
Field
Definition
12
The first number in the list is the log number.
08/21/2002
The date is defined by the system date of the VPN 3002 Hardware Client.
11:19:23.225
The time of the log.
SEV=4
The severity of the log.
AUTO-UPDATE/6 The name of the event class.
RPT=1
The description of the event.
CCSP.book Page 428 Friday, February 28, 2003 3:43 PM
428
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Notice that there are four steps in the automatic update process:
1 First, the VPN 3002 Hardware Client recognizes that the versions do not match.
2 Next, the update is started.
3 Then, a notice informs you that the new file will be used.
4 Finally, there is a log event showing that the current version is up to date.
Remember that configuring the wrong version number will cause an infinite loop attempting to
upgrade. If you repeatedly see a message in the log that the current version does not match
the new version but also see that the VPN 3002 Hardware Client will now be using a new file,
the cause is almost certainly an incorrect version within the update screen.
A repeating attempt to update the firmware followed by a message indicating an inability to
connect to the TFTP server may be explained by a few common issues, including the following:
•
•
•
•
You do not have the correct IP address for the TFTP server.
You do not have a route to the TFTP server.
You do not have sufficient rights on the TFTP server.
You do not have the ability to connect securely through a nontrusted interface to the server.
CCSP.book Page 429 Friday, February 28, 2003 3:43 PM
Backup Servers
429
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those who are already comfortable with the topics in
this chapter, this summary could help you recall a few details. For those who just read this
chapter, this review should help solidify some key facts. For anyone doing final preparation
before the exam, these tables and figures are a convenient way to review the day before the
exam.
Table of RRI Configurations
Table 9-3 shows various RRI configurations.
Table 9-3
RRI Configurations
RRI Type
Setup Screen
Things to Watch
RIPv2
Configuration | Interfaces | RIP
Outbound RIP is configured.
OSPF
Configuration | System | IP Routing | OSPF
OSPF is defined as an
autonomous system on the
concentrator.
ASBR is set correctly.
LAN-to-LAN
Configuration | System | Tunneling
Protocols | IPSec
Use RIP or OSPF.
LAN-to-LAN
Autodiscovery
Configuration | System | Tunneling
Protocols | IPSec | LAN-to-LAN | Routing
Choose the Autodiscovery
option.
NEM RRI
Configuration | System | IP Routing |
Reverse Route Injection
Must have NEM enabled.
Client RRI
Configuration | System | IP Routing |
Reverse Route Injection
Select check box.
Hold Down Routes
Configuration | System | IP Routing |
Reverse Route Injection
Add network/subnet mask.
Backup Servers
There are nine items you need to remember regarding backup servers:
•
•
•
A backup server list can only be downloaded from a primary VPN concentrator.
A backup concentrator is contacted ONLY if the list already exists.
The VPN 3002 Hardware Client must be connected to a primary VPN connector to
know of changes.
CCSP.book Page 430 Friday, February 28, 2003 3:43 PM
430
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
•
On a VPN 3002 Hardware Client, set the backup servers through Configuration | System
| Tunneling Protocols | IPSec.
•
On VPN concentrator, set through Configuration | User Management | Base Group | Mode
Configuration or Configuration | User Management | Groups | Mode Configuration.
•
•
The group name, username, and password must match on the primary and backup servers.
•
In client mode, the VPN 3002 Hardware Client attempts connection when data is
transferred or using Connect Now.
•
VPN 3002 Hardware Clients have no knowledge of each other.
In network extension mode, the VPN 3002 Hardware Client attempts connections after
4 seconds.
Load Balancing
The following three points summarize load balancing:
•
•
•
Automatic for VPN 3002.
Must be on same private network.
One VPN 3000 Series Concentrator acts as the master concentrator for the load-balancing
cluster.
Comparing NAT and PAT
Table 9-4 compares the characteristics of NAT and PAT.
Table 9-4
NAT and PAT
NAT
PAT
Many-to-many relationship
One-to-many relationship
Changes source address outbound
Changes source address and source port
Changes destination address inbound
Changes destination address and port inbound
Works with almost any program
May not work with some older programs
IPSec Over TCP/IP
IPSec over TCP/IP has the following characteristics:
•
•
•
•
Used with NAT and PAT
Encapsulates IKE and IPSec in new TCP packet
Must use version 3.5 or higher
Both sides must use same port
CCSP.book Page 431 Friday, February 28, 2003 3:43 PM
Auto-Update
431
•
Must be enabled through the Configuration | System | Tunneling Protocols | IPSec | IPSec
over TCP screen
•
Will not work with proxy-based servers
IPSec Over UDP
IPSec over UDP has the following characteristics:
•
•
•
•
•
•
•
•
Used with NAT and PAT
Encapsulates IKE and IPSec in new UDP packet
Must use version 3.0.3 or higher
Both sides must use same port
Default port is 10,000
Decreased available bandwidth caused by the amount of bandwidth used by keepalives
A single VPN device behind a NAT device
You may create a problem if
— A group is deleted
— The last SA is deleted
— IPSec over UDP is disabled
Troubleshooting IPSec
Remember the following when troubleshooting IPSec:
•
•
•
Ping the inside interface of the remote concentrator. If you can get there, IPSec works.
Set the debug levels for 1-13 on both sides (IKE, IKEDBG, IPSEC, IPSECDBG).
Read and understand the log. It will tell you where the problem is.
Auto-Update
Remember the following key points about auto-update:
•
•
•
•
•
•
Pushes from central concentrator
IPSec connection must exist
Configure through Configuration | User Management | Groups
Client type must be 3002
The new version number must be precise
Client is set up through Configuration | System | Events | Classes
CCSP.book Page 432 Friday, February 28, 2003 3:43 PM
432
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Chapter Glossary
The following terms were introduced in this chapter or have special significance to the topics
within this chapter.
Reverse Route Injection (RRI) A process by which routes are added to a VPN concentrator,
and then these routes are advertised back out to remote clients.
head-end Endpoint of a broadband network. All stations transmit toward the head-end; the
head-end then transmits toward the destination stations.
hold-down routes Routes used to make a remote VPN connection appear to be active even
when there is no current tunnel established.
load balancing In routing, the capability of a router to distribute traffic over all of its network
ports that are the same distance from the destination address. Good load-balancing algorithms
use both line speed and reliability information. Load balancing increases the use of network
segments, thus increasing effective network bandwidth.
Network Address Translation (NAT) Mechanism for reducing the need for globally unique
IP addresses. NAT allows an organization with addresses that are not globally unique to connect
to the Internet by translating those addresses into globally routable address space. Also known
as Network Address Translator.
Port Address Translation (PAT) Similar in nature to NAT. In PAT, the TCP or UDP port
is translated in addition to the IP source or destination address. Also known as Port Address
Translator.
CCSP.book Page 433 Friday, February 28, 2003 3:43 PM
Q&A
433
Q&A
As mentioned in Chapter 1, “All About the Cisco Certified Security Professional.” these
questions are more difficult than what you should experience on the CCSP exam. The questions
do not attempt to cover more breadth or depth than the exam; however, the questions are
designed to make sure you know the answer. Rather than allowing you to derive the answer
from clues hidden inside the question itself, your understanding and recall of the subject are
challenged. Questions from the “Do I Know This Already?” quiz from the beginning of the
chapter are repeated here to ensure that you have mastered the chapter’s topic areas. Hopefully,
these questions will help limit the number of exam questions on which you narrow your choices
to two options and guess!
1 What are the ramifications an administrator should consider when planning to use VRRP
along with RRI?
2 You wish to inject a route from the VPN concentrator to the VPN 3002 Hardware Client.
What routing protocol must you use?
3 You wish to use RIPv1 with Reverse Route Injection. Can this be done?
4 Which screen on the VPN concentrator is used to configure RRI with OSPF?
CCSP.book Page 434 Friday, February 28, 2003 3:43 PM
434
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
5 You are using a backup IPSec server because the primary server was down when the initial
tunnel was initiated. The primary server is now up. Will the VPN 3002 Hardware Client
restore a connection to the primary? If so, when?
6 What is the timeout period used when attempting to connect to the primary concentrator
before a connection will be attempted to a secondary concentrator.
7 You tried to connect to your primary concentrator from your VPN 3002 Hardware Client
but were unsuccessful. Your 3002 Hardware Client then attempted to connect to your
backup concentrator without success. When will the VPN 3002 Hardware Client try
again?
8 What screen is used to configure backup servers on the VPN 3002 Hardware Client?
9 You have three VPN 3015 Concentrators on the same network. Assuming default priority
settings, which one will be elected to balance the load?
10 What factors are considered for VPN 3000 Concentrator load balancing with VPN 3002
Hardware Clients or remote access VPN Clients?
CCSP.book Page 435 Friday, February 28, 2003 3:43 PM
Q&A
435
11 How is load balancing enabled on the VPN 3002 Hardware Client?
12 What types of clients may use the auto-update feature?
13 When a software update is pending, during the connection process, the concentrator sends
a message indicating the IP address of the TFTP server and the software version to be
downloaded. What type (protocol) is this message?
14 What are two main differences between NAT and PAT?
15 You are the administrator for a network using a single PAT address for connection to the
Internet. You want to add two VPN 3002 Hardware Clients behind your PIX firewall.
Which type of IPSec will you choose to use?
16 What minimum version does the VPN concentrator have to be running in order to use
IPSec over TCP/IP? What version is required on the VPN 3002 Hardware Client?
CCSP.book Page 436 Friday, February 28, 2003 3:43 PM
436
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
17 What minimum version does the VPN concentrator have to be running in order to use
UDP NAT Transparent IPSec? What version is required on the VPN 3002 Hardware
Client?
18 What is the default port for IPSec over UDP?
19 You have an established tunnel between two sites. From the remote site you are able to
ping the inside interface of the VPN concentrator. However, you are unable to ping
anything that lies beyond that point. What is wrong?
20 You are planning to upgrade your VPN 3002 Hardware Client. You have just received a
file named vpn3002-3.0.3.A-k9.bin. What version is this?
21 You have tried to upgrade your VPN 3002 Hardware Client. However, the VPN 3002
Hardware Client keeps trying to upgrade without success. You know that you have
connectivity. You can see in the logs that you have been downloading the file. What is
the problem?
22 Why will some applications not work with either NAT or PAT?
CCSP.book Page 437 Friday, February 28, 2003 3:43 PM
Q&A
437
23 Why will PAT cause problems with some applications whereas NAT does not cause these
problems?
24 Which debug class or classes should you enable in order to debug an auto-update?
25 On the VPN concentrator, what is the syntax used to specify the TFTP server and the
filename used for updating the client software?
26 You have configured auto-update to occur. Which device, the VPN concentrator or the
VPN 3002 Hardware Client, recognizes that the software must be updated?
27 What client type(s) are permissible to be set on the VPN concentrator for upgrading clients
when using the VPN 3002 Hardware Client?
28 How is the VPN 3000 Concentrator configured to notify VPN 3002 Hardware Clients that
a new software upgrade is available?
CCSP.book Page 438 Friday, February 28, 2003 3:43 PM
438
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
29 Your VPN 3002 Hardware Client attempts to auto-update. The system appears to “hang”
and eventually times out on the download portion of the process. What are two likely
causes?
30 In Network Extension Mode, how long will the VPN 3002 Hardware Client wait before
attempting to connect to a backup server if a connection to the primary server fails?
31 Will a VPN 3002 Hardware Client connected to a backup server recognize that the
primary server has added a new backup server?
32 Does the VPN 3002 Hardware Client send keepalives to other VPN 3002 Hardware
Clients connected to the same primary or backup server?
33 Where are hold-down routes configured?
34 What protocols may be used with LAN-to-LAN Autodiscovery?
CCSP.book Page 439 Friday, February 28, 2003 3:43 PM
Q&A
439
35 When using IPSec over TCP, how are IKE and IPSec protocols handled in relation to
NAT?
36 You are planning on terminating your VPN 3002 Hardware Client’s VPN tunnel on a
Microsoft Proxy Server. Should you use UDP NAT Transparent IPSec (IPSec over UDP)
or IPSec over TCP?
CCSP.book Page 440 Friday, February 28, 2003 3:43 PM
440
Chapter 9: Configuring Scalability Features of the VPN 3002 Hardware Client
Scenarios
Scenario 9-1
Your task in this scenario is to set up a VPN concentrator and a VPN 3002 Hardware Client, as
shown in Figure 9-16. Enable communications between the concentrators and the VPN 3002
Hardware Client using IPSec over TCP/IP.
Figure 9-16 Enabling RRI
IBM Compatible
VPN 3002
Hardware Client
VPN Concentrator A
IBM Compatible
VPN Concentrator B
IBM Compatible
Once this is accomplished, you have four steps:
Step 1 Set up the VPN concentrator B as a backup and test.
Step 2 Update the VPN 3002 Hardware Client from the VPN concentrator A.
Step 3 Inject a route using OSPF from the VPN 3002 Hardware Client into the VPN
concentrator.
Step 4 Configure the VPN concentrators to use IPSec over UDP
CCSP.book Page 441 Friday, February 28, 2003 3:43 PM
Scenario 9-1 Answers
Scenario Answers
Scenario 9-1 Answers
The following answers pertain to the tasks presented in the previous section:
Step 1 On the VPN 3002 Hardware Client, use the Configuration | System |
Tunneling Protocols | IPSec screen and add the second concentrator. Ensure
that Use Client Configured List is set.
To test, unplug the outside Ethernet interface on Concentrator A. Check that
a VPN tunnel is established to Concentrator B.
Step 2 On the VPN concentrator:
(a) Go to Configuration | User Management | Groups.
(b) Select the group.
(c) Choose Modify Client Update.
(d) Choose Add from the Client Update screen.
(e) On the next screen, enter vpn3002 as the client type, enter the tftp
address/filename, and enter the revision number.
(f) Apply.
(g) Go to Administration | Software Update | Clients.
(h) Choose the group.
(i) Select Upgrade Client Now.
Step 3 Reverse Route Injection is configured on the VPN concentrator. To do this,
go to the Configuration | System | IP Routing | Reverse Route Injection
screen. Check the Client Reverse Route Injection button.
Step 4 On the VPN 3002 Hardware Client, go to Configuration | System |
Tunneling Protocols | IPSec | IPSec over TCP. The concentrator must also
be configured using the Configuration | System | Tunneling Protocols |
IPSec | NAT Transparency | Enable IPSec over TCP screen. Enable IPSec
over TCP/IP.
441
CCSP.book Page 442 Friday, February 28, 2003 3:43 PM
Exam Topics Discussed in This Chapter
This chapter covers the following topics, which you need to master in your pursuit of
certification as a Cisco Certified Security Professional:
41 Cisco VPN 3000 IPSec LAN-to-LAN
42 LAN-to-LAN configuration
43 SCEP support overview
44 Root certificate installation
45 Identity certificate installation
CCSP.book Page 443 Friday, February 28, 2003 3:43 PM
CHAPTER
10
Cisco VPN 3000 LAN-to-LAN with
Preshared Keys
One of the great benefits to using a VPN Concentrator is the ability to connect disparate
LANs in a secure manner. For example, having your LAN in New York appear to be directly
connected to the LAN in London makes administration of domains and user rights much
easier for the systems administrator.
You accomplish this by creating a secure VPN from your concentrator to another concentrator, router, or PIX firewall at the remote site. Although it is certainly permissible—and
sometimes advisable—to encrypt data through a VPN on a private frame network, it is
much more common to use a VPN to reduce the need for dedicated connections by using
the Internet as your long haul provider. One example of encrypting data over a private
network occurs when you have a payroll department that is split between locations at two
remote sites. Because you do not generally want the average administrator on your network
to be able to find out salaries of other workers, you might want to encrypt this data between
the two networks.
When you add the benefit of reducing the cost of these long distance connections through
the use of VPNs over the Internet, the real benefits begin to show. This chapter deals with
issues associated with connecting geographically separate LANs in a secure manner. Such
connections will appear to the end user as if the network were next door, with one exception:
latency. Because your VPN connections generally operate over the Internet, you will not be
able to control how long it takes for a packet from one site to travel to the remote site.
You, as an administrator of private networks, have no real control over the Internet. You can
control items such as your bandwidth to your ISP and are able to prioritize data within your
own networks, but once your data reaches your ISP, you lose the ability to determine the
priority of the data. When relying on the Internet for connectivity, you need to be aware that
certain applications that are extremely time sensitive might lose connectivity even when
your VPN connections are not directly affected. Always remember that using the Internet
means that you rely upon a technology over which you have no control, and therefore,
results cannot be guaranteed.
CCSP.book Page 444 Friday, February 28, 2003 3:43 PM
444
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
How to Best Use This Chapter
By taking the following steps, you can make better use of your time:
•
Keep your notes and answers for all your work with this book in one place for easy
reference.
•
Take the “Do I Know This Already?” quiz, and write down your answers. Studies show
retention is significantly increased through writing facts and concepts down, even if you
never look at the information again.
•
Use the diagram in Figure 10-1 to guide you to the next step.
Figure 10-1 How to Use This Chapter
Take
"Do I Know This Already?"
Quiz
Low
High
Score?
Medium
Read
Foundation
Topics
Review
Chapter
Using
Charts and Tables
Review
Foundation
Summary
Yes
Want
More
Review?
No
Perform
End-of-Chapter
Q&A and Scenarios
Go To
Next
Chapter
CCSP.book Page 445 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
445
“Do I Know This Already?” Quiz
The purpose of the “Do I Know This Already?” quiz is to help you decide what parts of the
chapter to use. If you already intend to read the entire chapter, you do not necessarily need to
answer these questions now.
This 15-question quiz helps you determine how to spend your limited study time. The quiz is
sectioned into five smaller “quizlets,” which correspond to the five major topic headings in the
chapter. Figure 10-1 outlines suggestions on how to spend your time in this chapter based on
your quiz score. Use Table 10-1 to record your scores.
Table 10-1
Score Sheet for Quiz and Quizlets
Quizlet
Number
Foundations Topics Section Covering These
Questions
Questions
1
Cisco VPN 3000 IPSec LAN-to-LAN
1–3
2
LAN-to-LAN configuration
4–6
3
SCEP support overview
7–9
4
Root certificate installation
10–12
5
Identity certificate installation
13–15
All questions
1 What is a LAN-to-LAN connection?
2 What equipment is required for a LAN-to-LAN connection?
3 Where can a LAN-to-LAN connection be used?
Score
CCSP.book Page 446 Friday, February 28, 2003 3:43 PM
446
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
4 When setting up network lists, how should the lists at each side of the LAN-to-LAN
connection relate to each other?
5 You attempted to configure a LAN-to-LAN connection, but cannot see a specific network
on one side of the connection. What is the most likely problem?
6 What routing protocol is used for Autodiscovery?
7 What is an identity certificate?
8 What is the advantage of using SCEP?
9 What are critical items when using any certificates?
CCSP.book Page 447 Friday, February 28, 2003 3:43 PM
“Do I Know This Already?” Quiz
447
10 Order the steps for using a certificate:
1. Issue an enrollment request.
2. Enroll with the CA.
3. The enrollment request is accepted.
4. Install the certificate.
5. Configure the concentrator to use the certificate.
11 You want to use SCEP to enroll an identity certificate. How must the associated CA
certificate be obtained?
12 What are the default directory and file name for the DLL used with SCEP?
13 What are the three major steps involved in using digital certificates for a LAN-to-LAN
connection?
14 When using an identity certificate, what is the affect of entering an incorrect name in the
OU field?
CCSP.book Page 448 Friday, February 28, 2003 3:43 PM
448
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
15 What three key sizes may be used with DSA when installing certificates using SCEP?
The answers to this quiz are listed in Appendix A, “Answers to the “Do I Know This Already?”
Quizzes and Q&A Sections.” The suggestions for your next steps, based on quiz results, are as
follows:
•
1 on any quizlet—Review the appropriate sections of the “Foundation Topics” section of
this chapter, based on Table 10-1. Then proceed to the “Foundation Summary” section,
the “Q&A” section, and then the scenarios at the end of the chapter.
•
9 or less overall score—Read the entire chapter, including the “Foundation Topics” and
“Foundation Summary” sections, the “Q&A” section, and the scenarios at the end of the
chapter.
•
10–12 overall score—Begin with the “Foundation Summary” section, continue with the
“Q&A” section, and then the scenarios. If you have difficulty with a particular subject
area, read the appropriate part in the “Foundation Topics” section.
•
13–15 overall score—If you feel you need more review on these topics, go to the
“Foundation Summary” section, the “Q&A” section, and then the scenarios. Otherwise,
skip this chapter and go to the next chapter.
CCSP.book Page 449 Friday, February 28, 2003 3:43 PM
LAN-to-LAN Configuration
449
Foundation Topics
Overview of LAN-to-LAN VPN
41 Cisco VPN 3000 IPSec LAN-to-LAN
A LAN-to-LAN VPN is where two separate LANs are connected with a secure tunnel. This
tunnel can use PPTP, L2TP, or IPSec. The purpose of the LAN-to-LAN VPN is to connect
the two networks together seamlessly without compromising the integrity, authenticity, and
confidentiality of the data. You can establish a LAN-to-LAN VPN through any combination
of VPN Concentrators, routers, or firewalls.
LAN-to-LAN connections are designed to make each of the affected networks appear to be
directly connected despite their physical distance from each other. Although this connection
may travel through the Internet or a nontrusted network, you are assured of security because of
the use of encryption on all packets traveling between these networks. The following section
deals with the mechanics of configuring a LAN-to-LAN connection.
LAN-to-LAN Configuration
42 LAN-to-LAN configuration
The LAN-to-LAN Wizard is an automated process that simplifies the task of connecting
disparate LANs. However, to use the LAN-to-LAN Wizard, you must first have network lists
configured. The following section provides the steps necessary to configure network lists before
using the LAN-to-LAN Wizard.
Configuring Network Lists
Generating network lists allows you to specify what traffic should be encrypted. The first task
is to set the default gateway and the default tunnel gateway. In the example shown in Figure 10-2,
the public interface is set to 192.168.1.2/24. The private interface is set to 172.16.1.2. Nontunneled traffic will use the default gateway at 192.168.1.1. However, because you have
checked the Override Default Gateway option, whenever you are using a tunnel, this will be
your default gateway.
CCSP.book Page 450 Friday, February 28, 2003 3:43 PM
450
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Figure 10-2 Default Gateway
Next, set up your network list through the Configuration | Policy Management | Traffic
Management | Network Lists screen, shown in Figure 10-3. If you do not have any lists,
click Add to add a list. Otherwise, click the list and then click Modify, Copy, or Delete. You
must use a unique name for each list. You will need at least two networks lists: one for your
local network(s) and the other for the remote network(s).
Figure 10-3 Configuration | Policy Management | Traffic Management | Network Lists
CCSP.book Page 451 Friday, February 28, 2003 3:43 PM
LAN-to-LAN Configuration
451
If you chose to modify an existing list, you will be taken to the Configuration | Policy
Management | Traffic Management | Network Lists | Modify screen, as shown in Figure 10-4.
Click a blank line within the Network List box. Next, enter the subnet and the wildcard mask
in the following format: 192.168.1.0/0.0.0.255. The wildcard mask can be omitted if you want
to use the default wildcard mask. Remember that a wildcard mask is different than a subnet
mask. Enter as many networks as needed. Clicking the Generate Local List button on the
bottom will create a list of all of the routing entries associated to the private interface. Make
sure that you have at least two lists: one for the local networks and another for the remote
networks.
Figure 10-4 Configuration | Policy Management | Traffic Management | Network Lists | Modify
Network lists must be reflexive on opposite sides of the VPN connection. The networks listed
as being “inside” on one concentrator should reflect those listed as “outside” on the other
concentrator. Should a specific network be unreachable through a VPN connection, one of
the first items to check is that the network lists on both sides show the “missing” network.
Creating a Tunnel with the LAN-to-LAN Wizard
After you generate the network lists, you can use the LAN-to-LAN Wizard to create
your tunnel. Modifying, adding, or deleting LAN-to-LAN connections is done through the
Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify screen, shown
in Figure 10-5. (Actually, you are taken to either the Modify or the Add screen depending on
whether you are modifying or creating a new connection. Both screens are identical except
for the title.) Here, name the connection with the unique name to_seattle. Then, choose
the interface, set the IP address of the peer, and choose to use preshared keys. You will send the
entire certificate chain to the peer.
CCSP.book Page 452 Friday, February 28, 2003 3:43 PM
452
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Figure 10-5 Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify
Set the preshared key to mysharedkey. Choose to use ESP/MD5/HMAC-128 packet authorization and set the encryption to DES-56. Use IKE-DES-MD5 for the IKE Proposal field and
choose None for the Routing field.
NOTE
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify screen is one
of the most important screens within the VPN Concentrator configuration because you need to
make so many choices.
If you are using Certificates of Authority, discussed in the sections, “SCEP Support Overview”
and “Root Certificate Installation” later in this chapter, this screen is where you choose the
digital certificate to use. This example uses preshared keys. However, clicking the list on the
Digital Certificate field will show a list of existing certificates.
CCSP.book Page 453 Friday, February 28, 2003 3:43 PM
LAN-to-LAN Configuration
453
This screen is also where you choose whether to enable Network Auto discovery. Had you
chosen Network Autodiscovery from the Network List drop-down menu, the system would
have automatically generated a list of networks known by the remote peer. You still would see
the bottom half of the screen, but any values within the bottom half would be ignored. Network
Autodiscovery uses RIP to discover the networks attached to the Ethernet side of the concentrator. You must enable Inbound RIP RIPv2/v1 on the Ethernet interface on both concentrators.
This is done on the Configuration | Interfaces screen.
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify screen is also
the “heart” of the connection process on the VPN Concentrator. You must access this screen any
time a new connection is needed. You would do well to memorize the options on this screen.
On the bottom half of the screen, the local network list is shown, and then the remote network
list is shown at the bottom. Alternatively, you could have used the IP address and wildcard mask
for the local and remote connections. However, doing so means that only two single networks
might be connected. If either side has more than a single network, the additional networks will
not be reachable through this connection. Clicking the Apply button will bring you to a screen
that verifies your configuration.
Using the menu system on the left, go to the Configuration | Policy Management | Traffic
Management | Security Associations screen to see if you now have a new association. As shown
in Figure 10-6, you should see the new association. This new association will appear at the
bottom of the list. You can also use this screen to modify or delete an association.
Figure 10-6 Configuration | Policy Management | Traffic Management | Security Associations
CCSP.book Page 454 Friday, February 28, 2003 3:43 PM
454
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
SCEP Overview
43 SCEP support overview
44 Root certificate installation
45 Identity certificate installation
Simple Certificate Enrollment Protocol (SCEP) is a protocol that eases your job as an administrator by enrolling devices with certificate authorities (CAs). The advantages of SCEP are that
the job of the administrator are greatly simplified by removing much of the manual process
previously required and added support for differing operating systems. Using SCEP enables the
administrator to use certificates in much less time. Before you can understand SCEP, you first
need to understand certificate management.
Certificate Management
Digital certificates are used for authentication. Certificates are a form of identification issued
by a CA. The role of a CA is to be the trusted authority who authenticates the certificates by
“signing” the certificate.
A CA certificate is used to sign other certificates. A certificate signed by itself is called a selfsigning or root certificate. When one certificate issues another, the issued certificate is referred
to as a subordinate certificate.
A CA might also issue an identity certificate. Identity certificates are used on specific systems
or hosts. An identity certificate authenticates that the device referred to by the certificate is
actually a member of the specified group. VPN Concentrators require that at least one identity
certificate and its associated root certificate is present before certificates are employed.
The VPN Concentrator accepts X.509 digital certificates, including SSL certificates, which are
stored in an encrypted format in the flash memory.
The maximum number of certificates available on a concentrator varies based on the model and
the type of certificate. Table 10-2 shows the maximum number of certificates allowed.
CCSP.book Page 455 Friday, February 28, 2003 3:43 PM
SCEP Overview
Table 10-2
455
Maximum Certificates
Model
3005
Certificate Limits
Total of 6 root or subordinate certificates.
Total of 2 identity certificates.
Only a single SSL can be installed.
Other models
Total of 20 root or subordinate certificates.
Total of 20 identity certificates.
Only a single SSL can be installed.
SCEP automates a number of the steps necessary under the manual process of enrolling a CA.
Instead of manually specifying a large number of parameters, such as company name and IP
address, SCEP sends the certificate server this information automatically after reading the data
from within the concentrator’s configuration.
SCEP can easily be used with the Cisco VPN Concentrators. SCEP allows administrators to
easily obtain and maintain a CA. Since all CAs are sensitive to date and time, you should
double-check that these are set correctly on both your server and your concentrator. NTP can
be a valuable tool to overcome issues of disparate times and dates. IP connectivity is also
required. Because filters and access lists can affect connections, ensure that the concentrator can
communicate with the server before attempting to generate a certificate.
Root Certificate Installation via SCEP
Three steps must be accomplished to use any certificate, as follows:
Step 1 Enroll the VPN Concentrator with the CA.
Step 2 A certificate server issues and accepts an enrollment request.
Step 3 Configure the concentrator to use the certificate.
The following sections elaborate on each step.
Enrolling the Concentrator
The first step in generating a CA certificate via SCEP is to enroll the VPN Concentrator with
a CA. If you want to use SCEP for enrolling identity or SSL certificates, the associated CA
certificate must also be obtained by using SCEP.
To install a certificate on a VPN Concentrator, start off on the Administration | Certificate
Management screen, as shown in Figure 10-7. On this screen, choose Click here to install a
CA certificate to start the process of generating a certificate.
CCSP.book Page 456 Friday, February 28, 2003 3:43 PM
456
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Figure 10-7 Administration | Certificate Management
Should a certificate already be present on the concentrator, the option to install a CA certificate
is not available. Instead, you will choose the Click here to install a certificate option. In either
case, you will be brought to the Administration | Certificate Management | Install | CA
Certificate screen, as shown in Figure 10-8.
Here, choose the SCEP (Simple Certificate Enrollment Protocol) option, which in turn brings
you to the Administration | Certificate Management | Install | CA Certificate | SCEP screen, as
shown in Figure 10-9.
CCSP.book Page 457 Friday, February 28, 2003 3:43 PM
SCEP Overview
457
Figure 10-8 Administration | Certificate Management | Install | CA Certificate
Figure 10-9 Administration | Certificate Management | Install | CA Certificate | SCEP
On the Administration | Certificate Management | Install | CA Certificate | SCEP screen, you
first enter the URL address of the machine containing the Dynamic Link Library (DLL) in order
to retrieve the certificate. This URL might be either a website containing the DLL or a certificate
server containing the DLL. The URL consists of the IP address, followed by the directory name
and the name of the DLL itself. By default, the directory is named certsrv/mscep and the DLL
is named mscep.dll. You must have the certsrv directory shared and have sufficient rights to
access this directory.
Next, enter the name you want the certificate to be called. In this case, myCAforprivateuse is the
certificate name. Click the Retrieve button to install the CA certificate on the VPN Concentrator.
You are automatically transferred back to the Administration | Certificate Management screen.
CCSP.book Page 458 Friday, February 28, 2003 3:43 PM
458
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Check the Administration | Certificate Management screen to ensure that the certificate appears
(see Figure 10-10). This might take a few minutes before being listed, so you might need to
refresh the screen a number of times before it will appear. If the certificate does not get listed,
make sure that there is connectivity to the server and that you have the correct permissions to
access the DLL. Clicking the Click here to install a certificate option will install the certificate.
Figure 10-10 Administration | Certificate Management
Identity Certificate Installation Via SCEP
While on the Administration | Certificate Management screen, choose Click here to enroll
a with Certificate Authority. You will be transferred to the Administration | Certificate
Management | Enroll screen. Choose Identity certificate. As shown in Figure 10-11, this
is also where you will go should you choose to use an SSL certificate.
CCSP.book Page 459 Friday, February 28, 2003 3:43 PM
SCEP Overview
459
Figure 10-11 Administration | Certificate Management | Enroll
The Administration | Certificate Management | Enroll | Identity Certificate screen is next, shown
in Figure 10-12. The title links shown in this screen are dependant upon the text entered in the
previous screen. This screen will list all the SCEP certificates obtained. Choose the CA you
want to install. This brings you to the Identity Certificate Screen.
Figure 10-12 Administration | Certificate Management | Enroll | Identity Certificate
First, fill out the enrollment screen. As shown in Figure 10-13, a large number of variables exist.
Table 10-3 addresses these variables.
CCSP.book Page 460 Friday, February 28, 2003 3:43 PM
460
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Figure 10-13 Administration | Certificate Management | Enroll | Identity Certificate | SCEP
Table 10-3
Enrollment Variables
Field
Explanation
Common Name (CN)
The identity associated with the certificate. This is a
mandatory field. If you are using an SSL certificate, the
IP address or domain name used to connect to the VPN
Concentrator is entered.
Organizational Unit (OU)
The OU should match the IPSec group name. Using a
different name than the IPSec group will mean that the
IPSec group used will not have any access.
Organization (O)
Usually the organization’s well-known and common
name. Examples: Cisco Press and Widget Corporation
of America.
Locality (L)
Where the VPN is physically located. Although there is
not a specific requirement, by convention, the city name
where the concentrator is located is entered. Example:
London.
CCSP.book Page 461 Friday, February 28, 2003 3:43 PM
SCEP Overview
Table 10-3
461
Enrollment Variables (Continued)
Field
Explanation
State/Province (SP)
The state or province. You should spell out the entire
state name.
Country (C)
The country is entered here. The two-character country
code must conform to the ISO 3166 country codes.
Subject Alternative Name (FQDN)
Enter the FQDN (Fully Qualified Domain Name) here.
For example: vpn3000.ciscopress.com.
Subject Alternative Name (E-mail Address) Generally used for contacting the system administrator.
This field is also used for connecting between the
concentrator and a Cisco router or PIX firewall.
Challenge Password
Used when the certificate issuer requires a challenge
password.
Verify Challenge Password
The password is entered twice to ensure that is was
entered correctly.
Key Size
Sets the size of the key used by RSA with SCEP.
Possible values are
• RSA 512 bits
• RSA 768 bits
• RSA 1024 bits
• RSA 2048 bits
The key sizes when using DSA are
• DSA 512 bits
• DSA 768 bits
• DSA 1024 bits
Your concentrator will go into a polling state, waiting for the CA server to issue the certificate,
as shown in Figure 10-14. On most certificate servers, issuing a certificate is a manual process.
Therefore, contact the administrator for the certificate server and request that the certificate be
issued.
After the certificate administrator has issued the certificate, check the Administration |
Certificate Management screen. The certificate will appear under the Identity Certificates
section.
CCSP.book Page 462 Friday, February 28, 2003 3:43 PM
462
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Figure 10-14 SCEP Polling State
Configuring VPN Concentrator for LAN-to-LAN with Digital Certificates
You have already learned how to set up a LAN-to-LAN connection and how to obtain digital
certificates. This section discusses how to use digital certificates with a LAN-to-LAN
connection.
Three basic steps are required for using digital certificates in a LAN-to-LAN connection:
Step 1 Activate an IKE proposal.
Step 2 Configure the LAN-to-LAN connection to use the IKE proposal.
Step 3 Configure the LAN-to-LAN connection to use the Identity Certificate.
Because you already have your digital certificates, configure your LAN-to-LAN connection and
enable it to use your digital certificates. The first step is to go to the Configuration | System |
Tunneling Protocols | IPSec LAN-to-LAN screen, as shown in Figure 10-15. Choose an
existing connection or create a new connection.
CCSP.book Page 463 Friday, February 28, 2003 3:43 PM
SCEP Overview
463
Figure 10-15 Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN
You are taken to the Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN >Modify
screen. In this screen, you click the Digital Certificate drop-down menu and choose digital
certificate.
On the Certificate Transmission option, you have a choice. If you want to send only the Identity
Certificate to the peer, choose Identity certificate only. Choosing Entire certificate chain sends
the root and any subordinate certificates to the peer.
Click the IKE Proposal drop-down menu. You will receive a list of all the active IKE proposals.
Choose the appropriate proposal. Click the Modify (or Add) button. You will be returned to the
Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN screen, as previously shown
in Figure 10-15.
You are now using digital certificates for our LAN-to-LAN connection.
CCSP.book Page 464 Friday, February 28, 2003 3:43 PM
464
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Foundation Summary
The Foundation Summary is a collection of tables and figures that provides a convenient review
of many key concepts in this chapter. For those who are already comfortable with the topics in
this chapter, this summary could help you recall a few details. For those who just read this
chapter, this review should help solidify some key facts. For anyone doing final preparation
before the exam, these tables and figures are a convenient way to review the day before the
exam.
Maximum Certificates
Table 10-4 shows the maximum number of certificates allowed.
Table 10-4
Maximum Certificates
Model
Certificate Limits
3005
Total of 6 root or subordinate certificates.
Total of 2 identity certificates.
Only a single SSL can be installed.
Other models
Total of 20 root or subordinate certificates.
Total of 20 Identity Certificates.
Only a single SSL can be installed.
Enrollment Variables
Table 10-5 explains the enrollment variables that you will see in the Enrollment screen.
Table 10-5
Enrollment Variables
Field
Explanation
Common Name (CN)
The identity associated with the certificate. This is a
mandatory field. If you are using an SSL certificate, the
IP address or domain name used to connect to the VPN
Concentrator is entered.
Organizational Unit (OU)
The OU should match the IPSec group name. Using a
different name than the IPSec group will mean that the
IPSec group used will not have any access.
Organization (O)
Usually the organization’s well-known and common
name. Examples: Cisco Press and Widget Corporation of
America.
CCSP.book Page 465 Friday, February 28, 2003 3:43 PM
Enrollment Variables
Table 10-5
465
Enrollment Variables (Continued)
Field
Explanation
Locality (L)
Where the VPN is physically located. Although there is
not a specific requirement, by convention, the city name
where the concentrator is located is entered. Example:
London.
State/Province (SP)
The state or province. You should spell out the entire state
name.
Country (C)
The country is entered here. The two-character country
code must conform to the ISO 3166 country codes.
Subject Alternative Name (FQDN)
Enter the FQDN (Fully Qualified Domain Name) here.
For example: vpn3000.ciscopress.com.
Subject Alternative Name (Email Address) Generally used for contacting the system administrator.
This field is also used for connecting between the
concentrator and A Cisco router or PIX firewall.
Challenge Password
Used when the certificate issuer requires a challenge
password.
Verify Challenge Password
The password is entered twice in order to ensure that is
was entered correctly.
Key Size
Sets the size of the key used by RSA. Possible values are
• RSA 512 bits
• RSA 768 bits
• RSA 1024 bits
• RSA 2048 bits
The key sizes when using DSA are
• DSA 512 bits
• DSA 768 bits
• DSA 1024 bits
CCSP.book Page 466 Friday, February 28, 2003 3:43 PM
466
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
Chapter Glossary
The following term was introduced in this chapter or has special significance to the topics
within this chapter.
Network Autodiscovery A process used on VPN Concentrators to discover networks
connected to the remote concentrator. Network Autodiscovery relies on RIP to discover
networks.
CCSP.book Page 467 Friday, February 28, 2003 3:43 PM
Q&A
467
Q&A
As mentioned in Chapter 1, these questions are more difficult than what you should experience
on the CCSP exam. The questions do not attempt to cover more breadth or depth than the exam;
however, the questions are designed to make sure you know the answer. Rather than allowing
you to derive the answer from clues hidden inside the question itself, your understanding and
recall of the subject are challenged. Questions from the “Do I Know This Already?” quiz from
the beginning of the chapter are repeated here to ensure that you have mastered the chapter’s
topic areas. Hopefully, these questions will help limit the number of exam questions on which
you narrow your choices to two options and guess!
1 What is a LAN-to-LAN connection?
2 What equipment is required for a LAN-to-LAN connection?
3 Where can a LAN-to-LAN connection be used?
4 When setting up network lists, how should the lists at each side of the LAN-to-LAN
connection relate to each other?
5 You attempted to configure a LAN-to-LAN connection, but cannot see a specific network
on one side of the connection. What is the most likely problem?
CCSP.book Page 468 Friday, February 28, 2003 3:43 PM
468
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
6 What routing protocol is used for Autodiscovery?
7 What is an identity certificate?
8 What is the advantage of using SCEP?
9 What are critical items when using any certificates?
10 Order the steps for using a certificate:
1. Issue an enrollment request.
2. Enroll with the CA.
3. The enrollment request is accepted.
4. Install the certificate.
5. Configure the concentrator to use the certificate.
11 You want to use SCEP to enroll an identity certificate. How must the associated CA
certificate be obtained?
CCSP.book Page 469 Friday, February 28, 2003 3:43 PM
Q&A
469
12 What are the default directory and file name for the DLL used with SCEP?
13 What are the three major steps involved in using digital certificates for a LAN-to-LAN
connection?
14 When using an identity certificate, what is the affect of entering an incorrect name in the
OU field?
15 What three key sizes may be used with DSA when installing certificates using SCEP?
16 What screen is used to configure Network Autodiscovery?
17 You have two VPN Concentrators—one in Seattle, the other in London—used for
connecting the two offices through VPNs. The Seattle office cannot reach one subnet
attached to the London office. You have checked your network lists on the Seattle
concentrator. You are sure that the “missing” network is properly configured. What is the
most likely problem?
CCSP.book Page 470 Friday, February 28, 2003 3:43 PM
470
Chapter 10: Cisco VPN 3000 LAN-to-LAN with Preshared Keys
18 You are using Network Autodiscovery. You do not see a single remote network that is
connected through a series of routers to your remote concentrator. Where should your
troubleshooting efforts be directed?
19 You are using SCEP. Your junior assistant has configured the system. You have established
a VPN connection to the remote site, but your remote group does not have access to your
network. What is a probable cause?
20 You are using SCEP. You are trying to enroll a certificate. Your concentrator shows that it
is polling. It has been in this state for over an hour. What is the most likely cause?
21 What screen is used to determine the IKE proposal used for a LAN-to-LAN connection?
22 What is the purpose of the challenge password on the Administration | Certificate
Management | Enroll | Identity Certificate | SCEP screen?
23 You wish to use Network Autodiscovery because it sounds easier. How are the networks
learned and how do you ensure that only specific networks are included?
CCSP.book Page 471 Friday, February 28, 2003 3:43 PM
Q&A
24 What are the differences between a root certificate, a subordinate certificate, and an
identity certificate?
25 What are the maximum numbers of certificates that may be used on concentrators?
471
CCSP.book Page 472 Friday, February 28, 2003 3:43 PM
CCSP.book Page 473 Friday, February 28, 2003 3:43 PM
CHAPTER
11
Scenarios
The following scenarios and questions are designed to draw together the content of the
book and exercise your understanding of the concepts. There might be more than one
correct answer. The thought process and practice in manipulating each concept in the
scenario are the goals of this chapter.
Example Corporation
The Value-Packed Nutrition Corporation has a growing VPN infrastructure, as shown in
Figure 11-1. The scenarios in this chapter are based on the elements shown in this diagram.
Figure 11-1 Value-Packed Nutrition Corporation
Portland
User
User
User
User
Printer
Detroit
Access
Server
Bastion
Router
Internet
VPN 3002
DSL Modem
VPN
3030
DMZ
Switch
Firewall
VPN 3002
DSL Modem
User
User
User
User
Printer
Internet
Server
Seattle
Intranet
Server
Private
Network
Terry
Carol
VPN
3005
VPN
3005
Memphis
Richmond
Internal
LAN
CA
WINS
Server
NT
DC
DNS
DHCP
CCSP.book Page 474 Friday, February 28, 2003 3:43 PM
474
Chapter 11: Scenarios
Site Descriptions
The following sections describe the characteristics of the VPN environment at the Detroit,
Portland, Seattle, Memphis, and Richmond sites and for the two user types represented by
Terry and Carol.
Detroit
Detroit is the central headquarters for Value-Packed Nutrition Corporation. All IPSec connections
from branch offices and mobile users are through the Cisco VPN 3030 Concentrator in Detroit.
VPN IPSec tunnels from remote sites and users all connect to the VPN 3030 Concentrator. A
variety of corporate resources are available in Detroit’s private network, including DHCP, DNS,
CA (SCEP support), and Windows 2000 Directory Services. An access server is available to
support employees when they come to Detroit for business meetings. DHCP is to be used to
assign all IPSec endpoint IP addresses, with unique address ranges being used for each location.
Detroit’s private network IP addresses fall within the 172.16.0.0 subnet.
Portland
Portland’s four users connect to the network through a Cisco VPN 3002 Hardware Client
equipped with an internal Ethernet 8-port switch. These users require numerous resources on
the Internet as well as a local connection to a shared network printer. The VPN connection to
Detroit is a remote access connection using digital signatures. Detroit has chosen to perform
user authentication for the Portland office using the 3030’s internal authentication server. Set
up the 3002 for Network Extension mode.
Seattle
Seattle is much like Portland, except that the users in Seattle do not use resources on the
Internet. The users also require access to local LAN resources. The 3002 Hardware Client here
also has an internal 8-port switch, but the remote access connection is authenticated using
preshared keys. Seattle users are also authenticated using the 3030’s internal server. Set up the
3002 for Client Extension mode.
Memphis
The network at Memphis is more robust than that at Portland or Seattle. Users require use of
the Internet and must be authenticated using NT Domain authentication. The VPN 3005
Concentrator at Memphis uses a LAN-to-LAN connection and is authenticated with digital
certificates. Secure all traffic except HTTP traffic through the IPSec tunnel.
CCSP.book Page 475 Friday, February 28, 2003 3:43 PM
Scenario 11-1—The Basics
475
Richmond
Richmond is the same as Memphis, with the exception that the LAN-to-LAN connection’s
authentication is through preshared keys.
Terry and Carol
Terry and Carol represent 30 salespeople that connect through a national ISP. These salespersons
use the Cisco VPN Client, and a mixture of digital certificates and preshared keys is used for
device authentication. User authentication for the preshared key users is through the 3030’s
internal authentication server. Detroit is converting these users to digital certificates, Zone
Labs’ ZoneAlarm Pro client firewall, and NT Domain authentication; to date, 20 users have
been converted, including Terry. Original system users, such as Carol, are currently using the
Cisco Integrated Client (CIC) firewall. Terry will use Are You There (AYT) firewall policy.
Carol will use Central Protection Policy (CPP) firewall policy.
Use the information contained in the descriptions of the various locations and users to complete
the requirements of the following scenarios.
Scenario 11-1—The Basics
Determine the additional information that you need to configure the systems based on the
information provided in the following sections.
IKE Policy
Identify the parameters that you need to configure the IKE policy required for each site and user
type. These parameters are as follows:
•
•
•
168-bit encryption
128-bit hashing algorithm
VPN peer and user authentication as described for each branch or user:
— Portland
— Seattle
— Memphis
— Richmond
— Terry
— Carol
•
•
1024-bit key exchange
Default IKE SA lifetime
CCSP.book Page 476 Friday, February 28, 2003 3:43 PM
476
Chapter 11: Scenarios
IPSec Policy
Identify the parameters that you need to configure the IPSec policy required for each site and
user type. These parameters are as follows:
•
•
•
•
•
The IPSec protocol, which provides encryption
128-bit hashing algorithm
168-bit encryption
SA to be established by IKE
Identify the traffic to be protected for each site:
— Portland
— Seattle
— Memphis
— Richmond
— Terry
— Carol
•
Select a unique IP address subnet for each site for DHCP address assignment:
— Portland
— Seattle
— Memphis
— Richmond
— Terry and other digital certificate users
— Carol and other preshared key users
Scenario 11-2—Portland
Configure the Detroit VPN 3030 Concentrator and the Portland VPN 3002 Hardware Client to
support the Portland users.
Scenario 11-3—Seattle
Configure the Detroit VPN 3030 Concentrator and the Seattle VPN 3002 Hardware Client to
support the Seattle users.
Scenario 11-4—Memphis
Configure the Detroit and Memphis VPN concentrators to support the Memphis users.
CCSP.book Page 477 Friday, February 28, 2003 3:43 PM
Scenario 11-6—Terry and Carol
Scenario 11-5—Richmond
Configure the Detroit and Richmond VPN concentrators to support the Richmond users.
Scenario 11-6—Terry and Carol
Configure the Detroit VPN concentrator and Terry and Carol’s VPN Client to provide the
required access.
477
CCSP.book Page 478 Friday, February 28, 2003 3:43 PM
478
Chapter 11: Scenarios
Scenario Answers
The answers provided in this section are not necessarily the only correct answers. They merely
represent one possibility for each scenario. The intention is to test your basic knowledge and
understanding of the concepts that were discussed in this chapter.
Should your answers be different (as they likely will be), consider the differences. Are your
answers in line with the concepts of the answers provided and explained here? If not, reread the
chapter, focusing on the sections that are related to the problem scenario.
Scenario 11-1 Answers
The additional information that you need to configure the systems is described in the following
sections.
IKE Policy
The parameters that are needed to configure the IKE policy required for each site and user type
are as follows:
•
•
•
3DES—168-bit encryption
MD5—128-bit hashing algorithm (use the HMAC variant)
VPN peer and user authentication as described for each branch or user:
— Portland—RSA signatures for VPN peer authentication and VPN 3030 internal
authentication for users
— Seattle—Preshared keys for VPN peer authentication and VPN 3030 internal
authentication for users
— Memphis—RSA signatures for VPN peer authentication and NT Domain for
user authentication
— Richmond—Preshared keys for VPN peer authentication and NT Domain for
user authentication
— Terry—RSA signatures for VPN peer authentication and NT Domain for user
authentication
— Carol—Preshared keys for VPN peer authentication and VPN 3030 internal
authentication for users
•
•
Diffie-Hellman 2—1024-bit key exchange
86,400 seconds for IKE SA lifetime
CCSP.book Page 479 Friday, February 28, 2003 3:43 PM
Scenario 11-2 Answers
479
IPSec Policy
The parameters needed to configure the IPSec policy required for each site and user type are as
follows:
•
•
•
•
•
ESP—The IPSec protocol that provides encryption
MD5—128-bit hashing algorithm
3DES—168-bit encryption
SA established by IKE
Traffic to be protected for each site:
— Portland—Only traffic destined for internal network addresses
— Seattle—All traffic
— Memphis—All traffic except HTTP
— Richmond—All traffic except HTTP
— Terry—Only traffic destined for internal network addresses
— Carol—Only traffic destined for internal network addresses
•
Possible unique IP address subnets for each site for DHCP address assignment are as
follows:
— Portland—192.168.20.1 to 192.168.20.20
— Seattle—192.168.30.1 to 192.168.30.20
— Memphis—192.168.40.1 to 192.168.40.200
— Richmond—192.168.50.1 to 192.168.50.200
— Terry and other digital certificate users—192.168.60.1 to 192.168.60.50
— Carol and other preshared key users—192.168.70.1 to 192.168.70.50
Scenario 11-2 Answers
The configurations required to support the Portland users are described in the following
sections.
Detroit VPN 3030 Concentrator and Router (Generic for All)
Configure the following settings and attributes on the Detroit router and VPN 3030
Concentrator to support all the sites and users:
1 On the Detroit Bastion router, configure an ACL that permits the IPSec ports and protocols,
specifically UDP port 500 for ISAKMP, protocol 50 for ESP, and protocol 51 for AH.
CCSP.book Page 480 Friday, February 28, 2003 3:43 PM
480
Chapter 11: Scenarios
2 On the 3030, obtain the root CA certificate from the Detroit CA using SCEP. Remember
that you must install the root CA certificate first and that you must use SCEP to do that if
you want to use SCEP for subsequent identity or SSL certificates from that CA.
3 Enroll the 3030 with the Detroit CA server using SCEP to install the 3030’s identity
certificate.
4 On the Configuration | System | Servers | Authentication screen, add Internal and SDI
server types, using the IP address of Detroit’s CA server for the address of the SDI server.
5 On the Configuration | System | Address Management | Assignment screen, select Use
DHCP for client IP address assignment.
6 Change the password for the admin user.
7 Configure the 3030’s base group as follows:
— No restrictions on access hours.
— 1 simultaneous login.
— 8 characters for a minimum password length.
— Disable alphabetic-only passwords.
— Establish 60 minutes as the idle timeout.
— Enter the DNS and WINS servers’ IP addresses.
— Select IPSec for the tunneling protocol.
— If the VPN 3030 Concentrator has SEP modules (not specified for these
scenarios), identify which SEP modules this group can use.
— Select ESP/IKE-3DES-MD5 for the IPSEC SA.
— Ensure that IKE Keepalives are enabled.
— Select Required for IKE Peer Identity Validation.
Detroit VPN 3030 Concentrator for Portland
Configure these attributes on Detroit’s VPN 3030 Concentrator to support the Portland users:
1 Create a new group specifically for Portland:
— Use a descriptive name for the group such as Portland-LAN-to-LAN.
— Use a generic password.
— Select Internal authentication for remote access users.
— Select tunnel type Remote Access.
— Enable split tunneling and only tunnel addresses in the Detroit network.
CCSP.book Page 481 Friday, February 28, 2003 3:43 PM
Scenario 11-2 Answers
481
2 Add Portland’s users to the internal database. All of these users should be in the Portland-
LAN-to-LAN group.
3 Configure a static route to point 192.168.20.0 toward the Portland VPN 3002 Hardware
Client.
Portland VPN 3002 Hardware Client
Configure the following attributes on Portland’s VPN 3002 Hardware Client to support the
Portland users:
1 Configure the public interface for a static address or a DHCP address, depending on the
requirements of the Portland ISP.
2 Because Portland uses a digital subscriber line (DSL) modem, configure the Point-to-
Point Protocol (PPP) over Ethernet (PPPoE) username and password on the public
interface. You can obtain these from the Portland ISP.
3 Configure a default route from the 3002 to the 3030. This can be the same address as the
default gateway for the VPN 3002 Hardware Client.
4 Change the default IP address of the private interface from 192.168.10.1 to 192.168.20.100
(or some other address outside of the DHCP range of addresses for this subnet).
5 Disable PAT under Configuration | Policy Management. Disabling PAT enables Network
Extension mode. You cannot disable PAT until you have changed the IP address of the
private interface.
6 On the Configuration | System | IP Routing | DHCP screen, verify that DHCP is disabled
on the private interface.
7 On the Configuration | System | Tunneling Protocols | IPSec screen, enter the IP address
of Detroit’s VPN 3030 Concentrator. Check the Use Certificate box. You only need to
send the identity certificate because both VPN devices use the same root CA server. You
do not need to enter a group or username because you will be using digital certificates for
authentication.
8 Install root and identity certificates from Detroit’s CA server (after you have configured
the public interface on the VPN 3002 Hardware Client).
9 Because the 3002 has an internal switch, you do not need to do anything to share the local
printer.
10 Change the password for the admin user.
CCSP.book Page 482 Friday, February 28, 2003 3:43 PM
482
Chapter 11: Scenarios
Scenario 11-3 Answers
The configurations required to support the Seattle users are described in the following sections.
Detroit VPN 3030 Concentrator for Seattle
Configure these attributes on Detroit’s VPN 3030 Concentrator to support the Seattle users:
1 Create a new group specifically for Seattle, as follows:
— Use a descriptive name for the group, such as Seattle-LAN-to-LAN.
— Use a generic password.
— Select Internal Authentication.
— Select tunnel type Remote Access.
— Enable split tunneling and only tunnel addresses in the Detroit network.
2 Add Seattle’s users to the internal database. All of these users should be in the Seattle-
LAN-to-LAN group.
3 Create a separate user to be used by the VPN 3002 Hardware Client during IKE Phase 1
negotiations with the VPN 3030 Concentrator. This user should also be in the SeattleLAN-to-LAN group.
4 Configure a static route to point 192.168.30.0 toward the Seattle VPN 3002 Hardware
Client.
Seattle VPN 3002 Hardware Client
Configure the following attributes on Seattle’s VPN 3002 Hardware Client to support the
Seattle users:
1 Configure the public interface for a static address or a DHCP address, depending on the
requirements of the Seattle ISP.
2 Because Seattle uses a DSL modem, configure the Point-to-Point Protocol over Ethernet
(PPPoE) username and password on the public interface. You can obtain these from the
Seattle ISP.
3 Configure a default route from the 3002 to the 3030. This can be the same address as the
default gateway for the VPN 3002 Hardware Client.
4 Change the default IP address of the private interface from 192.168.10.1 to 192.168.30.100
(or some other address outside of the DHCP range of addresses for this subnet).
5 Enable PAT under Configuration | Policy Management. Enabling PAT enables Client
Extension mode.
CCSP.book Page 483 Friday, February 28, 2003 3:43 PM
Scenario 11-4 Answers
483
6 On the Configuration | System | IP Routing | DHCP screen, verify that DHCP is disabled
on the private interface.
7 On the Configuration | System | Tunneling Protocols | IPSec screen, enter the IP address
of Detroit’s VPN 3030 Concentrator. Be sure to uncheck the Use Certificate box. Enter the
Seattle-LAN-to-LAN group name and password (this combination becomes the preshared
key for authentication purposes). Enter the username and password of the unique user you
created on the VPN 3030 Concentrator for IKE Phase 1 negotiations.
8 Because the 3002 has an internal switch, you do not need to do anything to share the local
printer.
9 Change the password for the admin user.
Scenario 11-4 Answers
The configurations required to support the Memphis users are described in the following
sections.
Detroit VPN 3030 Concentrator for Memphis
Configure the following attributes on Detroit’s VPN 3030 Concentrator to support the Memphis
users:
1 Assign a static IP for the Memphis 3005 Concentrator.
2 On the Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN screen, add a
connection to Memphis using the IP address of the Memphis VPN 3005 Concentrator.
Select to use digital certificates, and select the VPN 3030’s identity certificate to use for
authentication.
3 Configure a static route to point 192.168.40.0 toward the Memphis VPN 3005
Concentrator.
Memphis VPN 3005 Concentrator and Router
Configure the following attributes on Memphis’s VPN 3005 Concentrator and router to support
the Memphis users:
1 On the Memphis router, configure an ACL that permits the IPSec ports and protocols,
specifically UDP port 500 for ISAKMP, protocol 50 for ESP, and protocol 51 for AH.
2 On the Memphis VPN 3005 Concentrator, install root and identity certificates.
3 Assign a static IP for Detroit’s 3030 Concentrator.
CCSP.book Page 484 Friday, February 28, 2003 3:43 PM
484
Chapter 11: Scenarios
4 Configure IPSec LAN-to-LAN under Tunneling Protocols. Be sure to set this to use digital
certificates using only the identity certificate of the Memphis 3005 Concentrator. Use the
IP address of the Detroit VPN 3030 Concentrator for the peer address.
Scenario 11-5 Answers
The configurations required to support the Richmond users are described in the following
sections.
Detroit VPN 3030 Concentrator for Richmond
Configure the following attributes on Detroit’s VPN 3030 Concentrator to support the
Richmond users:
1 Assign a static IP for Richmond’s 3005 Concentrator.
2 On the Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN screen, add a
connection to Richmond using the IP address of the Richmond VPN 3005 Concentrator
and selecting a preshared key to use for authentication.
3 Configure a static route to point 192.168.50.0 toward the Richmond VPN 3005
Concentrator.
Richmond VPN 3005 Concentrator and Router
Configure the following attributes on Richmond’s VPN 3005 Concentrator and router to
support the Richmond users:
1 On the Richmond router, configure an ACL that permits the IPSec ports and protocols,
specifically UDP port 500 for ISAKMP, protocol 50 for ESP, and protocol 51 for AH.
2 On the Richmond VPN 3005 Concentrator, assign a static IP for Detroit’s 3030
Concentrator.
3 Configure IPSec LAN-to-LAN under Tunneling Protocols. Be sure to set this to use
preshared keys, using the key you created on Detroit’s VPN 3030 Concentrator.
Scenario 11-6 Answers
The configurations required to support Terry and Carol are described in the following sections.
CCSP.book Page 485 Friday, February 28, 2003 3:43 PM
Scenario 11-6 Answers
485
Detroit VPN 3030 Concentrator for Terry and Similar Users
Configure the following attributes on Detroit’s VPN 3030 Concentrator to support Terry and
similar users:
1 Create a new group for users like Terry who will be using digital certificates.
— Use a descriptive name for the group, such as Remote-Digital-Certificates.
— Use a generic password.
— Select NT Domain authentication.
2 Select tunnel type Remote Access.Select Firewall Required, and select Zone Labs
ZoneAlarm Pro as the firewall type.
3 Select AYT firewall policy.
4 Create a floppy disk for Terry with root and identity certificates. (You must enroll Terry’s
system.)
5 Configure a static route to point 192.168.60.0 out toward the Internet cloud.
Terry VPN Client and Browser
Configure the following attributes on Terry’s VPN Client and browser:
1 Install the root and identity certificates into the browser.
2 Configure the connection to Detroit to use the newly installed identity certificate.
Detroit VPN 3030 Concentrator for Carol and Similar Users
Configure the following attributes on Detroit’s VPN 3030 Concentrator to support Carol and
similar users:
1 Create a new group for users like Carol, who will be using preshared keys.
— Use a descriptive name for the group, such as Remote-Preshared-Keys.
— Use a generic password.
— Select Internal authentication.
2 Select tunnel type Remote Access. Select Firewall Required, and select Cisco Client
Integrated Firewall as the firewall type.
3 Select CPP firewall policy and define the policy.
4 Add Carol as a user to the internal authentication database by supplying a username and
password. You must do this for all users like Carol.
5 Configure a static route to point 192.168.70.0 out toward the Internet cloud.
CCSP.book Page 486 Friday, February 28, 2003 3:43 PM
486
Chapter 11: Scenarios
Carol VPN Client and Browser
Configure the following attributes on Carol’s VPN Client and browser:
1 Configure the VPN Client on Carol’s system to use the Remote-Preshared-Keys group and
password as the preshared key for establishing the VPN connection to Detroit’s VPN 3030
Concentrator.
CCSP.book Page 487 Friday, February 28, 2003 3:43 PM
CCSP.book Page 488 Friday, February 28, 2003 3:43 PM
CCSP.book Page 489 Friday, February 28, 2003 3:43 PM
APPENDIX
A
Answers to the “Do I Know This
Already?” Quizzes and Q&A
Sections
Chapter 2—Do I Know This Already?
1 Which Cisco hardware product families support IPSec VPN technology?
Cisco IOS routers, PIX Firewalls, and VPN 3000 Series Concentrators, including
the VPN 3002 Hardware Client, support IPSec VPN technology.
2 What are the two IPSec protocols?
The two IPSec protocols are Authentication Header (AH) and Encapsulating
Security Payload (ESP).
3 Which type of VPNs use a combination of the same infrastructures that are used by
the other two types of VPNs?
Business-to-business, or extranet, VPNs use a combination of the same
infrastructures that are used by remote access and intranet VPNs.
4 Which of the Cisco VPN 3000 Series Concentrators is a fixed-configuration device?
The Cisco VPN 3005 Concentrator is a fixed-configuration system that supports
up to 100 simultaneous sessions.
5 What key element is contained in the AH or ESP packet header?
The key element contained in each protocol’s header is the Security Parameters
Index (SPI), giving the destination peer the information that it needs to
authenticate and decrypt the packet.
6 What are the two modes of operation for AH and ESP?
AH and ESP use Transport and Tunnel modes. In Transport mode, the original
IP packet header is left intact and is not protected by IPSec. In Tunnel mode, the
original IP packet header is copied and the entire original IP packet is then
protected by AH or ESP.
CCSP.book Page 490 Friday, February 28, 2003 3:43 PM
490
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
7 How many Security Associations (SAs) does it take to establish bidirectional IPSec
communications between two peers?
It takes three SAs to establish bidirectional IPSec communications between two
peers. IPSec SAs are simplex, so it takes one for each direction for IKE Phase 2. IKE
SAs are bidirectional, so you only need one of those to complete IKE Phase 1.
8 What is a message digest?
A message digest is a condensed representation of a message of a fixed length, which
depends on the hashing algorithm used.
9 Which current RFCs define the IPSec protocols?
There are two IPSec protocols, AH and ESP. AH is now defined by RFC 2402. ESP
is now defined by RFC 2406. Their original RFCs were 1826 and 1827, respectively.
10 What message integrity protocols does IPSec use?
IPSec uses Message Digest 5 (MD5), Secure Hash Algorithm-1 (SHA-1), and HashBased Message Authentication Code (HMAC) as hashing protocols to provide
message integrity.
11 What is the triplet of information that uniquely identifies a security association?
The combination of the destination IP address, the IPSec protocol, and the SPI
uniquely identifies a security association.
12 You can select to use both authentication and encryption when using the ESP protocol.
Which is performed first when you do this?
If you select to use both ESP authentication and encryption, encryption is performed
first. This allows authentication to be done with the assurance that the sender does
not alter the datagram before transmission and the receiver can authenticate the
datagram before decrypting the package.
13 What five parameters are required by IKE Phase 1?
IKE Phase 1 needs to know the following five parameters:
a. Encryption algorithm
b. Hashing algorithm
c. Authentication method
d. Key exchange method
e. IKE SA lifetime
CCSP.book Page 491 Friday, February 28, 2003 3:43 PM
Chapter 2—Q&A
491
14 What is the difference between the deny keyword in a crypto Access Control List (ACL)
and the deny keyword in an access ACL?
In an access ACL, the deny keyword tells the network device to drop the packet. In
a crypto ACL, the deny keyword tells the network device to pass the traffic in the
clear without the benefit of IPSec security.
15 What transform set would allow SHA-1 authentication of both AH and ESP packets and
would also provide Triple Data Encryption Standard (3DES) encryption for ESP?
The transform set that would allow 3DES for ESP and SHA-1 for both is ah-shahmac esp-3des esp-sha-hmac.
16 What are the five steps of the IPSec process?
The five steps of the IPSec process are as follows:
a. Interesting traffic triggers IPSec process.
b. Authenticate peers and establish IKE SAs (IKE Phase 1).
c. Establish IPSec SAs (IKE Phase 2).
d. Allow secured communications.
e. Terminate VPN.
Chapter 2—Q&A
1 What are the Cisco hardware product families that support IPSec VPN technology?
Cisco IOS Software routers, PIX Firewalls, and VPN 3000 Series Concentrators,
including the VPN 3002 Hardware Client, support IPSec VPN technology.
2 What are the two IPSec protocols?
The two IPSec protocols are Authentication Header (AH) and Encapsulating
Security Payload (ESP).
3 What are the three major VPN categories?
The three major VPN categories are remote access, intranet (site-to-site), and
extranet (business-to-business).
4 What is an SEP module used for?
Scalable Encryption Processing (SEP) modules are used with Cisco VPN 3030, 3060,
and 3080 Concentrators to provide hardware-based encryption services.
CCSP.book Page 492 Friday, February 28, 2003 3:43 PM
492
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
5 What are the primary reasons cited for choosing VPN technology?
Security and reduced cost are most often cited as the reasons for selecting VPN
technology.
6 Why are remote access VPNs considered ubiquitous?
Remote access VPNs are considered ubiquitous because they can be established any
time from practically anywhere over the Internet.
7 What types of VPNs are typically built across service provider shared network
infrastructures?
Site-to-site, or intranet, VPNs are typically built across service provider shared
network infrastructures, such as Frame Relay, ATM, or point-to-point circuits.
8 Which type of VPNs use a combination of the same infrastructures that are used by the
other two types of VPNs?
Business-to-business, or extranet, VPNs use a combination of the same
infrastructures that are used by remote access and intranet VPNs.
9 What hardware would you use to build intranet and extranet VPNs?
Cisco IOS Software routers are the best choice for intranet and the site-to-site
portion of extranet VPNs. VPN encryption modules in these devices can provide
powerful platforms for supporting VPNs between sites.
10 Which Cisco routers provide support for Cisco EzVPN Remote?
The Cisco router models that support Cisco EzVPN Remote include Models 827H,
uBR905, 806, 1710, and 1700. Of these, the 827H and the 806 offer support only for
EzVPN Remote. The others also provide support for EzVPN Server.
11 Which Cisco router series supports VAMs?
The Cisco 7200 Router Series supports VPN Acceleration Modules (VAMs) to
enhance VPN support characteristics on the router.
12 Which Cisco router series supports ISMs?
The Cisco 7100 Router Series supports Integrated Services Modules (ISMs) to
expand the VPN capabilities of the router.
13 Which of the Cisco PIX Firewall models are fixed-configuration devices?
The Cisco PIX 501 Firewall and the Cisco PIX 506E Firewall models are fixedconfiguration devices.
CCSP.book Page 493 Friday, February 28, 2003 3:43 PM
Chapter 2—Q&A
493
14 Which Cisco PIX Firewall models offer a failover port for high availability and support
VACs?
The three high-end models of the PIX Firewall have a failover port and support VPN
Accelerator Cards (VACs). Those models are the Cisco PIX 515E Firewall, the Cisco
PIX 525 Firewall, and the Cisco PIX 535 Firewall.
15 Which series of Cisco hardware devices are purpose-built remote access VPN devices?
The Cisco VPN 3000 Series Concentrators were designed specifically to support
remote access VPN services.
16 Which of the Cisco VPN 3000 Series Concentrators is a fixed-configuration device?
The Cisco VPN 3005 Concentrator is a fixed-configuration system that supports up
to 100 simultaneous sessions.
17 Which of the Cisco VPN 3000 Series Concentrators can accept SEP modules?
The three high-end concentrators support SEP modules. These systems are the Cisco
VPN 3030 Concentrator, the 3060 Concentrator, and the 3080 Concentrator.
18 What feature of the Cisco Unity Client makes it scalable?
The client version updates can be pushed to the user’s system from a central network
site when the user makes the initial login attempt. This scalability feature relieves the
burden of having to configure numerous client systems and enables a managed
growth path for VPN deployment.
19 Which of Cisco’s VPN clients can be used with any operating system that communicates
in IP?
The Cisco VPN 3002 Hardware Client enables any user device that communicates in
IP to access an IPSec tunnel. Operating systems such as Windows, Solaris, MAC, and
Linux can all participate in IPSec secure communications using these devices.
20 What protocol enables IP-enabled wireless devices such as PDAs and Smart Phones to
participate in VPN communications?
The Elliptic Curve Cryptosystem (ECC) Protocol permits IP-enabled wireless
devices to participate in VPN communications. All Cisco VPN 3000 Series
Concentrators support ECC, which is a new Diffie-Hellman group that allows faster
processing of keying information.
21 What are the three phases of Cisco Mobile Office?
The three phases of Cisco Mobile Office are On The Road, At Home, and At Work.
22 What is the distinctive characteristic of Cisco VPN Device Manager?
Cisco VPN Device Manager is an embedded device manager that is installed directly
into a supporting router’s flash memory.
CCSP.book Page 494 Friday, February 28, 2003 3:43 PM
494
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
23 What is Cisco’s AAA server, and what AAA systems does it support?
The Cisco Secure Access Control Server (ACS) is Cisco’s Authentication,
Authorization, and Accounting (AAA) server. This device supports both Terminal
Access Controller Access Control System Plus (TACACS+) and Remote
Authentication Dial-In User Service (RADIUS).
24 Which web-based management tool can display a physical representation of each
managed device?
CiscoView is the web-based management tool that displays a physical representation
of each managed device. Modules, ports, and indicators are depicted with color
coding to indicate the current, dynamically updated status of the element.
25 What are the current RFCs that define the IPSec protocols?
There are two IPSec protocols, Authentication Header (AH) and Encapsulating
Security Payload (ESP). AH is defined by RFC 2402. ESP is defined by RFC 2406.
Their original RFCs were 1826 and 1827, respectively.
26 What are three shortcomings of IPSec?
Any of the following are shortcomings of IPSec:
a. IPSec does not support DLSw or SRB.
b. IPSec does not support multipoint tunnels.
c. IPSec works strictly with unicast IP datagrams only. It does not work with multicast or broadcast IP datagrams.
d. IPSec is slower than Cisco Encryption Technology (CET) because IPSec provides per-packet data authentication.
e. IPSec provides packet expansion that can cause fragmentation and reassembly
of IPSec packets, creating another reason that IPSec is slower than CET.
27 What message encryption protocols does IPSec use?
IPSec uses Data Encryption Standard (DES) and Triple DES (3DES) encryption
protocols.
28 What message integrity protocols does IPSec use?
IPSec uses Message Digest 5 (MD5), Secure Hash Algorithm-1 (SHA-1), and Hashbased Message Authentication Code (HMAC) as hashing protocols to provide
message integrity.
29 What methods does IPSec use to provide peer authentication?
Three methods are available to IPSec for peer authentication: preshared keys, RSA
digital signatures, and RSA encrypted nonces.
CCSP.book Page 495 Friday, February 28, 2003 3:43 PM
Chapter 2—Q&A
495
30 What methods does IPSec use for key management?
IPSec uses Certificate Authorities (CAs) and the Diffie-Hellman key exchange
process for key management.
31 What is the key element contained in the AH or ESP packet header?
The key element contained in each protocol’s header is the SPI, giving the
destination peer the information it needs to authenticate and decrypt the packet.
32 Which IPSec protocol does not provide encryption services?
Authentication Header (AH) does not provide encryption services. AH packets are
sent as clear text.
33 What is the triplet of information that uniquely identifies a Security Association?
The combination of the destination IP address, the IPSec protocol, and the Security
Parameters Index (SPI) uniquely identifies a Security Association (SA).
34 What is an ICV?
An Integrity Check Value (ICV) is a calculated representation of the immutable
contents of an IPSec packet. Each peer calculates this value for the packet
independently. If the values do not match, the packet is considered as having been
altered in transit and the packet is discarded.
35 What IPSec protocol must you use when confidentiality is required in your IPSec
communications?
You must use ESP when confidentiality is required in your IPSec communications.
ESP provides encryption; AH does not.
36 What is the primary difference between the mechanisms used by AH and ESP to modify
an IP packet for IPSec use?
AH inserts an IPSec header into the packet containing the SPI and other related
information. ESP encapsulates the original IP packet or the data portion of that
packet by surrounding it with both a header and a trailer.
37 What are the two modes of operation for AH and ESP?
AH and ESP use Transport and Tunnel modes. In Transport mode, the original IP
packet header is left intact and is not protected by IPSec. In Tunnel mode, the
original IP packet header is copied and the entire original IP packet is then protected
by AH or ESP.
38 Which IPSec protocol should you use if your system is using NAT?
AH does not support Network Address Translation (NAT) because changing the
source IP address in the IP header causes authentication to fail.
CCSP.book Page 496 Friday, February 28, 2003 3:43 PM
496
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
39 You can select to use both authentication and encryption when using the ESP protocol.
Which is performed first when you do this?
If you select to use both ESP authentication and encryption, encryption is performed
first. This allows authentication to be done with assurance that the sender does not
alter the datagram before transmission and the receiver can authenticate the
datagram before decrypting the package.
40 How many SAs does it take to establish bidirectional IPSec communications between two
peers?
It takes three SAs to establish bidirectional IPSec communications between two
peers. IPSec SAs are simplex, so it takes one for each direction for IKE Phase 2. IKE
SAs are bidirectional, so you only need one of those to complete IKE Phase 1.
41 Which encryption protocol was considered unbreakable at the time of its adoption?
The Data Encryption Standard (DES) holds this distinction. DES was once
considered such a strong encryption technique that it was barred from export from
the continental United States.
42 What process does 3DES use to obtain an aggregate 168-bit key?
Triple DES performs an encryption process, a decryption process, and then another
encryption process, each with a different 56-bit key. This triple process produces an
aggregate 168-bit key, providing strong encryption.
43 What is a message digest?
A message digest (MD) is a condensed representation of a message of a fixed length,
which depends on the hashing algorithm used.
44 What does HMAC-MD5-96 mean?
HMAC-MD5-96 is a variant of MD5 that uses a 128-bit secret key to produce a
128-bit MD. AH and ESP-HMAC only use the left-most 96 bits, placing them into the
authentication field. The destination peer then calculates a complete 128-bit message
digest but then only uses the left-most 96 bits to compare with the value stored in the
authentication field.
45 What does HMAC-SHA1-96 mean?
HMAC-SHA1-96 is a variant of SHA-1 that produces a 160-bit message digest using
a 160-bit secret key. Cisco’s implementation of HMAC-SHA1-96 truncates the
160-bit MD to the left-most 96 bits and sends those in the authentication field. The
receiving peer recreates the entire 160-bit message digest using the same 160-bit
secret key but then only compares the leading 96 bits against the MD fragment in the
authentication field.
CCSP.book Page 497 Friday, February 28, 2003 3:43 PM
Chapter 2—Q&A
497
46 How are preshared keys exchanged?
Preshared keys are exchanged manually, severely impacting the scalability of
their use.
47 What does the Diffie-Hellman key agreement protocol permit?
The Diffie-Hellman (D-H) key agreement protocol allows two peers to exchange
a secret key without having any prior secrets. This protocol is an example of an
asymmetrical key exchange process in which peers exchange different public keys to
generate identical private keys.
48 Why is D-H not used for symmetric key encryption processes?
Asymmetric key encryption processes like Diffie-Hellman are much too slow for the
bulk encryption required in high-speed VPN circuits.
49 What is a CRL?
A Certificate Revocation List (CRL) is a list of expired or voided digital certificates
that a CA makes available to its customers. Clients use these CRLs during the
process of authenticating a peer.
50 What are the five parameters required by IKE Phase 1?
IKE Phase 1 needs to know the following parameters:
a. Encryption algorithm
b. Hashing algorithm
c. Authentication method
d. Key exchange method
e. IKE SA lifetime
51 What are the valid AH authentication transforms?
There are only three valid AH authentication transforms: ah-md5-hmac,
ah-sha-hmac, and ah-rfc1828.
52 What transform set would allow for SHA-1 authentication of both AH and ESP packets
and would also provide 3DES encryption for ESP?
The transform set that would allow for 3DES for ESP and SHA-1 for both is
ah-sha-hmac esp-3des esp-sha-hmac.
CCSP.book Page 498 Friday, February 28, 2003 3:43 PM
498
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
53 What steps should you take before you begin the task of configuring IPSec on a Cisco
device?
The five preconfiguration steps are as follows:
Step 1 Establish an IKE policy.
Step 2 Establish an IPSec policy.
Step 3 Examine the current configuration.
Step 4 Test the network before IPSec.
Step 5 Permit IPSec ports and protocols.
54 What are the five steps of the IPSec process?
The five steps of the IPSec process are as follows:
Step 1 Interesting traffic triggers IPSec process.
Step 2 Authenticate peers and establish IKE SAs (IKE Phase 1).
Step 3 Establish IPSec SAs (IKE Phase 2).
Step 4 Allow secured communications.
Step 5 Terminate VPN.
55 What is the difference between the deny keyword in a crypto ACL and the deny keyword
in an access ACL?
In an access ACL, the deny keyword tells the network device to drop the packet. In
a crypto ACL, the deny keyword tells the network device to pass the traffic in the
clear without the benefit of IPSec security.
Chapter 3—Do I Know This Already?
1 What models are available in the Cisco VPN 3000 Concentrator Series?
Five models are available in the Cisco VPN 3000 Concentrator Series: VPN 3005,
VPN 3015, VPN 3030, VPN 3060, and VPN 3080.
2 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3015 Concentrator?
The Cisco VPN 3015 Concentrator supports up to 100 simultaneous sessions.
3 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3080 Concentrator?
The Cisco VPN 3080 Concentrator supports up to 10,000 simultaneous sessions.
CCSP.book Page 499 Friday, February 28, 2003 3:43 PM
Chapter 3—Do I Know This Already?
499
4 On a Cisco VPN 3005 Concentrator, what does a blinking green system LED indicate?
On a Cisco VPN 3005 Concentrator, a blinking green system LED indicates that the
system is in a shutdown (halted) state and is ready to be powered off.
5 What is the maximum encryption throughput rate for the VPN 3000 series?
The VPN 3000 series of concentrators can sustain a maximum encryption
throughput of 100 Mbps.
6 What tunneling protocols do Cisco VPN 3000 Concentrators support?
The Cisco VPN 3000 Concentrators support the following tunneling protocols: Internet Protocol Security (IPSec), Point-to-Point Tunneling Protocol (PPTP), Layer 2
Tunneling Protocol (L2TP), L2TP/IPSec, and Network Address Translation (NAT)
Transparent IPSec.
7 How do VPN concentrators reduce communications expenses?
VPN concentrators reduce communications expenses by allowing remote users to
connect to the corporate network through the Internet by dialing into local ISP
connections rather than by using expensive long-distance or 800 numbers. Digital
subscriber line (DSL) or cable modem users can also use broadband connections
with VPN concentrators to gain security for their high-speed data circuits.
8 What other authentication capability exists if standard authentication servers are not
available?
When authentication servers are not available, the VPN concentrators have the
ability to authenticate users from an internal database.
9 What routing protocols do the Cisco VPN 3000 Concentrators support?
The Cisco VPN 3000 Concentrators support Routing Information Protocol 1 (RIP1),
RIP2, and Open Shortest Path First (OSPF). In addition to these dynamic routing
protocols, the concentrators also support static routing.
10 What protocol permits multichassis redundancy and failover?
The Virtual Router Redundancy Protocol (VRRP) permits multichassis redundancy
and failover support.
11 List some of the methods that can be used to interface with the embedded Cisco VPN
Manager software on VPN concentrators?
You can access the Cisco VPN Manager through the console port, Telnet, SSH,
HTTP, and Secure HTTP.
12 What four options are available under the Configuration menu of the VPN Manager?
The four options on the Configuration menu are Interfaces, System, User
Management, and Policy Management.
CCSP.book Page 500 Friday, February 28, 2003 3:43 PM
500
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
13 What mechanism is used by Cisco VPN Clients to monitor firewall activity between the
client and the concentrator?
The Cisco VPN Clients use the Are You There (AYT) mechanism to monitor firewall
activity.
14 What optional feature on the Cisco VPN 3002 Hardware Client allows you to connect
Ethernet devices to the client?
The Cisco VPN 3002 Hardware Client can be configured with an optional 8-port
Ethernet switch.
15 During large-scale implementations, how can VPN 3000 Concentrators be configured to
simplify client configuration?
Cisco VPN 3000 Concentrators can push the client policies and configurations to the
clients upon initial login to the system.
16 Which of Cisco’s client offerings has no limitations with regard to the types of client
operating systems it can support?
The Cisco VPN 3002 Hardware Client works with every type of client operating
system, as long as the system speaks TCP/IP.
17 What two operating modes can a Cisco VPN 3002 Hardware Client be configured to
support?
The Cisco VPN 3002 Hardware Client can be configured to support either Client
mode or Network Extension mode.
18 What operating systems does the Cisco VPN Client support?
The Cisco VPN Client supports the full range of Microsoft Windows operating
systems, including Windows 95, 98, Me, NT 4.0, 2000, and XP. The Cisco VPN Client
also supports Linux (Intel), Solaris (UltraSparc-32bit), and MAC OS X 10.1.
Chapter 3—Q&A
1 How do VPN concentrators reduce communications expenses?
VPN concentrators reduce communications expenses by allowing remote users to
connect to the corporate network through the Internet by dialing into local ISP
connections rather than by using expensive long-distance or 800 numbers. Digital
subscriber line (DSL) or cable modem users can also use broadband connections
with VPN concentrators to gain security for their high-speed data circuits.
CCSP.book Page 501 Friday, February 28, 2003 3:43 PM
Chapter 3—Q&A
501
2 What are two of the standard authentication servers that Cisco VPN 3000 Concentrators
can use for authentication?
These concentrators can work with existing RADIUS, TACACS+, NT Domain,
internal authentication, digital certificates, or Security Dynamics servers, which are
also known as RSA Security International (SDI) servers. You could choose any two
of these for the correct answer.
3 What other authentication capability exists if standard authentication servers are not
available?
When authentication servers are not available, the VPN concentrators have the
ability to authenticate users from an internal database.
4 With respect to firewalls, where can you install Cisco VPN 3000 Concentrators?
These powerful concentrators can be installed in front of, behind, or in parallel with
existing firewalls, or even in the DMZ when the firewall provides one.
5 What routing protocols do the Cisco VPN 3000 Concentrators support?
The Cisco VPN Concentrators support RIP1, RIP2, and OSPF. In addition to these
dynamic routing protocols, the concentrators also support static routing.
6 During large-scale implementations, how can Cisco VPN 3000 Concentrators be
configured to simplify client configuration?
Cisco VPN 3000 Concentrators can push the client policies and configurations to the
clients upon initial login to the system.
7 What is the maximum encryption throughput rate for the VPN 3000 Concentrator Series?
The Cisco VPN 3000 Concentrator Series can sustain a maximum encryption
throughput of 100 Mbps.
8 What hardware device is required to achieve maximum encryption throughput on the
Cisco VPN 3000 Concentrators?
When Cisco VPN 3000 Concentrators use Scalable Encryption Processors (SEPs),
they can attain maximum encryption throughput.
9 What element on SEPs permits them to be so fast and flexible?
SEPs are designed around digital signal processors (DSPs), which are
programmable, high-speed processors.
10 Why are Cisco VPN Concentrators so good at supporting VPN communications?
These VPN concentrators were purposely designed to provide only VPN support.
They do not perform any other major network functions. Additionally, Scalable
Encryption Processor (SEP) modules can be installed in most models to perform
encryption routines, providing further support for VPN processes.
CCSP.book Page 502 Friday, February 28, 2003 3:43 PM
502
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
11 What tunneling protocols do Cisco VPN 3000 Concentrators support?
The Cisco VPN 3000 Concentrators support the following tunneling protocols:
Internet Protocol Security (IPSec), Point-to-Point Tunneling Protocol (PPTP), Layer
2 Tunneling Protocol (L2TP), L2TP/IPSec, and Network Address Translation (NAT)
Transparent IPSec.
12 In addition to RIP and OSPF, what other routing capabilities do Cisco VPN Concentrators
have?
Cisco VPN Concentrators also support static routes, automatic endpoint discovery,
Network Address Translation (NAT), and classless interdomain routing (CIDR).
13 What encryption and authentication protocols do Cisco VPN 3000 Concentrators support?
Cisco VPN 3000 Concentrators support IPSec Encapsulating Security Payload
(ESP) using DES/3DES (56/168-bit) with MD5 or SHA, or MPPE using 40/128-bit
RC4.
14 What protocol permits multichassis redundancy and failover?
The Virtual Router Redundancy Protocol (VRRP) permits multichassis redundancy
and failover support.
15 What hardware items can be made redundant on Cisco VPN 3000 Concentrators?
Cisco VPN 3000 Concentrators support redundant fans and can have redundant
SEP modules and power supplies.
16 What are some of the methods that can be used to interface with the embedded Cisco VPN
Manager software on VPN concentrators?
You can access the Cisco VPN Manager through the console port, Telnet, SSH,
HTTP, and Secure HTTP.
17 What are the most secure forms of authentication that can be used with Cisco VPN 3000
Series Concentrators?
Digital certificates and tokens are the most secure form of authentication that can be
used with Cisco VPN 3000 Series Concentrators.
18 What mechanism is used by Cisco VPN Clients to monitor firewall activity between the
client and the concentrator?
The Cisco VPN Clients use the Are You There (AYT) mechanism to monitor firewall
activity.
19 What is the rated mean time between failure (MTBF) for Cisco VPN 3000 Concentrators?
Cisco VPN 3000 Concentrators have an MTBF of 200,000 hours.
CCSP.book Page 503 Friday, February 28, 2003 3:43 PM
Chapter 3—Q&A
503
20 You have installed two Cisco VPN 3000 Concentrators in parallel on your network. Both
devices have redundant power supplies, fans, and SEPs. You need to ensure 99.9% uptime.
How can you achieve this rate of fault tolerance?
Configure both VPN concentrators into the same VRRP group, permitting one of the
devices to become the active unit and the other to take a role as a hot standby
concentrator.
21 During the initial configuration of the VPN concentrators, what management interface
must you use?
You must use the command-line interface (CLI) to configure initial network settings
on the concentrator.
22 What do you need to do to activate configuration changes to Cisco VPN Concentrators that
are made through the Cisco VPN Manager?
Configuration changes are stored within the memory of the VPN concentrator and
take effect immediately.
23 What four options are available under the Configuration menu of the VPN Manager?
The four available options on the Configuration menu are Interfaces, System, User
Management, and Policy Management.
24 What is the hierarchical order of property inheritance on Cisco VPN Concentrators?
The Base Group is the root element in the property inheritance hierarchy. Next come
specific groups, which inherit default properties from the Base Group. After specific
groups come users, who inherit default properties from specific groups or from the
Base Group if the user has not been assigned to a specific group.
25 What options are available on the Administration menu of the Cisco VPN Manager?
The options available from the Administration menu are Administer Sessions,
Software Update, System Reboot, Ping, Monitoring Refresh, Access Rights, File
Management, and Certificate Management.
26 What options are available on the Monitoring menu of the Cisco VPN Manager?
The options available from the Monitoring menu are Routing Table, Filterable Event
Log, System Status, Sessions, and Statistics.
27 Where in the Cisco VPN Manager could you go to view the current IP address for the
private interface on a Cisco VPN 3000 Concentrator?
To view the current IP settings for all Cisco VPN 3000 Concentrator interfaces, click
the Interfaces option from the Configuration menu of the Cisco VPN Manager.
CCSP.book Page 504 Friday, February 28, 2003 3:43 PM
504
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
28 What models are available in the Cisco VPN 3000 Concentrator Series?
Five models are available in the Cisco VPN 3000 Concentrator Series: VPN 3005,
VPN 3015, VPN 3030, VPN 3060, and VPN 3080.
29 Which of the Cisco VPN 3000 Series Concentrators is a fixed configuration that is not
upgradeable?
The Cisco VPN 3005 Concentrator is a fixed configuration that is not upgradeable.
30 How can purchasers of a Cisco VPN 3000 Series Concentrator obtain a license for the
Cisco VPN Client?
The Cisco VPN Client configured for unlimited installations is shipped with every
Cisco VPN 3000 Series Concentrator sold. Additionally, customers with access to
Cisco.com can download upgrades from the CCO website without cost.
31 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3005 Concentrator?
The Cisco VPN 3005 Concentrator supports up to 100 simultaneous sessions.
32 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3015 Concentrator?
The Cisco VPN 3015 Concentrator supports up to 100 simultaneous sessions.
33 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3030 Concentrator?
The Cisco VPN 3030 Concentrator supports up to 1500 simultaneous sessions.
34 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3060 Concentrator?
The Cisco VPN 3060 Concentrator supports up to 5000 simultaneous sessions.
35 What is the maximum number of simultaneous sessions that can be supported on the Cisco
VPN 3080 Concentrator?
The Cisco VPN 3080 Concentrator supports up to 10,000 simultaneous sessions.
36 Which of the Cisco VPN 3000 Series Concentrators is only available in a fully redundant
configuration?
The Cisco VPN 3080 Concentrator is the only one of the series that is only available
in a fully redundant configuration.
37 On a Cisco VPN 3005 Concentrator, what does a blinking green system LED indicate?
On a Cisco VPN 3005 Concentrator, a blinking green system LED indicates that the
system is in a shutdown (halted) state and is ready to be powered off.
CCSP.book Page 505 Friday, February 28, 2003 3:43 PM
Chapter 4—Do I Know This Already?
505
38 On a Cisco VPN 3000 Concentrator, what does a blinking amber system LED indicate?
On any of the Cisco VPN 3000 Concentrators, a blinking amber system LED
indicates that the system has crashed and halted.
39 What does a blinking green Ethernet link status LED indicate on a Cisco VPN
Concentrator?
A blinking green Ethernet link status LED indicates that the interface is connected
to the network and configured, but the interface has been disabled.
40 What does an amber SEP status LED indicate?
An amber SEP status LED indicates that the module failed during operation.
41 Which of Cisco’s client offerings has no limitations with regard to the types of client
operating systems it can support?
The Cisco VPN 3002 Hardware Client works with every type of client operating
system, as long as the system speaks TCP/IP.
42 What optional feature on the Cisco VPN 3002 Hardware Client allows you to connect
Ethernet devices to the client?
The Cisco VPN 3002 Hardware Client can be configured with an optional 8-port
Ethernet switch.
43 What two operating modes can a Cisco VPN 3002 Hardware Client be configured to
support?
The Cisco VPN 3002 Hardware Client can be configured to support either Client
mode or Network Extension mode.
44 What operating systems does the Cisco VPN Client support?
The Cisco VPN Client supports the full range of Microsoft Windows operating
systems, including Windows 95, 98, Me, NT 4.0, 2000, and XP. The Cisco VPN Client
also supports Linux (Intel), Solaris (UltraSparc-32bit), and MAC OS X 10.1.
Chapter 4—Do I Know This Already?
1 What methods can you use for user authentication on the Cisco VPN 3000 Series
Concentrators?
You can configure the VPN concentrators to use RADIUS, NT Domain, Security
Dynamics International (SDI), and internal user authentication.
2 What methods can you use for device authentication between VPN peers?
You can accomplish device authentication between VPN peers by using either
preshared keys or digital certificates.
CCSP.book Page 506 Friday, February 28, 2003 3:43 PM
506
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
3 What are the three types of preshared keys?
Preshared keys can be unique, group, or wildcard.
4 What is a unique preshared key?
A unique preshared key is one that is associated with a specific IP address.
5 When you boot up a Cisco VPN 3000 Concentrator with the default factory configuration,
what happens?
The default factory configuration causes the VPN concentrator to boot up into Quick
Configuration mode.
6 What information do you need to supply in the command-line interface (CLI) portion of
Quick Configuration?
The CLI portion of the Quick Configuration requests system time, date, and time
zone as well as the private interface IP address, subnet mask, speed, and duplex
mode.
7 Which interface do you need to configure using the browser-based VPN Manager?
You need to configure the Public interface with the VPN Manager. If you have other
interfaces, you also need to configure those. The Private interface was configured
using the CLI portion of Quick Configuration.
8 What is the default administrator name and password for VPN concentrators?
The default VPN concentrator administrator name and password is admin/admin.
9 How do you get your web browser to connect to the VPN concentrator’s Manager
application?
To connect to the VPN Manager, enter the IP address of the concentrator’s Private
interface in the Address box of the browser.
10 What is the default administrator name and password for the GUI VPN Manager?
The administrator name and password are the same for the CLI and the GUI
systems: admin/admin.
11 What are the three major sections of the VPN Manager system?
The three major sections of the VPN Manager system are Configuration,
Administration, and Monitoring.
12 What hot keys are available in the standard toolbar of the VPN Manager?
The standard hot keys are Main, Help, Support, Logout, Configuration,
Administration, and Monitoring.
CCSP.book Page 507 Friday, February 28, 2003 3:43 PM
Chapter 4—Do I Know This Already?
507
13 From where do users inherit attributes on the VPN concentrator?
VPN concentrator users inherit their attributes from their groups. If a user is not a
member of a group, the user inherits attributes from the Base Group.
14 How many groups can a user belong to in the VPN concentrator’s internal database?
A VPN concentrator user can belong to only one group.
15 What is an external group in the VPN Manager system?
An external group is a group from an external authentication server such as
RADIUS or NT Domain.
16 When reviewing the list of attributes for a group, what does it mean when an attribute’s
Inherit? box is checked?
Checking the Inherit? box for an attribute means that the attribute is always
inherited from the Base Group.
17 What are the nine subcategories under the Configuration | System option in the VPN
Manager’s table of contents?
The Configuration | System subcategories are Servers, Address Management,
Tunneling Protocols, IP Routing, Management Protocols, Events, General, Client
Update, and Load Balancing Cisco VPN Clients.
18 Where would you configure information for Network Time Protocol (NTP) and Dynamic
Host Configuration Protocol (DHCP) servers within the VPN Manager?
NTP, DHCP, and other servers are configured in the Configuration | System | Servers
section of the VPN Manager.
19 What tunneling protocol can you configure on the VPN concentrator to support the
Microsoft Windows 2000 VPN Client?
L2TP over IPSec is the protocol required to support Microsoft Windows 2000 VPN
clients. This option is available on the VPN concentrators.
20 What dynamic routing protocols are available on the VPN 3000 Concentrators?
The Cisco VPN 3000 Concentrators support RIP and OSPF routing protocols. RIP
is configured on the interface.
21 What Microsoft Windows operating systems can support the Cisco VPN Client?
The Cisco VPN Client can operate on Microsoft Windows 95, 98, 98 SE, Me, NT,
2000, and XP operating systems.
22 How do you start the Cisco VPN Client on a Windows system?
From the Windows Desktop, choose Start, Programs, Cisco Systems VPN Client,
VPN Dialer.
CCSP.book Page 508 Friday, February 28, 2003 3:43 PM
508
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
23 How do you start the Cisco VPN Client installation process?
You start the Cisco VPN Client installation process by inserting the CD-ROM into
the PC and allowing Autorun to bring up the CD’s menu. Select Install Cisco VPN
Client from the menu.
24 What variables can you supply during the installation process of the Cisco VPN Client?
The only options, other than when to reboot the system, are to select the location in
which to store files and the location in which to place the application.
Chapter 4—Q&A
1 Where would you normally use unique preshared keys?
You would normally use unique preshared keys in site-to-site VPNs.
2 To use a web browser to access the VPN Manager application on VPN concentrators, what
features must you enable on the browser?
You must enable both JavaScript and cookies on the browser to access the VPN
Manager.
3 What information is required to configure a LAN interface on the VPN concentrator?
You must supply the IP address, subnet mask, speed, and duplex mode to configure
a VPN concentrator LAN interface.
4 What is the default administrator name and password for the GUI VPN Manager?
The administrator name and password are the same for the CLI and the GUI
systems: admin/admin.
5 What options are available for addressing an IP interface on the IP Interfaces screen?
The IP Interfaces screen gives you the option to disable the interface, obtain an
address from DHCP, or assign a static IP address.
6 What is the maximum number of combined groups and users that can be supported on a
VPN 3015 Concentrator?
The 3015 Concentrator can support a maximum of 100 combined groups and users.
7 What are the four subcategories under the Configuration option of the VPN Manager’s
TOC?
The four subcategories under the Configuration option are Interfaces, System, User
Management, and Policy Management.
CCSP.book Page 509 Friday, February 28, 2003 3:43 PM
Chapter 4—Q&A
509
8 On the General tab of a group’s Add screen, what options can you select for Access Hours?
On the General tab of the Group Add screen, you can select No Restrictions, Never,
or Business Hours as the access hours for the system.
9 What IPSec protocols are available from the default IPSec SA settings on the IPSec tab of
the Group Add screen?
The only IPSec protocol available by default on the IPSec tab of the Group Add
screen is the ESP Protocol. Authentication Header (AH) is not an option. ESP
provides encryption and authentication, whereas AH provides only authentication.
10 What are the nine subcategories under the Configuration | System option in the VPN
Manager’s table of contents?
The Configuration | System subcategories are Servers, Address Management,
Tunneling Protocols, IP Routing, Management Protocols, Events, General, Client
Update, and Load Balancing Cisco VPN Clients.
11 Where does the VPN concentrator store system events?
The VPN concentrator stores system events in nonvolatile memory.
12 What areas can be configured under the Traffic Management section of the Configuration
| Policy Management section?
Under the Configuration | Policy Management | Traffic Management section of the
VPN Manager, you can configure Network Lists, Rules, SAs, Filters, and NAT.
13 Where do you enter the preshared key so that a VPN Client can connect to a VPN
concentrator?
During the creation of a connection in the VPN Client, you are presented with a
screen that allows you to enter Group Access Information. Enter the group name and
the group’s password in that screen. The group’s password is the preshared key.
14 What are the three types of preshared keys?
Preshared keys can be unique, group, or wildcard.
15 What types of interfaces are the Public and Private VPN interfaces?
On the VPN concentrators, the Public and Private interfaces are each 10/100-Mbps
Ethernet interfaces.
16 Which interface do you need to configure using the browser-based VPN Manager?
You need to configure the Public interface with the VPN Manager. If you have other
interfaces, you need to configure those as well. The Private interface was configured
using the CLI portion of Quick Configuration.
CCSP.book Page 510 Friday, February 28, 2003 3:43 PM
510
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
17 What would you do if you needed to re-enter the Quick Configuration mode after you have
completed the initial configuration of the VPN concentrator?
To re-enter the Quick Configuration mode, you need to select the system reboot
option to Reboot with Factory/Default Configuration.
18 When the VPN Manager’s Main window is displayed, how do you continue with the
Quick Configuration that was started at the CLI?
To start the VPN Manager’s version of Quick Configuration, select Click here to
start Quick Configuration. This option is only available the first time the VPN
Manager opens.
19 What methods can be selected for assigning IP addresses to the tunnel endpoints from the
Quick Configuration Address Assignment screen?
The Quick Configuration Address Assignment screen allows you to select from
Client Specified, Per User, DHCP, or Configured Pool as the method used to assign
IP addresses for the tunnel endpoint. You can select multiple methods.
20 When using the VPN Manager, how can you tell that you have made changes to the active
configuration?
You can tell that changes have been made to the active configuration when the Save
Needed icon appears in the upper-right corner of the main window.
21 What is an external group in the VPN Manager system?
An external group is a group from an external authentication server such as
RADIUS or NT Domain.
22 What is the purpose of the SEP card assignment attribute on the General tab of the Group
Add screen?
The SEP card assignment attribute of the Group Add screen’s General tab is used to
manage load sharing across the SEP devices within a VPN concentrator.
23 You would like to be able to pass DNS and WINS information from the VPN concentrator
to the VPN Client. What Group option can you use to accomplish this?
You would need to enable Mode Configuration to permit the concentrator to share
this information with the client.
24 What dynamic routing protocols are available on the VPN 3000 Concentrators?
The Cisco VPN 3000 Concentrators support RIP and OSPF routing protocols. RIP
is configured on the interface.
CCSP.book Page 511 Friday, February 28, 2003 3:43 PM
Chapter 4—Q&A
511
25 What protocol does the VPN concentrator use to update software versions on Cisco
VPN 3002 Hardware Clients?
The VPN concentrator uses TFTP to update the operating system of VPN 3002
Hardware Clients.
26 How do you start the Cisco VPN Client installation process?
You start the Cisco VPN Client installation process by inserting the CD-ROM into
the PC and allowing Autorun to bring up the CD’s menu. Select Install Cisco VPN
Client from the menu.
27 What methods can you use for user authentication on the Cisco VPN 3000 Series
Concentrators?
You can configure the VPN concentrators to use RADIUS, NT Domain, SDI, and
internal user authentication.
28 What is a group preshared key?
A group preshared key is one that is associated with a specific user group.
29 When you boot up a Cisco VPN 3000 Concentrator with the default factory configuration,
what happens?
The default factory configuration causes the VPN concentrator to boot up into Quick
Configuration mode.
30 If you supply an address of 144.50.30.24 and want to use a 24-bit subnet mask for the
Private interface on a VPN concentrator, are you able to accept the default subnet mask
offered by the VPN Manager?
The VPN Manager offers the default subnet mask for the class of address you assign.
Because this is a Class B address and the default mask for that class is 16 bits, you
would not be able to accept the mask offered by the VPN Manager.
31 What are the three major sections of the VPN Manager system?
The three major sections of the VPN Manager system are Configuration,
Administration, and Monitoring.
32 The Quick Configuration system has displayed the System Info screen. What information,
other than system date and time, can you enter on this screen?
Other than system date and time, the System Info screen allows you to enter a system
name, DNS server, domain name, and default gateway.
33 What is the maximum number of combined groups and users that can be supported on a
VPN 3060 Concentrator?
The 3060 Concentrator can support a maximum of 1000 combined groups and users.
CCSP.book Page 512 Friday, February 28, 2003 3:43 PM
512
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
34 From where do users inherit attributes on the VPN concentrator?
VPN concentrator users inherit their attributes from their groups. If a user is not a
member of a group, the user inherits attributes from the Base Group.
35 What is the default number of simultaneous logins available to group members?
Group members are allowed three simultaneous logins by default.
36 What is the purpose of IKE keepalives?
IKE keepalives keep tabs on peers. If a peer does not respond to IKE keepalives, then
the VPN concentrator drops the connection. This helps to prevent hung connections.
37 Where would you configure information for NTP and DHCP servers within the VPN
Manager?
NTP, DHCP, and other servers are configured in the Configuration | System | Servers
section of the VPN Manager.
38 What is the most significant event severity level?
Level 1 is the most significant event severity level on the Cisco VPN 3000
Concentrator.
39 What Microsoft Windows operating systems can support the Cisco VPN Client?
The Cisco VPN Client can operate on Microsoft Windows 95, 98, 98 SE, Me, NT,
2000, and XP operating systems.
40 What programs are available within the VPN Client installation?
The VPN Client installs the following applications: Certificate Manager, Help, Log
Viewer, Set MTU, Uninstall VPN Client, and VPN Dialer.
41 What is a unique preshared key?
A unique preshared key is one that is associated with a specific IP address.
42 What type of cable does the console port require on VPN concentrators?
VPN concentrator console cables are straight-through RS-232 serial cables with a
female DB-9 connector.
43 What is the default administrator name and password for VPN concentrators?
The default VPN concentrator administrator name and password is admin/admin.
44 How do you get your web browser to connect to the VPN concentrator’s manager
application?
To connect to the VPN Manager, simply enter the IP address of the concentrator’s
Private interface in the Address box of the browser.
CCSP.book Page 513 Friday, February 28, 2003 3:43 PM
Chapter 4—Q&A
513
45 What is the first screen that appears when you click the Click here to start Quick
Configuration option in the VPN Manager?
The first screen of the VPN Manager’s Quick Configuration is the IP Interfaces
screen.
46 If you select Internal Server as the method of user authentication, what additional screen
does the Quick Configuration system give you?
When you select Internal Server as the method of user authentication, you must then
configure the users and their passwords, so the VPN Manager provides the User
Database screen.
47 When do configuration changes become active on the Cisco VPN 3000 Series
Concentrators?
Configuration changes take effect immediately on the VPN concentrators.
48 When reviewing the list of attributes for a group, what does it mean when an attribute’s
Inherit? box is checked?
Checking the Inherit? box for an attribute means that the attribute will always be
inherited from the Base Group.
49 What is a realm in relation to user authentication?
The Internal authentication server can use a qualified username for authentication.
The qualified name takes the form of [email protected] The @group portion is
called the realm. You can set a group’s attribute to not use the realm portion for
authentication.
50 What is split tunneling?
Split tunneling allows some traffic to pass over the connection to the concentrator
that is unprotected by IPSec.
51 What management protocols can you configure on the VPN concentrator?
VPN Manager allows you to configure FTP, HTTP/HTTPS, TFTP, Telnet, SNMP,
SNMP Community Strings, SSL, SSH, and XML.
52 What is the process a VPN Client uses to connect to a VPN concentrator when load
balancing is used between two or more VPN concentrators?
The VPN Client initially tries to connect to the virtual IP address of the cluster. The
cluster master intercepts the call and sends the client the public IP address of the
least-loaded available concentrator. The client then uses that address to negotiate an
IPSec session.
CCSP.book Page 514 Friday, February 28, 2003 3:43 PM
514
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
53 What variables can you supply during the installation process of the Cisco VPN Client?
The only options, other than when to reboot the system, are to select the location to
store files and the location to place the application.
54 What methods can be used for device authentication between VPN peers?
Device authentication can be accomplished between VPN peers by using either
preshared keys or digital certificates.
55 What is a wildcard preshared key?
A wildcard preshared key is one that is not associated with either an IP address or
user group. These keys can be used by any device holding the key.
56 What information do you need to supply in the CLI portion of Quick Configuration?
The CLI portion of the Quick Configuration requests system time, date, and time
zone as well as the Private interface IP address, subnet mask, speed, and duplex
mode.
57 What is the last step you must take before moving from the CLI Quick Configuration
mode to the browser-based Quick Configuration mode?
Before leaving the CLI Quick Configuration mode, select the option to Save changes
to Config file.
58 What hot keys are available in the standard toolbar of the VPN Manager?
The standard hot keys are Main, Help, Support, Logout, Configuration,
Administration, and Monitoring.
59 What tunneling protocols does the VPN concentrator support?
The VPN concentrator supports L2TP, PPTP, IPSec, and L2TP over IPSec.
60 When you select IPSec as the tunneling protocol, what screen does Quick Configuration
present?
When you select IPSec as the tunneling protocol, Quick Configuration provides the
IPSec Group screen so that you can supply a group name and password to be used
by those devices connecting through preshared keys.
61 How many groups can a user belong to in the VPN concentrator’s internal database?
A VPN concentrator user can belong to only one group.
62 What is the size range for user authentication passwords for internal users?
Internal user passwords can range from 1 to 32 characters. The allowable length is
controlled by the group that the users belong to.
CCSP.book Page 515 Friday, February 28, 2003 3:43 PM
Chapter 5—Do I Know This Already?
515
63 What does the Authentication option RADIUS with Expiry provide?
RADIUS with Expiry lets the user know that his password has expired and permits
the user to select a new password.
64 What tunneling protocol can be configured on the VPN concentrator to support the
Microsoft Windows 2000 VPN client?
L2TP over IPSec is the protocol that is required to support Microsoft Windows 2000
VPN clients. This option is available on the VPN concentrators.
65 How does the VPN 3000 Concentrator handle software updates for VPN Software
Clients?
The VPN 3000 Concentrator provides a message to the clients during login. The
message provides a location for downloading the updated software version.
66 How do you start the VPN Client on a Windows system?
From the Windows Desktop, choose Start, Programs, Cisco Systems VPN Client,
VPN Dialer.
Chapter 5—Do I Know This Already?
1 What Public Key Cryptography Standard (PKCS) is used to enroll with a CA?
PKCS #10 is the standard form generally used to request certificate enrollment
with a CA.
2 What field in the certificate request should match the IPSec group name on the VPN
concentrator?
The Organization Unit (OU) should match the IPSec group name on the VPN
concentrator.
3 What elements make up the X.500 distinguished name?
Six fields make up the X.500 distinguished name: Common Name (CN),
Organizational Unit (OU), Organization (O), Locality (L), State/Province (SP), and
Country (C).
4 What default algorithm type and key size does the VPN concentrator use on the certificate
request?
The VPN concentrator uses RSA 512 keys as the default on the certificate request.
CCSP.book Page 516 Friday, February 28, 2003 3:43 PM
516
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
5 What entity is responsible for generating the Public Key Infrastructure (PKI) public/
private key pair for a requesting host?
The host itself must generate the PKI public/private key pair and include the public
key with the enrollment request sent to the CA.
6 When are Secure Sockets Layer (SSL) certificates required on a VPN concentrator?
SSL certificates are required on a VPN concentrator when you want to establish
secure communications between the concentrator and the browser on the
administrator’s workstation.
7 What is the first certificate that must be installed on a VPN concentrator before you can
install any other certificates from a given CA?
You must install the root certificate from a CA before you can install any other
certificates from that CA on a VPN concentrator.
8 What two enrollment methods are available on a VPN concentrator?
The VPN concentrator allows you to perform a manual enrollment using a PKCS
#10 request or an automated enrollment using the Simple Certificate Enrollment
Process (SCEP).
9 Where does a VPN concentrator obtain the root CA’s public key?
The VPN concentrator obtains the root CA’s public key from the root certificate.
10 During the authentication process, where does a VPN concentrator find the original hash
that the CA calculated for an identity certificate?
The VPN concentrator extracts the original hash that the CA calculated for an
identity certificate from the digital signature on the certificate. This signature is
decrypted using the CA’s public key from the root certificate.
11 When you select to cache Certificate Revocation Lists (CRLs) on the VPN concentrator,
where are they stored?
Enabling CRL caching on the VPN concentrator permits the concentrator to store
CRLs in volatile memory.
12 With CRL caching disabled, how does a VPN concentrator check a certificate’s serial
number against a CRL?
When caching is disabled, the VPN concentrator must request a CRL from one of
the CA’s distribution points each time it needs to check a certificate’s serial number.
CCSP.book Page 517 Friday, February 28, 2003 3:43 PM
Chapter 5—Q&A
517
13 Using the VPN Manager, where would you look to check the status of a certificate
enrollment process?
To check the status of a certificate enrollment process using the VPN Manager, select
Administration | Certificate Management from the table of contents. The last section
on this screen displays enrollment status.
14 When configuring digital certificate support on a VPN concentrator, where do you identify
which certificate to use for Internet Key Exchange (IKE) Phase 1 negotiations?
When configuring digital certificate support on a VPN concentrator, the certificate
to use is identified on the Configuration | Policy Management | Traffic Management
| Security Associations | Add/Modify screen.
15 What must be in place on a client’s PC before you can configure the VPN Client for
certificate support?
Before you can configure the VPN Client for certificate support, you must install a
root certificate and an identity certificate in the browser.
16 Which screen do you use to enable the use of digital certificates for device authentication
during IKE Phase 1 negotiations?
The Authentication tab on the Properties page for a defined connection permits you
to select between using preshared keys and digital certificates for IKE Phase 1
authentication.
Chapter 5—Q&A
1 What must be in place on a client’s PC before you can configure the VPN Client for
certificate support?
Before you can configure the VPN Client for certificate support, you must install a
root certificate and an identity certificate in the browser.
2 What two methods are available on the VPN concentrator for installing certificates
obtained through manual enrollment?
To install certificates on the VPN concentrator that were obtained through manual
enrollment, you can either cut and paste the text from the PEM-configured file or
upload the file from your workstation.
3 What could cause a digital certificate to be revoked by the CA?
The CA might revoke a certificate if something changed to affect the user’s
distinguished name, if a certificate’s keys became compromised, or if the hardware
owner of the key gets taken out of service.
CCSP.book Page 518 Friday, February 28, 2003 3:43 PM
518
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
4 What are the two types of CA structures?
The two types of CA structures are the central CA structure and the hierarchical CA
structure.
5 During the authentication process, where does a VPN concentrator find the original hash
that the CA calculated for an identity certificate?
The VPN concentrator extracts the original hash that the CA calculated for an
identity certificate from the digital signature on the certificate. This signature is
decrypted using the CA’s public key from the root certificate.
6 During manual SCEP authentication, how is the request transmitted to the CA?
During manual SCEP authentication, the certificate request is transmitted to the CA
using the Internet, e-mail, a floppy disk, or some other means.
7 What Public Key Cryptography Standard is used to request enrollment with a CA?
PKCS #10 is the standard form generally used to request certificate enrollment with
a CA.
8 What is the first certificate that must be installed on a VPN concentrator before you can
install any other certificates from a given CA?
You must install the root certificate from a CA before you can install any other
certificates from that CA on a VPN concentrator.
9 When configuring digital certificate support on a VPN concentrator, where do you identify
which certificate to use for IKE Phase 1 negotiations?
When configuring digital certificate support on a VPN concentrator, the certificate
to use is identified on the Configuration | Policy Management | Traffic Management
| Security Associations | Add/Modify screen.
10 After a VPN peer receives an identity certificate from its partner during IKE Phase 1, the
peer calculates a hash of the certificate. What does the peer compare this hash against to
verify that the certificate has not been altered?
After calculating a hash of the certificate, the peer decrypts the signature on the
certificate with the public key of the root CA taken from the root certificate. This
decryption process reveals the hash that the root calculated on the certificate. If the
two hash values match, there is a high degree of certainty that the certificate has not
been altered.
11 Where does a VPN concentrator obtain the root CA’s public key?
The VPN concentrator obtains the root CA’s public key from the root certificate.
CCSP.book Page 519 Friday, February 28, 2003 3:43 PM
Chapter 5—Q&A
519
12 What entity is responsible for generating the PKI public/private key pair for a requesting
host?
The host itself must generate the PKI public/private key pair and include the public
key with the enrollment request sent to the CA.
13 In the VPN Manager, where do you identify that you want to use RSA Digital Certificates
for IKE Phase 1 authentication?
In the VPN Manager, you can select RSA Digital Certificates as the method for IKE
Phase 1 authentication from the IKE Proposals screen.
14 What three tests does a VPN concentrator perform on a partner’s identity certificate before
performing the authentication process?
The VPN concentrator validates the partner’s identity certificate before authentication by verifying that the certificate was signed by a trusted CA, that the certificate
has not expired, and that the certificate has not been revoked.
15 Which version of the X.509 standard identity certificate permits extensions?
X.509 version 3 permits extensions.
16 What is RSA Keon?
RSA Keon is a CA application that runs on Solaris, Windows 2000, and Windows NT.
17 When does the Click here to install a CA certificate option appear on the Administration
| Certificate Management screen of the VPN Manager?
The Click here to install a CA certificate option appears on the Administration |
Certificate Management screen until you have installed the first CA certificate.
18 The VPN concentrator is certified to work with three Internet-based CAs. Which CAs are
they?
The VPN concentrator is certified to work with these Internet-based CAs: Entrust,
VeriSign, and Baltimore.
19 What elements make up the X.500 distinguished name?
Six fields make up the X.500 distinguished name: Common Name (CN),
Organizational Unit (OU), Organization (O), Locality (L), State/Province (SP),
and Country (C).
20 Which screen do you use to enable the use of digital certificates for device authentication
during IKE Phase 1 negotiations?
The Authentication tab on the Properties page for a defined connection permits you
to select between using preshared keys and digital certificates for IKE Phase 1
authentication.
CCSP.book Page 520 Friday, February 28, 2003 3:43 PM
520
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
21 What two enrollment methods are available on a VPN concentrator?
The VPN concentrator allows you to perform a manual enrollment using a
PKCS #10 request or an automated enrollment using SCEP.
22 What field in the certificate request should match the IPSec group name on the VPN
concentrator?
The Organization Unit (OU) should match the IPSec group name on the VPN
concentrator.
23 When are SSL certificates required on a VPN concentrator?
SSL certificates are required on a VPN concentrator when you want to establish
secure communications between the concentrator and the browser on the
administrator’s workstation.
24 What are the three types of certificates involved in the digital certificate process?
The three types of certificates involved in the digital certificate process are the root,
identity, and issuing certificates.
25 What is a CRL?
A CRL is a Certificate Revocation List. It contains the serial numbers of digital
certificates with the date the certificate became invalid. CRLs are issued by the CA
and contain only information about certificates that were issued by the CA.
26 When you select to cache CRLs on the VPN concentrator, where are they stored?
Enabling CRL caching on the VPN concentrator permits the concentrator to store
CRLs in volatile memory.
27 What default algorithm type and key size does the VPN concentrator use on the certificate
request?
The VPN concentrator uses RSA 512 keys as the default on the certificate request.
28 Using the VPN Manager, where would you look to check the status of a certificate
enrollment process?
To check the status of a certificate enrollment process using the VPN Manager, select
Administration | Certificate Management from the table of contents. The last section
on this screen displays enrollment status.
29 What is a root certificate?
A root certificate is a special form of the identity certificate that is self-signed by the
root CA and contains the public key of the root CA. This certificate is used by VPN
peers to authenticate their partner’s identity certificate.
CCSP.book Page 521 Friday, February 28, 2003 3:43 PM
Chapter 6—Do I Know This Already?
521
30 Where are you asked to supply a challenge password during the enrollment process?
The enrollment of an identity certificate through SCEP requests that you enter the
challenge password.
31 How is the validity period of a digital certificate specified?
The validity period of a digital certificate is specified with a starting date and time
and an ending date and time.
32 With CRL caching disabled, how does a VPN concentrator check a certificate’s serial
number against a CRL?
When caching is disabled, the VPN concentrator must request a CRL from one of
the CA’s distribution points each time it needs to check a certificate’s serial number.
33 SCEP has two authentication methods available between a requester and the CA. What are
those two methods?
The two SCEP authentication methods are manual authentication and preshared
key authentication.
Chapter 6—Do I Know This Already?
1 You have a number of clients running Windows 98 and a remote VPN 3002 Hardware
Client assigned to the same group. Your supervisor wants you to force everyone on this
group connecting to have a firewall running on his or her machine. Can you do this?
No. The Firewall Required option cannot be used with the VPN 3002 Hardware
Client.
2 How is the Always On option set on the VPN Client?
The Always On option is set under the Options pull-down menu. The default setting
is to have Always On disabled.
3 In addition to IPSec, what tunneling protocols does the VPN Client support?
The VPN Client supports the tunneling protocols IPSec, PPTP, L2TP, and L2TP over
IPSec.
4 How often does the VPN Client poll the personal firewall when using Are You
There (AYT)?
The VPN Client polls the personal firewall every 30 seconds when using AYT.
CCSP.book Page 522 Friday, February 28, 2003 3:43 PM
522
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
5 You are using BlackICE as a client firewall. You are presently connected through the VPN.
What happens if you stop the service running BlackICE? Does the VPN remain
connected? If so, for how long? Can you connect again if BlackICE is not running?
The answer depends on two configuration choices. The first choice is the Are You
There (AYT) configuration. If AYT is off, no noticeable difference is seen.
If AYT is on, the connection reacts differently depending on other choices made. If
you configure the Firewall setting as Firewall Optional or No Firewall, you do not see
a noticeable difference during this connection. However, if you choose the Firewall
Required option, the connection is dropped after there is no response from the
concentrator’s poll. With the Firewall Required option, you cannot connect until you
start BlackICE again. If you set the Firewall Optional option, you receive a message
indicating that a firewall should be running when you connect.
6 Which two products from Zone Labs work with the VPN Client to enable the Are You
There (AYT) capability?
Zone Alarm and Zone AlarmPro are the personal firewalls that work with the Cisco
VPN Client to enable the AYT capability. The other product that works with the VPN
Client is BlackICE Defender from Network ICE.
7 What protocols are not automatically blocked when using the Stateful Firewall (Always
On) feature?
Dynamic Host Control Protocol (DHCP) and Encapsulating Security Payload (ESP)
are not automatically blocked when using the Stateful Firewall (Always On) feature.
Additionally, traffic from the concentrator’s network is not blocked.
8 You want to have secure VPN connections to the private network of the head-end
concentrator and unsecured communications to the Internet. How would you configure the
VPN Client’s Stateful Firewall feature to support this split tunneling?
To enable split tunneling, you must disable the VPN Client’s Stateful Firewall
feature. If enabled, the Stateful Firewall blocks all traffic coming from the Internet.
9 What is another name for the Stateful Firewall client that is a part of the Cisco VPN
Client?
The Stateful Firewall client that is part of the Cisco VPN Client is also called the
Cisco Integrated Client (CIC).
10 Where are the rules set for a client when using Central Protection Policy (CPP) with Zone
AlarmPro?
Using Centralized Protection Policy (CPP) means that the concentrator controls all
rules for the clients. This applies to CIC as well as Zone Alarm and Zone AlarmPro.
CCSP.book Page 523 Friday, February 28, 2003 3:43 PM
Chapter 6—Do I Know This Already?
523
11 Why is CPP not used with the Tunnel Everything option?
CPP is designed to be used with split tunneling because the Tunnel Everything option
already blocks all nontunneled traffic.
12 On what screen do you configure CPP?
CPP is configured on the Client FW tab of the Configuration | User Management |
Groups | Modify screen within the VPN concentrator.
13 On the VPN Client, where do you see the current compression used for a VPN connection?
You see the current compression used for a VPN connection under the General tab
of the Connection Status dialog box on the client software. You can also view the
current compression method by using the client CLI command vpnclient stat.
14 From the VPN Client, where can you view the secured routes that are enabled to the
client?
You can view a list of secured routes that are enabled to the VPN Client from the
Statistics tab of the Connection Status screen.
15 What is meant by the term Packets bypassed on the Statistics tab of the Connection Status
screen?
The Packets bypassed field on the Statistics tab of the Connection Status screen
shows the number of packets that did not need to be encrypted but which were still
sent out over the wire in unencrypted form.
16 What debug classes do you use when creating a rule with the following options:
a. Drop
b. Drop and Log
c. Forward
d. Forward and Log
e. Apply IPSec
f. Apply IPSec and Log
The FILTERDBG event class is used with the Drop and Log option, Apply IPSec and
Log option, and the Forward and Log option. The other three options do not use a
debug class.
CCSP.book Page 524 Friday, February 28, 2003 3:43 PM
524
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
17 How do you allow clients to use either of two firewalls? What is the only vendor you can
do this with?
To allow clients to use either of two firewalls, choose the Custom Firewall option on
the Client FW tab on the Configuration | User Management | Groups | Modify
screen. Enter the Vendor ID and the Product IDs separated by commas. Because
Zone Labs is the only vendor with more than one product, this vendor must be used.
18 On the VPN 3000 Concentrator Series devices, you configure the client firewall properties
on the Client FW tab of the Configuration | User Management | Groups | Add (or Modify)
screen. You can only select one firewall policy from that screen. What are the three types
of firewall policies that you can choose from on the Client FW tab?
You can select to enable a Policy defined by remote firewall (AYT), a Policy Pushed
(CPP), or a Policy from Server on the Client FW tab.
Chapter 6—Q&A
1 You have a number of clients running Windows 98 and a remote VPN 3002 Hardware
Client assigned to the same group. Your supervisor wants you to force everyone on this
group connecting to have a firewall running on his or her machine. Can you do this?
No. The Firewall Required option cannot be used with the VPN 3002 Hardware
Client.
2 What firewalls can be used within the Custom Firewall option on the concentrator?
The acceptable firewalls are as follows:
a. CIC
b. Zone Alarm
c. Zone AlarmPro
d. Zone Labs Integrity
e. BlackICE Defender/Agent
3 Where are the rules set for a client when using CPP with Zone AlarmPro?
Using CPP means that the concentrator controls all rules for the clients. This applies
to CIC as well as Zone Alarm and Zone AlarmPro.
4 What protocols are not automatically blocked when using the Stateful Firewall (Always
On) feature?
DHCP and ESP are not automatically blocked when using the Stateful Firewall
(Always On) feature. Additionally, traffic from the concentrator’s network is not
blocked.
CCSP.book Page 525 Friday, February 28, 2003 3:43 PM
Chapter 6—Q&A
525
5 Why is CPP not used with the Tunnel Everything option?
CPP is designed to be used with split tunneling because the Tunnel Everything option
already blocks all nontunneled traffic.
6 How often does the VPN Client poll the personal firewall when using AYT?
The VPN Client polls the personal firewall every 30 seconds.
7 How is the Always On option set on the VPN Client?
The Always On option is set in the Options pull-down menu. The default setting is to
have Always On disabled.
8 Where is CPP configured?
CPP is configured on the Client FW tab of the Configuration | User Management |
Groups | Modify screen within the VPN concentrator.
9 What debug classes are used when creating a rule with the following options:
a. Drop
b. Drop and Log
c. Forward
d. Forward and Log
e. Apply IPSec
f. Apply IPSec and Log
The FILTERDBG event class is used with the Drop and Log option, the Apply IPSec
and Log option, and the Forward and Log option. The other three options do not use
a debug class.
10 By default, what IP address and wildcard mask does VRRP use?
By default, VRRP uses 224.0.0.18/0.0.0.0.
11 How do you allow clients to use either of two firewalls? What is the only vendor you can
do this with?
To allow clients to use either of two firewalls, choose the Custom Firewall option on
the Client FW tab on the Configuration | User Management | Groups | Modify
screen. Enter the Vendor ID and the Product IDs separated by commas. Because
Zone Labs is the only vendor with more than one product, this vendor must be used.
CCSP.book Page 526 Friday, February 28, 2003 3:43 PM
526
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
12 You are using CPP and pushing a policy to a firewall at the client. The client’s firewall
allows FTP access. The concentrator’s policy does not allow FTP access. Is FTP access
allowed?
No, FTP access is not allowed. When using CPP and pushing to a firewall, the more
restrictive of the policies pertains. Therefore, because one of these limits FTP traffic,
the FTP traffic is limited.
13 You are using BlackICE as a client firewall. You are presently connected through the
VPN. What happens if you stop the service running BlackICE? Does the VPN remain
connected? If so, for how long? Can you connect again if BlackICE is not running?
The answer depends on two configuration choices. The first choice is the Are You
There (AYT) configuration. If AYT is off, no noticeable difference is seen.
If AYT is on, the connection reacts differently depending on other choices made. If
you configured the firewall setting as Firewall Optional or No Firewall, no noticeable
difference is seen during this connection. However, if you choose the Firewall
Required option, the connection is dropped after there is no response from the
concentrator’s poll. With Firewall Required, you cannot connect until you start
BlackICE again. If you set the Firewall Optional option, you receive a message
indicating that a firewall should be running when you connect.
14 On the VPN Client, where do you see the current compression used for a VPN connection?
You see the current compression used for a VPN connection under the General tab
of the Connection Status dialog box on the client software. You can also view the
current compression method by using the client CLI command vpnclient stat.
15 While configuring a filter, you want to apply this filter to all protocols. What number do
you use?
Using 255 applies the filter to all protocols.
16 When using the VPN Client, what ICMP should be set?
None. The VPN Client cannot be filtered based on the ICMP protocol.
17 What authentication methods are allowed with the VPN Client?
The following authentication methods are allowed with the VPN Client:
a. XAUTH (eXtended AUTHentication)
b. RADIUS with:
MSCHAPv2
State/Reply message attributes (token cards)
RSA SecurID
Windows NT Domain Authentication
MX.509v3 digital certificates
CCSP.book Page 527 Friday, February 28, 2003 3:43 PM
Chapter 6—Q&A
527
18 What types of key management can the VPN Client use?
The VPN Client can use the following types of key management:
a. XAUTH
b. IKE—Aggressive and Main mode (digital certificates)
c. Diffie-Hellman Groups 1, 2, and 5
d. PFS
e. Rekeying
19 In addition to IPSec, what tunneling protocols does the VPN Client support?
The VPN Client supports the tunneling protocols IPSec, PPTP, L2TP, and L2TP over
IPSec.
20 Which two products from Zone Labs work with the VPN Client to enable the Are You
There (AYT) capability?
Zone Alarm and Zone AlarmPro are the personal firewalls that work with the Cisco
VPN Client to enable the AYT capability. The other product that works with the VPN
Client is BlackICE Defender from Network ICE.
21 You want to have secure VPN connections to the private network of the head-end
concentrator and unsecured communications to the Internet. How would you configure the
VPN Client’s Stateful Firewall feature to support this split tunneling?
To enable split tunneling, you must disable the VPN Client’s Stateful Firewall
feature. If enabled, the Stateful Firewall blocks all traffic coming from the Internet.
22 What is another name for the Stateful Firewall client that is a part of the Cisco VPN
Client?
The Stateful Firewall client that is part of the Cisco VPN Client is also called the
Cisco Integrated Client (CIC).
23 From the VPN Client, where can you view the secured routes that are enabled to the
client?
You can view a list of secured routes that are enabled to the VPN Client from the
Statistics tab of the Connection Status screen.
24 What is meant by the term Packets bypassed on the Statistics tab of the Connection Status
screen?
The Packets bypassed field on the Statistics tab of the Connection Status screen
shows the number of packets that did not need to be encrypted but which were still
sent out over the wire in unencrypted form.
CCSP.book Page 528 Friday, February 28, 2003 3:43 PM
528
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
25 On the VPN 3000 Concentrator Series devices, you configure the client firewall properties
on the Client FW tab of the Configuration | User Management | Groups | Add (or Modify)
screen. You can only select one firewall policy from that screen. What are the three types
of firewall policies that you can choose from the Client FW tab?
You can select to enable a Policy defined by remote firewall (AYT), a Policy Pushed
(CPP), or a Policy from Server on the Client FW tab.
Chapter 7—Do I Know This Already?
1 What screen is used to set the password for the administrator?
Administration | Access Rights | Administrators
2 You wish to limit HTTP access to the concentrator to hosts on the same subnet as the
inside interface of the concentrator. What is the format of the Access Control List?
Use the network IP address of the interface’s base network and the proper subnet
mask.
3 What types of AAA servers can the VPN 3000 Series Concentrator use for authenticating
management sessions?
TACACS+
4 What is the upper limit for a management session timeout?
30 minutes
5 What form of encryption may be used on a configuration file?
RC4
6 On what screen can routes be cleared?
Monitoring | Routing Table
7 Where can you see the CPU utilization on a Cisco 3000 Series Concentrator?
Monitoring | System Status
8 Where can you troubleshoot an IPSec connection?
Monitoring | Statistics | IPSec
9 Where can you troubleshoot TCP/IP connections?
(Note that the keyword in this question is “connection,” which requires TCP):
Monitoring | Statistics | MIB II | TCP/UDP
10 Where can you see the number of collisions on an Ethernet Interface?
Monitoring | Statistics | Interface | MIB II-> | Statistics
CCSP.book Page 529 Friday, February 28, 2003 3:43 PM
Chapter 7—Q&A
529
Chapter 7—Q&A
1 What screen is used to set the password for the administrator?
Administration | Access Rights | Administrators
2 You wish to limit HTTP access to the concentrator to hosts on the same subnet as the
inside interface of the concentrator. What is the format of the Access Control List?
Use the network IP address of the interface’s base network and the proper subnet
mask.
3 What types of AAA servers can the VPN 3000 Series Concentrator use for authenticating
management sessions?
TACACS+
4 What is the upper limit for a management session timeout?
30 minutes
5 What form of encryption may be used on a configuration file?
RC4
6 On what screen can routes be cleared?
Monitoring | Routing Table
7 Where can you see the CPU utilization on a Cisco 3000 Series Concentrator?
Monitoring | System Status
8 Where can you troubleshoot an IPSec connection?
Monitoring | Statistics | IPSec
9 Where can you troubleshoot TCP/IP connections?
(Note that the keyword in this question is “connection,” which requires TCP):
Monitoring | Statistics | MIB II | TCP/UDP
10 Where can you see the number of collisions on an Ethernet Interface?
Monitoring | Statistics | Interface | MIB II-> | Statistics
11 What is the major difference between the Monitoring | Statistics and the Monitoring |
Statistics | MIB II sections?
The MIB II section works on the first four layers of the OSI model, while the
Statistics section works at higher levels.
CCSP.book Page 530 Friday, February 28, 2003 3:43 PM
530
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
12 You wish to limit the number of concurrent management connections. Where is this done?
To limit the number of concurrent management connections, go to the
Administration | Access Rights | Access Settings screen.
13 You wish to use a AAA server to authenticate management access to the concentrator.
What must you use?
You must use a TACACS+ server. Also, you will need connectivity to the server.
14 What are the differences between the Filterable Event Log screen and the Live Event Log
screen?
There are two major differences between the Filterable Event Log screen and the
Live Event Log screen. First, the Filterable Event Log screen allows you to limit logs
seen. Second, the Live Event Log updates as events occur instead of by the refresh
value set in the Administration | Monitoring Refresh screen.
15 On what screen can you see if a certificate has been requested but has not yet been
received?
The Administration | Certificate Management screen is used to see certificates that
have been requested, but have not yet been received.
16 What section should you look in if you want to see the number of pings sent and received?
From where on the concentrator do you send a ping?
The number of pings sent and received is shown under the Monitoring | Statistics |
MIB II | ICMP screen. Pings are sent from the Administration | Ping screen.
17 Name two places that you can see the current software version on a concentrator.
The current software in use can be seen on the Monitoring | System Status and the
Administration | Software Update | Concentrator screens.
18 What are the access control lists as defined in the Administration | Access Rights | Access
Control Lists screen used for?
These access control lists are only used for access to the concentrator for
management purposes.
19 You find out that your assistant has changed the configuration and saved that new config-
uration. However, something was configured incorrectly. None of remote sites or remote
users can connect to the concentrator. What is the quickest way to resolve the issue?
The quickest way to resolve this is to go to the Administration | File Management |
Swap Config File screen and swap the backup configuration with the current
configuration. Then, go to the Administration | System Reboot screen and reboot
the concentrator. Because no users are connected, the reboot may be set to happen
immediately.
CCSP.book Page 531 Friday, February 28, 2003 3:43 PM
Chapter 8—Do I Know This Already?
531
20 A remote client with a VPN 3002 hardware client calls you on the phone saying that he is
unable to connect to your network. He says that he may have incorrectly configured the
preshared key on his end. You have access through HTTP to your concentrator. Where is
the first place you look to see if this is a preshared key issue?
The first place you should look is on the Monitoring | Statistics | IPSec screen. This
screen will quickly show whether the issue is with an incorrect preshared key.
Chapter 8—Do I Know This Already?
1 What screen is used on the head-end concentrator to demand the use of preshared keys?
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify
screen is used to demand preshared keys from a VPN 3000 Series Concentrator.
2 You need to allow the main office to use PC Anywhere to connect to three separate
machines at the remote office over the VPN. What mode must you use?
You must use Network Extension mode because all the machines at the remote office
will appear as a single IP address at the corporate office if you use Port Address
Translation (PAT) mode.
3 You are using individual authentication in PAT mode. Your tunnel is established but the
user cannot log in. What is the first item you should examine?
First, check if the username and password are correct. You know that PAT mode only
connects when data is sent to the head-end. If the tunnel is up, but the user cannot
connect, this is usually an issue caused by an incorrect password or username.
4 What are the disadvantages in a large network (over 100 users) of using individual
authentication with the internal authentication server in a VPN 3005 Concentrator?
There are two main disadvantages to using individual authentication in a large
network. The first issue is that each user must be individually assigned a username
and password. This takes a large amount of time. The second issue is that an external
authentication server must be used because the internal database on a VPN 3005
Concentrator only allows a maximum of 100 combined users and groups.
5 You are the second user to connect through a VPN 3002 Hardware Client for which
interactive hardware client and individual user authentication have been configured. What
authentication information will you be required to enter?
You will only be required to enter your individual username and password. The VPN
tunnel would have already been established by the previous user who would have
been required to enter the hardware client’s username and password, as well as the
individual username and password.
CCSP.book Page 532 Friday, February 28, 2003 3:43 PM
532
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
6 You can use a static configuration for authenticating the VPN 3002 Hardware Client with
the head-end concentrator. Why would you want to use interactive hardware client
authentication?
Interactive hardware client authentication provides another layer of security to the
system. The device authentication username and password are not stored on the
VPN 3002 Hardware Client but are entered by the first user that brings up the VPN
connection. The password can be quickly changed on the head-end device and
communicated to the users connecting to the VPN 3002 Hardware Client. The headend concentrator pushes the policies you set for authentication out to the VPN 3002
Hardware Client. You can also use both individual user and interactive hardware
client authentication simultaneously.
7 Where is interactive hardware client authentication configured?
You configure interactive hardware client authentication on the head-end VPN 3000
Series Concentrator on the HW Client tab of the Configuration | User Management
| Groups | Modify (or Add) screen.
8 What authentication method is used for interactive hardware client authentication?
The authentication method used is governed by the method you selected to use for
the VPN group. You can use either internal or external authentication.
9 What must you configure on the VPN 3002 Hardware Client in order to use interactive
hardware client authentication?
There are no special configuration steps required on the VPN 3002 Hardware Client
to enable interactive hardware client authentication. This function is driven
completely from the head-end concentrator.
10 The HW Client tab of the Configuration | User Management | Groups | Modify (or Add)
screen is used to configure individual user authentication. What other two attributes for
individual user authentication can you set on this screen?
Along with enabling individual user authentication, the HW Client tab lets you
establish User Idle Timeout and Cisco IP Phone Bypass.
11 What is the default session idle timeout when using individual user authentication?
The default session idle timeout for individual user authentication is 30 minutes.
12 When individual user authentication is enabled, what initial screen are you directed to
when you first try to establish a browser connection to an address in the private network
of the head-end concentrator?
You will be redirected to the VPN 3002 Hardware Client Manager login screen.
From this screen you will select the Connection/Login Status hotlink, which will
permit you to log in to the network.
CCSP.book Page 533 Friday, February 28, 2003 3:43 PM
Chapter 8—Q&A
533
13 What VPN 3002 Hardware Client Manager screen can you use to quickly try to connect
to the head-end concentrator?
The Monitoring | System Status screen of the VPN 3002 Hardware Client Manager
has two buttons: Disconnect Now and Connect Now. Simply click the Connect Now
button to try to establish the connection.
14 What VPN 3002 Hardware Client Manager screen can you use when you want to view
IKE Phase 1 and IPSec Phase 2 connection statistics?
The Monitoring | Statistics | IPSec screen of the VPN 3002 Hardware Client Manager
provides information on IKE and IPSec connections.
15 What VPN 3002 Hardware Client Manager screen can you use if you suspect that DNS
problems are interfering with user communications?
The Monitoring | Statistics | DNS screen of the VPN 3002 Hardware Client Manager
provides information DNS requests, responses, timeouts, and other data that may
help you diagnose a DNS problem on your system.
Chapter 8—Q&A
1 What screen is used on the head-end concentrator to demand the use of preshared keys?
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify
screen is used to demand preshared keys from the VPN 3002 Hardware Client.
2 Name five items to check when you are unable to connect a VPN tunnel and you are
receiving IKE failures on Phase 1.
The five items to check when receiving Phase 1 errors are
•
•
•
•
•
Xauth is required, but the proposal does not support Xauth.
Check the priorities of IKE Xauth proposals in the IKE proposal list.
Check the VPN 3002 Hardware Client group.
Check the group on the VPN Concentrator.
Check that all SA proposals are acceptable.
3 You need to allow the main office to use PC Anywhere to connect to three separate
machines at the remote office over the VPN. What mode must you use?
You must use Network Extension mode because all the machines at the remote office
will appear as a single IP address at the corporate office if you use PAT mode.
CCSP.book Page 534 Friday, February 28, 2003 3:43 PM
534
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
4 You need to have a device behind the head-end concentrator to send data as soon as the
VPN tunnel is established. Which mode should you use? Can you use split tunneling
under these circumstances?
You must use Network Extension mode. You cannot use split tunneling. In Network
Extension mode without split tunneling, a device at the head-end can initiate data
transfer. In either PAT mode or Network Extension mode without split tunneling the
VPN 3002 Hardware Client’s network must initiate data transfer.
5 What are the disadvantages in a large network (over 100 users) of using individual
authentication with the internal server?
There are two main disadvantages to using individual authentication in a large
network. The first issue is that each user must be individually assigned a username
and password. This takes a large amount of time. The second issue is that an external
authentication server must be used because the internal database only allows 100
users.
6 You are using individual authentication in PAT mode. Your tunnel is established but the
user cannot log in. What is the first item you should examine?
First, check if the username and password are correct. You know that PAT mode only
connects when data is sent to the head-end. If the tunnel is up, but the user cannot
connect, this is usually an issue caused by an incorrect password or username.
7 What screen do you use on the VPN 3002 Hardware Client to configure preshared keys?
You use the Configuration | System | Tunneling Protocols | IPSec screen on the VPN
3002 Hardware Client to configure preshared keys.
8 You appear to be experiencing a DoS attack that is initiating from the IP address assigned
to one of your VPN 3002 Hardware Clients. What is the problem?
The problem is that the VPN 3002 Hardware Client has been set to Network
Extension mode but the head-end concentrator has not been changed from the
default PAT mode.
9 You need to allow the remote office to use PC Anywhere to connect to three separate
machines at the main office over the VPN. What mode must you use?
You can use either PAT or Network Extension mode. It is only when going from the
main office to the remote office that there is an issue of whether to use Network
Extension or PAT mode.
10 Some of your remote sites can use split tunneling and others cannot. How is this
controlled?
The decision to allow split tunneling is controlled on a group-by-group basis by the
VPN 3002 Hardware Client.
CCSP.book Page 535 Friday, February 28, 2003 3:43 PM
Chapter 8—Q&A
535
11 Your remote site has an ISDN connection to the Internet. You are charged on a per-minute
basis for connecting to the Internet. Which mode should you use?
Other than changing ISPs, the best move here is to use PAT mode because the tunnel
will disconnect after a specified amount of time, reducing the charges for your
connection. Using Network Extension mode means that the tunnel is always active.
12 What version of software must be running on the head-end concentrator to use PAT mode?
What version is required for Network Extension mode?
Both require version 3.x.
13 You are the second user to connect through a VPN 3002 Hardware Client for which
interactive hardware client and individual user authentication have been configured. What
authentication information will you be required to enter?
You will only be required to enter your individual username and password. The VPN
tunnel would have already been established by the previous user who would have
been required to enter the hardware client’s username and password, as well as their
individual username and password.
14 You can use a static configuration for authenticating the VPN 3002 Hardware Client with
the head-end concentrator. Why would you want to use interactive hardware client
authentication?
Interactive hardware client authentication provides another layer of security to the
system. The device authentication username and password are not stored on the
VPN 3002 Hardware Client but are entered by the first user that brings up the VPN
connection. The password can be quickly changed on the head-end device and
communicated to the users connecting to the VPN 3002 Hardware Client. The headend concentrator pushes the policies you set for authentication out to the VPN 3002
Hardware Client. You can also use both individual user and interactive hardware
client authentication simultaneously.
15 Where is interactive hardware client authentication configured?
You configure interactive hardware client authentication on the head-end VPN 3000
Series Concentrator on the HW Client tab of the Configuration | User Management
| Groups | Modify (or Add) screen.
16 What authentication method is used for interactive hardware client authentication?
The authentication method used is governed by the method you selected to use for
the VPN group. You can use either internal or external authentication.
CCSP.book Page 536 Friday, February 28, 2003 3:43 PM
536
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
17 What must you configure on the VPN 3002 Hardware Client in order to use interactive
hardware client authentication?
There are no special configuration steps required on the VPN 3002 Hardware Client
to enable interactive hardware client authentication. This function is driven
completely from the head-end concentrator.
18 The HW Client tab of the Configuration | User Management | Groups | Modify (or Add)
screen is used to configure individual user authentication. What other two attributes for
individual user authentication can you set on this screen?
Along with enabling individual user authentication, the HW Client tab lets you
establish User Idle Timeout and Cisco IP Phone Bypass.
19 What is the default session idle timeout when using individual user authentication?
The default session idle timeout for individual user authentication is 30 minutes.
20 When individual user authentication is enabled, what initial screen are you directed to
when you first try to establish a browser connection to an address in the private network
of the head-end concentrator?
You will be redirected to the VPN 3002 Hardware Client Manager login screen.
From this screen you will select the Connection/Login Status hotlink, which will
permit you to log in to the network.
21 What VPN 3002 Hardware Client Manager screen can you use to quickly try to connect
to the head-end concentrator?
The Monitoring | System Status screen of the VPN 3002 Hardware Client Manager
has two buttons: Disconnect Now and Connect Now. Simply click the Connect Now
button to try to establish the connection
22 What VPN 3002 Hardware Client Manager screen can you use when you want to view
IKE Phase 1 and IPSec Phase 2 connection statistics?
The Monitoring | Statistics | IPSec screen of the VPN 3002 Hardware Client Manager
provides information on IKE and IPSec connections.
23 What VPN 3002 Hardware Client Manager screen can you use if you suspect that DNS
problems are interfering with user communications?
The Monitoring | Statistics | DNS screen of the VPN 3002 Hardware Client Manager
provides information DNS requests, responses, timeouts, and other data that might
help you diagnose a DNS problem on your system.
CCSP.book Page 537 Friday, February 28, 2003 3:43 PM
Chapter 9—Do I Know This Already?
537
Chapter 9—Do I Know This Already?
1 What are the ramifications an administrator should consider when planning to use Virtual
Router Redundancy Protocol (VRRP) along with reverse route injection (RRI)?
VRRP (Virtual Router Redundancy Protocol) and RRI (Reverse Route Injection)
are incompatible and should not be used together.
2 You wish to inject a route from the VPN Concentrator to the VPN 3002 Hardware Client.
What routing protocol must you use?
You must use OSPF if you wish to use the VPN Concentrator to advertise a route to
the VPN 3002 Hardware Client.
3 You wish to use RIPv1 with Reverse Route Injection. Can this be done?
You must use RIPV2.
4 You are using a backup IPSec server because the primary server was down when the initial
tunnel was initiated. The primary server is now up. Will the VPN 3002 Hardware Client
restore a connection to the primary? If so, when?
The connection to the primary server will only be reestablished after a connection to
the backup server is terminated.
5 What is the timeout period used when attempting to connect to the primary concentrator
before a connection will be attempted to a secondary concentrator?
The timeout period is 8 seconds.
6 You tried to connect to your primary concentrator from your VPN 3002 Hardware Client
but were unsuccessful. Your 3002 Hardware Client then attempted to connect to your
backup concentrator without success. When will the VPN 3002 Hardware client try again?
Once a VPN 3002 Hardware Client goes through its list of backup concentrators,
it will not attempt any more connections until the Connect Now button on the
Monitoring | System Status screen is clicked.
7 How is load balancing enabled on the VPN 3002 Hardware Client?
The load-balancing feature is automatic on the VPN 3002 Hardware Client.
8 You have three VPN 3015 Concentrators on the same network. Assuming default priority
settings, which one will be elected to balance the load?
The first VPN 3015 Concentrators on the network will balance the load.
CCSP.book Page 538 Friday, February 28, 2003 3:43 PM
538
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
9 What factors are considered for VPN 3000 Concentrator load balancing with VPN 3002
Hardware Clients or remote access VPN clients?
Total number of connections, the number of connections on each VPN Concentrator,
and the total number of connecting clients are the factors considered during load
balancing.
10 Which debug class or classes should you enable in order to debug an auto-update?
The auto-update class is all that is necessary for debugging an auto-update.
11 What types of clients may use the auto-update feature?
Only Windows-based clients and the VPN 3002 Hardware Client can use the autoupdate feature.
12 When a software update is pending, during the connection process, the concentrator sends
a message indicating the IP address of the TFTP server and the software version to be
downloaded. What type (protocol) is this message?
This is an ISAKMP message.
13 What client type(s) are permissible to be set on the VPN Concentrator for upgrading
clients when using the VPN 3002 Hardware Client?
Because only the VPN 3002 Hardware Client is able to be upgraded, the only
permissible value is vpn3002.
14 On the VPN Concentrator, what is the syntax used to specify the TFTP server and the
filename used for updating the client software?
The syntax is tftp://{IP address of server}/{filename}
15 You have configured auto-update to occur. Which device, the VPN Concentrator or the
VPN 3002 Hardware Client, recognizes that the software must be updated?
The VPN 3002 Hardware Client recognizes that the software needs to be updated
and starts the update process.
16 How is the VPN 3000 Concentrator configured to notify VPN 3002 Hardware Clients that
a new software upgrade is available?
Using the VPN 3000 Concentrator Series Manager, go to Administration | Software
Update | Clients.
Choose the group
Select Upgrade Clients Now
CCSP.book Page 539 Friday, February 28, 2003 3:43 PM
Chapter 9—Do I Know This Already?
539
17 Your VPN 3002 Hardware Client attempts to auto-update. The system appears to “hang”
and eventually times out on the download portion of the process. What are two likely
causes?
The two most likely causes are that your VPN 3002 Hardware Client either cannot
connect to the TFTP server or the Client does not have sufficient permissions on the
server to download the software.
18 You have tried to upgrade your VPN 3002 Hardware Client. However, the VPN 3002
Hardware Client keeps trying to upgrade without success. You know that you have
connectivity. You can see in the logs that you have been downloading the file. What is
the problem?
The problem is that you have entered an incorrect version number in the VPN
Concentrator. If you can see that the file has been downloaded but it still tries to
update the software, this is the only explanation.
19 Why will some applications not work with either NAT or PAT?
Some applications, especially very old DOS applications, were written before the
OSI model was fully accepted. These applications embed the workstation address
within the data instead of relying on TCP/IP to carry the IP address. These programs
will fail using either NAT or PAT because the message will be sent back to the
workstation address within the data, not the workstation address that was
translated.
20 Why will PAT cause problems with some applications whereas NAT does not cause these
problems?
Some applications expect to use specific ports. Because PAT changes the ports used,
this can cause problems with this type of application.
21 What are two main differences between NAT and PAT?
The first difference between NAT and PAT is that NAT is a one-to-one translation
while PAT is a one-to-many translation. The second major difference is that PAT
translates ports (either TCP or UDP) as well as source or destination addresses.
22 Why is UDP Transparent IPSec (IPSec over UDP) usable with either NAT or PAT when
IPSec over TCP is not usable over PAT?
UDP Transparent IPSec bypasses the effects of NAT and PAT by encapsulating the
data traffic within new UDP packets.
23 You are using UDP Transparent IPSec on your VPN 3002 Hardware Client. How are
filters applied to inbound traffic? How are filters applied to outbound traffic?
Traffic inbound is decrypted before routing. Traffic outbound is routed and then
encrypted.
CCSP.book Page 540 Friday, February 28, 2003 3:43 PM
540
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
24 What minimum version does the VPN Concentrator have to be running in order to use
UDP NAT Transparent IPSec? What version is required on the VPN 3002 Hardware
Client?
Both the VPN Concentrator and the VPN 3002 Hardware Client must be running
version 3.0.3 or later software.
25 What is the default port for IPSec over UDP?
The default port is 10000.
26 When using IPSec over TCP, how are IKE and IPSec protocols handled in relation to
NAT?
The whole packet is encapsulated within a new IP packet. This allows the new packet
to have its source address changed by NAT and the source address and port changed
by PAT without worrying about encryption or decryption of the original data.
27 You are planning on terminating your VPN 3002 Hardware Client’s VPN tunnel on a
Microsoft Proxy Server. Should you use UDP NAT Transparent IPSec (IPSec over UDP)
or IPSec over TCP?
You must use UDP NAT Transparent IPSec because IPSec over TCP will not work
with a proxy server.
Chapter 9—Q&A
1 What are the ramifications an administrator should consider when planning to use VRRP
along with RRI?
VRRP (Virtual Router Redundancy Protocol) and RRI (Reverse Route Injection)
are incompatible and should not be used together.
2 You wish to inject a route from the VPN Concentrator to the VPN 3002 Hardware Client.
What routing protocol must you use?
You must use OSPF if you wish to use the VPN Concentrator to advertise a route to
the VPN 3002 Hardware Client.
3 You wish to use RIPv1 with Reverse Route Injection. Can this be done?
No. You must use RIPV2.
4 Which screen on the VPN Concentrator is used to configure RRI with OSPF?
The Configuration | System | IP Routing | OSPF screen is used for configuring RRI
with OSPF.
CCSP.book Page 541 Friday, February 28, 2003 3:43 PM
Chapter 9—Q&A
541
5 You are using a backup IPSec server because the primary server was down when the initial
tunnel was initiated. The primary server is now up. Will the VPN 3002 Hardware Client
restore a connection to the primary? If so, when?
The connection to the primary server will only be reestablished after a connection to
the backup server is terminated.
6 What is the timeout period used when attempting to connect to the primary concentrator
before a connection will be attempted to a secondary concentrator.
The timeout period is 8 seconds.
7 You tried to connect to your primary concentrator from your VPN 3002 Hardware Client
but were unsuccessful. Your 3002 Hardware Client then attempted to connect to your
backup concentrator without success. When will the VPN 3002 Hardware Client try
again?
Once a VPN 3002 Hardware Client goes through its list of backup concentrators, it
will not attempt any more connections until the Connect Now button on the
Monitoring | System Status screen is clicked.
8 What screen is used to configure backup servers on the VPN 3002 Hardware Client?
The Configuration | System | Tunneling Protocols | IPSec screen is used to configure
backup servers on the VPN 3002 Hardware Client.
9 You have three VPN 3015 Concentrators on the same network. Assuming default priority
settings, which one will be elected to balance the load?
The first VPN 3015 Concentrator on the network will balance the load.
10 What factors are considered for VPN 3000 Concentrator load balancing with VPN 3002
Hardware Clients or remote access VPN Clients?
Total number of connections, the number of connections on each VPN concentrator,
and the total number of connecting clients are the factors considered during load
balancing.
11 How is load balancing enabled on the VPN 3002 Hardware Client?
The load-balancing feature is automatic on the VPN 3002 Hardware Client.
12 What types of clients may use the auto-update feature?
Only Windows-based VPN Clients and the VPN 3002 Hardware Client can use the
auto-update feature.
13 When a software update is pending, during the connection process, the concentrator sends
a message indicating the IP address of the TFTP server and the software version to be
downloaded. What type (protocol) is this message?
This is an ISAKMP message.
CCSP.book Page 542 Friday, February 28, 2003 3:43 PM
542
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
14 What are two main differences between NAT and PAT?
The first difference between NAT and PAT is the NAT is a one-to-one translation
while PAT is a one-to-many translation. The second major difference is that PAT
translates ports (either TCP or UDP), as well as the source or destination address.
15 You are the administrator for a network using a single PAT address for connection to the
Internet. You want to add two VPN 3002 Hardware Clients behind your PIX firewall.
Which type of IPSec will you choose to use?
You must use IPSec over TCP/IP because IPSec over UDP will not work if you are
using PAT and you attempt to have more than one VPN 3002 Hardware Client
translated to the same ad.
16 What minimum version does the VPN Concentrator have to be running in order to use
IPSec over TCP/IP? What version is required on the VPN 3002 Hardware Client?
Both the VPN Concentrator and the VPN 3002 Hardware Client must be running
version 3.5 or later software.
17 What minimum version does the VPN Concentrator have to be running in order to use
UDP NAT Transparent IPSec? What version is required on the VPN 3002 Hardware
Client?
Both the VPN Concentrator and the VPN 3002 Hardware Client must be running
version 3.0.3 or later software.
18 What is the default port for IPSec over UDP?
The default port is 10000.
19 You have an established tunnel between two sites. From the remote site you are able to
ping the inside interface of the VPN Concentrator. However, you are unable to ping
anything that lies beyond that point. What is wrong?
If you can ping the inside interface of the VPN Concentrator, but cannot get beyond
that point, the issue is that the interior routing is incorrect. Make sure that the
interior routers know that the remote LAN can be reached through the inside
Interface of the VPN Concentrator.
20 You are planning to upgrade your VPN 3002 Hardware Client. You have just received a
file named vpn3002-3.0.3.A-k9.bin. What version is this?
This is version 3.0.3.A. The area between the dashes is the version number.
CCSP.book Page 543 Friday, February 28, 2003 3:43 PM
Chapter 9—Q&A
543
21 You have tried to upgrade your VPN 3002 Hardware Client. However, the VPN 3002
Hardware Client keeps trying to upgrade without success. You know that you have
connectivity. You can see in the logs that you have been downloading the file. What is
the problem?
The problem is that you have entered an incorrect version number in the VPN
Concentrator. If you can see that the file has been downloaded but it still tries to
update the software, this is the only explanation.
22 Why will some applications not work with either NAT or PAT?
Some applications, especially very old DOS applications, were written before the OSI
model was fully accepted. These applications embed the workstation address within
the data instead of relying on TCP/IP to carry the IP address. These programs will
fail using either NAT or PAT because the message will be sent back to the workstation
address within the data, not the workstation address that was translated.
23 Why will PAT cause problems with some applications whereas NAT does not cause these
problems?
Some applications expect to use specific ports. Because PAT changes the ports used,
this can cause problems with this type of application.
24 Which debug class or classes should you enable in order to debug an auto-update?
The AUTOUPDATE class is all that is necessary for debugging an auto-update.
25 On the VPN Concentrator, what is the syntax used to specify the TFTP server and the
filename used for updating the client software?
The syntax is tftp://{IP address of server}/{filename}.
26 You have configured auto-update to occur. Which device, the VPN Concentrator or the
VPN 3002 Hardware Client, recognizes that the software must be updated?
The VPN 3002 Hardware Client recognizes that the software needs to be updated
and starts the update process.
27 What client type(s) are permissible to be set on the VPN Concentrator for upgrading
clients when using the VPN 3002 Hardware Client?
Because only the VPN 3002 Hardware Client is able to be upgraded, the only
permissible value is vpn3002.
28 How is the VPN 3000 Concentrator configured to notify VPN 3002 Hardware Clients that
a new software upgrade is available?
Using the GUI, go to Administration | Software Update | Clients
Choose the group
Select Upgrade Clients Now.
CCSP.book Page 544 Friday, February 28, 2003 3:43 PM
544
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
29 Your VPN 3002 Hardware Client attempts to auto-update. The system appears to “hang”
and eventually times out on the download portion of the process. What are two likely
causes?
The two most likely causes are that your VPN 3002 Hardware Client either cannot
connect to the TFTP server or the Client does not have sufficient permissions on the
server to download the software.
30 In Network Extension mode, how long will the VPN 3002 Hardware Client wait before
attempting to connect to a backup server if a connection to the primary server fails?
In Network Extension mode, the VPN 3002 Hardware Client will wait 4 seconds
before attempting to connect to a backup server.
31 Will a VPN 3002 Hardware Client connected to a backup server recognize that the
primary server has added a new backup server?
No. The VPN 3002 Hardware Client will only recognize a new backup server if it is
connected to the primary server.
32 Does the VPN 3002 Hardware Client send keepalives to other VPN 3002 Hardware
Clients connected to the same primary or backup server?
No. VPN 3002 Hardware Clients have no knowledge of other VPN 3002 Hardware
Clients unless their inside interfaces are on the same LAN. In this case, this is only
used for load balancing.
33 Where are hold-down routes configured?
Hold-down routes are configured on the concentrator from the Configuration |
System | IP Routing | Reverse Route Injection screen.
34 What protocols may be used with LAN-to-LAN Autodiscovery?
RIP is the only protocol currently available for use with LAN-to-LAN autodiscovery.
35 When using IPSec over TCP, how are IKE and IPSec protocols handled in relation to
NAT?
The entire packet is encapsulated within a new IP packet. This allows the new packet
to have its source address changed by NAT and the source address and port changed
by PAT without worrying about encryption or decryption of the original data.
36 You are planning on terminating your VPN 3002 Hardware Client’s VPN tunnel on a
Microsoft Proxy Server. Should you use UDP NAT Transparent IPSec (IPSec over UDP)
or IPSec over TCP?
You must use UDP NAT Transparent IPSec because IPSec over TCP will not work
with a proxy server
CCSP.book Page 545 Friday, February 28, 2003 3:43 PM
Chapter 10—Do I Know This Already?
545
Chapter 10—Do I Know This Already?
1 What is a LAN-to-LAN connection?
A LAN-to-LAN connection is a secure connection between two LANs.
2 What equipment is required for a LAN-to-LAN connection?
A LAN-to-LAN connection requires any combination of concentrators, routers and
firewalls.
3 Where can a LAN-to-LAN connection be used?
You can use a LAN-to-LAN connection
•
•
•
Across the Internet
Between two networks connected through a trusted network
Between two networks connected through a non-trusted network
4 When setting up network lists, how should the lists at each side of the LAN-to-LAN
connection relate to each other?
They must be reflective of each other. The network lists reflect the networks that are
coming into the concentrator therefore referencing the network on the opposite side
of where the network list is configured.
5 You attempted to configure a LAN-to-LAN connection, but cannot see a specific network
on one side of the connection. What is the most likely problem?
Most likely, the network is missing from the network list on one of the concentrators.
6 What routing protocol is used for Autodiscovery?
RIP is used for Autodiscovery.
7 What is an identity certificate?
The identity certificate is used to uniquely identify a specific network device.
8 What is the advantage of using SCEP?
SCEP simplifies the process of obtaining and installing certificates.
9 What are critical items when using any certificates?
The date and time on the device are the most critical items when using any
certificates.
10 Order the steps for using a certificate:
1. Issue an enrollment request
2. Enroll with the CA
CCSP.book Page 546 Friday, February 28, 2003 3:43 PM
546
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
3. The enrollment request is accepted
4. Install the Certificate
5. Configure the concentrator to use the Certificate
2, 1, 3, 4, 5
11 You want to use SCEP to enroll an identity certificate. How must the associated CA
certificate be obtained?
The CA certificate must be obtained using SCEP.
12 What are the default directory and filename for the DLL used with SCEP?
The default filename is mscep.dll; The default directory is certserv.
13 What are the three major steps involved in using digital certificates for a LAN-to-LAN
connection?
Configure the LAN-to-LAN connection to use the identity certificate. Configure the
LAN-to-LAN connection to use the IKE proposal. Activate the IKE proposal.
14 When using an identity certificate, what is the affect of entering an incorrect name in the
OU field?
The group will have no access.
15 What three key sizes may be used with DSA when installing certificates using SCEP?
512 bits; 1024 bits; 768 bits.
Chapter 10—Q&A
1 What is a LAN-to-LAN connection?
A LAN-to-LAN connection is a secure connection between two LANs.
2 What equipment is required for a LAN-to-LAN connection?
A LAN-to-LAN connection requires any combination of concentrators, routers and
firewalls.
3 Where can a LAN-to-LAN connection be used?
You can use a LAN-to-LAN connection
•
•
•
Across the Internet
Between two networks connected through a trusted network
Between two networks connected through a non-trusted network
CCSP.book Page 547 Friday, February 28, 2003 3:43 PM
Chapter 10—Q&A
547
4 When setting up network lists, how should the lists at each side of the LAN-to-LAN
connection relate to each other?
They must be reflective of each other. The network lists reflect the networks that are
coming into the concentrator therefore referencing the network on the opposite side
of where the network list is configured.
5 You attempted to configure a LAN-to-LAN connection, but cannot see a specific network
on one side of the connection. What is the most likely problem?
Most likely, the network is missing from the network list on one of the concentrators.
6 What routing protocol is used for Autodiscovery?
RIP is used for Autodiscovery.
7 What is an identity certificate?
The identity certificate is used to uniquely identify a specific network device.
8 What is the advantage of using SCEP?
SCEP simplifies the process of obtaining and installing certificates.
9 What are critical items when using any certificates?
The date and time on the device are the most critical items when using any
certificates.
10 Order the steps for using a certificate:
1. Issue an enrollment request
2. Enroll with the CA
3. The enrollment request is accepted
4. Install the Certificate
5. Configure the concentrator to use the Certificate
2, 1, 3, 4, 5
11 You want to use SCEP to enroll an identity certificate. How must the associated CA
certificate be obtained?
The CA certificate must be obtained using SCEP.
12 What are the default directory and filename for the DLL used with SCEP?
The default filename is mscep.dll; The default directory is certserv.
CCSP.book Page 548 Friday, February 28, 2003 3:43 PM
548
Appendix A: Answers to the “Do I Know This Already?” Quizzes and Q&A Sections
13 What are the three major steps involved in using digital certificates for a LAN-to-LAN
connection?
Configure the LAN-to-LAN connection to use the identity certificate. Configure the
LAN-to-LAN connection to use the IKE proposal. Activate the IKE proposal.
14 When using an identity certificate, what is the affect of entering an incorrect name in the
OU field?
The group will have no access.
15 What three key sizes may be used with DSA when installing certificates using SCEP?
512 bits; 1024 bits; 768 bits.
16 What screen is used to configure Network Autodiscovery?
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify is
used to set Network Autodiscovery.
17 You have two VPN Concentrators—one in Seattle, the other in London—used for
connecting the two offices through VPNs. The Seattle office cannot reach one subnet
attached to the London office. You have checked your network lists on the Seattle
concentrator. You are sure that the “missing” network is properly configured. What is the
most likely problem?
Because the network lists must be reflexive, both sets of network lists must be
checked. The next item to check is the network lists on the London concentrator.
18 You are using Network Autodiscovery. You do not see a single remote network that is
connected through a series of routers to your remote concentrator. Where should your
troubleshooting efforts be directed?
Because Network Autodiscovery relies on the RIP protocol, the first place to look is
in the RIP tables. Is RIP enabled on the interface? Is this network advertised? Are
you filtering the RIP Protocol somewhere along the way? Is the network so far away
that it exceeds the RIP hop count limit?
19 You are using SCEP. Your junior assistant has configured the system. You have established
a VPN connection to the remote site, but your remote group does not have access to your
network. What is a probable cause?
The OU (Organizational Unit) must match your IPSec group name. If they are
different, the VPN will be established, but the group that connects over this
connection will be different than the expected group. The connected group will not
have any access.
CCSP.book Page 549 Friday, February 28, 2003 3:43 PM
Chapter 10—Q&A
549
20 You are using SCEP. You are trying to enroll a certificate. Your concentrator shows that it
is polling. It has been in this state for over an hour. What is the most likely cause?
Because enrolling certificates is a manual process on most systems, the most
probable cause is that the administrator on the certificate server has failed to issue
the certificate. Contact the administrator to find out the status of the certificate.
21 What screen is used to determine the IKE proposal used for a LAN-to-LAN connection?
The Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify
screen is used to determine which IKE proposal is used for a LAN-to-LAN
connection.
22 What is the purpose of the challenge password on the Administration | Certificate
Management | Enroll | Identity Certificate | SCEP screen?
The challenge password may be required by the certificate server. The server uses
this password to ensure that certificates are not issued without proper
authentication.
23 You wish to use Network Autodiscovery because it sounds easier. How are the networks
learned and how do you ensure that only specific networks are included?
Autodiscovery relies on the RIP protocol. Autodiscovery will advertise all of the
networks learned through RIP. When using Autodiscovery, you must limit what
networks are advertised to the Concentrator. Therefore, if you wish to limit the
networks seen, you must limit the RIP advertisements that are broadcast by the
routers connected to the interior interface of the Concentrator. There are no
provisions for limiting the networks learned within the Concentrator configuration.
You must also ensure that RIP is enabled on the interface within the Configuration |
Interfaces screen.
24 What are the differences between a root certificate, a subordinate certificate, and an
identity certificate?
A certificate signed by itself is called a self-signing or root certificate. When one
certificate issues another, the issued certificate is referred to as a subordinate
certificate. A subordinate certificate can never issue another certificate. An identity
certificate is used to authenticate a specific host on a network, while root and
subordinate certificates may be used on a group of hosts within a network.
25 What are the maximum numbers of certificates that may be used on concentrators?
The maximum number varies by model. On the 3005 a total of 6 root or subordinate
certificates may be used, with a maximum of two identity certificates. On other
concentrator models a total of 20 root or subordinate certificates and 20 identity
certificates may be used. On all models, only a single SSL can be used.
CCSP.book Page 550 Friday, February 28, 2003 3:43 PM
CCSP.book Page 551 Friday, February 28, 2003 3:43 PM
INDEX
Numerics
3DES (Triple Data Encryption Standard), 48
A
Access Rights screen (VPN 3000 Series
Concentrator), administration, 316–322
Action options, applying to filter rules, 273
adding filter rules to VPN Client, 272
addressing assignment method, configuring on VPN
3000 Series Concentrator, 147
admin password, configuring on VPN 3000 Series
Concentrator, 150
Administer Sessions screen (VPN 3000 Series
Concentrator), administration, 310
administering VPN 3000 Series Concentrators, 307
Access Rights screen, 316–322
Administer Session screen, 310
Certificate Manager screen, 323
File Management screen, 322
menu options, 308–310
Monitoring Refresh screen, 315
Ping screen, 315
Software Update screen, 310–312
System Reboot screen, 313–315
Administration screen, VPN 3000 Series
Concentrator management interface, 97–98
AH (Authentication Header), 40
fields, 41
Always On option. See Stateful Firewall feature
answers to problem scenarios, 478–486
applying filter rules
Action option, 273
Destination address option, 274
Destination port option, 274–276
Direction option, 273
ICMP Packet Type option, 276
Name option, 273
Protocol option, 273
Source address option, 274
TCP connection option, 273–274
TCP/UDP source option, 274
assessing knowledge of required topics, 11
authentication
IKE key types, 49
interactive hardware client authentication,
375–376
with preshared keys
group preshared keys, 133
unique preshared keys, 132–133
wildcard preshared keys, 133
Authentication Data field
AH, 41
ESP, 43
authentication process for identify certificates, 225
Automatic Client Update feature, 283–284
auto-update
monitoring events, 426–428
VPN 3002 Hardware Client configuration,
423–426
AYT (Are You There), 268
applying to firewall policy, 280
B
backup servers
VPN 3002 configuration, 412–413
branch office VPN routers, 28
browser-based manager, performing Quick
Configuration for Cisco VPN 3000 Concentrator,
141, 144
address assignment method, 147
admin password, 150
interface settings, 144–146
internal authentication, 148
IPSec tunnel group, 149
CCSP.book Page 552 Friday, February 28, 2003 3:43 PM
552
browser-based manager
system information, 146
tunneling protocol, 147
user authentication method, 148
business VPN applications, 21
business-to-business extranet VPNs, 25
remote access, 22–23
caveats of implementing, 23
client-initiated model, 23
NAS-initiated model, 23
site-to-site intranet VPNS, 24
business-to-business extranets, 25
C
CAs (Certificate Authorities), 50, 53
authentication process, 225
configuring on Cisco VPN 3000 Series
Concentrators, 241–242
CRLs, 226
enrollment process, 224, 455–457
manual SCEP authentication, 228–230
preshared key SCEP authentication, 230
via PKCS #10, 233–235
via SCEP, 228, 236 454–455
hierarchies, 225
Internet-based, 247
PKCS #10 certificate requests, 222–224
services, 221–222
vendors, 231
CBC (Cipher Block Chaining), 47
central CA structure, 225
central hub VPN routers, 28
certificate management, 454
Certificate Management screen, Cisco VPN 3000
Series Concentrator administration, 323
certification
exam overview, 4
overview of exams, 5
CSVPN, 6–10
preparing for exam, 11–12
recommended training path, 10
topics covered, 3
Cisco Easy VPN, 32–33
Cisco IDS Host Sensor, 35
Cisco Mobile Office, 33
Cisco Secure ACS, 34
Cisco VPN 3000 Concentrator Manager
Configuration screen
Policy Management section, 173
System section, 169–172
User Management section, 173
IPSec configuration, 152–154
modifying groups, 155–168
Cisco VPN 3000 Series concentrators, 30–31,
85–87, 232
administration, 307
Access Rights screen, 316–322
Administer Sessions screen, 310
Certificate Manager screen, 323
File Management screen, 322
menu options, 308, 310
Monitoring Refresh screen, 315
Ping screen, 315
requirements, 134
Software Update screen, 310–312
System Reboot screen, 313–315
Automatic Client Update feature, 283–284
capabilities, 89–90
CA support, configuring, 241–242
certificate validation, 237
Cisco VPN 3005, 101
Cisco VPN 3015, 102
Cisco VPN 3030, 103
Cisco VPN 3060, 104
Cisco VPN 3080, 104
Cisco VPN Client, 87, 109
compatibility, 88
configuration requirements, 135–136
CRLs, 237
fault tolerance, 94
CCSP.book Page 553 Friday, February 28, 2003 3:43 PM
Configuration screen (VPN Manager)
identity certificates
enrolling via PKCS #10, 233–236
enrolling via SCEP, 236
IKE configuration, 239–240
IPSec configuration, 152–154
modifying groups, 155–168
LED indicators, 105–107
management interface, 94–95
Administration screen, 97–98
configuring, 96
Monitoring screen, 98
upgrading, 99–100
monitoring, 324–330, 333, 337
Routing Table screen, 326
Monitoring menu
Event Log screen, 327
Sessions screen, 328–330
Statistics screen, 330, 333, 337
System Status screen, 327
performance, 87
PKCS #10 certificate requests, 222
fields, 222–224
placement, 87, 91
Quick Configuration option, 136
CLI method, 137–141
with browser-based manager, 141–152
routing options, 88
security, 90, 93
supported tunneling protocols, 88
upgrading, 99–100
VPN 3002 Hardware Client, 108
configuring preshared keys, 366–368
VPN Client software
filter rules, configuring, 269–276
firewall features, 265–267
Stateful Firewall, 267–268, 276
Cisco VPN 3002 Hardware Client, 32
Cisco VPN 3005 Concentrator, 101
Cisco VPN 3015 Concentrator, 102
Cisco VPN 3030 Concentrator, 103
Cisco VPN 3060 Concentrator, 104
553
Cisco VPN 3080 Concentrator, 104
Cisco VPN Client Cisco VPN Clients, 31–33
version 3.6 firewall features, 265–266
Cisco VPN products
Cisco PIX firewalls, 28, 30
Cisco VPN 3000 Concentrators. See Cisco VPN
3000 Series concentrators
Cisco VPN Clients, 31–33
Cisco Internet Mobile Office, 33
wireless clients, 33
Cisco VPN routers, 27–28
management software, 33–36
CiscoView, 35
CiscoWorks 2000, 34–36
Cisco Secure ACS, 35
CLI (command-line interface)
performing Quick Configuration for Cisco VPN
3000 Concentrator, 137–138
Private LAN Interface configuration,
139–141
system date and time configuration,
138–139
Client Config tab (Groups screen), modifying IPSec
groups, 159–160, 162
Client FW tab (Groups screen), modifying IPSec
groups, 162–164
Client mode (VPN 3002 Hardware Client),
configuring, 371–373
Client RRI, configuring, 410
client-initiated remote access model, 23
communications, SAs, 46–47
comp-lzs transform, 57
concentrators, enrolling with CA, 455–457.
See also Cisco VPN 3000 Series Concentrators
Configuration screen (VPN Manager)
Policy Management section, 173
System section
Address Management subsection, 170
Client Update subsection, 172
Events subsection, 171
General subsection, 172
CCSP.book Page 554 Friday, February 28, 2003 3:43 PM
554
Configuration screen (VPN Manager)
IP Routing subsection, 170–171
Load Balancing Cisco VPN Clients
subsection, 172
Management Protocols subsection, 171
Servers subsection, 169–170
Tunneling Protocols subsection, 170
User Management section, 173
configuring
Cisco VPN 3000 Series Concentrators
debug levels, 369–371
IKE, 239–240
management interface, 96
Quick Configuration option, 136–152
requirements, 135–136
Cisco VPN 3002 Hardware Client
IPSec over TCP/IP, 418
IPSec over UDP, 419–420
IPSec, 152–154
modifying groups, 155–168
transforms, 54–55
valid transform sets, 55–56
LAN-to-LAN connections, 449
network lists, 449, 451
tunnels, creating, 453
with digital certificates, 462–463
split tunneling, 374
interactive hardware client authentication,
380–384
on head-end VPN 3000 Series
Concentrator, 376–378
user authentication, 380–384
VPN 3002 backup servers, 412–413
VPN 3002 Hardware Client
Auto-Update, 423–426
Client mode, 371–373
load balancing, 414–416
Network Extension mode, 374
preshared keys, 366–368
RRI, 407–411
VPN Client, 181–185
Stateful Firewall feature, 276
VPNs with IPSec, 57–58
peer authentication, 61
SAs, 61
triggering IPSec process, 59–60
VPN termination, 62
connections (IPSec), SAs, 46–47
courses, recommened training for CCSP
certification, 10
CPP (Central Protection Policy), 268
Policy Pushed option, applying to firewall
policy, 280
creating
filtering rules for VPN Client, 272
tunnels, 453
between VPN 3000 Series Concentrator
and Hardware Client, 366
split tunneling, 374–384
CRLs (Certificate Revocation Lists), 227, 237
CSVPN (Cisco Secure Virtual Private
Networks) exam, 5–7
topics covered, 8–10
customizing firewall settings on VPN Client,
279–280
D
debug levels, setting on VPN 3000 Series
Concentrator and Hardware Client, 369–371
defining policies
CPP, 268
firewall policies on VPN Client, Firewall Policy
option, 280
deploying IPSec, 38
DES (Data Encryption Standard), 47
destination address options, applying to
filter rules, 274
destination port options, applying to filter rules,
274–276
CCSP.book Page 555 Friday, February 28, 2003 3:43 PM
firewalls
Detroit site (Value-Packed Nutrition
Corporation), 474
devices, Cisco VPN 3000 Series Concentrators.
See Cisco VPN 3000 Series concentrators
dialup, client-initiated remote access model, 23
Diffie-Hellman protocol, 50–51
digital certificates, 50
CAs, 221–222
authentication process, 225
enrollment process, 224, 228–230
hierarchies, 225
configuring in LAN-to-LAN connections,
462–463
management applications, 247
PKCS #10 certificate requests, 222–224
revocation, 226
Direction options, applying to filter rules, 273
displaying VPN Client firewall statistics, 281–282
DSA (Directory System Agent) algorithms, 224
E
enabling IPSec on VPN 3002 Hardware Client
over TCP/IP, 418
over UDP, 419–420
encrypted nonces, 50
encryption
3DES, 48
DES, 47
enrolling digital certificates, 224
via PKCS #10, 233–235
via SCEP, 228, 454–455
manual authentication, 228–230
preshared key authentication, 230
enrolling identity certificates, 233–236
enterprise networks, SAFE, 86
ESP (Encapsulating Security Payload), 42
fields, 43
modes of operation, 44
555
establishing VPNs with IPSec, 57–58
peer authentication, 61
SAs, 61
triggering IPSec process, 59–60
Event Log screen (Monitoring Menu), Cisco VPN
3000 Series Concentrator, 327
event logging
VPN 3000 Series Concentrator
IKE Failures on Phase 1, 370
Incorrect User Name, 370
Incorrect User Password, 371
Work Group Name Incorrect, 370
VPN 3002 Hardware Client, Incorrect Group
Password, 370
events, monitoring Auto-Update on VPN 3002
Hardware Client, 426–428
exams, 11–12
CSVPN exam, 6–10
overview of CCSP certification track, 4–5
external groups (IPSec), 154
extranet VPNs, 25
EzVPN, 32–33
F
features of VPN Client, 175–176
fields
of AH, 41
of ESP, 43
of PKCS #10 certificate requests, 222–224
File Management screen, Cisco VPN 3000 Series
Concentrator administration, 322
Firewall feature (VPN Client), configuring filter
rules, 269–276
firewalls
AYT, 268
Cisco PIX Firewalls, 28–30
configuring on VPN Client, 278–279
customizing on VPN Client, 279–280
Firewall Policy option, 280
CCSP.book Page 556 Friday, February 28, 2003 3:43 PM
556
General tab (Groups screen), modifying IPSec groups
G
General tab (Groups screen), modifying IPSec
groups, 155–156
generating CAs via SCEP
enrollment process, 455–457
identity certificate installation, 458, 461
group preshared keys, 133
H
hierarchical CA structure, 225
HMAC (Hash-Keyed Message Authentication
Code), 48
hold-down routes, configuring, 411
HW Client tab (Groups screen), modifying IPSec
groups, 164–166
I
ICMP Packet Type options, applying to
filter rules, 276
identity certificates, 224, 454
authentication process, 225
enrolling on Cisco VPN Concentrators
via PKCS #10, 233–236
via SCEP, 236
installing, 458–461
Identity tab (Groups screen), modifying IPSec
groups, 155
IKE
configuring on Cisco VPN 3000 Series
Concentrators, 239–240
identifying scenario requirements, 475
key types, 49
IKE Failures on Phase 1 event log, 370
implementing remote access VPNs, caveats, 23
Incorrect Group Password event log, 370
Incorrect User Name event log, 370
Incorrect User Password event log, 371
installing
identity certificates via SCEP, 458–461
VPN Client, 177–180
interactive hardware client authentication, 375–376,
382–384
interface settings, configuring on VPN 3000 Series
Concentrator, 144–146
internal authentication, configuring on VPN 3000
Series Concentrator, 148
internal groups (IPSec), 154
Internet-based CAs, 247
Cisco VPN product support, 231
intranet VPNs, 24
IP address translation, PAT, 417
IPSec, 36
CAs, 53
configuring through Cisco VPN 3000
Concentrator Manager, 152–154
groups, modifying, 155–167
identifying scenario requirements, 476
IKE key types, 49
over TCP/IP, configuring on VPN 3002
Hardware Client, 418
over UDP, configuring on VPN 3002 Hardware
Client, 419–420
peer formation, 54
planning for deployment, 38
RFCs, 36–37
SAs, 46–47
forming, 54
supported protocols, 38–39
3DES, 48
AH, 40–41
DES, 47
Diffie-Hellman, 50–51
ESP, 42–44
HMAC, 48
MD5, 49
Secure Hash Algorithm, 49
CCSP.book Page 557 Friday, February 28, 2003 3:43 PM
Movian VPN Client
transforms, 54–55
valid transform sets, 55–56
transport mode, 44
troubleshooting connections on VPN 3002
Hardware Client, 420–422
tunnel groups, configuring on VPN 3000 Series
Concentrator, 149
tunnel mode, 45
VPN establishment, 57–58
triggering IPSec process, 59–61
VPN termination, 62
IPSec tab (Groups screen), modifying IPSec groups,
157–158
K-L
key types (IKE), 49
LAN Extension mode (VPN 3002 Hardware Client),
374
LAN-to-LAN connections
configuring, 449
digital certificates, 462–463
network lists, configuring, 449–451
tunnels, creating, 453
LAN-to-LAN network RRI, configuring, 409
LED indicators (Cisco 3000 VPN Series
Concentrators), 105–107
load balancing
configuring on VPN 3002 Hardware Client,
414–415
virtual clusters, 415–416
logging. See event logging
557
M
maintaining message integrity
HMAC, 48
MD5, 49
Secure Hash Algorithm, 49
management software, 33
Cisco Works 2000, 34–36
VDM, 33
man-in-the-middle attacks, 133
manual SCEP authentication, 228–230
MD5 (Message Digest 5), 49
Memphis site (Value-Packed Nutrition
Corporation), 474
menu options, Cisco VPN 3000 Series Concentrator
administration, 308–310
message encryption
3DES, 48
DES, 47
modifying IPSec groups, Groups screen tabs
Client Config tab, 159–162
Client FW tab, 162–164
General tab, 155–156
HW Client tab, 164–166
Identity tab, 155
IPSec tab, 157–158
PPTP/L2TP tab, 166–167
monitoring
Cisco VPN 3000 Series Concentrators, 324
Event Log screen, 327
Routing Table screen, 326
Sessions screen, 328–330
Statistics screen, 330–337
System Status screen, 327
VPN 3002 Hardware Client, Auto-Update
events, 426–428
Monitoring Refresh screen, Cisco VPN 3000 Series
Concentrator administration, 315
Monitoring screen, Cisco VPN 3000 Series
Concentrator management interface, 98
Movian VPN Client, 33
CCSP.book Page 558 Friday, February 28, 2003 3:43 PM
558
Name options, applying to filter rules
N
Name options, applying to filter rules, 273
NAS-initiated remote access model, 23
NAT (network address translation), static NAT, 416
Network Extension mode (VPN 3002 Hardware
Client), configuring, 374
Network Extension mode RRI, configuring, 410
network lists, configuring, 449–451
Next Header field (ESP), 43
nonces, 50
O
OSPF (Open Shortest Path First), setting up for
RRI, 408
overview of required certification exams, 5
CSVPN, 6–10
P
Pad Length field (ESP), 43
Padding field (ESP), 43
PAT (Port Address Translation), 417
static NAT, 416
Payload field (ESP), 43
Payload Length field (AH), 41
peer authentication, IKE key types, 49
PEM (Privacy Enhanced Mail), 234
performance, Cisco VPN 3000 Series
Concentrators, 87
Ping screen, Cisco VPN 3000 Series Concentrator
administration, 315
PKCS #10 certificate requests, 222–224
PKI, CAs
authentication process, 225
CRLs, 226
enrollment process, 224, 228–230
hierarchies, 225
PKCS #10 certificate requests, 222–224
services, 221–222
placement of Cisco 3000 Series Concentrators, 91
planning IPSec deployment, 38
polling, AYT, 268
Port Address Translation mode (VPN 3002
Hardware Client), 371–373
Portland site, 476
Value-Packed Nutrition Corporation, 474
PPTP/L2TP tab (Groups screen)
modifying IPSec groups, 166–167
prechapter tests, 11
preparing for exam, 11–12
preshared keys, 50
group, 133
SCEP authentication, 230
unique, 132–133
VPN 3002 Hardware Client configuration, 366
verifying tunnel operation, 368
wildcard, 133
Private LAN Interface, CLI Quick Configuration,
139–141
Protocol options, applying to filter rules, 273
Q
Quick Configuration option (Cisco VPN 3000
Concentrator), 136
CLI method, 137–141
with browser-based manager, 141–152
R
recommended training path for
CCSP cerfitication, 10
redundancy, configuring VPN 3002 backup servers,
412–413
CCSP.book Page 559 Friday, February 28, 2003 3:43 PM
split tunneling
remote access VPNs, 22–23
requirements for Cisco VPN 3000 Concentrator
configuration, 135–136
Reserved field (AH), 41
revocation of certificates, 226
RFCs, IPSec-related, 36–37
Richmond sitem (Value-Packed Nutrition
Corporation), 475
RIPv2, setting up for RRI, 407
RME (Cisco Works Resource Management
Essentials), 36
root certificates, 224
routers, Cisco VPN routers, 27–28
Routing Table screen (Monitoring Menu), Cisco
VPN 3000 Series Concentrator, 326
RRI (Reverse Route Injection), configuring
Client RRI, 410
hold-down routes, 411
LAN-to-LAN Network RRI, 409
Network Extension mode RRI, 410
OSPF, 408
RIPv2, 407
RSA digital signatures, 50
S
SAFE, 86
SAs (Security Associations), 39, 46–47
forming, 54
saving Cisco VPN 3000 Concentrator configuration
settings, 150–151
scenarios
Value-Packed Nutrition Corporation
answers, 478–486
Detroit site, 474
IKE configuration, 475
IPSec configuration, 476
Memphis site, 474
Portland site, 474
Richmond site, 475
Seattle site, 474
559
SCEP (Simple Certificate Enrollment Protocol),
228, 454–455
CA generation
enrollment process, 455–457
identity certificate installation, 458, 461
enrollment process, 236
manual authentication, 228–230
preshared key authentication, 230
Seattle site (Value-Packed Nutrition
Corporation), 474
Secure Hash Algorithm, 49
security, firewalls
AYT, 268
Cisco PIX Firewalls, 28–30
configuring on VPN Client, 278–279
customizing on VPN Client, 279–280
Firewall Policy option, 280
Security Parameters Index field
AH, 41
ESP, 43
self-signing certicates, 454
Sequence Number Field
AH, 41
ESP, 43
Sessions screen (Monitoring Menu), Cisco VPN
3000 Series Concentrator, 328–330
setting debug levels on VPN 3000 Series
Concentrator and Hardware Client, 369–371
site-to-site intranet VPNS, 24
small remote office VPN routers, 28
Software Update screen, Cisco VPN 3000 Series
Concentrator administration, 310, 312
SOHO remote-access VPN routers, 27
Source Address options, applying to filter rules, 274
SPI (Security Parameters Index), 46
split tunneling, 268, 374
configuring on head-end VPN 300 Series
Concentrator, 376–378
interactive hardware client authentication,
380–384
user authentication, 380–84
CCSP.book Page 560 Friday, February 28, 2003 3:43 PM
560
Stacker LZS compression
Stacker LZS compression, 57
starting VPN Client from Windows-based PCs, 174
Stateful Firewall feature (VPN Client), 267–268
configuring, 276
Statistics screen (Monitoring Menu), Cisco VPN
3000 Series Concentrator, 330–335
study tips
exam preparation, 11–12
prechapter tests, 11
subordinate certificates, 454
supported IPSec protocols, 38–39
3DES, 48
AH, 40–41
DES, 47
Diffie-Hellman, 50–51
ESP, 42
fields, 43
modes of operation, 44
HMAC, 48
IKE key types, 49
MD5, 49
Secure Hash Algorithm, 49
system information, configuring on VPN 3000
Series Concentrator, 146
System Reboot screen, Cisco VPN 3000 Series
Concentrator administration, 313–314
system requirements for VPN Client
installation, 177
System Status screen (Monitoring Menu), Cisco
VPN 3000 Series Concentrator, 327
system time and date, CLI Quick Configuration,
138–139
T
target audience of book, 5
TCP connection options, applying to filter rules,
273–274
TCP/UDP source options, applying to filter
rules, 274
terminating VPNs with IPSec, 62
testing centers, registration process, 4
Thompson Prometric testing centers, 4
topics covered in CCSP exam, 3
transforms, 54–55
valid transform sets, 55–56
transport mode (IPSec), 44
troubleshooting IPSec connections on VPN 3002
Hardware Client, 420–422
tunnel mode (IPSec), 45
tunnels
between VPN 3000 Series Concentrator and
Hardware Client, 366
configuring on VPN 3000 Series
Concentrator, 147
creating, 453
split tunneling, 374
configuring on head-end VPN 3000 Series
Concentrator, 376–378
interactive hardware client authentication,
380,–384
user authentication, 380–384
U
unique preshared keys, 132–133
Unity Client, 31
upgrading Cisco VPN 3000 Series Concentrator,
99–100
user authentication configuration
VPN 3000 Series Hardware Client, 382–384
VPN 3000 Series Concentrator, 148
CCSP.book Page 561 Friday, February 28, 2003 3:43 PM
VUE testing centers
V
valid transform sets, 55–56
Value-Packed Nutrition Corporation
answers to problem scenarios, 478–486
Detroit site, 474
Memphis site, 474
Portland site, 474, 476
Richmond site, 475
Seattle site, 474
VDM (Cisco VPN Device Manager), 33
vendors supporting Cisco VPN products, 231
verifying tunnel operation between VPN 3000 Series
Concentrator and Hardware Client, 368
viewing VPN Client firewall statistics, 281–282
virtual cluster masters, 415
VMS (Cisco Works VPN/Security Management
Solution), 35–36
VPN 3000 Series Concentrator. See Cisco VPN
3000 Series concentrators
VPN 3002 backup servers, configuring, 412–413
VPN 3002 Hardware Client
auto-update
configuring, 423–426
monitoring events, 426–428
Client mode, 371–373
IPSec
over TCP/IP, configuring, 418
over UDP, configuring, 419–420
troubleshooting connections, 420–422
load balancing, 414–415
virtual clusters, 415–416
Network Extension mode, 374
preshared keys, configuring, 366
verifying tunnel operation, 368
RRI, configuring, 407–411
setting debug levels, 369–371
VPN Client
Automatic Client Update feature, 283–284
configuring, 181–185
features, 175–176
filter rules, configuring, 269–276
firewall settings
configuring, 278–279
customizing, 279–280
policy options, 280
statistics, viewing, 281–282
installing, 177, 180
starting from Windows-based PC, 174
Stateful Firewall feature, 267–268
configuring, 276
VPN Concentrators, configuring LAN-to-LAN
connections with digital certificates, 462–463
VPN Manager. See browser-based manager
VPNs, 21
business-to-business extranet VPNS, 25
establishing with IPSec, 57–58
peer authentication, 61
SAs, 61
triggering IPSec process, 59–60
remote access, 22–23
caveats of implementing, 23
client-initiated model, 23
NAS-initiated model, 23
site-to-site intranet VPNS, 24
terminating with IPSec, 62
VUE testing centers, 4
561
CCSP.book Page 562 Friday, February 28, 2003 3:43 PM
562
WEP (Wired Equivalent Privacy)
W-Z
WEP (Wired Equivalent Privacy), 86
wildcard preshared keys, 133
wireless communications
Movian VPN Client, 33
WEP, 86
Work Group Name Incorrect event log, 370
X.509 Identity Certificate fields, 245
