Conversion Kit B or H to O

Conversion Kit B or H to O

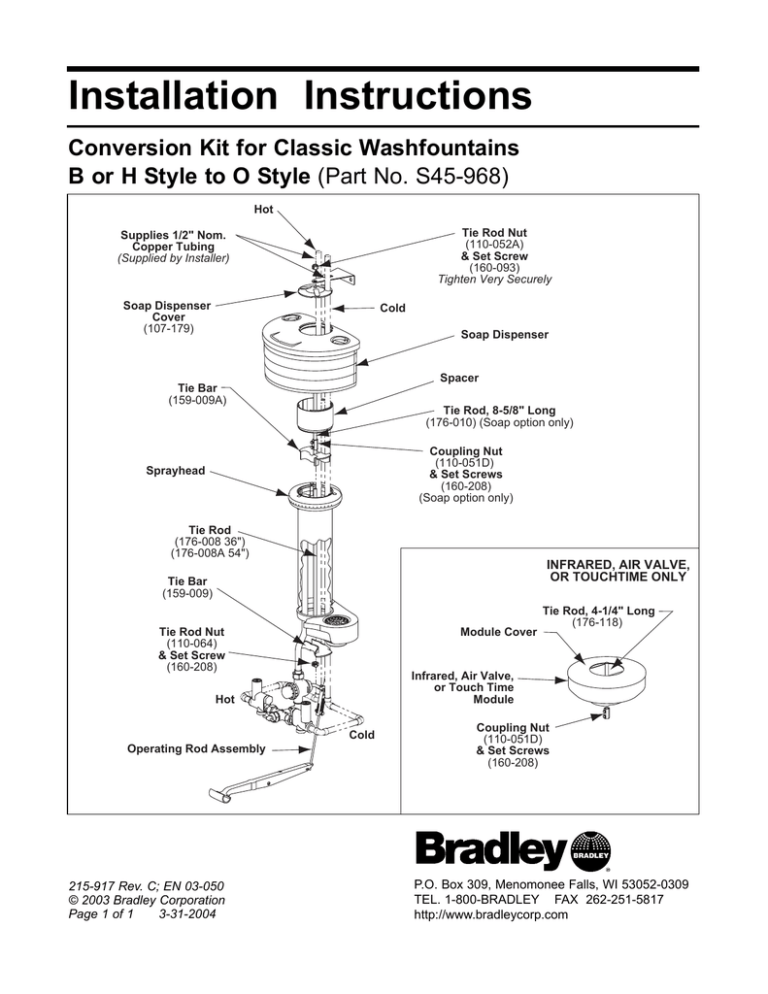

Installation Instructions
Conversion Kit for Classic Washfountains
B or H Style to O Style (Part No. S45-968)
Hot
Tie Rod Nut
(110-052A)
& Set Screw
(160-093)
Tighten Very Securely
Supplies 1/2" Nom.
Copper Tubing
(Supplied by Installer)
Soap Dispenser
Cover
(107-179)
Cold
Soap Dispenser
Spacer
Tie Bar
(159-009A)
Tie Rod, 8-5/8" Long
(176-010) (Soap option only)
Coupling Nut
(110-051D)
& Set Screws
(160-208)
(Soap option only)
Sprayhead
Tie Rod
(176-008 36")
(176-008A 54")
INFRARED, AIR VALVE,
OR TOUCHTIME ONLY
Tie Bar
(159-009)
Module Cover
Tie Rod Nut
(110-064)
& Set Screw
(160-208)
Infrared, Air Valve,
or Touch Time
Module
Hot
Cold
Operating Rod Assembly
215-917 Rev. C; EN 03-050
© 2003 Bradley Corporation
Page 1 of 1
3-31-2004
Tie Rod, 4-1/4" Long
(176-118)
Coupling Nut
(110-051D)
& Set Screws
(160-208)
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX 262-251-5817
http://www.bradleycorp.com
