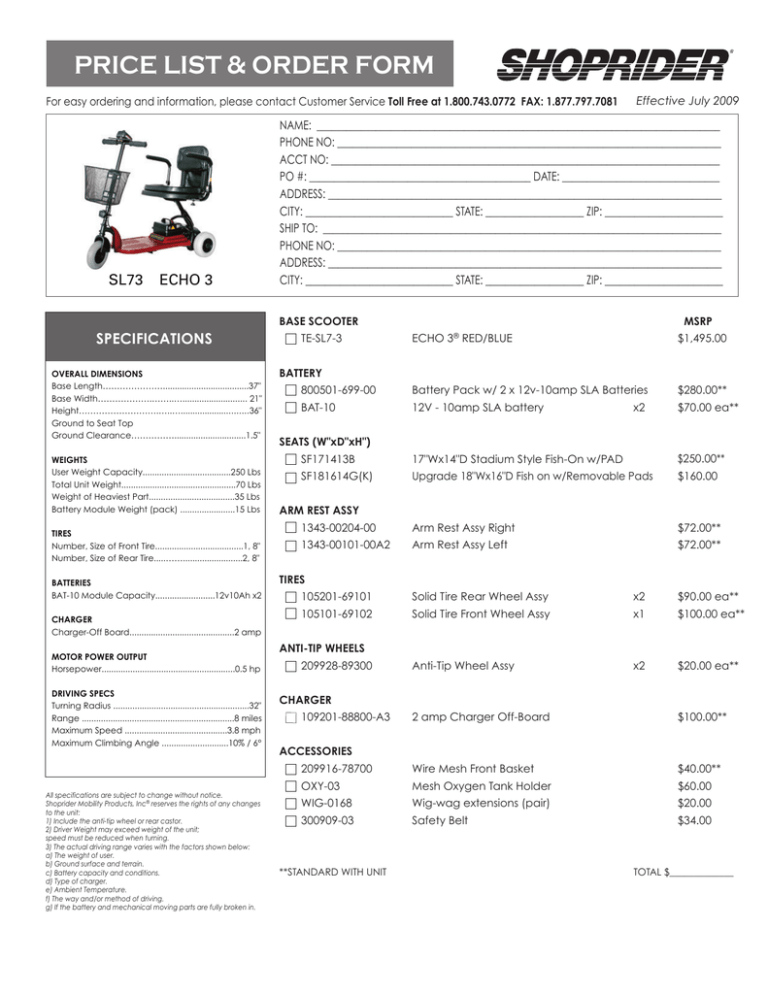

PRICE LIST & ORDER FORM
For easy ordering and information, please contact Customer Service Toll Free at 1.800.743.0772 FAX: 1.877.797.7081
SL73
ECHO 3
Effective July 2009
NAME: __________________________________________________________________________________
PHONE NO: ______________________________________________________________________________
ACCT NO: _______________________________________________________________________________
PO #: _____________________________________________ DATE: ________________________________
ADDRESS: ________________________________________________________________________________
CITY: ______________________________ STATE: ____________________ ZIP: ________________________
SHIP TO: _________________________________________________________________________________
PHONE NO: ______________________________________________________________________________
ADDRESS: ________________________________________________________________________________
CITY: ______________________________ STATE: ____________________ ZIP: ________________________
BASE SCOOTER
SPECIFICATIONS
OVERALL DIMENSIONS
Base Length…………………....................................37"
Base Width……………….……..…........................... 21"
Height……………………….…..…............................36"
Ground to Seat Top
Ground Clearance……………..............................1.5"
WEIGHTS
User Weight Capacity.....................................250 Lbs
Total Unit Weight................................................70 Lbs
Weight of Heaviest Part....................................35 Lbs
Battery Module Weight (pack) .......................15 Lbs
TIRES
Number, Size of Front Tire.....................................1, 8"
Number, Size of Rear Tire.....…….........................2, 8"
BATTERIES
BAT-10 Module Capacity.........................12v10Ah x2
CHARGER
Charger-Off Board............................................2 amp
MOTOR POWER OUTPUT
Horsepower........................................................0.5 hp
DRIVING SPECS
Turning Radius .........................................................32"
Range ................................................................8 miles
Maximum Speed ...........................................3.8 mph
Maximum Climbing Angle ............................10% / 6°
All specifications are subject to change without notice.
Shoprider Mobility Products, Inc® reserves the rights of any changes
to the unit:
1) Include the anti-tip wheel or rear castor.
2) Driver Weight may exceed weight of the unit;
speed must be reduced when turning.
3) The actual driving range varies with the factors shown below:
a) The weight of user.
b) Ground surface and terrain.
c) Battery capacity and conditions.
d) Type of charger.
e) Ambient Temperature.
f) The way and/or method of driving.
g) If the battery and mechanical moving parts are fully broken in.
TE-SL7-3
MSRP
®
ECHO 3 RED/BLUE
$1,495.00
BATTERY
800501-699-00
Battery Pack w/ 2 x 12v-10amp SLA Batteries
$280.00**
BAT-10
12V - 10amp SLA battery
$70.00 ea**
x2
SEATS (W"xD"xH")
SF171413B
17"Wx14"D Stadium Style Fish-On w/PAD
$250.00**
SF181614G(K)
Upgrade 18"Wx16"D Fish on w/Removable Pads
$160.00
1343-00204-00
Arm Rest Assy Right
$72.00**
1343-00101-00A2
Arm Rest Assy Left
$72.00**
ARM REST ASSY
TIRES
105201-69101
Solid Tire Rear Wheel Assy
x2
$90.00 ea**
105101-69102
Solid Tire Front Wheel Assy
x1
$100.00 ea**
Anti-Tip Wheel Assy
x2
$20.00 ea**
ANTI-TIP WHEELS
209928-89300
CHARGER
109201-88800-A3
2 amp Charger Off-Board
$100.00**
209916-78700
Wire Mesh Front Basket
$40.00**
OXY-03
Mesh Oxygen Tank Holder
$60.00
WIG-0168
Wig-wag extensions (pair)
$20.00
300909-03
Safety Belt
$34.00
ACCESSORIES
**STANDARD WITH UNIT
TOTAL $_____________
