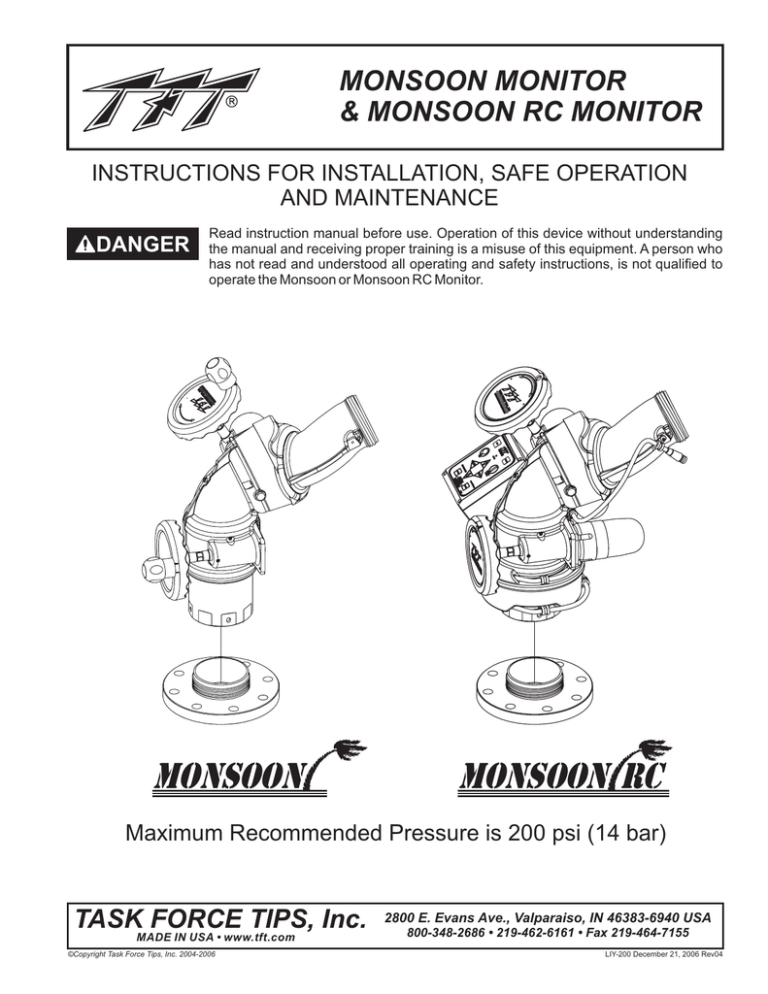

liy-200 rev04

MONSOON MONITOR

& MONSOON RC MONITOR

INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION

AND MAINTENANCE

DANGER

Read instruction manual before use. Operation of this device without understanding the manual and receiving proper training is a misuse of this equipment. A person who has not read and understood all operating and safety instructions, is not qualified to operate the Monsoon or Monsoon RC Monitor.

MONSOON MONSOON RC

Maximum Recommended Pressure is 200 psi (14 bar)

TASK FORCE TIPS, Inc.

2800 E. Evans Ave., Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 2004-2006

LIY-200 December 21, 2006 Rev04

DANGER

PERSONAL RESPONSIBILITY CODE

The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following:

1. Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.

2. It is your responsibility to read and understand any user's instructions, including purpose and limitations, provided with any piece of equipment you may be called upon to use.

3. It is your responsibility to know that you have been properly trained in

Firefighting and /or Emergency Response and in the use, precautions, and care of any equipment you may be called upon to use.

4. It is your responsibility to be in proper physical condition and to maintain the personal skill level required to operate any equipment you may be called upon to use.

5. It is your responsibility to know that your equipment is in operable condition and has been maintained in accordance with the manufacturer’s instructions.

6. Failure to follow these guidelines may result in death, burns or other severe injury.

FEMSA

Fire and Emergency Manufacturers and Services Association, Inc.

P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org

©Copyright Task Force Tips, Inc. 2004-2006

2

1.0 Meaning of Safety Signal Words

2.0 Safety

. . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.0 General Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.1 Mechanical and Electrical Specifications . . . . . . . . . . . . . . . 5

3.2 Part Identification and Models . . . . . . . . . . . . . . . . . . . . . . . 6

3.3 Inlets and Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.4 Overall Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

3.5 Electrical Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5.1

Motor Control Board (MCB) Auto Configure

3.5.2

Motor Current Limiting

3.5.3

Motor Soft Stops

3.5.4

Motor Slow/Fast Speed

3.5.5

Communication Protocol

3.5.6

Oscillate and Stow Features

4.0 Installation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.1 Structural Requirements for Monitor Mounting . . . . . . . . . 10

4.2 Inlet Fittings or Extend-A-Gun RC installation. . . . . . . . 11-12

4.3 Nozzle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.4 Horizontal Rotation Travel Stops . . . . . . . . . . . . . . . . . . . . 13

4.5 Elevation Travel Stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.6 Pressure Gage Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.7 Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.0 Electrical Controls Installation

. . . . . . . . . . . . . . . . . . . . . . . . 15

5.1 Primary Monitor Operator Station . . . . . . . . . . . . . . . . . 16-17

5.1.1

Mounting

5.1.2

Electrical Wiring

5.2 Optional Monitor Operator Stations . . . . . . . . . . . . . . . . . . 18

5.2.1

Mounting

5.2.2

Electrical Wiring

5.3 Tethered Monitor Operator Station. . . . . . . . . . . . . . . . . . . 18

5.3.1

Holster Mounting

5.3.2

Receptacle Mounting

5.3.3

Electrical Wiring

5.4 Wireless Monitor Operator Station . . . . . . . . . . . . . . . . . . . 19

5.4.1

Mounting Receiver

5.4.2

Electrical Wiring Receiver

5.4.3

Mounting Charging Cradle

5.4.4

Electrical Wiring Charging Cradle

5.5 Joystick Monitor Operator Station. . . . . . . . . . . . . . . . . 20-21

5.5.1

Mounting

5.5.2

Electrical Wiring

5.6 Toggle Switch Monitor Operator Station. . . . . . . . . . . . . . . . 21

5.6.1

Enclosure Mounting

5.6.2

Electrical Wiring

5.7 Communication Interface Box . . . . . . . . . . . . . . . . . . . . . . . 22

5.7.1

Enclosure Mounting

5.7.2

Electrical Wiring

5.7.3

Changing Inputs To Accept 12 VDC

5.8 Monitor Position Display . . . . . . . . . . . . . . . . . . . . . . . . 22-23

5.8.1

Enclosure Mounting

5.8.2

Electrical Wiring

5.9 Connecting Monitor Cable Directly to Protected Power . . 23

Supply

5.9.1

Electrical Wiring

5.10 Operator Station Directly to Monitor Installation. . . . . . . . . 23

Table of Contents

5.11 Monsoon RC Aerial Truck Installation . . . . . . . . . . . . 24-25

5.11.1 Electronics Enclosure Mounting

5.11.2 Electrical Wiring

5.11.2.1

Ladder Installation Electrical Wiring

5.11.2.2

Platform Installation Electrical Wiring

5.12 Electrical Nozzle Actuator Wiring . . . . . . . . . . . . . . . . . . 25

6.0 Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.1

Manual Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.1.1

Horizontal Rotation Control

6.1.2

Elevation Control

6.1.3

Tiller Bar Manual Control

6.2

Electrical Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-29

6.2.1

Electrical Operator Stations

6.2.1.1

Monitor Mounted

6.2.1.2

Primary

Operator Station

Operator Station

6.2.1.3

Optional Operator Station

6.2.1.4

Tethered Operator Station

6.2.1.5

Wireless Operator Station

6.2.1.6

Joystick Operator Station

6.2.1.7

Toggle Switch Operation Station

6.2.2

Master Override Feature

6.2.3

Stow Feature

6.2.3.1

Programming

6.2.3.1

Stow Programming Example

6.2.4

Oscillate Feature

6.2.4.1

Programming

6.2.5

Operator Station Panels

6.2.6

Override Hand Wheels

6.3

Recommended Stowing Position . . . . . . . . . . . . . . . . . . 29

6.4

Flows and Pressures

6.4.1

Stacked Tips Flow and Reach

6.4.2

Master Stream 2000 Nozzle

6.4.3

Monsoon Monitor Friction Loss

6.5

Stream Straighteners . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.5.1

Stream Straighteners with Stacked Tip Nozzles

6.5.2

Stream Straighteners with Fog Nozzles

7.0 Trouble Shooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.0 Maintenance and Inspection

. . . . . . . . . . . . . . . . . . . . . . . . 34

8.1

Lubrication Chart

8.2

Performance Testing

9.0 Drawings and Parts List

. . . . . . . . . . . . . . . . . . . . . . . . . 35-39

10.0 Warranty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

©Copyright Task Force Tips, Inc. 2004-2006

3

1.0 MEANING OF SIGNAL WORDS

A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:

DANGER

WARNING

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

2.0 SAFETY

The operation of this monitor can be dangerous. The following must be observed at all times.

WARNING

Injury can result from an inadequately supported monitor. The monitor mount must be capable of supporting 1500 lbs (700 kg) of nozzle reaction force.

WARNING

The stream exiting a monitor is very powerful and capable of causing injury and property damage.

Make sure the monitor is securely attached to the base and pointing in a safe direction before water to the monitor is turned on. Use care in directing the stream.

CAUTION

The electric Monsoon RC may be remotely operated. The electric drives are current limited but may still produce enough force to cause injury. Keep hands and fingers away from pinch points on the monitor.

CAUTION

Do not use the manual override handwheels while the electric controls are in operation. The electric drives produce enough torque to cause injury.

CAUTION

Maximum flow and pressure is 2000 GPM (7600 LPM) and 200 PSI (14 BAR). Damage or injury may result if the monitor is operated beyond these limits.

On many vehicle installations the monitor is the highest point on the apparatus. Often it is critical that the monitor be properly stowed before driving to avoid damage to overhead obstructions such as door openings. In these cases the use of a switch wired into the apparatus "door open" circuit is highly recommended. The switch should be wired to give a "door open" signal if the monitor is not in the stowed position. Due to the variety of possible mountings and nozzles, it is the installer's responsibility to supply the appropriate switch

3.0 GENERAL INFORMATION

The Monsoon Monitor is a manually operated monitor designed for flows up to 2000 gpm (7,600 l/min). Maximum operating pressure is

200 psi (14 bar). Unique patent pending segmented waterway has only 15 psi (1 bar) friction loss at 2000 gpm. Water makes very few turns as it travels though the monitor resulting in low friction loss and a far reaching effective stream. Elevation range is 90 degrees above horizontal to 45 degrees below. Field changeable elevation travel stops at 45 degrees above, 30 degrees above, and 30 degrees below horizontal. The manual model has 360 degree continuous horizontal rotation with field changeable stops at 45, 90, and 135 degrees either side of a center position. Available with various inlet flanges and threaded fittings. Inlet also made for direct connection to

TFT's electric Extend-A-Gun RC3 or RC4. Main waterway made from hardcoat anodized ANSI 356.0-T6 aluminum. Silver powder coat finish inside and out. Standard outlet is 3.5” NH (90 mm) rigid male thread.

The Monsoon RC is an electric remote controlled monitor that has all the benefits of the Monsoon monitor with the addition of powered operation. Designed for field changeable 12 VDC or 24 VDC operation. The Monsoon RC comes with a factory installed control panel mounted on the monitor for controlling horizontal rotation, elevation, and nozzle pattern. The motor control circuits are factory installed on the monitor and use position encoders and current limiting to protect the drive train at the ends of travel. Unit comes with ultra-flexing robotics cable already wired to the monitor so installation effort is minimized. Power wire has only four conductors (two for power and two for communications) further easing installation effort. Power wire is enclosed in a unique wire guide that allows 450 degrees of horizontal travel (225 degrees either side of a center position) which is far more reliable than slip rings or coil cords. Large handwheels for manual override are provided on the horizontal rotation and elevation drive. TFT's Master 2000 ER nozzle plugs into the factory installed nozzle power wire. Electric drives and control box are waterproof. Standard outlet is 3.5” NH (90 mm) rigid male thread.

©Copyright Task Force Tips, Inc. 2004-2006

4

3.1 MECHANICAL AND ELECTRICAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS

Weight Manual

Electric

Min. Flow Area 4” inlets

3” inlets

Max Flow

Max Operating Pressure

Materials Used

25 lbm

37 lbm

12.6 in2

11.4 kg

16.8 kg

81.1 cm2

7.07 in2

2000 GPM

45.6 cm2

7,600 LPM

200 PSI 14 BAR

ANSI A356.0-T6 Aluminum, Stainless, Nylon

ELECTRICAL SPECIFICATIONS

Nominal Operating voltage:

Motor current:

Elevation motor:

Horizontal rotation motor:

Nozzle motor:

12 or 24 VDC

(field changable)

Nominal*

6 amps

Limit

15 amps

6 amps

1 amp

10 amps

5 amps

*with rated water pressure applied

At rest current:

Recommended fuse or circuit breaker size:

Operating temperature range:

.25 amps

15 amps @ 12 volts, 7.5 amps @ 24 volts

-30F to +120F (-34C to +49C)

Environmental Rating: All components designed to meet minimum rating of NEMA 4 (IP65).

Wireless Operator Station

Charging Cradle

Nominal Operating Voltage

Operating Current

Recommended Fuse or Circuit Breaker

Transmitter Batteries

Transmitter Power

Operating Frequency

Agency Approvals

12 or 24 VDC

0.15 amps

2 amps

Use ONLY four (4) AA NiCad Batteries

5mW

2.4 GHz

FCC Part 15 - United States

ISC - Canada

CE - European Union

©Copyright Task Force Tips, Inc. 2004-2006

5

3.2 PART IDENTIFICATION AND MODELS

The Monsoon Monitor comes in manual and electric remote controlled models. Manual models are available with either handwheel control on both axis or a tiller bar model that uses a tiller bar to control horizontal rotation. Electric remote control models are available in a standard model (suitable for on top of pumpers), a Ladder model and a Platform model. Compared to the standard model, the ladder or platform model uses smaller override knobs, has a smaller swing radius and has horizontal travel stops factory installed at 90° left and right (180° total). The various models of Monsoon monitors shown in figures 3.2A, 3.2B, 3.2C and 3.2D. The monitor mounted control station on the standard remote controlled model is shown in figure 3.2E.

ELEVATION

HANDWHEEL

ELEVATION

HANDWHEEL

MODEL & SERIAL NUMBER

ON LABEL

PORT FOR

PRESSURE GAGE

ELEVATION TRAVEL

STOPS 3 PLACES

SEE SECTION 4.5

TILLER HANDLE

OUTLET

TURNING

VANE

HORIZONTAL

ROTATION

HANDWHEEL

INLET

HORIZONTAL ROTATION

TRAVEL STOPS

5 PLACES

SEE SECTION 4.4

STRAIGHT AHEAD

REFERENCE MARK

SEE SECTION 4.2

Fig 3.2A

Manual Handwheel Monsoon Monitor

Fig 3.2B

Manual Tiller Bar Monsoon Monitor

LOCKING

KNOB

MANUAL OVERRIDE HANDWHEEL

FOR ELEVATION

ELECTRIC NOZZLE CONNECTION

SEE SECTION 4.3

MANUAL OVERRIDE HANDWHEEL

FOR HORIZONTAL ROTATION

MANUAL OVERRIDE WRENCHING HEX

SEE SECTION 6.2.3

POWER AND

COMMUNICATION CORD

30 FEET

(9 METERS)

WIRE SKIRT

ELEVATION GEAR MOTOR

HORIZONTAL ROTATION GEAR MOTOR

Electric

Fig 3.2C

Monsoon RC Monitor

MONITOR MOUNTED

CONTROL STATION

Fig 3.2D

Electric Monsoon RC for Ladders or Platforms

©Copyright Task Force Tips, Inc. 2004-2006

6

Fig 3.2E

Electric Monsoon RC Standard Model

3.3 INLETS AND OUTLETS

The standard Monsoon Monitor inlet is CODE-RPF for direct connection to TFT's Extend-A-Gun RC4 (4 inch size). Monitor inlet CODE-

RLF is available for direct connection to Extend-A-Gun RC3 (3 inch size). The standard outlet is 3.5”-6 National Hose male. Various other inlet and outlet adapters are available as shown in figure 3.3A.

3.5” BSP MALE (Y4330ABN)

3.5” NH MALE (STANDARD)

3.5” NPSH MALE (Y4330AIN)

4.0” BSP MALE (Y4334ABP)

MONITOR MOUNTED

CONTROL STATION

CODE-RLF

OR

CODE-RPF

INLET

3” NPT FMALE (Y4440NL)

OR

4” NPT FEMALE (Y4450NP)

3” ANSI 150 (Y4410A)

OR

4” ANSI 150 (Y4415A)

OR

DN80 PN16 (Y4423A)

OR

DN100 PN16 (Y4425A)

3” BSP MALE (Y4420A)

OR

4” BSP MALE (Y4430A)

EXTEND-A-GUN RC3

OR

EXTEND-A-GUN RC4

FLANGE

SIZE

3” ANSI 150

4” ANSI 150

DN80 PN16

DN100 PN16

OUTSIDE

DIAMETER

THICKNESS BOLT HOLE

CIRCLE

7.50”

9.00”

200 mm

220 mm

.75”

.94”

22 mm

22 mm

6.00”

7.50”

160 mm

180 mm

Fig 3.3A

Inlets and Outlets

NUMBER

OF BOLTS

8

8

4

8

SIZE OF

BOLTS

5/8”

5/8”

16 mm

16 mm

TORQUE

ON BOLTS

76-80 FT-LBS

76-80 FT-LBS

100-110 NEWTON-METER

100-110 NEWTON-METER

©Copyright Task Force Tips, Inc. 2004-2006

7

3.4 OVERALL DIMENSIONS

©Copyright Task Force Tips, Inc. 2004-2006

8

3.4 OVERALL DIMENSIONS

©Copyright Task Force Tips, Inc. 2004-2006

9

3.5 ELECTRICAL CONTROLS

The electric Monsoon RC monitor is controlled by a powerful, state-of-the-art electronics system. The key components of the system are the motor control boards (Y5100) and a communication board (Y5110). Each motor control board has its own microprocessor and a sophisticated motor control chip. The communication board also has a microprocessor, which handles the interface to the operator stations. All the components on these boards are solid state; there are no relays or electro-mechanical devices to wear out over time.

The hardware and software have been designed with several key features and are outlined in the following sections.

3.5.1 MOTOR CONTROL BOARD (MCB) AUTO CONFIGURE

Each monitor has three MCBs, one for each motor, which controls motor movement and direction for horizontal rotation, elevation, and nozzle pattern. In the unlikely event of a MCB failure, the failed board can be removed and one of the other two remaining MCBs can be moved into that position. This MCB will then auto configure itself to take over the control of that axis, so that the monitor can continue to be used, with two of the three motors. This is also a helpful benefit when troubleshooting and requires fewer spare parts to be stocked.

3.5.2 MOTOR CURRENT LIMITING

The microprocessor on the MCB continuously monitors the motor current. As the motor reaches an end stop or if it hits an obstruction, the motor current rises very quickly and the motor control chip automatically shuts down the motor in a few milliseconds. This eliminates the need for any type of external limit switches and the associated wiring. The microprocessor also locks the operator from moving in the stopped direction again, until the operator first moves in the opposite direction.

3.5.3 MOTOR SOFT STOPS

The horizontal and vertical motors are equipped with feedback encoders, which allow the microprocessor to know the motor position at all times. The first time a motor reaches an end stop or strikes an obstruction, the microprocessor sets a new soft stop position just before the end stop. From that point on when the axis approaches the stop, the MCB automatically slows down the motor until the end stop is reached. This significantly reduces the wear on the motor, gearbox and gear drives.

3.5.4 MOTOR SLOW/FAST SPEED

When an operator presses one of the buttons, the associated motor starts in slow speed mode for accurate control of the water stream.

After approximately 2 seconds the motor automatically ramps up to a fast speed, for quickly moving into position. When quickly changing directions, monitor retains speed from prior move. If low speed is selected, monitor does not ramp to high speed but remains in slow speed.

3.5.5 COMMUNICATION PROTOCOL

The communication from the monitor to the operator stations is performed over two wires using RS-485 serial protocol. Multiple operator stations can be added with only two wires for the RS-485 protocol between each station.

3.5.6 OSCILLATE AND STOW FEATURES

The OSCILLATE feature allows the user to program up to 65 points of continuous movement of the horizontal and vertical axes. The

OSCILLATE pattern can be programmed from any operator station that has the OSC button. See Operator Station Label or Fig 6.2.4.1

for instructions.

The STOW feature allows the user to move the monitor, with one touch of a button, to a safe position before moving the fire truck. The monitor will always move to two end stops to verify the correct position of user choice. During the programming procedure the user has the ability to select which axis moves first. This is helpful to avoid lights, hoses, obstructions, etc. The user can program up to 10 points of movement to reach the final STOW position. The STOW pattern can be programmed from any operator station that has the STOW button. See section 6.2.3 and 6.2.4 for programming instructions.

4.0 INSTALLATION

4.1 STRUCTURAL REQUIREMENTS FOR MONITOR MOUNTING

The structure that the Monsoon Monitor is mounted to must withstand the internal pressure of the monitor as well as shear and bending forces due to nozzle reaction.

Nozzle reaction can be as high as 1,500 lbs (700 kg)

(2000 gpm at 200 psi).

For flanged connections the use of flat flanges without raised faces is recommended. Use a full-face gasket as defined in SME 16.21 or ISO 7483. Tighten flange bolts in an alternating sequence as shown in figure 4A.

Tighten to 76-80 ft-lb (100-110 Newton-Meters).

3

1

4 3

5

1

7

2

2

Tighten sequentially each bolt three times.

Fig 4.1A Flange Bolt Tightening Sequence

8

6

4

WARNING

Injury can result from an inadequately supported monitor. The monitor mount must be capable of supporting the nozzle reaction force which can be as high as 1500 lbs (700 kg). Flanges and pipe made from plastic are inadequate for monitor mounting and must not be used. This monitor is not recommended for portable use.

©Copyright Task Force Tips, Inc. 2004-2006

10

4.2 INLET FITTING OR EXTEND-A-GUN RC INSTALLATION

The Monsoon Monitor is available with various inlet fittings as shown in fig 3.3A. When the inlet fittings are used see figure 4.2A for the addition to overall height. The Monsoon Monitor also connects directly to TFT's Extend-A-Gun RC3 or RC4. The fittings and Extend-A-

Gun RC are attached to the monitor by means of a threaded joint with an o-ring seal. Once in the proper orientation the threaded joint is locked from rotation by two ¼-28 button head cap screws as shown in figure 4.2B. This makes for easy removal of the monitor since the large threads of the joint are not tightened and do not have any thread locking compounds on them. It is best to install the inlet fitting or

Extend-A-Gun RC to the apparatus and than install the monitor to the inlet fitting or Extend-A-Gun RC. This gives more room to install the bolts in the case of flanged fitting s. Referring to figures 4.2B and 4.2C the installation sequence is as follows:

1) Install inlet fitting or Extend-A-Gun RC to apparatus.

• Mount so that 180 degree apart threaded crossholes will give desired direction relative to the “Straight Ahead Reference Mark” when the monitor is installed. See figure 4.2B.

2) Screw monitor onto inlet fitting or Extend-A-Gun RC until threaded joint bottoms out.

• Do not use pipe dope or Loctite on the inlet base threads. These threads are sealed with an o-ring. The use of thread locking compounds will make removal difficult.

3) Unscrew monitor slightly until a pair of 90 degree apart slots lines up with the 180 degree apart threaded crossholes in the inlet fitting or Extend-A-Gun RC.

• Orient monitor so that the Straight Ahead Reference Mark is facing the desired direction.

• Slots will line up with threaded crossholes every 90 degrees of rotation.

• Monitor may be unscrewed up to one full turn from the bottomed out position.

4) Install ¼-28 by ½ long button head cap screws and washers in the two threaded crossholes. Use Loctite #271 on the threads of the button head cap screws.

Allow Loctite to fully cure before applying water pressure.

MODEL

Y4-*1*A

Y4-*2*A

Y4-*4*A

Y4-*5*A

Y4-*6*A

Y4-*7*A

Y4-*8*A

Y4-*9*A

INLET FITTING ADDITIONAL

TYPE HEIGHT

3" ANSI 125/150 0.75"

DN8, PN20

4" ANSI 150

20mm

0.94"

DN100, PN20

DN80, PN16

DN100,PN16

24mm

0.75"

20mm

0.94"

24mm

3" NPT FEMALE

4" NPT FEMALE

3" BSP MALE

4"BSP MALE

2.00"

51mm

1.75"

45mm

2.30"

58mm

2.30"

Fig 4.2A Additional Height for Inlet Fittings

©Copyright Task Force Tips, Inc. 2004-2006

11

Fig 4.2B Inlet Fitting Connection

4.2 INLET FITTING OR EXTEND-A-GUN RC INSTALLATION

STRAIGHT AHEAD

REFERENCE MARK

SEE FIGURE 4.2B

Fig 4.2C Possible Extend-A-Gun RC Mounting Orientations

The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the Straight

Ahead Reference Mark on the monitor.

NOTE: Monsoon monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fitting is also supplied and is to be used where the nylon tubing and wire pass though the deck.

©Copyright Task Force Tips, Inc. 2004-2006

12

4.3 NOZZLE INSTALLATION

The nozzle is simply screwed onto the monitor's exit threads. If the nozzle is installed on a Monsoon RC (with electric motors) assure that the nozzle's coupling does not make contact with the horizontal drive motor housing when the monitor is in it's lowest elevation position.

For nozzles with electric pattern control, a cable with a female, waterproof connector is provided at the outlet of the Monsoon RC which attaches directly to TFT's electric Masterstream 1250, 1500 or 2000 nozzle. The cable used is a dual-key, micro type plug assembly.

Any other nozzle should have the corresponding male electrical connector installed. The waterproof cap should be installed when using stacked tips. Do not cut off the female connector on the monitor. This connector is molded onto the cable and must remain in place to maintain the water tightness of the electrical system.

CAUTION

The nozzle threads must match the threads of the Monsoon monitor in both size and type.

Mismatched or damaged threads may cause the nozzle to leak or uncouple under pressure and could cause injury.

CAUTION

Do not connect aluminum to brass or brass to aluminum. Dissimilar metals coupled together can cause galvanic corrosion that will freeze the threaded joint or cause complete loss of thread engagement. If dissimilar metals must be coupled together, the effects of corrosion can be greatly delayed by various coatings on the metal such as powder paint, hard anodizing, or silicone grease.

4.4 HORIZONTAL ROTATION TRAVEL STOPS

The range of horizontal rotation travel for the manual Monsoon monitor is continuous 360 degrees. The motorized version is limited to

450 degrees total horizontal rotation travel or 225 degrees from either side of a straight ahead position. Horizontal rotation travel stop bolts may be installed in the monitor to limit travel as shown in figures 4.4A and 4.4B. Note that left and right are relative to the “Straight

Ahead Reference Mark” (the Straight Ahead Reference Mark is shown in figures 4.2B and 4.4D) and refer to the nozzle's discharge direction as seen from an operator's position behind the nozzle. Figures 4.4A and 4.4B show the range of travel for the various stop bolt locations and give installation notes.

Electric model with no stop bolts installed has

225° left and right horizontal rotation travel limits.

Manual model with no stop bolts installed has continuous 360° horizontal rotation travel.

Fig 4.4A

Horizontal Rotation Travel Limits

©Copyright Task Force Tips, Inc. 2004-2006

13

Pry out plastic plug and install Stop

Bolt to obtain desired travel limits.

Fig 4.4B

Horizontal Rotation Travel Stop Locations

4.5 ELEVATION TRAVEL STOPS

The range of elevation travel for the Monsoon Monitor is 90 degrees above zero to 45 degrees below zero. The elevation range may be limited by installing the supplied stop bolts at the locations shown is figures 4.5A and 4.5B. Consult factory for other ranges. The figures include installation notes.

A

30° ABOVE

HORIZONTAL

B

45° ABOVE

HORIZONTAL

Fig 4.5A

Elevation Travel Limits

C

30° BELOW

HORIZONTAL

PLASTIC

PLUG

#VM4124

Pry out plastic plug and install Stop Bolt to obtain desired travel limits.

Elevation travel with no Stop Bolts is

90° above and 45° below zero.

STOP BOLT

#Y4145

Fig 4.5B

Elevation Travel Stop Locations

4.6 PRESSURE GAGE PORT

There is a ¼” NPT female threaded hole on the back of the monitor. The hole is plugged from the factory. If a pressure gage is desired, unscrew the plug and install the gage using pipe sealant. Make sure the gage does not interfere with the elevation handwheel.

4.7 DRAIN

There is no drain on the Monsoon Monitor itself. A drain valve should be installed on the monitor's inlet piping.

©Copyright Task Force Tips, Inc. 2004-2006

14

5.0 ELECTRICAL CONTROLS INSTALLATION

!

!

!

!

!

The electric RC monitor is supplied with a monitor mounted operator station. The wiring on the monitor and for this operator station is factory installed. The assembly is supplied with a 30-foot length of cable for connection to the operator control stations as shown in figure 5.0 or directly to a protected voltage supply. This cable has 4-conductors which supply power and the communications from the operator stations to the monitor. To complete the installation, the installer will need to mount and wire the selected operator stations.

The power supply for the monitor will need to be connected to a protected circuit from the truck's power distribution center. Refer to the specifications section 3.1 for nominal current draw.

!

Good mechanical connections on the wires are absolutely necessary and should be checked periodically.

connections can cause power loss to the monitor and be a fire hazard.

Poor electrical

Careful selection of wiring is critical to avoid excessive voltage drop.

Be careful to route cables in a protected area away from high heat sources.

Use grommets whenever wires pass through holes to prevent damage due to snags, abrasions, etc.

Secure cables close to control box with plastic wire ties or cable clamps to relieve stress on the cables.

Disconnect power before installing or servicing the electrical components. The RC monitor control boxes and motors are not rated as ignition proof, explosion proof, or intrinsically safe.

WARNING

The electric motors and other components are ignition sources. The electric drives should be operated only in areas where there is adequate ventilation and no hazard of flammable vapor buildup.

Charging Cradle

Wireless Operator

Station Sec 5.4

Joystick Operator

Station Sec 5.5

Primary Operator

Station Sec 5.1

Monitor Mounted

Operator Station

Reciever

Deutsch

Connector

13/C-20

- or -

9/C-20

2/C-14

10 ft (3m) Maximum

* See Note

Power

Optional Operator

Station Sec 5.2

2/C-14, 2/C-20

30 ft (9m) Maximum

Tether Operator

Station Sec 5.3

Installer Supplied Inputs:

Canbus

Toggle Switch

Joystick

Communication

Interface Box Sec 5.7

Toggle Switch

Operator Station Sec 5.6

Recommended Tool List

11/32” nut driver

Wire cutter/stripper

Terminal crimping tool

Utility knife

©Copyright Task Force Tips, Inc. 2004-2006

- or - - or - or - or -

30 or 100 ft

(9 or 27m)

Position Display

Sec. 5.8

Fig 5.0 Electrical Components

(non-aerial installation)

NOTE: To avoid excessive voltage drop at monitor operator station, do not lengthen factory supplied power or monitor cable.

Voltage supplied to PRIMARY OPERATOR

STATION should not fall below 13 volts when monitor is in operation.

20mm open-end box wrench

17mm open-end box wrench

5/32” drill bit

25/32” drill bit

15

#2 Phillips screwdriver

Small flat blade screwdriver

5.1 PRIMARY MONITOR OPERATOR STATION

This operator station will include the wiring connections for the cable from the monitor and the incoming power. In many installations this operator station will also include the wiring connections for the wireless, joystick, or tether operator station. The enclosure is designed to be recess mounted in a panel.

5-1/8

(130 mm)

5.1.1 MOUNTING

Select proper operator location. Panel space required will be 5-5/8” x 8” (142 x 200mm). A depth of 3 1/2” (89mm) will be required behind the panel. Additional space will be required where the cables exit the back of the enclosure. Refer to Figure 5.1.1 for cutout dimensions.

Fig 5.1.1

Primary & Optional Operator Stations Cutout Dimensions

5.1.2 ELECTRICAL WIRING

After selecting and mounting the desired operator stations, refer to Figures 5.1.2B-E for wiring connections. Refer to Figure 5.1.2A for typical cable preparation. Be sure to tighten all terminal block screws securely.

Receiver Cable

Wire Color

RED

BLACK

GREEN/BLACK

WHITE/BLACK

WHITE

ORANGE/BLACK

BLUE

ORANGE

GREEN

Termination Point In

Operator Station

RED (+)

BLACK (-)

UP

DOWN

LEFT

RIGHT

FOG

STRAIGHT STREAM

NOT USED (CUT)

Fig 5.1.2

Wireless Operator Station

Wiring Color Code

NOTE: CABLE IS GEL FILLED TO

PREVENT MOISTURE WICKING

INTO ENCLOSURE. GEL IS NON-

HAZARDOUS AND SHOULD BE

WIPED OFF CONDUCTORS

WITH RAG.

Fig 5.1.2A

Typical Cable Preparation

FROM/TO MONITOR OR OPERATOR STATION

Refer to Figure 5.1.2B for connections.

FROM/TO TETHER OR OPT.

OPERATOR STATION

Remove rubber plug in hole labeled WIRELESS OPER. STATION and discard. Refer to Figure 5.1.2C for connections.

WIRELESS OPERATOR STATION

Plug end of cable with Deutsch connector into gray receptacle on receiver. Make sure connector snaps into place.

Remove rubber plug in hole labeled WIRELESS OPER. STATION and discard.

Refer to Figure 5.1.2D for connections. Refer to Figure 5.1.2 for wire color designations.

MAIN POWER CONNECTION TO TRUCK

Route cable and connect to a protected circuit from the truck’s power distribution center. Connect the red wire to positive and the black wire to negative (ground). Refer to Figure 5.1.2E for connections.

IMPORTANT!!

When mechanical installation and electrical connections are complete, perform the following test to verify voltage supply is adequate and the current limiting feature is functioning.

1) Apply power to monitor control box.

2) Press LEFT or RIGHT button and hold until monitor reaches its stop position. Continue to hold button down.

3) Once movement is stopped, manually turn override knob in opposite direction while continuing to hold button down. If knob can be turned, then voltage supply is adequate. If knob cannot be turned and motor continues to operate, then the voltage supply or wiring is not adequate. Check connections and voltage connection point, rewire if necessary. NOTE: Override

knob will only turn in one direction.

©Copyright Task Force Tips, Inc. 2004-2006

16

VERIFY RUBBER SEAL IS CLEAN AND UNDAMAGED.

VERIFY THAT NO WIRES ARE CAUGHT BETWEEN LID AND BOX.

USE SUPPLIED FLAT HEAD

SCREWS WITH O-RING SEALS.

TIGHTEN SCREWS SECURELY.

(6) PLACES.

THESE TERMINAL BLOCKS

CAN BE UNPLUGGED

FROM THE BOARD FOR

EASIER WIRE CONNECTING.

Fig 5.1.2B

From/To Monitor Or Operator Station Connections

Fig 5.1.2C

From/To Tether, Optional Operator Station,

Toggle Switch Operation Station, or Communication Interface Box

WIRELESS

STATION ONLY

WIRELESS OPERATOR STATION.

JOYSTICK OR INSTALLER SUPPLIED SWITCHES.

SEE SECTION 5.1.2 FOR TABLE DEPICTING

WIRELESS RECEIVER COLOR CODE.

Fig 5.1.2D

Wireless Operator Station Connections

©Copyright Task Force Tips, Inc. 2004-2006

THESE TERMINAL BLOCKS

CAN BE UNPLUGGED

FROM THE BOARD FOR

EASIER WIRE CONNECTING.

17

10 FT. (3M) MAXIMUM LENGTH

BLUE AND WHITE

NOT USED

RED AND BLACK

TO POWER DISTRIBUTION CENTER

Fig 5.1.2E

Main Power Connections

5.2 OPTIONAL MONITOR OPERATOR STATIONS

The electronic package for the Monsoon RC is designed for multiple operator stations.

The operator stations use an RS-485 communication design and the communication boards in each station are connected in series. This gives the flexibility to choose more than one location on a truck to operate the monitor. To install multiple operator stations, complete the following instructions in this section and repeat for each additional station. The enclosure is designed to be recess mounted in a panel.

5.2.1 MOUNTING

See section 5.1.1

5.2.2 ELECTRICAL WIRING

See section 5.1.2

5.3 TETHER MONITOR OPERATOR STATION

This operator station will have a factory installed 4-conductor cable, which will act as a tether, with a plug on the end. The installer will need to mount the holster and receptacle. Since the communication boards are connected in series, the receptacle for the tether operator station needs to be wired into the last primary or optional operator station (if multiple recessed operator stations are installed, refer to section 5.2).

The holster is supplied with(3) 1/4-20 stainless steel self-tapping screws. Make sure the material beneath the bracket is substantial and thick enough to hold self-tapping screws. Make sure the area on the back side of the mounting surface is clear of obstructions. We recommend a minimum thickness of 3/32" (.093" - 2.4 mm) in aluminum and 5/64 (.078"-2mm) in steel See the chart in Figure 5.3.1 to determine the correct pilot hole size.

5.3.1 HOLSTER MOUNTING

Select proper location for mounting holster, preferably inside a storage compartment. Panel space required will be 6.5” x 8.0” (165 x

203mm). Refer to Figure 5.3.1for hole dimensions. Holster can be used as template.

(146 mm) Drill (3) Pilot Holes

(refer to hole size chart)

Mount Holster With (3)

1/4-20 Self-Tapping Screws.

Tighten Securely.

(73 mm)

Hole Size Chart For Self Tapping Screws

Material

Thickness

ALUMINUM

Hole Size

Inches mm

Use Material

Drill Thickness

STEEL

Hole Size

Inches mm

Use

Drill

.213

5.4

#3 5/64-3/32 .206

5.2

#5

1/8

3/16

.213

.221

5.4

5.6

#3

#2

3/32

1/8

3/16

.221

.228

5.6

5.8

#2

#1

5.3.2 RECEPTACLE MOUNTING

Fig 5.3.1 Tether Operator Station Holster Hole Dimensions

Select proper location for mounting receptacle.

Receptacle is 1-1/4” x 1-1/4” and 1/2” deep. (32 mm x 32 mm x 13 mm) Allow extra room behind receptacle for wires.

Refer to Figure 5.3.2 for hole dimensions.

7/8”

(22 mm)

Y5310 TETHER RECEPTACLE

MOUNT RECEPTACLE WITH

#4 SELF-TAPPING SCREWS.

TIGHTEN SECURELY.

25/32”

(20 mm)

7/8”

(22 mm)

Drill (4) .098” (#40) Holes

HOLE LAYOUT

©Copyright Task Force Tips, Inc. 2004-2006

Fig 5.3.2 Tether Operator Station

Receptacle Hole Dimensions

18

INSTALL CHAIN CONNECTOR

UNDER SCREW HEAD

Y5320 CLOSURE CAP

5.3.3 ELECTRICAL WIRING

See section 5.1.2

5.4 WIRELESS MONITOR OPERATOR STATION

This operator station consists of the wireless transmitter, receiver, receiver output cable, and charging cradle. The installer will need to mount the wireless receiver and wire it into the primary operator station. The charging cradle will need to be mounted in a weatherproof location and wired to a protected voltage supply.

The receiver is supplied with (2) 1/4-20 stainless steel self-tapping screws. Make sure the material beneath the receiver is substantial and thick enough to hold self-tapping screws. Make sure the area on the back side of the mounting surface is clear of obstructions. We recommend a minimum thickness of 3/32" (.093" - 2.4 mm) in aluminum and 5/64 (.078"-2mm) in steel. See the chart in Figure 5.4.1 to determine the correct pilot hole size.

5.4.1 MOUNTING - RECEIVER

Select proper location for mounting receiver. The receiver has a built-in antenna and needs to be in an open area so that it can receive the wireless signals. A location on the top of the truck is preferable.

The optimal operating range is 500' (150 m). Check the operating range after mounting receiver. If range is inadequate, the receiver may need to be remounted in a more exposed area.

The receiver must be mounted so that the supplied 10' (3 m) output cable can be routed back to the primary operator station. Be sure to mount receiver so that the Deutsch connector is pointing down. Receiver size is 5.1” x 4.0” (130 x 102mm). Refer to Figure 5.4.1 for hole dimensions. Receiver can be used as template.

4”

(102 mm)

DRILL (2) PILOT HOLES (refer to hole size chart).

MOUNT HOLSTER WITH (2) 1/4-20

SELF-TAPPING SCREWS. TIGHTEN SECURELY.

3”

(75 mm)

Fig 5.4.1

Wireless Receiver Hole Dimensions

Hole Size Chart For Self Tapping Screws

Material

Thickness

ALUMINUM

Hole Size

Inches mm

Use Material

Drill Thickness

STEEL

Hole Size

Inches mm

Use

Drill

.213

5.4

#3 5/64-3/32 .206

5.2

#5

1/8

3/16

.213

.221

5.4

5.6

#3

#2

3/32

1/8

3/16

.221

.228

5.6

5.8

#2

#1

DEUTSCH

CONNECTOR

PLUG

5.4.2 ELECTRICAL WIRING - RECEIVER TO THE PRIMARY OPERATOR STATION

See section 5.1.2

5.4.3 MOUNTING CHARGING CRADLE

Select proper location for mounting cradle. The cradle is not weatherproof and needs to be inside a protected location such as in the cab or a compartment. Cradle size is 4.2” x 4.5”. Refer to Figure 5.4.3 for hole dimensions.

2”

(51 mm)

MOUNT CRADLE USING

CUSTOMER SUPPLIED HARDWARE.

TIGHTEN SECURELY.

DRILL (2)

PILOT HOLES

FOR #8

FASTENER

2-3/4”

(70 mm)

Fig 5.4.3

Charging Cradle Hole Dimensions

5.4.4 ELECTRICAL WIRING CHARGING CRADLE

Use two (2) ¼” spade lugs to connect power to the cradle from a protected voltage supply from the truck’s power distribution center.

Connect the positive lead to the terminal marked CHARGE BATT and the negative (ground) lead to the terminal marked GROUND. Do not make connections to any other terminals. The circuit from the truck power distribution center should be energized continuously to keep the transmitter fully charged.

©Copyright Task Force Tips, Inc. 2004-2006

19

5.5 JOYSTICK MONITOR OPERATOR STATION

This operator station allows the monitor to be controlled by a joystick. The installer will need to mount the joystick and connect the cables to the communication interface box or to a primary operator station. The joystick needs to be mounted in a weatherproof location. Example: Inside the cab of the truck.

5.5.1 MOUNTING

Select proper weatherproof operating location. Joystick will require 4 ½” x 4 ½” (114 x 114mm) of panel space. A depth of 4”

(100mm) will be required behind the panel. Refer to Figure 5.5.1.1 for hole dimensions.

After mounting, the installer may rotate the joystick up to 22 degrees in either direction. To rotate joystick, lift the rubber boot to expose adjustable clamp. Loosen the clamping screws, rotate the joystick to desired position, and tighten clamping screws.

2-27/32

(72 mm)

FOG THEN FLUSH

1/4 (6 mm)

3 (76 mm)

www.tft.com

STRAIGHT

STREAM

SMART SHAPER

1)

2)

NOZZLE STOPS AT FULL FOG

PRESS AGAIN FOR FLUSH

FOG

STRAIGHT

FIRE FIGHTING EQUIPM

®

TASK FORCE TIPS

ENT

AUX

FUNCTION

TRIGGER

2-27/32

(72 mm)

(51

2 mm)

HOLE MOUNTING DETAIL

Install joystick instruction label nearby for quick operation reference.

®

TASK FORCE TIPS

FIRE FIGHTING EQUIPMENT

800-348-2686 • www.tft.com

Y5336

Fig 5.5.1.1

Joystick Operator Station

Hole Dimensions

Fig 5.5.1.2

Joystick Instruction Label

5.5.2 ELECTRICAL WIRING

The joystick operator station must be connected to the included Y4E-COMM Communication Interface Box or a separately supplied

Y4E-RP Primary Operator Station. By connecting the joystick to a communication interface box, a primary operator station is not required and the installer has the option to enable the joystick operator station with the master override feature (see Section 6.2.2).

When a pump panel operator station is being installed, the installer can connect the joystick to the Primary Operator Station, which will eliminate the need to install the communication interface box.

5.5.2.1 WIRING TO A COMMUNICATION INTERFACE BOX

The joystick cables will be connected to the factory supplied 10' cable from the Communication Interface Box. See figure 5.5.2.1.

POWER AND

COMMUNICATION CABLE

SEE SECTION 5.7.2

**WATER VALVE CONNECTION **

-TRIGGER ACTUATION SWITCHES

ORANGE WIRE TO +12/24 VDC

- 5 AMP SWITCH CONTACT RATING

- WHEN SWITCHING A RELAY OR SOLENOID,

INSTALL A SUPPRESSION DIODE

Function

UP

DOWN

LEFT

RIGHT

COMMON

Joystick

Cable Color

Grey

Black/White

Tan

Pink

Red

Interface Box

Cable Color

WHITE

BLUE

YELLOW

BROWN

+12/24 VDC

INSTALLER SUPPLIED

TERMINAL BLOCK OR SPLICES

+12/24 VDC

STREAM

FOG

TRIGGER n/u n/u n/u n/u n/u

Blue

Green

Orange

White

Brown

Black

Purple

Yellow

ORANGE

GREEN

Water Valve** n/u n/u n/u n/u n/u

Y4E-COMM COMMUNICATION INTERFACE BOX

- FACTORY CONFIGURED FOR VOLTAGE INPUTS

- TO CONFIGURE FOR GROUND INPUTS, SEE SEC 5.7.3

Fig 5.5.2.1

Joystick Operator Station Wiring to Communication Interface Box

©Copyright Task Force Tips, Inc. 2004-2006

NOTE

Do not connect 12VDC to Communication Interface Box wires if configured for GROUND inputs. This will result in damage to the communication board. See section 5.7.3.

20

5.5.2.2 WIRING TO A PRIMARY OPERATOR STATION

The joystick cable will enter the primary operator station through the connector labeled WIRELESS OPER. STATION. Refer to section 5.1.2D.

NOTE

**WATER VALVE CONNECTION **

-TRIGGER ACTUATION SWITCHES

ORANGE WIRE TO GROUND

- 5 AMP SWITCH CONTACT RATING

- WHEN SWITCHING A RELAY OR SOLENOID,

INSTALL A SUPPRESSION DIODE

Do not connect 12VDC to

Primary Operator Station inputs. This will result in damage to the communication board.

INSTALLER SUPPLIED CABLE

O.D. RANGE .16” - .31”

RECOMMEND: 7 CONDUCTOR, 20 AWG,

UNSHIELDED CONTROL CABLE

CONSULT FACTORY FOR LENGTHS

EXCEEDING 500 FT (150 m)

Fig 5.5.2.2

Joystick Operator Station Wiring to Primary Operator Station

Function

UP

DOWN

LEFT

RIGHT

COMMON

STREAM

FOG

TRIGGER n/u n/u n/u n/u n/u

Joystick

Cable Color

Grey

Black/White

Tan

Pink

Red

Blue

Green

Orange

White

Brown

Black

Purple

Yellow

5.6 TOGGLE SWITCH MONITOR OPERATOR STATION

This operator station allows the monitor to be controlled by three toggle switches. The installer will need to mount the operator station and connect the cable to a primary operator station or directly to the monitor.

4.45

(113 mm)

5.6.1 ENCLOSURE MOUNTING

Select proper operator location. Enclosure is designed to be surface mounted and the size is

5” x 3-1/8” (127 x 80mm). Height to top of switches is 3-1/8” (80mm). Refer to Figure 5.6.1

for mounting hole dimensions.

MOUNT ENCLOSURE

WITH (2) 1/4-20 FASTENERS.

TIGHTEN SECURELY.

5.6.2 ELECTRICAL WIRING

See section 5.1.2C if connecting to a Primary Operator Station.

See section 5.10 if connecting directly to monitor.

Figure 5.6.1

Toggle Switch Operator Station

Hole Dimensions

©Copyright Task Force Tips, Inc. 2004-2006

21

5.7 COMMUNICATION INTERFACE BOX

This Communication Interface Box converts discrete input signals into serial communications for controlling the monitor. The discrete input signals can be from a joystick, toggle switches, relay contacts or Canbus output module. The interface box accepts +12/24 VDC signals, but can be field changed to accept ground signals. The installer will need to mount the interface box and connect the cable to a primary operator station or directly to the monitor.

5.7.1 ENCLOSURE MOUNTING

Select proper enclosure location.

Enclosure is designed to be surface mounted and the size is 5” x 3 1/8” (127 x 80mm). Height of enclosure is 2 3/8” (60mm). Refer to Figure 5.6.1 for mounting hole dimensions.

Function

UP

Interface Box

Cable Color

WHITE

DOWN BLUE

5.7.2 ELECTRICAL WIRING

See section 5.1.2C for connecting power & communication cable. .

LEFT

RIGHT

YELLOW

BROWN

See figure 5.7.2 for connecting INPUTS cable.

FOG GREEN

See section 5.10 if connecting directly to monitor

STREAM

SPEED

ORANGE

BLACK

Figure 5.7.2

Communication Interface

Wire Color/Function

STOW RED

5.7.3 INPUTS SIGNAL CONFIGURATION

The Communication Interface Box is shipped from the factory configured to accept +12/24 VDC input signals, but can be field changed to accept ground input signals.

To change the configuration:

1. Remove lid from enclosure.

2. Locate DIP switches o communication board.

3. Slide DIP switch #4 to the OFF position to select GROUND inputs or slide switch #4 to the ON position to select VOLTAGE inputs.

4. Replace lid. Verify rubber seal is clean and undamaged. Verify that no wires are caught between lid and box.

VOLTAGE

INPUTS

GROUND

INPUTS

Figure 5.7.3

Communication Interface Box

5.8 MONITOR POSITION DISPLAY

The monitor position display is supplied with a 10' (3 m) long 4-conductor cable. The installer will need to surface mount the enclosure in a dry area and connect the cable to power and the communication link of the monitor. Display is designed for use with 180° total horizontal axis travel.

5.8.1 ENCLOSURE MOUNTING

Select proper location for display.

The display is not weather proof and needs to be inside a protected area such as in the cab.

3-1/2”

(89 mm)

7/32”

(5.5 mm)

3-1/2”

(89 mm)

Fig 5.8.1

Monitor Position Display

Hole Dimensions

©Copyright Task Force Tips, Inc. 2004-2006

22

MOUNT ENCLOSURE WITH

(2) #10 FASTENERS.

TIGHTEN SECURELY.

5.8.2 ELECTRICAL WIRING

The monitor position display needs to be connected to +12/24VDC (red) and ground (black). The blue & white wires from the position display cable need to be connected to the blue & white wires from the monitor. A terminal box or a high quality, protected splice can be used to make these connections. See section 5.0 for connecting power and communication cable.

5.9 CONNECTING MONITOR CABLE DIRECTLY TO PROTECTED POWER SUPPLY

The electric RC monitor has an operator station, which is fully functional, mounted on the monitor. If no other operator stations are selected, the installer will only need to connect power to complete the installation.

5.9.1 ELECTRICAL WIRING

Route cable from monitor and connect to a protected circuit from the truck’s power distribution center. Connect the red wire to positive and the black wire to negative (ground). Cut and discard blue and white wires.

5.10 OPERATOR STATION INSTALLATION DIRECTLY TO MONITOR

The electric RC monitor can be directly connected to a protected power supply, see section 5.9, and then be controlled by one of the following without the use of a Y4E-RP, primary operating system.

• Tether Operator Station, see section 5.3 for holster and receptacle mounting.

• Toggle Switch Operator Station, see section 5.6 for mounting.

• Communication Interface Box, see section 5.7 for mounting.

To Power Distribution Center

©Copyright Task Force Tips, Inc. 2004-2006

Recommend Cable Gauge

Max Length Gauge

40 ft . . . . . . 14AWG

65 ft . . . . . . 12AWG

80 ft . . . . . . 2-14AWG

105 ft . . . . . . 10AWG

130 ft . . . . . 2-12AWG

NOTE: To avoid excessive voltage drop at monitor operator station, do not lengthen factory supplied power or monitor cable.

Voltage supplied to PRIMARY OPERATOR STATION should not fall below 13 volts when monitor is in operation.

Figure 5.10

Electrical Components

(operator station directly to monitor installations)

23

5.11 RC MONITOR AERIAL TRUCK INSTALLATION

When installing the electric RC monitor on an aerial device truck, refer to section 5.11.2.1 or 5.11.2.2.

8.25

(210 mm)

MOUNT ENCLOSURE WITH

(2) 1/4-20 FASTENERS

TIGHTEN SECURELY

5.11.1 ELECTRONICS ENCLOSURE MOUNTING

Select proper enclosure location. Enclosure is designed to be surface mounted and the size is 5-3/4” x 8-3/4” (146 x 222mm). Height of enclosure is 2-1/4” (57mm). Refer to Figure 5.11.1 for mounting hole dimensions.

Fig 5.11.1

Electrical Enclosure

Mounting Hole Dimensions

5.11.2 ELECTRICAL WIRING

On aerial devices the installer will supply the required cables that run up the ladder or boom. Be sure to perform voltage drop calculations to verify that the supply voltage will not fall below 11 volts during monitor operation.

5.11.2.1 LADDER INSTALLATION ELECTRICAL WIRING (-L MODELS)

The electronics enclosure converts discrete input signals into serial communications for controlling the monitor. The discrete input signals can be from a joystick, toggle switches, relay contacts or Canbus output module. The electronic interface accepts +12/24 volt signals, but can be field changed to accept ground signals. See section 5.7.3.

The electronics enclosure is configured so that signals connected to the PRIMARY CONTROL cable will override any other operator stations (see section 6.2.1).

See Figure 5.11.2.1 for wiring connections

NOTE: To avoid excessive voltage drop at monitor operator station, cable selection is critical.

Voltage supplied to ELECTRONICS ENCLOSURE should not fall below 11 volts when monitor is in operation.

Recommend Cable Gauge

Max Length Gauge

40 ft . . . . . . 14AWG

65 ft . . . . . . 12AWG

80 ft . . . . . . 2-14AWG

105 ft . . . . . . 10AWG

130 ft . . . . . 2-12AWG

©Copyright Task Force Tips, Inc. 2004-2006

Optional (not included)

Toggle Switch

Operator Station (Y4E-TS)

Sec 5.6

Figure 5.11.2.1

Electrical Components

(ladder installations)

24

5.11.2.2 PLATFORM INSTALLATION ELECTRICAL WIRING (-P MODELS)

The electronics enclosure converts discrete input signals into serial communications for controlling the monitor. The discrete input signals can be from a joystick, toggle switches, relay contacts or Canbus output module. The electronic interface accepts +12/24 volt signals, but can be field changed to accept ground signals. See section 5.7.3.

The electronics enclosure is configured so that signals connected to the PRIMARY CONTROL cable will override any other operator stations (see section 6.2.1).

See Figure 5.11.2.2 for wiring connections.

NOTE: To avoid excessive voltage drop at monitor operator station, cable selection is critical.

Voltage supplied to ELECTRICS ENCLOSURE should not fall below 11 volts when monitor is in operation.

Recommend Cable Gauge

Max Length Gauge

40 ft . . . . . . 14AWG

65 ft . . . . . . 12AWG

80 ft . . . . . . 2-14AWG

105 ft . . . . . . 10AWG

130 ft . . . . . 2-12AWG

-or-

Optional (not included)

Toggle Switch

Operator Station (Y4E-TS)

Sec 5.6

Figure 5.11.2.2

Electrical Components

(platform installations)

5.12 ELECTRIC NOZZLE ACTUATOR WIRING

The electric Monsoon RC monitor is designed to control and is factory wired for an electric actuated nozzle. A Task Force Tips, Inc.

Masterstream 1250, 1500 or 2000 nozzle is available with the proper electric connection. After mounting the Masterstream 1250, 1500 or 2000 nozzle onto the monitor, plug the male cord from the nozzle into the female cord located on the outlet of the monitor. Make sure the two coupling nuts are tightened securely to ensure a proper watertight seal.

If retrofitting an existing TFT nozzle, a male cord (TFT #Y5285) can be purchased and installed in place of the existing actuator cord.

Please consult factory for installation.

©Copyright Task Force Tips, Inc. 2004-2006

25

6.0 OPERATION

6.1 MANUAL MODEL

6.1.1 HORIZONTAL ROTATION CONTROL

A handwheel controls the monitor's horizontal rotation direction. Clockwise rotation of the handwheel moves the nozzle to the left and counter-clockwise rotation to the right. Approximately 14 turns of the handwheel will give a 90 degree change in horizontal rotation direction.

6.1.2 ELEVATION CONTROL

A handwheel controls the monitor's elevation direction. Clockwise rotation of the handwheel raises the elevation and counterclockwise lowers it. About 50 turns of the handwheel will give the complete 135 degree elevation travel range of the monitor.

APPLY FORCE

HERE TO CHANGE

HORIZONTAL ROTATION

6.1.3 TILLER BAR MODEL

On the Tiller Bar model the horizontal rotation is changed by pushing or pulling horizontally on the Tiller Handle. Twisting the Rotation Locking Knob clockwise will increase the drag on the lower swivel joint to “lock” the monitor in a particular direction. See figure 6.1.3 for the Tiller Bar model controls.

ELEVATION

HANDWHEEL

ROTATION

LOCK

Figure 6.1.3

Tiller Bar Model Controls

CAUTION

Injury can result from the monitor changing direction due to an off center nozzle reaction. An off center nozzle reaction may be caused by debris in the nozzle causing an asymmetrical stream.

Always keep the rotation lock tight when not rotating the monitor. Always keep one hand on the tiller handle when loosening the locking knob. Where continuous 360 degree rotation of the monitor is not needed it is recommended that the Horizontal Rotation Stop Bolts (see section 4.4

for Stop Bolt locations) be installed to reduce any chance of the monitor spinning due to an off center nozzle reaction caused by debris trapped in the nozzle.

6.2 ELECTRICAL MODEL

6.2.1 OPERATOR STATIONS

The electric Monsoon RC monitor has eight different styles of operator stations for use in various locations on the fire truck or fire ground.

The design of the operator station communications allows users to override commands on other stations. The "last" button pressed has control. The overridden user can regain control by releasing their button and pressing again. The wireless and joystick operator stations cannot override commands from the primary operator station they are wired into, but can override other stations.

Platform and ladder electronics enclosures are pre-configured for one set of inputs to have a master override feature. The operator station connected to these inputs, typically at the base of the aerial, will override any other operator station.

Any operator station with a communication board or connected to a communication board can be field configured with the master override feature. This allows the user to setup an operator station on the fire truck or fire ground as the master override station. See

Section 6.2.2 for details.

6.2.1.1 MONITOR MOUNTED OPERATOR STATION

This operator station is factory installed on the monitor and is used by personnel at the monitor.

6.2.1.2 PRIMARY OPERATOR STATION

This operator station is installed on the truck, for example the pump operator's panel. It is used to operate the monitor from a location on the truck.

6.2.1.3 OPTIONAL OPERATOR STATION

This operator station allows the monitor to be operated from an additional location on the truck.

6.2.1.4 TETHER OPERATOR STATION

This operator station is tethered to the truck with either a 30 foot (9 meter) cable or a 100 foot (30.5 meter) cable. It is used to move slightly away from the truck to get a better view for redirecting the monitor.

6.2.1.5 WIRELESS OPERATOR STATION

This operator station uses RF signals to control the monitor. It is used to move far away from the truck to get a better view for redirecting the monitor. Maximum range is 500 ft (152 meters). The wireless transmitter is coded to a particular monitor so several wireless monitors may be in use at the same location without interference. It uses rechargeable batteries that will give 160 hours of continuous operation when fully charged, when not in use the wireless transmitter should be kept in its charging base. The transmitter will turn on a red LED to warn the operator when the battery charge is low. After this point there are less than 8 hours of continuous use available.

To activate the transmitter, press the green button at the top. While the transmitter is active, the yellow LED will blink continuously.

Pressing the red button at the bottom will deactivate the transmitter. The transmitter will automatically deactivate after 10 minutes if no buttons are pressed.

©Copyright Task Force Tips, Inc. 2004-2006

26

6.2.1.6 JOYSTICK OPERATOR STATION

This operator station is installed in a protected location and allows the monitor to be controlled by a joystick.

6.2.1.7 TOGGLE SWITCH OPERATOR STATION

This operator station allows the monitor to be operated by three toggle switches.

6.2.1.8 INSTALL SUPPLIED CONTROLS

This operation control such as canbus, toggle switches allow control through a communication interface box or enclosure.

6.2.2 MASTER OVERRIDE FEATURE (DIP#1)

Any operator station with a communication board can be reconfigured with the master override feature. These stations include the Y4E-RP, Y4E-RO, Y4E-CT-30, Y4E-CT-100,

Y4E-TS, or any inputs connected to an Y4E-COMM.

To enable the master override feature on an operator station follow these steps:

1. Remove lid from enclosure.

2. Locate DIP switches on communication board.

3. Slide DIP switch #1 to the ON position.

4. Replace lid. Verify rubber seal is clean and undamaged.

Verify that no wires are caught between lid and box.

Figure 6.2.2

Master Override Setup

6.2.3 STOW FEATURE

The STOW position needs to be programmed before use. The monitor needs to “find” two (2) hard stops, one for each axis, before the monitor can move to the STOW position. When programming, the first two commands teach the monitor where to find the hard stops.

This insures that the position is accurate. From that point, the programmer can program the move to the STOW position. During normal operation, each time the STOW button is pressed, the monitor moves the nozzle to the full straight stream position, moves to each programmed hard stop, and then moves to the STOW position. While the monitor is performing the STOW feature, pressing any button will stop the monitor.

6.2.3.1 PROGRAMMING

STOW programming must be initiated within 1 minute of applying power to monitor. After 1 minute, programming access is blocked.

Power must then be cycled to reset 1 minute timer.

Press and hold STOW button (~10 seconds) until LED blinks. Release button. LED will continue to blink while in program mode.

FIRST AXIS TO MOVE:

Press and reached.

release LEFT/RIGHT or UP/DOWN button of axis that will move first to hard stop. LED will blink rapidly when hard stop is

SECOND AXIS TO MOVE:

Press and reached.

release LEFT/RIGHT or UP/DOWN button of axis that will move second to hard stop. LED will blink rapidly when hard stop is

MOVE TO STOW POSITION:

Use LEFT/RIGHT or UP/DOWN buttons to move monitor to first point of stow routine, press rapidly to acknowledge position.

and release STOW button. LED will blink

Repeat until pattern is complete (up to 10 points).

Press and hold STOW button until LED turns off. Release button.

6.2.3.2 STOW PROGRAMMING EXAMPLE

- Press and hold STOW button until LED blinks.

- Press and release UP button, monitor will move until hard stop reached. LED blinks rapidly.

- Press and release RIGHT button, monitor will move until hard stop reached. LED blinks rapidly.

- Press LEFT button to move 45 degrees, Press and release STOW button. LED blinks rapidly.

- Press DOWN button to move 90 degrees, Press and release STOW button. LED blinks rapidly.

- Press and hold STOW button until LED turns off.

6.2.4 OSCILLATE FEATURE

The OSCILLATE feature allows the user to program a repeating pattern to control the horizontal and vertical axes of the monitor. While in the OSCILLATE pattern, the monitor will pause while the user changes the stream pattern. Pressing any other button will stop the

OSCILLATE pattern.

A label is supplied with each operator station that can be mounted on or near the station as a reminder of how to program the

OSCILLATE pattern. The OSCILLATE pattern needs to be programmed before use. The pattern will be cleared each time power is cycled to the monitor.

©Copyright Task Force Tips, Inc. 2004-2006

27

6.2.4.1 PROGRAMMING

- Move monitor to starting point of pattern.

- Press and hold OSC button (~5 seconds) until LED blinks. Release button. LED will continue to blink while in program mode.

- Move monitor to second point, press OSC button. LED will blink rapidly to acknowledge position.

- Repeat until pattern is complete (up to 65 points).

- Press and hold OSC button until LED turns off. Release button.

TO OSCILLATE:

Press & release OSC button.

( Pattern must be programmed first.)

TO STOW:

Press & release STOW button.

(Programmable, refer to manual.)

®

TASK FORCE TIPS

FIRE FIGHTING EQUIPMENT

OSCILLATE PATTERN PROGRAMMING:

1)

Move monitor to starting point of pattern.

2)

3)

Press & hold OSC button until LED blinks. LED will continue to blink in program mode.

Move monitor to 2nd point, press OSC button. LED will blink rapidly to acknowledge position.

4)

Repeat until pattern is complete.

5)

Press & hold OSC button until LED turns off.

NOTE: PATTERN WILL BE CLEARED UPON POWER LOSS.

800-348-2686 www.tft.com

Y5705

Figure 6.2.4.1

Operator Station Label

6.2.4.2 OSCILLATE PATTERN RETAIN FEATURE (DIP #4)

The monitor can be configured so that upon power up, the OSCILLATE pattern is retained. The OSCILLATE pattern will need be programmed at least one time (see section 6.2.4.1). To enable the OSCILLATE pattern retain feature on a monitor follow these steps:

1. Remove lid from monitor operator station.

2. Locate DIP switches on communication board.

3. Slide DIP switch #4 to the ON position.

4. Replace lid. Verify rubber seal is clean and undamaged. Verify that no wires are caught between lid and box.

5. Program OSCILLATE pattern.

Figure 6.2.4.2

Oscillate Pattern Retain Setup

6.2.5 OPERATOR STATION PANELS

The operator stations are all equipped with the same monitor movement functions. From the operator stations, the operator can command the monitor up, down, left, right and command the nozzle pattern shaper from fog to straight stream. Operator stations supplied with the membrane switch, shown on the left below, allow the operator to program and perform the oscillate and stow features.

®

OSC

HOLD TO

PROGRAM

STOW

HOLD TO

PROGRAM

POWER

®

FOG STRAIGHT

STREAM

WARNING

Read manual before use.

AUX 1

800-348-2686 www.tft.com

WARNING

Read manual before use.

Y5700

©Copyright Task Force Tips, Inc. 2004-2006

Fig 6.2.5

Operator Station Button Layouts

28

6.2.6 OVERRIDE HANDWHEELS

In the event of electrical system failure on the monitor or fire truck the Monsoon Monitor is factory supplied with handwheels or knobs so the monitor may be manually operated. The factory supplied handwheels are 6 inches in diameter. To make the Monsoon RC more compact the manual override handwheels may be removed.

The drive shafts have a hex so a wrench or socket may be used for manual override. Each drive shaft also has a secondary hex at midshaft so the shaft may be shortened by cutting and still have a wrenching hex. The wrenching hexes are shown in figure 6.2.3.

6.3 RECOMMENDED STOWING POSITION

For truck mounted applications it is recommended that the monitor be stowed in a position such that the monitor's nozzle rests against a bracket or support surface. If a support surface is not available, run the elevation against one of its travel stops to take some of the backlash out of the gear drive. This will minimize bouncing of the nozzle when the apparatus is traveling. Always be sure the monitor is properly stowed before moving the truck and know the overall height to avoid damage from overhead obstructions such as doors or bridges.

6.4 FLOWS AND PRESSURES

6.4.1 STACKED TIPS FLOW AND REACH

Integral Stream

Straightener

2-3/4" 2-1/2" 2-1/4"

Fig 6.2.3

Wrenching Hexes on Drive Shafts

2" Protective Cap

Remove cap and install smaller tips if desired.

Such as Model #MST-4NJ

(1-3/8", 1-1/2", 1-3/4", 2")

Fig 6.4.1A

Stacked Tip Model YST-4NN

Nozzle Pressure (PSI)

Nozzle 50 60 80 100

Diameter Flow Reaction Flow Reaction Flow Reaction Flow Reaction

(inches) GPM lbf GPM lbf GPM lbf GPM lbf

2

2.25

2.5

2.75

840

1060

1310

1590

310

400

490

590

920

1170

1440

1740

380

480

590

710

1060

1350

1660

2010

500

640

790

950

1190

1500

1860

-----

630

790

980

-----

14.5 psi = 1 bar

1 gpm = 3.785 l/min

Nozzle Pressure (BAR)

Nozzle 3.5

4.1

5.5

7

Diameter Flow Reaction Flow Reaction Flow Reaction Flow Reaction

(MM) l/min kg l/min kg l/min kg l/min kg

50

57

64

70

3180

4010

4960

6020

140

180

220

270

3480

4430

5450

6590

170

220

270

320

4010

5110

6280

7610

230

290

360

430

4500

5680

7040

-----

290

360

450

-----

FIG 6.4.1B

Stacked Tip Flow Table

©Copyright Task Force Tips, Inc. 2004-2006

29

200

0

180

160

140

120

100

80

60

40

20

0

0

40

1000 2000 3000

(LPM)

4000 5000 6000 7000

80

0.0

60

STACK TIP PERFORMANCE

(PRESSURE IS NOZZLE EXIT PITOT PRESSURE)

200 400

2 INCH TIP

20.0

600

2" TIP

2 1/4" TIP

2 3/4" TIP

800 1000

FLOW (GPM)

1200

Fig 6.4.1C

Stacked Tip Flow Graph

1400

HORIZONTAL DISTANCE (M)

40.0

60.0

60 PSI

2 1/2" TIP

1600

80.0

80 PSI

1800

20

8

6

4

2

12

10

2000

0

40

10

100 PSI

20

0

0.0

40.0

50 PSI

80.0

240.0

280.0

0

80

0.0

2.25 INCH TIP

20.0

120.0

160.0

HORIZONTAL DISTANCE (FEET)

200.0

HORIZONTAL DISTANCE (M)

40.0

60.0

60 PSI

80.0

20

60

80 PSI

40

10

20

0

0.0

40.0

50 PSI

80.0

240.0

100 PSI

280.0

0

80

0.0

2.50 INCH TIP

20.0

120.0

160.0

HORIZONTAL DISTANCE (FEET)

200.0

HORIZONTAL DISTANCE (M)

40.0

60.0

60 PSI

80.0

60

40

20

80 PSI

100 PSI

10

20

0

0.0

80

0.0

60

40.0

50 PSI

2.75 INCH TIP

20.0

80.0

120.0

160.0

HORIZONTAL DISTANCE (FEET)

200.0

HORIZONTAL DISTANCE (M)

40.0

60.0

60 PSI

240.0

80.0

80 PSI

280.0

0

20

100 PSI

10

20

0

0.0

©Copyright Task Force Tips, Inc. 2004-2006

40.0

50 PSI

80.0

120.0

160.0

HORIZONTAL DISTANCE (FEET)

200.0

Fig 6.4.1C Stacked Tip Stream Trajectory Graphs

30

240.0

280.0

0

This graph is approximate only.

Critical applications should be tested in actual conditions to verify adequate reach.

120

100

80

60

40

20

0

0

200

0

2 .50 INCH TIP, 100 PSI, 1860 GPM

20 40

180

160

140

40 80 120

75 DEGREES

160

HORIZONTAL DISTANCE (M)

HORIZONTAL DISTANCE (FEET)

60

200

60 DEGREES

240

80

45 DEGREES

60

40

20

30 DEGREES

280

0

Fig 6.4.1D Effects of Elevation of Trajectory

This graph shows approximately how a moderate wind can affect stream reach.

1 ft = 0.3048 m

80

0

2.50 INCH TIP, 100 PSI, 1860 GPM

25 50

HORIZONTAL DISTANCE (M)

75 100

20 MPH TAILWIND

20

40

10

0

0 40

20 MPH HEADWIND

80 120 160 200

HORIZONTAL DISTANCE (FEET)

240

Fig 6.4.1E Effects of wind on reach

280

NO WIND

320 360

6.4.2 MASTERSTREAM 2000 NOZZLES

Automatic nozzles maintain a constant pressure by adjusting their orifice to match the available flow. Consult the nozzle manufacturer for maximum flow and pressure range. In all cases do not exceed 2000 gpm (7,600 LPM). TFT's Masterstream 2000 nozzle has a 300-

2000 gpm flow range. Masterstream 2000 Nozzle operating instructions (Item Number LIM-030) is available on TFT's website: www.tft.com

0

80

70

60

50

40

30

20

10

0

0

10 20 30 40

METERS

50

A B

60

MASTERSTREAM 2000, 100 PSI (7 BAR, 700 KPA)

C

70

D

80

E

90

20

10

0

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300

HORIZONTAL DISTANCE (FEET)

EXCEL\MISC\RAN_MON

CURVE

A

D

E

B

C

CURVE

A

B

C

D

E

LPM

FLOW

1100

2300

3800

5700

7500

GPM

FLOW

300

600

1000

1500

2000

LBS

REACTION

160

300

510

760

1000

KGF

REACTION

70

140

230

340

450

©Copyright Task Force Tips, Inc. 2004-2006

31

6.4.3 MONSOON MONITOR FRICTION LOSS

20

0 1000 2000 3000

(LPM)

4000

16

MONSOON MONITOR FRICTION LOSS

12

5000

8

4

4 PSI AT 1000 GPM

0

0 500 1000

Flow (GPM)

1500

Fig 6.4.3F - Monsoon Monitor Friction Loss

6.5 STREAM STRAIGHTENERS

6.5.1 STREAM STRAIGHTENERS WITH STACKED TIP NOZZLES

Turbulence though the Monsoon

Monitor is very low but stream quality and reach can be improved with the u s e o f t h e i n t e g r a l s t r e a m straightener on the TFT stacked tip nozzle. See figure 6.5.1 for the stacked tip's integral stream straightener friction loss.

6000 7000

15 PSI AT 2000 GPM

OK

2000

0.6

0.4

0.2

0.0

1.2

1.0

0.8

8

4

0

0

20

0

16

12

1000 2000 3000

TFT STACKED TIP INTEGRAL STREAM

STRAIGHTENER FRICTION LOSS

(LPM)

4000

3 PSI AT 1000 GPM

5000 6000 7000

13 PSI AT 2000 GPM

500 1000

Flow (GPM)

1500

Fig 6.5.1 - TFT Stack Tip Integral Stream Straightener Friction Loss

2000

0.6

0.4

0.2

0.0

1.2

1.0

0.8

6.5.2 STREAM STRAIGHTENERS WITH FOG NOZZLES

When using a fog nozzle it is recommended that no stream straightener be used since the fog nozzle's flow path generally serves as a stream straightener. Use of a stream straightener with a fog nozzle will increase the stresses on the monitor's gear train and may lead to premature wear.

NOT OK

©Copyright Task Force Tips, Inc. 2004-2006

32

7.0 TROUBLE SHOOTING

SYMPTOM

Leaks

POSSIBLE CAUSE

Debris or damage in seal area

Elevation Binding

Horizontal Rotation

Binding

Debris or damage to elevation drive parts

Lack of lubricant

Debris or damage to horizontal drive parts

Lack of lubricant

No Power LED

Power LED On But No

Operation

Polarity reversed

Low voltage due to:

- wire gauge too small

- wire length too long

- poor connection

- inadequate apparatus electrical system

Operation only from monitor operator station.

STOW, & OSC LED’s blink when button pressed.

Incorrect wiring

Operation only from monitor control station

Communication board code version incompatible

One Axis Fails To Operate

From Any Control Station

Loose motor wiring connection

Bad motor control board

Vertical/Horizontial axis will not speed up

Vertical/Horizontial axis runs only in fast speed

Bad motor

Bad membrane switch

Loose encoder wiring connection

Bad motor encoder

Loose encoder wiring connection

Bad motor encoder

REMEDY

Clean out debris or replace damaged parts

Clean out debris or replace damaged parts

Grease, see section 8.1

Clean out debris or replace damaged parts

Grease, see section 8.1

Check wiring and reverse polarity

Check connections and wiring per section 5.1.2

Check blue/white communication wiring

Verify code versions on monitor and all operator stations

Check axis motor connection

Interchange motor control boards and check if problem persists with same axis, If not, replace motor control board.

Interchange motor control boards. Check if problem persists with same axis, If yes, replace motor.

Replace membrane switch / operator station

Check axis encoder connection

Interchange motor control boards. Check if problem persists with same axis. If yes, replace motor.

Remove encoder cover and check for RED light just below disk. If no light, encoder is bad. Replace motor.

Check axis encoder connection

Interchange motor control boards. Check if problem persists with same axis. If yes, replace motor.

Remove encoder cover and check for RED light just below disk. If no light, encoder is bad. Replace motor.

Check axis encoder connection.

Vertical/Horizontial axis only runs ~5 seconds and then stops.

Loose encoder wiring connection

Bad motor encoder Interchange motor control boards. Check if problem persists with same axis. If yes, replace motor.

Remove encoder cover and check for RED light just below disk. If no light, encoder is bad. Replace motor.

©Copyright Task Force Tips, Inc. 2004-2006

33

8.0 MAINTENANCE AND INSPECTION

The Monsoon Monitor requires little maintenance. The monitor should be kept clean and free of dirt. All controls should be checked for freedom of movement and proper operation before each use. Consult factory for recommended service procedure. Any inoperable or damaged parts should be repaired or replaced immediately.

• Make sure that the monitor's handwheels rotate freely and without binding throughout its range of travel.

• Make sure that there are no leaks when the monitor is flowing water.

• Make sure the nozzle is free of debris.

8.1 LUBRICATION CHART

The Monsoon monitor generally should not require greasing. In the event that the operation becomes stiff grease may be applied to the horizontal rotation and elevation worm gears. The grease is applied by removing the plugs at the grease ports and replacing with grease fittings that have ¼-28 male threads. See figures 8.1A and 8.1B for grease port locations. Use medium viscosity automotive chassis grease. Apply only enough grease to restore normal operation. If normal operation is not restored by greasing than inspect for other causes of stiff operation.

Note: Do not over pump grease. The monitor's greased areas lead to large chambers that could trap several pounds of grease before becoming visible.

Install grease fittings here if desired.

Install grease fitting here if desired.

Fig 8.1A

Location of Grease Port for Horizontal Rotation Worm Gear and Elevation Joint

Fig 8.1B

Location of Grease Port for Elevation Worm Gear

8.2 PERFORMANCE TESTING

Performance tests should be conducted on the Monsoon Monitor after repairs are made, or any time a problem is reported to verify operation in accordance with Task Force Tips test procedures. Consult the factory for the test procedure that corresponds to the model and serial number of your monitor. Any equipment that fails the test criteria should be removed from service immediately. Equipment can be returned to the factory for service and testing.

©Copyright Task Force Tips, Inc. 2004-2006

34

9.0 MONSOON RC DRAWING & PARTS LIST

7

8

6

4

5

3

2

1

9

TO

POWER

CABLE

10

TO TFT

ER NOZZLE

MALE PLUG

14

13

12

11

TO HORIZONTAL

GEAR MOTOR

TO VERTICAL

GEAR MOTOR

Fig 9.0A

Monsoon Monitor

Control Box Assembly

# DESCRIPTION

1 CABLE FITTING PG11

2 CABLE FITTING PG9

3 ENCLOSURE - BOX

4 LOCKNUT - PG9

5 LOCKNUT - PG11

6 BOARD - COMMUNICATION

7 ENCLOSURE - LID

8 CONTROL SWITCH PAD

9 BOARD - MOTOR CONTROL

10 BOARD - MAIN

11 V10-32 x 1/4 SET SCREW

12 O-RING-018

13 CONDUIT HOSE FITTING

14 FEMALE PLUG - 2 POLE

FOR MONSOON RC NOZZLE CONNECTION

28 .0" TOTAL

LENGTH USED

1

2

3

1

2

1

1

1

3

1

QTY.

1

1

1

23.0" EXPOSED CABLE

(NOT INCLUDING PLUG)

PART NO.

Y5205

Y5245

Y5115

Y5246

Y5206

Y5110

Y5115

Y5700

Y5100

Y5105

VT10Y32SS250

VO-018

Y5213

Y5280

©Copyright Task Force Tips, Inc. 2004-2006

35

9.0 MONSOON DRAWING & PARTS LIST

©Copyright Task Force Tips, Inc. 2004-2006

Fig 9.0B

Monsoon Mechanical Parts

Exploded View

36

2

3

# DESCRIPTION

1 BASE CODE-RPF 4" -ALUMINUM

BASE CODE-RLF 3" -ALUMINUM

O-RING -350 4 5/8 ID 3/16 C/S

LOWER SEGMENT -ALUMINUM

4

5

1/4-28 X 1/2 SOCKET SET SCREW CUP POINT

1/4-28 X 1/4 SOCKET SET SCREW

6 HEYCO BLACK DOME PLUG #2613

10 BALL 7/16" TORLON

11 BALL PORT PLUG

12 1/4 NPT PLUG - HEX SOCKET

13 DOWEL PIN .3127+-.0001 DIA 1.00+-.012 LG

14 LOWER SHROUD

15 O-RING-245 4-3/8 ID 1/8 C/S

16 LOWER RING GEAR

20 MIDDLE SEGMENT -ALUMINUM

21 UPPER RING GEAR

22 UPPER SEGMENT -ALUMINUM

23 UPPER SHROUD

24 1/4-20 X 3/8 BUTTON HEAD CAP SCREW

25 BALL 7/16" TORLON

26 1/2-20 X 3/8 SOCKET SET SCREW CUP POINT

30 HALF RING GEAR

31 5/16-18 X 1/2 SOCKET HEAD CAP SCREW

32 3/16" BALL - TORLON

33 PINION

34 PLUG 2-1/4 MOUNTING HOLE

35 BALL 5/16" TORLON

36 3/8-24 X 5/16 SOCKET SET SCREW CUP POINT

37 3/16" BALL - TORLON

40 HEADED BUSHING

41 DRIVE SHAFT

42 KEY; 1/8" X 1.00"

43 SPACER

44 12 DP WORM

45 BEARING SKF6202-2RS SEAL BOTH SIDES

46 WASHER .97 OD X .595 ID X .048 THICK

50 E-CLIP 5/8" EXTERNAL X .042

51 SNAP RING

52 PLUG 1-3/8 MOUNTING HOLE

53 KNOB - SOFT TOUCH

54 WASHER .812"OD .406"ID .065"THICK

55 HANDWHEEL

56 CRANK BUSHING

57 3/8-16 X 1-1/2 BUTTON HEAD CAP SCREW

60 HANDWHEEL LABEL; DOWN <-> UP

61 HANDWHEEL LABEL; RIGHT <-> LEFT

62 NAME LABEL: MONSOON (MANUAL MODEL)

©Copyright Task Force Tips, Inc. 2004-2006

37

QTY

1

2

74

1

1

1

6

32

1

1

1

1

1

1

1

2

1

1

1

1

5

2

8

32

1

2

2

2

2

2

2

2

2

2

49 X 2 RACES

2

36 X 2 RACES

2

2

2

2

2

2

1

1

1

PART #

Y4400A

Y4405A

VO-350

Y4110A

VT25-28SS500

VT25-28SS250

VM4124

VB437TO

Y4155

VFSP2M-SS

VP312X1.00

Y4130

VO-245

Y4220

Y4210A

Y4320

Y4310A

Y4240

VT25-20BH375

VB437TO

VT50-20SS375

Y4230

VT31-18SH500

V2120-TORLON

Y4120

Y4162

VB.312TO

VT37-24SS312

V2120-TORLON

Y4141

Y4160

X225

Y4150

X220

VM4250

VW97X595-048

VR4295

VR4220

Y4161

A1512

VW812X406-65

X281

A1513

VT37-16BH1.5

Y4175

Y4170

Y4182

9.0 MONSOON RC DRAWING & PARTS LIST

©Copyright Task Force Tips, Inc. 2004-2006

38

Fig 9.0C

Monsoon RC

Exploded View of Electric Parts

# DESCRIPTION

1 CABLE-POWER & COM 2C#14

2 1/4-20 X 1/2 BUTTON HEAD CAP SCREW

3 .375 OD LOOP CLAMP STAINLESS

4 LOWER WIRE SKIRT

5 UPPER WIRE SKIR

6 BALL 5/16" STAINLESS

10 1/4-28 X 1/2 SOCKET HEAD CAP SCREW

11 CONTROL BOX BRACKET

11* CONTROL BOX BRACKET FOR LADDER & PLATFORM

12 HEYCO BLACK DOME PLUG #2643

13 MAIN MONITOR CONTROL BOX

14 .250 OD LOOP CLAMP STAINLESS

15 10-24 X 3/8 BUTTON HEAD CAP SCREW

16 CLOSURE CAP ASSEMBLY

17 CABLE - 2 POLE FEMALE PLUG

20 GEAR MOTOR SUBASSEMBLY

(#20 Contains Items #21 Thru #32, Except #27))

21 CUP SEAL 1.0625 X .5625 X 1/4

22 6-32 X 5/16 LONG SHCS WITH HEAD SEAL

23 MOTOR SOCKET

24 O-RING-038 2-5/8 ID 1/16 C/S

25 GEAR MOTOR WITH ENCODER

26 ENCLOSURE

27 1/4-28X3/4 SOCKET HEAD CAP SCREW

30 O-RING-018 3/4 ID 1/16 C/S

31 CONDUIT FITTING

32 HOSE - 3/8" ID PUSH-LOK

33 NAME LABEL: MONSOON RC

34 STOP BALL RETAINER

35 WIRE SKIRT RETAINER

1

1

1

1

1

2

1

2

QTY

30 FEET

3

3

1

8

1

1

1

1

1 FOOT

1

1

12

4

1

1

1

1

1

1

4

PART #

Y5200

VT25-20BH500

Y4655

Y4660

Y4650

VB.312

VT25-28SH500

Y4618

Y4619

VM4123

Y5800

Y4656

VT10-24BH375

Y5340

Y5280

Y4950

Y4620

VT06S32SH312

Y4615

VO-038

Y4610

Y4616

VT25-28SH750

VO-018

Y5213

Y5250

Y4180

Y4651

Y4661

©Copyright Task Force Tips, Inc. 2004-2006

39

10.0 WARRANTY

Task Force Tips, Inc., Valparaiso, Indiana 46383-6940 (“TFT”) warrants to the original purchaser of its Monsoon and

Monsoon RC Monitor (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.

TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383-6940, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to it, it will correct the problem within a reasonable time. If the equipment is covered by this limited warranty,

TFT will assume the expenses of repair.

If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.

This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part consideration for limiting

TFT’s liability. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.

THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE

EQUIPMENT ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS

FOR A PARTICULAR PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED

IN THE DOCUMENT.

TASK FORCE TIPS, Inc.

2800 E. Evans Ave., Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 2004-2006

LIY-200 December 21, 2006 Rev04

®

Addendum

RC Monitor Installation Manuals

LIY-200, LIY-300, LIX-300

YE-REMAUX Remote Auxiliary Interface Box

The Remote Auxiliary Interface Box allows a user to utilize the AUX1 and AUX2 buttons located on the monitor operator station or any remote operator station. The Interface Box is equipped with two relays that can operate lights, interface to a valve controller or in some cases operate a valve directly, etc. The contact rating of the relay is 16 amps @ 30VDC for resistive loads and 8 amps @ 30VDC for inductive loads.

The installer will need to mount the interface box and connect the cable to power and the communication link of the monitor.

WARNING

The Interface Box provides no overload protection for the device it is controlling. Failure to provide overload protection will damage relay contacts, which will disable device being controlled.

1.0 ENCLOSURE MOUNTING

Select proper enclosure location. Enclosure is designed to be surface mounted and the size is 5” x 3 1/8” (127 x 80mm).

Height of enclosure is 2 3/8” (60mm). Refer to Figure 1.0.1 for mounting hole dimensions.

MOUNT ENCLOSURE

WITH (2) 1/4-20 FASTENERS

TIGHTEN SECURELY.

4.45

Figure 1.0.1

Hole Dimensions

1.1 ELECTRICAL WIRING

The interface box needs to be connected to +12/24VDC (red) and ground (black). The blue & white wires from the interface box cable need to be connected to the blue & white wires from the monitor. A terminal box or a high quality, protected splice can be used to make these connections. See section 5.0 of installation manuals for further wiring information.

Each relay has one Form-C contact (common, normally open, normally closed) that can be used.

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD1 April 26, 2006 Rev00

2.0 CONFIGURATION

The two relays on the circuit board can be individually configured as AUX1 or AUX2. Also the actuation of each relay can be configured to be momentary or latched. See Figure 2.0.1 for relay configuration DIP switch settings.

1.

Remove lid from interface box.

2.

Locate DIP switches on board and select configuration.

3.

Replace lid. Verify rubber seal is clean and undamaged. Verify that no wires are caught between lid and box.

Figure 2.0.1

Relay Configuration

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD1 April 26, 2006 Rev00

®

Addendum

RC Monitor Installation Manuals

LIY-200, LIY-300, LIX-300

Y4E-COMM Communication Interface Box with AT STOW Relay

The new style Communication Interface Box provides feedback for the user that the monitor is in the AT STOWED position.

The Interface Box contains a circuit board that is equipped with a relay that is energized when the monitor is in use and deenergized when the monitor reaches its final STOW location. The contact rating of the relay is 1 amp @ 30VDC for resistive loads and 0.2 amps @ 30VDC for inductive loads.

1.0 ENCLOSURE MOUNTING

See section 5.7.1 of installation manual for mounting.

1.1 ELECTRICAL WIRING

See section 5.7.2 of installation manual for wiring information regarding power and communication wires.

The AT STOW relay has one Form-C contact (common, normally open, normally closed) that can be used. The figure below shows the terminal blocks available for user wiring.

Figure 1.1.1

Relay / Terminal Location

AT STOW RELAY

USER TERMINALS

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD2 April 26, 2006 Rev 00

®

Addendum Monsoon RC Monitor

Ladder & Platform Version

Installation Manual, LIY-200

Electronics Enclosure with AT STOW Relay

The new style electronics enclosure provides feedback for the user that the monitor is in the AT STOWED position. This electronics enclosure contains a circuit board that is equipped with a relay that is energized when the monitor is in use and de-energized when the monitor reaches its final STOW location. The contact rating of the relay is 1 amp @ 30VDC for resistive loads and 0.2 amps @ 30VDC for inductive loads.

1.0 ENCLOSURE MOUNTING

See section 5.11.1 of installation manual for mounting.

1.1 ELECTRICAL WIRING

See section 5.11.2 of installation manual for wiring information regarding power and communication wires.

The AT STOW relay has one Form-C contact (common, normally open, normally closed) that can be used. The figure below shows the terminal blocks available for user wiring.

AT STOW RELAY

USER TERMINALS

Figure 1.1.1

Relay / Terminal Location

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD3 April 26, 2006 Rev 00

®

Addendum

RC Monitor Installation Manuals

LIY-200, LIY-300, LIX-300

YE-RF-900 Wireless Operator Station, 900 MHz

The Wireless Operator Station is radio linked to the monitor so that the operator can control the water discharge from the best vantage point. This operator station gives the user full control of the monitor including the STOW, OSCillate, and any

AUXiliary functions. Every TFT RC monitor is shipped with the receiver and antenna pre-mounted in the monitor control box. All the user needs to do is mount the storage bracket and teach the ID code to the handheld unit.

The range of the wireless operator station is 500 ft (152 m) and the handheld unit is powered by four (4) AA batteries, lithium batteries are recommended. Lithium batteries will provide 33 hours of continuous operation. When the battery voltage falls below a set level, the POWER led will begin to flash. At this point there is ~3 hours of continuous operation remaining. Other battery types will significantly reduce operating time and unit reliability.

The handheld unit will automatically turn off after 5 minutes if no buttons are pressed.

1.0 SPECIFICATIONS:

Handheld Unit Batteries

Transmitting Power

Operating Range

Operating Frequency

Agency Approvals

Four (AA) Batteries, Lithium Recommended

100mW

500 ft (152m)

900 MHz (902-928 MHz)

FCC Part 15.247

Industry Canada (IC)

Europe

OUR9XSTREAM

4214A-9XSTREAM

N/A

1.1 TEACHING ID CODE:

Every monitor has a unique ID code that must be “taught or transferred” to the handheld unit. This unique ID code allows multiple monitors to be used in one location without interference. Perform the following procedure to teach the handheld unit.

On Handheld Unit:

-Press POWER button to turn on electronics.

-Press and hold both LEFT & RIGHT buttons for 5 seconds.

-Continue to press LEFT & RIGHT buttons and then press UP button for 2 seconds.

-Release buttons. OSC & STOW leds will flash rapidly to indicate that the unit is in teach mode.

On Monitor Control Box:

-Apply power to monitor.

-Press and hold both LEFT & RIGHT buttons for 5 seconds.

-Continue to press LEFT & RIGHT buttons and then press UP button for 2 seconds.

-Release buttons. OSC & STOW leds will flash rapidly to indicate that the unit is in teach mode.

-OSC & STOW leds on handheld unit will stop flashing after ID code is transferred.

-Press DOWN button on monitor control box to exit teach mode.

-Cycle power off and back on to monitor.

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD4 December 13, 2006 Rev 00

1.2 OPERATION:

-Press POWER button to turn on electronics.

-Use operator station just like any other wired operator station.

-Press POWER button again to turn off electronics or after 5 minutes of idle operation, handheld unit will automatically turn off.

NOTE!!!

If after pressing a button, the OSC & STOW leds alternately flash, this indicates no communication link is present with the monitor. The handheld unit is out of range or cannot establish a link with the monitor. Move to a different location and then retry, also verify monitor has power applied.

1.3 CHANGING BATTERIES:

-Remove two (2) screws on backside of handheld unit and slide bottom half of rubber bumper off enclosure.

-Replace batteries verifying that polarity is correct.

-Replace rubber bumper and retaining screws.

CAUTION

Properly dispose of old batteries. Do not puncture, incinerate, or disassemble batteries.

Do not mix battery types.

2.0 MOUNTING STORAGE BRACKET

Select proper location for mounting storage bracket. Panel spare required will be 6.0“ x 11.2“ (152 x 285mm). Refer to Figure 2.0 for hole dimensions. Bracket can be used as a template. Be sure spring is in position.

Drill (3) Pilot Holes

(refer to hole size chart)

Mount Bracket with (3)

1/4-20 Self-Tapping Screws.

Tighten Securely.

6"

[152mm]

Spring

5"

[127mm]

Fig 2.0 Wireless Operator Station

Storage Bracket Hole Dimensions

Hole Size Chart For Self Tapping Screws

ALUMINUM STEEL

Material Hole Size Use

Thickness Inches mm Drill

5/64-3/32

1/8

3/16

.206

.213

.221

5.2

5.4

5.6

#5

#3

#2

Material Hole Size Use

Thickness Inches mm Drill

3/32

1/8

3/16

.213

.221

.228

5.4

5.6

5.8

#3

#2

#1

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 2006 LIY-ADD4 December 13, 2006 Rev 00

TASK FORCE TIPS, Inc.

2800 E. Evans Ave., Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 2004-2006

LIY-200 December 21, 2006 Rev04

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
