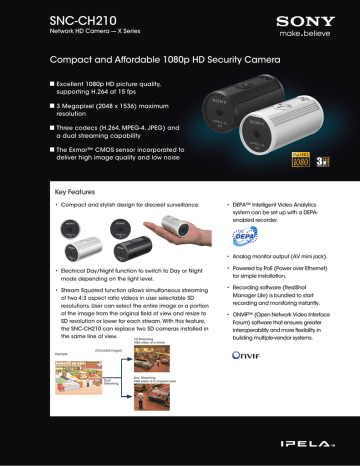

SNC-CH210
Network HD Camera --- X Series
Compact and Affordable 1080p HD Security Camera
Excellent 1080p HD picture quality,
supporting H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum
resolution
Three codecs (H.264, MPEG-4, JPEG) and
a dual streaming capability
The Exmor™ CMOS sensor incorporated to
deliver high image quality and low noise
Key Features
• Compact and stylish design for discreet surveillance.
• D
EPA™ Intelligent Video Analytics
system can be set up with a DEPAenabled recorder.
• Analog monitor output (AV mini jack).
• E
lectrical Day/Night function to switch to Day or Night
mode depending on the light level.
• S
tream Squared function allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. User can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream. With this feature,
the SNC-CH210 can replace two SD cameras installed in
the same line of view.
1st Streaming
VGA video of a whole
Example
(Simulated Images)
Dual
Streaming
2nd Streaming
VGA video of a cropped area
• P
owered by PoE (Power over Ethernet)
for simple installation.
• R
ecording software (RealShot
Manager Lite) is bundled to start
recording and monitoring instantly.
• O
NVIF™ (Open Network Video Interface
Forum) software that ensures greater
interoperability and more flexibility in
building multiple-vendor systems.
SPECIFICATIONS
SYSTEM CONFIGURATION
SNC-CH210
Number of effective pixels
(H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Camera Features
Day/Night
Noise reduction
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
Scene Analytics
Intelligent motion detection
Network
Protocols
ONVIF software
Number of clients
Authentication
Analog Video Output
Signal system
Interface
Ethernet
Analog monitor output
Sensor input
General
Weight
Dimensions
Power requirements
Power consumption
Starting temperature
Working temperature
Storage temperature
Safety regulation
System Requirements
Operating system
Processor
Memory
Web browser
Supplied Accessories
Operating system
HD monitor
1/2.8 type progressive scan Exmor CMOS sensor
2.0lx
(AGC 38dB / 50IRE[IP])
3 Megapixel
(2096×1561)
1s to 1/10000s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual
fixed
88 degrees
f=3.3 mm
F2.8
500 mm
Network Surveillance
Recorder
NSR-S10
SNC-CH210
Network
Recording Software
RealShot Manager Lite
SNC-CH210
PC
Yes (electrical D/N)
Yes
2048×1536(JpegOnly), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960,
1376x768, 1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480,
720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
H.264: 15fps (1920×1080) / 30fps (1280×720)
JPEG: 12fps (2048×1536) / 15fps (1920×1080) / 30fps (1280×720)
MPEG-4: 15fps (1920×1080) / 30fps (1280×720)
DIMENSIONS
Unit: inches (mm)
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
Yes
5
IEEE802.1X
NTSC / PAL
10BASE-T / 100BASE-TX (RJ-45)
MiniJack
x1
3.5 oz (100g)
ø 44 x 93 mm (1 3/4 x 3 3/4 inches)
PoE (IEEE802.3af compliant)
2.4W
0°C to 50°C (32°F to 122°F)
0°C to 50°C (32°F to 122°F)
-20°C to +60°C (-4°F to +140°F)
UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,
C-Tick Class A
Microsoft Windows XP®, Windows Vista® (32bit), Windows® 7 (32bit)
Intel Core2 Duo® 2 GHz or higher
1 GB or more
Microsoft Internet Explorer® Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox® Ver.3.5 (Plug-in free viewer only)
Safari® Ver.4.0 (Plug-in free viewer only)
Google® Chrome Ver.4.0 (Plug-in free viewer only)
1 13/16(46)
3 3/4(93)
ø1 3/4(44)
Camera
Image device
Minimum illumination
CD-ROM (User’s Guides, and supplied programs)
Installation manual
B&P Warranty Booklet
Front Sheet (with logo)
Front Sheet (without logo)
Sensor input cable
* The SNC-CH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2072 (MK10719V1)
© 2010 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Weights and measurements are approximate
Sony, 'make.believe', IPELA, DEPA, Exmor and their respective logos
are trademarks of Sony.
All other trademarks are the property of their respective owners.
Printed in USA (8/10)
