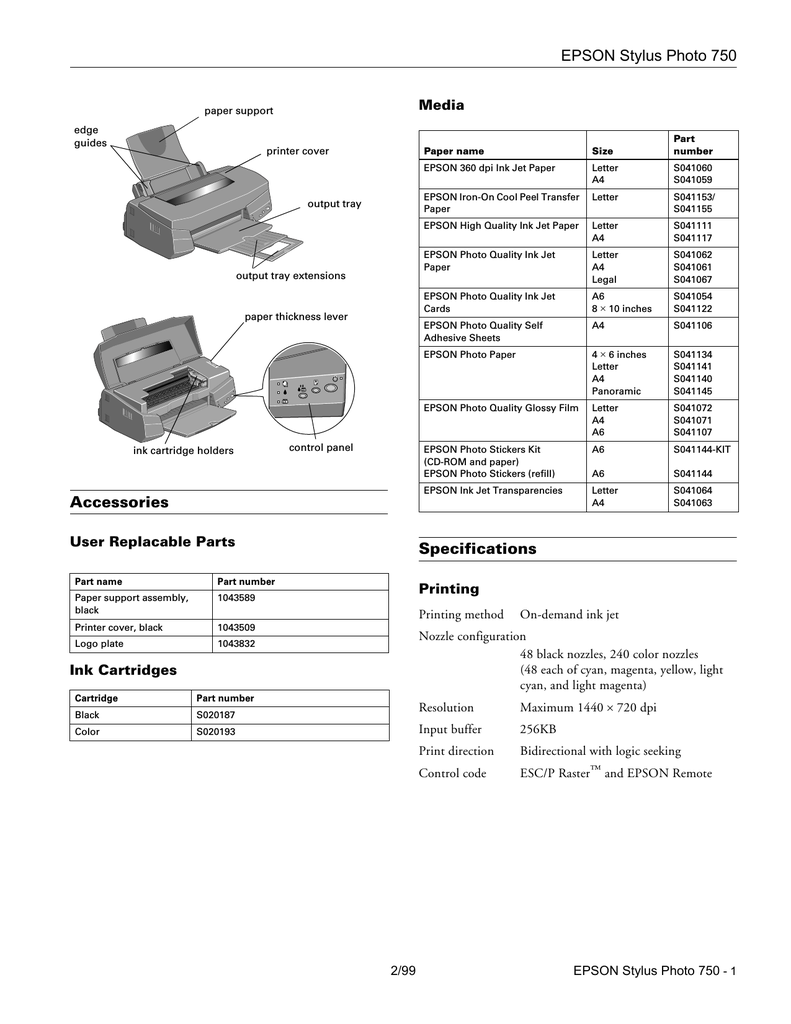

Epson Stylus Photo 750 Specifications

EPSON Stylus Photo 750
Media
paper support
edge
guides
printer cover
output tray
output tray extensions
paper thickness lever
ink cartridge holders
control panel
Paper name
Size
Part
number
EPSON 360 dpi Ink Jet Paper
Letter
A4
S041060
S041059
EPSON Iron-On Cool Peel Transfer
Paper
Letter
S041153/
S041155
EPSON High Quality Ink Jet Paper
Letter
A4
S041111
S041117
EPSON Photo Quality Ink Jet
Paper
Letter
A4
Legal
S041062
S041061
S041067
EPSON Photo Quality Ink Jet
Cards
A6
8 × 10 inches
S041054
S041122
EPSON Photo Quality Self
Adhesive Sheets
A4
S041106
EPSON Photo Paper
4 × 6 inches
Letter
A4
Panoramic
S041134
S041141
S041140
S041145
EPSON Photo Quality Glossy Film
Letter
A4
A6
S041072
S041071
S041107
EPSON Photo Stickers Kit
(CD-ROM and paper)
EPSON Photo Stickers (refill)
A6
S041144-KIT
A6
S041144
EPSON Ink Jet Transparencies
Letter
A4
S041064
S041063
Accessories
User Replacable Parts
Part name
Part number
Paper support assembly,
black
1043589
Printer cover, black
1043509
Logo plate
1043832
Specifications
Printing
Printing method
Nozzle configuration
48 black nozzles, 240 color nozzles
(48 each of cyan, magenta, yellow, light
cyan, and light magenta)
Ink Cartridges
Cartridge
Part number
Black
S020187
Color
S020193
On-demand ink jet
2/99
Resolution
Maximum 1440 × 720 dpi
Input buffer
256KB
Print direction
Bidirectional with logic seeking
Control code
ESC/P Raster™ and EPSON Remote
EPSON Stylus Photo 750 - 1
EPSON Stylus Photo 750
Paper
Paper
Size
Types
Thickness
Weight
Single sheets
Letter (8.5 × 11 inches)
A4 (210 × 297 mm)
A5 (148 × 210 mm)
B5 (182 × 257 mm)
Legal (8.5 × 14 inches)
Half letter (5.5 × 8.5 inches)
Executive (7.5 × 10 inches)
Plain paper and
special ink jet papers
distributed by
EPSON
0.003 to 0.004 inch (0.08 to 0.11
mm)
17 to 24 lb
(64 to 90 g/m2)
Transparencies and
glossy film
Letter (8.5 × 11 inches)
A4 (210 × 297 mm)
A6 (105 × 148 mm, glossy film only)
Transparencies and
glossy film
distributed by
EPSON
—
—
Photo paper
4 × 6 inches (102 × 152 mm)
Letter (8.5 × 11 inches)
A4 (210 × 297 mm)
Panoramic (8.27 × 23.4 inches)
Photo paper
distributed by
EPSON
—
—
Photo stickers
A6 (105 × 148 mm) with 16 frames
Photo stickers
distributed by
EPSON
—
—
Self adhesive sheets
and iron-on cool peel
transfer paper
A4 (210 × 297 mm)
Letter (8.5 × 11 inches; iron-on cool
peel transfer paper only)
Self adhesive sheets
and iron-on cool peel
transfer paper
distributed by
EPSON
—
—
Envelopes
#10 9.5 × 4.1 inches (240 × 104 mm)
DL 8.7 × 4.3 inches (220 × 110 mm)
C6 4.4 × 6.4 inches (114 × 162 mm)
Note card envelope 5.2 × 8.7 inches
(132 × 220 mm)
Plain, bond, or
air mail paper
0.006 to 0.02 inch (0.16 to 0.52 mm)
12 to 20 lb
(45 to 75 g/m2)
Cards
A6 (105 × 148 mm)
8 × 10 inches (203 × 254 mm)
Ink jet cards
distributed by
EPSON
—
—
Note:
Print only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity:
40 to 60% RH
Store glossy film and self adhesive sheets under these conditions:
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity:
20 to 60% RH
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the use of
any particular brand or type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.
Poor quality paper may reduce print quality and cause paper jams and other problems. If you encounter problems, switch to a higher grade of
paper. Do not load curled or folded paper, envelopes, or transparencies.
2 - EPSON Stylus Photo 750
2/99
EPSON Stylus Photo 750
Printable area
Ink Cartridges
A
Specification
Black ink cartridge
(S020187)
Color ink cartridge
(S020193)
Color(s)
Black
Cyan, magenta,
yellow, light cyan,
light magenta
Print capacity*
540 pages (ISO/IEC letter
pattern at 360 dpi)
220 pages (15%
coverage at 360 dpi)
Cartridge life
2 years from production date and within 6 months
of opening package at 77 °C (25 °F)
Storage
temperature
–4 to 104 °F (–20 to 40 °C)
1 month at 104 °F (40 °C)
Transit
temperature
–22 to 140 °C (–30 to 60 °F)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Freezing
temperature**
3.2 °F (–16 °C)
–0.4 °F (–18 °C)
Dimensions
0.78 (W) × 2.1 (D) ×
1.5 (H) inches
19.8 (W) × 52.7 (D) ×
38.5 (H) mm
2.0 (W) × 2.1(D) ×
1.5 (H) inches
51.4 (W) × 52.7 (D) ×
38.5 (H) mm
B-R
B-L
C
C
Single sheets and cards
A
B-R
C
B-L
Envelopes
B-L
* The print capacity may vary depending on how often you
clean the print head.
C
A
B-R
** The ink thaws and is usable after approximately 3 hours at
77 °F (25 °C).
EPSON Panoramic Photo
To ensure good results, use genuine EPSON
cartridges and do not refill them. Other products may
cause damage to your printer not covered by
EPSON’s warranty.
A The minimum top margin is 0.12 inch (3 mm).
When printing on multiple sheets of EPSON Photo Quality
Glossy Film, the minimum top margin is 1.2 inches (30 mm).
BL The minimum left margin is 0.12 inch (3 mm).
Do not use an ink cartridge after the expiration date
on the package.
BR The minimum right margin is:
0.35 inch (9 mm) for Letter and Legal size paper
1.10 inches (28 mm) for #10 envelopes
0.28 inch (7 mm) for DL envelopes
0.12 inch (3 mm) for all other paper sizes.
Mechanical
Paper feed method Friction with auto sheet feeder, rear entry
C The minimum bottom margin is 0.55 inch (14 mm) using the
Standard printable area setting. This can be decreased to
0.12 inch (3 mm) using the Maximum printable area setting.
However, the print quality in the expanded printable area may
be reduced, so it is best to use it for text documents only;
don’t use it for photographs or graphics.
Sheet feeder
capacity
Maximum 100 sheets of 17 lb (64 g/m2)
paper
Dimensions
Note:
Always load paper into the sheet feeder short edge first, except
envelopes; load envelopes long edge first.
Storage
Width: 16.9 inches (429 mm)
Depth: 10.3 inches (261 mm)
Height: 6.6 inches (167 mm)
Printing
Width: 16.9 inches (429 mm)
Depth: 24.0 inches (609 mm)
Height: 11.5 inches (292 mm)
Weight
2/99
11.5 lb (5.2 kg) without the ink cartridges
EPSON Stylus Photo 750 - 3
EPSON Stylus Photo 750
Environmental
Reverse channel
Temperature
Operation
Storage*
50 to 95 °F (10 to 35 °C)
–4 to 104 °F (–20 to 40 °C)
1 month at 104 °F (40 °C)
–4 to 140 °F (–20 to 60 °C)
120 hours at 140 °F (60 °C)
Transit*
Humidity
Operation
Storage*
20 to 80% RH
5 to 85% RH (without condensation)
* Stored in shipping container
120V model
Input voltage range
99V to 132V
Rated frequency range
50 to 60 Hz
Description
Transmission mode
IEEE-1284 Nibble mode
Adaptable connector
57-30360 Amphenol connector or
equivalent
Synchronization
Refer to the IEEE-1284 specification
Handshaking
Refer to the IEEE-1284 specification
Signal level
IEEE-1284 Level 1 device
Data transmission
timing
Refer to the IEEE-1284 specification
Serial interface
Electrical
Specification
Specification
Specification
Description
Standard
Based on RS-423
Synchronization
Synchronous
Bit rate
Approximately 1.8 Mbps
Handshaking
X-ON/X-OFF and DTR protocol
Word format
Data bit: 8 bits
Parity bit: None
Start bit: 1 bit
Stop bit: 1 bit
Connector
8-pin mini-DIN
Recommended
cable
ImageWriter® II serial cable (preferably
Belkin® brand)
240V model*
198V to 264V
Input frequency range
49.5 to 60.5 Hz
Rated current
0.4A (Max. 05.A)
Power consumption
Approx. 18 W (ISO 10561 Letter Pattern)
Approx. 5 W in standby mode
0.2A
* Also designed for IT power systems with Phase to Phase
voltage 220–240V
Safety Approvals
Safety standards
UL 1950, CSA 22.2 No. 950
EMC
FCC part 15 subpart B class B
USB interface
Specification
Description
Standard
Based on Universal Serial Bus Specifications
Revision 1.0, Universal Serial Bus Device Class
Definition for Printing Devices Version 1.0
Bit rate
12 Mbps (full speed device)
Interfaces
Parallel interface
Forward channel
Specification
Description
Data format
8-bit parallel, IEEE-1284 compatibility mode
Synchronization
STROBE pulse
Handshake
timing
BUSY and ACKNLG signals
Signal level
TTL compatible
Connector
57-30360 Amphenol connector or equivalent
4 - EPSON Stylus Photo 750
2/99
Data encoding
NRZI
Adaptable
connector
USB Series B
Recommended
cable length
6.5 feet (2 meters) or less
EPSON Stylus Photo 750
Control Panel
Installing Ink Cartridges for the First
Time
power
light
power
button
1. Make sure the printer is turned off (the P power button
level is raised above the control panel level). Then plug the
printer’s power cord into a grounded outlet.
paper
out light
Don’t use an outlet that can be turned off by a wall
switch or timer, or one on the same circuit as a large
appliance to avoid damaging the printer’s power
supply.
black ink
out light
color ink
out light
2.
Lower the printer’s output tray and open the cover.
cleaning button load/eject button
S flashing
When the S paper out light flashes, paper is jammed
in the printer. Turn off the printer, remove all the
paper (including any pieces torn off inside), then
reload the stack. Turn on the printer and press the
E load/eject button. To avoid paper jams, see your
printer manual.
S
When the S paper out light comes on, your paper is
out or incorrectly loaded. Load paper in the feeder
and then press the E load/eject button.
on
B or A
flashing
When an ink out light flashes, your ink supply is low.
Make sure you have a replacement cartridge.
B or A
on
When an ink out light comes on, you need to replace
the ink cartridge. See “Replacing an Ink Cartridge”
on page 8 for instructions.
flashing
on
When the Ppower and S paper out lights flash and
the B black and A color ink out lights come on,
jammed paper may be blocking movement of the
print head. See your printer documentation for more
information.
PS
BA
PSBA
flashing
3. Press the Ppower button to turn on the printer. The
Ppower light flashes and the B black and A color ink out
lights come on. The ink cartridge holders move into loading
position.
Always use the P power button to turn the printer on
or off. Never use an external switch, such as a power
strip switch.
When all the lights flash, your printer may have an
internal error. See your printer documentation for
more information.
4. Lift up the two ink cartridge clamps.
Printer status indications
P
B black
A color
Status
power
ink out
ink out
S paper
out
Power on
on
—
—
—
Ink sequence,
exchange, or
data processing
flashing
—
—
—
Paper out
—
—
—
on
Paper jam
—
off
off
flashing
Ink out or no
black cartridge
—
on
—
—
Ink level low
(black)
—
flashing
—
—
Ink out or no
color cartridge
—
—
on
—
Ink level low
(color)
—
—
flashing
—
Maintenance
request
flashing
flashing
flashing
flashing
Fatal error
flashing
on
on
flashing
2/99
EPSON Stylus Photo 750 - 5
EPSON Stylus Photo 750
5. Remove the ink cartridges from their packages. Then
remove only the yellow part of the tape seal on top. Don’t
pull off the blue portion or remove the clear seal on the
bottom of the cartridge.
Loading Paper
1. Open the output tray extensions. Slide the left edge guide
right until it is a little wider than your paper.
Remove the yellow tape
Left edge
guide
black cartridge
color cartridge
2. Load a stack of plain paper and slide it against the right edge
guide. Then slide the left edge guide against the paper’s left
edge. Don’t load paper higher than the arrow on the guide.
You must remove the yellow tape seal from the
cartridge top or you will permanently damage it.
6. Load the ink cartridges as shown with the labels facing up
and toward the back of the printer. Then press down the
clamps until they lock into place.
Load paper only
up to this arrow
Slide paper
against the right
Testing the Printer
If ink gets on your hands, wash them thoroughly with
soap and water. If ink gets in your eyes, flush them
immediately with water.
You can run a printer operation check to determine whether
the problem comes from the printer itself or some other
source. If the check page prints, the problem lies in your
software or application settings, the interface cable, or your
computer. If the check page does not print correctly, you may
have a problem with your printer.
7. Press the R cleaning button to begin charging the ink
delivery system, then close the printer cover.
Charging takes about a minute. The Ppower light flashes
and the printer makes noise until it’s finished.
1. Make sure both the printer and computer are turned off.
Don’t turn off the printer or interrupt the charging process
or it will start over, using more ink than necessary.
Charging is finished when the Ppower light stops flashing
and stays on.
2. Disconnect the interface cable from the printer.
3. Make sure paper is loaded in the printer.
4. Hold down the E load/eject button, then press and release
the Ppower button. Continue holding down the
E load/eject button until the Ppower light starts to flash,
then release it. The printer prints its ROM version number,
an ink counter code, and a nozzle check pattern (as shown
on page 10).
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made
any noise for more than 5 minutes.
5. After the test page prints, turn off the printer. Reconnect
the interface cable and turn on your printer and computer.
6 - EPSON Stylus Photo 750
2/99
EPSON Stylus Photo 750
❏ If your media has a cut corner, position it in the upper right
corner in the sheet feeder.
Printing on Special Media
When you print on special paper, you need to choose the
correct Media Type and Paper Size settings in your printer
software. The table below lists the available EPSON papers
and the corresponding Media Type setting for each one.
Paper name
Media Type setting
EPSON 360 dpi Ink Jet Paper
360 dpi Ink Jet Paper
Cut corner
EPSON Iron-On Cool Peel Transfer
Paper
EPSON High Quality Ink Jet Paper
EPSON Photo Quality Ink Jet Paper
Photo Quality Ink Jet
Paper
EPSON Photo Quality Ink Jet Cards
It’s best not to use the Maximum printable area
setting in the printer software when printing on
paper with a cut corner. Part of your document may
print in the cut out area.
EPSON Photo Quality Self Adhesive
Sheets
EPSON Photo Paper
Photo Paper
EPSON Photo Quality Glossy Film
EPSON Photo Stickers)
Photo Quality Glossy
Film
EPSON Ink Jet Transparencies
Ink Jet Transparencies
❏ When you print on envelopes or other thick media, set the
paper thickness lever to the + position as shown below.
(Return the lever to the 0 position before printing on
regular media.)
Media Loading and Handling Guidelines
Don’t use any cleaning sheets included with special
paper; they may jam inside the printer.
The following tips help you get the best results on any type of
paper:
❏ Always handle sheets by the edges, and don’t touch the
printable surface.
❏ When you load paper, make sure the printable side is
facing up.
❏ Load paper only up to the arrow mark on the left edge
guide.
❏ Return unused sheets and envelopes to their original
package as soon as possible. See “Paper” on page 2 for more
storage information.
❏ If your paper package included protective sheets, cover the
printed side of your paper with these sheets before stacking
your paper.
❏ Use ink jet papers within one year of purchase; use glossy
film and transparencies within six months.
2/99
EPSON Stylus Photo 750 - 7
EPSON Stylus Photo 750
6. Remove only the yellow part of the tape seal on top as
shown below. Don’t pull off the blue portion or try to
remove the clear seal underneath the cartridge.
Replacing an Ink Cartridge
You can replace a cartridge when the B black or A color ink
out light is either flashing or on. (If you perform these steps
when both ink out lights are off, the printer cleans the print
heads, as described in “Cleaning the Print Head” on page 9.)
Remove the yellow tape
Use these EPSON ink cartridges within six months of
installing them and before the expiration date on the package:
Black ink cartridge S020187
Color ink cartridge S020193
To ensure good results, use genuine EPSON
cartridges and do not refill them. Other products may
cause damage to your printer not covered by
EPSON’s warranty.
black cartridge
color cartridge
You must remove the yellow tape from the top of the
cartridge or you will permanently damage it. Do not
remove the clear seal from the bottom of the
cartridge; ink will leak out
Follow these steps to replace ink cartridges:
1. Make sure the printer is turned on and not printing, then
open the printer cover.
7. Lower the new ink cartridge into its holder with the label
facing up and toward the back of the printer. Then press
down the ink cartridge clamp until it locks in place.
2. Press the R cleaning button and hold it for about three
seconds until the print head moves left and the Ppower
light begins flashing.
To avoid damaging the printer, never move the print
head by hand.
3. Pull up the ink cartridge clamp. The cartridge rises up from
its holder.
Don’t open the clamp or remove a cartridge except to
replace it with a new one. Once you remove a
cartridge, you can’t reuse it, even if it contains ink.
8. If you need to replace the other ink cartridge, repeat steps 3
through 7 before going on to step 9.
9. Press the R cleaning button and close the printer cover.
The printer moves the print head and begins charging the
ink delivery system. The Ppower light flashes, and the
printer makes various sounds.
4. Lift the cartridge out of the printer and dispose of it
carefully.
If ink gets on your hands, wash them thoroughly with
soap and water. If ink gets into your eyes, flush them
immediately with water.
Charging takes about one minute. When it’s finished, the
Ppower light stops flashing and stays on.
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made
any noise for more than 5 minutes.
5. Remove the new ink cartridge from its packaging.
8 - EPSON Stylus Photo 750
2/99
EPSON Stylus Photo 750
You must remove the yellow tape from the top of the
cartridge or you will permanently damage it. Do not
remove the clear seal from the bottom of the
cartridge; ink will leak out
Replacing an Outdated Ink Cartridge
If an ink cartridge is more than six months old and your
printouts don’t look as good as they used to, you may need to
replace it the cartridge. If print quality doesn’t improve after
cleaning and aligning the print head, you can replace one or
both cartridges. Follow these steps to replace an ink cartridge
before the B black or A color ink out light is flashing or on:
7. Lower the new ink cartridge into its holder with the label
facing up and toward the back of the printer. Then press
down the ink cartridge clamp until it locks in place.
1. Make sure the printer is turned on and not printing, then
open the printer cover.
2. Press the E load/eject button and hold it down for three
seconds until the print head moves to the left and the
Ppower light begins flashing.
To avoid damaging the printer, never move the print
head by hand.
Don’t open the clamp or remove a cartridge except to
replace it with a new one. Once you remove a
cartridge, you can’t reuse it, even if it contains ink.
3. Pull up the ink cartridge clamp. The cartridge rises up from
its holder.
8. If you need to replace the other ink cartridge, repeat steps 3
through 7 before going on to step 9.
9. Press the E load/eject button and close the printer cover.
The printer moves the print head and begins charging the
ink delivery system. The Ppower light flashes and the
printer makes various sounds.
Charging takes about one minute. When it’s finished, the
Ppower light stops flashing and stays on.
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made
any noise for more than 5 minutes.
4. Lift the cartridge out of the printer and dispose of it
carefully.
If ink gets on your hands, wash them thoroughly with
soap and water. If ink gets into your eyes, flush them
immediately with water.
Cleaning the Print Head
5. Remove the new ink cartridge from its packaging.
If your printed image is unexpectedly light or faint, or dots are
missing from the image, you may need to clean the print head.
This unclogs the nozzles so they can deliver ink properly.
6. Remove only the yellow part of the tape seal on top as
shown below. Don’t pull off the blue portion or try to
remove the clear seal underneath the cartridge.
Cleaning the print head uses ink, so clean it only if print
quality declines. You can clean the print head in either of the
following ways:
Remove the yellow tape
❏ Using the Head Cleaning utility in your printer software
(when connected to a local port, not over a network)
❏ Using the control panel buttons on your printer
black cartridge
Note:
When you don’t turn on your printer for a long time, the print
quality can decline. It’s a good idea to turn on your printer at least
once a month to maintain good print quality.
color cartridge
2/99
EPSON Stylus Photo 750 - 9
EPSON Stylus Photo 750
If you’re printing over a network, open an application and
print a document containing black and color data. Then go
to step 8.
Using the Head Cleaning Utility
Follow these steps to run the Head Cleaning utility:
1. Make sure the printer is turned on but not printing, and
both the B black and A color ink out lights are off.
4. Start an application, open a document, and access the
printer settings dialog box.
2. Start an application and open a document.
5. Click the Utility tab (Windows) or the
(Macintosh). You see the Utility menu.
3. Access the printer settings dialog box.
4. Click the Utility tab (Windows) or the
(Macintosh). You see the Utility menu.
Utility icon
6. Make sure paper is loaded in the printer, click the Nozzle
Check icon, and click Next. The nozzle check pattern
prints on the printer; see “Examining the Nozzle Check
Pattern” below for details.
Utility icon
5. Click the Head Cleaning icon.
6. Follow the instructions on the screen to clean the print
head. Cleaning takes a little over a minute, during which
the printer makes some noise and the Ppower light flashes.
7. If the nozzle check pattern is filled in completely, click
Finish. If the pattern is missing dots, click Clean to clean
again.
When the Ppower light stops flashing, run a nozzle check
to test the results and reset the cleaning cycle.
8. If you don’t see any improvement in the print quality after
cleaning two or three times, check the solutions in your
printer documentation.
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made
any noise for more than 5 minutes.
Examining the Nozzle Check Pattern
7. Make sure paper is loaded in the printer and click Print
nozzle check pattern (Windows) or Confirmation
(Macintosh). Then click Next. The nozzle check pattern
prints on your printer; see “Examining the Nozzle Check
Pattern” on page 10 for details.
Examine the nozzle check pattern you print. It should look
something like this:
8. If the nozzle check pattern is filled in completely, click
Finish.
Each staggered horizontal and straight vertical line should be
complete, with no gaps in the dot pattern. If your printout
looks okay, you’re done. If any dots are missing, as shown
below, clean the print head again; see “Cleaning the Print
Head” on page 9 for instructions.
If the pattern is missing dots, click Clean to clean again. If
you don’t see any improvement in the print quality after
cleaning two or three times, check the solutions in your
printer documentation.
Using the Control Panel
Follow these steps to clean the print head:
missing dots
1. Make sure the printer is turned on but not printing, and
both the B black and A color ink out lights are off.
2. Press the R cleaning button and hold it down for three
seconds. Cleaning takes a little over a minute, during which
the printer makes some noise and the Ppower light flashes.
3. After the Ppower light stops flashing, print a page to test
the print quality and reset the cleaning cycle.
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made
any noise for more than 5 minutes.
If you’re connected directly to the printer, run a nozzle
check. Go to step 4.
10 - EPSON Stylus Photo 750
2/99
EPSON Stylus Photo 750
Aligning the Print Head
Transporting the Printer
If your printouts contain misaligned vertical lines, you may
need to align the print head. Your printer must be connected
to a local port, not on a network, to use the Print Head
Alignment utility. Follow these steps:
If you move your printer some distance, you need to prepare it
for transportation in its original box. Follow these steps:
1. Turn on the printer and wait until the print head locks in
the far right position. Then turn off the printer.
1. Make sure the printer is turned on and paper is loaded.
To avoid damage, always leave the ink cartridges
installed when transporting the printer.
Note:
Load paper that’s at least 8.27 inches (210 mm) wide. This
prevents ink from spraying inside the printer and smudging your
printouts. For the best results, load EPSON ink jet paper in the
printer whenever you check the print head alignment.
2. Unplug the power cord from the electrical outlet. Then
disconnect the interface cable from the printer.
3. Remove any paper from the printer and remove the paper
support.
2. Start an application and open a document.
3. Access the printer settings dialog box.
4. Click the Utility tab (Windows) or the
(Macintosh). You see the Utility menu.
4. Push in the output tray extensions and close the tray.
Utility icon
5. Repack the printer and attachments in the original box
using the protective materials that came with it. See the
unpacking sheet that was packed with your printer.
5. Click the Print Head Alignment icon.
7. Select the most precise alignment pattern from the printed
choices on the test page. Enter the number of the best
aligned pattern following the instructions on the screen.
Be sure to keep the printer level as you transport it. If you
notice a decline in print quality after transporting the printer,
clean the print head (see “Cleaning the Print Head” on
page 9); if output is misaligned, align the print head (see
“Aligning the Print Head” on page 11).
Cleaning the Printer
Related Documentation
To keep your printer working at its best, you should clean it
several times a year. Follow these steps:
TM-750/1200
1. Turn off the printer, unplug the power cord, and
disconnect the printer cable.
CPD-7783
EPSON Stylus Photo 750 Printer Basics
2. Remove all the paper from the sheet feeder.
CPD-7782
EPSON Stylus Photo 750 Start Here
3. Clean the exterior of the printer with a soft, damp cloth.
ESP7500199
EPSON Stylus Photo 750 Manual (Adobe
Acrobat format, pdf)
6. Follow the instructions on the screen to print a test page.
EPSON Stylus Photo 750 Service Manual
PL-STYPHO750 EPSON Stylus Photo 750 Parts Price List
4. Clean ink out of the printer’s interior with a soft, damp
cloth.
Don’t touch the gears inside the printer.
Never use alcohol or thinner for cleaning; they can
damage the printer components and case.
Don’t use a hard or abrasive brush.
Don’t get water on the printer components.
Don’t spray lubricants or oils inside the printer.
2/99
EPSON Stylus Photo 750 - 11

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
