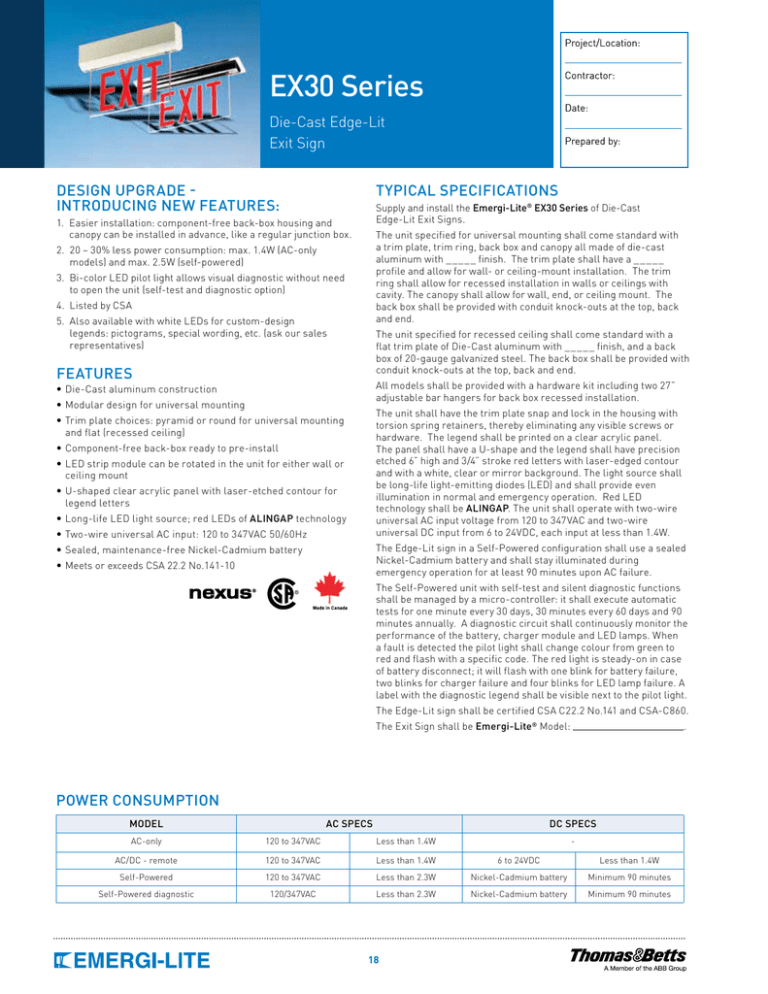

Catalogue Sheet: EX30 Series

Catalogue Sheet: EX30 Series
Project/Location:
EX30 Series
Contractor:
Date:
Die-Cast Edge-Lit
Exit Sign
Design upgrade introducing new features:
Prepared by:
Typical specifications
Supply and install the Emergi-Lite® EX30 Series of Die-Cast
Edge-Lit Exit Signs.
1. E
asier installation: component-free back-box housing and
canopy can be installed in advance, like a regular junction box.
The unit specified for universal mounting shall come standard with
a trim plate, trim ring, back box and canopy all made of die-cast
aluminum with _____ finish. The trim plate shall have a _____
profile and allow for wall- or ceiling-mount installation. The trim
ring shall allow for recessed installation in walls or ceilings with
cavity. The canopy shall allow for wall, end, or ceiling mount. The
back box shall be provided with conduit knock-outs at the top, back
and end.
2. 2 0 – 30% less power consumption: max. 1.4W (AC-only
models) and max. 2.5W (self-powered)
3. Bi-color LED pilot light allows visual diagnostic without need
to open the unit (self-test and diagnostic option)
4. Listed by CSA
5. A
lso available with white LEDs for custom-design
legends: pictograms, special wording, etc. (ask our sales
representatives)
The unit specified for recessed ceiling shall come standard with a
flat trim plate of Die-Cast aluminum with _____ finish, and a back
box of 20-gauge galvanized steel. The back box shall be provided with
conduit knock-outs at the top, back and end.
Features
All models shall be provided with a hardware kit including two 27”
adjustable bar hangers for back box recessed installation.
• Die-Cast aluminum construction
• Modular design for universal mounting
The unit shall have the trim plate snap and lock in the housing with
torsion spring retainers, thereby eliminating any visible screws or
hardware. The legend shall be printed on a clear acrylic panel.
The panel shall have a U-shape and the legend shall have precision
etched 6” high and 3/4” stroke red letters with laser-edged contour
and with a white, clear or mirror background. The light source shall
be long-life light-emitting diodes (LED) and shall provide even
illumination in normal and emergency operation. Red LED
technology shall be ALINGAP. The unit shall operate with two-wire
universal AC input voltage from 120 to 347VAC and two-wire
universal DC input from 6 to 24VDC, each input at less than 1.4W.
• Trim plate choices: pyramid or round for universal mounting
and flat (recessed ceiling)
• Component-free back-box ready to pre-install
• L ED strip module can be rotated in the unit for either wall or
ceiling mount
• U -shaped clear acrylic panel with laser-etched contour for
legend letters
• Long-life LED light source; red LEDs of ALINGAP technology
• Two-wire universal AC input: 120 to 347VAC 50/60Hz
The Edge-Lit sign in a Self-Powered configuration shall use a sealed
Nickel-Cadmium battery and shall stay illuminated during
emergency operation for at least 90 minutes upon AC failure.
• Sealed, maintenance-free Nickel-Cadmium battery
• Meets or exceeds CSA 22.2 No.141-10
The Self-Powered unit with self-test and silent diagnostic functions
shall be managed by a micro-controller: it shall execute automatic
tests for one minute every 30 days, 30 minutes every 60 days and 90
minutes annually. A diagnostic circuit shall continuously monitor the
performance of the battery, charger module and LED lamps. When
a fault is detected the pilot light shall change colour from green to
red and flash with a specific code. The red light is steady-on in case
of battery disconnect; it will flash with one blink for battery failure,
two blinks for charger failure and four blinks for LED lamp failure. A
label with the diagnostic legend shall be visible next to the pilot light.
The Edge-Lit sign shall be certified CSA C22.2 No.141 and CSA-C860.
The Exit Sign shall be Emergi-Lite® Model:
.
Power consumption
Model
AC Specs
DC Specs
AC-only
120 to 347VAC
Less than 1.4W
AC/DC - remote
120 to 347VAC
Less than 1.4W
6 to 24VDC
Less than 1.4W
Self-Powered
120 to 347VAC
Less than 2.3W
Nickel-Cadmium battery
Minimum 90 minutes
Self-Powered diagnostic
120/347VAC
Less than 2.3W
Nickel-Cadmium battery
Minimum 90 minutes
18
-
Project/Location:
EX30 Series
Contractor:
Date:
Die-Cast Edge-Lit
Exit Sign
Prepared by:
Dimensions
Dimensions are approximate and subject to change.
163/4” [42.7 cm]
4” [10.0 cm]
16” [40.8 cm]
45/8” [11.6 cm]
121/8” [30.9 cm]
27/8” [7.4 cm]
85/8” [21.9 cm]
71/2” [19.0 cm]
123/8” [31.5 cm]
21/2” [6.4 cm]
61/4” [15.7 cm]
11/8” [2.9 cm]
4” [10.0 cm]
45/8” [11.6 cm]
121/4” [31.3 cm]
27/8” [7.4 cm]
105/8” [27.1 cm]
3 ” [8.3 cm]
1/4
21/2” [6.4 cm]
Die-Cast Edge-Lit
13” [32.9 cm]
Die-Cast Recessed Edge-Lit
37/8” [9.9 cm]
71/2” [19 cm]
75/8” [19.4 cm]
37/8” [19.9 cm]
31/4” [8.3 cm]
15” [38.1 cm]
13” [32.9 cm]
ordering information
Series
EX3
Faces
1= single
face
2= double
face
housing
Colour
B= black
BA= brushed
aluminum
BR= bronze
CH= chrome
PB= polished
brass
W= factory
white
function
A= AC only, 120 to 347VAC
U=120 to 347VAC, 6 to 24VDC
I= S
elf-Powered diagnostic,
120/347VAC
D= S
elf-Powered, 120 to 347VAC*
D2= Self-Powered diagnostic,
120/277VAC
NEX= NEXUS® system interface**
NEXRF= w
ireless NEXUS® system
interface**
legend
colour
R= red
G= green
* Self-Powered (90 Min time base)
** Consult your sales representative for
options available with the NEXUS®
system.
EXAMPLE: EX31WURWA
19
Background
colour
C= c lear single face
M= mirror
W= white
Chevrons
Trim Option
N= no chevrons
AL= c hevron left
AR= chevron
right
A= o
ne chevron,
double face
DA= d
ouble
chevron,
double face
A= a
ngular, universal
mount
C= c ircular, universal
mount
F= f lat trim, ceiling
mount, recessed only
