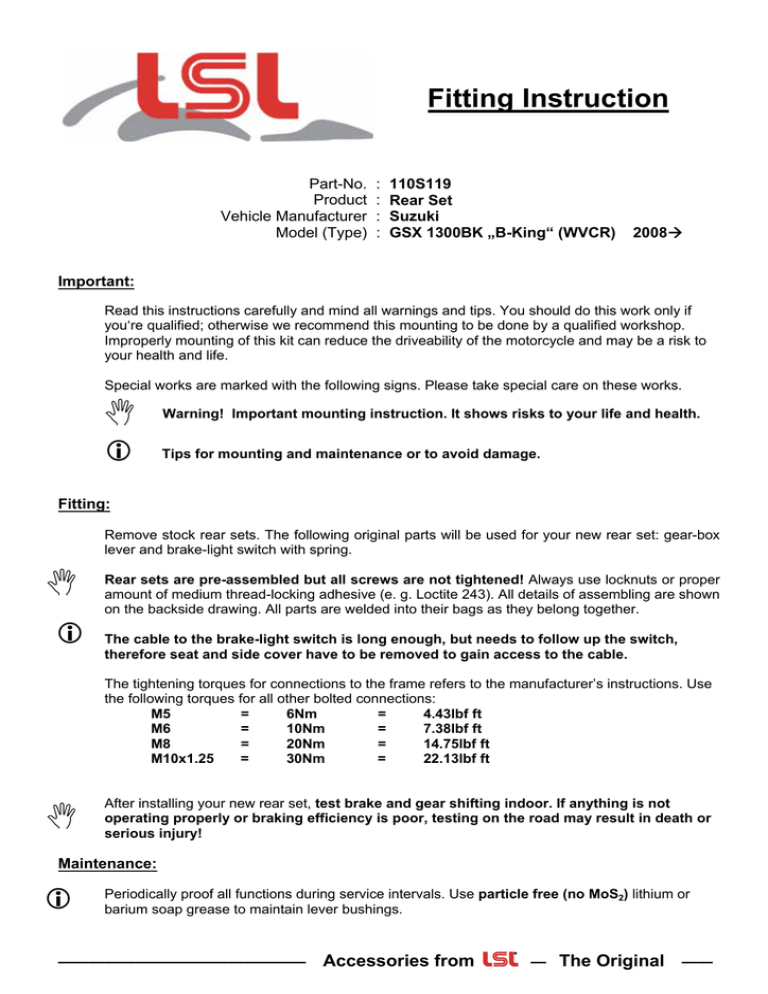

Fitting Instruction
Part-No.
Product
Vehicle Manufacturer
Model (Type)
:
:
:
:
110S119
Rear Set
Suzuki
GSX 1300BK „B-King“ (WVCR)
2008Æ
Important:
Read this instructions carefully and mind all warnings and tips. You should do this work only if
you‘re qualified; otherwise we recommend this mounting to be done by a qualified workshop.
Improperly mounting of this kit can reduce the driveability of the motorcycle and may be a risk to
your health and life.
Special works are marked with the following signs. Please take special care on these works.
1
Warning! Important mounting instruction. It shows risks to your life and health.
L
Tips for mounting and maintenance or to avoid damage.
Fitting:
Remove stock rear sets. The following original parts will be used for your new rear set: gear-box
lever and brake-light switch with spring.
1
L
Rear sets are pre-assembled but all screws are not tightened! Always use locknuts or proper
amount of medium thread-locking adhesive (e. g. Loctite 243). All details of assembling are shown
on the backside drawing. All parts are welded into their bags as they belong together.
The cable to the brake-light switch is long enough, but needs to follow up the switch,
therefore seat and side cover have to be removed to gain access to the cable.
The tightening torques for connections to the frame refers to the manufacturer’s instructions. Use
the following torques for all other bolted connections:
M5
=
6Nm
=
4.43lbf ft
M6
=
10Nm
=
7.38lbf ft
M8
=
20Nm
=
14.75lbf ft
M10x1.25
=
30Nm
=
22.13lbf ft
1
After installing your new rear set, test brake and gear shifting indoor. If anything is not
operating properly or braking efficiency is poor, testing on the road may result in death or
serious injury!
Maintenance:
L
Periodically proof all functions during service intervals. Use particle free (no MoS2) lithium or
barium soap grease to maintain lever bushings.
————————————————
Accessories from
— The Original
——
