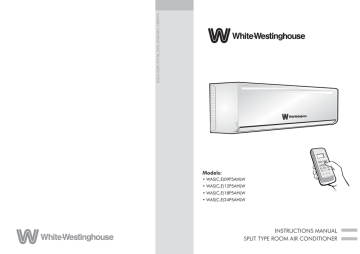

INSTRUCTIONS MANUAL SPLIT TYPE ROOM AIR CONDITIONER Models: • WAS(C,E)09P5AHLW

INSTRUCTIONS MANUAL SPLIT TYPE ROOM AIR CONDITIONER Models: • WAS(C,E)09P5AHLW
S5(20-23)W_R410a_50hz_ENGLISH_130807A
Models:
• WAS(C,E)09P5AHLW
• WAS(C,E)12P5AHLW
• WAS(C,E)18P5AHLW
• WAS(C,E)24P5AHLW
INSTRUCTIONS MANUAL
SPLIT TYPE ROOM AIR CONDITIONER
Welcome to the world of
simple handling and no worries
Contents
Thank you for choosing White-whestinghouse. This manual contains all of the
information required to guarantee your safety and the appropriate use of your
air conditioner.
Please read all of the instructions before using the air conditioner and keep
this manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product.
We hope you will consider us for future purchase.
Welcome................................................................................................................01
Environmental advices.............................................................................................01
Contents.................................................................................................................02
Safety precautions...................................................................................................04
Choosing the installation site....................................................................................08
Parts list...................................................................................................................10
Indoor unit installation .............................................................................................12
Outdoor unit installation...........................................................................................16
Refrigerant pipe connection......................................................................................18
Electrical work.........................................................................................................20
Electrical safety........................................................................................................28
Operation test.........................................................................................................29
Preparing the device for operation.............................................................................30
Product description..................................................................................................31
Remote control........................................................................................................33
Remote control description .......................................................................................35
LCD display indicators .............................................................................................37
Environmental advices
The packaging material used is recyclable; we
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
According to WEEE (Waste of Electrical and Electronic
Equipment) guidelines, waste from electrical and
electronic devices should be collected separately. If
you need to dispose of this appliance in the future,
do NOT throw it away with the rest of your domestic
garbage. Instead, please take the appliance to the
nearest WEEE collection point, where available.
01 Welcome
How the air conditioner works ..................................................................................38
How to use the indoor unit.........................................................................................42
Manual operation (without remote control) ................................................................44
Maintenance...........................................................................................................45
Operation tips.........................................................................................................47
Solutions for problems..............................................................................................49
Technical specifications............................................................................................50
Contents 02
Safety precautions
Attention
The air conditioner that you have
bought may be slightly different from
the one illustrated in this manual.
Please refer to the information related
to the model you have.
This air conditioner is for domestic use
only. It is not reccomended for
commercial or industrial use.
The air conditioner you have may carry
a different plug than the one illustrated
in this manual. The plug that comes
with the product follows the electrical
specification of the country where it is
sold.
To prevent injury to the user or other people and property damage, the
following instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length or
share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3. Always ensure effective earthing.
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
5. Keep firearms away. It may cause
fire.
6. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire due
to heat generation.
7. Do not operate with wet hands or in
damp environment. It may cause
electric shock.
8. Do not allow water to run into
electric parts. It may cause failure of
machine or electric shock.
9. Do not drink water drained from air
03 Contents
Safety precautions 04
conditioner. It contains contaminants
and could make you sick.
10.Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
with water. Water may enter the unit and
degrade the insulation. It may cause
an electric shock.
20.Ventilate the room well when used
together with a stove, etc. An oxygen
shortage may occur.
12.Do not direct airflow at room
occupants only. This could damage
your health.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire and
electric shock, it may cause an injury.
13.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
14.Do not open the unit during
operation. It may cause electric
shock.
23.Do not use for special purposes. Do
not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It may
cause deterioration of quality, etc.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
16.Ventilate room before operating air
conditioner if there is a gas
leakage from another appliance. It
may cause explosion, fire and,
burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be
removed, do not touch the metal
parts of the unit. It may cause an
injury.
24.Stop operation and close the window
in storm or hurricane. Operation with
windows opened may cause wetting
of indoor and soaking of household
furniture.
25.Turn off the main power switch when
not using the unit for a long time. It
may cause failure of product or fire.
26.Do not use strong detergent such as
wax or thinner. Use a soft cloth for
cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
19.Do not clean the air conditioner
05 Safety precautions
Safety precautions 06
Choosing the installation site
27.Ensure that the installation bracket of
the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
there is concern of damage due to
falling of unit.
Precautions for Installation
28.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may cause
failure.
3. Sites with sulfuric gas, such as hot water springs.
29.Do not place heavy object on the
power cord and take care so that the
cord is not compressed. There is
danger of fire or electric shock.
6. Sites with special environmental conditions.
30.Do not place obstacles around airinlets or inside of air-outlet. It may
cause failure of appliance or
accident.
07 Safety precautions
Installation at the following sites may cause problems. If you must inevitably install
the unit at one of these sites, please consult your local distributor beforehand:1.
Site with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight of
the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the indoor
unit, as shown in the following
figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is ideal
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
7. The indoor unit must be at least 2.3
meters (7.5 feet) from the ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
More
than 15cm
More
than 12cm
More
than 12cm
More
than 200cm
Choosing the installation site 08
Parts list
Outdoor Unit
t1. The outdoor unit must be
installed at a convenient site
that is not exposed to strong
winds. The site should be dry
and well ventilated.
More
than 30cm
More
than 60cm
More
than 30cm
2. The site must support the weight
of the outdoor unit and allow
for vertical installation.
3. There must not be the possibility
of increased noise and vibration
at the site.
4. The unit must be installed at a
site where the noise produced
by its operation and air
discharge does not disturb the
neighbors or animals.
5. The site cannot have any
leakage of flammable gases.
More
than 200cm
NUMBERING
PART NAME
QTY.
1
Installation plate
2
Clip anchor
5-8
3
Self-tapping screw A ST3.9x25
5-8
4
Seal
1
5
Drain Joint
1
6
Connecting
pipe
assembly
More
than 60cm
1
Liquid side
Ø6,35
Parts you must
purchase
Ø9,52
Ø9,52
Gas side
Ø12,7
Ø16
7
Remote controller
1
8
Self-tapping screw B ST2.9x10 (optional)
2
9
Remote Controller holder (optional)
1
10
Air freshening filter(installed on Air filter)
1
6. The site must allow for a piping
extension of no less than 5
meters (16 feet) and for pipes
measuring at least 10 meters
(33 feet) in length.
7. The site must provide enough
space around the unit, as shown
in the diagram.
9
Indoor unit
8
8
7
8. Children must not be able to
access the installation site.
4
1
5
3
2
Outdoor unit
09 Choosing the installation site
Parts list 10
Indoor unit installation
Installation plates and dimensions
1
More than 15cm
2
3
Indoor unit
45
41
More than 12cm
6
More than 12cm
Air filter
More than 2,3m
More than 60cm
7
6
A
8
4
45
9
More
than 60cm
41
More than 30cm
B
C
More than 200cm
Outdoor
unit
Attention
45
5
1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
11 Parts list
Indoor unit installation 12
Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
24k Btu models
Do not block
water flow
by a rise.
Do not block
water flow
by a rise.
Do not put the end
of drain hose into water.
Fixing the Installation Plate
Attention
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
2. Always use a pipe cover with an
opening when drilling a metal
bar.
13 Indoor unit installation
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel. Explain to clients that
the pipe cover must be kept as it may
be used when relocate the air
conditioner to any other place.
Pipe cover
(right)
Right piping
2. For the rear-right-hand and rear-lefthand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall. Fix the end of the
connective pipe.
Pipe
holder
Pipe cover
(left)
Right back
piping
Indoor unit
outline
Connective
pipe
43mm
Installation plate
Drilling the Hole
1. Determine the position of the
hole for the pipe using the
installation plate and drill the
pipe hole so that it is titled slightly
downward.
Connective pipe
Wall
Indoor unit
Outdoor unit
Fastening the Indoor Unit
5-7mm
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown
in the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mmdiameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. Fix the installation plate to the
wall with 8 A type screws.
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook of
the installation plate, move the
indoor unit from side to side to see
that it is securely hooked.
Upper hook
Lower hook
Indoor unit installation 14
Outdoor unit installation
3. Piping can easily be made by
lifting the indoor unit with a
cushioning material between the
indoor unit and the wall. Get it
out after finish piping.
4. Push the lower part of the indoor
unit up on the wall, Then move
the indoor unit from side to side,
up and down to check if it is
hooked securely.
Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
securely, evenly as shown.
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
piped out of room. Do not put
anything else in the box.
Cushioning
material
Indoor unit
Cable
de conexión
Ponding
box
Pipe room
Connective
pipe
Drain hose
Wrapping
belt
Attention
1.
2.
3.
5.
6.
Connect the indoor unit first, then the outdoor unit.
Do not allow the piping to let out from the back of the indoor unit.
Be careful not to let the drain hose slack.
Heat insulated both of the auxiliary piping.
Be sure that the drain hose is located at the lowest side of the bundle. Locating
at the upper side can cause drain pan to overflow inside the unit.
7. Never intercross nor intertwist the power wire with any other wiring.
8. Run the drain hose sloped downward to drain out the condensed water
smoothly.
15 Indoor unit installation
1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.
2. Direct the air vent toward an area
without obstacles.
3. Install the unit so that it is exposed
to as little wind as possible,
especially in areas where it is
frequently windy.
4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
7. If need suspending installation, the
installation bracket should accord
with technique requirement in the
installation bracket diagram. The
installation wall should be solid
brick, concrete or the same intensity
construction, or actions to reinforce,
damping supporting should be
taken. The connection between
bracket and wall, bracket and the
air conditioner should be firm,
stable and reliable.
6. Be sure there is no obstacle which
block radiating air.
Strong wind
MODEL
Width
(mm)
Height
(mm)
Depht
(mm)
9000 Btu
680
255
180
12000 Btu
770
255
188
18000 Btu
905
275
198
24000 Btu
1030
315
220
Outdoor unit installation 16
Refrigerant piping connection
A
Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
mount with a bolt and nut 10 or 8
diameter.
Dimension of the external
unit / mm - (AnxAlxP)
Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Air inlet
B
Air
inlet
700x540x240
458
250
685x430x260
460
276
780x540x250
549
276
760x590x285
530
290
845x700x320
560
335
775x545x310
600
320
670x540x250
481
276
760x590x285
530
290
820x590x330
526
340
845x700x320
560
335
Carry out correct flaring work using the
following procedure:
Air outlet
Mounting dimensions
A(mm)
B(mm)
24k Btu models
Drain joint installation
Fit the seal into the drain elbow, then insert the
drain joint into the base pan hole of outdoor
unit, rotate 90 to securely assemble them.
Connecting the drain joint with an extension
drain hose (Locally purchased), in case of the
water draining off the outdoor unit during the
heating mode.
Pipe
Base pan hole
of outdoor unit
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than the
measured distance.
D) Cut the cable 1.5m longer than the
pipe length.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
B) Put the end of the copper.
tube/pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing.
3. Putting nut on.
A) Remove flare nuts attached to
indoor and outdoor unit, then put
them on pipe/tube having
completed burr removal.(not
possible to put them on after flaring
work)
Wrong
Correct
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
Seal
+
Seal
=
Drain joint
Drain pipe
17 Outdoor unit installation
Refrigerant piping connection 18
Electrical work
Electric safety regulations for the initial Installation
4. Flaring work.
A) Firmly hold copper pipe in a
die in the dimension shown in
the table below.
Bar
Cooper
pipe
Handle
OUTER
DIAMETER (mm)
A (mm)
Máx.
Mín.
6,35
1,3
0,7
9,52
1,6
1,0
12,70
1,8
1,0
16
2,2
2,0
Connection Adjustment
1. Align the pipes to be connected.
2. Unscrew the flare nut with your
fingers and then with a wrench
and screw wrench, as shown in
the following figure.
Indoor unit
tubing
OUTER
DIAMETER (mm)
Flare
nut
Yoke
Red arrow mark
Clamp
handle
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain to the
client until the problem is solved.
2. Power voltage should be in the
range of 90%~110%of rated
voltage.
3. The creepage protector and main
power switch with a 1.5 times
capacity of Max. Current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is
grounded well.
5. According to the attached
Electrical Connection Diagram
located on the panel of the
outdoor unit to connect the wire.
6. All wiring must comply with local
and national electrical codes and
be installed by qualified and
skilled electricians.
7. An individual branch circuit and
single receptacle used only for
this air conditioner must be
available. See the following table
for suggested wire sizes and fuse
specifications:
Caution: Excessive twisting may
break the nut, depending on the
installation conditions.
Pipings
TIGHTENING
TORQUE (N/cm)
ADITIONAL TIGHTENING
TORQUE (N/cm)
6,35
1500 (153 kgf/cm)
1600 (163 kgf/cm)
9,52
2500 (255 kgf/cm)
2600 (265 kgf/cm)
12,70
3500 (357 kgf/cm)
3600 (367 kgf/cm)
16
4500 (459 kgf/cm)
4700 (479 kgf/cm)
19 Refrigerant piping connection
Electrical work 20
Connect the cable to the indoor unit
Electric safety regulations for the initial
Installation
1. If there is serious safety problem about
the power supply, the technicians should
refuse to install the air conditioner and
explain to the client until the problem is
solved.
2. Power voltage should be in the range of
90%~110%of rated voltage.
3. The surge protector and main power
switch with a 1.5 times capacity of Max.
Current of the unit should be installed in
power circuit.
4. Ensure the air conditioner is grounded
well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect the
wire.
6. All wiring must comply with local and
national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and single
receptacle used only for this air
conditioner must be avaliable. See the
following specifications:
Electrical box
cover
Before performing any electrical work, turn off the main power to the system.
1. The inside and outside connecting cable can be connected without removing
the front grille.
2. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power
cord and interconnected cord type is H07RN-F.
3. Lift the indoor unit panel up, remove the electrical box cover by loosening the
screw.
4. Ensure the colour of wires of outdoor unit and the terminal Nos. are the
same to the indoor respectively.
5. Wrap those cables not connected with terminals with insulation tapes, so that
they will not touch any electrical components. Secure the cable onto the
control board with the cord clamp.
Terminal block of indoor unit
For 8K,12K and18k Btu types
Terminal block of indoor unit
The cable size and the current of
the fuse or switch are
determined by the maximum
current indicated on the
nameplate which located on the
side panel of the unit. Please
refer to the nameplate before
selecting the cable, fuse and
switch.
Cooling only type
Cooling and heating type
1 2(N) 3 4
1 2(N)
L
N
S
or
To outdoor unit
To outdoor unit
To outdoor unit
For 24k Btu types
Terminal block of indoor unit
1 2(N) 3 4
Rated current of
appliance(A)
Nominal cross-sectional
area (mm2)
>3 y≤6
0.75
>6 y ≥10
1
>10 y≥16
1.5
>16 y ≥25
2.5
21 Electrical work
Cord clamp
To outdoor unit
Model A
To outdoor unit
Model B
Electrical work 22
Wire connector of outdoor unit
For 8k, 12k and 18k Btu models
Connect the cable to the outdoor unit
1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the connective cables to the
terminals as identified with their
respective matched numbers on the
terminal block of indoor and outdoor
units.
3. Secure the cable onto the control board
with the cord clamp.
4. To prevent the ingress of water, form a
loop of the connective cable as
illustrated in the installation diagram of
indoor and outdoor units.
5. Insulate unused cords (conductors) with
PVC-tape. Process them so they do not
touch any electrical or metal parts.
Terminal block of outdoor unit
Cover
Screw
Cooling only type
1 2(N) 3 4
To indoor unit
1 2(N)
To indoor unit
Cooling and heating type
1 2(N) 3 4
To indoor unit
L N S
To indoor unit
For 24k Btu models
Terminal block of outdoor unit
1 2(N) 3
To indoor unit
To power supply
Model A
23 Electrical work
4
To indoor unit
Model B
Electrical work 24
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
2. The screw which fasten the wiring in the casing of electrical fittings are
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of
the rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop. Vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload.
9. The means for disconnection from a power supply shall be incorporated
in the fixed wiring and have an air gap contact separation of at least 3mm
in each active (phase) conductors.
Air purging
Air and moisture in the refrigerant system have undesirable effects as indicated
below:
1. Pressure in the system rises.
parts in the refrigeration system.
2. Operating current rises.
6. Therefore, the indoor unit and tubing
between the indoor and outdoor unit
3. Cooling or heating efficiency
must be leak tested and evacuated to
drops.
remove any noncondensables and
4. Moisture in the refrigerant circuit
moisture from the system.
may freeze and block capillary
tubing.
5. Water may lead to corrosion of
25 Electrical work and air purging
Air purging with vacuum pump
1. Check that each tube(both liquid and gas side tubes) between the indoor and
outdoor units have been properly connected and all wiring for the test run has
been completed. Remove the service valve caps from both the gas and the
liquid side on the outdoor unit. Note that both the liquid and the gas side
service valves on the outdoor unit are kept closed at this stage.
2. When relocate the unit to another place, perform evacuation using vacuum
pump.
3. Pipe length and refrigerant amount:
Additional amount of
refrigerant to be charged
Connective
pipe length
Air
purging
Less than 5 m
Use vacuum pump.
5~10 m
Use vacuum pump.
Liquid side:φ6.35mm
Liquid side:φ9.52mm:
R410A: (Pipe length-5)x20g/m R410A: (Pipe length-5)x40g/m
Caution in handling the packed valve
1. Open the valve stem until it hits against the stopper. Do not try to open it
further.
2. Securely tighten the valve stem cap with a spanner or the like. Valve stem cap
tightening torque (See Tightening torque table in page 19).
2. Securely tighten the valve stem cap with a spanner or the like. Valve stem cap
Refrigerant
Outdoor unit
A
Flare nut
Indoor unit
Gas
Stopper
C
Cap
D
B
Packed valve
Half union
Valve body
Valve stem
Air purging 26
Electrical safety
Perform the electric safe check after completing installation:
When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
1. Completely tighten the flare
nuts, A, B, C, D, connect the
manifold valve charge hose to a
charge port of the low-pressure
valve on the gas pipe side.
2. Connect the charge hose
connection to the vacuum pump.
3. Fully open the handle Lo of the
manifold valve.
4. Operate the vacuum pump to
evacuate. After starting
evacuation, slightly loose the
flare nut of the Lo valve on the
gas pipe side and check that the
air is entering (Operation noise
of the vacuum pump changes
and a compound meter indicates
0 instead of minus)
5. After the evacuation is complete,
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.
Make evacuation for 15 minutes
or more and check that the
compound meter indicates 76cmHg (-1x10 Pa).
6. Turn the stem of the packed
valve B about 45o
counterclockwise for 6~7
seconds after the gas coming
out, then tighten the flare nut
again. Make sure the pressure
display in the pressure indicator
is a little higher than the
atmosphere pressure.
27 Air purging
7. Remove the charge hose from the
Low pressure charge hose.
8. Fully open the packed valve stems
B and A.
9. Securely tighten the cap of the
packed valve.
Manifold valve
Compound meter Pressure gauge
1. Insulated resistance: The insulated resistance must be more than 2M .
2. Grounding work: After finishing grounding work, measure the grounding
resistance by visual detection and grounding resistance tester. Make sure the
grounding resistance is less than 4 .
3. Electrical leakage check (performing during test running): During test operation
after finishing installation, the serviceman can use the electroprobe and
multimeter to perform the electrical leakage check. Turn off the unit
immediately if leakage happens. Check and find out the solution ways till the
unit operate properly.
Gas leak check
-76cmHg
Handle Lo
Handle Hi
Charge hose
Charge hose
Vacuum pump
Low pressure valve
Soap water method
Apply a soap water or a liquid neutral
detergent on the indoor unit
connection or outdoor unit connections
by a soft brush to check for leakage of
the connecting points of th piping. If
bubbles come out, the pipes have
leakage.
Leak detector
Use the leak detector to check for
leakage.
indoor unit
check point
Cover
Outdoor unit
check point
Caution
A: Lo packed valve, B: Hi packed valve
C and D are ends of indoor unit
connection.
Electrical safety and gas leak check 28
Test running
Preparing the device for operation
Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.
Check that all tubing and wiring have been properly connected.
Check that the gas and liquid side service valves are fully open.
1. Contact a specialist to install the device.
2. Guarantee that the unit is appropriately fastened and complies with all of
the aforementioned safety norms.
3. Before operating the air conditioner, ensure that the air filter is installed
correctly.
4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.
5. This air conditioner was designed for use under the following conditions:
1. Connect the power, press the
ON/OFF button on the remote
controller to turn the unit on.
2. Use the MODE button to select
COOL, HEAT, AUTO and FAN to
check if all the functions works well.
3. When the ambient temperature is
too low(lower than 17°C), the unit
cannot be controlled by the remote
controller to run at cooling mode,
manual operation can be taken.
Manual operation is used only when
the remote controller is disable or
maintenance necessary. Hold the
panel sides and lift the panel up to
an angle until it remains fixed with
a clicking sound.Press the Manual
control button to select the AUTO or
COOL, the unit will operate under
Forced AUTO or COOL mode(see
User Manual for details).
4. The test operation should last about
30 minutes.
MODE
Cool
Heat
Deshumidifier
Room Temperature
Room Temperature
Room Temperature
Indoor
Outdoor*
Indoor
17°C~32°C 18°C~43°C 0°C~30°C
Outdoor
Indoor
Outdoor**
-7°C~24°C 10°C~32°C 11°C~43°C
* (-7°C~43°C cooling only / 18°C~52°C special tropical models)
** (18°C~52°C special tropical models)
Attention
If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
Room relative humidity less than 80%. If the air conditioner operates in excess of
this figure, the surface of the air conditioner may attract condensation. Please sets
the vertical air flow louver to its maximum angle (vertically to the floor), and set
HIGH fan mode.
Optimum performance will be achieved within these operating temperature.
29 Test running
Preparing the device for operation 30
Product description
Display panel
(indoor unit)
1 Front panel
2 Air filter
3
4
5
6
7
8
9
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
13 OPERATION
This lamp illuminates when the air
conditioner is in operation.
14 TIMER
Lights up during Timer operation.
15 DEFROST indication lamp
Air inlet
3
2
(Enabled on cooling & heating
models only): Lights up when the air
conditioner starts defrosting
automatically or when the warm air
control feature is activated in
heating operation.
1
10 Connector cable
4
11 Detection valve
12 Drain hose and refrigerant
connecting pipe
5
13
15
14
17
16
16 Temperature indicator
8
Air outlet
7
Displays the temperature settings
when the air conditioner is
operational. Displays the
malfunction code.
6
9
17 Signal receiver
12
13
15
14
17
16
Air inlet
Attention
All the pictures in this manual are for
explanation purpose only. They may
be slightly different from the air
conditioner you purchased.
Attention
10
8
Air outlet
11
The description in the control is based
on a typical model. The functions are
the same in your air conditioner, even
if there are some differences in the
appearance.
Outdoor unit
31 Product description
Product description 32
Remote control
Remote control operation
1. Operation mode: Cool, Heat (Only
for the models with cool/heat), DRY,
FAN, and AUTO (Automatic).
2. Timer 24 hrs.
3. Internal temperature range selection:
17º - 30º.
4. LCD
5. Night light operation mode.
ESPECIFICACIONES DEL CONTROL REMOTO
Rated voltage
3V
Lowest of voltage of CPU emiting signal
2,4 V
Transmission distance
8 m*
Environment
-5ºC ~ 60ºC
* With 3 V, reaches 11m
Attention
1. The air conditioner will not operate when curtains, doors our other materials
block the signals between the remote control and the indoor unit.
2. Avoid spilling any liquid in the remote control. Do not expose to sunlight or any
heat source.
3. If the infrared signal receiver in the indoor unit is exposed to sunlight, the air
conditioner unit might not work properly. Use curtains or shades to avoid
having sunlight directly to the receiver.
4. If other electrical equipment react to the signals sent by the remote control,
change the position or consult with you local sales department.
Remote control battery To use the remote control, it is necessary to install
two (R03/Ir03x2) alkaline AAA batteries.
33 Remote control
When should the batteries be
replaced
1. When there is not a “beep”
anymore from the indoor unit
when using the control remote or
the signal light indicator does not
lit.
2. The indoor unit does not respond
to the remote control commands to
activate the programs.
To replace batteries
1. Slide out the battery
compartment cover ( located in
the back part of the remote
control).
2. Install the two AAA batteries in
the compartment (indicated in the
drawing located inside the
compartment).
3. Slide in the cover.
4. If the remote control is not
operated for long period of times,
batteries should be discarded.
Remote control instructions
1. The signal reach distance of the
remote control to the receiver that
is inside the main unit of the air
conditioner is 8 meters. Any
obstruction placed between the
receiver and the remote control
can cause interference, limiting
the capacity of the programming.
2. Any time that a button is pressed
in the remote control, the air
conditioner emits a “beep” that
indicates that a command has
been received and transmitted in
the indoor unit.
3. When selecting the function of
timer, the remote control sends
(automatically) a signal to the indoor
unit at the specific moment. If the
control remote is left in a position
that the signal is blocked, a 15
minute delay can be produced.
Attention
1. When replacing batteries, do not
use old batteries or a different
type battery. This may cause the
remote control to malfunction.
2. If you do not use the remote
controller for several weeks
remove the batteries. Otherwise
battery leakage may damage the
remote controller.
3. The average battery life under
normal use is about 6 months.
4. Replace the batteries when there
is no answering beep from the
indoor unit or if the Transmission
Indicator light fails to light.
Remote control 34
Remote control description
1
TEMP
:Press the button to
decrease the indoor temperature
setting.
2
MODE: Each time you push the
button, a mode is selected in a
sequence that goes from AUTO,
COOL, DRY, HEAT*, and FAN, as
the following figure indicates:
AUTO
COOL
DRY
HEAT*
FAN
AUTO
FAN
COOL
HIGH
DRY
MED
HEAT
LOW
2
3
9
MODE
3
4
SWING: Push this button, the
louver would swing up and down
automatically. Push again to stop it.
SLEEP: Press this button to go into
the Energy-Saving operation mode.
Press it again to cancel. This
function is only can be used on
COOL, HEAT and AUTO mode
and maintain the most comfortable
temperature for you. While the unit
is running under SLEEP operation
mode, it would be canceled if you
press the other button.
5
RESET: When you press the
recessed RESET button, all current
settings are cancelled and the
control will return to the initial
settings.
6
AIR DIRECTION: Press this button
to change the swing angle of the
louver. The swing angle of the
louver is 6o for each press. When
the louver swing at a certain angle
which would affect the cooling and
heating effect of the air conditioner,
35 Remote control description
5
ON/OFF
FAN
10
SWING
4
* Note: Only for heating models.
7
8
1
SLEEP
Restart
AIR FLOW
DIRECTION
TIMER ON
TIMER OFF
timed setting in 30 minutes
increments. When the setting time
displays 10:00, each press will
increase the auto-timed setting 60
minutes increments. To cancel the
auto-timed program, simply adjust
the auto-off time to 0:00.
it would automatically change the
swing direction . No symbol will
appear in the display area when
press this button. (Not applicable to
units without this function).
8
TEMP
: Press the button to
increase the indoor temperature
setting.
9
FAN SPEED: This button is used
for setting Fan Speed in the
sequence that goes from AUTO,
LOW, MED to HIGH, then back to
Auto.
11
12
6
13
7
14
LED (screen): Press this button to
erase the digits that are shown in
the screen of the air conditioner.
Press again to activate.
AUTO
LOW
MED
HIGH
10
ON/OFF: Push this button to start
the unit operation. Push the button
again to stop the unit operation.
11
TIMER ON: Press this button to
initiate the auto-on time sequence.
Each press will increase the autotimed setting in 30 minutes
increments. When the setting time
displays 10:00, each press will
increase the auto-timed setting 60
minutes increments. To cancel the
auto-timed program, simply adjust
the auto-on time to 0:00.
12
TIMER OFF: Press this button to
initiate the auto-off time sequence.
Each press will increase the auto-
13
LOCK: When you press the
recessed LOCK button, all current
settings are locked in and the
remote controller does not accept
any operation except that of the
LOCK. Press again to cancel the
LOCK mode.
14
TURBO*: Push this button to
activate/cancel the Turbo function
which enables the unit to reach the
preset temperature in the shortest
time.O n c ooling m ode,t he u nit
w ill b low s trong co oling air with
super high fan speed. On heating
mode (applicable to the unit
adopts PTC only), the PTC will
bring fast heating operation.
*Only for some models
Remote control description 36
How the air conditioner works
LCD display indicators
17
18
19
16
20
AUTO
COOL
DRY
FAN
88
HEAT
HIGH
MED
LOW
21
15
Automatic operation
When the Air Conditioner is ready for use, switch on the power and the
OPERATION indicator lamp on the display panel of the indoor unit starts
flashing.
1. Use the MODE .select button to select AUTO.
2. Push the TEMP button to set the desired room temperature. The most
comfortable temperature setting are between 21ºC o to 28ºC.
3. Push the ON/OFF button to start the air conditioner. The OPERATION lamp
on the display panel of the indoor unit lights. The
operating mode is AUTO FAN SPEED is automatically set and there are no
indicators shown on the display panel of the remote controller.
4. Push the ON/OFF button again to stop the unit operation.
NOTE: All signs shown in the display is for the purpose of clear presentation. But during the actual
operation only the relative functional signs are shown on the display panel.
15
16
17
18
LOCK Indicator: LOCK display is
displayed by pushing the LOCK
button. Push the LOCK button to
clear display.
OPERATION MODE INDICATOR:
When press the MODE button, it
shows the current operating mode:
AUTO, COOL, DRY, HEAT (Only for
cooling and heating models) or
FAN mode.
TRANSMISSION INDICATOR:
This indicator flashes one time
when remote controller transmits
signals to the indoor unit.
DIGITAL DISPLAY: This area will
show the set temperature and, if in
the TIMER mode, will show the ON
and OFF settings of the TIMER. If in
the FAN mode, nothing is
appeared.
37 LCD display indicators
19
ON/OFF INDICATOR: This
symbol appears when the unit is
turned on by the remote controller,
and disappear when the unit is
turned off.
20
FAN SPEED INDICATOR: Press
the FAN SPEED button to select the
desired fan speed setting (AutoLow-Med-High). You selection will
be displayed in the LCD window
except the Auto fan speed.
21
TIMER DISPLAY INDICATOR: This
display area shows the settings of
the TIMER. That is, if only the
starting time of operation is set, it
will display the TIMER ON. If only
the turning off time of operation is
set, it will display the TIMER OFF. If
both operations are set, it will show
TIMER ON-OFF which indicates
you have chosen to set both the
starting time and off time.
Attention
1. When you set the air conditioner in AUTO mode, it will automatically select
cooling, heating(cooling/heating models only), or fan only operation
depending on what temperature you have selected and the room
temperature.
2. The air conditioner will control room temperature automatically round the
temperature point set by you.
3. If the AUTO mode is uncomfortable, you can select desired conditions
manually.
COOL / HEAT and FAN ONLY operation
1. If the AUTO mode is not comfortable, you may manually override the
settings by using COOL, HEAT* or FAN** ONLY modes.
2. Push the TEMP button to set the desired room temperature. When in COOL
mode, the most comfortable settings are 21ºC or above. When in HEAT
mode, the most comfortable settings are 28 C or b elow.
3. Push the FAN SPEED to select the FAN mode of AUTO, HIGH, MED or LOW.
4. Push the ON/OFF button, the operation lamp lights and the air conditioner
start to operate as your settings. Push the ON/OFF button again to stop this
unit operation.
* Nota: Only for heating and cooling models
**Note: The FAN ONLY mode can not be used to control the temperature.
While in this mode, only steps 1,3 and 4 may be performed.
How the air conditioner works 38
• After and hour of operation, the
adjusted temperature will increase
1º C. After, the unit keeps operating
2ºC above the adjusted
temperature.
Attention
Sleep function is only availaible in
the Cool/Heat and AUTO mode.
1 °C
Set
temperature
Due to the difference of the set
temperature of the unit and the actual
indoor temperature, the Air Conditioner
when in DRY mode will automatically
operate many times without running the
COOL and FAN mode.
Time
Set temperature
ng
oli
1 °C
1 hour
1 hour
SLEEP FUNCTION (Cooling mode)
• The indoor unit fan operates at a
low velocity.
• After and hour of operation, the
adjusted temperature will decrease
1º C. After, the unit keeps operating
2º C below the adjusted
temperature.
Set
temperature
Room
Temperature
Co
nly
no
Fa
oli
Co
nly
no
Fa
ng
In heating mode (some models):
ng
1. Push the MODE button to select
DRY.
2. Push the TEMP button to set the
desired temperature from 21ºC to
28ºC.
3. Push the ON/OFF button, the
operation lamp lights and the air
conditioner start to operate in the
DRY mode. FAN SPEED is Low.
Push the ON/OFF button again to
stop this unit operation.
SLEEP mode
Press the sleep button to activate the
sleep mode. To deactivate, press the
button again.
Cool only mode:
• The indoor unit fan operates at a
low velocity.
Attention
oli
The dry mode will automatically
select the drying operation based on
the difference between the set
temperature and the actual room
temperature.
The temperature is regulated while
dehumidifying by repeating turning
on and off of the cooling operation
or fan only. The fan speed is LOW.
Co
DRY operation
1 °C
1 °C
DRY FUNCTION
1 hour
1 hour
7 hours
SLEEP FUNCTION (Heating mode)
Air flow direction adjustment
Use SWING to adjust the airflow direction up and down.
1. When swing is pressed the horizontal louver moves up and down
automatically. Press again to stop operation.
Attention
If the louver oscillates or moves in a position that could affect the cooling or
heating of the air conditioner the direction of the oscillation/movement would
alter automatically.
39 How the air conditioner works
TIMER Operation
TIMER button can set the auto-on time of the unit.
To set the starting time
1. Push the TIMER ON button, then the remote controller shows TIMER ON ,
the last set time for the starting operation and the signal "h" will be shown
on the DIGITAL DISPLAY area. You are now ready to reset the time to START
the operation.
2. Push the TIMER ON button again to set desired unit start time.
3. After setting the TIMER ON ,there will be a one-half second delay before
the remote controller transmits the signal to the air conditioner. Then, after
approximately another 2 seconds, the signal "h" disappears and the set
temperature will re-appear on the digital display.
How the air conditioner works 40
How to use the indoor unit
To set the stopping time
1. Push the TIMER OFF button and the remote controller will show TIMER
OFF, the last set time for the stopping operation and the signal "h" will be
shown on the DIGITAL DISPLAY area. You are now ready to reset the time
of the STOP operation.
2. Push the TIMER OFF button again to set the time you want to stop the
operation.
3. After setting the TIMER OFF ,there will be a one-half second delay before
the remote controller transmits the signal to the air conditioner. Then, after
approximately another 2 seconds, the signal "h" disappears and the set
temperature will re-appear on the digital display.
Exemples:
ON
ON
ON
OFF
ON
OFF
OFF
6h
6h
12h
(Temp On)
(Temp Off)
(Temp Off)
ONN
OFF
14h
(Temp On)
OFF
20h
(Temp On)
23h
(Temp Off)
Optimal operation
To achieve optimal performance, please note the following:
1. Adjust the air flow direction correctly so that it is not directed on people.
2. Adjust the temperature to achieve the highest comfort level. Do not adjust
the unit to excessive temperature levels.
3. Close doors and windows on COOL or HEAT modes, or performance may
be reduced.
4. Use TIMER ON button on the remote controller to select a time you want
to start your air conditioner.
5. Do not put any object near air inlet or air outlet, as the efficiency of the air
conditioner may be reduced and the air conditioner may stop running.
6. Clean the air filter periodically, otherwise cooling or heating performance
may be reduced.
7. Do not operate unit with horizontal louvre in closed position.
41 How the air conditioner works
Adjusting air flow direction
Adjust the air flow direction properly
otherwise, it might cause discomfort or
cause uneven room temperatures.
Adjust the horizontal louver using the
remote controller. Adjust the vertical
louver manually.
Adjusting the vertical air flow
direction (up - down)
The air conditioner automatically
adjusts the vertical air flow direction in
accordance with the operating mode.
To set the horizontal air flow
direction (left/ right)
Adjust the vertical louver manually
using the lever on the left or right side
of the vertical louver arm (Depending
on model). Take care not to catch
fingers on the fan, horizontal louver or
to damage vertical louvers. When the
air conditioner is in operation and the
horizontal louver is in a specific
position, move the lever at left (or
right, depending on model) end of the
air outlet to the desired position.
To automatically swing the air flow
direction (up/down)
Perform this function while the air
conditioner is in operation.
Press the SWING button on the remote
controller.
To stop the function, press the SWING
button again.
Lever
How to use the indoor unit 42
Manual operation (without remote control)
Press AIR DIRECTION button to lock
louver in desired position.
The AIR DIRECTION and SWING buttons
will be disabled when the air conditioner
is not in operation (including when the
TIMER ON is set).
Do not operate the air conditioner for
long periods with the air flow direction
set downward in cooling or dry mode.
Otherwise, condensation may occur on
the surface of the horizontal louver
causing moisture to drop on to the floor
or on furnishings.
Do not move the horizontal louver
manually. Always use the AIR
DIRECTION or SWING button. If you
move this louver manually, it may
malfunction during operation. If the
louver malfunctions, stop the
airconditioner once and restart it.
When the air conditioner is started
immediately after it was stopped, the
horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver
should not be set too small, as
COOLING or HEATING performance
may be impaired due to too restricted air
flow area.
Do not operate unit with horizontal
louver in closed position.
When the air conditioner is connected to
power (initial power), the horizontal
louver may generate a sound for 10
seconds, this is a normal operation.
43 How to use the indoor unit
Manual operation can be used
temporarily in case you can not find
the remote controller or its batteries
are exhausted.
1. Open and lift the front panel up to
an angle until it remains fixed with
a clicking sound.
2. One press of the manual control
button will lead to the forced AUTO
operation.
3. Close the panel firmly to its
original position.
Manual control
button
Attention
Once you push the manual button, the
operation mode is shifted in an order
as: AUTO, COOL, OFF.
Push the button twice, the unit will
operate in forced COOL mode. This is
used for testing purposes only.
Third press will stop the operation and
turn off the air conditioner operation.
To restore the remote controller
operation, use the remote controller
directly.
Auto/Cool
Manual operation 44
Maintenance
Cleaning the indoor unit and remote
controller
1. It is necessary to stop the air
conditioner and disconnect the power
supply before cleaning.
2. Use a dry cloth to wipe the indoor
unit and remote controller.
3. A cloth dampened with cold water
may be used on the indoor unit if it is
very dirty.
4. The front panel of the indoor unit can
be removed and cleaned with water.
Then wipe it with a dry cloth.
5. Do not use a chemically treated cloth
or duster to clean the unit.
6. Do not use benzine, thinner,
polishing powder, or similar solvents
for cleaning. These may cause the
plastic surface to crack or deform.
Cleaning the air filter
A clogged air filter reduces the cooling
efficiency of this unit. Please clean the
filter once every 2 weeks.
1. Lift the indoor unit panel up to an
angle until it stops with a clicking
sound.2. Take hold of the handle of
the air filter and lift it up slightly to
take it out from the filter holder, then
pull it downwards.
3. Remove the air filter (Fresh air filter +
support) of the unit.
4. Remove fresh air filter from frame
support.
5. Clean the fresh air filter at least once
a month, and replace every 4 to 5
months. Use a vacuum cleaner,
then dry.
6. Clean the support frame using a
vacuum cleaner or water. After, dry
45 Maintenance
for a couple of hours or until dry.
7. Insert the fresh air filter in its
original place.
8. Insert the high part of the air filter
(fresh air filter + Support frame)
again in the unit keeping in mind
that the outside border (right and
left) are lined up correctly, now
place the whole filter in the initial
position.
Support
frame
Fresh
air filter
Fresh
air filter
Fig.2
Fig.1
Support
frame
Fresh
air filter
Fig.3
Support
frame
Fig.4
air filter
Fig.5
Maintenance
If you plan to idle the unit for a long time, perform the following:
1. Operate the fan for about half a day to dry the inside of the unit.
2. Stop the air conditioner and disconnect power. Remove the batteries from
the remote controller.
3. The outdoor unit requires periodic maintenance and cleaning. Do not
attempt to do this yourself. Contact your dealer or servicer.
Checks before operation
1. Check that the wiring is not broken off or disconnected.
2. Check that the air filter is installed.
3. Check if the air outlet or inlet is blocked after the air conditioner has not
been used for a long time.
air filter
Maintenance 46
Operation tips
The following events may occur during normal operation.
Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor
heat exchanger is in one of the following three situations and the set
temperature has not been reached.
1. When heating has just starting.
2. Defrosting.
3. Low temperature heating.
Defrosting (Cooling and heating models only)
Frost may be generated on the outdoor unit during heat cycle when outdoor
temperature is low and humidity is high resulting in lower heating efficiency of
the air conditioner. During this condition air conditioner will stop heating
operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor
temperature and the amount of frost buildup on the outdoor unit.
The indoor or outdoor fan stop running when defrosting (Cooling and heating
models only).
A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air
inlet and air outlet on COOL mode in an indoor environment that has a high
relative humidity.
A white mist may generate due to moisture generated from defrosting process
when the air conditioner restarts in HEAT mode operation after defrosting.
Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just
stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or
has just stopped running. This is caused by heat expansion and cold
contraction of the plastic parts in the unit when the temperature is changing.
A noise may be heard due to louver restoring to its original position when
power is first turned on.
Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a
47 Operation tips
long time or during first use of the unit.
A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building
material, from furniture, or smoke.
The air conditioner turns to FAN only mode from COOL or HEAT (For
cooling and heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner,
the compressor will stop automatically, and the air conditioner turns to FAN
only mode. The compressor will start again when the indoor temperature rises
on COOL mode or falls on HEAT mode (For cooling and heating models o ly)
to the set point.
Dripping water may generate on the surface of the indoor unit when cooling in
a high relatively humidity (relative humidity higher than 80%). Adjust the
horizontal louver to the maximum air outlet position and select HIGH fan
speed.
Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the
indoor unit during heating operation. When the outdoor temperature falls,
heat drawn in by the air conditioner decreases accordingly. At the same time,
heat loading of the air conditioner increases due to larger difference between
indoor and outdoor temperature. If a comfortable temperature can't be
achieved by the air conditioner, we suggest you use a supplementary heating
device.
Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the
OPERATION indicator on the indoor unit starts flashing. To restart the
operation, push the ON/OFF button on the remote controller. For the unit with
Auto-restart feature, when the power restores, the unit restarts automatically
with all the previous settings preserved by the memory function.
Lightning or a car wireless telephone operating nearby may cause the
unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again.
Push the ON/OFF button on the remote controller to restart operation.
Operation tips 48
Solutions for problems
Technical specifications
If your air conditioner malfunctions, check the following information to find
solutions or probable causes of the failure. Do not try to repair the unit by
yourself, if these solutions do not solve the failures; call your local service
repair team.
Heat and Cool models
Poor Equipment performance
1. The air outlet or inlet in the exterior part is obstructed.
2. The temperature in the exterior is high due to direct sunlight or another
heat source.
3. Heater or a cooking stove is being used in the same room.
4. Room is full of people.
5. The air filter is obstructed by dust or is dirty.
6. Inappropriate temperature adjustment.
7. Front part is obstructed.
8. The capacity of the equipment is not adequate for the size of the room.
9. Air conditioner was just turn on.
10.Windows or doors are open.
The unit does not start
1. The plug is not connected to the outlet.
2. No electricity in the outlet.
3. The voltage is different.
4. Temperature is not adjusted properly.
5. burned fuse.
6. The remote control batteries need to be replaced.
7. wrong operation time.
OUTDOOR UNIT
WASC09P5AHLW WASC12P5AHLW WASC18P5AHLW WASC24P5AHLW
INDOOR UNIT
WASE09P5AHLW WASE12P5AHLW WASE18P5AHLW WASE24P5AHLW
Heat and Cool
Heat and Cool
Heat and Cool
Heat and Cool
Cooling power (Btu/h)
9000
12000
18000
24000
Heating power (Btu/h)
9000
12000
18000
24000
Rated voltage (V)
220
220
220
220
Frequency (Hz)
50
50
50
50
Indoor unit width (mm)
680
770
905
1030
Indoor unit high (mm)
255
255
275
315
Indoor unit depth (mm)
178
188
198
218
7
7,5
10
12
Outdoor unit width (mm)
685
700
780
760
Outdoor unit high (mm)
430
540
540
590
Outdoor unit depth (mm)
260
240
250
285
Outdoor unit net weight (kg)
23
24,5
32,5
37,5
Cycle
Indoor unit net weight (kg)
Attention
Stop the air conditioner immediately if one of the following
malfunctions occur
1. The operation indicator or other indicator flash(5 times per second) and the
flashing is not stop by disconnecting and connecting the unit.
2. Frequent change of fuses and malfunctions in the switch circuit.
3. Water spills over the equipment.
4. Remote control does not work.
5. Any other abnormal situation.
49 Solution for problems
Technical specifications 50
Notes
51 Notes
Notes
Notes 52
Notes
53
Notes
Notes
Notes 54
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
