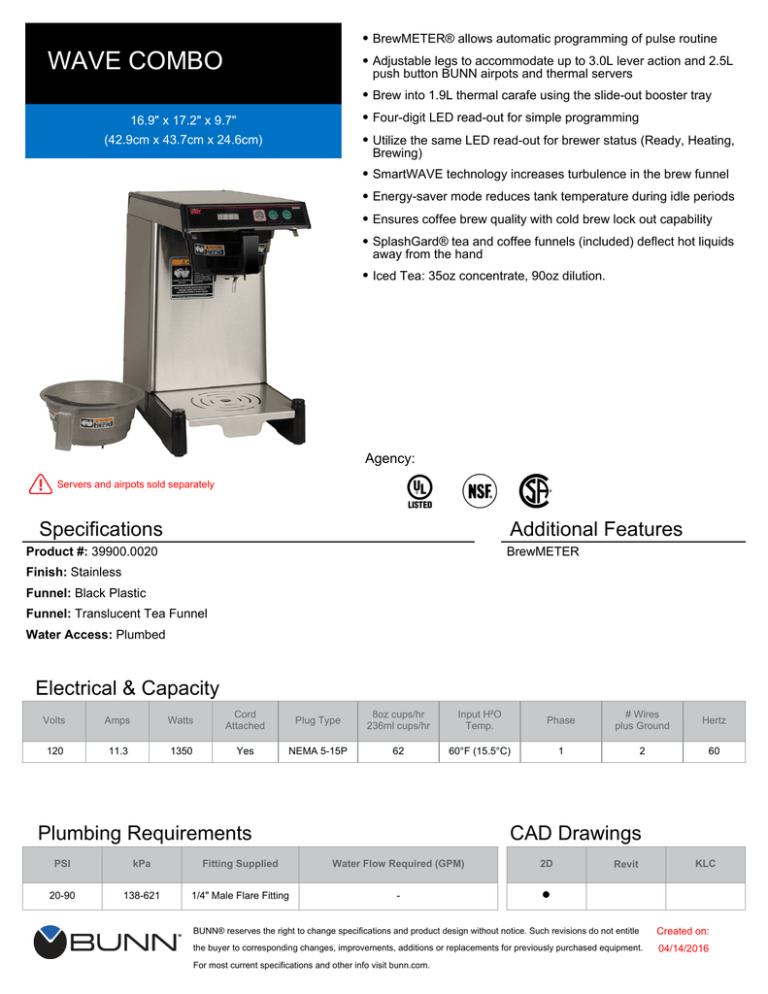

WAVE COMBO
BrewMETER® allows automatic programming of pulse routine
WAVE COMBO
Adjustable legs to accommodate up to 3.0L lever action and 2.5L
push button BUNN airpots and thermal servers
Brew into 1.9L thermal carafe using the slide-out booster tray
Four-digit LED read-out for simple programming
16.9" x 17.2" x 9.7"
(42.9cm x 43.7cm x 24.6cm)
Utilize the same LED read-out for brewer status (Ready, Heating,
Brewing)
SmartWAVE technology increases turbulence in the brew funnel
Energy-saver mode reduces tank temperature during idle periods
Ensures coffee brew quality with cold brew lock out capability
SplashGard® tea and coffee funnels (included) deflect hot liquids
away from the hand
Iced Tea: 35oz concentrate, 90oz dilution.
Agency:
Servers and airpots sold separately
Specifications
Additional Features
Product #: 39900.0020
BrewMETER
Finish: Stainless
Funnel: Black Plastic
Funnel: Translucent Tea Funnel
Water Access: Plumbed
Electrical & Capacity
Volts
Amps
Watts
Cord
Attached
Plug Type
8oz cups/hr
236ml cups/hr
Input H²O
Temp.
Phase
# Wires
plus Ground
Hertz
120
11.3
1350
Yes
NEMA 5-15P
62
60°F (15.5°C)
1
2
60
Plumbing Requirements
CAD Drawings
PSI
kPa
Fitting Supplied
Water Flow Required (GPM)
2D
20-90
138-621
1/4" Male Flare Fitting
-
•
Revit
KLC
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/14/2016
For most current specifications and other info visit bunn.com.
Unit
Shipping
Width
Height
Depth
Width
Height
Depth
Weight
Volume
English
9.7 in.
16.9 in.
17.2 in.
-
-
-
24.500 lbs
2.540 ft³
Metric
24.6 cm
42.9 cm
43.7 cm
-
-
-
11.113 kgs
0.072 m³
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/14/2016
For most current specifications and other info visit bunn.com.
Related Products & Accessories:WAVE COMBO(39900.0020)
FUNNEL ASSY, SMOKE
W/TIP & SCREEN
FILTERS,REGULAR1M
500/2 50/CL
Product #: 03021.0016
Product #: 20115.0000
FUNNEL W/DECALS,
BLACK PLASTIC
Product #: 20583.0003
WATER FILTER
SYSTEM, EQ-17-TL
Product #: 30200.1000
WATER FILTER,IN LINE
ED-17-TL
Product #: 30201.1001
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/14/2016
For most current specifications and other info visit bunn.com.
Serving & Holding Options: WAVE COMBO(39900.0020)
AIRPOT, 2.5L GL PB
SINGLE PK
Product #:13041.0001
AIRPOT, 2.5L SST LA 6/
CASE
AIRPOT, 2.5L GL PB 6/
CASE
Product #:13041.0101
AIRPOT, 3.0L SST LA
SINGLE PK
AIRPOT, 2.2L GL PB
SINGLE PK
AIRPOT, 2.2L GL PB 6/
CASE
AIRPOT, 2.5L SST LA
SINGLE PK
Product #:28696.0002
Product #:28696.0006
Product #:32125.0000
AIRPOT, 3.0L SST LA 6/
CASE
THERMAL CARAFE, BLK
1.9L 1PK
THERMAL CARAFE,ORN
1.9L 12PK
Product #:32130.0100
Product #:36029.0001
Product #:36252.0000
CARAFE,SST 1.9L SHRT
BLK 1/
CARAFE,SST 1.9L SHRT
ORN 1/
Product #:40163.0000
Product #:40163.0001
Product #:32125.0100
Product #:32130.0000
THERMAL CARAFE,ORN
1.9L 1PK
PITCHER,SST 1.9L TALLSNGL PK
Product #:36252.0001
Product #:39430.0000
Product #:39430.0100
CARAFE,SST 1.9L SHRT
BLK 12/
CARAFE,SST 1.9L SHRT
ORN 12/
THERMAL SRVR, 2.5L 6/
CS NO BASE GL LINR
Product #:40163.0100
Product #:40163.0101
Product #:45882.0001
PITCHER,SST 1.9L
TALL-6/CASE
THERMAL SRVR, 2.5L
NO BASE GL LINER
Product #:45882.0003
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/14/2016
For most current specifications and other info visit bunn.com.
