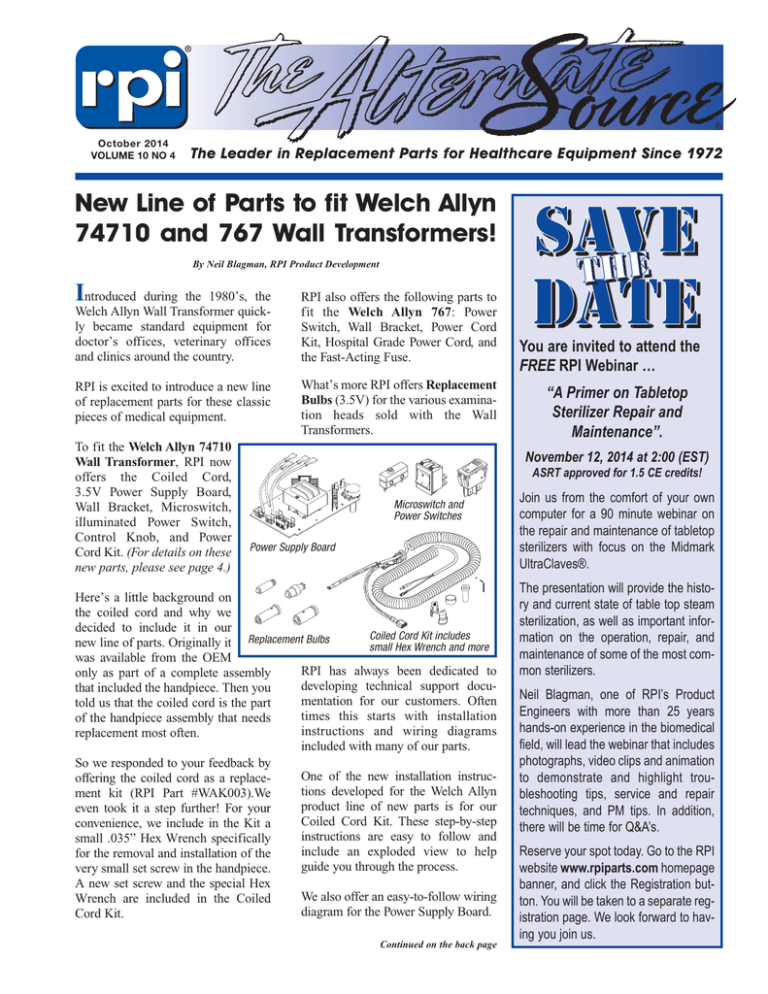

The Leader in Replacement Parts for Healthcare Equipment Since 1972
New Line of Parts to fit Welch Allyn
74710 and 767 Wall Transformers!
By Neil Blagman, RPI Product Development
I
ntroduced during the 1980’s, the
Welch Allyn Wall Transformer quickly became standard equipment for
doctor’s offices, veterinary offices
and clinics around the country.
RPI also offers the following parts to
fit the Welch Allyn 767: Power
Switch, Wall Bracket, Power Cord
Kit, Hospital Grade Power Cord, and
the Fast-Acting Fuse.
RPI is excited to introduce a new line
of replacement parts for these classic
pieces of medical equipment.
What’s more RPI offers Replacement
Bulbs (3.5V) for the various examination heads sold with the Wall
Transformers.
To fit the Welch Allyn 74710
Wall Transformer, RPI now
offers the Coiled Cord,
3.5V Power Supply Board,
Wall Bracket, Microswitch,
illuminated Power Switch,
Control Knob, and Power
Cord Kit. (For details on these
new parts, please see page 4.)
You are invited to attend the
FREE RPI Webinar …
“A Primer on Tabletop
Sterilizer Repair and
Maintenance”.
November 12, 2014 at 2:00 (EST)
ASRT approved for 1.5 CE credits!
Microswitch and
Power Switches
Power Supply Board
Here’s a little background on
the coiled cord and why we
decided to include it in our
Coiled Cord Kit includes
new line of parts. Originally it Replacement Bulbs
small Hex Wrench and more
was available from the OEM
RPI has always been dedicated to
only as part of a complete assembly
developing technical support docuthat included the handpiece. Then you
mentation for our customers. Often
told us that the coiled cord is the part
times this starts with installation
of the handpiece assembly that needs
instructions and wiring diagrams
replacement most often.
included with many of our parts.
So we responded to your feedback by
One of the new installation instrucoffering the coiled cord as a replacetions developed for the Welch Allyn
ment kit (RPI Part #WAK003).We
product line of new parts is for our
even took it a step further! For your
Coiled Cord Kit. These step-by-step
convenience, we include in the Kit a
instructions are easy to follow and
small .035” Hex Wrench specifically
include an exploded view to help
for the removal and installation of the
guide you through the process.
very small set screw in the handpiece.
A new set screw and the special Hex
We also offer an easy-to-follow wiring
Wrench are included in the Coiled
diagram for the Power Supply Board.
Cord Kit.
Continued on the back page
Join us from the comfort of your own
computer for a 90 minute webinar on
the repair and maintenance of tabletop
sterilizers with focus on the Midmark
UltraClaves®.
The presentation will provide the history and current state of table top steam
sterilization, as well as important information on the operation, repair, and
maintenance of some of the most common sterilizers.
Neil Blagman, one of RPI’s Product
Engineers with more than 25 years
hands-on experience in the biomedical
field, will lead the webinar that includes
photographs, video clips and animation
to demonstrate and highlight troubleshooting tips, service and repair
techniques, and PM tips. In addition,
there will be time for Q&A’s.
Reserve your spot today. Go to the RPI
website www.rpiparts.com homepage
banner, and click the Registration button. You will be taken to a separate registration page. We look forward to having you join us.
THE RPI FAMILY
H
i. My name is Olivia Jimenez. I
started working at RPI in 2012 in the
Customer Service and Purchasing
Department. Currently I am a purchasing assistant and enjoy working
here at RPI.
Ira Lapides
CEO & President
Replacement Parts Industries, Inc.
The last two years have seen some nice changes at RPI, as our growth continues
at a good pace. Next year we should see that trend continue as we add even more
new parts to our existing lines and introduce brand new lines of parts such as we
just did with parts to fit the Welch Allyn wall transformers. Much of this expansion
into supporting new modalities is again driven by you, our customers, with your
continuing valuable suggestions and requests.
I was born and raised in the San
Fernando Valley. I am the oldest of
three. I have a brother who is 21 years
old and a brother who is 17 years old.
At the moment, I am a part-time student trying to approach my goal in
becoming a business major.
We always try to improve our business to make your jobs easier as well, such as
our newly revamped Tech Assistance Center on our website. Similar to our catalog,
where I have always encouraged our customers to spend a few extra minutes
reviewing the catalog to remind you of all that we carry. I encourage you to spend
some extra time on our website to see all that it has to offer, including the parts
search function, sorting by OEM and/or model, newsletter and new parts flyer
archives, shopping cart, and much more.
Something I enjoy is helping my mom
decorate for events like birthday parties, baby showers, baptisms, confirmations and sometimes small weddings even though we don’t do it too
often. Creativity comes along and we
become a team, sharing our ideas to
make everything work together from
the centerpieces we create to decorating the event’s location.
Aside from where RPI is headed next, I am often asked where the healthcare
equipment repair and maintenance industry is headed, especially in light of the
potential impacts of the Affordable Care Act (aka Obamacare or the ACA), continuing changes in technology, and the world economy. So, here are a few prognostications, in no particular order:
Another thing I enjoy doing, for as
long as I can remember, is dancing.
Something my family enjoys except
for me, are roller coasters, that’s definitely not for me.
1. In general, I believe that the ACA will have a positive effect on the healthcare
equipment repair and maintenance industry, as payments to providers (hospitals,
physicians, dentists, etc.) will continue to tighten and their ability to purchase
new equipment will be limited. Therefore, extending the life of existing equipment will be of paramount importance. Only technologies that offer significant
diagnostic or therapeutic advantages, or that provide demonstrated significant
cost savings will break through and release capital for the purchase of new equipment.
My parents are from Guanajuato,
Mexico. Every year in December we
try to take
our family
vacation. We
get together
and spend
the holidays
with our relatives from
California
and most of
our relatives
who
we
Olivia Jimenez
haven’t seen Purchasing Assistant
in a year from other parts of the
United States and in Mexico, since
this vacation has become a family tradition and everyone heads to Gto. I
always enjoy spending this vacation
with my family and always come back
hoping to be able to go back next
December to see everyone again.
2. The world economy will continue to impact healthcare technology in several
ways. Manufacturers will continue to seek lower costs and look to have components made overseas. Companies in other countries will continue to progress in
their technologies, either manufacturing copies of American healthcare equipment or their own versions, and seek entry into the U.S. market. We have seen
that increasingly in both the medical and dental fields. Conversely, American
manufacturers will continue to seek opportunities in other countries as well,
either directly or through partnerships with manufacturers in target countries.
3. The market for refurbished medical and dental equipment should continue to be
strong given the restricted capital that providers will have to spend on new equipment. This will provide excellent opportunities for refurbishers in both the
domestic and international markets.
Continued on the back page
2
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
TECH
TALK
How to Compare ISO, SAE or
AGMA Ratings for Oil Viscosity!
By Mark Micucci RPI Product Development
Tomato (tuh-may-toh) or tomato (tuhmah-toh)? ISO or SAE or AGMA?
We receive many questions regarding
the viscosity ratings on RPI’s
Compressor and Hydraulic Fluids.
Mostly they are questions like, “I need
an SAE 30 and RPI’s oil is an ISO
100. Are they the same or different?”
The three main rating standards are
simply named after who is doing the
rating, and in terms of viscosity, they
are essentially describing the same
thing. SAE stands for Society of
Automotive Engineers, ISO stands for
International Standards Organization,
and lastly AGMA stands for American
Gear Manufacturers Association.
Each one has different ratings based
on their testing procedures, if they use
the Kinematic or Saybolt viscosities
tests and at what temperature these
tests were run.
KINEMATIC
VISCOSITIES
RPI
Part #
cSt
40˚C
800
600
500
400
350
300
250
Understanding the relationship of the
viscosity scales to one another is useful, but the viscosity of oil is only part
of what makes oil a proper lubricant
for a particular application. Other factors include the type of base oil and the
additives with which the lubricant is
formulated. Please contact RPI if you
need assistance in selecting the appropriate lubricant for your application.
ISO
AGMA
40
680
8
30
460
7
320
6
220
SAE
SAE
ENGINE OIL GEAR OIL
140
150
CML001
GOL022
RPF449
100
80
10
9
60
8
50
7
40
6
30
5
5
50
4
40
100
3
68
2
46
1
4
SUS
100˚F
200
4000
150
3000
2500
2000
1800
1500
90
85W
30
100
1250
90
1000
80
800
70
600
500
60
80W
400
55
50
20
45
32
RPF384
20
150
SUS
210˚F
125
200
16
SAYBOLT
VISCOSITIES
Grade Systems
cSt
100˚C
20
The chart below illustrates the relationship between the different viscosity measurement scales. To show an
example of how to read the chart, we
added the RPI Part #’s of our oils in
the first column. Follow the dotted
line across the chart for the RPI Part
#CML001 oil. It shows that the viscosity of an ISO 100 grade is the same as
an AGMA 3 grade and SAE 30 grade
oil. (Note: Use the chart below to better understand the relationship of the
viscosity measurement scales only.)
75W
300
250
200
150
10W
22
40
5W
15
15
10
10
100
90
70
Viscosities can be related horizontally only, For Example, the following oils have similar viscosities: ISO 100, AGMA 3 and SAE ENGINE OIL 30.
The viscosity/temperature relationships are based on 95 VI oils and are usable only for mono grade engine oils, gear oils and other 95 VI oils.
Crankcase oils and gear oils are based on 100˚C viscosity. The “W” grades are classified on low temperature properties. ISO oils and AGMA
grades are based on 40˚C viscosity.
Source: www.doolittleoil.com (2014).
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
55
New Mounting
Bracket for
Pressure Gauges
(RPI Part #PCG041
& Part #RCG083)
By Jim Wisniewski
Manager, RPI Product Development
T
he manufacturer of two of our
Pressure Gauges (RPI Part #’s
PCG041 and RCG083) no longer
includes the Black Mounting Bezel
and mounting hardware that we have
always included with our gauges for
our customers. But don’t worry!
By reusing your existing Black
Mounting Bezel, the repair will be
identical to the original equipment
condition. But for the rare case when
the Black Mounting Bezel is lost or
unusable, we
have included a mounting bracket
with “ears”
that allow the
new gauge to
PRESSURE GAUGE
be mounted
(RPI Part #PCG041)
to the existing
Fits the Pelton & Crane
panel without
Sentry sterilizers
modification,
leaving only a
slight
gap
between the
gauge body
and the panel
cutout.
Although
PRESSURE GAUGE
these gauges
(RPI Part #RCG083)
are no longer
Fits the Ritter/Castleavailable as
MDT 800, 800V, 1000
and 1000R as well as
originally conthe Barnstead 2250
figured, RPI
and 2260 sterilizers
has ensured
an effective
alternative to keeping your customers’ sterilizers up and running.
3
WHAT'S NEW
The following new parts are now in stock,
GENERAL BIOMEDICAL EQUIPMENT
New Line of Parts to fit Welch Allyn 74710 & 767 Wall Transformers!
RPB169
(1 pc)
WAK005
COILED CORD KIT
RPI Part #WAK003
OEM Part #747300-501 (Complete
LAMP
RPI Part #LMP109
OEM Part #WA-03100-U
Models: 20000/20200/20202/21700/25000/
25200/25020 Otoscope, 73500 Handle
Adapter, 28100 Tongue Blade Holder &
26530/27000/27050/41100/43300 Illuminator
POWER SUPPLY
BOARD (3.5V)
RPI Part #WAB001
OEM Part #747284-501
• Includes: (2) Fuse (1/8A, 250V) Time Delay (RPI Part #RPF524)
Model: 74710
Handpiece Assembly)
Model: 74710
STRAIN RELIEF BUSHING KIT
RPI Part #WAK005
OEM Part # (No OEM
Part # Available)
Model: 74710
STRAIN RELIEF BUSHING
RPI Part #RPB169
OEM Part #745184
Model: 74710
(x4)
(x4)
WALL BRACKET
RPI Part #WAB004
OEM Part #747145
Model: 74710
LAMP
RPI Part #LMP111
OEM Part #WA-06500-U
Models: 23810/23820 Otoscope
RPC028
POWER SWITCH
RPI Part #TUS009
OEM Part #483311-2
Model: 74710
MICROSWITCH
RPI Part #WAS002
OEM Part #747014-2
Model: 74710
CONTROL KNOB
RPI Part #BUK043
OEM Part #747116-1
Model: 74710
STRAIN RELIEF BUSHING
RPI Part #RPB164
OEM Part #711314
Model: 74710
FUSE (1/8A, 250V) - TIME DELAY
RPI Part #RPF524
OEM Part #711571-1
Model: 74710
RPT017 RPT001
(2 pcs) (1 pc)
LAMP
RPI Part #LMP110
OEM Part #WA-03000-U
Models: 11600/11605/11610/11710
Opthalmoscope, 12400 Strabismoscope,
43700 Episcope & 18000 Retinoscope
RPB164
(1 pc)
POWER CORD KIT
RPI Part #CAK120
OEM Part #747306-501 (Power Cord only)/
711314 (Strain Relief only)
Model: 74710
LAMP
RPI Part #LMP112
OEM Part #WA-03800-U
Models: 11800/11810/11820 Opthalmoscope
POWER SWITCH
RPI Part #WAS008
OEM Part #236707-1
Model: 767
(x4)
(x4)
HOSPITAL GRADE
POWER CORD
RPI Part #RPC557
OEM Part #761069
Model: 767
4
5
6
7
8
9
WALL BRACKET
RPI Part #WAB007
OEM Part #767035-501
Model: 767
FUSE (1/4A, 250V) - FAST ACTING
RPI Part #RPF508
OEM Part #236706-3111
Model: 767
See our website www.rpiparts.com for more information regarding these parts and the models they fit!
4
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
FROM RPI
ready to ship the day your order is received!
BULK STERILIZERS
New Parts to fit Getinge/Castle 100, 200, 400, 500, 700 & 800 Series Bulk Sterilizers!
More New Parts to fit Getinge/Castle 100/200/400/500/800 series bulk
sterilizers including the Mini Valve (RPI Part #CSV106), Liquid Level Sensor (RPI Part
#CSS105), and five new Solenoid Valve Repair Kits for the Black Coil (Burkert) valves.
We paid extra attention to the Sol-6 Water to Ejector Valve Assembly (OEM Part
#61301609315) when developing our new Solenoid Valve Repair Kits. RPI created two
different repair kits! One Solenoid Valve Repair Kit (RPI Part #CSK096/OEM Part
#61301609305) includes all of the parts needed to repair the diaphragm assembly in the
lower section of the valve. The other Repair Kit (RPI Part #CSK092) is an RPI "one-of-akind" kit that includes all the parts to repair the upper section of the valve including the
Manual Override Body. Now you finally have access to all the parts you need to repair the
valve instead of having to replace the entire assembly - It's the RPI Advantage! These new
parts compliment the many other parts that we already carry for this line of sterilizers,
including Check Valves, Safety Valves, and Steam Traps.
SOLENOID VALVE
REPAIR KIT
RPI Part #CSK092
OEM Part # (No OEM
MINI VALVE
RPI Part #CSV106
OEM Part #11929
Models:
100/400/500/700/3500
Series
FOR
VALVE'S
UPPER
SECTION
Part # Available)
Models:
400/500/700
Series & 800-42"
SOLENOID VALVE
REPAIR KIT
RPI Part #CSK108
OEM Part #61301609451
Models: 400/500 Series
RPO865
SOLENOID VALVE
REPAIR KIT
RPI Part #CSK094
OEM Part #61301608963
Models: 400/500/700
Series & 800-42"
SOLENOID VALVE
REPAIR KIT
RPI Part #CSK096
OEM Part #61301609505
Models: 400/500/700
Series & 800-42"
RPO864
FOR
MANUAL
OVERRIDE
BODY
LIQUID LEVEL
SENSOR
RPI Part #CSS105
OEM Part #61301601173
Models: 100/200/400/500/700 Series
RPI "one-of-a-kind" kit that includes all the parts to
repair the upper section of the valve including the
Manual Override Body!
SOLENOID VALVE
REPAIR KIT
RPI Part #CSK107
OEM Part
#61301608965
Models: 700 Series; 800-42" & 800-76"
TABLE TOP STERILIZERS
New Parts to fit Midmark®•Ritter® M9 & M11 UltraClave® Sterilizers!
Don't Forget ... Top Covers and Doors
to fit Midmark M9 & M11 Are In Stock!
Top Covers and Door Panels to fit the
old style Midmark M9 and M11
UltraClave sterilizers are now in stock
and ready to ship!
The RPI Door Panel Kits include the door
panel and handle, mounting hardware
and warning and operator labels at the
top of the panel, (RPI Part #MIK194 fits
the M9, and Part #MIK195 fits the M11).
The RPI Top Cover Kits include the top
cover, mounting hardware, display overlay,
top inspection cover, printer cover, and display PC board gasket, (RPI Part # MIK196
fits the M9 and MIK197 fits the M11).
See our website, www.rpiparts.com for
more information on these parts and many
more to fit Midmark M9 and M11 UltraClave
sterilizers!
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
TEMP
(°F)
/ TIME
(MIN
: SECON
DS)
PRESS
URE
FILLIN
G
(PSI)
STERI
LIZING
UNWR
DRYIN
APPED
G
COMP
POUCH
ES
LETE
LIQUID
S
WATE
R LOW
PACKS
DOOR
AJAR
ERROR
START
STOP
ON
/ STAND
BY
TOP COVER KIT
DOOR PANEL KIT
5
Sherry Lapides
Vice President, Customer Relations
Replacement Parts Industries, Inc.
Al Lapides
CEO Emeritus & Chairman of the Board
Replacement Parts Industries, Inc.
FROM THE OLD CURMUDGEON (still)
This is not the article I set out to write but, as we have
The following words came via a thank you email from one
found out so often, lives can change in the blink of an eye or
the beat of a heart.
of our customers, Mark from Texas, after a visit to his company by Ira Lapides and Neil Blagman. I recently came
across the email and thought to myself what an amazing
thing it is to be able to touch our customers in such a positive
way, and to have such wonderful customers. This year, RPI
marks its 42nd Anniversary, and I thank you, our customers,
for your support of us since the very beginning.
This is really my way of saying thank you to a whole lot of
people I don’t know and probably never will know: to the
surgeons whose skills and caring can save people’s lives, to
the nurses and doctors who work with them, to the biomedical engineers who gave them the tools to work miracles, to
the researchers who developed the medicines to keep them
alive and to all of the thousands who keep the IVs flowing,
the monitors clicking, the sterilizers working, and all of the
people in the healthcare industry who keep us going.
It may take a village to raise a child, but it sure takes a whole
lot of people to keep us on our feet.
God bless all of you.
Coming Soon!
®
RPI PA
RT #
DESC
RIPT
May be
Look for our new
parts labels - with
2D barcodes.
• Easy to read format with
some labels including
exploded views!
ION
used
P.O./L
ot
as rep
lacem
ent of
O.E.M
2033
. Part
8
#(s) as
listed
Call: Corisco
on the
RPI we
Web (800) 22 Street, C
bsite:
site an
1hatsw
www.r
d Sh 9723 •
orth,
pipart
Fax:
s.com
oppi
CA 91
ng C
(8
art: w 18) 882- 311
ww.rp
70
iparts 28
.com
PLE
SAM
®
Solenoid Valve Repair Kit
RPI Part #CSK092
(Includes all parts listed below)
RPI Part #CSK092
OEM Part # (No OEM Part # Available)
SOLENOID VALVE REPAIR KIT
• Complies with GS1
Barcode Standards
• Both individual packages
and cases will include our
new label
• Allows for greater visibility
and tracking for your receiving and inventory systems
6
O-Ring
Fits/Models: 400/500/700 Series & 800-42":
Sol-6 Water to Ejector Valve Assembly
(OEM Part #61301609315)
Plunger Assembly
Graphite Seal
O-Rings
Brass Seat
O-Ring
Also Available:
Solenoid Valve Repair Kit
(Lower Section Diaphragm Assy.)
RPI Part #CSK096
LE
MP
SA
CSK092LBL Rev- (09/14)
®
RPI Part #CSK092
OEM Part # (No OEM Part # Available)
SOLENOID VALVE REPAIR KIT
Fits/Models: 400/500/700 Series & 800-42":
Sol-6 Water to Ejector Valve Assembly
(OEM Part #61301609315)
For
Valve’s
Upper
Section
For
Manual
Override
Body
CALL (800) 221-9723 • FAX (818) 882-7028 • www.rpiparts.com
Ira & Neil,
I just wanted to say thank you for visiting us yesterday.
That means a lot to myself and our staff. You asked for
thoughts on how you can improve, but it’s hard to come
up with an answer for that. Sure there might be a few
parts we encounter in the future that we could pass on
to you, but otherwise I just have to tell you what a pleasure it is to work with a company like yours.
Besides the obvious advantages you have (great
inventory, good pricing, knowledgeable staff), you also
do so many “little things” right. The comprehensive catalog is great, but I also really appreciate the regular
updates. We also take advantage of the newsletters
and posters. I don’t think you looked in the service area
of our shop, but the walls have several RPI posters
hanging in there. Your customer service is also excellent. Many times I’ve faxed in an order and almost
immediately received a phone call to let me know a
price has changed or that something might be on back
order. Those things go a long way in making your company what it is.
We are still pretty small but we are constantly growing,
and we strive to do everything right. Yours is one of the
companies that we try to emulate. Thanks for being a
model company. Thanks again for the visit, and thanks
for everything you do so well. Please pass along our
appreciation to your entire staff.
Mark
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
New
Fill/Vent Valve
Upgrade Assembly
To fit the AMSCO
Eagle 10 & 10 Plus Sterilizers
By Jim Wisniewski,
Manager, RPI Product Development
In September of 2013, our
solenoid valve manufacturer discontinued the
Fill/Vent Valve (RPI Part
#AMV170) that fits the
AMSCO Eagle 10 and 10
Plus sterilizers. However, we never gave
up trying to find a replacement solution for
our customers.
Today, we are pleased to say that our
time and effort really paid off! We are
proud to introduce our very creative solution that actually “kills two birds with one
stone” – it’s the new Fill/Vent Valve
Upgrade Assembly (RPI Part #AMA274).
Fill/Vent Valve Upgrade Assembly
(RPI Part #AMA274)
Replaces the discontinued valve with a
new design allowing for ease of disassembly
without having to remove them from the unit!
First, we have a replacement for this
valve. This new assembly includes a preassembled bank of two (Fill and Vent)
Solenoid Valves (RPI Part #MIS042) fitted
onto an easily installed mounting bracket
complete with all fittings, simple installation
instructions and everything needed to
upgrade the sterilizer without modifying the
chassis.
Second, we relocated the solenoid valves
facing the rear of the sterilizer for ease of
disassembly without removal. And with the
use of our Double Ended Spanner Wrench
(RPI Part #RPT501), future rebuilding of the
solenoid valves is a snap using our Rebuild
Kit (RPI Part #MIK053).
As you are aware, the original AMSCO configuration made access to the solenoid
valves very difficult and in turn made rebuilding a long and frustrating task.
RPI does it again! You wanted a solution
and we gave you more than you asked for.
This upgrade will make all future solenoid
valve maintenance and repairs a breeze.
Identifying Which Filter or Part is
Needed for your Compressor
By Mark Micucci, RPI Product Development
It can be confusing when selecting a
filter for a dental compressor.
The confusion really centers on air
intake filter elements vs. coalescing
filter elements vs. particle filter elements. In addition, every manufacturer uses a different filter assembly and
element that they believe gives their
equipment the best protection.
At present, RPI carries 33 different
styles of filters just for compressors.
So to make your job easier in selecting which filter you need for your
equipment, let’s first talk about where
each is located in the unit, and what it
does for the unit.
Let’s begin with Air Intake
Elements. These are located around
the compressor motor and head
assembly. They may be as simple as a
foam element in a tube or a filter element that is installed directly into the
compressor head.
Coalescing Filter Elements are
found inside assemblies that hang
from the lower side of the compressor
tank. These assemblies are usually
hard plumbed with copper tubing. The
newer ones have auto drains that drain
directly into the collection container
for proper disposal.
Particle Filter Elements, found on
the output hose that goes to the operatory, make sure that solids do not get
into the operatory air lines. They are
also found in the J-boxes in every
operatory as a secondary protection
against the Coalescing Filter or
Particle Filters failing on the compressor equipment itself.
As you can see, identifying which filter you need could be a difficult task.
So perhaps the easiest way to identify
the element you need is to visit the
RPI web site at www.rpiparts.com.
On the homepage go to the Part
Search by Equipment Type banner
located along the left side, directly
under the RPI logo. Next, scroll down
and place the mouse cursor over the
Dental Equipment tab to access the
drop down menu, then select
Compressors. Choose the manufacturer and then model number. This
Replacement Parts Industries, Inc “The Alternate Source” • October 2014
will generate a complete listing of all
the parts RPI has for that model compressor including all of the filter elements, and PM Kits.
You may also go to the Technical
Assistance Center on the RPI web
site and click on or scroll down to
the At-a-Glance Cross Reference
Tables. Then select Dental Compressor PM Kits and find your model
number on the chart. This will show
you all Filter Element replacement
part numbers for your compressor
along with all the other parts RPI has
to support your compressor.
7
PRSRT STD
US Postage
PAID
Van Nuys, CA
Permit #2399
“The Alternate Source®”
P.O. Box 5019, Chatsworth, CA 91313-5019
Especially for . . .
4. Job prospects in healthcare technology management, repair, and maintenance, and dental equipment
repair will be good. Skilled technicians, especially those that can
combine computer network knowledge with equipment expertise, will
be valued as more and more equipment becomes network connected.
5. On the hospital side, the struggle
between multi-vendor service
providers and in-house biomed
departments will continue, and
demonstrated cost savings will be
critical. A crucial element of those
cost savings, which applies to the
dental and physician office equipment service business, is not just
the cost of service or parts, but the
minimization of equipment downtime. Getting equipment up and
running faster allows the end user
to be productive and make money,
so sometimes the cost of the part or
service becomes secondary.
7. On the physician office equipment
side, the potential is there for larger
equipment service organizations to
penetrate the market, especially
some of the large multi-vendor service organizations whose focus is
on hospitals. As more physicians
and medical groups fall under the
umbrella of parent hospitals, many
of those biomed shops or outside
multi-vendor service companies
will see opportunities to expand.
I am sure I have missed a few things,
but I hope this will at the very least
offer some food for thought.
It is important to think ahead in business, and as unpredictable as this
industry might be, as long as some
flexibility is built into your plans for
the future, you should do well.
New Line of Parts to fit
Welch Allyn 74710 & 767
(Continued from front page)
All of our technical support documentation, is FREE and you can find it on
our website. Simply go our homepage
at www.rpiparts.com, enter the part
number in our “Quick Search” box,
you will be
taken to the
part’s page,
and have
access to
all of our
documentation for
that specific part.
WAK003 - COILED
WAK005 - STRAIN CORD KIT
INSTALLATION INSTRURELIEF BUSHING KIT
DISSASSEMBLY
CTIONS
1. Remove power
to the wall transformer
.
2. Remove the
head from the handpiece.
3. Remove and
discard the small
set screw in the handpiece
4. Using Strain
handle using the hex
Relief
key included in this
bushing (including Bushing Pliers (RPI Part #RPT172)
kit.
the
the handpiece handle rubber boot) out of the bottom of theor similar tool, pry the trim ring and
become damaged, during this step. However, the trim handpiece handle. Note: Take care strain relief
not to damage
but will be replaced
ring, strain relief bushing
with new parts in
5. Pull the trim
and rubber boot may
this kit later in these
ring off
instructions.
and trim ring down of the strain relief bushing and discard
to the first coil on
both sides of the bushing.
the cord.
6. Unscrew the
Slide the rubber boot
bayonet connector
from the top of the
and pull the cord
handpiece handle.
through the handpiece
Disconnect the coiled
handle.
7. Remove and
cord terminals
discard the trim ring
and rubber boot.
REASSEMBLY
8. Install the new
trim ring and rubber
boot onto the coiled
9. Run the coiled
cord.
cord
spacer, rubber springback up through the handpiece handle
and spring collar)
(ensure proper assembly
and reconnect terminals
10. Screw the bayonet
order of the shoulder
to the bayonet connector.
connector threads connector back into the handpiece
See Figure 1.
included in this kit. to the set screw hole in the handle handle. Align the set screw dimple
and install the new
in
set screw using the bayonet
11. If replacing the
hex key
coiled cord, remove
the transformer unit
rear cover and remove
from the wall. Remove
cover (retain screws
12. Remove the
the eight screws from
for reassembly).
knob from the front
the
housing.
for easy reassembly)
Disconnect the four
.
wires to the power
13. Lift the entire
switch (mark the
chassis sub-assemb
wires
ly up and out of the
attach the plastic
main
handpiece hanger
cover to the chassis plastic housing. Remove the four
14. Remove the
(retain screws for
screws that
existing
reassembly).
One wire from the strain relief bushing from the aluminum
microswitch inside
chassis bracket
See Wiring Diagram
the plastic hanger
cover, and the other and disconnect the wires.
below.
from the power supply
15. Pull old coiled
cord out of the assembly.
board.
16. Thread the new
coiled
proximately 1/4" from cord through the Strain Relief Bushing
the end of the stripped
(RPI Part #RPB169).
17. Reconnect the
jacket and install
wires
into the aluminum Place the bushing apbracket hole.
housing, then reinstalland reassemble all chassis sub-assemb
the rear cover.
ly parts and reinstall
18. Plug in and reattach
into the main plastic
both heads. Check
for proper function.
FIGURE 1
BAYONET
CONNECTOR
DIMPLE
SPRING
COLLAR
RUBBER
SPRING
SHOULDER
SPACER
SMALL
SET SCREW
HEX KEY
HANDPIECE
HANDLE
TERMINALS
TRIM RING
STRAIN RELIEF
BUSHING
WIRING DIAGRAM
RUBBER BOOT
BLUE
HA2
SW2
WHITE
RIGHT
LAMP
SW4
BLUE
PILOT
LAMP
SW1
SW3
C
BOARD
(Continued from page 2)
6. On the dental equipment service
side, the larger service companies
will continue to maintain their positions in the market, but smaller,
nimbler service companies will
also continue to thrive in niche market segments.
the Model Name box in our
Quick Search bar (located in the
upper right corner of our homepage). If you have any questions
about using the RPI web site or
about RPI parts for the System
1E please contact our technical
support department and we will
be happy to help you.
BROWN
BROWN
RED
From the Desk of the
President
using the drill down tabs along
the left side of our homepage
(www.rpiparts.com). Just click
Bulk Sterilizers & Endoscope
Washers, then select Steris and
click on System 1E. Also, a listing of available parts for the
System 1E can be generated by
simply typing "System 1E” into
WAB001
POWER SUPPLY
A reminder to our biomedical
customers – RPI sells many
repair parts for the Steris
System 1E Scope Washer.
Many of the original parts developed for the System 1 are also
used in the System 1E including
the Inflatable Seal, many of the
check valves, the pinch sleeves
and a large assortment of Orings. What’s more, a complete
listing of available parts for the
System 1E can be generated by
POWER SWITCH
Don't Forget ...
RPI has parts to fit
Steris System 1E
HA3
NC
COILED CORD
MICROSWITCH
C
NO
MICROSWITCH
NC
HA1
WHITE
LEFT
LAMP
STRAIN RELIEF
BUSHING
(RPI Part #RPB169)
WAK005INS Rev -
(09/14)
RPI Installation In
st
And
for the Coiled Coructions
rd Kit
of course,
if you would like to speak to one of
our Technical Support team members
directly, please call (800) 221-9723
option 6, (Monday - Friday, 8:00 a.m.
- 4:30 p.m. Pacific Time), or send an
email to [email protected]
We look forward to hearing from you.
All rights reserved. No part of this newsletter may be reproduced or utilized in any form or by any other means without permission in writing from the Publisher. Inquiries should be addressed to: RPI, Marketing Department, P.O. Box 5019,
Chatsworth, California 91313-5019. Additional copies of The Alternate Source® may be obtained by contacting RPI. Please feel free to Call: (800) 221-9723, Fax: (818) 882-7028, or E-Mail: [email protected] your request. Parts mentioned in this newsletter are manufactured by Replacement Parts Industries, Inc. to fit the equipment noted. All product names used in this document are trademarks or registered trademarks of their respective holders. RPI © 2014.
CALL (800) 221-9723 or (818) 882-8611 • FAX (818) 882-7028 • WEBSITE www.rpiparts.com
E-MAIL [email protected] • E-MAIL [email protected] • E-MAIL [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
