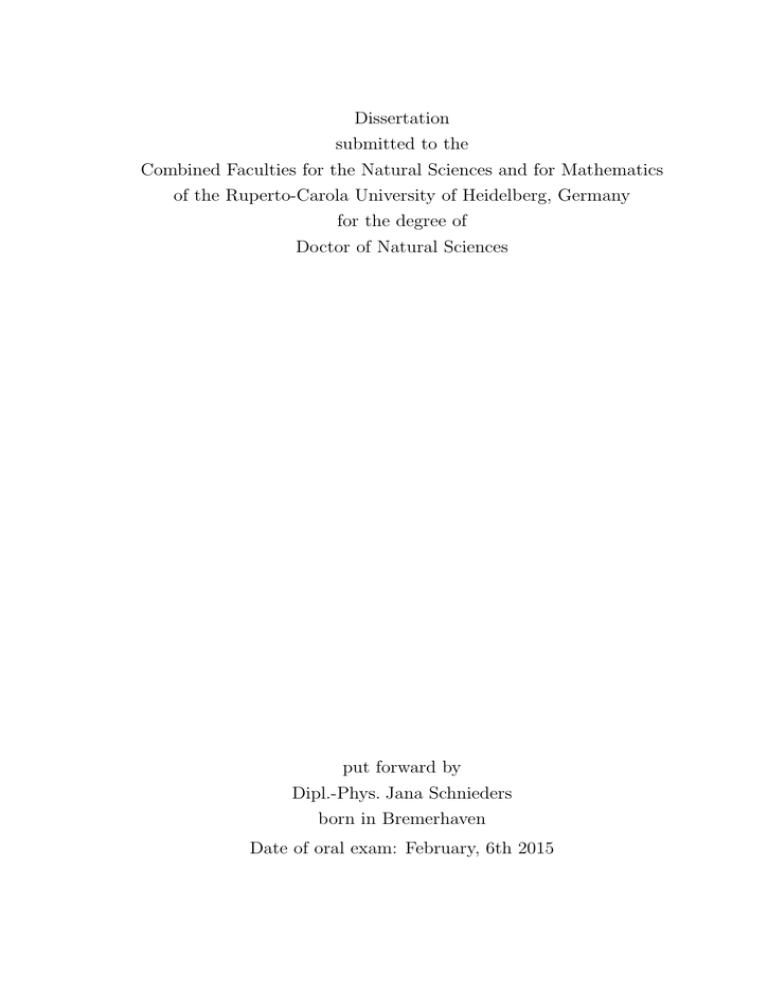

Dissertation Jana
Dissertation
submitted to the
Combined Faculties for the Natural Sciences and for Mathematics
of the Ruperto-Carola University of Heidelberg, Germany
for the degree of
Doctor of Natural Sciences
put forward by
Dipl.-Phys. Jana Schnieders
born in Bremerhaven
Date of oral exam: February, 6th 2015
Analyzing the footprints of turbulence producing
mechanisms at the free water surface
Referees:
Priv.-Doz. Dr. Christoph S. Garbe
Prof. Dr. Kurt Roth
Abstract
At the free wind-sheared water surface, various turbulence producing mechanisms contribute
significantly to enhanced transfer rates of heat and gas across the air-water boundary. As a result,
surface convergence and divergence form and can be visualized in infrared images of the water
surface. Within this work the footprints of turbulent processes in the surface temperature pattern
are analyzed. Image processing techniques, such as motion estimation and classification, are
adapted and applied to the infrared images of the water surface. Dense flow fields are estimated
without the suppression of surface divergence and up- and down-welling sites are identified.
Data from a range of laboratory facilities is evaluated with a focus on small spatial scales, low
to moderate wind stress and the impact of surfactants on the surface dynamics. In this wind
regime shear induced turbulence, small Langmuir circulations and microscale breaking waves are
identified as the dominant processes that drive heat exchange. The turbulent cell size is suggested
as a characteristic feature of shear and Langmuir turbulence and is related against friction
velocity and wave field. Within this work, a novel method is suggested to assess the impact
of individual processes on the overall heat transfer rate and tested on the measured laboratory
data also with respect to the influence of increasing wind stress and surfactant coverage. The
following key points are found: Shear induced turbulence is a major contributor to enhanced
transfer rates at low wind stress. Its relevance increases if the surface is covered by surfactants
as the onset of waves is delayed. Langmuir circulations play a major role at intermediate wind
stress and cause a significant increase of transfer rates. Surfactants on the water surface delay the
evolution of Langmuir circulation and intensity considerably. Microscale breaking is a dominant
contributor at moderate wind stress and is responsible for approximately 50% and more of the
transfer rate.
Zusammenfassung
Wind, der über eine freie Wasserfläche weht, verursacht eine Vielzahl miteinander wechselwirkender turbulenter Prozesse, die entscheidend dazu beitragen, dass sich der Austausch zwischen
Wasser und Luft beschleunigt. Die enstandene Oberflächendivergenz und -konvergenz wird in
Infrarotbildern sichtbar, bildet also die ursächlichen Prozesse ab. In dieser Arbeit werden die
Temperaturmuster an der Wassermethode untersucht, mit Hilfe von Methoden aus der Bildverarbeitung wie Bewegungsschätzung aus optischem Fluss und der Klassifikation von Strukturen.
Hierbei werden dichte Geschwindigkeitsfelder ermittelt, ohne vorhandene Divergenz zu dämpfen,
weiterhin werden Auf- und Abtriebsgebiete detektiert. Daten aus verschiedenen Wind-WellenKanälen werden ausgewertet, ein Schwerpunkt liegt auf niedrigen bis moderaten Windgeschwindigkeiten und dem Einfluss von oberflächenaktiven, filmbildenden Substanzen auf die Dynamik
der Oberfläche. Unter diesen Bedingungen verursachen vor allem kohärente turbulente Strukturen durch Scherung der Wasseroberfläche, kleine Langmuir Zirkulationen und kleinskalig brechende Wellen erhöhte Austauschraten von Wärme oder Gasen. Die Größe turbulenter Zellen
wird als allgemeines Kriterium vorgeschlagen, und charakterisiert besonders Scherturbulenz und
Langmuir Zirkulationen relativ zu Schubspannungsgeschwindigkeit und Wellenfeld. In dieser
Arbeit wird eine neue Methode vorgeschlagen, um den Einfluss einzelner turbulenter Prozesse auf die gesamte Wärmeaustauschrate zu quantifizieren in Abhängigkeit von Windgeschwindigkeit und Oberflächenfilm. Folgende Schlüsselerkenntnisse wurden festgestellt: Bei niedrigen
Windgeschwindigkeiten ist Scherturbulenz hauptursächlich für beschleunigten Wär-metransfer,
bei steigendem Wind und der Entstehung von Wellen sind es Langmuir Zirkulationen, die die
Transferrate beträchtlich erhöhen. Ein Oberflächenfilm verzögert die Entstehung von Wellen und
damit auch diejenige von Langmuir Zirkulationen. Deshalb nimmt in diesem Fall die Bedeutung
von Schertubulenz für die Austauschrate zu, während Langmuir Zirkulationen gedämpft werden.
Bei steigendem Wind dominieren kleinskalig brechende Wellen und tragen 50% und mehr zur
Wärmeaustauschrate bei.
Contents
1. Introduction
1
2. Turbulent processes at the free water surface
7
2.1. Overview of relevant turbulent processes in the context of air-sea interaction
. .
7
2.2. Observation of turbulent processes . . . . . . . . . . . . . . . . . . . . . . . . . .
8
2.2.1. The footprints of turbulence in infrared images . . . . . . . . . . . . . . .
9
2.3. The free water surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
2.3.1. Conservation of mass and momentum . . . . . . . . . . . . . . . . . . . .
10
2.3.2. Description of turbulent flow . . . . . . . . . . . . . . . . . . . . . . . . .
11
2.4. Shear induced turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
2.4.1. Shear stress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
2.4.2. Features of shear induced turbulence . . . . . . . . . . . . . . . . . . . . .
15
2.5. Wave-shear coupled turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
2.5.1. Waves on the water surface . . . . . . . . . . . . . . . . . . . . . . . . . .
16
2.5.2. Langmuir circulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
3. Conceptual models of near surface turbulence
21
3.1. Thin stagnant film model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
3.2. Surface renewal model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
3.3. Surface divergence model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
3.4. Eddy renewal model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
4. Experiments
27
4.1. Aeolotron, University of Heidelberg . . . . . . . . . . . . . . . . . . . . . . . . . .
27
4.1.1. Experiments 2011 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
4.1.2. Experiments 2012 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
4.1.3. Experiments 2014 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
4.2. Water Research Laboratory, University of New South Wales . . . . . . . . . . . .
30
4.3. Air Sea Interaction Saltwater Tank, Rosenstiel School of Marine & Atmospheric
Sciences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
4.4. Overview of infrared images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
i
Contents
5. Estimation of surface velocities from infrared images
35
5.1. Motion estimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
5.1.1. Optic Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
5.1.2. Variational techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
5.1.3. State of the art global optic flow . . . . . . . . . . . . . . . . . . . . . . .
38
5.1.4. Fluid flow estimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39
5.2. Fluid flow estimation on infrared images of the water surface . . . . . . . . . . .
41
5.2.1. A new regularizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
5.2.2. A robust two step algorithm . . . . . . . . . . . . . . . . . . . . . . . . . .
43
5.2.3. Parameter estimation and performance comparison . . . . . . . . . . . . .
45
5.3. Active Thermography as a solution to the aperture problem associated with optical flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
5.4. Validation of estimated velocities from simultaneous active and passive measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
5.4.1. Comparison of active and passive methods . . . . . . . . . . . . . . . . . .
47
5.4.2. Error estimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
6. Classification of the surface temperature pattern
51
6.1. Analysis of the spatial scales of the footprints of near surface turbulence . . . . .
51
6.1.1. Pixel based segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . .
51
6.1.2. Analysis of the streak spacing . . . . . . . . . . . . . . . . . . . . . . . . .
54
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
57
7.1. Dominant turbulent processes at varying wind wave conditions . . . . . . . . . .
58
7.1.1. Shear dominated regime . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
7.1.2. Langmuir Circulation dominated regime . . . . . . . . . . . . . . . . . . .
61
7.1.3. Microscale breaking dominated regime . . . . . . . . . . . . . . . . . . . .
62
7.2. Processes shaping the surface dynamics . . . . . . . . . . . . . . . . . . . . . . .
62
7.2.1. Non-breaking waves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
63
7.2.2. Langmuir convergence and high speed streaks . . . . . . . . . . . . . . . .
67
7.2.3. Breaking waves and roll vortices . . . . . . . . . . . . . . . . . . . . . . .
68
7.2.4. Comparison of the impact of surface processes on surface temperature and
ii
surface divergence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
69
7.3. Absolute surface divergence with increasing wind stress . . . . . . . . . . . . . .
71
7.3.1. Surface velocities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
71
7.3.2. Surface divergence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
74
7.4. Estimation of bulk temperatures based on the eddy renewal model . . . . . . . .
75
7.4.1. Comparison of results from surface renewal and eddy renewal model . . .
75
7.4.2. Spatial variation of bulk temperatures . . . . . . . . . . . . . . . . . . . .
77
Contents
7.5. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
77
7.5.1. Characteristic features of the water surface . . . . . . . . . . . . . . . . .
78
8. Defining characteristic turbulent scales
81
8.1. Small scale turbulence induced streak spacing . . . . . . . . . . . . . . . . . . . .
81
8.1.1. Correlation of streak spacing and friction velocity . . . . . . . . . . . . . .
83
8.1.2. Influence of wave conditions . . . . . . . . . . . . . . . . . . . . . . . . . .
85
8.2. Langmuir Circulation-induced cold streaks . . . . . . . . . . . . . . . . . . . . . .
86
8.2.1. Influence of mechanical waves on Langmuir like turbulence . . . . . . . .
86
8.2.2. Langmuir numbers and streak spacings . . . . . . . . . . . . . . . . . . .
86
8.3. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
89
9. Introducing the concept of eddy superposition
91
9.1. Heat flux estimates from passive Thermography . . . . . . . . . . . . . . . . . . .
10.The impact of surface eddies on heat transfer
92
95
10.1. Heat flux estimates from surface eddies . . . . . . . . . . . . . . . . . . . . . . . .
95
10.1.1. Shear turbulence induced heat flux estimates . . . . . . . . . . . . . . . .
95
10.1.2. Shear wave coupled turbulence induced heat flux estimates . . . . . . . .
97
10.2. Impact of turbulence on heat transfer at increasing wind stress . . . . . . . . . .
98
10.3. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
11.Discussion
105
11.1. Turbulence producing mechanisms at the water surface . . . . . . . . . . . . . . . 105
11.2. Characterization of turbulent regimes . . . . . . . . . . . . . . . . . . . . . . . . 107
11.3. Impact of small scale surface turbulence on heat exchange rates in changing surface conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
11.4. Implication for larger scales and the field . . . . . . . . . . . . . . . . . . . . . . . 112
12.Conclusion and Outlook
115
12.1. Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
12.2. Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Bibliography
118
A. Appendix
133
A.1. Technical Data of used Infrared Cameras
. . . . . . . . . . . . . . . . . . . . . . 133
A.2. Error analysis, k-estimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
iii
1. Introduction
“The atmospheric concentrations of carbon dioxide, methane, and nitrous oxide have increased
to levels unprecedented in at least the last 800,000 years. Carbon dioxide concentrations have
increased by 40% since pre-industrial times, primarily from fossil fuel emissions and secondarily
from net land use change emissions. The ocean has absorbed about 30% of the emitted anthropogenic carbon dioxide, causing ocean acidification”, [IPCC, 2013].
Within the last century the world’s climate has been undergoing continuous change driven
by the accumulation of greenhouse gases in the atmosphere. Carbon dioxide is one of the most
extensively studied examples of a greenhouse gas and major contributor to raising temperatures.
The total concentrations of climatically active gases is to a large extend determined by sinks
and sources on land and ocean. As 70 % of the earth’s surface are covered by ocean the transfer
of mass and energy across the ocean atmosphere interface plays a crucial role in our climate
system and determines the uptake of greenhouse gases and heat.
The estimated 30% of atmospheric carbon dioxide absorbed in the ocean determine the future climate evolution [Cox et al., 2000]. Consequently, the ocean is a major sink for emitted
anthropogenic carbon dioxide [Le Quéré et al., 2014]. While this slows the greenhouse effect
considerably and thereby global warming, it also leads to ocean acidification, which is a major
threat to sea organisms depending on carbonate shells such as corals [Feely et al., 2004; Orr
et al., 2005].
At the same time, this amount of absorbed carbon dioxide is a global average and subject
to large spatial and inter-annual variations. The total flux from atmosphere to ocean depends
strongly on the efficiency of the transfer process through the boundary layer, which is determined
by the transfer velocity or transfer rate. Multiplied with the concentration gradient it gives the
total flux. Therefore, coupled climate models aiming to predict the uptake of atmospheric carbon
by the ocean, e.g., [Cox et al., 2000], depend on an accurate parameterization of gas transfer
velocities [Garbe et al., 2014].
Within the field of air-sea interaction the optimal parameterization of exchange processes has
been subject to extensive investigation for the past decades [Frew et al., 2004; Ho et al., 2011;
Liss and Slater, 1974; Wanninkhof, 1992]. However, a good parameterization can only be based
on the thorough understanding of the physical processes at the water surface causing the high
variability of observed transfer velocities.
1
1. Introduction
Parameters
Processes
Kinematic
Forcing
Micro
Breaking
Wind
Heat flux
Small Scale
Turbulence
Fetch
Large Scale
Turbulence
Mixing Depth
Waves
Chem./Biol.
Properties
Bubbles,
Spray
Turbulence
in the Air
Turbulence
in the Water
Transfer
velocity k
Dynamics at
the Interface
Rain
Surface Films
Figure 1.1.: Overview of parameters and processes influencing gas transfer, adapted from Garbe et al. [2014]. Various
parameters such as wind or heat flux determine the evolution of connected processes, e.g., microscale breaking and
turbulence on different scales. These turbulence producing processes in turn determine the dynamics at the interface
and thus the transfer velocity, k. Red boxes indicate parameters and processes under investigation and discussion in
this work.
Processes affecting air-sea interaction
Ultimately, the transfer velocity is determined by the fluid dynamics close to the water surface.
Within a very thin layer at the surface, the mass boundary layer, the transfer process is governed
by molecular diffusion. Below that, it is turbulent mixing that efficiently transfers water parcels
from the bulk into the mass boundary layer and enhances transfer velocities [Soloviev and
Schlüssel, 1994].
Figure 1.1 shows an overview of parameters and processes which influence gas transfer. Red
boxes indicate parameters and processes under investigation in this work. Initially, all fluid flow
in the upper ocean originates from the input of momentum through wind stress on the water
surface. Further parameters include biological activity, heat flux and fetch, which describes the
length on the water surface over which the wind has blown. Even though wind stress is the main
source of momentum input into the water, turbulence producing processes such as shear stress,
waves and resulting small and large scale turbulent structures are responsible for the kinematic
forcing that finally leads to enhanced transfer rates. Along with thermodynamic forcing, this
determines the total air-sea flux of sparingly soluble gases like CO2 .
As our climate system undergoes a continuous change, it becomes increasingly important to
identify the driving forces of enhanced transfer velocities. A shift in the wind speed distribution
has already led to reduced CO2 uptake in the southern ocean [Le Quéré et al., 2007].
2
The frequency distribution of wind speeds over the ocean exhibits a peak at a relatively low
wind speed of approximately U10 = 5 m/s [Wanninkhof, 1992]. However, weighted with their
relevance to exchange processes, the peak of the distribution shifts to higher wind speeds. Highest
influence on air-sea interaction is found at wind speeds of approximately 10 m/s [Wanninkhof,
1992]. Accordingly, a significant fraction of the global exchange of heat and gas across the air-sea
interface is determined by wind speeds in the range 5 − 10 m/s.
Key coupling processes at low to moderate wind stress are shear induced turbulence, waves,
especially microscale breaking, as well as wave-shear coupled turbulence, e.g., Langmuir circulation. All these processes act on relatively small scales. Their common characteristic is the
injection of turbulent kinetic energy close to the water surface. Exchange rates are closely linked
to the intensity of near-surface turbulence [McKenna and McGillis, 2004]. Thus, CO2 fluxes show
stronger variability on smaller scales than climatology can directly predict [Wanninkhof et al.,
2011].
Linking measured transfer rates, k, with a parameter such as wind speed, U , allows for a
parameterization of gas exchange and, therefore, the prediction of transfer rates in dependency
of the chosen parameter. Wind speed seems like an obvious choice as measurements are widely
available and easy to obtain. Ho et al. [2011] found the parameterization with wind speed to
correlate well with observational data measured within the duration of weeks. However, there is
a large uncertainty within the k-U parameterization. Gas transfer rates measured at the same
wind stress vary by a factor of two. This holds true especially in oceanic areas with surface
active material on the water surface, i.e. caused by high biological activity in coastal areas.
Surfactants form a thin, mono-molecular layer at the water surface and thereby reduce surface
roughness. Transfer rates in affected areas are considerably lower than expected from the U10
parameterization, considering the prevailing wind stress [Frew et al., 2004].
Properties such as kinetic energy dissipation or surface divergence describe the dynamic state
of the water surface much more closely than wind speed and have been successfully linked to
transfer velocities (e.g., most recently [Banerjee et al., 2004; Zappa et al., 2007]). As these properties require in-situ measurements of the subsurface velocity field a universal parameterization
based on these quantities is often not a viable option. Other parameterizations have been suggested, based on a statistical property of the wave field, the mean square slope (MSS), [Jähne
et al., 1984] and provide good results [Frew et al., 2004; Krall, 2013]. This is due to two important processes: Langmuir circulation [Veron and Melville, 2001] and microscale breaking [Zappa
et al., 2004]. Both are to a certain degree characterized by increasing MSS values. However,
Kiefhaber [2014] pointed out that MSS provides generally a good parameterization, at low wind
speeds and surfactants, however, its reliability decreases.
From a mechanistic point of view, neither a parameterization based solely on wind speed
nor one based on wave properties, can explain the variation of transfer velocities exhaustively.
Processes like shear turbulence depend strongly on wind stress. Microscale breaking is well
described by mean square slope. Langmuir circulation, on the other hand, result from the
3
1. Introduction
coupling of wind and waves. At identical wind stress surfactants can alter the wave field and
therefore related surface processes considerably.
Scope of this work
In the scope of this thesis, processes enhancing air-sea transfer rates will be investigated with
respect to their characteristic features and impact on exchange. A focus will be on low to
moderate wind speeds because this is the range of wind speeds that occurs most frequently
on the global ocean [Wanninkhof, 1992] and a considerable fraction of the global exchange of
heat and gas is determined by moderate wind speeds. Another key aspect is the impact of
surface active materials reducing surface roughness on near surface turbulence, a state that
occurs frequently on the ocean [Wurl and Obbard, 2004]. None of the commonly employed
parameterizations is able to explain varying gas transfer rates in these conditions exhaustively.
The goals of this work are threefold:
1. Identification of dominant turbulent regimes depending on wind speed and surface conditions.
2. Definition of the characteristic features of these processes.
3. Assessment of the impact of individual processes on air-sea transfer under varying surface
conditions.
The results help to explain why a parameterization is accurate under certain conditions only.
To achieve these goals, new methods for the analysis of the interacting turbulent mechanism are
developed and tested on the collected measurement data.
Thermographic techniques are ideal for surface measurements of interfacial turbulence [Garbe
et al., 2004; Handler et al., 2001; Haussecker et al., 1995, 2002; Jessup et al., 1997; Schimpf et al.,
1999b; Zappa et al., 2001]. Application of techniques from image processing such as motion
estimation and classification of the surface heat pattern provide detailed information about the
dynamic state of the water surface with a high spatial and temporal resolution provided by stateof-the-art infrared cameras [Schnieders et al., 2013]. The data is collected in the laboratory to
be able to precisely adjust surface conditions. The controlled environment of the laboratory
allows for a range of different wind wave conditions and the addition of surface active material.
In principle, the same technique could be applied to the field.
Structure of this thesis
• In Chapters 2 and 3, a review of the fluid dynamics of the free wind sheared water surface
is given with a focus on processes relevant to air-sea gas exchange. An overview of existing
conceptual models of near surface turbulence presents current formulations of the gas
transfer rate based on parameters describing turbulence.
4
• An overview of the experiments, from which data was analyzed in this thesis, is given in
Chapter 4. Here, the experiments described in Section 4.1 were conducted within this
work while the data from the experiments described in Sections 4.3 and 4.2 were kindly
provided within a collaboration between Bill Peirson from the water research laboratory
in Sydney, Cristopher Zappa from the Lamont-Doherty Institute, New York and Geoffrey
Smith from the Rosenstiel School of Atmospheric and Ocean Sciences, Miami.
• In Chapters 5 and 6, techniques for the analysis of passive infrared images of the water
surface are introduced. In Chapter 5 state-of-the-art global optic flow techniques are presented and subsequently, adapted for the analysis of the data in this thesis. A comparison
of results from optical flow with results from active Thermography provides a means to
determine errors of the velocity estimation. In Chapter 6 the classification procedure of
the surface temperature pattern is described. This has in parts already been published in
Schnieders et al. [2013].
• In Chapter 7, the dominant turbulent regimes are defined depending on wind speed and
surface condition. Processes defining the dynamics of the water surface are discussed with
respect to their impact on the surface velocity fields and their appearance in the infrared
images.
• Chapter 8 is in large parts based on Schnieders et al. [2013]. Preliminary results have also
been published in Schnieders [2011] and were extended and adapted. In this chapter the
turbulent cell size is defined as a universal criterion to identify shear induced turbulence
at a range of wind speeds and tests the spacing of observed wave-shear coupled turbulence
against neutral stability theory applicable to Langmuir circulations.
• Chapters 9 and 10 derive the impact of shear induced turbulence and Langmuir circulations
on heat exchange rates. First, an adaptation of the eddy renewal model is presented, which
includes a concept of eddy superposition and a more robust approach to the estimation
of heat transfer rates based on classified surface eddies. The result of this Chapter is
the identification of a transition wind stress regime in which Langmuir circulations are
responsible for a large fraction of total heat transfer.
• Finally, Chapters 11 and 12 summarize and discuss the results of the previous sections. An
outlook is given, including planned experiments with an octocopter in cooperation with
SeaNetworks e.V. at the Alfred-Wegener-Institute for Polar- and Marine Research.
5
2. Turbulent processes at the free water surface
2.1. Overview of relevant turbulent processes in the context of
air-sea interaction
Turbulence is ubiquitous in every open water body on earth, from the small pond to the world’s
oceans. Turbulent motion occurs on a wide range of scales from global ocean circulation to
microscopic dissipative eddies. One characteristic of turbulence is the transfer of momentum,
heat and mass [Thorpe, 2007], either between scales or between different parts of the water body.
In the context of air-sea interaction especially those turbulent processes are of interest which
facilitate the transfer of heat, energy and momentum between air and water, i.e. near surface
aqueous turbulence. Figure 1.1 shows an overview of parameters and processes influencing gas
transfer between atmosphere and ocean, adapted from Garbe et al. [2014]. An illustration of
these processes can be found in Figure 2.1. Here, tubulence generating processes, e.g., wind and
waves, are given in yellow, while turbulence suppressing processes, e.g. surfactants, are shown
in orange. Various parameters such as wind or heat flux determine the evolution of several processes, e.g., microscale breaking and turbulence on different scales. These turbulence producing
processes in turn determine the dynamics of the interface and thus the transfer velocity, k.
In this work, a focus will be on processes that evolve under low to moderate wind stress on
relatively small scales and are indicated by red boxes in Figure 1.1. Shear induced turbulence,
small Langmuir circulation and microscale breaking are the defining processes at low to moderate
wind stress. Macroscale breaking, while exhibiting prominent white caps, injects turbulent
kinetic energy to deep to cause more significant surface renewal and contributes mainly through
the generation of bubble plumes. This process, though significant at higher wind speeds, does not
play a major role at low to moderate wind stress. At low to moderate wind speeds the alteration
of surfactants to the turbulent regimes of the water surface is most pronounced. It has been
pointed out that soluble surfactants have the biggest effect by altering hydrodynamical properties
of the water surface [Garbe et al., 2014; Liss, 1983]. The big challenge is the quantification of
these processes in a way that allows for the prediction of transfer rates based on the physical
understanding of surface dynamics.
The main generation mechanism of small scale turbulence at the water surface is wind stress
[Asher, 1997; Kitaigorodskii, 1984]. Numerical simulations [Tsai et al., 2005] and laboratory
studies [Rashidi and Banerjee, 1990] have shown that wind stress alone without surface waves is
sufficient for coherent turbulent structures to evolve. Small scale surface turbulence is ubiquitous
7
2. Turbulent processes at the free water surface
Figure 2.1.: Illustration of parameters and processes influencing the exchange of energy and mass from SOLAS Scientific
Steering Committee [2015]. Tubulence generating processes, e.g., wind and waves, are given in yellow, while turbulence
suppressing processes, e.g. surfactants, are shown in orange.
on all open water bodies but size and intensity strongly depend on environmental conditions.
Therefore, shear induced turbulence is an important mechanism for controlling transfer rates at
the air-sea interface [Asher, 1997; Salter et al., 2011; Wanninkhof et al., 2009].
In the presence of small gravity waves the characteristic temperature pattern at the water surface exhibits cold streaks with larger spacings and longer life time than shear induced turbulence
[Caulliez, 1998; Melville et al., 1998; Schnieders et al., 2013; Veron and Melville, 2001]. Their
characteristics have been shown to correspond very well with Langmuir circulation as described
by Craik-Leibovich (CL) II mechanism [Leibovich and Paolucci, 1981]. Langmuir circulations
are generally known as larger scale roll vortices that can be observed on the open ocean causing
lines of foam in wind direction. On a smaller scale they have been observed in the field and
laboratory [Caulliez, 1998; Melville et al., 1998; Veron and Melville, 2001] as soon as the first
wind waves form at the water surface.
Microscale breaking [Banner and Phillips, 1974] denotes the breaking of small gravity waves
in the process of which high levels of turbulent kinetic energies are reached in the spilling region
of the wave [Jessup et al., 1997]. Microscale breaking waves have been shown to contribute
significantly to enhanced transfer velocities at moderate wind speeds (up to 70% according to
[Zappa et al., 2001] and 50 % to [Peirson et al., 2014]).
2.2. Observation of turbulent processes
In a turbulent flow the largest eddies have a characteristic scale and appear as coherent turbulence. In the study of exchange between ocean and atmosphere those eddies are of high interest
because from their size and intensity information can be gained about the turbulent state of the
8
2.2. Observation of turbulent processes
water surface. Near surface turbulence leads to upwelling of deeper water to the surface and is
a main driver of surface divergence. Due to the cool skin of the ocean, heat can be used as a
tracer to detect areas of surface convergence and divergence and thus gather information about
size and intensity of a turbulent process.
The cool skin at the water surface develops if there is a negative heat flux between water and
air. There are three main passage ways for the exchange of heat across the air-water interface:
Latent heat flux because of the enthalpy of evaporation, sensible heat flux as a result of the first
law of thermodynamics, and radiative heat flux according to Planck’s Law.
jtot = jlatent + jsensible + jradiative
(2.1)
The sensible heat flux is determined by the temperature difference of air and water. The latent
heat flux is the result of the evaporation of water molecules which thus change their aggregate
state leading to a cooling of the water surface because of the loss of evaporation heat. The
latent heat flux depends on the saturation deficit of the air directly above the water which itself
is determined by the humidity of the air and for example the wind speed. The exchange of heat
between the ocean and the atmosphere leads to the development of a thin surface layer that is
colder than the bulk water below.
2.2.1. The footprints of turbulence in infrared images
Velocities at the water surface are determined by underlying turbulence which causes horizontal
and vertical velocity gradients. For an incompressible Newtonian Fluid (refer to Section 2.3.1),
the continuity equation Equation 2.6 yields
∂w ∂u ∂v −
=
+
,
∂z z=0
∂x z=0 ∂y z=0
(2.2)
with u and v being horizontal velocity components and w the vertical velocity component. As
a consequence, small fluctuations in the vertical velocity component are caused by waves and
coherent turbulent structures and induce horizontal velocities at the water surface. Zones of
surface divergence and convergence evolve and disturb the cool skin of the water and lead to the
development of a heat pattern on the water surface that visualizes the process that causes it.
The surface heat pattern thus exhibits footprints of the underlying turbulence which are
characteristic of the turbulence generating processes involved. This means that taking infrared
images of the water surface provides an ideal technique to observe surface turbulence. Especially since infrared cameras with high spatial and temporal resolution have become available,
Thermography has been shown a valuable tool in the study of turbulent processes at the water
surface [Handler et al., 2001; Haussecker et al., 1995, 2002; Jessup et al., 1997; Schimpf et al.,
1999b; Zappa et al., 2001]. Garbe et al. [2002, 2004] and Schimpf et al. [2004] have presented
techniques based on passive thermography to estimate the heat flux and relate the scale of sur-
9
2. Turbulent processes at the free water surface
face renewal events to wind speed and heat exchange. Thermographic techniques have also been
used to investigate the features of near surface turbulence by [Handler et al., 2001, 2012; Handler
and Smith, 2011; Melville et al., 1998; Scott et al., 2008; Veron and Melville, 2001; Veron et al.,
2011].
Due to the high temporal resolution of infrared cameras not only the spatial features can
be examined but also the dynamics of the water surface temperature pattern are captured and
therefore also the time scales on which a process acts. In Figure 7.1 an example image is shown
with annotations to illustrate the footprints of shear turbulence and small Langmuir circulations.
In the following sections the relevant turbulence producing mechanism will be discussed.
2.3. The free water surface
2.3.1. Conservation of mass and momentum
Continuity equation
The continuity equation in fluid mechanics expresses the principle of conservation of mass for
fluids, i.e. changes in density of a fluid parcel of a certain volume must be caused by a flow of
fluid into this volume. The continuity equation is given by
∂ρ
+ ∇ · (ρu) = 0
∂t
(2.3)
The divergence term can be rewritten [Kundu, 2008] as
∂
∂ui
∂ρ
(ρui ) = ρ
+ ui
∂x
∂xi
∂xi
(2.4)
The continuity equation then becomes
1 Dρ
+∇·u=0
ρ Dt
(2.5)
Here, Dρ/Dt = ∂ρ/∂t + (u · ∇) is the material derivative of the density and represents the rate
of change of density following a fluid particle on its path. Density changes in a fluid typically
occur due to changes in pressure, temperature or salinity (for example in the ocean). Water is,
like most fluids, nearly incompressible, i.e. its density does not change with pressure (or much
less than the spatial variation of velocities). Together with the assumption of other constant
properties as e.g. viscosity this is called the Boussinesq equation that holds for many applications
involving fluids and certainly if considering the water surface on relatively small scales. This
means that Dρ/Dt = 0 and the continuity equation simplifies to
∇ · u = 0.
10
(2.6)
2.3. The free water surface
Navier-Stokes equation
The Navier-Stokes equations represent the conservation of Momentum required by Newtons
Second Law:
Z ∂τij
Dui
ρ
− ρgi −
dV = 0
Dt
∂xj
(2.7)
Any acceleration and thus change of momentum is the result of body forces acting on the fluid.
This holds for any volume V and therefore, the integrand in Equation 2.7 must vanish at every
point [Kundu, 2008]. Here, ρgi represents the body force per unit volume. The tensor τij is the
stress tensor and is given by
τij = −pδij + 2µeij
(2.8)
for incompressible fluids with ∇ · u = 0.
1
eij =
2
∂uj
∂ui
+
∂xj
∂xi
(2.9)
is the strain rate tensor. Here, it is assumed that the viscosity µ can only depend on the local
thermodynamic state and is constant. This corresponds to Newtons definition of viscosity. Fluids
obeying Equation 2.8 are thus called Newtonian fluid. Inserting Equation 2.8 into Equation 2.7
and switching to vector notation gives the Navier-Stokes equation for incompressible fluid:
ρ
Du
= −∇p + ρg + µ∇2 u
Dt
(2.10)
If the material derivative Du/Dt = ∂u/∂t + (u · ∇)u is expanded it becomes evident that the
Navier-Stokes equation is quadratic in u and therefore a non-linear differential equation which
means that analytic solutions only exist for very simple cases.
2.3.2. Description of turbulent flow
Reynolds number
The Navier-Stokes equation (Equation 2.10) also describes the balance between inertia forces,
pressure and viscosity. The relationship between inertia and frictional force can be taken as
a measure for turbulence in the flow and is represented by the Reynolds number. By scaling
the velocity u in Equation 2.10 by the free-stream velocity U and distances by a representative
length L, the Reynolds number can be derived via
Re =
Inertia force
ρU 2 /L
UL
=
=
Viscous force
µU/L2
ν
(2.11)
11
2. Turbulent processes at the free water surface
with the kinematic viscosity ν = µ/ρ. Introducing non-dimesional variables x0 = x/L, u0 = u/U ,
p0 = (p − pinf )/(ρU 2 ) the Navier-Stokes equation can be written as
u0 · ∇u0 = −∇p0 +
1 2 0
∇ u.
Re
(2.12)
For high Reynolds numbers 1/Re becomes small and can be set to zero as a first approximation
which results in the inviscid Euler equation. However, even at high Reynolds numbers, the
viscous term cannot be neglected in boundary layers as viscosity determines the velocity gradient
in the shear layer.
(Surface) Richardson number
In analogy to the Reynolds number, the Froude number describes the relation between Inertia
forces and gravity forces, which is important when considering, for example, flow in an open channel or equally important when dealing with density-stratified fluids. In a density-stratified fluid
the so called internal Froude number describes the relation of inertia and buoyancy force. However, in that case it is more common to define another non-dimensional number, the Richardson
number [Kundu, 2008]
Ri =
1
(ρ2 − ρ1 )g 1/2 g 0 L
=
= 2
F r02
ρ1 U 2 /L
U
(2.13)
where g 0 = g(ρ2 − ρ1 )/ρ1 is the reduced gravity between the two layers of fluid with different
densities.
At the free water surface a negative heat flux due to evaporation leads to free convection. The
surface Richardson number describes the transition from convective instability to wind induced
instability [Kudryavtsev and Soloviev, 1981; Soloviev and Schlüssel, 1994] and is given by
Rf0 = −α g q0
ν
u∗4
(2.14)
and holds within the surface shear layer. α is the coefficient of thermal expansion of water,
q0 = −Q0 /(cp ρ) and Q0 is the total heat flux just below the sea surface, and u∗ the friction
velocity.
Estimates of a critical value of Rf0 have been made by Kudryavtsev and Soloviev [1981] on
the basis of the data on the cool skin of the ocean by Grassl [1976] and gave Rfcr = −1.5 10−4 .
This means that based on this analysis the flow can be assumed to be mainly shear driven if
Rf0 < Rfcr .
Reynolds averaged Navier-Stokes equations
At high Reynolds numbers, the flow is turbulent. Characteristic for turbulence is the development of eddies of a characteristic length scale which break subsequently down into smaller eddies
and continue to do so until the minimum eddy size, the Kolmogorov scale [Kolmogorov, 1941],
12
2.3. The free water surface
is reached. The Navier-Stokes equation describes turbulent flow accurately but it is virtually
impossible to solve a flow problem completely on all scales, including all velocity fluctuations.
Average quantities such as mean temperature or mean velocities can still be estimated without
a tremendous effort. The so-called Reynolds decomposition treats every variable as a decomposition of a mean part and the deviation from the mean:
ũi = ui + u0i
(2.15)
p̃ = p + p0
(2.16)
Mean quantities are indicated by an over line and fluctuating quantities by the dash, the mean
of the fluctuating part is always zero, u0i = 0.
Inserting the Reynolds decomposition into the Navier-Stokes equations (Equation 2.10) and
averaging over each term gives the Reynolds averaged Navier-Stokes equations:
∂ui
1 ∂τ ij
g
∂ui
+ uj
=
− ρδi3
∂t
∂xj
ρ ∂xj
ρ
(2.17)
where the stress is given by
τ ij
∂uj
∂ui
− ρu0i u0j
= −pδij + µ
+
∂xj
∂xi
| {z }
{z
}
|
τ0
(2.18)
ij
τij
Comparing the Reynolds averaged Navier-Stokes equations with the original Navier-Stokes equations (2.10) it becomes evident that an additional term ρu0i u0j appears in the stress tensor if the
flow is turbulent. ρu0i u0j is called Reynolds stress, represented by τij0 , and is by orders of magnitude higher than viscous stress. Reynolds stress is of the order of ρ l (∂u/∂y)2 where l is
the mixing length [Prandtl, 1990]. In analogy to the viscous term a turbulent diffusivity can be
introduced [Roedel, 2000]
τij = −ρ(ν + νe )
∂uj
∂xi
(2.19)
in which the additional contribution of viscosity due to turbulence is represented by the eddy
viscosity νe . From the Reynolds averaged momentum equation an equation for the kinetic energy
of the average flow field can be derived [Kundu, 2008].
∂E
∂
∂E
+ ui
=
∂t
∂xj
∂xj
|
{z
}
|
Time rate of change
of E following
the mean flow
uj p
∂ui
−
+ 2νui E ij − ui uj ui − 2νE ij E ij + u0i u0j
−
ρ
∂xj
| {z }
{z
}
| {z }
viscous
transport
dissipation
loss to
turbulence
g
ρ u3
ρ
| {z }
loss to
potential energy
(2.20)
with the mean strain rate Eij = 1/2 (∂ui /∂xj + ∂uj /∂xi ). The interesting part here is the
∂ui
“loss to turbulence” term, which can also be seen as turbulence production term, −u0i u0j ∂x
. It
j
13
2. Turbulent processes at the free water surface
depends on the Reynold stress ui uj and the mean flow gradient
∂ui
∂xj .
The fact that it is only
affected by the symmetric part of the velocity-gradient tensor means that shear stress directly
causes turbulence. Furthermore, turbulence production is only affected by the anisotropic part
of the Reynolds stress tensor which means that only the departure from isotropy affects the
production of turbulence.
2.4. Shear induced turbulence
2.4.1. Shear stress
When the wind starts blowing over a body of water, momentum is transported across the airwater interface via two observable processes: The development of a surface drift current and the
onset of waves.
At the onset of wind over a smooth water surface the entire wind stress is transformed into
tangential stress on the water surface and an upper shear layer develops. This layer reaches from
the water surface to the depth in which the vertical velocity gradient becomes zero (∂u/∂z ≈ 0)
[Caulliez et al., 2007]. In the Navier-Stokes equation (2.10) the stress is represented by the
expression
τij = −pδij + 2µeij
(2.21)
for the stress tensor with the strain rate:
1
eij =
2
∂uj
∂ui
+
∂xj
∂xi
.
(2.22)
The non-diagonal elements of Equation 2.21 relate the shear stress to the strain rate. The
vertical momentum transport at the water surface due to wind stress blowing in one direction
can be described by the entry of the tangential stress tensor τxz
τxz = µ ·
∂ux
2
= ρu∗ ,
∂z
(2.23)
where ρ is the density of water, µ the viscosity and ∂ux /∂z is the velocity gradient in the
surface layer. To characterize the shear stress, the so called friction velocity u∗ is defined as
p
u∗ = τt /ρ, with τt being the tangential stress in wind direction. Based on these quantities a
non-dimensional wall coordinate can be defined:
l+ =
lu∗
ν
(2.24)
where l is the distance to the water surface and ν the kinematic viscosity. If the flow is turbulent,
three regimes can be identified: the viscous shear layer, the logarithmic sublayer, and the outer
layer. Very close to the water surface flow is determined by viscous forces. The layer in which
the velocity decreases linearly is called the viscous sublayer. The thickness of this layer scales
14
2.4. Shear induced turbulence
with the kinematic viscosity ν.
With increasing wind stress the first surface waves appear and distort the water surface. As a
result part of the wind stress is transformed into wave form drag (τform ) enhancing the growth
of the waves (τ = τtang + τform ). Banner and Peirson [1998] found that with increasing wind
speed this fraction is growing while the fraction of the tangential component is even slightly
decreasing.
2.4.2. Features of shear induced turbulence
From the Reynolds averaged equation for turbulent kinetic energy (Equation 2.20) we have
learned that shear stress is the prime turbulence producing mechanism. This means that the
main generation mechanism of small scale turbulence at the water surface is wind stress [Asher,
1997; Kitaigorodskii, 1984]. Numerical simulations [Tsai et al., 2005] and laboratory studies
[Rashidi and Banerjee, 1990] have shown that wind stress alone without surface waves is sufficient
for coherent turbulent structures to evolve.
Small scale surface turbulence is ubiquitous on all open water bodies but size and intensity
strongly depend on environmental conditions. Therefore, shear induced turbulence is an important mechanism for controlling transfer rates at the air-sea interface [Asher, 1997; Salter et al.,
2011; Wanninkhof et al., 2009].
Shear turbulence causes small scale surface convergence and divergence. As a result, the typical small scale heat pattern at the water surface consists of narrow cool bands and resembles fish
scales [Handler et al., 2001]. It has been observed and described in infrared imagery by Handler
et al. [2001, 2012]; Handler and Smith [2011]; Scott et al. [2008] and numerical simulations by
Handler et al. [2001]; Tsai et al. [2005] but its exact nature has so far not been shown, though,
a good deal is known about the universally observed fish scales.
The streaky pattern observed at the water surface is very similar to the pattern of low speed
streaks near no-slip walls as described by Nakagawa and Nezu [1981] and Smith and Metzler
[1983] and it has been suggested [Tsai et al., 2005] that low speed streaks near a no-slip wall and
high speed streaks near the water surface originate from the same mechanism. Their spacing was
found to be log-normally distributed with a mean dimensionless streak spacing of l+ = lu∗ /ν =
100, where the mean streak spacing is given by l, the (water sided) friction velocity by u∗ and
the kinematic viscosity by ν. The factor u∗ /ν by which l is non-dimensionalized is estimated to
correspond to the thickness of the thermal boundary layer [Grassl, 1976].
The generally agreed scaling of l+ = lu∗ /ν = 100 leads to the scaling of the streak spacing
with the friction velocity u∗ . Therefore, if the forcing mechanism is the same as that forcing the
water surface, spacing of the streaks is supposed to decrease with increasing u∗ in the regime of
low wind speeds [Scott et al., 2008].
Another possible production process is that of convective cells elongated by shear stress.
4
Soloviev and Schlüssel [1994] suggested a critical surface Richardson number Rfcr = −αgν/u∗ =
−1.510−4 with the thermal expansion coefficient α, the kinematic viscosity ν, the friction velocity
15
2. Turbulent processes at the free water surface
Figure 2.2.: Horse shoe vortex, bursting to the water surface. Image from Tsai [2007]
u∗ and q0 = −Q0 /cp ρ with the vertical total heat flux q0 , the specific heat cp and the density ρ
of water to describe the transition between free and forced convection.
The conclusion might be that these streaks are caused by shear induced turbulence, but still
the question for the formation mechanism remains. Tsai et al. [2005] points out that one possible
mechanism is that of horse shoe vortices that form in the turbulent shear layer by turning and
stretching the span-wise vortices. These coherent turbulent structures move upward until their
upper ends burst into the surface and therefore cause the upwelling of warmer and slower water
at the surface. Chernyshenko and Baig [2005] suggest another mechanism for the formation of
streaks. In this scheme, the lift-up of the mean profile in combination with shear stress and
viscous diffusion together lead to the formation of the streaky pattern.
2.5. Wave-shear coupled turbulence
2.5.1. Waves on the water surface
As the wind stress increases, the water surface is shaped by the appearance of surface waves.
Ocean surface waves are ubiquitous on the sea surface and appear as wind seas in a characteristic
range of frequencies. Surface waves can travel across the ocean as sea swell before they break
into a shore.
Linear waves
Deep water waves with a long wave length in irrotational, inviscid flow are in first approximation
described by linear wave theory (detailed derivation e.g., in Dean [1991]; Kundu [2008]). The
16
2.5. Wave-shear coupled turbulence
dispersion relation of the wave frequency ω and wavenumber k is given by
σk 2
ω =k g+
ρ
2
tanh (kh) .
(2.25)
where sigma is the surface tension. For water depths h larger than half a wavelength (h > 0.5λ)
the dispersion relation simplifies to
s σk 2
ω= k g+
ρ
(2.26)
because tanh kh ≈ 1 for large kh. The phase velocity of a linear deep water wave is thus
ω
c(k) = =
k
s
g σk
+
k
ρ
(2.27)
For large waves the main restoring force is gravity which means that surface tension is negligible
and the linear dispersion relation
ω=
p
gk ⇒ λdw =
gT 2
,
2π
(2.28)
is a good approximation. Thus, the deep-water wavelength given by λdw can easily be estimated
from the wave period T .
Capillary waves
Capillary waves are very small waves with wavelengths of not more than a few centimeters. On
this length scale the effect of surface tension is non-negligible and Equation 2.26 holds. This
√
means that at small wavelengths and large k the phase velocity is proportional to k while at
p
larger wave lengths and small k the phase velocity is proportional to 1/k. In the transition
range gravity and capillary waves have the same phase velocities. Moreover, energy is exchanged
between both groups via non-linear interaction [Longuet-Higgins, 1963]. This means that groups
of “parasitic capillaries” form on the leeward faces of gravity waves of a certain steepness and
then travel with those waves because they have the same phase velocity.
Surfactants
Surfactants are “surface active agents”, substances which form mono-molecular layers, surface
slicks, on the water surface [Hühnerfuss, 2006]. They can result from biological activity in the
ocean or be of anthropogenic origin such as oil slicks. There are soluble as well as insoluble
surfactants but their common feature is that they consist of a hydrophobic part above the water
surface and a hydrophilic part in the water. This leads to a viscoelastic force which acts in
horizontal direction [Scott, 1974] and also enables the propagation of longitudinal waves along
17
2. Turbulent processes at the free water surface
the water surface [Alpers, 1989]. These waves are Marangoni waves and were first discovered by
Lucassen [1968]. They cause high energy dissipation rates due to the strong viscous dampening.
Small capillary waves effectively act on the same length scales as Marangoni waves. An
interaction between transversal capillaries and longitudinal Marangoni waves leads to a very
efficient dampening of capillary waves while larger scale gravity waves are hardly affected.
As a results, surfactants lead to a considerably reduced surface roughness [Kiefhaber, 2014]
and can lead to a very smooth water surface when at the same wind speed and clean water the
surface would be covered with ripples.
Stokes waves
Most real waves are not well described by linear wave theory, e.g., microscale breaking waves
but also capillary waves. Especially in wind driven seas, waves are considerably steeper than
sinusoidal shapes. Stokes wave theory [Stokes, 1847] provides a means to consider more complex
wave forms than the sinusoidal shape by considering higher order terms, but will not be outlined
in detail in this thesis (refer to for example Kundu [2008]).
Below the surface, fluid parcels are set into circular motion. Their trajectories are closed
ellipses in the case of linear (Airy) waves. In the case of non-linear (Stokes) waves the ellipses
are now open and the water particles carry out spiral movements, thus, moving slowly forward.
This additional wave drift is comparatively small and was found to be less than 1 % of the linear
wave speed in the experiment at UNSW that will be discussed later in this study.
Microscale breaking waves
Microscale breaking of waves is commonly observed at the ocean and in the laboratory. Wind
driven waves start breaking at wind velocities of approximately 5 m/s [Banner and Phillips,
1974]. Breaking waves can be characterized by a spilling region that is located directly behind
the wave crest which is a strong divergence region. Behind the spilling region there is a clearer
defined convergence region at the toes of the waves [Peirson and Banner, 2003]. The breaking
of waves leads to a very high vorticity close to the surface at the toes of the spilling region
[Peirson and Banner, 2003]. Microscale breaking leads to surface renewal and regions of surface
divergence at the leeward faces of the waves and therefore to a considerable thinning of the mass
boundary layer. Thus, microscale breaking leads to a clearly enhanced gas exchange [Csanady,
1990; Peirson et al., 2014; Zappa et al., 2001].
2.5.2. Langmuir circulation
In the presence of small gravity waves the characteristic temperature pattern at the water surface
exhibits cold streaks with larger spacings and longer life time than shear induced turbulence
(compare Figure 7.1 and [Caulliez, 1998; Melville et al., 1998; Schnieders et al., 2013; Veron and
18
2.5. Wave-shear coupled turbulence
Figure 2.3.: Left: Strong wind at the South Pacific, white streaks of foam in wind direction are clearly visible at the
water surface Right: Flow pattern below idealized Langmuir cells [Thorpe, 2004]
Melville, 2001]). Similar streaks of foam and seaweed and of far larger scales have been long
known by sailors. They were first investigated (and named) by Langmuir [1938].
Langmuir circulations develop through a coupling of surface waves and wind shear and form
an important pathway for the transfer of momentum from atmosphere to ocean [Thorpe, 2004].
They have first been described as large scale circulations with spacings of several meters [Leibovich, 1983] but later, cold streaks with spacings of only centi- and decimeters have been
discovered [Caulliez, 1998; Melville et al., 1998; Veron and Melville, 2001]. Craik and Leibovich
[1976] developed the Craik-Leibovich set of equations (CL II) to describe the underlying process:
∂u
∂u
∂u
+v
+w
= La ∇2 u
∂t
∂t
∂t
(2.29)
∂Ω
∂Ω
∂Ω
dus ∂u
+v
+w
= La ∇2 Ω −
∂t
∂t
∂t
dz ∂y
(2.30)
with velocities u,v and w, the Langmuir number La, the vorticity Ω and the Stokes drift given
by us = 2S0 e2βz , S0 and β empirical constants.
The flow is governed by the dimensionless Langmuir number [Leibovich and Paolucci, 1981]
representing the quotient of viscous forces, e.g., the diffusion of downwind viscosity and inertial
forces which produce the vorticity by vortex tilting and stretching by the effect of waves [Thorpe,
2004]. In the case of monochromatic waves with a fixed frequency f , wave number k and
amplitude a, the Langmuir number can be defined as [Leibovich and Paolucci, 1981]
La =
νt3 k 2
f a2 u∗2
1/2
(2.31)
These equations show the coupling of two main features of transport of momentum across the
air-sea interface: Langmuir circulations (LC) develop because of the interaction of surface stress
(friction velocity u∗ ) and surface waves (Stokes drift us ).
Langmuir circulations (LC) play a crucial role in air-sea interaction processes. Since the early
work of Langmuir [1938] considerable progress has been made regarding the structure and fluid
19
2. Turbulent processes at the free water surface
dynamics of LCs [Craik and Leibovich, 1976]. In laboratory measurements as well as in field
experiments, small scale Langmuir circulation has been observed and examined (for example by
Caulliez [1998]; Gemmrich and Hasse [1992]; Melville et al. [1998]; Sanjou et al. [2011]; Veron
and Melville [2001]). Gemmrich and Hasse [1992] showed the influence of LC on heat transfer
rates in the baltic sea, that increased considerably in the presence of LC. Caulliez [1998] showed
the appearance of Langmuir circulations on comparatively small scales in the laboratory and
Melville et al. [1998]; Veron and Melville [2001] showed in an intensive study the onset of LCs
and their impact on gas-exchange. It has been shown that LC induced cold streaks on the
water surface do not appear before the onset of surface waves and only at critical Reynolds
numbers. Melville et al. [1998] found that LCs scale with the depth of the shear layer and
observed a span-wise scaling of lc = 5.42 cm. Measurements conducted by Sanjou et al. [2011]
indicate the significance of wind speed on the spacing of the Langmuir vortices. Mizuno [2011]
observed Langmuir circulations in a linear wind wave channel that were destroyed by additional
mechanical waves thereby contradicting CL II theory.
On larger scales, Langmuir circulations have been observed in airborne measurements leading
to image sizes of up to several kilometers by Marmorino et al. [2005, 2007, 2009]; Zappa et al.
[2004]. Here the information from cold streaks caused by Langmuir circulation have been used
to estimate the depth of the surface mixed layer.
There have been no studies that cover both small scale structures and large scale structures
within one study. A comparison of strength and occurrence of different sizes is therefore still
missing.
20
3. Conceptual models of near surface
turbulence
The transfer velocity or rate determines how fast heat and gas are exchanged between atmosphere
and ocean, independent of the concentration difference. The transfer rate depends strongly on
the turbulent state of the water surface and, therefore, varies considerably on relatively small
scales [Wanninkhof et al., 2011]. However, the transfer rate is difficult to measure, especially
in field conditions. Several methods exist on a range of scales, from small scale models to eddy
covariance methods on intermediate time and spatial scales to mass-balance techniques, e.g.,
dual tracer methods, [Garbe et al., 2014] but all require in-situ measurements and the results
are spatial and temporal averages.
Various conceptual models describe the transfer process based on observed turbulent processes.
Estimates of transfer rates from these models of surface turbulence provide an alternative to insitu measurements. Depending on the model, transfer rates can be estimated with high spatial
and temporal resolution.
In the following section, three state-of-the-art models are presented which describe turbulent
processes near the water surface and derive the transfer rate. Furthermore, the focus will be
on heat transfer rates. There has been some discussion on whether heat transfer rates are
directly transferable to gas transfer rates [Asher et al., 2004; Atmane et al., 2004; Nagel et al.,
2014; Zappa et al., 2004], however, heat transfer rates have been shown to correlate closely with
exchange rates of soluble gases [Garbe, 2001; Jähne and Haussecker, 1998; Jähne et al., 1989;
Nagel et al., 2014; Popp, 2006; Schimpf, 2000].
3.1. Thin stagnant film model
The thin stagnant film model describes the water surface as a flat solid boundary with boundary
layers on either side. It was first developed by Whitman [1923] and applied to the water surface
by Liss and Slater [1974]. In the model assumption, diffusion is the only relevant transport
process. Consequently, a diffusion layer of the thickness δc develops above a well mixed bulk.
The diffusive flux F through the water surface is thus given by F = −DdC/dz where D is the
diffusion constant of the heat or mass in water and C the concentration. The transfer rate k
is entirely defined by the diffusion constant and is given by k = D/δc . Ultimately, the rate of
transfer depends only on the diffusivity and the thickness of the thin film, the mass diffusion
layer. In this framework turbulence can be incorporated by assuming that the thickness of the
21
3. Conceptual models of near surface turbulence
boundary layer δc is reduced. However it is a very simple model that does not include turbulent
mixing.
3.2. Surface renewal model
Another conceptual model to describe transfer processes at the air- sea interface was presented
by Higbie [1935] and further developed by Danckwerts [1951]. In contrast to the thin film model,
here, turbulent mixing is accounted for as a statistical process. Here, in a random renewal process
water parcels from the well mixed bulk are instantaneously transfered to the water surface. In
comparison to the film model it weakens the dependence on the molecular diffusion constants
√
from a linear term to a D dependence. Depending on the description of the renewal events
whether a single turbulence-dependent renewal rate [Higbie, 1935] is assumed or modulated by
turbulent forcing [Danckwerts, 1951], the exact solution for the transfer rate k varies. However,
all realizations of the conceptual model have the formulation
r
k∼
D
τ
(3.1)
where τ is the renewal timescale. Surface renewal models have been successfully applied to
thermographic data of the water surface to estimate heat transfer rates from the distribution of
surface temperatures (e.g. Garbe et al. [2004]). The following derivation of an expression for
the heat transfer rate from infrared images was proposed by Garbe et al. [2004].
The transfer rate of heat is defined in by the net heat flux j and the difference between skin
and bulk temperature ∆T . The expression for the transfer rate kheat is then
j
ρcp ∆T
kheat =
(3.2)
where the density is given by ρ, the specific heat by cp . A water parcel at the surface will
be continuously cooled under a constant heat flux across the air-sea boundary. Assuming that
vertical transport of heat is the dominant renewal mechanism the cooling process at the water
surface can be described by [Soloviev and Schlüssel, 1996]:
√
Tsurface (t) = αj t − t0 + Tbulk
α= √
2
πκcp ρ
(3.3)
(3.4)
where t0 is the time when the water parcel reaches the surface and κ is the thermal diffusivity of
heat in water. t − t0 defines the surface renewal time scale τ = t − t0 = (Tsurface (t) − Tbulk )2 /αj.
Inserting equation 3.2 in equation 3.3 [Garbe et al., 2004] gives:
1
k=
2
22
r
πκ
τ
(3.5)
3.3. Surface divergence model
Differentiating equation 3.3 with respect to time and solving for j leads to:
√
2 τ dTsurface
j=
α
dt
(3.6)
Inserting equation 3.6 into equation 3.3 and both into equation 3.5 results in a formulation for
the heat transfer rate [Garbe et al., 2004]:
r
k=
s
πκ
·
2
Ṫ
∆T
(3.7)
where k depends on the molecular diffusion constant κ, the total derivative of surface temperature
dT /dt and the difference between skin and bulk temperature ∆T = Tbulk − Tsurface .
3.3. Surface divergence model
After the development of the first eddy renewal models, Banerjee et al. [1968] and Lamont and
Scott [1970] related surface renewal to turbulent parameters of the bulk, e.g., viscous dissipation.
But the remaining challenge to measure the mean time between renewal events proved very
difficult [Komori et al., 1989; Rashidi and Banerjee, 1990; Rashidi et al., 1990]. McCready
et al. [1986] therefore suggested a different approach based on the assumption that at a rough
surface, only surface normal fluid motion is relevant for transfer across the interface. Due to
the equation of continuity, surface normal velocity can be expressed by the surface divergence
(compare Equation 2.2). The surface divergence model assumes the transfer rate k to be only
determined by the root mean square of surface divergence β 0
p
k = −c Dβ 0
(3.8)
where c is a constant of proportionality and D the molecular diffusivity. This means that in
comparison to the surface renewal model the surface renewal time scale has been replaced by the
surface divergence. The surface divergence model has been tested on various flow conditions,
most recently in particle image velocimetry (PIV) measurements by Herlina and Jirka [2008];
Siddiqui and Loewen [2007]; Xu et al. [2006]. The proportionality constants can theoretically be
determined from a fit to the homogeneous isotropic energy spectrum [Banerjee, 1990] and should
not be applied to shear driven flow [Turney and Banerjee, 2013]. However, Banerjee et al. [2004]
still found a good agreement in experiments including wind shear.
Most recently, Turney and Banerjee [2013] extended of the surface divergence model to the
application of wind driven flow, which contains a combination of the surface renewal model and
the surface divergence model.
r
k=
D 2β10 τ
e
erfc
τ
r
1
2β 0 τ
(3.9)
23
3. Conceptual models of near surface turbulence
where the root mean square surface divergence β 0 and surface renewal time scale τ are needed
to define the transfer rate k. Furthermore, a criterion can be derived of the relevance of a steady
divergent motion to air-sea interaction Turney and Banerjee [2013]. Only if βτ > 1 is a process
relevant to air sea interaction.
3.4. Eddy renewal model
Both models discussed in the previous section, the surface renewal model and the surface divergence model, are essentially one dimensional models of turbulent exchange processes. Looking at
the temperature pattern at the water surface, however, shows defined two dimensional images of
the three dimensional processes underneath. The eddy renewal model, proposed by Hara et al.
[2007] takes this into account and models the footprints of surface eddies. The conceptual model
assumes eddies at the water surface which are uniform in y and stationary in t and can therefore
be described by the heat advection diffusion equation:
dT
∂T
∂T
∂T
∂T
=
+u
+v
+w
=κ
dt
∂t
∂x
∂y
∂z
∂2
∂2
∂2
+
+
∂x2 ∂y 2 ∂z 2
T
(3.10)
Assuming the eddies are uniform in along wind direction and stationary in time this simplifies
to:
∂T
∂T
u
+w
=κ
∂x
∂z
∂2
∂2
+
∂x2 ∂z 2
T
(3.11)
The surface velocity is assumed to be periodic with wavenumber k̃:
u = u0 sin(k̃x),
z̃ = 0
As described in Hara et al. [2007] non-dimensionalizing leads to the following set of equations:
sin x̃
∂ T̃
∂ T̃
∂ 2 T̃
− z̃ cos x̃
=
+ O(k̃δ),
∂ x̃
∂ z̃
∂ z̃ 2
(3.12)
With boundary conditions:
∂ T̃
= −1,
∂ z̃
z̃ = 0,
z̃ = −∞
T̃ = 0,
And non-dimensional variables:
x̃ = k̃x,
z̃ =
z
,
δ
δ2 =
κ
,
k̃u0
T̃ =
(T − Tb )k
δj
The non-dimensional temperature T̃ contains both the total heat flux j and the bulk temperature
Tb and thus determines the temperature distribution within the eddy. The equations are solved
numerically and the solution is the surface temperature field within one surface eddy (see Figure
24
3.4. Eddy renewal model
19.22
0
Surf. T
fit
−1
T̃
Depth
−2
−3
Temperature [◦C]
19.2
19.18
19.16
19.14
19.12
−4
19.1
Eddy size
−5
0
5
10
15
Eddy size [cm]
(a)
20
25
(b)
Figure 3.1.: a) Numerical solution of eddy renewal model [Hara et al., 2007]. Theoretical temperature profile within
a surface eddy, color represents non-dimensional temperature T̃ . b) Fitted theoretical curve to surface temperature
within eddy.
3.4 a)). To derive the heat flux, the modeled surface temperature is fitted to the measured
surface temperature in an infrared image (see Figure 3.4 b)). This way the bulk temperature Tb
and the total heat flux j are derived from each fit to a surface eddy.
This has been shown to provide accurate results by Hara et al. [2007] and Hung et al. [2011] on
numerical and thermographic data. However, often the resolution of infrared images is relatively
small and subject to high noise levels. The definition of surface eddies by temperature extrema
does not always lead to the accurate localization of surface eddies [Schnieders et al., 2013]. Also
the superposition of eddies of various sizes is a common feature of the water surface and not
incorporated in the model. An adaptation of the eddy renewal model with extensions regarding
a more robust estimate of the heat transfer rate will be presented in Chapter 9
25
4. Experiments
The data on which later analyses are based was measured in three facilities, the Aeolotron, Heidelberg, the Water Research Laboratory, Sydney and the Air Sea Interaction Saltwater Tank,
Miami. Part of these measurements have already been described in Schnieders et al. [2013] and
the Diploma thesis Schnieders [2011]. Later data was taken again in Aeolotron 2014 under a
broader wind spectrum, a new infrared camera and additional external parameters. A comparison of data recorded in different tanks with different cameras is especially useful when examining
the scales of the surface heat pattern in Section 8. In the following, these experiments are each
described individually.
4.1. Aeolotron, University of Heidelberg
The experiments were conducted at the circular wind wave facility at the Institute for environmental Physics in Heidelberg (IUP).
The water depth was kept constant at (1.00 ± 0.01) m throughout the experiment. The diameter of the tank is 10 m with a perimeter of 29.2 m. The width and height of the channel are
61 cm and 2.30 m respectively. Two fans within the air space on opposite sites produce wind up
to a wind speed of 12 m/s.
The channel can be operated with closed doors and a closed air space to minimize the latent
heat flux (relative humidity of the air reaches ∼ 100 %). The walls of the channel are insulated by
a 9 cm layer of polystyrene to reduce sensible heat flux and the walls are covered with aluminum
foil to minimize radiative heat flux. During the measurements with passive Thermography,
for which the development of a cool surface layer is crucial, the channel was operated with
an additional ventilation that circulated dry air from outside through the channel. Therefore,
relative humidities were reduced to an approximately constant 60 %.
4.1.1. Experiments 2011
The wind speeds in this experiment ranged from 1 m/s up to 6 m/s one meter above the water
surface. Mean square slope (MSS) values were obtained from the color imaging slope gauge
(CISG) as described in Rocholz et al. [2011]. The water sided friction velocity was calculated
from the momentum budget in the channel [Bopp, 2011]. For this purpose bulk water velocities
were measured and the decay characteristics of the velocity of the water body after stopping the
wind were determined from the spin-down time.
27
4. Experiments
The measurements were repeated after adding 3 g Triton X-100. Triton X-100 is a surfactant
that has a hydrophilic polyethylene oxide group which makes it soluble in water. By the reduction
of surface tension it effectively suppresses capillary waves. To study the influence of capillary
waves on the surface heat pattern all wind conditions were repeated with a surface slick. As as
result Mean Square Slope values were close to zero for the low wind speed cases and the heat
flux reduced in comparison to clean surface measurements.
The employed infrared camera is a Thermosensorik CMT 256 with a resolution of 256 x
256 Pixel(px) and a maximal frame rate of 880 Hz. The frame rate during the measurements was
reduced to 60 Hz as a higher time resolution was not necessary. The temperature resolution of the
camera amounts to 10 mK. The camera is sensitive to radiation in the range of 3.4 µm − 5.1 µm.
The camera is mounted on top of the wave channel approximately 1.30 m above the water
surface. To obtain a better spatial resolution a lens with a focal length of 50 mm was utilized.
The spatial calibration with a target with a checkerboard pattern on the water surface yielded
a spatial resolution of 0.1135 ± 0.0006 cm/px.
The temperature calibration of the camera was performed in the range of 15 ◦ C − 24 ◦ C in
steps of 0.25 ◦ C. For this purpose a reference calibration blackbody was set to the respective
temperatures, an infrared image was recorded of each temperature and subsequently used for the
calibration of the camera. Sequences with 1000 images (∼ 16 s) each were recorded for 20 min,
resulting in 50 sequences and 50000 infrared images.
Table 4.1.: Aeolotron, Measurements with the Thermosensorik CMT 256. U , u∗ , MSS and Heat flux are the wind
speed in m/s, the friction velocity in cm/s, the Mean Square Slope values and the total heat flux in W/m2 respectively.
The measurement error of the friction velocity is 0.02 centimeters per second for low and intermediate wind speeds and
0.1 centimeters per second for the highest wind speed. The values for the heat flux are mean values for the respective
wind speed.
Clean water
surface
u∗
MSS
U
1,8
2,4
2,7
4,6
6,4
0,20
0,33
0,34
0,77
1,36
0,014
0,017
0,024
0,049
0,082
Triton X-100
Heat
flux
170
170
181
219
246
u∗
MSS
0,18
0,25
0,40
0,64
1,35
0,005
0,005
0,008
0,010
0,045
Heat
flux
142
142
158
169
186
4.1.2. Experiments 2012
The clean surface measurements were again repeated with a new IR camera, an IRCAM Velox
327k M, which has a resolution of 640x512 px. The spatial resolution amounts to 0.078 ±
0.001 cm/px during the experiment which is considerably higher than in the previous measurement.
28
4.1. Aeolotron, University of Heidelberg
Table 4.2.: Aeolotron, Measurements with the IRCAM Velox 327k M. U u∗ , Tbulk and η are the wind speed in m/s
as measured in the facility circa one meter above the water surface, the water-sided friction velocity in cm/s, the bulk
temperature measured inside the channel in ◦ C and the mean squared wave height, respectively. The measurement
error of the friction velocity is 0.04 centimeters per second for low and intermediate wind speeds and 0.12 centimeters
per second for the highest wind speed.
U
2.4
3.2
3.5
4.2
4.8
5.1
5.4
6.0
6.5
7.0
8.3
Clean water
surface
u∗
Tbulk
0.40
19.11
0.49
19.05
0.53
18.98
0.64
18.91
0.74
18.85
0.81
18.78
0.87
18.71
1.04
18.65
1.19
18.59
1.30
18.53
1.77
18.49
Triton X-100
η
0.09
0.5
1.2
2.0
4.0
6.4
8.7
11.6
19.9
u∗
0.30
0.38
0.42
0.47
0.59
0.64
0.74
0.85
1.01
1.44
Tbulk
19.45
19.48
19.51
19.53
19.54
19.58
19.62
19.64
19.68
19.70
η
0.06
0.02
1.4
6.9
17.8
4.1.3. Experiments 2014
The experiment from 2011 was repeated with the IRCAM Velox 327k M and a higher number of
different wind wave conditions especially in the area around a friction velocity u∗ = 1 cm/s, which
has been shown to be a regime in which the surface turbulence clearly changes its characteristics
from dominating shear turbulence to the onset of waves and the appearance of small Langmuir
circulations. The spatial resolution of the images is 0.071 ± 0.001 cm/px. The measurements
were again repeated with 3 g of the surfactant Triton X-100.
Additional water height measurements with a high spatial and temporal resolution were provided by a permanently installed laser set up [Horn, 2013]. The laser light of a wave legth of 405
nm is absorbed by added pyranine in the water and emits fluorescent green light. The position
of the laser sheet is recorded with a high speed camera and from the position of the sheet the
water height is computed. The analysis of wave heights is described in Bopp [2014].
An air conditioning system was installed in the facility within this work that gives control over
air temperature and humidity in the closed facility. On two heat exchangers which are connected
via a heat pump the air is first cooled down and condensed water removed and subsequently
heated up again to reduce relative humidity. Additional energy is stored in the bulk water which
can be controlled by the flow rate of water through another heat exchanger.
Simultaneous active and passive thermographic measurements were made to allow for a direct
comparison of the data. A carbon dioxide laser emitting infrared radiation at a wavelength of
10.6 µm with a Gaussian intensity profile was used to heat patches of approximately 1 cm of
the water surface.
29
4. Experiments
4.2. Water Research Laboratory, University of New South Wales
The wind channel used for the experiments is a linear channel. The tank is 8.955 m long, 0.245 m
wide and 0.610 m high. A detailed description of the experiments can be found in Peirson et al.
[2014]. All technical data and experimental conditions were taken from this study.
The water depth during the experiments was 0.247 m ± 1 mm. The wind was produced by
a ventilator at one end of the tank. To ensure a uniform airflow, guide vanes were installed
just behind the ventilator. The tank is located in an insulated room at constant temperature of
21.5 ± 0.5 ◦ C throughout the experiment.
As wind generated and surface conditions in a linear tank are fetch dependent, the wind and
wave conditions were chosen so that constant wave energy levels were obtained for the entire
fetch length. To avoid biological activity, the water was steadily circulated through an earth
filter and UV sterilizer, when no experiments were performed.
Wind wave conditions: Mechanical waves were produced by a paddle at one end of the tank.
During the experiments measurements were conducted under eight different wind wave conditions.
Two Low wave cases (F34U21AK18) and (F21U39AK10) were performed at a fetch of 4.55 m
and 3.1 m and therefore different wave characteristics at U10 = 2.1 m/s and 3.9 m/s respectively.
The numbers F34U21AK18 and F21U39AK10 describe wave frequency, wind speed and the
value of ak. Here F34U21AK18, for example, stands for a wave frequency of 3.4 Hz, a wind
speed of 2.1 m/s and a value of ak = 0.18. The low gravity waves were mechanically produced
with a length 135 and 350 mm. The steepness of the waves was low enough that no parasitic
capillary waves could evolve.
Two Incipient breaking cases (F34U21AK27) and (F24U39AK24) were also performed at
a fetch of 4.55 m and 3.1 m at wind speed of U10 = 2.1 m/s and 3.9 m/s. Incipient breaking refers
to waves as steep as possible before the onset of microscale breaking. Here parasitic capillary
waves were present.
Two Microscale breaking cases (F34U57AK32) and (F31U39AK28) were also performed
at a fetch of 4.55 m and 3.1 m. Wind speeds were U10 = 5.7 m/s and 3.9 m/s as microscale
breaking could not be maintained for U10 = 2.197 m/s
The Capillary ripple case (F63U42AK00) were performed at a fetch of 3.1 m with freely
propagating capillary waves present. The wind speed was U10 = 4.2 m/s, no gravity waves
developed.
The Flat water case (F00U21AK0) was performed at a fetch of 4.55 m .The wind speed
U10 = 2.1 m/s was the highest possible wind speed without the formation of freely propagating
waves.
A wave probe recorded the surface elevation at 1 kHz. Additionally PIV and LIF measurements were performed, the detailed description of which can be found in Peirson et al. [2014] and
will not be further discussed in this study. The infrared camera was a cedip Jade 550, operated
30
4.3. Air Sea Interaction Saltwater Tank, Rosenstiel School of Marine & Atmospheric Sciences
at a frame rate of 100 Hz with a resolution of 320 x 240 Pixel. The camera was mounted on
top of the channel looking down on the water surface with the wave probe visible. The spatial
calibration using the wave probe as a target yielded a spatial resolution of 0.066 ± 0.002 cm/px.
The data was recorded in two independent sequences of 4996 images for every experimental
condition. The data presented here was measured in three facilities, the Aeolotron, Heidelberg,
the Water Research Laboratory, Sydney and the Air Sea Interaction Saltwater Tank, Miami.
Therefore, a comparison of surface heat patterns under very different experimental conditions
and recorded with different imaging systems is possible.
Table 4.3.: Water Research Laboratory. U , u∗ are the wind speed in m/s, the water-sided friction velocity in cm/s.
The wave steepness and the wave frequency in 1/s are given by ak and f respectively.
U
2,1
2,1
5,7
4,2
3,9
3,9
3,9
u∗
0,45
0,75
1,81
0,62
0,81
1,11
1,46
ak
0,18
0,27
0,32
0,10
0,24
0,28
f
3,4
3,4
3,4
6,3
2,1
2,4
3,1
4.3. Air Sea Interaction Saltwater Tank, Rosenstiel School of Marine
& Atmospheric Sciences
The experiments were performed at the Air-Sea Interaction Salt-water Tank (ASIST) located
at the University of Miami (Rosenstiel School of Marine and Atmospheric Science) and are
described in detail in Smith et al. [2007].
The linear tank is 15 m long, 1 m wide and 1 m high. The water depth during the experiment
was 40 cm, leaving 60 cm for the wind. For all the cases presented here a water pump was
used to maintain a small, constant current (approximately 3 cm/s) that enabled control of the
water temperature. Water temperatures were varied to provide air-water temperature differences
ranging from −15 ◦C to +15 ◦C. Wind speeds were varied from 0 m/s up to 10 m/s. All cases
presented here are cool-skin cases e.g. the heat flux was directed out of the interface.
The infrared images were taken with an Indigo Systems Merlin Mid-Wave IR sensor with a
resolution of 320 x 256 pixels. The spatial resolution of the images amounts to 0.0907 cm/pixel.
The array is cooled to increase sensitivity to better than 0.02 ◦C. The imager is sensitive to
radiation in the 3 − 5 µm band. The maximum frame rate of the IR imager is 60 Hz, although
the actual acquisition rate was varied based on the flow being imaged. All the imagery was
taken looking down at the water surface at an angle of approximately 60 degrees from the
horizontal through a hole in the top of the tunnel. This was done for two reasons: first, to
reduce the occurrence of reflections of the camera itself appearing in the data, and second, to
31
4. Experiments
Figure 4.1.: Infrared images from several facilities. The images were recorded with different IR cameras and different
spatial resolution (res): a) Aeolotron, Heidelberg, Thermosensorik CMT 256, res = 0.11 cm/px, u∗ = 0.8 cm/s; b)
Aeolotron, Heidelberg, Ircam Velox 327k M, res = 0.07 cm/px, u∗ = 0.8 cm/s; c) WRL, Sydney, cedip Jade 550,
res = 0.07 cm/px, u∗ = 1.1 cm/s, a warm laser heated spot is clearly visible in this image; d) ASIST, Miami, Indigo
Systems Merlin, res = 0.09 cm/px, u∗ = 0.9 cm/s, the original image is rotated and a rectangular section cut for the
analysis.
accommodate a second IR imager viewing through the same port in the roof of the wind-wave
tunnel. Additionally the camera was oriented diagonally to the wind direction.
Table 4.4.: ASIST Facility. U , u∗ are the wind speed in m/s, the water-sided friction velocity in cm/s. The heat flux
is given in W/m2 .
U
u∗
1,9
3,0
4,0
5,0
7,0
10,1
0,22
0,31
0,43
0,57
0,93
1,65
Heat
flux
393
601
850
1144
1764
2592
4.4. Overview of infrared images
A range of laboratory facilities in Heidelberg, Sydney and Miami and infrared cameras was
chosen for this analysis to avoid any bias due to the geometry of the channel or the resolution
of the infrared camera and to thus, define a universal parameter.
A comparison of infrared images from the three different facilities is shown in Figure 4.1. The
left image a) was taken in the Aeolotron, Heidelberg with a spatial resolution of res = 0.11 cm/px
32
4.4. Overview of infrared images
and at a friction velocity of u∗ = 0.8 cm/s. Image b) was taken under the same conditions in the
same tank but with a spatial resolution of res = 0.07 cm/px. In Image c) an image from WRL,
Sydney is shown, which was recorded with a spatial resolution of res = 0.07 cm/px at a friction
velocity of u∗ = 1.1 cm/s. In the image a laser heated spot is clearly visible but could easily
be identified over its temperature and did therefore not further influence the analysis. Image c)
is from the ASIST facility, Miami, the spatial resolution is res = 0.09 cm/px and the friction
velocity is u∗ = 0.9 cm/s. The camera was oriented diagonally to the wind direction. Therefore,
the images are rotated in such a way that the fish scale structures lie in the horizontal axis
and a rectangular window aligned with the structures was cut Figure 4.1 d) and e). This was
necessary to avoid a suppression of larger scale spacings in the corners of the image.
33
5. Estimation of surface velocities from infrared
images
The surface velocity field is a good indicator of the dynamics of the water surface and provides
valuable information about the ongoing processes. Therefore, techniques for the estimation
of flow fields from a sequence of images will be presented in the following sections. First, a
review of existing state-of-the-art algorithms is given. In Section 5.2 an adapted algorithm
especially suited for the analysis of infrared images is presented. An alternative approach via
active Thermography is presented in Section 5.3 and a comparison between both approaches in
Section 5.4 which is also used for the determination of errors.
5.1. Motion estimation
The estimation of motion from a sequence of images is one of the core research topics in computer
vision. The goal is to estimate a flow field from the displacement of objects or gradients between
two subsequent images in time. Several methods have been developed to deal with this task.
Among others there are feature tracking based techniques [Buxton and Buxton, 1984; Wills
et al., 2006], velocity estimation from cross correlation, area [Anandan, 1989] and phase [Fleet
and Jepson, 1990] based techniques. A very important group of techniques are optic flow based
techniques.
5.1.1. Optic Flow
The principal assumption of optical flow is brightness constancy, e.g., it is assumed that the
brightness of a pixel (x, y) in one images stays constant if shifted to another position (x+u, y +v)
in the next time step:
I(x, y, t) = I(x + u, y + v, t + 1).
(5.1)
Here, I are the gray values of the pixels and u and v are the x- and y-components of the
desired flow field. If the displacement is assumed to be small and the variation in space and
time to be smooth a first order Taylor expansion gives:
Ix u + Iy v + It = 0
(5.2)
35
5. Estimation of surface velocities from infrared images
where Ix , Iy , and It denote partial derivatives in spatial directions, x and y, and temporal
coordinate, respectively. The velocities u and v denote the components of the velocity vector
v. Unfortunately, one equation is not sufficient to determine two unknown quantities u and v.
This leads to the so-called aperture problem.
Aperture problem
The aperture problem is a common challenge among all optical flow based techniques. It describes the fact that for non-vanishing image gradients, it is only possible to determine the flow
components in the direction of the gradient, i.e normal to image edges. A good illustration is
the image of an illuminated spinning sphere which will appear to stand still because the light
source remains at the same place.
There are two major ways to approach this problem. The first was introduced by Lucas and
Kanade [1981] and solves the basic optical flow equation in a local neighborhood in which the
flow is assumed to be constant. Because the flow is computed locally, it is called a local method.
This method is still popular today and applied in wide variety of applications. However, in large
image areas without gradients the result of the velocity estimation will be zero.
The second way to approach the aperture problem is based on variational methods. Here, a
second constraint next to the brightness constancy constraint is applied, based on assumptions
about the flow field. Therefore, dense flow fields can be computed even in areas with no or
constant gradients based on the global assumption of the flow field, hence these methods are
called global methods. The first example of a variational technique was introduced by Horn and
Schunk [1981]. Because of the extremely good performance and the ability to compute dense
flow fields of variational techniques, the following sections will concentrate on them.
5.1.2. Variational techniques
Variational methods are a powerful tool, give excellent results, and have been applied, tested
and improved ever since the publication of the first approach of Horn and Schunk [1981]. As the
global solution of the basic optical flow requires additional input a second term is introduced,
the regularizer.
Horn and Schunck
In the first approach by Horn and Schunk [1981] the flow field is assumed to be smooth. Consequently, large spatial gradients in the flow field will be penalized. This additional term makes
the equation naturally harder to solve but as the formulation can be treated as a variational
problem this is easily possible. Thus, the problem takes the form of an energy functional that
needs to be minimized [Horn and Schunk, 1981].
36
5.1. Motion estimation


Z
E(u, v) =
(Ix u + Iy v + It )2 +α |∇u|2 + |∇v|2  dx
{z
}
|
{z
}
Ω |
Data term
(5.3)
Smoothness term
Here, the integral over Ω denotes the integral over the image space. The familiar brightness
constancy equation is called the data term and the regularizer based on the smoothness assumption is called the smoothness term. The parameter α is the smoothness parameter that can be
used to vary the weight of the penalizer function. As a consequence, the desired flow field must
satisfy the Euler-Langrange equations:
(Ix u + Iy v + It )Ix − α∆u = 0
(5.4)
(Ix u + Iy v + It )Iy − α∆v = 0
(5.5)
Since the original Horn and Schunck equation, several alterations and improvements have been
suggested, all based on the variational approach.
Non quadratic smoothness terms
Non quadratic smoothness terms have been suggested by several authors [Aubert et al., 1999;
Brox, 2005; Mémin and Perez, 1996; Weickert, 1998; Weickert and Schnörr, 2001]. The quadratic
penalizer, that is strongly influenced by outliers, can be replaced by a more robust function. One
√
example is the non quadratic total variation regularizer Ψ(s2 ) = s2 , a variant of the L1 norm,
utilized by Brox et al. [2004]. The new function allows for discontinuities in the estimated flow
field and is a so called flow-driven regularizer. (By contrast image-driven regularizers also allow
discontinuities but based on discontinuities in the image [Weickert and Schnörr, 2001] which
does not always correspond to discontinuities in the flow field.)
Non quadratic data term
There are several reasons why the optic flow constraint in the data term is not fulfilled, i.e. due
to occlusion, brightness change or noise. The extension of the non quadratic penalty function
from the smoothness term to the data term can be a means to address these problems [Black
and Jepson, 1996; Bruhn et al., 2005; Mémin and Perez, 1996].
Gradient constancy assumption
A gradient constancy equation was introduced by Brox et al. [2004]. The classic gray value
constancy assumption does not hold if the illumination changes or changes in brightness occur.
Therefore, a higher order data term was introduced and the constancy of gradients is assumed:
∇I(x, y, t) = ∇I(x + u, y + v, t + 1).
(5.6)
37
5. Estimation of surface velocities from infrared images
This data term is very robust against any changes in brightness but due to the higher order
derivatives much more sensitive towards noise. It has thus been suggested to combine the
gradient constancy assumption with the gray value constancy equation to one data term with a
weighing parameter for the gradient constancy by Brox et al. [2004].
Multiscale approach
The basic assumption of Horn and Schunck works well for small displacements. But if the
displacement is larger than one pixel per frame the minimization process often gets trapped
within a local minimum. A solution to this problem is a multi-scale approach.
Very commonly used is the combination of a coarse to fine, gaussian pyramid-based [Jähne,
2005] estimation [Brox et al., 2004; Bruhn et al., 2005; Papenberg et al., 2006; Steinbrucker
et al., 2009; Sun et al., 2010]. By smoothing and subsequent subsampling of pixels of an image,
at every pyramid step the image size is reduced and simultaneously the noise level. The gaussian
smoothing hereby prevents aliasing effects.
Starting from the top level of the pyramid with a coarse resolution on a smoothed image
the first flow estimation is performed. One approach is to now use the estimated flow field as
initialization for the next pyramid level. Alternatively, it has been suggested [Brox et al., 2004]
to use the estimated velocity field to warp the images and reduce the displacement for the next
pyramid level.
Median filtering
Median filtering has been shown to improve the result of the flow estimation considerably by
Sun et al. [2010]. A 5 x 5 median filter in between each warping step especially avoids outliers.
Sun et al. [2010] also showed that the application of a median filter is equivalent to the inclusion
of a local term into the energy functional.
Learning-based optical flow
Learning-based optical flow is an extension of previous methods to deal with complex flow fields.
Every flow field is treated as a linear combination of typical basis flows. It is called learningbased because the basic flow fields are learned from appropriate training data before applied to
the new problem.
5.1.3. State of the art global optic flow
The employment of optic flow based velocity estimation to a wide variety of application has lead
to numerous different alterations and suggestions for methods depending on the image data on
which the velocity estimation is to be performed. Depending on noise level, illumination, kind of
the movement (i.e. fluid flow, or camera movement along a scene) and expected discontinuities,
different methods give better results. In the following, two algorithms are presented as examples
38
5.1. Motion estimation
of extensions of the original optic flow algorithm by Horn and Schunk [1981] that give excellent
results on different occasions.
Enhanced Horn and Schunck
This combination of methods in an optic flow based approach was first suggested by Brox et al.
[2004] and has been used in different variants, i.e. Bruhn et al. [2005]; Liu et al. [2009]. It
comprises a non quadratic smoothness and data term, a gradient constancy assumption and a
multi-scale approach. In the following, bold symbols indicate vectors. The data term is given
by
Z
EData (v) =
Ψ(|I(x + v) − I(x)|2 + γ|∇I(x + v) − ∇I(x)|2 )dx,
(5.7)
Ψ(|∇3 u|2 + |∇3 v|2 )dx.
(5.8)
Ω
and the smoothness term by
Z
ESmooth (v) =
Ω
The function Ψ(s2 ) =
√
s2 + is a robust convex L1 minimization function. is chosen to
be 0.001 [Brox et al., 2004] and is a small constant that is introduced due to numerical reasons
and keeps the function convex. The data term consist of a combination of gray value and
gradient constancy. A piecewise smooth flow field is assumed, the gradient ∇3 = (∂x , ∂y , ∂t )T is
a spatial-temporal gradient but can be replaced with just a spatial gradient if only two images
are available. The total energy functional is then given by
E(v) = EData + αESmooth
(5.9)
with a smoothing parameter α.
5.1.4. Fluid flow estimation
Applications of image analysis in geo-sciences often concern fluid flows, either on global scales
from satellite images or on smaller scales to study the flow of air or water in a specific environment. In this context, techniques based on correlation are widely used with good results
[Fujita and Grandoso, 1968; Leese et al., 1971; Menzel, 2001]. A very commonly used technique
is particle image velocimetry (PIV) in which the fluid flow is seeded with small particles and
illuminated with a laser sheet. On this data cross correlation works extremely well and provides
very accurate but sparse velocity fields. State of the art techniques are presented in, for example,
[Raffel et al., 2007; Tropea et al., 2007]. Correlation techniques have also been applied to infrared
images of the water surface with good results in Banerjee et al. [2004]; Chickadel et al. [2011];
Jessup and Phadnis [2005]. The right selection of the window size on which the correlation is
39
5. Estimation of surface velocities from infrared images
based is, however, of critical importance. This problem has been solved in part due to variable
window sizes and gives good results on larger scales but remains limited for smaller scales.
Several attempts have been made to combine the advantages of a global optic flow scheme
with the ability to capture fluid flows. [Arnaud et al., 2006; Cassisa, 2010; Corpetti et al.,
2006, 2002; Fitzpatrick, 1988; Haussecker and Fleet, 2001; Heas et al., 2007] introduced data
terms which are based more on the laws of fluid mechanics and are able to capture small scale
movements and brightness changes due to changes of density (or any other quantity). But when
estimating motion from fluid flows, all global methods deal with a common problem, which is
surface divergence. All compressible flows will generate surface divergence in the image plane
but also incompressible fluids, as water, will create two dimensional surface divergence at the
water surface. Looking at the Euler-Lagrange equations of the traditional Horn and Schunck
smoothness term (Equation 5.5) it becomes apparent that this is equivalent to minimising surface
divergence (which would results in the same term α∆u). As surface divergence is a crucial
quantity in the description of a surface flow, this is a serious drawback.
A global optic flow approach to fluid motion
One viable global optic flow scheme to capture all features of fluid flow and estimate dense
fluid flows was introduced by Corpetti et al. [2002]. To address the problems associated with
the features of fluid flow a more physical based data term and a non divergence suppressing
smoothing term were introduced. As fluid flows always obey the equation of continuity this is a
good alternative for the data term [Corpetti et al., 2002]:
∂E
+ div(Ev) = 0
∂t
With div(E v) = E · div v + ∇E · v and
dE
dt
=
∂E
∂t
(5.10)
+ ∇E · v this becomes
dE
+ E div v = 0.
dt
(5.11)
To avoid penalizing divergence through the common smoothness term a so-called second order
div curl regularizer [Suter, 1994] is employed.
Z
|∇div v|2 + |∇curl v|2
(5.12)
Ω
where div v = ∂u/∂x + ∂v/∂y and curl v = ∂v/∂x − ∂u/∂y. This regularizer is modified by
replacing the quadratic penalizer and adding two more scalar field ξ and χ which are direct
estimates of surface divergence and vorticity, respectively. The new regularizer is given by:
Z
Ω
40
|div v − ξ|2 + λf2 (|∇ξ|) +
Z
Ω
|curl v − ζ|2 + λf2 (|∇ζ|)
(5.13)
5.2. Fluid flow estimation on infrared images of the water surface
5.2. Fluid flow estimation on infrared images of the water surface
The estimation of surface velocities from a sequence of infrared images of the water surface
can be challenging. One reason is that infrared data is different in comparison to the images
for which most commonly used algorithms are developed. Clearly, algorithms designed for the
motion estimation of fluid flow are the right choice but most fluid flow applications are optimized
for satellite images with a large resolution and low noise.
In the infrared images used in this thesis, velocities of different magnitudes occur. There can
be large displacements, especially for high wind speeds but important for the characteristics of
near surface turbulence are relatively small velocity variations especially in cross wind direction.
The images have a low resolution but high noise levels. Variations of brightness occur, e.g if
surfactants are present on the surface and also due to reflections from the roof of the channel.
The velocity estimation is thus required to deal with fine scale structures and accurately image
surface divergence at the same time. This indicates that both, cross correlation and global optic
flow approaches with a Horn and Schunck regularizer, are not suitable. Here, a global optic flow
approach with a regularizer which is able to cope with surface divergence was chosen over an
alternative Lucas-Kanade approach, because of advantages like robustness and the the ability
to deal with the aperture problem.
5.2.1. A new regularizer
The chosen algorithm combines the advantages of a robust data term which is not sensitive
towards changes in illumination taken from Brox et al. [2004] with a smoothing term which
comprises a div curl regularizer taken from Corpetti et al. [2002]. This will be combined with
√
the penelizer funtion Ψ(s2 ) = s2 + which is also employed in [Brox et al., 2004]. The small
constant = 0.001 and ensures that Ψ(s) is convex Brox et al. [2004]. The robust penelizer
funtion Ψ allows discontinuities in the flow field.
The total expression is given as an energy functional which has to be minimised. In the
following spatial coordinates are given by x and y and respective velocities of the vector field
v are given by u and v and are scalar fields. Spatial derivatives are given by subscript indices,
e.g., indices x and y denote partial derivatives in x- and y-direction, e.g., ux =
∂u
∂x
and uy =
∂u
∂y
.
The integrands, split in data and smoothness terms, are given by
LData (x, y, u, v, ux , vy )
= Ψ(|I 1 (x + u, y + v) − I 0 (x, y)|2 + γ|∇I 1 (x + u, y + v) − ∇I 0 (x, y)|2 )
≈ Ψ ((Ix u + Iy v + It ))2 + γ (∂x (Ix u + Iy v + It ))2 + ((∂y (Ix u + Iy v + It ))2
(5.14)
41
5. Estimation of surface velocities from infrared images
and
LSmooth (u, v, ux , vy , ξ, ζ, ξx , ζy , ξy , ζx )
= Ψ(|div v − ξ|2 + |∇ξ|2 + |curl v − ζ|2 + |∇ζ|2 )
= Ψ (ux + vy − ξ)2 + (vx − uy − ζ)2 + ξx2 + ξy2 + ζx2 + ζy2
(5.15)
Here the scalar field I denotes the image gray values, in this case the surface temperatures.
I 1 and I 0 stand for the first and second image in a time sequence. The parameter λ is an
additional parameter to scale the impact of the gradient constancy condition. The suggestion
of two additional scalar fields was adopted from Corpetti et al. [2002] as it reduces the order of
Euler-Lagrange equations from fourth to second. ξ and ζ are measures for the divergence and
rotation field respectively, which becomes apparent if the terms div v − ξ and curl v − ζ are set
to zero. The total energy functional is then given by
Z
E(x, y, u, v, ux , vy , ξ, ζ, ξx , ζy , ξy , ζx ) =
(LData + αLSmooth )dxdy
(5.16)
Ω
The minimization is implemented by the Euler-Lagrange equations. The four Euler-Lagrange
equations in u, v, ξ and ζ are given by
∂L
∂ ∂L
∂ ∂L
−
−
=0
∂u ∂x ∂ux ∂y ∂uy
(5.17)
∂L
∂ ∂L
∂ ∂L
−
−
=0
∂v
∂x ∂vx ∂y ∂vy
(5.18)
∂L
∂ ∂L
∂ ∂L
−
−
=0
∂ξ
∂x ∂ξx ∂y ∂ξy
(5.19)
∂L
∂ ∂L
∂ ∂L
−
−
=0
∂ζ
∂x ∂ζx ∂y ∂ζy
(5.20)
In the following the outer derivative of the Ψ function will be shortened to
Ψ0 (...)Data = Ψ0 ((Ix u + Iy v + It ))2 + γ (∂x (Ix u + Iy v + It ))2 + ((∂y (Ix u + Iy v + It ))2
(5.21)
for the data term and to
Ψ0 (...)Smooth = Ψ0 (ux + vy − ξ)2 + (vx − uy − ξ)2 + ξx2 + ξy2 + ζx2 + ζy2
42
(5.22)
5.2. Fluid flow estimation on infrared images of the water surface
for the regularizer. This gives the four Euler-Lagrange equations, for u and v
Ψ0 (...)Data Ix (Ix u + Iy v + It ) + γ (∂xy (Ix u + Iy v + It ))2 + ((∂xx (Ix u + Iy v + It ))2
+ α Ψ0 (...)Smooth (uxx + uyy − ξx − ζy ) = 0
Ψ0 (...)Data Iy (Ix u + Iy v + It ) + γ (∂xy (Ix u + Iy v + It ))2 + ((∂yy (Ix u + Iy v + It ))2
+ α Ψ0 (...)Smooth (vxx + vyy − ξy − ζx ) = 0
(5.23)
(5.24)
and for ξ and ζ
− Ψ0 (...)Smooth (ux + vy − ξ) − Ψ0x (...)Smooth ξxx − Ψ0y (...)Smooth ξyy = 0
(5.25)
− Ψ0 (...)Smooth (vx − uy − ζ) − Ψ0x (...)Smooth ζxx − Ψ0y (...)Smooth ζyy = 0
(5.26)
The derivatives are discretized using a second order gaussian derivative mask which yielded a
stable convergence. The linearized equations are solved via successive over-relaxation (SOR).
The relaxation parameter was chosen as 0.5 to stabilize the convergence process. The iteration
scheme comprises three outer iterations and 35 inner iterations, in which u and v are computed
first and subsequently the auxiliary scalar fields ξ and ψ. This makes the convergence process
relatively slow (approximately 60 seconds per image pair).
5.2.2. A robust two step algorithm
Large displacements and high noise levels are problematic if only a second order regularizer
is employed. One solution is to combine two different regularizers, one for large translational
movements and in a second step small scale divergent and rotational movements. This approach
takes advantage of the theory of affine motion models [Haussecker and Spies, 1999]. The principal
procedure is described in Figure 5.2.2.
Starting from two subsequent infrared images, an optic flow approach according to Equations
5.7 to 5.9 is performed on five steps of the gaussian pyramid with a scaling factor of 0.9 and a
warping step in between. Due to high noise levels the lowest level on which the velocities are
computed is approximately half the original image size. Above this scale any flow estimation is
considerably perturbed due to noise. As suggested by Sun et al. [2008] a median filter with a
filter size of [5,5] is applied between each warping step.
The result is a very smooth flow field and represents the translational component only, as
divergence and rotation are reduced to nearly zero. Based on this translational motion another
warping step is performed. This means that nearly all differences between the warped image
and the original image is caused by small scale divergent and rotational flow.
This last flow estimation is performed by the algorithm suggested in the previous section as
it takes full advantage the second order div curl regularizer. In a final step both components
43
5. Estimation of surface velocities from infrared images
Infrared images
E(u, v) =
Robust global optic flow algorithm:
Ψ(|
I˜ − I)|2 + γ|∇(I˜ − I)|2 ) + αΨ(|∇u|2 + |∇v|2 )dx
Ω
R
5 Pyramid scales,
median filtering [5,5]
smooth flowfield,
divergence free
Warping based on smooth flow field,
only divergence and rotational movement left
Estimation of divergent and rotational movement:
R
E(u, v) = Ω Ψ(|I˜ − I)|2 + γ|∇(I˜ − I)|2 ) +
αΨ(|∇div v − ξ|2 + |∇ξ|2 + |∇curl v − ζ|2 + |∇ζ|2 )
Divergent and rotational
component of the flow field.
Divergent/rotational + Translational component ⇒ Total flow field
Figure 5.1.: Flowchart of the procedure of the fluid flow estimation from infrared images of the water surface. The
two main steps are first, the estimation of a smooth flow field, the translatorial component, based on a traditional
smoothing function and second, the application of the div-curl regularizer to determine the divergent and rotational
components.
44
5.2. Fluid flow estimation on infrared images of the water surface
Figure 5.2.: Estimation of the total flow field as a composition of the translational component estimated with a large
smoothing parameter and the surface divergent and rotational component in a second step. Together they form the
total estimated flow field.
are added to the total flow field that exhibits clearly a translational component but also highly
divergent elements.
This is shown in Figure 5.2. The left figure shows the translational component estimated with
a large smoothing parameter, in the middle the surface divergent and rotational component is
shown and finally on the right the total estimated flow field.
5.2.3. Parameter estimation and performance comparison
All global optic flow approaches depend heavily on the right choice of parameters. Also, the
optimal choice of a parameter can vary considerably depending on the image sequence [Brox,
2005].
As a measure for the quality of the estimated velocity field, the second image is warped based
on the estimated velocities. In the case of a perfect result the difference between the warped
image and the first image should be close to zero (zero without any noise). Therefore, the
root mean square of the difference between warped and original image was chosen as a quality
controlling parameter.
In the robust algorithm by Brox et al. [2004], also employed in the first step of the velocity
estimation, two parameters, the smoothness parameter α and the gradient constancy controlling
parameter γ, have to be determined. The minimum was determined in the two dimensional
parameter space and is α = 9.4 and γ = 24.2, compare Table 5.1.
In the combined approach shown in Figure 5.2.2 a higher value of α gave better results and
also supports the division into the translational part and a divergent and rotational part better.
The error for the smoothing parameter αdiv−curl increases rapidly for increasing values of alpha.
A minimum is found at the rather low value of α = 0.0001. This may seem low but also ensures
that the estimation in large parts is based on the data term and therefore on the temperature
field and no distortion of the velocity field is caused due to the regularizer itself.
A comparison of the root mean square error between the classical regularizer and the two step
algorithm that includes surface divergence shows a considerable improvement for the div-curl
regularizer. Not surprisingly, as surface divergence is a major feature of the flow.
45
5. Estimation of surface velocities from infrared images
Table 5.1.: Comparison of the results of the velocity estimation from the standard Horn and Schunck smoothness
regularizer and the second order div curl regularizer. The rms error is the root mean square of the original image and
the warped image based on the estimated velocity field. α is the smoothness parameter for the conventional smoothing
term, αdiv curl is the smoothness parameter for the div-curl regularizer.
Regularizer
|∇u|2 + |∇v|2
div-curl
rms error
5.5
4.4
α
9.4
32
γ
24.2
24.2
αdiv−curl
0.0001
5.3. Active Thermography as a solution to the aperture problem
associated with optical flow
A heated area on the water surface that can be clearly seen in the infrared data can be used
as a tracer for the drift velocity. This technique was chosen as a complementary technique
to validate surface velocities determined from the optical flow based scheme, described in the
previous section. The aperture problem prevents the accurate velocity estimation across the
smallest of surface eddies. The reason is that the temperature gradient within the eddy appears
static even though it is caused by the continuous cooling of water parcels flowing in cross wind
direction. The great advantage of the active technique is that it follows a very different principle
and provides very accurate but sparse information of the velocity at a certain position. The
technique is already described in my Diploma thesis Schnieders [2011].
The detection of the heat patch is performed by setting a temperature threshold. The threshold is selected from the variance of the mean water temperature, a three σ interval is chosen.
This ensures that the total area of the heated patch is detected but also leads to the wrong
detection of single warm pixels. A straight forward solution is to discard of all areas of less than
five pixels. After this step the heat patch is the only remaining object and can easily be tracked.
The position of the center of mass of each sheared and advected structure on the water surface
is tracked for every time frame.
False detections occur if a warm reflection, usually the camera itself, happens to be to close
to the position of the real structure. As these reflections often move in wind direction due
to traveling waves one means to separate them from the heat patch is by their velocity which
corresponds rather to the phase velocity of the wave than the water velocity of the heat patch.
This happens most often at low wind speeds and leads to wrong velocities. Those can clearly
be seen as outliers in the determined velocities. These outliers resulting from wrong detections
are identified by their deviation from the mean by more than three sigma (standard deviation)
and are thus removed.
The velocities in x- and y- direction are determined via a third order accuracy derivation of
the x- and y- positions respectively.
46
5.4. Validation of estimated velocities from simultaneous active and passive measurements
5.4. Validation of estimated velocities from simultaneous active and
passive measurements
Validating the estimated velocities is crucial for the further analysis that in part builds up on
the velocity estimation but difficult due to the missing ground truth. The comparison of two
independent methods is one way to still be able to test the accuracy of velocity estimation.
The simultaneous measurement of active and passive Thermography sequences provides the
opportunity to test both methods and especially the optical flow based velocities, as active
tracking has been shown to provide very accurate (though sparse) velocity values [Gutsche,
2014; Schnieders, 2011].
Due to the different nature of both techniques, velocities are not directly comparable, as
active tracking gives a velocity of the center of mass of a heat patch while optical flow provides
a pixel wise estimation of a dense flow field. Also, even though the measurements are taken
simultaneously, the results of the optical flow estimation are inaccurate at the position of the
heat patch due to diffusion and, more important, not representative for the otherwise employed
standard passive Thermography. Therefore, to allow the direct comparison an area was chosen
close to and of the same size as the heated patch shifted in cross wind direction. The mean over
this area is roughly comparable to the velocity of the center of mass of the heat patch, especially
if the velocity field is modulated by distinct surface waves.
5.4.1. Comparison of active and passive methods
Figure 5.3 shows surface velocities estimated from active tracking (red) and optical flow with a
div curl regularizer (blue) and the standard smoothness term (black). Horizontal, along wind,
velocities are shown on the y-axis, the x-axis denotes time. Along wind surface velocities are
clearly shaped by surface waves (compare Peirson et al. [2014]; Schnieders [2011]), with highest
velocities at the wave crest and lowest in the trough. This spatial and temporal velocity variation
is especially difficult for standard optical flow algorithms because the characteristic feature of
waves is the production of surface divergence.
The standard smoothness assumption clearly leads to a considerable underestimation of the
peak wave velocities. While scattering is a little higher for the div curl regularizer due to the
weakness of the applied constraint, it clearly captures the wave modulation of surface velocities
better than the commonly used smoothness assumption. This is a good example in which the
standard regularizer |∇u|2 + |∇v|2 fails to estimate accurate flow fields. The reason is the
spatial and temporal variation of surface velocities and the associated surface divergence in the
trough area of the wave violates the smoothness assumption and is therefore dampened in the
minimization process. The div curl regularizer is thus far better suited to deal with the highly
divergent flow field.
In comparison to the active technique passive velocities estimated with a div curl regularizer
exhibit substantial noise. However, the advantage of the optical flow field is the estimation of
47
5. Estimation of surface velocities from infrared images
2
active tracking
div-curl regularizer
smoothness regularizer
1.5
Horizontal velocity [px/fr]
1
0.5
0
−0.5
−1
−1.5
−2
−2.5
−3
0
100
200
300
400
500
600
Time frames
700
800
900
1000
Figure 5.3.: Surface velocities estimated from active tracking (red) and optical flow with a div-curl regularizer (blue)
and the standard smoothness term (black). The standard smoothness assumption clearly leads to a considerable
underestimation of the peak wave velocities.
dense flow field so scattering could be considerably reduced by averaging in time and space.
5.4.2. Error estimation
To be able to give an upper bound of the expected error of the velocity estimation, the root
mean square difference between both techniques is calculated frame by frame and subsequently
averaged. This measure is used as an approximate error estimation of the surface velocity results
and is represented in the error bars in Figure 5.4.
In Figure 5.4 the results of the comparison of averaged velocities for every wind condition are
shown. Open circles in blue and red show velocities estimated via the Brox-Corpetti combined
algorithm in cross wind (blue) and along wind (red) direction. For comparison, small dots
represent velocities estimated from the Brox algorithm. Cross wind velocities seem to be more
accurately estimated by the optical flow algorithm than along wind velocities. This is in a way
surprising because due to the aperture problem fluid movement within the small scale streaks
cannot be resolved. A possible explanationis that the larger scale dynamics of the surface
dominates over small scales. As a result the small scale structure act as tracers in the larger
scale flow. This indicates that the errors of the flow estimation from optic flow due to the
aperture problem are relatively small and velocities estimated via this method provide reliable
estimates.
48
5.4. Validation of estimated velocities from simultaneous active and passive measurements
uy div-curl regularizer
1
u from optic flow [px/fr]
ux div-curl regularizer
u smoothness regularizer
8 m/s
0.8
0.6
0.4
0.2
0
0
0.2
0.4
0.6
u from active tracking [px/fr]
0.8
1
Figure 5.4.: Comparison of velocity estimates from optical flow (y-axis) and active tracking (x-axis). Open circles
in blue and red show velocities estimated via the Brox-Corpetti combined algorithm in cross wind (blue) and along
wind (red) direction. For comparison, small, green dots represent velocities estimated from the Brox algorithm, with a
standard smoothness constraint.
The along wind velocities are inaccurate especially in one case, which is the highest wind
speed condition. At high wind speeds and frequent microscale breaking, large parts of the
surface temperature pattern are frequently wiped out which makes velocity estimation relatively
inaccurate. This equally affects optical flow by the removal of small scale “tracer” structures and
active tracking based techniques due to the removal of the heat patch.
At the low wind speeds and in the presence of surfactants, few surface waves are present. As a
result, reflections of the opening in the channel roof through which the camera and the laser are
looking appear on the water surface. These reflections, if not broken up entirely by the sloped
surface, travel with the velocity of capillary waves. This is considerably faster than the water
surface. This means that in the flow field estimation from optical flow the impact of those small
waves may be overestimated and the averaged velocities would consequently be too high. In
the passive thermographic measurements on which the following analyses are based, special care
was taken to insulate the channel openings and reflections are avoided.
49
6. Classification of the surface temperature
pattern
The classification of objects is one of the core topics in image processing and finds applications in
a wide variety of fields, from the segmentation of cells in neurobiology to identifying pedestrians
in driving assistance systems. Here, the footprints of different turbulent processes in infrared
images are analyzed. A classification of connected areas of up- and down-welling, allows for the
further analysis of a specific kind of process, e.g., the analysis of the turbulent cell size. In the
following, suitable techniques for the segmentation of the surface temperature pattern will be
described.
6.1. Analysis of the spatial scales of the footprints of near surface
turbulence
The goal is to achieve a full segmentation of the surface heat pattern, e.g., classifying each pixel
as part of a (cold surface) “streak” or “no streak”. Therefore, a classification method is needed
based on features of the image. The easiest method would be a simple temperature threshold,
classifying pixels colder than this threshold value as “streak” and those warmer as “no streak”.
Due to temperature variations on several scales a simple temperature threshold is not sufficient
to achieve a segmentation of the surface heat pattern (see Figure 6.2). The same applies to any
other feature such as gradients or orientation. This means a classification can only work if based
on several different features.
6.1.1. Pixel based segmentation
Our approach to this challenge is a machine learning based algorithm which uses a random
forest classifier, as implemented in the software package Ilastik by [Sommer et al., 2011]. The
classification does not rely on one feature (for example temperature) but several features which
is a big advantage in the case of the highly variable surface heat pattern. The second advantage
is the high flexibility of this semi automated segmentation. A classifier is “taught” by the user
which combination of features most probably describes a class (“streak” or “no streak”) and later
uses this training data to classify pixels. This means a small number of structures are labeled
manually and then large amounts of data are processed automatically.
51
6. Classification of the surface temperature pattern
The first step of the analysis is to choose appropriate features that describe the observed heat
pattern, obviously such as gray value, edge and orientation. Then, the corresponding scale on
which the filters operate is chosen and these are the features on which the random forest classifier
is based. M is the number of features which are chosen to describe the given problem. This
means that for every image there are M images that contain the values of the selected features
at every pixel.
Random forest
A random forest [Breimann, 2001; Criminisi et al., 2012; Hastie et al., 2009] is a classifier that
consists of an ensemble of decision trees. A decision tree is created by Ilastik after the end of
the training session. During the training session, the user manually labels a set of N pixels.
To every labeled pixel belongs a number of feature values. This is called a feature vector, that
contains the values of the previously selected features at the location of the labeled pixel. The
growth of a decision tree can be described by the following steps:
• During the training a certain number N of feature vectors has been created. From these
feature vectors now n << N samples are chosen randomly (with replacement) and represent the so called bootstrap sample.
• Now, a number of features m << M , where M is the total number of features, is randomly
selected to divide the bootstrap sample into two subsets.
The next step is to select randomly m features (m << M and M the total number of
features). These m features are used to divide the tree into two sections, the first knot is
created.
• The tree continues to grow by repeating this step over and over again until all the pixel in
one branch belong to one class.
The so-called random forest consists of a number of decision trees and their average “vote” is
decisive for the classification of a pixel. Once the random forest is generated from the training
images it can be used to classify all other (unlabeled) images. So every image follows the
structure of the constructed random forest.
The result is a pixel-wise classification of the surface heat pattern. Therefore, no spatial
patterns or global correlations are accounted for in the probability maps.
As a measure of variable importance the maximum mean Gini increase was used, which is a
measure of the importance a variable has on the decision in each node of a decision tree. The
comparison of Gini gains for low wind speeds yields the feature “orientation” based on the the
structure tensor and entries of the Hessian matrix on a scale of σ = 3.5 as the most important
variable. Followed by edges, which is based on eigenvalues of the structure tensor and Hessian
matrix as well as gradient filters such as Difference of Gaussians and Laplacian of Gaussian.
Finally, the gray value intensity, which is based on a first smoothing on scales of σ = 0.3 to
52
6.1. Analysis of the spatial scales of the footprints of near surface turbulence
Infrared images
Training images
All IR images
Decide on feautures
and number of classes
Random Forest
Labeling process, manually
Probability map
Thresholding
+ Centerline
Streak spacing
Figure 6.1.: Flowchart of the classification algorithm. The original data set is split into two subsets: statistically
independent images for the labeling process and all remaining images. Once a random forest is created, all remaining
images can be analyzed.
σ = 3.5. For higher wind speeds features remain the same but there is a shift to smaller filter
scales which corresponds to the visible change of the surface heat pattern to smaller structures.
Data analysis
Four statistically independent images from each recorded condition present the basis of the
following training and classification process and were labeled manually. The algorithm was
trained independently on the data of the different measurements and subdivided into wind
speeds. Cases of clean water and surfactant covered water surface were treated as one condition.
Three distinct classes, “streak”, “warm plume” and “reflexion” (resulting from the cold camera
chip surrounded by the camera window), are chosen to describe the surface heat pattern. The
result of the classification is a probably map which shows the calculated probability for a pixel
of being a “streak” or not (Figure 6.2, column 3).
The quality of the resulting classification has been carefully surveyed. Unfortunately, there is
no “ground truth” to which the classification results could be compared. Therefore, cold surface
streaks were marked manually and this result was compared to the result obtained during the
data analysis for this specific images. This approach showed good agreement and leads to an error
of 6.4% wrongly classified pixels at low wind speeds to 15% at high wind speeds. Additionally an
optimal probability map of one image was generated by using a very high number of manually
53
6. Classification of the surface temperature pattern
Figure 6.2.: Left column: Infrared images (Aeolotron) of the water surface at two different wind speeds; Middle
column: Simple temperature threshold; Right column: Result of the classification process, red: “streak”, green: “no
streak”
marked pixels and subsequently compared to a classification of the same image with the standard
random forest. This leads to an error of 7% wrongly classified pixels at low wind speeds and 10%
at high wind speeds. Here, mainly the boundary areas of the streaks cause the error but not the
center which determines the spacing. Another source of errors is the variable environment of
the water surface and depends strongly on measurement conditions. Under certain conditions
(see Section 4.2) microscale breaking waves are present.
6.1.2. Analysis of the streak spacing
Small scale temperature pattern
For the last step of the analysis, e.g., the extraction of the streak spacing, we chose statistically
independent probability maps. The streak spacing is determined from the center of one streak
to the center of the next on a line in cross wind direction. To ensure that the measured spacings
are not spatially correlated as they would be if the spacing was determined from two successive
lines, only two lines with a sufficient distance of each of the selected probability maps were
picked. The determination of the centerline of the streak is accurate on pixel level and based on
the segmented image.
A log normal distribution describes the histograms of measured streak spacings very well.
Therefore a log normal function is fitted to the data and its features form important parameters
to compare the results for different wind speeds and surface conditions.
In the regime of small streak spacings, irregular edges of the segmented images and wrong
detections due to overlapping classes lead to a slightly higher number of very small streak
54
6.1. Analysis of the spatial scales of the footprints of near surface turbulence
spacings than expected. Streak spacings of such a small scale have not been observed in the
images and are therefore not considered physical. The error is comparatively small and does not
disturb the log-normal fit.
In the spilling region of a microscale breaking wave the surface heat pattern is wiped out
as surface renewal takes place. In this region no streak spacings are detected. This does not
influence the distribution of spacing as incoherent turbulence does not lead to any structures
that could accidentally be taken for streaks. However, it leads to gaps that lead to a slight
overestimation of very large spacings. For these reasons, the position of the mode was selected
as the most reliably feature of the distribution to characterize the streak spacing.
Large scale temperature pattern
Larger scale streaks appear in the infrared images at higher wind stress and are caused by
another production mechanism, Langmuir circulation. Therefore, it is important for the analysis
to separate the footprints of the two different processes. Larger scale streaks are considerably
more stable and have life times of several seconds or more. In a cross section of an image stack,
a time space image (see Figure 7.1), those streaks are easily detectable, due to their persistence.
Therefore, to analyze the spacing of Langmuir induced streaks the same analysis as for the small
scale temperature pattern is performed on time space images of the water surface. Dominant
features remain the same, only the scale needs to be adjusted. The streak spacing is determined
with the same procedure as described above.
55
7. Mechanisms defining the dynamic state and
thermal pattern of the water surface
Processes relevant in the context of air-sea interaction determine the dynamics of the water
surface. In the surface temperature pattern an integrated version of dynamical processes is
visualized with an emphasis on locally stable processes. Also the surface flow field provides
information about kind and strength of a turbulent process. As a result, the momentary velocity field and the integrated divergence visible in infrared images provide two different views
on the characteristic mechanisms. Processes like Langmuir circulation and shear turbulence, for
example, act on different timescales than, for example surface gravity waves or turbulence associated with microscale breaking. Therefore, it also depends on the observation method which
process appears most pronounced. A comparison between the results of the high temporal resolution surface velocity estimates with infrared images which better represent spatially more
stable processes highlights different mechanisms and points towards the respective time scale.
At increasing wind stress and depending on whether surfactants are present or not the water
surface is dominated by varying mechanism. In this chapter different turbulent regimes are
derived from the surface temperature pattern and the estimated velocity fields. While shear
turbulence is clearly visible in infrared images its impact on the surface velocity field cannot
be resolved due to the aperture problem. Langmuir circulations and microscale breaking affect
both the temperature pattern and the velocity field but are more pronounced in the infrared
images while the short timescales let surface waves clearly affect the velocity field but are too
short to leave their footprints in the surface temperature pattern.
In Figure 7.1 an example infrared image of 40x40 cm is shown with annotations to illustrate
the footprints of shear turbulence and small Langmuir circulations that will be discussed in the
following sections. A range of structural scales is visible. Clearly visible small-scale structures are
superimposed by larger-scale temperature variations. These larger-scale structures are persistent
as shown in the right image of Figure 7.1. The infrared image on the left is a representative
sample from a sequence of 1000 infrared images. The right panel in Figure 7.1 shows the temporal
development at a set line in the image stack highlighting the larger-scale cold surface streaks
that persist throughout the sequence for approximately 16 s.
57
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
Figure 7.1.: Image from Schnieders et al. [2013]. A stack of infrared images on the left side, taken in the Aeolotron,
Heidelberg at a friction velocity of u∗ = 0.34 cm/s, is transformed into the right representation in which the temporal
development of structures at a set position is described. Small scale structures in the temperature pattern are called
fish scales and are caused by shear turbulence. Larger scale cold streaks are better visible in the time space image and
represent the footprints of small Langmuir circulations.
7.1. Dominant turbulent processes at varying wind wave conditions
Representative infrared images of the water surface, taken during the experiments at Aeolotron,
2014, with and without surfactants, are shown in Figure 7.2. The surfactant Triton X-100 lowers
surface tension and therefore effectively suppresses capillary waves. The overall roughness of the
water surface is considerably reduced, compare Table 4.2. Especially at low wind speeds the slick
covered water surface remains entirely smooth with Mean Square Slope (MSS) values below 0.1.
With increasing wind speed the gap in MSS values between clean and surfactant covered surface
gradually decreases but MSS values stay generally lower (about 20 % at higher wind speeds)
[Bopp, 2014]. Thus, the onset of gravity waves occurs at higher wind stress if a surfactant is
present.
In Figure 7.2 left column images show a clean water surface while the right column shows
surfactant covered images. Wind stress increases from a) to e). The surface temperature is color
coded with light areas being warmer than dark areas. The temperature difference in the images
is ∼ 0.25 K and ∼ 0.14 K in the lower and higher wind speed images respectively. The three
rows of infrared images are chosen as references to different regimes of the water surface (see
Table 4.2).
Starting from low shear and a relatively smooth water surface the wave field progresses to a
more developed state in the clean surface conditions but a very smooth surface in the surfactant
case. The second row shows images of the water surface under higher shear stress with surface
waves clearly present in the clean water case but considerably weaker in the surfactant case.
Finally, the third row shows two images with similar wave height values in both the clean
surface and the surfactant case and frequent microscale breaking.
In Figure 7.3 time-space infrared images of the water surface are shown, that were taken
during the experiments at Aeolotron, Heidelberg. The temporal depiction shows a time slice of
the image stack, with time on the x-axes and cross-wind direction on the y-axis. Left images
show clean surface conditions, right images show surfactant covered surface conditions. The first
row refers to friction velocities of u∗ = 0.7 cm/s, second row to u∗ = 1.3 cm/s.
Characteristic cold streaks, the footprints of Langmuir circulations, are visible in all images
58
7.1. Dominant turbulent processes at varying wind wave conditions
18.85
19.35
18.8
19.25
T [C ◦ ]
18.7
19.3
T [C ◦ ]
18.75
19.2
18.65
19.15
18.6
(a) u
∗
19.1
≈ 0.4 cm/s
(b) Surface slick
19.35
19.3
T [C ◦ ]
18.4
18.35
T [C ◦ ]
18.45
19.25
18.3
19.2
(c) u
∗
≈ 0.7 cm/s
(d) Surface slick
19.35
18.16
19.3
T [C ◦ ]
18.12
T [C ◦ ]
18.14
19.25
18.1
18.08
19.2
(e) u
∗
≈ 1.3 cm/s
(f) Surface slick
Figure 7.2.: Infrared images of the water surface taken during the experiments at Aeolotron, Heidelberg. Shown is a
comparison of infrared images of a clean water surface (left column) and a surface covered by surfactant Triton X-100
(right column). The three rows refer to three different wind speeds. In the first row, no waves were present, in the
second row gravity waves were present and in the third row frequent microscale breaking had set in.
59
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
18.3
18.35
18.4
18.45
18.5
19.15
19.2
T [C◦ ]
19.25
19.3
19.35
T [C◦ ]
(a) Time space image, clean surface, u∗ = 0.7 cm/s (b) Time space image, Surface slick, u∗ = 0.7 cm/s
18.08
18.1
18.12
18.14
18.16
T [C◦ ]
18.18
19.24
19.26
19.28
19.3
19.32
19.34
19.36
T [C◦ ]
(c) Time space image, clean surface, u∗ = 1.3 cm/s (d) Time space image, Surface slick, u∗ = 1.3 cm/s
Figure 7.3.: Time-space infrared images of the water surface taken during the experiments at Aeolotron, Heidelberg.
The temporal depiction shows a time slice of the image stack, with time on the x-axes and cross-wind direction on
the y-axis. Left images show clean surface conditions, right images show surfactant covered surface conditions. The
first row refers to friction velocities of u∗ = 0.7 cm/s, second row to u∗ = 1.3 cm/s. In the upper right image
no Langmuir footprints are visible in all others characteristic streaks appear. Dark patches arise from accumulation of
surfactants at higher wind stress.
but the top right image, Figure 7.3 b). Here, surfactants delayed the development of surface
waves. As a result, there is a considerable difference between clean surface and surfactant covered
surface in this wind speed regime.
7.1.1. Shear dominated regime
With increasing wind speed, the structures in the temperature pattern clearly change to smaller
sizes, which has been described earlier by Handler et al. [2001]; Schimpf et al. [2004]; Schnieders
et al. [2013]; Scott et al. [2008]; Tsai et al. [2005]. The characteristic pattern in the images
exhibits small structures termed fish-scales by Handler et al. [2001] and Tsai et al. [2005]. In
earlier work by [Asher, 1997; Kitaigorodskii, 1984] and recently by [Schnieders et al., 2014; Tsai
et al., 2005] it has been suggested that shear stress alone is sufficient for their appearance and
it has thus been concluded that those small scale structures are presumably the footprints of
60
7.1. Dominant turbulent processes at varying wind wave conditions
shear induced turbulence [Schnieders et al., 2013; Tsai et al., 2005].
Comparing the left column (clean surface) with the right column (Triton X-100) in Figure 7.2
it becomes evident that the turbulence at the water surface looks relatively similar at low and
high wind stress, first and third row, but different in the transition zone in between.
In the first row, at low wind speeds, shear induced turbulence clearly dominates, neither wave
breaking nor wave shear coupled turbulence is visible. Both images look very similar and this
has been reported previously in Schnieders et al. [2013] where an analysis of the spacing of small
scale cold streaks showed that the presence of surfactants did not alter the size of turbulent
cells. The similarity of the small scale structures at a clean and and slick covered surface can
be seen throughout the range of wind speeds. Given that the prime effect of soluble surfactants
is to dampen capillary waves and decrease surface roughness this means that small scale shear
induced turbulence is relatively insensitive to surface waves [Tsai et al., 2005] and wind stress
alone is the driving force [Asher, 1997; Kitaigorodskii, 1984].
7.1.2. Langmuir Circulation dominated regime
Clearly wave related larger scale streaks appear, Figure 7.2 c), e) and f), just after the onset of
the first gravity waves between u∗ = 0.5 cm/s and u∗ = 0.7 cm/s in the clean water case and u∗
between 0.8 cm/s and 1 cm/s when the water surface is covered by the surfactant Triton X-100.
At an intermediate wind speed range, starting from approximately u∗ = 0.5 cm/s in the clean
water surface cases and approximately u∗ = 1 cm/s in the surfactant covered water surface cases,
the surface temperature pattern is dominated by larger scale cold streaks. They are responsible
for the strongest temperature gradients and are clearly wave related as they only appear after
the onset of surface waves, i.e. increasing MSS values and surface elevation, compare Tables 4.2
and 4.1. It has been shown [Caulliez, 1998; Melville et al., 1998; Veron and Melville, 2001] that
small Langmuir circulation exist under similar conditions. A comparison of the spacing of these
streaks to the spacing of Langmuir Circulation as predicted by the CL II mechanism [Leibovich
and Paolucci, 1981] will be discussed later but was done in [Schnieders et al., 2013] and shows
a quite good agreement.
At an intermediate wind speed range, e.g., in images c) and d) in Figure 7.2, there is a clear
difference between infrared images of a clean surface and Triton X-100 covered surface. This
becomes more evident when looking at the respective time space images in Figure 7.3 a) and
b). These images highlight the life time of a surface structure and exhibit clearly visible stable
streaks in Figure a) but not in Figure b). The infrared image of the surfactant covered surface
exhibits only the characteristic fish scale patter but shows no signs of any larger scale circulation.
This distinct discrepancy between a clean surface and a surface covered by a surfactant layer
points towards the generation mechanism of those streaks. Combined with still very low MSS
values in the surface slick case this is consistent with the CL II mechanism which describes
Langmuir Circulation that evolve through an interaction of shear stress and waves Craik and
Leibovich [1976]. At higher wind stress (u∗ ≈ 1.3 cm/s) Langmuir footprints are clearly visible
61
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
in the infrared images in Figure 7.2 e) and f) and in the time space representation in Figure 7.3
c) and d).
7.1.3. Microscale breaking dominated regime
At high wind speeds, Figure 7.2 e) and f), again the heat pattern of clean and slick covered
surface does look relatively similar even though very different from the first two images. At
these wind speeds microscale wave breaking is a dominant process [Zappa et al., 2004]. Mean
square slope (MSS) of the surfactant covered water surface have reached similar values to the
clean water surface and microscale wave breaking occurs frequently also at the surfactant covered
water surface.
At increasing wind speeds these larger scale streaks with a spacing of approximately eight
to twelve centimeters become more and more pronounced. For higher wind speeds the circular
geometry of the wave channel Aeolotron causes a deflection of the orientation, the cold surface
streaks run slightly diagonally.
7.2. Processes shaping the surface dynamics
Surface flow fields provide crucial information about the dynamics of the surface. The surface
heat pattern is ultimately an image of surface divergence and convergence. Knowledge of the
surface velocity field, thus, provides a very accurate image of the surface state, highlighting
processes like gravity waves that do not appear in the infrared images. Infrared imagery with
a high time resolution offers the possibility to estimate surface velocities by a non invasive
technique and with a high spatial resolution.
However, due to the aperture problem the velocity estimation via optical flow based techniques
does not estimate surface flow but changes of temperature gradients in the surface heat pattern.
Therefore, any technique based on infrared images will not be able to capture the smallest
scale movements. Consequently, the development of the fish scale pattern, clearly created from
surface water movement, cannot be resolved, as movements along the eddies are invisible in the
IR image. However, it has been shown in Section 5.4.2 that the velocity estimation from optical
flow provides reliable results. Larger scale movements are captured well, as will be shown in the
following section also because the small scale pattern acts as a tracer.
Surface divergence is an extremely important feature of the the water surface. It provides
a link between surface dynamics and its actual impact on transport. All analyses of infrared
imagery are based on the visualization of surface convergence and divergence. Surface velocity
fields have been determined with a very high temporal resolution. Therefore, surface divergence
information has the same temporal resolution and provides a snap-shot of the ongoing processes,
in contrast to infrared imagery which always shows an integrated divergence, or rather the time
a water parcel has spend at the surface.
62
7.2. Processes shaping the surface dynamics
Surface divergence has been shown to directly correlate with exchange rates by Banerjee et al.
[2004]; Turney and Banerjee [2013]; Turney et al. [2005]. In Veron et al. [2008] surface divergence
is shown to closely correlate with the wave field.
Another source of errors in the velocity estimation are the distortions in the infrared images
due to wave height which may have a negligible influence on surface velocities but may lead to
an over estimation of surface divergence. Furthermore, divergence is derived from the derivatives of surface velocity which means that error propagation increases the error associated with
divergence values considerably.
Results of the surface velocity fields
The qualitative results of the velocity estimation via the Brox-Corpetti algorithm are shown in
figure 7.2. Rows correspond to increasing wind speeds with friction velocities of u∗ = 0.4 cm/s,
u∗ = 0.74 cm/s, and u∗ = 1.30 cm/s in the top, middle, and bottom row, respectively. The left
column shows absolute velocities, the middle column shows flow fields, and in the right column
the corresponding infrared image is shown. Again the three cases were chosen as representatives
of three different regimes, a relatively smooth water surface with capillary ripples, mainly small
gravity waves and frequent microscale breaking, that develop with increasing wind stress.
Results of the surface divergence
In figure 7.2 divergence estimates on the same three infrared images as in Figure 7.2 are shown.
Wind stress increases from left to right, friction velocities are u∗ = 0.4 cm/s, u∗ = 0.74 cm/s,
and u∗ = 1.30 cm/s respectively. Additionally, Figure 7.2 shows from left to right a surface
divergence estimate based on one frame of estimated surface velocities. The middle image shows
an average over 20 frames of surface divergence which correspond to approximately 0.2 s. The
image in the right shows the corresponding average over 20 infrared images. The comparison of
the first and third row highlight processes of very different spatial and temporal stabilities.
7.2.1. Non-breaking waves
A comparison of Figure 7.2 to Figures 7.2 and 7.2 shows that in the previously named “Shear
dominated” and “Langmuir Circulation dominated” regimes, different processes dominate in the
infrared images compared to surface flow fields and correspondingly surface divergence estimates.
Starting from the lowest wind speed case, small wave crests appear in the absolute velocities
but not in the infrared image. Clearly visible is also a larger scale streak of higher velocities at
the position where a cold large scale streak seems to be in formation in the infrared image.
Looking at the next row, it becomes evident, that in this regime waves are clearly the dominant
feature in the velocity image. Comparing this with the infrared image on the other hand shows
that here, cold streaks are far more pronounced than the barely visible gravity waves. Comparing
63
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
5
10
15
20
18.6
|v| [cm/s]
0
10
20
30
20
30
|v| [cm/s]
18.8
18.3
18.35
18.4
T [C◦ ]
|v| [cm/s]
10
18.7
T [C◦ ]
40
50
18.08 18.1 18.12 18.14 18.16
T [C◦ ]
Figure 7.4.: Qualitative results of the velocity estimation, Brox-Corpetti algorithm; Upper row: u∗ = 0.4 cm/s, Middle
row: u∗ = 0.74 cm/s, Lower row: u∗ = 1.30 cm/s. Left column shows absolute velocity fields, Middle column shows
flow fields, and Right column shows the original infrared image.
64
7.2. Processes shaping the surface dynamics
−5
0
5
−5
0
div [1/s]
18.6
18.7
5
div [1/s]
18.8
18.3
18.35
18.4
T [C ]
T [C ]
−5
0
5
10
div [1/s]
18.08 18.1 18.12 18.14 18.16
T [C◦ ]
◦
◦
−10
Figure 7.5.: Surface divergence estimates at friction velocities from left to right: u∗ = 0.4 cm/s, u∗ = 0.74 cm/s,
and u∗ = 1.30 cm/s. Original IR images are the same as in Figure 7.2. Small waves dominate in the first two images,
at low to intermediate friction velocities. In the third image a microscale breaking wave is clearly visible with a spilling
region and roll vortices
−5
0
div [1/s]
5
−2
0
div [1/s]
2
18.08 18.1 18.12 18.14 18.16
T [C◦ ]
Figure 7.6.: From left to right: Surface divergence estimate at a friction velocity u∗ = 1.0 cm/s. Same sequence but
divergence is averaged over 20 images, 0.2 s. Average of infrared images, in correspondence to divergence sequence.
A striking difference in the dominant structures is visible between first and second image, while in the first image small
waves are the dominant feature, in the time wise averaged image surface streaks become visible, though on a much
smaller divergence scale.
65
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
6
7
−4
x 10
8
all wind cond.
6
6
# > vx/c
5
#
x 10
4
3
2
ws = 8.3 m/s
4
2
1
0
−1.2
−1
vx /c − 1
−0.8
0
0
0.5
1
1.5
Friction velocity [cm/s]
2
Figure 7.7.: Left: Histograms of with all measured wind speeds overlaid. On the x-axis is vx /c − 1, with vx being the
along wind velocity component and c the estimated phase speed from linear wave theory. Right: Fraction of measured
along wind speed velocities that exceed estimated phase speed, vx /c − 1 > 0.
the IR image and the velocity image in more detail shows higher velocities along the position of
the cold streaks in the IR image.
The reason for the different characteristic processes in the velocity and the infrared images
is that gravity waves are fast moving while infrared images show spatially stable, persistent
cross currents that are caused by Langmuir rolls. The question has recently been raised to what
extend (personal communication Wu-Ting Tsai) the timescale on which a process acts is an
important factor of the impact of the process on exchange rates.
In the two lower wind speed cases (left and middle image in the top row of Figure 7.2) small
gravity / gravity capillary waves clearly dominate. This corresponds to the velocity variation
already visible in the velocity images. The close correlation of surface waves and divergence has
been described by Veron et al. [2008].
Surface waves naturally play a major role in the modulation of surface water velocity in wind
direction. In Figure 7.7 the velocity variation due to gravity wave is shown. The relation between
wave phase speed and surface velocities is a common characteristic to describe the interaction
of waves and surface velocities.
The dominant wave period is determined from the height data via the Fourier transform.
Linear wave theory is applied to estimate wave phase velocity. In the left plot in Figure 7.7
histograms of all measured wind speeds are shown over along wind surface velocity normalized
by wave phase speed, vx /c − 1. vx /c − 1 is a measure for the acceleration of surface velocity
relative to wave phase speed. Nearly all wind speeds exhibit the same behavior, only the highest
wind speed case shows higher surface velocities relative to the wave speed. This is very likely
related to microscale breaking and will be discussed in Section 7.2.3.
66
7.2. Processes shaping the surface dynamics
7.2.2. Langmuir convergence and high speed streaks
Langmuir circulations are a defining feature of infrared images of the water surface at low to
moderate wind speeds, in the “Langmuir Circulation dominated regime”, but do not at first sight
appear in the estimated velocity fields.
It is therefore highly interesting to compare the footprints of Langmuir circulations in infrared
images to their impact on the surface velocity field. At first glance hardly any trace of any larger
scale streak like structures are found, neither in the velocity images in Figure 7.2 nor divergence
estimates in Figure 7.2. However, as mentioned earlier, surface divergence and infrared imagery
highlight processes on different time scales. Averaged surface divergence estimates in Figure
7.2 try to resolve this conflict by averaging estimated surface divergence rates over 20 frames,
0.2 s. The left image shows the classical surface divergence at a friction velocity of 0.9 cm/s.
Small waves clearly dominate. The right image shows an averaged surface divergence sequence
starting from the same frame. Now, not surface waves are the dominant feature anymore but
clearly visible streaks. This puts even more emphasis on the importance of the time scale of
a process and the impact it seems to have or not to have. It also proves that infrared images
indeed provide an accurate images of spatially more stable convergence causing processes.
Taking a closer look at the correlation between surface temperature and velocity, Figure 7.8
shows the correlation of along wind surface velocity with surface temperature. In figure 7.8 the
bin averaged surface velocity is plotted against surface temperature, open circles show the along
wind component, crosses the cross wind component of the velocity field. Friction velocities are
from top left to bottom image 0.4 cm/s, 0.74 cm/s, and 1.3 cm/s, respectively. As the here
presented data is bin averaged, error bars are larger towards the boundaries of the temperature
interval.
Even though surface temperature is a relatively rough indication of surface convergence (compare 7.2) there seems to be a clear correlation between surface velocity and temperature in all
cases. Cold surface areas thereby move considerably faster in wind direction than warm areas.
This can be observed at a range of wind speeds and confirms (for example Melville et al. [1998])
that cold streaks are indeed high speed streaks. This relationship is most pronounced in the
lower wind speed case. This supports the findings in section 7.1.1 and 7.2 that in this regime
cold streaks are the dominant process and small surface waves play a smaller role both in the
transfer of heat and also, correspondingly, in the surface velocity field. However, as wind speed
increases, noise levels also increase but along wind velocities continue to be clearly higher in
cold, convergence areas.
The opposite trend, though very weak, can be observed in the cross wind velocity component.
Here, highest velocities appear at the highest temperature values. In correspondence with the
eddy renewal model this indicates that high cross wind drift velocities appear just after the
upwelling process.
67
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
20
rms uy
ux
8
Surface velocity [cm/s]
Surface velocity [cm/s]
10
6
4
2
0
rms uy
ux
15
10
5
0
18.6
18.8
19
18.2
Surface temperature [/ C]
(a) u∗ = 0.4 cm/s
18.6
18.8
19
(b) u∗ = 0.53 cm/s
15
20
rms uy
ux
10
5
Surface velocity [cm/s]
Surface velocity [cm/s]
18.4
Surface temperature [/ C]
rms uy
ux
15
10
5
0
0
18
18.5
19
Surface temperature [/ C]
(c) u∗ = 0.74 cm/s
18
18.5
19
Surface temperature [/ C]
(d) u∗ = 1.3 cm/s
Figure 7.8.: Bin averaged surface velocities over surface temperature. Open circles show along wind velocity components, stars show root mean square of cross wind velocities. Friction velocities are 0.4 cm/s, 0.74 cm/s, and 1.3 cm/s.
7.2.3. Breaking waves and roll vortices
Microscale breaking is a process which is equally dominant in infrared and velocity images. In
the bottom row in Figure 7.2 at high wind speeds and clearly visible micro scale breaking in the
IR image, also the velocity image is dominated by the breaking wave. The crest area is clearly
visualized in the velocity image as an area of accelerated surface water which corresponds to the
characteristics of a breaking waves [Banner and Peirson, 1998; Peirson, 1997].
Also the surface divergence (top right image in Figure 7.2) shows all characteristics of a
microscale breaking wave. The microscale breaking event in the third image is clearly captured
with a subduction area and the adjacent spilling zone of the wave. Interestingly, surface streaks
in the spilling region of the wave are also clearly visible. It is not quite clear whether these
are of the same kind a the persistent cold streaks that have been referred to as “large scale
streaks” or small Langmuir circulations earlier. Handler and Zhang [2013] describes similar
streaks on microscale breaking waves and it has been suggested Handler and Zhang [2013] that
68
7.2. Processes shaping the surface dynamics
wave breaking alone creates this kind of roll vortices. However, they seem to create surface
divergence of the same magnitude as that of the wave breaking itself, thereby indicating that
both processes (microscale breaking and roll vortices) act on a similar scale in terms of impact
on transfer processes but also on a similar time scale.
Microscale breaking waves have the indisputably highest influence on heat and gas transfer
at moderate wind speeds Peirson et al. [2014]; Zappa et al. [2004]. One important feature of
microscale breaking is the spilling region at the wave crest which causes surface renewal of a
relatively large area and thereby enhances transport. The spilling region of a microscale breaking
wave is accelerated until surface velocities reach the traveling speed of the micro scale breaking
wave.
The right plot in Figure 7.7 shows the number of pixels in the velocity images for which
vx /c − 1 > 0. Microscale breaking waves have been shown [Peirson et al., 2014; Schnieders,
2011] to accelerate surface fluid to the phase velocity of the microscale breaking wave. As a
result vx /c − 1 would be equal or larger than zero. The histogram in Figure 7.7 now shows that
an increasing number of pixel reaches that value in the two highest wind stress conditions. This
indicates that microscale breaking is frequently occurring at friction velocities of 1.3 cm/s and
higher. This might be an explanation of the higher surface velocities in relation to the phase
speed in the left figure only at the highest wind speed case The omnipresence of microscale
breaking that was seen in the infrared images and the associated exhilaration of the surface
fluid might cause generally higher velocities. On the other hand, the estimation of wave phase
speed from linear wave theory is not very accurate, especially for microscale breaking waves.
So it might also well be that the frequent microscale breaking causes a stronger deviation of
the actual phase speed from the estimated one than in the other cases. However, the extreme
exhilaration of surface fluid is in any case a clear indication of ongoing microscale breaking.
7.2.4. Comparison of the impact of surface processes on surface temperature and
surface divergence
A comparison between the impact of surface processes on surface temperature and surface divergence is shown in Figure 7.9. Surface divergence over surface temperature is shown at four
different friction velocities from top left to lower right images, 0.4 cm/s, 0.53 cm/s, 0.74 cm/s,
and 1.3 cm/s. Gray symbols denote individual data points of 100 infrared images and corresponding velocity estimates. Black circles represent bin averages of this data, hence averaged
surface divergence values on the right axis are considerably smaller than the total range on the
left axis. Therefore, error bars become large towards the ends of the distribution because the
mean is calculated from fewer data points.
At low wind stress, u∗ = 0.4 cm/s no significant correlation between surface divergence and
surface temperature is visible. Even though Figure 7.8 showed, that high speed streaks are in
formation at the wind speed, this results corresponds to the fact that neither the infrared images
nor in the surface divergence images showed any distinct footprints of Langmuir circulations or
69
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
(a) u∗ = 0.4 cm/s
(b) u∗ = 0.53 cm/s
(c) u∗ = 0.74 cm/s
(d) u∗ = 1.3 cm/s
Figure 7.9.: Surface divergence over surface temperature at friction velocities from top left to lower right images,
0.4 cm/s, 0.53 cm/s, 0.74 cm/s, and 1.3 cm/s.. Gray symbols denote individual data points of 100 infrared images and
corresponding velocity estimates. Black circles represent bin averages of this data, hence averaged surface divergence
values on the right axis are considerably smaller than the total range on the left axis. Generally a correlation between
surface divergence and surface temperature is visible. Langmuir circulations lead to significant convergence and coincides
with distinctly colder temperature, microscale breaking causes localized surface divergence and therefore coincides with
higher surface velocities.
70
7.3. Absolute surface divergence with increasing wind stress
microscale breaking waves.
In the second image of Figure 7.9, however, a very prominent correlation between surface
temperature and surface divergence is visible. Here, significantly higher convergence coincides
with relatively cold surface temperatures. This indicates the presence of Langmuir circulation
which cause high localized convergence within the streak area, and explains the very pronounced
footprints of Langmuir circulations in the infrared images that appear as cold distinct streaks.
A comparison with Figure 7.8 shows that the corresponding velocity versus temperature plots
did not show any strong correlation. Low gradients within the relatively narrow streaks might
lead to an underestimation of velocities in along wind direction due to the aperture problem
while convergence is caused mainly by the cross wind velocity direction.
In the third images in Figure 7.9 the correlation between convergence and surface temperature
is less pronounced than before, instead high divergence coincides with high surface temperatures.
One very possible explanation is microscale breaking that has been shown to form at this wind
speed. Microscale breaking causes localized upwelling and thus increased surface temperature
which than correlate to high surface divergence caused by the upwelling.
At high wind stress this mechanism is enhanced and thus the correlation between surface
divergence and higher surface temperature is more pronounced. This corresponds to Figure 7.7
that showed that microscale breaking is very frequent at this wind stress.
7.3. Absolute surface divergence with increasing wind stress
7.3.1. Surface velocities
Figure 7.10 shows the frequency distribution of surface velocities at u∗ ≈ 0.3 cm/s and at
u∗ ≈ 1 cm/s. The left image shows cross wind surface velocities, uy , for two different wind
speeds, 2 m/s and 7 m/s, with and without surfactants. Higher wind speed is represented by
dark blue symbols, lower wind speed by light blue. Clean surface is indicated by dots, surfactants
by crosses. In the right image, along wind surface velocities are shown for the same wind speeds.
Again, darker symbols denote higher wind speed condition. Lines show Gaussian distributions
to indicate the deviation of the velocities from a Gaussian shape. With increasing wind stress the
distributions broaden, clearly related to the surface dynamics becoming more and more complex
as different processes evolve, especially surface waves. This stands in contrast to the histograms
of surface temperature frequencies (compare figure 7.13) which show clearly smaller variance
at higher wind stress indicating the more homogeneous temperature pattern. The different
behavior of temperature and velocity distributions has been pointed out earlier by Veron et al.
[2008].
For higher wind speed cases the velocity distribution in cross wind direction seems just slightly
asymmetric which is a clear indication of secondary currents in the facility that have been
described in detail by Bopp [2014]. However, this effect is relatively small and well overlapped
by the impact of waves and turbulence. The general shape of the velocity distribution clearly
71
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
5
5
10
10
2 m/s
uy
ux
7 m/s
2 m/s, Triton
4
10
2 m/s, Triton
7 m/s, Triton
#
7 m/s, Triton
#
2 m/s
7 m/s
4
10
3
10
2
10
3
−10
−5
0
5
Surface velocity [cm/s]
10
10
−10
−5
0
5
Surface velocity [cm/s]
10
Figure 7.10.: Left: Cross wind surface velocities, uy , for two different wind speeds, 2 m/s and 7 m/s, with and without
surfactants. Higher wind speed is represented by dark blue symbols, Lower wind speed by light blue. Clean surface is
indicated by dots, surfactants by crosses. Right: Along wind surface velocities. Lines show Gaussian distributions to
indicate deviation from Gaussian shape.
deviates from the Gaussian (straight lines in figure 7.10) at lower as well as at higher wind speed.
The deviation from the Gaussian distribution clearly shows that the generation of velocities is not
a random process. Veron et al. [2008] reported the deviation from the Gaussian to be increasing
with higher wind stress. However, this cannot be confirmed here, as the velocity distribution at
low wind speeds is already clearly non-Gaussian.
Comparing the velocity distributions of a clean and slick covered surface, the slick covered
surface exhibits clearly higher along wind velocities for high wind speeds. This again shows
the impact of surface slicks on the wave field and therewith on the partitioning of wind stress.
Presumably, the tangential fraction of wind stress is considerably higher in the surfactant case,
and therefore exhilaration of the fluid is higher, too. At lower wind speeds and also at lower
wind stress the difference between clean and surfactant covered wind stress is very small.
Mean velocities
The velocity estimation via the Brox-Corpetti algorithm was performed on a subset of the data,
of five sequences of twenty subsequent images in an interval of 1.6 seconds each. Spatial and
temporal averages over this subset can be seen in figure 7.11. On the left, the increase of mean
surface velocities is shown over friction velocity, on the right against wind speed. Along wind
velocities are shown in green, cross wind velocities components in blue. Results from the clean
surface measurements are indicated by circles while surfactant measurements are indicated by
crosses. Cross wind velocities are root mean square values, as the average velocity is always
approximately zero, compare Figure 7.10. Error bars are derived from the deviation of mean
velocities estimated from optical flow and those from active tracking (compare Figure 5.4).
However, the scattering of the data is clearly larger than the size of the error bars can explain,
especially if plotted against friction velocity u∗ . In both representations the cross wind velocity
72
7.3. Absolute surface divergence with increasing wind stress
ux
uy
ux
uy
Triton
Triton
0.05
0
Triton
Triton
0.1
us [m/s]
us [m/s]
0.1
0.05
0
0.5
1
u∗ [cm/s]
1.5
2
0
2
4
6
8
wind speed [m/s]
10
Figure 7.11.: Averaged surface velocities against friction velocity with and without surfactant Triton X-100 and along
wind and cross wind components.
component is considerably lower than along wind velocities. For low wind speed cross wind
velocity is approximately 35% of the along wind component. The along wind velocity exhibits
a linear increase while the cross wind velocity component is best described by a polynomial
function.
There is a striking difference between both representations regarding the comparison of results
from clean surface measurements and Triton X-100 measurements. In the left figure in which
surface velocity is plotted against friction velocity surface velocities in the surfactant cases are
generally higher than the clean surface velocities. Plotted against wind speed this effect reverses
and surface velocities in the surfactant case tend to be lower (though not by much). Friction
velocity is a measure of shear stress and therefore momentum transport from wind to water.
It is a known effect that with increasing surface roughness the fraction of shear stress that
goes into wave form drag increases Banner and Peirson [1998]; Peirson [1997]. The measured
friction velocity comprises the tangential component of shear stress as well as wave form drag. If
surfactants are present the surface roughness is considerably reduced and so is wave form drag.
Surface velocities however, are determined by the tangential fraction of shear stress, which is
extremely difficult to measure independently. As a result friction velocities in the surfactant
cases are considerably lower than in the clean water cases even though the tangential stress is
very similar and the tangential surface velocities appear too high.
Possible errors: At higher wind speeds the distortion of the surface due to growing waves
causes errors in the velocity estimation these errors can be up to 20 % in the highest wind
speed. Averaging cancels this effect as the surface deviation takes a Gaussian distribution.
Secondary currents in cross wind direction exist in the facility [Bopp, 2014] and though smaller
than local velocity variation do contribute to cross wind velocities.
73
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
20
18
Surface divergence [1/s]
16
14
12
∂u
∂x
+
∂v
∂y
∂u
∂x
∂v
∂y
Triton
Triton
Triton
10
8
6
4
2
0
0.2
0.4
0.6
0.8
1
1.2
Friction velocity [cm/s]
1.4
1.6
1.8
Figure 7.12.: Averaged surface divergence, indicated by by open circles is plotted against u∗ . Results from clean
surface and surface slick measurements are shown in blue and cyan, respectively. Additionally, along wind (crosses)
and cross wind (triangles) velocities are shown
7.3.2. Surface divergence
Figure 7.12 shows root mean square values of surface divergence averaged over five independent
sequences of 20 images each. The behavior of the curves are very similar to the curves of averaged
surface velocities. The total divergence is split up into an along wind component, which is shown
in green and the cross wind component, which is shown in blue. Clean surface and surfactants
are indicated by circles and crosses, respectively.
Heat transfer rates are estimated from the surface divergence model, fist suggested by McCready et al. [1986] and further tested by for example Turney and Banerjee [2013]. Estimated
heat transfer rates span a relatively small interval, with very high values at low wind speeds
and comparably low values at high wind stress. This may in parts be due to erroneous velocity
estimates. Especially at high wind speeds velocity estimates are a little inconsistent with lower
estimates. However, the (simple) surface divergence model has been previously shown to not
perform well if the surface movement is dominated by shear stress and waves Turney and Banerjee [2013] who suggested another approach to relate heat transfer rates to surface divergence
based on measurements with particle image velocimetry.
74
7.4. Estimation of bulk temperatures based on the eddy renewal model
7.4. Estimation of bulk temperatures based on the eddy renewal
model
The estimation of bulk temperatures, e.g., the estimation of temperatures just below the water
surface, is one of the crucial quantities in air-sea interaction studies. With the upcoming of high
resolution satellite infrared data the temperature difference across the surface thermal layer
has become of great general interest. Bulk temperature is a critical value in most models that
estimate heat transfer rates.
However, in many applications it is highly desirable to estimate bulk temperature from remote
sensing data to avoid in situ measurements. Various techniques can achieve this task but every
bulk temperature estimate from surface temperatures is based on a conceptual model assumption. At the same time the value and/or distribution of bulk temperatures based on a specific
conceptual model is an interesting feature and allows conclusions about the impact of a process
on surface upwelling (or down-welling) strength.
In the following section, bulk temperature estimates from surface divergence and eddy renewal
models are evaluated and compared to measured bulk temperatures. This can also be interpreted
as a test to which model describes surface processes more accurately and remaining challenges.
7.4.1. Comparison of results from surface renewal and eddy renewal model
Several methods exist for the estimation of bulk temperatures. Here, bulk temperature estimates
based on the surface renewal model will be compared to estimates from the eddy renewal model,
both are methods that have been successfully test on infrared data of the water surface [Garbe
et al., 2004; Hara et al., 2007; Hung et al., 2011].
In Figure 7.13 four histograms are shown. The upper two show histograms of surface temperature at two different wind speeds. With increasing wind stress the variance of surface
temperatures decreases. This is associated with shorter renewal times and constant surface renewal so the duration a particle stays on the surface becomes shorter and so does the cooling
time. Fitted is the theoretical log-normal distribution of surface temperatures derived from the
surface renewal model [Garbe et al., 2004] which describes the measured temperature distribution very well. The red line indicates the bulk temperature determined from this fit. The green
line shows the surface bulk temperature that was measured during the experiment.
In the upper row, histograms of bulk temperatures are shown which derive from the eddy
renewal model. Here, the distribution becomes rather wider with increasing wind stress instead
of narrower. Fitted is a Gaussian distribution whose peak marks the average estimated bulk
temperature.
Comparing the results of the bulk temperature estimates for both methods, it becomes evident,
that the eddy renewal model gives a result very close to the measured temperature, while the
surface renewal model seems to underestimate bulk temperature.
The two different models stand for two different concepts and approaches to the renewal
75
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
0.2
Tb ER
Tb
0.1
0.05
0
18.6 18.8
19 19.2 19.4 19.6
Temperature [◦C]
0
18
19.8
18.2
18.4 18.6
18.8
Temperature [◦C]
19
0.2
Tb ER
Tb
Tb
0.15
Tb ER
0.15
0.1
#
#
0.1
0.05
0.2
0.05
0
Tb
0.15
#
#
0.15
0.2
Tb
SR
0.1
0.05
18.6 18.8
19 19.2 19.4 19.6
Temperature [◦C]
19.8
0
18
18.2
18.4 18.6
18.8
Temperature [◦C]
19
Figure 7.13.: Histograms of estimated bulk temperatures. Upper row: Estimates from eddy renewal model. Lower row:
Estimates from surface renewal model. Left and right column u∗ = 0.4 cm/s and u∗ = 1.3 cm/s, respectively. Red lines
indicate bulk temperature estimates by the respective method and green lines indicate measured bulk temperatures.
process at the water surface. The surface renewal model assumes random renewal events that
transport water parcels instantaneously to the water surface. By contrast, the eddy renewal
model depicts the water surface as densely packed circular eddies. The main difference lies firstly
in the difference between a random distribution of surface temperatures and a more organized
one that consists of coherent structures. The second big difference regards the transport of
a parcel from below the thermal layer onto the surface. In the instantaneous renewal process
suggested by the surface renewal model the water parcel does not cool on the way to the surface
while in the eddy renewal model it does. Therefore, the temperature estimates of the surface
renewal model are lower. The surface renewal model has been shown to produce accurate results.
However, if the image size is too small and or the time span too short and no renewal event in the
analyzed sequence, no accurate estimate can be made. Also, the assumption of instantaneous
renewal is probably less accurate at low wind speeds and in the case of surfactants.
While the surface renewal produces one estimate of bulk temperature the eddy renewal assumes individual bulk temperatures for every surface eddy. This may seem confusing but the
mean of the estimated bulk temperature is very near the measured temperature. The explanation may lay in the vertical structure of the water column. Just below the surface the bulk
76
7.5. Summary
19.8
19.8
19.6
19.6
19.4
19.4
19.2
19.2
19
19
18.8
18.8
18.6
18.6
Figure 7.14.: Bulk temperature estimates for every detected surface eddy. Left and right images are from the dataset
with a friction velocity of u∗ = 0.4 cm/s and u∗ = 0.74 cm/s, respectively. Horizontal axis corresponds to wind
direction. Spatial variation of bulk temperatures clearly exhibits elongated streaks.
water is still influenced by the up and down-welling of cold water from the surface. Further down
where the temperature sensor was placed the water is well mixed. As the actual heat transport
is exclusively controlled within the surface layer the temperature gradient mainly shows the
turbulent properties of the fluid but does not alter the mean temperature.
7.4.2. Spatial variation of bulk temperatures
In Figure 7.14 two images of the spatial variation of bulk temperatures at two different wind
speeds (u∗ = 0.52 cm/s and u∗ = 0.74 cm/s) are shown. The temperature pattern is clearly
composed of small surface streaks but also the larger scale temperature variation is captured
well. While eddy size as well as surface temperature are important quantities also surface velocity
plays a role. Therefore, though the temperature pattern in the right figure, at higher wind stress,
seems to be less organized than in the right image, at lower wind stress, the variation of bulk
temperatures still increases, as shown in Figure 7.13.
7.5. Summary
In this chapter the impact of surface turbulence on the surface temperature pattern, the surface dynamics and the subsurface temperature variation has been examined. Three turbulent
regimes have been identified from the first analysis of the data, based on the respective dominant
turbulence producing process. All processes discussed in this chapter have been associated with
increasing transfer between air and water and all processes are clearly linked to wind stress and
surface waves. However, so far no unifying model incorporates all processes.
One reason might be that it seems like the dominant turbulent features vary, depending on the
chosen method of observation, i.e. surface waves seem to influence the velocity field and therefore
surface divergence far stronger than it might be expected from the surface heat pattern but both
77
7. Mechanisms defining the dynamic state and thermal pattern of the water surface
Div
u*
spilling region, microscale breaking
Convergence along streaks
Ripples
spilling region,
microscale
breaking
temporal averaged
divergence: high
speed streaks
Ripples
Shear,
fishscales
Langmuir
footprints
Langmuir
footprints
Shear,
fishscales
Shear,
fishscales
T
Figure 7.15.: Summary of Chapter 7. Comparison of characteristic features of near surface turbulence visible in infrared
images and surface divergence from momentary velocity field, at increasing friction velocity u∗ . Variation of surface
temperatures decreases with increasing u∗ while variance of surface divergence increases. Dominant features of the
respective regime are printed bold.
quantities have been equally associated as measures for transfer rates. So how can those different
observations be put in a broader perspective and give a consistent explanation and assess the
impact of the different turbulent processes?
7.5.1. Characteristic features of the water surface
In Figure 7.15 a comparison is shown of characteristic features of near surface turbulence which
are visible in infrared images and surface divergence from momentary velocity field at increasing
friction velocity u∗ . The variation of surface temperatures decreases with increasing u∗ while
variance of surface divergence increases. Dominant features of the respective regime are printed
bold and indicate discrepancies between both observational methods.
Starting at low wind stress in infrared images, the fish scale pattern characteristic for shear
induced turbulence is clearly the dominant feature while in the velocity field and thus divergence,
capillary ripple cause far higher variations. This progresses at increasing wind stress, surface
waves still dominate the velocity field while in the infrared image the first stable roll vortices,
as characteristic for small Langmuir cells, appear. Finally, at higher wind stress both, the
temperature field and the surface velocity field is dominated by microscale breaking, especially
78
7.5. Summary
the spilling region in infrared images and the characteristic subduction with following divergence
at the tows of microscale breaking waves in the divergence images. Also visible in both methods
are characteristic roll vortices on the back side of microscale breaking waves.
Thus, it seems that at low wind stress quite different processes dominate in the velocity field
and the temperature pattern while at higher stress this contradiction is resolved and microscale
breaking as well as streak like structures leave their traces in the infrared images as well as in
the surface velocity field.
The key to this discrepancy is of course the time scale. The time scale on which a process
progresses and the time scale of the measuring technique often differ, as in the case of non
breaking waves. But even more importantly the question has been raised [Tsai et al., 2013;
Turney and Banerjee, 2013] on which timescales are actually relevant in the scope of transfer
between air and water.
As the surface divergence is based on the velocity estimation with a high temporal resolution,
here, processes like fast traveling waves appear. Infrared images on the other hand show in a
certain way a time wise averaged divergence and thus, highlight processes with a slower time
scale and higher spatial stability. However, if the divergence is averaged over time, as shown in
Figure 7.12, suddenly more stable structures like the Langmuir footprint in Figure 7.12 become
visible.
Turney and Banerjee [2013] suggested a criterion based on the combination of timescale and
divergence to determine whether a process acts on a time scale relevant to air-sea transfer or not:
Rt
A process is only relevant if the term e
0
β(t0 )dt0
> 1 which becomes τ β for a constant divergence
β with a characteristic renewal time τ . However, previously discussed turbulent processes all
fulfill this criterion if tested with renewal times calculated in Chapter 10.
So, what is the impact of the current results on the study of near surface turbulence and
especially its impact on transfer rates? Firstly, relevant turbulent processes are highlighted and
identified that play a role in air sea gas exchange, such as shear turbulence, wave shear coupled
turbulence and microscale breaking. Secondly, it confirms that infrared images are the best
suited tool to investigate coherent surface turbulence as it acts on relatively slow time scales.
Finally, the complexity but also consistency of surface dynamics is shown by the interlocking of
different processes that act on different timescales.
However, the question of the relative and total impact on heat transfer of a turbulent process
can not yet be answered. To answer this central question the single findings of this section will
need to be focused in a conceptual model to enable a more quantitative analysis.
79
8. Defining characteristic turbulent scales
The study of infrared images of the water surface reveals the footprints of near surface aqueous
turbulence in the surface temperature pattern. In the previous section, shear turbulence, small
Langmuir circulations and microscale breaking waves have been identified to greatly impact
surface temperature pattern and surface velocity field. Shear induced turbulence and small
Langmuir circulation both cause elongated cold streaks that differ in size and stability (compare
Figure 7.2). In the following section the impact of increasing wind stress and surfactants on the
two processes will be investigated. The streak spacing is chosen as a practical feature to describe
the size of turbulent structures and it also provides a means to distinguish both processes. The
results of the streak spacing analysis are shown against friction velocity for shear turbulence, and
wave properties for small Langmuir circulations. The streak spacing is determined independently
for small scale, shear induced, and large scale, wind wave coupled, turbulence as described in
section 6.
Down-welling areas are indicated by cold surface streaks which are identified by the machine
learning based approach within the software package Ilastik [Sommer et al., 2011]. The identification has been performed in two independent steps. First, on the infrared images, where
cold streaks caused by small fish scale structures are segmented, compare Figure 6.2. In a second step, cold streaks are detected in the time-space images, e.g., shown in Figure 7.3. This
ensures a separation of short lived fish scale structures and more stable Langmuir circulations
and prevents wrong classifications. After the cold streak has been identified, the streak spacing
is defined as the spacing between the center of one streak to the center of the next.
8.1. Small scale turbulence induced streak spacing
In this Section, the results of the streak spacing analysis of shear turbulence will be discussed.
The analysis of the fish scale pattern yields a logarithmic distribution of streak spacings. In
Figure 8.1 the obtained distributions are shown at four different wind speeds and a clean water
surface. With increasing wind speeds, the mean spacings are clearly shifted to smaller values
and the standard deviation σ decreases (see Table 8.1). A log-normal distribution evolves, if the
random forces that act on the random variable are proportionally to the variable. This indicates
that forces that cause the formation of the streaks are in some way proportional to the streak
spacing [Smith and Metzler, 1983]. The observed logarithmic distribution of streak spacing has
previously been described by Tsai et al. [2005] obtained from the numerical simulation of a flat
81
8. Defining characteristic turbulent scales
Figure 8.1.: Histograms of obtained streak spacings at four different friction velocities with a log-normal fit on the
data, Aeolotron, Heidelberg, clean surface conditions. Figure from Schnieders et al. [2013]
water surface and the spacing of low speed streaks near a no-slip wall measured by Smith and
Metzler [1983] indicating the similarity of the process. This is qualitatively consistent with the
description of the features of the fish scale pattern described by Tsai et al. [2005].
Figure 8.2 shows a comparison of the obtained mean spacings and the theoretical values for
flow near a no-slip wall. Blue columns represent mean spacing but are derived from the peaks of
the distributions in Figure 8.1 and therefore lower than expected average spacing. Theoretical
spacing l+ is derived from l+ = (l u∗ )/ν = 100. Because the peak spacing is considerably smaller
than the average spacing, the value l+ = 50 is chosen to visualize the theoretical trend. Red bars
thus represent (50 u∗ )/ν. At intermediate wind speeds, both values are approximately the same
which indicates a similar turbulence production process even though the physical conditions are
different (no-slip vs. free-slip boundary conditions). However, for low wind speeds the observed
spacings are significantly smaller. In those cases the surface Richardson number is below the
critical value suggested by Soloviev and Schlüssel [1994]. This indicates that at the lowest wind
speeds in this study, at friction velocities of below 0.2 cm/s, free convection is the dominant
process. For higher wind speeds a transition takes place and the turbulent cell size matches
that of shear induced turbulence. However, for friction velocities above u∗ = 0.7 cm/s observed
spacings are significantly higher than the continuously decreasing theoretical values for shear
induced turbulence (see Figure 8.3). This points towards a substantial change in the production
at high wind stress.
82
8.1. Small scale turbulence induced streak spacing
Spacing [cm]
4
3.5
mean spacing
3
theo. spacing,
50 u∗
ν
2.5
2
1.5
1
0.5
0
0
0.2
0.4
0.6
0.8
Friction velocity [cm/s]
1
1.2
1.4
Figure 8.2.: Comparison of mean measured spacings l to theory of streaks near a no-slip wall. Blue columns represent
mean spacing but are derived from the peaks of the distributions in Figure 8.1 and therefore lower than expected
∗
average spacing. Theoretical spacing l+ is derived from l+ = l νu = 100. Because the peak spacing is considerably
∗
smaller the value l+ = 50 is chosen to visualize the theoretical trend. Red bars thus represent 50νu .
8.1.1. Correlation of streak spacing and friction velocity
The modes of the fitted log-normal distributions of all the experiments that are accounted for
in this work are shown in Figure 8.3. The error bars mark the 1σ confidence interval of the
log-normal distribution which illustrates the variability of the obtained statistics but not the
measurement error. The error bars of u∗ represent the measurement errors and depend on the
measurement technique.
It is remarkable that the measured streak spacings do not vary by more than 30 % even
though the data was collected under several entirely different experimental conditions such as
clean water surface, surfactant covered water surface, a cooled and heated water body resulting
in warm and cool skin cases and additional mechanical waves. However, the data from the wind
wave channel at WRL shows constantly slightly higher values of streak spacing in comparison to
the other cases. Also the histograms of the spacing scatter far more (and have therefore a higher
error) and show a broader distribution. Partly this can be explained by the additional surface
waves along with resulting disturbances of the surface heat pattern. Additionally a considerably
smaller heat flux leads to less prominent cold surface streak and may cause an overestimated
spacing if small streaks cannot be detected.
The streak spacing does not seem to be influenced either by the presence of surfactants or by
the presence of additional mechanical waves. Even though surfactants have the above mentioned
effects on near surface turbulence and lead to a damping of turbulence [Soloviev et al., 2011], it
does not seem to influence the spacing of the evolving streaks.
The expected lapse of streak spacings from experiments and simulations of low speed streaks
near no-slip walls over u∗ would be continuous, (l+ = lu∗ /ν = 100). The distribution of streak
spacings over u∗ , that was obtained in this analysis shows a different behavior. At friction
83
8. Defining characteristic turbulent scales
Figure 8.3.: Streak spacing against u∗ obtained from data measured at the Aeolotron, Heidelberg (IR camera: Thermosensorik CMT 256) without (black circles) and with surfactants (black squares), at the Aeolotron, Heidelberg (IR
camera: IRCAM Velox 327k M) (blue diamonds), at WRL (green dots), Sydney, and at the ASIST facility in Miami
(red stars). Y-error bars mark 1σ intervals of the underlying log-normal distribution and represent a measure of the
variability of the system. A linear fit describes the distribution reasonably well up to a friction velocity of ∼ 0.7 cm/s.
From then on the obtained streak spacings seem to be independent of u∗ . The dotted line shows the trend for shear
induced turbulence according to lu∗ /ν = 100.
velocities up to a value of 0.7 cm/s, there seems to be a clear trend of smaller spacings at larger
u∗ and in this regime the development could be described by a linear regression. So in regimes of
small friction velocities there seems to be a clear link between the size of the turbulent structures
and the tangential shear stress producing them.
This behavior changes at a friction velocity of approximately 0.7 cm/s. From this point on
streak spacings remain approximately constant and are seemingly independent of u∗ .
There seems to be a lower boundary for the size of the coherent turbulent structures as the
spacing of the streaks is a direct measurement of the width of the shear induced turbulence
and therefore also of the same scale as the shear layer itself [Hunt et al., 2011]. One possible
explanation is the saturation of tangential stress at the water surface above a threshold friction
velocity u∗ .
There is also a lower boundary for the size of the structures that can still be detected. But
similar values for measurements with infrared cameras with different spatial resolutions and
therefore different lower detection boundaries, show that this is probably not the reason for the
stagnating streak spacings.
Banner and Peirson [1998] found that the increase of tangential stress with wind speed is
limited. The relation of tangential to total wind stress (τt /τ ) has a trend towards a value of
84
8.1. Small scale turbulence induced streak spacing
Figure 8.4.: Mean spacing along the wave phase, Incipient breaking case, u∗ = 1.11 cm/s. The streak spacing was
determined in line with the wave probe. Single points have been bin averaged and are plotted against wave phase.
0.3. With increasing wind stress an increasing part of the total wind stress is transformed into
wave form drag while the tangential stress is even slightly decreasing [Banner and Peirson, 1998].
This effect might well be an explanation for the here observed stagnating streak spacing. The
transition of streak spacing into the plateau corresponds to the by Banner and Peirson [1998]
observed wind speed and the appearance of the first gravity waves.
Interestingly the stagnation point is reached at approximately the same u∗ for all experimental
conditions including different fetches and even experiments with surface slicks. In the cases with
surface slicks, it should be noted that in all data points that are in the stagnating area, gravity
waves were present at MSS values of the same magnitude (circa 70 %) as in the cases without
slicks (compare Table 8.1).
There seems to be a slightly larger variation within the streak spacings obtained at UNSW
with additional mechanical waves. This could well be the case because of variations in the shear
stress coherent with the phase of the underlying mechanical waves.
8.1.2. Influence of wave conditions
It has been shown that the wave field has no (or very small) influence on the distribution of
streak spacing. However, there seems to be a small variation of the streak spacing along the
wave phase. The results are obtained from the data measured in a linear wind channel at the
Water Research Laboratory (WRL) at the University of New South Wales (UNSW). The wave
height was measured with a wave probe which was also visible in the infrared images. From the
known position of the heated spot and the knowledge of the wave phase it was now possible to
calculate the mean spacing at the position of the heated spot in one line of the image.
In Figure 8.4, an average of the obtained mean streak spacings is plotted against the wave
phase. In the incipient breaking case with a u∗ of 1.1 cm/s there is a small increase to larger streak
spacings just behind the wave crest. A similar distribution could have been expected because
of the crucial role that shear stress plays in the development of the small scale heat pattern.
Peirson [1997] and Banner and Peirson [1998] found the tangential shear stress to decrease from
the wave crest at 0◦ to nearly zero at circa +75◦ . This corresponds to the wave phase in which
85
8. Defining characteristic turbulent scales
the increase of streak spacing was observed. This is consistent with the assumption of the
small scale turbulent structures being shear induced. In this regime of moderate wind speeds, a
decreased shear stress leads to larger streak spacings for sufficiently small friction velocities.
8.2. Langmuir Circulation-induced cold streaks
Larger scale streaks with an extended lifespan evolve at higher friction velocities, compare Figure 7.3. As described earlier, their appearance is clearly linked to the onset of gravity waves.
The detection of these larger scale streaks is performed on time-space images separately from
the detection of the shear induced surface streaks discussed in the previous section (compare
also Section 6). In Figure 7.3 space time images at two different wind speeds are shown with
and without surfactants. Again it becomes evident that the development of the stable streaks
progresses gradually and is substantially delayed in the case of a surfactant layer.
8.2.1. Influence of mechanical waves on Langmuir like turbulence
In the data set measured at Water Research Laboratory at UNSW the influence of mechanical
surface waves at different wave conditions and wind speeds on micro-Langmuir circulations
becomes evident.
Langmuir Circulation indicating cold streaks occur in all cases except for the strongest breaking case. They are clearly present in the capillary ripple cases. They are less distinct in the
low wave cases but can clearly be seen in the incipient breaking cases and in the micro scale
breaking case for lower ak values. In the micro scale breaking case with a value of ak = 0.32,
there are no more stable circulations visible.
Mizuno [2011] observed similar behavior of Langmuir cells under the presence of mechanical waves. Langmuir circulations in a linear wind wave channel were destroyed by additional
mechanical waves, thereby contradicting CL II Theory. The suggested explanation is, that the
additional energy introduced by mechanical waves enhances the wave growth without leading
to an enhanced wave breaking which would lead to a dissipation of the energy. Therefore, it is
concluded in Mizuno [2011] an enhanced return flow leads to a collapse of the Langmuir vortices.
This effect was found to appear at values of ak = 0.1. In these measurements, the dark streaks
indicating stable Langmuir circulations persist until values of ak = 0.32.
8.2.2. Langmuir numbers and streak spacings
From the temporal profiles the streak spacings have been estimated in the cases in which the
streak spacing was small enough to be captured by the image size.
The conditions during the measurements at WRL (monochromatic waves with a set frequency
f , wave number k and amplitude a) allow a comparison with the LC stability theory developed
by Leibovich and Paolucci [1981]. This is done in analogy to Melville et al. [1998]. The stability
86
8.2. Langmuir Circulation-induced cold streaks
∗
LC
= kkwave
against inverse Langmuir number La−1 . Neutral stability theory by Leibovich and Paolucci
Figure 8.5.: kLC
[1981] compared with the data obtained by Melville et al. [1998] and the data measured at WRL under the presence
of mechanical waves (open triangles) and the data from aeolotron (crosses).
theory applies for a homogeneous stationary wave field with wind beginning at a certain time
with constant stress.
The Langmuir number is calculated according to Equation 2.31.In analogy to Melville et al.
[1998] the eddy viscosity is estimated from the shear layer thickness. As the shear induced
turbulence scales with the shear layer thickness [Hunt et al., 2011], the scale obtained from
the analysis of the small scale shear induced turbulence is used for the estimation of the eddy
viscosity.
νt = ku∗ lS.I.T
(8.1)
with the von Karman constant k = 0.4, the spacing of the shear induced turbulence lS.I.T and
the friction velocity u∗ .
Both Leibovich and Paolucci [1981] and Melville et al. [1998] presented a stability diagram of
∗ = k /k
−1
dimensionless wave numbers kLC
LC wave against inverse Langmuir numbers La . Here
kLC is the “wave number” obtained from the spacing of Langmuir streaks and kwave is the wave
number of the mechanically generated waves. The inverse Langmuir number can be regarded
in analogy to the Rayleigh number. The Rayleigh number describes the relationship between
buoyancy and viscosity in the case of heat convection. Accordingly, La−1 describes the quotient
of inertial and viscous forces in CL II theory.
Consequently, the flow is stable for very small La−1 and becomes unstable for larger La−1 . In
Figure 8.5 the data points obtained here are compared to the global stability boundary that is
found for constant Richardson numbers (Ri = 0) while varying Langmuir number La and wave
87
8. Defining characteristic turbulent scales
number k [Leibovich and Paolucci, 1981] and the values obtained by Melville et al. [1998]. The
global stability boundary developed by Leibovich and Paolucci [1981] is derived from the time
of the onset of instability. The measurement of Melville et al. [1998] are correspondingly made
at the onset of Langmuir circulations. In contrast, the values obtained here originate from an
equilibrium state with both, wave field and wind stress constant in time. A comparison still
shows good agreement. The obtained values for La−1 are located in the unstable regime as
expected.
The large error bars arise mainly from the inaccurate determination of the streak spacing.
Wavelength for the data measured at the Aeolotron have been determined from the images
of the CISG in the low wind speed case and for the case with a higher wind speed, from
the new experimental measuring technique for the characteristics of gravity waves of Eisenhauer
[2011]. Melville et al. [1998] measured growing La−1 numbers prior to the inception of Langmuir
circulation thus the La−1 number measured here will presumably be larger than it was at the
inception of LC.
Table 8.1.: Summary of the analyzed streak spacings and experimental conditions. U, u∗ , MSS, Streak Spacing and
Sigma are the wind speed in meters per second, the friction velocity in cm/s, the Mean Square Slope values, the streak
spacing as the result of the analysis in cm and the standard deviation of of the distribution of the streak spacing also in
cm, respectively. The measurement error of the friction velocity is 0.02 cm/s for low and intermediate wind speeds and
0.1 cm/s for the highest wind speed. Sigma can be seen as a measure of the variability of the log normal distributions
of spacing.
Aeolotron, No surfactants
U
u∗
Spacing
1,0
0,13
1,59
1,2
0,14
1,59
1,8
0,20
1,48
2,6
0,29
1,48
2,4
0,33
1,48
2,7
0,34
1,13
2,4
0,29
1,02
4,6
0,77
0,68
4,6
0,77
0,79
6,4
1,36
0,91
ASIST, Miami
U
u∗
Spacing
1,9
0,21
1,31
2,9
0,31
1,14
4,0
0,43
0,85
4,0
0,44
0,90
5,0
0,58
0,73
5,0
0,57
0,69
7,1
0,93
0,69
10,1
1,65
0,69
Sigma
0,06
0,04
0,05
0,05
0,04
0,05
0,05
0,04
0,04
0,04
Sigma
0,04
0,04
0,04
0,04
0,04
0,04
0,04
0,04
Aeolotron,
U
1,8
2,4
2,4
3,4
3,4
4,7
4,6
6,5
6,4
Surfactants (Triton X-100)
u∗
Spacing
Sigma
0,18
1,70
0,06
0,25
1,36
0,04
0,25
1,56
0,04
0,40
1,25
0,05
0,40
1,02
0,05
0,65
0,91
0,04
0,64
0,68
0,04
1,04
0,79
0,04
1,02
0,91
0,06
WRL, Sydney
U
u∗
2,1
0,45
2,1
0,75
5,7
1,81
4,2
0,62
3,9
0,81
3,9
1,11
3,9
1,46
Spacing
1,3
1,2
1,0
1,1
1,0
1,2
0,8
Sigma
0,1
0,1
0,1
0,1
0,1
0,1
0,1
* The streak spacing of the small scale turbulence results from the log-normal fits on the obtained distributions.
88
8.3. Summary
8.3. Summary
Two turbulence generating mechanisms have been identified to play a role in the generation
of cold, streak shaped convergence zone that appear in the surface heat pattern. The small
scale structures termed fish scales result from wind stress only and are therefore considered as
shear induced turbulence. The larger scale cold surface streaks have been identified as Langmuir
circulation induced as described by Caulliez [1998]; Melville et al. [1998]; Veron and Melville
[2001].
The nature of this pattern changes with increasing wind stress and surface condition, though
differently for shear induced turbulence(1) and LC(2).
(1): The small scale heat pattern is substantially dependent on wind speed, indicating that
shear stress only is the generating mechanism. The analysis of the streak spacing yields a lognormal distribution. This is qualitatively consistent with the findings of Tsai et al. [2005] on
numerical data and also to the work of Smith and Metzler [1983] and Nakagawa and Nezu [1981]
on the spacing of low speed streaks near a no-slip wall thereby indicating the similarity of the
causing process. In the regime of very low wind speeds streak spacing decreases linearly with
wind speed and this behavior is the same as for low speed streaks near a no-slip wall. Surprisingly,
above a friction velocity of ∼ 0.7 cm/s the streak spacing seems to become relatively independent
of wind stress. Considering that tangential stress is the driving factor and that the fraction of
tangential stress has been reported to remain constant as more of the wind stress is transformed
to wave form drag [Banner and Peirson, 1998] this could be an explanation for the stagnating
streak spacing. Although, the turbulence in the shear layer is highly non-isotropic, a scale can be
calculated in analogy to the smallest possible eddy size for isotropic turbulence, the Kolmogorov
scale. We estimate the energy dissipation rate hi = u3 /l, with u the velocity and l the integral
length scale. Because of the anisotropy we used the surface velocity in y-direction as u and
the largest observed streak spacings as l. The result of the rough estimation is a length scale
η of order O(0.1 cm). This would also lead to a minimum cell size of anisotropic turbulence.
The influence of viscosity does not become apparent in our result and the rough estimation of
changes of smallest possible eddy sizes shows that an increase in temperature by 10 K results
in a 20% change of the micro scales. As the variability of streak spacings is generally very high
this is difficult to determine.
(2): Larger scale cold streaks in comparison are not as dependent on wind stress but their
appearance and spacing is determined by the surface wave field thereby showing they are indeed
Langmuir circulation, as described in [Caulliez, 1998; Melville et al., 1998; Veron and Melville,
2001]. The analysis of the streak spacing in comparison to wave field parameters allows a
comparison to the data presented by [Melville et al., 1998; Veron and Melville, 2001] and the
predictions of Leibovich and Paolucci [1981].
Even though the conditions were different (measurements were conducted not just after the
onset of waves but in a fully developed wave field) our measurements match those of Melville
89
8. Defining characteristic turbulent scales
et al. [1998] very well for identical Langmuir numbers. Higher inverse Langmuir numbers lead
to higher values of normalized Langmuir wave numbers and thereby follow the trend suggested
of the neutral stability theory by Leibovich and Paolucci [1981].
In recent work by McKenna and McGillis [2004] and Veron et al. [2011] it has been shown
that surface divergence has an enormous effect on surface heat and gas fluxes.
We conclude that the here presented method based on passive thermography and the subsequent analysis of streak spacing provides a valuable tool to assess features of near surface
turbulence and gain insight into turbulent processes that are a controlling mechanism in air-sea
gas exchange.
90
9. Introducing the concept of eddy
superposition
One goal of this work is the classification of coherent turbulent structures and the quantification
of its respective impact on transfer across the air-water boundary. Therefore, we need a conceptual model that firstly, comprises different scales of turbulence and secondly, provides a means
to assess the impact on transport, e.g.,by estimating heat transport rates. Several conceptual
models have been presented in Section 3 and all of them provide heat transfer rates. However,
the challenge is to separate processes that act simultaneously, especially shear driven and small
Langmuir Circulation.
The surface renewal model (Section 3.2), introduced by Higbie [1935] and Danckwerts [1951],
is a simple but effective model. Renewal events are considered as statistical one dimensional
events of single water parcels moving up to the surface. There have been attempts to compare
the model output to processes of different scales by Schimpf et al. [1999a] by calculating different
heat transfer rates on the same image but on different levels of the gaussian pyramid. Due to the
basic assumption of statistical renewal events it is not possible to relate this back to a specific
process.
Closer to what can be observed in thermographic data is the eddy renewal model (Section 3.4)
[Fortescue and Pearson, 1967; Hara et al., 2007; Lamont and Scott, 1970]. The eddy renewal
model assumes a water surface which is densely packed with stationary cells of rotating fluid
and has been tested on infrared imagery by Hara et al. [2007]; Hung et al. [2011]. The major
drawback, especially if applied to noisy infrared data, is that heat flux and bulk temperature
are both drawn from a single fit along one eddy and additionally it comprises only one eddy size
and assumes sinusoidal velocities.
Here, we will apply the concept of eddy renewal with the addition of allowing eddy superposition. From the surface heat pattern we have learned that even on small scales different turbulence
generating mechanisms overlap, e.g.,the images show footprints of shear induced turbulence as
well as larger scale footprints [Handler and Smith, 2011; Schnieders et al., 2013]. Their characteristics have been shown to match those of Langmuir circulation very closely [Schnieders et al.,
2013].
The surface temperature pattern can thus be described if one assumes a superposition of larger
scale and smaller scale eddies, i.e. shear induced turbulence and small Langmuir circulation,
compare Figure 9.1. Algorithms to separate both processes have been suggested in Schnieders
91
9. Introducing the concept of eddy superposition
Figure 9.1.: Sub-surface eddies causing surface divergence and convergence on various scales. Based on the observation
of the surface temperature pattern, eddies of two dominant scales can be identified. Instead of densely packed subsurface
eddies, as in the traditional eddy renewal model [Hara et al., 2007], a superposition of eddies of different sizes is
allowed. This enables to model temperature variation on different scales as observed in the infrared images, especially
the combination of small scale shear induced eddies and larger scale Langmuir circulation induced eddies.
et al. [2013] and are described in more detail in section 6.
9.1. Heat flux estimates from passive Thermography
The estimation of heat transfer is crucial, firstly, to be able to assess the impact of a process
and secondly, to test the accuracy of the conceptual model applied to describe the water surface.
The here developed concept of eddy composition is a combination of the theory on which also
the surface renewal model is based, compare Soloviev and Schlüssel [1996], and the eddy renewal
model. From Equation 3.7 [Garbe et al., 2004]
r
k=
s
πκ
·
2
Ṫ
∆T
(9.1)
a more robust approach to the estimation of a heat transfer rate is taken. The critical quantities dT /dt and ∆T = Tbulk − Tsurface will be calculated based on the analysis techniques in
Section 3. The general scheme is shown in Figure 9.2.
Starting from the original infrared data the first two major processing steps are undertaken
independently and provide the segmentation of the surface temperature pattern from the random
forest based classification and the surface velocity field from optic flow. These two quantities are
crucial in the following processing steps. The segmentation provides two stencils to identify upand down-welling regions on two scales and the surface velocity field acts as weighting field in the
deviation of total derivatives, bulk temperature and transfer rate. One may note that the surface
velocity field will inevitably be inaccurate on the smallest scales of shear induced eddies due to
the aperture problem which prevents the velocity estimation across a small eddy. However, this
cannot be resolved and in Section 5.4 it is shown that estimated cross wind velocities match
those determined from active Thermography quite well.
The temperature gradient is taken from the warm upwelling area to the cold down-welling
area and reflects the cooling rate of water parcels within the eddy. The total derivative of surface
92
9.1. Heat flux estimates from passive Thermography
Optical flow
algorithm
Machine learning
based classification
Infrared images
Localisation of up
and downwelling
Surface velocity field
Spatial derivative
within each eddy
Bulk temperature
dT
dt
Heat transfer rate k
Figure 9.2.: Estimation of transfer velocities based on the concept of eddy renewal. Starting from a sequence of
infrared images, a machine learning based classification provides the localization of up- and down-welling areas. Surface
flow fields are provided through the optical flow estimation. From the surface velocity field and the temperature
gradient from the infrared image, spatial derivatives are computed based on the localization of those eddies. The
bulk temperature is estimated vie the classical eddy renewal model described in Hara et al. [2007]. From the spatial
derivative and the bulk temperature the heat transfer rates is computed, averaged over each detected eddy.
temperature is:
dT
∂T
∂T
∂T
∂T
=
+u
+v
+w
dt
∂t
∂x
∂y
∂z
(9.2)
Assuming stationary eddies which are uniform in along wind direction and stationary in time
the total derivative simplifies to:
Ṫ = v
∂T
∂x
(9.3)
The bulk temperature is estimated from the original eddy renewal model by Hara et al. [2007]
based on average surface velocity and eddy stencil. This has been shown to provide very realistic
estimates and average bulk temperature matches very well with the measured one.
Finally, heat transfer rates are estimated for the respective eddy based on the total derivative
93
9. Introducing the concept of eddy superposition
and bulk temperature. All quantities are determined in a framework that is consistent with the
conceptual model of composite eddies.
It is difficult to give precise measurement errors for some of the crucial quantities needed to
calculate the heat transfer rate k. Nevertheless, it is instructive to perform an error propagation
analysis to identify most important error sources and get an estimate of expectable errors, which
can be found in the appendix A.2. It shows that the bottle neck quantity remains the surface
temperature field, even though the deployed infrared camera (IRCAM Velox 327k M) has a very
high sensitivity. However, the results depend heavily on the accuracy of model assumptions
and systematic errors might be significantly higher than the statistical errors. Any result of
estimated heat transfer rates are also a test of model assumptions and should not be treated as
a measurement technique.
94
10. The impact of surface eddies on heat
transfer
10.1. Heat flux estimates from surface eddies
In Chapter 8, characteristic scales and the distribution of turbulent eddy sizes have been determined for shear turbulence and small Langmuir circulations. Furthermore, the effect of increasing
wind and surfactants on eddy sizes has been studied.
Temperature gradients provide a means to estimate the impact of a process on heat exchange.
However, a more quantitative assessment of the impact of individual processes on transfer rates
requires an estimation of the transfer velocity. The modified eddy renewal model described in
Section 9 provides a means to determine heat transfer rates of individual surface eddies based
on the surface temperature gradient and the estimated velocity field.
In the following section, a mechanistic approach is made to the explanation of increasing
transfer rates with wind speed and the impact of surface waves. Here, the finding of the previous
sections about predominant processes at the water surface and their reaction to changing surface
condition will be combined to assess the impact of individual processes on heat transfer.
Heat exchange rates are estimated based on the eddy renewal model described in section 9.
This means that all heat flux estimates are based on the assumption of circular eddies just below
the water surface. Therefore, surface renewal events without a distinct streak like shape, such
as the spilling region of microscale breaking waves are not considered.
In accordance with the concept of eddy superposition proposed in section 9 the two clearly
distinguishable kinds of coherent turbulence will be treated independently in their impact on
heat transfer rates.
10.1.1. Shear turbulence induced heat flux estimates
The analysis of the small scale surface heat pattern is performed as described in section 6. Figure 10.1 shows a comparison of the results for the small scale analysis and the original infrared
images. In the lower image in Figure 10.1 calculated values for the heat transfer velocity k are
shown for every pixel. Heat transfer rates are averaged across each streak. The spatial distribution of transfer velocity estimates resembles the original temperature pattern and indicates
that in this case the temperature is a good tracer exchange rates on small scales. Coherent
structures are clearly visible in the images of the heat transfer rates and reflect the footprints of
95
10. The impact of surface eddies on heat transfer
18.15
18.2
18.25
18.3
18.35
18.4
0
T [◦ C]
(a) IR, u∗ = 0.9 cm/s
0.02
0.04
0.06
0.08
0.1
k [cm/s]
(b) k, u∗ = 0.9 cm/s
Figure 10.1.: Left: Infrared image, Right: Estimated heat transfer velocities k averaged across each detected surface
eddy in cm/s. This estimate is based on the segmentation of shear induced turbulence only. The spatial variation of
heat transfer velocity estimates reflects the small scale surface temperature pattern but not larger scale temperature
variation due to Langmuir circulation. This indicates that both processes have been separated successfully.
turbulence in the infrared image. While the small scale temperature pattern is clearly captured
the larger scale cold streaks are not reflected in the heat flux estimation image. This shows that
the chosen method is able to separate both turbulent processes and there is, if any, very small
influence from larger scale temperature variations.
Figure 10.2 shows the relationship between turbulent cell size and heat transfer in more
detail. Heat transfer rate, on the y-axis, is plotted against streak spacing, on the x-axis in the
two dimensional histograms. The probability density is color coded. With increasing wind stress
the form of the histograms changes. There are two dominant effects: The first is small a shift of
the whole curve to higher heat transfer rates at the same turbulent cell size. This can be simply
explained by higher surface velocities that obviously lead to higher transfer rates. The second
effect is the already observed shift to smaller eddy sizes for higher wind speeds. As small streaks
tend to have higher k values this leads to an overall slightly higher average heat flux. At the
same time, the peak in the probability density function is far more pronounced in the higher
wind speed cases. This means that for higher wind speed, turbulent cell sizes become far more
homogeneous, i.e. equally sized eddies produce very similar values of heat transfer rates k.
Smaller scales and higher heat transfer rates occur at higher wind speed. This indicates that
surface velocity is a key player in determining the total transfer, at least at low to moderate
wind speeds and regarding shear induced turbulence. Not surprising, as in the scheme of eddy
renewal higher velocities translate directly to smaller surface renewal times and therefore higher
fluxes.
96
10.1. Heat flux estimates from surface eddies
0.15
0.1
0.05
0
0.2
Transfer velocity [cm/s]
0.2
Transfer velocity [cm/s]
Transfer velocity [cm/s]
0.2
0.15
0.1
0.05
0
0
1.071 2.142
Eddy Size [cm]
(a) u∗ = 0.4 cm/s
3.213
0.15
0.1
0.05
0
0
1.071 2.142
Eddy Size [cm]
(b) u∗ = 0.9 cm/s
3.213
0
1.071 2.142
Eddy Size [cm]
3.213
(c) u∗ = 1.8 cm/s
Figure 10.2.: Two dimensional histograms of heat transfer velocity on the y-axis against eddy size on the x-axis based
on the analysis of shear induced turbulence. Three different wind speeds are shown, the friction velocity increases from
left image to right from 0.3 cm/s to 2.1 cm/s. The normalized probability density is color coded. At low wind stress
the distribution is clearly broader and extends to larger eddy sizes while at higher wind stress the distribution is very
narrow. This indicates that the surface temperature pattern exhibits small eddies of very homogeneous sizes caused by
shear induced turbulence.
10.1.2. Shear wave coupled turbulence induced heat flux estimates
The estimation of heat fluxes from shear wave coupled turbulence is performed on time space
images. An example image is shown in Figure 10.3. In the left image the original time-space
infrared image is shown with the spatial coordinate on the y-axis of the image and the x-axis
representing time. In the right image, estimated heat transfer velocities k are shown, averaged
across each detected surface eddy in cm/s for large scale, shear wave coupled turbulence.
Due to the limited image size and the large spacing it is difficult to identify a pattern of
streaks. Large gaps arise in rows in which only one or two cold streaks could be identified in the
segmentation process. As heat flux estimates are always conducted between the central region
of up- and down-welling areas all streaks at the margins are left out in the analysis as the central
region can not be determined. This rises of course the question whether a bias to smaller streaks
is introduced. In Figure 10.4 the distribution of spacings is shown and it becomes apparent that
any cut off would happen at the far tails of the distribution, clearly outside a 3σ interval.
Figure 10.3 shows the relationship between turbulent cell size and heat transfer rates in form
of a two-dimensional histogram for the larger scale turbulence. Friction velocities in the two
upper figures are 0.64 cm/s and 1.3 cm/s from left to right. The lower figure shows a histogram
of data from all wind speed conditions. High frequencies are cut of to show a broader range of
eddy sizes and k values and to highlight the general shape of the distribution. It is interesting
97
10. The impact of surface eddies on heat transfer
18.2
18.25
18.3
18.35
18.4
18.45
18.5
T [◦ C]
0.06
0.07
0.08
0.09
0.1
0.11
0.12
k [cm/s]
Figure 10.3.: Left: Time-space infrared image at a friction velocity u∗ = 0.74 cm/s. Right: Estimated heat transfer
velocities k, averaged across each detected surface eddy in cm/s for large scale, shear wave coupled turbulence. Due
to the large streaks, large gaps are inevitable. No coherent pattern is visible, however, the localization and intensity of
detected surface eddies is clearly reflected in the heat transfer velocity estimation image.
to note that heat flux values in relation to eddy sizes follow a relatively narrow curve thereby
indicating that there is a close connection between those quantities that has a stronger impact
than for example surface velocity. Comparing moderate to higher velocities in the upper two
images it becomes evident that even though the curve seems to be relatively universal there is
a shift of higher frequencies along that curve. At lower velocities a broader distribution follows
a relatively narrow curve. With increasing wind stress the center of the frequency distribution
moves up the curve to higher heat flux values broadening slightly in the process. This might
indicate the higher variation in surface velocities at higher wind speeds.
The difference in the distributions of cell size and heat flux values between shear induced
turbulence and wave shear coupled turbulence is striking. This may well be an indication of two
entirely different generation mechanisms. While shear induced turbulence seems to originate
from a more random process the roll vortices associated with larger scale cold streaks seem to
be created by a far more organized process.
10.2. Impact of turbulence on heat transfer at increasing wind stress
The next figure 10.5 shows averaged heat transfer velocities over wind stress for the experiments
2014 in Aeolotron with and without the surfactant Triton X-100. The presented values are
averages of 30 statistically independent images for every wind condition. The analysis was
performed separately on small scale, shear induced and larger scale, Langmuir footprints (see
Section 6) by separating both turbulent scales according to the life span of their footprints.
All estimates show a consistent behavior with increasing wind speeds. Lines have merely
been added to enhance clarity and do not represent theoretic expectations, except for shear
turbulence in shear and surfactant conditions where a linear fit describe the observed trend very
98
0.12
0.12
0.1
0.1
0.1
0.08
0.06
0.04
0.02
Transfer velocity [cm/s]
0.12
Transfer velocity [cm/s]
Transfer velocity [cm/s]
10.2. Impact of turbulence on heat transfer at increasing wind stress
0.08
0.06
0.04
0.02
0
0.08
0.06
0.04
0.02
0
0
3.57 7.14 10.71 14.28
Eddy Size [cm]
(a) u∗ = 0.6 cm/s
0
0
3.57 7.14 10.71 14.28
Eddy Size [cm]
(b) u∗ = 1.3 cm/s
0
3.57 7.14 10.71 14.28
Eddy Size [cm]
(c) all wind speeds
Figure 10.4.: Two dimensional histograms of heat transfer velocity on the y-axis against eddy size on the x-axis based
on the analysis of shear-wave coupled turbulence. In the top row two different wind speeds are shown, the friction
velocity increases from left image to right from 0.6 cm/s to 1.3 cm/s. The normalized probability density is color coded.
The lower images shows the sum of the histograms of all measured wind conditions. Peak frequencies have been cut
off to display the area of the distributions. A direct relation between heat transfer velocity and eddy size indicates the
clearly non-random distribution of eddy sizes and points towards the different nature of shear-wave coupled turbulence
compared to shear induced turbulence. From intermediate to higher wind stress the frequency distribution shifts from
a maximum at larger spacings and lower k values to smaller eddy sizes and higher k values.
well. Transfer rates estimated from small scale turbulent structures (blue circles and crosses in
Figure 10.5) show a slow linear increase with friction velocity. Interestingly, values calculated
from a clean surface and those from a surfactant covered surface are nearly identical. This again
strongly supports the hypothesis of the universal structure of shear induced turbulence discussed
earlier.
Green circles and crosses describe transfer velocities from wave shear related turbulence for
a clean and surfactant covered water surface respectively. The lowest wind speed at which a
detection based on machine learning was possible marks the first data point. This means that
at lower wind speeds formation might have been in the process but the footprints were not clear
enough to be reliably detected. Therefore, there might still be a contribution of wave shear
turbulence which cannot be determined here. For clarity, a zero value has been added at the
lowest measured wind speed because in this regime no trace of Langmuir circulations had been
detected. Therefore the assumption of a zero impact seems justified.
A relatively steep ascend of estimated heat transfer rates occurs around a friction velocity of
u∗ ≈ 1 cm/s for the clean water case. This wind stress condition also marks the appearance
of the first microscale breaking waves. Looking back to the frequency distribution of heat flux
values in relation to turbulent cell size it is noticeable that the shift of high frequencies from the
99
10. The impact of surface eddies on heat transfer
600
total k
shear turb.
Langmuir turb.
Triton X-100
Triton X-100
Nagel et al. 2014
500
k [cm/h]
400
300
200
100
0
0
0.2
0.4
0.6
0.8
1
u∗ [cm/s]
1.2
1.4
1.6
1.8
Figure 10.5.: Heat transfer velocities against water sided friction velocity u∗ . Blue symbols indicate clean surface
condition, cyan symbols indicate surfactant covered surface. Blue circles and triangles are averages of estimated
transfer rates from small scale and larger scale turbulent structures respectively. Blue dots show total heat transfer
rates (added small scale and larger scale values according to eddy superposition). Black stars are heat exchange rates
from ACFT [Nagel et al., 2014] measured in the same facility under the same wind wave conditions. Cyan open circles
and triangles depict transfer velocity estimates based on shear turbulence and Langmuir circulation, respectively. The
fast non-linear increase of transfer rate estimates based on Langmuir turbulence is noteworthy. Langmuir circulation
could only be detected at friction velocities above 0.5 cm/s, in the clean surface cases, and above 1 cm/s in surfactant
cases, as below the detection of streaks was not possible, even though streaks might have been in formation. Therefore
a small contribution might be present at lower wind speed, that is not shown here.
lower branch to higher heat flux values also happens at this condition, between u∗ = 0.9 cm/s
and u∗ = 1.3 cm/s.
For the measurements with added Triton X-100 the first detectable large scale streaks appear
at these stress values. The estimated heat transfer rates are overall lower than in the clean
surface cases but especially at higher wind stress. The reason seems to lie in lower heat flux
estimates from wave shear coupled turbulence. Why exactly heat flux values stay so low even
when mean square slope values have reached nearly the same values is not quite clear but might
be associated with the altered surface dynamics.
According to the concept of eddy superposition both scales together form the total impact of
the surface turbulence pattern. Thus, blue dots in Figure 10.5 show the total estimated heat
transfer rate for the clean surface case. As a comparison, black stars show heat transfer rates
measured with the active controlled flux technique (ACFT) by Nagel et al. [2014] in the same
facility under the same conditions.
100
10.2. Impact of turbulence on heat transfer at increasing wind stress
Table 10.1.: Results of the analysis of the surface heat pattern, clean water case. In tables 10.1 and 10.2, u is the wind
speed in meters per second as measured in the facility circa one meter above the water surface, u∗ is the water sided
friction velocity in centimeters per second, us is the averaged surface velocity in cross wind direction in centimeters
per second, Tb and Ts are the averaged estimated bulk temperature and the average surface temperature respectively,
ksmall scale , klarger scale and ktotal are heat transfer rates in centimeters per hour estimated from the small scale and
larger scale turbulence and the total estimated heat transfer rate respectively. Heat transfer velocity estimates based
on the detection of Langmuir circulation only starts at a wind speed of u = 4.2 m/s, as below the detection of streaks
was not possible, even though streaks might have been in formation.
u
2.4
3.2
3.5
4.2
4.8
5.1
5.4
6.0
6.5
7.0
8.3
Clean water surface
u∗
us
0.40
3.4
0.49
4.3
0.53
4.7
0.64
5.7
0.74
6.7
0.81
7.3
0.87
7.8
1.04
8.9
1.19
10.1
1.30
11.3
1.77
14.6
Tb
19.09
18.96
18.91
18.87
18.88
18.81
18,88
18.70
18.60
18.53
18.52
Ts
18.73
18.65
18.61
18.52
18.47
18.36
18.38
18.19
18.22
18.17
18.08
kshear
102
114
114
110
110
111
105
107
132
133
154
kLangmuir
76
89
95
102
131
167
178
201
ktotal
102
114
114
186
199
206
207
237
299
310
355
At low wind speeds, heat transfer rates match reasonably well. With increasing wind stress a
gap increases between values measured from ACFT and the here presented estimates based solely
on footprints of coherent turbulence. This fits very well to earlier observations by for example
Zappa et al. [2004] who found microscale breaking to be the dominant effect for transfer processes
at moderate wind speeds. Zappa et al. [2004] suggests in this regime a contribution of micro
scale breaking of 75 % to total transfer. Peirson et al. [2014] estimate the impact a little lower,
to 50 % of the total transfer. This is approximately what the present analysis suggests, in the
highest wind speed case the contribution of near surface turbulence amounts to approximately
60 % of the value determined from ACFT.
Error bars have been excluded in Figure 10.5. An example error analysis for a single eddy
estimate is shown in the Appendix A.2. As the values in Figure 10.5 are derived from spatial
and temporal averages, the statistical error on the estimated transfer rates is small. However,
systematic error are difficult to quantify and arise from the model assumptions, streak detection
and additional processes that are not accounted for.
Figure 10.6 highlights the ratio of the contribution to heat transfer by small scale, shear induced, turbulence and larger scale, wave shear coupled, turbulence. kLangmuir − kshear against u∗
shows a strictly positive trend. At lower friction velocities shear stress is clearly the dominant
process. As friction increases at higher wind speeds larger scale turbulence becomes more important. The transition zone, which also exhibits a steeper ascend, is at approximately u∗ ≈ 1 cm/s.
Finally, turbulence caused by wave wind coupling causes clearly higher transfer rates.
101
10. The impact of surface eddies on heat transfer
Table 10.2.: Results of the analysis of the surface heat pattern, surface slick condition. Heat transfer velocity estimates
based on the detection of Langmuir circulation only starts at a wind speed of u = 7.0 m/s, as below the detection of
streaks was not possible, even though streaks might have been in formation
u
2.4
3.2
3.5
4.2
4.8
5.4
6.0
6.5
7.0
8.3
Triton X-100
u∗
us
0.30
2.1
0.38
2.3
0.42
2.4
0.47
2.7
0.59
2.9
0.64
3.2
0.74
3.8
0.85
4.1
1.01
5.3
1.44
8.4
Tb
19.57
19.56
19.42
19.60
19.64
19.65
19.70
19.74
19.76
19.80
Ts
19.23
19.21
19.08
19.23
19.24
19.22
19.27
19.28
19.29
19.30
kshear
116
117
119
118
113
114
118
117
120
145
kLangmuir
66
72
ktotal
116
117
119
118
113
114
118
117
186
217
10.3. Summary
The footprints of coherent turbulence appear in infrared images of the water surface. The
analysis of those footprints provides a means to estimate heat transfer rates based solely on the
impact of single turbulence producing processes. In this approach, image processing techniques
have been combined with eddy renewal models and have produced heat flux estimates with a
high spatial resolution. This provided for the first time a method to relate the scale and intensity
of a surface eddy to its impact on heat transfer.
It has been shown that the adopted models result in realistic estimates of heat transfer rates
and that the concept of superposed eddies seems to describe the state of the water surface
reasonably well. Estimated transfer velocities based on shear induced or wave-shear coupled
turbulence very likely represent the impact of one process only. Therefore, the combination of
both results is legitimate and provides realistic values, compared to measurements in the same
facility.
Shear turbulence and wave-shear coupled turbulence exhibit very different characteristics regarding size and estimated heat transfer rates. While the frequency distribution of eddy sizes
and transfer rates of shear turbulence points towards a random process, wave-shear coupled
turbulence seems to appear only on very distinct scales and associated transfer velocities.
The impact of surfactants is consistently reflected by the analysis. A change of the dynamics
of the water surface by damping capillary waves directly translates into changes of the turbulent
regime and lower estimates of transfer velocities. The comparison of surface turbulence at clean
and surfactant covered water surfaces strongly indicates that at low wind speeds shear induced
turbulence alone is responsible for a considerable fraction of the transport of heat across the airsea interface. However, as wind stress increases wave shear coupled turbulence plays a major role
in the transition zone and the combination of both turbulent structures produces very reasonable
102
10.3. Summary
kLangmuir - ksmall scale [cm/h]
60
40
20
0
Shear
dominates
Wave wind coupling
dominates
−20
−40
−60
−80
−100
−120
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
u* [cm/s]
Figure 10.6.: Difference between estimated heat transfer rates from small scale and large scale turbulent structures is
shown on the y-axis against friction velocity on the x-axis. The results are from Figure 10.5, clean surface conditions.
At low friction velocities, negative values indicate that shear stress is clearly the dominant process. As friction increases
at higher wind speeds larger scale turbulence becomes more important. The transition zone is at approximately
u∗ = 1 cm/s.
heat transfer velocities.
Finally, at even higher wind speeds turbulence cannot explain observed transfer rates any
longer, as processes like micro scale breaking now dominate the total transport. The impact of
surface turbulence in this regime has been estimated to be approximately 60 %.
103
11. Discussion
In this work, the impact of various mechanisms on the surface dynamics, its characteristic scale
and the impact of surface eddies on heat transfer have been examined. From the analysis of the
surface temperature pattern and derived quantities, such as surface velocity fields and estimated
bulk temperatures, a number of turbulence producing processes have been identified to determine
heat transfer rates at low to moderate wind speed. Turbulence producing mechanisms have been
classified into the main groups of shear driven, wave shear coupled turbulence and directly related
to microscale breaking waves, all of which cause footprints of characteristic shapes, sizes and life
times in infrared images. With increasing wind stress, different turbulent mechanisms interact,
depending on surface conditions and wave field. As a result, turbulent regimes develop and
are replaced as the surface dynamics undergo a constant change. In the following sections, a
description of the main turbulent regimes is given, based on the results of Chapters 7 - 10.
11.1. Turbulence producing mechanisms at the water surface
Shear induced turbulence
Shear induced turbulence creates a characteristic temperature pattern on the water surface,
compare Figures 7.1 and 7.2. It causes the characteristic fish scale pattern in the infrared images
[Handler et al., 2001; Tsai et al., 2005] and presumably small scale divergence and convergence
along the observed cold streaks and plumes. However, shear turbulence did not appear in the
estimated flow fields. Due to the aperture problem this motion cannot be detected in the optical
flow based techniques employed in this thesis. Shear stress was confirmed to be the generating
mechanism ([Kitaigorodskii, 1984] and Section 8.1.1) and shear induced turbulence was shown
to be insensitive to changes in the surface wave field ([Schnieders et al., 2013] and Section 8.1.1).
Shear induced turbulent cells are relatively small and decrease in size with increasing wind stress
but only until a plateau is reached [Schnieders et al., 2013]. The detailed fundamental processes
for this observation are currently unknown. Possible explanations include the partition of shear
stress in tangential stress and wave form drag as described in Banner and Peirson [1998]; Peirson
and Garcia [2008] or a minimum coherent cell size [Schnieders et al., 2013]. In previous studies
a continuous decline had been suggested [Scott et al., 2008] but no systematic analysis of cell
sizes has been conducted over a sufficiently wide range of wind speeds to compare to.
Eddy sizes exhibit a log-normal frequency distribution similar to those observed for low speed
streaks near a no slip wall [Smith and Metzler, 1983]. Furthermore, the log-normal distribution
105
11. Discussion
indicates random forces that cause the production of the cold streaks which are in some way
proportional to the streak spacing. With increasing wind stress, the fish scale pattern exhibits
coherent eddies with very homogeneous size and temperature gradients (compare Section 10.1.1
and Figure 10.2 and [Schnieders et al., 2014]) which might indicate that a lower limit of eddy
sizes is reached. In accordance, the frequency distributions of streak spacings show decreasing
variance, σ.
Langmuir circulations
The footprints of Langmuir circulations have been studied with respect to size and surface
velocity variation. The spacing of the elongated convergent streaks matches those observed
in studies of small scale Langmuir circulations very well [Caulliez, 1998; Melville et al., 1998;
Schnieders et al., 2013; Veron and Melville, 2001]. It also matches the predictions from neutral
stability theory to describe Langmuir circulations ([Leibovich and Paolucci, 1981; Schnieders
et al., 2013] and Figure 8.5). A further analysis of the spacings of Langmuir induced cold
surface streaks showed that Langmuir cell sizes directly depend on the wave field and exhibit
far less variation than shear turbulence.
The evolution of high-speed streaks, i.e. higher surface velocities within convergence zones,
was observed for the first time in infrared imagery and confirms the findings from previous
studies using tracer particles or bubbles ([Gemmrich and Hasse, 1992; Kukulka et al., 2009;
Smith, 1989] and Section Figure 7.8). The resulting roll vortices are very stable on the order
of seconds, and the overturning process is relatively slow. Streak like surface divergence areas
can be visualized from surface flow fields, if short timescale movements are canceled out by
averaging over a longer period. Those convergence areas coincide with cold and warm areas in
infrared images and confirm the down-welling and upwelling process, respectively. The evolution
of Langmuir circulation is marked by the appearance of defined convergence that coincides with
distinct cold streaks. The correlation of high surface temperatures and convergence, i.e. the
upwelling area, is broader and weaker. This corresponds well to the finding of distinct narrow
convergence and broader divergence of Langmuir circulations by Chini [2008].
Microscale breaking
Microscale breaking waves cause a considerable amount of turbulence. The main characteristic
feature is their spilling region [Banner and Peirson, 1998; Peirson and Garcia, 2008; Peirson et al.,
2014; Zappa et al., 2001] with a characteristic convergence zone at the toe and the following
subduction and exhilaration of surface velocities [Peirson et al., 2014; Schnieders, 2011]. The
exhilaration of surface velocities to wave phase speed has been observed and described previously
and could be confirmed here (compare Figure 7.7).
Roll vortices on the back side of microscale breaking waves have been described by Handler
et al. [2012]. Here, those vortices have been observed to differ considerably in size and life
106
11.2. Characterization of turbulent regimes
time from Langmuir circulations. Thus, intensity and resulting surface divergence are a distinct
feature of the surface flow field. Similar streaks were observed also in conditions with mechanical waves only, without any wind stress. This indicates that the Craik Leibovich mechanism
[Leibovich and Paolucci, 1981] responsible for the formation of Langmuir circulations does not
explain those streaks. As those streaks have only been observed at the lee side of microscale
breaking waves, it is classified as microscale breaking related.
11.2. Characterization of turbulent regimes
With growing wind stress the dominant turbulent features change and so does the surface dynamics. Table 11.1 shows an overview of the main regimes that evolve successively with increasing
wind stress. In the upper part of the table the regimes are divided as observed in clean surface
conditions. In the “surfactants” row, arrows indicate the shift of the observed regimes relative
to the friction velocity. Surfactants mainly reduce surface roughness and therefore delay wave
growth. Thus, the major effect is that all wave related regimes are entered at higher friction
velocities but still in the same order and with very similar footprints in infrared images and
velocity fields. The most prominent effect becomes visible at relatively low friction velocities, as
shear stress is far more dominant if wave growth is delayed. Reynolds numbers increase with
increasing wind stress and therefore increasing surface velocities throughout this range of wind
speeds. The flow is clearly turbulent already at relatively low wind speeds.
The observed turbulent regimes can be separated into four parts: The first part at low friction
velocities with u∗ < 0.4 cm/s is dominated by free convection. The surface Richardson number
as defined by Soloviev and Schlüssel [1994] is clearly above the critical value of Rfcr = 1.5 · 10−4 ,
which means that convection is driven by the heat flux at the water surface and dominates over
shear driven turbulence. No surface waves are visible, yet. The surface heat pattern consists
of a pattern of up and down-welling areas that is characteristic of free convection but slightly
sheared due to wind stress. The pattern itself looks very similar to the familiar shear induced
fish scales but the high surface Richardson number clearly shows that a strong total heat flux
causes free convection which is the dominant process here. In the presence of a surface slick the
total heat flux is slightly lower and the next regime is entered at a slightly lower friction velocity
of u∗ = 0.3 cm/s instead of u∗ = 0.4 cm/s as in the clean surface case.
At increasing wind stress, the turbulent state enters the shear dominated regime. In the
infrared images the fish scale pattern dominates, which is characteristic of shear induced turbulence. The velocity field is dominated by small capillary ripples. Furthermore, the beginning
of the formation of high speed streaks is visible. Those areas of higher velocity coincide with
the development of large scale cold streaks, visible in the infrared images. This regime can be
considerably extended up to friction velocities of about ≈ 1 cm/s if a surface slick dampens
capillary waves, instead of ≈ 0.5 cm/s in a clean surface case.
At higher wind stress and friction velocities, around u∗ = 1 cm/s in clean surface conditions,
107
11. Discussion
Table 11.1.: Summary of the results from Chapters 7-10. Turbulence producing mechanism at the water surface are
organized into distinct turbulent regimes that evolve with increasing wind stress. This concept incorporates all observed
features of the temperature pattern and estimated flow field and also allows to illustrate the impact of surfactants on
the previously defined regimes. The regimes are named after the dominant turbulent process, which is the process with
the strongest impact on heat transfer velocities, even though most processes can be observed simultaneously.
Free
convection
Shear dominated
Transition zone
Microscale
breaking
involved
turbulent
mechanism
free convection
shear turbulence,
formation of
Langmuir vortices
small Langmuir
circulation, shear
turbulence (plateau
area)
wave breaking, roll
vortices, Langmuirs,
shear (often
subducted)
IR images
Reilly
Bénard
cells
characteristic fish
scales, not very
pronounced large
scale streaks
large scale cold
streaks, very stable,
small fish scales
spilling of microscale
breaking waves,
large scale streaks,
small homogeneous
fish scales
velocity
field /
divergence
aperture
problem
capillary ripples in
velocity field and
divergence
capillary ripples,
mean divergence
shows large scale
high speed streaks
breaking
characteristics,
streaky convergence
zones
Reynolds
number
2000
2500
3500
5000
Surface
Richardson
number
10−3
10−5
10−6
10−7
Wave
height
≈0
1 cm
6 cm
15 cm
0
0.4
1
1.5
Surfactants
Friction
velocity u∗
[cm/s]
108
11.3. Impact of small scale surface turbulence on heat exchange rates in changing surface conditions
the dynamics of the water surface has changed. Therefore, this regime is called transition zone.
Small gravity waves form and the first microscale breaking events are clearly visible in the
infrared images, although it is not the defining feature. Focusing on the characteristic turbulent
mechanisms, both shear turbulence and small Langmuir circulations are equally important. Here,
the scales of shear turbulence enter the plateau area as seen in Figure 8.3. At the same time,
very pronounced cold surface streaks, which show all characteristics of Langmuir circulation,
are a distinct feature of the surface heat pattern. The surface velocity field is, however, far
more modulated by growing waves, also indicating that a large fraction of the shear stress is
transformed to wave form drag and, thus, tangential stress does not grow equally [Peirson and
Garcia, 2008]. Furthermore, surface divergence caused from small Langmuir circulations becomes
clearly visible in surface divergence images if averaged over a time interval. Surfactants delay
the transition from shear dominated to Langmuir dominated phase and further to microscale
breaking. This means that the impact of surface slick on the water surface leads to the most
pronounced changes in the interaction of surface processes at this transition zone at intermediate
wind speeds.
At even higher wind stress microscale breaking waves become the defining feature of the water
surface [Peirson et al., 2014; Zappa et al., 2001] and dominate the infrared images and the
velocity field. In the infrared images, stable Langmuir caused cold streaks are still visible, even
though they sometimes seem to collapse due to wave breaking. Also the fish scale pattern is still
visible, though frequently subducted by the spilling region of microscale breaking waves.
In the next section the implications on transfer rates will be explored based on the previously
defined regimes and identified surface processes.
11.3. Impact of small scale surface turbulence on heat exchange
rates in changing surface conditions
Commonly employed parameterizations of heat and gas transfer rates, e.g., wind speed and
mean square slope, are subject to large variations. None of the commonly employed parameters
explains all deviations from predicted transfer rates, especially if additional factors like surface
film or limited fetch alter the fluid dynamics of the surface. Therefore, in this work, a mechanistic approach has been chosen. The impact of individual processes on heat transfer rates is
investigated. The results help to explain under which conditions certain parameterizations are
expected to give accurate results or cannot parameterize the dominant processes, thereby being
able to predict deviations from current parameterizations.
The infrared images of the water surface and the derived surface flow fields can identify
dominant processes. Gradients in the temperature pattern correlate to a certain degree with
transfer velocities. However, to infer reliable estimates of the transfer velocity a conceptual
model is needed. In this work, the concept of eddy renewal has been adapted to the characteristic
turbulent regimes as observed from the thermographic data. Resulting transfer velocity estimates
109
11. Discussion
have been shown to be realistic if compared to direct measurements.
The central remaining question is, if the study of near surface turbulence can provide predictions on the impact on exchange rates if the state of the sea surface is changing? Starting from
the process and not the parameters and taking the regimes defined in Section 11.1, the picture
that emerges is the following:
Shear dominated regime
At low wind stress, shear induced turbulence is the main contributor to enhanced transfer rates.
Estimated heat exchange rates based on the fish scale temperature pattern can explain the total
measured heat flux (compare Section 10.2).
As shear turbulence directly depends on shear stress, the friction velocity, u∗ , is a natural
choice to scale transfer rates in this regime. Here, a linear relationship between estimated
transfer velocities and friction velocity was found. If the water surface is covered by surfactants,
the onset of waves is delayed (see Table 4.2). This causes an extension of the shear dominated
regime in the surfactant cases. As a result, the linear relationship between friction velocity and
wind stress persists until the first waves form on the water surface. According to Kiefhaber
[2014], in the presence of surfactants, transfer rates at low wind stress are independent of mean
square slope and therefore the wave field. This is confirmed here, as in this regime, wave
independent wind stress is the dominant driver of exchange rates.
A comparison with directly measured heat transfer rates via the active controlled flux technique measured by Nagel et al. [2014] as proposed by Jähne et al. [1989] in the same laboratory
and under very similar wind-wave conditions showed an overall good agreement.
Values at low wind speeds seem high compared to current parameterizations and field measurements, however, local variations of wind speed in the laboratory are described in Bopp [2014]
and suggest higher wind stress at the location of the infrared camera. Another possible reason
why transfer rates in the laboratory can be higher than expected compared to field measurements might be an additional enhancement due to free convection. Even though the surface
Richardson number is below the threshold, a (small) additional enhancement seems likely.
Transition regime
This regime is characterized by a transition from dominant shear turbulence to Langmuir circulations as the most pronounced feature of the surface temperature pattern. The implication for
exchange is a significant non-linear increase in heat transfer rates due to Langmuir circulations
in contrast to the linear increase of transfer rates due to shear turbulence. Clearly detectable
Langmuir circulation induced footprints appear at friction velocities of u∗ ≈ 0.6 cm/s for a clean
surface. Therefore, the associated increase of transfer velocities is estimated to take place at the
same friction velocity. However, the detection threshold is a critical value and a (small) contribution of Langmuir circulations, which are in the process of formation, at lower wind stress
110
11.3. Impact of small scale surface turbulence on heat exchange rates in changing surface conditions
cannot be excluded.
If the water surface is covered by the surfactant Triton X-100, first visible Langmuir footprints
start appearing at higher friction velocities of u∗ ≈ 1 cm/s. Thus, also the increase of transfer
velocities due to Langmuir circulations happens later and has been estimated to be weaker than in
the clean surface case. A possible explanation is that surface films have the property to dampen
convergent flow. This might explain why the convergence regions of Langmuir circulation appear
to be weaker which also translates to lower transfer rates. As a result, surfactants have a most
pronounced effect in this regime and contribute to considerably lower transfer rates in this range
of wind speeds.
As the characteristics of Langmuir circulation induced roll vortices depend on shear stress and
waves, parameterizations with wind speed or mean square slope might be expected to give good
results. Mean square slope has been shown to be a good parameter in this regime [Jähne et al.,
1984] and provides good results [Frew et al., 2004; Krall, 2013]. The explanation may be that
for a clean water surface Langmuir circulation are directly related to the onset of capillary waves
[Veron and Melville, 2001]. Kiefhaber [2014] pointed out that MSS provides generally a good
parameterization, at low wind speeds and in the presence of surfactants, however, its reliability
decreases.
In this regime, heat transfer rates based on a combination of shear turbulence and Langmuir
circulation match measured transfer rates by Nagel et al. [2014] reasonably well (compare Section
10.2). This means that at intermediate wind speeds, exchange can be considered as mediated
by a combination of shear turbulence and small Langmuir circulations.
Microscale breaking regime
In this regime, turbulence introduced by microscale breaking waves clearly dominates the dynamics of the water surface. Heat transfer rates estimated from turbulent structures alone make
only about 50 % and less of the total transfer for increasing wind speeds of the measured transfer rate. This is in good agreement with the findings of Zappa et al. [2002] and Peirson et al.
[2014], who found microscale breaking to be the dominant factor for transfer across the air water
boundary at moderate wind stress.
The intensity of Langmuir circulations decreases as frequent microscale breaking seems to
destroy the stable vortices on these scales (this effect has previously been described by Mizuno
[2011]).
Instead, roll vortices appear at the lee side of breaking waves [Handler et al., 2012] that differ
in their characteristics from Langmuir circulations by their spacing but also by their stability.
These roll vortices induce high cross wind surface velocities and leave footprints in the divergence
images that have the same magnitude as the spilling process.
111
11. Discussion
Impact of surfactants
One of the challenges is the accurate parameterization of exchange rates in the presence of surfactants. This surface state occurs frequently in the ocean, especially in areas with high biological
activity, and is therefore also highly interesting with respect to the exchange of biologically
produced gases like Dimethylsulfate (DMS) [Liss et al., 2014].
The mechanistic approach chosen in this work indicates that the turbulent state of the water surface is altered significantly in the presence of surfactants. The shear dominated regime
extends to considerably higher wind stress as the surfactants dampens surface waves and, therefore, the onset of Langmuir circulations. The impact of shear turbulence on heat exchange
seems to grow linearly with increasing friction velocity. By contrast, the transition regime is
characterized by a fast non-linear increase of estimated transfer velocities due to the onset of
Langmuir circulations. This in turn means that any delay of the transition regime translates
into a delayed increase of transfer rates and therefore lower overall values. As a result, this study
suggests that the strongest impact of surfactants on transfer rates is observed at intermediate
wind stress. Commonly described reduction of transfer rates in the presence of surfactants in
gas transfer measurements [Krall, 2013; Kräuter, 2011] can be explained by this mechanism.
11.4. Implication for larger scales and the field
The ultimate goal of all laboratory measurements is to derive processes and mechanisms that can
be transfered to the open ocean and thereby help to understand the more complicated environment in field conditions. The characteristics of the small scale structures, namely shear induced
turbulence and small Langmuir circulations, have been tested under various different wind-wave
conditions in different laboratories. Both, shear induced turbulence and Langmuir circulations,
have been shown to have a universal scaling of turbulent cell sizes, which is independent of the
geometry of the channel.
At low to very low wind speed, wind stress and small gravity waves are the main driving
forces of enhanced transfer velocities. Therefore, it can be expected that the water surface
of the ocean is dominated by the same regimes as defined in this work based on laboratory
measurements at low wind stress, e.g., within a wind speed range that has been labeled shear
dominated regime and the transition zone. This means that also in the open ocean shear induced
turbulence can be expected to be the main driver for enhanced exchange rates at very low wind
speeds. If surfactants are present on the water surface, e.g., in areas with high biological activity,
this regime is extended. This finding could help incorporating slick covered ocean areas into
predictions of gas exchange by assuming a linear increase in gas exchange instead of a faster
increase of the transfer rates predicted by the wind speed parameterizations for a clean surface.
However, as the transition zone is characterized by Langmuir circulations and growing gravity
waves, it is undergoing continuous change as the wind increases. At the open ocean, Langmuir
circulations with far bigger spacings and lengths develop, depending on wave conditions. As
112
11.4. Implication for larger scales and the field
in the laboratory all processes are limited by the geometry of the facility, the wave field is
significantly different from the one in the open ocean. While small scale Langmuir circulations
are small enough not to be influenced by the width of the channel, all scales of the order of the
channel width and above can naturally not be studied in the laboratory.
In this study, it has been found that Langmuir circulation cause distinct surface convergence
zones which lead to the down-welling of fluids. In the field and on larger scales, this leads to mixed
layer deepening [Li and Garret, 1997]. Belcher et al. [2012] point out that this important effect
is not accurately represented in most climate models. Measurement of the convergence could
provide important information on the down-welling strengths and provide a parameterization of
the mixing process to improve climate models.
In this work, it has been shown that Langmuir circulations are an important driver of increased
transfer rates at increasing wind stress before microscale breaking becomes the dominant feature.
Langmuir circulations appear on a wide range of scales in the ocean and form an important
feature of the top layer of the surface ocean (like mixed layer deepening, high speed streaks,
influence of cross wind currents) and play a crucial role in air-sea interaction processes. However,
little is known about the dominant scales over the full range of observed spacings. The remaining
question is, what effect do Langmuir circulations of various scales have on heat and gas transfer
rates and which scales contribute most to enhanced transfer rates? The cell size of Langmuir
circulations depends strongly on environmental conditions such as wind speed and wave field.
Langmuir circulations have been observed in airborne measurements leading to image sizes of
up to several kilometers by Marmorino et al. [2005, 2007, 2009] and Zappa et al. [2004]. Here,
the information from cold streaks caused by Langmuir Circulation have been used to estimate
the depth of the surface mixed layer.
So far there have been no measurement campaigns that cover both small scale structures and
large scale structures within one study. A comparison of strength and occurrence of different sizes
of Langmuir circulations is therefore still missing. The study of intermediate scaled Langmuir
circulations would provide a link between small scale measurements as described here and large
scale satellite images and facilitates the interpretation of widely available satellite images and
the inference of subsurface temperatures.
113
12. Conclusion and Outlook
12.1. Conclusion
Within this work, processes enhancing air-sea transfer velocities have been investigated with
respect to their characteristic features and impact on exchange. A special focus has been on low
to moderate wind speeds with and without surface active material reducing surface roughness.
Measurements were conducted in the controlled environment of the laboratory and data from
different laboratory facilities were evaluated in a range of different wind wave conditions.
Passive Thermography has been shown very well suited for the mechanistic analysis of surface
processes as the footprints of the underlying turbulence are displayed in infrared images. The
visualization of surface convergence and divergence allows for the derivation of detailed information about the dynamic state of the water surface with a high spatial and temporal resolution
provided by high-end infrared cameras.
The analysis of the infrared images sequences was conducted based on image processing techniques such as motion estimation and classification of the surface temperature pattern. For the
accurate estimation of surface flow fields existing optical flow based algorithms were adapted to
infrared images of the water surface. The classification of the surface heat pattern was conducted
based on machine learning with the software tool Ilastik [Sommer et al., 2011].
Three main findings of this work are:
Identification of dominant turbulent regimes
Turbulence producing mechanisms have been classified into the main groups of shear driven, wave
shear coupled turbulence and directly related to microscale breaking waves, all of which cause
footprints of characteristic shapes, sizes and life times in infrared images. The identification
of dominant turbulent regimes is based on the results of the analysis of the infrared images
and the resultant flow field, with surface divergence estimates, the classification of the surface
temperature pattern and the estimation of bulk temperatures.
With increasing wind stress depending on the total heat flux, the first wind-driven turbulent
regime is dominated by shear turbulence. This regime extend up to friction velocities of ≈
0.6 cm/s in the clean surface cases. If surfactants suppress capillary waves, this regime extends
further to ≈ 1 cm/s. In this regime the transfer rate is estimated to increase slowly and linearly
with wind stress.
As wind stress increases and the first small gravity waves form, small Langmuir circulations
115
12. Conclusion and Outlook
are a dominated feature of the water surface. Associated with this transition in the turbulent
regime is a non-linear increase of heat transfer rates. In the presence of surfactants this regime
is considerably delayed with respect to wind stress and also the overall impact on transfer seems
to be weaker.
At moderate wind speed and friction velocities of above ≈ 1.2 cm/s, microscale breaking waves
dominate the surface dynamics. Constant microscale breaking weakens Langmuir circulations.
In this regime, turbulent processes associated with microscale breaking are responsible for the
major part of enhanced transfer rates, at least in the studied laboratory data.
Definition of characteristic features of turbulent processes
The spacing of cold streaks at the water surface is suggested as a practical feature to describe the
size of turbulent structures. As the spacing is determined independently for small scale, shear
induced, and large scale, wind wave coupled, turbulence, it also provides a means to distinguish
both processes. For shear induced turbulence, the analysis of the spacing yields a decreasing
turbulent cell size until a minimum is reached. This plateau area starts at intermediate wind
stress and coincides with growing gravity waves. The frequency distribution exhibits log-normal
behavior throughout all wind speeds. Langmuir footprints, in contrast, appear on one dominant
eddy size that directly depends on wind wave conditions.
The eddy renewal model describes the water surface as densely packed with surface eddies.
In this work the conceptual model has been extended with the addition of eddy superposition.
The surface temperature pattern can thus be described assuming a superposition of larger scale
and smaller scale eddies. This concept was shown to adequately represent processes at the water
surface in low to moderate wind stress.
Impact of individual processes on air-sea transfer under varying surface conditions
The estimation of the impact of individual processes on air-sea transfer rates has been a main
focus in this work. For the first time, a method is presented to relate the scale and intensity of
a surface eddy to its impact on heat transfer.
• Shear induced turbulence cannot be neglected and is a major contributor to enhanced
transfer rates at low wind stress. Its relevance increases if the surface is covered by surfactants as the onset of waves is delayed. Transfer rates associated with shear induced
turbulence are shown to be linearly dependent on wind stress.
• Langmuir circulations play a major role at intermediate wind stress, when the spacing of
shear induced turbulence has entered a plateau area and cause a significant increase of
transfer rates.
• Microscale breaking is a dominant contributor at moderate wind stress and is responsible
for approximately 50% and more of the transfer rate.
116
12.2. Outlook
12.2. Outlook
Future goals in the exploration of turbulence producing mechanism at the water surface include
three main goals: The better fluid dynamical understanding of surface processes, the investigation of the comparability of heat and gas exchange and the transition of a mechanistic approach
to larger scales and field measurements.
A further analysis of the turbulent structures at the air-sea interface would clearly benefit
from three dimensional velocity fields. This would especially complement the here applied eddy
renewal model and could give a closer insight into the mechanisms that drive surface eddies.
Furthermore, only the knowledge of three dimensional velocity fields allows the calculation of
critical quantities like kinetic energy dissipation rate.
Heat exchange has been shown previously to be closely related to gas transfer, e.g., [Nagel
et al., 2014]. Techniques visualizing gas transfer, as for example proposed by Kräuter et al.
[2014], provide a direct comparison of individual turbulent structures in heat and gas transfer.
This comparison allows an evaluation of the different impact of individual processes on heat and
gas exchange.
Finally, to allow the findings about small scale turbulent processes to be incorporated into
global models the step to larger scales and field measurements is crucial.
Exploring ocean turbulence with an octocopter
Thermography on an octocopter is an ideally suited method to study the surface heat pattern
on a variety of scales in the ocean with a higher resolution than possible with air planes but
without the limited footprint of a camera on board a ship.
In a joint project with the science education association SeaNetworks e.V based at the AlfredWegener-Institute for polar and marine research in Bremerhaven an octocopter is currently being
built. One goal of this collaboration is to detect Langmuir circulations of various sizes and thus
relate scale and intensity of the circulation to environmental parameters such as wind stress and
wave field. Additionally, this project aims to contribute to education in science.
The overall objective of this project is to obtain a quantitative understanding of how submesoscale near surface turbulence enhances exchange rates between the atmosphere and the
ocean. It is our goal to identify the scales on which wave current coupled turbulence, Langmuir
circulations, appear and more important which scales have the biggest impact on surface flux of
heat and gas. This will help to determine the relevant scales of ocean turbulence to explain the
high spatial variability in air-sea interaction processes. Relating this finding to the prevailing
surface conditions will be an opportunity to parameterize the impact of near surface turbulence
on heat and gas transfer rates based on a mechanistic understanding of involved processes.
117
Bibliography
W. Alpers. The damping of ocean waves by surface films: A new look at an old problem. Journal
of Geophysical Research, 94(C5):6251–6265, 1989.
P. Anandan. A computational framework and an algorithm for the measurement of visual
motion. International Journal of Computer Vision, 2(3):283–310, 1989.
E. Arnaud, E. Mémin, R. Sosa, and G. Artana. A fluid motion estimator for schlieren image
velocimetry. In Computer Vision-ECCV 2006, pages 198–210. Springer Berlin Heidelberg.,
2006.
W. Asher. The sea-surface microlayer and its effect on global air-sea gas transfer. In The Sea
Surface and Global Change. 1st ed. Cambridge, pages 251–286. Cambridge University Press,
1997.
W. E. Asher, A. T. Jessup, and M. A. Atmane. Oceanic application of the active controlled flux
technique for measuring air-sea transfer velocities of heat and gases. J. Geophys. Res., 109:
C08S12, 2004.
M. A. Atmane, W. Asher, and A. T. Jessup. On the use of the active infrared technique to infer
heat and gas transfer velocities at the air-water free surface. J. Geophys. Res., 109:C08S14,
2004.
G. Aubert, R. Deriche, and P. Kornprobst. Computing optical flow via variational techniques.
SIAM Journal on Applied Mathematics, 60:156–182, 1999.
S. Banerjee. Turbulence structure and transport mechanisms at interfaces. In Ninth International
Heat Transfer Conference, Keynote Lectures, volume 1, pages 395–418. Hemisphere Press.,
1990.
S. Banerjee, D. Lakehal, and M. Fulgosi. Surface divergence models for scalar exchange between
turbulent streams. International Journal of Multiphase Flow, 30:963–977, 2004.
S. Banerjee, D. S. Scott, and E. Rhodes. Mass transfer to falling wavy liquid films in turbulent
flow. Industrial & Engineering Chemistry Fundamentals, 7:22–27, 1968.
M. L. Banner and W. L. Peirson. Tangential stress beneath wind-driven airwater interfaces. J.
Fluid Mech., 364:115–145, 1998.
119
Bibliography
M. L. Banner and O. M. Phillips. On the incipient breaking of small-scale waves. J. Fluid Mech.,
65:647–656, 1974.
S. E. Belcher, A. L. M. Grant, K. E. Hanley, B. Fox-Kemper, L. Van Roekel, P. P. Sullivan,
W. G. Large, A. Brown, A. Hines, D. Calvert, A. Rutgersson, H. Pettersson, J.-R. Bidlot,
P. A. E. M. Janssen, and J. A. Polton. A global perspective on Langmuir turbulence in the
ocean surface boundary layer. Geophys. Res. Lett., 39(18):L18605, 2012.
M. J. Black and A. D. Jepson. Estimating optical flow in segmented images using variableorder parametric models with local deformations. Pattern Analysis and Machine Intelligence,
18(10):972–986, 1996.
M. Bopp. Messung der Schubspannungsgeschwindigkeit am Heidelberger Aeolotron mittels der
Impulsbilanzmethode. Master’s thesis, University of Heidelberg, 2011.
M. Bopp. Luft- und wasserseitige strömungsverhältnisse im ringförmigen heidelberger windwellen-kanal (aeolotron). Masterarbeit, Institut für Umwelphysik, Univeristät Heidelberg,
Germany, 2014.
L. Breimann. Random forests. Machine Learning, 45:5–32, 2001.
T. Brox. From pixels to regions: partial differential equations in image analysis. PhD thesis,
Faculty of Mathematics and Computer Science, Saarland University, Germany, 2005.
T. Brox, A. Bruhn, N. Papenberg, and J. Weickert. High accuracy optical flow estimation based
on a theory for warping. In T. Pajdla and J. Matas, editors, Proc. of the 8th ECCV, volume
3024, pages 25–36, 2004.
A. Bruhn, J. Weickert, and Schnörr. Lucas/Kanade meets Horn/Schunck: Combining local and
global optic flow methods. International Journal of Computer Vision, 61(3):211–231, 2005.
B. Buxton and H. Buxton. Computation of optic flow from the motion of edges in image
sequences. Image and Vision Computing, 2:59–75, 1984.
C. Cassisa. Local vs global energy minimization methods: application to stereo matching. In
Progress in Informatics and Computing, 2010.
G. Caulliez. The generation of the first visible wind waves. Physics of Fluids, 10(4):757–759,
1998.
G. Caulliez, R. Dupont, and V. Shrira. Turbulence generation in the wind-driven subsurface
water flow. In C. S. Garbe, R. A. Handler, and B. Jähne, editors, Transport at the Air
Sea Interface — Measurements, Models and Parameterizations, chapter 7, pages 103–117.
Springer-Verlag, 2007.
120
Bibliography
S. I. Chernyshenko and M. F. Baig. The mechanism of streak formation in near-wall turbulence.
J. Fluid Mech., 544:99–131, 2005.
C. Chickadel, S. A. Talke, A. R. Horner-Devine, and A. T. Jessup. Infrared-based measurements
of velocity, turbulent kinetic energy, and dissipation at the water surface in a tidal river.
Geoscience and Remote Sensing Letters, 8(5):849–853, 2011.
G. P. Chini. Strongly nonlinear Langmuir circulation and Rayleigh-Bénard convection. J. Fluid
Mech., 614:39–65, 2008.
T. Corpetti, D. Heitz, G. Arroyo, E. Memin, and A. Santa-Cruz. Fluid experimental flow
estimation based on an optical-flow scheme. Experiments in fluids, 40(1):80–97, 2006.
T. Corpetti, M. Etienne, and P. Perez. Dense estimation of fluid flows. IEEE Transactions on
Pattern Analysis and Machine Intelligence, 24(3), 2002.
P. M. Cox, R. A. Betts, C. D. Jones, S. A. Spall, and I. J. Totterdell. Acceleration of global
warming due to carbon-cycle feedbacks in a coupled climate model. Nature, 408(6809):184–
187, 2000.
A. D. D. Craik and S. Leibovich. A rational model for Langmuir circulations. J. Fluid Mech.,
Volume 73:401–426, 1976.
A. Criminisi, J. Shotton, and E. Konukogl. Decision forests: A unified framework for classification, regression, density estimation, manifold learning and semi-supervised learning. Foundations and Trends in Computer Graphics and Vision, 7(2–3):81–227, 2012.
G. T. Csanady. Momentum flux in breaking wavelets. J. Geophysical Research-Oceans, 95:
13289–13299, 1990.
P. V. Danckwerts. Significance of a liquid-film coefficients in gas absorption. Ind. Eng. Chem.,
43:1460–1467, 1951.
R. G. Dean. Water Wave Mechanics for Engineers and Scientists. World Scientific, Singapore,
1991.
D. Eisenhauer. Aufbau eines Messsystems zur Amplitudenmessung von Schwerewellen im Aeolotron. Master’s thesis, University of Heidelberg, 2011.
R. A. Feely, C. L. Sabine, K. Lee, W. Berelson, J. Kleypas, V. J. Fabry, and F. J. Millero. Impact
of anthropogenic CO2 on the CaCO3 system in the oceans. Science, 305(5682):362–366, 2004.
J. M. Fitzpatrick. The existence of geometrical density-image transformations corresponding to
object motion. Computer Vision, Graphics, and Image Processing, 44(2):155–174, 1988.
121
Bibliography
D. J. Fleet and A. D. Jepson. Computation of component image velocity from local phase
information. International Journal of Computer Vision, 5(1):77–104, 1990.
G. E. Fortescue and J. R. A. Pearson. On gas absorption into a turbulent liquid. Chemical
Engineering Science, 22:1163–1176, 1967.
N. Frew, E. Bock, U. Schimpf, T. Hara, H. Haussecker, J. Edson, W. McGillis, R. Nelson,
S. McKenna, B. Uz, and B. Jähne. Air-sea gas transfer: Its dependence on wind stress, smallscale roughness, and surface films. Journal Of Geophysical Research-Oceans, 109:C08S17,
2004.
T. Fujita and H. Grandoso. Split of a thunderstorm into anticyclonic and cyclonic storms and
their motion as determined from numerical model experiments. Journal of the Atmospheric
Sciences, 25(3):416–439, 1968.
C. S. Garbe. Measuring Heat Exchange Processes at the Air–Water Interface from Thermographic Image Sequence Analysis. Dissertation, IWR, Fakultät für Physik und Astronomie,
Univ. Heidelberg, Heidelberg, Germany, 2001.
C. S. Garbe, H. Haussecker, and B. Jähne. Measuring the sea surface heat flux and probability distribution of surface renewal events. In E. Saltzman, M. Donelan, W. Drennan, and
R. Wanninkhof, editors, Gas Transfer at Water Surfaces, volume 127 of Geophysical Monograph, pages 109–114. American Geophysical Union, 2002.
C. S. Garbe, U. Schimpf, and B. Jähne. A surface renewal model to analyze infrared image
sequences of the ocean surface for the study of air-sea heat and gas exchange. Journal of
Geophysical Research-Oceans, 109(C8):1–18, 2004.
C. S. Garbe, A. Rutgersson, J. Boutin, B. Delille, C. W. Fairall, N. Gruber, J. Hare, D. Ho,
M. Johnson, G. de Leeuw, P. Nightingale, H. Pettersson, J. Piskozub, E. Sahlee, W. Tsai,
B. Ward, D. K. Woolf, and C. Zappa. Transfer across the air-sea interface. In P. S. Liss and
M. T. Johnson, editors, Ocean-Atmosphere Interactions of Gases and Particles, pages 55–112.
Springer, 2014.
J. Gemmrich and L. Hasse. Small-scale surface streaming under natural conditions as effective
in air-sea gas exchange. Tellus, 44B:150–159, 1992.
H. Grassl. The dependence of the measured cool skin of the ocean on wind stress and total heat
flux. Boundary-Layer Meteorology, 10:465–474, 1976.
M. Gutsche. Surface velocity measurements at the aeolotron by means of active thermography.
Master’s thesis, Universität Heidelberg, 2014.
122
Bibliography
R. A. Handler and Q. Zhang. Direct numerical simulations of a sheared interface at low wind
speeds with applications to infrared remote sensing. Selected Topics in Applied Earth Observations and Remote Sensing, IEEE, 6(3):1086–1091, 2013.
R. A. Handler, G. B. Smith, and R. I. Leighton. The thermal structure of an air–water interface
at low wind speeds. volume 53, pages 233–244. 2001.
R. A. Handler, I. Savelyev, and M. Lindsay. Infrared imagery of streak formation in a breaking
wave. Physics of Fluids, 24:121701, 2012.
R. A. Handler and G. B. Smith. Statistics of the temperature and its derivatives at the surface
of a wind-driven air-water interface. Journal of Geophysical Research, 116:C06021, 2011.
T. Hara, E. VanInwegen, J. Wendelbo, C. S. Garbe, U. Schimpf, B. Jähne, and N. Frew. Estimation of air-sea gas and heat fluxes from infrared imagery based on near surface turbulence
models. In C. S. Garbe, R. A. Handler, and B. Jähne, editors, Transport at the Air Sea
Interface — Measurements, Models and Parameterizations. Springer-Verlag, 2007.
T. Hastie, R. Tibshirani, and J. Friedman. The Elements of Statistical Learning. Springer, 2009.
H. Haussecker, S. Reinelt, and B. Jähne. Heat as a proxy tracer for gas exchange measurements
in the field: principles and technical realization. In B. Jähne and E. C. Monahan, editors, Air–
Water Gas Transfer: Selected Papers from the Third International Symposium on Air–Water
Gas Transfer, pages 405–413, Heidelberg, 1995. AEON Verlag & Studio Hanau.
H. Haussecker, U. Schimpf, C. S. Garbe, and B. Jähne. Physics from IR image sequences:
Quantitative analysis of transport models and parameters of air-sea gas transfer. In E. Saltzman, M. Donelan, W. Drennan, and R. Wanninkhof, editors, Gas Transfer at Water Surfaces,
volume 127 of Geophysical Monograph, pages 103–108. American Geophysical Union, 2002.
H. W. Haussecker and D. J. Fleet. Computing optical flow with physical models of brightness
variation. Pattern Analysis and Machine Intelligence, 23(6):661–673, 2001.
H. Haussecker and H. Spies. Motion. In B. Jähne, P. Geissler, and H. Haussecker, editors,
Handbook of Computer Vision and Applications, volume 2: Signal Processing and Pattern
Recognition, chapter 13, pages 309–396. Academic Press, 1999.
P. Heas, E. Memin, N. Papadakis, and A. Szantai. Layered estimation of atmospheric mesoscale
dynamics from satellite imagery. Geoscience and Remote Sensing, 45(12):4087–4104, 2007.
I. Herlina and G. H. Jirka. Experiments on gas transfer at the air–water interface induced by
oscillating grid turbulence. J. Fluid. Mech., 594:183–208, 2008.
R. Higbie. The rate of absorption of a pure gas into a still liquid during short periods of exposure.
Trans. Am. Inst. Chem. Eng., 31:365–389, 1935.
123
Bibliography
D. T. Ho, R. Wanninkhof, P. Schlosser, D. S. Ullman, D. Hebert, and K. F. Sullivan. Toward a
universal relationship between wind speed and gas exchange: Gas transfer velocities measured
with 3he/sf6 during the southern ocean gas exchange experiment. Journal of Geophysical
Research, 116, 2011.
B. K. P. Horn and B. Schunk. Determining optical flow. Artificial Intelligence, 17:185–204, 1981.
J. Horn. Hochaufgelöste optische wellenhöhenmessung am aeolotron mit laser-induzierter fluoreszenz. Master’s thesis, Bachelorarbeit, Institut für Umweltphysik, Fakultät für Physik und
Astronomie, 2013.
H. Hühnerfuss. Basic physicochemical principles of monomolecular sea slicks and crude oil spills.
In Marine Surface Films, pages 21–35. Springer, 2006.
L.-P. Hung, C. S. Garbe, and W.-T. Tsai. Validation of eddy-renewal model by numerical
simulation. In S. Komori, W. McGillis, and R. Krose, editors, Gas Transfer at Water Surfaces
2010, pages 165–176. Kyoto Univ. Press, 2011.
J. Hunt, S. Belcher, D. Stretch, S. Sajjadi, and J. Clegg. Turbulence and wave dynamics across
gas-liquid interfaces. In Gas Transfer at Water Surfaces 2010. Komori, S. and McGillis, W.
and Kurose, R., 2011.
IPCC. IPCC, 2013: Summary for Policymakers, in Climate Change 2013: The Physical Science
Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge University Press, Cambridge, United Kingdom
and New York, NY, USA., 2013.
B. Jähne. Digitale Bildverarbeitung. Springer, 2005.
B. Jähne and H. Haussecker. Air-water gas exchange. Annu. Rev. Fluid Mech., 30:443–468,
1998.
B. Jähne, W. Huber, A. Dutzi, T. Wais, and J. Ilmberger. Wind/wave-tunnel experiments on
the schmidt number and wave field dependence of air-water gas exchange. In W. Brutsaert
and G. H. Jirka, editors, Gas transfer at water surfaces, pages 303–309, Hingham, MA, 1984.
Reidel.
B. Jähne, P. Libner, R. Fischer, T. Billen, and E. J. Plate. Investigating the transfer process
across the free aqueous boundary layer by the controlled flux method. Tellus, 41B(2):177–195,
1989.
A. T. Jessup and K. R. Phadnis. Measurement of the geometric and kinematic properties of
microscale breaking waves from infrared imagery using a piv algorithm. Measurement Science
and Technology, 16(10):1961 ff, 2005.
124
Bibliography
A. T. Jessup, C. J. Zappa, et al. Infrared remote sensing of breaking waves. Nature, 385:52–55,
1997.
D. Kiefhaber. Optical Measurement of Short Wind Waves — from the Laboratory to the Field.
Dissertation, Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 2014.
S. A. Kitaigorodskii. On the fluid dynamical theory of turbulent gas transfer across an airsea interface in the presence of breaking wind-waves. Journal of Physical Oceanography, 14:
960–972, 1984.
A. N. Kolmogorov. The local structure of turbulence in compressible turbulence for very large
Reynolds numbers. Compt.Rend.Akad.Nauk SSSR, 30:301, 1941.
S. Komori, Y. Murakami, and H. Ueda. The relationship between surface-renewal and bursting
motions in an open-channel flow. Journal of Fluid Mechanics, 203:103–123, 1989.
K. E. Krall. Laboratory Investigations of Air-Sea Gas Transfer under a Wide Range of Water Surface Conditions. Dissertation, Institut für Umweltphysik, Fakultät für Physik und
Astronomie, Univ. Heidelberg, 2013.
C. Kräuter, D. Trofimova, D. Kiefhaber, N. Krah, and B. Jähne. High resolution 2-d fluorescence
imaging of the mass boundary layer thickness at free water surfaces. J. Europ. Opt. Soc. Rap.
Public., 9:14016, 2014.
C. Kräuter.
Aufteilung des transferwiderstands zwischen luft und wasser beim austausch
flüchtiger substanzen mittlerer löslichkeit zwischen ozean und atmosphäre. Diplomarbeit,
Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 2011.
V. N. Kudryavtsev and A. V. Soloviev. On the thermal state of the ocean surface. Izvestiya /
Atmospheric and Oceanic Physics, 17:1065–1071, 1981.
T. Kukulka, A. Plueddemann, J. Trowbridge, and S. P.P. Significance of langmuir circulation
in upper ocean mixing: Comparison of observations and simulations. Geophysical Research
Letters, 36:L10603, 2009.
P. K. Kundu. Fluid Mechanics. Academic Press, Elsevier, San Diego, CA, 4th edition, 2008.
J. C. Lamont and J. C. Scott. An eddy cell model of mass transfer into the surface of a turbulent
liquid. AIChE Journal, 16:513–519, 1970.
Langmuir. Surface motion of water induced by wind. Science, 87:119–124, 1938.
C. Le Quéré, C. Rodenbeck, E. Buitenhuis, T. Conway, R. Langenfelds, A. Gomez, C. Labsucchagne, M. Ramonet, T. Nakazawa, N. Metzl, N. Gillett, and M. Heimann. Saturation of the
southern ocean CO2 sink due to recent climate change. Science, 316(5832):1735–1738, 2007.
125
Bibliography
C. Le Quéré, G. P. Peters, R. J. Andres, R. M. Andrew, T. A. Boden, P. Ciais, and S. ... Zaehle.
Global carbon budget 2013. Earth System Science Data, 6(1):235–263, 2014.
J. A. Leese, C. S. Novak, and B. B. Clark. An automated technique for obtaining cloud motion
from geosynchronous satellite data using cross correlation. Journal of applied meteorology,
10(1):118–132, 1971.
S. Leibovich. The form and dynamics of Langmuir circulations. Annual Review Fluid Mechanics,
15:391–427, 1983.
S. Leibovich and S. Paolucci. The instability of the ocean to Langmuir circulations. J. Fluid
Mech., 102:141–167, 1981.
M. Li and C. Garret. Mixed layer deepening due to langmuir circulation. J. Phys. Oceanography,
27:121–132, 1997.
P. S. Liss and P. G. Slater. Flux of gases across the air-sea interface. Nature, 247:181–184, 1974.
P. S. Liss, C. A. Marandino, E. E. Dahl, D. Helmig, E. J. Hintsa, C. Hughes, M. T. Johnson,
R. M. Moore, J. M. C. Plane, B. Quack, H. B. Singh, J. Stefels, R. von Glasow, and J. Williams.
Short-lived trace gases in the surface ocean and the atmosphere. In P. S. Liss and M. T.
Johnson, editors, Ocean-Atmosphere Interactions of Gases and Particles, pages 1–54. Springer,
2014.
P. Liss. Gas transfer: Experiments and geochemical implications. In P. Liss and W. Slinn,
editors, Air-Sea Exchange of Gases and Particles, pages 241–298. Springer, 1983.
C. Liu, J. Yuen, and A. Torralba. Nonparametric scene parsing: Label transfer via dense scene
alignment. In Computer Vision and Pattern Recognition, 2009., 2009.
M. S. Longuet-Higgins. The generation of capillary waves by steep gravity waves. J. Fluid
Mech., 16:138–159, 1963.
B. D. Lucas and T. Kanade. An iterative image registration technique with an application to
stereo vision. IJCAI, 81:674–679, 1981.
J. Lucassen. Longitudinal capillary waves. part 1. - theory. Transactions of the Faraday Society,
64:2221–2229, 1968.
G. Marmorino, G. Smith, and G. Lindemann. Infrared imagery of large-aspect-ratio langmuir
circulation. Continental Shelf Research, 25:1–6, 2005.
G. Marmorino, J. Toporkov, G. Smith, M. Sletten, D. Perkovic, K. Frasier, and K. Judd. Ocean
mixed-layer depth and current variation estimated from imagery of surfactant streaks. IEEE
Geoscience remote sensing, 4:364–367, 2007.
126
Bibliography
G. Marmorino, G. Smith, J. Toporkov, M. Sletten, D. Perkovic, and S. Frasier. Airborne imagery
of ocean mixed-layer convective patterns. Deep-Sea Research, 56:435–441, 2009.
M. J. McCready, E. Vassiliadou, and T. J. Hanratty. Computer simulation of turbulent mass
transfer at a mobile interface. AIChE Journal, 32:1108–1115, 1986.
S. P. McKenna and W. R. McGillis. The role of free-surface turbulence and surfactants in
air-water gas transfer. Int. J. Heat Mass Transfer, 47:539–553, 2004.
W. K. Melville, R. Shear, and F. Veron. Laboratory measurements of the generation and
evolution of Langmuir circulations. J. Fluid Mech., 364:31–58, 1998.
E. Mémin and P. Perez. Robust discontinuity-preserving model for estimating optical flow. In
Pattern Recognition, International Conference, 1996.
W. P. Menzel. Cloud tracking with satellite imagery: From the pioneering work of ted fujita to
the present. Bulletin of the American Meteorological Society, 82(1):33–47, 2001.
M. Mizuno. Effects of the mechanical wave propagating in the wind direction on currents and
stress across the air-water interface. In Gas Transfer at Water Surfaces 2010. Kyoto University
Press, 2011.
L. Nagel, K. E. Krall, and J. B. Comparative heat and gas exchange measurements in the
heidelberg aeolotron, a large annular wind-wave tank. Ocean Sci. Discuss., 11:1691–1718,
2014.
H. Nakagawa and I. Nezu. Structure of space-time correlation of bursting phenomena in an
open-channel flow. J. Fluid Mech., 104:1–43, 1981.
J. C. Orr, V. J. Fabry, O. Aumont, L. Bopp, S. C. Doney, R. A. Feely, and A. ... Yool. Anthropogenic ocean acidification over the twenty-first century and its impact on calcifying
organisms. Nature, 437(7059):681–686, 2005.
N. Papenberg, A. Bruhn, T. Brox, S. Didas, and J. Weickert. Highly accurate optic flow computation with theoretically justified warping. International Journal of Computer Vision, 67(2):
141–158, 2006.
W. L. Peirson. Measurement of surface velocities and shears at a wavy air-water interface using
particle image velocimetry. Exp. Fluids, 23:427–437, 1997.
W. L. Peirson and M. L. Banner. Aqueous surface layer flows induced by microscale breaking
wind waves. J. Fluid Mech., 479:1–38, 2003.
W. L. Peirson and A. W. Garcia. On the wind-induced growth of slow water waves of finite
steepness. Journal of Fluid Mechanics, 608(-1):243–274, 2008.
127
Bibliography
W. Peirson, J. W. Walker, and B. M. L. On the microphysical behaviour of wind-forced water
surfaces and consequent re-aeration . Journal of Fluid Mechanics, 743:pp 399–447, 2014.
C. J. Popp.
Untersuchung von Austauschprozessen an der Wasseroberfläche aus Infrarot-
Bildsequenzen mittels frequenzmodulierter Wärmeeinstrahlung.
Dissertation, Institut für
Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 2006.
L. Prandtl. Führer druch die Strömungslehre. Vieweg, 9 edition, 1990.
M. Raffel, C. E. Willert, S. T. Wereley, and J. Kompenhans. Physical and Technical Background.
Springer, 2007.
M. Rashidi and S. Banerjee. The effect of boundary conditions and shear rate on streak formation
and breakdown in turbulent channel flows. Phys. Fluids, 2:1827–1838, 1990.
M. Rashidi, G. Hetsroni, and S. Banerjee. Particle-turbulence interaction in a boundary layer.
International Journal of Multiphase Flow, 16(6):935–949, 1990.
R. Rocholz, S. Wanner, U. Schimpf, and B. Jähne. Combined visualization of wind waves and
water surface temperature. In Gas Transfer at Water Surfaces 2010. Kyoto University Press,
2011.
W. Roedel. Physik unserer Umwelt: die Atmosphäre. Springer-Verlag, 3 edition, 2000.
M. Salter, R. Upstill-Goddard, P. Nightingale, S. Archer, B. Blomquist, D. Ho, B. Huebert,
P. Schlosser, and M. Yang. Impact of an artificial surfactant release on air-sea gas fluxes
during deep ocean gas exchange experiment ii. J. Geophysical Research, 116:1–9, 2011.
M. Sanjou, I. Nezu, and Y. Akiya. PIV measurements of Langmuir circulation generated by
wind-induced water waves. In Gas Transfer at Water Surfaces 2010. Kyoto University Press,
2011.
U. Schimpf. Untersuchung des Gasaustausches und der Mikroturbulenz an der Meeresoberfläche
mittels Thermographie. Dissertation, Institut für Umweltphysik, Fakultät für Physik und
Astronomie, Univ. Heidelberg, Heidelberg, Germany, 2000.
U. Schimpf, H. Haussecker, and B. Jähne. Studies of air-sea gas transfer and micro turbulence at
the ocean surface using passive thermography. In M. L. Banner, editor, The Wind-Driven AirSea Interface: Electromagnetic and Acoustic Sensing, Wave Dynamics and Turbulent Fluxes,
Sydney, Australia, 1999a.
U. Schimpf, C. Garbe, and B. Jähne. Investigation of transport processes across the sea surface
microlayer by infrared imagery. J. Geophysical Research, 109(C8):C08S13, 2004.
128
Bibliography
U. Schimpf, H. Haussecker, and B. Jähne. Thermography for small-scale air-sea interaction.
In B. Jähne, P. Geissler, and H. Haussecker, editors, Handbook of Computer Vision and
Applications, volume 3: Systems and Applications, chapter 35, pages 751–762. Academic
Press, 1999b.
J. Schnieders. Investigation of momentum transfer across the air-sea interface by means of active
and passive thermography. Master’s thesis, University of Heidelberg, 2011.
J. Schnieders, C. S. Garbe, W. L. Peirson, G. Smith, and Z. C. J. Analyzing the footprints
of near-surface aqueous turbulence: An image processing-based approach. J. Geophysical
Research, 118:1–15, 2013.
J. Schnieders, C. S. Garbe, and B. Jäehne. Estimating heat transfer rates from surface eddies the impact of turbulent scales on heat transfer. In preparation, 2014.
J. C. Scott. An optical probe for measuring water wave slopes. Journal of Physics E Scientific
Instruments, 7:747–749, 1974.
N. V. Scott, H. R.A., and G. B. Smith. Wavelet analysis of the surface temperature field at
an air-water interface subject to moderate wind stress. Int. J. Heat and Fluid Flow, 29:1103
–1112, 2008.
K. Siddiqui and M. Loewen. Characteristics of the wind drift layer and microscale breaking
waves. Journal of Fluid Mechanics, 573:417–456, 2007.
C. R. Smith and S. Metzler. The characteristics of low-speed streaks in the near-wall region of
a turbulent boundary layer. J. Fluid Mech., 129:27–54, 1983.
G. B. Smith, R. A. Handler, and N. Scott. Observations of the structure of the surface temperature field at an air-water interface for stable and unstable cases. In C. S. Garbe, R. A.
Handler, and B. Jähne, editors, Transport at the Air Sea Interface — Measurements, Models
and Parameterizations. Springer-Verlag, 2007.
J. A. Smith. Doppler sonar and surface waves: Range and resolution. J. Atmos. Oceanic
Technol., 9:49–163, 1989.
. SOLAS Scientific Steering Committee, International Project Office. ”solas extension proposalâ,
international project office, 2015, 2015.
A. Soloviev, S. Matt, M. Gilman, H. Hühnerfuss, B. Haus, D. Jeong, I. Savelyev, and M. Donelan.
Modification of turbulence at the air-sea interface due to the presence of surfactants and
implications for gas exchange. Part I: Laboratory experiment. In Gas Transfer at Water
Surfaces 2010. Kyoto University Press, 2011.
129
Bibliography
A. V. Soloviev and P. Schlüssel. Parameterization of the cool skin of the ocean and of the
air–ocean gas transfer on the basis of modelling surface renewal. J. Phys. Oceanogr., 24:
1339–1346, 1994.
A. V. Soloviev and P. Schlüssel. Evolution of cool skin and direct air-sea gas transfer coefficient
during daytime. Boundary-Layer Meteorology, 77:45–68, 1996.
C. Sommer, C. Straehle, U. Koethe, and F. A. Hamprecht. ilastik: Interactive learning and
segmentation toolkit. In 8th IEEE International Symposium on Biomedical Imaging (ISBI
2011), 2011.
F. Steinbrucker, T. Pock, and D. Cremers. Large displacement optical flow computation withoutwarping. 12th International Conference on Computer Vision, pages 1609–1614, 2009.
G. G. Stokes. On the theory of oscillatory waves. Trans. Camb. Philos. Soc., 8:441–455, 1847.
D. Sun, S. Roth, J. P. Lewis, and M. J. Black. Learning optical flow. In Computer Vision-ECCV
2008, pages 83–97. Springer Berlin Heidelberg., 2008.
D. Sun, S. Roth, and M. J. Black. Secrets of optical flow estimation and their principles. In
Conference on Computer Vision and Pattern Recognition (CVPR), 2010, 2010.
D. Suter. Motion estimation and vector splines. In Proceedings of the IEEE Computer Society
Conference on Computer Vision and Pattern Recognition, pages 939–942, 1994.
S. A. Thorpe. Langmuir circulation. Annu. Rev. Fluid Mech., 79:36–55, 2004.
S. A. Thorpe. An Introduction to Ocean Turbulence. Cambridge, UK: Cambridge University
Press., 2007.
C. Tropea, A. L. Yarin, and J. F. Foss. Springer handbook of experimental fluid mechanics.
Springer, 2007.
W.-T. Tsai. Using numerical simulation to help understand transport processes at the air-sea
interface, 2007.
W.-T. Tsai, S.-M. Chen, and C.-H. Moeng. A numerical study on the evolution and structure
of a stress-driven free-surface turbulent shear flow. J. Fluid Mech., 545:163–192, 2005.
W.-T. Tsai, S.-M. Chen, G.-H. Lu, and C. Garbe. Characteristics of interfacial signatures on a
wind-driven gravity-capillary wave. J. Geophys. Res., 118:1715–1735, 2013.
D. E. Turney and S. Banerjee. Air-water gas transfer and near-surface motions. J. Fluid Mech.,
733:588–624, 2013.
130
Bibliography
D. E. Turney, W. C. Smith, and S. Banerjee. A measure of near-surface fluid motions that
predicts air-water gas transfer in a wide range of conditions. Geophys. Res. Lett., 32(4):
L04607, 2005.
F. Veron and K. Melville. Experiments on the stability and transition of wind-driven water
surfaces. J. Fluid Mech., 446:25–65, 2001.
F. Veron, W. K. Melville, and L. Lenain. The effects of small-scale turbulence on air-sea heat
flux. Journal of Physical Oceanography, 41(1):205–220, 2011.
F. Veron, W. K. Melville, and L. Lenain. Wave-coherent air-sea heat flux. Journal of Physical
Oceanography, 38(4):788–802, 2008.
R. Wanninkhof. Relationship between wind speed and gas exchange over the ocean. J. Geophys.
Res., 97:7373–7382, 1992.
R. Wanninkhof, G.-H. Park, D. B. Chelton, and C. M. Risien. Impact of small-scale variability
on air-sea co2 fluxes. In Gas Transfer at Water Surfaces 2010. Kyoto University Press, 2011.
R. Wanninkhof, W. E. Asher, D. T. Ho, C. Sweeney, and W. R. McGillis. Advances in quantifying
air-sea gas exchange and environmental forcing. Annu. Rev. Mar. Sci., 1:213–244, 2009.
J. Weickert. Anisotropic diffusion in image processing. Stuttgart: Teubner, 1998.
J. Weickert and C. Schnörr. A theoretical framework for convex regularizers in pde-based computation of image motion. International Journal of Computer Vision, 45:245–264, 2001.
W. G. Whitman. The two-film theory of gas absorption. Chemical and Metallurgical Engineering,
29(4):146–148, 1923.
J. Wills, S. Agarwal, and S. Belongie. A feature-based approach for dense segmentation and
estimation of large disparity motion. International Journal of Computer Vision, 68:125–143,
2006.
O. Wurl and J. Obbard. A review of pollutants in the sea-surface microlayer (sml): a unique
habitat for marine organisms. Marine Pollution Bulletin, 48:1016–1030, 2004.
Z. F. Xu, B. C. Khoo, and K. Carpenter. Mass transfer across the turbulent gas-water interface.
AIChE Journal, 52(10):3363–3374, 2006.
C. J. Zappa, W. E. Asher, and A. T. Jessup. Microscale wave breaking and air-water gas transfer.
Journal of Geophysical Research-Oceans, 106(C5):9385–9391, 2001.
C. J. Zappa, W. E. Asher, A. T. Jessup, J. Klinke, and S. R. Long. Effect of microscale wave
breaking on air-water gas transfer. In E. Saltzman, M. Donelan, W. Drennan, and R. Wanninkhof, editors, Gas Transfer at Water Surfaces, volume 127 of Geophysical Monograph,
pages 23–29. American Geophysical Union, 2002.
131
Bibliography
C. J. Zappa, W. E. Asher, and A. T. Jessup. Microbreaking and the enhancement of air-water
transfer velocity. Journal of Geophysical Research-Oceans, 109:C08S16, 2004.
C. J. Zappa, W. R. McGillis, P. A. Raymond, J. B. Edson, E. J. Hintsa, H. J. Zemmelink,
J. W. H. Dacey, and D. T. Ho. Environmental turbulent mixing controls on the air-water gas
exchange in marine and aquatic systems. Geophys. Res. Lett., 34:L10601, 2007.
132
A. Appendix
A.1. Technical Data of used Infrared Cameras
Table A.1.: Employed infrared cameras.
Infrared Camera
Thermo-sensorik,
CMT 256
IRcam, Velox
327k
Chip
CMT*, cooled
CMT, cooled
wave length range [µm]
3.4 - 5.1
3.4 - 5
number of pixels
256x256
640x512
pixel pitch [µm]
32
24
maximum framerate [Hz] (full image)
880
207
maximum framerate [Hz] (partial image)
880
820
integration time [s]
0.05 - 12.75
0.01 - 1.2
NETD [mK]
20
20
A/D resolution [bit]
14
14
* CMT: Cadmium-Mercury-Telluride.
A.2. Error analysis, k-estimation
It is difficult to give precise measurement errors for some of the crucial quantities needed to
calculate the heat transfer rate k. Part of the uncertainty lies in the accuracy of the model
assumptions, for example in the case of the estimated bulk temperature Tb . Moreover, it is not
possible to give an absolute error of the velocity estimates based on the optical flow algorithm
as the ground truth is unknown. Nevertheless, it is instructive to perform an error propagation
analysis to identify most important error sources and get an estimate of expectable errors.
Starting from equation 3.7,
r
k=
πκ
·
2
s
s
v ∆T
∆x
,
Tb − Ts
(A.1)
the absolute error ∆k of the heat transfer rate k is given by:
133
A. Appendix
∂k ∂k ∂k ∂k ∆v.
∆k = ∆T
+
∆∆x
+
∆T
+
s
b
∂Tb ∂v ∂∆x ∂Ts (A.2)
An exemplary error analysis for one case with a wind speed u = 3.5 m/s and estimated heat
transfer velocity k = 0.7 cm/s for small scale turbulence is shown:
Ts = (18.49 ± 0.02)◦ C,
∆x = (0.4 ± 0.02)cm,
Tb = (18.88 ± 0.06)◦ C,
v = (6.7 ± 0.5)cm/s,
Here, the error estimate for bulk temperature is derived from the histogram in figure 7.13 and
therefore an error of the mean. This does not include possible errors resulting from the accuracy
of the conceptual model. However, independent estimates of bulk temperatures from the surface
renewal model from a thermometer measuring bulk temperature (see Table 4.2) differed by less
than 10 %. The given error for the surface velocity is a worst case error. Accuracy tests of
surface velocities with known flow fields have shown the relative error to be much lower. The
value for ∆x is the mean size of surface eddies, the error corresponds to the spatial resolution.
∆k ≈ 1 · ∆Ts + 0.06 · ∆Tb + 0.06 · ∆∆x + 0.003 · ∆v
≈ |{z}
0.02 + |0.004
{z } + |0.004
{z } + |0.001
{z } ≈ 0.03
∆Ts
∆Tb
∆x
∆v
Thus, the most important quantity remains the surface temperature field, even though the
deployed infrared camera (IRCAM Velox 327k M) has a very high sensitivity. The estimated
error is for a single k estimate and is of the order of 50 %. This is high for a single value but even
averaging over a small area leads to a small statistical error (thus errorbars in Figure 10.5 are
too small to plot). However, the results depend heavily on the accuracy of model assumptions
and systematic errors might be significantly higher than the statistical errors.
134
Danksagung
Ich möchte mich bei PD Dr. Christoph Garbe bedanken, der mir diese Arbeit ermöglicht hat, für
seine Ermutigung, Unterstützung und Beratung und für unzählige Diskussionen und Vorschläge.
Herrn Prof. Dr. Kurt Roth möchte ich für seine freundliche Bereitschaft zur Zweitbegutachtung
der Arbeit danken, die auch noch in die Weihnachtszeit fällt.
Außerdem gilt mein großer Dank Prof. Dr. Bernd Jähne für die Sicherung der Finanzierung
der letzten Phase dieser Arbeit, Diskussionen und Vorschläge und die Möglichkeit Messungen am
Wind-Wellen-Kanal durchzufühen. Mein großer Dank gilt dabei allen Mitgliedern der AeolotronGruppe, die mich jederzeit bereitwillig unterstüzt haben. Danke an Dr. Leila Nagel, die stets zur
Stelle war um Details zu besprechen und Feedback zu geben und bei einer Messung zu helfen,
Christine Kräuter für ein jederzeit offenes Ohr, hilfreiche Diskussionen und einer schönen Zeit
bei gemeinsamen Konferenzen, Dr. Günther Balschbach und Dr. Kerstin Krall für die tatkräftige
Hilfe bei der Installation der Wärmepumpe sowie allerlei technischer Unterstützung und Max
Bopp, Jakob Kunz, Marcel Gutsche und Wolfgang Mischler für die tatkräftige Unterstützung
rund um die Messungen am Windkanal.
Vielen Dank allen Menschen im dritten Stock der Speyerer Straße für alle Mittags- und Kaffeepausen. Besonderer Dank gilt Julian Stapf, Tobias Binder und Marcel Gutsche für die schöne
Atmosphäre im gemeinsamen Büro. Mein Dank gilt auch Tanja Kohl und Karin Kruljac für die
Unterstützung bei administrativen Aufgaben.
Mein besonderer Dank gilt meiner Mutter Margret und Tomma, die immer an mich geglaubt
haben, mir Mut gemacht haben und jederzeit für mich da waren und sich große Mühe gegeben
haben mein Promotionsthema korrekt erklären zu lernen. Besonders möchte ich Andreas danken
für die vielen schönen Stunden, seine Geduld und Unterstützung, während der ganzen Zeit und
besonders in den letzten Wochen und am allermeisten für seine Liebe.
135
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
