Cello C22100DVB User manual
Add to my manuals
40 Pages
Cello C15101DVB is a digital color TV with a variety of features to enhance your viewing experience. It boasts an LED display panel for stunning picture quality and energy efficiency. With HDMI and Scart connectivity, you can effortlessly connect external devices such as DVD players and gaming consoles. Additionally, the TV offers a built-in Freeview tuner, allowing you to access digital terrestrial channels without the need for a separate set-top box.
advertisement
▼
Scroll to page 2
of 40

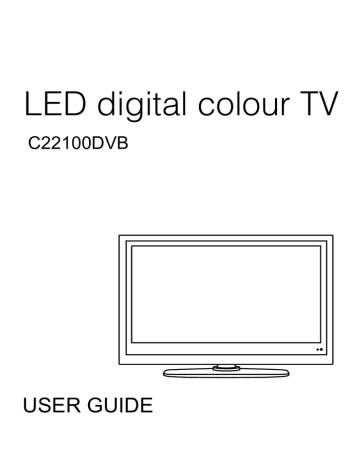

LED digital colour TV C22100DVB USER GUIDE Introduction Thank you for purchasing this TV which has been designed and manufactured to give you many years of trouble free service. You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase. HDMI HDMI (High Definition Multimedia Interface) is the next generation of digital interface. Unlike conventional connections, it transmits uncompressed digital and audio signals using a single cable. This TV supports high-definition video input via the HDMI socket on the back of the TV. Safety is important To ensure your safety and the safety of others, please read the safety precautions BEFORE you operate this product. Contents You will find the following • • • • • TV User Guide Quick Start Guide Remote Control 2 x AA Batteries NOTE: If any of the items listed are damaged or missing please contact our technical helpline on 0871 288 7345 Contents 1-3 SAFETY INFORMATION 4-5 6-9 10 10-15 16 17 17 18-25 26-31 31-32 33 Unit and Accessories Remote Control Aerial connection Connecting external devices Common Interface slot Auto installation setup Source menu Menu settings Multimedia Operation Recording Operation EPG menu 34 35 36 TROUBLE SHOOTING GUIDE TECHNICAL SPECIFICATIONS Wall mounting options SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that there are important operating maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. Keep these instructions • • • • • • • Do not use this TV near water. Clean only with a slightly damp cloth. Do not block any ventilation openings. Install in accordance with the supplied Quick Start Guide and this User Guide. Protect the power chord from being walked on or pinched, particularly at plugs, and the point where it exits from the TV. Do not allow the power chord to overhang the edge of a table. Unplug this TV during lightening storms or when unused for long periods of time. WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS TV TO RAIN OR MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING AND SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV. NOTE: No naked flames such as candles should be placed on the TV. 1 IMPORTANT SAFETY INFORMATION(Continued) This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. x Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately. x Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains! x The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operarble. x This set should only be connected to a mains power supply which matches that stated on the label on the rear of the TV – do not attempt to connect it to any other type of supply. x The socket – outlet must be installed near the equipment and easily accessible. x To prevent overload, don’t share the same mains supply socket with too many other items of equipment. x Apparatus with Class 1 construction shall be connected to a mains socket outlet with a protective earthing connection. x Keep away from rodents. Rodents enjoy biting into electric flexes. x Always hold the plug when pulling out the plug from the mains supply socket. Do not pull on the flex, the flex can become overloaded and cause a short circuit. x Set up the unit so that no one is able to trip over the flex. x Do not place heavy items on the flex, which may damage it. x Take note that the flex cannot be reached and pulled by young children, avoiding injury. x Do not set up the unit near to heat sources. The casing and the flex could be damaged by the impact of heat. x The screen is made of plastic and can break if damage is done to it. Be careful when collecting sharp edged plastic splinters to avoid injury. x Avoid placing the unit on any surfaces that may be subject to vibrations or shocks. x To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial. Caution: Do not touch the aerial (RF) connector. x When you leave your home for long periods of time, unplug the AC power cable for safety reasons. x The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 5 cm (2”) free space around the whole unit. x Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools. x Do not use this unit when moisture condensation may occur x Any repairs must be carried out by qualified personnel only. x Do not open this unit. A non – expert attempting to repair the unit could be dangerous and potentially cause a fire hazard. 2 IMPORTANT SAFETY INFORMATION (continued) x x x x x Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again. Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate the warranty. Qualified personnel must only service this apperatus. Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote control, do not drop. Never place hot objects or open flame sources on or close to the TV. High temperatures can melt plastic and lead to fires. x To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For stubborn stains, you may use a damp cloth with dilute detergent. Headphone Warning Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when listening through headphones, particularly for lengthy listening periods. Where to install Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on a sturdy platform of which the surface should be flat and steady. This will prevent it from falling over. Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and so that small objects cannot be inserted into the ventilation slots or openings in the cabinet. LED Screen The LED display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of malfunction. 3 Unit and Accessories LED Indicator Remote Control Window (keep clear) The functions of the TV buttons are described below. Menu : Press to display the OSD menu, press again to exit the menu. CH+/- : Press to skip through the channels. Vol +/- : Press to adjust the volume. TV/AV : Press to display the input source menu. Power :Turn ON/OFF the TV set. 4 Unit and Accessories (continued) U TV set Remote Control Power cable Remote Guide Remote Guide Batteries Mains adaptor QUICK START GUIDE Quick Start Guide 5 Warranty Card USER GUIDE Warranty Card User Guide Remote control Functions of remote control buttons Dependant on the model of theTV some keys will have no function iViewer Only used on TVs with Internet Player*. In this mode the remote does not control the TV. to control the TV again. Press If you have set the remote to work a Satellite receiver, the remote controls only the Satellite receiver and not the TV when you press Press to control the TV again. Used on TVs with DVD* or PVR Used on TVs with PVR or Internet Player* HOLD TEXT Used on TVs with PVR or Internet Player* *Dependant on Model 6 Remote control (continued) Dependant on the Model of the TV some keys will have no function Menu Picture Sound Setting Language Reset Function* DVD setup * FTI *Dependant on Model Source Menu TV (Analogue) DTV ( Freeview ) SD1 (red card)* SD2 (green card)* AV Scart 1 Scart 2 * S-Video* HDMI 1 HDMI 2* YprPb DVD* Iplayer * VGA Help This displays a page that gives telephone numbers for service. Press to enter, press again to exit. iViewer Quick Start Searches all ATV and DTV channels by a single key (can take up to 10 Mins). Channel Favourite list USB Info-Taste In DTV mode shows Now / Next. 2nd Press Extended programme Info. Whilst Recording* Shows details of the recording and space available on the card. Back Exit from any Menu Guide(DTV) Press to enter, press again to exit. DVD Eject * Stop For DVD*, iPlayer*, PVR, SD1*and SD2*. Fast forward - DVD*&SD1*, SD2*, PVR Reverse - DVD* &SD1*, SD2*, PVR DVD Disc Menu * Picture Mode Displays picture and aspect function Sound - changes the sound Pause/Play DVD*, iPlayer*, SD1* und SD2* PVR and Time shift Next - DVD *, iPlayer*, PVR Display the Playback list on SD1* (red card) Display the Recorded list Previous- DVD *, iPlayer*, PVR Soft Keys The action they perform is shown on the menu and changes for each menu . Display the Playback list on SD2* (green card) Subtitles DVD and DTV mode only. Teletext / MHEG5 (You can not record this) HOLD TEXT A Displays the red recording list. (The programmes you have booked to be recorded). Displays the timer schedule list. B* Displays the green recording list. (The programmes you have booked to be recorded). 7 Remote control (continued) Dependant on the model of TV some keys will have no function *Dependant on Model iViewer HOLD TEXT DVD 8 S Remote control (continued) Installing Batteries in the Remote Control 1. Remove the battery compartment cover at the rear of the remote control by pushing the retaining clip forward and pulling up. 2. Install the supplied batteries, ensuring the polarity matches what is shown in the battery compartment. 3. Replace the battery compartment cover. Using the Remote Control To use the remote control point it at the TV and press the required buttons. You must be within 6 meters and at an angle of less than 30 degrees from the center of the TV. NOTE: Sunshine or other strong light sources may interfere with the signal from the remote control. In this situation turn the TV away from the light source. WARNING! DO NOT LEAVE BATTERIES IN THE REMOTE CONTROL FOR EXTENDED PERIODS AS THEY CAN LEAK OR CORRODE CAUSING DAMAGE TO THE REMOTE CONTROL. CHECK THEM PERIODICALLY AND REPLACE THEM AS REQUIRED. WARNING! DO NOT MIX BATTERY TYPES. WHEN INSERTING BATTERIES, REPLACE ALL BATTERIES AT THE SAME TIME. DO NOT MIX OLD AND NEW BATTERIES. WARNING! EXHAUSTED BATTERIES MUST BE TREATED WITH CARE AND DISPOSED OF ACCORDING TO ANY SAFETY OR RECYCLING REGULATIONS IN FORCE IN YOUR LOCAL AREA, NEVER DISPOSE OF BATTERIES INTO GENERAL WASTE, OR FIRE. WARNING! NEVER EXPOSE BATTERIES TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE. 9 Aerial connection USER GUIDE WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS! Connecting the TV Antenna Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted. • To improve picture quality in a poor signal area, purchase and install a signal amplifier. • If the antenna needs to be split for two TVs, use a 2-Way Signal Splitter (not supplied). Connecting external devices This instruction manual shows the simplest and most effective way of connecting your TV to ancillary equipment. Alternate methods are listed below. HDMI Lead You can connect this TV to a compatible device using a HDMI lead. This method will give the best picture. Connect the cable from the HDMI equipment to the TV HDMI socket. SCART Lead You can connect this TV to a compatible device using a SCART lead. The connection uses component video signals, i.e. the red, green and blue (RGB) content of the video are sent on separate signals. VGA Cable You can use your TV as a monitor for your personal computer by using a VGA cable. Sound from your personal computer may also be played through the TV. 10 Connecting external devices (continued) Common Interface TV Signal Connect to USB device Satellite Box or Blue Ray DVD 11 Connecting external devices (continued) CONNECTIONS Name POWER USB HDMI VGA PC-IN Function Description Connect to power supply Connect to USB device for multimedia Connect to the HDMI socket of your DVD or Satellite Box Connect to the PC VGA output to display PC graphics PC audio input SCART Headphone Connect to the scart input / output of external devices Connect Headphone YPbPr Video Connect to the YPbPr output on external devices Connect to the video output of external devices (AUDIO)L/R IN RF CI Audio signal input for AV(Shared with YPbPr) Connect to antenna or cable source CI slot (pay as you view card slot) Caution: Before connecting external devices: x Makes sure to disconnect the appliances from the power supply in order to avoid any potential damage from occurring. x Make sure to establish the required connection. x Make sure that the connectors are properly and correctly attached before connecting the appliances to the power supply. 6 12 Connecting external devices (continued) PC connection As PCs are sometimes still supplied with a ‘conventional’ CRT monitor, you may need to adjust the display settings of your PCs graphics card, otherwise the pictures may not appear correctly. Switch on your PC (still with your original monitor connected) no w select the screen resolution, and select 60Hz refresh rate. Switch off your PC, then connec t it to your TV while both appliances are still switched off. VGA, HDMI PC Connection Use a PC-VGA cable (not supplied) to connect the TV to your PC. You can also use an HDMI cable to connect to your PC (if your PC Graphic card supports HDMI). When the HDMI cable is used, the PC audio cable is no longer required. If you use the HDMI to DVI cable, you will need to use the PC audio cable. Connect all cables carefully and do not bend or break the connector pins. When using the VGA cable x Switch on the TV x Switch on the PC x Select PC/VGA as input source VGA cable HDMI to DVI cable When using the HDMI cable Audio cable x Select HDMI as input source HDMI to HDMI ( All illustrated cables are not supplied) 13 Connecting external devices (continued) Connecting Video camera and Video recorder Video camera x x x x Connect the AV cable to the TV and to the video camera. Turn on both video camera and the TV. Select AV/CVBS source You can now see the playback picture from the video camera. Note: x To connect the video camera using other cables, refer to the video camera instruction manual. Video recorder x x x x Connect the Scart cable to the TV and video recorder. Turn on both video recorder and the TV. Select Scart source You can now see the playback picture from the video recorder. Note: x To connect the video recorder using other cables, refer to the video recorder instruction manual. Video recorder Scart cable Video camera AV cable All illustrated cables are not supplied 14 Connecting external devices (continued) Connecting an audio system You can supply the TV sound to the stereo system (A) with the Scart socket. Use a special scart cable SCART to RCA. (Please consult your hi-fi instructions for details). If you have a surround sound amplifier/decoder (B) Use the Scart cable or the special scart cable Scart to RCA. (A) Scart to RCA cable (B) Scart cable All illustrated cables are not supplied) Connecting a DVD player Connect a DVD player using either a SCART cable or the HDMI cable. (only if your external equipment supports HDMI). HDMI to HDMI When using the SCART cable x Switch on the TV x Switch on the DVD player x Select SCART as input source When using the HDMI cable SCART x Select HDMI as input source (All illustrated cables are not supplied) 15 USER GUIDE Common Interface Slot USING YOUR COMMON INTERFACE SLOT Common Interface The Common Interface (CI) slot is designed to accept the Conditional Access Module (CAM) and Smart Card in order to view the pay TV programmes and additional services. Contact your Pay Per View TV service provider to get more information about the modules and subscriptions. NOTE: Conditional Access Module and Smart Cards are sold separately. WARNING! SWITCH OFF YOUR TV BEFORE ANY MODULE IS INSERTED INTO THE COMMON INTERFACE SLOT, THEN ADD THE SMART CARD TO THE CAM. 1. Turn on the TV and ensure ‘DTV’ Source is selected. 2. If the CAM is detected the TV will display the following message on the screen. "Common Interface Module inserted" wait for a few moments until the card is activated. 3. Select the relevant digital Pay Per View channel. 4. Detailed information on the Smart Card in use is displayed 5. Press the Ok button to access the card menu. Refer to the Module Instruction Manual for setting details. 6. When the module is removed, the following message will appear on the screen. "Common Interface module removed". 16 Auto installation setup Power On / Off the TV Power Switch On / Off Press the power switch to setting and the standby indicator will light red. To turn on the TV Press the power button on the TV or the button on the remote control, the standby indicator will light green. To turn off the TV Press the power button on the TV or the button on the remote control, the standby indicator will light red. To turn the TV off completely press the power switch to setting and the standby indicator light will extinguish. When you initially turn on the TV you will see the first time installation menu as below: Ensure that the aerial is plugged in to the TV, Make sure your Remote is in TV mode (by pressing TV button), switch on the TV by pressing . You will see the first time installation menu. Press the button on the remote control to start the tuning procedure. This process will find all available ATV and DTV channels and store them. By pressing the Quick Start button the first time installation can be recalled at any time. Source Menu You can select the input source menu by pressing the Source button on the remote control or the TV / AV button on the TV. Source OK 17 BasLc Use Menu Settings 1. Turn the TV on. 2. Press the MENU button on the Remote Control. 3. Use the and buttons to navigate through the menu. 4. Press the EXIT button to exit the Menu. CHANNEL MENU Allows you to search channels and set up a variety of channel options. SETTING MENU: Allows you to setup a variety of setup options. Allows you to customize the sound options and effects. FUNCTION MENU: Allows you to set up a variety of lock/time and setup options. 18 Application Menu Settings (continued) Use the and buttons to select the CHANNEL menu (as the picture above), press button to enter the menu. The CHANNEL menu includes the following options : Country Press and buttons to select the Country. (Can be selected in ATV mode) Auto Search Press button to start auto search. Auto Search menu for DTV Manual Program Press Auto Search menu for ATV button to enter the submenu. Manual Program menu for ATV Program Color Sys. Sound Sys. Manual Search AFT Fine Skip Select the program you want to edit. Select the color system for the program you want to edit. Select the sound system for the program you want to edit. Use and button to manual search. Turn on/off the Auto Frequency Tuning function for Manual Search. Use and button to fine-tune. Select “Yes” to skip the program when you scan the programs by CH+/-. 19 Menu Settings (continued) Manual Program menu for DTV Program Start Search Channel Found SIG. Quality SIG. Strength Frequency Select the program you want to edit. Press button to start search. Display the channel found. Display the signal quality of the channel found. Display the signal strength of the channel found. Display the frequency of the channel found. Program Edit: Press button to enter the submenu as the following picture. Program Edit menu for ATV Program Edit menu for DTV NAME: Select the channel, press GREEN button on the remote control to change the name of the channel. (Use button to name, and press OK button to confirm) LOCK: Select the channel, press RED button to lock the channel. You have to enter the code to view the channel you have locked. Note: you could set the code in System Lock menu in FUNCTION menu, the original code is 0000. INSERT: Select a channel you want to insert, press YELLOW button, then select the position, press GREEN button to insert, or you could press RED button to cancel the option. Lock: Select the channel, press BLUE button to lock the channel. Delete: Select the channel, press RED button to delete the channel. Move: Select the channel you want to move, press GREEN button, and move the channel by button, confirm the option by OK button. Rename: Select the channel, press YELLOW button to change the name of the channel. (Use button to name, and press OK button to confirm) CI MENU(in DTV mode) Please contact your “pay perview” provider who can supply a viewing card and cam unit with instructions for their use. 20 Menu Settings (continued) Favourite List Press button to enter the Favourite List. USB Press button to Multimedia menu. Use the and buttons to select the PICTURE menu (as the picture above), press button to enter the menu. Picture Mode Choose from Standard, Movie, Vivid and Personal. Note: Contrast, Brightness, Color and Sharpness can only be adjusted in the Personal mode option in the Picture Mode Settings. Contrast Controls the difference between the brightest and darkest regions of the picture. Brightness Controls the overall brightness of the picture Color Control the color. Sharpness Increase this setting to see crisp edges in the picture; decrease it for soft edges . Tint Controls the tint ( NTSC mode only). Color Temp. Choose from Normal, Cool, and Warm. Noise Reduction Reduce any interference noise by selecting “ON”. (Can be selected in ATV mode). 21 Application Menu Settings (continued) Use the and buttons to select the SOUND menu (as the picture above), press button to enter the menu. Sound Mode Allows you to select among: Standard, Music, Movie and Personal. Bass (Can be adjusted when the sound mode is set to User) Controls the relative intensity of lower pitched sounds. Treble (Can be adjusted when the sound mode is set to User) Controls the relative intensity of higher pitched sounds. Balance To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track. AVL Control the volume of the program automatically when you turn on the function by selecting “On”. 22 Menu Settings (continued) Use the and buttons to select the SETTING menu (as the picture above), press button to enter the menu. The SETTING menu includes the following options: Language Allows you to select menu language. OSD Timer Allows you to select the time for OSD menu displays on the screen. Transparence Allows you to select the transparence for OSD menu displays on the screen. Overscan Turn on/off the overscan funciton. (Can be selected in HDMI mode ) Reset Press button to restore factory default. 23 Menu Settings (continued) Use the and buttons to select the FUNCTION menu (as the picture above), press button to enter the menu. The FUNCTION menu includes the following options : Sleep Timer Allows you to setup the sleep timer to : 15min, 30min, 45min, 60min, 75min, 90min,105min, 120min and off. Aspect Allows you to select the screen display mode. (Can be selected in DTV mode) TT Language Allows you to select the Teletext language. (Can be selected in ATV mode) Blue Screen Turn on the blue screen display in no signal state by selecting “ON” (Can be selected in ATV mode) System Lock Press button, and enter the code to enter the submenu. The original code is 0000. System Lock Child Lock Key Lock Parental Change Code FTI (First Time Installation) Turn on/off the system lock function. Lock the channel, you have to enter the code to view the channel. Lock the buttons on the TV set. Select the parental control mode. Change the code. Press button to enter the First Time Installation menu. 24 Menu Settings (continued) Use the and buttons to select the PC SETUP menu (as the picture above), press button to enter the menu. The PC SETUP menu includes the following options : H-Position Adjust the transverse position of the screen. V-Position Adjust the vertical position of the screen. Clock Adjust the pixel clock frequency, until the image size is maximized for the screen. Phase Adjust the phase of the ADC sampling clock relative to the sync signal, until a stable image is obtained. Auto Adjust Press button to setup the parameter of the screen automatically. 25 Multimedia Operation Note: Insert USB device and select DTV mode. Basic Operation Press the MENU button on the remote control to display the main menu. Select the CHANNEL menu using the / buttons, then select USB using the / buttons. Finally press the button to enter the Multimedia menu seen below. MULTIMEDIA My Album My Music My Movie My Recorder Select OK Enter menu Press / button to select the menu you require and press the OK to enter. Press EXIT button to exit the menu. My Album Album: 3 photos Root(USB) i Device 639h447 001. ''&-3* )/2:(5-3* &$.(-3* Move Move OK Exit Exit View Note1: Navigate the menu according to the descriptions at the bottom of the menu. Note2: Press MENU button to return to the previous menu. 26 Multimedia Operation (continued) 1. My Music menu Select the music file Play the music My Music My Music Repeat All Music: 2 Songs Root(USB) Repeat All Music: 2 Songs Root(USB) 001. You are not alone.MP3 002.Pretty Boy.MP3 001. You are not alone.MP3 002.Pretty Boy.MP3 4% 00: 50/03:46 i Device Mode Stop Play/Pause Move Move OK View Fast Stop Play/Pause i Device Exit Exit Press / buttons to select folder or music files, press the music file then press OK to play the file. Move / Move Mode OK View Fast Exit Exit buttons to select the required Play/Pause : Press the RED button on the remote control to start the music, press again to pause. Stop : Press the GREEN button on the remote control to stop and end the music track. Mode : Press the YELLOW button on the remote control to repeat one or all files. Fast : Press the BLUE button on the remote control to play fast forward. 2. My Album menu Select the photo My Album - Thumbnail 1/1 639h447 Move Move OK View Exit Exit Folder Use / / / buttons to select the photo you want to view, press the OK button to view the photo full screen. To return to My Album menu press the Menu button. If a file cannot be located press the blue (Folder) button and search other folders. 27 Multimedia Operation (continued) Picture View Select the photo, and press OK button to view as the picture below: Press / button to view the previous/next photo. Zoom : Press the RED button on the remote control to zoom photo on the screen, when the photo is larger than full-screen, press / / / button to move. Music : Press the GREEN button on the remote control to display the music files and you can add music for when you view the photos. Flip H : Press the YELLOW button on the remote control to flip the photo horizontally. Flip V : Press the BLUE button on the remote control to flip the photo vertically. 3. My Movie menu Select the movie file Play the movie My Movie Movie: 3 movies Root(USB) i Device 001. MOV03375.MPG MOV03376.MPG MOV03377.MPG Move Move OK View Exit Exit Press / button to select the Movie files, press the / buttons to select the required Movie file then press OK to play the file. Play/Pause : Press the RED button on the remote control to pause the movie playing, press again to continue. Stop : Press the GREEN button on the remote control to one-step-play, press BLUE button next, you can set slow-forward speed to see the movie. Backward Forward 28 Multimedia Operation (continued) 4. My Record menu DVR SETUP Press / button to select the item, and press OK button to enter the submenu, or press MENU button to MULTIMEDIA menu. Recorded List Recording Device Recording Preference OK Enter menu Select Recorded List Recorded List LA7 07/11/06 09:15̚09:15 00:00:12 Record File count:3 Page: 1 1. LA7_071106 2. BBC ONE_050720 3. SitcomUNO_071106 Select Delete OK Play Preview i Device Press / button to select the recording you want to view , and press OK button to play in the small window, and press again to play in full-screen. Press MENU button to stop and back to the Recorded List. You can press SD1 button on the remote control to display the Recorded list. You can press A button on the remote control to display the Shedule list. Note1: Use the / buttons to turn pages in the list. Press the RED button on the remote control to delete the selected Do you want to delete this file? recording. A message will be displayed as shown on the picture to the right. Press the OK button to confirm or MENU to cancel. Yes No OK Note: When you start viewing a recording which you have already started previously but not finished, a message shown on the picture to the right will appear. Press / to select the option then press OK button to confirm. Exit DVR PLAY OPTIONS Play From Start Play From Last Viewed Select OK Accept When you are playing the recording, you can press button on the remote control to play fast-forward. Press button on the remote control to play fast-backforward, it will stop and play normally on the beginning; Press button on the remote control to pause, press again to continue play normally; Press button on the remote control to stop and back to Record List; Press / button on the remote control to fast-forward/fast-backward by 10%. 29 Multimedia Operation (continued) Recording Device My Recorder Device Type Slot Partition USB 1 2 USB 0% 50% Free Used Total Move Change OK 100 1.8GB 12MB 1.8GB Select Format Disk Format Press / button to select the item, and press / button to select, and press OK button to confirm and back to previous menu, or press MENU to cancel the setting and back to previous menu. Device: Select USB device. Slot: Select the slot when USB device selected. Partition: Partition: Select the partition when USB device selected. Press the RED button on the remote control to format the device you selected, and it will display a message as the right picture, press OK button to confirm or press MENU button to cancel. Press the GREEN button on the remote control to format the whole disc you selected, and it will display a message as the right picture, press OK button to confirm or press MENU button to cancel. All data will be lost in current partition, format the partition? OK Yes Exit No All data will be lost format the disk? OK Yes Exit No Recording Preference DVR PLAY OPTIONS Time Shift Size Time Shift One Button Recording Default Record Duration Select 1.2 GB Off On Change Press / button to select the item, and press / button to select, and press OK button to confirm and back to previous menu, or press MENU to cancel the setting and back to previous menu. Time Shift Size: Display the time shift size of USB device. Time Shift: Select the Time Shift mode----OFF, Pause, AUTO. When you select Pause or AUTO, you can see the Time Shift as follows. 30 Recording Operation (continued) During recording enter the Time Shift mode, the screen display will appear as below. Note1: You may get a message as seen below and it will disappear automatically at once. DVR DEVICE Device writing speed is too slow! OK Exit Note2: You may get a message as seen below if your recording stops for no reason. DVR DEVICE No sufficient device space Please change size! OK Exit Note3: When the recording is finishing a message will be displayed on the screen as below. DVR DEVICE Recording completed! OK Exit Note4: When the USB device has been extracted from the TV a message will be displayed as below. DVR DEVICE Device is not ready! OK Exit 32 EPG menu TV GUIDE Display the information of the programme 13:10 20/07/2005 12:00 - 18:00 Preview the programme BBCi BBCi - featuring news, sport, weather and TV guide BBCi CN 800 801 Channel list Options Name YLE TV1 13:00 BBC Ne So 20/07 Titanic YLE PEILI No Information Available YLE TV2 No Information Available 051 BBCi BBCi 807 YLE FSR+ABC No Information Available TXT 802 Select Sc roll Timer Reminder OK To View - Day 15:00 Display the programme name i Preview + Day Display the programme guide by pressing the GUIDE button. You can select a programme for recording using the / / / buttons. To book a timer recording press the red button and the selected programme will be added to the Timer recording list. The booked programme will be outlined in red in the programme matrix. When the programme starts it will be recorded to the USB device. To set a reminder use the Green button. When the programme starts the TV will automatically switch to this programme. Timer recording List To display the list of programms scheduled for recording, press the A button List of Recorded Programms To display the list of programms already recorded on the USB press SD1 button. 33 USER GUIDE TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. SYMPTOM TROUBLESHOOTING No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. Ensure that the TV is powered on. Check that the cables are fitted securely. Ensure the aerial and/or external sources are connected. Press the SOURCE button to change the source. Turn the TV on or off. Press the MUTE button and check if Mute mode is set. Switch to another channel and see if the same problem occurs. Press V+ button to see if the problem can be solved. Check that correct channel is selected Adjust the antenna. Check if the same problem exists on other channels. Ensure the correct picture settings are selected. No Picture No Sound No picture on some channels No colour on some channels (black & white) Noisy, Snowy, Ghosting picture. Check the antenna is connected correctly. Check that the antenna Is in good condition. Try moving the antenna. If none of the suggestions seem to work, try switching your TV off and then on again. If this does not work contact our technical helpline 0871 288 7345. NOTE: The TV must only be repaired by a qualified registered service person. Never attempt to remove the back cover as the TV has dangerous voltages inside that may cause fatality or fire. 34 TECHNICAL SPECIFICATIONS Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations. TV Specifications TV System PAL / BG / DK / I Audio System BG / DK / I Screensize 22”(Diagonal) Resolution 1920 x 1080Pixels(RGB) Aerial input 75 Audio output power 2 x 3W Power requirements 100-240V ̚ 50/60Hz Power consumption < 60W Standby power consumption <1W Weight 4.40 kg (unbalanced) Remotecontrol specifications Type Controldistance ControlanglH Batteries Dimensions Weight Infrared 5m 30 degrees(Horizontal) 2 x 1.5V,SizeAA 60 x204 x32mm 140g(withoutbatteries) 35 Wall Mounting 1. 2. 3. 4. The stand must first be removed. Place the TV face down. Remove the two screws on the back of the TV to release the stand. Remove and store the stand and screws. Use four machine screws to mount the TV on the bracket. This unit is VESA-Compliant and designed to be wall mounted with a VESACompliant 100mm x 100mm mounting kit. Mount this unit according to the instructions of the wall bracket (not supplied) 100mm 100mm 4 Mounting holes Screw size MB4 x10 36
