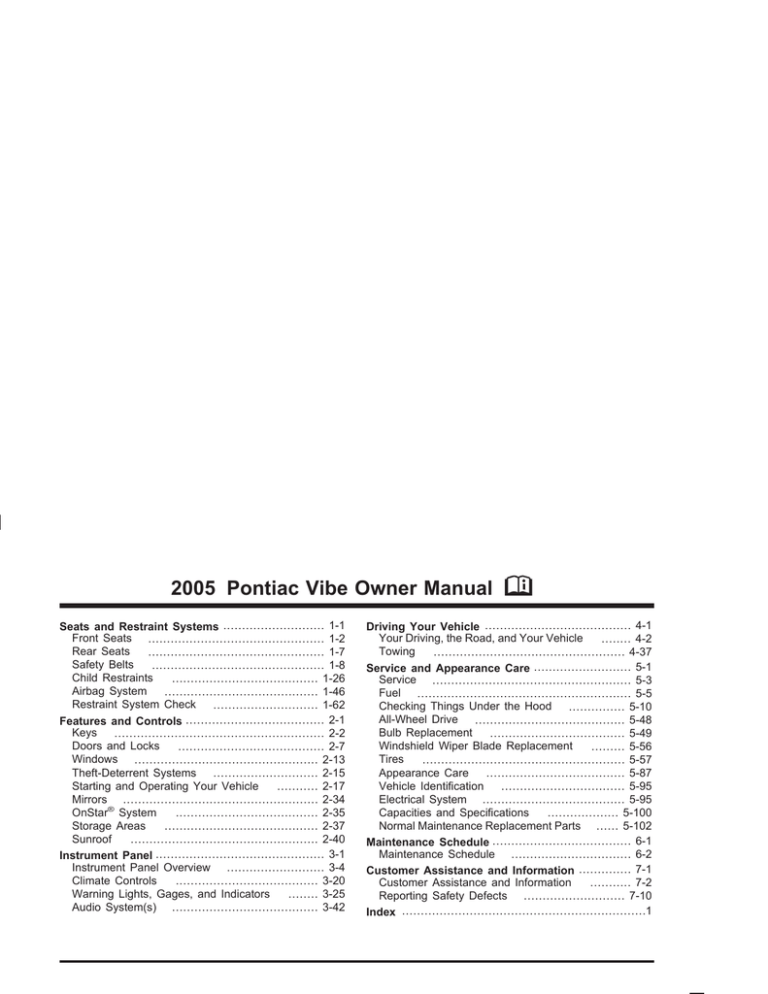

2005 Pontiac Vibe Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats ............................................... 1-2
Rear Seats
............................................... 1-7
Safety Belts
.............................................. 1-8
Child Restraints
....................................... 1-26
Airbag System
......................................... 1-46
Restraint System Check
............................ 1-62
Features and Controls ..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows ................................................. 2-13
Theft-Deterrent Systems ............................ 2-15
Starting and Operating Your Vehicle
........... 2-17
Mirrors .................................................... 2-34
OnStar® System
...................................... 2-35
Storage Areas
......................................... 2-37
Sunroof
.................................................. 2-40
Instrument Panel ............................................. 3-1
Instrument Panel Overview .......................... 3-4
Climate Controls
...................................... 3-20
Warning Lights, Gages, and Indicators
........ 3-25
Audio System(s) ....................................... 3-42
M
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
........ 4-2
Towing
................................................... 4-37
Service and Appearance Care .......................... 5-1
Service ..................................................... 5-3
Fuel ......................................................... 5-5
Checking Things Under the Hood
............... 5-10
All-Wheel Drive
........................................ 5-48
Bulb Replacement
.................................... 5-49
Windshield Wiper Blade Replacement
......... 5-56
Tires
...................................................... 5-57
Appearance Care
..................................... 5-87
Vehicle Identification
................................. 5-95
Electrical System ...................................... 5-95
Capacities and Specifications
................... 5-100
Normal Maintenance Replacement Parts ...... 5-102
Maintenance Schedule ..................................... 6-1
Maintenance Schedule ................................ 6-2
Customer Assistance and Information .............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects ........................... 7-10
Index .................................................................1
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
GENERAL MOTORS, GM, the GM Emblem, PONTIAC,
the PONTIAC Emblem and the name VIBE are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice. For vehicles first
sold in Canada, substitute the name “General Motors of
Canada Limited” for Pontiac Division whenever it
appears in this manual.
Keep this manual in the vehicle, so it will be there if it is
needed when on the road. If the vehicle is sold, leave
this manual in it so the new owner can use it.
Litho in U.S.A.
Part No. 05VIBE A First Edition
ii
How to Use This Manual
Many people read the owner manual from beginning to
end when they first receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
© Copyright General Motors Corporation 04/26/04
All Rights Reserved
Safety Warnings and Symbols
There are a number of safety cautions in this book.
We use a box and the word CAUTION to tell about
things that could hurt you if you were to ignore
the warning.
You will also find a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce
the hazard. Please read these cautions. If you do not,
you or others could be hurt.
iii
Vehicle Damage Warnings
Vehicle Symbols
Also, in this manual you will find these notices:
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specific component, control, message,
gage, or indicator.
Notice: These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle.
They use the same words, CAUTION or NOTICE.
iv
If you need help figuring out a specific name of a
component, gage, or indicator, reference the
following topics:
•
•
•
•
•
•
•
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
These are some examples of symbols that may be found on the vehicle:
v
✍ NOTES
vi
Section 1
Seats and Restraint Systems
Front Seats ......................................................1-2
Manual Seats ................................................1-2
Driver Seat Height Adjuster ..............................1-3
Reclining Seatbacks ........................................1-3
Head Restraints .............................................1-5
Passenger Folding Seatback ............................1-5
Rear Seats .......................................................1-7
Rear Seat Operation .......................................1-7
Safety Belts .....................................................1-8
Safety Belts: They Are for Everyone .................1-8
Questions and Answers About Safety Belts ......1-13
How to Wear Safety Belts Properly .................1-14
Driver Position ..............................................1-14
Shoulder Belt Height Adjustment .....................1-20
Safety Belt Use During Pregnancy ..................1-21
Right Front Passenger Position .......................1-21
Rear Seat Passengers ..................................1-21
Safety Belt Pretensioners ...............................1-24
Safety Belt Extender .....................................1-25
Child Restraints .............................................1-26
Older Children ..............................................1-26
Infants and Young Children ............................1-28
Child Restraint Systems .................................1-31
Where to Put the Restraint .............................1-34
Top Strap ....................................................1-35
Top Strap Anchor Location .............................1-37
Lower Anchorages and Top Tethers for
Children (LATCH System) ...........................1-38
Securing a Child Restraint Designed for
the LATCH System ....................................1-39
Securing a Child Restraint in a
Rear Seat Position ....................................1-40
Securing a Child Restraint in the
Right Front Seat Position ............................1-42
Airbag System ...............................................1-46
Where Are the Airbags? ................................1-49
When Should an Airbag Inflate? .....................1-51
What Makes an Airbag Inflate? .......................1-53
How Does an Airbag Restrain? .......................1-53
What Will You See After an
Airbag Inflates? .........................................1-54
Passenger Sensing System ............................1-56
Servicing Your Airbag-Equipped Vehicle ...........1-60
Adding Equipment to Your
Airbag-Equipped Vehicle .............................1-61
Restraint System Check ..................................1-62
Checking Your Restraint Systems ...................1-62
Replacing Restraint System Parts
After a Crash ............................................1-63
1-1
Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
Lift the bar located under the front seat to unlock it.
Slide the seat to where you want it and release the bar.
Try to move the seat with your body, to make sure
the seat is locked into place.
Don’t put anything under the front seats. Items under
the seats could keep the seats from locking into
place properly.
1-2
Driver Seat Height Adjuster
Reclining Seatbacks
The manual driver seat height adjuster is located on the
outboard side of the seat. To raise the seat, ratchet
the lever upward until the seat is at the desired height.
To lower the seat, ratchet the lever downward until
the seat is at the desired height.
To adjust the seatback, lift the lever located on the
outboard side of the seat. Release the lever to lock the
seatback where you want it. Push on the seat to
make sure it is locked into position. Pull up on the lever
without pushing on the seatback, and the seat will go
to its original upright position.
It is easier to use the adjuster when the seat is
unoccupied. Make sure the vehicle is in PARK (P)
before adjusting the seat.
1-3
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
But do not have a seatback reclined if your vehicle
is moving.
1-4
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Passenger Folding Seatback
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inflating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which
an airbag would inflate. For more information,
see Where Are the Airbags? on page 1-49 and
Loading Your Vehicle on page 4-32.
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
Press the release button near the base of the
restraint to lower and raise the restraint to a
comfortable position.
{CAUTION:
Things you put on this seatback can strike
and injure people in a sudden stop or turn,
or in a crash. Remove or secure all items
before driving.
1-5
You can fold the front passenger’s seatback down to
allow for more cargo space or as a temporary table while
the vehicle is stopped.
To fold the seatback down, do the following:
1. Lower the head restraint to the lowest position and
make sure the seatback is at the most upright
position and locked.
2. Pull up on one of the
levers located on either
side of the back of
the passenger’s
seatback.
3. Fold the seatback down.
To raise the seatback, do the following:
1. Pull the seatback up and push it back to lock it into
place. Make sure the safety belt is not twisted or
caught in the seatback.
2. Push and pull the top of the seatback to be sure it
is locked into position.
3. Use the reclining front seatback lever to adjust the
seatback to a comfortable position.
1-6
Rear Seats
{CAUTION:
Rear Seat Operation
You can fold either side of the seatback down for more
cargo space. The rear right side seatback can also
be used as a temporary table while the vehicle is
stopped. Make sure the front seatback isn’t reclined or
in the rearward most position. If it is, the rear seatback
won’t fold down all the way.
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
{CAUTION:
A rear seatback folded forward, or any other
object contacting or pressing the front
seatback may affect the proper functioning of
the passenger sensing system. See Passenger
Sensing System on page 1-56.
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1-7
To fold either seatback down, do the following:
1. Pull up on the lock
release knob, located
on the top of the
seatbacks.
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
2. Fold the seatback down. Each seatback can be
folded separately.
To raise the seatback, do the following:
1. Pull the seatback up and push it back to lock it into
place. Make sure the safety belts are not twisted or
caught in the seatback.
2. Push and pull the top of the seatback to be sure it
is locked into position.
1-8
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why: They work.
{CAUTION:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!
Your vehicle has a light
that comes on as a
reminder to buckle up.
See Safety Belt Reminder
Light on page 3-28.
1-9
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Put someone on it.
Take the simplest vehicle. Suppose it is just a seat
on wheels.
1-10
Get it up to speed. Then stop the vehicle. The rider
does not stop.
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-11
or the instrument panel...
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-12
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicle after an accident
if I am wearing a safety belt?
A: You could be — whether you are wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you are upside down. And your chance of
being conscious during and after an accident,
so you can unbuckle and get out, is much greater if
you are belted.
Q: If my vehicle has airbags, why should I have to
Q: If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you are in an
accident — even one that is not your fault — you
and your passengers can be hurt. Being a good
driver does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
wear safety belts?
A: Airbags are in many vehicles today and will
be in most of them in the future. But they are
supplemental systems only; so they work with
safety belts — not instead of them. Every airbag
system ever offered for sale has required the use of
safety belts. Even if you are in a vehicle that has
airbags, you still have to buckle up to get the most
protection. That is true not only in frontal collisions,
but especially in side and other collisions.
1-13
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different rules for
smaller children and babies. If a child will be riding in your
vehicle, see Older Children on page 1-26 or Infants and
Young Children on page 1-28. Follow those rules for
everyone’s protection.
First, you will want to know which restraint systems your
vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see
how, see “Seats” in the Index.
1-14
3. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see Safety Belt
Extender on page 1-25.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder belt.
6. The lap part of the belt should be worn low and snug
on the hips, just touching the thighs. In a crash, this
applies force to the strong pelvic bones. And you
would be less likely to slide under the lap belt. If you
slid under it, the belt would apply force at your
abdomen. This could cause serious or even fatal
injuries. The shoulder belt should go over the
shoulder and across the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks if there is a sudden stop or
crash, or if you pull the belt very quickly out of
the retractor.
1-15
Q: What is wrong with this?
{CAUTION:
You can be seriously hurt if your shoulder belt
is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should fit against your body.
A: The shoulder belt is too loose. It will not give nearly
as much protection this way.
1-16
Q: What is wrong with this?
{CAUTION:
You can be seriously injured if your belt is
buckled in the wrong place like this. In a crash,
the belt would go up over your abdomen.
The belt forces would be there, not at the
pelvic bones. This could cause serious internal
injuries. Always buckle your belt into the
buckle nearest you.
A: The belt is buckled in the wrong place.
1-17
Q: What is wrong with this?
{CAUTION:
You can be seriously injured if you wear the
shoulder belt under your arm. In a crash, your
body would move too far forward, which would
increase the chance of head and neck injury.
Also, the belt would apply too much force to
the ribs, which are not as strong as shoulder
bones. You could also severely injure internal
organs like your liver or spleen.
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
1-18
Q: What is wrong with this?
{CAUTION:
You can be seriously injured by a twisted belt.
In a crash, you would not have the full width of
the belt to spread impact forces. If a belt is
twisted, make it straight so it can work
properly, or ask your dealer to fix it.
A: The belt is twisted across the body.
1-19
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for you. Adjust the
height so that the shoulder portion of the belt is centered
on your shoulder. The belt should be away from your
face and neck, but not falling off your shoulder.
To move it down, squeeze
the button and move the
height adjuster to the
desired position. You can
move the adjuster up
just by pushing up on the
shoulder belt guide.
To unlatch the belt, just push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is out of the
way. If you slam the door on it, you can damage
both the belt and your vehicle.
After you move the adjuster to where you want it, try to
move it down without squeezing the release button
to make sure it has locked into position.
1-20
Safety Belt Use During Pregnancy
Right Front Passenger Position
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they do not wear safety belts.
To learn how to wear the right front passenger’s safety
belt properly, see Driver Position on page 1-14.
The right front passenger’s safety belt works the same
way as the driver’s safety belt – except for one thing.
If you ever pull the shoulder portion of the belt out all the
way, you will engage the child restraint locking feature.
If this happens, just let the belt go back all the way
and start again.
Rear Seat Passengers
It is very important for rear seat passengers to buckle
up! Accident statistics show that unbelted people in
the rear seat are hurt more often in crashes than those
who are wearing safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible,
below the rounding, throughout the pregnancy.
Rear passengers who are not safety belted can be
thrown out of the vehicle in a crash. And they can strike
others in the vehicle who are wearing safety belts.
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it is more
likely that the fetus will not be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
1-21
Lap-Shoulder Belt
All rear seating positions have lap-shoulder belts.
Here is how to wear one properly.
1. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
1-22
2. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the buckle does not click, check to be sure
that you are using the correct buckle. The buckle
for the center rear passenger position has the word
CENTER on it.
When the shoulder belt is pulled out all the way, it
will lock. If it does, let it go back all the way
and start again.
If the belt is not long enough, see Safety Belt
Extender on page 1-25.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
3. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder belt.
The lap part of the belt should be worn low and snug
on the hips, just touching the thighs. In a crash,
this applies force to the pelvic bones. And you would
be less likely to slide under the lap belt. If you slid
under it, the belt would apply force at your abdomen.
This could cause serious or even fatal injuries.
The shoulder belt should go over the shoulder and
across the chest. These parts of the body are best able
to take belt restraining forces.
1-23
The safety belt locks if there is a sudden stop or a crash,
or if you pull the belt very quickly out of the retractor.
{CAUTION:
You can be seriously hurt if your shoulder belt
is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should fit against your body.
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners. Although
you cannot see them, they are located on the retractor
part of the safety belts for the driver and right front
passenger. They help the safety belts reduce a person’s
forward movement in a moderate to severe frontal or
near frontal crash.
If the passenger sensing system detects that there is
not a passenger in the right front passenger position, the
safety belt pretensioner for that position will not
activate. See Passenger Sensing System on page 1-56.
Pretensioners work only once. If they activate in a
crash, you will need to get new ones, and probably other
new parts for your safety belt system. See Replacing
Restraint System Parts After a Crash on page 1-63.
To unlatch the belt, just push the button on the buckle.
1-24
Safety Belt Extender
If the vehicle’s safety belt will fasten around you,
you should use it.
But if a safety belt is not long enough, your dealer will
order you an extender. It is free. When you go in to
order it, take the heaviest coat you will wear, so
the extender will be long enough for you. To help avoid
personal injury, do not let someone else use it, and
use it only for the seat it is made to fit. The extender has
been designed for adults. Never use it for securing
child seats. To wear it, just attach it to the regular safety
belt. For more information see the instruction sheet
that comes with the extender.
When you use a safety belt extender in the right front
passenger’s seat, make sure the passenger airbag
status indicator shows “ON”. See Passenger Airbag
Status Indicator on page 3-30. If the indicator shows
“OFF”, disconnect the extender’s latch from the buckle
then reconnect the safety belt. Make sure the indicator
light shows “ON, then reconnect the safety belt
extender. If you use the safety belt extender while
the indicator light shows “OFF”, the right front
passenger’s frontal and seat-mounted side impact
airbags (if equipped) may not activate correctly.
See Airbag System on page 1-46 for important safety
information about your airbags.
Always disconnect the extender from the safety belt
after you use it so that the airbag will work properly the
next time someone uses that seat.
1-25
Child Restraints
Older Children
Q: What is the proper way to wear safety belts?
A: If possible, an older child should wear a
lap-shoulder belt and get the additional restraint a
shoulder belt can provide. The shoulder belt
should not cross the face or neck. The lap belt
should fit snugly below the hips, just touching the
top of the thighs. It should never be worn over
the abdomen, which could cause severe or even
fatal internal injuries in a crash.
Accident statistics show that children are safer if they
are restrained in the rear seat.
In a crash, children who are not buckled up can strike
other people who are buckled up, or can be thrown
out of the vehicle. Older children need to use safety
belts properly.
Older children who have outgrown booster seats should
wear the vehicle’s safety belts.
1-26
Q: What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt
is very close to the child’s face or neck?
A: If the child is sitting in a seat next to a window,
move the child toward the center of the vehicle.
If the child is sitting in the center rear seat
passenger position, move the child toward the
safety belt buckle. In either case, be sure that the
shoulder belt still is on the child’s shoulder, so
that in a crash the child’s upper body would have
the restraint that the belts provide.
{CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can not properly spread the impact
forces. In a crash, the two children can be
crushed together and seriously injured. A belt
must be used by only one person at a time.
1-27
The lap portion of the belt should be worn low and snug
on the hips, just touching the child’s thighs. This applies
belt force to the child’s pelvic bones in a crash.
Infants and Young Children
Everyone in a vehicle needs protection! This includes
infants and all other children. Neither the distance
traveled nor the age and size of the traveler changes
the need, for everyone, to use safety restraints. In fact,
the law in every state in the United States and in
every Canadian province says children up to some age
must be restrained while in a vehicle.
{CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is
behind the child. If the child wears the belt in
this way, in a crash the child might slide under
the belt. The belt’s force would then be applied
right on the child’s abdomen. That could cause
serious or fatal injuries.
1-28
Every time infants and young children ride in vehicles,
they should have the protection provided by the
appropriate restraint. Young children should not use the
vehicle’s safety belts, unless there is no other choice.
{CAUTION:
{CAUTION:
People should never hold a baby in their arms
while riding in a vehicle. A baby does not weigh
much — until a crash. During a crash a baby will
become so heavy it is not possible to hold it.
For example, in a crash at only 25 mph
(40 km/h), a 12-lb. (5.5 kg) baby will suddenly
become a 240-lb. (110 kg) force on a person’s
arms. A baby should be secured in an
appropriate restraint.
Children who are up against, or very close to,
any airbag when it inflates can be seriously
injured or killed. Airbags plus lap-shoulder belts
offer protection for adults and older children,
but not for young children and infants. Neither
the vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide.
1-29
Q: What are the different types of add-on
child restraints?
{CAUTION:
A: Add-on child restraints, which are purchased by the
vehicle’s owner, are available in four basic types.
Selection of a particular restraint should take
into consideration not only the child’s weight, height,
and age but also whether or not the restraint will
be compatible with the motor vehicle in which it will
be used.
For most basic types of child restraints, there are
many different models available. When purchasing a
child restraint, be sure it is designed to be used
in a motor vehicle. If it is, the restraint will have a
label saying that it meets federal motor vehicle
safety standards.
The restraint manufacturer’s instructions that come
with the restraint state the weight and height
limitations for a particular child restraint. In addition,
there are many kinds of restraints available for
children with special needs.
1-30
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn infant’s
neck is weak and its head weighs so much
compared with the rest of its body. In a crash,
an infant in a rear-facing seat settles into
the restraint, so the crash forces can be
distributed across the strongest part of an
infant’s body, the back and shoulders.
Infants always should be secured in
appropriate infant restraints.
Child Restraint Systems
{CAUTION:
The body structure of a young child is quite
unlike that of an adult or older child, for whom
the safety belts are designed. A young child’s
hip bones are still so small that the vehicle’s
regular safety belt may not remain low on the
hip bones, as it should. Instead, it may settle
up around the child’s abdomen. In a crash,
the belt would apply force on a body area
that is unprotected by any bony structure.
This alone could cause serious or fatal
injuries. Young children always should be
secured in appropriate child restraints.
An infant car bed (A), a special bed made for use in a
motor vehicle, is an infant restraint system designed
to restrain or position a child on a continuous flat
surface. Make sure that the infant’s head rests toward
the center of the vehicle.
1-31
A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the infant.
The harness system holds the infant in place and,
in a crash, acts to keep the infant positioned in
the restraint.
1-32
A forward-facing child seat (C-E) provides restraint for
the child’s body with the harness and also sometimes
with surfaces such as T-shaped or shelf-like shields.
Q: How do child restraints work?
A: A child restraint system is any device designed for
use in a motor vehicle to restrain, seat, or position
children. A built-in child restraint system is a
permanent part of the motor vehicle. An add-on
child restraint system is a portable one, which
is purchased by the vehicle’s owner.
For many years, add-on child restraints have used
the adult belt system in the vehicle. To help
reduce the chance of injury, the child also has
to be secured within the restraint. The vehicle’s belt
system secures the add-on child restraint in the
vehicle, and the add-on child restraint’s harness
system holds the child in place within the restraint.
A booster seat (F-G) is a child restraint designed to
improve the fit of the vehicle’s safety belt system.
Some booster seats have a shoulder belt positioner,
and some high-back booster seats have a five-point
harness. A booster seat can also help a child to see
out the window.
One system, the three-point harness, has straps that
come down over each of the infant’s shoulders and
buckle together at the crotch. The five-point harness
system has two shoulder straps, two hip straps
and a crotch strap. A shield may take the place of
hip straps. A T-shaped shield has shoulder straps
that are attached to a flat pad which rests low against
the child’s body. A shelf- or armrest-type shield has
straps that are attached to a wide, shelf-like shield
that swings up or to the side.
1-33
When choosing a child restraint, be sure the child
restraint is designed to be used in a vehicle. If it is, it will
have a label saying that it meets federal motor vehicle
safety standards.
Then follow the instructions for the restraint. You may
find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system or
the LATCH system in your vehicle, but the child also
has to be secured within the restraint to help reduce the
chance of personal injury. When securing an add-on
child restraint, refer to the instructions that come with the
restraint which may be on the restraint itself or in a
booklet, or both, and to this manual. The child restraint
instructions are important, so if they are not available,
obtain a replacement copy from the manufacturer.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Your vehicle has a rear seat that will accommodate a
rear-facing child restraint. A label on your sun visor says,
‘‘Never put a rear-facing child seat in the front.’’ This is
because the risk to the rear-facing child is so great,
if the air bag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and seat-mounted side impact airbag
(if equipped) under certain conditions, no
system is fail-safe, and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is
turned off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
CAUTION:
1-34
(Continued)
CAUTION:
(Continued)
If you need to secure a forward-facing child
restraint in the right front seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in a
rear seat.
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle – even when no child
is in it.
Top Strap
Some child restraints have a top strap, or “top tether.”
It can help restrain the child restraint during a collision.
For it to work, a top strap must be properly anchored
to the vehicle. Some top strap-equipped child restraints
are designed for use with or without the top strap
being anchored. Others require the top strap always
to be anchored. Be sure to read and follow the
instructions for your child restraint. If yours requires
that the top strap be anchored, do not use the restraint
unless it is anchored properly.
If the child restraint does not have a top strap, one can
be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not a kit
is available.
1-35
{CAUTION:
Each top tether bracket is designed to anchor
only one child restraint. Attaching more than
one child restraint to a single bracket could
cause the anchor to come loose or even break
during a crash. A child or others could be
injured if this happens. To help prevent injury
to people and damage to your vehicle, attach
only one child restraint per bracket.
In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be
anchored. In the United States, some child restraints
also have a top strap. If your child restraint has a
top strap, it should be anchored.
Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
Raise the head restraint and route the top strap under
it. See Head Restraints on page 1-5.
Once you have the top strap anchored, you will be
ready to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say.
1-36
Top Strap Anchor Location
Anchor the top strap to one of the top strap anchors.
Your vehicle has top strap anchors for the rear seating
positions. You will find three top strap anchors in a
covered compartment on the floor of the rear cargo area.
To access the anchors,
open the compartment
doors marked with
the child restraint
anchor symbol.
Do not secure a child restraint with a top strap in the
right front passenger’s position if a national or local law
requires that the top strap be anchored, or if the
instructions that come with the child restraint say that
the top strap must be anchored. There is no place
to anchor the top strap in this position.
1-37
Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You will find
anchors for the outside rear seat positions.
This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors and child restraint
attachments to secure the restraints. Some restraints
also use another vehicle anchor to secure a top
tether strap.
A. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle,
you need a child restraint designed for that system.
A. Lower Anchorage
B. Lower Anchorage
1-38
C. Top Tether
To assist you in locating the
lower anchors for this child
restraint system, each
seating position with the
LATCH system has a label
on the seatback at each
lower anchor position.
To assist you in locating the anchors for this child
restraint system, place your hand in a palm-up position
and reach up between the seat cushion and the
seatback, just under the label.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
Securing a Child Restraint Designed
for the LATCH System
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
See Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-38.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you how.
Also see Top Strap on page 1-35.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the
top tether from the top tether anchorage and then
disconnect the LATCH attachments from the
LATCH anchorages.
1-39
Securing a Child Restraint in a
Rear Seat Position
If your child restraint is equipped with the LATCH
system, see Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-38. See Top Strap
on page 1-35 if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-40
3. Buckle the belt. If the buckle does not click, check
to be sure that you are using the correct buckle.
The buckle for the center rear passenger position
has the word CENTER on it.
Make sure the release button is positioned so you
would be able to unbuckle the safety belt quickly
if you ever had to.
4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may find it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-41
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag. A rear
seat is a safer place to secure a forward-facing child
restraint. See Where to Put the Restraint on page 1-34.
In addition, your vehicle has the passenger sensing
system. The passenger sensing system is designed to
turn off the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped) when a
child in a child restraint or booster seat is detected.
See Passenger Sensing System on page 1-56
and Passenger Airbag Status Indicator on page 3-30 for
more information about the conditions that could
affect the passenger sensing system and other important
safety information.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
1-42
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and seat-mounted side impact airbag
(if equipped) under certain conditions, no
system is fail-safe, and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is turned
off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
If you need to secure a forward-facing child restraint in
the right front seat position, move the seat as far
back as it will go before securing the forward-facing
child restraint. See Manual Seats on page 1-2.
If your child restraint is equipped with the LATCH
system, see Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-38.
There is no top strap anchor at the right front seating
position. Do not secure a child seat in this position
if a national or local law requires that the top strap be
anchored or if the instructions that come with the
child restraint say that the top strap must be anchored.
See Top Strap on page 1-35 if your child restraint
has one.
You will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has airbags. See Passenger Sensing
System on page 1-56. General Motors recommends
that rear-facing child restraints be secured in a
rear seat, even if the airbag is off. If your child
restraint is forward-facing, move the seat as far
back as it will go before securing the child restraint
in this seat. See Manual Seats on page 1-2.
When the passenger sensing system has turned off
the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped),
the off indicator in the passenger airbag status
indicator should light and stay lit when you turn the
ignition to ON. See Passenger Airbag Status
Indicator on page 3-30.
2. Put the child restraint on the seat.
1-43
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-44
7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the passenger sensing system has turned off
the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped),
the off indicator in the passenger airbag status
indicator will be lit and stay lit when the key
is turned to ON.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint
with the ignition key in the ACC or LOCK position.
6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may find it helpful
to use your knee to push down on the child
restraint as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
If after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
1-45
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
If the airbag readiness light and the OFF light in the
passenger airbag status indicator come on together,
it may mean there is a malfunction in the passenger
sensing system. Secure the child in the child restraint
in a rear seat position in the vehicle and check with
your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have seat-mounted side impact airbags for
the driver and right front passenger. Your vehicle
may also have roof-mounted side impact airbags for the
driver and the passenger seated directly behind the
driver and for the right front passenger and the
passenger seated directly behind that passenger.
If your vehicle has side impact airbags, it will say
SRS-SIDE AIR BAG on a label on the side of the driver’s
and right front passenger’s seat closest to the door.
If your vehicle has roof-mounted side impact airbags,
it will say SRS CURTAIN AIRBAG on the trim on
the side of the windshield.
Frontal airbags are designed to help reduce the risk of
injury from the force of an inflating frontal airbag.
But these airbags must inflate very quickly to do their
job and comply with federal regulations.
1-46
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are designed to work
with safety belts but do not replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to inflate in
rollover, rear or low-speed frontal crashes,
CAUTION:
CAUTION:
(Continued)
or in many side crashes. And, for some
unrestrained occupants, frontal airbags may
provide less protection in frontal crashes
than more forceful airbags have provided in
the past.
Side impact airbags are designed to inflate
only in moderate to severe crashes where
something hits the side of your vehicle.
They are not designed to inflate in frontal,
in rollover or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
(Continued)
1-47
{CAUTION:
{CAUTION:
Both frontal and side impact airbags inflate
with great force, faster than the blink of an
eye. If you are too close to an inflating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag inflation before
and during a crash. Always wear your safety
belt, even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
Anyone who is up against, or very close to,
any airbag when it inflates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
see Older Children on page 1-26 or Infants and
Young Children on page 1-28.
1-48
There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
Where Are the Airbags?
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. See Airbag Readiness Light on page 3-29
for more information.
The driver’s frontal airbag is in the middle of the
steering wheel.
1-49
If your vehicle has a roof-mounted side impact airbag
for the driver and the person seated directly behind the
driver, it is in the ceiling above the side windows.
If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the person seated
directly behind that passenger, it is in the ceiling above
the side windows.
{CAUTION:
The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
If your vehicle has a seat-mounted side impact airbag
for the driver, it is in the side of the driver’s seatback
closest to the door.
If your vehicle has a seat-mounted side impact airbag
for the right front passenger, it is in the side of the
passenger’s seatback closest to the door.
1-50
If something is between an occupant and an
airbag, the bag might not inflate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inflating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. Do not let seat covers block
the inflation path of a side impact airbag.
When Should an Airbag Inflate?
{CAUTION:
If something is between an occupant and an
airbag, the bag might not inflate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inflating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has side
impact airbags, never secure anything to the
roof of your vehicle by routing the rope or
tiedown through any door or window opening.
If you do, the path of an inflating side impact
airbag will be blocked. The path of an inflating
airbag must be kept clear.
The driver’s and right front passenger’s frontal airbags
are designed to inflate in moderate to severe frontal
or near-frontal crashes. But they are designed to inflate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inflate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
inflate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs.
1-51
Airbags may inflate at different crash speeds.
For example:
• If the vehicle hits a stationary object, the airbag
could inflate at a different crash speed than if
the object were moving.
• If the object deforms, the airbag could inflate at
a different crash speed than if the object does
not deform.
• If the vehicle hits a narrow object (like a pole)
the airbag could inflate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
• If the vehicle goes into an object at an angle the
airbag could inflate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags for the driver and right front
passenger may also deploy if a serious impact occurs
to the underside of your vehicle such as hitting a
curb, falling into a deep hole, or landing hard.
The frontal airbags (driver and right front passenger)
are not intended to inflate during vehicle rollovers, rear
impacts, or in many side impacts because inflation
would not likely help the occupants.
1-52
The side impact airbags are designed to inflate in
moderate to severe side crashes. A side impact airbag
will inflate if the crash severity is above the system’s
designed “threshold level.” The threshold level can vary
with specific vehicle design. Side impact airbags are not
designed to inflate in frontal or near-frontal impacts,
rollovers or rear impacts, because inflation would not
likely help the occupant. Your vehicle has sensors which
detect side impacts. These sensors signal the
appropriate side airbag to inflate. A side impact airbag will
only deploy on the side of the vehicle that is struck.
It is possible that, in a crash involving the front of your
vehicle, only one of the two frontal airbags in your vehicle
will deploy. This is rare, but it can happen in a crash just
severe enough to make a frontal airbag inflate.
In any particular crash, no one can say whether an
airbag should have inflated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, inflation is determined by
the angle of the impact and how quickly the vehicle
slows down in frontal and near-frontal impacts. For side
impact airbags, inflation is determined by the location
and severity of the impact.
What Makes an Airbag Inflate?
How Does an Airbag Restrain?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash.
For both frontal and side impact airbags, the sensing
system triggers a release of gas from the inflator,
which inflates the airbag. The inflator, the airbag and
related hardware are all part of the airbag modules.
Frontal airbag modules are located inside the steering
wheel and instrument panel. For vehicles with
seat-mounted side impact airbags, the airbag modules
are located in the seatback closest to the driver’s
and/or right front passenger’s door. For vehicles with
roof-mounted side impact airbags, the airbag modules
are located in the ceiling of the vehicle, near the
side windows.
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. Airbags supplement the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But a
frontal airbag would not help you in many types of
collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion is
not toward a frontal airbag. A side impact airbag
would not help you in many types of collisions, including
frontal or near frontal collisions, rollovers, and rear
impacts, primarily because an occupant’s motion is
not toward a side airbag. Airbags should never
be regarded as anything more than a supplement to
safety belts, and then only in moderate to severe
frontal or near-frontal collisions for frontal airbags,
and only in moderate to severe side collisions for
side impact airbags.
1-53
What Will You See After an
Airbag Inflates?
After the airbag inflates, it quickly deflates, so quickly that
some people may not even realize the airbag inflated.
Some components of the airbag module – the steering
wheel hub for the driver’s airbag, the instrument panel for
the right front passenger’s bag, the side of the seatback
closest to the front doors for the seat-mounted side
impact airbags (if equipped), and the ceiling of your
vehicle near the side windows for the roof-mounted side
impact airbags (if equipped) – will be hot for a short time.
The parts of the bag that come into contact with you may
be warm, but not too hot to touch. There will be some
smoke and dust coming from the vents in the deflated
airbags. Airbag inflation does not prevent the driver from
seeing or being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
1-54
{CAUTION:
When an airbag inflates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
can not get out of the vehicle after an airbag
inflates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
In many crashes severe enough to inflate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
• Airbags are designed to inflate only once. After an
airbag inflates, you will need some new parts for
your airbag system. If you do not get them,
the airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts.
The service manual for your vehicle covers the
need to replace other parts.
• Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. See Vehicle Data Collection and Event
Data Recorders on page 7-9.
• Let only qualified technicians work on your airbag
system. Improper service can mean that an
airbag system will not work properly. See your
dealer for service.
Notice: If you damage the covering for the frontal
airbags, the airbag covering on the driver’s and right
front passenger’s seatback or the airbag covering
on the ceiling near the side windows, the airbags
may not work properly. You may have to replace
the airbag module in the steering wheel, both the
airbag module and the instrument panel for the
right front passenger’s airbag, or the airbag
modules, the seatback, and the ceiling covering
for the side impact airbags (if equipped). Do not
open or break the airbag coverings.
If your vehicle ever gets into a lot of water – such as
water up to the carpeting or higher – or if water enters
your vehicle and soaks the carpet, the airbag controller
can be soaked and ruined. If this ever happens,
and then you start your vehicle, the damage could make
the frontal and side impact airbags inflate and safety
belt pretensioners activate, even if there is no
crash. You would have to replace the airbags, all the
sensors and related parts, parts of the safety belt system
and parts of the driver and right front passenger’s
seatbacks. If your vehicle is ever in a flood, or if it is
exposed to water that soaks the carpet, you can avoid
needless repair costs by turning off the vehicle
immediately and disconnecting the battery cables.
Do not let anyone start the vehicle under any
circumstances. See your dealer for service.
1-55
Passenger Sensing System
Your vehicle has a passenger sensing system. A
passenger airbag status indicator on the instrument
panel will be visible when you turn your ignition key to
ON. The words ON and OFF will be visible in the
passenger airbag status indicator during the system
check. When the system check is complete, either the
word ON or the word OFF will be visible. See Passenger
Airbag Status Indicator on page 3-30.
The passenger sensing
system will turn off the
right front passenger’s
frontal airbag and
seat-mounted side impact
airbag (if equipped)
under certain conditions.
The passenger sensing system will also turn off the
right front passenger’s safety belt pretensioner if
it detects that there is no occupant in that position.
The driver’s airbag and the roof-mounted side impact
airbags are not part of the passenger sensing system.
The passenger sensing system works with sensors
that are part of the right front passenger’s seat assembly
and safety belt assembly. The sensors are designed
to detect the presence of a properly-seated occupant
and determine if the passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped) and
safety belt pretensioner should be enabled (may inflate)
or not.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Your vehicle has a rear seat that will accommodate a
rear-facing child restraint. A label on your sun visor says,
“Never put a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so great, if the
airbag deploys.
1-56
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and seat-mounted side impact airbag
(if equipped) under certain conditions, no
system is fail-safe, and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is
turned off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
The passenger sensing system is designed to
turn off the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped) if:
• the right front passenger seat is unoccupied
• the system determines that a small child is present
in a child restraint
• the system determines that a small child is present
in a booster seat
• a right front passenger takes his/her weight off of
the seat for a period of time
• the right front passenger seat is occupied by a
smaller person, such as a child who has outgrown
child restraints
• or if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned off the
passenger’s frontal airbag and seat-mounted side
impact airbag (if equipped), the off indicator will light
and stay lit to remind you that the airbag is off.
If a child restraint has been installed and the on indicator
is lit, turn the vehicle off. Remove the child restraint
from the vehicle and reinstall the child restraint with the
ignition key in the ACC or LOCK position, following
the child restraint manufacturer’s directions and refer to
Securing a Child Restraint in the Right Front Seat
Position on page 1-42.
1-57
If after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make sure
that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
An object, person or child in the rear seat contacting or
pressing the right front passenger’s seatback, or
objects stowed under the right front passenger’s seat,
may affect the proper functioning of the passenger
sensing system.
When you use a safety belt extender in the right front
passenger’s seat, make sure the passenger airbag
status indicator shows “ON”. If the indicator shows
“OFF”, disconnect the extender’s latch from the buckle
then reconnect the safety belt. Make sure the indicator
light shows “ON”, then reconnect the safety belt
extender. If you use the safety belt extender while the
indicator light shows “OFF”, the right front passenger’s
1-58
frontal airbag and seat-mounted side impact airbag
(if equipped) may not activate correctly. See Airbag
System on page 1-46 for important safety information
about your airbags.
The passenger sensing system is designed to enable
(may inflate) the right front passenger’s frontal
airbag and seat-mounted side impact airbag
(if equipped) and safety belt pretensioner anytime the
system senses that a person of adult size is sitting
properly in the right front passenger’s seat. When the
passenger sensing system has allowed the airbags and
pretensioner to be enabled, the on indicator will light
and stay lit to remind you that the airbags and
pretensioners are active.
For some children who have outgrown child restraints
and for very small adults, the passenger sensing system
may or may not turn off the right front passenger’s
frontal airbag and seat-mounted side impact airbag
(if equipped), depending upon the person’s seating
posture and body build. Everyone in your vehicle who
has outgrown child restraints should wear a safety
belt properly — whether or not there is an airbag for
that person.
If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it could be
because that person is not sitting properly in the
seat. If this happens, turn the vehicle off and ask the
person to place the seatback in the fully upright position,
then sit upright in the seat, centered on the seat
cushion, with the person’s legs comfortably extended.
Restart the vehicle and have the person remain in
this position for about two minutes. This will allow the
system to detect that person and then enable the
passenger’s airbag.
If the airbag readiness light and the OFF light in the
passenger airbag status indicator come on together,
it may mean there is a malfunction in the passenger
sensing system. Secure the child in the child restraint
in a rear seat position in the vehicle and check with
your dealer.
{CAUTION:
If the airbag readiness light in the instrument
panel cluster ever comes on and stays on,
it means that something may be wrong with
the airbag system. If this ever happens, have
the vehicle serviced promptly, because an
adult-size person sitting in the right front
passenger’s seat may not have the protection
of the frontal airbag. See Airbag Readiness
Light on page 3-29 for more on this, including
important safety information.
1-59
Aftermarket equipment, such as seat covers or seat
backpacks can affect how well the passenger sensing
system operates. You may want to consider not
using seat covers, seat backpacks or other aftermarket
equipment if your vehicle has the passenger sensing
system. See Adding Equipment to Your Airbag-Equipped
Vehicle on page 1-61 for more information about
modifications that can affect how the system operates.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
airbag system. To purchase a service manual, see
Service Publications Ordering Information on page 7-11.
{CAUTION:
Stowing of articles under the passenger’s seat
or between the passenger’s seat cushion and
seatback may interfere with the proper
operation of the passenger sensing system.
{CAUTION:
For up to two minutes after the ignition key is
turned off and the battery is disconnected, an
airbag can still inflate during improper service.
You can be injured if you are close to an
airbag when it inflates. Avoid wires wrapped
with yellow tape or yellow connectors.
They are probably part of the airbag systems.
Be sure to follow proper service procedures,
and make sure the person performing work for
you is qualified to do so.
The airbag system does not need regular maintenance.
1-60
Adding Equipment to Your
Airbag-Equipped Vehicle
Q: Is there anything I might add to the vehicle that
could keep the airbags from working properly?
A: Yes. If you add things that change your vehicle’s
frame, bumper system, front end or side sheet
metal or height, they may keep the airbag system
from working properly. Also, the airbag system may
not work properly if you relocate any of the airbag
sensors. If you have any questions about this,
you should contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in Step Two
of the Customer Satisfaction Procedure in this
manual. See Customer Satisfaction Procedure on
page 7-2.
Do not perform any of the following changes
without consulting your dealer. Such changes can
interfere with the proper operation of the airbag
system, passenger sensing system and/or safety
belt pretensioners.
• Repairs on or near the front seat belt retractor
assemblies
• Modification of the suspension system
• Attachment of a grille guard (bull bar, kangaroo
bar, etc), snowplow, winches or any other
equipment to the front end
• Repairs made on or near the front fenders,
front end structure or console
• Installation of electronic devises such as a
mobile two-way radio, cassette tape player
or compact disc player
• Modification of the suspension system
• Modification of the front end structure or the side
structure of the passenger compartment
• Repairs made on or near the console of the
front seat
1-61
Q: Because I have a disability, I have to get my
vehicle modified. How can I find out whether
this will affect my advanced airbag system?
A: Changing or moving any parts of the front seats,
safety belts, the airbag sensing and diagnostic
module (located under the driver’s seat), or
the instrument panel can affect the operation of the
advanced airbag system. If you have questions,
call Customer Assistance. The phone numbers and
addresses for Customer Assistance are in Step
Two of the Customer Satisfaction Procedure in this
manual. See Customer Satisfaction Procedure
on page 7-2.
Restraint System Check
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
1-62
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if
worn during a more severe crash, then you need
new parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the belt
or LATCH system was not being used at the time of
the collision.
If the frontal airbags inflate, you will also need to
replace the driver’s and right front passenger’s safety
belt retractor assembly. Be sure to do so. Then the new
retractor assembly will be there to help protect you in
a collision.
After a crash you may need to replace the driver and
front passenger’s safety belt retractor assemblies, even
if the frontal airbags have not deployed. The driver
and front passenger’s safety belt retractor assemblies
contain the safety belt pretensioners. Have your
safety belt pretensioners checked if your vehicle has
been in a collision, or if your airbag readiness light stays
on after you start your vehicle or while you are driving.
See Airbag Readiness Light on page 3-29.
If an airbag inflates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.
1-63
✍ NOTES
1-64
Section 2
Features and Controls
Keys ...............................................................2-2
Remote Keyless Entry System .........................2-4
Remote Keyless Entry System Operation ...........2-5
Doors and Locks .............................................2-7
Door Locks ....................................................2-7
Power Door Locks ..........................................2-8
Programmable Automatic Door Locks ................2-9
Rear Door Security Locks ..............................2-10
Liftgate/Liftglass ............................................2-11
Windows ........................................................2-13
Manual Windows ..........................................2-14
Power Windows ............................................2-14
Sun Visors ...................................................2-14
Theft-Deterrent Systems ..................................2-15
Content Theft-Deterrent .................................2-15
Starting and Operating Your Vehicle ................2-17
New Vehicle Break-In ....................................2-17
Ignition Positions ..........................................2-18
Starting Your Engine .....................................2-19
Engine Coolant Heater ..................................2-21
Automatic Transaxle Operation .......................2-22
Overdrive Off ...............................................2-24
Manual Transaxle Operation ...........................2-25
Parking Brake ..............................................2-28
Shifting Into Park (P) (Automatic Transaxle) ........2-28
Shifting Out of Park (P) (Automatic Transaxle) .....2-30
Parking Your Vehicle (Manual Transaxle) .........2-31
Parking Over Things That Burn .......................2-32
Engine Exhaust ............................................2-32
Running Your Engine While You Are Parked .......2-33
Mirrors ...........................................................2-34
Manual Rearview Mirror .................................2-34
Manual Rearview Mirror with OnStar® ..............2-34
Outside Remote Control Mirrors ......................2-34
Outside Convex Mirror ...................................2-35
OnStar® System .............................................2-35
Storage Areas ................................................2-37
Glove Box ...................................................2-37
Cupholder(s) ................................................2-37
Coinholder(s) ................................................2-37
Instrument Panel Storage Area .......................2-37
Center Console Storage Area .........................2-37
Floor Mats ...................................................2-38
Rear Storage Area ........................................2-38
Rear Cargo Accessory Track System ................2-39
Cargo Cover ................................................2-39
Cargo Tie Downs ..........................................2-40
Sunroof .........................................................2-40
2-1
Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They could
operate the power windows or other controls or
even make the vehicle move. The children or
others could be badly injured or even killed.
Do not leave the keys in a vehicle with children.
2-2
One key is used for the
ignition, the doors and all
other locks.
Each tag has a code on it that tells your dealer or a
qualified locksmith how to make extra keys. Keep the
tag in a safe place. If you lose your key, you’ll be able to
have a new one made easily using this code.
If you need a new key, contact your dealership to obtain
the correct key code. See Roadside Assistance
Program on page 7-6 for more information.
Notice: If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
When a new vehicle is delivered, the dealer removes
the key tag from the key and gives it to the first owner.
2-3
Remote Keyless Entry System
If equipped, the keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-4
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
• Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
• Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
• Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-5.
• If you are still having trouble, see your dealer or a
qualified technician for service.
Remote Keyless Entry System
Operation
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle. The remote keyless entry transmitter
will look different if your vehicle was purchased in
Canada, however it will operate the same.
LOCK: Press this button to
lock all of the doors.
The turn signal lights will flash once to confirm that the
doors have locked. The remote keyless entry system
will not operate while the doors are open, the key is in
the ignition or if the liftglass or hatch are not completely
closed and latched.
UNLOCK: Press this button once to unlock the driver’s
door. The turn signal lights will flash twice and the
interior lamps will come on to confirm that the door has
unlocked. If the UNLOCK button is pressed again
within three seconds, all remaining doors will unlock.
The interior lamps will stay on for 15 seconds or until the
ignition is turned on. If the UNLOCK button is pressed
and no door is opened, the doors will lock automatically
after 30 seconds.
HATCH: Press this button to open the rear liftglass.
If the ignition key is in the ON position, the liftglass
cannot be opened by the HATCH button on the
transmitter.
2-5
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum
of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6
To replace the battery, do the following:
1. Insert a small coin or similar object to separate the
bottom half from the top half of the transmitter.
2. Remove the battery and replace it with the new
one. Make sure the positive side of the battery
faces upward. For battery replacement, use
a three-volt battery, type CR2032, or equivalent.
3. Snap the transmitter back together tightly to be sure
no moisture can enter.
Doors and Locks
CAUTION:
Door Locks
(Continued)
• Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.
{CAUTION:
Unlocked doors can be dangerous.
• Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle will not open it. You increase
the chance of being thrown out of the
vehicle in a crash if the doors are not
locked. So, wear safety belts properly and
lock the doors whenever you drive.
• Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
CAUTION:
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the remote keyless
entry transmitter, if equipped. See Remote Keyless Entry
System Operation on page 2-5 for more information.
If your vehicle has power door locks, open the driver’s
door by turning the key in the lock toward the rear
of the vehicle. Turning the key back toward the center,
then toward the rear again will unlock all of the
doors. Using the key in the passenger’s door will also
unlock all of the doors.
Lock a door by turning the key toward the front of the
vehicle. If you have power door locks, all the doors
will lock.
(Continued)
2-7
Power Door Locks
If your vehicle has this
feature, the power door
lock switch is located
on the armrest on the door.
To manually lock the door from the inside, press the
knob on the door forward. To unlock the door, press the
knob rearward. With manual locks, you must use the
key to lock and unlock the liftgate.
e (Power Door Lock): Press the power door lock
switch on the driver’s or passenger’s door to lock
or unlock all the doors at once.
The automatic power door locks will lock all the doors
and liftgate when the shift lever is moved out of
PARK (P). The system will automatically unlock the
doors and liftgate when the ignition key is turned
to LOCK.
2-8
Programmable Automatic
Door Locks
If you have an automatic transaxle, your vehicle is
equipped with an auto door lock/unlock feature which
enables you to program your power door locks.
Your vehicle left the factory programmed to Mode 4.
To change the mode you are in, do the following:
1. Set the interior lamp control dial to the door position.
See Interior Lamps Control on page 3-16.
2. Move the shift lever into PARK (P) and close all
doors and liftgate.
3. Turn the ignition to ON.
The following is a list of the available programming
options:
4. Within five seconds after the ignition is turned to
ON, press and hold the power door lock switch in
the lock position for about five seconds.
Mode 1: All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. There is no automatic
door unlocking.
5. The interior lamp will flash to indicate that the mode
has been changed. For example, if the lamp flashes
once, the function has been changed to Mode 1.
Mode 2: No automatic door locking or unlocking.
If the battery is disconnected or run down, the mode is
changed to the initial mode which is Mode 4.
Mode 3: All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. All doors and liftgate
unlock when the shift lever is moved to PARK (P) with
the ignition on.
Mode 4: All doors and liftgate lock when the shift lever
is moved out of PARK (P) with the ignition on and all
doors and liftgate closed. All doors and liftgate
unlock when the ignition switch is turned from ON to
ACC or to LOCK.
2-9
Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear
doors on your vehicle from the inside.
The security locks are
located on the inside of
the rear door trim.
To use these locks, do the following:
1. Slide the lever down.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors on your vehicle cannot be opened
from the inside when this feature is in use.
To open a rear door with the security lock,
do the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
2-10
If you don’t cancel the security lock feature, adults and
older children who ride in the rear won’t be able to
open the rear door from the inside. You should let adults
and older children know how these security locks
work, and how to cancel the locks.
Liftgate/Liftglass
{CAUTION:
To cancel the rear door security lock, do the following:
1. Unlock the door from the inside and open the
door from the outside.
2. Slide the lever up.
3. Do the same for the other rear door.
The rear door locks will now work normally.
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You can not
see or smell CO. It can cause
unconsciousness and even death. If you must
drive with the liftgate open or if electrical
wiring or other cable connections must pass
through the seal between the body and the
liftgate or liftglass:
• Make sure all other windows are shut.
• Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System in the Index.
• If you have air outlets on or under the
instrument panel, open them all the way.
See Engine Exhaust on page 2-32.
2-11
Liftgate/Liftglass Release
To unlock and open the liftgate using the key, insert the
key into the keyhole and turn counterclockwise to the
first position. Raise the liftgate by hand.
To open the liftglass using the key, insert the key into
the keyhole and turn counterclockwise to the second
position. Use the handle in the center of the liftglass to
help in lifting the glass.
Your vehicle may have a
liftglass release button
which is located on
the instrument panel to the
left of the steering
wheel. Press this button to
release the liftglass.
When closing the liftgate, use the handle to pull it down.
To lock the liftgate, turn the key clockwise.
2-12
Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat and
suffer permanent injuries or even death from
heat stroke. Never leave a child, a helpless
adult, or a pet alone in a vehicle, especially with
the windows closed in warm or hot weather.
2-13
Manual Windows
AUTO (Express-Down: Press this switch all the way
down and release it to lower the driver’s window quickly.
Use the window crank to open and close each window.
Power Windows
If your vehicle has this
feature, the switches
controlling the driver’s and
passenger’s windows
are located on the
driver’s door.
o (Lock-Out): Press the window lock-out button,
located near the driver’s power door lock switches, to
disable the passenger’s power window switches.
Press the button again to enable the window switches.
Only the driver’s window will operate with the lock-out
button pressed.
Sun Visors
To block out glare, you can swing down the visors.
You can also swing them to the side.
The visors can also be extended for more coverage.
Swing the visor down and to the side and then slide the
visor out to extend it. Do not extend the visor when it
is in the forward position, only when it is at the side
of the vehicle.
The power window switch on each passenger door
controls that window only. These switches work while
the ignition is ON or in ACC.
Press the front of a switch to lower a window and lift the
front of the switch to raise a window.
2-14
Visor Vanity Mirror
Swing down the driver’s sun visor and lift the cover to
expose the vanity mirror. Swing down the passenger
visor to expose the mirror.
Theft-Deterrent Systems
Arming the System
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
To arm the system, do the following:
1. Turn the ignition key to the LOCK position and
remove it.
2. Close and lock all doors and liftgate with the key or
remote keyless entry transmitter.
Content Theft-Deterrent
If your vehicle has this feature, the theft-deterrent
system is designed to activate an alarm if any of the
side doors or the liftgate is forcibly unlocked or if
the battery terminal is disconnected and then
reconnected while the system is set.
The indicator light located
on the instrument panel to
the left of the steering
wheel will come on when
all doors and liftgate
are closed and locked.
The alarm will sound the horn intermittently and flash
the headlamps, turn signal lamps and interior lights.
If the driver’s or front passenger’s side doors are
unlocked forcibly, the other side doors and the liftgate
will be locked automatically.
The system will be automatically set after
30 seconds. When the system is set, the indicator
light will start flashing.
3. After the indicator light starts flashing, you may
leave the vehicle.
Do not leave anyone in the vehicle when you set
the system, because unlocking the vehicle from the
inside will activate the system.
2-15
Testing the Alarm
How the System Alarm is Activated
To test the alarm, do the following:
The system will activate the alarm under the following
conditions:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The doors and liftgate should be locked
with the key or remote keyless entry transmitter.
Be sure to wait until the indicator light starts flashing.
• If the driver’s or front passenger’s door is unlocked
or if any of the other doors or the liftgate is forcibly
opened without the key or remote keyless entry
transmitter.
3. Unlock the driver’s door from the inside.
The system should activate the alarm.
• If the battery terminal is disconnected and then
4. Stop the alarm as described in the disarming
procedure following.
• If the ignition is hot-wired.
• If the side window glass is broken or damaged.
5. Repeat this operation for the other doors.
Also check that the system is activated when
the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it
checked by your dealer.
reconnected.
The indicator light will come on when the system
is activated.
If the driver’s or front passenger’s doors are unlocked
without using the key or remote keyless entry
transmitter, the other doors and the liftgate will be
automatically locked again.
After one minute the alarm will automatically stop and
the indicator light will start flashing again.
2-16
Reactivating the System
Once the system is set, it will automatically reset the
alarm after the alarm stops. The alarm will activate again
under the same conditions as described earlier.
Disarming the System
The alarm can be disarmed by doing one of the
following:
• Turn the ignition key from LOCK to ON.
• Unlock any of the doors with the key or with the
remote keyless entry transmitter.
If the liftgate or liftglass is opened with the key,
the system will still be activated.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice: Your vehicle does not need an elaborate
“break-in.” But it will perform better in the long run
if you follow these guidelines:
• Do not drive at any one speed — fast or
slow — for the first 500 miles (805 km).
Do not make full-throttle starts.
• Avoid making hard stops for the first 200 miles
(322 km) or so. During this time your new brake
linings are not yet broken in. Hard stops with new
linings can mean premature wear and earlier
replacement. Follow this breaking-in guideline
every time you get new brake linings.
• Do not tow a trailer during break-in. See Towing a
Trailer on page 4-40 for more information.
2-17
Ignition Positions
With the key in the ignition switch, you can turn it to four
different positions.
(A) LOCK: This is the only position from which you can
remove the key. This locks your steering wheel,
ignition and automatic transaxle. Push in the ignition
switch as you turn the key toward you.
If you have an automatic transaxle, the ignition switch
cannot be turned to LOCK unless the shift lever is
in PARK (P).
{CAUTION:
On manual transaxle vehicles, turning the key
to LOCK and removing it will lock the steering
column and result in a loss of ability to steer
the vehicle. This could cause a collision. If you
need to turn the engine off while the vehicle is
moving, turn the key only to ACC. Do not push
the key in while the vehicle is moving.
Notice: If your key seems stuck in LOCK and you
can not turn it, be sure you are using the correct
key; if so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. Turn the key only with your hand. Using a
tool to force it could break the key or the ignition
switch. If none of these works, then your vehicle
needs service.
2-18
(B) ACC (ACCESSORY): This position operates some
of your electrical accessories, such as the radio, but
not the ventilation fan. It unlocks the steering wheel and
ignition. To move the key from ACC to LOCK, push in
the key and then turn it to LOCK.
(C) ON: This is the position the switch returns to after
you start your engine and release the switch. The switch
stays in the ON position when the engine is running.
But even when the ignition is not running, you can use
ON to operate your electrical accessories, including
the ventilation fan and 115 volt power outlet, and
to display some warning and indicator lights.
(D) START: This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to ON for normal driving.
When the engine is not running, ACC and ON allow you
to operate some of your electrical accessories.
Starting Your Engine
Automatic Transaxle
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine will not start in any other position — that is
a safety feature. To restart when you are already
moving, use NEUTRAL (N) only.
Notice: Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift into
PARK (P) only when your vehicle is stopped.
Manual Transaxle
The shift lever should be in NEUTRAL and the parking
brake engaged. Hold the clutch pedal to the floor
and start the engine. Your vehicle will not start if the
clutch pedal is not all the way down — that is a
safety feature.
A warning tone will sound if you open the driver’s door
when the ignition is still in ACC or LOCK and the
key is in the ignition.
2-19
Starting Your Engine
1. With your foot off the accelerator pedal, turn your
ignition key to START. When the engine starts,
let go of the key. The idle speed will go down as
your engine gets warm.
Notice: Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it does not start, wait about 15 seconds and
try again to start the engine by turning the
ignition key to START. Wait about 15 seconds
between each try.
When your engine has run about 10 seconds to
warm up, your vehicle is ready to be driven. Do not
run your engine at high speed when it is cold.
If the weather is below freezing (32°F or 0°C),
let the engine run for a few minutes to warm up.
2-20
3. If your engine still will not start, or starts but then
stops, it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for about three seconds. If the vehicle starts
briefly but then stops again, do the same thing,
but this time keep the pedal down for five or
six seconds. This clears the extra gasoline from
the engine.
Notice: Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way the
engine operates. Before adding electrical equipment,
check with your dealer. If you do not, your engine
might not perform properly.
Engine Coolant Heater
Your vehicle may have an engine coolant heater.
In very cold weather, 0°F (−18°C) or colder, the engine
coolant heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle.
At temperatures above 32°F (0°C), use of the coolant
heater is not required.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The electrical cord is located on the driver’s side
of the engine compartment.
3. Plug it into a normal, grounded 110-volt AC outlet.
{CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a fire. You could be seriously
injured. Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord will
not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could
be damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature,
the kind of oil you have, and some other things.
Instead of trying to list everything here, we ask that you
contact your dealer in the area where you will be
parking your vehicle. The dealer can give you the best
advice for that particular area.
2-21
Automatic Transaxle Operation
There are several
different positions for
your shift lever.
PARK (P): This position locks your front wheels. It is
the best position to use when you start your engine
because your vehicle cannot move easily.
{CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Do not leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle will not move, even when you are on
fairly level ground, always set your parking
brake and move the shift lever to PARK (P).
See Shifting Into Park (P) (Automatic Transaxle)
on page 2-28. If you are pulling a trailer,
see Towing a Trailer on page 4-40.
Ensure that the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transaxle shift lock control system. You have to
fully apply your regular brakes before you can shift
from PARK (P) when the ignition key is in ON.
2-22
If you cannot shift out of PARK (P), ease pressure on the
shift lever, push the shift lever all the way into PARK (P)
and release the shift lever button as you maintain brake
application. Then press the shift lever button and move
the shift lever into the gear you wish. See Shifting Out of
Park (P) (Automatic Transaxle) on page 2-30.
REVERSE (R): Use this gear to back up.
Notice: Shifting to REVERSE (R) while your vehicle
is moving forward could damage the transaxle.
The repairs would not be covered by your warranty.
Shift to REVERSE (R) only after your vehicle
is stopped.
To rock your vehicle back and forth to get out of
snow, ice or sand without damaging your transaxle,
see If You Are Stuck: In Sand, Mud, Ice or Snow
on page 4-30.
NEUTRAL (N): In this position, your engine does not
connect with the wheels. To restart when you are
already moving, use NEUTRAL (N) only.
{CAUTION:
Shifting into a drive gear while your engine is
running at high speed is dangerous. Unless
your foot is firmly on the brake pedal, your
vehicle could move very rapidly. You could
lose control and hit people or objects. Do not
shift into a drive gear while your engine is
running at high speed.
Notice: Shifting out of PARK (P) or NEUTRAL (N)
with the engine racing may damage the transaxle.
The repairs would not be covered by your warranty.
Be sure the engine is not racing when shifting
your vehicle.
2-23
DRIVE (D): This position is for normal driving. If you
need more power for passing, and you are:
• Going less than about 27 mph (43 km/h), push your
accelerator pedal about halfway down.
• Going about 29 mph (47 km/h) or more, push your
accelerator pedal all the way down.
You will shift down to the next gear and have
more power.
Overdrive Off
Your automatic transaxle
has an O/D (overdrive off)
button located on the
left side of the shift lever.
SECOND (2): This position gives you more power than
DRIVE (D) but lower fuel economy. You can use
SECOND (2) on hills. It can help control your speed as
you go down steep mountain roads, but then you
would also want to use your brakes off and on.
LOW (L): This position gives you even more power
than SECOND (2) but lower fuel economy. You can use
it on very steep hills, or in deep snow or mud. If the
shift lever is put in LOW (L), the transaxle will not shift
into low gear until the vehicle is going slow enough.
Notice: Spinning the tires or holding the vehicle
in one place on a hill using only the accelerator
pedal may damage the transaxle. If you are stuck,
do not spin the tires. When stopping on a hill,
use the brakes to hold the vehicle in place.
2-24
Press the O/D button to turn off overdrive. A light on
the instrument panel cluster will come on when
this feature is used. Press the button again to turn
overdrive back on. Then the light on the instrument
panel cluster will go off. See Overdrive Off Light
on page 3-40.
When you turn on your vehicle the overdrive will
automatically be on until you turn it off.
Manual Transaxle Operation
Five-Speed Transaxle
FIRST (1): Press the
clutch pedal and shift into
FIRST (1). Then, slowly
let up on the clutch pedal
as you press the
accelerator pedal.
THIRD (3), FOURTH (4), FIFTH (5): Shift into
THIRD (3), FOURTH (4) and FIFTH (5) the same way
you do for SECOND (2). Slowly let up on the clutch
pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press
the brake pedal. Just before the vehicle stops,
press the clutch pedal and the brake pedal, and shift
to NEUTRAL.
NEUTRAL: Use this position when you start or idle
your engine.
REVERSE (R): To back up, press down on the clutch
pedal and shift into REVERSE (R). Let up on the
clutch pedal slowly while pressing the accelerator pedal.
You can shift into FIRST (1) when you are going less
than 20 mph (32 km/h). If you have come to a complete
stop and it is hard to shift into FIRST (1), put the shift
lever in NEUTRAL and let up on the clutch. Press
the clutch pedal back down. Then shift into FIRST (1).
SECOND (2): Press the clutch pedal as you let up
on the accelerator pedal and shift into SECOND (2).
Then, slowly let up on the clutch pedal as you press the
accelerator pedal.
Notice: Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transaxle. The repairs would not be covered by
your warranty. Shift to REVERSE (R) only after your
vehicle is stopped.
Also, use REVERSE (R) along with the parking brake
for parking your vehicle.
2-25
Six-Speed Transaxle
FIRST (1): Press the
clutch pedal and shift into
FIRST (1). Then, slowly
let up on the clutch pedal
as you press the
accelerator pedal.
THIRD (3): Press the clutch pedal and upshift into
THIRD (3). Then, slowly let up on the clutch pedal as
you press the accelerator pedal.
FOURTH (4), FIFTH (5), SIXTH (6): Shift into
FOURTH (4) and FIFTH (5) and SIXTH (6) the same
way you do for THIRD (3). Slowly let up on the
clutch pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press the
clutch pedal and the brake pedal, and shift to NEUTRAL.
NEUTRAL: Use this position when you start or idle
your engine.
You can shift into FIRST (1) when you are going less
than 20 mph (32 km/h). If you have come to a complete
stop and it is hard to shift into FIRST (1), put the shift
lever in NEUTRAL and let up on the clutch. Press
the clutch pedal back down. Then shift into FIRST (1).
SECOND (2): Press the clutch pedal as you let up
on the accelerator pedal and shift into SECOND (2).
Then, slowly let up on the clutch pedal as you press the
accelerator pedal. If you have come to a complete
stop and it is hard to shift into SECOND (2), put the shift
lever in NEUTRAL and let up on the clutch. Press the
clutch pedal back down. Then shift into SECOND (2).
2-26
REVERSE (R): To back up, press down on the clutch
pedal and shift into REVERSE (R). Let up on the
clutch pedal slowly while pressing the accelerator pedal.
Notice: Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transaxle. The repairs would not be covered by your
warranty. Shift to REVERSE (R) only after your
vehicle is stopped.
Also, use REVERSE (R) along with the parking brake
for parking your vehicle. There is an audible beep when
the vehicle is in REVERSE (R) to ensure that FIRST (1)
gear and REVERSE (R) are not confused.
Shift Speeds
Manual Transmission Recommended
Shift Speeds
{CAUTION:
Engine
If you skip a gear when you downshift, you
could lose control of your vehicle. You could
injure yourself or others. Don’t shift down more
than one gear at a time when you downshift.
This chart shows when to shift to the next gear for the
best fuel economy.
1 to 2
or
2 to 1
2 to 3
or
3 to 2
3 to 4
or
4 to 3
4 to 5
or
5 to 4
1.8 L
15 mph 25 mph 40 mph 45 mph
(Code 8) 24 km/h 40 km/h 64 km/h 72 km/h
5 to 6
or
6 to 5
—
1.8 L
15 mph 25 mph 40 mph 45 mph 50 mph
(Code L) 24 km/h 40 km/h 64 km/h 72 km/h 80 km/h
If your speed drops below 20 mph (32 km/h), or if the
engine is not running smoothly, you should downshift to
the next lower gear. You may have to downshift two
or more gears to keep the engine running smoothly or
for good performance.
2-27
Parking Brake
To set the parking brake, hold the brake pedal down
and pull up on the parking brake lever. If the ignition is
on, the brake system warning light will come on.
Notice: Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Verify that
the parking brake is fully released and the brake
warning light is off before driving.
If you are towing a trailer, see Towing a Trailer on
page 4-40.
Shifting Into Park (P)
(Automatic Transaxle)
{CAUTION:
To release the parking brake, hold the brake pedal
down. Pull the parking brake lever up until you can press
the release button. Hold the release button in as you
move the lever all the way down.
2-28
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
If you have left the engine running, the vehicle
can move suddenly. You or others could be
injured. To be sure your vehicle will not move,
even when you are on fairly level ground, use
the steps that follow. If you are pulling a trailer,
see Towing a Trailer on page 4-40.
To shift into PARK (P), do the following:
1. Hold the brake pedal down with your right foot and
set the parking brake by pulling up on the parking
brake lever.
2. Move the shift lever into PARK (P) by holding in the
button on the shift lever and pushing the lever all
the way toward the front of the vehicle.
3. Turn the ignition key to LOCK.
4. Remove the key and take it with you. If you can
leave your vehicle with the key in your hand, your
vehicle is in PARK (P).
Leaving Your Vehicle With the Engine
Running (Automatic Transaxle)
{CAUTION:
It can be dangerous to leave your vehicle with
the engine running. Your vehicle could move
suddenly if the shift lever is not fully in
PARK (P) with the parking brake firmly set.
And, if you leave the vehicle with the engine
running, it could overheat and even catch fire.
You or others could be injured. Do not leave
your vehicle with the engine running.
If you have to leave your automatic transaxle vehicle
with the engine running, be sure your vehicle is in
PARK (P) and your parking brake is firmly set before
you leave it. After you have moved the shift lever
into PARK (P), hold the regular brake pedal down. Then,
see if you can move the shift lever away from PARK (P)
without first pulling it toward you. If you can, it means
that the shift lever was not fully locked into PARK (P).
2-29
Torque Lock (Automatic Transaxle)
If you are parking on a hill and you do not shift
into PARK (P) properly, the weight of the vehicle may
put too much force on the parking pawl in the transaxle.
You may find it difficult to pull the shift lever out of
PARK (P). This is called “torque lock.” To prevent
torque lock, set the parking brake and then shift into
PARK (P) properly before you leave the driver’s seat.
To find out how, see Shifting Into Park (P)
(Automatic Transaxle) on page 2-28.
When you are ready to drive, move the shift lever out of
PARK (P) before you release the parking brake.
If torque lock does occur, you may need to have another
vehicle push yours a little uphill to take some of the
pressure from the parking pawl in the transaxle, so you
can pull the shift lever out of PARK (P).
2-30
Shifting Out of Park (P)
(Automatic Transaxle)
Your vehicle has an automatic transaxle shift lock
control system. You have to fully apply your regular
brakes before you can shift from PARK (P) when
the ignition is in ON. See Automatic Transaxle Operation
on page 2-22.
If you cannot shift out of PARK (P), ease pressure on
the shift lever – push the shift lever all the way into
PARK (P) and release the shift lever button as
you maintain brake application. Then press the shift
lever button and move the shift lever into the gear
you wish.
Shift Lock Release
If you ever hold the brake pedal down but still cannot
shift out of PARK (P), try this:
1. Turn the ignition to LOCK. Make sure the parking
brake is applied.
2. Carefully pry the cover
from the shift lock
override, located to the
right of the shift lever.
Parking Your Vehicle
(Manual Transaxle)
Before you get out of your vehicle, move the shift lever
into REVERSE (R), and firmly apply the parking
brake. Once the shift lever has been placed into
REVERSE (R) with the clutch pedal pressed in, you can
turn the ignition key to OFF, remove the key and
release the clutch.
If you are parking on a hill, or if your vehicle is pulling a
trailer, see Towing a Trailer on page 4-40.
3. Insert the end of a flat-tipped tool into the round slot
and press down firmly.
4. While maintaining brake application, move the shift
lever into the drive gear you want.
5. Have the vehicle fixed as soon as possible.
2-31
Parking Over Things That Burn
Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you cannot
see or smell. It can cause unconsciousness
and death.
{CAUTION:
You might have exhaust coming in if:
• Your exhaust system sounds strange
or different.
• Your vehicle gets rusty underneath.
• Your vehicle was damaged in a collision.
• Your vehicle was damaged when driving
over high points on the road or over
road debris.
• Repairs were not done correctly.
• Your vehicle or exhaust system had been
modified improperly.
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Do not
park over papers, leaves, dry grass or other
things that can burn.
If you ever suspect exhaust is coming into
your vehicle:
• Drive it only with all the windows down to
blow out any CO; and
• Have your vehicle fixed immediately.
2-32
Running Your Engine While You
Are Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier caution under
Engine Exhaust on page 2-32.
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the climate control fan is at the highest setting.
One place this can happen is a garage.
Exhaust — with CO — can come in easily.
NEVER park in a garage with the engine
running.
Another closed-in place can be a blizzard.
See Winter Driving on page 4-26.
{CAUTION:
It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake firmly set. Your vehicle can
roll. Do not leave your vehicle when the engine
is running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move, even
when you are on fairly level ground, always set
your parking brake and move the shift lever
to PARK (P).
Follow the proper steps to be sure your vehicle will not
move. See Shifting Into Park (P) (Automatic Transaxle)
on page 2-28.
If you are parking on a hill and if you are pulling a
trailer, also see Towing a Trailer on page 4-40.
2-33
Mirrors
Manual Rearview Mirror
While sitting in a comfortable driving position, adjust the
mirror so you can see clearly behind your vehicle. Grip the
mirror in the center to move it up or down and side to side.
The control at the bottom of the mirror is the day/night
feature that allows adjustment to the mirror so that the
glare of headlamps from behind is reduced. Pull the
control for night driving to reduce glare; push it to return
to the day position.
Outside Remote Control Mirrors
The vehicle has outside power adjustable mirrors.
The controls are located
to the left of the
steering wheel on the
instrument panel.
The mirror may have map lights beneath the mirror.
Push the lens to turn each light on or off.
Manual Rearview Mirror with OnStar®
The vehicle may have an inside rearview mirror with
OnStar®. See your GM dealer for more information
on the system and how to subscribe to OnStar®.
See OnStar® System on page 2-35 for information
on the services OnStar® provides.
While sitting in a comfortable position, adjust the
mirror so you can see clearly behind your vehicle.
Grip the mirror in the center to move it up or down and
side to side. The control at the bottom of the mirror
is the day/night feature that allows adjustment to
the mirror so that the glare of headlamps from behind is
reduced. Move the control from left to right for day or
night conditions.
2-34
To adjust either mirror, push the button labeled L (left)
or R (right). Use the arrows on the control pad to adjust
the direction of the mirror.
Once both mirrors have been adjusted, move the
selector switch back to the center. This prevents the
mirrors from being moved once they have been adjusted.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so more can be seen from
the driver’s seat.
OnStar® System
OnStar® uses global positioning system (GPS) satellite
technology, wireless communications, and call centers
to provide you with a wide range of safety, security,
information, and convenience services.
A complete OnStar® user’s guide and the terms and
conditions of the OnStar® Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com
or www.onstarcanada.com. Contact OnStar® at
1-888-4-ONSTAR (1-888-466-7827), or press the
OnStar® button to speak to an OnStar® advisor
24 hours a day, 7 days a week.
Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com or
www.onstarcanada.com.
2-35
OnStar® Services
OnStar® Personal Calling
The Safe and Sound Plan is included on new vehicles
for the first year for vehicles equipped with OnStar®.
The plan can be extended or upgraded to the Directions
and Connections Plan to meet your needs. For more
information, press the OnStar® button to speak to
an advisor.
As an OnStar® subscriber, the Personal Calling
capability is available if your hand-held cell phone is
lost, forgotten, or has a low battery. It is a hands-free
wireless phone that is integrated into the vehicle.
Calls can be placed nationwide using simple voice
commands with no additional contracts and no additional
roaming charges. To find out more about OnStar®
Personal Calling, refer to the OnStar® user’s guide in
the vehicle’s glove box or visit www.onstar.com or
www.onstarcanada.com; or speak with an OnStar
advisor by pressing the OnStar® button or by calling
1-888-4-ONSTAR (1-888-466-7827).
Safe and Sound Plan
• Automatic Notification of Air Bag Deployment
• Emergency Services
• Roadside Assistance
• Stolen Vehicle Tracking
• AccidentAssist
• Remote Door Unlock/Vehicle Alert
• Remote Diagnostics
• Online Concierge
Directions and Connections Plan
• All Safe and Sound Plan Services
• Driving Directions
• RideAssist
• Information and Convenience Services
2-36
OnStar® Virtual Advisor
Virtual Advisor is a feature of OnStar® Personal Calling
that uses minutes to access up-to-date weather and
traffic reports for your area, news and sports updates,
stock quotes, entertainment and more. You are also able
to listen and reply to your E-mail through your vehicle’s
audio system. Customize your information profile at
www.myonstar.com. See the OnStar® user’s guide for
more information.
Storage Areas
Glove Box
Open the glove box by pulling the bottom of the handle
upward. Close the glove box with a firm push.
Cupholder(s)
There are two fixed cupholders located in the console
area between the two front seats. There are also
two cupholders that fold out of the rear of the console
storage unit.
Coinholder(s)
Instrument Panel Storage Area
There are storage compartments located on the
instrument panel in two places. They are below the
interior/instrument panel brightness dial and below the
shift lever. Pull the top of the door toward you to open it
or for the compartment below the shift lever, push the
button to open it.
Center Console Storage Area
A storage area is located in the console between the
seats. There may also be an accessory power
outlet located in the storage area.
To access the storage area, pull up the lock release
lever while raising the lid.
Your instrument panel has a coinholder located to the
left of the steering wheel and on the center console near
the parking brake.
2-37
Floor Mats
Rear Storage Area
The driver’s side floor mat is held in place by two
locator hooks.
A storage area is located under the rear cargo area
floor panel.
Be sure the driver’s side floor mat is properly placed on
the floor so that it does not block the movement of
the accelerator pedal.
Turn the knobs on the
floor panel to unlock the
storage area access cover.
How to Remove and Replace the
Floor Mat
To remove the floor mat,
pull up on the rear of the
mat to disconnect it
from the locator hooks.
Be sure to lock the access cover to close it securely.
To reinstall the floor mat, line up the openings in the
floor mat over the locator hooks and push down
into place.
2-38
Rear Cargo Accessory Track System
Cargo Cover
Your vehicle has a track system located on the floor of
the rear cargo area. This system can be used to
carry accessories in your vehicle in many ways by using
the tie-down anchors provided in your vehicle or
accessory packages available from your GM dealer.
To use the cargo cover, attach the side hooks of the
cargo cover to the upper tie down hooks located along
both sides of the rear cargo area.
Make sure the cargo being carried in the rear cargo area
is secure. See Loading Your Vehicle on page 4-32.
{CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store
it in the proper storage location. When you
put it back, always be sure that it is securely
reattached.
2-39
Cargo Tie Downs
Sunroof
The tire tie-down straps are designed to secure a
flat tire. You can also use the straps and hooks to
secure your luggage.
If the vehicle has a sunroof, it can be opened or put
in a tilt position. To tilt the sunroof, slide the sunshade
rearward, then press the switch marked UP. Press the
other end of the switch to lower the sunroof. The ignition
must be in the ON position for the switch to work.
To open or close the sunroof, press the switch marked
SLIDE rearward or forward. The sunroof will close
partially and stop. Once the sunroof stops, release
the switch and press the button again to fully close it.
The sunroof can be opened to any position.
The sunshade will open when the sunroof is
opened. The sunshade must be closed manually.
There are eight tie-down hooks located in the rear of the
vehicle. The straps are located under the cargo area floor
panel. To use the straps, hook the ends to the lower
tie-down hooks in a criss-cross pattern across the cargo.
Pull on the straps at the buckle to tighten the straps
as needed.
2-40
Section 3
Instrument Panel
Instrument Panel Overview ...............................3-4
Hazard Warning Flashers ................................3-6
Other Warning Devices ...................................3-6
Horn .............................................................3-6
Tilt Wheel .....................................................3-7
Turn Signal/Multifunction Lever .........................3-7
Turn and Lane-Change Signals ........................3-8
Headlamp High/Low-Beam Changer ..................3-8
Flash-to-Pass .................................................3-8
Windshield Wipers ..........................................3-9
Windshield Washer .......................................3-10
Cruise Control ..............................................3-10
Exterior Lamps .............................................3-13
Headlamps on Reminder ................................3-13
Daytime Running Lamps ................................3-14
Automatic Headlamp System ..........................3-15
Fog Lamps ..................................................3-15
Instrument Panel Brightness ...........................3-15
Interior Lamps Control ...................................3-16
Entry Lighting ...............................................3-16
Reading Lamps ............................................3-17
Accessory Power Outlets ...............................3-18
Power Outlet 115 Volt Alternating Current ........3-18
Ashtrays and Cigarette Lighter ........................3-19
Climate Controls ............................................3-20
Climate Control System .................................3-20
Outlet Adjustment .........................................3-22
Passenger Compartment Air Filter ...................3-23
Warning Lights, Gages, and Indicators ............3-25
Instrument Panel Cluster ................................3-26
Speedometer and Odometer ...........................3-27
Trip Odometers ............................................3-27
Tachometer .................................................3-27
Safety Belt Reminder Light .............................3-28
Airbag Readiness Light ..................................3-29
Passenger Airbag Status Indicator ...................3-30
Charging System Light ..................................3-31
Brake System Warning Light ..........................3-32
Anti-Lock Brake System Warning Light .............3-33
Low Tire Pressure Warning Light ....................3-33
Traction Control System (TCS)
Warning Light ...........................................3-34
Stabilitrak® Indicator Light ...............................3-34
Engine Coolant Temperature Gage ...................3-35
Malfunction Indicator Lamp .............................3-35
Oil Pressure Light .........................................3-38
Lights On Reminder ......................................3-39
3-1
Section 3
Instrument Panel
Taillamp Indicator Light ..................................3-39
Cruise Control Light ......................................3-39
Overdrive Off Light ........................................3-40
Highbeam On Light .......................................3-40
Low Washer Fluid Warning Light .....................3-40
Door Ajar Light .............................................3-40
Fuel Gage ...................................................3-41
Low Fuel Warning Light .................................3-41
3-2
Audio System(s) .............................................3-42
Setting the Time ...........................................3-42
Radio with CD ..............................................3-43
Radio with Six-Disc CD .................................3-53
Navigation/Radio System ...............................3-64
Radio Reception ...........................................3-64
Care of Your CDs .........................................3-64
Care of Your CD Player ................................3-65
Fixed Mast Antenna ......................................3-65
XM™ Satellite Radio Antenna System .............3-65
✍ NOTES
3-3
Instrument Panel Overview
3-4
The main components of your instrument panel are the following:
A. Air Outlets. See Outlet Adjustment on page 3-22.
B. Instrument Panel Cluster. See Instrument Panel
Cluster on page 3-26.
C. Climate Control System. See Climate Control
System on page 3-20.
D. Hazard Warning Flasher Button. See Hazard
Warning Flashers on page 3-6.
E. Audio System. See Audio System(s) on page 3-42.
F. Rear Window Defogger Button. See “Rear Window
Defogger” under Climate Control System on
page 3-20.
G. Passenger Airbag Status Indicator. See Passenger
Airbag Status Indicator on page 3-30. Front
Passenger Safety Belt Reminder Light. See Safety
Belt Reminder Light on page 3-28.
H. Power Remote Control Mirror Button. See Outside
Remote Control Mirrors on page 2-34.
I. Instrument Panel Brightness Control. See Instrument
Panel Brightness on page 3-15.
J. Rear Liftglass Release Button. See Liftgate/Liftglass
on page 2-11.
K. Tire Pressure Monitor Reset Button. See Tire
Pressure Monitor System on page 5-65.
L. Coinholder. See Coinholder(s) on page 2-37.
M. TRAC OFF Button. See Traction Control
System (TCS) on page 4-9.
N. Content Theft-Deterrent Security Light. See Content
Theft-Deterrent on page 2-15.
O. Storage Compartment. See Instrument Panel
Storage Area on page 2-37.
P. Turn Signal/Multifunction Lever and Exterior Lamp
Stalk. See Turn Signal/Multifunction Lever on
page 3-7 and Exterior Lamps on page 3-13.
Q. Hood Release. See Hood Release on page 5-10.
R. Tilt Lever. See Tilt Wheel on page 3-7.
S. Horn. See Horn on page 3-6.
T. Cruise Control Lever (Option). See Cruise Control
on page 3-10.
U. Ignition Switch. See Ignition Positions on page 2-18.
V. Windshield Wiper Lever. See Windshield Wipers
on page 3-9.
W. Cigarette Lighter or Accessory Power Outlet. See
Ashtrays and Cigarette Lighter on page 3-19 or
Accessory Power Outlets on page 3-18.
X. Shift Lever. See Automatic Transaxle Operation
on page 2-22.
3-5
Y. Power Outlet. See Power Outlet 115 Volt Alternating
Current on page 3-18.
Z. Parking Brake. See Parking Brake on page 2-28.
AA. Center Console Storage Area. See Center Console
Storage Area on page 2-37.
AB. Glove Box. See Glove Box on page 2-37.
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will flash on and off.
The hazard warning
flasher button is located
near the center of the
instrument panel.
Your hazard warning flashers work no matter what
position your key is in, and even if the key is not in.
3-6
Press the button to make the front and rear turn signal
lamps flash on and off. Press the button again to
turn the flashers off.
When the hazard warning flashers are on, your turn
signals will not work.
Other Warning Devices
If you carry reflective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
Press near or on the horn symbols on your steering
wheel pad to sound the horn.
Tilt Wheel
Turn Signal/Multifunction Lever
A tilt steering column allows you to adjust the steering
column before you drive. You can also raise it to the
highest level to give your legs more room when you exit
and enter the vehicle.
The tilt lever is located
underneath, on the left
side of the steering
wheel column.
The turn signal/multifunction lever is located on the left
side of the steering column.
This lever operates the following:
• Exterior Lamps. See Exterior Lamps on page 3-13.
• Turn and Lane-Change Signals. See Turn and
To tilt the column, move the lever downward. Adjust the
steering wheel to a comfortable position, then move
the lever upward to lock the column in place.
Lane-Change Signals on page 3-8.
• Headlamp High/Low-Beam Changer. See Headlamp
High/Low-Beam Changer on page 3-8.
• Flash-to-Pass. See Flash-to-Pass on page 3-8.
• Fog Lamps. See Fog Lamps on page 3-15.
3-7
Turn and Lane-Change Signals
Headlamp High/Low-Beam Changer
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow
you to signal a turn or a lane change.
The headlamps must be on for this feature to work.
For high beams, push the turn signal lever away
from you.
To signal a turn, move the lever all the way up or
down. When the turn is finished, the lever will return
automatically.
When the high beams are
on, this light on the
instrument panel cluster
also will be on.
To signal a lane change, raise or lower the lever until
the arrow starts to flash. Hold it there until you complete
your lane change. The lever will return by itself when
you release it.
An arrow on the instrument
panel cluster will flash in
the direction of the
turn or lane change.
If you signal a turn or a lane change and notice the
arrow flashing rapidly, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, have it replaced to help avoid an
accident. If the arrows don’t go on at all when you
signal a turn, check for burned-out bulbs and then check
the fuse. See Fuses and Circuit Breakers on page 5-96.
3-8
It will go off when you switch to the low beams.
To switch back to low beams, pull the lever toward you.
Flash-to-Pass
With the lever in the low-beam position, pull the lever
toward you to momentarily switch to high beams
(to signal that you are going to pass). If you have the
headlamps on when you release the lever, they will
return to the low beams.
Windshield Wipers
INT (Intermittent): Move the lever to INT to choose a
delayed wiping cycle. In light rain or snow, you might
want to use this position rather than continuous wiping.
You can change the time between wipes by turning
the INT TIME band. Turn the band forward or rearward
for longer or shorter delay interval.
LO (Low): Move the lever to LO for steady wiping at
low speed.
HI (High): Move the lever to HI for steady wiping at
high speed.
The lever on the right side of the steering column
controls the windshield wipers and washer.
The available positions are the following:
MIST: For a single wiping cycle, move the lever to
MIST. Hold it there until the wipers start, then let go.
The wipers will stop after one wipe.
OFF: The wipers are off.
REAR: To turn on the rear window wiper, twist the end
of the lever upward to ON. For intermittent wiping,
twist the end of the lever to INT. The wiper does not
work with the rear liftglass open.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
3-9
Windshield Washer
Cruise Control
Pull the lever toward you to spray washer fluid on the
windshield. The spray will continue until you release the
lever. The wipers will run a few times. See Windshield
Washer Fluid on page 5-38.
To squirt washer fluid on the rear window, twist the knob
upward and downward as far as it will go. The knob
automatically returns from these positions after you
release it. You can twist the lever downward to create a
large flow of water on the rear window, then twist the
lever back up to wipe the window. This feature is helpful
to quickly clear the rear liftglass when very dirty.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer fluid can form ice on the windshield,
blocking your vision.
3-10
If your vehicle has cruise control, the lever is located on
the right side of the steering wheel.
With cruise control, you can maintain a speed of 25 mph
(40 km/h) or more without keeping your foot on the
accelerator. This can really help on long trips. Cruise
control does not work at speeds below 25 mph (40 km/h).
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause needless wheel spinning,
and you could lose control. Do not use cruise
control on slippery roads.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you
are not using cruise, you might hit a button
and go into cruise when you do not want to.
You could be startled and even lose control.
Keep the cruise control switch off until you
want to use cruise control.
1. Press the ON-OFF button at the end of the cruise
control lever. The CRUISE light on the instrument
panel cluster will come on. See Cruise Control Light
on page 3-39 for more information.
2. Get up to the speed you want.
3. Move the lever down to SET/COAST and release it.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
Suppose the cruise control is set at a desired speed
and then you apply the brake. This will shut off cruise
control. But you won’t need to reset it.
Unless you’re going less than 25 mph (40 km/h) you
can push the lever up to RES/ACC
(Resume/Accelerate). You’ll go right back up to your
chosen speed and stay there.
The cruise control set speed is erased from memory
if the vehicle speed goes below 25 mph (40 km/h).
If your preset speed cancels out at speeds above
25 mph (40 km/h), there may be a problem with your
vehicle’s cruise control. See your dealer.
3-11
Increasing Speed While Using
Cruise Control
Passing Another Vehicle While Using
Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your vehicle will
slow down to the cruise control speed you set earlier.
• Use the accelerator pedal to get to the higher
speed. Move the lever down to SET/COAST.
Release the lever and the accelerator pedal.
You’ll now cruise at the higher speed.
• Move the cruise lever up to RES/ACC. Hold it there
until you get up to the speed you want, and then
release the lever.
• To increase your speed in very small amounts,
move the lever to RES/ACC briefly and then release
it. Each time you do this, your vehicle will go
about 1 mph (1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
There are two ways to reduce your speed while using
cruise control:
• Push and hold the lever to SET/COAST until you
reach the lower speed you want, then release it.
• To slow down in very small amounts, push the lever
down briefly. Each time you do this, you’ll go about
1 mph (1.6 km/h) slower.
3-12
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step on the
accelerator pedal to maintain your speed.
When going downhill, you may have to brake or shift to a
lower gear to keep your speed down. Of course, applying
the brake or downshifting to SECOND (2) or LOW (L)
takes you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control on
steep hills.
Ending Cruise Control
There are several ways to turn off the cruise control:
• Step lightly on the brake pedal or push the
clutch pedal, if you have a manual transaxle.
• Press the CRUISE ON-OFF button again.
• Pull the cruise control lever toward you.
Erasing Speed Memory
The exterior lamp switch has three positions:
When you turn off the cruise control or the ignition, your
cruise control set speed memory is erased. The set
speed memory is also erased when the vehicle speed
drops below 25 mph (40 km/h).
OFF: Turning the switch to this position turns off all
lamps, except the Daytime Running Lamps (DRL).
Exterior Lamps
O (Parking Lamps): Turning the switch to this position
turns on the parking lamps together with the following:
•
•
•
•
Sidemarker Lamps
Taillamps
License Plate Lamp
Instrument Panel Lights
A symbol will appear on the instrument panel cluster
when your parking lamps are on. See Lights On
Reminder on page 3-39 and Taillamp Indicator Light
on page 3-39 for additional information.
The lever on the left side of the steering column
operates the exterior lamps.
O(Exterior Lamps):
Turn the outside part of the lever
with the symbol on it, to operate the lamps. For vehicles
sold in the U. S., this symbol will appear on the
instrument panel cluster when your exterior lamps are on.
3(Headlamps): Turning the switch to this position
turns on the headlamps, together with the previously
listed lamps and lights.
Headlamps on Reminder
If you turn the ignition to LOCK or ACC and leave
the lamps on, you’ll hear a tone when you open the
driver’s door.
3-13
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
first sold in Canada.
The DRL system will make your headlamps come on at
a reduced brightness when the following conditions
are met:
• The ignition is on with the engine running.
• The exterior lamps switch is off.
• The parking brake is released.
When the DRL are on, only your headlamps will be on
at a reduced brightness. The taillamps, sidemarker
and other lamps won’t be on. Your instrument panel
won’t be lit up either.
3-14
When you turn the exterior lamp switch to the headlamp
position, your DRL will go off and your headlamps will
come on. The other lamps that come on with your
headlamps will also come on.
When it begins to get dark, the headlamps will
automatically switch from DRL to the regular headlamps.
See “Automatic Headlamp System” following.
When you turn the exterior lamp switch off, the regular
lamps will go off and your headlamps will change to
the reduced brightness of DRL provided it is not
dark outside. DRL also comes on if only the parking
lamps are being used.
To idle your vehicle with the DRL off, do the following:
1. Set the parking brake.
2. Turn the ignition off.
3. Turn the ignition back on.
The DRL will stay off until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Automatic Headlamp System
Your vehicle is equipped with an automatic light sensor
on the top left corner of the instrument panel, so be sure it
is not covered or the headlamps will be on continuously.
When it is dark enough outside, your automatic
headlamp system will turn on your low-beam headlamps
at the normal brightness along with other lamps such
as the taillamps, sidemarker, parking lamps and
instrument panel lights. This is indicated by the
headlamp symbol on your instrument panel cluster.
See Instrument Panel Cluster on page 3-26.
If you are driving through a parking garage, overcast
weather, or a tunnel, the automatic headlamp system
may turn on your low-beam headlamps at a normal
brightness along with the taillamps, sidemarker, parking
lamps and the instrument panel lights. The radio
lights will be dimmer, and the instrument panel cluster
lights may dim. There will be a delay before the
lights will turn on when starting the car at night.
Fog Lamps
Instrument Panel Brightness
The instrument panel
brightness control is
located to the left of the
steering wheel on the
instrument panel.
Turn the wheel on the
left of the control up
or down to increase or
decrease brightness.
The brightness of the instrument panel lights will
decrease when the headlamps are on.
6 (Maximum Setting): It is recommended that the
brightness level be kept at the maximum setting for
all daytime driving to ensure proper visibility.
- (Fog Lamps): Turn the band on the turn
signal/multifunction lever to the fog lamp symbol to turn
the fog lamps on. They will come on only when the
headlamps are on low beam.
3-15
Interior Lamps Control
Entry Lighting
Turn the wheel on the right of the control to one of the
following positions:
While the instrument panel brightness control is in the
door position, the light will come on when any side door,
the liftgate or the liftglass is opened. After all the
doors, liftgate and liftglass are closed, and the key is
out of the ignition, in LOCK or ACC, the light will remain
on for about 15 seconds and then go out except
under the following conditions:
OFF: This position turns the light off.
ON: This position keeps the light on all the time.
6 (Door): This position turns the light on when any
door, the liftgate or the liftglass is opened. The light
goes off when all the side doors, the liftgate and
the liftglass are closed.
• The ignition is turned to ACC or ON after all the
doors, the liftgate and the liftglass are closed.
• All the doors and liftgate are locked when the
liftglass is closed and the light is still on.
When any door is unlocked with the key or remote
keyless entry system transmitter, the light comes on for
15 seconds, even if the door is not opened.
To prevent the battery from draining, the lamps will
automatically turn off when the key is in the ACC
or LOCK positions or if the key is removed for
20 minutes or more.
3-16
Reading Lamps
If you have a sunroof, you will have a reading lamp
near the sunroof switch. Press the button to turn
the lamp on and press it again to turn it off.
If you do not have a sunroof, your vehicle’s inside
rearview mirror may be equipped with reading lamps.
If your vehicle is equipped with reading lamps, there are
two buttons located on the bottom of the mirror. Press
the buttons to turn the lamps on and press them again to
turn the lamps off.
To prevent the battery from draining on vehicles with
power door locks, the lamps will automatically turn
off when the key is in the ACC or LOCK positions or if
the key is removed for 20 minutes or more. The lights
will come on when any of the doors are opened
or if the key is turned to the ON position.
3-17
Accessory Power Outlets
With the accessory power outlet, you can plug in
auxiliary electrical equipment.
The accessory power outlet is located in the center
console storage area. Your vehicle may also have an
additional outlet in place of the cigarette lighter.
To use the outlet, the ignition must be in ON or ACC.
Pull down the small cover to access the outlet.
Notice: Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
These circuits are protected by a fuse and have
maximum current levels.
Certain power accessory plugs may not be compatible
to the power accessory outlet and could result in
blown vehicle or adapter fuses. If you experience a
problem see your dealer for additional information on the
power accessory plugs.
3-18
Notice: Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Check with your
dealer before adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
Notice: Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.
Power Outlet 115 Volt Alternating
Current
With this power outlet, you can plug in auxiliary electrical
equipment with a maximum limit of 115 VAC. If you
try to use equipment that requires more than the limit,
a protection circuit will cut the power supply. The power
will automatically restart when equipment that operates
within the limit is plugged in.
Ashtrays and Cigarette Lighter
Notice: If you put papers or other flammable items
in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage
your vehicle. Never put flammable items in
the ashtray.
To use the lighter, if your vehicle has one, push the
lighter in all the way and let go. When it’s ready, it will
pop back out by itself. If the engine is not running,
the key must be in ACC to use the lighter.
The power outlet is located near the center of the
instrument panel. Before using the outlet, turn on the
ignition and press the button next to the outlet.
An indicator light in the button will come on. After using
the outlet, press the button again to turn it off.
It is not recommended to use the cigarette lighter to
plug in auxiliary electrical equipment. Use the accessory
power outlet for phones and other electrical equipment.
See Accessory Power Outlets on page 3-18 or Power
Outlet 115 Volt Alternating Current on page 3-18.
The power outlet is not designed for the following
electrical equipment and they may not work properly:
Notice: Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating. Do not
use anything other than the cigarette lighter in the
heating element.
• Equipment with high initial peak wattage:
cathode-ray tube type televisions,
compressor-driven refrigerators, electric
power tools.
• Other equipment requiring an extremely stable
power supply: microcomputer-controlled electric
blankets, touch sensor lamps, etc.
Your vehicle may have a removable ashtray that sits in
your front cupholder in the center console storage area.
3-19
Climate Controls
To change the current mode, select one of the following:
H (Vent):
Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle.
This mode directs air to the upper
instrument panel outlets.
) (Bi-Level):
This mode directs the air to the upper
instrument panel outlets, and to the floor outlets.
6(Floor):
This mode directs the air to the floor outlets
and to the outboard outlets (for the side windows).
Operation
9 (Fan): Turn the center knob away from OFF to turn
the system on. Turn the knob toward HI to increase
fan speed.
If the airflow seems low when the fan is at the highest
setting, the passenger compartment air filter may
need to be replaced. For more information, see
Passenger Compartment Air Filter on page 3-23 and
Scheduled Maintenance on page 6-4.
3-20
? (Recirculation): Press this button, located in the
center of the instrument panel to the left of the audio
system, to turn the recirculation mode on or off. This
mode keeps outside air from coming in the vehicle. It can
be used to prevent outside air and odors from entering
your vehicle or to help heat or cool the air inside your
vehicle more quickly. When the button is pressed, an
indicator light in the button will come on. Press the button
again to turn off recirculate and to circulate outside air
through the system. The indicator light will go off.
Recirculate is automatically turned off when the climate
control system mode knob is turned to defog or defrost or
is between modes.
Temperature Control: Turn the right knob clockwise or
counterclockwise to increase or decrease the
temperature inside your vehicle.
A/C (Air Conditioning): Press this button, located in the
center of the instrument panel to the left of the audio
system, to turn the air-conditioning system on or off.
When A/C is pressed, an indicator light in the button will
come on to let you know that the air conditioning is
activated.
MAX A/C (Maximum Air Conditioning): Press the A/C
and recirculation buttons at the same time to select
MAX A/C.
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the time
it takes for your vehicle to cool down. It also helps
the system to operate more efficiently.
The air-conditioning system removes moisture from the
air, so you may sometimes notice a small amount of
water dripping underneath your vehicle while idling
or after turning off the engine. This is normal.
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass. This
can be minimized if the climate control system is used
properly. There are two modes to clear fog or frost from
your windshield. Use the defog mode to clear the
windows of fog or moisture and warm the passengers.
Use the defrost mode to remove fog or frost from the
windshield more quickly.
- (Defog):
This mode directs the air between the
windshield, side windows, instrument panel outlets and
the floor outlets. The air-conditioning compressor will run
automatically in this setting without pressing A/C, unless
the outside temperature is at or below 32°F (0°C).
1 (Defrost):
This mode directs the air to the
windshield, instrument panel outlets and the side
windows. The air-conditioning compressor will run
automatically in this setting without pressing A/C, unless
the outside temperature is at or below 32°F (0°C).
Do not drive the vehicle until all the windows are clear.
3-21
Rear Window Defogger
The rear window defogger uses a warming grid to clear
fog from the rear window.
The rear window defogger
button is located on the
center of the instrument
panel, above the audio
system. The defogger does
not operate with the rear
liftglass opened.
The rear window defogger will only work when the
ignition is in ON.
3-22
=(Rear Defogger): Press the defogger button to turn
the rear window defogger on or off. An indicator light
in the button will come on to let you know that the rear
window defogger is activated. Be sure to clear as
much snow from the rear window as possible.
The rear window defogger will turn off automatically
approximately 15 minutes after the button is pressed.
The defogger can also be turned off by pressing
the button again or by turning off the engine.
Notice: Using a razor blade or sharp object to clear
the inside rear window may damage the rear
window defogger. Repairs would not be covered by
your warranty. Do not clear the inside of the rear
window with sharp objects.
Outlet Adjustment
Use the air outlets located in the center and outboard
sides of the instrument panel, to change the direction of
the air flowing through the vents.
Operation Tips
• Clear away any ice, snow or leaves from the air
The access panel for the air filter is behind the glove
box. To replace the filter, follow these steps:
inlets at the base of the windshield that may
block the flow of air into your vehicle.
• Use of non-GM approved hood deflectors may
adversely affect the performance of the system.
• Keep the path under the front seats clear of objects
to help circulate the air inside of your vehicle more
effectively.
• If the airflow seems low when the fan is at the
highest setting, the passenger compartment air filter
may need to be replaced. For more information,
see “Passenger Compartment Air Filter” following
and Scheduled Maintenance on page 6-4.
Passenger Compartment Air Filter
Passenger compartment air, both outside and
recirculated air, is routed through a passenger
compartment air filter. The filter removes certain
contaminants from the air, including pollen and dust
particles. Reductions in airflow, which may occur more
quickly in dusty areas, indicate that the filter needs
to be replaced early. An air filter is available through
your dealer. For how often to change the air filter,
see Scheduled Maintenance on page 6-4.
1. Lower the glove box door and remove the screw on
the right side of the glovebox with a tool. Slide the
arm of the glovebox off.
2. Push each side of the glovebox in and pull
toward you.
3-23
3. Lift the snaps on the filter cover to remove
the cover.
4. Remove the air filter.
5. Reverse the steps to install the new air filter.
It will not cause damage to your vehicle if you choose
not to replace the air filter after removing it. However,
the air coming into your vehicle will not be filtered.
3-24
Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or others from injury.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages
and warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly- and even dangerous.
So please get to know your warning lights and gages.
They’re a big help.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the engine
just to let you know they’re working. If you are familiar
with this section, you should not be alarmed when
this happens.
3-25
Instrument Panel Cluster
Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel is left in the tank and many other things you’ll need to drive safely and economically.
United States Cluster shown, Canada similar
3-26
Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has
been driven, in miles.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to
the mileage total of the old odometer, then it must
be. But if it cannot, then it is set at zero and a label must
be put on the driver’s door to show the old mileage
reading when the new odometer was installed.
Press the button once to switch to TRIP A and again to
switch to TRIP B. To return the display to the odometer
reading, press the trip odometer button again.
To set the trip odometers to zero, press and hold
the button.
Tachometer
The tachometer shows
engine speed in
thousands of revolutions
per minute (rpm).
Trip Odometers
The trip odometers can tell you how far your vehicle has
been driven since you last set the trip odometer to zero.
The button located on the
right side of the instrument
panel cluster allows you
to switch between the
odometer and the two
trip odometers.
Notice: If you operate the engine with the
tachometer in the shaded warning area, your vehicle
could be damaged, and the damages would not
be covered by your warranty. Do not operate
the engine with the tachometer in the shaded
warning area.
3-27
Temperature Display
The outside air temperature is displayed on the center
of the instrument panel, within the speedometer.
The display will show the outside air temperature in
Fahrenheit with a range from −22°F to 122°F
(−30°C to 50°C).
This light is located on the
center of the instrument
panel, above the audio
system.
Safety Belt Reminder Light
When the key is turned to ON or START, a chime will
come on for several seconds to remind people to fasten
their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also flash until the driver’s
belt is buckled. If the
driver’s belt is already
buckled, neither the chime
nor the light will come on.
Your vehicle also has a safety belt reminder light for the
right front passenger position.
3-28
When the key is turned to ON or START, this light will
come on as a reminder for the right front passenger
to fasten the safety belt. The safety belt light will flash
until the right front passenger’s safety belt is buckled.
The passenger’s safety belt reminder light will not
illuminate if the right front passenger’s belt is already
buckled or if a sensor does not detect the weight
of a passenger in that seat.
If something is placed on the right front passenger’s seat,
the sensors in the seat may detect that object and cause
the right front passenger’s safety belt reminder light to
come on. If this ever happens, move the object to the rear
seat or place it in a rear storage area, if at all possible.
Airbag Readiness Light
There is an airbag readiness light on the instrument
panel, which shows the airbag symbol. The system
checks the airbag’s electrical system for malfunctions.
The light tells you if there is an electrical problem.
The system check includes the airbag sensors, the
airbag modules, the wiring and the diagnostic module.
For more information on the airbag system, see
Airbag System on page 1-46.
This light will come on for
about seven seconds
when you start your
vehicle. Then the light
should go out. This means
the system is ready.
If the airbag readiness light stays on after you start the
vehicle or comes on when you are driving, your
airbag system may not work properly. Have your vehicle
serviced right away.
{CAUTION:
If the airbag readiness light stays on or keeps
flashing after you start your vehicle, it means
the airbag system and safety belt pretension
system may not be working properly.
The airbags in your vehicle may not inflate in
a crash, or they could even inflate without a
crash. To help avoid injury to yourself or
others, have your vehicle serviced right away if
the airbag readiness light stays on after you
start your vehicle.
The airbag readiness light should come on for about
seven seconds when you turn the ignition key to
ON. If the light doesn’t come on then, have it fixed so it
will be ready to warn you if there is a problem.
3-29
Passenger Airbag Status Indicator
Your vehicle has a passenger airbag status indicator in
the instrument panel.
When the ignition key is turned to ON, the passenger
airbag status indicator will light ON and OFF as a
system check. Then, after several more seconds, the
status indicator will light either ON or OFF to let
you know the status of the right front passenger’s frontal
and seat-mounted side impact airbag (if equipped.)
If the word ON is lit on the passenger airbag status
indicator, it means that the right front passenger’s frontal
and seat-mounted side impact airbag (if equipped)
are enabled (may inflate).
3-30
{CAUTION:
If the on indicator comes on when you have a
rear-facing child restraint installed in the right
front passenger’s seat, it means that the
passenger sensing system has not turned off
the passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped).
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating airbag.
Do not use a rear-facing child restraint in the
right front passenger’s seat.
If the word OFF is lit on the passenger airbag status
indicator, it means that the passenger sensing system
has turned off the right front passenger’s frontal airbag
and seat-mounted side impact airbag (if equipped). See
Passenger Sensing System on page 1-56 for information
about the conditions that may affect the airbag system
and also important safety information.
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there may be a
problem with the lights or the passenger sensing
system. See your dealer for service.
{CAUTION:
If the off indicator and the airbag readiness
light ever come on together, it means that
something may be wrong with the airbag
system. If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front passenger seat
may not have the protection of the airbags.
See Airbag Readiness Light on page 3-29.
Charging System Light
This light will come on
briefly when you turn on the
ignition, but the engine is
not running, as a check to
show you it is working.
Then it should go out when
the engine starts.
If it stays on, or comes on while you are driving, you may
have a problem with the electrical charging system. It
could indicate that you have a loose generator drive belt
or another electrical problem. Have it checked right away.
Driving while this light is on could drain your battery.
If you must drive a short distance with the charging
system light on, be certain to turn off all your
accessories, such as the radio and air conditioner.
3-31
Brake System Warning Light
Your vehicle’s hydraulic brake system is divided into two
parts. If one part isn’t working, the other part can still
work and stop you. For good braking, though, you need
both parts working well.
If the warning light comes on, there is a brake problem.
Have your brake system inspected right away.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to the
floor. It may take longer to stop. If the light is still on,
have the vehicle towed for service. See Anti-Lock Brake
System Warning Light on page 3-33 and Towing Your
Vehicle on page 4-37.
{CAUTION:
United States
Canada
If your vehicle has anti-lock brakes, this light should
come on when you turn the key to START. If it doesn’t
come on then, have it fixed so it will be ready to
warn you if there’s a problem.
When the ignition is on, the brake system warning light
will also come on when you set your parking brake.
The light will stay on if your parking brake doesn’t
release fully. If it stays on after your parking brake is
fully released, it means you have a brake problem.
3-32
Your brake system may not be working properly
if the brake system warning light is on. Driving
with the brake system warning light on can lead
to an accident. If the light is still on after you
have pulled off the road and stopped carefully,
have the vehicle towed for service.
Anti-Lock Brake System
Warning Light
anti-lock brakes. If the regular brake system warning
light is also on, you don’t have anti-lock brakes
and there’s a problem with your regular brakes.
See Brake System Warning Light on page 3-32.
The anti-lock brake system warning light will come on
briefly when you turn the ignition key to ON. This is
normal. If the light doesn’t come on then, have it fixed
so it will be ready to warn you if there is a problem.
Low Tire Pressure Warning Light
United States
Canada
With the anti-lock brake system, the light will come on
when your engine is started and may stay on for several
seconds. That’s normal.
If the light stays on, turn the ignition to LOCK. Or, if the
light comes on when you’re driving, stop as soon as
possible and turn the ignition off. Then start the engine
again to reset the system. If the light still stays on,
or comes on again while you’re driving, your vehicle
needs service. If the regular brake system warning light
isn’t on, you still have brakes, but you don’t have
This light should come on
briefly as you start the
engine. It will then come on
only when a low tire
pressure condition exists.
See Tire Pressure Monitor System on page 5-65 for
more information.
3-33
Traction Control System (TCS)
Warning Light
This light should come on
briefly when you start the
engine. If it stays on or
comes on while you
are driving, there is a
problem with your traction
control system.
The traction control system warning light comes on for a
few seconds when the ignition is turned to ON. It will
come on again when you press the TRAC OFF button to
turn off the traction control system. See Traction
Control System (TCS) on page 4-9 for more information.
In the following cases, contact your dealer:
• The indicator light does not come on when the
ignition is turned to ON.
• The indicator light remains on after the ignition is
turned ON.
• The indicator light comes on with the normal driving
mode while driving.
Stabilitrak® Indicator Light
This light warns that there
is a problem somewhere in
the traction control system
or the vehicle stability
control (VSC) system.
The light will come on when the ignition is turned to ON
and will go off after a few seconds.
If the light comes on while driving, the system does not
work. However, as conventional braking operates
when applied, there is no problem to continue driving.
In the following cases, contact your dealer:
• The warning light does not come on after the
ignition is turned to ON.
• The warning light remains on after the ignition is
turned to ON.
• The warning light comes on while driving.
The traction control system light will come on when the
VSC warning light comes on, even if the TRAC OFF
button is not pressed.
See Traction Control System (TCS) on page 4-9 for
more information on Vehicle Stability Control System.
3-34
Engine Coolant Temperature Gage
Malfunction Indicator Lamp
Check Engine Light
United States
United States
Canada
This gage shows the engine coolant temperature. If the
gage pointer moves into the red area, your engine is
too hot! It means that your engine has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull off the road, stop your
vehicle and turn off the engine as soon as possible.
See Engine Overheating on page 5-30.
Canada
Your vehicle is equipped with a computer which
monitors operation of the fuel, ignition, and emission
control systems.
This system is called OBD II (On-Board
Diagnostics-Second Generation) and is intended to
assure that emissions are at acceptable levels for
the life of the vehicle, helping to produce a cleaner
environment. The CHECK ENGINE light comes on to
indicate that there is a problem and service is required.
3-35
Malfunctions often will be indicated by the system
before any problem is apparent. This may prevent more
serious damage to your vehicle. This system is also
designed to assist your service technician in correctly
diagnosing any malfunction.
This light should come on, as a check to show you it is
working, when the ignition is on and the engine is
not running. If the light does not come on, have it
repaired. This light will also come on during a
malfunction in one of two ways:
Notice: If you keep driving your vehicle with this
light on, after awhile, your emission controls
may not work as well, your fuel economy may not
be as good, and your engine may not run as
smoothly. This could lead to costly repairs that may
not be covered by your warranty.
• Light Flashing — A misfire condition has been
Notice: Modifications made to the engine,
transaxle, exhaust, intake, or fuel system of your
vehicle or replacement tires that do not match your
vehicle’s original tires can affect your vehicle’s
emission controls and may cause this light to come
on. Modifications to these systems could lead to
costly repairs not covered by your warranty.
This may also result in a failure to pass a required
Emission Inspection/Maintenance test.
malfunction has been detected on your vehicle.
Diagnosis and service may be required.
detected. A misfire increases vehicle emissions
and may damage the emission control system on
your vehicle. Diagnosis and service may be
required.
• Light On Steady — An emission control system
If the Light Is Flashing
The following may prevent more serious damage to
your vehicle:
•
•
•
•
Reducing vehicle speed
Avoiding hard accelerations
Avoiding steep uphill grades
If you are towing a trailer, reduce the amount of
cargo being hauled as soon as it is possible
If the light stops flashing and remains on steady,
see “If the Light Is On Steady” following.
3-36
If the light continues to flash, when it is safe to do so,
stop the vehicle. Find a safe place to park your vehicle.
Turn the key off, wait at least 10 seconds and restart
the engine. If the light remains on steady, see “If the
Light Is On Steady” following. If the light is still flashing,
follow the previous steps, and see your dealer for
service as soon as possible.
If the Light Is On Steady
You also may be able to correct the emission system
malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully install
the cap. See Filling Your Tank on page 5-7. The
diagnostic system can determine if the fuel cap has
been left off or improperly installed. A loose or missing
fuel cap will allow fuel to evaporate into the atmosphere.
A few driving trips with the cap properly installed
should turn the light off.
Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel.
See Gasoline Octane on page 5-5. Poor fuel quality will
cause your engine not to run as efficiently as designed.
You may notice this as stalling after start-up, stalling
when you put the vehicle into gear, misfiring, hesitation
on acceleration, or stumbling on acceleration. (These
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the
light to turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at least
one full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn off,
your dealer can check the vehicle. Your dealer has
the proper test equipment and diagnostic tools to fix
any mechanical or electrical problems that may
have developed.
Did you just drive through a deep puddle of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should turn the light off.
3-37
Emissions Inspection and
Maintenance Programs
Some state/provincial and local governments have or
may begin programs to inspect the emission control
equipment on your vehicle. Failure to pass this
inspection could prevent you from getting a vehicle
registration.
Oil Pressure Light
If you have a problem with
your oil, this light may stay
on after you start your
engine or come on when
you are driving.
Here are some things you need to know to help your
vehicle pass an inspection:
Your vehicle will not pass this inspection if the Check
Engine light is on or not working properly.
This indicates that there is not enough oil pressure to
keep your engine properly lubricated and cool.
Your vehicle will not pass this inspection if the OBD
(on-board diagnostic) system determines that critical
emission control systems have not been completely
diagnosed by the system. The vehicle would be
considered not ready for inspection. This can happen if
you have recently replaced your battery or if your
battery has run down. The diagnostic system is
designed to evaluate critical emission control systems
during normal driving. This may take several days
of routine driving. If you have done this and your vehicle
still does not pass the inspection for lack of OBD
system readiness, your GM dealer can prepare the
vehicle for inspection.
The engine could be low on oil, or have some other oil
related problem. Have it fixed right away.
The oil light could also come on in three other situations.
• When the ignition is on but the engine is not
running, the light will come on as a test to show you
it is working, but the light will go out when you
turn the ignition to START. If it doesn’t come on with
the ignition on, you may have a problem with the
fuse or bulb. Have it fixed right away.
• Sometimes when the engine is idling at a stop, the
light may blink on and off. This is normal.
• If you make a hard stop, the light may come on for
a moment. This is normal.
3-38
Taillamp Indicator Light
{CAUTION:
This light will come on
when your taillamps
are on.
Do not keep driving if the oil pressure is low.
If you do, your engine can become so hot that
it catches fire. You or others could be burned.
Check your oil as soon as possible and have
your vehicle serviced.
Canada Only
Notice: Lack of proper engine oil maintenance may
damage the engine. The repairs would not be covered
by your warranty. Always follow the maintenance
schedule in this manual for changing engine oil.
Lights On Reminder
This light comes on
whenever the parking
lamps are on.
See Exterior Lamps on page 3-13 for more information.
Cruise Control Light
The CRUISE light appears
whenever you use the
ON-OFF button to set your
cruise control. See Cruise
Control Light on page 3-39
for more information.
See Headlamps on Reminder on page 3-13 for more
information.
3-39
Overdrive Off Light
Low Washer Fluid Warning Light
Your automatic transaxle
has overdrive. The light
will come on whenever you
turn off the overdrive.
See Overdrive Off
on page 2-24 for more
information.
This light will come on
when your windshield
washer fluid is low.
Canada Only
Highbeam On Light
This light will illuminate
when the headlamp high
beams are in use.
See Windshield Washer Fluid on page 5-38 for more
information.
Door Ajar Light
This light will come on if
any door, the rear liftgate
or the rear liftglass are
not completely closed.
See Headlamp High/Low-Beam Changer on page 3-8.
3-40
Fuel Gage
Here are five things some owners ask about. None of
these show a problem with your fuel gage:
• At the gas station, the fuel pump shuts off before
the gage reads F or full.
• It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took
more or less than half the tank’s capacity to fill it.
• It takes the gage several minutes to read F or full
after filling the vehicle with fuel.
• The gage moves a little when you turn, stop or
United States
Canada
speed up.
• The gage doesn’t go back to E or empty when you
Your fuel gage shows about how much fuel is in your
tank. There is an arrow on the fuel gage that indicates
that the fuel filler door is on the driver’s side of your
vehicle. The fuel gage works only when the ignition
switch is ON. When the gage first indicates E or empty,
you still have a little fuel left, about 1 or 2 gallons
(3.8 L or 7.6 L), but you need to get more right away.
When your vehicle is low on fuel the low fuel warning
light, located below the empty mark, will also come on to
remind you to add fuel.
turn off the ignition.
Low Fuel Warning Light
This light is located on the fuel gage and comes on
when the fuel tank is low on fuel. To turn it off, add fuel
to the fuel tank. See Fuel on page 5-5 for more
information.
3-41
Audio System(s)
Setting the Time
Notice: Before adding any sound equipment to
your vehicle, like a tape player, CB radio, mobile
telephone, or two-way radio, make sure that it can
be added by checking with your dealer. Also,
check federal rules covering mobile radio and
telephone units. If sound equipment can be added,
it is very important to do it properly. Added
sound equipment may interfere with the operation
of your vehicle’s engine, radio, or other systems,
and even damage them. Your vehicle’s systems may
interfere with the operation of sound equipment
that has been added improperly.
The radio may have a button marked with an H or HR to
represent hours and an M or MIN to represent minutes.
Figure out which audio system is in your vehicle, find
out what your audio system can do, and how to operate
all of its controls.
3-42
Press and hold the hour button until the correct hour
appears on the display. AM will appear for morning
hours. Press and hold the minute button until the correct
minute appears on the display. The time can be set
with the ignition on or off.
To synchronize the time with an FM station broadcasting
Radio Data System (RDS) information, press and hold
the hour and minute buttons at the same time until
UPDATED appears on the display. If the time is not
available from the station, NO UPDATE will appear on
the display.
RDS time is broadcast once a minute. After tuning to an
RDS broadcast station, it may take a few minutes for
the time to update.
Radio with CD
• Display messages from radio stations
• Seek to stations with traffic announcements
This system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause
the radio features to work improperly. If this happens,
contact the radio station.
The radio has a blinking red light that is used as a
theft-deterrent feature. The light will blink whenever the
ignition is off.
Radio Data System (RDS)
The audio system has a Radio Data System (RDS).
RDS features are available for use only on FM stations
that broadcast RDS information.
With RDS, the radio can do the following:
• Seek to stations broadcasting the selected type
While the radio is tuned to an RDS station, the station
name or call letters will appear on the display instead of
the frequency. RDS stations may also provide the time of
day, a program type (PTY) for current programming, and
the name of the program being broadcast.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in the
48 contiguous United States. XM™ offers 100 coast to
coast channels including music, news, sports, talk, and
children’s programming. XM™ provides digital quality
audio and text information that includes song title and
artist name. A service fee is required in order to receive
the XM™ service. For more information, contact XM™
at www.xmradio.com or call 1-800-852-XMXM (9696).
of programming
• Receive announcements concerning local and
national emergencies
3-43
Playing the Radio
Finding a Station
PWR (Power): Push this knob to turn the system on
and off.
BAND: Press this button to switch between FM1, FM2,
AM, or XM1 or XM2 (if equipped). The display will
show the selection.
VOL (Volume): Turn this knob to increase or to
decrease the volume.
RCL (Recall): Push this knob to switch the display
between the radio station frequency and the time.
Push this knob to display the time with the ignition off.
For RDS, push the RCL knob to change what appears
on the display while using RDS. The display options
are station, RDS station frequency, PTY, and the name
of the program (if available).
For XM™ (if equipped), push the RCL knob while in XM™
mode to retrieve four different categories of information
related to the current song or channel: Artist, Song Title,
Category or PTY, Channel Number/Channel Name.
To change the default on the display, push the RCL knob
until you see the display you want, then hold the knob
until the display flashes. The selected display will now be
the default.
SCV (Speed-Compensated Volume): This button is
inoperable on this radio.
3-44
TUNE: Turn this knob to select radio stations.
w SEEK x: Press the up or the down arrow to go to
the next or to the previous station and stay there.
The radio will only seek stations with a strong signal
that are in the selected band.
w SCAN x: Press and hold either SCAN arrow for
two seconds until SCAN appears on the display and you
hear a beep. The radio will go to a station, play for a
few seconds, then go on to the next station. Press either
SCAN arrow again to stop scanning.
To scan preset stations, press and hold either SCAN
arrow for more than four seconds until PSCAN and the
preset number appear on the display. You will hear
a double beep. The radio will go to the first preset
station stored on your pushbuttons, play for a few
seconds, then go on to the next preset station. Press
either SCAN arrow again to stop scanning presets.
The radio will only scan stations with a strong signal that
are in the selected band.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be programmed
on the six numbered pushbuttons, by performing the
following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press EQ to select the equalization.
5. Press and hold one of the six numbered
pushbuttons until you hear a beep. Whenever that
numbered pushbutton is pressed, the station
that was set will return and the equalization that
was selected will be stored for that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
TONE: Press and release this button until BASS, MID,
or TREB appears on the display. The SELECT LED
indicator will light to show that the tone control can be
adjusted. Turn the SELECT knob to increase or to
decrease. If a station is weak or noisy, decrease
the treble.
To return all of the tone controls to the middle position
press and hold the TONE button until FLAT appears
on the display.
EQ (Equalizer): Press this button to select customized
equalization settings.
Up to six customized equalization settings, can be
programmed, by performing the following steps:
1. Turn the radio on.
2. Use the TONE button and the SELECT knob to
create the equalization.
3. Press and hold the EQ button for two seconds.
SELECT EQ # will appear on the display and the
EQ symbol will flash.
4. Press EQ or turn the SELECT knob to select the
EQ number.
5. Press and hold the EQ button or push the SELECT
knob to store the equalization setting and the
number. EQ SAVED will appear on the display and
you will hear a beep.
6. Repeat the steps for the other EQ settings and
numbers.
EQ 5 has been programmed at the factory for use with
talk radio, but it can be set to a different tone.
3-45
Adjusting the Speakers (Balance/Fade)
BAL (Balance): To adjust the balance between the
right and the left speakers, press and release this button
until BAL appears on the display. The SELECT LED
indicator will light to show that the speakers can
be adjusted. Turn the SELECT knob to move the sound
toward the right or the left speakers.
FADE: To adjust the fade between the front and the
rear speakers, press and release this button until FADE
appears on the display. The SELECT LED indicator
will light to show that the speakers can be adjusted.
Turn the SELECT knob to move the sound toward the
front or the rear speakers.
To return all speaker settings to the middle position,
press and hold the BAL FADE button for two seconds.
Finding a Program Type (PTY)
Station (RDS and XM™)
To select and find a desired PTY perform the following:
1. Press PROG TYPE to activate program type
select mode. The PTY symbol will appear on
the display.
2. Turn the SELECT knob to select a PTY.
3. Once the desired PTY is displayed, press either
SEEK arrow to select the PTY and take you to
the PTY’s first station.
4. To go to another station within that PTY and the PTY
is displayed, press either SEEK arrow once. If the
PTY is not displayed, press either SEEK arrow twice
to display the PTY and then to go to another station.
5. Press PROG TYPE to exit program type
select mode.
If PTY times out and is no longer on the display,
go back to Step 1.
If both PTY and TRAF are on, the radio will search
for stations with the selected PTY and traffic
announcements.
SCAN: Scan the stations within a PTY by performing
the following:
1. Press PROG TYPE to activate program type select
mode. The PTY symbol will appear on the display.
2. Turn the SELECT knob to select a PTY.
3. Once the desired PTY is displayed, press and hold
either SCAN arrow, and the radio will begin
scanning the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both PTY and TRAF are on, the radio will scan
for stations with the selected PTY and traffic
announcements.
3-46
BAND (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with the
same program type. To turn alternate frequency on,
press and hold BAND for two seconds. AF ON will
appear on the display. The radio may switch to stations
with a stronger frequency.
To turn alternate frequency off, press and hold BAND
again for two seconds. AF OFF will appear on the
display. The radio will not switch to other stations.
This function does not apply for XM™ Satellite
Radio Service.
Setting Preset PTYs (RDS Only)
These pushbuttons have factory PTY presets. Up to
12 PTYs (six FM1 and six FM2), can be programmed
on the six numbered pushbuttons, by performing
the following steps:
1. Press BAND to select FM1 or FM2.
2. Press PROG TYPE to activate program type select
mode. The PTY symbol will appear on the display.
3. Turn the SELECT knob to select a PTY.
4. Press and hold one of the six numbered pushbuttons
until you hear a beep. Whenever that numbered
pushbutton is pressed, the PTY that was set will
return, if program type select mode is on.
RDS Messages
ALERT!: Alert warns of local or national emergencies.
When an alert announcement comes on the current
radio station, ALERT! will appear on the display. You will
hear the announcement, even if the volume is low or
a CD is playing. If a CD is playing, play will stop during
the announcement. Alert announcements cannot be
turned off.
ALERT! will not be affected by tests of the emergency
broadcast system. This feature is not supported by
all RDS stations.
INFO (Information): If the current station has a
message, INFO will appear on the display. Press this
button to see the message. The message may display
the artist, song title, call in phone numbers, etc.
If the entire message is not displayed, parts of the
message will appear every three seconds. To scroll
through the message, press and release the INFO button.
A new group of words will appear on the display after
every press of the button. Once the complete message
has been displayed, INFO will disappear from the display
until another new message is received. The last message
can be displayed by pressing the INFO button. You can
view the last message until a new message is received or
a different station is tuned to.
5. Repeat the steps for each pushbutton.
3-47
TRAF (Traffic): If TRAF appears on the display, the
tuned station broadcasts traffic announcements.
Press this button to receive the traffic announcement
from the station and brackets will be displayed around
TRAF. When a traffic announcement comes on the
tuned radio station you will hear it.
If the station does not broadcast traffic announcements,
press the TRAF button and the radio will seek to a
station that does. When a station that broadcasts traffic
announcements is found, the radio will stop seeking
and brackets will be displayed around TRAF. If no
station is found that broadcasts traffic announcements,
NO TRAFFIC will appear on the display.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets or use
the TUNE knob or the SEEK arrows to go to a
station that broadcasts traffic announcements. If no
station is found that broadcasts traffic announcements,
NO TRAFFIC will appear on the display.
3-48
The radio will play the traffic announcement if the
volume is low. The radio will interrupt the play of a CD if
the last tuned station broadcasts traffic announcements
and the brackets are displayed.
This function does not apply to XM™ Satellite Radio
Service.
Radio Messages
CALIBRATE: The audio system has been calibrated for
your vehicle from the factory. If CALIBRATE appears
on the display, it means that the radio has not been
configured properly for the vehicle and must be returned
to the dealer for service.
LOCKED: This message is displayed when the
THEFTLOCK® system has locked up. Take the vehicle
to the dealer for service.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer.
XM™ Radio Messages
Radio Display
Message
Condition
Action Required
XL (Explicit Language
Channels)
XL on the radio display,
after the channel name,
indicates content with
explicit language.
These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
Updating
Updating
encryption code
The encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No Signal
Loss of signal
The system is functioning correctly, but the vehicle is in a
location that is blocking the XM signal. When you move
into an open area, the signal should return.
Loading XM
Acquiring channel audio
(after 4 second delay)
The audio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
CH Off Air
Channel not in service
This channel is not currently in service. Tune to another
channel.
CH Unavail
Channel no longer
available
This previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Info
Artist Name/Feature not
available
No artist information is available at this time on this
channel. The system is working properly.
No Info
Song/Program Title not
available
No song title information is available at this time on this
channel. The system is working properly.
3-49
XM™ Radio Messages (cont’d)
Radio Display
Message
Condition
Action Required
No Info
Category Name not
available
No category information is available at this time on this
channel. The system is working properly.
No Info
No Text/Informational
message available
No text or informational messages are available at this
time on this channel. The system is working properly.
Not Found
No channel available for
the chosen category
There are no channels available for the selected category.
The system is working properly.
XM Locked
Theft lock active
The XM receiver in the vehicle may have previously been
in another vehicle. For security purposes, XM receivers
cannot be swapped between vehicles. If this message is
received, after having your vehicle serviced, check with
your dealer.
Radio ID
Radio ID label
(channel 0)
If tuned to channel 0, this message will alternate with the
XM Radio 8 digit radio ID label. This label is needed to
activate the service.
Unknown
Radio ID not known
(should only be if
hardware failure)
If this message is received when tuned to channel 0,
there may be a receiver fault. Consult with your dealer.
Chk XMRcvr
Hardware failure
If this message does not clear within a short period of time,
the receiver may have a fault. Consult with your dealer.
3-50
Playing a CD
Insert a CD partway into the slot, label side up. The
player will pull it in and the CD should begin playing.
If you want to insert a CD when the ignition is off, first
press the eject symbol or push the RCL knob. If you
insert a CD with the radio off and the ignition on, it will
start to play.
If the ignition or radio is turned off with a CD in the
player, it will stay in the player. When the ignition
or radio is turned on, the CD will start playing where it
stopped, if it was the last selected audio source.
When the CD is inserted, the CD symbol will appear on
the display. As each new track starts to play, the track
number will appear on the display.
The CD player can play the smaller 3 inch (8 cm) single
CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If playing a CD-R the sound quality may be reduced
due to CD-R quality, the method of recording, the quality
of the music that has been recorded, and the way the
CD-R has been handled. There may be an increase
in skipping, difficulty in finding tracks, and/or difficulty in
loading and ejecting. If these problems occur try a
known good CD.
Do not add paper labels to CDs, they could get caught
in the CD player.
If an error appears on the display, see “CD Messages”
later in this section.
\1 (Forward):
Press and hold this pushbutton to
advance quickly within a track. You will hear sound at a
reduced volume. Release the pushbutton to play the
passage. The elapsed time of the track will appear
on the display.
RDM 3 (Random): Press this pushbutton to hear the
tracks in random, rather than sequential, order.
RDM and the track number will appear on the display.
Press RDM again to turn off random play.
4s (Reverse): Press and hold this pushbutton to
reverse quickly within a track. You will hear sound at a
reduced volume. Release the pushbutton to play the
passage. The elapsed time of the track will appear
on the display.
EQ (Equalizer): Press EQ to select an equalization
setting while playing a CD. The equalization will be set
whenever a CD is played. See “EQ” listed previously
for more information. If you select an EQ setting for your
CD, it will be activated each time you play a CD.
3-51
w SEEK x: Press the down arrow to go to the start
of the current track if more than eight seconds have
played. Press the up arrow to go to the next track.
If either arrow is held or pressed more than once, the
player will continue moving backward or forward through
the CD.
Z (Eject):
w SCAN x:
CHECK CD: If this message appears on the display
and/or the CD comes out, it could be for one of the
following reasons:
Press and hold either arrow for more
than two seconds until SCAN and the track number
appear on the display and you hear a beep. The CD will
go to the next track, play for a few seconds, then go
on to the next track. Press either arrow again to
stop scanning.
RCL (Recall): Push this knob to see how long the
current track has been playing. To change the default
on the display, track and elapsed time, push the
knob until you see the display you want, then hold the
knob until the display flashes. The selected display
will now be the default. While elapsed time is showing,
CD TIME will appear on the display.
BAND: Press this button to listen to the radio when a
CD is playing. The inactive CD will remain safely
inside the radio for future listening.
CD AUX (Auxiliary): Press this button to play a CD
when listening to the radio. The CD symbol will appear
on the display when a CD is loaded.
3-52
Press this button to eject a CD. Eject may
be activated with either the ignition or radio off.
CDs may be loaded with the ignition and radio off
if this button is pressed first.
CD Messages
• It is very hot. When the temperature returns to
normal, the CD should play.
• You are driving on a very rough road. When the
road becomes smoother, the CD should play.
• The CD is dirty, scratched, wet, or upside down.
• The air is very humid. If so, wait about an hour
and try again.
• There may have been a problem while burning
the CD.
• The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer. If the radio displays
an error message, write it down and provide it to your
dealer when reporting the problem.
Radio with Six-Disc CD
RCL (Recall): Press this knob to switch the display
between the radio station frequency and the time.
When the ignition is off, press this knob to display
the time.
To change the default on the display, press the RCL
knob until you see the display you want, then hold the
knob until the display flashes. The selected display
will now be the default.
AUTO VOL (Automatic Volume): The system has a
feature called automatic volume. With this feature,
the audio system adjusts automatically to make up for
road and wind noise as you drive.
The radio has a blinking red light that is used as a
theft-deterrent feature. The light will blink whenever the
ignition is off.
Playing the Radio
PWR (Power): Push this knob to turn the system on
and off.
Set the volume at the desired level. Press this button to
select MIN, MED, or MAX. Each higher setting will
allow for more volume compensation at faster vehicle
speeds. Then, as you drive, automatic volume increases
the volume, as necessary, to overcome noise at any
speed. The volume level should always sound the same
to you as you drive. To turn automatic volume off,
press this button until OFF appears on the display.
VOLUME: Turn this knob to increase or to decrease
the volume.
3-53
Finding a Station
Setting Preset Stations
BAND: Press this button to switch between FM1, FM2,
or AM. The display will show the selection.
Up to 18 stations (six FM1, six FM2, and six AM), can
be programmed on the six numbered pushbuttons,
by performing the following steps:
TUNE: Turn this knob to select radio stations.
1. Turn the radio on.
sSEEK t: Press the right or the left arrow to go to
the next or to the previous station and stay there.
2. Press BAND to select FM1, FM2, or AM.
The radio will only seek stations with a strong signal
that are in the selected band.
4. Press AUTO EQ to select the equalization.
sSCAN t: Press and hold either SCAN arrow for
two seconds until SC appears on the display and
you hear a beep. The radio will go to a station, play for
a few seconds, then go on to the next station. Press
either SCAN arrow again to stop scanning.
To scan preset stations, press and hold either SCAN
arrow for more than four seconds. PRESET SCAN will
appear on the display and you will hear a double
beep. The radio will go to a preset station stored on the
pushbuttons, play for a few seconds, then go on to
the next preset station. Press either SCAN arrow again
to stop scanning presets.
The radio will only scan stations with a strong signal
that are in the selected band.
3-54
3. Tune in the desired station.
5. Press and hold one of the six numbered
pushbuttons until you hear a beep. Whenever that
numbered pushbutton is pressed, the station
that was set will return and the equalization that
was selected will be stored for that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
Adjusting the Speakers (Balance/Fade)
AUDIO: Push and release the AUDIO knob until BASS,
MID, or TREB appears on the display. Turn the knob
to increase or to decrease. If a station is weak or noisy,
decrease the treble.
AUDIO: To adjust the balance between the right
and the left speakers, push and release the AUDIO
knob until BAL appears on the display. Turn the knob to
move the sound toward the right or the left speakers.
To adjust bass, midrange, or treble to the middle
position, select BASS, MID, or TREB and push and hold
the AUDIO knob. The radio will produce one beep
and adjust the display level to the middle position.
To adjust the fade between the front and rear speakers,
push and release the AUDIO knob until FAD appears
on the display. Turn the knob to move the sound toward
the front or the rear speakers.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker controls are displayed. CENTERED will
appear on the display and you will hear a beep.
To adjust the balance and the fade to the middle
position, select balance or fade and push and hold the
AUDIO knob. The radio will beep once and adjust
the display level to the middle position.
AUTO EQ (Automatic Equalization): Press this button
to select customized equalization settings designed
for country, jazz, talk, pop, rock, and classical.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker controls are displayed. CENTERED will
appear on the display and you will hear a beep.
To return to the manual mode, press the AUTO EQ
button until CUSTOM appears on the display. Then
manually adjust the bass, midrange, and treble using the
AUDIO knob.
3-55
Radio Data System (RDS)
Finding a Program Type (PTY) Station
The audio system has a Radio Data System (RDS).
RDS features are available for use only on FM stations
that broadcast RDS information.
To select and find a desired PTY perform the following:
With RDS, the radio can do the following:
• Seek to stations broadcasting the selected type
of programming
• Receive announcements concerning local and
national emergencies
• Display messages from radio stations
• Seek to stations with traffic announcements
This system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause
the radio features to work improperly. If this happens,
contact the radio station.
While the radio is tuned to an RDS station, the station
name or call letters will appear on the display instead of
the frequency. RDS stations may also provide the time of
day, a program type (PTY) for current programming, and
the name of the program being broadcast.
3-56
1. Press the P-TYPE button to activate program type
select mode. P-TYPE and the last selected PTY
will appear on the display.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY is displayed, press either
SEEK arrow to select and to take you to the
PTY’s first station.
4. To go to another station within that PTY and the PTY
is displayed, press either SEEK arrow once. If the
PTY is not displayed, press either SEEK arrow twice
to display the PTY and then to go to another station.
5. Press the P-TYPE button to exit program type
select mode.
If PTY times out and is no longer on the display,
go back to Step 1.
If both PTY and TRAF are on, the radio will search
for stations with the selected PTY and traffic
announcements.
To use the PTY interrupt feature, press and hold the
P-TYPE button until you hear a beep on the PTY
you want to interrupt with. When selected, an asterisk
will appear beside that PTY on the display. Select
multiple interrupts if desired. When listening to a CD,
the last selected RDS station will interrupt play if
that selected program type format is broadcast.
SCAN: Scan the stations within a PTY by performing
the following:
1. Press the P-TYPE button to activate program type
select mode. P-TYPE and the last selected PTY will
appear on the display.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY is displayed, press and hold
either SCAN arrow, and the radio will begin
scanning the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both PTY and TRAF are on, the radio will scan for
stations with the selected PTY and traffic
announcements.
BAND (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with the
same program type. To turn alternate frequency on,
press and hold BAND for two seconds. AF ON will
appear on the display. The radio may switch to stations
with a stronger frequency.
To turn alternate frequency off, press and hold BAND
again for two seconds. AF OFF will appear on the
display. The radio will not switch to other stations.
Setting Preset PTYs
These pushbuttons have factory PTY presets. Up to
12 PTYs (six FM1 and six FM2), can be programmed on
the six numbered pushbuttons, by performing the
following steps:
1. Press BAND to select FM1 or FM2.
2. Press the P-TYPE button to activate program type
select mode. P-TYPE and the last selected PTY will
appear on the display.
3. Turn the P-TYPE knob to select a PTY.
4. Press and hold one of the six numbered
pushbuttons until you hear a beep. Whenever that
numbered pushbutton is pressed, the PTY that
was set will return.
5. Repeat the steps for each pushbutton.
3-57
RDS Messages
ALERT!: Alert warns of local or national emergencies.
When an alert announcement comes on the current
radio station, ALERT! will appear on the display. You will
hear the announcement, even if the volume is low or
a CD is playing. If a CD is playing, play will stop during
the announcement. Alert announcements cannot be
turned off.
ALERT! will not be affected by tests of the emergency
broadcast system. This feature is not supported by
all RDS stations.
INFO (Information): If the current station has a
message, INFO will appear on the display. Press this
button to see the message. The message may display
the artist, song title, call in phone numbers, etc.
If the entire message is not displayed, parts of the
message will appear every three seconds. To scroll
through the message, press and release the INFO button.
A new group of words will appear on the display after
every press of this button. Once the complete message
has been displayed, INFO will disappear from the display
until another new message is received. The last message
can be displayed by pressing the INFO button. You can
view the last message until a new message is received or
a different station is tuned to.
3-58
TRAF (Traffic): If TRAF appears on the display, the
tuned station broadcasts traffic announcements.
To receive the traffic announcement from the tuned
station, press this button. Brackets will be displayed
around TRAF and when a traffic announcement comes
on the tuned radio station you will hear it.
If the station does not broadcast traffic announcements,
press the TRAF button and the radio will seek to a
station that does. When a station that broadcasts traffic
announcements is found, the radio will stop seeking
and brackets will be displayed around TRAF. If no
station is found that broadcast traffic announcements,
NO TRAFFIC will appear on the display.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets or use
the TUNE knob or the SEEK arrows to go to a
station that supports traffic announcements. If no station
is found that broadcasts traffic announcements, NO
TRAFFIC will appear on the display.
The radio will play the traffic announcements if the
volume is low. The radio will interrupt the play of a CD if
the last tuned station broadcasts traffic announcements
and the brackets are displayed.
Playing a CD
If the ignition or radio is turned off, with a CD in the
player, it will stay in the player. When the ignition
or radio is turned on, the CD will start playing where it
stopped, if it was the last selected audio source.
When a CD is inserted, the CD symbol will appear on
the CD. As each new track starts to play, the track
number will appear on the display.
The CD player can play the smaller 3 inch (8 cm) single
CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If playing a CD-R the sound quality may be reduced
due to CD-R quality, the method of recording, the quality
of the music that has been recorded, and the way the
CD-R has been handled. There may be an increase
in skipping, difficulty in finding tracks, and/or difficulty in
loading and ejecting. If these problems occur try a
known good CD.
Do not add paper labels to CDs, they could get caught
in the CD player.
If an error appears on the display, see “CD Messages”
later in this section.
LOAD CD Z: Press the LOAD side of this button to
load CDs into the CD player. This CD player will
hold up to six CDs.
To insert one CD, do the following:
1. Turn the ignition on.
2. Press and release the LOAD button.
3. Wait for the indicator light, located to the right of the
slot, to turn green.
4. Load a CD. Insert the CD partway into the slot,
label side up. The player will pull the CD in.
To insert multiple CDs, do the following:
1. Turn the ignition on.
2. Press and hold the LOAD button for two seconds.
You will hear a beep and the indicator light, located
to the right of the slot, will begin to flash.
3. Once the light stops flashing and turns green, load
a CD. Insert the CD partway into the slot, label side
up. The player will pull the CD in.
Once the CD is loaded, the light will begin flashing
again. Once the light stops flashing and turns green
you can load another CD. The CD player takes up to
six CDs. Do not try to load more than six.
To load more than one CD but less than six, complete
Steps 1 through 3. When finished loading CDs, the
radio will begin to play the last CD loaded.
If more than one CD has been loaded, a number for
each CD will appear on the display.
3-59
Playing a Specific Loaded CD
For every CD loaded, a number will appear on the
display. To play a specific CD, first press the CD AUX
button, then press the numbered pushbutton that
corresponds to the CD. A small bar will appear under
the CD number that is playing and the track number will
appear on the display.
If an error appears on the display, see “CD Messages”
later in this section.
LOAD CD Z (Eject): Press the CD eject side of this
button to eject a CD(s). To eject the CD that is currently
playing, press and release this button. To eject multiple
CDs, press and hold this button for two seconds. You will
hear a beep and the indicator light will flash to let you
know when a CD is being ejected.
REMOVE CD will appear on the display. The CD can be
removed. If the CD is not removed, after 25 seconds, the
CD will be automatically pulled back into the player. If the
CD is pushed back into the player, before the 25 second
time period is complete, the player will sense an error and
will try to eject the CD several times before stopping.
3-60
Do not repeatedly press the CD eject button to eject a CD
after trying to push it in manually. The player’s 25-second
eject timer will reset at each press of eject, causing the
player to not eject the CD until the 25-second time period
has elapsed.
Once the player stops and the CD is ejected, remove the
CD. After removing the CD, push the PWR knob off and
then on again, or wait for the system to reset. This will
clear the CD-sensing feature and enable CDs to be
loaded into the player again.
{ REV (Reverse):
Press and hold this button to
reverse quickly within a track. You will hear sound at a
reduced volume. Release this button to play the
passage. The elapsed time of the track will appear on
the display.
FWD | (Forward): Press and hold this button to
advance quickly within a track. You will hear sound at a
reduced volume. Release this button to play the
passage. The elapsed time of the track will appear on
the display.
RPT (Repeat): With repeat, one track or an entire CD
can be repeated.
To use repeat, do the following:
• To repeat the track you are listening to, press and
release the RPT button. RPT will appear on the
display. Press RPT again to turn off repeat play.
• To repeat the CD you are listening to, press and
hold the RPT button for two seconds. RPT will
appear on the display. Press RPT again to turn off
repeat play.
RDM (Random): With random, you can listen to the
tracks in random, rather than sequential, order, on one
CD or on all of the CDs.
To use random, do one of the following:
• To play the tracks on the CD you are listening to in
random order, press and release the RDM button.
RANDOM ONE will appear on the display. Press
RDM again to turn off random play.
• To play the tracks on all of the CDs that are loaded
in random order, press and hold RDM for more
than two seconds. You will hear a beep and
RANDOM ALL will appear on the display. Press
RDM again to turn off random play.
AUTO EQ (Automatic Equalization): Press AUTO EQ
to select the equalization setting while playing a CD.
The equalization will be stored whenever a CD is played.
For more information on AUTO EQ, see “AUTO EQ”
listed previously in this section.
sSEEK t:
Press the left arrow to go to the start of the
current track, if more than ten seconds have played.
Press the right arrow to go to the next track. If either
arrow is held or pressed more than once, the player will
continue moving backward or forward through the CD.
sSCAN t:
To scan one CD, press and hold either
SCAN arrow for more than two seconds until SCAN
appears on the display and you hear a beep. The radio
will go to the next track, play for 10 seconds, then go
on to the next track. Press either SCAN arrow again, to
stop scanning.
To scan all loaded CDs, press and hold either SCAN
arrow for more than four seconds until CD SCAN
appears on the display and you hear a beep. Use this
feature to listen to 10 seconds of the first track of
each loaded CD. Press either SCAN arrow again, to
stop scanning.
3-61
RCL (Recall): Press this knob to see how long the
current track has been playing. To change the default
on the display, track and elapsed time, press the
knob until you see the display you want, then hold the
knob until the display flashes. The selected display
will now be the default.
BAND: Press this button to listen to the radio when a
CD is playing. The inactive CD(s) will remain safely
inside the radio for future listening.
CD AUX (Auxiliary): Press this button to play a CD
when listening to the radio.
Using Song List Mode
The six-disc CD changer has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature, perform
the following steps:
1. Turn the CD player on and load it with at least one
CD. See “LOAD CD” listed previously in this section
for more information.
2. Check to see that the CD changer is not in song list
mode. S-LIST should not appear in the display. If
S-LIST is on the display, press the SONG LIST
button to turn it off.
3-62
3. Select the desired CD by pressing the numbered
pushbutton and then use the SEEK SCAN right
arrow to locate the track to be saved. The track will
begin to play.
4. Press and hold the SONG LIST button to save the
track into memory. When SONG LIST is pressed,
one beep will be heard immediately. After two
seconds of continuously pressing the SONG LIST
button, two beeps will be heard to confirm the track
has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
S-LIST FULL will appear on the display if you try to save
more than 20 selections.
To play the song list, press the SONG LIST button. One
beep will be heard and S-LIST will appear on the display.
The recorded tracks will begin to play in the order they
were saved.
Seek through the song list by using the SEEK SCAN
arrows. Seeking past the last saved track will return to
the first saved track.
To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST will appear on the display.
3. Press the SEEK SCAN arrows to select the desired
track to be deleted.
4. Press and hold the SONG LIST button for two
seconds. When SONG LIST is pressed, one
beep will be heard immediately. After two seconds
of continuously pressing the SONG LIST button,
two beeps will be heard to confirm the track
has been deleted.
After a track has been deleted, the remaining tracks are
moved up the list. When another track is added to the
song list, the track will be added to the end of the list.
To delete the entire song list, perform the
following steps:
CD Messages
CHECK CD: If this message appears on the display
and/or the CD comes out, it could be for one of the
following reasons:
• It is very hot. When the temperature returns to
normal, the CD should play.
• You are driving on a very rough road. When the
road becomes smoother, the CD should play.
1. Turn the CD player on.
• The CD is dirty, scratched, wet, or upside down.
• The air is very humid. If so, wait about an hour
2. Press the SONG LIST button to turn song list on.
S-LIST will appear on the display.
• There may have been a problem while burning
3. Press and hold the SONG LIST button for more
than four seconds. One beep will be heard,
followed by two beeps after two seconds, and a
final beep will be heard after four seconds. S-LIST
EMPTY will appear on the display indicating the
song list has been deleted.
If a CD is ejected, and the song list contains saved
tracks from that CD, those tracks are automatically
deleted from the song list. Any tracks saved to the song
list again are added to the bottom of the list.
and try again.
the CD.
• The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer. If the radio displays
an error message, write it down and provide it to your
dealer when reporting the problem.
To end song list mode, press the SONG LIST button.
One beep will be heard and S-LIST will be removed from
the display.
3-63
Navigation/Radio System
XM™ Satellite Radio Service
Your vehicle may have a navigation radio system that
includes a Radio Data System (RDS) with Program Type
(PTY) selections that will seek out the kind of music
you want to listen to. The radio can also communicate
with the navigation system to broadcast announcements
on traffic and emergency alert communications. For
information on how to use this system, see the
“Navigation System” manual.
XM™ Satellite Radio Service gives digital radio
reception from coast to coast. Just as with FM, tall
buildings or hills can interfere with satellite radio signals,
causing the sound to fade in and out. The radio may
display NO SIGNAL to indicate interference.
Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause
station frequencies to interfere with each other. Static
can occur on AM stations caused by things like
storms and power lines. Try reducing the treble to
reduce this noise.
FM Stereo
FM stereo will give the best sound, but FM signals will
reach only about 10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere with FM signals,
causing the sound to fade in and out.
3-64
Care of Your CDs
Handle CDs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a CD is soiled, dampen a clean,
soft cloth in a mild, neutral detergent solution and clean it,
wiping from the center to the edge.
Be sure never to touch the side without writing when
handling CDs. Pick up CDs by grasping the outer edges
or the edge of the hole and the outer edge.
Care of Your CD Player
The use of CD lens cleaners for CD players is not
advised, due to the risk of contaminating the lens of the
CD optics with lubricants internal to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever
become slightly bent, straighten it out by hand. If the
mast is badly bent, replace it.
XM™ Satellite Radio Antenna
System
The XM™ Satellite Radio antenna is located on the roof
of your vehicle. Keep this antenna clear of snow and
ice build up for clear radio reception.
The performance of the XM™ system may be affected if
the sunroof is open.
Loading items onto the roof of your vehicle can interfere
with the performance of the XM™ system. Make sure
that the XM™ satellite antenna is not obstructed.
Check occasionally to make sure the mast is still
tightened to the antenna base located on the roof of the
vehicle. If tightening is required, tighten by hand.
3-65
✍ NOTES
3-66
Section 4
Driving Your Vehicle
Your Driving, the Road, and Your Vehicle ..........4-2
Defensive Driving ...........................................4-2
Drunken Driving .............................................4-3
Control of a Vehicle ........................................4-6
Braking .........................................................4-6
Anti-Lock Brake System (ABS) .........................4-7
Braking in Emergencies ...................................4-9
Traction Control System (TCS) .........................4-9
Stabilitrak® System .......................................4-10
Panic Brake Assist ........................................4-11
All-Wheel Drive (AWD) System .......................4-11
Steering ......................................................4-11
Off-Road Recovery .......................................4-14
Passing .......................................................4-14
Loss of Control .............................................4-16
Driving at Night ............................................4-17
Driving in Rain and on Wet Roads ..................4-18
City Driving ..................................................4-21
Freeway Driving ...........................................4-22
Before Leaving on a Long Trip .......................4-23
Highway Hypnosis ........................................4-24
Hill and Mountain Roads ................................4-24
Winter Driving ..............................................4-26
If You Are Stuck: In Sand, Mud,
Ice or Snow ..............................................4-30
Rocking Your Vehicle to Get It Out .................4-30
Recovery Hook .............................................4-31
Loading Your Vehicle ....................................4-32
Towing ..........................................................4-37
Towing Your Vehicle .....................................4-37
Recreational Vehicle Towing ...........................4-37
Towing a Trailer ...........................................4-40
4-1
Your Driving, the Road, and
Your Vehicle
Defensive Driving
The best advice anyone can give about driving is:
Drive defensively.
Please start with a very important safety device in your
vehicle: Buckle up. See Safety Belts: They Are for
Everyone on page 1-8.
Defensive driving really means “be ready for anything.”
On city streets, rural roads, or freeways, it means
“always expect the unexpected.”
Assume that pedestrians or other drivers are going to
be careless and make mistakes. Anticipate what
they might do. Be ready for their mistakes.
4-2
Rear-end collisions are about the most preventable of
accidents. Yet they are common. Allow enough following
distance. It is the best defensive driving maneuver,
in both city and rural driving. You never know when
the vehicle in front of you is going to brake or turn
suddenly.
Defensive driving requires that a driver concentrate on
the driving task. Anything that distracts from the
driving task — such as concentrating on a cellular
telephone call, reading, or reaching for something on
the floor — makes proper defensive driving more difficult
and can even cause a collision, with resulting injury.
Ask a passenger to help do things like this, or pull off the
road in a safe place to do them yourself. These simple
defensive driving techniques could save your life.
Drunken Driving
Death and injury associated with drinking and driving is
a national tragedy. It is the number one contributor
to the highway death toll, claiming thousands of victims
every year.
Alcohol affects four things that anyone needs to drive
a vehicle:
•
•
•
•
Judgment
Muscular Coordination
Vision
Attentiveness
Police records show that almost half of all motor
vehicle-related deaths involve alcohol. In most cases,
these deaths are the result of someone who was
drinking and driving. In recent years, more than
16,000 annual motor vehicle-related deaths have been
associated with the use of alcohol, with more than
300,000 people injured.
Many adults — by some estimates, nearly half the adult
population — choose never to drink alcohol, so they
never drive after drinking. For persons under 21,
it is against the law in every U.S. state to drink alcohol.
There are good medical, psychological and
developmental reasons for these laws.
The obvious way to eliminate the leading highway
safety problem is for people never to drink alcohol and
then drive. But what if people do? How much is
“too much” if someone plans to drive? It is a lot less
than many might think. Although it depends on
each person and situation, here is some general
information on the problem.
The Blood Alcohol Concentration (BAC) of someone
who is drinking depends upon four things:
• The amount of alcohol consumed
• The drinker’s body weight
• The amount of food that is consumed before and
during drinking
• The length of time it has taken the drinker to
consume the alcohol
4-3
According to the American Medical Association, a 180 lb
(82 kg) person who drinks three 12 ounce (355 ml)
bottles of beer in an hour will end up with a BAC
of about 0.06 percent. The person would reach the
same BAC by drinking three 4 ounce (120 ml) glasses
of wine or three mixed drinks if each had 1-1/2 ounces
(45 ml) of liquors like whiskey, gin, or vodka.
It is the amount of alcohol that counts. For example,
if the same person drank three double martinis
(3 ounces or 90 ml of liquor each) within an hour, the
person’s BAC would be close to 0.12 percent. A person
who consumes food just before or during drinking will
have a somewhat lower BAC level.
There is a gender difference, too. Women generally
have a lower relative percentage of body water
than men. Since alcohol is carried in body water, this
means that a woman generally will reach a higher BAC
level than a man of her same body weight will when
each has the same number of drinks.
The law in most U.S. states, and throughout Canada,
sets the legal limit at 0.08 percent. In some other
countries, the limit is even lower. For example, it is
0.05 percent in both France and Germany. The BAC
limit for all commercial drivers in the United States
is 0.04 percent.
The BAC will be over 0.10 percent after three to six
drinks (in one hour). Of course, as we have seen,
it depends on how much alcohol is in the drinks, and
how quickly the person drinks them.
4-4
But the ability to drive is affected well below a BAC of
0.10 percent. Research shows that the driving skills
of many people are impaired at a BAC approaching
0.05 percent, and that the effects are worse at night.
All drivers are impaired at BAC levels above
0.05 percent. Statistics show that the chance of being
in a collision increases sharply for drivers who have
a BAC of 0.05 percent or above. A driver with a BAC
level of 0.06 percent has doubled his or her chance
of having a collision. At a BAC level of 0.10 percent,
the chance of this driver having a collision is 12 times
greater; at a level of 0.15 percent, the chance is
25 times greater!
The body takes about an hour to rid itself of the
alcohol in one drink. No amount of coffee or number of
cold showers will speed that up. “I will be careful” is
not the right answer. What if there is an emergency,
a need to take sudden action, as when a child darts into
the street? A person with even a moderate BAC
might not be able to react quickly enough to avoid
the collision.
There is something else about drinking and driving that
many people do not know. Medical research shows
that alcohol in a person’s system can make crash
injuries worse, especially injuries to the brain, spinal
cord, or heart. This means that when anyone who has
been drinking — driver or passenger — is in a crash,
that person’s chance of being killed or permanently
disabled is higher than if the person had not been
drinking.
{CAUTION:
Drinking and then driving is very dangerous.
Your reflexes, perceptions, attentiveness, and
judgment can be affected by even a small
amount of alcohol. You can have a serious — or
even fatal — collision if you drive after drinking.
Please do not drink and drive or ride with a
driver who has been drinking. Ride home in a
cab; or if you are with a group, designate a
driver who will not drink.
4-5
Control of a Vehicle
You have three systems that make your vehicle go where
you want it to go. They are the brakes, the steering, and
the accelerator. All three systems have to do their work at
the places where the tires meet the road.
Sometimes, as when you are driving on snow or ice,
it is easy to ask more of those control systems than the
tires and road can provide. That means you can lose
control of your vehicle.
Braking
Braking action involves perception time and
reaction time.
First, you have to decide to push on the brake pedal.
That is perception time. Then you have to bring up your
foot and do it. That is reaction time.
Average reaction time is about three-fourths of a
second. But that is only an average. It might be less
with one driver and as long as two or three seconds or
more with another. Age, physical condition, alertness,
coordination and eyesight all play a part. So do alcohol,
drugs and frustration. But even in three-fourths of a
second, a vehicle moving at 60 mph (100 km/h) travels
66 feet (20 m). That could be a lot of distance in an
emergency, so keeping enough space between
your vehicle and others is important.
4-6
And, of course, actual stopping distances vary greatly
with the surface of the road (whether it is pavement
or gravel); the condition of the road (wet, dry, icy); tire
tread; the condition of your brakes; the weight of
the vehicle and the amount of brake force applied.
Avoid needless heavy braking. Some people drive in
spurts — heavy acceleration followed by heavy
braking — rather than keeping pace with traffic. This is
a mistake. Your brakes may not have time to cool
between hard stops. Your brakes will wear out much
faster if you do a lot of heavy braking. If you keep pace
with the traffic and allow realistic following distances,
you will eliminate a lot of unnecessary braking.
That means better braking and longer brake life.
If your engine ever stops while you are driving, brake
normally but do not pump your brakes. If you do,
the pedal may get harder to push down. If your engine
stops, you will still have some power brake assist.
But you will use it when you brake. Once the power
assist is used up, it may take longer to stop and
the brake pedal will be harder to push.
Anti-Lock Brake System (ABS)
Your vehicle may have anti-lock brakes. ABS is an
advanced electronic braking system that will help
prevent a braking skid.
United States
Canada
If your vehicle has anti-lock brakes, this warning light on
the instrument panel will come on briefly when you
start your vehicle.
When you start your engine, or when you begin to drive
away, your anti-lock brake system will check itself.
You may hear a momentary motor or clicking noise while
this test is going on, and you may even notice that
your brake pedal moves or pulses a little. This is normal.
If there is a problem with the anti-lock brake system,
the anti-lock brake system warning light will stay on.
See Anti-Lock Brake System Warning Light on
page 3-33.
Let us say the road is wet and you are driving safely.
Suddenly, an animal jumps out in front of you. You slam
on the brakes and continue braking. Here is what
happens with ABS:
A computer senses that wheels are slowing down.
If one of the wheels is about to stop rolling, the computer
will separately work the brakes at each front wheel
and at both rear wheels.
4-7
The anti-lock system can change the brake pressure
faster than any driver could. The computer is
programmed to make the most of available tire and road
conditions. This can help you steer around the obstacle
while braking hard.
If your vehicle has the vehicle stability control system,
it includes a brake assist system which provides
more powerful braking during a sudden, hard brake
application. See “Vehicle Stability Control System” under
Traction Control System (TCS) on page 4-9.
Remember: Anti-lock does not change the time you
need to get your foot up to the brake pedal or always
decrease stopping distance. If you get too close to
the vehicle in front of you, you will not have time to apply
your brakes if that vehicle suddenly slows or stops.
Always leave enough room up ahead to stop, even
though you have anti-lock brakes.
Using Anti-Lock
Do not pump the brakes. Just hold the brake pedal
down firmly and let anti-lock work for you. You may feel
a slight brake pedal pulsation or notice some noise,
but this is normal.
As you brake, your computer keeps receiving updates
on wheel speed and controls braking pressure
accordingly.
4-8
Braking in Emergencies
Traction Control System (TCS)
At some time, nearly every driver gets into a situation
that requires hard braking.
Your vehicle may have a traction control system that
limits wheel spin. This is especially useful in slippery
road conditions. The system operates only if it senses
that one or both of the front wheels are spinning or
beginning to lose traction. When this happens,
the system works the front brakes and reduces engine
power to limit wheel spin.
If you have anti-lock, you can steer and brake at the
same time. However, if you do not have anti-lock, your
first reaction — to hit the brake pedal hard and hold
it down — may be the wrong thing to do. Your wheels
can stop rolling. Once they do, the vehicle cannot
respond to your steering. Momentum will carry it in
whatever direction it was headed when the wheels
stopped rolling. That could be off the road, into the very
thing you were trying to avoid, or into traffic.
If you do not have anti-lock, use a “squeeze” braking
technique. This will give you maximum braking while
maintaining steering control. You can do this by pushing
on the brake pedal with steadily increasing pressure.
In an emergency, you will probably want to squeeze the
brakes hard without locking the wheels. If you hear or feel
the wheels sliding, ease off the brake pedal. This will
help you retain steering control. If you do have anti-lock,
it is different. See Anti-Lock Brake System (ABS) on
page 4-7.
You may feel or hear the system working, but this is
normal. Leave the system on during ordinary driving so
that it can operate when needed. When the ignition
is turned to ON, the system automatically turns on.
This light should come on
briefly when you start the
engine. If it stays on or
comes on while you
are driving, there is a
problem with your traction
control system.
In many emergencies, steering can help you more than
even the very best braking.
4-9
The TRAC OFF button
is located to the left
of the steering wheel
below the instrument
panel cluster.
When getting the vehicle out of mud or newly fallen
snow, turn off the traction control system. The system
that controls engine performance interferes with the
process of freeing the front wheels. To turn off traction
control, press the TRAC OFF button. The traction
control system warning light will come on. The vehicle
stability control system (Stabilitrak®) is always activated,
even when the traction control system is turned off.
To turn the traction control system back on, press the
TRAC OFF button again. The traction control system
warning light will go off. See Traction Control System
(TCS) Warning Light on page 3-34 for more information.
Stabilitrak® System
The Stabilitrak® system helps provide integrated control
of the systems such as anti-lock brake system, traction
control and engine control. This system automatically
controls the brakes and engine to help prevent the
vehicle from skidding when cornering on a slippery road
surface or turning the steering wheel abruptly.
This system will activate when your vehicle speed
reaches or exceeds 9 mph (15 km/h), and will
deactivate when the vehicle speed reduces to below
9 mph (15 km/h).
You may hear a sound in the engine compartment for a
few seconds when the engine is started or just after the
vehicle begins to move. This means that the system is in
the self-check mode, but does not indicate a malfunction.
If the vehicle is going to skid during driving, the traction
control system warning light will blink and an alarm
will sound intermittently. Adjust your driving accordingly.
This light warns that there
is a problem somewhere
in the traction control
system or Stabilitrak®.
4-10
Panic Brake Assist
All-Wheel Drive (AWD) System
Your vehicle has a panic brake assist system that
monitors the intention of the driver while braking. If the
system senses that the driver has applied hard/fast
pressure to the brake pedal, the system will generate
additional pressure, making it easier for the driver
to maintain brake application. When this happens the
brake pedal will feel easier to push. Just hold the brake
pedal down firmly and let the system work for you.
You may feel the brakes vibrate, or you may notice
some noise but this is normal. The brakes will return to
normal operation after the brake pedal has been
released.
If your vehicle has all-wheel drive (AWD), the AWD
system operates automatically without any action
required by the driver. If the front drive wheels begin to
slip, the rear wheels will automatically begin to drive
the vehicle as required. There may be a slight
engagement noise during hard use but this is normal.
The brake assist system becomes operational after the
vehicle has accelerated to a speed in excess of
approximately 6 mph (10 km/h). It stops operating when
the vehicle decelerates to a speed below approximately
3 mph (5 km/h).
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system is not functioning, you can steer but
it will take much more effort.
4-11
Steering Tips
Driving on Curves
It is important to take curves at a reasonable speed.
A lot of the “driver lost control” accidents mentioned on
the news happen on curves.
Here is why:
have four-wheel anti-lock brakes, adding the hard
braking can demand too much of those places. You can
lose control.
The same thing can happen if you are steering through a
sharp curve and you suddenly accelerate. Those two
control systems — steering and acceleration — can
overwhelm those places where the tires meet the road
and make you lose control.
Experienced driver or beginner, each of us is subject to
the same laws of physics when driving on curves.
The traction of the tires against the road surface makes
it possible for the vehicle to change its path when
you turn the front wheels. If there is no traction, inertia
will keep the vehicle going in the same direction.
If you have ever tried to steer a vehicle on wet ice,
you will understand this.
What should you do if this ever happens? Ease up on
the brake or accelerator pedal, steer the vehicle the way
you want it to go, and slow down.
The traction you can get in a curve depends on the
condition of your tires and the road surface, the angle
at which the curve is banked, and your speed.
While you are in a curve, speed is the one factor you
can control.
If you need to reduce your speed as you approach
a curve, do it before you enter the curve, while your
front wheels are straight ahead.
Suppose you are steering through a sharp curve.
Then you suddenly apply the brakes. Both control
systems — steering and braking — have to do their
work where the tires meet the road. Unless you
4-12
Speed limit signs near curves warn that you should
adjust your speed. Of course, the posted speeds
are based on good weather and road conditions. Under
less favorable conditions you will want to go slower.
Try to adjust your speed so you can “drive” through the
curve. Maintain a reasonable, steady speed. Wait to
accelerate until you are out of the curve, and then
accelerate gently into the straightaway.
Steering in Emergencies
There are times when steering can be more effective
than braking. For example, you come over a hill and find
a truck stopped in your lane, or a car suddenly pulls
out from nowhere, or a child darts out from between
parked cars and stops right in front of you. You can
avoid these problems by braking — if you can stop in
time. But sometimes you cannot; there is not room.
That is the time for evasive action — steering around
the problem.
Your vehicle can perform very well in emergencies like
these. First apply your brakes — but, unless you
have anti-lock, not enough to lock your wheels.
See Braking on page 4-6. It is better to remove as
much speed as you can from a possible collision.
Then steer around the problem, to the left or right
depending on the space available.
An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o’clock positions, you
can turn it a full 180 degrees very quickly without
removing either hand. But you have to act fast, steer
quickly, and just as quickly straighten the wheel
once you have avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving
at all times and wear safety belts properly.
4-13
Off-Road Recovery
Passing
You may find that your right wheels have dropped off
the edge of a road onto the shoulder while you’re driving.
The driver of a vehicle about to pass another on a
two-lane highway waits for just the right moment,
accelerates, moves around the vehicle ahead, then
goes back into the right lane again. A simple maneuver?
Not necessarily! Passing another vehicle on a two-lane
highway is a potentially dangerous move, since the
passing vehicle occupies the same lane as oncoming
traffic for several seconds. A miscalculation, an error in
judgment, or a brief surrender to frustration or anger
can suddenly put the passing driver face to face with the
worst of all traffic accidents — the head-on collision.
So here are some tips for passing:
• Drive ahead. Look down the road, to the sides
If the level of the shoulder is only slightly below the
pavement, recovery should be fairly easy. Ease off the
accelerator and then, if there is nothing in the way,
steer so that your vehicle straddles the edge of
the pavement. You can turn the steering wheel up to
one-quarter turn until the right front tire contacts
the pavement edge. Then turn your steering wheel to go
straight down the roadway.
4-14
and to crossroads for situations that might affect
your passing patterns. If you have any doubt
whatsoever about making a successful pass,
wait for a better time.
• Watch for traffic signs, pavement markings and
lines. If you can see a sign up ahead that might
indicate a turn or an intersection, delay your pass.
A broken center line usually indicates it is all
right to pass, providing the road ahead is clear.
Never cross a solid line on your side of the lane or
a double solid line, even if the road seems empty
of approaching traffic.
• Do not get too close to the vehicle you want to
pass while you are awaiting an opportunity. For one
thing, following too closely reduces your area of
vision, especially if you are following a larger
vehicle. Also, you will not have adequate space if
the vehicle ahead suddenly slows or stops.
Keep back a reasonable distance.
• When it looks like a chance to pass is coming up,
start to accelerate but stay in the right lane and
do not get too close. Time your move so you will be
increasing speed as the time comes to move into
the other lane. If the way is clear to pass, you
will have a running start that more than makes up
for the distance you would lose by dropping
back. And if something happens to cause you to
cancel your pass, you need only slow down
and drop back again and wait for another
opportunity.
• If other vehicles are lined up to pass a slow vehicle,
• Check your mirrors, glance over your shoulder,
and start your left lane change signal before
moving out of the right lane to pass. When you are
far enough ahead of the passed vehicle to see
its front in your inside mirror, activate your right lane
change signal and move back into the right lane.
Remember that your right outside mirror is convex.
The vehicle you just passed may seem to be
farther away from you than it really is.
• Try not to pass more than one vehicle at a time on
two-lane roads. Reconsider before passing the
next vehicle.
• Do not overtake a slowly moving vehicle too rapidly.
Even though the brake lamps are not flashing,
it may be slowing down or starting to turn.
• If you are being passed, make it easy for the
following driver to get ahead of you. Perhaps
you can ease a little to the right.
wait your turn. But take care that someone is not
trying to pass you as you pull out to pass the slow
vehicle. Remember to glance over your shoulder
and check the blind spot.
4-15
Loss of Control
Let us review what driving experts say about what
happens when the three control systems — brakes,
steering, and acceleration — do not have enough friction
where the tires meet the road to do what the driver
has asked.
In any emergency, do not give up. Keep trying to
steer and constantly seek an escape route or area of
less danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking reasonable
care suited to existing conditions, and by not overdriving
those conditions. But skids are always possible.
The three types of skids correspond to your vehicle’s
three control systems. In the braking skid, your wheels
are not rolling. In the steering or cornering skid, too much
speed or steering in a curve causes tires to slip and lose
cornering force. And in the acceleration skid, too much
throttle causes the driving wheels to spin.
A cornering skid and an acceleration skid are best
handled by easing your foot off the accelerator pedal.
4-16
If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want
the vehicle to go. If you start steering quickly enough,
your vehicle may straighten out. Always be ready
for a second skid if it occurs.
Of course, traction is reduced when water, snow, ice,
gravel, or other material is on the road. For safety, you
will want to slow down and adjust your driving to
these conditions. It is important to slow down on slippery
surfaces because stopping distance will be longer and
vehicle control more limited.
While driving on a surface with reduced traction, try
your best to avoid sudden steering, acceleration,
or braking, including engine braking by shifting to a
lower gear. Any sudden changes could cause the tires
to slide. You may not realize the surface is slippery
until your vehicle is skidding. Learn to recognize warning
clues — such as enough water, ice, or packed snow
on the road to make a mirrored surface — and
slow down when you have any doubt.
If you have the anti-lock braking system, remember:
It helps avoid only the braking skid. If you do not have
anti-lock, then in a braking skid, where the wheels
are no longer rolling, release enough pressure on the
brakes to get the wheels rolling again. This restores
steering control. Push the brake pedal down steadily
when you have to stop suddenly. As long as the wheels
are rolling, you will have steering control.
Driving at Night
Here are some tips on night driving.
• Drive defensively.
• Do not drink and drive.
• Adjust your inside rearview mirror to reduce the
glare from headlamps behind you.
• Since you cannot see as well, you may need to
slow down and keep more space between you
and other vehicles.
• Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.
• In remote areas, watch for animals.
• If you are tired, pull off the road in a safe place
and rest.
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to be
impaired — by alcohol or drugs, with night vision
problems, or by fatigue.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as much
light to see the same thing at night as a 20-year-old.
What you do in the daytime can also affect your
night vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes
will have less trouble adjusting to night. But if you
are driving, do not wear sunglasses at night. They may
cut down on glare from headlamps, but they also
make a lot of things invisible.
4-17
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even
several seconds, for your eyes to re-adjust to the dark.
When you are faced with severe glare, as from a
driver who does not lower the high beams, or a
vehicle with misaimed headlamps, slow down a little.
Avoid staring directly into the approaching headlamps.
Driving in Rain and on Wet Roads
Keep your windshield and all the glass on your
vehicle clean — inside and out. Glare at night is made
much worse by dirt on the glass. Even the inside of
the glass can build up a film caused by dust. Dirty glass
makes lights dazzle and flash more than clean glass
would, making the pupils of your eyes contract
repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it is easier to pick out dimly
lighted objects. Just as your headlamps should
be checked regularly for proper aim, so should your
eyes be examined regularly. Some drivers suffer from
night blindness — the inability to see in dim light — and
are not even aware of it.
4-18
Rain and wet roads can mean driving trouble. On a wet
road, you cannot stop, accelerate, or turn as well
because your tire-to-road traction is not as good as on
dry roads. And, if your tires do not have much tread
left, you will get even less traction. It is always wise to
go slower and be cautious if rain starts to fall while
you are driving. The surface may get wet suddenly when
your reflexes are tuned for driving on dry pavement.
The heavier the rain, the harder it is to see. Even if your
windshield wiper blades are in good shape, a heavy
rain can make it harder to see road signs and traffic
signals, pavement markings, the edge of the road, and
even people walking.
It is wise to keep your windshield wiping equipment in
good shape and keep your windshield washer tank filled
with washer fluid. Replace your windshield wiper
inserts when they show signs of streaking or missing
areas on the windshield, or when strips of rubber start to
separate from the inserts.
Driving too fast through large water puddles or even
going through some car washes can cause problems,
too. The water may affect your brakes. Try to avoid
puddles. But if you cannot, try to slow down before you
hit them.
{CAUTION:
Wet brakes can cause accidents. They will not
work as well in a quick stop and may cause
pulling to one side. You could lose control of
the vehicle.
After driving through a large puddle of water
or a car wash, apply your brake pedal lightly
until your brakes work normally.
4-19
Hydroplaning
Hydroplaning is dangerous. So much water can build up
under your tires that they can actually ride on the
water. This can happen if the road is wet enough and
you are going fast enough. When your vehicle is
hydroplaning, it has little or no contact with the road.
Hydroplaning does not happen often. But it can if your
tires do not have much tread or if the pressure in
one or more is low. It can happen if a lot of water is
standing on the road. If you can see reflections
from trees, telephone poles, or other vehicles, and
raindrops dimple the water’s surface, there could be
hydroplaning.
Hydroplaning usually happens at higher speeds.
There just is not a hard and fast rule about hydroplaning.
The best advice is to slow down when it is raining.
Driving Through Deep Standing Water
Notice: If you drive too quickly through deep
puddles or standing water, water can come in
through your engine’s air intake and badly damage
your engine. Never drive through water that is
slightly lower than the underbody of your vehicle.
If you cannot avoid deep puddles or standing water,
drive through them very slowly.
4-20
Driving Through Flowing Water
{CAUTION:
Flowing or rushing water creates strong forces.
If you try to drive through flowing water, as you
might at a low water crossing, your vehicle
can be carried away. As little as six inches of
flowing water can carry away a smaller vehicle.
If this happens, you and other vehicle
occupants could drown. Do not ignore police
warning signs, and otherwise be very cautious
about trying to drive through flowing water.
Some Other Rainy Weather Tips
• Besides slowing down, allow some extra following
distance. And be especially careful when you
pass another vehicle. Allow yourself more clear
room ahead, and be prepared to have your
view restricted by road spray.
• Have good tires with proper tread depth. See Tires
on page 5-57.
City Driving
Here are ways to increase your safety in city driving:
• Know the best way to get to where you are
going. Get a city map and plan your trip into
an unknown part of the city just as you would for
a cross-country trip.
• Try to use the freeways that rim and crisscross
most large cities. You will save time and energy.
See Freeway Driving on page 4-22.
• Treat a green light as a warning signal. A traffic
light is there because the corner is busy enough
to need it. When a light turns green, and just before
you start to move, check both ways for vehicles
that have not cleared the intersection or may
be running the red light.
One of the biggest problems with city streets is the
amount of traffic on them. You will want to watch out for
what the other drivers are doing and pay attention to
traffic signals.
4-21
Freeway Driving
The most important advice on freeway driving is:
Keep up with traffic and keep to the right. Drive at the
same speed most of the other drivers are driving.
Too-fast or too-slow driving breaks a smooth traffic flow.
Treat the left lane on a freeway as a passing lane.
At the entrance, there is usually a ramp that leads to
the freeway. If you have a clear view of the freeway as
you drive along the entrance ramp, you should begin
to check traffic. Try to determine where you expect
to blend with the flow. Try to merge into the gap at close
to the prevailing speed. Switch on your turn signal,
check your mirrors, and glance over your shoulder as
often as necessary. Try to blend smoothly with the
traffic flow.
Once you are on the freeway, adjust your speed to the
posted limit or to the prevailing rate if it is slower.
Stay in the right lane unless you want to pass.
Before changing lanes, check your mirrors. Then use
your turn signal.
Mile for mile, freeways — also called thruways, parkways,
expressways, turnpikes, or superhighways — are the
safest of all roads. But they have their own special rules.
Just before you leave the lane, glance quickly over your
shoulder to make sure there is not another vehicle in
your blind spot.
Once you are moving on the freeway, make certain you
allow a reasonable following distance.
Expect to move slightly slower at night.
4-22
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your exit,
do not, under any circumstances, stop and back up.
Drive on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted. Reduce your speed
according to your speedometer, not to your sense
of motion. After driving for any distance at higher
speeds, you may tend to think you are going slower
than you actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If you
must start when you are not fresh — such as after
a day’s work — do not plan to make too many miles
that first part of the journey. Wear comfortable clothing
and shoes you can easily drive in.
Here are some things you can check before a trip:
• Windshield Washer Fluid: Is the reservoir full?
Are all windows clean inside and outside?
• Wiper Blades: Are they in good shape?
• Fuel, Engine Oil, Other Fluids: Have you checked
all levels?
• Lamps: Are they all working? Are the lenses clean?
• Tires: They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all inflated to
the recommended pressure?
• Weather Forecasts: What is the weather outlook
along your route? Should you delay your trip a
short time to avoid a major storm system?
• Maps: Do you have up-to-date maps?
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it needs
service, have it done before starting out. Of course,
you will find experienced and able service experts in
GM dealerships all across North America. They will be
ready and willing to help if you need it.
4-23
Highway Hypnosis
Hill and Mountain Roads
Is there actually such a condition as highway hypnosis?
Or is it just plain falling asleep at the wheel? Call it
highway hypnosis, lack of awareness, or whatever.
There is something about an easy stretch of road with
the same scenery, along with the hum of the tires on the
road, the drone of the engine, and the rush of the
wind against the vehicle that can make you sleepy.
Do not let it happen to you! If it does, your vehicle can
leave the road in less than a second, and you could
crash and be injured.
What can you do about highway hypnosis?
First, be aware that it can happen.
Then here are some tips:
• Make sure your vehicle is well ventilated, with a
comfortably cool interior.
• Keep your eyes moving. Scan the road ahead and
to the sides. Check your rearview mirrors and your
instruments frequently.
• If you get sleepy, pull off the road into a rest,
service, or parking area and take a nap, get some
exercise, or both. For safety, treat drowsiness
on the highway as an emergency.
4-24
Driving on steep hills or mountains is different from
driving in flat or rolling terrain.
If you drive regularly in steep country, or if you are
planning to visit there, here are some tips that can make
your trips safer and more enjoyable.
{CAUTION:
• Keep your vehicle in good shape. Check all fluid
Coasting downhill in NEUTRAL (N) or with the
ignition off is dangerous. Your brakes will have
to do all the work of slowing down. They could
get so hot that they would not work well.
You would then have poor braking or even
none going down a hill. You could crash.
Always have your engine running and your
vehicle in gear when you go downhill.
levels and also the brakes, tires, cooling system,
and transaxle. These parts can work hard on
mountain roads.
• Know how to go down hills. The most important
thing to know is this: let your engine do some of
the slowing down. Shift to a lower gear when you go
down a steep or long hill.
{CAUTION:
• Know how to go uphill. You may want to shift down to
If you do not shift down, your brakes could get
so hot that they would not work well. You would
then have poor braking or even none going
down a hill. You could crash. Shift down to let
your engine assist your brakes on a steep
downhill slope.
•
•
•
a lower gear. The lower gears help cool your engine
and transaxle, and you can climb the hill better.
Stay in your own lane when driving on two-lane
roads in hills or mountains. Do not swing wide or cut
across the center of the road. Drive at speeds that let
you stay in your own lane.
As you go over the top of a hill, be alert. There could
be something in your lane, like a stalled car or an
accident.
You may see highway signs on mountains that warn
of special problems. Examples are long grades,
passing or no-passing zones, a falling rocks area,
or winding roads. Be alert to these and take
appropriate action.
4-25
Winter Driving
Include an ice scraper, a small brush or broom, a
supply of windshield washer fluid, a rag, some winter
outer clothing, a small shovel, a flashlight, a red
cloth, and a couple of reflective warning triangles.
And, if you will be driving under severe conditions,
include a small bag of sand, a piece of old carpet
or a couple of burlap bags to help provide traction.
Be sure you properly secure these items in
your vehicle.
Driving on Snow or Ice
Most of the time, those places where your tires meet
the road probably have good traction.
However, if there is snow or ice between your tires
and the road, you can have a very slippery situation.
You will have a lot less traction, or grip, and will need
to be very careful.
Here are some tips for winter driving:
• Have your vehicle in good shape for winter.
• You may want to put winter emergency supplies in
your vehicle.
Also see Tires on page 5-57.
4-26
Unless you have the anti-lock braking system, you will
want to brake very gently, too. If you do have anti-lock,
see Anti-Lock Brake System (ABS) on page 4-7.
This system improves your vehicle’s stability when you
make a hard stop on a slippery road. Whether you
have the anti-lock braking system or not, you will want
to begin stopping sooner than you would on dry
pavement. Without anti-lock brakes, if you feel your
vehicle begin to slide, let up on the brakes a little.
Push the brake pedal down steadily to get the most
traction you can.
Remember, unless you have anti-lock, if you brake so
hard that your wheels stop rolling, you will just slide.
Brake so your wheels always keep rolling and you can
still steer.
• Whatever your braking system, allow greater
distance on any slippery road.
What is the worst time for this? Wet ice. Very cold snow
or ice can be slick and hard to drive on. But wet ice
can be even more trouble because it may offer the least
traction of all. You can get wet ice when it is about
freezing (32°F; 0°C) and freezing rain begins to fall.
Try to avoid driving on wet ice until salt and sand crews
can get there.
Whatever the condition — smooth ice, packed, blowing
or loose snow — drive with caution.
Accelerate gently. Try not to break the fragile traction.
If you accelerate too fast, the drive wheels will spin and
polish the surface under the tires even more.
• Watch for slippery spots. The road might be fine
until you hit a spot that is covered with ice.
On an otherwise clear road, ice patches may appear
in shaded areas where the sun cannot reach:
around clumps of trees, behind buildings, or under
bridges. Sometimes the surface of a curve or
an overpass may remain icy when the surrounding
roads are clear. If you see a patch of ice ahead
of you, brake before you are on it. Try not to brake
while you are actually on the ice, and avoid
sudden steering maneuvers.
4-27
If You Are Caught in a Blizzard
• Put on extra clothing or wrap a blanket around you.
If you have no blankets or extra clothing, make
body insulators from newspapers, burlap bags, rags,
floor mats — anything you can wrap around
yourself or tuck under your clothing to keep warm.
If you are stopped by heavy snow, you could be in a
serious situation. You should probably stay with
your vehicle unless you know for sure that you are near
help and you can hike through the snow. Here are
some things to do to summon help and keep yourself
and your passengers safe:
• Turn on your hazard flashers.
• Tie a red cloth to your vehicle to alert police that
you have been stopped by the snow.
4-28
You can run the engine to keep warm, but be careful.
{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot see it
or smell it, so you might not know it is in your
vehicle. Clear away snow from around the
base of your vehicle, especially any that is
blocking your exhaust pipe. And check around
again from time to time to be sure snow does
not collect there.
Open a window just a little on the side of the
vehicle that is away from the wind. This will
help keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little
faster than just idle. That is, push the accelerator
slightly. This uses less fuel for the heat that you get
and it keeps the battery charged. You will need a
well-charged battery to restart the vehicle, and possibly
for signaling later on with your headlamps. Let the
heater run for a while.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine
again and repeat this only when you feel really
uncomfortable from the cold. But do it as little as
possible. Preserve the fuel as long as you can.
To help keep warm, you can get out of the vehicle
and do some fairly vigorous exercises every half hour
or so until help comes.
4-29
If You Are Stuck: In Sand, Mud,
Ice or Snow
In order to free your vehicle when it is stuck, you will
need to spin the wheels, but you do not want to
spin your wheels too fast. The method known as rocking
can help you get out when you are stuck, but you
must use caution.
Notice: Spinning your wheels can destroy parts of
your vehicle as well as the tires. If you spin the
wheels too fast while shifting your transaxle back
and forth, you can destroy your transaxle. See
Rocking Your Vehicle to Get It Out on page 4-30.
For information about using tire chains on your vehicle,
see Tire Chains on page 5-73.
Rocking Your Vehicle to Get It Out
{CAUTION:
If you let your tires spin at high speed, they can
explode, and you or others could be injured.
And, the transaxle or other parts of the vehicle
can overheat. That could cause an engine
compartment fire or other damage. When you
are stuck, spin the wheels as little as possible.
Do not spin the wheels above 35 mph (55 km/h)
as shown on the speedometer.
4-30
First, turn your steering wheel left and right. That
will clear the area around your front wheels. Then shift
back and forth between REVERSE (R) and a forward
gear (or with a manual transaxle, between FIRST (1) or
SECOND (2) and REVERSE (R)), spinning the wheels
as little as possible. Release the accelerator pedal while
you shift, and press lightly on the accelerator pedal
when the transaxle is in gear. By slowly spinning your
wheels in the forward and reverse directions, you
will cause a rocking motion that may free your vehicle.
If that does not get you out after a few tries, you
may need to be towed out. Or, you can use your
recovery hook. If you do need to be towed out,
see Towing Your Vehicle on page 4-37.
Recovery Hook
Your vehicle is equipped with a recovery hook.
The recovery hook is provided at the front of your
vehicle. It can only be used for pulling your vehicle out.
{CAUTION:
The recovery hook, when used, is under a lot
of force. Always pull the vehicle straight out.
Never pull on the hook at a sideways angle.
The hook could break off and you or others
could be injured from the chain or cable
snapping back.
Notice: Never use the recovery hook to tow the
vehicle. Your vehicle could be damaged and it would
not be covered by warranty.
4-31
Loading Your Vehicle
Tire and Loading Information Label
It is very important to know how much weight your
vehicle can carry. Two labels on your vehicle show how
much weight it may properly carry, the Tire and
Loading Information label and the Certification label.
{CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose
control and crash. Also, overloading can
shorten the life of your vehicle.
4-32
Tire and Loading Information Label Example
The Tire and Loading Information label shows the
seating capacity and the vehicle capacity weight (A).
This weight includes the weight of all occupants, cargo
and all nonfactory-installed options. The Tire and
Loading Information label is attached to the center pillar,
below the driver’s door lock post (striker).
The Tire and Loading Information label also gives you
the size and recommended inflation pressures for
the factory-installed, original equipment tires on your
vehicle. For more information on tires and inflation see
Tires on page 5-57 and Inflation - Tire Pressure on
page 5-64.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be
five 150 lb. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 − 750 (5 x 150) = 650 lbs.).
There is also important loading information on the
Certification label. It tells you the Gross Vehicle Weight
Rating (GVWR) and the Gross Axle Weight Rating
(GAWR) for the front and rear axle; see “Certification
Label” later in this section.
5. Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight
may not safely exceed the available cargo
and luggage load capacity calculated in Step 4.
Steps for Determining Correct Load Limit
1. Locate the statement “The combined weight of
occupants and cargo should never exceed
XXX kg or XXX pounds” on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
6. If your vehicle will be towing a trailer, the load from
your trailer will be transferred to your vehicle.
Consult this manual to determine how this reduces
the available cargo and luggage load capacity of
your vehicle.
If your vehicle can tow a trailer, see Towing a Trailer
on page 4-40 for important information on towing
a trailer, towing safety rules and trailering tips.
3. Subtract the combined weight of the driver and
passengers from XXX kilograms or XXX pounds.
4-33
Example 2
Example 1
Item
Description
Total
Item
Description
1,000 lbs (453 kg)
A
Vehicle Capacity Weight
for Example 2 =
Total
A
Vehicle Capacity Weight
for Example 1 =
B
Subtract Occupant Weight
300 lbs (136 kg)
150 lbs (68 kg) x 2 =
B
Subtract Occupant Weight
750 lbs (340 kg)
150 lbs (68 kg) x 5 =
C
Available Occupant and
Cargo Weight =
C
Available Cargo Weight =
4-34
700 lbs (317 kg)
1,000 lbs (453 kg)
250 lbs (113 kg)
Certification Label
Example 3
Item
Description
Total
A
Vehicle Capacity Weight
for Example 3 =
B
Subtract Occupant Weight
1,000 lbs (453 kg)
200 lbs (91 kg) x 5 =
C
Available Cargo Weight =
1,000 lbs (453 kg)
United States version shown, Canada Similar
0 lbs (0 kg)
Refer to your vehicle’s Tire and Loading Information
label for specific information about your vehicle’s
capacity weight and seating positions. The combined
weight of the driver, passengers and cargo should never
exceed your vehicle’s maximum vehicle capacity weight.
The Certification label is also found on the center pillar,
near the driver’s door latch. It tells you the gross
weight capacity of your vehicle, called the Gross
Vehicle Weight Rating (GVWR). The GVWR includes
the weight of the vehicle, all occupants, fuel and cargo.
4-35
Never exceed the GVWR for your vehicle, or the
Gross Axle Weight Rating (GAWR) for either the front
or rear axle.
And, if you do have a heavy load, you should
spread it out.
{CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose
control and crash. Also, overloading can
shorten the life of your vehicle.
4-36
{CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn, or
in a crash.
• Put things in the rear area of your vehicle.
Try to spread the weight evenly. If you
have fold-down rear seats, you will find
four anchors on the back wall of your
trunk. You can use these anchors to tie
down lighter loads. They are not strong
enough for heavy things, however, so put
them as far forward as you can in the
trunk or rear area.
• Never stack heavier things, like suitcases,
inside the vehicle so that some of them
are above the tops of the seats.
• Do not leave an unsecured child restraint
in your vehicle.
• When you carry something inside the
vehicle, secure it whenever you can.
• Do not leave a seat folded down unless
you need to.
Towing
Towing Your Vehicle
Consult your dealer or a professional towing service
if you need to have your disabled vehicle towed.
See Roadside Assistance Program on page 7-6.
If you want to tow your vehicle behind another vehicle
for recreational purposes (such as behind a motorhome),
see “Recreational Vehicle Towing” following.
Recreational Vehicle Towing
Recreational vehicle towing means towing your vehicle
behind another vehicle – such as behind a motorhome.
The two most common types of recreational vehicle
towing are known as “dinghy towing” (towing your vehicle
with all four wheels on the ground) and “dolly towing”
(towing your vehicle with two wheels on the ground and
two wheels up on a device known as a “dolly”).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See “Dinghy
Towing” and “Dolly Towing,” following.
Here are some important things to consider before you
do recreational vehicle towing:
• What’s the towing capacity of the towing vehicle?
Be sure you read the tow vehicle manufacturer’s
recommendations.
• How far will you tow? Some vehicles have
restrictions on how far and how long they can tow.
• Do you have the proper towing equipment?
See your dealer or trailering professional for
additional advice and equipment recommendations.
• Is your vehicle ready to be towed? Just as you
would prepare your vehicle for a long trip, you’ll
want to make sure your vehicle is prepared to be
towed. See Before Leaving on a Long Trip on
page 4-23.
4-37
Dinghy Towing
After dinghy towing, let the engine idle for more than
three minutes before driving the vehicle.
For front-wheel-drive vehicles with a manual transaxle,
only do the following:
When dinghy towing, be sure to follow the posted legal
speed limit.
1. Put the shift lever in NEUTRAL.
2. Turn the ignition to ACC to avoid locking the steering
wheel. Make sure the audio system is turned off and
that nothing is plugged into the power outlets.
3. Release the parking brake.
4-38
Do not tow your vehicle from the rear. Your vehicle
could be badly damaged and the repairs would not be
covered by your warranty.
Notice: Towing an all-wheel-drive vehicle with all
four wheels on the ground, or even with only two of
its wheels on the ground, will damage drivetrain
components. Do not tow an all-wheel-drive vehicle if
any of its wheels will be on the ground.
Dolly Towing
3. Set the parking brake and then remove the key.
4. Clamp the steering wheel in a straight-ahead
position with a clamping device designed for towing.
5. Release the parking brake.
Notice: Towing an all-wheel-drive vehicle with all
four wheels on the ground, or even with only two of
its wheels on the ground, will damage drivetrain
components. Do not tow an all-wheel-drive vehicle if
any of its wheels will be on the ground.
If your vehicle is a front-wheel drive vehicle it can be
towed using a dolly. To tow your vehicle using a dolly,
follow these steps:
1. Put the front wheels on a dolly.
2. Put the vehicle in PARK (P) for an automatic
transaxle and in NEUTRAL for a manual transaxle.
4-39
Towing a Trailer
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a trailer. For example, if the trailer is too
heavy, the brakes may not work well — or even
at all. You and your passengers could be
seriously injured. You may also damage your
vehicle; the resulting repairs would not be
covered by your warranty. Pull a trailer only if
you have followed all the steps in this section.
Ask your dealer for advice and information
about towing a trailer with your vehicle.
4-40
Your vehicle can tow a trailer if it is equipped with the
proper trailer towing equipment. To identify what
the vehicle trailering capacity is for your vehicle, you
should read the information in “Weight of the Trailer” that
appears later in this section. But trailering is different
than just driving your vehicle by itself. Trailering means
changes in handling, acceleration, braking, durability
and fuel economy. Successful, safe trailering takes
correct equipment, and it has to be used properly.
That’s the reason for this part. In it are many time-tested,
important trailering tips and safety rules. Many of
these are important for your safety and that of your
passengers. So please read this section carefully before
you pull a trailer.
Load-pulling components such as the engine, transaxle,
wheel assemblies and tires are forced to work harder
against the drag of the added weight. The engine
is required to operate at relatively higher speeds and
under greater loads, generating extra heat. What’s more,
the trailer adds considerably to wind resistance,
increasing the pulling requirements.
If You Do Decide To Pull A Trailer
Weight of the Trailer
If you do, here are some important points:
• There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live
but also where you’ll be driving. A good source for
this information can be state or provincial police.
• Consider using a sway control. You can ask a hitch
dealer about sway controls.
How heavy can a trailer safely be?
• Don’t tow a trailer at all during the first 1,000 miles
•
•
(1 600 km) your new vehicle is driven. Your
engine, axle or other parts could be damaged.
Then, during the first 500 miles (800 km) that you
tow a trailer, don’t drive over 50 mph (80 km/h)
and don’t make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at
the heavier loads.
Obey speed limit restrictions when towing a trailer.
Don’t drive faster than the maximum posted speed
for trailers, or no more than 55 mph (90 km/h),
to save wear on your vehicle’s parts.
It should never weigh more than 1,500 lbs (680 kg).
But even that can be too heavy.
It depends on how you plan to use your rig. For example,
speed, altitude, road grades, outside temperature and
how much your vehicle is used to pull a trailer are all
important. And, it can also depend on any special
equipment that you have on your vehicle.
You can ask your dealer for our trailering information or
advice, or you can write us at:
Pontiac-GMC Customer Assistance Center
P.O. Box 33172
Detroit, MI 48232-5172
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Three important considerations have to do with weight:
• the weight of the trailer
• the weight of the trailer tongue
• and the total weight on your vehicle’s tires
4-41
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes the curb weight of the vehicle, any cargo you
may carry in it, and the people who will be riding in
the vehicle. And if you tow a trailer, you must add the
tongue load to the GVW because your vehicle will
be carrying that weight, too. See Loading Your Vehicle
on page 4-32 for more information about your
vehicle’s maximum load capacity.
If you’re using a weight-carrying hitch or a
weight-distributing hitch, the trailer tongue (A) should
weigh 10 to 15 percent of the total loaded trailer
weight (B).
4-42
After you have loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they are not, you may be able to get them right
simply by moving some items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the upper limit
for cold tires. You’ll find these numbers on the
Tire-Loading Information label located in the glovebox.
See Loading Your Vehicle on page 4-32. Then be
sure you do not go over the GVW limit for your vehicle,
including the weight of the trailer tongue.
Hitches
Safety Chains
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads
are a few reasons why you’ll need the right hitch.
Here are some rules to follow:
You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the
tongue of the trailer so that the tongue will not drop to
the road if it becomes separated from the hitch.
Instructions about safety chains may be provided by the
hitch manufacturer or by the trailer manufacturer.
Follow the manufacturer’s recommendation for attaching
safety chains and do not attach them to the bumper.
Always leave just enough slack so you can turn
with your rig. And, never allow safety chains to drag on
the ground.
• Don’t let the steel in a hitch contact the aluminum
on your bumper. If you do, the two will corrode.
You can use something like paint or plastic tape to
separate the steel and aluminum. The same
steel to aluminum problem can happen with
fasteners too.
• Will you have to make any holes in the body of
your vehicle when you install a trailer hitch?
If you do, then be sure to seal the holes later
when you remove the hitch. If you don’t seal them,
deadly carbon monoxide (CO) from your exhaust
can get into your vehicle. See Engine Exhaust
on page 2-32. Dirt and water can too.
Trailer Brakes
Does your trailer have its own brakes?
Be sure to read and follow the instructions for the trailer
brakes so you’ll be able to install, adjust and maintain
them properly. And, if you have anti-lock brakes, do not
try to tap into your vehicle’s brake system. If you do,
both systems won’t work well, or at all.
4-43
Driving with a Trailer
Passing
Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you’ll want to get
to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the trailer.
And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a good deal
longer, you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Before you start, check the trailer hitch, platform and
attachments, safety chains, electrical connector, lamps,
tires and mirror adjustment. If the trailer has electric
brakes, start your vehicle and trailer moving and then
apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to be sure that the
load is secure, and that the lamps and any trailer
brakes are still working.
Following Distance
Stay at least twice as far behind the vehicle ahead as
you would when driving your vehicle without a trailer.
This can help you avoid situations that require
heavy braking and sudden turns.
4-44
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if possible,
have someone guide you.
Making Turns
Notice: Making very sharp turns while trailering
could cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal. Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring.
Check with your dealer. The arrows on your instrument
panel will flash whenever you signal a turn or lane
change. Properly hooked up, the trailer lamps will also
flash, telling other drivers you’re about to turn,
change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not.
It’s important to check occasionally to be sure the
trailer bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around 45 mph (70 km/h) to reduce the
possibility of the engine and the transaxle overheating.
Parking on Hills
{CAUTION:
You really should not park your vehicle, with a
trailer attached, on a hill. If something goes
wrong, your rig could start to move. People can
be injured, and both your vehicle and the trailer
can be damaged.
But if you ever have to park your rig on a hill, here’s
how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transaxle or into gear for
a manual transaxle, yet. When parking uphill, turn
your wheels away from the curb. When parking
downhill, turn your wheels into the curb.
2. Have someone place chocks under the trailer wheels.
3. When the chocks are in place, release the regular
brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your parking
brake and shift into PARK (P) for an automatic
transaxle or REVERSE (R) for a manual transaxle.
5. Release the regular brakes.
4-45
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal down
while you:
• start your engine
• shift into a gear, and
• release the parking brake
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store
the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transaxle fluid (don’t overfill),
engine oil, drive belt, cooling system and brake system.
Each of these is covered in this manual, and the
Index will help you find them quickly. If you’re trailering,
it’s a good idea to review this information before you
start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat during
severe operating conditions. See Engine Overheating
on page 5-30.
4-46
Section 5
Service and Appearance Care
Service ............................................................5-3
Doing Your Own Service Work .........................5-4
Adding Equipment to the Outside of
Your Vehicle ..............................................5-5
Fuel ................................................................5-5
Gasoline Octane ............................................5-5
Gasoline Specifications ....................................5-6
California Fuel ...............................................5-6
Additives .......................................................5-6
Fuels in Foreign Countries ...............................5-7
Filling Your Tank ............................................5-7
Filling a Portable Fuel Container .......................5-9
Checking Things Under the Hood ....................5-10
Hood Release ..............................................5-10
Engine Compartment Overview .......................5-12
Engine Oil ...................................................5-16
Engine Air Cleaner/Filter ................................5-21
Automatic Transaxle Fluid ..............................5-23
Manual Transaxle Fluid ..................................5-26
Hydraulic Clutch ...........................................5-27
Engine Coolant .............................................5-28
Radiator Pressure Cap ..................................5-30
Engine Overheating .......................................5-30
Cooling System ............................................5-32
Power Steering Fluid .....................................5-37
Windshield Washer Fluid ................................5-38
Brakes ........................................................5-39
Battery ........................................................5-42
Jump Starting ...............................................5-43
All-Wheel Drive ..............................................5-48
Bulb Replacement ..........................................5-49
Halogen Bulbs ..............................................5-49
Headlamps, Front Turn Signal, and
Parking Lamps ..........................................5-49
Center High-Mounted Stoplamp (CHMSL) .........5-51
Taillamps, Turn Signal, and Stoplamps ............5-53
Back-Up Lamps ............................................5-54
Replacement Bulbs .......................................5-55
Windshield Wiper Blade Replacement ..............5-56
Tires ..............................................................5-57
Tire Sidewall Labelling ...................................5-58
Tire Terminology and Definitions .....................5-61
Inflation - Tire Pressure .................................5-64
Tire Pressure Monitor System .........................5-65
Tire Inspection and Rotation ...........................5-68
When It Is Time for New Tires .......................5-69
Buying New Tires .........................................5-70
5-1
Section 5
Service and Appearance Care
Uniform Tire Quality Grading ..........................5-70
Wheel Alignment and Tire Balance ..................5-72
Wheel Replacement ......................................5-72
Tire Chains ..................................................5-73
If a Tire Goes Flat ........................................5-74
Changing a Flat Tire .....................................5-75
Removing the Spare Tire and Tools ................5-76
Removing the Flat Tire and Installing the
Spare Tire ................................................5-78
Storing a Flat or Spare Tire and Tools ............5-84
Compact Spare Tire ......................................5-86
Appearance Care ............................................5-87
Fabric/Carpet ...............................................5-87
Vinyl ...........................................................5-89
Leather .......................................................5-89
Instrument Panel ..........................................5-89
Interior Plastic Components ............................5-89
Glass Surfaces .............................................5-89
Care of Safety Belts ......................................5-90
Weatherstrips ...............................................5-90
Washing Your Vehicle ...................................5-90
Cleaning Exterior Lamps/Lenses .....................5-90
Finish Care ..................................................5-91
5-2
Windshield, Backglass, and Wiper Blades .........5-91
Aluminum Wheels .........................................5-92
Tires ...........................................................5-92
Sheet Metal Damage .....................................5-93
Finish Damage .............................................5-93
Underbody Maintenance ................................5-93
Chemical Paint Spotting .................................5-93
Vehicle Care/Appearance Materials ..................5-94
Vehicle Identification ......................................5-95
Vehicle Identification Number (VIN) .................5-95
Service Parts Identification Label .....................5-95
Electrical System ............................................5-95
Add-On Electrical Equipment ..........................5-95
Headlamp Wiring ..........................................5-96
Windshield Wiper Fuses ................................5-96
Power Windows and Other Power Options .......5-96
Fuses and Circuit Breakers ............................5-96
Instrument Panel Fuse Block ..........................5-97
Engine Compartment Fuse Block ....................5-98
Capacities and Specifications ........................5-100
Normal Maintenance Replacement Parts .........5-102
Service
Your dealer knows your vehicle best and wants you to
be happy with it. We hope you will go to your dealer
for all your service needs. You will get genuine GM parts
and GM-trained and supported service people.
We hope you will want to keep your GM vehicle all GM.
Genuine GM parts have one of these marks:
California Proposition 65 Warning
Most motor vehicles, including this one, contain and/or
emit chemicals known to the State of California to
cause cancer and birth defects or other reproductive
harm. Engine exhaust, many parts and systems
(including some inside the vehicle), many fluids, and
some component wear by-products contain and/or emit
these chemicals.
5-3
Doing Your Own Service Work
If you want to do some of your own service work, you
will want to use the proper service manual. It tells
you much more about how to service your vehicle than
this manual can. To order the proper service manual,
see Service Publications Ordering Information on
page 7-11.
Your vehicle may have an airbag system. If it does,
see Servicing Your Airbag-Equipped Vehicle on
page 1-60 before attempting to do your own
service work.
You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. See Part E: Maintenance Record on page 6-21.
5-4
{CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.
• Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.
• Be sure to use the proper nuts, bolts and
other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your vehicle
can affect the airflow around it. This may cause
wind noise and affect windshield washer performance.
Check with your dealer before adding equipment to
the outside of your vehicle.
Fuel
The 8th digit of your vehicle identification number (VIN)
shows the code letter or number that identifies your
engine. You will find the VIN at the top left of the
instrument panel. See Vehicle Identification Number
(VIN) on page 5-95.
Gasoline Octane
If your vehicle has the 1.8L L4 (VIN Code 8) engine,
use regular unleaded gasoline with a posted octane of
87 or higher. If the octane is less than 87, you may
get a heavy knocking noise when you drive. If this
occurs, use a gasoline rated at 87 octane or higher as
soon as possible. Otherwise, you might damage
your engine. A little pinging noise when you accelerate
or drive uphill is considered normal. This does not
indicate a problem exists or that a higher-octane fuel is
necessary. If you are using 87 octane or higher-octane
fuel and you hear heavy knocking, your engine
needs service.
If your vehicle has the 1.8L L4 (VIN Code L) engine,
use only premium unleaded gasoline with a posted
octane of 91 or higher. In an emergency, you may be
able to use a lower octane — as low a 87 — if heavy
knocking does not occur. Refill your tank with premium
fuel as soon as possible. Otherwise, you might
damage your engine. If you are using 91 octane or
higher-octane fuel and you hear heavy knocking,
your engine needs service.
5-5
Gasoline Specifications
Additives
It is recommended that gasoline meet specifications
which were developed by automobile manufacturers
around the world and contained in the World-Wide
Fuel Charter which is available from the
Alliance of Automobile Manufacturers at
www.autoalliance.org/fuel_charter.htm. Gasoline
meeting these specifications could provide improved
driveability and emission control system performance
compared to other gasoline.
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from forming,
allowing your emission control system to work
properly. You should not have to add anything to your
fuel. However, some gasolines contain only the
minimum amount of additive required to meet
U.S. Environmental Protection Agency regulations.
General Motors recommends that you buy gasolines that
are advertised to help keep fuel injectors and intake
valves clean. If your vehicle experiences problems due
to dirty injectors or valves, try a different brand
of gasoline.
California Fuel
If your vehicle is certified to meet California Emission
Standards (see the underhood emission control
label), it is designed to operate on fuels that meet
California specifications. If this fuel is not available in
states adopting California emissions standards,
your vehicle will operate satisfactorily on fuels meeting
federal specifications, but emission control system
performance may be affected. The malfunction indicator
lamp may turn on and your vehicle may fail a
smog-check test. See Malfunction Indicator Lamp on
page 3-35. If this occurs, return to your authorized
GM dealer for diagnosis. If it is determined that
the condition is caused by the type of fuel used,
repairs may not be covered by your warranty.
5-6
Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available in
your area to contribute to clean air. General Motors
recommends that you use these gasolines, particularly if
they comply with the specifications described earlier.
Notice: Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in your fuel
system and also damage the plastic and rubber
parts. That damage would not be covered under
your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does
not recommend the use of such gasolines. Fuels
containing MMT can reduce the life of spark plugs and
the performance of the emission control system may
be affected. The malfunction indicator lamp may turn on.
If this occurs, return to your authorized GM dealer
for service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to find. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.
Filling Your Tank
{CAUTION:
Fuel vapor burns violently and a fuel fire can
cause bad injuries. To help avoid injuries to you
and others, read and follow all the instructions
on the pump island. Turn off your engine when
you are refueling. Do not smoke if you are near
fuel or refueling your vehicle. Keep sparks,
flames and smoking materials away from fuel.
Do not leave the fuel pump unattended when
refueling your vehicle — this is against the law
in some places. Keep children away from the
fuel pump; never let children pump fuel.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-7
To remove the fuel cap, turn it slowly to the left
(counterclockwise). On some vehicles you may
have to push in while turning the cap.
While refueling, hang the fuel cap inside of the
fuel door.
{CAUTION:
The tethered fuel cap is located behind a hinged fuel
door on the driver’s side of the vehicle.
The fuel door release lever
is located near the floor
under the driver’s seat on
the outboard side.
5-8
If you spill fuel and then something ignites it,
you could be badly burned. Fuel can spray out
on you if you open the fuel cap too quickly.
This spray can happen if your tank is nearly
full, and is more likely in hot weather. Open
the fuel cap slowly and wait for any hiss noise
to stop. Then unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overfill the
tank, and wait a few seconds after you have finished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible.
See Washing Your Vehicle on page 5-90.
When replacing the fuel cap, turn it to the right
(clockwise) until it clicks. Make sure the cap is fully
installed. The diagnostic system can determine if the
fuel cap has been left off or improperly installed.
This would allow fuel to evaporate into the atmosphere.
See Malfunction Indicator Lamp on page 3-35.
{CAUTION:
If a fire starts while you are refueling, do not
remove the nozzle. Shut off the flow of fuel
by shutting off the pump or by notifying the
station attendant. Leave the area immediately.
Notice: If you need a new fuel cap, be sure to get the
right type. Your dealer can get one for you. If you get
the wrong type, it may not fit properly. This may
cause your malfunction indicator lamp to light and
may damage your fuel tank and emissions system.
See Malfunction Indicator Lamp on page 3-35.
Filling a Portable Fuel Container
{CAUTION:
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the gasoline vapor.
You can be badly burned and your vehicle
damaged if this occurs. To help avoid injury
to you and others:
• Dispense gasoline only into approved
containers.
• Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed or
on any surface other than the ground.
• Bring the fill nozzle in contact with the
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.
• Do not smoke while pumping gasoline.
5-9
Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing and tools away
from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts
and start a fire. These include liquids like fuel,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or
others could be burned. Be careful not to drop
or spill things that will burn onto a hot engine.
5-10
Hood Release
To open the hood, do the following:
1. Pull the release
handle inside the
vehicle. It is located
below the instrument
panel to the left of
the steering wheel.
4. Release the hood prop
rod from its retainer
and put it into the slot
in the hood. To insert
the hood prop rod
into the slot, move it
straight up. If it is
moved to the side or
toward the inside of
the vehicle, it may
become detached.
2. Then go to the front of the vehicle and pull up on
the secondary hood release. The lever is located
near the middle of the hood.
Before closing the hood, be sure all the filler caps are
on properly. Make sure to return the hood prop rod
carefully back to its retainer to avoid damaging
the vehicle.
3. Lift the hood.
5-11
Engine Compartment Overview
When you open the hood of the 1.8L L4 (VIN Code 8) engine, you will see the following:
5-12
A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under Windshield Washer Fluid
on page 5-38.
B. Power Steering Fluid Reservoir. See Power Steering
Fluid on page 5-37.
C. Radiator Pressure Cap. See Radiator Pressure Cap
on page 5-30.
D. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 5-16.
E. Coolant Recovery Tank. See Cooling System on
page 5-32.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
under Engine Oil on page 5-16.
G. Automatic Transaxle Fluid Dipstick (If Equipped).
See “Checking the Fluid Level” under Automatic
Transaxle Fluid on page 5-23.
H. Brake Master Cylinder Reservoir and Hydraulic
Clutch (If Equipped). See “Brake Fluid” under Brakes
on page 5-39 and Hydraulic Clutch on page 5-27.
I. Engine Air Cleaner/Filter. See Engine Air
Cleaner/Filter on page 5-21.
J. Battery. See Battery on page 5-42.
K. Engine Compartment Fuse Block. See Engine
Compartment Fuse Block on page 5-98.
5-13
When you open the hood of the 1.8L L4 (VIN Code L) engine, you will see the following:
5-14
A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under Windshield Washer Fluid
on page 5-38.
B. Power Steering Fluid Reservoir. See Power Steering
Fluid on page 5-37.
C. Radiator Pressure Cap. See Radiator Pressure Cap
on page 5-30.
D. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 5-16.
E. Coolant Recovery Tank. See Cooling System on
page 5-32.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
under Engine Oil on page 5-16.
G. Automatic Transaxle Fluid Dipstick (If Equipped).
See “Checking the Fluid Level” under Automatic
Transaxle Fluid on page 5-23.
H. Brake Master Cylinder Reservoir and Hydraulic
Clutch (If Equipped). See “Brake Fluid” under Brakes
on page 5-39 and Hydraulic Clutch on page 5-27.
I. Engine Air Cleaner/Filter. See Engine Air
Cleaner/Filter on page 5-21.
J. Battery. See Battery on page 5-42.
K. Engine Compartment Fuse Block. See Engine
Compartment Fuse Block on page 5-98.
5-15
Checking Engine Oil
Engine Oil
If the engine oil pressure
light appears on the
instrument cluster,
it means you need to
check your engine oil level
right away.
For more information, see Oil Pressure Light on
page 3-38.
You should check your engine oil level regularly; this is
an added reminder.
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-12 for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
1.8L L4 (VIN Code 8) Engine
5-16
1.8L L4 (VIN Code L) Engine
When to Add Engine Oil
If the oil is at or below the hole at the tip of the dipstick,
then you will need to add at least one quart of oil.
But you must use the right kind. This section explains
what kind of oil to use. For engine oil crankcase
capacity, see Capacities and Specifications on
page 5-100.
See Engine Compartment Overview on page 5-12 for
the location of the engine oil fill cap.
Notice: Do not add too much oil. If your engine has
so much oil that the oil level gets above the upper
hole, your engine could be damaged.
Be sure to add enough oil to put the level somewhere
in the proper operating range. Push the dipstick all
the way back in when you are through.
5-17
What Kind of Engine Oil to Use
Look for two things:
• GM6094M
Your vehicle’s engine requires oil meeting GM
Standard GM6094M. You should look for and use
only an oil that meets GM Standard GM6094M.
5-18
• SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is
best for your vehicle. However, if it is going to be
0°F (–18°C) or above and SAE 5W-30 is not
available, you may use SAE 10W-30.
These numbers on an oil container show its
viscosity, or thickness. Do not use other viscosity
oils such as SAE 20W-50.
Oils meeting these
requirements should also
have the starburst
symbol on the container.
This symbol indicates
that the oil has been
certified by the American
Petroleum Institute (API).
Notice: Use only engine oil identified as meeting
GM Standard GM6094M and showing the American
Petroleum Institute Certified For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can result in engine damage not covered by
your warranty.
GM Goodwrench® oil meets all the requirements for
your vehicle.
If you are in an area of extreme cold, where the
temperature falls below −20°F (−29°C), it is recommend
that you use either an SAE 5W-30 synthetic oil or an
SAE 0W-30 oil. Both will provide easier cold starting and
better protection for your engine at extremely low
temperatures.
Engine Oil Additives
Do not add anything to your oil. The recommended oils
with the starburst symbol that meet GM Standard
GM6094M are all you will need for good performance
and engine protection.
You should look for this information on the oil container,
and use only those oils that are identified as meeting
GM Standard GM6094M and have the starburst symbol
on the front of the oil container.
5-19
When to Change Engine Oil
What to Do with Used Oil
If any one of these is true for you, use the short trip/city
maintenance schedule:
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
• Most trips are less than 5 miles (8 km). This is
particularly important when outside temperatures
are below freezing.
• Most trips include extensive idling, such as frequent
driving in stop-and-go traffic.
• You frequently tow a trailer or use a carrier on top
of your vehicle.
• The vehicle is used for delivery service, police, taxi,
or other commercial application.
Driving under these conditions causes engine oil to
break down sooner. If any one of these is true for your
vehicle, then you need to change your oil and filter
every 3,000 miles (5 000 km) or 3 months — whichever
occurs first.
If none of them are true, use the long trip/highway
maintenance schedule. Change the oil and filter every
7,500 miles (12 500 km) or 12 months — whichever
occurs first. Driving a vehicle with a fully warmed engine
under highway conditions will cause engine oil to
break down slower.
5-20
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
filter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or into
streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of your used oil, ask
your dealer, a service station or a local recycling center
for help.
Engine Air Cleaner/Filter
When to Inspect the Engine
Air Cleaner/Filter
If you are driving in dusty/dirty conditions, inspect the
air cleaner/filter at each engine oil change. Replace the
filter every 30,000 miles (48 000 km) or 24 months,
whichever occurs first. See Part A: Scheduled
Maintenance Services on page 6-4 for more information.
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/filter remove the filter from
the vehicle and lightly shake the filter to release
loose dust and dirt. If the filter remains caked with dirt,
a new filter is required.
The engine air cleaner/filter is in the engine compartment
on the driver’s side of the vehicle. See Engine
Compartment Overview on page 5-12 for more
information on location.
5-21
To inspect or replace the engine air cleaner/filter,
do the following:
{CAUTION:
Operating the engine with the air cleaner/filter
off can cause you or others to be burned.
The air cleaner not only cleans the air; it helps
to stop flame if the engine backfires. If it is
not there and the engine backfires, you could
be burned. Do not drive with it off, and be
careful working on the engine with the
air cleaner/filter off.
1. Release the two clips that hold the cover down.
2. Lift the cover off.
3. Inspect or replace the engine air cleaner/filter.
4. Reinstall the cover.
5-22
Notice: If the air cleaner/filter is off, a backfire can
cause a damaging engine fire. And, dirt can
easily get into your engine, which will damage it.
Always have the air cleaner/filter in place when you
are driving.
Automatic Transaxle Fluid
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
When to Check and Change
Notice: Too much or too little fluid can damage the
transaxle. Too much can mean that some of the fluid
could come out and fall on hot engine or exhaust
system parts, starting a fire. Too little fluid could
cause the transaxle to overheat. Be sure to get an
accurate reading if you check the transaxle fluid.
A good time to check your automatic transaxle fluid
level is when the engine oil is changed.
Check the fluid in the transaxle and differential every
30,000 miles (48 000 km). Change the fluid every
60,000 miles (100 000 km) if the vehicle is mainly driven
under one or more of these conditions:
• In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
• In hilly or mountainous terrain.
• When doing frequent trailer towing.
• Uses such as found in taxi, police or delivery
service.
See Part A: Scheduled Maintenance Services on
page 6-4.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at the dealership service
department.
Wait at least 30 minutes before checking the transaxle
fluid level if you have been driving:
• When outside temperatures are above 90°F (32°C).
• At high speed for quite a while.
• In heavy traffic — especially in hot weather.
• While pulling a trailer.
To get the right reading, the fluid should be at normal
operating temperature, which is 158°F to 176°F
(70°C to 80°C).
Get the vehicle warmed up by driving about
15 miles (24 km) when outside temperatures are
above 50°F (10°C). If it is colder than 50°F (10°C),
you may have to drive longer.
5-23
Checking the Fluid Level
Then, without shutting off the engine, follow these steps:
Prepare your vehicle as follows:
The automatic transaxle
dipstick has an orange
handle and is located near
the front of the engine
compartment. See Engine
Compartment Overview
on page 5-12 for more
information on location.
• Park your vehicle on a level place. Keep the
engine running.
• With the parking brake applied, place the shift lever
in PARK (P).
• With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in PARK (P).
• Let the engine run at idle for three to five minutes.
1. Release the tab and pull out the dipstick and wipe it
with a clean rag or paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
5-24
If the fluid level is low, add only enough of the proper
fluid to bring the level into the area between dimples on
the dipstick.
1. Pull out the dipstick.
3. Check both sides of the dipstick, and read the lower
level. The fluid level must be between the two
dimples in the hot range.
4. If the fluid level is in the acceptable range, push the
dipstick back in all the way; then press the tab
down to lock the dipstick in place.
How to Add Fluid
Refer to the Maintenance Schedule to determine
what kind of transaxle fluid to use. See Part D:
Recommended Fluids and Lubricants on page 6-19.
2. Using a long-neck funnel, add enough fluid at the
dipstick hole to bring it to the proper level.
It does not take much fluid, generally less than
one pint (0.5 L). Do not overfill.
Notice: Use of automatic transaxle fluid labeled
other than T-IV Automatic Transaxle Fluid may
damage your vehicle, and the damages may not
be covered by your warranty. Always use T-IV
labeled automatic transaxle fluid in your vehicle.
See Part D: Recommended Fluids and Lubricants
on page 6-19 for more information.
3. After adding fluid, recheck the fluid level as
described under “How to Check,” earlier in
this section.
4. When the correct fluid level is obtained, push the
dipstick back in all the way; then press the tab
down to lock the dipstick in place.
5-25
Manual Transaxle Fluid
When to Check
A good time to have your manual transaxle fluid level
checked is when the engine oil is changed. However,
the fluid in your manual transaxle does not require
changing.
How to Check
Because this operation can be difficult, you may choose
to have this done at your Pontiac dealership service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading.
Notice: Too much or too little fluid can damage the
transaxle. Too much can mean that some of the fluid
could come out and fall on hot engine or exhaust
system parts, starting a fire. Too little fluid could
cause the transaxle to overheat. Be sure to get an
accurate reading if you check the transaxle fluid.
Check the fluid level only when your engine is off, the
vehicle is parked on a level place and the transaxle
is cool enough for you to rest your fingers on the
transaxle case.
Then, follow these steps:
1. Remove the filler plug.
2. Check that the lubricant level is up to the bottom of
the filler plug hole.
3. If the fluid level is good, install the plug and be sure
it is fully seated. If the fluid level is low, add more
fluid as described in the next steps.
How to Add Fluid
Here is how to add fluid. Refer to the Maintenance
Schedule to determine what kind of fluid to use.
See Part D: Recommended Fluids and Lubricants on
page 6-19.
1. Remove the filler plug.
2. Add fluid at the filler plug hole. Add only enough
fluid to bring the fluid level up to the bottom of the
filler plug hole.
3. Install the filler plug. Be sure the plug is fully seated.
5-26
Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The master cylinder reservoir is filled with
DOT-3 brake fluid.
It is not necessary to regularly check the fluid unless
you suspect there is a leak in the system. Adding fluid
will not correct a leak.
The hydraulic clutch and brake master cylinder use the
same reservoir.
When to Check and What to Use
The reservoir is located at
the back of the engine
compartment, on the
driver’s side of the vehicle.
See Engine Compartment
Overview on page 5-12
for more information
on location.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
Refer to the Maintenance Schedule to determine how
often you should check the fluid level in your master
cylinder reservoir and for the proper fluid. See Part B:
Owner Checks and Services on page 6-13 and Part D:
Recommended Fluids and Lubricants on page 6-19.
How to Check and Add Fluid
Check to make sure that the fluid level is at or above
the MIN mark. If the level is below the MIN mark,
see the instructions on the reservoir cap.
5-27
Engine Coolant
What to Use
Your vehicle was factory-filled with a coolant developed
to last for 100,000 miles (160 000 km) or 5 years,
whichever comes first. When coolant is added or
changed, use DEX-COOL® coolant.
Use a mixture of one-half clean, drinkable water and
one-half DEX-COOL® coolant which will not damage
aluminum parts. If you use this coolant mixture, you do
not need to add anything else.
The following explains your cooling system and how to
add coolant when it is low. If you have a problem
with engine overheating, see Engine Overheating on
page 5-30.
A 50/50 mixture of clean, drinkable water and
DEX-COOL® coolant will:
•
•
•
•
•
Give freezing protection down to −34°F (− 37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice: Using coolant other than DEX-COOL® may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs first. Any repairs
would not be covered by your warranty. Always use
DEX-COOL® (silicate-free) coolant in your vehicle.
5-28
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch fire and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL® coolant.
Notice: If you use an improper coolant mixture,
your engine could overheat and be badly damaged.
The repair cost would not be covered by your
warranty. Too much water in the mixture can freeze
and crack the engine, radiator, heater core and
other parts.
If you have to add coolant more than four times a year,
have your dealer check your cooling system.
Notice: If you use the proper coolant, you do not
have to add extra inhibitors or additives which claim
to improve the system. These can be harmful.
Checking Coolant
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at LOW,
or a little higher. When your engine is warm, the level
should be up to FULL, or a little higher.
See Engine Compartment Overview on page 5-12 for
the location of the coolant recovery tank.
Adding Coolant
If you need more coolant, add the proper DEX-COOL®
coolant mixture at the coolant recovery tank, but be
careful not to spill it.
{CAUTION:
Turning the radiator pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn you
badly. With the coolant recovery tank, you will
almost never have to add coolant at the
radiator. Never turn the radiator pressure
cap — even a little — when the engine and
radiator are hot.
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
Occasionally check the coolant level in the radiator.
For information on how to add coolant to the radiator,
see Cooling System on page 5-32.
5-29
Radiator Pressure Cap
Notice: If the pressure cap is not tightly installed,
coolant loss and possible engine damage may
occur. Be sure the cap is properly and tightly
secured.
See Engine Compartment Overview on page 5-12
for more information on location.
Engine Overheating
You will find a coolant temperature gage on your
vehicle’s instrument panel. See Engine Coolant
Temperature Gage on page 3-35.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can burn
you badly, even if you just open the hood.
Stay away from the engine if you see or hear
steam coming from it. Just turn it off and get
everyone away from the vehicle until it cools
down. Wait until there is no sign of steam or
coolant before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch fire.
You or others could be badly burned.
Stop your engine if it overheats, and get out
of the vehicle until the engine is cool.
Notice: If your engine catches fire because you
keep driving with no coolant, your vehicle can
be badly damaged. The costly repairs would not be
covered by your warranty.
5-30
If No Steam Is Coming From
Your Engine
If you get an engine overheat warning but see or hear
no steam, the problem may not be too serious.
Sometimes the engine can get a little too hot when you:
•
•
•
•
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of steam,
try this for a minute or so:
If you no longer have the overheat warning, you can
drive. Just to be safe, drive slower for about 10 minutes.
If the warning does not come back on, you can drive
normally.
If the warning continues and you have not stopped,
pull over, stop, and park your vehicle right away.
If there is still no sign of steam, you can idle the engine
for three minutes while you are parked. If you still
have the warning, turn off the engine and get everyone
out of the vehicle until it cools down.
You may decide not to lift the hood but to get service
help right away.
1. In heavy traffic, let the engine idle in NEUTRAL (N)
while stopped. If it is safe to do so, pull off the road,
shift to PARK (P) or NEUTRAL (N) and let the
engine idle.
2. Turn on your heater to full hot at the highest fan
speed and open the windows as necessary.
5-31
Cooling System
When you decide it is safe to lift the hood, here is what
you will see:
{CAUTION:
An electric engine cooling fan under the hood
can start up even when the engine is not
running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
If the coolant inside the coolant recovery tank is boiling,
do not do anything else until it cools down. The vehicle
should be parked on a level surface.
The coolant level should be at or above the FULL mark.
If it is not, you may have a leak at the pressure cap
or in the radiator hoses, heater hoses, radiator, water
pump or somewhere else in the cooling system.
A. Electric Engine Cooling Fan
B. Engine Coolant Recovery Tank
C. Radiator Pressure Cap
5-32
{CAUTION:
Heater and radiator hoses, and other engine
parts, can be very hot. Do not touch them.
If you do, you can be burned.
Do not run the engine if there is a leak. If you
run the engine, it could lose all coolant.
That could cause an engine fire, and you could
be burned. Get any leak fixed before you drive
the vehicle.
If there seems to be no leak, with the engine on, check
to see if the electric engine cooling fan is running.
If the engine is overheating, the fan should be running.
If it is not, your vehicle needs service.
Notice: Engine damage from running your engine
without coolant is not covered by your warranty.
How to Add Coolant to the Coolant
Recovery Tank
If you have not found a problem yet, but the coolant
level is not at or above the FULL mark, add a
50/50 mixture of clean, drinkable water and DEX-COOL®
coolant at the coolant recovery tank. See Engine
Coolant on page 5-28 for more information about the
proper coolant mixture.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch fire and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and a proper coolant.
5-33
Notice: In cold weather, water can freeze and crack
the engine, radiator, heater core and other parts.
Use the recommended coolant and the proper
coolant mixture.
If the overheat warning continues, there is one more
thing you can try. You can add the proper coolant
mixture directly to the radiator but be sure the cooling
system is cool before you do it.
{CAUTION:
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They
are under pressure, and if you turn the radiator
pressure cap — even a little — they can come
out at high speed. Never turn the cap when the
cooling system, including the radiator pressure
cap, is hot. Wait for the cooling system and
radiator pressure cap to cool if you ever have
to turn the pressure cap.
When the coolant in the coolant recovery tank is at the
FULL mark, start your vehicle.
5-34
How to Add Coolant to the Radiator
1. You can remove the radiator pressure cap when
the cooling system, including the radiator pressure
cap and upper radiator hose, is no longer hot.
Turn the pressure cap slowly counterclockwise until
it first stops. Do not press down while turning the
pressure cap.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
3. Fill the radiator with the proper coolant mixture, up
to the base of the filler neck. See Engine Coolant
on page 5-28 for more information about the proper
coolant mixture.
2. Then keep turning the pressure cap, but now push
down as you turn it. Remove the pressure cap.
5-35
4. Then fill the coolant recovery tank to the FULL mark.
5. Put the cap back on the coolant recovery tank,
but leave the radiator pressure cap off.
6. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine cooling fan.
7. By this time, the coolant level inside the radiator
filler neck may be lower. If the level is lower, add
more of the proper coolant mixture through the
filler neck until the level reaches the base of the
filler neck.
8. Then replace the pressure cap. At any time during
this procedure if coolant begins to flow out of the
filler neck, reinstall the pressure cap. Be sure
the ears on the pressure cap are in line with the
vent tube.
5-36
Power Steering Fluid
The power steering fluid
reservoir is located in the
engine compartment
on the passenger’s side of
the vehicle. See Engine
Compartment Overview
on page 5-12 for
reservoir location.
How to Check Power Steering Fluid
You can check your fluid without taking the cap off.
Just look at the reservoir.
• When the engine compartment is hot, the level
should be between the HOT marks.
• When the engine compartment is cool, the level
should be between the COLD marks.
What to Use
To determine what kind of fluid to use, see Part D:
Recommended Fluids and Lubricants on page 6-19.
When to Check Power Steering Fluid
Notice: When adding power steering fluid or
making a complete fluid change, always use the
proper fluid. Failure to use the proper fluid can
cause leaks and damage hoses and seals.
It is not necessary to regularly check power steering fluid
unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
5-37
Windshield Washer Fluid
• When using concentrated washer fluid,
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a fluid that has
sufficient protection against freezing.
Adding Washer Fluid
If your vehicle has the low windshield washer fluid level
warning light, it will come on when the fluid level is
too low. See Low Washer Fluid Warning Light on
page 3-40.
Open the cap with the
washer symbol on it.
Add washer fluid until the
tank is full. See Engine
Compartment Overview
on page 5-12 for
reservoir location.
5-38
Notice:
follow the manufacturer’s instructions for
adding water.
• Do not mix water with ready-to-use washer fluid.
Water can cause the solution to freeze and
damage your washer fluid tank and other parts
of the washer system. Also, water does not
clean as well as washer fluid.
• Fill your washer fluid tank only three-quarters
full when it is very cold. This allows for
expansion if freezing occurs, which could
damage the tank if it is completely full.
• Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
Brakes
Brake Fluid
The hydraulic clutch and
brake master cylinder use
the same reservoir. It is
filled with DOT-3 brake
fluid. See Engine
Compartment Overview
on page 5-12 for the
location of the reservoir.
There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the
brake fluid goes down to an acceptable level during
normal brake lining wear. When new linings are put in,
the fluid level goes back up. The other reason is
that fluid is leaking out of the brake system or the
hydraulic clutch system. If it is, you should have that
system fixed, since a leak means that sooner or later
your brakes will not work well, or will not work at all.
So, it is not a good idea to top off your brake fluid.
Adding brake fluid will not correct a leak. If you add fluid
when your linings are worn, then you will have too
much fluid when you get new brake linings. You should
add or remove brake fluid, as necessary, only when
work is done on the brake hydraulic system.
{CAUTION:
If you have too much brake fluid, it can spill on
the engine. The fluid will burn if the engine is
hot enough. You or others could be burned,
and your vehicle could be damaged. Add brake
fluid only when work is done on the brake
hydraulic system.
When your brake fluid falls to a low level, your brake
warning light will come on. See Brake System Warning
Light on page 3-32.
5-39
What to Add
When you do need brake fluid, use only DOT-3 brake
fluid. Use new brake fluid from a sealed container
only. See Part D: Recommended Fluids and Lubricants
on page 6-19.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help
keep dirt from entering the reservoir.
{CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
5-40
Notice:
• Using the wrong fluid can badly damage brake
system parts. For example, just a few drops of
mineral-based oil, such as engine oil, in your
brake system can damage brake system parts so
badly that they will have to be replaced. Do not
let someone put in the wrong kind of fluid.
• If you spill brake fluid on your vehicle’s painted
surfaces, the paint finish can be damaged.
Be careful not to spill brake fluid on your vehicle.
If you do, wash it off immediately.
See Appearance Care on page 5-87.
Brake Wear
The GT series has four-wheel disc brakes. All other
models have front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving, except when you are pushing on the
brake pedal firmly.
{CAUTION:
The brake wear warning sound means that soon
your brakes will not work well. That could lead
to an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
Notice: Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to GM torque specifications.
If you have rear drum brakes, they do not have wear
indicators, but if you ever hear a rear brake rubbing
noise, have the rear brake linings inspected immediately.
Also, the rear brake drums should be removed and
inspected each time the tires are removed for rotation or
changing. When you have the front brake pads
replaced, have the rear brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
See Brake System Inspection on page 6-18.
5-41
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a moderate brake stop,
your disc brakes adjust for wear. If you rarely
make a moderate or heavier stop, then your brakes
might not adjust correctly. If you drive in that way,
then — very carefully — make a few moderate brake
stops about every 1,000 miles (1 600 km), so your
brakes will adjust properly.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top-quality GM brake parts.
When you replace parts of your braking system — for
example, when your brake linings wear down and you
need new ones put in — be sure you get new approved
5-42
GM replacement parts. If you do not, your brakes may no
longer work properly. For example, if someone puts in
brake linings that are wrong for your vehicle, the balance
between your front and rear brakes can change — for the
worse. The braking performance you have come to
expect can change in many other ways if someone puts
in the wrong replacement brake parts.
Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has the
replacement number shown on the original battery’s
label. We recommend an ACDelco® replacement
battery. See Engine Compartment Overview on
page 5-12 for battery location.
Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands
after handling.
Vehicle Storage
Jump Starting
If you are not going to drive your vehicle for 25 days
or more, remove the black, negative (−) cable from
the battery. This will help keep your battery from
running down.
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure to use the following steps to do it safely.
{CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
are not careful. See Jump Starting on page 5-43
for tips on working around a battery without
getting hurt.
{CAUTION:
Batteries can hurt you. They can be dangerous
because:
• They contain acid that can burn you.
• They contain gas that can explode or ignite.
• They contain enough electricity to burn you.
If you do not follow these steps exactly, some or
all of these things can hurt you.
Notice: Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
5-43
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice: If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle, and the bad grounding
could damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved
in the jump start procedure. Put an automatic
transaxle in PARK (P) or a manual transaxle in
NEUTRAL before setting the parking brake.
Notice: If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter. Turn off the radio and all lamps that are
not needed. This will avoid sparks and help save
both batteries. And it could save the radio!
4. Open the hoods and locate the batteries. Find the
positive (+) and negative (−) terminal locations on
each vehicle. See Engine Compartment Overview
on page 5-12 for more information on location.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from any
underhood electric fan.
5-44
{CAUTION:
{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
flashlight if you need more light.
Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
Be sure the battery has enough water. You do
not need to add water to the battery installed
in your new vehicle. But if a battery has filler
caps, be sure the right amount of fluid is there.
If it is low, add water to take care of that first.
If you don’t, explosive gas could be present.
5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative (−) will go to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
Do not connect positive (+) to negative (−) or you
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative (−) cable to the negative (−) terminal on
the dead battery because this can cause sparks.
Battery fluid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, flush the place
with water and get medical help immediately.
5-45
8. Now connect the black negative (−) cable to the
negative terminal of the good battery. Use a
remote negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.
7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
5-46
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably needs
service.
Notice: If the jumper cables are removed in the
wrong order, electrical shorting may occur and
damage the vehicle. The repairs would not be
covered by your warranty. Remove the jumper
cables in the correct order, making sure that the
cables do not touch each other or other metal.
To disconnect the jumper cables from both vehicles,
do the following:
1. Disconnect the black negative (−) cable from the
vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
Jumper Cable Removal
A. Heavy, Unpainted Metal Engine Part
B. Good Battery
C. Dead Battery
5-47
All-Wheel Drive
If you have an all-wheel-drive vehicle, be sure to
perform the lubricant checks described in this section.
Transfer Case (Power Transfer Unit)
When to Check Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant. See Part C: Periodic
Maintenance Inspections on page 6-17.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the filler plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the filler plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Part D: Recommended
Fluids and Lubricants on page 6-19.
5-48
Carrier Assembly-Differential
(Rear Drive Module)
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant and when to change it. See
Part A: Scheduled Maintenance Services on page 6-4.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the filler plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the filler plug hole.
A fluid loss could indicate a problem; check and have it
repaired, if needed.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Part D: Recommended
Fluids and Lubricants on page 6-19.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-55.
Headlamps, Front Turn Signal, and
Parking Lamps
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
A. Headlamp
B. Turn Signal/Parking Lamp
5-49
To replace the headlamp, turn signal, or parking lamp
bulb, do the following:
2. Remove the rubber cover and socket from the
headlamp or turn signal/parking lamp.
1. Open the hood and locate the lamp assembly.
5-50
Center High-Mounted Stoplamp
(CHMSL)
To replace the center high-mounted stoplamp bulb,
do the following:
1. Locate the bulb which is on the inside of the
liftgate/liftglass near the top.
2. Remove the two clips on both sides of the cover
and remove it.
3. Release the retainer clip holding the bulb on the
headlamp by pressing down and moving the
metal retainer away from you.
Turn the turn signal/parking lamp bulb socket
counterclockwise to remove.
4. Pull the bulb out of the fixture.
5. Reverse the steps to install a new bulb.
3. Remove the two screws from the CHMSL housing.
Then remove the housing to expose the bulb.
5-51
4. Turn the bulb socket counterclockwise and pull it
out of the lamp housing.
5-52
5. Pull the bulb straight out of the socket.
6. Reverse the previous steps to install a new bulb.
Taillamps, Turn Signal, and
Stoplamps
To replace the turn signal and/or stop/taillamp bulbs,
do the following:
A. Stoplamp/Taillamp
B. Turn Signal Lamp
1. Remove the storage compartment cover in the rear
cargo area of the vehicle to access the bulbs.
5-53
2. Turn the bulb socket
counterclockwise and
pull it out of the
lamp housing.
Back-Up Lamps
The back-up lamp bulb is
located in the bumper.
3. Pull the bulb straight
out of the socket.
To replace the back-up lamp bulb, do the following:
1. Reach up under the
rear fascia to locate the
back-up lamp housing.
4. Reverse the previous steps to install a new bulb.
5. Reinstall the cover.
5-54
2. Turn the bulb socket
counterclockwise and
pull it out of the
lamp housing.
3. Pull the bulb straight out of the socket.
4. Reverse the previous steps to install a new bulb.
Replacement Bulbs
Exterior Lamp
Bulb Number
Back-Up Lamp
7440
CHMSL
921
Front Turn Signal and
Parking Lamp
1157NA
Headlamp High/Low-Beam
9003
Rear Turn Signal
7440
Stoplamp/Taillamp
7443
For replacement bulbs not listed here, please consult
your dealer.
5-55
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” under At Least Twice a Year on page 6-14 for
more information.
Replacement blades come in different types and are
removed in different ways. Here’s how to remove
the wiper blade:
1. Pull the windshield wiper arm away from the
windshield.
2. Push the release lever and slide the wiper assembly
toward the driver’s side of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.
5-56
Tires
CAUTION:
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.
{CAUTION:
• Underinflated tires pose the same danger
•
Poorly maintained and improperly used tires
are dangerous.
• Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. See Loading Your
Vehicle on page 4-32.
CAUTION:
(Continued)
•
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be
checked when your tires are cold.
See Inflation - Tire Pressure on page 5-64.
Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact — such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents.
If your tread is badly worn, or if your tires
have been damaged, replace them.
(Continued)
5-57
Tire Sidewall Labelling
Useful information about a tire is molded into its
sidewall. The examples below show a typical passenger
car tire and a compact spare tire sidewall.
(B) DOT (Department of Transportation): The
Department of Transportation (DOT) code indicates that
the tire is in compliance with the U.S. Department of
Transportation Motor Vehicle Safety Standards.
(C) Tire Identification Number (TIN): The letters and
numbers following DOT code are the Tire Identification
Number (TIN). The TIN shows the manufacturer and
plant code, tire size, and date the tire was manufactured.
The TIN is molded onto both sides of the tire, although
only one side may have the date of manufacture.
(D) Tire Ply Material: The type of cord and number of
plies in the sidewall and under the tread.
(E) Uniform Tire Quality Grading (UTQG):
Tire manufacturers are required to grade tires based
on three performance factors: treadwear, traction
and temperature resistance. For more information
see Uniform Tire Quality Grading on page 5-70.
Passenger Car Tire Example
(A) Tire Size: The tire size is a combination of letters
and numbers used to define a particular tire’s width,
height, aspect ratio, construction type and service
description. See the “Tire Size” illustration later in this
section for more detail.
5-58
(F) Maximum Cold Inflation Load Limit: Maximum
load that can be carried and the maximum pressure
needed to support that load. For information on
recommended tire pressure see Inflation - Tire Pressure
on page 5-64 and Loading Your Vehicle on page 4-32.
(B) Tire Ply Material: The type of cord and number of
plies in the sidewall and under the tread.
(C) Tire Identification Number (TIN): The Tire
Identification Number (TIN). The TIN shows the
manufacturer and plant code, tire size, and date the
tire was manufactured. The TIN is molded onto
both sides of the tire, although only one side may have
the date of manufacture.
(D) Maximum Cold Inflation Load Limit: Maximum
load that can be carried and the maximum pressure
needed to support that load. See Compact Spare Tire
on page 5-86 and Loading Your Vehicle on page 4-32.
(E) Tire Inflation: The temporary use tire or compact
spare tire should be inflated to 60 psi (420 kPa).
For more information on tire pressure and inflation
see Inflation - Tire Pressure on page 5-64.
Compact Spare Tire Example
(A) Temporary Use Only: The compact spare tire or
temporary use tire has a tread life of approximately
3,000 miles (5 000 km) and should not be driven
at speeds over 65 mph (105 km/h). The compact spare
tire is for emergency use when a regular road tire
has lost air and gone flat. See Compact Spare Tire on
page 5-86 and If a Tire Goes Flat on page 5-74.
(F) Tire Size: A combination of letters and numbers
define a tire’s width, height, aspect ratio, construction
type and service description. The letter T as the
first character in the tire size means the tire is for
temporary use only.
5-59
Tire Size
The following illustration shows an example of a typical
passenger car tire size.
(C) Aspect Ratio: A two-digit number that indicates
the tire height-to-width measurements. For example,
if the tire size aspect ratio is 70, as shown in item C of
the illustration, it would mean that the tire’s sidewall
is 70% as high as it is wide.
(D) Construction Code: A letter code is used to
indicate the type of ply construction in the tire.
The letter R means radial ply construction; the letter D
means diagonal or bias ply construction; and the
letter B means belted-bias ply construction.
(E) Rim Diameter: Diameter of the wheel in inches.
(A) Passenger (P-Metric) Tire: The United States
version of a metric tire sizing system. The letter P as
the first character in the tire size means a passenger
vehicle tire engineered to standards set by the
U. S. Tire and Rim Association.
(B) Tire Width: The three-digit number indicates the
tire section width in millimeters from sidewall to sidewall.
5-60
(F) Service Description: These characters represent
the load range and the speed rating of a tire. The load
range represents the load carry capacity a tire is
certified to carry. The speed rating is the maximum
speed a tire is certified to carry a load. Speed ratings
range from A to Z.
Tire Terminology and Definitions
Air Pressure: The amount of air inside the tire pressing
outward on each square inch of the tire. Air pressure
is expressed in pounds per square inch (psi) or
kilopascal (kPa).
Accessory Weight: This means the combined weight
of optional accessories. Some examples of optional
accessories are, automatic transmission, power steering,
power brakes, power windows, power seats, and air
conditioning.
Aspect Ratio: The relationship of a tire’s height to
its width.
Belt: A rubber coated layer of cords that is located
between the plies and the tread. Cords may be made
from steel or other reinforcing materials.
Bead: The tire bead contains steel wires wrapped by
steel cords that hold the tire onto the rim.
Cold Inflation Pressure: The amount of air pressure
in a tire, measured in pounds per square inch (psi)
or kilopascals (kPa) before a tire has built up heat from
driving. See Inflation - Tire Pressure on page 5-64.
Curb Weight: This means the weight of a motor vehicle
with standard and optional equipment including the
maximum capacity of fuel, oil and coolant, but without
passengers and cargo.
DOT Markings: A code molded into the sidewall of a
tire signifying that the tire is in compliance with the
U.S. Department of Transportation (DOT) motor vehicle
safety standards. The DOT code includes the
Tire Identification Number (TIN), an alphanumeric
designator which can also identify the tire manufacturer,
production plant, brand and date of production.
GVWR: Gross Vehicle Weight Rating, see Loading
Your Vehicle on page 4-32.
GAWR FRT: Gross Axle Weight Rating for the front
axle, see Loading Your Vehicle on page 4-32.
Bias Ply Tire: A pneumatic tire in which the plies are
laid at alternate angles less than 90 degrees to the
centerline of the tread.
5-61
GAWR RR: Gross Axle Weight Rating for the rear axle,
see Loading Your Vehicle on page 4-32.
Intended Outboard Sidewall: The side of an
asymmetrical tire, that must always face outward when
mounted on a vehicle.
Normal Occupant Weight: The number of occupants a
vehicle is designed to seat multiplied by 150 lbs (68 kg).
See Loading Your Vehicle on page 4-32.
Occupant Distribution: Designated seating positions.
Load Index: An assigned number ranging from 1 to 279
that corresponds to the load carrying capacity of a tire.
Outward Facing Sidewall: The side of an
asymmetrical tire that has a particular side that faces
outward when mounted on a vehicle. The side of the tire
that contains a whitewall, bears white lettering or
bears manufacturer, brand, and/or model name molding
that is higher or deeper than the same moldings on
the other sidewall of the tire.
Maximum Inflation Pressure: The maximum air
pressure to which a cold tire may be inflated. The
maximum air pressure is molded onto the sidewall.
Passenger (P-Metric) Tire: A tire used on passenger
cars and some light duty trucks and multipurpose
vehicles.
Maximum Load Rating: The load rating for a tire at the
maximum permissible inflation pressure for that tire.
Recommended Inflation Pressure: Vehicle
manufacturer’s recommended tire inflation pressure and
shown on the tire placard. See Inflation - Tire Pressure
on page 5-64 and Loading Your Vehicle on page 4-32.
KiloPascal (kPa): The metric unit for air pressure.
Light Truck (LT-Metric) Tire: A tire used on light duty
trucks and some multipurpose passenger vehicles.
Maximum Loaded Vehicle Weight: The sum of curb
weight; accessory weight; vehicle capacity weight;
and production options weight.
5-62
Radial Ply Tire: A pneumatic tire in which the ply cords
that extend to the beads are laid at 90 degrees to the
centerline of the tread.
Rim: A metal support for a tire and upon which the tire
beads are seated.
Sidewall: The portion of a tire between the tread and
the bead.
Speed Rating: An alphanumeric code assigned to a
tire indicating the maximum speed at which a tire
can operate.
Traction: The friction between the tire and the road
surface. The amount of grip provided.
Tread: The portion of a tire that comes into contact
with the road.
Treadwear Indicators: Narrow bands, sometimes
called “wear bars,” that show across the tread of a
tire when only 1/16 inch (1.6 mm) of tread remains.
See When It Is Time for New Tires on page 5-69.
UTQGS (Uniform Tire Quality Grading Standards):
A tire information system that provides consumers
with ratings for a tire’s traction, temperature, and
treadwear. Ratings are determined by tire manufacturers
using government testing procedures. The ratings are
molded into the sidewall of the tire.
See Uniform Tire Quality Grading on page 5-70.
Vehicle Capacity Weight: The number of designated
seating positions multiplied by 150 lbs (68 kg) plus
the rated cargo load. See Loading Your Vehicle
on page 4-32.
Vehicle Maximum Load on the Tire: Load on an
individual tire due to curb weight, accessory weight,
occupant weight, and cargo weight.
Vehicle Placard: A label permanently attached to a
vehicle showing the original equipment tire size
and recommended inflation pressure. See Loading
Your Vehicle on page 4-32.
5-63
Inflation - Tire Pressure
Tires need the correct amount of air pressure to
operate effectively.
Notice: Do not let anyone tell you that
under-inflation or over-inflation is all right.
It is not. If your tires do not have enough air
(under-inflation), you can get the following:
•
•
•
•
•
•
Premature or irregular wear
For additional information regarding how much weight
your vehicle can carry, and an example of the tire
and loading information label, see Loading Your Vehicle
on page 4-32. How you load your vehicle affects
vehicle handling and ride comfort, never load your
vehicle with more weight than it was designed to carry.
Poor handling
When to Check
Too much flexing
Too much heat
Tire overloading
Reduced fuel economy
If your tires have too much air (over-inflation),
you can get the following:
•
•
•
•
A Tire and Loading Information label is attached to the
vehicle’s center pillar (B-pillar), below the driver’s
door latch. This label shows your vehicle’s original
equipment tires and the correct inflation pressures for
your tires when they are cold. The recommended
cold tire inflation pressure, shown on the label, is the
minimum amount of air pressure needed to support your
vehicle’s maximum load carrying capacity.
Unusual wear
Poor handling
Rough ride
Needless damage from road hazards
5-64
Check your tires once a month or more. Do not forget to
check the compact spare tire, it should be at 60 psi
(420 kPa). For additional information regarding
the compact spare tire, see Compact Spare Tire on
page 5-86.
How to Check
Tire Pressure Monitor System
Use a good quality pocket-type gage to check tire
pressure. You cannot tell if your tires are properly inflated
simply by looking at them. Radial tires may look properly
inflated even when they are under-inflated. Check the
tire’s inflation pressure when the tires are cold.
Cold means your vehicle has been sitting for at least
three hours or driven no more than 1 mile (1.6 km).
If your vehicle has this feature, it is designed to alert you
when the system detects a large change in the pressure
of one tire. The system cannot alert you before you drive
that a tire is low or flat. You must begin driving before the
system will work properly. The system works with the
brake control system and is designed to detect
differences in the tire rotation speeds that are caused by
changes in tire pressure. The tire pressure monitoring
system does not replace normal tire maintenance,
see Tires on page 5-57, Tire Inspection and Rotation
on page 5-68 and When It Is Time for New Tires on
page 5-69.
Remove the valve cap from the tire valve stem.
Press the tire gage firmly onto the valve to get a
pressure measurement. If the cold tire inflation pressure
matches the recommended pressure on the Tire and
Loading Information label, no further adjustment is
necessary. If the inflation pressure is low, add air until
you reach the recommended amount.
If you overfill the tire, release air by pushing on the
metal stem in the center of the tire valve. Re-check the
tire pressure with the tire gage.
This light, on the instrument
panel cluster, comes on
when the tire pressure
monitoring system detects
a low-tire condition.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and moisture.
This light will also come on for a few seconds and
then go off when you turn the ignition to ON.
This indicates that the tire pressure monitoring system
is functioning properly. If the low-tire pressure
warning light comes on while driving your vehicle,
the system may have detected a low-tire condition.
5-65
You need to stop as soon as possible and check your
tires for damage. If a tire is flat, see If a Tire Goes
Flat on page 5-74 and Changing a Flat Tire on
page 5-75. Also check the tire pressure in all four tires,
and set them to the specified level shown on the tire
and loading label. See Inflation - Tire Pressure on
page 5-64 for additional information.
Note: The tire pressure monitoring system on
your vehicle will warn you when one of your tires
is significantly under-inflated and when some
combinations of your tires are significantly
under-inflated. However, there are other combinations
of significantly under-inflated tires for which your
tire pressure monitoring system may not warn you.
These other combinations are relatively common,
accounting for approximately half the instances in
which vehicles have significantly under-inflated tires.
For example, your system may not warn you when both
tires on the same side or on the same axle of your
vehicle are significantly under-inflated. It is particularly
important, therefore, for you to check the tire pressure in
all of your tires regularly and maintain proper pressure.
In order for the tire pressure monitoring system to
work properly you will need to reset (initialize) the tire
pressure monitoring system. Any time you check and/or
adjust a tire’s pressure, repair or replace a tire or
wheel or rotate the tires the tire pressure monitor system
needs to be reset.
5-66
Do not reset (initialize) the system without first correcting
the cause of the low-tire condition. If the system is
reset when the tire pressures are incorrect, the system
will not function properly and may not alert you when
a tire is low.
To reset (initialize) the system:
1. Park the vehicle at a safe place and apply the
parking brake. Turn the engine off.
2. Turn the ignition to ON with the engine off.
3. If the low-tire pressure
warning light is on,
push the SET (reset)
button for a few
seconds. The low-tire
warning light should go
off. The reset button
is on the instrument
panel to the left of the
steering wheel.
4. Press and hold the SET (reset) button until the
low-tire warning light comes on and flashes
on/off three times. The tire pressure warning reset
button starts the reset (initialization) process.
If the low-tire pressure warning light does not flash
when you hold the reset button the system may
be malfunctioning and needs service. See your
GM dealer for service.
The system completes the reset (initialization) process
after driving at vehicle speeds of at least 19 mph
(30 km/h) to 62 mph (100 km/h) for more than one hour.
Do not push the SET (reset) button while driving,
if you do the initialization process will not be performed.
The initialization process can take up to approximately
one hour of driving under the following conditions:
• The vehicle speed is between 31 mph (50 km/h)
and 62 mph (100 km/h).
• The roads are dry, smooth and straight.
• The number of passengers is one or two
(including the driver).
The low-tire pressure warning light may not come on
even if the tire inflation pressure is low, or it may come
on when the tire inflation pressure is set correctly
under the following circumstances:
• A compact spare tire, snow tires, or tire chains
are installed on your vehicle.
• The tires are over-inflated, or the tire inflation
pressure suddenly drops due to a tire bursting
or other causes.
• The vehicle is driven on a slippery road surface
such as rough or frozen roads.
• The vehicle speed is less than 19 mph (30 km/h),
and the driving duration is less than five minutes.
• The tires are made by a different manufacturer
or differ in tread pattern than the original
equipment tires.
• Rapid acceleration/deceleration or multiple
consecutive sharp turns.
• Towing a trailer.
• The vehicle is loaded over the limit or not
balanced properly.
• The initialization (reset) procedure was not performed
correctly after replacing or rotating tires or wheels.
• The outside temperature is below 32°F (0°C) or
above 104°F (40°C).
5-67
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your tires
as soon as possible and check wheel alignment.
Also check for damaged tires or wheels. See When It
Is Time for New Tires on page 5-69 and Wheel
Replacement on page 5-72 for more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first rotation
is the most important. See Part A: Scheduled
Maintenance Services on page 6-4 for scheduled
rotation intervals.
When rotating your tires, always use the correct rotation
pattern shown here.
Tires should only be moved from front to rear and
rear to front on the same side of the vehicle.
Do not include the compact spare tire in your tire
rotation.
5-68
After the tires have been rotated, adjust the front and
rear inflation pressures to the amounts shown on
the Tire and Loading Information label. Make certain
that all wheel nuts are properly tightened. See “Wheel
Nut Torque” under Capacities and Specifications on
page 5-100.
When It Is Time for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of
tread remaining.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
places where the wheel attaches to the vehicle.
In an emergency, you can use a cloth or a
paper towel to do this; but be sure to use a
scraper or wire brush later, if you need to,
to get all the rust or dirt off. See Changing a
Flat Tire on page 5-75.
You need a new tire if any of the following statements
are true:
• You can see the indicators at three or more places
around the tire.
• You can see cord or fabric showing through the
tire’s rubber.
• The tread or sidewall is cracked, cut or snagged
Vehicles equipped with a tire pressure monitoring
system will need to reset (initialize) the system after
each tire rotation. See Tire Pressure Monitor System
on page 5-65.
deep enough to show cord or fabric.
• The tire has a bump, bulge or split.
• The tire has a puncture, cut or other damage that
can’t be repaired well because of the size or
location of the damage.
5-69
Buying New Tires
To find out what kind and size of tires you need, look at
the Tire and Loading Information label. For more
information about this label and where to find it,
see Loading Your Vehicle on page 4-32.
Make sure the replacements are the same size,
load capacity, speed rating and construction type
(bias, bias-belted or radial) as your original tires.
{CAUTION:
Mixing tires could cause you to lose control
while driving. If you mix tires of different sizes
or types (radial and bias-belted tires), the
vehicle may not handle properly, and you
could have a crash. Using tires of different
sizes may also cause damage to your vehicle.
Be sure to use the same size and type tires
on all wheels. It’s all right to drive with your
compact spare temporarily, it was developed
for use on your vehicle. See Compact Spare
Tire on page 5-86.
5-70
{CAUTION:
If you use bias-ply tires on your vehicle, the
wheel rim flanges could develop cracks after
many miles of driving. A tire and/or wheel
could fail suddenly, causing a crash. Use only
radial-ply tires with the wheels on your vehicle.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
selection width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system
developed by the Unites States National Highway Traffic
Safety Administration, which grades tires by treadwear,
traction and temperature performance. (This applies
only to vehicles sold in the United States.) The grades
are molded on the sidewalls of most passenger car
tires. The Uniform Tire Quality Grading system does not
apply to deep tread, winter-type snow tires, space-saver
or temporary use spare tires, tires with nominal rim
diameters of 10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to federal safety
requirements.
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course.
For example, a tire graded 150 would wear one and
a half (11⁄2) times as well on the government course as
a tire graded 100. The relative performance of tires
depends upon the actual conditions of their use,
however, and may depart significantly from the norm
due to variations in driving habits, service practices and
differences in road characteristics and climate.
Traction — AA, A, B, C
The traction grades, from highest to lowest, are AA, A,
B, and C. Those grades represent the tire’s ability
to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance. Warning: The traction grade
assigned to this tire is based on straight-ahead braking
traction tests, and does not include acceleration,
cornering, hydroplaning, or peak traction characteristics.
Temperature — A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation
of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor
laboratory test wheel. Sustained high temperature can
cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a
level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for this tire is
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.
5-71
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
If you notice unusual tire wear or your vehicle pulling
one way or the other, the alignment may need to
be reset. If you notice your vehicle vibrating when
driving on a smooth road, your wheels may need
to be rebalanced.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle.
{CAUTION:
Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
5-72
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice: The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
See Changing a Flat Tire on page 5-75 for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been used
or how far it’s been driven. It could fail
suddenly and cause a crash. If you have to
replace a wheel, use a new GM original
equipment wheel.
Tire Chains
Notice: Use tire chains only where legal and only
when you must. Use only SAE Class “S” type chains
that are the proper size for your tires. Install them
on the front tires for front-wheel-drive vehicles.
If your vehicle has all-wheel-drive, install the
tire chains on the front or all four tires but never
on the rear tires only. Tighten them as tightly
as possible with the ends securely fastened.
Drive slowly and follow the chain manufacturer’s
instructions. If you can hear the chains contacting
your vehicle, stop and retighten them. If the contact
continues, slow down until it stops. Driving too
fast or spinning the wheels with chains on will
damage your vehicle.
5-73
If a Tire Goes Flat
It’s unusual for a tire to “blowout” while you’re driving,
especially if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out slowly.
But if you should ever have a “blowout,” here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you’d use
in a skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.
5-74
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a flat tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off
the jack. Use the jack provided with your
vehicle only for changing a flat tire.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your
hazard warning flashers.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
CAUTION:
(Continued)
To be even more certain the vehicle will not
move, you should put blocks at the front and
rear of the tire farthest away from the one
being changed. That would be the tire on the
other side, at the opposite end of the vehicle.
When you have a flat tire, use the following example as a
guide to assist you in the placement of wheel blocks.
1. Set the parking brake firmly.
2. Put an automatic transaxle shift lever in
PARK (P), or shift a manual transaxle to
FIRST (1) or REVERSE (R).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
CAUTION:
(Continued)
The following information will tell you how to use the
jack and change a tire.
5-75
Removing the Spare Tire and Tools
The jack, wheel wrench, jack handle and spare tire
are stowed in the rear of the vehicle, underneath the
floor of the cargo area. To remove the spare tire
and tools do the following:
1. Turn the two lock
knobs on the floor of
the cargo area to
UNLOCK.
2. Lift up the cargo area floor panel, remove the hook
attached to the bottom side of the panel and hook it
over the weatherstripping.
Notice: If you do not put the hook in the proper
location, you could damage your vehicle. Always put
the hook in the proper location in order to avoid
damaging the vehicle.
3. Remove the jack from the tray on the right side of
the compartment and the jack handle and wheel
wrench from the top side of the compartment.
5-76
4. Unscrew the center retaining nut and lift up the
plastic tray to expose the compact spare tire.
5. Unscrew the center bolt from the compact spare tire
and pull out the compact spare tire. See Compact
Spare Tire on page 5-86
5-77
Removing the Flat Tire and
Installing the Spare Tire
1. Attach the jack handle to the jack.
2. Turn the jack handle clockwise to raise the lift head
a little.
The tools you’ll be using include the jack (A), jack
handle (B) and wheel wrench (C).
3. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them yet.
5-78
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get
under a vehicle when it is supported only
by a jack.
{CAUTION:
4. Position the jack and raise the jack lift head to fit
over the car flange between the two notches.
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the
jack lift head into the proper location before
raising the vehicle.
5-79
6. Remove all the wheel
nuts and take off the
flat tire.
7. Install the spare tire.
5. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the compact
spare tire to fit underneath the wheel well.
5-80
8. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and spare wheel.
{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if you need to,
to get all the rust or dirt off.
9. Place the compact spare tire on the wheel-mounting
surface.
{CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel
could fall off, causing a serious accident.
5-81
10. Reinstall the wheel nuts with the rounded end of
the nuts toward the wheel. Tighten each nut by
hand until the wheel is held against the hub.
5-82
11. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specification. See Capacities
and Specifications on page 5-100 for wheel nut
torque specification.
Notice: Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specification. See Capacities and Specifications on
page 5-100 for the wheel nut torque specification.
12. Tighten the wheel nuts
firmly in a crisscross
sequence as shown.
5-83
Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone.
Store all these in the proper place.
The compact spare tire storage area is designed only
for the compact spare tire, the standard tire cannot
be stored there.
To store the flat tire, do the following:
1. Remove the center wheel cap before storing the flat
tire, if your vehicle has aluminum wheels.
2. Place the flat tire on the rear cargo area floor panel
with the outer side of the wheel facing up.
3. Use the tire tie-down straps located under the floor
panel to secure the flat tire.
5-84
4. Hook the straps (end closest to the buckle) to the
rear, upper tie-down hooks.
5. Pass the straps through the center hole of the wheel.
6. Attach the other end of the straps to the rear, lower
tie-down hooks.
7. Position the tire edge against the rear center end of
the floor panel. Pull the end of the straps to make
sure the tire is secure.
5-85
Use the following diagram as a guide for storing the
compact spare tire once you are done using it.
A. Jack
B. Wheel Wrench
C. Bolt
D. Spare Tire
E. Jack Handle
F. Nut
Return the jack, jack handle, wheel wrench and compact
spare tire to the storage area. When storing the
compact spare tire, put it in place with the inner side of
the wheel facing up. The compact spare tire storage
area is designed only for the compact spare tire,
the standard tire cannot be stored there.
5-86
Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time.
Check the inflation pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on your vehicle,
you should stop as soon as possible and make sure
your spare tire is correctly inflated. The compact spare
is made to perform well at speeds up to 50 mph
(80 km/h) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full-size
tire repaired or replaced where you want. Of course,
it’s best to replace your spare with a full-size tire as soon
as you can. Your spare will last longer and be in good
shape in case you need it again.
Notice: When the compact spare is installed, do
not take your vehicle through an automatic car wash
with guide rails. The compact spare can get
caught on the rails. That can damage the tire and
wheel, and maybe other parts of your vehicle.
Don’t use your compact spare on other vehicles.
And don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare tire
and its wheel together.
Notice: Tire chains will not fit your compact spare.
Using them can damage your vehicle and can
damage the chains too. Do not use tire chains on
your compact spare.
Appearance Care
Cleaning products can be hazardous. Some are toxic.
Other cleaning products can burst into flames if a match
is struck near them or if they get on a hot part of the
vehicle. Some are dangerous if their fumes are inhaled
in a closed space. When anything from a container
is used to clean the vehicle, be sure to follow the
manufacturer’s warnings and instructions. Always open
the doors or windows of the vehicle when cleaning
the inside.
Never use these to clean the vehicle:
• Gasoline
•
•
•
•
•
•
•
•
Benzene
Naphtha
Carbon Tetrachloride
Acetone
Paint Thinner
Turpentine
Lacquer Thinner
Nail Polish Remover
They can all be hazardous — some more than
others — and they can all damage the vehicle, too.
Do not use any of these products unless this manual
says you can. In many uses, these will damage
the vehicle:
• Alcohol
• Laundry Soap
• Bleach
• Reducing Agents
Fabric/Carpet
Use a vacuum cleaner often to get rid of dust and loose
dirt. Wipe vinyl, leather, plastic, and painted surfaces
with a clean, damp cloth.
GM-approved cleaning products can be obtained from
your dealer.
Here are some cleaning tips:
• Always read the instructions on the cleaner label.
• Clean up stains as soon as you can before they set.
• Carefully scrape off any excess stain.
• Use a clean cloth or sponge, and change to a
•
clean area often. A soft brush may be used if stains
are stubborn.
To avoid forming a ring on fabric after spot cleaning,
clean the entire area immediately or it will set.
5-87
Most stains can be removed with club soda water.
To clean, use the following instructions:
1. For liquids: blot with a clean, soft, white cloth.
For solids: remove as much as possible and
then vacuum or brush.
2. Apply club soda water to a clean, soft, white cloth.
Do not over-saturate; the cloth should not drip water.
3. Clean the entire area. Avoid getting the fabric
too wet.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry, clean, soft, white cloth.
Using Cleaner on Fabric
1. First, try the cleaner in an inconspicuous area to
make sure the cleaner does not affect the color of
the fabric.
2. For liquids: blot with a clean, soft, white cloth.
For solids: remove as much as possible and
then vacuum or brush.
3. Spray a small amount of the cleaner onto a clean
soft, white, cloth. Do not apply spray directly to
the fabric.
5-88
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry, clean, soft, white cloth.
7. If the cleaner leaves a ring effect, follow up with
the club soda water instructions given earlier in
this section.
Special Fabric Cleaning Problems
Stains caused by such things as catsup, black coffee,
egg, fruit, fruit juice, milk, soft drinks, vomit, urine,
and blood can be removed using the club soda water
instructions given earlier in this section. If an odor lingers
after cleaning vomit or urine, treat the area with a
water and baking soda solution: 1 teaspoon (5 ml) of
baking soda to 1 cup (250 ml) of lukewarm water.
Let dry.
Stains caused by oil and grease can be cleaned with an
approved GM cleaner and a clean, white cloth.
1. Carefully scrape off excess stain.
2. Clean with cool water and allow to dry completely.
3. If a stain remains, follow the cleaner instructions
described earlier.
Vinyl
Instrument Panel
Use warm water and a clean cloth.
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones
or waxes may cause annoying reflections in the
windshield and even make it difficult to see through the
windshield under certain conditions.
• Rub with a clean, damp cloth to remove dirt.
This may have to be done more than once.
• Things like tar, asphalt, and shoe polish will stain if
they are not removed quickly. Use a clean cloth
and vinyl cleaner. See your dealer for this product.
Leather
Use a soft cloth with lukewarm water and a mild soap or
saddle soap and wipe dry with a soft cloth. Then, let
the leather dry naturally. Do not use heat to dry.
• For stubborn stains, use a leather cleaner.
• Never use oils, varnishes, solvent-based or abrasive
cleaners, furniture polish, or shoe polish on leather.
• Soiled or stained leather should be cleaned
immediately. If dirt is allowed to work into the finish,
it can harm the leather.
Interior Plastic Components
Use only a mild soap and water solution on a soft cloth
or sponge. Commercial cleaners may affect the
surface finish.
Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner
or a liquid household glass cleaner will remove normal
tobacco smoke and dust films on interior glass.
See Vehicle Care/Appearance Materials on page 5-94.
Notice: If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you could
scratch the glass and/or cause damage to the
rear window defogger and the integrated radio
antenna. When cleaning the glass on your vehicle,
use only a soft cloth and glass cleaner.
5-89
Care of Safety Belts
Washing Your Vehicle
Keep belts clean and dry.
The paint finish on the vehicle provides beauty,
depth of color, gloss retention, and durability.
The best way to preserve the vehicle’s finish is to
keep it clean by washing it often with lukewarm or
cold water.
Do not wash the vehicle in the direct rays of the sun.
Use a car washing soap. Do not use strong soaps
or chemical detergents. Be sure to rinse the vehicle well,
removing all soap residue completely. GM-approved
cleaning products can be obtained from your dealer.
See Vehicle Care/Appearance Materials on page 5-94.
Do not use cleaning agents that are petroleum
based, or that contain acid or abrasives. All cleaning
agents should be flushed promptly and not allowed
to dry on the surface, or they could stain. Dry the finish
with a soft, clean chamois or an all-cotton towel to
avoid surface scratches and water spotting.
High pressure car washes may cause water to enter
the vehicle.
{CAUTION:
Do not bleach or dye safety belts. If you do,
it may severely weaken them. In a crash,
they might not be able to provide adequate
protection. Clean safety belts only with mild
soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather frequent application may be required.
Cleaning Exterior Lamps/Lenses
Use only lukewarm or cold water, a soft cloth and a
car washing soap to clean exterior lamps and lenses.
Follow instructions under Washing Your Vehicle on
page 5-90.
5-90
Finish Care
Occasional waxing or mild polishing of the vehicle by
hand may be necessary to remove residue from the paint
finish. GM-approved cleaning products can be obtained
from your dealer. See Vehicle Care/Appearance
Materials on page 5-94.
The vehicle has a “basecoat/clearcoat” paint finish.
The clearcoat gives more depth and gloss to the
colored basecoat. Always use waxes and polishes that
are non-abrasive and made for a basecoat/clearcoat
paint finish.
Notice: Machine compounding or aggressive
polishing on a basecoat/clearcoat paint finish may
damage it. Use only non-abrasive waxes and
polishes that are made for a basecoat/clearcoat
paint finish on your vehicle.
Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc.,
can damage the vehicle’s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible.
If necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging, weather,
and chemical fallout that can take their toll over a
period of years. To help keep the paint finish looking
new, keep the vehicle in a garage or covered
whenever possible.
Windshield, Backglass, and
Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running,
wax, sap or other material may be on the blade
or windshield.
Clean the outside of the windshield with a full-strength
glass cleaning liquid. The windshield is clean if beads do
not form when you rinse it with water.
Grime from the windshield will stick to the wiper blades
and affect their performance. Clean the blade by
wiping vigorously with a cloth soaked in full-strength
windshield washer solvent. Then rinse the blade
with water.
Check the wiper blades and clean them as necessary;
replace blades that look worn.
5-91
Aluminum Wheels
Notice: If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or cleaners
that contain acid on aluminum or chrome-plated
wheels, you could damage the surface of the
wheel(s). The repairs would not be covered by your
warranty. Use only GM-approved cleaners on
aluminum or chrome-plated wheels.
Keep the wheels clean using a soft clean cloth with mild
soap and water. Rinse with clean water. After rinsing
thoroughly, dry with a soft clean towel. A wax may then
be applied.
Notice: Using chrome polish on aluminum wheels
could damage the wheels. The repairs would not
be covered by your warranty. Use chrome polish on
chrome wheels only.
The surface of these wheels is similar to the painted
surface of the vehicle. Do not use strong soaps,
chemicals, abrasive polishes, abrasive cleaners,
cleaners with acid, or abrasive cleaning brushes on
them because the surface could be damaged. Do not
use chrome polish on aluminum wheels.
5-92
Notice: If you drive your vehicle through an
automatic car wash that has silicone carbide tire
cleaning brushes, you could damage the aluminum
or chrome-plated wheels. The repairs would not
be covered by your warranty. Never drive a vehicle
equipped with aluminum or chrome-plated wheels
through an automatic car wash that uses silicone
carbide tire cleaning brushes.
Do not take the vehicle through an automatic car wash
that has silicone carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Tires
To clean the tires, use a stiff brush with tire cleaner.
Notice: Using petroleum-based tire dressing
products on your vehicle may damage the paint
finish and/or tires. When applying a tire dressing,
always wipe off any overspray from all painted
surfaces on your vehicle.
Sheet Metal Damage
Underbody Maintenance
If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to parts repaired or
replaced to restore corrosion protection.
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these are not
removed, corrosion and rust can develop on the
underbody parts such as fuel lines, frame, floor pan,
and exhaust system even though they have corrosion
protection.
Original manufacturer replacement parts will provide the
corrosion protection while maintaining the warranty.
Finish Damage
Any stone chips, fractures or deep scratches in the
finish should be repaired right away. Bare metal
will corrode quickly and may develop into major repair
expense.
Minor chips and scratches can be repaired with touch-up
materials available from your GM dealer. Larger areas
of finish damage can be corrected in your GM
dealer’s body and paint shop.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and debris can collect. Dirt packed in close areas of
the frame should be loosened before being flushed.
Your GM dealer or an underbody car washing system
can do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on the vehicle. This damage can
take two forms: blotchy, ring-shaped discolorations,
and small, irregular dark spots etched into the
paint surface.
Although no defect in the paint job causes this, GM will
repair, at no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
5-93
Vehicle Care/Appearance Materials
See your GM dealer for more information on purchasing
the following products.
Description
Usage
Polishing Cloth
Wax-Treated
Interior and exterior
polishing cloth.
Tar and Road
Oil Remover
Removes tar, road oil
and asphalt.
Chrome Cleaner
and Polish
Use on chrome or
stainless steel.
White Sidewall
Tire Cleaner
Removes soil and black
marks from whitewalls.
Vinyl Cleaner
Cleans vinyl tops,
upholstery and
convertible tops.
Glass Cleaner
Removes dirt, grime,
smoke and fingerprints.
Chrome and Wire
Wheel Cleaner
Removes dirt and grime
from chrome wheels and
wire wheel covers.
Finish Enhancer
Removes dust,
fingerprints, and surface
contaminants. Spray on
wipe off.
5-94
Description
Usage
Swirl Remover Polish
Removes swirl marks, fine
scratches and other light
surface contamination.
Cleaner Wax
Removes light scratches
and protects finish.
Foaming Tire Shine
Low Gloss
Cleans, shines and
protects in one easy step,
no wiping necessary.
Wash Wax Concentrate
Medium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot Lifter
Quickly and easily
removes spots and stains
from carpets, vinyl and
cloth upholstery.
Odor Eliminator
Odorless spray odor
eliminator used on fabrics,
vinyl, leather and carpet.
See your General Motors parts department for these
products.
Vehicle Identification
Service Parts Identification Label
Vehicle Identification Number (VIN)
You will find this label on your spare tire cover. It is very
helpful if you ever need to order parts. On this label,
you will find the following:
•
•
•
•
VIN
Model designation
Paint information
Production options and special equipment
Be sure that this label is not removed from the vehicle.
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
Electrical System
Add-On Electrical Equipment
Notice: Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, see Servicing
Your Airbag-Equipped Vehicle on page 1-60.
5-95
Headlamp Wiring
Fuses and Circuit Breakers
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the lamps to go on and
off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
The wiring circuits in your vehicle are protected from
short circuits by fuses, circuit breakers and fusible
thermal links in the wiring itself. This greatly reduces the
chance of fires caused by electrical problems.
Windshield Wiper Fuses
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow or ice, the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
and not snow or ice, be sure to get it fixed.
Power Windows and Other
Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
5-96
If you ever have a problem on the road and don’t
have a spare fuse, you can borrow one. Just pick
some feature of your vehicle that you can get along
without – like the radio or air conditioner – and use its
fuse, if it is of the value you need. Replace it as soon as
you can.
Before replacing a fuse, turn every electrical switch off.
Instrument Panel Fuse Block
Fuses
AM2
The instrument panel fuse block is located underneath
the instrument panel on the driver’s side of the vehicle.
Fuses
TAIL
OBD
WIPER
Usage
Front Parking Lamps, Taillamps,
License Plate Lamps, Instrument
Panel Lights, Engine Control System
On-Board Diagnostic System
Windshield Wipers
Usage
Charging System, Air Bag System,
Starter System, Engine Control
STOP
Stop Lamps, CHMSL, Engine Control
System, Anti-lock Brakes, Cruise
Control
DOOR
Power Door Locks, Liftglass Lock
AM1
Cigarette Lighter, Gauge, ECU-IG,
Wiper, Rear Wiper, Washer Fuses
ECU-IG
Cruise Control, Anti-Lock Brakes,
Theft Deterrent System, Automatic
Transaxle Control System, Electric
Cooling Fan
RR WIPER
Rear Window Wiper, Rear Window
Defogger
A/C
Air Conditioning
INV
Power Outlets
P/POINT
Power Outlets
ECU-B
Daytime Running Lamps
5-97
Fuses
Usage
CIG
Cigarette Lighter, Power Rearview
Mirrors, Power Outlets, Audio System,
Automatic Transaxle Control System
GAUGE
Gauges and Meters, Back-Up Lamps,
Charging System, Power Door Locks,
Power Windows, Sunroof, Air
Conditioning, Cruise Control
WASHER
Windshield Washers
M-HTR/
DEF 1–UP
Engine Control System
HTR
Air Conditioning System
DEF
Rear Window Defogger,
M-HTR/DEF 1–UP Fuse
POWER
5-98
Power Windows, Electric Moon Roof
Engine Compartment Fuse Block
This engine compartment fuse block is located in the
engine compartment on the driver’s side of the vehicle
near the air cleaner. See Engine Compartment
Overview on page 5-12 for more information on location.
Fuses
Usage
SPARE
Spare Fuse
SPARE
Spare Fuse
SPARE
Spare Fuse
ETCS
Electronic Throttle Control System
ABS NO. 2
Anti-lock Brake System
(Without Stability Control System)
Fuses
RDI FAN
ABS NO. 1
Usage
Electric Cooling Fan
Anti-lock Brake System
(With Stability Control System)
Fuses
Usage
MAIN
Starter System, AM2 Fuse
AMP
Audio System
MAYDAY
OnStar® System
FOG
Front Fog Lamps
EFI2
Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
ALT
EFI3
Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
HEAD RH
Right-hand Headlamp, Headlamp
High Beam Indicator Lamp
HEAD LH
Left-hand Headlamp
HEAD MAIN
ALT-S
EFI
HAZARD
ABS NO.1, ABS NO.2, RDI FAN,
FOG, Heater, AM1, POWER, DOOR,
ECU-B, TAIL, STOP, P/POINT, INV,
OBD Fuses, Charging System
Right Headlamp, Left Headlamp
Fuses
Charging System
Relays
Electronic Fuel Injection System
M/G
Turn Signal Lamps, Emergency
Flasher
HEAD
DIMMER
HORN
Horn
FAN NO. 2
FAN NO. 1
DOME
Interior Lights, Gauges and Meters,
Audio System, Remote Keyless Entry
System, Navigation System
(If Equipped)
EFI
FOG
Usage
M/G
Headlamps
Headlamp Dimmer
Cooling Fan System
Cooling Fan System
Electronic Fuel Injection System
Fog Lamps
5-99
Capacities and Specifications
The following approximate capacities are given in English and metric conversions.
Application
Air Conditioning Refrigerant R134a
Capacities
English
Metric
1.47 lbs
0.67 kg
Automatic Transaxle
1.8L (Code 8)
1.8L (Code 8) with AWD
1.8L (Code L)
3.2 quarts
3.1 quarts
4.3 quarts
3.0 L
2.9 L
4.1 L
Cooling System
1.8L (Code 8)
1.8L (Code L)
6.9 quarts
7.1 quarts
6.5 L
6.7 L
Engine Oil with Filter
1.8L (Code 8)
1.8L (Code L)
3.9 quarts
4.8 quarts
3.7 L
4.4 L
11.9 gallons
13.2 gallons
45.0 L
50.0 L
2.0 quarts
2.4 quarts
1.9 L
2.3 L
Fuel Tank
With AWD
Without AWD
Manual Transaxle
Five-Speed
Six-Speed
5-100
Capacities
Application
English
Metric
Rear Differential
0.5 quarts
0.5 L
Transfer Case
0.8 quarts
0.8 L
76 ft lb
103 Y
Wheel Nut Torque
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. See Part D: Recommended Fluids and Lubricants on page 6-19.
Engine Specifications
Engine
VIN Code
Transaxle
Spark Plug Gap
1.8L L4
8
Automatic and Manual
0.043 inches (1.1 mm)
1.8L L4 H.O. DOHC
L
Automatic and Manual
0.043 inches (1.1 mm)
5-101
Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your GM dealer.
Part
GM Part Numbers
Other Part Numbers
Battery
19001602
35–6YR
Engine Air Cleaner/Filter
88969107
—
88971573
88969580
—
—
88970273
—
Engine Oil Filter
1.8L (Code 8)
1.8L (Code L)
Passenger Compartment Air Filter
PCV Valve
1.8L (Code 8) Base Model
1.8L (Code 8) AWD Model
1.8L (Code L)
94859406
94859404
88969512
Spark Plugs*
1.8L (Code 8)
1.8L (Code L)
94859448
88969637
—
—
—
SK16R11†, IFR5A11††
SK20R11†, IFR6A11††
*Your engine is fitted with iridium-tipped spark plugs. Use only iridium-tipped spark plugs for better engine performance.
† DENSO
†† NGK
5-102
Section 6
Maintenance Schedule
Maintenance Schedule ......................................6-2
Introduction ...................................................6-2
Maintenance Requirements ..............................6-2
Your Vehicle and the Environment ....................6-2
How This Section is Organized .........................6-3
Part A: Scheduled Maintenance Services ...........6-4
Using Your Maintenance Schedule ....................6-4
Scheduled Maintenance ...................................6-4
Part B: Owner Checks and Services ................6-13
At Each Fuel Fill ..........................................6-13
At Least Once a Month .................................6-13
At Least Twice a Year ...................................6-14
At Least Once a Year ...................................6-14
Part C: Periodic Maintenance Inspections .........6-17
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection ............................6-17
Exhaust System Inspection ............................6-17
Fuel System Inspection ..................................6-17
Engine Cooling System Inspection ...................6-18
Throttle System Inspection .............................6-18
Brake System Inspection ................................6-18
Part D: Recommended Fluids
and Lubricants ..........................................6-19
Part E: Maintenance Record ...........................6-21
6-1
Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in this
manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure
to follow scheduled maintenance may not be covered
by warranty.
Your Vehicle and the Environment
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
6-2
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. Improper vehicle maintenance can
even affect the quality of the air we breathe. Improper
fluid levels or the wrong tire inflation can increase
the level of emissions from your vehicle. To help protect
our environment, and to keep your vehicle in good
condition, be sure to maintain your vehicle properly.
How This Section is Organized
This maintenance schedule is divided into five parts:
“Part A: Scheduled Maintenance Services” explains
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you should
let your GM dealer’s service department do these jobs.
Your GM dealer has GM-trained and supported service
people that will perform the work using genuine GM parts.
{CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you
can be seriously injured. Do your own
maintenance work only if you have the
required know-how and the proper tools and
equipment for the job. If you have any doubt,
have a qualified technician do the work.
“Part B: Owner Checks and Services” tells you what
should be checked and when. It also explains what
you can easily do to help keep your vehicle in good
condition.
“Part C: Periodic Maintenance Inspections” explains
important inspections that your dealer’s service
department can perform for you.
“Part D: Recommended Fluids and Lubricants” lists
some recommended products necessary to help
keep your vehicle properly maintained. These products,
or their equivalents, should be used whether you do
the work yourself or have it done.
“Part E: Maintenance Record” is a place for you to
record and keep track of the maintenance performed on
your vehicle. Keep your maintenance receipts. They may
be needed to qualify your vehicle for warranty repairs.
If you want to get the service information, see Service
Publications Ordering Information on page 7-11.
6-3
Part A: Scheduled Maintenance
Services
In this part are scheduled maintenance services which
are to be performed at the mileage intervals specified.
Using Your Maintenance Schedule
We at General Motors want to keep your vehicle in good
working condition. But we do not know exactly how
you will drive it. You may drive short distances only a
few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may
use your vehicle in making deliveries. Or you may drive
it to work, to do errands or in many other ways.
Because of the different ways people use their vehicles,
maintenance needs may vary. You may need more
frequent checks and replacements. So please read the
following and note how you drive. If you have
questions on how to keep your vehicle in good condition,
see your dealer.
This part tells you the maintenance services you should
have done and when to schedule them.
When you go to your dealer for your service needs, you
will know that GM-trained and supported service
people will perform the work using genuine GM parts.
6-4
The proper fluids and lubricants to use are listed in
Part D. Make sure whoever services your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the
vehicle.
This schedule is for vehicles that:
• carry passengers and cargo within recommended
limits. You will find these on the tire and loading
information label. See Loading Your Vehicle
on page 4-32.
• are driven on reasonable road surfaces within legal
driving limits.
• use the recommended fuel. See Gasoline Octane
on page 5-5.
Scheduled Maintenance
The services shown in this schedule up to 120,000 miles
(192 000 km) should be repeated after 120,000 miles
(192 000 km) at the same intervals for the life of
this vehicle.
See Part B: Owner Checks and Services on
page 6-13,Part C: Periodic Maintenance Inspections on
page 6-17, and Part D: Recommended Fluids and
Lubricants on page 6-19.
Footnotes
10,000 Miles (16 000 km)
† The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emissions warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services
be performed at the indicated intervals and the
maintenance be recorded.
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
+ A good time to check your brakes is during tire
rotation. See Brake System Inspection on page 6-18.
15,000 Miles (24 000 km)
5,000 Miles (8 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
❑ Inspect passenger compartment air filter.
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
6-5
20,000 Miles (32 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
25,000 Miles (40 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
30,000 Miles (48 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
6-6
❑ Replace engine air cleaner filter (or every 24 months,
whichever occurs first). See Engine Air Cleaner/Filter
on page 5-21 for more information. An Emission
Control Service.
❑ Replace passenger compartment air filter.
❑ Inspect fuel tank, cap, cap gasket and lines for
damage or leaks (or every 24 months, whichever
occurs first). Replace parts as needed. An Emission
Control Service. (See footnote †.)
❑ Change manual transaxle fluid every 30,000 miles
(48 000 km) only if your vehicle is used to tow a
trailer.
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
35,000 Miles (56 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
40,000 Miles (64 000 km)
50,000 Miles (80 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary. An
Emission Control Service. (See footnote †.)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
45,000 Miles (72 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
❑ Inspect passenger compartment air filter.
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
55,000 Miles (88 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
6-7
60,000 Miles (100 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Replace engine air cleaner filter (or every 24 months,
whichever occurs first). An Emission Control Service.
❑ Replace passenger compartment air filter.
❑ Inspect engine accessory drive belts (or every
48 months, whichever occurs first). An Emission
Control Service.
❑ Inspect for tappet noise and engine vibration. Adjust
valve clearance to factory specifications if necessary
(or every 48 months, whichever occurs first). An
Emission Control Service.
❑ Inspect fuel tank, cap, cap gasket and lines for
damage or leaks (or every 24 months, whichever
occurs first). Replace parts as needed. An Emission
Control Service. (See footnote †.)
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
❑ Change manual transaxle fluid every 30,000 miles
(48 000 km) only if your vehicle is used to tow a trailer.
6-8
❑ Change automatic transaxle fluid every 60,000 miles
(96 000 km) if the vehicle is mainly driven under one
or more of these conditions:
− In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
− In hilly or mountainous terrain.
− When doing frequent trailer towing.
− Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
condition, the fluid does not require changing. See
Part D: Recommended Fluids and Lubricants on
page 6-19 for the proper fluid to use.
65,000 Miles 104 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
70,000 Miles (112 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
75,000 Miles (120 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
❑ Inspect passenger compartment air filter.
❑ Inspect engine accessory drive belts (or 12 months
since last inspection). An Emission Control Service.
❑ Change transfer case fluid when doing frequent trailer
towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
80,000 Miles (128 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
6-9
85,000 Miles (136 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
90,000 Miles (144 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Replace engine air cleaner filter (or every 24 months,
whichever occurs first). An Emission Control Service.
❑ Replace passenger compartment air filter.
❑ Inspect engine accessory drive belts (or 12 months
since last inspection). An Emission Control Service.
6-10
❑ Inspect fuel tank, cap, cap gasket and lines for
damage or leaks (or every 24 months, whichever
occurs first). Replace parts as needed. An Emission
Control Service. (See footnote †.)
❑ Change manual transaxle fluid every 30,000 miles
(48 000 km) only if your vehicle is used to tow a trailer.
❑ Change transfer case fluid when doing frequent trailer
towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
95,000 Miles (152 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
100,000 Miles (160 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
❑ Drain, flush and refill the cooling system (or every
5 years, whichever occurs first). See Engine
Coolant on page 5-28 for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap, and
neck. Pressure test cooling system and pressure
cap. An Emission Control Service.
105,000 Miles (168 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
❑ Inspect passenger compartment air filter.
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
110,000 Miles (176 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
6-11
115,000 Miles (184 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Inspect engine air cleaner filter. If necessary, replace
the filter. If vehicle is driven in dusty/dirty conditions,
inspect filter at every engine oil change. See
Engine Air Cleaner/Filter on page 5-21 for more
information. An Emission Control Service. (See
footnote †.)
120,000 Miles (192 000 km)
❑ Change engine oil and filter (or every 3 months,
whichever occursfirst). An Emission Control Service.
❑ Rotate tires. See Tire Inspection and Rotation
on page 5-68 for proper rotation pattern and
additional information. (See footnote +.)
❑ Replace engine air cleaner filter (or every 24 months,
whichever occurs first). An Emission Control Service.
❑ Replace passenger compartment air filter.
❑ Inspect engine accessory drive belts (or every
48 months, whichever occurs first). An Emission
Control Service.
❑ Replace spark plugs. An Emission Control Service.
6-12
❑ Inspect for tappet noise and engine vibration. Adjust
valve clearance to factory specifications if necessary
(or every 48 months, whichever occurs first). An
Emission Control Service.
❑ Inspect fuel tank, cap, cap gasket and lines for
damage or leaks (or every 24 months, whichever
occurs first). Replace parts as needed. An Emission
Control Service. (See footnote †.)
❑ Change transfer case fluid when doing frequent
trailer towing.
❑ Change rear differential fluid when doing frequent
trailer towing.
❑ Change manual transaxle fluid every 30,000 miles
(48 000 km) only if your vehicle is used to tow a trailer.
❑ Change automatic transaxle fluid every 60,000 miles
(96 000 km) if the vehicle is mainly driven under one
or more of these conditions:
− In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
− In hilly or mountainous terrain.
− When doing frequent trailer towing.
− Uses such as found in taxi, police or delivery
service.
If you do not use your vehicle under any of these
conditions, the fluid does not require changing. See
Part D: Recommended Fluids and Lubricants on
page 6-19 for the proper fluid to use.
Part B: Owner Checks and Services
Windshield Washer Fluid Level Check
Listed in this part are owner checks and services
which should be performed at the intervals specified to
help ensure the safety, dependability and emission
control performance of your vehicle.
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid if necessary. See
Windshield Washer Fluid on page 5-38 for further details.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See Engine Oil on page 5-16 for further
details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside the
vehicle. The secondary latch should keep the hood from
opening all the way when the primary latch is released.
Make sure the hood closes firmly. See Hood Release
on page 5-10 for further details.
At Least Once a Month
Tire Inflation Check
Visually inspect your tires and make sure tires are inflated
to the correct pressures. Do not forget to check your
spare tire. See Tires on page 5-57 for further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. See Engine Coolant on
page 5-28 for further details.
6-13
At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your belts,
buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
Fluid Level Check
Check the power steering pump and automatic or manual
transaxle fluid levels and add as needed. See Power
Steering Fluid on page 5-37 and Automatic Transaxle
Fluid on page 5-23 or Manual Transaxle Fluid on
page 5-26. Check for leaks. A fluid loss in these systems
could indicate a problem. Have the system inspected and
repaired at once.
At Least Once a Year
Key Lock Cylinders Service
Wiper Blade Check
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield. Also see
Windshield, Backglass, and Wiper Blades on page 5-91.
Seat Operation Check
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. See Part D: Recommended Fluids and
Lubricants on page 6-19.
6-14
Make sure the head restraints stay in position and all
seat latches lock. Check that the recliner holds by
pushing and pulling the seatback while it is reclined.
Body Lubrication Service
Lubricate all hood latch assembly, secondary latch,
pivots, spring anchor, release pawl, hood and body door
hinges, rear compartment and any folding seat
hardware. Part D tells you what to use. More frequent
lubrication may be required when exposed to a corrosive
environment.
Starter Switch Check
Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See Parking Brake on page 2-28 if necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transaxle vehicles, put the shift lever in
NEUTRAL (N), push the clutch down halfway and try
to start the engine. The starter should work only
when the clutch is pushed down all the way to the
floor. If the starter works when the clutch is not
pushed all the way down, your vehicle needs service.
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See Parking Brake
on page 2-28 if necessary.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON, but do
not start the engine. Without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), your vehicle needs service.
6-15
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK in each shift lever position.
• With an automatic transaxle, the ignition should turn
to LOCK only when the shift lever is in PARK (P).
• With a manual transaxle, the ignition should turn to
LOCK only if you push the key in farther, while
turning it toward LOCK.
Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
• To check the parking brake’s holding ability: With
the engine running and transaxle in NEUTRAL (N),
slowly remove foot pressure from the regular
brake pedal. Do this until the vehicle is held by the
parking brake only.
• To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Underbody Flushing Service
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.
6-16
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Part C: Periodic Maintenance
Inspections
Listed in this part are inspections and services which
should be performed at least twice a year (for instance,
each spring and fall). You should let your dealer’s
service department do these jobs. Make sure any
necessary repairs are completed at once.
Proper procedures to perform these services may be
found in a service manual. See Service Publications
Ordering Information on page 7-11.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which
could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See Engine Exhaust
on page 2-32.
Fuel System Inspection
Inspect the complete fuel system for damage or leaks.
Steering, Suspension and Front
Drive Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
6-17
Engine Cooling System Inspection
Brake System Inspection
Inspect the hoses and have them replaced if they
are cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the
outside of the radiator and air conditioning condenser.
To help ensure proper operation, a pressure test of
the cooling system and pressure cap is recommended
at least once a year.
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more often if your driving
habits or conditions result in frequent braking.
Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear. Do not lubricate accelerator
and cruise control cables.
6-18
Part D: Recommended Fluids
and Lubricants
Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
Usage
Engine Oil
Engine Coolant
Fluid/Lubricant
Engine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certified for Gasoline Engines
starburst symbol. GM Goodwrench
oil meets all the requirements
for your vehicle. To determine
the proper viscosity for your
vehicle’s engine, see Engine Oil
on page 5-16.
50/50 mixture of clean, drinkable
water and use only DEX-COOL®
Coolant. See Engine Coolant on
page 5-28.
Hydraulic Brake/
Clutch System
Delco Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
Washer Solvent
GM Optikleen® Washer Solvent.
Usage
Fluid/Lubricant
®
Power Steering
System
DEXRON -III Automatic
Transmission Fluid. Look for
“Approved for the H-Specification”
on the label.
Manual
Transaxle
GM Goodwrench Synthetic
Manual Transmission Fluid
(GM Part No. U.S. 12346190,
in Canada 10953477 — 1 quart)
or SAE 75W-90 GL-5 gear oil.
Automatic
Transaxle
Use only T-IV Automatic
Transmission Fluid
(GM Part No. U.S. 88900925,
in Canada 22689186). See
Automatic Transaxle Fluid on
page 5-23.
Key Lock
Cylinders
Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Manual
Transaxle
Shift Linkage
Chassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
6-19
Usage
Fluid/Lubricant
Clutch Linkage
Pivot Points
Chassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Floor Shift
Linkage
Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2
Category LB or GC-LB.
Chassis
Lubrication
Chassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Axle Lubricant
Rear Axle
(GM Part No. U.S. 12345977,
(All-Wheel Drive) in Canada 10953482) or SAE
80W-90 GL-5 gear lubricant.
6-20
Usage
Fluid/Lubricant
Axle Lubricant
Transfer Case
(GM Part No. U.S. 12345977,
(All-Wheel Drive) in Canada 10953482) or
SAE 80W-90 GL-5 gear lubricant.
Hood Latch
Assembly,
Secondary Latch,
Pivots, Spring
Anchor and
Release Pawl
Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door Hinges
Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
Conditioning
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service and
any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record
pages. Also, you should retain all maintenance receipts.
Maintenance Record
Date
Odometer
Reading
Serviced By
Maintenance Record
6-21
Maintenance Record (cont’d)
Date
6-22
Odometer
Reading
Serviced By
Maintenance Record
Maintenance Record (cont’d)
Date
Odometer
Reading
Serviced By
Maintenance Record
6-23
Maintenance Record (cont’d)
Date
6-24
Odometer
Reading
Serviced By
Maintenance Record
Section 7
Customer Assistance and Information
Customer Assistance and Information ...............7-2
Customer Satisfaction Procedure ......................7-2
Online Owner Center ......................................7-3
Customer Assistance for Text Telephone
(TTY) Users ...............................................7-4
Customer Assistance Offices ............................7-4
GM Mobility Program for Persons
with Disabilities ...........................................7-5
Roadside Assistance Program ..........................7-6
Courtesy Transportation ...................................7-7
Vehicle Data Collection and Event
Data Recorders ..........................................7-9
Reporting Safety Defects ................................7-10
Reporting Safety Defects to the
United States Government ..........................7-10
Reporting Safety Defects to the
Canadian Government ................................7-11
Reporting Safety Defects to
General Motors .........................................7-11
Service Publications Ordering Information .........7-11
7-1
Customer Assistance
and Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to your
dealer and to Pontiac. Normally, any concerns with the
sales transaction or the operation of your vehicle will be
resolved by your dealer’s sales or service departments.
Sometimes, however, despite the best intentions of all
concerned, misunderstandings can occur. If your concern
has not been resolved to your satisfaction, the following
steps should be taken:
STEP ONE: Discuss your concern with a member of
dealership management. Normally, concerns can
be quickly resolved at that level. If the matter has
already been reviewed with the sales, service or parts
manager, contact the owner of the dealership or
the general manager.
STEP TWO: If after contacting a member of dealership
management, it appears your concern cannot be
resolved by the dealership without further help, contact
the Pontiac Customer Assistance Center by calling
1-800-762-2737. In Canada, contact GM of Canada
Customer Communication Centre in Oshawa by calling
1-800-263-3777 (English) or 1-800-263-7854 (French).
7-2
We encourage you to call the toll-free number in order
to give your inquiry prompt attention. Please have
the following information available to give the Customer
Assistance Representative:
• Vehicle Identification Number (VIN). This is available
from the vehicle registration or title, or the plate at the
top left of the instrument panel and visible through
the windshield.
• Dealership name and location.
• Vehicle delivery date and present mileage.
When contacting Pontiac, please remember that your
concern will likely be resolved at a dealer’s facility.
That is why we suggest you follow Step One first if you
have a concern.
STEP THREE: Both General Motors and your dealer
are committed to making sure you are completely
satisfied with your new vehicle. However, if you continue
to remain unsatisfied after following the procedure
outlined in Steps One and Two, you should file with the
BBB Auto Line Program to enforce any additional
rights you may have. Canadian owners refer to your
Warranty and Owner Assistance Information booklet for
information on the Canadian Motor Vehicle Arbitration
Plan (CAMVAP).
The BBB Auto Line Program is an out of court program
administered by the Council of Better Business Bureaus
to settle automotive disputes regarding vehicle repairs or
the interpretation of the New Vehicle Limited Warranty.
Although you may be required to resort to this informal
dispute resolution program prior to filing a court action,
use of the program is free of charge and your case will
generally be heard within 40 days. If you do not agree
with the decision given in your case, you may reject it and
proceed with any other venue for relief available to you.
You may contact the BBB Auto Line Program using the
toll-free telephone number or write them at the following
address:
BBB Auto Line Program
Council of Better Business Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
This program is available in all 50 states and the
District of Columbia. Eligibility is limited by vehicle age,
mileage and other factors. General Motors reserves
the right to change eligibility limitations and/or
discontinue its participation in this program.
Online Owner Center
The Owner Center is a resource for your GM ownership
needs. Specific vehicle information can be found in
one place.
The Online Owner Center allows you to:
• Get e-mail service reminders.
• Access information about your specific vehicle,
including tips and videos and an electronic
version of this owner’s manual. (United States only)
• Keep track of your vehicle’s service history and
maintenance schedule.
• Find GM dealers for service nationwide.
• Receive special promotions and privileges only
available to members. (United States only)
Refer to the web for updated information.
To register your vehicle, visit www.MyGMLink.com.
(United States) or My GM Canada within
www.gmcanada.com (Canada).
7-3
Customer Assistance for Text
Telephone (TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones (TTYs),
Pontiac has TTY equipment available at its Customer
Assistance Center. Any TTY user can communicate
with Pontiac by dialing: 1-800-833-PONT (7668).
(TTY users in Canada can dial 1-800-263-3830.)
Customer Assistance Offices
Pontiac encourages customers to call the toll-free
number for assistance. If a U.S. customer wishes to
write to Pontiac, the letter should be addressed to
Pontiac’s Customer Assistance Center.
United States — Customer Assistance
Pontiac Customer Assistance Center
P.O. Box 33172
Detroit, MI 48232-5172
1-800-762-2737 or
1-800-833-7668 (For Text Telephone devices (TTYs))
Roadside Assistance: 1-800-ROADSIDE (762-3743)
Fax Number: 313-381-0022
From Puerto Rico:
1-800-496-9992 (English)
1-800-496-9993 (Spanish)
Fax Number: 313-381-0022
From U.S. Virgin Islands:
1-800-496-9994
Fax Number: 313-381-0022
Canada — Customer Assistance
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
1-800-263-3777 (English)
1-800-263-7854 (French)
1-800-263-3830 (For Text Telephone devices (TTYs))
Roadside Assistance: 1-800-268-6800
7-4
Overseas — Customer Assistance
Please contact the local General Motors Business Unit.
Mexico, Central America and
Caribbean Islands/Countries
(Except Puerto Rico and U.S. Virgin
Islands) — Customer Assistance
General Motors de Mexico, S. de R.L. de C.V.
Customer Assistance Center
Paseo de la Reforma # 2740
Col. Lomas de Bezares
C.P. 11910, Mexico, D.F.
01-800-508-0000
Long Distance: 011-52-53 29 0 800
GM Mobility Program for Persons
with Disabilities
This program, available to
qualified applicants, can
reimburse you up to $1,000
toward eligible aftermarket
driver or passenger
adaptive equipment that
may be required for your
vehicle, such as hand
controls, wheelchair/
scooter lifts, etc.
This program can also provide you with free resource
information, such as area driver assessment centers and
mobility equipment installers. The offer is available for
a limited period of time from the date of vehicle
purchase/lease. For more details, or to determine your
vehicle’s eligibility, see your GM dealer or call the
GM Mobility Assistance Center at 1-800-323-9935.
Text telephone (TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program.
Call 1-800-GM-DRIVE (463-7483) for details.
All TTY users call 1-800-263-3830.
7-5
Roadside Assistance Program
As the owner of a new Pontiac vehicle, you are
automatically enrolled in the Pontiac Roadside
Assistance program. This value-added service is
intended to provide you with peace of mind as you drive
in the city or travel the open road. Contact Pontiac’s
Roadside Assistance toll-free at 1-800-ROADSIDE
(762-3743). Roadside Assistance Representatives are
available 24 hours a day, 365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period, at no expense
to you:
• Fuel Delivery: Delivery of enough fuel
($5 maximum) for the customer to get to the
nearest service station.
• Lock-out Service (identification required):
Replacement keys or locksmith service will
be covered at no charge if you are unable to gain
entry into your vehicle. Delivery of the replacement
key will be covered within 10 miles (16 km).
• Emergency Tow: Tow to the nearest dealership
for warranty service or in the event of a
vehicle-disabling accident. Assistance provided
when the vehicle is mired in sand, mud, or snow.
• Flat Tire Change: Installation of a spare tire will be
covered at no charge. The customer is responsible
for the repair or replacement of the tire if not
covered by a warrantable failure.
• Jump Start: No-start occurrences which require a
battery jump start will be covered at no charge.
• Dealer Locator Service
In many instances, mechanical failures are covered
under Pontiac’s Bumper-to-Bumper warranty. However,
when other services are utilized, our Roadside
Assistance Representatives will explain any payment
obligations you might incur.
For prompt and efficient assistance when calling, please
provide the following to the Roadside Assistance
Representative:
• Your name, home address, and home telephone
number
•
•
•
•
Telephone number of your location
Location of the vehicle
Model, year, color, and license plate number
Mileage, Vehicle Identification Number (VIN), and
delivery date of the vehicle
• Description of the problem
7-6
While we hope you never have the occasion to use our
service, it is added security while traveling for you
and your family. Remember, we are only a phone call
away. Pontiac Roadside Assistance: 1-800-ROADSIDE
(762-3743), text telephone (TTY) users, call
1-888-889-2438.
Pontiac reserves the right to limit services or
reimbursement to an owner or driver when, in Pontiac’s
judgement, the claims become excessive in frequency
or type of occurrence.
Roadside Assistance is not part of or included in the
coverage provided by the New Vehicle Limited Warranty.
Pontiac reserves the right to make any changes or
discontinue the Roadside Assistance program at any
time without notification.
Canadian Roadside Assistance
Vehicles purchased in Canada have an extensive
roadside assistance program accessible from anywhere
in Canada or the United States. Please refer to the
Warranty and Owner Assistance Information book.
Courtesy Transportation
Pontiac has always exemplified quality and value in its
offering of motor vehicles. To enhance your ownership
experience, we and our participating dealers are proud
to offer Courtesy Transportation, a customer support
program for new vehicles.
The Courtesy Transportation program is offered to retail
purchase/lease customers in conjunction with the
Bumper-to-Bumper coverage provided by the New
Vehicle Limited Warranty. Several transportation options
are available when warranty repairs are required. This will
reduce your inconvenience during warranty repairs.
Scheduling Service Appointments
When your vehicle requires warranty service, you should
contact your dealer and request an appointment.
By scheduling a service appointment and advising your
service consultant of your transportation needs, your
dealer can help minimize your inconvenience.
If your vehicle cannot be scheduled into the service
department immediately, keep driving it until it can be
scheduled for service, unless, of course, the problem is
safety-related. If it is, please call your dealership, let
them know this, and ask for instructions.
If the dealer requests that you simply drop the vehicle
off for service, you are urged to do so as early in
the work day as possible to allow for same day repair.
7-7
Transportation Options
Courtesy Rental Vehicle
Warranty service can generally be completed while you
wait. However, if you are unable to wait Pontiac
helps minimize your inconvenience by providing several
transportation options. Depending on the circumstances,
your dealer can offer you one of the following:
Your dealer may arrange to provide you with a courtesy
rental vehicle or reimburse you for a rental vehicle
you obtained if your vehicle is kept for a warranty repair.
Reimbursement will be limited to a maximum of $30 a
day and must be supported by receipts. This requires
that you sign and complete a rental agreement and meet
state, local and rental vehicle provider requirements.
Requirements vary and may include minimum age
requirements, insurance coverage, credit card,
etc. You are responsible for fuel usage charges and
may also be responsible for taxes, levies, usage fees,
excessive mileage or rental usage beyond the
completion of the repair.
Shuttle Service
Participating dealers can provide you with shuttle
service to get you to your destination with minimal
interruption of your daily schedule. This includes a
one way or round trip shuttle ride to a destination
up to 10 miles (16 km) from the dealership.
Public Transportation or Fuel
Reimbursement
If your vehicle requires overnight warranty repairs,
reimbursement (five days maximum) may be available
for the use of public transportation such as taxi or bus.
In addition, should you arrange transportation through a
friend or relative, reimbursement for reasonable fuel
expenses (five day maximum) may be available.
Claim amounts should reflect actual costs and be
supported by original receipts.
7-8
Generally it is not possible to provide a like-vehicle as a
courtesy rental.
Additional Program Information
Courtesy Transportation is available during the
Bumper-to-Bumper warranty coverage period,
but it is not part of the New Vehicle Limited Warranty.
A separate booklet entitled Warranty and Owner
Assistance Information furnished with each new vehicle
provides detailed warranty coverage information.
Courtesy Transportation is available only at participating
dealers and all program options, such as shuttle
service, may not be available at every dealer. Please
contact your dealer for specific information about
availability. All Courtesy Transportation arrangements
will be administered by appropriate dealer personnel.
Canadian Vehicles: For warranty repairs during
the Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to terms and conditions described herein
at its sole discretion.
Vehicle Data Collection and
Event Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s performance.
Your vehicle uses on-board vehicle computers to monitor
emission control components to optimize fuel economy,
to monitor conditions for air bag deployment and, if so
equipped, to provide anti-lock braking and to help the
driver control the vehicle in difficult driving situations.
Some information may be stored during regular
operations to facilitate repair of detected malfunctions;
other information is stored only in a crash event by
computer systems, such as those commonly called event
data recorders (EDR).
In a crash event, computer systems, such as the Air
Bag Sensing and Diagnostic Module (SDM) in your
vehicle may record information about safety belt usage.
If your vehicle is equipped with Stabilitrak®, steering
performance, including yaw rate, steering wheel angle,
and lateral acceleration, is also recorded. Unlike the
data recorders on many airplanes, these on-board
systems do not record sounds, such as conversation of
vehicle occupants.
7-9
To read this information, special equipment is needed
and access to the vehicle or the device that stores
the data is required. GM will not access information
about a crash event or share it with others other than:
• with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee,
• in response to an official request of police or similar
government office,
• as part of GM’s defense of litigation through the
discovery process, or
• as required by law.
In addition, once GM collects or receives data, GM may:
• use the data for GM research needs,
• make it available for research where appropriate
confidentiality is to be maintained and need is
shown, or
• share summary data which is not tied to a specific
vehicle with non-GM organizations for research
purposes.
Others, such as law enforcement, may have access to
the special equipment that can read the information
if they have access to the vehicle or the device
that stores the data.
If your vehicle is equipped with OnStar®, please check
the OnStar® subscription service agreement or manual
for information on its operations and data collection.
7-10
Reporting Safety Defects
Reporting Safety Defects to the
United States Government
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic
Safety Administration (NHTSA), in addition to notifying
General Motors.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or
General Motors.
To contact NHTSA, you may either call the Auto Safety
Hotline toll-free at 1-800-424-9393 (or 366-0123 in
the Washington, D.C. area) or write to:
NHTSA, U.S. Department of Transportation
Washington, D.C. 20590
You can also obtain other information about motor
vehicle safety from the hotline.
Reporting Safety Defects to the
Canadian Government
Service Publications Ordering
Information
If you live in Canada, and you believe that your vehicle
has a safety defect, you should immediately notify
Transport Canada, in addition to notifying General
Motors of Canada Limited. You may write to:
Service Manuals
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada) in
a situation like this, we certainly hope you’ll notify us.
Please call us at 1-800-762-2737, or write:
Pontiac Customer Assistance Center
P.O. Box 33172
Detroit, MI 48232-5172
In Canada, please call us at 1-800-263-3777 (English)
or 1-800-263-7854 (French). Or, write:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Manuals have the diagnosis and repair
information on engines, transmission, axle, suspension,
brakes, electrical, steering, body, etc.
RETAIL SELL PRICE: $120.00
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and specifications for GM
transmissions, transaxles, and transfer cases.
RETAIL SELL PRICE: $50.00
Service Bulletins
Service Bulletins give technical service information
needed to knowledgeably service General Motors cars
and trucks. Each bulletin contains instructions to
assist in the diagnosis and service of your vehicle.
In Canada, information pertaining to Product Service
Bulletins can be obtained by contacting your General
Motors dealer or by calling 1-800-GM-DRIVE
(1-800-463-7483).
7-11
Owner’s Information
Owner publications are written specifically for owners
and intended to provide basic operational information
about the vehicle. The owner’s manual will include
the Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner’s Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE: $25.00
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P. O. Box 07130
Detroit, MI 48207
Current and Past Model Order Forms
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Service Publications are available for current and
past model GM vehicles. To request an order form,
please specify year and model name of the vehicle.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds.
7-12
A
Accessory Power Outlets ................................. 3-18
Adding Equipment to Your
Airbag-Equipped Vehicle ............................... 1-61
Additives, Fuel ................................................. 5-6
Add-On Electrical Equipment ............................ 5-95
Air Cleaner/Filter, Engine ................................. 5-21
Air Conditioning .............................................. 3-20
Airbag
Passenger Status Indicator ........................... 3-30
Readiness Light .......................................... 3-29
Airbag Sensing and Diagnostic Module (SDM) ........ 7-9
Airbag System ................................................ 1-46
Adding Equipment to Your Airbag-Equipped
Vehicle ................................................... 1-61
How Does an Airbag Restrain? ...................... 1-53
Passenger Sensing System ........................... 1-56
Servicing Your Airbag-Equipped Vehicle .......... 1-60
What Makes an Airbag Inflate? ...................... 1-53
What Will You See After an
Airbag Inflates? ........................................ 1-54
When Should an Airbag Inflate? .................... 1-51
Where Are the Airbags? ............................... 1-49
All-Wheel Drive ............................................... 5-48
All-Wheel-Drive (AWD) System ......................... 4-11
Antenna, Fixed Mast ....................................... 3-65
Antenna, XM™ Satellite Radio
Antenna System .......................................... 3-65
Anti-Lock Brake System (ABS) ........................... 4-7
Anti-Lock Brake, System Warning Light .............. 3-33
Appearance Care ............................................ 5-87
Aluminum Wheels ........................................ 5-92
Care of Safety Belts .................................... 5-90
Chemical Paint Spotting ............................... 5-93
Cleaning Exterior Lamps/Lenses .................... 5-90
Fabric/Carpet .............................................. 5-87
Finish Care ................................................. 5-91
Finish Damage ............................................ 5-93
Glass Surfaces ............................................ 5-89
Instrument Panel ......................................... 5-89
Interior Plastic Components ........................... 5-89
Leather ...................................................... 5-89
Sheet Metal Damage ................................... 5-93
Tires .......................................................... 5-92
Underbody Maintenance ............................... 5-93
Vehicle Care/Appearance Materials ................ 5-94
Vinyl .......................................................... 5-89
Washing Your Vehicle ................................... 5-90
Weatherstrips .............................................. 5-90
Windshield, Backglass, and Wiper Blades ....... 5-91
Ashtrays ........................................................ 3-19
1
Audio System(s) .............................................
Care of Your CD Player ...............................
Care of Your CDs ........................................
Fixed Mast Antenna .....................................
Navigation/Radio System ..............................
Radio with CD ............................................
Radio with Six-Disc CD ................................
Setting the Time ..........................................
Understanding Radio Reception .....................
XM™ Satellite Radio Antenna System ............
Automatic Headlamp System ............................
Automatic Transaxle
Fluid ..........................................................
Operation ...................................................
3-42
3-65
3-64
3-65
3-64
3-43
3-53
3-42
3-64
3-65
3-15
5-23
2-22
B
Battery .......................................................... 5-42
Before Leaving on a Long Trip ......................... 4-23
Brake
Anti-Lock Brake System (ABS) ........................ 4-7
Emergencies ................................................ 4-9
Panic Assist ................................................ 4-11
Parking ...................................................... 2-28
System Inspection ....................................... 6-18
System Warning Light .................................. 3-32
2
Brakes .......................................................... 5-39
Braking ........................................................... 4-6
Braking in Emergencies ..................................... 4-9
Break-In, New Vehicle ..................................... 2-17
Bulb Replacement ........................................... 5-49
Back-Up Lamps ........................................... 5-54
Center High-Mounted Stoplamp (CHMSL) ........ 5-51
Halogen Bulbs ............................................ 5-49
Headlamps, Front Turn Signal, and
Parking Lamps ......................................... 5-49
Replacement Bulbs ...................................... 5-55
Taillamps, Turn Signal, and Stoplamps ............ 5-53
Buying New Tires ........................................... 5-70
C
California Fuel .................................................. 5-6
Canadian Owners ................................................ ii
Capacities and Specifications .......................... 5-100
Carbon Monoxide ................... 2-11, 2-32, 4-26, 4-40
Care of
Safety Belts ................................................ 5-90
Your CD Player ........................................... 3-65
Your CDs ................................................... 3-64
Cargo Cover .................................................. 2-39
Cargo Tie Downs ............................................
Center Console Storage Area ...........................
Center High-Mounted Stoplamp (CHMSL) ...........
Chains, Tire ...................................................
Charging System Light ....................................
Check
Engine Light ...............................................
Checking Things Under the Hood ......................
Chemical Paint Spotting ...................................
Child Restraints
Child Restraint Systems ...............................
Infants and Young Children ...........................
Lower Anchorages and Top Tethers for
Children (LATCH System) ..........................
Older Children .............................................
Securing a Child Restraint Designed for
the LATCH System ...................................
Securing a Child Restraint in a
Rear Seat Position ...................................
Securing a Child Restraint in the
Right Front Seat Position ..........................
Top Strap ...................................................
Top Strap Anchor Location ............................
Where to Put the Restraint ...........................
2-40
2-37
5-51
5-73
3-31
3-35
5-10
5-93
1-31
1-28
1-38
1-26
1-39
1-40
1-42
1-35
1-37
1-34
Cigarette Lighter ............................................. 3-19
Cleaning
Aluminum Wheels ........................................ 5-92
Exterior Lamps/Lenses ................................. 5-90
Fabric/Carpet .............................................. 5-87
Finish Care ................................................. 5-91
Glass Surfaces ............................................ 5-89
Instrument Panel ......................................... 5-89
Interior Plastic Components ........................... 5-89
Leather ...................................................... 5-89
Tires .......................................................... 5-92
Underbody Maintenance ............................... 5-93
Vinyl .......................................................... 5-89
Washing Your Vehicle ................................... 5-90
Weatherstrips .............................................. 5-90
Windshield, Backglass, and Wiper Blades ....... 5-91
Climate Control System ................................... 3-20
Air Filter, Passenger Compartment ................. 3-23
Outlet Adjustment ........................................ 3-22
Clutch, Hydraulic ............................................. 5-27
Coinholder(s) .................................................. 2-37
Compact Spare Tire ........................................ 5-86
Content Theft-Deterrent .................................... 2-15
Control of a Vehicle .......................................... 4-6
3
Coolant
Engine Temperature Gage ............................ 3-35
Heater, Engine ............................................ 2-21
Cooling System .............................................. 5-32
Cruise Control Lever ....................................... 3-10
Cruise Control Light ........................................ 3-39
Cupholder(s) .................................................. 2-37
Customer Assistance Information
Courtesy Transportation .................................. 7-7
Customer Assistance for Text
Telephone (TTY) Users ............................... 7-4
Customer Assistance Offices ........................... 7-4
Customer Satisfaction Procedure ..................... 7-2
GM Mobility Program for Persons with
Disabilities ................................................ 7-5
Reporting Safety Defects to
General Motors ........................................ 7-11
Reporting Safety Defects to the
Canadian Government .............................. 7-11
Reporting Safety Defects to the
United States Government ......................... 7-10
Roadside Assistance Program ......................... 7-6
Service Publications Ordering Information ........ 7-11
4
D
Daytime Running Lamps .................................. 3-14
Defensive Driving ............................................. 4-2
Doing Your Own Service Work ........................... 5-4
Door
Ajar Light ................................................... 3-40
Locks .......................................................... 2-7
Power Door Locks ......................................... 2-8
Programmable Automatic Door Locks ............... 2-9
Rear Door Security Locks ............................. 2-10
Driver
Position, Safety Belt ..................................... 1-14
Seat Height Adjuster ...................................... 1-3
Driving
At Night ..................................................... 4-17
City ........................................................... 4-21
Defensive ..................................................... 4-2
Drunken ....................................................... 4-3
Freeway ..................................................... 4-22
Hill and Mountain Roads .............................. 4-24
In Rain and on Wet Roads ........................... 4-18
Recovery Hook ........................................... 4-31
Rocking Your Vehicle to Get it Out ................. 4-30
Winter ........................................................ 4-26
E
F
Electrical System
Add-On Equipment ...................................... 5-95
Engine Compartment Fuse Block ................... 5-98
Fuses and Circuit Breakers ........................... 5-96
Headlamp Wiring ......................................... 5-96
Instrument Panel Fuse Block ......................... 5-97
Power Windows and Other Power Options ...... 5-96
Windshield Wiper Fuses ............................... 5-96
Engine
Air Cleaner/Filter ......................................... 5-21
Battery ....................................................... 5-42
Check and Service Engine Soon Light ............ 3-35
Coolant ...................................................... 5-28
Coolant Heater ............................................ 2-21
Coolant Temperature Gage ........................... 3-35
Cooling System Inspection ............................ 6-18
Engine Compartment Overview ...................... 5-12
Exhaust ..................................................... 2-32
Oil ............................................................. 5-16
Overheating ................................................ 5-30
Starting ...................................................... 2-19
Entry Lighting ................................................. 3-16
Event Data Recorders (EDR) ............................. 7-9
Extender, Safety Belt ....................................... 1-25
Exterior Lamps ............................................... 3-13
Filter
Engine Air Cleaner ...................................... 5-21
Finish Damage ............................................... 5-93
Fixed Mast Antenna ........................................ 3-65
Flash-to-Pass ................................................... 3-8
Flat Tire ........................................................ 5-74
Flat Tire, Changing ......................................... 5-75
Flat Tire, Storing ............................................. 5-84
Floor Mats ..................................................... 2-38
Fluid
Automatic Transaxle ..................................... 5-23
Manual Transaxle ........................................ 5-26
Power Steering ........................................... 5-37
Windshield Washer ...................................... 5-38
Fog Lamps .................................................... 3-15
Folding Seatback, Passenger ............................. 1-5
Fuel ............................................................... 5-5
Additives ...................................................... 5-6
California Fuel .............................................. 5-6
Filling a Portable Fuel Container ..................... 5-9
Filling Your Tank ........................................... 5-7
Fuels in Foreign Countries .............................. 5-7
Gage ......................................................... 3-41
Gasoline Octane ........................................... 5-5
5
Fuel (cont.)
Gasoline Specifications .................................. 5-6
Low Warning Light ....................................... 3-41
System Inspection ....................................... 6-17
Fuses
Engine Compartment Fuse Block ................... 5-98
Fuses and Circuit Breakers ........................... 5-96
Instrument Panel Fuse Block ......................... 5-97
Windshield Wiper ......................................... 5-96
G
Gage
Engine Coolant Temperature ......................... 3-35
Fuel .......................................................... 3-41
Speedometer .............................................. 3-27
Tachometer ................................................. 3-27
Gasoline
Octane ........................................................ 5-5
Specifications ............................................... 5-6
Glove Box ..................................................... 2-37
GM Mobility Program for Persons with
Disabilities .................................................... 7-5
6
H
Hazard Warning Flashers ................................... 3-6
Head Restraints ............................................... 1-5
Headlamp Wiring ............................................ 5-96
Headlamps
Automatic Headlamp System ......................... 3-15
Bulb Replacement ....................................... 5-49
Daytime Running Lamps ............................... 3-14
Flash-to-Pass ............................................... 3-8
Halogen Bulbs ............................................ 5-49
Headlamps, Front Turn Signal, and
Parking Lamps ......................................... 5-49
High/Low Beam Changer ................................ 3-8
On Reminder .............................................. 3-13
Heater ........................................................... 3-20
Height Adjuster, Driver Seat ............................... 1-3
Highbeam On Light ......................................... 3-40
Highway Hypnosis ........................................... 4-24
Hill and Mountain Roads .................................. 4-24
Hood
Checking Things Under ................................ 5-10
Release ..................................................... 5-10
Horn ............................................................... 3-6
How to Use This Manual ...................................... ii
How to Wear Safety Belts Properly ................... 1-14
Hydraulic Clutch ............................................. 5-27
I
K
Ignition Positions ............................................. 2-18
Infants and Young Children, Restraints ............... 1-28
Inflation -- Tire Pressure .................................. 5-64
Inspection
Brake System ............................................. 6-18
Engine Cooling System ................................ 6-18
Exhaust System .......................................... 6-17
Fuel System ............................................... 6-17
Part C - Periodic Maintenance ....................... 6-17
Steering, Suspension and Front Drive Axle
Boot and Seal ......................................... 6-17
Throttle System ........................................... 6-18
Instrument Panel
Brightness .................................................. 3-15
Cluster ....................................................... 3-26
Overview ..................................................... 3-4
Storage Area .............................................. 2-37
Interior Lamps Control ..................................... 3-16
Keyless Entry System ....................................... 2-4
Keys ............................................................... 2-2
J
Jump Starting ................................................. 5-43
L
Labelling, Tire Sidewall ....................................
Lamps
Exterior ......................................................
Fog ...........................................................
Interior Control ............................................
Reading .....................................................
LATCH System
Child Restraints ...........................................
Securing a Child Restraint Designed for
the LATCH System ...................................
Liftgate/Liftglass ..............................................
Liftglass/Liftgate ..............................................
Light
Airbag Readiness ........................................
Anti-Lock Brake System Warning ...................
Brake System Warning .................................
Charging System .........................................
Cruise Control .............................................
Door Ajar ...................................................
5-58
3-13
3-15
3-16
3-17
1-38
1-39
2-11
2-11
3-29
3-33
3-32
3-31
3-39
3-40
7
Light (cont.)
Highbeam On ............................................. 3-40
Lights On Reminder ..................................... 3-39
Low Fuel Warning ....................................... 3-41
Low Tire Pressure Warning Light ................... 3-33
Low Washer Fluid Warning ........................... 3-40
Malfunction Indicator .................................... 3-35
Oil Pressure ............................................... 3-38
Overdrive Off .............................................. 3-40
Passenger Airbag Status Indicator .................. 3-30
Safety Belt Reminder ................................... 3-28
Stabilitrak® Indicator ..................................... 3-34
Taillamp Indicator ......................................... 3-39
TCS Warning Light ...................................... 3-34
Traction Control System (TCS) Warning .......... 3-34
Lighting
Entry ......................................................... 3-16
Locks
Door ........................................................... 2-7
Power Door .................................................. 2-8
Programmable Automatic Door Locks ............... 2-9
Rear Door Security Locks ............................. 2-10
Loss of Control ............................................... 4-16
Low Fuel Warning Light ................................... 3-41
Low Washer Fluid Warning Light ....................... 3-40
8
M
Maintenance, Normal Replacement Parts .......... 5-102
Maintenance Schedule
At Each Fuel Fill ......................................... 6-13
At Least Once a Month ................................ 6-13
At Least Once a Year .................................. 6-14
At Least Twice a Year .................................. 6-14
Brake System Inspection .............................. 6-18
Engine Cooling System Inspection ................. 6-18
Exhaust System Inspection ........................... 6-17
Fuel System Inspection ................................ 6-17
How This Section is Organized ....................... 6-3
Introduction .................................................. 6-2
Maintenance Requirements ............................. 6-2
Part A - Scheduled Maintenance Services ......... 6-4
Part B - Owner Checks and Services ............. 6-13
Part C - Periodic Maintenance Inspections ...... 6-17
Part D - Recommended Fluids and
Lubricants ............................................... 6-19
Part E - Maintenance Record ........................ 6-21
Scheduled Maintenance ................................. 6-4
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection .......................... 6-17
Throttle System Inspection ............................ 6-18
Using Your ................................................... 6-4
Your Vehicle and the Environment ................... 6-2
Malfunction Indicator Light ................................ 3-35
Manual Seats ................................................... 1-2
Manual Transaxle
Fluid .......................................................... 5-26
Operation ................................................... 2-25
Manual Windows ............................................ 2-14
Mirrors
Manual Rearview Mirror ................................ 2-34
Manual Rearview Mirror with OnStar® ............. 2-34
Outside Convex Mirror ................................. 2-35
Outside Remote Control Mirrors ..................... 2-34
MyGMLink.com ................................................ 7-3
N
Navigation/Radio System .................................. 3-64
New Vehicle Break-In ...................................... 2-17
Normal Maintenance Replacement Parts ........... 5-102
O
Odometer ...................................................... 3-27
Odometers, Trip .............................................. 3-27
Off-Road Recovery .......................................... 4-14
Oil
Engine ....................................................... 5-16
Pressure Light ............................................. 3-38
Older Children, Restraints ................................ 1-26
Online Owner Center ........................................ 7-3
OnStar® System ............................................. 2-35
Other Warning Devices ...................................... 3-6
Outlet Adjustment ............................................ 3-22
Outside
Convex Mirror ............................................. 2-35
Remote Controls Mirrors ............................... 2-34
Overdrive Off ................................................. 2-24
Overdrive Off Light .......................................... 3-40
Owners, Canadian ............................................... ii
P
Panic Brake Assist ..........................................
Park (P)
Shifting Into ................................................
Shifting Out of ............................................
Parking
Brake ........................................................
Over Things That Burn .................................
4-11
2-28
2-30
2-28
2-32
9
Parking Your Vehicle ....................................... 2-31
Part A - Scheduled Maintenance Services ............ 6-4
Part B - Owner Checks and Services ................ 6-13
Part C - Periodic Maintenance Inspections .......... 6-17
Part D - Recommended Fluids and
Lubricants .................................................. 6-19
Part E - Maintenance Record ........................... 6-21
Passenger Airbag Status Indicator ..................... 3-30
Passenger Compartment Air Filter ..................... 3-23
Passenger Sensing System .............................. 1-56
Passing ......................................................... 4-14
Power
Accessory Outlets ........................................ 3-18
Door Locks .................................................. 2-8
Electrical System ......................................... 5-96
Outlet 115 Volt Alternating Current ................. 3-18
Steering Fluid ............................................. 5-37
Windows .................................................... 2-14
Pretensioners, Safety Belt ................................ 1-24
Programmable Automatic Door Locks .................. 2-9
Q
Questions and Answers About Safety Belts ......... 1-13
10
R
Radiator Pressure Cap .................................... 5-30
Radios .......................................................... 3-42
Care of Your CD Player ............................... 3-65
Care of Your CDs ........................................ 3-64
Navigation/Radio System .............................. 3-64
Radio with CD ............................................ 3-43
Radio with Six-Disc CD ................................ 3-53
Setting the Time .......................................... 3-42
Understanding Reception .............................. 3-64
Reading Lamps .............................................. 3-17
Rear Cargo Accessory Track System ................. 2-39
Rear Door Security Locks ................................ 2-10
Rear Seat Operation ......................................... 1-7
Rear Seat Passengers, Safety Belts .................. 1-21
Rear Storage Area .......................................... 2-38
Rearview Mirror with OnStar® ........................... 2-34
Rearview Mirrors ............................................. 2-34
Reclining Seatbacks .......................................... 1-3
Recovery Hook ............................................... 4-31
Recreational Vehicle Towing ............................. 4-37
Remote Keyless Entry System ............................ 2-4
Remote Keyless Entry System, Operation ............ 2-5
Removing the Flat Tire and Installing the
Spare Tire .................................................. 5-78
Removing the Spare Tire and Tools ................... 5-76
Replacement Bulbs ......................................... 5-55
Reporting Safety Defects
Canadian Government .................................. 7-11
General Motors ........................................... 7-11
United States Government ............................ 7-10
Restraint System Check
Checking Your Restraint Systems ................... 1-62
Replacing Restraint System Parts
After a Crash .......................................... 1-63
Restraint Systems
Checking .................................................... 1-62
Replacing Parts ........................................... 1-63
Right Front Passenger Position, Safety Belts ...... 1-21
Roadside
Assistance Program ....................................... 7-6
Rocking Your Vehicle to Get it Out .................... 4-30
Running Your Engine While You Are Parked ....... 2-33
S
Safety Belt
Pretensioners .............................................. 1-24
Reminder Light ............................................ 3-28
Safety Belts
Care of ...................................................... 5-90
Driver Position ............................................ 1-14
How to Wear Safety Belts Properly ................ 1-14
Questions and Answers About Safety Belts ........ 1-13
Rear Seat Passengers ................................. 1-21
Right Front Passenger Position ...................... 1-21
Safety Belt Extender .................................... 1-25
Safety Belt Use During Pregnancy ................. 1-21
Safety Belts Are for Everyone ......................... 1-8
Shoulder Belt Height Adjuster ........................ 1-20
Safety Warnings and Symbols .............................. iii
Scheduled Maintenance ..................................... 6-4
Seatback, Folding Passenger ............................. 1-5
Seats
Driver Seat Height Adjuster ............................. 1-3
Head Restraints ............................................ 1-5
Manual ........................................................ 1-2
Passenger Folding Seatback ........................... 1-5
Rear Seat Operation ...................................... 1-7
Reclining Seatbacks ...................................... 1-3
Securing a Child Restraint
Designed for the LATCH System ................... 1-39
Rear Seat Position ...................................... 1-40
Right Front Seat Position .............................. 1-42
11
Service ........................................................... 5-3
Adding Equipment to the Outside of
Your Vehicle .............................................. 5-5
Doing Your Own Work ................................... 5-4
Engine Soon Light ....................................... 3-35
Publications Ordering Information ................... 7-11
Servicing Your Airbag-Equipped Vehicle .............. 1-60
Setting the Time ............................................. 3-42
Sheet Metal Damage ....................................... 5-93
Shifting Into Park (P) ....................................... 2-28
Shifting Out of Park (P) ................................... 2-30
Shoulder Belt Height Adjuster ........................... 1-20
Signals, Turn and Lane-Change .......................... 3-8
Spare Tire
Installing .................................................... 5-78
Removing ................................................... 5-76
Storing ....................................................... 5-84
Specifications, Capacities ............................... 5-100
Speedometer .................................................. 3-27
Stabilitrak® System ......................................... 4-10
Stabilitrak® Indicator Light ................................. 3-34
Starting Your Engine ....................................... 2-19
Steering ........................................................ 4-11
Steering, Suspension and Front Drive
Axle Boot and Seal Inspection ....................... 6-17
12
Steering Wheel, Tilt Wheel ................................. 3-7
Storage Areas
Center Console Storage Area ........................ 2-37
Coinholder(s) .............................................. 2-37
Cupholder(s) ............................................... 2-37
Glove Box .................................................. 2-37
Instrument Panel Storage Area ...................... 2-37
Rear Cargo Accessory Track System .............. 2-39
Rear Storage Area ....................................... 2-38
Stuck in Sand, Mud, Ice or Snow ...................... 4-30
Sun Visors ..................................................... 2-14
Sunroof ......................................................... 2-40
T
Tachometer .................................................... 3-27
Taillamp Indicator Light .................................... 3-39
Taillamps
Turn Signal, and Stoplamps .......................... 5-53
TCS Warning Light .......................................... 3-34
Theft-Deterrent Systems ................................... 2-15
Content Theft-Deterrent ................................ 2-15
Throttle System Inspection ............................... 6-18
Tilt Wheel ........................................................ 3-7
Tires .............................................................
Aluminum Wheels, Cleaning ..........................
Buying New Tires ........................................
Chains .......................................................
Changing a Flat Tire ....................................
Cleaning ....................................................
Compact Spare Tire .....................................
If a Tire Goes Flat .......................................
Inflation -- Tire Pressure ...............................
Inspection and Rotation ................................
Installing the Spare Tire ................................
Pressure Monitor System ..............................
Removing the Flat Tire .................................
Removing the Spare Tire and Tools ...............
Storing a Flat or Spare Tire and Tools ............
Tire Sidewall Labelling ..................................
Tire Terminology and Definitions ....................
Uniform Tire Quality Grading .........................
Wheel Alignment and Tire Balance .................
Wheel Replacement .....................................
When It Is Time for New Tires ......................
Top Strap ......................................................
Top Strap Anchor Location ...............................
5-57
5-92
5-70
5-73
5-75
5-92
5-86
5-74
5-64
5-68
5-78
5-65
5-78
5-76
5-84
5-58
5-61
5-70
5-72
5-72
5-69
1-35
1-37
Towing
Recreational Vehicle ..................................... 4-37
Towing a Trailer .......................................... 4-40
Your Vehicle ............................................... 4-37
Traction
Control System (TCS) .................................... 4-9
Control System Warning Light ....................... 3-34
Stabilitrak® System ...................................... 4-10
Transaxle
Fluid, Automatic ........................................... 5-23
Fluid, Manual .............................................. 5-26
Transaxle Operation, Automatic ......................... 2-22
Transaxle Operation, Manual ............................ 2-25
Trip Odometers .............................................. 3-27
Turn and Lane-Change Signals .......................... 3-8
Turn Signal/Multifunction Lever ........................... 3-7
U
Understanding Radio Reception ........................ 3-64
Uniform Tire Quality Grading ............................ 5-70
13
V
Vehicle
Control ........................................................ 4-6
Damage Warnings ........................................... iv
Parking Your ............................................... 2-31
Symbols ......................................................... iv
Vehicle Data Collection and Event
Data Recorders ............................................. 7-9
Vehicle Identification
Number (VIN) ............................................. 5-95
Service Parts Identification Label ................... 5-95
Ventilation Adjustment ...................................... 3-22
Visors ........................................................... 2-14
W
Warning Lights, Gages and Indicators ................ 3-25
Warnings
Hazard Warning Flashers ............................... 3-6
Other Warning Devices .................................. 3-6
Safety and Symbols ......................................... iii
Vehicle Damage .............................................. iv
Washer Fluid, Low Warning Light ...................... 3-40
14
Wheels
Alignment and Tire Balance .......................... 5-72
Replacement ............................................... 5-72
Where to Put the Restraint ............................... 1-34
Windows ....................................................... 2-13
Manual ...................................................... 2-14
Power ........................................................ 2-14
Windshield
Backglass, and Wiper Blades, Cleaning .......... 5-91
Windshield Washer ......................................... 3-10
Fluid .......................................................... 5-38
Windshield Wiper
Blade Replacement ...................................... 5-56
Fuses ........................................................ 5-96
Windshield Wipers ......................................... 3-9
Winter Driving ................................................ 4-26
X
XM™ Satellite Radio Antenna System ................ 3-65
Y
Your Vehicle and the Environment ....................... 6-2
