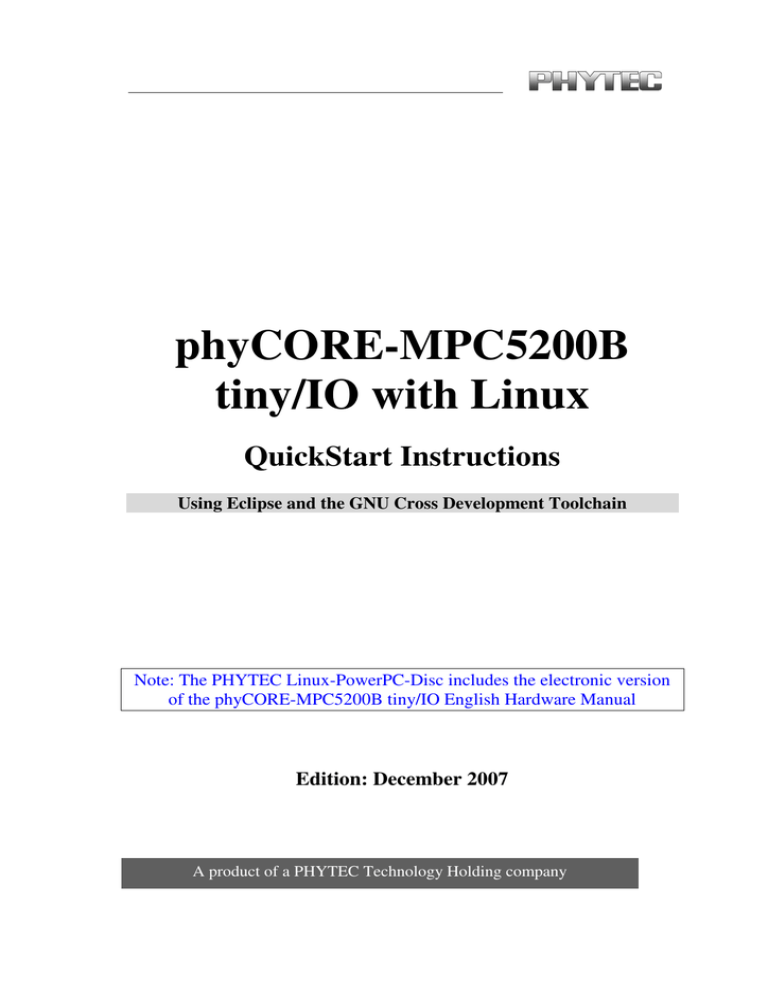

phyCORE-MPC5200B tiny/IO with Linux

QuickStart Instructions

Using Eclipse and the GNU Cross Development Toolchain

Note: The PHYTEC Linux-PowerPC-Disc includes the electronic version of the phyCORE-MPC5200B tiny/IO English Hardware Manual

Edition: December 2007

A product of a PHYTEC Technology Holding company

phyCORE-MPC5200B tiny/IO QuickStart Instructions

In this manual copyrighted products are not explicitly indicated. The absence of the trademark (

) and copyright () symbols does not imply that a product is not protected.

Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

Copyright 2006 PHYTEC Messtechnik GmbH, D-55129 Mainz.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may be made without the explicit written consent from

PHYTEC Messtechnik GmbH.

EUROPE NORTH AMERICA

Address: PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

55129 Mainz

GERMANY

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

USA

Ordering

Information:

+49 (800) 0749832 [email protected]

1 (800) 278-9913 [email protected]

Technical

Support:

+49 (6131) 9221-31 [email protected]

Fax: +49 (6131) 9221-33

Web Site: http://www.phytec.de

5th

Edition:December 2007

1 (800) 278-9913 [email protected]

1 (206) 780-9135 http://www.phytec.com

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Introduction

1 Introduction .........................................................................................2

1.1

Rapid Development Kit Documentation.......................................2

1.2

Professional Support Packages available......................................3

1.3

Overview of this QuickStart Instruction.......................................3

1.4

Conventions used in this QuickStart.............................................4

1.5

System Requirements....................................................................5

1.6

The PHYTEC phyCORE-MPC5200B tiny/IO .............................6

1.7

Software Development Toolchains...............................................9

1.7.1

Eclipse..............................................................................9

1.7.2

The Gnu Cross Development Toolchain .......................10

2 Getting Started...................................................................................11

2.1

Requirements of the Host Platform ............................................11

2.2

Configuring the Host Platform ...................................................12

2.2.1

Installing Software packages: ........................................12

2.2.2

Setup Network Card Configuration ...............................18

2.2.3

Disabling the Firewall....................................................21

2.2.4

Setup TFTP-Server ........................................................22

2.3

Linux-PowerPC-Kit Setup..........................................................24

2.4

Connecting the host with the target ............................................34

2.5

Copying an Example to the Target .............................................40

3 Getting More Involved ......................................................................49

3.1

Configuring and Compiling the Kernel ......................................49

3.2

Writing the Kernel into Flash .....................................................53

3.3

Opening an Existing Project .......................................................58

3.4

Creating a New Project ...............................................................64

3.5

Changing the Demo ....................................................................74

3.6

Starting a program out of Eclipse on the target ..........................76

3.7

Starting the program when booting the target ............................80

4 Debugging an Example Project ........................................................85

4.1

Starting the GDB-Server on the target........................................85

4.2

Configuring and starting the debugger in Eclipse ......................87

4.3

Setting a breakpoint ....................................................................92

4.4

Stepping and Watching Variables Content .................................93

4.5

Changing Variables Values ........................................................95

4.6

Using the Memory Monitor ........................................................97

5 Further Information........................................................................100

6 Summary ..........................................................................................101

5 min

35 min

70 min

20 min

© PHYTEC Messtechnik GmbH 2007 L-679e_5

1

phyCORE-MPC5200B tiny/IO QuickStart Instructions

1 Introduction

5 min

In this QuickStart you can find general information information on the

PHYTEC phyCORE

-MPC5200B tiny/IO and an overview of the Eclipse software development tool and GNU GCC C/C++ Cross-Development

Toolchain. You can also find instructions on how to run example programs on the phyCORE

-MPC5200B tiny/IO, mounted on the PHYTEC phyCORE

Development Board MPC5200B tiny/IO, in conjunction with the Eclipse development tool.

Please refer to the phyCORE-MPC5200B tiny/IO Hardware Manual for specific information on such board-level features as jumper configuration , memory mapping and pin layout .

1.1 Rapid Development Kit Documentation

This "Rapid Development Kit" includes the following electronic documentation on the enclosed "PHYTEC Linux-PowerPC-

Disc":

PHYTEC phyCORE-MPC5200B tiny/IO Hardware Manual and Development Board Hardware Manual

MPC5200B tiny/IO controller User's Manuals and Data

Sheets

this QuickStart Instruction with general "Rapid Development

Kit" description, software installation advice and an example program enabling quick out-of-the box start-up of the phyCORE

- MPC5200B tiny/IO in conjunction with the

Eclipse / GNU GCC C/C++ software development toolchain

2

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Introduction

1.2 Professional Support Packages available

This Kit comes with free installation support. If you do have any questions concerning installation and setup, you are welcome to contact our support department.

For more in-depth questions, we offer a variety of custom tailored packages with different support options (e-mail, phone, direct contact to the developer) and different reaction times.

Please contact our sales team to discuss the appropriate support option if professional support beyond installation and setup is important to you.

1.3 Overview of this QuickStart Instruction

This QuickStart Instruction gives a general "Rapid Development

Kit" description, as well as software installation advice and an example program enabling quick out- of-the box start-up of the phyCORE

-MPC5200B in conjunction with the Eclipse IDE and

GNU GCC/C++ software tools. It is structured as follows:

1) The “Getting Started” section describes the configuration of the host platform and the setup to install the tools used in this

QuickStart.

2) The “Getting More Involved” section provides step-by-step instructions on how to configure and build a new kernel, modify the example, create and build new projects and copy output files to the phyCORE

-MPC5200 using Eclipse.

3) The “Debugging” section provides information on how to debug an application with the Eclipse debugging interface.

In addition to the dedicated data for this Rapid Development Kit, the PHYTEC Linux-PowerPC-Disc contains supplemental information on embedded microcontroller design and development.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

3

phyCORE-MPC5200B tiny/IO QuickStart Instructions

1.4 Conventions used in this QuickStart

The following is a list of the typographical conventions used in this book:

Italic

Bold

Used for file and directory names, program and command names, command-line options, menu items, URLs, and other terms that corresponds the terms on your desktop.

Used in examples to show commands or other text that should be typed literally by the user.

Pay special attention to notes set apart from the text with the following icons:

At this part you might leave be path of this QuickStart.

This is a warning. It helps you to avoid annoying problems.

You can find useful supplementary information about the topic.

At the beginning of each chapter you can find information of the time to pass the following chapter.

You have successfully passed an important part of this

QuickStart.

You can find information to solve problems.

4

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Introduction

1.5 System Requirements

Use of this "Rapid Development Kit" requires:

the PHYTEC phyCORE-MPC5200B tiny/IO,

the PHYTEC Development Board with the included DB-9 serial cable, AC-to-DC adapter supplying 12 V DC/min. 1.5

A,

PHYTEC Distribution based on OSELAS from Pengutronix

an IBM-compatible host-PC (586 or higher)

openSUSE Linux 10.0 OSS (x86) and KDE desktop

recommended free disk space: 2 GB

For more information and example updates, please refer to the following sources: http://www.phytec.de

[email protected]

http://www.freescale.com/

© PHYTEC Messtechnik GmbH 2007 L-679e_5

5

6

phyCORE-MPC5200B tiny/IO QuickStart Instructions

1.6 The PHYTEC phyCORE-MPC5200B tiny/IO

The phyCORE-MPC5200B tiny/IO represents an affordable yet highly functional Single Board Computer (SBC) solution in the size 53 x 57 mm

2

for the tiny-Board and 57 x 84 mm

2

for the IO-

Board . The standard board is populated with a Freescale

PowerPC Microcontroller MPC5200B featuring a 32-bit processor architecture with Double precision FPU, 396 MHz processor speed, Peripheral component interconnect (PCI) controller, ATA controller, BestComm DMA subsystem, 6 programmable serial controllers (PSC) configurable for the following functions:

Fast Ethernet controller (FEC), Universal serial bus controller

(USB revision 1.1 host), Two inter-integrated circuit interfaces

(I2C), Serial peripheral interface (SPI), Dual CAN 2.0 A/B controller (MSCAN), J1850 byte data link controller (BDLC)

All applicable LocalPlus data/address lines and applicable signals extend to two high-density 100-pin Molex SMT pin header connectors (pin width is 0.635 mm./25mil) lining the circuit board edges. This enables the phyCORE-MPC5200B tiny/IO to be plugged like a “big chip” into target hardware.

The standard memory configurations of the phyCORE-

MPC5200B tiny features 64MByte DDR-SDRAM and 16MByte external Flash. The standard memory configurations of the phyCORE-MPC5200B IO features 128MByte DDR-SDRAM and 32MByte external Flash. The external Flash supports direct on-board programming without additional programming voltages.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Introduction

phyCORE-MPC5200B tiny Technical Highlights

phyCORE dimensions 53 x 57 mm with two high-density 100-pin

Molex SMT pin header connectors

Processor: Freescale Embedded PowerPC MPC5200B, 396 MHz clock

phyCORE-MPC5200B IO Technical Highlights

phyCORE dimensions 57 x 84 mm

2

with two high-density 200-pin

Molex SMT pin header connectors

Processor: Freescale Embedded PowerPC MPC5200B, 396 MHz clock

Altera FPGA with up to 8000 Logic Cells

Battery buffer able SRAM

Internal Features of the MPC5200B:

e300 core

-

760 MIPS at 400 MHz (-40 to +85 °C)

-

-

32 k instruction cache, 32 k data cache

Double precision FPU

-

-

Instruction and data MMU

SDRAM / DDR SDRAM memory Interface

- up to 132 MHz operation

SDRAM and DDR SDRAM support

-

256 MByte addressing range per CS, two CS available

Flexible multi-function external bus interface

Peripheral component interconnect (PCI) controller

ATA controller

BestComm DMA subsystem

6 programmable serial controllers (PSC), configurable for the following functions:

Fast Ethernet controller (FEC)

-

Supports 100Mbps IEEE 802.3 MII, 10 Mbps IEEE 802.3 MII

Universal serial bus controller (USB)

-

USB revision 1.1 host

Two inter-integrated circuit interfaces (I2C)

Serial peripheral interface (SPI)

© PHYTEC Messtechnik GmbH 2007 L-679e_5

7

8

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Dual CAN 2.0 A/B controller (MSCAN)

J1850 byte data link controller (BDLC)

Test/debug features

JTAG (IEEE 1149.1 test access port)

Common on-chip processor (COP) debug port

The PHYTEC Development Board, in card dimensions (195 x 170 mm

2

/7.68 x 6.7 in

2

.), is fully equipped with all mechanical and electrical components necessary for the speedy and secure insertion of PHYTEC phyCORE-MPC5200B tiny/IO Single Board Computer.

Development Board Technical Highlights

reset push button

one software programmable LED for processor

one software programmable LED for fpga

LEDs for supply voltage monitoring

power supply for regulated input voltage of +12V. It supplies regulated

+3.3 V for the phyCORE-MPC5200B tiny/IO and futher supply voltages.

two DB-9 sockets for the RS-232 interface

two DB-9 plugs for two separate CAN interfaces

Ethernet socket with integrated USB Host Interface

Compact Flash Card Socket

PCI Socket

ATA-Interface

© PHYTEC Messtechnik GmbH 2007 L-679e_5

1.7 Software Development Toolchains

Introduction

1.7.1 Eclipse

The Eclipse Platform provides support for C/C++ development.

Because the Eclipse Platform is only a framework for developer tools, it doesn't support C/C++ directly; it uses external plug-ins for support. This QuickStart shows you how to make use of the

CDT -- a set of plug-ins for C/C++ development in conjunction with the GNU GCC C/C++ Toolchain.

The CDT is an open source project (licensed under the Common

Public License) implemented purely in Java as a set of plug-ins for the Eclipse SDK Platform. Theese plug-ins add a C/C++

Perspective to the Eclipse Workbench that can now support

C/C++ development with a number of views and wizards, along with advanced editing and debugging support.

Due to its complexity, the CDT is broken down into several components, which take the form of separate plug-ins. Each component operates as an autonomous project, with its own set of committers, bug categories, and mailing lists. However, all plugins are required for the CDT to work properly. Here is a list of the plug-ins/components:

Primary CDT plug-in is the "framework" CDT plug-in.

CDT Feature Eclipse is the CDT Feature Component.

CDT Core provides Core Model, CDOM, and Core

Components.

CDT UI is the Core UI, views, editors, and wizards.

CDT Launch provides the launch mechanism for external tools such as the compiler and debugger.

CDT Debug Core provides debugging functions.

CDT Debug UI provides the user interface for the CDT debugging editors, views, and wizards.

CDT Debug MI is the application connector for MIcompatible debuggers.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

9

phyCORE-MPC5200B tiny/IO QuickStart Instructions

1.7.2 The Gnu Cross Development Toolchain

Cross-development in general refers to the overall software development process that produces a single application or a complete system running on a platform that is different from the development platform. This is an important concept when the target system doesn't have a native set of compilation tools, or when the host system is faster and has greater resources.

The platform where the actual development takes place is called the host platform. The platform where the final application is tested and run is called target platform. In this QuickStart we are using a x86-architecture based Linux as host platform. As target platform we are using the arm architecture with a MPC5200B tiny/IO CPU.

Building a program for a CPU architecture different from the one used on the machine where the compilation is done, is accomplished using a cross-compiler toolchain and crosscompiled libraries. In this QuickStart we are using the GNU

C/C++ Cross Development Toolchain.

10

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

2 Getting Started

35 min

In this chapter you will establish the basis to pass the steps in this

QuickStart. First you will learn how to configure the host platform. You will install additional software packages and setup the network configuration for connecting your host to the target. After connecting the host to the target you will copy an application to the target. At the end of this chapter you will be able to start a first demo application on the target.

2.1 Requirements of the Host Platform

To pass the following steps in this Quickstart, you will need a host pc with an installation of openSUSE 10.0 OSS (x86) and

KDE desktop.

When you are installing openSUSE 10.0, you can select KDE as

Desktop selection

. The default packages to use openSUSE 10.0 with your host PC will be selected automatically. This default selection will suffice to pass the steps in this QuickStart

Instruction. The installation of additional packages and configurations will be described on the following pages.

In the following configuration steps we assume, that the host pc is not connected to any other network. The target and host will be connected with a cross-over cable via a peer-to-peer connection. If your host is part of a company’s network, we recommend disconnecting your host from such a network.

In this QuickStart Instruction you will have to shutdown the firewall and configure the network card of your host pc. If your host pc is connected to another network, changing the ip address can cause conflicts with existing hosts.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

11

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.2 Configuring the Host Platform

In this passage you will learn how to configure the host platform.

You will execute the following steps in this passage:

Installing additional software packages. These packages are necessary to accomplish the steps in the QuickStart

Instruction.

Setup the Network configuration to use the host pc with your target.

Disabling the firewall. If the firewall is enabled, you will have problems with connections to the target.

Setup a TFTP-Server. You can use a TFTP Server to download files (e.g. a Kernel images or root file systems) into the RAM of the target from the bootloader.

2.2.1 Installing Software packages:

To accomplish the steps in the QuickStart Instruction you will have to install additional packages.

If you don’t install all of these packages, the setup may fail or some configuration steps won’t work correctly.

12

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Open the Control Center (YaST)

Enter your root password and click on the OK button.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

13

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Open Software Management in Software.

14

Select Filter Search.

Type libxml2-devel and click Search button.

Check libxml2-devel.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Type python-devel and click Search button.

Check python-devel.

Type tftp and click Search button.

Check the package tftp.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

15

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Type qt3-devel and click Search button.

Check qt3-devel.

16

Select Filter Selections.

Select C/C++ Compiler and Tools in the window selection.

Select Tcl/Tk Development System in the window selection.

Click Accept button.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Some additional packages will be selected automatically to resolve dependencies.

If problems occur while resolving dependencies, we recommend going back to a default configuration.

Click on Continue to install the packages.

Click on Finish.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

17

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.2.2 Setup Network Card Configuration

In the following step you will have to configure the ip address of your host. We recommend disconnecting your host from any other network. If you change the host ip, problems may occur with existing hosts.

Open the YasST Control Center if it is not already open.

Choose Network Card in network devices.

18

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Select the right network card, if more than one network card is installed on your host.

Click on button Edit to enter Network Address Setup.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

19

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Choose Static Address setup.

Enter IP Address 192.168.3.10 and Subnet Mask

255.255.255.0

Click on the Next button.

Click on the Next button again to finish Network Card

Configuration.

20

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

2.2.3 Disabling the Firewall

If you want to create a telnet or ftp session to the target, for example you will have to add rules to allow access to these services. To ensure that there are no problems with connections to target, because of the firewall, the firewall should be disabled.

Open the YasST Control Center if is not already open.

Choose Firewall in Security and Users

Choose Manually for Service Start.

Click on the Button Stop Firewall Now.

Click on Next and Accpet

The firewall is now disabled.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

21

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.2.4 Setup TFTP-Server

Later in this QuickStart you will learn how to write a new kernel image into the flash memory of the target. To download the kernel image from the target you will need a tftp server. In this passage we show how to configure a tftp server.

Open the YasST Control Center if is not already open.

Choose TFTP Server in Network Services.

22

Switch the selection to Enable.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

The path of the boot image directory should be /tftpboot.

If there is another path, change this path to /tftpboot.

Click on Finish.

Click Yes to create the directory tftpboot.

The TFTP Server will be started.

Close the YaST Control Center.

You have successfully finished the configuration of the host platform.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

23

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.3 Linux-PowerPC-Kit Setup

In this section you will find a description of the Linux-PowerPC-

Kit setup. The whole setup will be done by a graphical interface.

At the end of the setup, you will find all programs to develop applications for the target on your host PC.

The setup contains the following programs:

GNU C/C++ Cross Development Toolchain - you can use the toolchain to develop programs for the target on your host PC.

Eclipse SDK with CDT – the Eclipse SDK is a platform and application frameworks for building software, which can use the GNU C/C++ Cross Development Toolchain.

Komport - a program for serial communication with the target.

Linux Kernel archive– this kernel archive contains patches to compile the kernel for the phyCORE

MPC5200.

HelloWorld program - this program can be used to test downloading and executing a program on the target.

mkimage – this program will be used to create the kernel image file for the target.

There will be some additional configuration on your host PC:

The setup program will create desktop links to the installed programs.

The setup will also create desktop links to access the target with FTP and telnet.

The path of the cross development toolchain will be added to the environment path.

Read / Write access to the serial interface will be added to the user rights to use the serial communication program Komport.

The setup will configure Komport.

24

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Starting the Setup:

To start with the Linux-PowerPC-Kit Setup enter your

PHYTEC Linux-PowerPC-Disc into your CD-ROM drive.

The following dialog probably appears:

Click on the button Ignore.

Open a terminal program.

In the next step you will have to change to the directory accordant to your drive. If you use a dvd drive change to the directory /media/dvd. If you have installed a cdrom drive in your host, you will have to change to the directory /media/cdrom.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

25

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Type

cd /media/cdrom

or

cd /media/dvd accordant to your drive.

Enter ./install.sh to start the setup program.

26

Enter the root password.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Click on Yes to proceed.

The welcome screen appears.

Getting Started

Click on Next to continue.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

27

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Choose I accept the terms of the license agreement.

Click on button Yes.

28

Click on Next to continue.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

The default destination location is

/usr/local/share/Linux-PowerPC-Kit

for KPCM-030 and

/usr/local/share/Linux-PowerPCIO-Kit

for KPCM-032. All path and file statements within this QuickStart Instruction are based on the assumption that you accept the default install paths and drives. If you decide to individually choose different paths you must consider this for all further file and path statements when working with this QuickStart.

We strongly recommend accepting the default destination location.

The installation path for KPCM-30 and KPCM-032 is different. The path for the KPCM-032 has an additional

IO

. This has to be remembered, when typing in the paths in this quickstart.

Click on Next to install the setup files to

© PHYTEC Messtechnik GmbH 2007 L-679e_5

29

phyCORE-MPC5200B tiny/IO QuickStart Instructions

/usr/local/share/Linux-PowerPC[IO]-Kit.

30

The GNU GCC C/C++ Toolchain will be installed to the standard default directory /opt/powerpc-unknown-linux-gnu. The program mkimage will be installed in /usr/local/bin. All other programs and examples will be installed in the selected destination directory.

After the files are copied, a dialog box for the Eclipse installation will appear.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Click on Yes to install Eclipse. If you want to skip the installation of Eclipse choose No.

We recommend installing Eclipse even if you have already installed Eclipse on your system. This version of Eclipse includes additional plugins.

Click on Next.

Click on Finish to exit the setup.

Close the terminal window.

Now you will have to restart the KDE desktop.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

31

phyCORE-MPC5200B tiny/IO QuickStart Instructions

32

Select Log Out.

Select End Current Session.

Enter your login name and password to start the KDE desktop.

You have successfully installed the software for the Linux-

PowerPC-Kit. You can find the programs you will need to develop own applications for the target on your host system.

All necessary configurations were done by the setup program.

In the following passage you can find some advanced configuration information.

Advanced Configuration Information

In this part you can find some information how to configure the configuration steps of the setup program by your own. All the following configuration steps are done by the setup program. The information in this part is for users who want to use the Linux-

PowerPC-Kit on another Linux distribution than openSUSE. This is also interesting for users who want to see what configurations were done by the setup program.

During the setup program the GNU GCC C/C++ cross-compiler was installed in the directory /opt/powerpc-603e-linux-gnu. To start the cross-compiler directly from every part of the system, the path of the cross-compiler was added to the environment path.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

You can add the path of the cross-compiler to the environment by adding the following line in the file /etc/profile:

export PATH=/opt/powerpc-603e-linux-gnu/gcc-4.1.2-glibc-2.5kernel-2.6.18/bin:$PATH

You can open a terminal program and use the cross-compiler directly from the command line. For example you can compile a C program with the following command:

powerpc-603e-linux-gnu-gcc HelloWorld.c –o HelloWorld

In the standard configuration only the user root has write access to the serial interface. To use a serial communication tool like Komport with normal user rights, you have to be a member of the group uucp.

A user can be added to this group with the following command:

groupmod -A <username> uucp

The serial communication program was configured during the setup with the following configuration:

115200 baud, 1 Start bit, 8 data bits, 1 stop bit, no parity and no flow control.

If you want to use another program than Komport for serial communication, you will have to setup this program with these settings.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

33

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.4 Connecting the host with the target

In this section you will learn how to connect your host pc with the target. The connection will be done with a cross-over cable and serial cable. You will start Linux from flash on the target and you will be able to login with the serial communication program Komport and a telnet session via a peer-to-peer connection.

Connect the serial cable with the lower connector P3 on the target and the serial interface COM1 on your host.

Ensure to use the cable included in this RDK.

Connect the cross-over Ethernet cable with the RJ45 connector of the target and the right network card of your host.

34

Click on the Komport icon on your desktop.

Connect the AC adapter with the power supply connector X6

(12V) on your board.

The power connector should have 12 VDC inside and outside should be ground.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

After connecting the board with the power supply the target starts booting. When the target finished loading the file system you will see a screen similar to the following screenshot:

Type root to login.

After you have successfully logged in, you can close Komport.

When the target is connected with the Power supply first the bootloader U-Boot is loaded from the flash memory in the

RAM. After the bootloader is uncompressing and booting the

Kernel from the flash. When the Kernel is finished booting, the root file system is mounted. The used filesystem is JFFS2.

JFFS2 is a successor and a complete rewrite by Red Hat of the

JFFS. As its name implies, the Journalling Flash File System

Version 2 (JFFS2) implements a journalling filesystem on the

© PHYTEC Messtechnik GmbH 2007 L-679e_5

35

phyCORE-MPC5200B tiny/IO QuickStart Instructions

memory technologie device (MTD) it manages. JFFS2 does not attempt to provide a translation layer that enables the use of a traditional filesystem with the device. Instead, it implements a log-structured filesystem directly on the MTD device. The filesystem structure itself is recreated in RAM at mount time by

JFFS2 through a scan of the MTD device's log content.

In addition to its log-structured filesystem, JFFS2 implements wear leveling and data compression on the MTD device it manages, while providing power down reliability. .JFFS2 can gracefully restart and is be capable of restoring a filesystem's content without requiring outside intervention regardless of power failures.

Troubleshooting:

If you do not see an output in the Komport window, check the connections between the target and your host.

At the end of the setup you had to restart the KDE desktop. If you haven’t done yet, restart the KDE desktop and try again.

Another problem could be a wrong configuration of Komport.

Choose in the menubar of Komport Settings –> Configure

Komport.

Komport should be configured with the configuration in the following dialog:

36

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

If you don’t have these settings, adapt your settings accordant to the screenshot.

One problem could also be a missing read / write access to the serial interface:

Open the YaST Control Center.

Choose Security and Users.

Choose User Management

In the line of you user name should be the group uucp.

If the group is missing select your user name and click on

Edit

Select the tab Details.

Check in Groups the group uucp.

Click on button accept.

Click on Finish and close YaST.

Now you can test the network connection to the target.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

37

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Click on the Icon Telnet for Target on the desktop.

A new window with a connection to the target opens.

38

If you see the user login in the opened window, the network configurations were configured correctly.

Close the window.

You have successfully setup all configurations to access your target from your host.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Troubleshooting:

If you don’t see the user login, check the connection between the target and the host. If you have installed more than one network card on your host, be sure to connect the cable with the network card you have configured with the ip address

192.168.3.10.

If you don’t see the login, you may not have set up the right ip address of your host. You can check the settings of your network card by opening YaST. In the YaSt Control Center you can select Network Card in Network Devices. There should be the following configuration:

Information how to configure your network device can be found in the section Configuring the Host Plattform.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

39

phyCORE-MPC5200B tiny/IO QuickStart Instructions

2.5 Copying an Example to the Target

In this section you will learn how to copy an example program to the target using the FTP protocol with the Konqueror browser.

After that you will execute the example on the target. At the end of this passage you can find some information how to copy and execute a file on the target using the command line.

Copying a program to the target:

First click on the icon Linux-PowerPC-Kit for KPCM-030 or

Linux-PowerPCIO-Kit

for KPCM-032on the KDE desktop.

A new window with the content of the installation directory opens.

40

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Click on the directory HelloWorld.

Click on the icon FTP for Target on the desktop.

A window with a FTP session to the target opens. Now you have two windows, one for the target and one for the host. You can use these two windows to copy files per drag and drop from the host to the target.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

41

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Select the window with the HelloWorld program.

Click on the HelloWorld program and hold the left mouse button pressed.

Pull the program into the window with the FTP –session to the target and release the mouse button.

Choose Copy here in the appearing selection menu.

Close these two windows.

Executing a program on the target:

Click on the Icon Telnet for Target on the desktop.

42

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Enter root as login name and press Enter.

Enter ./HelloWorld and press Enter.

The program starts and you see the following output:

Welcome to the World of the phyCORE-MPC5200

Using SSH to execute a program on the target:

SSH can be used if you want to execute a program directly from the host on the target. Later this will be used to execute programs out of Eclipse on the target. To start programs out of Eclipse you have to log into target with SSH from the command line for one time. This is necessary to add the RSA public key of the target to the list of the known hosts.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

43

phyCORE-MPC5200B tiny/IO QuickStart Instructions

There are several authentication methods to use ssh. The used method is the hosts.equiv method combined with

RSA-based host authentication.

If the machine the user logs in from is listed in

/etc/hosts.equiv on the remote machine, and the user names are the same on both sides, the user is considered for log in.

On the target the file /etc/hosts.equiv has the following entry:

# file: /etc/hosts.equiv

#

# Allow access from everywhere.

#

+ +

The “+ +” means that every user can login from everywhere.

When the client is connected to the target the file

$HOME/.ssh/known_hosts is consulted when using hosts.equiv with RSA host authentication to check the public key of the target. The key must be listed in this file to be accepted. The client uses the same file to verify that it is connecting to the correct remote host. Then the client is connected to the host for the first time, the RSA public key of the host can be added to the file

$HOME/.ssh/known_hosts automatically. Then the client can be connected to the host without entering a password.

This authentication method closes security holes due to IP spoofing, DNS spoofing and routing spoofing. Note

/etc/hosts.equiv in general, is inherently insecure and should be disabled if security is desired.

44

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

Click on the Icon SSH for Target on the desktop.

A new window opens.

In this window you can see that the authenticity of the host can’t be established. This is normal if you want to create a connection for the first time.

Enter yes and press Enter to continue.

The RSA public key of the target will be permanently added to the list of the known hosts.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

45

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Troubleshooting:

If an error occurs and you can’t see the [email protected]

MPC5200B:~>

prompt open a terminal window and enter the following command:

rm ~/.ssh/known_hosts.

Try to login and enter:

ssh [email protected]

Enter yes to add the target to the known_hosts.

Now you should see the login prompt.

We expect that you haven’t changed the ssh configuration file on your host. If you change this file the authentication may not work.

Now you are logged in and you can execute programs on the target.

Type ./HelloWorld start the program.

The program starts and you see the following output:

Welcome to the World of the phyCORE-MPC5200!

Close the ssh window.

46

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting Started

If you click on the Icon SSH for Target again, the host will be connected directly to target and you will see the following screen:

Close the window.

You have successfully copied and executed an example on the target.

Advanced Information

Copying a program to the target with the command line:

Open a new terminal window.

Change to /usr/local/share/Linux-PowerPC[IO]-Kit/HelloWorld:

cd /usr/local/share/Linux-PowerPC[IO]-Kit/HelloWorld

Create a FTP-Session to the target: ftp [email protected]

Press Enter (no password required).

Copy the application file to the target by typing:

© PHYTEC Messtechnik GmbH 2007 L-679e_5

47

phyCORE-MPC5200B tiny/IO QuickStart Instructions

ftp>put HelloWorld

End the ftp session: ftp>exit

Executing a program on the target:

Open a telnet session to the target: telnet -l root 192.168.3.11

Type root and press Enter.

Type ./HelloWorld to start the application.

Executing a program on the target using ssh:

Type ssh [email protected] ./HelloWorld to start the program.

After the program is executed ssh will logout automatically.

48

© PHYTEC Messtechnik GmbH 2007 L-679e_5

3 Getting More Involved

Getting More Involved

70 min

In this chapter you will pass some continuative topics. First you will configure and compile your own kernel. With the kernel configuration tool you can add additional features or disable them, if they are not needed.

After compiling the kernel, you will learn how to write the newly created kernel into Flash and start the target with the new kernel.

Then you will start working with the Eclipse Platform using the

C/C++ Development Tools (CDT) in conjunction with the GNU GCC

C/C++ Toolchain. You will learn how to configure the Eclipse Platform and open an existing project. After that you will create your first own project and modify the source code from the example.

At the end of this chapter you will execute the program as external applications out of Eclipse and add your created application to the startup configuration of the target.

3.1 Configuring and Compiling the Kernel

In this part you will learn how to configure and build a new kernel. First you will copy the kernel archive to your home directory and extract the kernel source. Then you will configure the kernel with the graphical user interface of qconf. After the configuration you will compile the new kernel using the GNU cross development toolchain.

The used kernel is a standard kernel you can find on the homepage of www.kernel.org. The kernel archive in your setup installation directory already includes the patches for the phyCORE-MPC5200.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

49

phyCORE-MPC5200B tiny/IO QuickStart Instructions

At the first step open a new terminal.

50

Click on the terminal icon on your desktop.

Type the following commands to copy the kernel archive to your home directory:

cp /usr/local/share/Linux-PowerPC[IO]-Kit/linux-2.6.x.tar.bz2

~ cd ~

Unpack the kernel source archive:

tar –xvjf linux-2.6.x.tar.bz2

Change to newly created directory:

cd linux-2.6.x

The kernel usually builds the system for the native machine architecture. To use the powerpc architecture and powerpc crosscompiler, you will have to specify the architecture and the crosscompiler in the command line.

Type:

make xconfig ARCH=powerpc

The kernel configuration tool qconf starts.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Check I2C support in device drivers.

Check I2C device interface.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

51

phyCORE-MPC5200B tiny/IO QuickStart Instructions

52

Click on I2C Hardware Bus Support.

Check MPC107/824x/85xx/5200.

Save your configuration and exit the configuration tool.

Type the following command (one line):

make ARCH=powerpc

CROSS_COMPILE=powerpc-603e-linux-gnu- uImage

The kernel sources will be compiled and the new kernel will be built. The time of building the new kernel depends on your host platform. You will find the new kernel uImage in

arch/powerpc/boot.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

If the process of building the kernel stops with an error, check the parameter of ARCH and CROSS_COMPILE.

Close the terminal window.

In this section you learned how to configure and compile a new kernel. Now you are able add new features to the kernel.

3.2 Writing the Kernel into Flash

In this passage you will find a description how to write the newly created kernel into the flash memory. Before the kernel can be written into flash, you will have to download the kernel from a tftp server. This will be done in the command line of the bootloader.

The kernel will be copied into RAM, starting at address 0x400000. Then you will have to erase the part of the FLASH, where you want to copy the Kernel image.

In the default configuration you will find five partitions on the target. The first partition contains a second bootloader for rescue issues, the second partition contains the kernel, the third the root file system, the forth contains the bootloader and the last contains some free space at the end of the FLASH.

The five partitions have the following address ranges for KPCM-

030:

0xFF000000 - 0xFF03FFFF U-Boot-Low (256k)

0xFF040000 - 0xFF1FFFFF Kernel (1792k)

0xFF200000 - 0xFFEFFFFF Root-FS(13312k)

0xFFF00000 - 0xFFF3FFFF U-Boot (256k)

0xFFF40000 – 0xFFF7FFFF Oftree (256k)

0xFFF80000 - 0xFFFFFFFF Space (768k)

The five partitions have the following address ranges for KPCM-

032:

© PHYTEC Messtechnik GmbH 2006 L-679e_5

53

phyCORE-MPC5200B tiny/IO QuickStart Instructions

0xFE000000 - 0xFE03FFFF U-Boot-Low (256k)

0xFE040000 - 0xFE1FFFFF Kernel (1572k)

0xFE200000 - 0xFFEFFFFF Root-FS(30408k)

0xFFF00000 - 0xFFF3FFFF U-Boot (256k)

0xFFF40000 - 0xFFFFFFFF Space (768k)

You should never erase the U-Boot partition. If this partition is erased, you can’t restart your target.

First open a new terminal window, if is not open yet.

Change to the kernel directory:

cd ~/linux-2.6.x/arch/powerpc/boot

Change to user root:

su root

Copy new Kernel image to the directory tftpboot :

cp uImage /tftpboot exit

Close the terminal window.

54

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Open Komport and press the RESET button on the target.

You will see the output Hit any key to stop autoboot.

Press any key to stop autoboot.

You can download the kernel from the TFTP – server, erasing the required Flash area and writing the kernel from the RAM into the Flash with one simple command.

Before you can execute this command you have to set the name of your kernel image to the environment variable uimage. Then you can start downloading and writing the kernel image into the

Flash using the command run prg_kernel.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

55

phyCORE-MPC5200B tiny/IO QuickStart Instructions

56

Type the following command to set the name of your kernel image:

setenv uimage uImage

Type run prg_kernel to download and write the kernel into the Flash

The copy process can take up to a minute, depending on the speed of your system.

Press the RESET button on the target to restart with the new kernel.

The target will restart booting with the newly created kernel.

Close Komport when the target successfully finished with booting the kernel and mounting the root filesystem.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Troubleshooting:

If any problem occurs after writing the kernel into Flash, you can write the kernel and root-file system from you setup CD into the Flash.

You can find the kernel and root file system in the directory

Linux\image.

To restore your system for KPCM-030 copy the files

uImage-pcm030-x.0

and root-pcm030-x.0.jffs2 into the directory /tftpboot

Type the following commands in the u-boot command line

setenv uimage uImage-pcm030-x.0

setenv jffs2 root-pcm030-x.0.jffs2 run prg_kernel run prg_jffs2

To restore your system for KPCM-032 copy the files

uImage-pcm032-x

and

root-pcm030-x.jffs2

into the directory /tftpboot

Type the following commands in the u-boot command line

setenv uimage uImage-pcm032-x setenv jffs2 root-pcm032-x.jffs2 run prg_kernel run prg_jffs2

In this section you learned how to download a kernel image from a tftp server into the RAM memory of the target. The kernel was written from RAM to flash and the target was started with the new kernel

.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

57

phyCORE-MPC5200B tiny/IO QuickStart Instructions

3.3 Opening an Existing Project

In this section you will import an existing Eclipse project into your workspace. The imported example project will be compiled with the crosscompiler. After compiling the project you will copy and execute the newly created program on the target.

Copying the HelloWorld project:

Click on the Linux-PowerPC[IO]-Kit directory icon.

Click on examples_eclipse

Right-click the HelloWorld directory and select Copy.

Browse to the directory /home/<your Home>

If the workspace directory doesn’t exist, create a directory workspace in your home directory.

Select the workspace directory.

Right-click in the workspace directory and select Paste.

Close the Konqueror file browser.

Starting Eclipse and importing the example project:

Click on the Eclipse icon to start the application. You can find the icon on your desktop.

58

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Confirm the workspace directory with OK.

The Welcome screen will appear.

Select File -> Import in the menu bar.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

59

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Select Existing Projects into Workspace.

Click on button Next.

60

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Select Browse.

Double-Click on the HelloWorld directory.

Click on the OK button.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

61

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Select Finish to import the project.

Close the Welcome Screen.

62

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

The HelloWorld program will be compiled and the HelloWorld executable is built for the target. The HelloWorld file is also copied to the target using the ftp command. When the file is copied to target, the program is executed on the target using ssh.

You can see the “Welcome to the .. “ output in the console window.

Select the Console tab.

You will see the following content in the console window:

If the project is not built automatically, you will have to check in the menu bar Project -> Build automatically.

You have successfully passed the first steps with the Eclipse

IDE. You are now able to import existing projects into the eclipse workspace. You can compile an existing project and execute the program on the target.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

63

phyCORE-MPC5200B tiny/IO QuickStart Instructions

3.4 Creating a New Project

In this section you will learn how to create a new project with

Eclipse and how to configure the project to use the GNU C/C++

Cross Development Toolchain.

Open Eclipse if it isn´t already open.

Select in the menu bar File -> New -> Project.

A new dialog opens.

64

Select Managed Make C Project and click on Next.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Enter the project name myHelloWorld and click on Next.

Click on button Next.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

65

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Click on button Finish.

66

Select Yes to open the C/C++ perspective.

You will see the C / C++ IDE with the created Project

myHelloWorld

.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Right-Click on HelloWorld.c in the HelloWorld Project.

Select Copy.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

67

phyCORE-MPC5200B tiny/IO QuickStart Instructions

68

Select the myHelloWorld project.

Right-Click and select Paste.

Double-Click on HelloWorld.c in the project myHelloWorld.

If Build Automatically in the menu Project is selected, the

HelloWorld

application will be compiled and created with the standard GNU GCC C/C++ Compiler. You can find the executable in workspace/ myHelloWorld/Debug.

To compile your project for the target, you will have to use the

GNU C/C++ Cross-Compiler.

Right-Click the myHelloWorld project and choose Properties.

The properties dialog opens.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Select C/C++ Build.

Enter at Command: powerpc-603e-linux-gnu-gcc.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

69

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Select GCC C Linker.

Enter at Command: powerpc-603e-linux-gnu-gcc.

70

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Select GCC Assembler.

Change Command as to powerpc-603e-linux-gnu-as.

Click on Apply.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

71

phyCORE-MPC5200B tiny/IO QuickStart Instructions

72

Select the Build Steps tab:

Enter following commands in the Command text field:

ftp -u ftp://root:[email protected]/ ./myHelloWorld; ssh [email protected] ./myHelloWorld

Be sure to enter the semicolon between ./myHelloWorld and ssh.

Click on Apply.

Click on OK.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Select in the menu bar Project->Clean.

Confirm with OK.

The project will be rebuilt.

Select the Console tab.

If no errors occur while building, you will see the following output:

You have successfully created your first own project with the

Eclipse IDE. You have configured the project to create an executable program for your target platform.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

73

phyCORE-MPC5200B tiny/IO QuickStart Instructions

3.5 Changing the Demo

Now we will extend the myHelloWorld application. The extended myHelloWorld application will write an output on the serial interface ttyPSC0 and the standard output.

Open Eclipse if is not opened yet.

Double-Click HelloWorld.c in the myHelloWorld project.

First include two additional header files:

#include <unistd.h>

#include <fcntl.h>

Then add the function write_tty to write n bytes to the serial interface /dev/ttyPSC0.

void write_tty(char *buffer, int count)

{

int out;

out=open("/dev/ttyPSC0",O_RDWR);

write(out,buffer,count);

close(out);

}

Enter the following two lines in the main function to declare the buffer und call the write_ttyS0() function.

char buf[]={"Welcome to the World of the phyCORE-

MPC5200

(ttyPSC0)\n"}; write_tty(buf,sizeof(buf)-1);

On the next screenshot you can see the complete program.

74

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Save your program after changing the code.

The Application will be compiled, built, copied to the target and executed.

Executing the program on the target with Komport:

Click on the Komport icon on the desktop

If your are not logged in, enter root and press enter.

Type ./myHelloWorld to start the application.

You will see the following output:

Welcome to the world of the phyCORE-MPC5200! (ttyPSC0)

Welcome to the world of the phyCORE-MPC5200!

© PHYTEC Messtechnik GmbH 2006 L-679e_5

75

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Close Komport.

If you start the application over a ssh session you only see one output line. If you execute the program with Komport, you see two output lines.

The first line is a direct output on the serial interface. You can’t see this line in a telnet session, because you are connected over a TCP/IP connection to the target. With

Komport you have direct access to serial interface, so you can see two output lines.

In this passage you have changed an existing application. In this part you also learned how to to access the serial interface. First you called the function open() on the device /dev/ttyS0. The return value of this function was a file descriptor. With the file descriptor you called the function write() to send n bytes to the device /dev/ttyS0. After that the file descriptor was closed with the function close().

This principle procedure is quite typical for Linux, because

Linux treats everything like a file.

3.6 Starting a program out of Eclipse on the target

After compiling a project in Eclipse, the program is copied to target and directly executed. A program can also be executed on the target without compiling a project. In the following steps you will learn how to start a program on the target as external tool.

76

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Select in the menu bar Run->External Tools->External

Tools

Select Program.

Select New.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

77

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Enter Name: myHelloWorld Target

Enter Location: /usr/bin/ssh

Enter Arguments: [email protected] ./myHelloWorld.

Select Apply.

78

Select Run.

If you want to execute the application the next time you can use the Run External Programs button from the menu bar.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

© PHYTEC Messtechnik GmbH 2006 L-679e_5

79

phyCORE-MPC5200B tiny/IO QuickStart Instructions

3.7 Starting the program when booting the target

In this passage you will integrate the created myHelloWord program into the start process of the target. When you have finished this part, the myHelloWorld will be started automatically each time you are starting the target.

The scripts for controlling the system are placed in /etc/init.d.

These are executed directly or indirectly by /sbin/init, the father of all processes. The configuration of the /sbin/init is given by

/etc/inittab

.

After system startup, /sbin/init will switch on the default run level given in /etc/inittab. It calls the run level master script

/etc/init.d/rcS to start or stop services provided by the other scripts in /etc/init.d/. This is done by the help symbolic links in the directory /etc/rc.d/ to the directory /etc/init.d, which include the actual scripts.

First you will have to create a start script in /etc/init.d.

Click on the Icon FTP for target on your desktop.

80

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Browse to /etc/init.d. If an authorization dialog opens, click on OK.

In the directory /etc/init.d you can find existing scripts.

Right-Click in the opened window and select Create New–

>Text File.

Enter myHelloWorld.

Click on OK.

Right-Click on myHelloWorld and select Open With.

Enter kwrite and click on OK.

The text editor kwrite starts with an empty document.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

81

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Enter the following two lines:

#!/bin/sh

/home/myHelloWorld

Select File –> Save

Close the kwrite window.

Close the FTP window.

82

Click on the icon Telnet for Target

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Getting More Involved

Enter root and press Enter to login.

Change to the directory /etc/rc.d. Type the following command:

cd /etc/rc.d

Enter ls -l to show the directory content.

You can see the different links to the scripts in the directory

/etc/init.d

. The script udev is the script which is started first, because the link starts with S00_ . The last started script is pwm.

To start your program myHelloWorld automatically you have to create a new link to the start script.

On your target system could exist more than 12 scripts. If you want to create a new link, choose the next free number. In this example you can use S12_ …

Create a symbolic link in /etc/rc.d to etc/init.d/myHelloWorld. Enter the following commands:

ln -s /etc/init.d/myHelloWorld /etc/rc.d/S12_myHelloWorld

Type ls –l again to see the newly created link.

Close the window.

Open Komport.

Push the RESET button on the target to restart your system.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

83

phyCORE-MPC5200B tiny/IO QuickStart Instructions

The program myHelloWorld starts automatically on startup.

Close Komport.

Now you can add own programs in the root file system and start these programs automatically.

You have successfully passed the Getting Involved part of the QuickStart.

84

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

4 Debugging an Example Project

20 min

In this chapter you will learn using the GNU GDB-Debugger on the Host for Remote Debugging in conjunction with the GDB-Server on the target.

The GNU GDB debugger is the symbolic debugger of the GNU project and is arguably the most important debugging tool for any Linux system.

First you will start the GDB-Server on the target. Then you will configure the Eclipse Platform and start the GDB-Debugger out of Eclipse using the

Debug View.

The CDT extends the standard Eclipse Debug View with functions for debugging C/C++ code. The Debug View allows you to manage the debugging or running of a program in the Workbench. Using the Debug

View you will be able to set breakpoints/watchpoints in the code and trace variables and registers. The Debug View displays the stack frame for the suspended threads for each target you are debugging. Each thread in your program appears as a node in the tree, and the Debug View displays the process for each target you are running.

The GDB is running on the host and used to debug. The GDB-Server is running on the target and it is used to start and control the program to debug. The GDB and GDB-Server can communicate over TCP/IP and the serial interface. In this QuickStart we will only describe debugging via

TCP.

4.1 Starting the GDB-Server on the target

In this passage you will learn how to start the GDB-Server on the target. The GDB-Server will be used to start the myHelloWorld program. To debug a program with the GDB, the program needs extending debugging symbols. This has already been added while building the program.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

85

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Open Komport

Type root and press Enter.

Start the gdbserver:

gdbserver 192.168.3.10:10000 myHelloWorld

You have started the GDB-server on the target. The GDB-Server is now waiting for connections on port 10000.

86

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

4.2

Configuring and starting the debugger in Eclipse

In this passage you will learn how to configure your project settings to use Eclipse with the GNU GDB debugger. After the configuration of your project settings, the GDB debugger will start and connect to the GDB-server on the target.

Start Eclipse if the application is not started.

Select myHelloWorld in the Navigator window.

Select in the menu bar Run->Debug.

A dialog to create, manage and run applications will appear.

Select C/C++ Local Application.

Click on New.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

87

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Select the Search Project button.

Click on OK .

88

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

Select the Debugger tab.

Select Debugger: GDB Server.

Click on the Browse button in the line of the GDB debugger.

A new dialog to choose the directory of the GDB opens.

Double-Click on File System.

Navigate to /opt/powerpc-603e-linux-gnu/gcc-4.1.2-glibc-

2.5-kernel-2.6.18

/

bin.

Select powerpc-603e-linux-gnu-gdb.

Select OK.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

89

phyCORE-MPC5200B tiny/IO QuickStart Instructions

90

Select Connection: TCP

Enter the Host name IP address: 192.168.3.11

Click the Apply button.

The host name IP address, is the IP address of the target.

Click Debug button.

A new dialog opens.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

Select yes to switch to the debug perspective.

The debug perspective opens and the debugger stops at the first line automatically. The GDB is connected to the GDB Server on the target.

You have configured your project for remote debugging. You have started the GDB debugger in Eclipse and connected the

GDB with the GDB Server. You can start to debug the project.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

91

phyCORE-MPC5200B tiny/IO QuickStart Instructions

4.3 Setting a breakpoint

Now you will set a breakpoint in your program. The breakpoint will be set in the last line of the main function. If you resume the application, the debugger will stop in this line.

Select the last line in main.

Right-Click left in the small grey border and select Toggle

Breakpoint

to set a new breakpoint.

92

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

4.4 Stepping and Watching Variables Content

In this part you will step through the example project with the debugger. You will also learn how to watch the content of a variable.

Expand buf in the variables window

Click on the Step Over button in the Debug Window to step to the next line.

You will see the content of buf in the Variable Window.

Click on the variable buf.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

93

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Then click on the button Step into to enter the function

write_tty.

The debugger stops in write_tty.

You will see the following variable window:

Click on the variable buffer.

There will probably be another address at the pointer buffer.

94

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

4.5 Changing Variables Values

In this section you will change the value of a variable. At the end of this part you will see the effect of the changes.

Select count in the variable window.

Right-click on Count and select Change Value.

Change the value of count to 7 and select OK.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

95

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Open Komport if the application is not open.

Chang to Eclipse.

Click on the Step Over button for two times.

Change to Komport.

You will see the output Welcome in the Komport window.

96

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

4.6 Using the Memory Monitor

At the last part in this chapter you will use the memory monitor to watch the content at a memory address.

Select the Memory tab in the window below.

Click on the button Add Memory Monitor.

Enter the address of buffer and click on OK.

Change the window size.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

97

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Click on the Add Rendering Button.

Select ASCII and click on the OK button.

98

You can see the content of the variable buf at the address

0x7fc1fdd8.

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Debugging

Next click on the Resume button in the menubar.

The debugger stops at the breakpoint in the line of return.

Click on the Resume button to end the application.

You have successfully passed the debugging chapter. You are now able to configure and use Eclipse for remote debugging.

You can step through a project, watch and change the content of variables and you can use the memory monitor to view the content at a memory address.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

99

phyCORE-MPC5200B tiny/IO QuickStart Instructions

5 Further Information

In the PTXdist User Manual you can find further information. You can find the manual in the directory /doc/OSELAS on your setup cdrom.

The PTXdist User Manual includes information about the following topics:

Installation and Configuration of PTXdist

Using and Building a Toolchain

Create and activate a project

Running phyCORE-MPC5200 from network only

Running phyCORE-MPC5200 stand alone

U-Boot and phyCORE-MPC5200

• phyCORE-MPC5200’s BSP

Using CAN on phyCORE-MPC5200

100

© PHYTEC Messtechnik GmbH 2007 L-679e_5

6 Summary

Suggestions for Improvements

This QuickStart Instruction gave a general "Rapid Development Kit" description, as well as software installation advice and an example program enabling quick out-of-the box start-up of the phyCORE

-MPC5200B in conjunction with the Eclipse IDE and GNU

GCC/C++ software tools.

In the Getting started section you learned to configure your host to provide a basis for working with your target platform. You installed the Rapid

Development Kit software and you learned to copy and run a program on the target.

In the Getting More Involved section you got a step-by-step instruction on how to configure and build a new kernel, modify the example, create and build new projects and copy output files to the phyCORE –MPC5200B using Eclipse.

The Debugging part of this QuickStart gave you information on setting up and using the GDB debugger with the Eclipse IDE. You learned how to set breakpoints, watching and changing variables content and using the memory monitor.

© PHYTEC Messtechnik GmbH 2006 L-679e_5

101

phyCORE-MPC5200B tiny/IO QuickStart Instructions

Document: phyCORE -MPC5200 with Linux

QuickStart Instructions

Document number: L-679e_5, December 2007

How would you improve this manual?

Did you find any mistakes in this manual?

Submitted by:

Customer number:

Name:

Company:

Address:

Return to:

PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

55129 Mainz

Fax: +49 (6131) 9221-33

102 page

© PHYTEC Messtechnik GmbH 2007 L-679e_5

Suggestions Improvements

© PHYTEC Messtechnik GmbH 2006 L-679e_5

103

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
