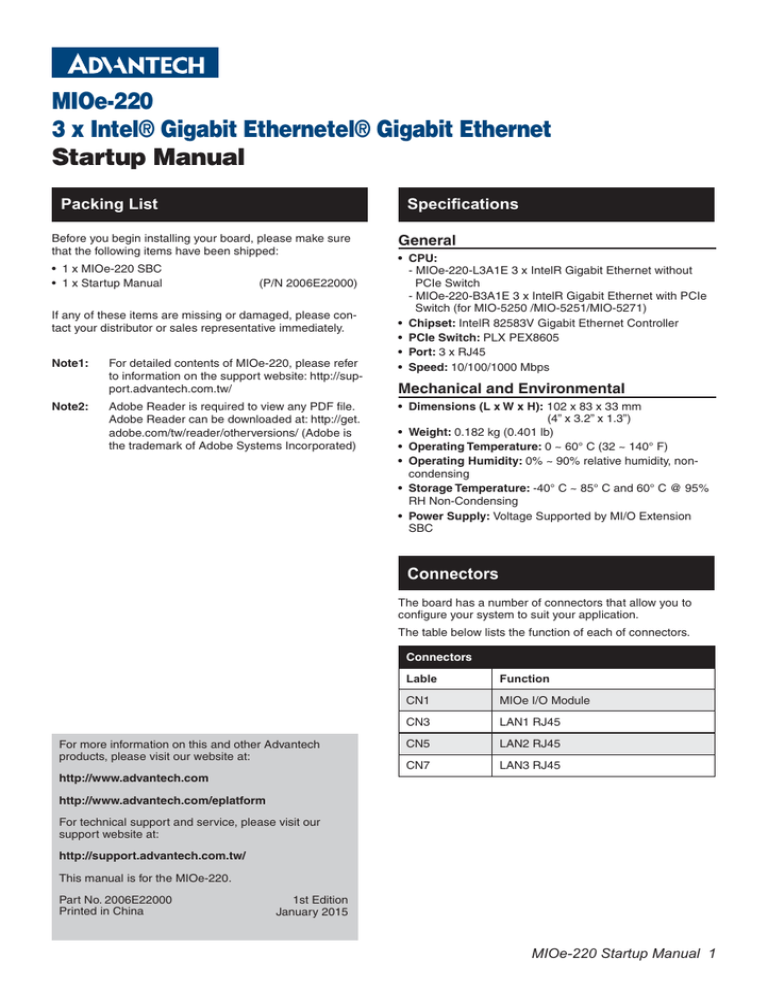

User manual | MIOe-220 3 x Intel® Gigabit Ethernetel® Gigabit Ethernet Startup Manual

MIOe-220
3 x Intel® Gigabit Ethernetel® Gigabit Ethernet
Startup Manual
Packing List
Specifications
Before you begin installing your board, please make sure
that the following items have been shipped:
• 1 x MIOe-220 SBC
• 1 x Startup Manual (P/N 2006E22000)
If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
Note1: For detailed contents of MIOe-220, please refer
to information on the support website: http://support.advantech.com.tw/
Note2: Adobe Reader is required to view any PDF file.
Adobe Reader can be downloaded at: http://get.
adobe.com/tw/reader/otherversions/ (Adobe is
the trademark of Adobe Systems Incorporated)
General
• CPU:
- MIOe-220-L3A1E 3 x IntelR Gigabit Ethernet without
PCIe Switch
- MIOe-220-B3A1E 3 x IntelR Gigabit Ethernet with PCIe
Switch (for MIO-5250 /MIO-5251/MIO-5271)
• Chipset: IntelR 82583V Gigabit Ethernet Controller
• PCIe Switch: PLX PEX8605
• Port: 3 x RJ45
• Speed: 10/100/1000 Mbps
Mechanical and Environmental
• Dimensions (L x W x H): 102 x 83 x 33 mm
(4” x 3.2” x 1.3”)
• Weight: 0.182 kg (0.401 lb)
• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
• Operating Humidity: 0% ~ 90% relative humidity, noncondensing
• Storage Temperature: -40° C ~ 85° C and 60° C @ 95%
RH Non-Condensing
• Power Supply: Voltage Supported by MI/O Extension
SBC
Connectors
The board has a number of connectors that allow you to
configure your system to suit your application.
The table below lists the function of each of connectors.
Connectors
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
Lable
Function
CN1
MIOe I/O Module
CN3
LAN1 RJ45
CN5
LAN2 RJ45
CN7
LAN3 RJ45
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/
This manual is for the MIOe-220.
Part No. 2006E22000
Printed in China
1st Edition
January 2015
MIOe-220 Startup Manual 1
Connector Locations
Figure 1: MIOe-220 Connector Locations (Top Side)
Figure 2: MIOe-220 Connector Locations (Bottom Side)
Figure 3: MIOe-220 Connector Locations (Coastline)
2 MIOe-220 Startup Manual
Mechanical Drawing
Figure 4: MIOe-220 Mechanical Drawing (Top Side)
Figure 5: MIOe-220 Mechanical Drawing (Bottom Side)
MIOe-220Startup Manual 3
Mechanical Drawing
Figure 6: MIOe-220 Mechanical Drawing (MIOe Connector)
33,39
Figure 7: MIOe-220 Mechanical Drawing (Coastline)
Quick Installation Guide
1. There are eight screws, six studs and two nuts inside the white box, please install the heatsink into place as per illustration
below:
4 MIOe-220 Startup Manual
