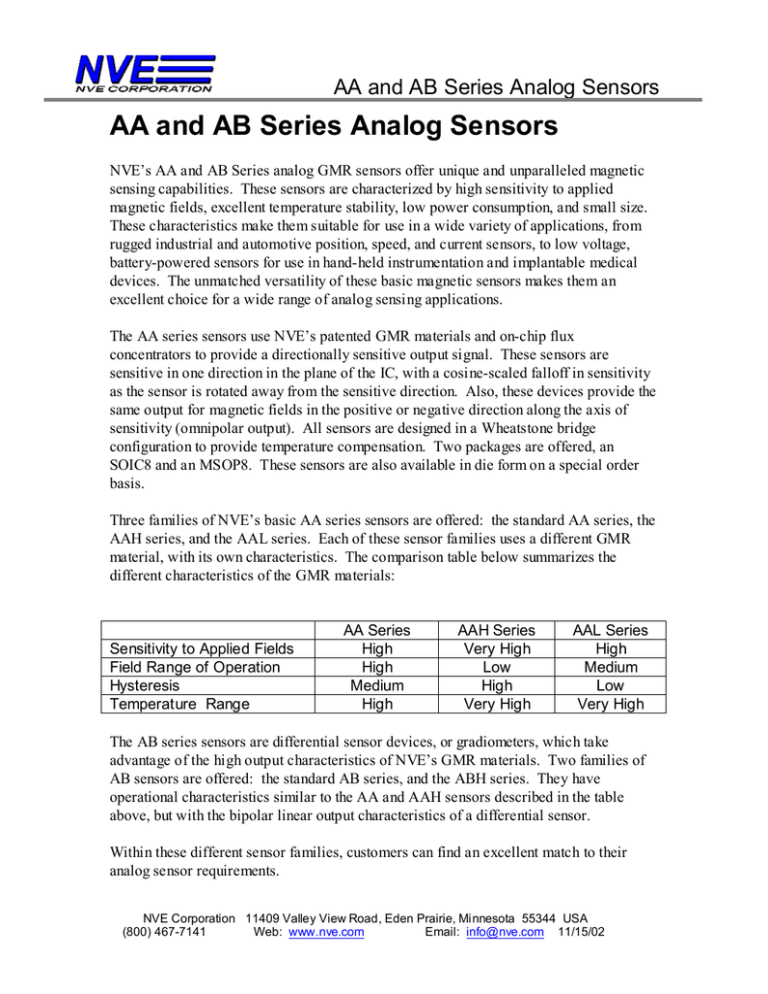

AA and AB Series Analog Sensors
AA and AB Series Analog Sensors
NVE’s AA and AB Series analog GMR sensors offer unique and unparalleled magnetic
sensing capabilities. These sensors are characterized by high sensitivity to applied
magnetic fields, excellent temperature stability, low power consumption, and small size.
These characteristics make them suitable for use in a wide variety of applications, from
rugged industrial and automotive position, speed, and current sensors, to low voltage,
battery-powered sensors for use in hand-held instrumentation and implantable medical
devices. The unmatched versatility of these basic magnetic sensors makes them an
excellent choice for a wide range of analog sensing applications.
The AA series sensors use NVE’s patented GMR materials and on-chip flux
concentrators to provide a directionally sensitive output signal. These sensors are
sensitive in one direction in the plane of the IC, with a cosine-scaled falloff in sensitivity
as the sensor is rotated away from the sensitive direction. Also, these devices provide the
same output for magnetic fields in the positive or negative direction along the axis of
sensitivity (omnipolar output). All sensors are designed in a Wheatstone bridge
configuration to provide temperature compensation. Two packages are offered, an
SOIC8 and an MSOP8. These sensors are also available in die form on a special order
basis.
Three families of NVE’s basic AA series sensors are offered: the standard AA series, the
AAH series, and the AAL series. Each of these sensor families uses a different GMR
material, with its own characteristics. The comparison table below summarizes the
different characteristics of the GMR materials:
Sensitivity to Applied Fields
Field Range of Operation
Hysteresis
Temperature Range
AA Series
High
High
Medium
High
AAH Series
Very High
Low
High
Very High
AAL Series
High
Medium
Low
Very High
The AB series sensors are differential sensor devices, or gradiometers, which take
advantage of the high output characteristics of NVE’s GMR materials. Two families of
AB sensors are offered: the standard AB series, and the ABH series. They have
operational characteristics similar to the AA and AAH sensors described in the table
above, but with the bipolar linear output characteristics of a differential sensor.
Within these different sensor families, customers can find an excellent match to their
analog sensor requirements.
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AA and AB Series Analog Sensors
Quick Reference: AA and AB Series
For comparison and product selection purposes, the following table lists all available AA
and AB series analog sensors, with some of their key characteristics:
Magnetometers:
Part
Number
Linear
Range
(|Oe1|)
AA002-02
AA003-02
AA004-00
AA004-02
AA005-02
AA006-00
AA006-02
AAH002-02
AAH004-00
AAL002-02
Min
1.5
2.0
5.0
5.0
10.0
5.0
5.0
0.6
1.5
1.5
Max
10.5
14
35
35
70
35
35
3.0
7.5
10.5
Sensitivity
(mV/V-Oe1)
Maximum
Nonlinearity
(% Uni.2)
Maximum
Hysteresis
(% Uni.2)
Maximum
Operating
Temp
(°C)
Typical
Resistance
(Ohms)
Package
2
2
2
2
2
2
2
4
4
2
4
4
4
4
4
4
4
15
15
2
125
125
125
125
125
125
125
150
150
150
5K
5K
5K
5K
5K
30K
30K
2K
2K
5.5K
SOIC8
SOIC8
MSOP8
SOIC8
SOIC8
MSOP8
SOIC8
SOIC8
MSOP8
SOIC8
Resistor
Spacing
(mm)
Maximum
Nonlinearity
(% Uni.2)
Maximum
Hysteresis
(% Uni.2)
Maximum
Operating
Temp
(°C)
Typical
Resistance
(Ohms)
Package
0.5
0.5
0.5
0.5
2
2
4
4
4
4
15
15
125
125
150
150
2.5K
2.5K
1.2K
1.2K
SOIC8
MSOP8
SOIC8
MSOP8
Min
3.0
2
0.9
0.9
0.45
0.9
0.9
7.5
3.2
3.0
Max
4.2
3.2
1.3
1.3
0.65
1.3
1.3
13.0
4.8
4.2
Gradiometers:
Part
Number
Linear
Range
(|Oe1|)
AB001-02
AB001-00
ABH001-02
ABH001-00
Min
20
20
5
5
Max
200
200
40
40
Notes:
1.
2.
1 Oersted (Oe) = 1 Gauss in air.
Unipolar operation means exposure to magnetic fields of one polarity, for example 0 to +30
Gauss, or –2 to –50 Gauss. Bipolar operation (for example –5 to + 10 Gauss) will increase
nonlinearity and hysteresis.
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AA Sensors
AA Sensors
Features:
⇒
⇒
⇒
⇒
⇒
⇒
⇒
Excellent Sensitivity to Applied Magnetic Fields
Wheatstone Bridge Analog Output
Operating Temperature to 125°C Continuous
Wide Linear Range of Operation
Near-Zero Voltage Operation
DC to >1MHz Frequency Response
Small, Low Profile Surface Mount Packages
Applications:
⇒
⇒
⇒
⇒
General Motion, Speed, and Position Sensing
Low Power, Low Voltage Applications
Low Field Sensing for Magnetic Media Detection
Current Sensing
Description:
The basic AA series GMR sensors are general purpose magnetometers for use in a wide
variety of applications. They exhibit excellent linearity, a large output signal with
applied magnetic fields, stable and linear temperature characteristics, and a purely
ratiometric output.
Pin-out
V+ (supply)
Functional Block Diagram
OUT+
pin 8,
V+(supply)
shield
NVE
AAxxx
-02
Orientation
chamfer
GMR
pin 5, OUT+
shield
OUT -
V- (ground)
pin 1, OUT-
pin 4, V(ground)
Axis of Sensitivity
Magnetic Characteristics:
Part
Number
AA002-02
AA003-02
AA004-00
AA004-02
AA005-02
AA006-00
AA006-02
Saturation
Field (Oe1)
15
20
50
50
100
50
50
Linear
Range
(|Oe1|)
Min
Max
1.5
10.5
2.0
14
5
35
5
35
10
70
5
35
5
35
Sensitivity
(mV/V-Oe1)
Resistance
(Ohms)
Package2
Die Size3
(µm)
Min
3.0
2
0.9
0.9
0.45
0.9
0.9
5K ± 20%
5K ± 20%
5K ± 20%
5K ± 20%
5K ± 20%
30K ± 20%
30K ± 20%
SOIC8
SOIC8
MSOP8
SOIC8
SOIC8
MSOP8
SOIC8
436x3370
436x3370
411x1458
411x1458
411x1458
836x1986
836x1986
Max
4.2
3.2
1.3
1.3
0.65
1.3
1.3
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AA Sensors
General Characteristics:
Property
Input Voltage Range
Operating Frequency
Operating Temperature Range
Bridge Electrical Offset
Signal Output at Max. Field
Nonlinearity
Hysteresis
TCR
TCOI
TCOV
Off Axis Characteristic
ESD Tolerance
Notes:
1.
2.
3.
4.
5.
6.
7.
Min
4
<1
DC
-50
-4
Typical
Max
4
± 25
>1
125
+4
Unit
Volts
MHz
°C
mV/V
mV/V
5
% (unipolar)
5
% (unipolar)
6
% / °C
6
% / °C
6
% / °C
60
2
4
+0.14
+0.03
-0.1
7
Cos β
400
V pin to pin HBM
1 Oersted (Oe) = 1 Gauss in air.
See the Appendix for package dimensions and tolerances.
Sensors can be provided in die form by special request.
GMR AA Series sensors are pure ratiometric devices, meaning that they will operate properly at
extremely low supply voltages. The output signal will be proportional to the supply voltage.
Maximum voltage range is limited by the power dissipation in the package and the maximum
operating temperature of the sensor.
Unipolar operation means exposure to magnetic fields of one polarity, e.g., 0 to 30 Gauss, or -2
to -50 Gauss, but not -20 to +30 Gauss (bipolar operation). Bipolar operation will increase
nonlinearity and hysteresis.
TCR is resistance change with temperature with no applied field. TCOI is the output change with
temperature using a constant current source to power the sensor. TCOV is the output change with
temperature using a constant voltage source to power the sensor. See the graphs below.
Beta (β) is any angle from the sensitive axis.
Constant Voltage Supply
Constant Current Supply
1.2
1.2
-50° C
1
-50° C
0° C
+50° C
+100°C
1
0° C
+50° C
0.8
+100°C
0.6
0.4
0.2
0
Normalized Output (V)
Normalized Output (V)
0.8
0.6
0.4
0.2
0
-80
-60
-40
-20
0
20
-0.2
40
60
80
100
-80
-60
-40
-20
0
20
40
60
-0.2
-0.4
Applied Field (Oe)
-0.4
Applied Field (Oe)
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
80
100
AAH Sensors
AAH Sensors
Features:
⇒
⇒
⇒
⇒
⇒
⇒
Extremely High Sensitivity to Applied Magnetic Fields
Wheatstone Bridge Analog Output
Temperature Tolerance to 150°C Continuous
Near-Zero Voltage Operation
DC to >1MHz Frequency Response
Small, Low Profile Surface Mount Packages
Applications:
⇒
⇒
⇒
⇒
Low Voltage, High Temperature Applications
Low Field Sensing for Magnetic Media Detection
Earth’s Magnetic Field Detection
Current Sensing
Description:
The AAH series GMR sensors are manufactured with a high sensitivity GMR material,
making them ideally suited for any low magnetic field application. They are also
extremely temperature tolerant, to +150°C operating temperatures.
Pin-out
V+ (supply)
Functional Block Diagram
OUT+
pin 8,
V+(supply)
NVE
AAxxx
-02
Orientation
chamfer
shield
GMR
pin 5, OUT+
shield
OUT V- (ground)
Axis of Sensitivity
pin 1, OUT-
pin 4, V(ground)
Magnetic Characteristics:
Part
Number
AAH002-02
AAH004-00
Saturation
Field (Oe1)
6
15
Linear
Range
(|Oe1|)
Min
Max
0.25
3.0
0.5
7.5
Sensitivity
(mV/V-Oe1)
Min
11.0
3.2
Max
18.0
4.8
Resistance
(Ohms)
Package2
Die Size3
(µm)
2K ± 20%
2K ± 20%
SOIC8
MSOP
436x3370
411x1458
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AAH Sensors
General Characteristics:
Property
Input Voltage Range
Operating Frequency
Operating Temperature Range
Bridge Electrical Offset
Signal Output at Max. Field
Nonlinearity
Hysteresis
TCR
TCOI
TCOV
Off Axis Characteristic
ESD Tolerance
Min
4
<1
DC
-50
-5
Typical
Max
4
± 25
>1
150
+5
Unit
Volts
MHz
°C
mV/V
mV/V
5
% (unipolar)
5
% (unipolar)
6
% / °C
6
% / °C
6
% / °C
40
6
15
+0.30
-0.28
-0.40
7
Cos β
400
V pin to pin HBM
Notes:
1.
1 Oersted (Oe) = 1 Gauss in air.
2.
See the Appendix for package dimensions and tolerances.
3.
Sensors can be provided in die form by special request.
4.
GMR AAH Series sensors are pure ratiometric devices, meaning that they will operate properly at
extremely low supply voltages. The output signal will be proportional to the supply voltage. Maximum
voltage range is limited by the power dissipation in the package and the maximum operating temperature
of the sensor.
5.
Unipolar operation means exposure to magnetic fields of one polarity, e.g. 0 to 30 Gauss, or -2 to -50
Gauss, but not -20 to +30 Gauss (bipolar operation). Bipolar operation will increase nonlinearity and
hysteresis.
6.
TCR is resistance change with temperature with no applied field. TCOI is the output change with
temperature using a constant current source to power the sensor. TCOV is the output change with
temperature using a constant voltage source to power the sensor.
7.
Beta (β) is any angle from the sensitive axis.
Typical Outputs:
AAH002-02
AAH004-00
60
50
50
Output (mV)
Output (mV)
40
30
20
10
30
20
10
0
-10
40
-8
-6
-4
-2
0
2
Applied Field (Oe)
4
6
8
10
0
-30
-20
-10
0
10
20
Applied Field (Oe)
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
30
AAL Sensors
AAL Sensors
Features:
⇒
⇒
⇒
⇒
⇒
⇒
⇒
Excellent Sensitivity to Applied Magnetic Fields
Wheatstone Bridge Analog Output
Temperature Tolerance to 150°C Continuous
Very Low Magnetic Hysteresis
Near-Zero Voltage Operation
DC to >1MHz Frequency Response
Small, Low Profile Surface Mount Packages
Applications:
⇒
⇒
⇒
⇒
General Motion, Speed, and Position Sensing
Low Voltage, High Temperature Applications
Low Field Sensing for Magnetic Media Detection
Current Sensing
Description:
The AAL series GMR sensors are manufactured with a low hysteresis GMR material, for
use in magnetometer applications where minimum hysteresis is important. They are also
extremely temperature tolerant, to +150C operating temperatures.
Pin-out
V+ (supply)
Functional Block Diagram
OUT+
pin 8,
V+(supply)
NVE
AAxxx
-02
Orientation
chamfer
shield
GMR
pin 5, OUT+
shield
OUT V- (ground)
Axis of Sensitivity
pin 1, OUT-
pin 4, V(ground)
Magnetic Characteristics:
Part
Number
AAL002-02
Saturation
Field (Oe1)
15
Linear
Range
(|Oe1|)
Min
Max
1.5
10.5
Sensitivity
(mV/V-Oe1)
Resistance
(Ohms)
Package2
Die Size3
(µm)
Min
3.0
5.5K ± 20%
SOIC8
436x3370
Max
4.2
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AAL Sensors
General Characteristics:
Property
Input Voltage Range
Operating Frequency
Operating Temperature Range
Bridge Electrical Offset
Signal Output at Max. Field
Nonlinearity
Hysteresis
TCR
TCOI
TCOV
Off Axis Characteristic
ESD Tolerance
Min
4
<1
DC
-50
-4
Typical
Max
4
± 25
>1
150
+4
Unit
Volts
MHz
°C
mV/V
mV/V
5
% (unipolar)
5
% (unipolar)
6
% / °C
6
% / °C
6
% / °C
45
2
2
+0.30
-0.28
-0.40
7
Cos β
400
V pin to pin HBM
Notes:
1.
1 Oersted (Oe) = 1 Gauss in air.
2.
See the Appendix for package dimensions and tolerances.
3.
Sensors can be provided in die form by special request.
4.
GMR AAL Series sensors are pure ratiometric devices, meaning that they will operate properly at
extremely low supply voltages. The output signal will be proportional to the supply voltage. Maximum
voltage range is limited by the power dissipation in the package and the maximum operating temperature
of the sensor.
5.
Unipolar operation means exposure to magnetic fields of one polarity, e.g. 0 to 30 Gauss, or –2 to –50
Gauss, but not –20 to +30 Gauss (bipolar operation). Bipolar operation will increase nonlinearity and
hysteresis.
6.
TCR is resistance change with temperature with no applied field. TCOI is the output change with
temperature using a constant current source to power the sensor. TCOV is the output change with
temperature using a constant voltage source to power the sensor.
7.
Beta (β) is any angle from the sensitive axis.
Typical Outputs:
AAL002-02
0.2
Output (V)
0.15
0.1
0.05
0
-40
-30
-20
-10
0
10
20
30
40
Applied Field (Oe)
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AB Sensors
AB Sensors
Features:
⇒
⇒
⇒
⇒
⇒
⇒
⇒
Excellent Sensitivity to Applied Magnetic Fields
Wheatstone Bridge Analog Output
Temperature Tolerance to 125°C Continuous
Wide Linear Range of Operation
Near-Zero Voltage Operation
DC to >1MHz Frequency Response
Small, Low Profile Surface Mount Packages
Applications:
⇒ General Differential Field Sensing
⇒ Gear Tooth and Encoder Speed and Position Sensing
⇒ Low Power, Low Voltage Applications
Description:
The AB series GMR sensors are general purpose gradiometers for use in a wide variety
of applications. Two pairs of unshielded GMR sensor elements provide for directional
sensing of small gradients in large and small magnetic fields. The ability to detect only
magnetic gradients allows low sensitivity to external sources of uniform magnetic field,
allowing these sensors to work successfully in high magnetic noise environments, such as
near electric motors or current carrying wires.
Pin-out
V+ (supply)
OUT B
Functional Block diagram
pin 8, V+(supply)
X
Orientation
chamfer
NVE
ABxxx
-02
GMR
Y
Y
X
pin 5, OUT B
X
OUT A
V- (ground)
Axis of Sensitivity
Y
pin 1, OUT A
pin 4, V(ground)
Magnetic Characteristics:
Part
Number
AB001-02
AB001-00
Saturation
Field (Oe1)
250
250
Linear
Range
(|Oe1|)
Min
Max
20
200
20
200
Resistor
Sensitivity
(%R / Oe1)
Min
Max
0.02 0.03
0.02 0.03
Resistance
(Ohms)
Package2
Die Size3
(µm)
2.5K+/-20%
2.5K+/-20%
SOIC8
MSOP8
651x1231
651x1231
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
AB Sensors
General Characteristics:
Property
Input Voltage Range
Operating Frequency
Operating Temperature Range
Bridge Electrical Offset
Signal Output at Max. Field
Nonlinearity
Hysteresis
TCR
TCOI
TCOV
Off Axis Characteristic
ESD Tolerance
Min
4
<1
DC
-50
-4
Typical
Max
4
±12.5
>1
125
+4
120
2
4
+0.14
+0.03
-0.1
7
Cos β
400
Unit
Volts
MHz
°C
mV/V
mV/V
5
% (unipolar)
5
% (unipolar)
6
% / °C
6
% / °C
6
% / °C
V pin to pin HBM
Notes:
1.
1 Oersted (Oe) = 1 Gauss in air.
2.
See the Appendix for package dimensions and tolerances.
3.
Sensors can be provided in die form by special request.
4.
GMR AB Series sensors are pure ratiometric devices, meaning that they will operate properly at extremely
low supply voltages. The output signal will be proportional to the supply voltage. Maximum voltage
range is limited by the power dissipation in the package and the maximum operating temperature of the
sensor.
5.
Unipolar operation means exposure to magnetic fields of one polarity, e.g. 0 to 30 Gauss, or –2 to –50
Gauss, but not –20 to +30 Gauss (bipolar operation). Bipolar operation will increase nonlinearity and
hysteresis.
6.
TCR is resistance change with temperature with no applied field. TCOI is the output change with
temperature using a constant current source to power the sensor. TCOV is the output change with
temperature using a constant voltage source to power the sensor.
7.
Beta (β) is any angle from the sensitive axis.
Typical Gradiometer Tran sfer Function
Differential Voltage Out of Sensor (mV)
50
40
30
20
Increasing field
on X resistors
10
0
-400Increasing -200
field
on Y resistors
-10
0
200
-20
-30
-40
-50
Magnetic Field Applied to Resistors
400
The Figure to the left is
a simulated output from
an NVE Gradiometer.
The output / gradient
correlation shown
assumes one pair of
resistors is held at zero
field. Note the bipolar
output.
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
ABH Sensors
Features:
⇒
⇒
⇒
⇒
⇒
⇒
⇒
Extremely High Sensitivity to Applied Magnetic Fields
Wheatstone Bridge Analog Output
Temperature Tolerance to 150°C Continuous
Wide Linear Range of Operation
Near-Zero Voltage Operation
DC to >1MHz Frequency Response
Small, Low Profile Surface Mount Packages
Applications:
⇒ General Differential Field Sensing
⇒ Gear Tooth and Encoder Speed and Position Sensing
⇒ Low Voltage, High Temperature Applications
Description:
The ABH series GMR sensors are low field, high temperature gradiometers for use in a
wide variety of applications. Two pairs of unshielded GMR sensor elements provide for
directional sensing of small gradients in large and small magnetic fields. The ability to
detect only magnetic gradients allows low sensitivity to external sources of uniform
magnetic field, allowing these sensors to work successfully in high magnetic noise
environments, such as near electric motors or current carrying wires.
Pin-out
V+ (supply)
OUT B
Functional Block diagram
pin 8, V+(supply)
X
Orientation
chamfer
NVE
ABxxx
-02
GMR
Y
Y
X
pin 5, OUT B
X
OUT A
V- (ground)
Axis of Sensitivity
Y
pin 1, OUT A
pin 4, V(ground)
Magnetic Characteristics:
Part
Number
ABH001-02
ABH001-00
Saturation
Field (Oe1)
70
70
Linear
Range
(|Oe1|)
Min
Max
5
40
5
40
Resistor
Sensitivity
(%R / Oe1)
Min
Max
0.06 0.12
0.06 0.12
Resistance
(Ohms)
Package2
Die Size3
(µm)
1.2K+/-20%
1.2K+/-20%
SOIC8
MSOP8
651x1231
651x1231
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
General Characteristics:
Property
Input Voltage Range
Operating Frequency
Operating Temperature Range
Bridge Electrical Offset
Signal Output at Max. Field
Nonlinearity
Hysteresis
TCR
TCOI
TCOV
Off Axis Characteristic
ESD Tolerance
Min
4
<1
DC
-50
-4
Typical
Max
4
± 12.5
>1
150
+4
80
4
15
+0.30
-0.28
-0.40
7
Cos β
400
Unit
Volts
MHz
°C
mV/V
mV/V
5
% (unipolar)
5
% (unipolar)
6
% / °C
6
% / °C
6
% / °C
V pin to pin HBM
Notes:
1.
1 Oersted (Oe) = 1 Gauss in air.
2.
See the Appendix for package dimensions and tolerances.
3.
Sensors can be provided in die form by special request.
4.
GMR AB Series sensors are pure ratiometric devices, meaning that they will operate properly at extremely
low supply voltages. The output signal will be proportional to the supply voltage. Maximum voltage
range is limited by the power dissipation in the package and the maximum operating temperature of the
sensor.
5.
Unipolar operation means exposure to magnetic fields of one polarity, e.g. 0 to 30 Gauss, or –2 to –50
Gauss, but not –20 to +30 Gauss (bipolar operation). Bipolar operation will increase nonlinearity and
hysteresis.
6.
TCR is resistance change with temperature with no applied field. TCOI is the output change with
temperature, using a constant current source to run the sensor. TCOV is the output change with
temperature, using a constant voltage source to run the sensor.
7.
Beta (β) is any angle from the sensitive axis.
Typical Gradiometer Tran sfer Function
Differential Voltage Out of Sensor (mV)
50
40
30
20
Increasing field
on X resistors
10
0
-400Increasing -200
field
on Y resistors
-10
0
200
-20
-30
-40
-50
Magnetic Field Applied to Resistors
400
The Figure to the left is
a simulated output from
an NVE Gradiometer.
The output / gradient
correlation shown
assumes one pair of
resistors is held at zero
field. Note the bipolar
output.
NVE Corporation 11409 Valley View Road, Eden Prairie, Minnesota 55344 USA
(800) 467-7141
Web: www.nve.com
Email: [email protected] 11/15/02
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
