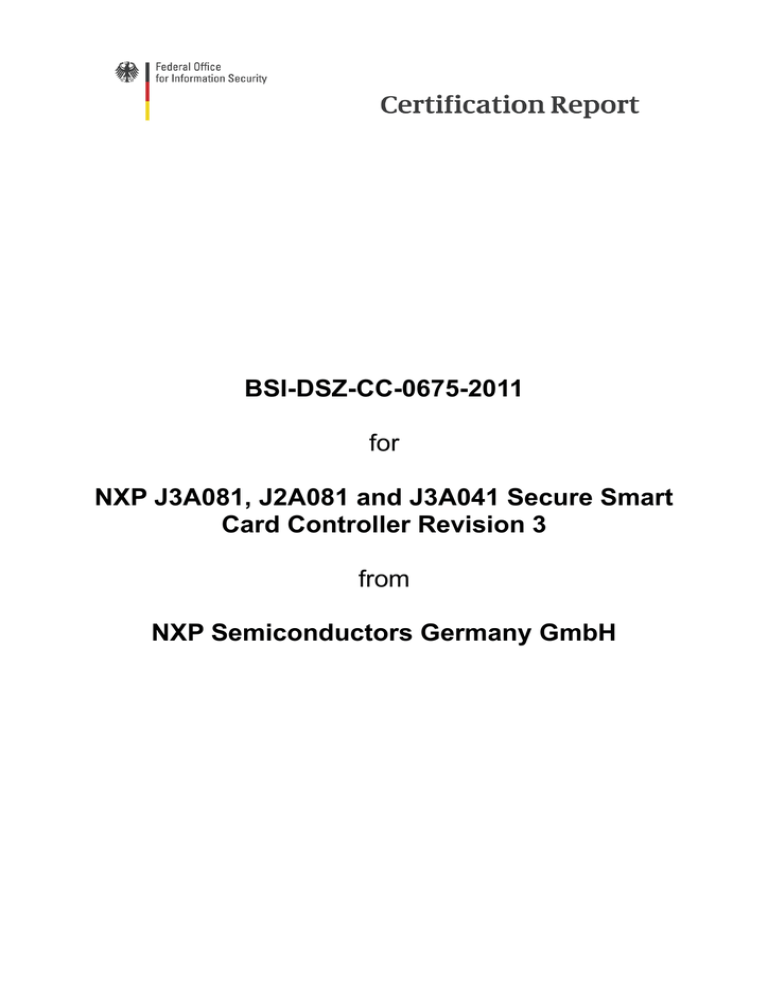

NXP Smartcard BSI-Zertifizierungsbericht
BSI-DSZ-CC-0675-2011
for
NXP J3A081, J2A081 and J3A041 Secure Smart
Card Controller Revision 3
from
NXP Semiconductors Germany GmbH
BSI - Bundesamt für Sicherheit in der Informationstechnik, Postfach 20 03 63, D-53133 Bonn
Phone +49 (0)228 99 9582-0, Fax +49 (0)228 9582-5477, Infoline +49 (0)228 99 9582-111
Certification Report V1.0
CC-Zert-327 V4.5
BSI-DSZ-CC-0675-2011
Smart Card with Java Card Platform
NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller
Revision 3
from NXP Semiconductors Germany GmbH
PP Conformance: None
Functionality:
Assurance:
Common Criteria Part 2 extended
Common Criteria Part 3 conformant
EAL 5 augmented by ALC_DVS.2 and AVA_VAN.5
Common Criteria
Recognition
Arrangement for components up to
EAL 4
The IT product identified in this certificate has been evaluated at an approved evaluation facility using the
Common Methodology for IT Security Evaluation (CEM), Version 3.1 extended by advice of the Certification
Body for components beyond EAL 4 and guidance specific for the technology of the product for conformance to the Common Criteria for IT Security Evaluation (CC), Version 3.1.
This certificate applies only to the specific version and release of the product in its evaluated configuration and in conjunction with the complete Certification Report.
The evaluation has been conducted in accordance with the provisions of the certification scheme of the
German Federal Office for Information Security (BSI) and the conclusions of the evaluation facility in the evaluation technical report are consistent with the evidence adduced.
This certificate is not an endorsement of the IT product by the Federal Office for Information Security or any other organisation that recognises or gives effect to this certificate, and no warranty of the IT product by the
Federal Office for Information Security or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.
Bonn, 06 April 2011
For the Federal Office for Information Security
Joachim Weber
Head of Division
L.S.
Bundesamt für Sicherheit in der Informationstechnik
Godesberger Allee 185-189 - D-53175 Bonn - Postfach 20 03 63 - D-53133 Bonn
Phone +49 (0)228 99 9582-0 - Fax +49 (0)228 9582-5477 - Infoline +49 (0)228 99 9582-111
Certification Report BSI-DSZ-CC-0675-2011
4 / 40
This page is intentionally left blank.
BSI-DSZ-CC-0675-2011 Certification Report
Preliminary Remarks
Under the BSIG 1 Act, the Federal Office for Information Security
(BSI) has the task of issuing certificates for information technology products.
Certification of a product is carried out on the instigation of the vendor or a distributor, hereinafter called the sponsor.
A part of the procedure is the technical examination (evaluation) of the product according to the security criteria published by the BSI or generally recognised security criteria.
The evaluation is normally carried out by an evaluation facility recognised by the BSI or by
BSI itself.
The result of the certification procedure is the present Certification Report. This report contains among others the certificate (summarised assessment) and the detailed
Certification Results.
The Certification Results contain the technical description of the security functionality of the certified product, the details of the evaluation (strength and weaknesses) and instructions for the user.
1 Act on the Federal Office for Information Security (BSI-Gesetz - BSIG) of 14 August 2009,
Bundesgesetzblatt I p. 2821
5 / 40
Certification Report BSI-DSZ-CC-0675-2011
Contents
A Certification........................................................................................................................7
1 Specifications of the Certification Procedure.................................................................7
2 Recognition Agreements................................................................................................7
2.1 European Recognition of ITSEC/CC – Certificates (SOGIS-MRA).........................7
2.2 International Recognition of CC – Certificates (CCRA)...........................................8
3 Performance of Evaluation and Certification..................................................................8
4 Validity of the Certification Result...................................................................................9
5 Publication......................................................................................................................9
B Certification Results.........................................................................................................11
1 Executive Summary.....................................................................................................12
2 Identification of the TOE...............................................................................................13
3 Security Policy..............................................................................................................14
4 Assumptions and Clarification of Scope.......................................................................14
5 Architectural Information...............................................................................................15
6 Documentation.............................................................................................................16
7 IT Product Testing.........................................................................................................16
7.1 Developer's Test according to ATE_FUN...............................................................16
7.2 Evaluator's Test according to ATE_IND.................................................................17
7.3 Penetration Testing according to AVA_VAN..........................................................18
8 Evaluated Configuration...............................................................................................18
9 Results of the Evaluation..............................................................................................18
9.1 CC specific results.................................................................................................18
9.2 Results of cryptographic assessment....................................................................19
10 Obligations and Notes for the Usage of the TOE.......................................................21
11 Security Target............................................................................................................21
12 Definitions...................................................................................................................21
12.1 Acronyms.............................................................................................................21
12.2 Glossary...............................................................................................................22
13 Bibliography................................................................................................................24
C Excerpts from the Criteria................................................................................................27
D Annexes...........................................................................................................................37
6 / 40
BSI-DSZ-CC-0675-2011 Certification Report
A Certification
1 Specifications of the Certification Procedure
The certification body conducts the procedure according to the criteria laid down in the following:
●
●
●
●
Special decrees issued by the Bundesministerium des Innern (Federal Ministry of the
Interior)
●
DIN EN 45011 standard
●
BSI certification: Procedural Description (BSI 7125) [3]
●
Common Criteria for IT Security Evaluation (CC), Version 3.1
[1]
●
Common Methodology for IT Security Evaluation, Version 3.1 [2]
●
BSI certification: Application Notes and Interpretation of the Scheme (AIS) [4]
2 Recognition Agreements
In order to avoid multiple certification of the same product in different countries a mutual recognition of IT security certificates - as far as such certificates are based on ITSEC or
CC - under certain conditions was agreed.
2.1
European Recognition of ITSEC/CC – Certificates (SOGIS-MRA)
The SOGIS-Mutual Recognition Agreement (SOGIS-MRA) Version 3 became effective in
April 2010. It defines the recognition of certificates for IT-Products at a basic recognition level and in addition at higher recognition levels for IT-Products related to certain technical domains only.
The basic recognition level includes Common Criteria (CC) Evaluation Assurance Levels
EAL1 to EAL4 and ITSEC Evaluation Assurance Levels E1 to E3 (basic). For higher recognition levels the technical domain Smart card and similar Devices has been defined.
It includes assurance levels beyond EAL4 resp. E3 (basic).
The new agreement was initially signed by the national bodies of Finland, France,
Germany, The Netherlands, Norway, Spain, Sweden and the United Kingdom.
2
3
4
5
Act on the Federal Office for Information Security (BSI-Gesetz - BSIG) of 14 August 2009,
Bundesgesetzblatt I p. 2821
Ordinance on the Procedure for Issuance of a Certificate by the Federal Office for Information Security
(BSI-Zertifizierungsverordnung, BSIZertV) of 07 July 1992, Bundesgesetzblatt I p. 1230
Schedule of Cost for Official Procedures of the Bundesamt für Sicherheit in der Informationstechnik
(BSI-Kostenverordnung, BSI-KostV) of 03 March 2005, Bundesgesetzblatt I p. 519
Proclamation of the Bundesministerium des Innern of 12 February 2007 in the Bundesanzeiger dated
23 February 2007, p. 3730
7 / 40
Certification Report BSI-DSZ-CC-0675-2011
Within the terms of this agreement the German Federal Office for Information Security
(BSI) recognises
● for the basic recognition level certificates issued as of April 2010 by the national certification bodies of France, The Netherlands, Spain and the United Kingdom.
● for the higher recognition level in the technical domain Smart card and similar Devices certificates issued as of April 2010 by the national certification bodies of France, The
Netherlands and the United Kingdom.
In addition, certificates issued for Protection Profiles based on Common Criteria are part of the recognition agreement.
The SOGIS-MRA logo printed on the certificate indicates that it is recognised under the terms of this agreement.
Historically, the first SOGIS-Mutual Recognition Agreement Version 1 (ITSEC only) became initially effective in March 1998. It was extended in 1999 to include certificates based on the Common Criteria (MRA Version 2). Recognition of certificates previously issued under these older versions of the SOGIS-Mutual Recognition Agreement is being continued.
2.2
International Recognition of CC – Certificates (CCRA)
An arrangement (Common Criteria Recognition Arrangement) on the mutual recognition of certificates based on the CC Evaluation Assurance Levels up to and including EAL 4 has been signed in May 2000 (CCRA). It includes also the recognition of Protection Profiles based on the CC.
As of January 2009 the arrangement has been signed by the national bodies of: Australia,
Austria, Canada, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary,
India, Israel, Italy, Japan, Republic of Korea, Malaysia, The Netherlands, New Zealand,
Norway, Pakistan, Republic of Singapore, Spain, Sweden, Turkey, United Kingdom, United
States of America. The current list of signatory nations and approved certification schemes can be seen on the web site: http://www.commoncriteriaportal.org
The Common Criteria Recognition Arrangement logo printed on the certificate indicates that this certification is recognised under the terms of this agreement.
This evaluation contains the components ADV_FSP.5, ADV_INT.2, ADV_TDS.4,
ALC_CMS.5, ALC_DVS.2, ALC_TAT.2, ATE_DPT.3 and AVA_VAN.5 that are not mutually recognised in accordance with the provisions of the CCRA. For mutual recognition the
EAL4 components of these assurance families are relevant.
3 Performance of Evaluation and Certification
The certification body monitors each individual evaluation to ensure a uniform procedure, a uniform interpretation of the criteria and uniform ratings.
The product NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller Revision 3 has undergone the certification procedure at BSI. This is a re-certification based on BSI-
DSZ-CC-0674-2011. Specific results from the evaluation process BSI-DSZ-CC-0674-2011 were re-used.
The evaluation of the product NXP J3A081, J2A081 and J3A041 Secure Smart Card
Controller Revision 3 was conducted by TÜV Informationstechnik GmbH. The evaluation
8 / 40
BSI-DSZ-CC-0675-2011 Certification Report
was completed on 05 April 2011. The TÜV Informationstechnik GmbH is an evaluation
facility (ITSEF) 6 recognised by the certification body of BSI.
For this certification procedure the sponsor and applicant is:
NXP Semiconductors Germany GmbH.
The product was developed by:
NXP Semiconductors Germany GmbH.
The certification is concluded with the comparability check and the production of this
Certification Report. This work was completed by the BSI.
4 Validity of the Certification Result
This Certification Report only applies to the version of the product as indicated. The confirmed assurance package is only valid on the condition that
● all stipulations regarding generation, configuration and operation, as given in the following report, are observed,
● the product is operated in the environment described, where specified in the following report and in the Security Target.
For the meaning of the assurance levels please refer to the excerpts from the criteria at the end of the Certification Report.
The Certificate issued confirms the assurance of the product claimed in the Security Target at the date of certification. As attack methods evolve over time, the resistance of the certified version of the product against new attack methods needs to be re-assessed.
Therefore, the sponsor should apply for the certified product being monitored within the assurance continuity program of the BSI Certification Scheme (e.g. by a re-certification).
Specifically, if results of the certification are used in subsequent evaluation and certification procedures, in a system integration process or if a user's risk management needs regularly updated results, it is recommended to perform a re-assessment on a regular e.g. annual basis.
In case of changes to the certified version of the product, the validity can be extended to the new versions and releases, provided the sponsor applies for assurance continuity (i.e. re-certification or maintenance) of the modified product, in accordance with the procedural requirements, and the evaluation does not reveal any security deficiencies.
5 Publication
The product NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller Revision 3 has been included in the BSI list of the certified products, which is published regularly (see also Internet: https://www.bsi.bund.de/ and [5]). Further information can be obtained from
BSI-Infoline +49 228 9582-111.
6
Information Technology Security Evaluation Facility
9 / 40
Certification Report BSI-DSZ-CC-0675-2011
Further copies of this Certification Report can be requested from the developer 7 of the
product. The Certification Report may also be obtained in electronic form at the internet address stated above.
7 NXP Semiconductors Germany GmbH
Stresemannallee 101
22529 Hamburg
10 / 40
BSI-DSZ-CC-0675-2011
B Certification Results
The following results represent a summary of
● the Security Target of the sponsor for the Target of Evaluation,
● the relevant evaluation results from the evaluation facility, and
● complementary notes and stipulations of the certification body.
Certification Report
11 / 40
Certification Report BSI-DSZ-CC-0675-2011
1 Executive Summary
The Target of Evaluation (TOE) is the product NXP J3A081, J2A081 and J3A041 Secure
Smart Card Controller Revision 3, also referred to shortly as JCOP v2.4.1 R3. The product type is identified as Java Card on the hardware P5CD081V1A and P5CC081V1A (BSI-
DSZ-CC-0555-2009 [18]) including a crypto library (BSI-DSZ-CC-0633-2010 [15]). The
TOE consists of the following components:
●
Smart card platform (SCP) (parts of the hardware platform and hardware abstraction layer) and
●
Embedded software (Java Card Virtual Machine, Runtime Environment, Java Card API,
Card Manager).
The J3A081 and J3A041 Secure Smart Card Controller Revision 3 also includes the
●
Native MIFARE application (physically present but logically disabled in minor configuration “MIFARE Emulation = A” and logically enabled in the minor configurations
“MIFARE Emulation = B1” and “MIFARE Emulation = B4” (see section 2.2.4 of the hardware Security Target [19])).
The TOE is based on Java Card 2.2.2 and GlobalPlatform 2.1.1 industry standards. It does not include any software on the application layer (Java Card applets) whereby the TOE does not include some parts of the certified hardware platform [18]. For details refer to the
Security Target [6] and [8].
The Security Target [6] is the basis for this certification. It does not claim conformance to any Protection Profile (PP) but it is based on the CC 2.1 certified Java Card PP [7].
The TOE Security Assurance Requirements (SAR) are based entirely on the assurance components defined in Part 3 of the Common Criteria (see part C or [1], Part 3 for details).
The TOE meets the assurance requirements of the Evaluation Assurance Level EAL 5 augmented by ALC_DVS.2 and AVA_VAN.5.
The TOE Security Functional Requirements (SFR) relevant for the TOE are outlined in the
Security Target [6] and [8], chapter 6.
The TOE Security Functional Requirements are implemented by the following TOE
Security Functionalities:
TOE Security Functionality
SF.AccessControl
SF.Audit
SF.CryptoKey
SF.CryptoOperation
SF.I&A
SF.SecureManagement
SF.PIN
SF.Transaction
SF.Hardware
SF.CryptoLib
Addressed issue
Enforces the access control
Audit functionality
Cryptographic key management
Cryptographic operation
Identification and authentication
Secure management of TOE resources
PIN management
Transaction management
TSF of the underlying IC
TSF of the certified crypto library
Table 1: TOE Security Funktionalities
12 / 40
BSI-DSZ-CC-0675-2011 Certification Report
For more details please refer to the Security Target [6] abd [8], chapter 7.1.
The assets to be protected by the TOE are defined in the Security Target [6] and [8], chapter 3.2. Based on these assets the TOE Security Environment is defined in terms of
Assumptions, Threats and Organisational Security Policies. This is outlined in the Security
Target [6] and [8], chapter 3.3, 3.4 and 3.5.
The vulnerability assessment results as stated within this certificate do not include a rating for those cryptographic algorithms and their implementation suitable for encryption and decryption (see BSIG Section 9, Para. 4, Clause 2).
The certification results only apply to the version of the product indicated in the certificate and on the condition that all the stipulations are kept as detailed in this Certification
Report. This certificate is not an endorsement of the IT product by the Federal Office for
Information Security (BSI) or any other organisation that recognises or gives effect to this certificate, and no warranty of the IT product by BSI or any other organisation that recognises or gives effect to this certificate, is either expressed or implied.
2 Identification of the TOE
The Target of Evaluation (TOE) is called:
NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller Revision 3
The following table outlines the TOE deliverables:
No Type
1
2
3
4
HW/SW
DOC
DOC
DOC
Identifier
NXP J3A081, J2A081 and
J3A041 Secure Smart Card
Controller Revision 3 including
ROM mask and EEPROM patch
User Manual [12]
Administrator Manual [13]
HW Data Sheet [14]
Release
Mask ID: 34h
(52)
Mask name:
NX011D
Patch ID: x1h
(“x” is different)
Target ID: 00h
(SmartMX)
Revision 3.0
09.03.2011
Revision 3.0
08.03.2011
Revision 3.0
04.03.2011
Table 2: Deliverables of the TOE
Form of Delivery
Sawn Wafer or embedded into specific module package
Electronic PDF document, encrypted and signed
Electronic PDF document, encrypted and signed
Electronic PDF document, encrypted and signed
The delivery process from NXP to their customers guarantees, that the customer is aware of the exact versions of the different parts of the TOE as outlined above.
To ensure that the customer receives the evaluated version of the chip, the TOE is sent by
NXP to the customer protected by special ordering, secured transport and tracking measures. Additionally, a Transport Key has to be used to support the secure delivery and the identification of the TOE.
When packed sometimes it is not possible to identify the TOE (NXP J3A081, J2A081 and
J3A041 Secure Smart Card Controller Revision 3) by sending commands to the TOE since there are no physical contacts available due to the production step. In that case the
13 / 40
Certification Report BSI-DSZ-CC-0675-2011
identification is done by the commercial name of the product as described in the
Administrator Manual [13], chapter 2.1 and 7.1.
3 Security Policy
The TOE is the composition of an IC, IC Dedicated Software and Smart Card Embedded
Software and is intended to be used as a Java Card platform and to be equipped with Java applets conformant to the Java Card standard.
The Java Card Virtual Machine (JCVM) is responsible for ensuring language-level security.
The basic runtime security feature imposed by the Java Card Runtime Environment
(JCRE) enforces isolation of applets using an applet firewall. It prevents objects created by one applet from being used by another applet without explicit sharing. This prevents unauthorized access to the fields and methods of class instances, as well as the length and contents of arrays.
The applet firewall is considered as the most important security feature. It enables complete isolation between applets or controlled communication through additional mechanisms that allow them to share objects when needed. The JCVM should ensure that the only way for applets to access any resources are either through the JCRE or through the Java Card API (or other vendor-specific APIs).
The Card Manager is responsible for the management of applets in the card. No postissuance loading and deletion of applets is allowed for the present TOE.
4 Assumptions and Clarification of Scope
The Assumptions defined in the Security Target and some aspects of Threats and organisational Security Policies are not covered by the TOE itself. These aspects lead to specific Security Objectives to be fulfilled by the TOE-Environment. The following topics are of relevance:
●
OE.USE_DIAG: Secure TOE communication protocols shall be supported and used by the environment.
●
OE.USE_KEYS: During the TOE usage, the terminal or system in interaction with the
TOE, shall ensure the protection (integrity and confidentiality) of their own keys by operational means and/or procedures.
●
OE.NATIVE: Those parts of the APIs written in native code as well as any pre-issuance native application on the card shall be conformant with the TOE so as to ensure that security policies and objectives described herein are not violated.
●
OE.NO-DELETION: No installed applets (or packages) shall be deleted from the card.
●
OE.NO-INSTALL: There is no post-issuance installation of applets. Installation of applets is secure and shall occur only in a controlled environment in the pre-issuance phase.
●
OE.VERIFICATION: All the bytecodes shall be verified at least once, before the loading, before the installation or before the execution, depending on the card capabilities, in order to ensure that each bytecode is valid at execution time.
Details can be found in the Security Target [6] and [8], chapter 4.2.
14 / 40
BSI-DSZ-CC-0675-2011 Certification Report
5 Architectural Information
The TOE does not include any software on the Application Layer (Java Card applets) and does not include some parts of the Hardware Platform. This is shown schematically in the following figure:
Figure 1: JCOP Architecture
The Smart Card Platform (SCP) consists of the Hardware Abstraction Layer (HAL) and the
Hardware Platform. The cryptographic library (Crypto Library) is part of the HAL. Not all functionality of the Crypto Library is used, but this unused functionality is not linked with the code and is therefore not part of the HAL. Instead this functionality is implemented in
JCOP embedded software. All functions in the HAL are used by the TOE. Not all functionality of the Hardware Platform is used for the TOE functionality and exposed at external interfaces. Therefore, some parts of the Hardware Platform are not part of the
TOE.
The following functionality of the Smart Card Platform is not used for the composite TOE and not exposed at external interfaces:
●
Hardware Special Function Register Access Control
●
AES functionality of the Crypto Library (implemented by JCOP embedded SW instead)
●
RSA functionality of the Crypto Library (implemented by JCOP embedded SW instead)
●
Random Number Generator of the Crypto Library (implemented by JCOP embedded
SW instead)
●
Copy functionality of the Crypto Library (implemented by JCOP embedded SW instead)
The Java Card System is intended to transform a Smart Card into a Platform Capable of executing applications written in a subset of the Java programming language. The intended use of a Java Card Platform is to provide a framework for implementing IC
15 / 40
Certification Report BSI-DSZ-CC-0675-2011
independent applications conceived to safely coexist and interact with other applications into a single Smart Card.
Applications installed on a Java Card Platform can be selected for execution when the card is inserted into a card reader. In some configurations of the TOE, the card reader may also be used to enlarge or restrict the set of applications that can be executed on the Java
Card Platform according to a well-defined card management policy.
6 Documentation
The evaluated documentation as outlined in table 2 is being provided with the product to the customer. This documentation contains the required information for secure usage of the TOE in accordance with the Security Target.
Additional obligations and notes for secure usage of the TOE as outlined in chapter 10 of this report have to be followed.
7 IT Product Testing
7.1
Developer's Test according to ATE_FUN
The test of the TOE NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller
Revision 3 is divided into several distinct phases:
●
Unit testing
●
Integration testing and
●
Acceptance testing.
The overall goal of the tests is to show that the TOE implements the TSF as described by the Security Target and the Functional Specification. Since SF.Hardware is covered by the
HW certification, the testing approach has been to verify that the recommendations from
HW to the SW granted by the HW guidance are fulfilled by the embedded software instead of doing functional testing of the HW security functions again. Therefore most of the tests for HW functions are done via code inspections, unit tests or acceptance tests.
Furthermore, the TOE requires compliancy to three core specifications:
●
Java Card 2.2.2
●
GlobalPlatform 2.1.1
●
Visa GlobalPlatform 2.1.1 CIR
The tests to be executed refer to the test plans of these specifications in conjunction with two supported interfaces:
●
Contact based - ISO7816, EMV 4.1
●
Contactless - ISO14443, ISO10373
Additionally NXP Semiconductors created tests to cover special areas of interest:
●
Unit Tests
●
Amendatory Java Card Tests
All TSF, which are related to the core specifications, are tested with the main test suites used during acceptance testing. The test suites are:
16 / 40
BSI-DSZ-CC-0675-2011 Certification Report
●
JC-TCK 2.2.2,
●
GP 2.1.1 - Official GP test suites,
●
VGP 2.1.1 - Test suite used by VISA test labs.
The acceptance tests are mainly done with externally developed test suites for testing compliance to the Java Card specifications. The product is a Java Card providing a platform for Java applets. Therefore the TOE is implemented according to well known specifications. The definition of TSF in [6] and [8] is based on the Java Card functionality defined in the specifications. Therefore the overall testing strategy is to prove for compliance to the specifications and there with to give proof for the correct implementation of the TSF.
All the different configurations of the TOE (No MIFARE or MIFARE A, B1, B4; all with mask
ID 52 and patch ID 1) have been tested successfully.
7.2
Evaluator's Test according to ATE_IND
The evaluator’s testing effort is described as follows, outlining the testing approach, configuration, depth and results.
The samples used for testing have been the composite product, which means the JCOP
SW part on the platform provided as SO28 samples. All samples have been provided with the following parameters: FABKEY ID: 0x02, PATCH ID: 0x41, TARGET ID: 0x00 (null),
MASK ID: 0x34 (52), CUSTOM MASK: 00000000, MASK NAME: NX011D, FUSE STATE: not fused, ROM INFO: 58E957, COMBO NAME: null-m34.02.41-NX011D. The configuration has been different in COMBO NAME to the 3 major configurations A, B1 and
B4 and J2A081 as stated in the Security Target [6] and [8].
The APDU and API interfaces are most significant for the TOE. Therefore they are most often used during testing and the test samples are provided as composite TOE consisting of a SO28 sample which can only be connected via adapter to a terminal using contact or contact less interface.
The choice of the subset of interfaces used for testing has been done according to the following approach:
●
Augmentation of developer testing for interfaces and supplementation of developer testing strategy for interfaces are both used for setting up test cases.
●
The number of interfaces from which to draw upon for the test subset leads to focus on contact and contactless interface including MIFARE interface; Test Applets are used to perform functional testing (API interfaces are tested as well).
●
Related to the complexity of interfaces the evaluator included repeating of all unit tests,
JC-TCK tests and Global Platform tests each for one TOE configuration covering all interfaces.
●
Repetition of the unit tests, JC-TCK tests and Global Platform tests using the external visible interfaces the independent testing covers all interfaces also the internal ones implicitly.
●
Other types of interfaces are either covered by the hardware certificate [18] (e. g. electrical interfaces) or are not available (e. g. USB) or are implicitly included (e. g. contact less and ISO7816 APDU interface used to implicitly test the programming interfaces by test applets).
17 / 40
Certification Report BSI-DSZ-CC-0675-2011
●
One stressed feature (BAC functionality) is completely covered by unit tests and additionally tested by the evaluator.
During the evaluator’s independent testing the TOE operated as specified. The evaluator found that all TSFI have been suitably tested, and all interfaces are properly implemented.
7.3
Penetration Testing according to AVA_VAN
The penetration testing approach was based on the developer's vulnerability analysis and based on the independent vulnerability assessment of the evaluator. The evaluator's approach was to systematically search for potential vulnerabilities and for known attacks in public domain sources and the use of actual information from international working groups.
Analysis why vulnerabilities are not exploitable in the intended environment of the TOE were performed assuming high attack potential. To support and to verify the analysis specific penetration attacks were performed in the course of this evaluation.
During the evaluator's penetration testing the TOE operated as specified. During the tests using high attack potential it has not been possible to succesfully penetrate the TOE and the usage of the certified secure HW could be verified. In the intended environment of use the TOE does not feature any exploitable vulnerabilities in the meaning of the Security
Targets [6] and [8] for typical attackers possessing a high attack potential, if all the measures required are taken into consideration.
The overall test result is that no deviations were found between the expected and the actual test results. No attack scenario with the attack potential „high“ was successful in the
TOE’s operational environment as defined in the ST [6] and [8] provided that all measures required by the developer are applied.
8 Evaluated Configuration
The TOE was evaluated in the configuration as outlined in table 2. In case of the J3A081 and J3A041 Secure Smart Card Controller Revision 3 the underlying hardware allows for three minor configurations, named MIFARE Emulation = A, B1 and B4. All of these configurations have been evaluated in the hardware evaluation of the P5CD081V1A (see
[18]). These configurations need to be specified when ordering the hardware at NXP, where the configuration process is performed during the testing phase. There is no way to switch from one configuration to a different one after the manufacturing process is finished.
The difference between these minor configurations is the presence and memory size of the MIFARE emulation.
9 Results of the Evaluation
9.1
CC specific results
The Evaluation Technical Report (ETR) [9] was provided by the ITSEF according to the
Common Criteria [1], the Methodology [2], the requirements of the Scheme [3] and all interpretations and guidelines of the Scheme (AIS) [4] as relevant for the TOE.
The Evaluation Methodology CEM [2] was used for those components up to EAL4 extended by advice of the Certification Body for components beyond EAL 4 and guidance specific for the technology of the product [4] (AIS 34).
The following guidance specific for the technology was used:
18 / 40
BSI-DSZ-CC-0675-2011 Certification Report
●
The Application of CC to Integrated Circuits,
●
Application of Attack Potential to Smartcards,
●
Public Version of Security Targets (ST-Lite) including JIL Document and CC Supporting
Document and CCRA policies
(see [4], AIS 25, AIS 26, AIS 35).
For RNG assessment the scheme interpretations AIS 20 was used (see [4]).
To support composite evaluations according to AIS 36 the document ETR for composite evaluation [10] was provided and approved. This document provides details of this platform evaluation that have to be considered in the course of a composite evaluation on top.
As a result of the evaluation the verdict PASS is confirmed for the following assurance components:
●
All components of the EAL 5 package including the class ASE as defined in the CC (see also part C of this report)
●
The components ALC_DVS.2 and AVA_VAN.5 augmented for this TOE evaluation.
As the evaluation work performed for this certification procedure was carried out as a reevaluation based on the certificate BSI-DSZ-CC-0674-2011, re-use of specific evaluation tasks was possible. The focus of this re-evaluation was on the change of the underlying hardware platform from P5Cx080V0B to P5Cx081V1A and on the change of the used cryptographic library (upgrade to Version 2.7).
The evaluation has confirmed:
● for the Functionality: Common Criteria Part 2 extended
● for the Assurance: Common Criteria Part 3 conformant
EAL 5 augmented by
ALC_DVS.2 and AVA_VAN.5
For specific evaluation results regarding the development and production environment see annex B in part D of this report.
The results of the evaluation are only applicable to the TOE as defined in chapter 2 and the configuration as outlined in chapter 8 above.
9.2
Results of cryptographic assessment
The vulnerability assessment results as stated within this certificate do not include a rating for those cryptographic algorithms and their implementation suitable for encryption and decryption (see BSIG Section 9, Para. 4, Clause 2). This holds for the TOE Security functionality SF.CryptoOperation.
The following cryptographic algorithms are used by the TOE to enforce its security policy:
19 / 40
Certification Report BSI-DSZ-CC-0675-2011
Algorithm Bit
Length
AES in
ECB/CBC
Mode
128 /
224 /
256
EC over
GF(p)
EC over
GF(p)
EC with
SHA-1,
SHA-224, and SHA-
256
224 to
320
224 to
320
224 to
320
Retail
MAC
112 data encryption / decryption
Diffie-Hellman key agreement
Secure point addition digital signature generation and verification
RSA (and
PKCS#1 padding)
RSA with
SHA-1
RSA with
SHA-1
SHA-1
SHA-224
SHA-256
1976 to
2048
1976 to
2048
1976 to
2048 none none none
112 /
168 secure messaging message authentication code data encryption / decryption digital signature generation and verification digital signature generation and verification secure hash computation secure hash computation secure hash computation data encryption / decryption
Triple
DES in
ECB/CBC
Mode
Triple-
DES in
CBC mode
Triple-
DES in outer CBC
Mode
112
112 /
168
Application
secure messaging encryption and decryption
8 byte MAC generation and verification
Portion of the TSF Standard of
Implementation
SF.CryptoOperation
FIPS 197
SF.CryptoOperation
ISO 11770-3
SF.CryptoOperation
ISO14888-3
SF.CryptoOperation
ISO14888-3
SF.CryptoOperation
ISO 9797-1
SF.CryptoOperation
PKCS#1
SF.CryptoOperation
ISO 9796-2
SF.CryptoOperation
PKCS#1
SF.CryptoOperation
FIPS 180-1
SF.CryptoOperation
FIPS 180-1
SF.CryptoOperation
FIPS 180-1
SF.CryptoOperation
FIPS 46-3
SF.CryptoOperation
FIPS 46-3
SF.CryptoOperation
ISO 9797-1
Table 3: TOE cryptographic functionality
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Standard of
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Validity
8
9
Due to the character of the TOE, which provides platform functionality, no Application Standard is applicable.
The Validity Period refers to the Application Standard and is therefore not applicable for this TOE.
20 / 40
BSI-DSZ-CC-0675-2011 Certification Report
The strength of the cryptographic algorithms was not rated in the course of this certification procedure (see BSIG Section 9, Para. 4, Clause 2). But Cryptographic Functionalities with a security level of 80 bits or lower can no longer be regarded as secure against attacks with high attack potential without considering the application context. Therefore for this functionalites it shall be checked whether the related crypto operations are appropriate for the intended system. Some further hints and guidelines can be derived from the
'Technische Richtlinie BSI TR-02102' (https://www.bsi.bund.de) .
The cryptographic function 2-key Triple DES (2TDES) provided by the TOE achieves a security level of maximum 80 Bits (in general context).
10 Obligations and Notes for the Usage of the TOE
The operational documents as outlined in table 2 contain necessary information about the usage of the TOE and all security hints therein have to be considered. In addition all aspects of assumptions, threats and policies as outlined in the Security Target not covered by the TOE itself need to be fulfilled by the operational environment of the TOE.
The customer or user of the product shall consider the results of the certification within his system risk management process. In order for the evolution of attack methods and techniques to be covered, he should define the period of time until a re-assessment for the
TOE is required and thus requested from the sponsor of the certificate.
11 Security Target
For the purpose of publishing, the Security Target [8] of the Target of Evaluation (TOE) is provided within a separate document as Annex A of this report. It is a sanitised version of the complete Security Target [6] used for the evaluation performed. Sanitisation was performed according to the rules as outlined in the relevant CCRA policy (see AIS 35 [4]).
12 Definitions
12.1 Acronyms
AES
Advanced Encryption Standard
AID
API
APDU
BCV
BSI
BSIG
CC
CM
CVM
Application identifier, an ISO-7816 data format used for unique identification of Java Card applications
Application Programming Interface
Application Protocol Data Unit, an ISO 7816-4 defined communication format between the card and the off-card applications.
Byte Code Verifier (here: Off-card verifier)
Bundesamt für Sicherheit in der Informationstechnik / Federal Office for
Information Security, Bonn, Germany
BSI-Gesetz / Act on the Federal Office for Information Security
Common Criteria for IT Security Evaluation
Card Manger
C (programming language) Virtual Machine
21 / 40
Certification Report BSI-DSZ-CC-0675-2011
NOS
PP
RAM
ROM
RSA
RTE
SCP
SFP
SPA
ST
SW
TCK
TOE
TSF
TSP
VM
HAL
HW
IC
IT
JCOP
JCRE
JCVM
DES
DPA
Data Encryption Standard
Differential Power Analysis
EAL
Evaluation Assurance Level
ECC
Elliptic Curve Cryptograpy
EEPROM
Electrically Erasable Programmable ROM
ES
Embedded Software
Hardware Abstraction Layer
Hardware
Integrated Circuit
Information Technology
Java Card Open Platform
Java Card Runtime Environment
Java Card Virtual Machine
Native Operating System
Protection Profile
Random Access Memory
Read Only Memory algorithm for public-key cryptograph
Runtime Environment
Smart Card Platform
Security Function Policy
Simple Power Analysis
Security Target
Software
Test Compatibility Kit
Target of Evaluation
TOE Security Functionality
TOE Security Policy
Virtual Machine
12.2 Glossary
Applet
The name is given to a Java Card technology-based user application
Augmentation - The addition of one or more requirement(s) to a package.
Extension - The addition to an ST or PP of functional requirements not contained in part 2
and/or assurance requirements not contained in part 3 of the CC.
Formal - Expressed in a restricted syntax language with defined semantics based on well-
established mathematical concepts.
22 / 40
BSI-DSZ-CC-0675-2011 Certification Report
Informal - Expressed in natural language.
Object - An passive entity in the TOE, that contains or receives information, and upon
which subjects perform operations.
Protection Profile - An implementation-independent statement of security needs for a
TOE type.
Security Target - An implementation-dependent statement of security needs for a specific
identified TOE.
Semiformal - Expressed in a restricted syntax language with defined semantics.
Subject - An active entity in the TOE that performs operations on objects.
Target of Evaluation - A set of software, firmware and/or hardware possibly accompanied
by guidance.
TOE Security Functionality - combined functionality of all hardware, software, and
firmware of a TOE that must be relied upon for the correct enforcement of the SFRs
23 / 40
Certification Report BSI-DSZ-CC-0675-2011
13 Bibliography
[1] Common Criteria for Information Technology Security Evaluation, Version 3.1,
Part 1: Introduction and general model, Revision 3, July 2009
Part 2: Security functional components, Revision 3, July 2009
Part 3: Security assurance components, Revision 3, July 2009
[2] Common Methodology for Information Technology Security Evaluation (CEM),
Evaluation Methodology, Version 3.1, Rev. 3, July 2009
[3] BSI certification: Procedural Description (BSI 7125)
[4]
Application Notes and Interpretations of the Scheme (AIS) as relevant for the TOE 10 .
[5] German IT Security Certificates (BSI 7148), periodically updated list published also in the BSI Website
[6] Security Target BSI-DSZ-CC-0675-2011, Version 01.02, 08.12.2010, NXP J3A081,
J2A081 and J3A041 Secure Smart Card Controller Revision 3 – Security Target,
NXP Semiconductors (confidential document)
[7] Java Card System - Minimal Configuration Protection Profile, Version 1.1, May
2006, part of: Java Card Protection Profile Collection, Version 1.1, May 2006
[8] Security Target BSI-DSZ-CC-0675-2011, Version 01.02, 08.12.2010, NXP J3A081,
J2A081 and J3A041 Secure Smart Card Controller Revision 3 – Security Target lite,
NXP Semiconductors (sanitised public document)
[9] Evaluation Technical Report, Version 3, 04.04.2011, Evaluation Technical Report for
NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller Rev. 3, TÜV
Informationstechnik GmbH (confidential document)
[10] ETR for composition according to AIS 36 for the Product NXP J3A081, J2A081 and
J3A041 Secure Smart Card Controller Rev. 3, BSI-DSZ-CC-0675-2011, Version 4,
06.04.2011, TÜV Informationstechnik GmbH (confidential document)
10 specifically
• AIS 20, Version 1, 2. December 1999, Funktionalitätsklassen und Evaluationsmethodologie für deterministische Zufallszahlengeneratoren
•
•
AIS 25, Version 6, 7 September 2009, Anwendung der CC auf Integrierte Schaltungen including JIL
Document and CC Supporting Document
AIS 26, Version 7, 3 August 2010, Evaluationsmethodologie für in Hardware integrierte Schaltungen including JIL Document and CC Supporting Document
•
• AIS 32, Version 6, 3 August 2010, CC-Interpretationen im deutschen Zertifizierungsschema
AIS 34, Version 3, 3 September 2009, Evaluation Methodology for CC Assurance Classes for EAL5+
(CCv2.3 & CCv3.1) and EAL6 (CCv3.1)
•
•
• AIS 35, Version 2.0, 12 November 2007, Öffentliche Fassung des Security Targets (ST-Lite) including JIL Document and CC Supporting Document and CCRA policies
AIS 36, Version 3, 19 October 2010, Kompositionsevaluierung including JIL Document and CC
Supporting Document
AIS 38, Version 2.0, 28 September 2007, Reuse of evaluation results
24 / 40
BSI-DSZ-CC-0675-2011 Certification Report
[11] Configuration list for the TOE, Version 1.1, 25.03.2011, Configuration List NXP
J3A128 J3A095 J3A080 J3A081 J3A040 J3A041 v2.4.1 R3 Secure Smart Card
Controller, NXP Semiconductors (confidential document)
[12] Guidance documentation for the TOE, Revision 3.0, 09.03.2011, JCOP V2.4.1
Secure Smart Card Controller Revision 3 - User Manual, NXP Semiconductors
[13] Guidance documentation for the TOE, Revision 3.0, 08.03.2011, JCOP V2.4.1
Secure Smart Card Controller Revision 3 - Administrator Manual, NXP
Semiconductors
[14] Guidance documentation for the TOE, Revision 3.0, 04.03.2011, JCOP V2.4.1
Revision 3 JxA081, JxA041 and JxA021 secure smart card controller – Product hardware data sheet, Document-ID 201930, NXP Semiconductors
[15] Certification Report BSI-DSZ-CC-0633-2010 for Crypto Library V2.7 on
P5CD081V1A / P5CC081V1A / P5CN081V1A / P5CD041V1A / P5CD021V1A /
P5CD016V1A from NXP Semiconductors Germany GmbH, 19.11.2010, BSI
[16] Security Target Lite BSI-DSZ-CC-0633-2010, Version 1.2, 09.11.2010, Crypto
Library V2.7 on P5CD081V1A / P5CC081V1A / P5CN081V1A / P5CD041V1A /
P5CD021V1A / P5CD016V1A, NXP Semiconductors
[17] ETR for composition according to AIS36 for the product Crypto Library V2.7 on
P5CD081V1A / P5CC081V1A / P5CN081V1A / P5CD041V1A / P5CD021V1A /
P5CD016V1A, BSI-DSZ-CC-0633-2010, Version 2.0, 11.11.2010, Brightsight
(confidential document)
[18] Certification Report BSI-DSZ-CC-0555-2009 for NXP Smart Card Controller
P5CD081V1A and its major configurations P5CC081V1A, P5CN081V1A,
P5CD041V1A, P5CD021V1A and P5CD016V1A each with IC dedicated Software,
NXP Semiconductors Germany GmbH, Business Line Identification, 05.07.2007,
BSI
[19] Security Target BSI-DSZ-CC-0555-2009, Version 1.3, 21.09.2009, NXP Secure
Smart Card Controllers P5CD016/021/041V1A and P5Cx081V1A - Security Target
Lite, NXP Semiconductors (sanitised public document)
25 / 40
Certification Report BSI-DSZ-CC-0675-2011
26 / 40
This page is intentionally left blank.
BSI-DSZ-CC-0675-2011 Certification Report
C Excerpts from the Criteria
CC Part1:
Conformance Claim (chapter 10.4)
„The conformance claim indicates the source of the collection of requirements that is met by a PP or ST that passes its evaluation. This conformance claim contains a CC conformance claim that:
● describes the version of the CC to which the PP or ST claims conformance.
●
● describes the conformance to CC Part 2 (security functional requirements) as either:
–
CC Part 2 conformant - A PP or ST is CC Part 2 conformant if all SFRs in that
PP or ST are based only upon functional components in CC Part 2, or
–
CC Part 2 extended - A PP or ST is CC Part 2 extended if at least one SFR in
that PP or ST is not based upon functional components in CC Part 2.
describes the conformance to CC Part 3 (security assurance requirements) as either:
–
–
CC Part 3 conformant - A PP or ST is CC Part 3 conformant if all SARs in that
PP or ST are based only upon assurance components in CC Part 3, or
CC Part 3 extended - A PP or ST is CC Part 3 extended if at least one SAR in that PP or ST is not based upon assurance components in CC Part 3.
Additionally, the conformance claim may include a statement made with respect to packages, in which case it consists of one of the following:
●
Package name Conformant - A PP or ST is conformant to a pre-defined package
(e.g. EAL) if:
– the SFRs of that PP or ST are identical to the SFRs in the package, or
●
– the SARs of that PP or ST are identical to the SARs in the package.
Package name Augmented - A PP or ST is an augmentation of a predefined package if:
– the SFRs of that PP or ST contain all SFRs in the package, but have at least one additional SFR or one SFR that is hierarchically higher than an SFR in the package.
– the SARs of that PP or ST contain all SARs in the package, but have at least one additional SAR or one SAR that is hierarchically higher than an SAR in the package.
Note that when a TOE is successfully evaluated to a given ST, any conformance claims of the ST also hold for the TOE. A TOE can therefore also be e.g. CC Part 2 conformant.
Finally, the conformance claim may also include two statements with respect to Protection
Profiles:
●
●
PP Conformant - A PP or TOE meets specific PP(s), which are listed as part of the conformance result.
Conformance Statement (Only for PPs) - This statement describes the manner in which PPs or STs must conform to this PP: strict or demonstrable. For more information on this Conformance Statement, see Annex D.”
27 / 40
Certification Report BSI-DSZ-CC-0675-2011
CC Part 3:
Class APE: Protection Profile evaluation (chapter 10)
“Evaluating a PP is required to demonstrate that the PP is sound and internally consistent, and, if the PP is based on one or more other PPs or on packages, that the PP is a correct instantiation of these PPs and packages. These properties are necessary for the PP to be suitable for use as the basis for writing an ST or another PP.
Assurance Class Assurance Components
APE_INT.1 PP introduction
Class APE: Protection
Profile evaluation
APE_CCL.1 Conformance claims
APE_SPD.1 Security problem definition
APE_OBJ.1 Security objectives for the operational environment
APE_OBJ.2 Security objectives
APE_ECD.1 Extended components definition
APE_REQ.1 Stated security requirements
APE_REQ.2 Derived security requirements
APE: Protection Profile evaluation class decomposition”
Class ASE: Security Target evaluation (chapter 11)
“Evaluating an ST is required to demonstrate that the ST is sound and internally consistent, and, if the ST is based on one or more PPs or packages, that the ST is a correct instantiation of these PPs and packages. These properties are necessary for the
ST to be suitable for use as the basis for a TOE evaluation.”
28 / 40
BSI-DSZ-CC-0675-2011 Certification Report
Assurance Class Assurance Components
ASE_INT.1 ST introduction
ASE_CCL.1 Conformance claims
Class ASE: Security
Target evaluation
ASE_SPD.1 Security problem definition
ASE_OBJ.1 Security objectives for the operational environment
ASE_OBJ.2 Security objectives
ASE_ECD.1 Extended components definition
ASE_REQ.1 Stated security requirements
ASE_REQ.2 Derived security requirements
ASE_TSS.1 TOE summary specification
ASE_TSS.2 TOE summary specification with architectural design summary
ASE: Security Target evaluation class decomposition
Security assurance components (chapter 7)
“The following Sections describe the constructs used in representing the assurance classes, families, and components.“
“Each assurance class contains at least one assurance family.”
“Each assurance family contains one or more assurance components.”
The following table shows the assurance class decomposition.
Assurance Class
ADV: Development
Assurance Components
ADV_ARC.1 Security architecture description
ADV_FSP.1 Basic functional specification
ADV_FSP.2 Security-enforcing functional specification
ADV_FSP.3 Functional specification with complete summary
ADV_FSP.4 Complete functional specification
ADV_FSP.5 Complete semi-formal functional specification with additional error information
ADV_FSP.6 Complete semi-formal functional specification with additional formal specification
ADV_IMP.1 Implementation representation of the TSF
ADV_IMP.2 Implementation of the TSF
ADV_INT.1 Well-structured subset of TSF internals
ADV_INT.2 Well-structured internals
ADV_INT.3 Minimally complex internals
ADV_SPM.1 Formal TOE security policy model
ADV_TDS.1 Basic design
ADV_TDS.2 Architectural design
ADV_TDS.3 Basic modular design
ADV_TDS.4 Semiformal modular design
ADV_TDS.5 Complete semiformal modular design
ADV_TDS.6 Complete semiformal modular design with formal highlevel design presentation
29 / 40
Certification Report BSI-DSZ-CC-0675-2011
Assurance Class
AGD:
Guidance documents
ALC: Life cycle support
ATE: Tests
AVA: Vulnerability assessment
Assurance Components
AGD_OPE.1 Operational user guidance
AGD_PRE.1 Preparative procedures
ALC_CMC.1 Labelling of the TOE
ALC_CMC.2 Use of a CM system
ALC_CMC.3 Authorisation controls
ALC_CMC.4 Production support, acceptance procedures and automation
ALC_CMC.5 Advanced support
ALC_CMS.1 TOE CM coverage
ALC_CMS.2 Parts of the TOE CM coverage
ALC_CMS.3 Implementation representation CM coverage
ALC_CMS.4 Problem tracking CM coverage
ALC_CMS.5 Development tools CM coverage
ALC_DEL.1 Delivery procedures
ALC_DVS.1 Identification of security measures
ALC_DVS.2 Sufficiency of security measures
ALC_FLR.1 Basic flaw remediation
ALC_FLR.2 Flaw reporting procedures
ALC_FLR.3 Systematic flaw remediation
ALC_LCD.1 Developer defined life-cycle model
ALC_LCD.2 Measurable life-cycle model
ALC_TAT.1 Well-defined development tools
ALC_TAT.2 Compliance with implementation standards
ALC_TAT.3 Compliance with implementation standards - all parts
ATE_COV.1 Evidence of coverage
ATE_COV.2 Analysis of coverage
ATE_COV.3 Rigorous analysis of coverage
ATE_DPT.1 Testing: basic design
ATE_DPT.2 Testing: security enforcing modules
ATE_DPT.3 Testing: modular design
ATE_DPT.4 Testing: implementation representation
ATE_FUN.1 Functional testing
ATE_FUN.2 Ordered functional testing
ATE_IND.1 Independent testing – conformance
ATE_IND.2 Independent testing – sample
ATE_IND.3 Independent testing – complete
AVA_VAN.1 Vulnerability survey
AVA_VAN.2 Vulnerability analysis
AVA_VAN.3 Focused vulnerability analysis
AVA_VAN.4 Methodical vulnerability analysis
AVA_VAN.5 Advanced methodical vulnerability analysis
Assurance class decomposition
30 / 40
BSI-DSZ-CC-0675-2011 Certification Report
Evaluation assurance levels (chapter 8)
“The Evaluation Assurance Levels (EALs) provide an increasing scale that balances the level of assurance obtained with the cost and feasibility of acquiring that degree of assurance. The CC approach identifies the separate concepts of assurance in a TOE at the end of the evaluation, and of maintenance of that assurance during the operational use of the TOE.
It is important to note that not all families and components from CC Part 3 are included in the EALs. This is not to say that these do not provide meaningful and desirable assurances. Instead, it is expected that these families and components will be considered for augmentation of an EAL in those PPs and STs for which they provide utility.”
Evaluation assurance level (EAL) overview (chapter 8.1)
“Table 1 represents a summary of the EALs. The columns represent a hierarchically ordered set of EALs, while the rows represent assurance families. Each number in the resulting matrix identifies a specific assurance component where applicable.
As outlined in the next Section, seven hierarchically ordered evaluation assurance levels are defined in the CC for the rating of a TOE's assurance. They are hierarchically ordered inasmuch as each EAL represents more assurance than all lower EALs. The increase in assurance from EAL to EAL is accomplished by substitution of a hierarchically higher assurance component from the same assurance family (i.e. increasing rigour, scope, and/or depth) and from the addition of assurance components from other assurance families (i.e. adding new requirements).
These EALs consist of an appropriate combination of assurance components as described in Chapter 7 of this CC Part 3. More precisely, each EAL includes no more than one component of each assurance family and all assurance dependencies of every component are addressed.
While the EALs are defined in the CC, it is possible to represent other combinations of assurance. Specifically, the notion of “augmentation” allows the addition of assurance components (from assurance families not already included in the EAL) or the substitution of assurance components (with another hierarchically higher assurance component in the same assurance family) to an EAL. Of the assurance constructs defined in the CC, only
EALs may be augmented. The notion of an “EAL minus a constituent assurance component” is not recognised by the standard as a valid claim. Augmentation carries with it the obligation on the part of the claimant to justify the utility and added value of the added assurance component to the EAL. An EAL may also be augmented with extended assurance requirements.
31 / 40
Certification Report BSI-DSZ-CC-0675-2011
Assurance
Class
Development
Guidance
Documents
Life cycle
Support
Security Target
Evaluation
ADV_ARC
ADV_FSP
ADV_IMP
ADV_INT
ADV_SPM
ADV_TDS
AGD_OPE
AGD_PRE
ALC_CMC
ALC_CMS
ALC_DEL
ALC_DVS
ALC_FLR
ALC_LCD
ALC_TAT
ASE_CCL
Assurance
Family
1
1
1
1
Assurance Components by
Evaluation Assurance Level
EAL1 EAL2 EAL3 EAL4 EAL5 EAL6 EAL7
1 1 1 1 1 1
1 2 3 4
1
5
1
5
2
6
2
2
1
1
1
2
2
1
2
1
1
3
3
1
1
3
1
1
4
4
1
1
4
1
1
4
5
1
1
5
1
3
1
1
5
5
1
2
6
1
3
1
1
5
5
1
2
1 1
1
1
1
1
1
1
2
1
1
3
1
2
3
1
ASE_ECD 1 1 1 1 1 1 1
ASE_INT
ASE_OBJ
ASR_REQ
ASE_SPD
1
1
1
1
2
2
1
1
2
2
1
1
2
2
1
1
2
2
1
1
2
2
1
1
2
2
1
Tests
Vulnerability assessment
ASE_TSS
ATE_COV
ATE_DPT
ATE_FUN
ATE_IND
AVA_VAN
1
1
1
1
1
1
2
2
1
1
2
2
1
2
1
1
2
3
1
2
3
1
2
4
1
2
3
2
2
5
1
3
4
2
3
5
1
3
Table 1: Evaluation assurance level summary”
32 / 40
BSI-DSZ-CC-0675-2011 Certification Report
Evaluation assurance level 1 (EAL1) - functionally tested (chapter 8.3)
“Objectives
EAL1 is applicable where some confidence in correct operation is required, but the threats to security are not viewed as serious. It will be of value where independent assurance is required to support the contention that due care has been exercised with respect to the protection of personal or similar information.
EAL1 requires only a limited security target. It is sufficient to simply state the SFRs that the
TOE must meet, rather than deriving them from threats, OSPs and assumptions through security objectives.
EAL1 provides an evaluation of the TOE as made available to the customer, including independent testing against a specification, and an examination of the guidance documentation provided. It is intended that an EAL1 evaluation could be successfully conducted without assistance from the developer of the TOE, and for minimal outlay.
An evaluation at this level should provide evidence that the TOE functions in a manner consistent with its documentation.”
Evaluation assurance level 2 (EAL2) - structurally tested (chapter 8.4)
“Objectives
EAL2 requires the co-operation of the developer in terms of the delivery of design information and test results, but should not demand more effort on the part of the developer than is consistent with good commercial practise. As such it should not require a substantially increased investment of cost or time.
EAL2 is therefore applicable in those circumstances where developers or users require a low to moderate level of independently assured security in the absence of ready availability of the complete development record. Such a situation may arise when securing legacy systems, or where access to the developer may be limited.”
Evaluation assurance level 3 (EAL3) - methodically tested and checked (chapter 8.5)
“Objectives
EAL3 permits a conscientious developer to gain maximum assurance from positive security engineering at the design stage without substantial alteration of existing sound development practises.
EAL3 is applicable in those circumstances where developers or users require a moderate level of independently assured security, and require a thorough investigation of the TOE and its development without substantial re-engineering.”
33 / 40
Certification Report BSI-DSZ-CC-0675-2011
Evaluation assurance level 4 (EAL4) - methodically designed, tested, and reviewed
(chapter 8.6)
“Objectives
EAL4 permits a developer to gain maximum assurance from positive security engineering based on good commercial development practises which, though rigorous, do not require substantial specialist knowledge, skills, and other resources. EAL4 is the highest level at which it is likely to be economically feasible to retrofit to an existing product line.
EAL4 is therefore applicable in those circumstances where developers or users require a moderate to high level of independently assured security in conventional commodity TOEs and are prepared to incur additional security-specific engineering costs.”
Evaluation assurance level 5 (EAL5) - semiformally designed and tested (chapter 8.7)
“Objectives
EAL5 permits a developer to gain maximum assurance from security engineering based upon rigorous commercial development practises supported by moderate application of specialist security engineering techniques. Such a TOE will probably be designed and developed with the intent of achieving EAL5 assurance. It is likely that the additional costs attributable to the EAL5 requirements, relative to rigorous development without the application of specialised techniques, will not be large.
EAL5 is therefore applicable in those circumstances where developers or users require a high level of independently assured security in a planned development and require a rigorous development approach without incurring unreasonable costs attributable to specialist security engineering techniques.”
Evaluation assurance level 6 (EAL6) - semiformally verified design and tested
(chapter 8.8)
“Objectives
EAL6 permits developers to gain high assurance from application of security engineering techniques to a rigorous development environment in order to produce a premium TOE for protecting high value assets against significant risks.
EAL6 is therefore applicable to the development of security TOEs for application in high risk situations where the value of the protected assets justifies the additional costs.”
34 / 40
BSI-DSZ-CC-0675-2011 Certification Report
Evaluation assurance level 7 (EAL7) - formally verified design and tested
(chapter 8.9)
“Objectives
EAL7 is applicable to the development of security TOEs for application in extremely high risk situations and/or where the high value of the assets justifies the higher costs. Practical application of EAL7 is currently limited to TOEs with tightly focused security functionality that is amenable to extensive formal analysis.”
Class AVA: Vulnerability assessment (chapter 16)
“The AVA: Vulnerability assessment class addresses the possibility of exploitable vulnerabilities introduced in the development or the operation of the TOE.”
Vulnerability analysis (AVA_VAN) (chapter 16.1)
"Objectives
Vulnerability analysis is an assessment to determine whether potential vulnerabilities identified, during the evaluation of the development and anticipated operation of the TOE or by other methods (e.g. by flaw hypotheses or quantitative or statistical analysis of the security behaviour of the underlying security mechanisms), could allow attackers to violate the SFRs.
Vulnerability analysis deals with the threats that an attacker will be able to discover flaws that will allow unauthorised access to data and functionality, allow the ability to interfere with or alter the TSF, or interfere with the authorised capabilities of other users.”
35 / 40
Certification Report BSI-DSZ-CC-0675-2011
36 / 40
This page is intentionally left blank
BSI-DSZ-CC-0675-2011 Certification Report
D Annexes
List of annexes of this certification report
Annex A: Security Target provided within a separate document.
Annex B: Evaluation results regarding development and production environment 39
37 / 40
Certification Report BSI-DSZ-CC-0675-2011
38 / 40
This page is intentionally left blank.
BSI-DSZ-CC-0675-2011 Certification Report
Annex B of Certification Report BSI-DSZ-CC-0675-2011
Evaluation results regarding development and production environment
The IT product NXP J3A081, J2A081 and J3A041 Secure Smart Card Controller Revision
3 (Target of Evaluation, TOE) has been evaluated at an approved evaluation facility using the Common Methodology for IT Security Evaluation (CEM), Version 3.1 extended by advice of the Certification Body for components beyond EAL 4 and guidance specific for the technology of the product for conformance to the Common Criteria for IT Security
Evaluation (CC), Version 3.1.
As a result of the TOE certification, dated 06 April 2011, the following results regarding the development and production environment apply. The Common Criteria assurance requirements ALC – Life cycle support (i.e. ALC_CMC.4, ALC_CMS.5, ALC_DEL.1,
ALC_DVS.2, ALC_LCD.1, ALC_TAT.2) are fulfilled for the development and production sites of the TOE listed below: a) NXP Semiconductors GmbH, Business Unit Identification, Development
Center, Georg-Heyken-Str. 1, D-21147 Hamburg (Development center, testing and data center with the project database) b) c)
NXP Semiconductors GmbH, Business Unit Identification, Development
Center, Stresemannallee 101, D-22529 Hamburg (Development center, testing and data center with the project database)
NXP Semiconductors GmbH, Business Unit Identification, Document Control
Office, Mikron-Weg 1, A-8101 Gratkorn (Development Center, Document control and development of documentation) d) NXP Semiconductors, Interleuvenlaan 80, B-3001 Leuven, Belgium
(Debugging, testing and adaptation of source code packages and associated documentation)
For development and production sites regarding the NXP chips P5CD081V1A and
P5CC081V1A refer to the certification reports BSI-DSZ-CC-0633-2010 [15] and. BSI-DSZ-
CC-0555-2009 [18].
For the sites listed above, the requirements have been specifically applied in accordance with the Security Target [6]. The evaluators verified, that the threats, security objectives and requirements for the TOE life cycle phases up to delivery (as stated in the Security
Target [6] and [8]) are fulfilled by the procedures of these sites.
39 / 40
Certification Report BSI-DSZ-CC-0675-2011
40 / 40
This page is intentionally left blank.
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
