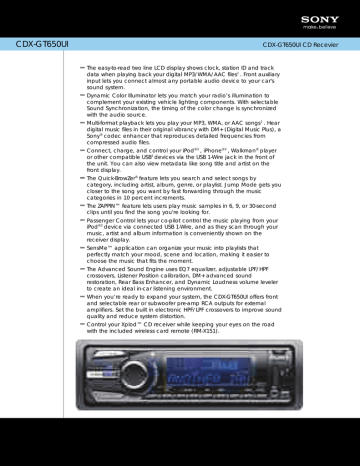

CDXGT650UI MFG SPEC SHEET
CDX-GT650UI
CDX-GT650UI CD Recevier
The easy-to-read two line LCD display shows clock, station ID and track
data when playing back your digital MP3/WMA/AAC files1 . Front auxiliary
input lets you connect almost any portable audio device to your car's
sound system.
Dynamic Color Illuminator lets you match your radio’s illumination to
complement your existing vehicle lighting components. With selectable
Sound Synchronization, the timing of the color change is synchronized
with the audio source.
Multi-format playback lets you play your MP3, WMA, or AAC songs1 . Hear
digital music files in their original vibrancy with DM+ (Digital Music Plus), a
Sony® codec enhancer that reproduces detailed frequencies from
compressed audio files.
Connect, charge, and control your iPod®2 , iPhone®2 , Walkman® player
or other compatible USB3 devices via the USB 1-Wire jack in the front of
the unit. You can also view metadata like song title and artist on the
front display.
The Quick-BrowZer® feature lets you search and select songs by
category, including artist, album, genre, or playlist. Jump Mode gets you
closer to the song you want by fast forwarding through the music
categories in 10 percent increments.
The ZAPPIN™ feature lets users play music samples in 6, 9, or 30-second
clips until you find the song you're looking for.
Passenger Control lets your co-pilot control the music playing from your
iPod®2 device via connected USB 1-Wire, and as they scan through your
music, artist and album information is conveniently shown on the
receiver display.
SensMe™ application can organize your music into playlists that
perfectly match your mood, scene and location, making it easier to
choose the music that fits the moment.
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF
crossovers, Listener Position calibration, DM+ advanced sound
restoration, Rear Bass Enhancer, and Dynamic Loudness volume leveler
to create an ideal in-car listening environment.
When you’re ready to expand your system, the CDX-GT650UI offers front
and selectable rear or subwoofer pre-amp RCA outputs for external
amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound
quality and reduce system distortion.
Control your Xplod™ CD receiver while keeping your eyes on the road
with the included wireless card remote (RM-X151).
CDX-GT650UI
Features
Detach face with front aux input The easy-to-read two line LCD display
shows clock, station ID and track data when playing back your digital
MP3/WMA/AAC files1 . Front auxiliary input lets you connect almost any
portable audio device to your car's sound system.
Dynamic Color Illuminator Dynamic Color Illuminator lets you match
your radio’s illumination to complement your existing vehicle lighting
components. With selectable Sound Synchronization, the timing of the
color change is synchronized with the audio source.
MP3/WMA/AAC playback1 Multi-format playback lets you play your
MP3, WMA, or AAC songs1 . Hear digital music files in their original
vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that
reproduces detailed frequencies from compressed audio files.
Front USB 1-Wire Connect, charge, and control your iPod®2 , iPhone®2 ,
Walkman® player or other compatible USB3 devices via the USB 1-Wire
jack in the front of the unit. You can also view metadata like song title
and artist on the front display.
Intuitive Search Features The Quick-BrowZer® feature lets you search and
select songs by category, including artist, album, genre, or playlist.
Jump Mode gets you closer to the song you want by fast forwarding
through the music categories in 10 percent increments.
ADDITIONAL FEATURES
ZAPPIN™ track sampling search
Passenger Control
SensMe™ App Music Channels
Advanced Sound Engine
RCA outputs for external amplifiers
Wireless card remote
Specifications
Convenience Features
CD Text Display: CD/MP3/WMA/AAC data displayed
On-Screen Clock: 12H
Dimmer Adjust: Selectable Auto/on/off
Key Illumination: Variable color illumination
General
Disc Capacity: 1
Color: Dark Titanium
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
S/N Ratio: Audio Power: CEA2006 S/N 80 dBA
Frequency Response: CD: 10-20,000 Hz
Wow and Flutter: Below measurable limit
Station Preset(s): 18 FM / 12 AM
Digital-to-Analog Converter: 24 bit
Tuner Frequency Range:
FM:Tuner Frequency Range(MHz): 87.5-107.9
AM:Tuner Frequency Range(kHz): 530-1710
Tuner Type: SSIR-EXA with RDS
Volume Control: Tel/Nav Attenuation Circuitry
Band: AM / FM
Signal-to-Noise Ratio (dB): CD: 120 dB
Format(s) Supported: MP3/WMA/AAC files1
CDX-GT650UI CD Recevier
Equalizer: EQ7: 7 band EQ,
+/- 6 dB at 63 Hz
+/- 6 dB at 160 Hz
+/- 6 dB at 400 Hz
+/- 6 dB at 1 kHz
+/- 6 dB at 2.5 kHz
+/- 6 dB at 6.3 kHz
+/- 6 dB at 16 kHz
Convenience
Tilt Range: 0-45° mounting angle
Display
Technology: LCD
Display Color: Black / Variable color
Text Displayed: Source, artist, track, playback time, menu and clock
Text Lines: 2 lines of information
Amplifier Section
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Tuner
FM Usable Sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 70 dB (mono)
Frequency Response: FM: 20-15,000 Hz
Stereo Separation: 40 dB at 1 KHz
Power
Output Power: 52W x4 Watts Max Power - CEA2006 Standard Power Output:
17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to
20 kHz with less than 1% THD+N.
Current Drain: 3 - 5 amps
Input Voltage: 12 V DC car battery (negative ground)
Inputs and Outputs
RCA Audio Output(s): Front, Rear and Sub RCA pre-amp outputs
Digital Audio Input(s): -Ability to use all forms of USB devices may vary as
not all devices are compatible.
This unit can be connected to the following iPods. Update your iPod to
the latest software before you use it.
iPod Nano 1st generation*
iPod Nano 2nd generation (aluminum)
iPod Nano 3rd generation (video)
iPod 5th generation (video)*
iPod Classic
iPod Touch
iPhone
This unit is compliant with MSC (Mass Storage Class) and MTP (Media
Transfer Protocol) type USB devices compliant with the USB standard.
This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not
covered in the owners manual, consult your nearest Sony dealer
USB Port(s): Front USB - Full Speed
Antenna Terminal(s): AM/FM Antenna Input Terminal
12V Trigger Output(s):
Power antenna
Amplifier turn on
Remote Jack: Optional wired remote input terminal
Audio In:
Front Aux with variable level: -8dB ∼ +18dB
Please visit the Dealer Source for current information at
Front USB input
www.sony.com/dealersource
Sony Bus terminals
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 Infrared
•www.sony.com
Port: Wireless remote
Dimensions
Last Updated: 03/08/2011
