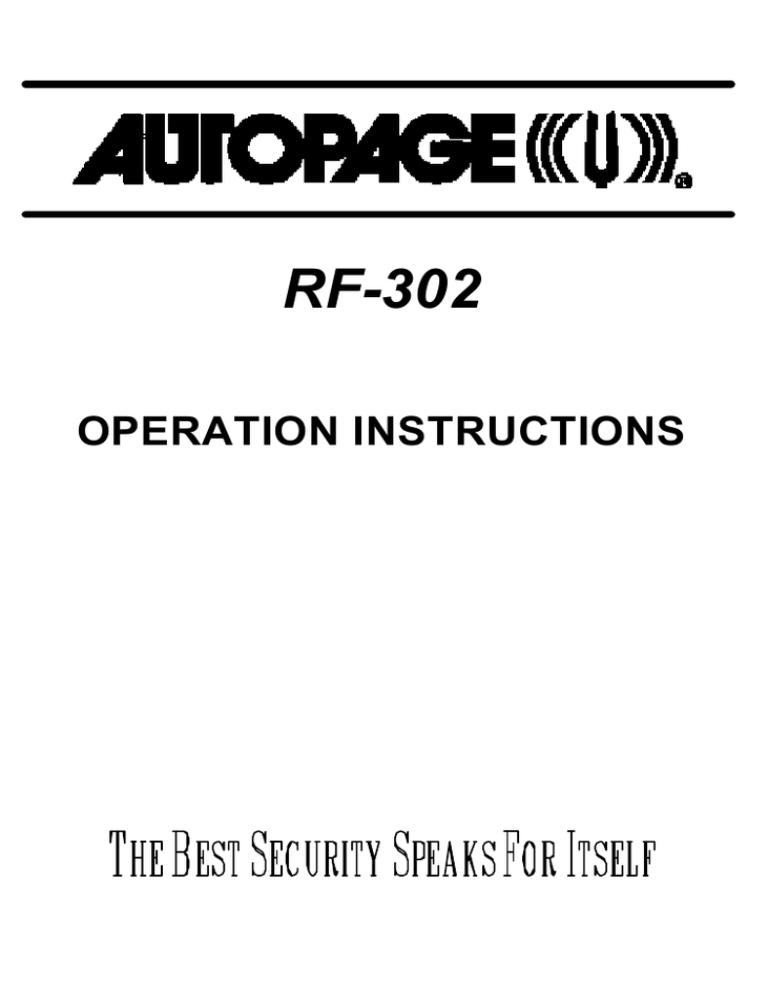

RF-302
OPERATION INSTRUCTIONS
Congratulations on your purchase of the RF-302 vehicle security
system.
AutoPage, Inc. is one of the companies with the longest history and
experience in vehicle security in the United States and a wholly owned
subsidiary of Iwata Electric Co., of Tokyo, Japan. Iwata has been an
industry leader for 40 years, establishing a reputation for ingenuity in
its engineering capability and innovative communication products.
AutoPage and Iwata maintain the long tradition of providing the best
value to their customers.
We sincerely hope the purchase of the RF-302 vehicle security system
provides peace of mind to you.
Please take the time to read over this operation manual to thoroughly
familiarize yourself with the many features and options of the RF-302.
!!NOTICE!!
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FEDERAL COMMUNICATION COMMISSION RULES AND REGULATIONS
PROHIBIT THE ADJUSTMENT OF THE TRANSMITTER PORTION OF THIS SYSTEM
BY UNLICENSED PERSONNEL.
RF-302
RF-302 OPERATION INSTRUCTIONS
A.
REMOTE CONTROL TRANSMITTER OPERATION
1. ARM/DISARM
TO ARM THE RF-302
Press the ON/OFF button once to arm.
The siren will chirp one (1) time, the
lights will flash, and all doors will lock.
(*)
TO DISARM THE RF-302
Press the ON/OFF button once to
disarm. The siren will chirp two (2) times, the lights will flash, and all
doors will unlock.(*)
NOTE(*): Your vehicle must be equipped with power door locks and
optional relays may be required to allow alarm control over the vehicle
door locks. Additionally, all doors will lock automatically each time the
ignition key is turned on, and unlock automatically each time the ignition
key is turned off. Please see Section (I) "IGNITION CONTROL POWER
DOOR LOCK SYSTEM".
2. TEMPORARY CHIRP DELETE FROM REMOTE
Upon approaching the vehicle (whether armed or disarmed) push the
AUX. button on the remote control transmitter for half (0.5) second, then
very quickly push the ON/OFF button on the transmitter to arm or disarm
in the usual manner. The chirp sound will be silenced only for this
particular operation. The sequence must be repeated each time if it is
desired to cancel the arm/disarm chirp sound.
1
RF-302
3. PANIC FUNCTION
The RF-302 remote control may be used as a remote panic switch to
trigger the siren in cases of emergency. To activate the PANIC
FUNCTION press and hold the ON/OFF button on the remote transmitter
for a minimum of 3 seconds. The siren will sound. To stop the PANIC
FUNCTION press the ON/OFF button on the transmitter.
4. THE PRE-WARNING SENSOR CIRCUIT (If installed)
The RF-302 offers an option to pre-warn possible violators with siren
chirps before triggering the alarm. The alarm will trigger with the third
violation within 15 seconds. Purchase of an optional sensor will be
required.
To delete the pre-warning sensor, press the button again within 5
seconds after arming. The siren will confirm deletion with a low chirp.
NOTE: Deleted sensor(s) will return to normal operation upon
disarming the RF-302. Sensor(s) deletion procedure must be followed
each time the RF-302 is armed. This operation deletes only the prewarning sensor of the alarm.
5. CHANGING THE REMOTE TRANSMITTER BATTERY
The RF-302 remote transmitter uses one (1) 12 volt miniature battery,
#EL12, #VR22, or Radio Shack #23-144. It will provide approximately
one year of operation before replacement is necessary.
2
RF-302
To replace the battery, carefully remove the
case screw located at the end of the remote
where the key ring attaches to the case.
Use a small blade Phillips screwdriver.
Before removing the battery note the
+
direction of its terminals. Install the new
battery exactly the same, using caution so
as not to bend, or otherwise damage the
battery contacts. Replace the case cover and carefully tighten the screw.
Do not over-tighten the screw! Test the transmitter to insure it arms and
disarms the alarm.
B.
1.
2.
3.
4.
5.
LED STATUS INDICATOR OPERATION
LED OFF= The RF-302 is disarmed.
LED CONSTANT ON= Indicates open trigger circuit.
LED FAST FLASHING= Passive arming timer is counting down.
LED FLASHING= The RF-302 is armed.
LED FLASHING IN A 2 FLASH/HOLD SEQUENCE= Alarm breach.
NOTE: Unless a door is opened after disarming, the RF-302 will
automatically rearm in 60 seconds, and the LED will continue to flash.
See Section (G) AUTOMATIC RE-ARMING for details.
C.
AUDIBLE AND VISUAL ALARM STATUS INDICATOR
1. 1 CHIRP WITH LIGHT FLASH= Alarm is armed.
2. 2 CHIRPS WITH LIGHT FLASH= Alarm is disarmed.
3. 4 CHIRPS WITH LIGHT FLASH & LED FLASHING IN A 2
FLASH/HOLD SEQUENCE= Alarm is disarmed and has been
breached in your absence.
D.
VALET/OVERRIDE SWITCH
3
RF-302
NOTE: Both VALET and OVERRIDE functions are performed from the
same switch.
1. OVERRIDE FUNCTION
The OVERRIDE FUNCTION may be used if the RF-302 remote is lost or
inoperative. To operate the OVERRIDE FUNCTION, enter the vehicle
(siren will sound); switch the vehicle ignition to ON. Move the
VALET/OVERRIDE switch to ON; then OFF; the siren will stop. The RF302 will be disarmed. Quickly replace or service the remote transmitter
to insure continued vehicle protection.
2. VALET FUNCTION
The RF-302 may be placed into the VALET (stand-by) mode to allow for
vehicle service, car washing, or attendant parking without self arming
after the ignition is switched off, and without leaving the RF-302 remote
control with unauthorized individuals.
To operate the VALET FUNCTION turn the vehicle ignition to on and
move the VALET/OVERRIDE SWITCH to ON.
To return to normal operation turn the vehicle ignition to on and move the
VALET/OVERRIDE SWITCH to OFF.
3. KEYLESS ENTRY MODE
In the valet mode, the vehicle doors can be locked and unlocked using
the remote. However, there will be no chirp confirmation; it is strongly
recommended that the driver visually confirm that the doors are locked.
E.
PASSIVE/MANUAL ARMING OPERATION
(Optional at installation)
Passive/Manual operations can be selectable if an optional toggle
switch is installed. Consult your installing dealer.
4
RF-302
1. PASSIVE ARMING
If you choose the PASSIVE (automatic) mode, the system must be
operated as below.
1. Switch OFF vehicle ignition, exit vehicle, and be sure all protected
openings are closed.
2. The LED STATUS INDICATOR will begin fast flashing and the
passive arming timer will begin counting down.
3. If you re-open the exit the LED will stop flashing.
4. Close the exit, and the LED will start flashing again.
5. The RF-302 will count down for 30 seconds. After 30 seconds,
the siren will chirp 1 time indicating the RF-302 has armed.
NOTE: If the optional remote power door locks feature is installed, the
doors will automatically lock 10 seconds after the PASSIVE arming cycle
is completed. This feature is available only if the ignition control power
door lock system is selected.
2. MANUAL ARMING
If you choose the MANUAL (active) arming mode, follow the steps below.
1. Switch off ignition, leave vehicle, and close all protected openings.
2. Press the ON/OFF button on the remote transmitter.
3. The siren will chirp 1 time. 5 seconds later the RF-302 will be fully
armed.
F.
PASSIVE/MANUAL DISARMING OPERATION
5
RF-302
Approach the vehicle and press the ON/OFF remote transmitter button.
The siren will chirp 2 times and the lights will flash to indicate the RF302 is disarmed.
G.
AUTOMATIC RE-ARMING
The RF-302 is equipped with an automatic re-arming circuit that will
return the alarm to a fully armed state if a door is not opened within 60
seconds after disarming. This automatic re-arming circuit can be
eliminated at the time of installation.
H.
BREACH WARNING
The RF-302 is equipped with BREACH WARNING to tell you, upon
disarming, if the alarm has been triggered in your absence. Press the
ON/OFF button on the remote transmitter. If a breach has occurred, the
siren will signal with 4 chirps, the lights will flash four times, and the
LED will be flashing in a 2 second flash/hold sequence.
I.
IGNITION CONTROL POWER DOOR LOCK SYSTEM
When installed with remote power door locks, the vehicle's doors will
automatically lock when the ignition is switched on. The doors will
automatically unlock when the ignition is switched off. In order to avoid
any undesirable lock-out, the doors will not lock if any door is left open.
This feature is optional at time of installation. If the ignition control door
lock system is not chosen, the doors will not lock in passive arming.
However, the doors will lock in manual arming and automatic re-arming.
J.
TRIGGER TEST
After arming the RF-302 in either the PASSIVE or MANUAL mode, test
the system in the following manner.
6
RF-302
1. Open any door or other protected opening. The siren will sound
instantly, and the lights will flash.
2. If optional sensors have been installed, arm the RF-302 and test
according to the directions of the particular sensor installed.
If triggered in the armed condition, the RF-302 will sound its siren and
flash the lights for 60 seconds; then it will stop and automatically reset
and rearm. If the violation continues, the alarm will sound and lights will
flash for two 60 second cycles.
K.
PROGRAMMING THE REMOTE TRANSMITTERS
The RF-302 includes two (2), 2 button mini remote control transmitters
which must be programmed to the alarm before any alarm function is
possible.
NOTE: Each time the programming mode is entered, all programmed
transmitter codes will be automatically deleted and must be reprogrammed. This is an important security feature. If any transmitter is
lost or stolen, enter the programming mode and re-program existing
transmitters. Transmitters can only be programmed by entering the
programming mode. Existing codes will remain in memory even if
power to the RF-302 is disconnected.
To program the RF-302 transmitters, follow the directions as written
below, in their exact order!
1.
Flip the VALET/OVERRIDE switch to "ON" position.
2.
Turn the ignition switch to "ON", then "OFF", then immediately
3.
Flip the VALET/OVERRIDE switch "OFF", "ON/OFF", "ON/OFF". The
siren will chirp one (1) time.
7
RF-302
4.
Turn the ignition switch "ON/OFF", "ON/OFF". The siren will chirp
one (1) time. You are now in the programming mode.
5.
Press the ON/OFF button on one of the remote transmitters until the
alarm siren responds with a confirming chirp. The first transmitter is
now programmed.
6.
Within five (5) seconds, press the ON/OFF button on the second
transmitter until the alarm siren responds with a confirming chirp.
The second transmitter is now programmed. NOTE: If the RF-302
does not receive a second code to learn within five (5) seconds, it
will automatically close the programming mode and resume normal
alarm functions. If this happens, it will be necessary to repeat steps
1 through 6 and re-program all transmitters.
If three or four transmitters are programmed, continue pressing the
ON/OFF button of the third and/or fourth transmitters.
7.
The RF-302 can learn up to four remote transmitter codes. If later
optional third and forth transmitters are to be programmed, follow
sequence 1 through 6 and re-program all existing transmitters.
L.
PROGRAMMING THE REMOTE TRANSMITTERS FOR
SECOND & THIRD VEHICLES
The RF-302 transmitters are capable of controlling separately installed
RF-302 or RF-501 alarm systems in two or three vehicles.
To code the RF-302 transmitters for two or three vehicles follow the
diagrams as shown below. Before multiple vehicle programming can be
achieved, it is necessary to enter the programming mode as described
in SECTION K.
1. TWO VEHICLE OPERATION
VEHICLE #1
8
RF-302
Enter the programming mode on vehicle #1 and push the ON/OFF
button on the transmitter for Vehicle #1. The alarm siren will respond
with a confirming chirp. Within five (5) seconds, push the AUX. button on
the transmitter for Vehicle #2. The alarm siren will respond with a
confirming chirp. Both transmitters are now programmed to Vehicle #1.
VEHICLE #2
Enter the programming mode on Vehicle #2 and push the AUX. button
on the first transmitter used for Vehicle #1. The alarm siren will respond
with a confirming chirp. Within five (5) seconds, push the ON/OFF button
on the second transmitter that had been previously programmed on
Vehicle #1. The alarm siren will respond with a confirming chirp. Both
transmitters are now programmed to Vehicle #2.
NOTE: Here, the first transmitter is assumed to be the primary
transmitter of Vehicle #1, and the second transmitter is assumed to be
the primary transmitter of Vehicle #2.
VEHICLE #1
VEHICLE #2
TRANSMITTER #1
ON/OFF BUTTON
AUX. BUTTON
TRANSMITTER #2
AUX. BUTTON
ON/OFF BUTTON
2. THREE VEHICLE OPERATION
Three vehicle operation is accomplished in the same manner as two
vehicle operation. Use the chart below to program three vehicles to
operate from one transmitter.
TRANSMITTER #1
TRANSMITTER #2
VEHICLE #1
VEHICLE #2
VEHICLE #3
ON/OFF BUTTON
AUX. BUTTON
BOTH BUTTONS
ON/OFF BUTTON
BOTH BUTTONS
AUX. BUTTON
BOTH BUTTONS
ON/OFF BUTTON
AUX. BUTTON
9
RF-302
TRANSMITTER #3
AUX. BUTTON
ON/OFF BUTTON
BOTH BUTTONS
AUX. BUTTON
BOTH BUTTONS
ON/OFF BUTTON
BOTH BUTTONS
AUX. BUTTON
ON/OFF BUTTON
10
RF-302
AUTOPAGE ALARM ACCESSORIES
AP-4000DX Paging System
Vehicle security paging was originated by AutoPage over 18 years ago.
The AP4000DX is our latest version providing a full four watts of output
power to signal a handsome belt-clip paging receiver indicating your
RF-302 has been triggered, even if you cannot hear the siren.
RS-32 Dual Stage Perimeter Protection Sensor
The RS-32 uses a microwave frequency to detect field disturbance
within a contained area. The RS-32 is ideal for detecting a violation into
convertibles and any open space which does not have physical
protective barriers. Any movement within the field will trigger the RF-302.
SIS-3 Glass/Shock Sensor
Our top selling and extremely reliable electronic glass/shock sensor, the
SIS-3 can be finely adjusted for each installation, from sports cars to
trucks. When properly adjusted, it virtually eliminates false triggers
typically caused by inferior sensors.
SIS-10 Air Movement Sensor
The SIS-10 super low frequency vibration sensor has successfully
integrated an electret electrostatic transducer and low pass filter,
creating a new and cost effective air movement sensor. If installed in a
closed vehicle, any movement of air inside the vehicle which may be
caused by opening a door will trigger the sensor. Applications of the
SIS-10 are limitless. It will be ideal to monitor a vehicle’s doors, trunk or
hatch, an RV, a closed cabin on a vessel and so on. The SIS-10 can
also replace glass breakage sensors. The advantage of the SIS-10 is
that a single SIS-10 can cover all the doors, rear hatch, windows and
sun roof even if there is no pin switch. Like other AutoPage SIS
11
RF-302
sensors, the SIS-10 has a LED and potentiometer for easy sensitivity
adjustment.
MSEN-KIT
The MSEN-KIT includes two pre-wired Micro Resonance Sensors and a
special triggering amplifier. These special sensors are designed to be
mounted within the vehicle door or on the door post near the latching
mechanism that keeps the door closed. When properly adjusted, they
will respond to the frequency caused by metal-to-metal contact, such as
a lock pick, screwdriver, or professional door opening tools inserted into
the door for attempted illegal entry into the vehicle. the MSEN-KIT
sensors are designed to provide limited coverage to specific areas.
They should be used in conjunction with other AutoPage sensors for
maximum protection capabilities.
AC68 Power Window Module
The AC-68 Power Window Control Module can control the up or down
motion of two windows, or one window and a sunroof.
RK-1 Relay Kit
A pre-wired relay and socket for starter interrupt and other functions of
the RF-302.
ES6
As an option to the standard single tone siren package, a six tone siren
is available at additional cost.
XT-53 EXTRA REMOTE CONTROL TRANSMITTER
Additional/Replacement remote control transmitter.
12
LIMITED LIFETIME WARRANTY PROVISIONS
(U.S. and Continental U.S. Only)
1. AutoPage, Inc. WARRANTS that this new unit has been thoroughly
inspected and tested at the factory prior to delivery. Your AutoPage equipment
is guaranteed for "life" to the origin al purchaser/user of the equipment under the
following conditions: If the product proves defective (according to AutoPage's
testing) within the first year, the defective unit may be exchanged or repaired
free of charge. "Proof of Purchase" (dated sales receipt) must accompany all
warranty returns; otherwise, your returns will be rejected and sent back.
After one (1) year, the purchaser should ship the unit pre-paid to AutoPage with
a money order in the amount of $20.00 to cover handling and shipping charges.
Note: The WARRANTY CARD on the back of this page may be required to
receive warranty services.
2. This WARRANTY will be considered VOID if the equipment has been
misused, neglected, improperly serviced, altered, dropped or damaged by water,
contrary to the AutoPage INSTRUCTION MANUAL. Or, if used with
accessories not approved by AutoPage, which may have contributed to the
defect.
3. The purchaser's remedies under this WARRANTY shall be limited to the
repair or replacement of electronic components only. THE FOLLOWING IS
NOT COVERED: Damages or deterioration to cases, batteries, covers and
cabinets; the cost of repairs, replacement and labor of which shall be borne by
the purchaser even if occurring during the WARRANTY period.
4. Any equipment or parts which are claimed to be defective under this
WARRANTY must be sent to the AutoPage Service center with "proof of
purchase" at purchaser's expense prior to such return, a Return Authorization
Number should be obtained. AutoPage will return the equipment, charges
prepaid. Warranty Service can be provided through the dealer where the
equipment is originally purchased.
5. Any unexpired WARRANTY shall be applicable to equipment and parts in
the possession of the original purchaser only.
6. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT
12
RF-302
LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
7 AutoPage shall not be liable, under the foregoing WARRANTIES or
otherwise, for: Any personal injury of any kind to the purchaser, its employees
or agents or anyone else whomsoever resulting directly or indirectly from the use
or presence of the equipment or parts; Consequential damages of any kind; Any
inability of the purchaser to use the equipment.
13
This WARRANTY CARD is for your record. However, AutoPage reserves the
right to request you to submit this WARRANTY CARD which must have complete
information to receive warranty service. Please keep this card in a secured place.
AUTOPAGE WARRANTY SERVICE CARD
Model RF-302
Serial#______________________________
CUSTOMER TO COMPLETE
Mr/Mrs/Ms
__________________________
________________________
Your Name (Please print)
__________________________
________________________
Address
__________________________
________________________
City, State, Zip
__________________________
________________________
Year/Make/Model of Vehicle
DEALER TO COMPLETE
Company Name
Address
City, State, Zip
Dealer's Telephone Number
________________________
Date of Installation\Purchase
"Proof of purchase" which includes the store name and date of
purchase must accompany all warranted returns.
It is your responsibility to keep this card for any future warranty
service.
For Your Records
DATE
SERVICE COMPLETED
13
1815 W. 205th St. #101
Torrance, CA 90501
310-618-2002
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
