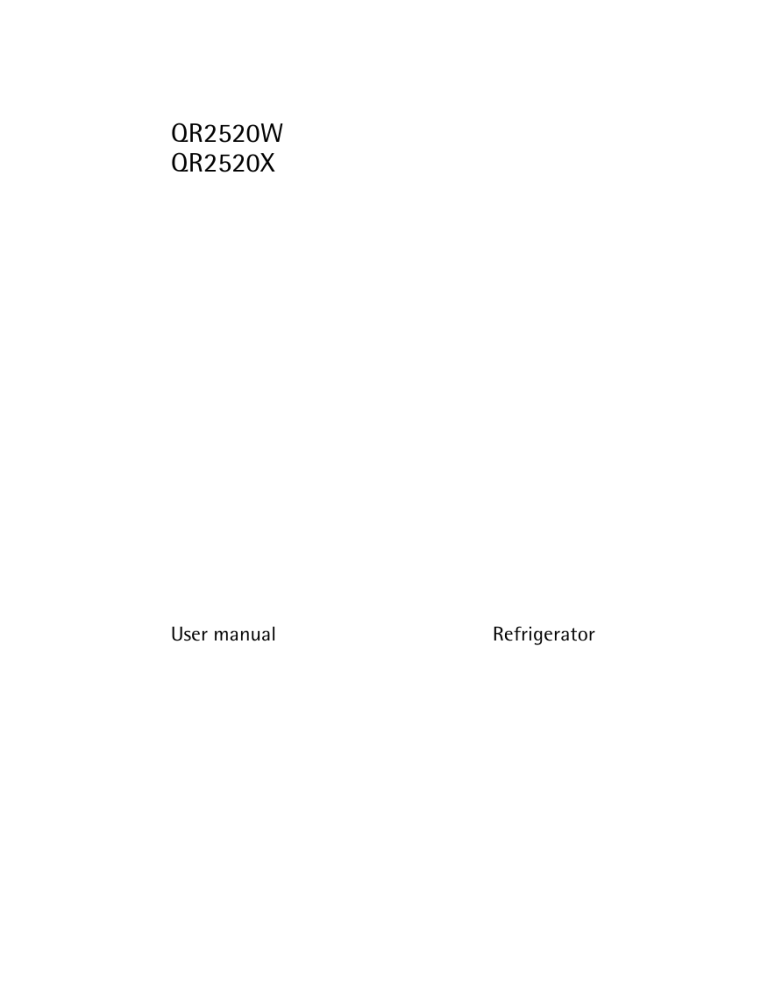

QR2520W

QR2520X

User manual Refrigerator

2 Contents

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

CONTENTS

SAFETY INFORMATION

Children and vulnerable people safety

General safety

Daily use

Care and cleaning

CONTROL PANEL

2

4

4

3

3

4

5

5

Display/Indicator

Switching on

Switching off

Temperature regulation

Minute Minder function

Child Lock function

COOLMATIC function

Extra Humidity function

Holiday function

Door open alarm

FIRST USE

Cleaning the interior

DAILY USE

Movable shelves

Vegetable Drawer

Bottle rack

Clean Air Control Filter

Positioning the door shelves

HELPFUL HINTS AND TIPS

7

7

7

8

8

6

6

6

6

8

8

9

9

9

10

10

11

11

Hints for fresh food refrigeration

Hints for refrigeration

Cleaning the ventilation grille

Defrosting the refrigerator

WHAT TO DO IF…

Replacing the lamp

Closing the door

TECHNICAL DATA

INSTALLATION

Fitting the door handles

NOISES

11

11

Hints for temperature inside the fridge 12

CARE AND CLEANING

Periodic cleaning 13

Replacing the Clean Air Control filter 13

13

14

14

14

16

16

16

16

Location

Electrical connection

Removing the transport support

Removing the shelf holders

Rear spacers

17

17

18

18

18

Levelling

Installation of the Taste Guard Filter

Door reversibility

ENVIRONMENTAL CONCERNS

12

17

19

20

21

23

Hints for energy saving 11

Subject to change without notice

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid

Safety information 3 unnecessary mistakes and accidents, it is important to ensure that all people using the ap pliance are thoroughly familiar with its operation and safety features. Save these instruc tions and make sure that they remain with the appliance if it is moved or sold, so that ev eryone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physi cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person re sponsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing chil dren to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appli ance, a natural gas with a high level of environmental compatibility, which is neverthe less flammable.

During transportation and installation of the appliance, be certain that none of the com ponents of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

4 Safety information

1.

Power cord must not be lengthened.

2.

Make sure that the power plug is not squashed or damaged by the back of the ap pliance. A squashed or damaged power plug may overheat and cause a fire.

3.

Make sure that you can come to the mains plug of the appliance.

4.

Do not pull the mains cable.

5.

If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6.

You must not operate the appliance without the lamp cover

1)

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/ wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

• Bulb lamps 2)

used in this appliance are special purpose lamps selected for household ap pliances use only. They are not suitable for household room illumination.

Daily use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appli ance if it is damaged. Report possible damages immediately to the place you bought it.

In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheat ing. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only. 3)

1) If the lamp cover is foreseen.

2) If the lamp is foreseen.

3) If a water connection is foreseen.

Control panel 5

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the ap pliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchang er. The materials used on this appliance marked by the symbol are recyclable.

CONTROL PANEL

1 2 3 4 5 6

1 ON/OFF button

2 Mode button

3 OK button

4 Temperature colder button

5 Temperature warmer button

6 Display

It is possible to change predefined sound of buttons to a loudly one by pressing together

Mode button and Temperature colder button for some seconds. Change is reversible.

Display/Indicator

1 2 3 4

8 7 6 5

1 Timer indicator

2 COOLMATIC function

3 Holiday function

4 Temperature indicator

5 Alarm indicator

6 Child Lock function

6 Control panel

7 Minute Minder function

8 Humidity function

Switching on

To switch on the appliance do these steps:

1.

Connect the mains plug to the power socket.

2.

Press the ON/OFF button if the display is off.

3.

If "dEMo" appears on the display, the appliance is in demonstration mode. Refer to

"What to do if..." paragraph.

4.

The temperature indicators show the set default temperature.

To select a different set temperature refer to "Temperature regulation".

If the door remains open for some minutes, the light will turn off automatically. The light is reset by closing and opening the door itself.

Switching off

To switch off the appliance do these steps:

1.

Press the ON/OFF button for few seconds.

2.

The display switches off.

3.

To disconnect the appliance from the power disconnect the mains plug from the pow er socket.

Temperature regulation

The set temperature of the fridge may be adjusted by pressing the temperature button.

Set default temperature:

• +5°C for the fridge

The temperature indicator shows the set temperature.

The set temperature will be reached within 24 hours.

After a power failure the set temperature remains stored.

Minute Minder function

The Minute Minder function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down a mixture for a certain lenght of time.

To switch on the function:

1.

Press the Mode button until the corresponding icon appears.

The Minute Minder indicator flashes.

The Timer shows the set value (30 minutes) for a few seconds.

2.

Press the Temperature colder or the Temperature warmer button to change the Timer set value from 1 to 90 minutes.

3.

Press the OK button to confirm.

The Minute Minder indicator is shown.

The Timer start to flash (min).

At the end of the countdown the Minute Minder indicator flashes and an audible alarm sounds:

Control panel 7

1.

Press OK button to switch off the sound and terminate the function.

It is possible to deactivate the function at any time during the countdown:

1.

Press the Mode button until the Minute Minder indicator flashes.

2.

Press the OK button to confirm.

3.

The Minute Minder indicator goes off.

It is possible to change the time during the countdown by pressing the Temperature colder button and the Temperature warmer button.

Child Lock function

To lock the buttons from unintentional operation select the Child Lock function.

To switch on the function:

1.

Press the Mode button until the corresponding icon appears.

2.

The Child Lock indicator flashes.

3.

Press the OK button to confirm.

The Child Lock indicator is shown.

To switch off the function:

1.

Press the Mode button until the Child Lock indicator flashes.

2.

Press the OK button to confirm.

3.

The Child Lock indicator goes off.

COOLMATIC function

If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the COOLMATIC function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator.

To switch on the function:

1.

Press the Mode button until the corresponding icon appears.

The COOLMATIC indicator flashes.

2.

Press the OK button to confirm.

The COOLMATIC indicator is shown.

The COOLMATIC function shuts off automatically after approximately 6 hours.

To switch off the function before its automatic end:

1.

Press the Mode button until the COOLMATIC indicator flashes.

2.

Press the OK button to confirm.

3.

The COOLMATIC indicator goes off.

The function switches off by selecting a different fridge set temperature.

Extra Humidity function

If you need to increase the humidity in the refrigerator, we suggest activating the Extra

Humidity function:

To switch on the function:

1.

Press the Mode button until the corresponding icon appears.

The Extra Humidity indicator flashes.

2.

Press the OK button to confirm.

The Extra Humidity indicator is shown.

To switch off the function:

8 First use

1.

Press the Mode button until the Extra Humidity indicator flashes.

2.

Press the OK button to confirm.

3.

The Extra Humidity indicator goes off.

Holiday function

This function allows you to keep the refrigerator closed and empty during a long holiday period without the formation of a bad smell.

The fridge compartment must be empty with holiday function on.

To switch on the function:

1.

Press the Mode button until the corresponding icon appears.

The Holiday indicator flashes.

The fridge temperature indicator shows the set temperature.

2.

Press the OK button to confirm.

The Holiday indicator is shown.

To switch off the function:

1.

Press the Mode button until the Holiday indicator flashes.

2.

Press the OK button to confirm.

3.

The Holiday indicator goes off.

The function switches off by selecting a different fridge set temperature.

Door open alarm

An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:

• flashing Alarm indicator

• acoustic buzzer

When normal conditions are restored (door closed), the alarm will stop.

During the alarm, the buzzer can be switched off by pressing any button.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Check that the drain hose at the rear of the cabi net discharges into the drip tray.

Daily use 9

DAILY USE

Movable shelves

The walls of the refrigerator are equipped with a series of shelves support so that the shelves can be positioned as desired.

Some shelves must be lifted up by the rear edge to enable them to be removed.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Vegetable Drawer

The drawer is suitable for storing fruit and vegetables.

Some models have a separator inside the drawer that can be placed in different positions to allow for the subdivision best suited to personal needs.

All parts inside the drawer can be removed for cleaning purposes.

10 Daily use

Bottle rack

Place the bottles (with the opening facing front) in the pre-positioned shelf.

If the shelf is positioned horizontally, place only closed bottles.

This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this re sult, pull the shelf up so it can rotate upwards and be placed on the next higher level.

Clean Air Control Filter

Your appliance is equipped with a carbon filter behind the air lever flap.

The filter purifies the air from unwanted odours in the fridge compartment preserving food quality.

On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control filter" for instructions.

Make sure that the air lever flap is closed to obtain proper function.

Helpful hints and tips 11

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at dif ferent heights.

To make these adjustments proceed as follows:

Gradually pull the shelf in the direction of the ar rows until it comes free, then reposition as re quired.

Do not move the big lower door shelf to ensure correct air circulation.

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If the ambient temperature is high and the Temperature Regulator is set to low tempera ture and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consump tion.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.

12 Care and cleaning

Fruit and vegetables: these should be thoroughly cleaned and placed in the special draw er(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in alu minium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for temperature inside the fridge

A suitable temperature inside the fridge is approx. +5° C. When the temperature regulator is set to +5°C this represents the mean temperature in the fridge. It is normal with higher temperature in the top of the fridge.

If the temperature regulator is set to a cold tem perature, the ambient temperature is high or if the fridge is fully loaded the compressor will run for a longer time. It too cold, change to a higher temperature setting.

A

Do not place food against or close to the temper ature sensor. This can result in too cold tempera tures.

If you want to check the temperature of food stored in the refrigerator, place a glass of water centrally in the cabinet, and put a proper ther mometer with an accuracy of +/– 1 °C into it. Af ter 6 hours the temperature can be monitored.

The measuring shall be performed under steadystated conditions (without changing the load).

CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Care and cleaning 13

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

• rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save energy con sumption.

Take care of not to damage the cooling system.

When moving the cabinet, lift it by the front edge to avoid scratching the floor.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning external surfaces.

Do not use detergents or abrasive paste as these will damage the paint, or stainless steel anti finger print coating.

After cleaning, reconnect the equipment to the mains supply.

Replacing the Clean Air Control filter

To get the best performance replace the Clean Air Control filter once every year.

New active filters can be purchased from your local dealer.

Refer to "Installation of the Clean Air Control filter" for instructions.

Cleaning the ventilation grille

The ventilation grille can be removed for washing.

Make sure the door is open and then:

1.

Loosen the upper edge of the grille by pulling outward/downward.

2.

Pull the grille straight out to completely remove it.

3.

Vacuum clean under the cabinet.

14 What to do if…

Defrosting the refrigerator

Frost is automatically eliminated from the evapo rator of the refrigerator compartment every time the motor compressor stops, during normal use.

The defrost water drains out through a drain hole into a special container at the back of the appli ance, over the motor compressor, where it evapo rates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water over flowing and dripping onto the food inside.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1.

disconnect the appliance from electricity supply

2.

remove all food

3.

defrost and clean the appliance and all accessories

4.

leave the door/doors open to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF…

During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service.

The operation of the appliance goes with certain sounds (compressor and circulating sound). This not means a trouble, but a normal operation.

The appliance operates discontinuously, so the stopping of compressor does not mean be ing no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit.

Problem

The appliance is noisy.

The buzzer sounds. The

Alarm icon flashing.

The appliance is not supported properly.

Possible cause Solution

Check if the appliance stands sta ble (all feet and wheels should be on the floor). Refer to "Levelling".

The door is not closed correctly.

Refer to "Door open alarm".

What to do if… 15

Problem

upper or lower square is shown in the temperature display.

“dEMo” appears on the display.

The compressor runs continuously.

Water flows inside the refrigerator.

Possible cause

An error has occurred in meas uring the temperature

The appliance is in demonstra tion mode.

-

Solution

Call your service representative

(the cooling system will continue to keep food products cold, but temperature adjustment will not be possible)

Keep pressed approximately 10 sec the OK button since a long sound of buzzer is heard and the display shut off for a short while: appliance start works regularly.

Set a warmer temperature.

The Temperature regulator may be set incorrectly.

The door is not closed correctly.

Refer to "Closing the door".

The door has been opened too frequently.

Do not keep the door open longer than necessary.

The food temperature is too high.

The room temperature is too high.

Let the food temperature de crease to room temperature be fore storage.

-

-

Decrease the room temperature.

The water outlet is clogged.

Clean the water outlet.

Water flows on the ground.

The temperature in the appliance is too cold.

The temperature in the appliance is too warm.

The temperature in the refrigerator is too warm.

The appliance does not operate.

Food prevent that water flows into the water collector.

The melting water outlet does not flow in the evaporative tray above the compressor.

Make sure that food do not touch the rear plate.

Attach the melting water outlet to the evaporative tray.

The Temperature regulator may be set incorrectly.

The Temperature regulator may be set incorrectly.

Set a warmer temperature.

Set a lower temperature.

The door is not closed correctly.

Refer to "Closing the door".

The food temperature is too high.

There is no cold air circulation in the appliance.

Large quantities of food to be cooled were put in at the same time.

The appliance is switched off.

Let the food temperature de crease to room temperature be fore storage.

Make sure that there is cold air circulation in the appliance.

Insert smaller quantities of food to be cooled at the same time.

Switch on the appliance.

16 Technical data

Problem

The mains plug is not connected to the mains socket correctly.

The appliance has no power.

There is no voltage in the mains socket.

Possible cause Solution

Connect the mains plug to the mains socket correctly.

Connect a another electrical ap pliance to the mains socket.

Check fuse. Contact a qualified electrician.

Refer to "Replacing the lamp".

The lamp does not work.

The lamp is defective.

Door interferes with ventilation grill.

Misaligned door.

The door has been open to long.

The appliance is not levelled.

The appliance is not levelled.

Close the door.

Refer to "Levelling".

Refer to "Levelling".

As much as the advice does not lead to result, call the nearest brand-mark service.

Replacing the lamp

The appliance is equipped with a longlife LED interior light.

Only service is allowed to replace the lighting device. Contact your Service Center .

Closing the door

1.

Clean the door gaskets.

2.

If necessary, adjust the door. Refer to "Installation".

3.

If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension

Voltage

Height

Width

Depth

1800 mm

595 mm

623 mm

230 V

Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

WARNING!

Read the "Safety Information" carefully for your safety and correct operation of the appli ance before installing the appliance.

Installation 17

Positioning

Install this appliance at a location where the ambient temperature corresponds to the cli mate class indicated on the rating plate of the appliance:

Climate class Ambient temperature

SN +10°C to + 32°C

N

ST

T

+16°C to + 32°C

+16°C to + 38°C

+16°C to + 43°C

Location

To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 40 mm . Ideally, however, the appliance should not be positioned below overhanging wall units.

The ventilation space can be:

• directly above the appliance

• behind and above the top cupboard.

50mm

In this case, the space behind the top cupboard must be at least 50 mm deep.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate corre spond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not ob served.

This appliance complies with the E.E.C. Directives.

Removing the transport support

Your appliance is equipped with transport support to secure the door during transportation.

To remove them do these steps:

18 Installation

1.

Open the door.

2.

Remove the transport support from the door sides.

3.

Remove the transport support from the lower hinge (some models).

Some models are fitted with a silencing pad under the cabinet. Do not remove this pad.

3

Removing the shelf holders

Your appliance is equipped with shelf retainers that make it possible to secure the shelves during transportation.

To remove them proceed as follows:

1.

Move the shelf holders in the direction of the arrow (A).

2.

Lift up the shelves in the rear edge (B) and push it forward until it is freed (C).

3.

Remove the retainers.

A

C

B

Rear spacers

Install the spacers provided within the accessory bag as shown in the figure.

Install the spacers on the back side of the panel.

Fitting the door handles

(Example for right hinge performance)

The handles are supplied as a kit at delivery.

2

1.

Screw the top handle bracket to the handle rod.

2.

Fit the bottom handle bracket on the lower left-hand side of the door.

3.

Fit the top handle bracket on the top left-hand side of the door.

4.

Screw the handle rod to the bottom handle bracket.

Do not use excessive force and overtighten the screws (max. 2 Nm) as you may damage the door handles.

1

3

Levelling

When placing the appliance ensure that it stands level. If necessary adjust the feet using the adjust ment spanner supplied.

Door alignment is dependent on proper levelling.

Installation 19

2

4

Installation of the Taste Guard Filter

The Taste Guard Filter is an active carbon filter which absorbs bad odours maintain the best flavour and aroma for all foodstuffs without risk of odour cross contamination.

On delivery the carbon filter is in a plastic bag to preserve performance.

1.

Open the air lever flap.

2.

Take the filter out of the plastic bag.

20 Installation

3.

Insert the filter in the slot found in the back of the air lever flap.

4.

Close the air lever flap.

The filter should be handled carefully so fragments do not loosen from the surface.

Make sure that the air lever flap is closed to obtain proper function.

Door reversibility

To change the opening direction of the door, do these steps:

1.

Remove the plug from the power.

2.

Remove the ventilation grille. Remove the upper filling and install it on the opposite side of the grille.

Remove the pedal hole cover and install the cover provided in the accessory bag on the opposite side.

3.

Lay down the appliance back side down on a wooden support.

4.

Remove the handle: a1 a2

Unscrew the handle from the top (A1) and the bottom (A2) of the door.

Unscrew both of the handle brackets from the handle rod and re-screw the handle brackets provided in the handle kit.

5.

Unscrew the hinge (B1) and remove the cover plate (B2) and the support (B3).

Remove the cover (B4) on the opposite side and install the support (B3) the cover plate (B2) and the hinge (B1). In stall the cover (B4) on the opposite side.

B1

B3

B2

B4

Noises 21

6.

Unscrew the lower hinge (C1). Move the pin to the opposite side (C2). Unscrew and move the pedal to the opposite side

(C3).

Screw on the lower hinge on the oppo site side.

7.

Tighten the pin with the adjustment spanner supplied.

8.

Install the handle on the opposite side.

9.

Raise the appliance and install the ven tilation grille.

10. Put the cabinet in position.

C2

C3

C1

WARNING!

Reposition, level the appliance, wait for at least four hours and then connect it to the pow er socket.

Do a final check to make sure that:

• All screws are tightened.

• The magnetic seal adheres to the cabinet.

• The door opens and closes correctly.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.

NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

SSSRRR!

OK

HISSS!

BLUBB!

CLICK!

BRRR!

CRACK!

22 Noises

CLICK!

BRRR!

BLUBB!

HISSS!

CLICK!

BRRR!

BLUBB!

HISSS!

SSSRRR!

Environmental concerns 23

SSSRRR!

CRACK!

CRACK!

ENVIRONMENTAL CONCERNS

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

www.aeg.com/shop

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
