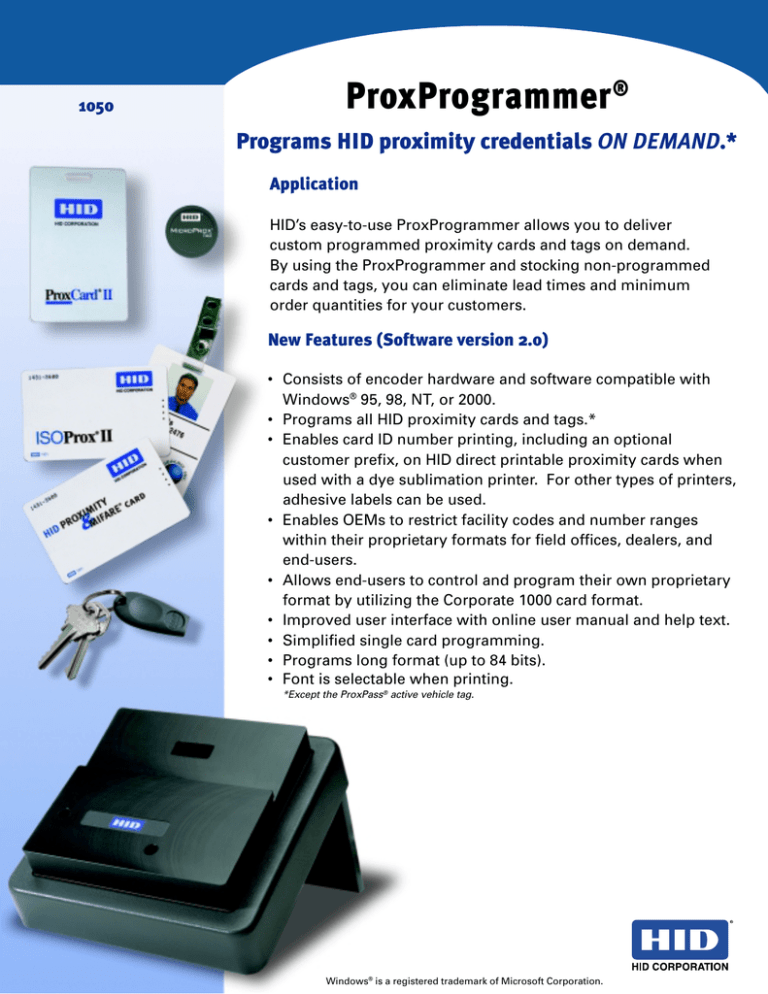

ProxProgrammer ON DEMAND ® 1050

ProxProgrammer ON DEMAND ® 1050
1050
ProxProgrammer ®
Programs HID proximity credentials ON DEMAND.*
Application
HID’s easy-to-use ProxProgrammer allows you to deliver
custom programmed proximity cards and tags on demand.
By using the ProxProgrammer and stocking non-programmed
cards and tags, you can eliminate lead times and minimum
order quantities for your customers.
New Features (Software version 2.0)
• Consists of encoder hardware and software compatible with
Windows® 95, 98, NT, or 2000.
• Programs all HID proximity cards and tags.*
• Enables card ID number printing, including an optional
customer prefix, on HID direct printable proximity cards when
used with a dye sublimation printer. For other types of printers,
adhesive labels can be used.
• Enables OEMs to restrict facility codes and number ranges
within their proprietary formats for field offices, dealers, and
end-users.
• Allows end-users to control and program their own proprietary
format by utilizing the Corporate 1000 card format.
• Improved user interface with online user manual and help text.
• Simplified single card programming.
• Programs long format (up to 84 bits).
• Font is selectable when printing.
*Except the ProxPass® active vehicle tag.
Windows® is a registered trademark of Microsoft Corporation.
ProxProgrammer®
Features
Specifications
Convenient to use
Integral card guide and keyfob slot for correct programming position.
Programmer holds cards or keyfobs at convenient 30 degree angle.
Easy to install and configure.
PC Requirements
Minimum 80486 processor, 32MB RAM,
4MB HD space available, Windows® 95,
98, NT, or 2000.
Card Programming
Create one or more complete orders, print, then program cards.
Select automatic or manual card number advance. Audible beep
and flashing PC screen message for each successfully programmed
card. Options include: Retry, Skip, Replace Fallout, Append to
Order, Display Order Data, and Print Cross Reference List.
Note: If the ProxProgrammer will be used to program a Corporate
1000 Format, the customer assumes all responsibility for card number
management. HID can no longer guarantee non-duplication of card
numbers.
Card Number Printing
In conjunction with a card printer, software allows card pre-printing,
drag and drop number printing location, and portrait or landscape
option. Note: software does not print photos or graphics.
Dimensions
5" x 5" x 4.3"
(12.7 x 12.7 x 10.9 cm)
Construction
Housing: Polycarbonate UL 94
Stand: Delrin
Power Supply
12 VDC plug-in type provided
(input: 100-240 VAC, 47-63 Hz).
Power Requirements
10-28.5 VDC reverse voltage protected.
Linear supply recommended.
Current Requirements
Average 12/24 VDC: 100/120 mA
Peak 12/24 VDC: 124/280 mA
Card Reading
Allows quality control of programmed cards, and provides facility
code and ID information for cards using an authorized format.
Operating Temperature
-22° to 150° F (-30° to 65° C)
Security
Programmer hardware and software must match. Encrypted data
transmission between PC and Programmer.
Operating Humidity
5% to 95% relative humidity noncondensing
Serial Cable
The ProxProgrammer includes a 6 foot (2 meter) cable with DB-9F
connector for installation to a PC’s serial COM port.
Weight
28 oz. (789 gm)
Base Part Number
1050 - See HID’s “How to Order” Guide for detailed ordering
information.
Ordering Specifications
Specify OEM data format when ordering. 26-bit and Clock-andData formats standard. Specify any facility code and number range
limits. End-user must be identified to HID.
Warranty
Hardware warranted against defects in materials and workmanship for
life from date of shipment. Software warranted for 90 days from
date of shipment (see complete warranty policy for details.)
Transmit Frequency
125 kHz
Certifications
Canada/UL 294 Listed
FCC Certification, United States
Canada Certification
CE Mark, Fifteen EU Countries under the
R&TTE Directive (EN60950 - ITE Electrical
Safety, EN 300330 - SRD, and ETS
300683 - EMC)
IEC60950, ITE CB Scheme Electrical Safety
Australia C-Tick Mark
New Zealand EMC
LIT1050DS 1/02, supersedes 7/01
www.HIDCorp.com
9292 Jeronimo Road
Irvine, CA 92618-1905 U.S.A.
+1 (949) 598-1600 (800) 237-7769
FAX +1 (949) 598-1690
Printed in the U.S.A.
Specifications subject to change without notice.
Rev. 11-01, ©2001 HID Corporation
