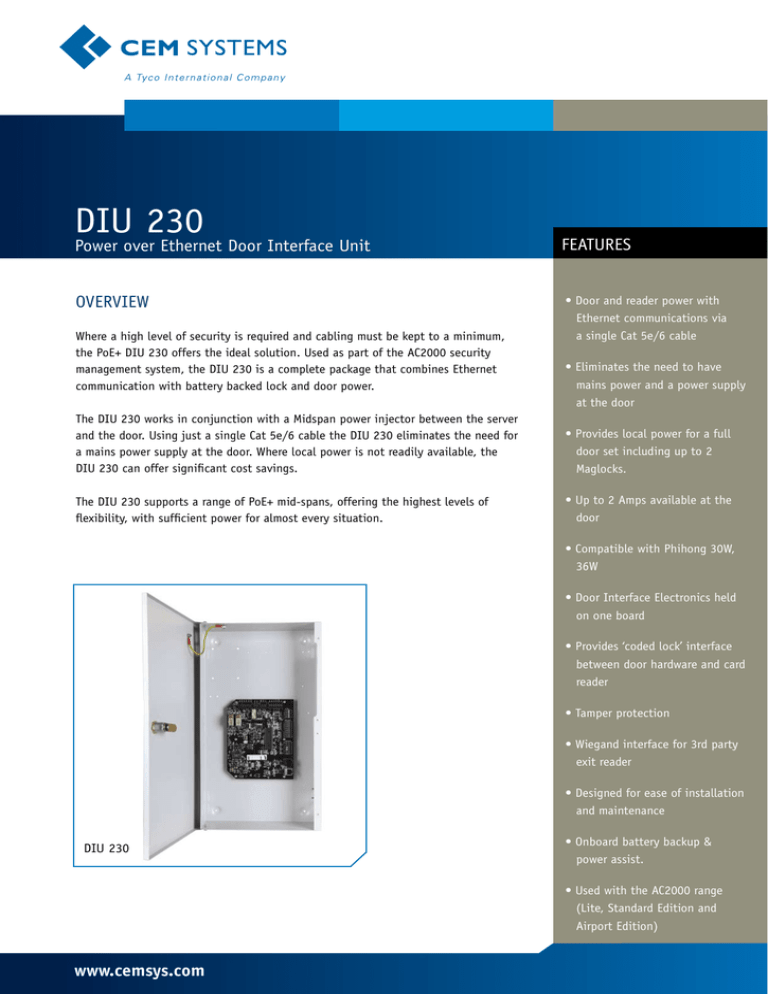

DIU 230
Power over Ethernet Door Interface Unit
FEATURES
OVERVIEW
• Door and reader power with
Ethernet communications via
a single Cat 5e/6 cable
Where a high level of security is required and cabling must be kept to a minimum,
the PoE+ DIU 230 offers the ideal solution. Used as part of the AC2000 security
management system, the DIU 230 is a complete package that combines Ethernet
communication with battery backed lock and door power.
• Eliminates the need to have
mains power and a power supply
at the door
The DIU 230 works in conjunction with a Midspan power injector between the server
and the door. Using just a single Cat 5e/6 cable the DIU 230 eliminates the need for
a mains power supply at the door. Where local power is not readily available, the
DIU 230 can offer significant cost savings.
• Provides local power for a full
door set including up to 2
Maglocks.
The DIU 230 supports a range of PoE+ mid-spans, offering the highest levels of
flexibility, with sufficient power for almost every situation.
• Up to 2 Amps available at the
door
• Compatible with Phihong 30W,
36W
• Door Interface Electronics held
on one board
• Provides ‘coded lock’ interface
between door hardware and card
reader
• Tamper protection
• Wiegand interface for 3rd party
exit reader
• Designed for ease of installation
and maintenance
DIU 230
• Onboard battery backup &
power assist.
• Used with the AC2000 range
(Lite, Standard Edition and
Airport Edition)
www.cemsys.com
CEM/B/054 Rev B
Product Highlights
Power Over Ethernet Access Control
The DIU 230 offers a complete IP based
access control solution that eradicates
the need to provide local mains power at
the door. The unit installation is classed
as low voltage and can be completed by
IT network installers without the expense
of an electrician or electrical contractor.
Benefits
The DIU 230 has an increased current
capacity of up to 2 Amps, Midspan
dependant. This allows a wide range
of door locks or a pair of locks and
end devices to be used. For 2 Amp
requirement the Phihong 36 Watt model
of Midspan is advised.
The unit incorporates a wiegand interface
which allows a 3rd party weigand read
head to be directly connected. This
provides a low cost alternative if an LCD
and keypad are not required for the exit
side of the door.
Available as a board only version or as
lockable wall mounted enclosure with
storage for back up battery.
When fitted with a back-up battery, the
DIU 230 and any equipment attached to
it will continue to work through a power
failure. For example, a 7.2AH battery
could keep a door operational for up to
4 hours.
TECHNICAL SPECIFICATIONS
PHYSICAL
Size
- Board only - Enclosure version
Weight
- Board only
- Enclosure version
193mm x 147mm x 20mm
(7.6” x 5.8” x 0.8”)
460mm x 250mm x 90mm
(18.1” x 9.8” x 3.5”)
0.65Kg
3.65Kg
Enclosure Colour Light Grey
Power requirement
Voltage PoE+ dependant 802.3at
compliant 45 to 56 Volts dc
Environmental
Temperature -10˚C to +55˚C
(subject to battery specifications)
LED Indicators *
*
*
*
*
*
*
3x Status LED – Reflected on read-head
RS485 Activity LED
Lock Secure Contact
Lock Safe
Holder LED
Switcher Okay
Battery status LED
Functionality
Inputs *
*
*
*
*
Door Position
Lock Status
Exit push button
Break Glass unit
Fire Input
Outputs Lock Secure/Safe 12V Relay Output
Door Holder 12V Relay Output
Sounder 12V Open Collector
Dedicated eDCM300 power output
Total output power capability up to
2 Amps Midspan dependant.
Intelligent current sharing between
PoE and battery
Memory 32kB Flash memory
COMMUNICATION INTERFACE
To Card Reader
Ethernet and RS485 cable
- Connection PRODUCT CODES
DIU/700/230
DIU/700/231
RJ45 and 2 part screw terminals
Board only version
Enclosure version
Compatible Midspans
Phihong 30 Watt PoE 30U-560(G)
Phihong 36 Watt PoE 125U-4HP (Req.for 2 Amps)
Product specifications and availability is subject to change without notice. Certain product names mentioned herein may be trade names
and/or registered trademarks of their companies.
Diagrams shown are illustrative purposes only. Refer to product manual for recommended cabling.
CEM Systems Ltd, 195 Airport Road West, Belfast BT3 9ED Northern Ireland
Tel: +44 (0)28 9045 6767 Fax: +44 (0)28 9045 4535 email: [email protected]
www.cemsys.com
