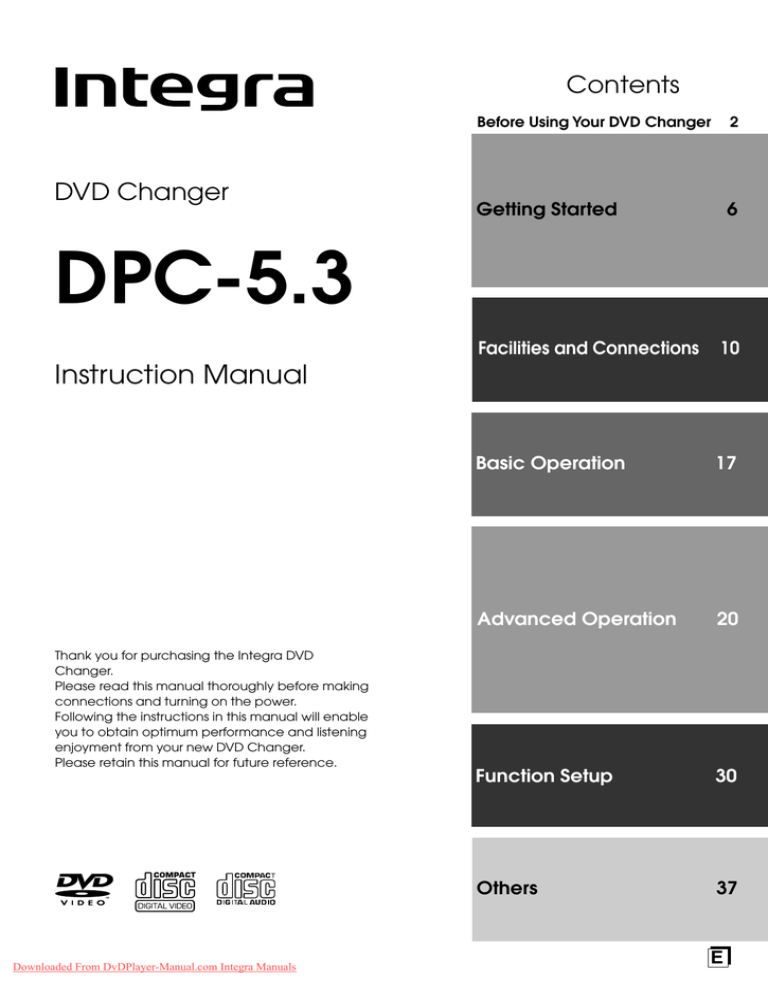

Contents

Before Using Your DVD Changer 2

Getting Started 6

DVD Changer

DPC-5.3

Instruction Manual

Facilities and Connections 10

Basic Operation 17

Advanced Operation 20

Thank you for purchasing the Integra DVD

Changer.

Please read this manual thoroughly before making connections and turning on the power.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new DVD Changer.

Please retain this manual for future reference.

Function Setup 30

Others 37

E

Downloaded From DvDPlayer-Manual.com Integra Manuals

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Important Safeguards

1.

Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

2.

Retain Instructions – The safety and operating instructions should be retained for future reference.

3.

Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4.

Follow Instructions – All operating and use instructions should be followed.

5.

Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recommended by the manufacturer.

6.

Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

7.

Water and Moisture – Do not use the appliance near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8.

Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the

PORTABLE CART WARNING appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

S3125A

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least

5 cm (2 in.) and an opening behind the appliance.

11. Power Sources – The appliance should be operated only from the type of power source indicated on the marking label.

If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.

12. Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention

2 to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

14. Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.

15. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

17. Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service – Unplug the appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the appliance,

C. If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation,

E. If the appliance has been dropped or damaged in any way, and

F. When the appliance exhibits a distinct change in performance – this indicates a need for service.

19. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check – Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition.

21. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

23. Liquid Hazards The appliance should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on the appliance.

Precautions

This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure.

DANGER:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE

INTO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS

OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The laser is covered by a housing which prevents exposure during operation or maintenance. However, this product is classified as a

Laser Product by CDRH (Center for Devices and Radiological

Health) which is a department of the Food and Drug

Administration. According to their regulations 21 CFR section

1002.30, all manufactures who sell Laser Products must maintain records of written communications between the manufacturer, dealers and customers concerning radiation safety. If you have any complaints about instructions or explanations affecting the use of this product, please feel free to write to the address on the back page of this manual. When you write us, please include the model number and serial number of your unit.

In compliance with Federal Regulations, the certification, identification and the period of manufacture are indicated on the rear panel.

FCC INFORMATION FOR USER

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For Canadian model

This class B digital apparatus complies with Canadian ICES-003.

For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

Sur les modèles dont la fiche est polarisee:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE

DANS LA BORNE CORRESPONDANTE DE LA PRISE ET

POUSSER JUSQU’AU FOND.

Downloaded From DvDPlayer-Manual.com Integra Manuals

3

Precautions

1. Regional Restriction Codes (Region Number)

Regional restriction codes are built into DVD Changers and

DVD-Video media for each sales region. If the regional code of the DVD Changer does not match one of the regional codes on the DVD-Video, playback is not possible.

The regional number can be found on the rear panel of the DVD

Changer.

2. About This Manual

This manual explains the basic procedures for operating the

DVD Changer. Some DVD-Video discs do not support the full potential of the DVD technology. Your DVD Changer may therefore not respond to all operating commands. Refer to instruction notes on discs.

A “ ” mark may appear on the TV screen during operation. It means that the operation is not permitted by the DVD Changer or the disc.

3.

Recording Copyright

Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder.

4.

Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST

TIME, READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where the unit will be used meets the required voltage

(e.g., AC 120 V, 60 Hz) written on the rear panel.

5.

Do not touch the unit with wet hands

Do not handle the unit or power cord when your hands are wet or damp. If water or any other liquid enters the case, take the unit to an authorized service center for inspection.

6. Location of the unit

• Place the unit in a well-ventilated location.

Take special care to provide plenty of ventilation on all sides of the unit especially when it is placed in an audio rack. If ventilation is blocked, the unit may overheat and malfunction.

• Do not expose the unit to direct sunlight or heating units as the unit’s internal temperature may rise and shorten the life of the pickup.

• Avoid damp and dusty places and places directly affected by vibrations from the speakers. In particular, avoid placing the unit on or above one of the speakers.

• Be sure the unit is placed in a horizontal position. Never place it on its side or on a slanted surface as it may malfunction.

• When you place the unit near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the unit away from the TV, radio, or VCR.

7. Care

From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth.

Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering.

8. Notes on Handling

• When shipping the unit, use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory.

• Do not use volatile liquids, such as insect spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long time. They will leave marks on the finish.

• The top and rear panels of the unit may become warm after

a long period of use. This is not a malfunction.

• When the unit is not in use, be sure to remove the disc and turn off the power.

• If you do not use the unit for a long period, the unit may not function properly in the future. Turn on and use the unit occasionally.

9.

To Obtain a Clear Picture

The unit is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

10. Notes on Moisture Condensation

Moisture condensation damages the unit.

Please read the following carefully.

• What is moisture condensation?

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside the unit, one of the most crucial internal parts of the unit.

• Moisture condensation occurs in the following cases.

– When you bring the unit directly from a cold place to a warm place.

– When you use the unit in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

– In summer, when you use the unit in a hot and humid place just after you move the unit from an air conditioned room.

– When you use the unit in a humid place.

• Do not use the unit when moisture condensation may occur.

If you use the unit in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or three hours. After a few hours, the unit will have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur.

Table of Contents

Important Safeguards / Precautions / Table of Contents ............................ 2 - 5

Getting Started

Notes on Discs .................................................................................................... 6

Playable Discs / The Structure of the Disc Content / About Video CDs / MP3 Compatibility Information /

Handling Discs / Cleaning Discs / Storing Discs / Notes on Copyright

Features/Supplied Accessories ......................................................................... 8

Features / Supplied Accessories

Preparing the Remote Controller ....................................................................... 9

Inserting the Batteries / Using the Remote Controller

Facilities and Connections

Control Position and Names ............................................................................ 10

Front Panel / Rear Panel / Display / Remote Controller

Making Connections ......................................................................................... 14

Connections to a TV / Optional Video Connections / Optional Audio Connections

Basic Operations

Turning on .......................................................................................................... 17

Connecting the Power

Basic Playback .................................................................................................. 18

Starting Playback / Various Playback

Advanced Operations

Using Banner Display ....................................................................................... 20

Using the On-screen Banner Display / Selecting a Title / Selecting a Chapter or Track / Selecting a

Playback Audio Setting / Changing the Subtitle Language / Changing the Camera Angle / Using

IntroScan Function / Using a Bookmark

Other Operations .............................................................................................. 25

CD Play Function / Random Play / Repeat Play / A-B Repeat Play / Memory Edit Play / Progressive

Scan Function

MP3 Function .................................................................................................... 28

MP3 On-screen Display / Playing Back MP3 / Selecting MP3 Fils / MP3 Repeat Play / MP3 Memory Play

Function Setup

Customizing the Settings ................................................................................. 30

Making Adjustments to Setting / Language Setting / Operation Setting / Picture Setting / Audio Setting

Table of Languages ........................................................................................... 36

Table of Language and Their Code No.

Others

Operating Components not Reached by the Remote Controller Signals

(IR IN/OUT) ...................................................................................................... 37

Troubleshooting ................................................................................................ 38

Specifications .................................................................................................... 39

Downloaded From DvDPlayer-Manual.com Integra Manuals

5

Notes on Discs

This section shows you how to handle, clean, and store discs.

Playable Discs

This DVD Changer can playback the following discs.

Disc mark

Contents

Disc size

12 cm

The Structure of the Disc Content

DVD-Video

Normally, the contents of DVD-Video are divided into titles, and the titles are subdivided into chapters.

Title 1

Chapter 1

Chapter 2

Chapter 1

Title 2

Chapter 2

Chapter 3

DVD-

Video

Audio

+

Video

(moving pictures)

8 cm

Video

CD

CD

CD-R*

CD-RW*

Audio +

Video

(moving pictures)

Audio

12 cm

8 cm

12 cm

8 cm (CD single)

* The DVD Changer can play CD-R/RW discs recorded in

CD-DA format, or with MP3 audio files. Some CD-R/RW discs may not be able to be played back.

• You cannot play discs such as DVD-Audio, DVD-RAM etc., even if the marks in the above table are labeled on those discs.

• This DVD Changer uses the NTSC color system, and cannot playback video media recorded in any other color system

(SECAM, etc.).

• Avoid using heart-shaped or octagonal discs. Playing irregularly shaped discs may damage the internal mechanism of the DVD

Changer.

Discs with shapes such as these cannot be played.

Video CD/CD

Video CD and CD are divided into tracks.

Track 1 Track 2

Track 3

Track 4 Track 5

About Video CDs

This DVD Changer supports Video CDs equipped with the PBC

(Version 2.0) function. (PBC is the abbreviation of Playback

Control.) You can enjoy two playback variations depending on the type of disc.

• Video CD not equipped with PBC function (Version 1.1)

Sound and movies can be played on this DVD Changer in the same way as a CD.

• Video CD equipped with PBC function (Version 2.0)

In addition to operation of the Video CD not equipped with the

PBC function, you can enjoy playback with interactive software and search function using the menu displayed on the TV screen

(Menu Playback). Some of the functions described in this

Instruction Manual may not work with some discs.

• Do not use discs that have residue from adhesive tape, rental discs that have peeling labels, or discs that have custom labels or stickers. Otherwise, you may not be able to eject the discs or the

DVD Changer may become inoperative.

• Use CD-R or CD-RW media for recording your CD audio files or

MP3 files. The disc must be finalized in order to play.

MP3 Compatibility Information

This system is not compatible with mult-session discs.

If you try a multi-session disc, only the first session will be played.

• The CD-R or CD-RW must be ISO 9660 level 1 compatible.

• Files should be MPEG1 Audio Layer 3 format, 32 kHz, 44.1 kHz

(recomended) or 48 kHz, 32 kbps - 320 kbps (128 kbps recomended). Incompatible files will not play.

• This system only plays tracks that are named with the file extension “.mp3” or “.MP3”.

Notes on Discs

Handling Discs

• Do not touch the playback side of the disc.

• Do not attach paper or tape to discs.

Playback side

Cleaning Discs

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

The video recorded on DVD-Video is copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs.

It may damage the disc.

Storing Discs

• Do not store discs in a place subject to direct sunlight or near heat sources.

• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Downloaded From DvDPlayer-Manual.com Integra Manuals

7

Features/Supplied Accessories

Features

● Plays DVD-Video Discs, Video CDs, CDs

● 10-bit Video DAC

● Simultaneous outputs to all video connections

● Digital Outputs pass DTS

®

*

1

, Dolby

®

*

2

Digital and PCM Signals

● Built-In Dolby

®

Digital decoder

● Full-function remote controller

● Direct Digital path

● Plays 5 Discs

● CD-R and CD-RW playable

● Plays MP3

● CD Play function for audiophile

● Pass 96 kHz PCM digital stream

● RS 232 interface for system control

● Progressive Scan

● VLSC (Vector Linear Shaping Circuitry)

* 1

* 2

“DTS” and “DTS Digital Out” are trademarks of Digital Theater

Systems, Inc.

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

Supplied Accessories

Make sure your box contains everything listed below.

The number of accessories is indicated in brackets [ ].

Remote controller (RC-503DV) [1]

Audio/video cable [1]

Batteries (size AAA/R3) [2]

Power cord [1]

Preparing the Remote Controller

Inserting the Batteries

1

Remove the battery compartment cover by pressing the tab and lifting up the cover.

Using the Remote Controller

Point the remote controller toward the remote control sensor.

Remote control sensor

2

Insert the two batteries (size AAA/R3).

Be sure to match the + and – ends of the batteries with the diagram inside the battery compartment.

3

Replace the battery compartment cover.

30˚

30˚

Appr ox

. 16 f eet

Notes

• Place the unit away from strong light such as direct sunlight or inverted fluorescent light which can prevent proper operation of the remote controller.

• Using another remote controller of the same type in the same room or using the unit near equipment which uses infrared rays may cause operational interference.

• Do not put any object such as a book on the remote controller. The buttons of the remote controller may be pressed by mistake and drain the batteries.

• Make sure the audio rack doors do not have colored glass. Placing the unit behind such doors may prevent proper remote controller operation.

• If there is any obstacle between the remote controller and the remote control sensor, the remote controller will not operate.

Notes

• Do not mix new batteries with old batteries or different kinds of batteries.

• To avoid corrosion, remove the batteries if the remote controller is not to be used for a long time.

• Remove dead batteries immediately to avoid damage from corrosion. If the remote controller does not operate smoothly, replace both batteries at the same time.

• The life of the batteries supplied is about six months but this will vary depending on usage.

Downloaded From DvDPlayer-Manual.com Integra Manuals

9

Control Position and Names

Front Panel

For operational instructions, see the page indicated in brackets [ ].

1 2 3 4 5 6 7 8 9 0

-

1 Power button [17]

Turns on the main power supply.

2 Standby indicator [17]

Lights in the standby mode.

3

Standby/On button [17]

Toggle for standby on and off.

4 CD Play button [25]

Press to use the DVD Changer as CD player.

5 Display [12]

6 Disc Skip button [18]

Press to select a disc. When the Disc Skip button is pressed while the disc tray open, the tray simply rotates.

7 4/¢ buttons [19]

Allow you to move to the previous chapter or track / the next chapter or track on a disc.

DPC-5.3

=

8 Stop 7 button [18]

Stops playing a disc. When disc is playing, if you press

7 and

£, the disc will start resume play. When 7 is pressed again during stop mode, the resume function is canceled.

9 Play/Pause £/8 button [18]

Begins to play disc (close disc tray first if it is open.)

Temporarily stops playback when a disc is playing. Press this button again for normal playback.

0 Disc 1-5 buttons [18]

Press to select a disc.

- Disc tray [18]

= Open/Close button [18]

Press to open or close the disc tray.

Control Position and Names

Rear Panel

For operational instructions, see the page indicated in brackets [ ].

AC INLET

RS 232

VIDEO OUTPUT

COMPONENT

P

R

VIDEO

P

B

L

AUDIO

OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

Y

R

S VIDEO

DVD CHANGER

MODEL NO.

DPC-5.3

IN

IR

OUT

1 2 3 4 5 6 7

1 RS 232 port

This port is to be used in conjunction with an external controller to control the operation of the DPC-5.3 using an external device.

2 VIDEO OUTPUT COMPONENT (P

R

/P

B

/Y) jacks [15]

If your TV has component inputs, you can connect a component video cable to your TV and to your DVD Changer for ideal video quality. The component video cable only carries the video signal; remember to connect the left and right audio cables.

If you connect a TV that is compatible with a Progressive scan signal, you can enjoy both Interlaced and Progressive scan.

3 VIDEO OUTPUT S VIDEO jack [15]

If your TV has a S-Video jack, you can connect an S-Video cable to your TV and to your DVD Changer for improved video quality. The S-Video cable only carries the video signal; remember to connect the left and right audio cables.

4 VIDEO OUTPUT VIDEO jack [14]

Connect a video cable to this jack and to the Video Input jack on your TV.

8 9

5 AUDIO OUTPUT jacks [14, 16]

Insert audio cables (left and rights) to these jacks on your DVD

Changer and to the corresponding Audio Input jacks (left and right) on your TV or receiver.

6 DIGITAL OUTPUT COAXIAL jack [16]

Use coaxial cable to connect your DVD Changer to an AV component that features digital input capability. If the component has a Dobly Digital or DTS decoder, you can enjoy theater-quality multichannel sound.

7 DIGITAL OUTPUT OPTICAL jack [16]

Use optical cable to connect your DVD Changer to an AV component that features digital input capability. If the component has a Dobly Digital or DTS decoder, you can enjoy theater-quality multichannel sound.

8 IR IN/OUT jacks [37]

If the DPC-5.3 is located inside a rack or cabinet that will not allow infrared beams to reach the IR sensor, you will need to connect a remote sensor to IR IN jack to be able to use the remote controller. Then install the remote sensor in an unblocked location where you can easily point the remote controller.

Using a mini-jack connector, connect IR emitter to the IR OUT jack on the DPC-5.3 and then place the IR emitter on the remote sensor of the component or facing it. Refer to page 37.

9 AC INLET [17]

Use to connect the power cord to the wall outlet.

Downloaded From DvDPlayer-Manual.com Integra Manuals

11

Control Position and Names

Display

1 2 3 4 5 6 7 8 9 0 =

~ !

1 Inserted disc indicators

Indicate the type of current disc that is loaded.

2 PROGRESSIVE indicator

Illuminate when the DVD Changer is set to progressive mode.

3 Parental Lock indicator

Illuminates in parental lock mode.

4 TITLE indicator

Illuminates to indicate the current title number.

5 RESUME indicator

Illuminates when the player is ready for resume playback.

6 CHAPTER/TRACK indicators

Indicate display mode of the current chapter of DVD disc or track number of Video CD or CD.

7 RANDOM indicator

Illuminates during random playback.

8 REPEAT indicators

Illuminate during repeat playback.

9 MEM. indicator

Illuminates during memory playback.

0 PBC indicator

Illuminates when PBC is on for Video CD.

- INTRO indicator

Illuminates during intro-scan playback.

= Time indicators

Indicate playing time.

~ Play/Pause indicators

Illuminate in play or pause mode.

! Disc number indicator/CD indicator

Disc number indicators indicate the presence of a disc. CD indicator illuminates when the DVD Changer is in CD Play mode.

@ Multifunction indicator

Indicates operating status, messages, etc.

@

Display Examples

During DVD-Video playback:

DVD

TITLE CHAPTER MIN SEC

Playing disc 1

Playing chapter

3 of title 2

Elapsed time of the current title

Notes

• Some discs may not display chapter numbers.

• A time indication not accompanied with a chapter number shows elapsed time of a segment within the current time.

During Video CD playback:

TRACK MIN

SEC

VCD

Playing disc 1

Playing track 3

Elapsed time of the current track

Note

Some discs may not display track numbers or elapsed time.

During CD playback:

TRACK

CD

MIN

SEC

Playing disc 1

During MP3 playback:

DVD

MP3

TITLE

Playing track 3

Elapsed time of the current track

MIN

SEC

Playing disc 1

Playing track 105 of forlder 6

Elapsed time of the current track

Notes

• If the track is within a folder, the folder number is displayed. For tracks outside a folder, no folder number is displayed.

• Track number is consecutive.

Control Position and Names

Remote Controller

For operational instructions, see the page indicated in brackets [ ].

1

2

3

4

5

6

7

8

9

0

-

=

~

!

DISC SKIP

@

#

$

%

^

&

*

(

)

_

+

¡

1

STANDBY/ON button [17]

Toggle for standby on and off.

2 DISC SKIP button [18]

Press to skip a disc.

3 RANDOM button [25]

Press to do random playback.

4 REPEAT button [26, 29]

Press to go to the Repeat menu. You can repeat a title, chapter, track or one or entire discs.

5 A-B button [26]

Press to play section A-B repeatedly.

6 STOP 7 button [18, 28]

Stops playing a disc. When a disc is playing, if you press

7 and

£, the disc will start resume play. When 7 is pressed again during stop mode, the resume function is canceled.

Downloaded From DvDPlayer-Manual.com Integra Manuals

7 ON SCREEN button [20-24]

Press this button while you’re playing a disc to see Banner Display on the screen. The Banner Display contains various playback features and gives you the information about the disc you’re playing.

8 MENU button [30]

Displays the DVD Disc Menu on the TV screen in play mode and

Setup Menu in stop mode.

9 Cursor buttons (5//2/3) [20-25, 27-30]

Use the cursor buttons to select the items or settings.

0 ENTER button [20-25, 27-30]

Press this button to select and execute a highlighted menu item.

- TOP MENU button [31]

Press to call up the top menu programmed on the DVD.

Depending on the DVD, the top menu may be identical to DVD menu or title menu. When playing a Video CD equipped with PBC function, DVD Changer will automatically enter the PBC on mode. Press once to turn PBC off and press again to turn on.

= AUDIO button [22]

Press to select various audio languages on a disc. When playing a

Video CD, press to select the audio channel.

~ Number buttons (0~9) [21]

Select numbers by pressing these buttons.

! MEMORY button [27, 29]

Press to see Memory Edit Display on the screen in stop mode.

@ OPEN/CLOSE 0 button [18]

Press to open or close the disc tray.

# SLOW

/ buttons [19]

Allow you to play movies in slow mode. Each time you press this button, slow speed will be changed. In the case of Video CD, reverse SLOW cannot be activated.

$ STEP e/E buttons [19]

Freeze a picture when a disc is playing. Also the picture advances frame by frame each time these buttons are pressed. In case of

Video CD, reverse STEP cannot be activated.

% DOWN 4 / UP ¢ buttons [19, 28]

Allow you to move to the previous chapter or track / the next chapter or track on a disc.

^ FR 1 / FF ¡ buttons [19]

Allow you to search in reverse or forward through a disc while it is in play mode. Each time you press these buttons, search speed changes.

& PLAY £ button [18, 28]

Begins to play disc (close disc tray first if it is open.)

* PAUSE 8 button [19]

Temporarily stops playback when a disc is playing. Press PLAY

£ button for normal playback.

( SUBTITLE ON/OFF button [22]

Turns the subtitles on and off when playing a DVD.

) SUBTITLE button [22]

Press to select various subtitle language on a disc.

_ RETURN button [28, 30]

When you’re using the DVD Changer’s menu system, press this button to return to the preceding menu screen.

+ PROGRESSIVE SCAN button [27]

Press to display Progressive or Interlaced Icon on TV. Press again while displayed to switch between Progressive and Interlaced.

¡ CLEAR button [20, 22-26, 29]

Press to clear entered values and settings. Also Banner menu and

OSD menu is removed from the screen when this button is pressed.

13

Making Connections

To accommodate a wide range of home entertainment systems, this player features numerous connection types for both audio and video. Please refer to the instructions on this and the following pages to determine the best possible type of connections for your system.

Before Connecting

• Refer to the instruction manuals supplied with any and all components that you plan to connect the DVD Changer to.

• Be sure to turn off the power of all components to be connected and unplug them from the wall outlet before making any connections.

• Connect the DVD Changer to the TV or AV component directly. If you connect the DVD Changer to a VCR, TV/VCR combination, or video selector, the playback picture may be distorted as DVD Video images are copy protected.

• Please note that video connections to a TV or monitor are necessary because some discs require on-screen menu interaction before they can be played.

• Connect the plugs securely.

Incomplete

Inserted completely

Connections to a TV

The diagram below shows how to make connections to a TV with built-in stereo speakers using the supplied audio/video cable. After making the connections on this page, you will be able to start using the DVD Changer.

Be sure to set TV Aspect after connection using the setup menu explained in “Customizing the Settings” starting on page 30.

AC INLET

RS 232

VIDEO OUTPUT

COMPONENT

P

R

VIDEO

P

B

L

AUDIO

OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

Y

R

S VIDEO

DVD CHANGER

MODEL NO.

DPC-5.3

IN

IR

OUT

Connect the power cord after all connections are complete.

To audio inputs

Audio (R)

Audio (L)

Using the supplied audio/video connection cable

Using the supplied audio/video cable, make audio connections from the AUDIO OUTPUT L and R jacks to the corresponding audio input jacks on the TV.

In the same manner, make the video connection from the VIDEO

OUTPUT VIDEO jack to the corresponding video input jack on the

TV.

Note

Be sure to match the colors of the plugs on the cable with the corresponding jacks on the DVD Changer and the TV: yellow for video, red for R (right) audio and white for L (left) audio.

To video input

Audio/video cable (supplied)

Audio (R)

Audio (L)

Video

: Signal flow

Analog signal

Making Connections

Optional Video Connections

Visible improvements in DVD-Video quality can be achieved by making either S-video or component video connections to a TV or monitor compatible with these types of connections.

Note

When either an S-video or component video connection is made, it is not necessary to make composite video connections using the yellow cord of the audio-video cable.

Be sure to set TV Aspect after connection using the setup menu explained in “Customizing the Settings” starting on page 30.

Making S-video connections

If the TV or monitor has an S-video input, making this type of video connection will produce improved picture quality. Using an S-video cable, connect the VIDEO OUTPUT S VIDEO jack to the corresponding S-video input jack on the TV.

To S-video inputs

S-video cable (not supplied)

AC INLET

RS 232

VIDEO OUTPUT

COMPONENT

P

R

VIDEO

P

B

L

AUDIO

OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

Y R

S VIDEO

DVD CHANGER

MODEL NO.

DPC-5.3

IN

IR

OUT

Connect the power cord after all connections are complete.

Making component video connections

If the TV or monitor has component video inputs, making this type of video connection will produce the ideal picture quality for the presentation of DVD-Video. Using a componect video cable (sold separately), connect the VIDEO OUTPUT COMPONENT jacks to the corresponding component video input jacks on the TV.

Actual labels for component video inputs may vary depending on the TV manufacturer. (e.g., Y, R-Y, B-Y or Y, C

B

, C

R

)

In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

To view Progressive scan video, you need a TV with Progressive scan capability. Please check your TV’s manual.

To component video inputs

P

R

P

B

Y

Component video cable (not supplied)

P

R

P

B

Y

Component signal

S-video signal

: Signal flow

Downloaded From DvDPlayer-Manual.com Integra Manuals

15

Making Connections

Optional Audio Connections

This DVD Changer provides numerous ways to take full advantage of the digital multi-channel sound recorded on DVD and some CD media.

Be sure to set Digital Audio Out after connection using the setup menu explained in “Customizing the Settings” starting on page 30.

Digital connections

Make digital connections from the DVD Changer to an AV component that features digital input capability or one or more multi-channel audio decoders to realize the full cinematic experience made possible by the DVD format. This DVD Changer features optical and coaxial digital audio output jacks and can output Dolby Digital and DTS bitstreams as well as outputting standard PCM.

Make connections from the DIGITAL OUTPUT OPTICAL jack to the digital optical input jack on the AV component using an optical fiber cable (sold separately). Make connections from the DIGITAL

OUTPUT COAXIAL jack to the digital coaxial input jack on the

AV component using a coaxial cable (sold separately). It is not necessary to make more than one type of digital connection to a single component.

The DIGITAL OUTPUT OPTICAL jack is provided with a protection cap. Before you connect a cable to the jack, remove the cap and keep it safely. If you disconnect the cable, put the cap back on the jack.

Coaxial cable (not supplied)

When you are making connections to an amplifier or receiver that has internal Dolby Digital or DTS decoding capabilities, set Digital

Audio Out to “Dolby Digital” or “DTS” using the setup menu explained in “Customizing the Settings” starting on page 30. See page 35 for direct information.

When you are making connections to an amplifier or receiver that has digital input capabilities, but no internal decoder, set Digital

Audio Out to “PCM” using the on-screen menu explained in

“Customizing the Settings” starting on page 30. See page 35 for direct information. Setting Digital Audio Out to any other setting could result in digital noise being output that could cause harm your hearing and may also damage your speakers.

Notes

• Refer to the instructions supplied with the AV component for details on what digital audio formats it is compatible with.

• Even if digital audio connections are made, it is also recommended to make analog connections, because some conditions or media may prohibit digital audio output.

To digital input (coaxial)

Optical cable (not supplied)

An amplifier or receiver with a

Dolby Digital or DTS decorder or digital inputs

To digital input (optical)

AC INLET

IN

IR

OUT

RS 232

VIDEO OUTPUT

COMPONENT

P

R

VIDEO

P

B

L

AUDIO

OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

Y

R

S VIDEO

DVD CHANGER

MODEL NO.

DPC-5.3

DO NOT connect the power cord until all connections are complete.

Making stereo audio connections

Using an audio cable (sold separately), make audio connections from the AUDIO OUTPUT L and R jacks to the corresponding jacks on the stereo component.

Be sure to set Digital Audio Out setting to “PCM” using the setup menu explained in “Customizing the Settings” starting on page 30.

See page 35 for direct information.

Notes

• Be sure to match the colors of the plugs on the cable with the corresponding jacks on the DVD Changer and the stereo component: red for R (right) audio and white for L (left) audio.

• Do not make connections to the PHONO or TUNER jacks on the stereo component.

To audio input

Audio cable (not supplied)

R

L

An amplifier or receiver with stereo inputs

Audio (R)

Audio (L)

Coaxial plug

Optical plug

Analog signal

Digital signal

Digital signal

: Signal flow

Turning on

Connecting the Power

The DPC-5.3 is shipped with the main power (Power) switch in the on position (

_ On). When the power cord is plugged in for the first time, the DPC-5.3 will automatically enter the Standby mode and the

Standby indicator will blink for about 10 seconds, then light (same condition after step 2 below). While the Standby indicator is blinking, operation buttons will not function.

Power Standby/On

Standby indicator

Notes

• Make sure that all appropriate connections have been completed as described on pages 14 to 16.

• Turning on the DVD Changer may cause a momentary power surge, which might interfere with other electrical equipment such as computers. To prevent interference, use a wall outlet on a different circuit.

DPC-5.3

1

Plug the supplied power cord into the

AC INLET and then into the power outlet on the wall.

AC INLET

To a wall outlet

Power cord (supplied)

STANDBY/ON

DISC SKIP

Notes

• Do not use a power cord other than the one supplied with the DPC-5.3. The power cord supplied is designed for use with the DPC-5.3 and should not be used with any other device.

• Never have the power cord disconnected from the

DPC-5.3 while the other end is plugged into the wall outlet. Doing so may cause an electric shock. Always connect by plugging into the wall outlet last and disconnect by unplugging from the wall outlet first.

2

Press Power to switch on the main power.

The DVD Changer enters standby mode.

The Standby indicator blinks for about 10 seconds, then lights. While the Standby indicator is blinking, operation buttons will not function.

Notes

• The buttons on the remote controller do not operate if the

Power switch is set to Off.

• To switch off the main power, press Power again.

Downloaded From DvDPlayer-Manual.com Integra Manuals

3

Press Standby/On on the DVD

Changer or remote controller.

The DVD Changer turns on and the Standby indicator turns off. It takes several seconds to read the disc in the disc tray.

Notes

• You can turn on the DVD Changer by pressing Open/

Close or Play.

• To put the DVD Changer in the standby mode, press

Standby/On on the DVD Changer or remote controller. Be sure to set the volume to minimum before putting the DVD Changer in the standby mode for the next use to avoid sudden loud sound reproduction.

• While the Standby indicator lights up, the DVD

Changer can receive signals from the remote controller.

However, if you press Power on the DVD Changer to switch off the main power, the remote controller cannot be used to turn on the DVD Changer.

• Setting the Standby button to standby does not shut off the power completely.

17

DVD

VCD CD

Basic Playback

Before playing

• DVD-Video, Video CD, CD can be played with the DVD Changer (see “Playable Discs” on page 6). Do not play anything else.

• When playing DVD-Video or Video CD with video features, turn on the TV and set the TV to the DVD

Changer’s input.

• If an audio system is connected to the DVD Changer, turn on the audio system and set it to the DVD

Changer’s input.

About the

DVD

DVD

,

VCD

and

CD

marks in the pages related to disc operation

means the function or title is related to DVD-Video operation.

VCD

CD

means the function or title is related to Video CD operation.

means the function or title is related to audio CD operation.

Warning

If the DVD Changer is connected to the TV or amplifier through the analog audio jacks, do not play DTS-encoded discs. Excessive noise may be output from the analog stereo jacks, which may damage the connected equipment.

To reproduce DTS surround sounds, digital connection to an amplifier with a DTS decoder is needed.

Starting Playback

Disc Skip

4/¢

Play/Pause

£/8

Stop

7

Disc 1-Disc 5

Disc tray

1

Press Open/Close.

The disc tray opens.

If the DVD Changer is in standby mode when

Open/Close button is pressed,

the DVD Changer turns on and the disc tray opens. In this case, it takes several seconds until the disc tray opens.

2

Place a disc on the disc tray.

To insert or remove another disc by changing the tray position, press Disc Skip.

Put the disc in the tray with the label side facing up.

There are two different disc sizes.

Place the disc in the correct guide on the disc tray.

3

Press Play/Pause

£/8.

The disc tray closes and playback starts.

If you press Open/Close to close the tray after step

2, playback may automatically start.

The appropriate inserted disc indicator and the play indicator light.

For the other information that appears in the display, see page 12.

If the DVD Changer is in standby mode when

Play/Pause

£/8 button is pressed, the DVD Changer turns on and playback starts. In this case, it takes several seconds until playback starts.

DPC-5.3

Open/Close

To stop playback

Press Stop

7.

When you press Play/Pause

£/8 to restart playback, playback starts from the location where you stopped playback because the location index is stored in memory.

Note

The location where playback resumes may vary depending on the disc or the scene where you stopped.

Resuming playback from the beginning

Press Stop

7 again after stopping playback to clear the location index memory, then press Play/Pause

£/8 to start playback.

To select a disc

Press one of Disc 1 to Disc 5 buttons or press Disc

Skip repeatedly.

CAUTION

Keep your fingers well clear of the disc tray as it is closing.

Neglecting to do so may cause serious personal injury.

Basic Playback

Various Playback

To remove the disc

DVD VCD CD

Press

0 to open the disc tray.

Remove the disc after the disc tray opens completely.

After removing the disc, be sure to press the button again to close the tray.

Press Disc Skip to rotate the disc tray while the tray is open.

To play in fast reverse or fast forward

DVD

VCD CD

During normal playback, press

1/¡.

Each press of the same button changes the playback speed.

(During DVD playback)

F.SEARCH 1 (approx. x2)

→ F.SEARCH 2 (approx. x4) →

F.SEARCH 3 (approx. x8)

→ F.SEARCH 4 (approx. x16) →

F.SEARCH 1 (back to the beginning)

(During VCD/CD playback)

F.SEARCH 1 (approx. x2)

→ F.SEARCH 2 (approx. x4) →

F.SEARCH 3 (approx. x8)

→ F.SEARCH 1 (back to the beginning)

To resume normal playback, press

£.

Notes

• The DVD Changer mutes sounds and omits subtitles during fast reverse and fast forward of DVD-Video and Video CD.

• The playback speed may differ depending on the disc.

To skip chapters or tracks

DVD

VCD CD

During playback, press

4/¢.

The chapter (or track) in the direction of the button pressed is skipped, and the selected chapter (or track) will be played from the beginning.

When

4 is pressed once during playback, the chapter (or track) being played will be played from the beginning.

To pause playback (still mode)

DVD

VCD CD

Press

8 during playback.

To start playback, press

£.

Playing frame by frame

DVD VCD

Press

28/83 repeatedly.

Each time you press the button the picture advances one frame.

To resume normal playback, press

£.

Notes

• The sound is muted during still mode and frame by frame playback.

• VCDs cannot be played frame by frame in reverse.

To play in slow-motion

DVD VCD

Press

/

during playback.

Each press of the same button changes the playback speed.

(During DVD playback)

F.SLOW / R.SLOW 1/16

→ 1/8 → 1/4 → 1/2 → 1/16 (back to the beginning)

(During VCD playback)

F.SLOW 1/8

→ 1/4 → 1/2 → 1/8 (back to the beginning)

To resume normal playback, press

£.

Notes

• The sound is muted during slow-motion playback.

• The playback speed may differ depending on the disc.

• R.SLOW is not available for Video CD.

Downloaded From DvDPlayer-Manual.com Integra Manuals

DISC SKIP

DISC SKIP

OPEN/CLOSE

0

SLOW

STEP

e/E

DOWN

4 / UP ¢

FR

1 / FF ¡

PLAY

£

PAUSE

8

Tip to obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD-Video because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use, you should generally adjust the TV to reduce sharpness when viewing DVD-

Videos.

Notes

• Do not move the DVD Changer during playback. Doing so may damage the disc.

• Use

0 on the remote controller or DVD Changer to open and close the disc tray. Do not touch the disc tray while it is moving. Doing so may cause the DVD Changer to malfunction.

• Do not press down on the disc tray or put any objects other than playable discs on the disc tray. Doing so may cause the DVD Changer to malfunction.

• In many instances, a menu screen appears when playback of a DVD movie is complete. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press

7 once the movie is complete.

19

DVD

VCD CD

Using Banner Display

DVD

VCD CD

Using the On-screen Banner Display

The on-screen Banner Display contains many playback features.

To see the Banner Display, press ON SCREEN on the remote controller while a disc is playing. Use

2/3 to move through the different features in the Banner Display. Each feature is illustrated with an icon.

1

During playback, press ON

SCREEN.

The Banner Display appears on the screen.

When playing a DVD

Chapter

Title

Subtitles

Audio Angles

Bookmarks

Disc Type

Disc Number

ON SCREEN

DISC SKIP

Time Indicator

When playing a Video CD/CD

Introscan

Track

Time Information

Bookmarks

Disc Number

Disc Type

2/3/5/

ENTER

AUDIO

2

Time Indicator

Press

2/3 to select a desired item,

and press ENTER.

Corresponding menu appears on the screen.

«

SUBTITLE ON/OFF

SUBTITLE

CLEAR

To turn off the Banner Display

Press ON SCREEN or CLEAR.

Notes

• You can only access the banner display when you’re playing a disc.

• The banner display features are only available if the disc was created with that particular feature (i.e., if you select the Subtitle icon, you won’t be able to change the subtitle language unless the author of the disc created the disc with subtitles).

• The invalid symbol appears on the screen when you press a button that doesn’t have any function. If one of the icons is “grayed out,” the banner feature isn’t available for the disc you’re playing.

• Depending on the disc, pressing AUDIO or SUBTITLE may display a disc menu. For more details, refer to the instruction notes on the disc.

Using Banner Display

DVD

Selecting a Title

DVD-Video

Title 1 Title 2

DVD

VCD CD

Selecting a Chapter or Track

DVD-Video

Title 1 Title 2

Chapter 1 Chapter 2

Chapter 1

Chapter 2 Chapter 3

Some discs contain more than one title. For example, there might be four movies on one disc (each movie might be considered a title).

1

Press ON SCREEN.

Video CD/CD

Track 1 Track 2

Track 3

Track 4 Track 5

2

Press

2/3 until the TITLE icon is

highlighted.

Because DVD discs use digital technology, a title can be divided into individual chapters (similar to tracks on a CD). You can skip a specific chapter by using the Chapter section in the Banner

Display.

1

Press ON SCREEN.

3

Press ENTER.

“T – –” appears.

2

Press

2/3 until the CHAPTER or

TRACK icon is highlighted.

4

Press the numeric buttons to enter the title number.

When you enter a one-digit title number, you may have to press ENTER on the remote controller after pressing the number (1~9) on the remote controller. Otherwise press 0 first and the other value. Then play starts. This varies depending on number of title within the disc you’re playing.

Notes

• Some discs only have one title.

• The invalid symbol appears on the screen when the disc doesn’t have the function.

3

Press ENTER.

“C – –” or “Tr. – –” appears.

4

Press the numeric buttons to enter the chapter or track number.

When you enter a one-digit chapter or track number, you may have to press ENTER on the remote controller after pressing the number (1~9) on the remote controller.

Otherwise press 0 first and the other value.

Then play starts. This varies depending on number of chapter or track within the disc you’re playing.

Notes

• The chapter feature won’t work if the disc isn’t formatted with separate chapters.

• The invalid symbol appears on the screen when the disc doesn’t have the function.

Downloaded From DvDPlayer-Manual.com Integra Manuals

21

Using Banner Display

DVD

Selecting a Playback Audio Setting

Good morning!

Bon jour!

¡Buenos días!

DVD

Changing the Subtitle Language

You can select the preferred audio language and sound system as a set from those included on the disc. This function lets you temporarily change the audio language which you selected as the automatic setting in the setting menu (see pages 30 and 31), and choose the sound system if the disc is recorded in more than one sound format.

1

Press ON SCREEN during playback.

Good evening!

Bon soir! ¡Buenas tardes!

You can display subtitles on the TV screen and select a subtitle language from those included on the DVD-Video.

1

Press ON SCREEN during playback.

2

Press

2/3 until the SUBTITLE icon

is highlighted.

2

Press

2/3 until the AUDIO icon is

highlighted.

3

Press ENTER.

The subtitle menu appears.

Displayed when

SUBTITLE is on

3

Press ENTER.

The audio menu appears.

4

Press ENTER to select the audio.

Each time you press ENTER, the audio recording system set changes.

To turn off the audio menu

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about

5 seconds.

Using AUDIO on the remote controller

1 Press AUDIO on the remote controller during playback.

2 Press AUDIO or ENTER to select the audio language.

Notes

• Dolby Digital 5.1 Channel sound may be displayed as “6ch. Dolby

Digital”.

• Before changing the setting, read through the explanation on “Digital

Audio Out” on page 35 and carefully select the setting.

• Depending on the disc, it may be necessary to select the audio sound track using the DVD menu. When this is the case, press MENU to open the DVD menu and select the appropriate sound track as indicated on the

DVD menu screen.

• When the DVD Changer is turned on or when the disc is changed, the audio settings are restored to the presets. In some cases, a language recorded on the disc may be given priority and selected automatically when the disc is loaded regardless of the setting.

• The invalid symbol appears on the screen when the disc doesn’t have

22 the function.

Downloaded From DvDPlayer-Manual.com Integra Manuals

4

5

Press ENTER to select the subtitle language.

Each time you press ENTER, the subtitle language changes.

Press SUBTITLE ON/OFF to select subtitle on or off.

Switching between display of subtitles and no display of subtitle is done each time the key is pressed.

To turn off the subtitle menu

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about

5 seconds.

Using SUBTITLE on the remote controller

1 Press SUBTITLE on the remote controller during playback.

2 Press SUBTITLE or ENTER to select the subtitle language.

3 Press SUBTITLE ON/OFF to select sub title on or off.

Notes

• When you turn on the DVD Changer or replace a disc, the DVD Changer returns to the automatic setting in the setting menu (see pages 30 and 31).

When you select a subtitle language which is not included on the disc, the DVD Changer plays the prior language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle setting.

• Some DVD-Video are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle function to off.

• The invalid symbol appears on the screen when the disc doesn’t have the function.

Using Banner Display

DVD

Changing the Camera Angle

Angle : 1 Angle : 2 Angle : 3

VCD CD

Using IntroScan Function

Track : 1 Track : 2 Track : 3

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

1

Press ON SCREEN during playback.

2

Press

2/3 until the Angle icon is

highlighted.

IntroScan plays the first 10 seconds of each track on the Video CD or CD similar to the scan feature that's on many car radios.

1

When playing a Video CD, press ON

SCREEN to display the Banner

Display.

When playing a CD, the Banner Display appears on the screen automatically.

2

Press

2/3 until the IntroScan icon

is highlighted.

3

4

Press ENTER.

The angle menu appears.

Press ENTER to select the angle.

Each time you press ENTER, the angle changes.

To turn off the angle menu

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about

5 seconds.

Notes

• You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback.

• If you pause a picture immediately after changing the camera angle, the resumed playback picture may not use the new camera angle.

• The invalid symbol appears on the screen when the disc doesn’t have the function.

3

Press ENTER.

The INTRO indicator lights.

The first 10 seconds of each track will be played.

Press

£ to stop IntroScan playback and start playing the current track entirely.

Notes

• After IntroScan goes through all of the tracks, it stops.

• The invalid symbol appears on the screen when the disc doesn’t have the function.

Downloaded From DvDPlayer-Manual.com Integra Manuals

23

Using Banner Display

DVD VCD CD

Using a Bookmark

The bookmark feature lets you mark a point on the disc that you can go to quickly. You can store up to 9 bookmarks.

Marking a scene

1

Press ON SCREEN during playback.

To clear the bookmark

The bookmark is cleared when a disc is removed from the DVD

Changer, when the power is turned off, or when the DVD Changer enters the standby mode.

Notes

• If all 9 bookmarks are in use, you can still mark new scenes, but the previous bookmarks will be erased.

• Depending on the disc, the bookmark function may not work.

1

Recalling a bookmarked scene

Press ON SCREEN during playback.

2

«

Press

2/3 until the bookmark icon

is highlighted and press ENTER.

The bookmark menu appears.

2

Exit icon

«

Press

2/3 until the bookmark icon

is highlighted and press ENTER.

The bookmark menu appears.

3

Press

to move the cursor to the

“Mark” parts of the bookmark menu.

3

Press

5 to move the cursor to the

“G

O

T

O

” parts of the bookmark menu.

4

Press

2/3 to select the number

you want to mark on.

4

Press

2/3 to select the

bookmarked scene you want to activate.

5

When you reach the scene you want to mark, press ENTER.

The bookmark appears.

You can store up to 9 bookmarks by repeating this step.

To return to the Banner Display

Press

2/3 to select the exit icon and press ENTER.

5

Press ENTER to activate the bookmark.

To turn off the bookmark menu

Press ON SCREEN or CLEAR.

Note

• The invalid symbol appears on the screen when the disc doesn’t have the function.

DVD VCD CD

Other Operations

CD

CD Play Function

Since the DVD Changer allows you to insert up to five discs in any combination, there may be times when you only want to listen to music. In that case, proceed as follows:

1

Press CD Play on the unit.

CD indicator illuminates on the display.

VCD CD

Random Play

The chapters or tracks of the disc are played in random order.

Press RANDOM.

The random playback starts.

Lights

Display

RANDOM

2

Press

£.

Playback of DVD and Video CD discs is skipped so that sequential playback is not interrupted.

To cancel CD Play function

Press CD Play so that the CD indicator goes off.

The Random Play display appears on the screen.

RANDOM

REPEAT

A-B

ON SCREEN

DISC SKIP

To play Discs and Tracks in random order

Press RANDOM and REPEAT repeatedly to select “Repeat All

Discs” during playback.

Discs and Tracks are played in random order repeatedly.

To turn off the random play display

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about 5 seconds.

To cancel random play

Press RANDOM so that RANDOM indicator goes off or to select

“Standard Play”.

Each time you press RANDOM, random play will turn on and off.

Random Play

↔ Standard Play

The Standard Play display appears when random is off.

2/3/5/

ENTER

Numeric buttons

MEMORY

P. SCAN

Notes

• You cannot play DVDs in random order.

• When playing a PBC-compatible Video CD and PBC is on, you cannot play it in random order. To use random play, press TOP MENU and select “PBC off”, then press RANDOM.

• When you press RANDOM while CD Play is functioning, the CD indicator goes off and the tracks are played in random order. If you press

RANDOM and select “Repeat All Discs” while CD Play is functioning, all CDs and tracks are played in random order.

CLEAR

Downloaded From DvDPlayer-Manual.com Integra Manuals

25

Other operations

DVD VCD CD

Repeat Play

DVD

VCD CD

A-B Repeat Play

Desired disc or title can be played back repeatedly.

There are five repeat options:

• All Discs Repeat all discs.

• 1 Disc Repeat the disc that is playing.

• Title Repeat the title that is playing.

• Chapter Repeat the chapter that is playing.

• Track Repeat the track that is playing.

Press REPEAT repeatedly during playback.

The Repeat display appears on the screen.

A B

The A-B repeat function lets you mark a segment to repeat between the beginning “A” and the end “B” of the segment you want to replay.

1

Press A-B when you want to choose a scene (sound) as the beginning point.

Light

Display

REPEAT A-

The Repeat A- display appears on the screen.

Each time you press REPEAT, the repeat option changes.

At the time of DVD playback

Repeat

All Discs Repeats all discs.

Repeat 1 Disc Repeats the entire disc.

Repeat Title

Repeats the current title.

Repeat Chapter Repeats the current chapter.

Repeat Off Resumes normal playback.

At the time of Video CD/CD playback

Repeat All Discs Repeats all discs.

Repeat 1 Disc Repeats the entire disc.

Repeat Track

Repeats the current track.

Repeat Off Resumes normal playback.

Notes

• When playing a PBC-compatible Video CD and PBC is on, you cannot play it repeatedly. To use repeat play, press TOP MENU and select

“PBC off”, then press REPEAT.

• With some DVDs, repeat playback may not be possible.

To turn off the Repeat display

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about

5 seconds.

To cancel repeat play

Press REPEAT so that the REPEAT indicator goes off, or to select

“Repeat Off”.

2

Press A-B again to choose a scene

(sound) as the end point.

The Repeat A-B display appears.

Light

Display

REPEAT A-B

The DVD Changer automatically returns to point A and starts repeat playback of the selected segment (A-B).

Notes

• Repeat A-B will not function for segments under 3 seconds.

• When playing a PBC-compatible Video CD and PBC is on, you cannot use A-B repeat function. To use A-B repeat function, press TOP MENU and select “PBC off”, then press A-B.

To turn off the Repeat A-B display

Press ON SCREEN or CLEAR.

The menu is switched off when no operation is performed for about

5 seconds.

To cancel A-B Repeat play

Press A-B so that the REPEAT and A-B indicators go off, or to select “Repeat off”.

Other operations

DVD

VCD CD

Memory Edit Play

Title : 2

Chapter : 25

Title : 2

Chapter : 12

Title : 1

Chapter : 1

Insert disc, title, chapter or track

1 Press MEMORY during stop mode.

The MEMORY EDIT display appears.

MEMORY EDIT

Disc

1

Title

2

(12)

Chapter

All

(2)

Add

Delete

Play

Done

4

2

1

5

D

1

Playlist

T

2

C

All

3

1

1

3

12

6

All

5

The DVD Changer automatically plays discs, titles, chapters, or tracks in the order you program.

1

2

3

4

5

6

Press MEMORY during stop mode.

The MEMORY EDIT display appears and the

MEM. indicator lights.

MEMORY EDIT

Disc

2

Title

2

(12)

Chapter

All

(2)

Add

Delete

Play

Done

D

2

Playlist

T

2

C

All

Press

5/ or numeric buttons to

select specific disc, title, chapter or track.

Press ENTER or

2/3.

Select Add button on the screen to register selected value onto

Playlist, then press ENTER.

You can select a maximum of 32 values by repeating steps 2-4.

Press

£ or select Play button on

the screen and press ENTER to start playback.

2 Press

5/∞ or numeric buttons to select specific disc, title, chapter or track.

3 Move the cursor with

3 to the “Playlist” and press 5/∞ to select the place you want to insert.

The color of the column where the cursor is located will change.

4 Follow the procedure on the left to select the desired disc, title, chapter or track.

5 Select the Insert button on the screen and press ENTER.

The new disc, title, chapter or track will be inserted before

(above) the selected column.

To cancel memory play

Press MEMORY or

7 twice so that MEM. indicator goes off.

To clear memory

The memory is cleared when a disc is removed from the player, when the power is turned off, or when the player enters the standby mode.

Notes

• When you don’t add values onto Playlist and return to play mode, select

Done button and press ENTER on the remote controller.

• While a disc is playing, press MEMORY on the remote controller to start memory play.

DVD VCD

Progressive Scan Function

1

Press P. SCAN to display

Progressive or Interlaced icon on

TV.

2

Press P. SCAN again while displayed to switch between

Progressive and Interlaced.

To delete memory

1 Press MEMORY during stop mode.

2 Move the cursor with

3 to the “Playlist” and press 5/∞ to select the column to be deleted from the “Playlist”. (The color of the column where the cursor is located will change.)

3 Press

2 and press 5/∞ to move the cursor to the Delete button on the screen, and press ENTER.

Notes

• When component video is connected, you can use Progressive scan. If

S-Video or Composite video is connected, Progressive scan is not available.

• If you connect a TV that is not compatible with a progressive scan signal and choose “Progressive”, the picture may be distorted. With your TV connected using either the Composite or S-Video terminals, choose

“Interlaced”.

27

MP3 Function

MP3 On-screen Display

Folders within a root

Playback information

Playing file name Track

Time elapsed

Playing Back MP3

The DVD Changer can play back MP3 files recorded on CD-R or

CD-RW.

Press

£.

When you insert MP3 media, playback will start automatically.

MP3 On-screen display appears.

Root icon Folder icon

ALL CLEAR button

To display files within a folder

Press

5/∞ to select the folder and press ENTER. The files within the folder display will appear.

Files within a folder and memory window

Return folder icon

Note

%/fi indicates the content continues above or below the display.

To stop playback

Press

7.

To skip files

Press

4/¢ during playback.

Notes

• It is not possible to play back folders and files that exceed the maximum limitations of the media (up to 223).

• A certain amount of time is required for the changer to confirm the media on which MP3 files have been recorded before playback will commence.

• The files will be played back in the sequence in which they were recorded (written).

• Fast reverse and Fast forward do not function when playing MP3.

• Random function is not available for MP3.

Files

Memory window

To move to the upper layer

Press

5/∞ to select the return folder icon (

) or press

RETURN, then press ENTER to return to the upper layer.

Note

• Single-byte characters between A and Z, single-byte numerais between 0 and 9, and the single-byte underscore (_) can be displayed.

Selecting MP3 Files

You can select the files to be played back directly.

1

Press

5/ to select the folder, then

press ENTER.

«

MP3 Function

2

Press

5/ to select the file, then

press ENTER.

MP3 Memory Play

You can listen to the files in any desired order.

1

During stop mode, press MEMORY.

«

Playback will start from selected file.

Files in the next folder will be played back when no files exist in the selected folder.

To select the folders to be played directly

1 During stop mode, press

5/∞ to select the folder, then press

ENTER.

2 Press

5/∞ to select the upper folder icon, then press £.

Playback will start from selected folder.

Files in the next folder will be played back when no file exist in the selected folder.

MP3 Repeat Play

You can listen to the desired files repeatedly.

Press REPEAT repeatedly during playback.

Each time you press the button, playback information changes.

Repeat All Disc Repeats all discs.

Repeat 1 Disc Repeats the entire disc.

Repeat 1 Folder Repeats the current folder.

Repeat Track Repeats the current track.

Standard Play Resumes normal playback.

To cancel repeat play

Press REPEAT or

7 so that the REPEAT indicator goes off or select “Standard Play”.

Notes

• There is no A-B Repeat play function for MP3.

• You cannot use repeat playback for files programmed into memory.

2

3

«

Press

5/ to select the file, then

press ENTER.

The selected file goes to memory window.

You can select maximum 1025.

Press

£.

To cancel memory play

Press MEMORY or

7 so that MEM. indicator goes off or select

“Standard Play”.

To delete memory

During stop mode, press

2/3 to select the ALL CLEAR button, then press ENTER.

You can delete files one by one, by selecting them and pressing

CLEAR.

Note

• The memory is cleared when a disc is removed from the changer, when the power is turned off, or when the changer enters the standby mode.

Downloaded From DvDPlayer-Manual.com Integra Manuals

29

DVD

VCD CD

Customizing the Settings

When you insert a DVD-Video, Video CD, or CD, the various functions of the DVD Changer will be set (reset) according to the setting menu.

You can customize this setting menu according to your preferences.

DVD

VCD CD

Making Adjustments to Setting

1

Press MENU during stop mode.

Current setup menu display appears.

DISC SKIP

2

«

Press

5/ to select the item you

want to change, then press ENTER.

MENU

2/3/5/

ENTER

Numeric buttons

RETURN

CLEAR

4

5

3

«

Press

5/ to change the setting,

then press ENTER.

Further steps may be needed depending on the item or setting. Follow the steps described in the explanation of each item starting from page

31.

Repeat steps 2 to 3 to change the setting of other items.

Press MENU to turn off the setup menu display.

How to use RETURN

When RETURN is pressed, the display returns to the previous screen (stop mode).

Customizing the Settings

Language-related settings

Language Setting

Audio Language

DVD

This sets the language to be used when playing a disc. If a disc does not contain the selected language, it is played in the priority language set for each disc.

English:

To play sound tracks in English.

Spanish

To play sound tracks in Spanish.

French:

To play sound tracks in French.

German: To play sound tracks in German.

Italian:

To play sound tracks in Italian.

Others:

To make a further choice, follow steps 1 - 3 below.

1 Select “Other” and press ENTER.

2 Press the numeric buttons to enter the 4-digit code listed on page

36.

3 Select OK button and press ENTER.

Note

Depending on the disc, a language recorded on the disc may be given priority and selected automatically when the disc is loaded regardless of the setting.

English: To display subtitles in English.

Spanish: To display subtitles in Spanish.

French:

To display subtitles in French.

German: To display subtitles in German.

Italian:

To display subtitles in Italian.

Others:

To make a further choice, follow steps 1 - 3 below.

1 Select “Other” and press ENTER.

2 Press the numeric buttons to enter the 4-digit code listed on page

36.

3 Select OK button and press ENTER.

Notes

• Some DVD-Video may be set to display subtitles in a different language than you selected. A prior subtitle language may be programmed on the disc.

• Some DVD-Video allow you to change subtitle selections only via the disc menu. If this is the case, press TOP MENU or MENU and choose the appropriate subtitle language from the selection on the disc menu.

• Instruction notes of discs may refer to the button that displays the top menu as title button.

Menu Language

DVD

This sets the initial setup of language as well as the language used in on-screen messages such as “PLAY”.

Subtitle Language

DVD

This sets the language to be used when playing a disc. If a disc does not contain the selected language, it is played in the priority language set for each disc.

English:

To display disc menus in English.

Spanish: To display disc menus in Spanish.

French:

To display disc menus in French.

German: To display disc menus in German.

Italian:

To display disc menus in Italian.

Note

Some DVD-Video may not include your pre-selected language. In this case, the DVD Changer automatically displays disc menus consistent with the disc’s initial language setting.

Downloaded From DvDPlayer-Manual.com Integra Manuals

31

Customizing the Settings

General utility settings

Operation Setting

Rating/Parental lock

DVD

This can restrict playback of adult-oriented DVD discs that you do not want to be seen by children.

However, even when a DVD disc is marked “Adult-oriented” or otherwise on the label, its viewing cannot be restricted unless the restriction level is recorded in the disc itself.

To input password

1 Select “Set Password”.

2 Press the numeric buttons to enter password.

3 Select OK button and press ENTER.

Confirm Password display appears below Enter Password display.

You cannot play DVD Video rated higher than the level you selected unless you cancel the parental lock function.

For example, when you select level 7, discs rated higher than level 7 are locked out and cannot be played.

The Rating level is equivalent to the following U.S. movie ratings.

Level 7: NC-17

Level 6: R

Level 4: PG-13

Level 3: PG

Level 1: G

Notes

• DVD-Video may or may not respond to the parental lock setting. This is not a defect in the DVD Changer. Make sure this function works with your DVD-Video.

• When the password already has been set, the screen for change of the entered password will be displayed. In that case, enter the password (See

“Password” below).

4 Press the numeric buttons to enter password.

Password

DVD

The password for rating setting, change, cancellation, etc. is set.

5 Select OK button and press ENTER.

Note

Be sure not to forget your password. If you should forget it, press CD Play button while holding down the Disc 4 button to clear the password. If the display on the DVD Changer disappears with this operation, press the

Power switch on the DVD Changer and then press it again to recover the display.

Customizing the Settings

Operation Setting (continued)

To change password

6 Press the numeric buttons to enter new password.

1 Press the numeric buttons to enter password.

2 Select OK button and press ENTER.

Password setup menu appears.

7 Select OK button and press ENTER.

To clear password

3 Select “Change Password”.

Enter Password menu appears.

4 Press the numeric buttons to enter new password.

5 Select OK button and press ENTER.

Confirm Password display appears below Enter Password display.

1 Press the numeric buttons to enter password.

2 Select OK button and press ENTER.

Password setup menu appears.

3 Select “Clear Password” and press ENTER.

Downloaded From DvDPlayer-Manual.com Integra Manuals

33

Customizing the Settings

Picture-related setting

Picture Setting

TV Aspect

DVD

This sets the screen size (4:3 or 16:9 aspect ratio) according to the connected TV.

Audio output setting

Audio Setting

Dynamic Range

DVD

Dynamic Range setting allows you to “compress” the dynamic range of a DVD’s sound track, so that you can lower the volume without losing extremely soft signals. This is especially useful when you are watching a movie late at night.

4 x 3 Letterbox:

4 x 3 Pan Scan:

16 x 9 Widescreen:

Choose this setting if you would prefer to see movies in their original aspect ratio. You will see the entire frame of the movie, but it will occupy a smaller portion of the screen. This setting may result in the movie appearing with black bars at the top and bottom of the screen.

Choose this setting if you want the movie to fill the entire screen of your TV. You won’t see part of the picture (particularly the right and left edge).

Some disc produced in a wide screen format can’t be cropped in this fashion, which means the black bars would appear at the top and bottom of the screen.

Choose this setting if your DVD

Changer is connected to a widescreen TV.

Off:

Full dynamic range is maintained.

On:

Dynamic range is reduced.

Notes

• This function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Reduction may differ depending on the DVD.

34

Notes

• The displayable picture size is preset on each DVD-Video. Therefore, the playback picture of some DVD-Video may not conform to the picture size you select.

• When you play a DVD-Video recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Make sure the TV Shape

Customizing the Settings

Audio Setting (continued)

Digital Audio Out

DVD VCD CD

This sets the type of audio output from the digital audio output jack.

DOLBY DIGITAL Surround

DVD Video that have the

D I G I T A L

mark are recorded using this system.

DTS Surround

DVD Video and CD that have the mark are recorded using this system.

Important: DTS information

If you set the Digital Audio Out setting to DTS, you must have your DVD

Changer connected to a receiver or decoder with the DTS feature and the disc you play must support the DTS audio format. If you choose DTS and your receiver, decoder or disc doesn’t support DTS, you won’t hear any audio when you play the disc.

Linear PCM

DVD

VCD CD

PCM:

Dolby Digital: Select when you connected to an amplifier equipped with a Dolby Digital decorder (see page 16).

The DVD Changer outputs digital audio information in the Dolby Digital format when you play a DVD-Video recorded in the Dolby Digital recording system.

The DVD Changer does not output sounds in the

PCM format when you play a DVD-Video disc recorded on the DTS recording system.

DTS:

Select when connected to a 2 channel digital stereo amplifier (see page 16).

The DVD Changer outputs sounds in the PCM format when you play a DVD-Video disc recorded on the Dolby Digital.

The DVD Changer does not output sounds in the

PCM format when you play a DVD-Video disc recorded on the DTS recording system.

Select when you connect to an amplifier equipped with a DTS decorder (see page 16).

The DVD Changer outputs digital audio information in the DTS format when you play a

DVD-Video recorded in the DTS recording system.

The DVD Changer outputs sounds in the Dolby

Digital format when you play a DVD-Video disc recorded on the Dolby Digital recording system.

Dolby Digital and DTS

The 5.1-channel digital surround format of DOLBY DIGITAL/DTS enables you to individually play five full-range (20 Hz-20 kHz) channels (left and right front, center, two surround channels) plus an LFE (Low Frequency

Effect) channel for the low-range effect sound. It will create a realistic sound as heard in theaters and concert halls.

96KHz

48KHz:

Even in case of 96 kHz digital signal, the

DVD Changer will deliver 48 kHz signal out.

96KHz

96KHz:

In case of 96 kHz digital signal, the DVD

Changer will deliver 96 kHz signal out. In this case, your receiver should control

96 kHz signal.

Downloaded From DvDPlayer-Manual.com Integra Manuals

35

Table of Languages

Table of Languages and Their Code No.

Code No.

Language

Abkhazian

Afar

Afrikaans

Albanian

Ameharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque

Bengali; Bangla

Bhutani

Bihari

Bislama

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

7565

6869

6976

7576

7178

7185

7265

7387

7273

7079

7074

7073

7082

7089

7176

6783

6865

7876

6978

6979

6984

6588

6590

6665

6985

6678

6890

6672

6673

6566

6565

6570

8381

6577

6582

7289

6583

6682

6671

7789

6669

7577

6765

9072

6779

7282

Code No.

Language

Hungarian

Icelandic

Indonesian

Interlingua

Interlingue

Iunpiak

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kinyarwanda

Kirghiz

Kirundi

Korean

Kurdish

Laothian

Latin

Latvian, Lettish

Lingala

Lithuanian

Macedonian

Malagsy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Naru

Nepali

Norwegian

Occitan

Oriya

Oromo (Afan)

Panjabi

Pashto, Pushto

Persian

Polish

Portuguese

Quechua

Rhaero-Romance

Romanian

7977

8065

8083

7065

8076

8084

8185

8277

8279

7778

7865

7869

7879

7967

7982

7783

7776

7784

7773

7782

7779

7465

7487

7578

7583

7575

8287

7589

8278

7285

7383

7378

7365

7369

7375

7165

7384

7579

7585

7679

7665

7686

7678

7684

7775

7771

Code No.

Language

Spanish

Sundanese

Swahili

Swedish

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

Tibetan

Tigrinya

Tonga

Tsonga

Turkish

Turkmen

Russian

Samoan

Sangho

Sanskrit

Scots Gaelic

Serbian

Servo-Groatian

Sesotho

Setswana

Shona

Sindhi

Singhalese

Siswati

Slovak

Slovenian

Somali

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

8469

8472

6679

8473

8479

8483

8482

8475

6983

8385

8387

8386

8476

8471

8465

8484

8478

8378

8368

8373

8383

8375

8376

8379

8285

8377

8371

8365

7168

8382

8372

8384

8487

8575

8582

8590

8673

8679

6789

8779

8872

7473

8979

9085

Operating Components not Reached by the

Remote Controller Signals (IR IN/OUT)

The following equipment (sold separately) is essential for operation:

• Onkyo’s Multi-Room System kits (IR Remote Controller Extension System), or

• Multiroom A/V distribution and control systems from Niles ® and Xantech ® to name a few.

If the remote controller signal does not reach the DPC-5.3 remote sensor

If the DPC-5.3 is located inside a cabinet or other enclosure where the infrared rays from the remote controller cannot enter, then operation with the remote controller will not be possible. In such a case, it will be necessary to install a remote sensor at a location outside of the cabinet for the infrared rays from the controller to reach.

If the remote controller signal does not reach other components

In this situation, you will need to use a commercially-available IR emitter. Connect the mini plug of the IR emitter to the IR OUT terminal on the DPC-5.3. Then place the IR emitter on the remote sensor of the component or facing it. When the IR emitter is connected, only the signal input to the IR IN terminal is output to the IR OUT terminal. The signal input from the remote sensor on the front of the DPC-5.3 will not be output to the IR OUT terminal.

IR Receiver

Connecting block

IR IN

DPC-5.3

Remote Controller

In the cabinet

: Signal flow

Make connection as shown below. Do not plug the equipment into the power source until the connection is completed.

from connecting block

Mini plug cable

IN

IR

OUT

DPC-5.3

IR IN

IR OUT other component

Connecting block

IR Receiver

DPC-5.3

IR Emitter

Remote Controller

: Signal flow from connecting block

Mini plug cable

Remote control sensor

Emitter

IN

IR

OUT

DPC-5.3

Mini plug

IR Emitter

Mini plug cable

:Signal flow

Downloaded From DvDPlayer-Manual.com Integra Manuals

37

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service. Refer also to the respective instruction manuals of the connected components and TV.

Symptoms

The DVD Changer doesn’t switch on.

The DVD Changer doesn’t start playback.

Brightness is unstable or noise is visible on the playback picture.

The playback picture is occasionally distorted.

Playback doesn’t follow the course of the disc’s programs.

Causes

• The power cord is disconnected.

• The DVD Changer is in standby mode, the

Standby indicator blinks for about 10 seconds.

• The main power is set to OFF.

• There is external noise in the computer circuits of the DVD Changer.

• The AC fuse is blown.

• No disc is inserted.

• The region number of the disc does not match that of the DVD Changer.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the disc tray guide.

• The disc is dirty.

• The parental lock function is activated.

• Copy protection is activated.

• The TV is not compatible with progressive scan signal.

• The disc is dirty.

• It is in fast forward or fast reverse playback.

Remedies

• Check the connection of the power cord.

• Wait for about 10 seconds so that Standby indicator lights, then press Standby/On button.

• Turn on the main power.

• Switch off the main power, then switch it on again. If not recovered, disconnect the power cord, then connect it again.

• Contact your Integra/Onkyo authorized service center.

• Insert a disc. (Check that “DVD,” “VCD,” or

“CD” is lit in the DVD Changer’s display).

• See “1. Regional Restriction Codes (Region

Number)” on page 4.

• Check the playable discs.

• Place the disc with the playback side down.

• Place the disc within the proper guide on the disc tray.

• Eject the disc and clean it.

• Deactivate the parental lock function or change the parental lock level.

• Connect the DVD Changer directly to the TV.

Avoid connecting the DVD Changer to the TV through a VCR.

• Press P. SCAN on the remote controller and select Interlaced icon.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Resume normal playback.

7

Pages

17

17

17

17

18

4

6

18

18

7

32

14

27

18

The picture from the DVD

Changer doesn’t appear on the

TV screen.

No sound or inaccurate sound is reproduced.

• The DVD Changer is in repeat playback mode, memory playback mode, or random playback mode, etc.

• The TV is not set to receive the output signals from the DVD Changer.

• The DVD Changer is not properly connected.

• A wrong sound signal conversion method

(Digital Audio Out) is selected.

• Set the TV to the DVD Changer’s input.

• Check the connections to the DVD Changer.

• Check the current sound signal conversion method, and select the right setting for

“Digital Audio Out”.

• Set the TV to the DVD Changer’s input.

14, 15

35

DVD disc cannot be played.

The buttons on the remote controller and DVD Changer do not operate.

The buttons on the DVD

Changer operate but the buttons on the remote controller do not operate.

• The TV is not set to receive the output signals from the DVD Changer.

• The DVD Changer is not properly connected.

• DVD disc cannot be played when the DVD

Changer is set to CD Play mode.

• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operation.

• No batteries are inserted in the remote controller.

• The batteries are worn out.

• The remote controller is not pointed at the remote sensor of the DVD Changer.

• The remote controller is too far from the DVD

Changer.

• Check the connections to the DVD Changer.

• Press CD Play .

• Switch off the main power, then switch it on again. If not recovered, disconnect the power cord, then connect it again.

• Insert new batteries.

• Replace with new batteries.

• Point the remote controller at the remote sensor of the DVD Changer.

• Operate the remote controller within 5 m

(16 feet).

14-16

25

17

9

9

9

9

Because the unit contains a microcomputer to provide advanced functions, it may malfunction due to external noise or static electricity. If this happens, press the Power switch on the unit and then press it again after about five seconds.

Specifications

DVD Changer

Power supply

Power consumption

Weight

External dimensions

Signal system

Frequency range (digital audio)

Signal-to-noise ratio (digital audio)

Audio dynamic range (digital audio)

Harmonic distortion (digital audio)

Wow and flutter

Operating conditions

AC 120 V, 60 Hz

20 W

15.0 lbs

17

1

/

8

" x 5

1

/

16

" x 16

15

/

16

" (W/H/D)

NTSC

48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 42 kHz

More than 98 dB

More than 95 dB

Less than 0.008 %

Below measurable level

Temperature: 5

°C to 35°C (41°F to 95°F)

Operation status: Horizontal

Outputs

Video output

S-video output

Component video output

Audio output (digital output Optical)

Audio output (digital output Coaxial)

Audio output (analog output)

1.0 V (p-p), 75

Ω, negative sync., pin jack × 1

(Y) 1.0 V (p-p), 75

Ω, negative sync.

(C) 0.286 V (p-p), 75

Ω, Mini DIN 4-pin × 1

(Y) 1.0 V (p-p), 75

Ω, negative sync., pin jack × 1

(P

B

)/(P

R

) 0.7 V (p-p), 75

Ω, pin jack × 2

Optical connecter

× 1

0.5 V (p-p), 75

Ω, pin jack × 1

2.0 V (rms), 320

Ω, pin jack (L, R) × 2

Specifications and features are subject to change without notice.
