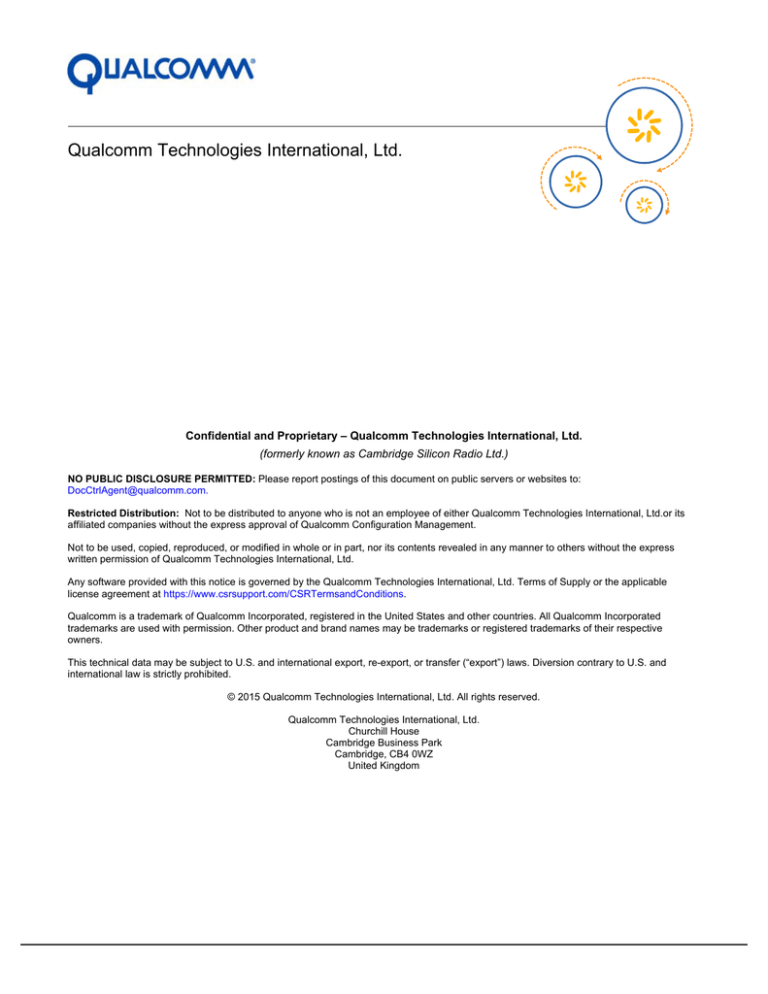

Qualcomm Technologies International, Ltd.

Confidential and Proprietary – Qualcomm Technologies International, Ltd.

(formerly known as Cambridge Silicon Radio Ltd.)

NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to:

[email protected]

Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm Technologies International, Ltd.or its affiliated companies without the express approval of Qualcomm Configuration Management.

Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the express written permission of Qualcomm Technologies International, Ltd.

Any software provided with this notice is governed by the Qualcomm Technologies International, Ltd. Terms of Supply or the applicable license agreement at https://www.csrsupport.com/CSRTermsandConditions .

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. All Qualcomm Incorporated trademarks are used with permission. Other product and brand names may be trademarks or registered trademarks of their respective owners.

This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited.

© 2015 Qualcomm Technologies International, Ltd. All rights reserved.

Qualcomm Technologies International, Ltd.

Churchill House

Cambridge Business Park

Cambridge, CB4 0WZ

United Kingdom

Features

Bluetooth

®

v4.1 specification compliant

Bluetooth Smart

128KB memory: 64KB RAM and 64KB ROM

Support for Bluetooth v4.1 specification host stack including ATT, GATT, SMP, L2CAP, GAP

RSSI monitoring for proximity applications

<900nA current consumption in dormant mode

32kHz and 16MHz crystal or system clock

Switch-mode power supply

Programmable general purpose PIO controller

10-bit ADC

12 digital PIOs

3 analogue AIOs

UART

I²C / SPI for EEPROM / flash memory ICs and peripherals

Debug SPI

4 PWM modules

Wake-up interrupt and watchdog timer

QFN 32-lead, 4 x 4 x 0.65mm, 0.4mm pitch

General Description

CSR1012 QFN is a CSR µEnergy platform device.

CSR µEnergy are CSR's single-mode Bluetooth low energy products for the Bluetooth Smart market.

CSR1012 QFN is a small footprint variant of CSR1010

QFN.

CSR μEnergy enables ultra low-power connectivity and basic data transfer for applications previously limited by the power consumption, size constraints and complexity of other wireless standards. CSR1012 QFN provides everything required to create a Bluetooth low energy product with RF, baseband, MCU, qualified Bluetooth v4.1 specification stack and customer application running on a single IC.

Bluetooth LE

Radio and Modem

MCU

ROM

I/O

UART

LED PWM

PIO

AIO

16MHz

32kHz

RAM

Clock

Generation

Debug

I

2

C / SPI

CSR µEnergy

®

CSR1012 QFN

Bluetooth Smart IC

Production Information

CSR1012A05

Issue 5

Applications

Building an ecosystem using Bluetooth low energy

CSR is the industry leader for Bluetooth low energy, also known as Bluetooth Smart. Bluetooth Smart enables connectivity and data transfer to leading smartphone, tablet and personal computing devices including Apple iPhone, iPad, iPod and Mac products and leading

Android devices.

Bluetooth low energy takes less time to make a connection than conventional Bluetooth wireless technology and can consume approximately 1/20 supports profiles for health and fitness sensors, watches, keyboards, mice and remote controls.

th the power of Bluetooth Basic Rate. CSR1012 QFN

of

Typical Bluetooth Smart applications:

HID: keyboards, mice, touchpads, remote controls

Sports and fitness sensors: heart rate, runner speed and cadence, cycle speed and cadence

Health sensors: blood pressure, thermometer and glucose meters

Mobile accessories: watches, proximity tags, alert tags and camera controls

Smart home: heating control and lighting control

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 1 of 48

CS-238833-DSP5 www.csr.com

Ordering Information

Package

Device

Type Size

Order Number

Shipment

Method

CSR1012 QFN

QFN‑32-lead

(Pb free)

4 x 4 x 0.65mm

0.4mm pitch

Tape and reel CSR1012A05-IQQP-R

Note:

The minimum order quantity is 4kpcs taped and reeled.

Supply chain: CSR's manufacturing policy is to multisource volume products. For further details, contact your local sales account manager or representative.

Contacts

General information

Information on this product

Customer support for this product

Details of compliance and standards

Help with this document www.csr.com

[email protected]

www.csrsupport.com

[email protected]

[email protected]

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 2 of 48

CS-238833-DSP5 www.csr.com

Device Details

Bluetooth Radio

On-chip balun (50Ω impedance in TX and RX modes)

No external trimming is required in production

Bluetooth v4.1 specification compliant

Bluetooth Transmitter

9dBm RF transmit power with level control from integrated 6-bit DAC over a dynamic range >25dB

No external power amplifier or TX/RX switch required

Bluetooth Receiver

-94dBm sensitivity

Integrated channel filters

Digital demodulator for improved sensitivity and cochannel rejection

Fast AGC for enhanced dynamic range

Bluetooth Stack

CSR's protocol stack runs on the integrated MCU:

Support for Bluetooth v4.1 specification features:

Master and slave operation

Including encryption

Software stack in firmware includes:

GAP

L2CAP

Security manager

Attribute protocol

Attribute profile

Bluetooth low energy profile support

Synthesiser

■ Fully integrated synthesiser requires no external

VCO varactor diode, resonator or loop filter

Baseband and Software

■ Hardware MAC for all packet types enables packet handling without the need to involve the MCU

Physical Interfaces

SPI master interface

SPI programming and debug interface

I²C

12 digital PIOs

3 analogue AIOs

UART

Auxiliary Features

Battery monitor

Power management features include software shutdown and hardware wake-up

CSR1012 QFN can run in low power modes from an external 32.768kHz clock signal

Integrated switch-mode power supply

Linear regulator (internal use only)

Power-on-reset cell detects low supply voltage

Package

■ 32-lead 4 x 4 x 0.65mm, 0.4mm pitch QFN

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 3 of 48

CS-238833-DSP5 www.csr.com

Functional Block Diagram

Wake-up

I

2

C EEPROM

SPI Serial Flash

AES-CCS and

AES Encryption

I

2

C / SPI Serial Flash

I

2

C / SPI

Serial

Flash

DMA

Control State Machine

ROM

Debug

RF

Bluetooth Radio

Bluetooth LE Modem and LC

RAM Arbiter

RAM 64KB

Memory

Protection

Code

MCU

Interrupt

Data

Debug

Timer

XTAL_16M XTAL_32K

Clock Generation

I/O

UART

PIO and LED

PWM

AUX / CLK /

PSU Control

PIO

VDD_PADS

LDO SMPU

VDDREG_IN VDD_BAT

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 4 of 48

CS-238833-DSP5 www.csr.com

3

4

5

Document History

Revision Date

1 18 APR 13

2 21 DEC 13

03 FEB 14

03 FEB 14

06 JAN 15

Change Reason

Original publication of this document.

Updates include:

Pre-production Information added.

Status Information.

4.4V operation added.

Absolute maximum ratings value for battery operation.

Package Information.

UART hardware flow control removed.

PIO definitions clarified.

Sleep clock maximum load capacitance.

Non-confidential information.

VDD_DIG corrected to VDD_CORE.

Hibernate current.

Correction to Performance Specification document number in Document

References.

Bluetooth 4.1 specification added.

Example Application Schematic.

Dev kit details removed.

Updates include:

Production Information added.

RF parameters.

Minimum order quantity.

4.3V Performance Specification document reference added.

Copyright years.

Minimum operating temperature in Recommended Operating Conditions.

Machine Model removed from ESD as it is not required by CSR or the latest

JEDEC standards .

Confidentiality Status added to Status Information.

Updates include:

Section 3 Clock Generation

Section 4 Operating Modes.

Section 5 Microcontroller, Memory and Baseband Logic.

Section 6 Serial Interfaces.

Section 7 Power Control and Regulation.

Section 8 Example Application Schematic.

Section 9 Electrical Characteristics.

Section 10 Current Consumption.

Section 14 Document References.

Other minor updates.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 5 of 48

CS-238833-DSP5 www.csr.com

Status Information

The status of this Data Sheet is Production Information. CSR Product Data Sheets progress according to the following format:

■ Advance Information:

■ Information for designers concerning CSR product in development. All values specified are the target values of the design.

Minimum and maximum values specified are only given as guidance to the final specification limits and must not be considered as the final values.

■ Engineering Sample:

■ Information about initial devices. Devices are untested or partially tested prototypes, their status is described in an

Engineering Sample Release Note. All values specified are the target values of the design. Minimum and maximum values specified are only given as guidance to the final specification limits and must not be considered as the final values.

■ All detailed specifications including pinouts and electrical specifications may be changed by CSR without notice.

■ Pre-production Information:

■ Pinout and mechanical dimension specifications finalised. All values specified are the target values of the design. Minimum and maximum values specified are only given as guidance to the final specification limits and must not be considered as the final values.

■ All electrical specifications may be changed by CSR without notice.

■ Production Information:

■ Final Data Sheet including the guaranteed minimum and maximum limits for the electrical specifications.

■ Production Data Sheets supersede all previous document versions.

Device Implementation

Important Note:

As the feature-set of the CSR1012 QFN is firmware build-specific, see the relevant software release note for the exact implementation of features on the CSR1012 QFN.

Life Support Policy and Use in Safety-critical Applications

CSR's products are not authorised for use in life-support or safety-critical applications. Use in such applications is done at the sole discretion of the customer. CSR will not warrant the use of its devices in such applications.

CSR Green Semiconductor Products and RoHS Compliance

CSR1012 QFN devices meet the requirements of Directive 2011/65/EU of the European Parliament and of the Council on the

Restriction of Hazardous Substance (RoHS). CSR1012 QFN devices are free from halogenated or antimony trioxide-based flame retardants and other hazardous chemicals. For more information, see CSR's

Environmental Compliance Statement for CSR Green

Semiconductor Products

.

Confidentiality Status

This document is non-confidential. The right to use, copy and disclose this document may be subject to license restrictions in accordance with the terms of the agreement entered into by CSR plc and the party that CSR plc delivered this document to.

Trademarks, Patents and Licences

Unless otherwise stated, words and logos marked with

Bluetooth

®

and the Bluetooth

®

or

®

are trademarks registered or owned by CSR plc or its affiliates.

logos are trademarks owned by Bluetooth

®

SIG, Inc. and licensed to CSR. Other products, services and names used in this document may have been trademarked by their respective owners.

The publication of this information does not imply that any license is granted under any patent or other rights owned by CSR plc and/or its affiliates.

CSR reserves the right to make technical changes to its products as part of its development programme.

While every care has been taken to ensure the accuracy of the contents of this document, CSR cannot accept responsibility for any errors.

Refer to www.csrsupport.com

for compliance and conformance to standards information.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 6 of 48

CS-238833-DSP5 www.csr.com

1

2

3

4

5

6

Contents

Ordering Information ........................................................................................................................................... 2

Contacts ..................................................................................................................................................... 2

Device Details ..................................................................................................................................................... 3

Functional Block Diagram .................................................................................................................................. 4

Package Information ......................................................................................................................................... 10

1.1 Pinout Diagram ........................................................................................................................................ 10

1.2 Device Terminal Functions ....................................................................................................................... 11

1.3 Package Dimensions ............................................................................................................................... 14

1.4 PCB Design and Assembly Considerations ............................................................................................. 15

1.5 Typical Solder Reflow Profile ................................................................................................................... 15

Bluetooth Modem .............................................................................................................................................. 16

2.1 RF Ports ................................................................................................................................................... 16

2.2 RF Receiver ............................................................................................................................................. 16

2.2.1

Low Noise Amplifier .................................................................................................................... 16

2.2.2

RSSI Analogue to Digital Converter ........................................................................................... 16

2.3 RF Transmitter ......................................................................................................................................... 16

2.3.1

IQ Modulator ............................................................................................................................... 16

2.3.2

Power Amplifier .......................................................................................................................... 16

2.4 Bluetooth Radio Synthesiser .................................................................................................................... 16

2.5 Baseband ................................................................................................................................................. 16

2.5.1

Physical Layer Hardware Engine ............................................................................................... 16

Clock Generation ............................................................................................................................................... 17

3.1 Clock Architecture .................................................................................................................................... 17

3.2 Crystal Oscillator: XTAL_16M_IN and XTAL_16M_OUT .......................................................................... 17

3.2.1

Crystal Specification ................................................................................................................... 17

3.2.2

Frequency Trim .......................................................................................................................... 18

3.3 Sleep Clock .............................................................................................................................................. 18

3.3.1

Crystal Specification ................................................................................................................... 18

Operating Modes ............................................................................................................................................... 20

4.1 Run Mode ................................................................................................................................................. 20

4.2 Idle Mode ................................................................................................................................................. 20

4.3 Deep Sleep Mode .................................................................................................................................... 20

4.4 Hibernate Mode ........................................................................................................................................ 20

4.5 Dormant Mode ......................................................................................................................................... 20

Microcontroller, Memory and Baseband Logic .................................................................................................. 21

5.1 System RAM ............................................................................................................................................ 21

5.2 Internal ROM ........................................................................................................................................... 21

5.3 Microcontroller .......................................................................................................................................... 21

5.4 Programmable I/O Ports, PIO and AIO .................................................................................................... 21

5.5 LED Flasher / PWM Module ..................................................................................................................... 22

5.6 Temperature Sensor ................................................................................................................................ 23

5.7 Battery Monitor ......................................................................................................................................... 24

Serial Interfaces ................................................................................................................................................ 25

6.1 Application Interface ................................................................................................................................. 25

6.1.1

UART Interface ........................................................................................................................... 25

6.2 I²C Interface ............................................................................................................................................. 25

6.3 SPI Master Interface ................................................................................................................................ 27

6.4 Programming and Debug Interface .......................................................................................................... 29

6.4.1

Instruction Cycle ......................................................................................................................... 29

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 7 of 48

CS-238833-DSP5 www.csr.com

8

9

7

6.4.2

Multi-slave Operation .................................................................................................................. 30

Power Control and Regulation .......................................................................................................................... 31

7.1 Switch-mode Regulator ............................................................................................................................ 31

7.2 Low-voltage VDD_CORE Linear Regulator ............................................................................................. 31

7.3 Reset ........................................................................................................................................................ 31

7.3.1

Digital Pin States on Reset ......................................................................................................... 31

7.3.2

Power-on Reset .......................................................................................................................... 32

Example Application Schematic ........................................................................................................................ 33

Electrical Characteristics ................................................................................................................................... 34

9.1 Absolute Maximum Ratings ..................................................................................................................... 34

9.2 Recommended Operating Conditions ...................................................................................................... 34

9.3 Input/Output Terminal Characteristics ...................................................................................................... 35

9.3.1

Switch-mode Regulator .............................................................................................................. 35

9.3.2

Low-voltage Linear Regulator ..................................................................................................... 35

9.3.3

Digital Terminals ......................................................................................................................... 35

9.3.4

AIO ............................................................................................................................................. 36

9.4 Junction Temperature .............................................................................................................................. 38

9.5 ESD Protection ......................................................................................................................................... 38

10 Current Consumption ........................................................................................................................................ 39

11 CSR Green Semiconductor Products and RoHS Compliance .......................................................................... 40

12 CSR1012 QFN Software Stack ......................................................................................................................... 41

13 Tape and Reel Information ................................................................................................................................ 42

13.1 Tape Orientation ...................................................................................................................................... 42

13.2 Tape Dimensions ..................................................................................................................................... 43

13.3 Reel Information ....................................................................................................................................... 44

13.4 Moisture Sensitivity Level ......................................................................................................................... 44

14 Document References ....................................................................................................................................... 45

Terms and Definitions ................................................................................................................................................ 46

List of Figures

Figure 1.1

Pinout Diagram .................................................................................................................................... 10

Figure 3.1

Clock Architecture ................................................................................................................................ 17

Figure 3.2

Crystal Driver Circuit ............................................................................................................................ 17

Figure 3.3

Sleep Clock Crystal Driver Circuit ........................................................................................................ 18

Figure 5.1

Baseband Digits Block Diagram .......................................................................................................... 21

Figure 5.2

Typical PWM Signal on a PIO ............................................................................................................. 23

Figure 6.1

Example of an I²C Interface EEPROM Connection ............................................................................. 26

Figure 6.2

I²C Standard Mode 100 kHz Timing Diagram (Top Line: SCL, Bottom Line: SDA) ............................. 26

Figure 6.3

I²C Fast Mode 400 kHz Timing Diagram (Top Line: SCL, Bottom Line: SDA) .................................... 27

Figure 6.4

SPI Timing Diagram ............................................................................................................................. 28

Figure 6.5

Memory Boot-up Sequence ................................................................................................................. 29

Figure 7.1

Voltage Regulator Configuration .......................................................................................................... 31

Figure 12.1 Software Architecture .......................................................................................................................... 41

Figure 13.1 Tape Orientation .................................................................................................................................. 42

Figure 13.2 Tape Dimensions ................................................................................................................................. 43

Figure 13.3 Reel Dimensions .................................................................................................................................. 44

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 8 of 48

CS-238833-DSP5 www.csr.com

List of Tables

Table 3.1

Crystal Specification ............................................................................................................................. 18

Table 3.2

Sleep Clock Specification ..................................................................................................................... 19

Table 5.1

Wake Options for Sleep Modes ............................................................................................................ 22

Table 5.2

Table 5.3

Alternative PIO Functions ..................................................................................................................... 22

PWM Operating Range ......................................................................................................................... 23

Table 6.1

Possible UART Settings ....................................................................................................................... 25

Table 6.2

I²C Standard Mode 100 kHz Timing Definition ..................................................................................... 26

Table 6.3

I²C Fast Mode 400 kHz Timing Definition ............................................................................................. 27

Table 6.4

SPI Master Serial Flash Memory Interface ........................................................................................... 28

Table 6.5

Instruction Cycle for a SPI Transaction ................................................................................................ 30

Table 7.1

Table 7.2

Pin States on Reset .............................................................................................................................. 32

Power-on Reset .................................................................................................................................... 32

Table 9.1

Junction Temperature within Recommended Operating Conditions .................................................... 38

Table 9.2

ESD Handling Ratings .......................................................................................................................... 38

Table 10.1 Current Consumption ............................................................................................................................ 39

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 9 of 48

CS-238833-DSP5 www.csr.com

1 Package Information

1.1

Pinout Diagram

Orientation from Top of Device

32 31 30 29 28 27 26 25

6

7

4

5

8

1

2

3

24

23

22

21

20

19

18

17

9 10 11 12 13 14 15 16

Figure 1.1: Pinout Diagram

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 10 of 48

CS-238833-DSP5 www.csr.com

PIO Port

PIO[11]

PIO[10]

PIO[9]

PIO[8] /

DEBUG_MISO

PIO[7] /

DEBUG_MOSI

PIO[6] /

DEBUG_CS#

PIO[5] /

DEBUG_CLK

1.2

Device Terminal Functions

Radio

RF

Lead Pad Type

7 RF

Supply Domain

VDD_RADIO

(a)

(a)

The VDD_RADIO domain is generated from VDD_REG_IN, see Figure 7.1.

Synthesiser and

Oscillator

XTAL_32K_OUT

XTAL_32K_IN

XTAL_16M_OUT

XTAL_16M_IN

Lead Pad Type

2

3

Analogue

Analogue

9 Analogue

10 Analogue

Supply Domain

VDD_BAT

VDD_BAT

VDD_ANA

(b)

VDD_ANA

(b)

The VDD_ANA domain is generated from VDD_REG_IN, see Figure 7.1.

I²C Interface Lead Pad Type Supply Domain

I2C_SDA

I2C_SCL

29

Bidirectional, tristate, with weak internal pull-up

VDD_PADS

28

Input with weak internal pull-up

VDD_PADS

Lead Pad Type

25

24

23

Supply Domain

Bidirectional with programmable strength internal pullup/down

VDD_PADS

22

20

19

Bidirectional with programmable strength internal pullup/down

VDD_PADS

18

Description

Bluetooth transmitter / receiver.

Description

Drive for sleep clock crystal.

32.768kHz sleep clock input.

Drive for crystal.

Reference clock input.

Description

I²C data input / output or SPI serial flash data output (SF_DOUT). If connecting to SPI serial flash, connect this pin to SO on the serial flash. See Section 6.3.

I²C clock or SPI serial flash clock output (SF_CLK), see Section 6.3.

Description

Programmable I/O line.

Programmable I/O line or debug SPI

MISO selected by SPI_PIO#.

Programmable I/O line or debug SPI

MOSI selected by SPI_PIO#.

Programmable I/O line or debug SPI chip select (CS#) selected by

SPI_PIO#.

Programmable I/O line or debug SPI

CLK selected by SPI_PIO#.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 11 of 48

CS-238833-DSP5 www.csr.com

PIO Port

PIO[4] /

SF_CS#

Lead Pad Type Supply Domain

17

16

Bidirectional with programmable strength internal pullup/down

VDD_PADS

PIO[3] /

SF_DIN

PIO[2] 27

Bidirectional with programmable strength internal pullup/down

VDD_PADS

PIO[1] /

UART_RX

PIO[0] /

UART_TX

AIO[2]

AIO[1]

AIO[0]

15

Bidirectional with

14

11

12

13 programmable strength internal pullup/down

Bidirectional analogue

VDD_PADS

VDD_AUX

(c)

(c)

The VDD_AUX domain is generated from VDD_REG_IN, see Figure 7.1.

Test and Debug

SPI_PIO#

Lead Pad Type

26

Input with strong internal pull-down

Supply Domain

VDD_PADS

Wake-up

WAKE

Lead Pad Type

4

Input has no internal pull-up or pull-down, use external pulldown.

Supply Domain

VDD_BAT

Description

Programmable I/O line or SPI serial flash chip select (SF_CS#), see

Section 6.3.

Programmable I/O line or SPI serial flash data (SF_DIN) input. If connecting to SPI serial flash, this pin connects to SI on the serial flash. See

Section 6.3.

Programmable I/O line or I²C power.

Programmable I/O line or UART RX.

Programmable I/O line or UART TX.

Analogue programmable I/O line.

Description

Selects SPI debug on PIO[8:5].

Description

Input to wake CSR1012 QFN from hibernate or dormant.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 12 of 48

CS-238833-DSP5 www.csr.com

Power Supplies and

Control

VDD_BAT

VDD_BAT_SMPS

SMPS_LX

VDD_CORE

VDD_PADS

VDD_REG_IN

VDD_XTAL

VSS

Lead

1

32

31

5, 30

21

6

8

Exposed pad

Description

Battery input and regulator enable (active high).

Input to high-voltage switch-mode regulator.

High-voltage switch-mode regulator output.

Positive supply for digital domain.

Positive supply for all digital I/O ports PIO[11:0].

Positive supply for Bluetooth radio and digital linear regulator.

Decouple with 470nF capacitor to ground.

Ground connections.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 13 of 48

CS-238833-DSP5 www.csr.com

1.3

Package Dimensions

A

Pin 1 Corner

1

32

Top View

D

B bbb C ccc C

Seating Plane

M

E e1

P 24

25 aaa C

Bottom View

J eee C A B

32

1

Pin 1 ID e/2 e eee C A B

17

32 x L d1

16

8

32 x b

9 ddd

M

C A B

Exposed Die

Attach Pad

A2

A

A1

(A3)

Production Information

© Cambridge Silicon Radio Limited 2013-2015

D

E

A3 b e d1/e1

Notes

Dimension

A

A1

A2

Description

Size

Pitch

Min

0.55

0

-

Typ

0.6

0.035

0.4

Max

0.65

0.05

-

K

L

Dimension

J

Min

2.24

2.24

0.25

Typ

2.34

2.34

0.30

-

-

-

0.15

-

-

0.203

0.20

4.0

4.0

0.4

0.118

-

-

-

0.25

-

aaa bbb ccc ddd eee

P

-

-

-

-

-

0.43

1.

Coplanarity applies to leads, corner leads and die attach pad.

32-lead Quad-flat No-lead Package

4 x 4 x 0.65mm

JEDEC

0.4

Units

MO-220 mm

0.1

0.1

0.08

0.1

0.1

-

-

-

-

-

-

-

Max

2.44

2.44

0.35

Page 14 of 48

CS-238833-DSP5 www.csr.com

1.4

PCB Design and Assembly Considerations

This section lists recommendations to achieve maximum board-level reliability of the 4 x 4 x 0.65mm QFN 32-lead package:

NSMD lands (lands smaller than the solder mask aperture) are preferred, because of the greater accuracy of the metal definition process compared to the solder mask process. With solder mask defined pads, the overlap of the solder mask on the land creates a step in the solder at the land interface, which can cause stress concentration and act as a point for crack initiation.

CSR recommends that the PCB land pattern is in accordance with IPC standard IPC-7351.

Solder paste must be used during the assembly process.

1.5

Typical Solder Reflow Profile

For information, see

Typical Solder Reflow Profile for Lead-free Devices Information Note

.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 15 of 48

CS-238833-DSP5 www.csr.com

2 Bluetooth Modem

2.1

RF Ports

CSR1012 QFN contains an integrated balun which provides a single-ended RF TX / RX port pin. No matching components are needed as the receive mode impedance is 50Ω and the transmitter has been optimised to deliver power in to a 50Ω load.

2.2

RF Receiver

The receiver features a near-zero IF architecture that allows the channel filters to be integrated onto the die. Sufficient out-of-band blocking specification at the LNA input allows the receiver to be used in close proximity to GSM and

W‑CDMA cellular phone transmitters without being significantly desensitised.

An ADC digitises the IF received signal.

2.2.1

Low Noise Amplifier

The LNA operates in differential mode and takes its input from the balanced port of the integrated balun.

2.2.2

RSSI Analogue to Digital Converter

The ADC samples the RSSI voltage on a packet-by-packet basis and implements a fast AGC. The front-end LNA gain is changed according to the measured RSSI value, keeping the first mixer input signal within a limited range. This improves the dynamic range of the receiver, improving performance in interference-limited environments.

2.3

RF Transmitter

2.3.1

IQ Modulator

The transmitter features a direct IQ modulator to minimise frequency drift during a transmit packet, which results in a controlled modulation index. Digital baseband transmit circuitry provides the required spectral shaping.

2.3.2

Power Amplifier

The internal PA has a maximum 9dBm output power without needing an external RF PA.

2.4

Bluetooth Radio Synthesiser

The Bluetooth radio synthesiser is fully integrated onto the die with no requirement for an external VCO screening can, varactor tuning diodes, LC resonators or loop filter. The synthesiser is guaranteed to lock in sufficient time across the guaranteed temperature range to meet the Bluetooth v4.1 specification.

2.5

Baseband

2.5.1

Physical Layer Hardware Engine

Dedicated logic performs:

Cyclic redundancy check

Encryption

Data whitening

Access code correlation

The hardware supports all optional and mandatory features of Bluetooth v4.1 specification.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 16 of 48

CS-238833-DSP5 www.csr.com

3 Clock Generation

The Bluetooth reference clock for the system is generated from an external 16MHz clock source, see Figure 3.1. All the CSR1012 QFN internal digital clocks are generated using a phase locked loop, which is locked to the frequency of either the external reference clock source or a sleep clock frequency of 32.768kHz, see Figure 3.1.

3.1

Clock Architecture

Bluetooth PLL

Bluetooth LO

(~4.8GHz)

Fast XTAL Clock for System

16MHz

Core Digits

(16MHz)

Slow XTAL Clock for Sleep

32kHz

Embedded Digits

(32kHz)

Figure 3.1: Clock Architecture

3.2

Crystal Oscillator: XTAL_16M_IN and XTAL_16M_OUT

CSR1012 QFN contains crystal driver circuits. This operates with an external crystal and capacitors to form a Pierce oscillator. Figure 3.2 shows the external crystal is connected to pins XTAL_16M_IN and XTAL_16M_OUT.

-

C

TRIM

C

LOAD1

C

LOAD2

Figure 3.2: Crystal Driver Circuit

Note:

C

TRIM

is the internal trimmable capacitance in Table 3.1.

C

LOAD1

and C by the crystal.

LOAD2

in combination with C

TRIM

and any parasitic capacitance provide the load capacitance required

3.2.1

Crystal Specification

Table 3.1 shows the specification for an external crystal.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 17 of 48

CS-238833-DSP5 www.csr.com

Parameter

Frequency

Frequency tolerance (without trimming)

(a)

Frequency trim range

(b)

Drive level

Equivalent series resistance

Load capacitance

Pullability

-

-

Min

-

-

10

-

-

Typ

16

-

±50

9

-

0.4

-

Max

-

±25

-

-

-

-

60

Unit

MHz ppm ppm

V

Ω pF ppm/pF

Table 3.1: Crystal Specification

(a)

Use integrated load capacitors to trim initial frequency tolerance in production or to trim frequency over temperature, increasing the allowable frequency tolerance.

(b) Frequency trim range is dependent on crystal load capacitor values and crystal pullability.

3.2.2

Frequency Trim

CSR1012 QFN contains variable integrated capacitors to allow for fine-tuning of the crystal resonant frequency. This firmware-programmable feature allows accurate trimming of crystals on a per-device basis on the production line. The resulting trim value is stored in non-volatile memory.

3.3

Sleep Clock

The sleep clock is an externally provided 32.768kHz clock that is used during deep sleep and in other low-power modes.

Figure 3.3 shows the sleep clock crystal driver circuit.

-

C

LOAD1

C

LOAD2

Figure 3.3: Sleep Clock Crystal Driver Circuit

Note:

C

LOAD1 crystal.

and C

LOAD2

in combination with any parasitic capacitance provide the load capacitance required by the

3.3.1

Crystal Specification

Table 3.2 shows the requirements for the sleep clock.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 18 of 48

CS-238833-DSP5 www.csr.com

Sleep Clock

Frequency

Frequency tolerance

(a) (b)

Frequency trim range

Drive level

Load capacitance

Equivalent series resistance

Duty cycle

-

40

-

-

30:70

Min

30

-

Typ

32.768

-

-

-

50

0.4

50:50

Max

35

250

10

65

-

-

70:30

Table 3.2: Sleep Clock Specification

(a) The frequency of the slow clock is periodically calibrated against the system clock. As a result the rate of change of the frequency is more important than the maximum deviation. To meet the accuracy requirements the frequency should not drift due to temperature or other effects by more than 80ppm in any 5 minute period.

(b)

CSR1012 QFN can correct for ±1% by using the fast clock to calibrate the slow clock.

Units kHz

±ppm

±ppm

V pF kΩ

%

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 19 of 48

CS-238833-DSP5 www.csr.com

4 Operating Modes

CSR1012 QFN has 5 operating modes. 3 of these are sleep modes:

Running

Idle

Sleep modes:

Deep Sleep

Hibernate

Dormant

For current consumption rates in the operating modes, see Section 10.

4.1

Run Mode

In Run mode, all functions are on. RX and/or TX are active.

4.2

Idle Mode

In Idle mode, the VDD_PADS and VDD_BAT domains are powered, the reference clock and the sleep clock are powered, the RAM is powered and the digital circuits are powered. The MCU is idle.

There is a <1μs wake-up time.

4.3

Deep Sleep Mode

In Deep Sleep mode, the VDD_PADS and VDD_BAT domains are powered, the sleep clock is on but the reference clock is off, the RAM is on, the digital circuits are on and the SMPS is on (low-power mode). There is a configurable wake-up time.

CSR1012 QFN is woken from Deep Sleep mode by any PIO configured to wake the IC.

4.4

Hibernate Mode

In Hibernate mode, the VDD_PADS and VDD_BAT domains are powered and the sleep clock is on. The reference clock is off.

CSR1012 QFN is woken from Hibernate mode by a selected level on the WAKE pin or by the watchdog timer.

4.5

Dormant Mode

In Dormant mode, all functions are off. CSR1012 QFN is woken from Dormant mode by a selected level on the WAKE pin.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 20 of 48

CS-238833-DSP5 www.csr.com

5 Microcontroller, Memory and Baseband Logic

ADCs

Bluetooth and

Auxiliary Analogue

Control DACs

Bluetooth low energy Modem and LC

Wake-ups

I

2

C EEPROM

Serial Flash

AES-CCS and

AES

Encryption

I

2

C / Serial Flash

I

2

C /

Serial

Flash

DMA

Code

RAM Interface

(Buffers, LUTs, Tables and State)

RAM Arbiter

RAM

I/O

UART

Memory Protection

PIO and

LED PWM

Data

Interrupt

AUX / CLK /

PSU Control

MCU

I/O

Control Logic

Debug Timer

PIOs

Debug

Figure 5.1: Baseband Digits Block Diagram

5.1

System RAM

64KB of integrated RAM supports the RISC MCU and is shared between the ring buffers used to hold data for each active connection, general-purpose memory required by the Bluetooth stack and the user application.

5.2

Internal ROM

CSR1012 QFN has 64KB of internal ROM. This memory is provided for system firmware implementation. If the internal

ROM holds valid program code, on boot-up, this is copied into the program RAM. Code then executes from ROM and

RAM.

5.3

Microcontroller

The MCU, interrupt controller and event timer run the Bluetooth software stack and control the Bluetooth radio and external interfaces. A 16-bit RISC microcontroller is used for low power consumption and efficient use of memory.

5.4

Programmable I/O Ports, PIO and AIO

12 lines of programmable bidirectional I/O are provided. They are all powered from VDD_PADS.

PIO lines are software-configurable as weak pull-up, weak pull-down, strong pull-up or strong pull-down.

Note:

At reset all PIO lines are inputs with weak pull-downs.

Any of the PIO lines can be configured as interrupt request lines or to wake the IC from deep sleep mode. Table 5.1

lists the options for waking the IC from the sleep modes.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 21 of 48

CS-238833-DSP5 www.csr.com

Sleep Mode

Dormant

Hibernate

Deep Sleep

Wake-up Options

Can only be woken by the WAKE pin.

Can be woken by the WAKE pin or by the watchdog timer.

Can be woken by any PIO configured to wake the IC.

PIO[8]

PIO[7]

PIO[6]

PIO[5]

PIO[4]

PIO[3]

PIO[2]

PIO[1]

PIO[0]

Table 5.1: Wake Options for Sleep Modes

The CSR1012 QFN supports alternative functions on the PIO lines, for example:

SPI interface, see Section 1.2 and Section 6.4

UART, see Section 1.2 and Section 6.1.1

LED flasher / PWM module, see Section 5.5

Table 5.2 shows the alternative functions on the PIO lines.

Function

PIO

-

-

-

-

-

Debug SPI

DEBUG_MISO

DEBUG_MOSI

DEBUG_CS#

DEBUG_CLK

-

-

-

-

SPI Flash

-

-

-

SF_CS#

SF_DIN

-

-

-

-

UART

-

-

-

UART_RX

UART_TX

Table 5.2: Alternative PIO Functions

Note:

CSR cannot guarantee that the PIO assignments remain as described. Implementation of the PIO lines is firmware build-specific, for more information see the relevant software release note.

CSR1012 QFN has 3 general-purpose analogue interface pins, AIO[2:0].

5.5

LED Flasher / PWM Module

CSR1012 QFN contains an LED flasher / PWM module.

Note:

The LED flasher functions in Deep Sleep and Active modes only.

The PWM functions in all modes except Hibernate and Dormant.

These functions are controlled by the on-chip firmware.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 22 of 48

CS-238833-DSP5 www.csr.com

Figure 5.2 shows a typical PWM signal on a PIO. For more information, see

CSR µEnergy Pulse Width Modulation

Application Note

.

T

PWM output governed by the timings setup for the brightest part of the pulse sequence on (bright )

T off

(bright )

T on (bright )

T off

(bright )

PWM output while ramping from brightest to dullest

T hold (bright )

– Duration for which the PWM output is held in the brightest part of the pulse sequence

T ramp

- Duration of the ramping and the number of pulses and their widths during ramping is proportional to the ramping rate

Hold

Time

(Bright )

Ramp

Highest

Duty

Cycle

Varying

Duty

Cycle

(Bright to Dull)

Lowest

Duty

Cycle

Varying

Duty

Cycle

( Dull to

Bright )

Hold

Time

(Dull)

T o n

(d ull )

PWM output governed by the timings setup for the dullest part of the pulse sequence

T off (dull )

T on

(dull )

T off (dull )

Time

PWM output while ramping from dullest to brightest

T hold (dull )

– Duration for which the PWM output is held in the dullest part of the pulse sequence

T ramp

- Duration of the ramping, the number of pulses and their widths during ramping is proportional to the ramping rate

Figure 5.2: Typical PWM Signal on a PIO

Figure 5.2 lists PWM the operating range.

Parameter

Off Time (T off

)

On Time (T on

)

Hold Time (T hold

)

Duty Cycle = On Time (T on

) + Off Time (T off

)

Frequency = 1 / Duty Cycle

Min

30.5

30.5

16

61

64.3

Max

7782

7782

4080

15564

16320

Unit

µs

µs ms

µs

Hz

Table 5.3: PWM Operating Range

5.6

Temperature Sensor

CSR1012 QFN contains a temperature sensor that measures the temperature of the die to an accuracy of ±1 °C.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 23 of 48

CS-238833-DSP5 www.csr.com

5.7

Battery Monitor

CSR1012 QFN contains an internal battery monitor that reports the battery voltage to the software.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 24 of 48

CS-238833-DSP5 www.csr.com

6 Serial Interfaces

6.1

Application Interface

6.1.1

UART Interface

The CSR1012 QFN UART interface provides a simple mechanism for communicating with other serial devices using the RS232 protocol.

2 signals implement the UART function, UART_TX and UART_RX. When CSR1012 QFN is connected to another digital device, UART_RX and UART_TX transfer data between the 2 devices.

UART configuration parameters, e.g. baud rate and data format, are set using CSR1012 QFN firmware.

When selected in firmware PIO[0] is assigned to a UART_TX output and PIO[1] is assigned to a UART_RX input, see

Section 1.2.

Note:

To communicate with the UART at its maximum data rate using a standard PC, the PC requires an accelerated serial port adapter card.

Table 6.1 shows the possible UART settings for the CSR1012 QFN.

Parameter

Baud rate

Parity

Number of stop bits

Bits per byte

Minimum

Maximum

Possible Values

2400 baud (≤2%Error)

9600 baud (≤2%Error)

3.69Mbaud (≤0.1%Error)

None, Odd or Even

1 or 2

8

Table 6.1: Possible UART Settings

6.1.1.1 UART Configuration While in Deep Sleep

The maximum baud rate is 2400 baud during deep sleep.

6.2

I²C Interface

The I²C interface communicates to EEPROM, external peripherals or sensors. An external EEPROM connection can hold the program code externally to the CSR1012 QFN.

Figure 6.1 shows an example of an EEPROM connected to the I²C interface where I2C_SCL, I2C_SDA and PIO[2] are connected to the external EEPROM. The PIO[2] pin supplies the power to the EEPROM supply pin, e.g. VDD. At bootup, if there is no valid ROM image in the CSR1012 QFN ROM area the CSR1012 QFN tries to boot from the I²C interface, see Figure 6.5. This involves reading the code from the external EEPROM and loading it into the internal CSR1012 QFN

RAM.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 25 of 48

CS-238833-DSP5 www.csr.com

PIO[2]

I2C_SCL

I2C_SDA

8

7

6

5

VDD

WP

SCL

SDA

24AA512

A0

A1

A2

VSS

1

2

3

4

Figure 6.1: Example of an I²C Interface EEPROM Connection

Standard Mode 100 kHz

Figure 6.2 shows I²C standard mode 100 kHz timing diagram.

t

VD ;DAT

70%

30%

70%

30% t f t f

30%

1 / f

SCL t

SU;DAT t r

70%

30% t r

70%

30%

SCL

SDA

Time

Figure 6.2: I²C Standard Mode 100 kHz Timing Diagram (Top Line: SCL, Bottom Line: SDA)

Table 6.2 lists I²C standard mode 100 kHz timing definition.

Parameter

Clock Rate

SCL: Rise-time (30% to 70%)

SCL: Fall-time (70% to 30%)

SDA: Rise-time (30% to 70%)

SDA: Fall-time (70% to 30%)

Data set-up time

Data valid time t r t f

Symbol f

SCL t r t f t

SU;DAT t

VD;DAT

-

-

-

-

-

-

Min

2511 -

Max

100

50.3

0.9

55.3

0.7

2.5

Table 6.2: I²C Standard Mode 100 kHz Timing Definition ns ns ns

Unit kHz ns ns

µs

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 26 of 48

CS-238833-DSP5 www.csr.com

Fast Mode 400 kHz

Figure 6.3 shows I²C fast mode 400 kHz timing diagram.

1 / f

SCL t

VD ;DAT

70 %

30%

70%

30 % t f

30% t f t

SU;DAT t r

70%

30% t r

70%

30%

SCL

SDA

Time

Figure 6.3: I²C Fast Mode 400 kHz Timing Diagram (Top Line: SCL, Bottom Line: SDA)

Table 6.3 lists I²C fast mode 400 kHz timing definition.

Parameter

Clock Rate

SCL: Rise-time (30% to 70%)

SCL: Fall-time (70% to 30%)

SDA: Rise-time (30% to 70%)

SDA: Fall-time (70% to 30%)

Data set-up time

Data valid time

Symbol f

SCL t r t f t r t f t

SU;DAT t

VD;DAT

-

-

Min

41.4

0.7

46.0

0.5

573 -

Max

400

50.6

0.9

55.9

0.7

0.56

ns ns ns ns ns

µs

Unit kHz

Table 6.3: I²C Fast Mode 400 kHz Timing Definition

6.3

SPI Master Interface

The SPI master memory interface in the CSR1012 QFN is overlaid on the I²C interface and uses a further 3 PIOs for the extra pins, see Table 6.4.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 27 of 48

CS-238833-DSP5 www.csr.com

SPI Flash Interface

Flash_VDD

SF_DIN

SF_CS#

SF_CLK

SF_DOUT

Pin

PIO[2]

PIO[3]

PIO[4]

I2C_SCL

I2C_SDA

Table 6.4: SPI Master Serial Flash Memory Interface

Note:

If an application using CSR1012 QFN is designed to boot from SPI serial flash, it is possible for the firmware to map the I²C interface to alternative PIOs.

Figure 6.4 shows simple SPI timing diagram.

SF_CS#

SF_CLK

SF_DOUT MSB LSB

SF_DIN MSB LSB

Figure 6.4: SPI Timing Diagram

The boot-up sequence for CSR1012 QFN is controlled by hardware and firmware. Figure 6.5 shows the sequence of loading RAM with content from RAM, EEPROM and SPI serial flash.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 28 of 48

CS-238833-DSP5 www.csr.com

Device Starts

Hardware Copies

Content of ROM to RAM

Hardware Checks

I

2

C Interface

(Default Pins)

Hardware Checks

SPI Interface

(Default Pins)

No

Presence of

EEPROM

Device

Yes

Copy Content of

EEPROM to RAM

Presence of

SPI Serial Flash

Device

Yes

Copy Content of SPI

Serial Flash to RAM

No

Start MCU

Executing from RAM

Figure 6.5: Memory Boot-up Sequence

6.4

Programming and Debug Interface

Important Note:

The CSR1012 QFN debug SPI interface is available in SPI slave mode to enable an external MCU to program and control the CSR1012 QFN, generally via libraries or tools supplied by CSR. The protocol of this interface is proprietary. The 4 SPI debug lines directly support this function.

The SPI programs, configures and debugs the CSR1012 QFN. It is required in production. Ensure the 4 SPI signals are brought out to either test points or a header.

Take SPI_PIO#_SEL high to enable the SPI debug feature on PIO[8:5].

CSR1012 QFN uses a 16-bit data and 16-bit address programming and debug interface. Transactions occur when the internal processor is running or is stopped.

Data is written or read one word at a time. Alternatively, the auto-increment feature is available for block access.

6.4.1

Instruction Cycle

The CSR1012 QFN is the slave and receives commands on DEBUG_MOSI and outputs data on DEBUG_MISO. Table

6.5 shows the instruction cycle for a SPI transaction.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 29 of 48

CS-238833-DSP5 www.csr.com

3

4

1

2

5

Reset the SPI interface

Write the command word

Write the address

Write or read data words

Termination

Hold DEBUG_CS# high for 2 DEBUG_CLK cycles

Take DEBUG_CS# low and clock in the 8-bit command

Clock in the 16-bit address word

Clock in or out 16-bit data word(s)

Take DEBUG_CS# high

Table 6.5: Instruction Cycle for a SPI Transaction

With the exception of reset, DEBUG_CS# must be held low during the transaction. Data on DEBUG_MOSI is clocked into the CSR1012 QFN on the rising edge of the clock line DEBUG_CLK. When reading, CSR1012 QFN replies to the master on DEBUG_MISO with the data changing on the falling edge of the DEBUG_CLK. The master provides the clock on DEBUG_CLK. The transaction is terminated by taking DEBUG_CS# high.

The auto increment operation on the CSR1012 QFN cuts down on the overhead of sending a command word and the address of a register for each read or write, especially when large amounts of data are to be transferred. The auto increment offers increased data transfer efficiency on the CSR1012 QFN. To invoke auto increment, DEBUG_CS# is kept low, which auto increments the address, while providing an extra 16 clock cycles for each extra word written or read.

6.4.2

Multi-slave Operation

Do not connect the CSR1012 QFN in a multi-slave arrangement by simple parallel connection of slave MISO lines.

When CSR1012 QFN is deselected (DEBUG_CS# = 1), the DEBUG_MISO line does not float. Instead, CSR1012 QFN outputs 0 if the processor is running or 1 if it is stopped.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 30 of 48

CS-238833-DSP5 www.csr.com

7 Power Control and Regulation

CSR1012 QFN contains 2 regulators:

1 switch-mode regulator, which generates the main supply rail from the battery

1 low-voltage linear regulator

Figure 7.1 shows the configuration for the power control and regulation with the CSR1012 QFN.

SMPS_LX VDD_REG_IN

Switch

VDD _BAT _SMPS

Switch-mode

Regulator

VDD_RADIO 1.35 V

VDD_AUX 1.35 V

VDD _CORE

Digits 0.65 /1.20 V

Low-voltage

VDD_CORE

Linear Regulator

Figure 7.1: Voltage Regulator Configuration

7.1

Switch-mode Regulator

The switch-mode regulator generates the main rail from the battery supply, VDD_BAT_SMPS. The main rail supplies the lower regulated voltage to a further digital linear regulator and also to the analogue sections of the CSR1012 QFN.

The switch-mode regulator generates typically 1.35V.

7.2

Low-voltage VDD_CORE Linear Regulator

The integrated low-voltage VDD_CORE linear regulator powers the CSR1012 QFN digital circuits. The input voltage range is 0.65V to 1.35V. It can supply programmable voltages of 0.65V to 1.20V to the digital area of the CSR1012 QFN.

The maximum output current for this regulator is 30mA.

Connect a minimum 470nF low ESR capacitor, e.g. MLC, to the VDD_CORE output pin. Software controls the output voltage.

Important Note:

This regulator is only for CSR internal use. Section 8 shows CSR's recommended circuit connection.

7.3

Reset

CSR1012 QFN is reset by:

Power-on reset

Software-configured watchdog timer

7.3.1

Digital Pin States on Reset

Table 7.1 shows the pin states of CSR1012 QFN on reset. PU and PD default to weak values unless specified otherwise.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 31 of 48

CS-238833-DSP5 www.csr.com

Pin Name / Group

I2C_SDA

I2C_SCL

PIO[11:0]

AIO[2:0]

Table 7.1: Pin States on Reset

7.3.2

Power-on Reset

Table 7.2 shows how the power-on reset occurs.

Power-on Reset

Reset release on VDD_CORE rising

Reset assert on VDD_CORE falling

Reset assert on VDD_CORE falling (Sleep mode)

Hysteresis

Table 7.2: Power-on Reset

Typ

1.05

1.00

0.60

50

On Reset

Strong PU

Strong PU

Weak PD

Weak PU

Unit

V mV

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 32 of 48

CS-238833-DSP5 www.csr.com

8 Example Application Schematic

C2032 BATTERY HOLDER

+

1

-

2

BAT1

1

PWR

2

3

J1

GND

C1

47u

GND

C18

47n

C13

47n

GND GND

C12

4u7

L2

C14

33p

GND

VDD_BAT

ANT1

C11

0p5

Note: Place C11 Close to

RF (Pin 7)

GND

7

RF

C16

470n

L1

4u7

Note: Place C2 Close to

VDD_REG_IN (Pin 6)

C2 C3

4u7 470n

C4

470n

C5

150n

R7

0R0

GND

U2

1

2

3

4

GND

U1

A0

A1

A2

GND

VCC

WP

SCL

SDA

SO-8

AT24C512C-SSHM

8

7

6

5

I2C_SDA

I2C_SCL

PIO[2]

29

28

27

CSR1012 QFN

SPI_PIO#

PIO[5] / DEBUG_CLK

PIO[6] / DEBUG_CS#

PIO[7] / DEBUG_MOSI

]

PIO[0] / UART_TX

PIO[1] / UART_RX

26

18

19

20

22

14

15

PIO[9]

PIO[3] / SF_DIN

PIO[4] / SF_CS#

PIO[10]

PIO[11]

23

16

17

24

25

Pull to VDD_PADS to enable debug SPI

PIO9

AIO[2]

AIO[1]

AIO[0]

11

12

13

AIO[2]

AIO[1]

AIO[0]

X1

16MHz

X2

GND

C6

1u0

SW1

R1

820R

D1

R2

820R

D2

R3

0R0

1

2

+

-

SP1

C7

15p

C8

6p8

32.768kHz

C9

27p

C10

27p

VDD_BAT

SB1

SB3

SB2

CON1

7

8

5

6

3

4

1

2

9

10

11

12

VCHG

SPI_MOSI

SPI_CLK

SPI_CSB

SPI_MISO

SER-

SER+

GND

CASE

CASE

CASE

CASE

MINI SMT CONNECTOR 8PIN

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 33 of 48

CS-238833-DSP5 www.csr.com

9 Electrical Characteristics

9.1

Absolute Maximum Ratings

Rating

Storage temperature

Battery (VDD_BAT) operation

I/O supply voltage

Other terminal voltages

(a)

Min

-40

1.8

-0.4

VSS - 0.4

Max

85

4.4

4.4

VDD + 0.4

Unit

°C

V

V

V

(a) VDD = Terminal Supply Domain

9.2

Recommended Operating Conditions

Operating Condition

Operating temperature range

Battery (VDD_BAT) operation (a) (b)

I/O supply voltage (VDD_PADS)

(c)

Min

-30

1.8

1.2

-

-

Typ

-

Max

85

3.6

3.6

Unit

°C

V

V

(a) CSR1012 QFN is reliable and qualifiable to 4.3V (idle, active and deep sleep modes) and 3.8V (all modes), but there are minor deviations in performance relative to published performance values for 1.8V to 3.6V. For layout guidelines for 4.3V operation, see

CSR1012 Hardware Design

Review Template .

(b)

For hibernate and dormant mode, see

Customer Advisory: Use of CSR101x at Operating Voltages Above 3.6V

.

(c)

Safe to 4.3V if VDD_BAT = 4.3V.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 34 of 48

CS-238833-DSP5 www.csr.com

9.3

Input/Output Terminal Characteristics

9.3.1

Switch-mode Regulator

Switch-mode Regulator

Input voltage

(a)

Output voltage

(b)

Temperature coefficient

Normal Operation

Output noise, frequency range 100Hz to 100kHz

Settling time, settling to within 10% of final value

Output current (I max

)

Quiescent current (excluding load, I load

< 1mA)

Ultra Low-power Mode

Output current (I max

)

Quiescent current

Min

1.8

-

-200

-

-

-

-

-

-

-

-

-

-

Typ

-

1.35

-

0.4

30

50

20

Max

3.6

-

200

Unit

V

V ppm/°C mV rms

μs mA

µA

-

100

1

µA

µA

(a) CSR1012 QFN is reliable and qualifiable to 4.3V (idle, active and deep sleep modes) and 3.8V (all modes), but there are minor deviations in performance relative to published performance values for 1.8V to 3.6V. For layout guidelines for 4.3V operation, see

CSR1012 Hardware Design

Review Template

.

(b)

During Run mode, see Section 4.1.

9.3.2

Low-voltage Linear Regulator

Normal Operation

Input voltage

Output voltage

Min

0.65

0.65

Typ

-

-

Max

1.35

1.20

Unit

V

V

Important Note:

This regulator is only for CSR internal use. Section 8 shows CSR's recommended circuit connection.

9.3.3

Digital Terminals

Input Voltage Levels Min Typ

V

IL

input logic level low

V

IH

input logic level high

T r

/T f

-0.4

0.7 x

VDD_PADS

-

-

-

Max

0.3 x

VDD_PADS

VDD_PADS +

0.4

25

Unit

V

V ns

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 35 of 48

CS-238833-DSP5 www.csr.com

Output Voltage Levels

V

OL

output logic level low, l

OL

= 4.0mA

V

OH

output logic level high, l

OH

= -4.0mA

T r

/T f

Min

-

0.75 x

VDD_PADS

-

Input, Output and Tristate Currents (a)

I

OL

output current low, V

OL

max

I

OH

output current high, V

OH

min

With strong pull-up

I²C with strong pull-up

With strong pull-down

With weak pull-up

With weak pull-down

C

I

input capacitance

(a)

Maximum current draw from VDD_PADS is less than 30mA depending on board design.

9.3.4

AIO

Input/Output Voltage Levels

Input voltage

Output voltage

Output drive strength

9.3.4.1 Auxiliary ADC

Auxiliary ADC

Resolution

Input voltage range

(a)

0

-

Min

0

Accuracy

INL

DNL

Min

-

0

-3

-3

Min

-

-

-150

-250

10

-5.0

0.33

1.0

-

4

Typ

-

Typ

-

-

-

-

-

-

Typ

-

Typ

8

8

-40

-

40

-1.0

1.0

-

Max

VDD_AUX

VDD_AUX

-

Max

10

VDD_AUX

3

3

Unit

Bits

V

LSB

LSB

Max

0.4

-

5

Max

10

10

-10

-

150

-0.33

5.0

5.0

Unit

V

V mA

Unit

V

V ns

Unit mA mA

μA

μA

μA

μA

μA pF

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 36 of 48

CS-238833-DSP5 www.csr.com

Auxiliary ADC

Offset

Gain error

Input bandwidth

Conversion time (measured at application)

Sample rate

(b)

ADC block conversion current

-

-

-

Min

-1

-0.8

-

46

-

410

Typ

-

-

100

(a) LSB size = VDD_AUX/1023

(b)

The auxiliary ADC is accessed through the firmware API. The sample rate given is achieved as part of this function.

9.3.4.2 Auxiliary DAC

Auxiliary DAC

Resolution

Supply voltage, VDD_ANA

Output voltage range

Full-scale output voltage

LSB size

Offset

Integral non-linearity

Settling time

1.30

0

-1.32

-3

-

Min

-

1.30

0

1.35

1.32

0

0

-

Typ

-

1.35

-

Max

10

1.40

VDD_AUX

1.40

2.64

1.32

3

250

Max

1

0.8

-

-

21000

-

Unit

LSB

% kHz

µs

Samples/s

µA

V mV mV

LSB ns

Unit

Bits

V

V

Important Note:

Access to the auxiliary DAC is firmware-dependent, for more information about its availability contact CSR.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 37 of 48

CS-238833-DSP5 www.csr.com

9.4

Junction Temperature

Table 9.1 lists the junction temperature when the device is operating within recommended operating conditions.

Parameter

Junction temperature

Min

-

Typ

-

Table 9.1: Junction Temperature within Recommended Operating Conditions

9.5

ESD Protection

Apply ESD static handling precautions during manufacturing.

Table 9.2 shows the ESD handling maximum ratings.

Max

125

Unit

°C

Condition

Human Body Model Contact Discharge per JEDEC EIA/JESD22-A114

Charged Device Model Contact Discharge per JEDEC EIA/JESD22-C101

Table 9.2: ESD Handling Ratings

Class

2

III

Max Rating

2000V (all pins)

500V (all pins)

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 38 of 48

CS-238833-DSP5 www.csr.com

10 Current Consumption

Table 10.1 shows CSR1012 QFN total typical current consumption measured at the battery.

Mode

Dormant

Hibernate

Deep sleep

Idle

Description

VDD_PADS = OFF, REFCLK = OFF, SLEEPCLK =

ON, VDD_BAT = ON

Total Typical Current at 3.0V

All functions are shut down. To wake them up, toggle the WAKE pin.

<900nA

<1.9µA

-

-

VDD_PADS = ON, REFCLK = OFF, SLEEPCLK =

ON, VDD_BAT = ON, RAM = ON, digital circuits = ON,

SMPS = ON (low-power mode), 2.2ms wake-up time

<5μA

VDD_PADS = ON, REFCLK = ON, SLEEPCLK = ON,

VDD_BAT = ON, RAM = ON, digital circuits = ON,

MCU = IDLE, <1μs wake-up time

~1mA

~20mA @ 3.0V peak current

~18mA @ 3.0V peak current

RX active

TX active

Table 10.1: Current Consumption

Note:

Current consumption measurements were made:

At 20°C and with 3.0V VBAT.

For the whole chip: including radio, microcontroller and necessary peripherals.

Using SDK 2.4.3.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 39 of 48

CS-238833-DSP5 www.csr.com

11 CSR Green Semiconductor Products and RoHS Compliance

CSR confirms that CSR Green semiconductor products comply with the following regulatory requirements:

Restriction of Hazardous Substances directive guidelines in the EU RoHS Directive 2011/65/EU

1

.

EU REACH, Regulation (EC) No 1907/2006

POP regulation (EC) No 850/2004

1

1

.

1

:

List of substances subject to authorisation (Annex XIV)

Restrictions on the manufacture, placing on the market and use of certain dangerous substances, preparations and articles (Annex XVII). This Annex now includes requirements that were contained within

EU Directive, 76/769/EEC. There are many substance restrictions within this Annex, including, but not limited to, the control of use of Perfluorooctane sulfonates (PFOS).

When requested by customers, notification of substances identified on the Candidate List as Substances of Very High Concern (SVHC)

EU Packaging and Packaging Waste, Directive 94/62/EC 1

Montreal Protocol on substances that deplete the ozone layer.

Conflict minerals, Section 1502, Dodd-Frank Wall Street Reform and Consumer Protection act, which affects columbite-tantalite (coltan / tantalum), cassiterite (tin), gold, wolframite (tungsten) or their derivatives. CSR is a fabless semiconductor company: all manufacturing is performed by key suppliers. CSR have mandated that the suppliers shall not use materials that are sourced from "conflict zone mines" but understand that this requires accurate data from the EICC programme. CSR shall provide a complete EICC / GeSI template upon request.

CSR has defined the "CSR Green" standard based on current regulatory and customer requirements including free from bromine, chlorine and antimony trioxide.

Products and shipment packaging are marked and labelled with applicable environmental marking symbols in accordance with relevant regulatory requirements.

This identifies the main environmental compliance regulatory restrictions CSR specify. For more information on the full

"CSR Green" standard, contact [email protected]

.

1

Including applicable amendments to EU law which are published in the EU Official Journal, or SVHC

Candidate List updates published by the European Chemicals Agency (ECHA).

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 40 of 48

CS-238833-DSP5 www.csr.com

12 CSR1012 QFN Software Stack

CSR1012 QFN is supplied with Bluetooth v4.1 specification compliant stack firmware. Figure 12.1 shows that the

CSR1012 QFN software architecture enables the Bluetooth processing and the application program to run on the internal RISC MCU.

Application

Peripherals and

Power Control

Generic Attribute

Profile (GATT)

Attribute Profile

(ATT)

L2CAP

Security

Manager (SM)

Link Layer Control

Radio Control

Physical Layer

Figure 12.1: Software Architecture

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 41 of 48

CS-238833-DSP5 www.csr.com

13 Tape and Reel Information

For tape and reel packing and labelling see

IC Packing and Labelling Specification

.

13.1 Tape Orientation

Figure 13.1 shows the CSR1012 QFN packing tape orientation.

Pin A1 Marker

User Direction of Feed

Figure 13.1: Tape Orientation

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 42 of 48

CS-238833-DSP5 www.csr.com

13.2 Tape Dimensions

Figure 13.2 shows the dimensions of the tape for the CSR1012 QFN.

0.25±0.05

D

0

Ø1.55±0.05

Y

P

2

2.0±0.1

See Note 1

P

0

4.0±0.1

See Note 2

E

1

1.75±0.1

D

1

Ø1.5MIN

'A' 5.50±0.1

See Note 3

12.00±0.3

B

0

Y

X

8.00±0.1

X

A

0

REF 0.8

SECTION Y-Y

K

0

SECTION X-X

REF 0.2

DETAIL 'A'

REF

R0.3

REF 0.2

REF 0.8

A

0

B

0

4.25 ±0.1

4.25 ±0.1

K

0

0.75 ±0.1

Figure 13.2: Tape Dimensions

Unit mm

Notes

1. Measured from centreline of sprocket hole to centreline of pocket.

2. 10 sprocket hole pitch cumulative tolerance ±0.2

3. Measured from centreline of sprocket hole to centreline of pocket.

4. Other material available.

5. Typical SR of form tape Max 10 9

ohm/sq.

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 43 of 48

CS-238833-DSP5 www.csr.com

13.3 Reel Information

ATTENTION

Electrostatic Sensitive Devices

Safe Handling Required

"A" a

(rim height)

102.0

2.0

330.0

2.0

"b" REF

88 REF

Detail "A"

20.2

MIN

2.0 0.5

13.0

6

PS

Detail "B"

6

PS

(MEASURED AT HUB)

(MEASURED AT HUB)

W1

W2

Figure 13.3: Reel Dimensions

Package Type

Nominal Hub Width

(Tape Width) a b W1 W2 Max

4 x 4 x 0.65mm

QFN

12

1.5

(+0.0/-1.5)

96.5

(+3.5/-0.0)

12.4

(+2.0/-0.0)

18.4

13.4 Moisture Sensitivity Level

CSR1012 QFN is qualified to moisture sensitivity level MSL3 in accordance with JEDEC J-STD-020.

Units mm

Production Information

© Cambridge Silicon Radio Limited 2013-2015

Page 44 of 48

CS-238833-DSP5 www.csr.com
