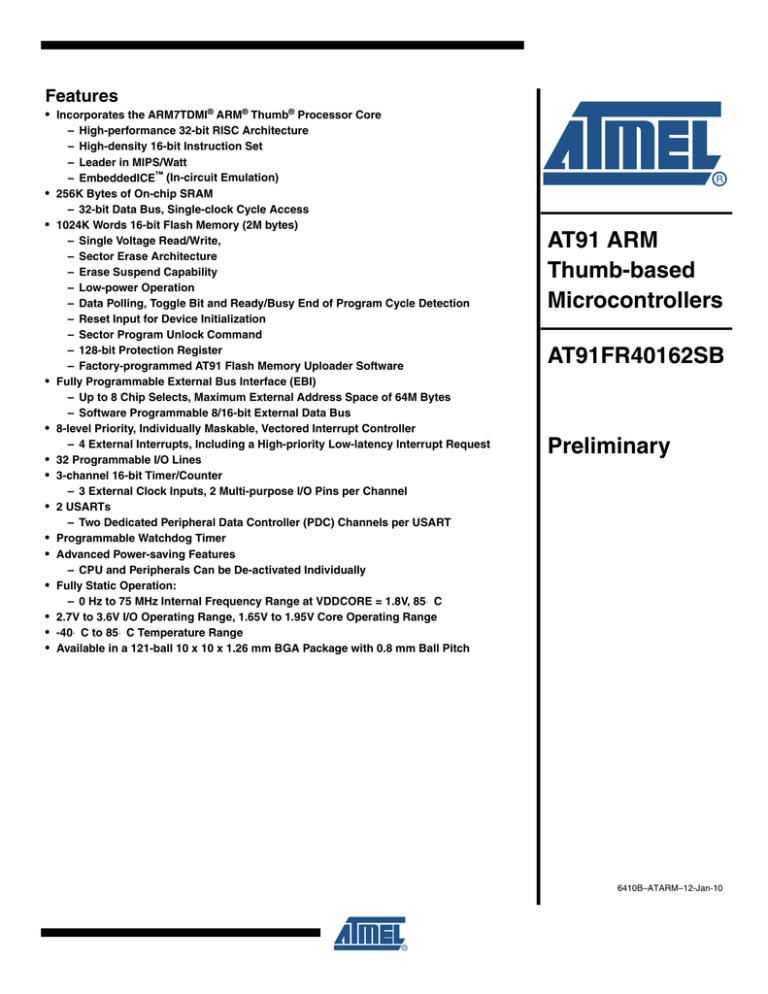

Features

•

Incorporates the ARM7TDMI

®

ARM

®

Thumb

®

Processor Core

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– EmbeddedICE

™

(In-circuit Emulation)

•

256K Bytes of On-chip SRAM

– 32-bit Data Bus, Single-clock Cycle Access

•

1024K Words 16-bit Flash Memory (2M bytes)

– Single Voltage Read/Write,

– Sector Erase Architecture

– Erase Suspend Capability

– Low-power Operation

– Data Polling, Toggle Bit and Ready/Busy End of Program Cycle Detection

– Reset Input for Device Initialization

– Sector Program Unlock Command

– 128-bit Protection Register

– Factory-programmed AT91 Flash Memory Uploader Software

•

Fully Programmable External Bus Interface (EBI)

– Up to 8 Chip Selects, Maximum External Address Space of 64M Bytes

– Software Programmable 8/16-bit External Data Bus

•

8-level Priority, Individually Maskable, Vectored Interrupt Controller

– 4 External Interrupts, Including a High-priority Low-latency Interrupt Request

•

32 Programmable I/O Lines

•

3-channel 16-bit Timer/Counter

– 3 External Clock Inputs, 2 Multi-purpose I/O Pins per Channel

•

2 USARTs

– Two Dedicated Peripheral Data Controller (PDC) Channels per USART

•

Programmable Watchdog Timer

•

Advanced Power-saving Features

– CPU and Peripherals Can be De-activated Individually

•

Fully Static Operation:

– 0 Hz to 75 MHz Internal Frequency Range at VDDCORE = 1.8V, 85

⋅ C

•

2.7V to 3.6V I/O Operating Range, 1.65V to 1.95V Core Operating Range

•

-40

⋅ C to 85⋅ C Temperature Range

•

Available in a 121-ball 10 x 10 x 1.26 mm BGA Package with 0.8 mm Ball Pitch

AT91 ARM

Thumb-based

Microcontrollers

AT91FR40162SB

Preliminary

6410B–ATARM–12-Jan-10

2

1.

Description

The AT91FR40162SB is a member of the Atmel AT91 16/32-bit Microcontroller family, which is based on the ARM7TDMI processor core. The processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption.

The AT91FR40162SB ARM microcontroller features 2 Mbits of on-chip SRAM and 2 Mbytes of

Flash memory in a single compact 121-ball BGA package. Its high level of integration and very small footprint make the device ideal for space-constrained applications. The high-speed onchip SRAM enables a performance of up to 74 MIPs in typical conditions with significant power reduction and EMC improvement over an external SRAM implementation.

The Flash memory may be programmed via the JTAG/ICE interface or the factory-programmed

Flash Memory Uploader (FMU) using a single device supply, making the AT91FR40162SB suitable for in-system programmable applications.

2.

Migrating from the AT91FR40162S to the AT91FR40162SB

2.1

Hardware Requirements

The AT91FR40162SB is pin-to-pin compatible to the AT91FR40162S, so the AT91FR40162SB can be soldered in place of the AT91FR40162S without any other hardware changes.

The AT91FR40162SB does not feature a VPP pin, thus ball D5 of the 121-ball BGA package of the AT91FR40162SB is NC (Not connected). This ball can either be connected to a supply up to

13V (as could be the VPP ball of the AT91FR40162S), grounded or left unconnected.

2.2

Software Requirements

Except for the Flash memory, the processor, the architecture and the peripherals of both the

AT91FR40162S and the AT91FR40162SB are identical, any program written for an

A T 9 1 F R 4 0 1 6 2 S - b a s e d s y s t e m c a n r u n a s i s o n t h e s a m e s y s t e m b u i l t w i t h a n

AT91FR40162SB, with the exception of aspects related to the Flash memory.

2.3

Flash Memory Difference

Som e features of the embedded Flash memories in the AT91FR40162S and the

AT91FR40162SB are not fully identical.

2.3.1

2.3.2

Device ID

The Device Code of the Flash Memory of the AT91FR40162SB is 01C0H instead of 00C0H for the AT91FR40162S. Users who use this Device Code must modify the software.

VPP Features

As the AT91FR40162SB does not feature a VPP pin, neither the write protection feature nor the double-word fast write feature are available on this device.

If the hardware write protection feature is used on the AT91FR40162S, it should be replaced by a software-controlled write protection method with the Sector Lockdown command, or removed from the application.

If the Double Byte/Word Program command was used on the AT91FR40162S, the user needs to change the flash programming sequence and to use only the standard Byte/Word Program command.

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

2.3.3

2.3.4

2.3.5

The VPP Status I/O3 does not exist anymore in the Status word returned by the Flash Memory.

Erase Cycle Timings

The 32K Word sector erase cycle time maximum value has been increased from 5 seconds to

6 seconds. In case the end of erase cycle is not used, but a fixed timeout is used instead, the value of the timeout must be checked against the new value.

CFI Common Flash Interface

The Common Flash Interface table (

Table 12-5, “Common Flash Interface Definition,” on page 68

) Erase block information of the 64-KByte and the 8-KByte sectors addresses was not fully CFI-compliant on the AT91FR40162S. The AT91FR40162SB is fully CFI-compliant, and thus the Erase block information of the 64-KByte and the 8-KByte sector addresses in the Common Flash Interface table have changed.

Users who managed the programming of the flash with the CFI algorithm on the AT91FR40162S should adapt their programming for the AT91FR40162SB.

Fully Green Package

The AT91FR40162S is RoHS compliant, whereas the AT91FR40162SB is fully Green qualified.

This has no impact on the soldering profile to be used, but only improves environmental considerations.

3

6410B–ATARM–12-Jan-10

3.

Pin Configuration

Figure 3-1.

AT91FR40162SB Pinout for 121-ball BGA Package (Top View)

A1 Corner

1 2 3 4 5 6 7 8 9 10 11

A

P21/TXD1

NTRI

P19 P16

P15

RXD0

GND

P11

IRQ2

VDDCORE

P8

TIOB2

P6

TCLK2

GND

P2

TIOB0

P22

RXD1

P20

SCK1

P18 P17

P12

FIQ

P10

IRQ1

VDDIO

P7

TIOA2

P4

TIOA1

VDDIO GND

NUB

NWR1

P14

TXD0

NBUSY P9

IRQ0

P5

TIOB1

P3

TCLK1

A16

GND

P1

TIOA0

D15

P0

TCLK0

P23 MCKI NRST

P13

SCK0

NC

(1)

NRSTF A14

P24

BMS

P25

MCK0

NWDOVF A3 A8 D11 D10

GND TMS GND TCK

NOE

NRD

D9 A11

TDO

NWE

NWR0

A2

P26

NCS2

VDDCORE VDDIO

TDI

NC

NCS0

NCSF

D2

NC

D5

D0

A15

D13

D7

D4

D1

D12

NC

D8

D6

P31/A23

CS4

D14

NC

NC

GND

NC

VDDIO

D3

NC

NC

NC

NWAIT GND

P27

NCS3

NCS1

NLB

A0

GND

A5

A7

NC VDDIO

VDDIO A10

GND

A13

GND

GND

A19 VDDIO

P30/A22

CS5

A17

P29/A21

CS6

VDDCORE

GND A1 A4 A6 VDDIO A9 A12 GND VDDIO A18 A20

B

C

D

E

F

G

H

J

K

L

Note: 1. Not connected, can either be connected to GND, VCC or left unconnected.

4

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

4.

Signal Description

Table 4-1.

AT91FR40162SB Signal Description

Module Name

A0 - A23

EBI

D0 - D15

NCS0 - NCS3

CS4 - CS7

NWR0

NWR1

NRD

NWE

NOE

NUB

NLB

NWAIT

BMS

Function

Address Bus

Data Bus

External Chip Select

External Chip Select

Lower Byte 0 Write Signal

Upper Byte 1 Write Signal

Read Signal

Write Enable

Output Enable

Upper Byte Select

Lower Byte Select

Wait Input

Boot Mode Select

AIC

Timer

USART

PIO

WD

Clock

Reset

ICE

FIQ

IRQ0 - IRQ2

Fast Interrupt Request

External Interrupt Request

TCLK0 - TCLK2 Timer External Clock

TIOA0 - TIOA2 Multi-purpose Timer I/O Pin A

TIOB0 - TIOB2 Multi-purpose Timer I/O Pin B

SCK0 - SCK1 External Serial Clock

TXD0 - TXD1

RXD0 - RXD1

Transmit Data Output

Receive Data Input

P0 - P31

NWDOVF

MCKI

MCKO

NRST

NTRI

TMS

TDI

TDO

TCK

Parallel IO Line

Watchdog Overflow

Master Clock Input

Master Clock Output

Hardware Reset Input

Tri-state Mode Select

Test Mode Select

Test Data Input

Test Data Output

Test Clock

I/O

Output

Input

Output

Input

Input

Input

Input

Output

Input

Input

Input

Input

I/O

I/O

I/O

Output

Input

Type

Output

I/O

Output

Output

Output

Output

Output

Output

Output

Output

Output

Input

Input

Low

Low

–

–

–

Low

–

–

–

–

–

–

–

–

–

–

–

–

Low

Low

Low

Low

Low

Low

Low

Active

Level Comments

–

Valid after reset; do not reprogram A20 to

I/O, as it is MSB of Flash address

–

Low

High

Low

Used to select external devices

A23 - A20 after reset

Used in Byte Write option

Used in Byte Write option

Used in Byte Write option

Used in Byte Select option

Used in Byte Select option

Used in Byte Select option

Used in Byte Select option

–

Sampled during reset; must be driven low during reset for Flash to be used as boot memory

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

Open drain

Schmidt trigger

Schmidt trigger

Sampled during reset

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

5

6410B–ATARM–12-Jan-10

Table 4-1.

AT91FR40162SB Signal Description (Continued)

Module Name

NCSF

Flash

Memory

NBUSY

NRSTF

VDDIO

Power VDDCORE

GND

Function

Flash Memory Select

Flash Memory Busy Output

Flash Memory Reset Input

Power

Power

Ground

Type

Input

Output

Input

Power

Power

Ground

Active

Level Comments

Low Enables Flash Memory when pulled low

Low

Low

–

Flash RDY/BUSY signal; open-drain

Resets Flash to standard operating mode

–

–

All V

DDIO,

V

DDCORE and all GND pins

MUST be connected to their respective supplies by the shortest route

6

AT91FR40162SB

6410B–ATARM–12-Jan-10

TMS

TDO

TDI

TCK

VDDCORE

VDDIO

GND

NRST

MCKI

P25/MCKO

P12/FIQ

P9/IRQ0

P10/IRQ1

P11/IRQ2

P13/SCK0

P14/TXD0

P15/RXD0

P20/SCK1

P21/TXD1/NTRI

P22/RXD1

P16

P17

P18

P19

P23

P24/BMS

NWDOVF

P

I

O

Embedded

ICE

ARM7TDMI Core

SRAM

256K Bytes

ASB

D0 - D15

A1 - A19

A0/NLB

P28/A20/NCS7

Reset

Clock

ASB

Controller

AIC: Advanced

Interrupt Controller

AMBA Bridge

APB

USART0

USART1

2 PDC

Channels

2 PDC

Channels

PS: Power Saving

Chip ID

WD: Watchdog Timer

PIO: Parallel I/O Controller

EBI User

Interface

MCU

AT91R40008

TC: Timer

Counter

TC0

TC1

TC2

P

I

O

A19 D0 - D15 A0 - A18 OE WE

16-Mbit

FLASH MEMORY

GND

VCC

BYTE

RESET

RDY/BUSY

CE

GND

VDDIO

VDDIO

NRSTF

NBUSY

NCSF

P0/TCLK0

P3/TCLK1

P6/TCLK2

P1/TIOA0

P2/TIOB0

P4/TIOA1

P5/TIOB1

P7/TIOA2

P8/TIOB2

D0-D15

A1- A19

A0/NLB

A20

NWR1/NUB

NWAIT

NCS0

NCS1

NRD/NOE

NWR0/NWE

P26/NCS2

P27/NCS3

P29/A21/CS6

P30/A22/CS5

P31/A23/CS4

6.

Architectural Overview

The AT91FR40162SB integrates Atmel’s AT91R40008 ARM Thumb processor and a 2-Mbyte

(16-Mbit) Flash memory die in a single compact 121-ball BGA package. The address, data and control signals, except the Flash memory enable, are internally interconnected.

The AT91R40008 architecture consists of two main buses, the Advanced System Bus (ASB) and the Advanced Peripheral Bus (APB). Designed for maximum performance and controlled by the memory controller, the ASB interfaces the ARM7TDMI processor with the on-chip 32-bit

SRAM memory, the External Bus Interface (EBI) connected to the encapsulated Flash and the

AMBA

™

Bridge. The AMBA Bridge drives the APB, which is designed for accesses to on-chip peripherals and optimized for low power consumption.

The AT91FR40162SB implements the ICE port of the ARM7TDMI processor on dedicated pins, offering a complete, low-cost and easy-to-use debug solution for target debugging.

6.1

Memories

The AT91FR40162SB embeds 256K bytes of internal SRAM. The internal memory is directly connected to the 32-bit data bus and is single-cycle accessible. This provides maximum performance of 67 MIPS at 75 MHz by using the ARM instruction set of the processor, minimizing system power consumption and improving on the performance of separate memory solutions.

The AT91FR40162SB features an External Bus Interface (EBI), which enables connection of external memories and application-specific peripherals. The EBI supports 8- or 16-bit devices and can use two 8-bit devices to emulate a single 16-bit device. The EBI implements the early read protocol, enabling faster memory accesses than standard memory interfaces.

The AT91FR40162SB encapsulates a Flash memory organized as 1024K 16-bit words, accessed via the EBI. A 16-bit Thumb instruction can be loaded from Flash memory in a single access. Separate MCU and Flash memory reset inputs (NRST and NRSTF) are provided for maximum flexibility. The user is thus free to tailor the reset operation to the application.

The AT91FR40162SB integrates resident boot software called AT91 Flash Memory Uploader software in the encapsulated Flash. The AT91 Flash Memory Uploader software is able to upload program application software into its Flash memory.

6.2

Peripherals

The AT91FR40162SB integrates several peripherals, which are classified as system or user peripherals.

All on-chip peripherals are 32-bit accessible by the AMBA Bridge, and can be programmed with a minimum number of instructions. The peripheral register set is composed of control, mode, data, status and enable/disable/status registers.

An on-chip Peripheral Data Controller (PDC) transfers data between the on-chip USARTs and on- and off-chip memory address space without processor intervention. Most importantly, the

PDC removes the processor interrupt handling overhead, making it possible to transfer up to

64K contiguous bytes without reprogramming the start address, thus increasing the performance of the microcontroller, and reducing the power consumption.

8

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

6.2.1

6.2.2

System Peripherals

The External Bus Interface (EBI) controls the external memory or peripheral devices via an 8- or

16-bit data bus and is programmed through the APB. Each chip select line has its own programming register.

The Power-saving (PS) module implements the Idle Mode (ARM7TDMI core clock stopped until the next interrupt) and enables the user to adapt the power consumption of the microcontroller to application requirements (independent peripheral clock control).

The Advanced Interrupt Controller (AIC) controls the internal interrupt sources from the internal peripherals and the four external interrupt lines (including the FIQ) to provide an interrupt and/or fast interrupt request to the ARM7TDMI. It integrates an 8-level priority controller, and, using the

Auto-vectoring feature, reduces the interrupt latency time.

The Parallel Input/Output Controller (PIO) controls up to 32 I/O lines. It enables the user to select specific pins for on-chip peripheral input/output functions, and general-purpose input/output signal pins. The PIO controller can be programmed to detect an interrupt on a signal change from each line.

The Watchdog (WD) can be used to prevent system lock-up if the software becomes trapped in a deadlock.

The Special Function (SF) module integrates the Chip ID, the Reset Status and the Protect registers.

User Peripherals

Two USARTs, independently configurable, enable communication at a high baud rate in synchronous or asynchronous mode. The format includes start, stop and parity bits and up to 8 data bits. Each USART also features a Timeout and a Time Guard register, facilitating the use of the two dedicated Peripheral Data Controller (PDC) channels.

The 3-channel, 16-bit Timer Counter (TC) is highly programmable and supports capture or waveform modes. Each TC channel can be programmed to measure or generate different kinds of waves, and can detect and control two input/output signals. The TC has also 3 external clock signals.

9

6410B–ATARM–12-Jan-10

7.

Product Overview

7.1

Power Supply

The AT91FR40162SB device has two types of power supply pins:

• VDDCORE pins that power the chip core (i.e., the AT91R40008 with its embedded SRAM and peripherals)

• VDDIO pins that power the AT91R40008 I/O lines and the Flash memory

An independent I/O supply allows a flexible adaptation to external component signal levels.

7.2

Input/Output Considerations

The AT91FR40162SB I/O pads accept voltage levels up to the VDDIO power supply limit. After the reset, the microcontroller peripheral I/Os are initialized as inputs to provide the user with maximum flexibility. It is recommended that in any application phase, the inputs to the microcontroller be held at valid logic levels to minimize the power consumption.

7.3

Master Clock

The AT91FR40162SB has a fully static design and works on the Master Clock (MCK), provided on the MCKI pin from an external source.

The Master Clock is also provided as an output of the device on the pin MCKO, which is multiplexed with a general purpose I/O line. While NRST is active, and after the reset, the MCKO is valid and outputs an image of the MCK signal. The PIO Controller must be programmed to use this pin as standard I/O line.

7.4

Reset

7.4.1

7.4.2

Reset restores the default states of the user interface registers (defined in the user interface of each peripheral), and forces the ARM7TDMI to perform the next instruction fetch from address zero. Except for the program counter the ARM7TDMI registers do not have defined reset states.

NRST Pin

NRST is an active low-level input. It is asserted asynchronously, but exit from reset is synchronized internally to the MCK. The signal presented on MCKI must be active within the specification for a minimum of 10 clock cycles up to the rising edge of NRST to ensure correct operation. The first processor fetch occurs 80 clock cycles after the rising edge of NRST.

Watchdog Reset

The watchdog can be programmed to generate an internal reset. In this case, the reset has the same effect as the NRST pin assertion, but the pins BMS and NTRI are not sampled. Boot Mode and Tri-state Mode are not updated. If the NRST pin is asserted and the watchdog triggers the internal reset, the NRST pin has priority.

10

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

7.5

Emulation Functions

7.5.1

Tri-state Mode

The AT91FR40162SB microcontroller provides a tri-state mode, which is used for debug purposes. This enables the connection of an emulator probe to an application board without having to desolder the device from the target board. In tri-state mode, all the output pin drivers of the

AT91R40008 microcontroller are disabled.

In tri-state mode, direct access to the Flash via external pins is provided. This enables production Flash programming using classical Flash programmers prior to board mounting.

To enter tri-state mode, the NTRI pin must be held low during the last 10 clock cycles before the rising edge of NRST. For normal operation, the NTRI pin must be held high during reset by a resistor of up to 400 k

Ω.

NTRI is multiplexed with I/O line P21 and USART1 serial data transmit line TXD1.

7.5.2

JTAG/ICE Debug

ARM-standard embedded In-circuit Emulation is supported via the JTAG/ICE port. The pins TDI,

TDO, TCK and TMS are dedicated to this debug function and can be connected to a host computer via the external ICE interface. In ICE Debug Mode, the ARM7TDMI core responds with a non-JTAG chip ID that identifies the microcontroller. This is not fully IEEE1149.1 compliant.

11

6410B–ATARM–12-Jan-10

7.6

Memory Controller

The ARM7TDMI processor address space is 4G bytes. The memory controller decodes the internal 32-bit address bus and defines three address spaces:

• Internal memories in the four lowest megabytes

• Middle space reserved for the external devices (memory or peripherals) controlled by the EBI

• Internal peripherals in the four highest megabytes

In any of these address spaces, the ARM7TDMI operates in little-endian mode only.

7.6.1

7.6.2

Internal Memories

The AT91FR40162SB microcontroller integrates 256K bytes of internal SRAM. It is 32 bits wide and single-clock cycle accessible. Byte (8-bit), half-word (16-bit) and word (32-bit) accesses are supported and are executed within one cycle. Fetching either Thumb or ARM instructions is supported, and internal memory can store two times as many Thumb instructions as ARM instructions.

The SRAM is mapped at address 0x0 (after the Remap command), allowing ARM7TDMI exception vectors between 0x0 and 0x20 to be modified by the software.

Placing the SRAM on-chip and using the 32-bit data bus bandwidth maximizes the microcontroller performance and minimizes system power consumption. The 32-bit bus increases the effectiveness of the use of the ARM instruction set and the processing of data that is wider than

16 bits, thus making optimal use of the ARM7TDMI advanced performance.

Being able to dynamically update application software in the 256-Kbyte SRAM adds an extra dimension to the AT91FR40162SB.

The AT91FR40162SB also integrates a 2-Mbyte Flash memory that is accessed via the External

Bus Interface. All data, address and control lines, except for the Chip Select signal, are connected within the device.

Boot Mode Select

The ARM reset vector is at address 0x0. After the NRST line is released, the ARM7TDMI executes the instruction stored at this address. This means that this address must be mapped in nonvolatile memory after the reset. The input level on the BMS pin during the last 10 clock cycles before the rising edge of the NRST selects the type of boot memory (see

Table 4-1 on page 5

).

If the embedded Flash memory is to be used as boot memory, the BMS input must be pulled down externally and NCS0 must be connected to NCSF externally.

The pin BMS is multiplexed with the I/O line P24 that can be programmed after reset like any standard PIO line.

Table 7-1.

BMS

1

0

Boot Mode Select

Boot Memory

External 8-bit memory on NCS0

Internal or External 16-bit memory on NCS0

7.6.3

Remap Command

The ARM vectors (Reset, Abort, Data Abort, Prefetch Abort, Undefined Instruction, Interrupt,

Fast Interrupt) are mapped from address 0x0 to address 0x20. In order to allow these vectors to

12

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

7.6.4

7.6.5

7.6.6

be redefined dynamically by the software, the AT91FR40162SB uses a remap command that enables switching between the boot memory and the internal primary SRAM bank addresses.

The remap command is accessible through the EBI User Interface by writing one in RCB of

EBI_RCR (Remap Control Register). Performing a remap command is mandatory if access to the other external devices (connected to chip selects 1 to 7) is required. The remap operation can only be changed back by an internal reset or an NRST assertion.

Abort Control

The abort signal providing a Data Abort or a Prefetch Abort exception to the ARM7TDMI is asserted when accessing an undefined address in the EBI address space.

No abort is generated when reading the internal memory or by accessing the internal peripherals, whether the address is defined or not.

External Bus Interface

The External Bus Interface handles the accesses between addresses 0x0040 0000 and 0xFFC0

0000. It generates the signals that control access to the external devices, and can be configured from eight 1-Mbyte banks up to four 16-Mbyte banks. It supports byte, half-word and word aligned accesses.

For each of these banks, the user can program:

• Number of wait states

• Number of data float times (wait time after the access is finished to prevent any bus contention in case the device is too long in releasing the bus)

• Data bus width (8-bit or 16-bit)

• With a 16-bit wide data bus, the user can program the EBI to control one 16-bit device (Byte

Access Select Mode) or two 8-bit devices in parallel that emulate a 16-bit memory (Byte

Write Access Mode).

The External Bus Interface features also the Early Read Protocol, configurable for all the devices, that significantly reduces access time requirements on an external device in the case of single-clock cycle access.

In the AT91FR40162SB, the External Bus Interface connects internally to the Flash memory.

Flash Memory

The 2-Mbyte Flash memory is organized as 1, 048, 576 words of 16 bits each. The Flash memory is addressed as 16-bit words via the EBI. It uses address lines A1 - A20 of the processor.

The address, data and control signals, except the Flash memory enable, are internally interconnected. The user should connect the Flash memory enable (NCSF) to one of the active-low chip selects on the EBI; NCS0 must be used if the Flash memory is to be the boot memory. In addition, if the Flash memory is to be used as boot memory, the BMS input must be pulled down externally in order for the processor to perform correct 16-bit fetches after reset.

During boot, the EBI must be configured with correct number of standard wait states. As an example, five standard wait states are required when the microcontroller is running at 66 MHz.

The user must ensure that all VDDIO, VDDCORE and all GND pins are connected to their respective supplies by the shortest route. The Flash memory powers-on in read mode. Command sequences are used to place the device in other operating modes, such as program and erase.

13

6410B–ATARM–12-Jan-10

A separate Flash memory reset input pin (NRSTF) is provided for maximum flexibility, enabling the reset operation to adapt to the application. When this input is at a logic high level, the memory is in its standard operating mode; a low level on this input halts the current memory operation and puts its outputs in a high impedance state.

The Flash memory features data polling to detect the end of a program cycle. While a program cycle is in progress, an attempted read of the last word written will return the complement of the written data on I/O7. An open-drain NBUSY output pin provides another method of detecting the end of a program or erase cycle. This pin is pulled low while program and erase cycles are in progress and is released at the completion of the cycle. A toggle bit feature provides a third means of detecting the end of a program or erase cycle.

The Flash memory is divided into 39 sectors for erase operations. To further enhance device flexibility, an Erase Suspend feature is offered. This feature puts the erase cycle on hold for an indefinite period and allows the user to read data from, or to write data to, any other sector within the same memory plane. There is no need to suspend an erase cycle if the data to be read is in the other memory plane.

The device has the capability to protect data stored in any sector. Once the data protection for a sector is enabled, the data in that sector cannot be changed while input levels lie between ground and VDDIO.

Note:

This data protection does not prevent read accesses of the Flash.

A 6-byte command sequence (Enter Single Pulse Program Mode) allows the device to be written to directly, using single pulses on the write control lines. This mode (Single-pulse Programming) is exited by powering down the device or by pulsing the NRSTF pin low for a defined duration and then bringing it back to VDDIO.

The following hardware features protect against inadvertent programming of the Flash memory:

• VDDIO Sense – if VDDIO is below a certain level, the program function is inhibited.

• VDDIO Power-on Delay – once VDDIO has reached the VDDIO sense level, the device will automatically time out a certain duration before programming.

• Program Inhibit – holding any one of OE low, CE high or WE high inhibits program cycles.

• Noise Filter – pulses of less than a certain duration on the WE or CE inputs will not initiate a program cycle.

14

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

7.7

AT91 Flash Memory Uploader (FMU) Software

All Flash-based AT91 devices are delivered with pre-programmed software called the AT91

Flash Memory Uploader, which resides in the first sector of the embedded Flash. The Flash

Memory Uploader allows programming to the embedded flash through a serial port. Either of the on-chip USARTs can be used by the Flash Memory Uploader. The purpose of the AT91 Flash

Memory Uploader is to provide a Flash programming solution during small and medium productiion. The FMU is “one-time usable”. This means that once the customer’s code is written in sector 0 of the Flash, the FMU is overwritten. If IAP functionality is needed, customers need to use the JTAG port or implement their own boot loader with IAP capability.

Figure 7-1.

Flash Memory Uploader

Target System

AT91FR40162SB

16-Mbit

Flash Memory

NCSF

Programming System

AT91R40008

USART0

RXD0

NCS0

RS232

Driver

USART1

RXD1

Serial

Port

7.7.1

Flash Memory Uploader Operations

The Flash Memory Uplo ader requires the encapsulated Flash to be used as the

AT91FR40162SB boot memory and a valid clock to be applied to MCKI. After reset, the Flash

Memory Uploader immediately recopies itself into the internal SRAM and jumps to it. The following operation requires this memory resource only. External accesses are performed only to program the encapsulated Flash.

When starting, PIO input change interrupts are initialized on the RXD lines of both USARTs.

When an interrupt occurs, a Timer Counter channel is started. When the next input change is detected on the RXD line, the Timer Counter channel is stopped. This is how the first character length is measured and the USART can be initiated by taking into account the ratio between the device master clock speed and the actual communication baud rate speed.

The Programming System, then, can send commands and data following a proprietary protocol for the Flash device to be programmed. It is up to the Programming System to erase and program the first sector of the Flash as the last step of the operation, in order to reduce, to a minimum, the risk that the Flash Memory Uploader is erased and the power supply shuts down.

15

6410B–ATARM–12-Jan-10

7.7.2

Note that in the event that the Flash Memory Uploader is erased from the first sector while the new final application is not yet programmed, and while the target system power supply is switched off, it leads to a non-recoverable error and the AT91FR40162SB cannot be re-programmed by using the Flash Memory Uploader.

Programming System

Atmel provides a free Host Loader that runs on an IBM

®

compatible PC under Windows95,

Windows98 or Windows2000 operating system. It can be downloaded from the Atmel Web site and requires only a serial cable to connect the Host to the Target.

Communications can be selected on either COM1 or COM2 and the serial link speed is limited to

115200 bauds. Because the serial link is the bottleneck in this configuration, the Flash programming lasts 110 seconds per Mbyte.

Reduced programming time can be achieved by using a faster programming system. An AT91

Evaluation Board is capable of running a serial link at up to 500 Kbits/sec and can match the fastest programming allowed by the Flash, for example, about 40 seconds per Mbyte when the word programming becomes the bottleneck.

For more details about the Flash Memory Uploader protocol and the Host Loader Programming

System, see the application note page of the AT91 Products at www.atmel.com.

16

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

8.

Peripherals

8.0.1

8.0.2

8.0.3

The AT91FR40162SB peripherals are connected to the 32-bit wide Advanced Peripheral Bus.

Peripheral registers are only word accessible. Byte and half-word accesses are not supported. If a byte or a half-word access is attempted, the memory controller automatically masks the lowest address bits and generates a word access.

Each peripheral has a 16-Kbyte address space allocated (the AIC only has a 4-Kbyte address space).

Peripheral Registers

The following registers are common to all peripherals:

• Control Register – write only register that triggers a command when a one is written to the corresponding position at the appropriate address. Writing a zero has no effect.

• Mode Register – read/write register that defines the configuration of the peripheral. Usually has a value of 0x0 after a reset.

• Data Registers – read and/or write register that enables the exchange of data between the processor and the peripheral.

• Status Register – read only register that returns the status of the peripheral.

• Enable/Disable/Status Registers are shadow command registers. Writing a one in the Enable

Register sets the corresponding bit in the Status Register. Writing a one in the Disable

Register resets the corresponding bit and the result can be read in the Status Register.

Writing a bit to zero has no effect. This register access method maximizes the efficiency of bit manipulation, and enables modification of a register with a single non-interruptible instruction, replacing the costly read-modify-write operation.

Unused bits in the peripheral registers must be written at 0 for upward compatibility. These bits read 0.

Peripheral Interrupt Control

The Interrupt Control of each peripheral is controlled from the status register using the interrupt mask. The status register bits are ANDed to their corresponding interrupt mask bits and the result is then ORed to generate the Interrupt Source signal to the Advanced Interrupt Controller.

The interrupt mask is read in the Interrupt Mask Register and is modified with the Interrupt

Enable Register and the Interrupt Disable Register. The enable/disable/status (or mask) makes it possible to enable or disable peripheral interrupt sources with a non-interruptible single instruction. This eliminates the need for interrupt masking at the AIC or Core level in real-time and multi-tasking systems.

Peripheral Data Controller

The AT91FR40162SB has a 4-channel PDC dedicated to the two on-chip USARTs. One PDC channel is dedicated to the receiver and one to the transmitter of each USART.

The user interface of a PDC channel is integrated in the memory space of each USART. It contains a 32-bit Address Pointer Register (RPR or TPR) and a 16-bit Transfer Counter Register

(RCR or TCR). When the programmed number of transfers are performed, a status bit indicating the end of transfer is set in the USART Status Register and an interrupt can be generated.

17

6410B–ATARM–12-Jan-10

8.1

System Peripherals

8.1.1

PS: Power-saving

The power-saving feature optimizes power consumption, enabling the software to stop the

ARM7TDMI clock (idle mode), restarting it when the module receives an interrupt (or reset). It also enables on-chip peripheral clocks to be enabled and disabled individually, matching power consumption and application needs.

8.1.2

8.1.3

8.1.4

8.1.5

AIC: Advanced Interrupt Controller

The Advanced Interrupt Controller has an 8-level priority, individually maskable, vectored interrupt controller, and drives the NIRQ and NFIQ pins of the ARM7TDMI from:

• The external fast interrupt line (FIQ)

• The three external interrupt request lines (IRQ0 - IRQ2)

• The interrupt signals from the on-chip peripherals

The AIC is extensively programmable offering maximum flexibility, and its vectoring features reduce the real-time overhead in handling interrupts.

The AIC also features a spurious vector detection feature, which reduces spurious interrupt handling to a minimum, and a protect mode that facilitates the debug capabilities.

PIO: Parallel I/O Controller

The AT91FR40162SB has 32 programmable I/O lines. Six pins are dedicated as general-purpose I/O pins. Other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins. The PIO controller enables generation of an interrupt on input change and insertion of a simple input glitch filter on any of the PIO pins.

WD: Watchdog

The Watchdog is built around a 16-bit counter and is used to prevent system lock-up if the software becomes trapped in a deadlock. It can generate an internal reset or interrupt, or assert an active level on the dedicated pin NWDOVF. All programming registers are password-protected to prevent unintentional programming.

SF: Special Function

The AT91FR40162SB provides registers that implement the following special functions.

• Chip Identification

• RESET Status

• Protect Mode

18

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

8.2

User Peripherals

8.2.1

USART: Universal Synchronous/

Asynchronous Receiver Transmitter

The AT91FR40162SB provides two identical, full-duplex, universal synchronous/asynchronous receiver/transmitters.

Each USART has its own baud rate generator, and two dedicated Peripheral Data Controller channels. The data format includes a start bit, up to 8 data bits, an optional programmable parity bit and up to 2 stop bits.

The USART also features a Receiver Timeout register, facilitating variable length frame support when it is working with the PDC, and a Time-guard register, used when interfacing with slow remote equipment.

8.2.2

TC: Timer Counter

The AT91FR40162SB features a Timer Counter block that includes three identical 16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse width modulation.

The Timer Counter can be used in Capture or Waveform mode, and all three counter channels can be started simultaneously and chained together.

19

6410B–ATARM–12-Jan-10

9.

Memory Map

Figure 9-1.

AT91FR40162SB Memory Map Before and After the Remap Command

Address

0xFFFFFFFF

Before

Function Size Abort Control

On-chip

Peripherals

4M Bytes No

0xFFC00000

0xFFBFFFFF

Address

0xFFFFFFFF

After

Function

On-chip

Peripherals

0xFFC00000

0xFFBFFFFF

Size Abort Control

4M Bytes No

Reserved

Yes

External

Devices

(Up to 8)

Up to 8 Devices

Programmable

Page Size

1, 4, 16, 64M Bytes

Yes

0x00400000

0x003FFFFF

On-chip

Primary

RAM Bank

1M Byte

0x00300000

0x002FFFFF

Reserved

On-chip

Device

1M Byte

0x00200000

0x001FFFFF

Reserved

On-chip

Device

1M Byte

0x00100000

0x000FFFFF

0x00000000

External

Devices Selected by NCS0

1M Byte

No

No

No

No

20

AT91FR40162SB

0x00400000

0x003FFFFF

Reserved

0x00300000

0x002FFFFF

Reserved

On-chip

Device

0x00200000

0x001FFFFF

Reserved

On-chip

Device

0x00100000

0x000FFFFF

On-chip

Primary

RAM Bank

0x00000000

1M Byte No

1M Byte

1M Byte

1M Byte

No

No

No

6410B–ATARM–12-Jan-10

AT91FR40162SB

10. Peripheral Memory Map

Figure 10-1.

Peripheral Memory Map

Address Peripheral

0xFFFFFFFF

AIC

0xFFFFF000

WD

Peripheral Name

Advanced Interrupt Controller

Reserved

WatchdogTimer

0xFFFD3FFF

0xFFFD0000

0xFFFCFFFF

0xFFFCC000

0xFFF03FFF

0xFFF00000

0xFFE03FFF

0xFFE00000

0xFFC00000

0xFFFFBFFF

0xFFFF8000

0xFFFF7FFF

0xFFFF4000

0xFFFF3FFF

0xFFFF0000

0xFFFE3FFF

0xFFFE0000

PS

PIO

TC

USART0

USART1

SF

EBI

Power Saving

Parallel I/O Controller

Reserved

Timer Counter

Reserved

Universal Synchronous/

Asynchronous

Receiver/Transmitter 0

Universal Synchronous/

Asynchronous

Receiver/Transmitter 1

Reserved

Special Function

Reserved

External Bus Interface

Reserved

Size

4K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

21

6410B–ATARM–12-Jan-10

11. EBI: External Bus Interface

The EBI generates the signals that control the access to the external memory or peripheral devices. The EBI is fully-programmable and can address up to 64M bytes. It has eight chip selects and a 24-bit address bus, the upper four bits of which are multiplexed with a chip select.

The 16-bit data bus can be configured to interface with 8- or 16-bit external devices. Separate read and write control signals allow for direct memory and peripheral interfacing.

The EBI supports different access protocols allowing single-clock cycle memory accesses.

The main features are:

• External memory mapping

• Up to 8 chip select lines

• 8- or 16-bit data bus

• Byte write or byte select lines

• Remap of boot memory

• Two different read protocols

• Programmable wait state generation

• External wait request

• Programmable data float time

Section 11.11 “EBI User Interface” on page 46

describes the EBI User Interface.

11.1

External Memory Mapping

The memory map associates the internal 32-bit address space with the external 24-bit address bus.

The memory map is defined by programming the base address and page size of the external

memories (see “EBI User Interface”

and the “EBI Chip Select Register”

describing EBI_CSR0 to

EBI_CSR7). Note that A0 - A23 is only significant for 8-bit memory; A1 - A23 is used for 16-bit memory.

If the physical memory device is smaller than the programmed page size, it wraps around and appears to be repeated within the page. The EBI correctly handles any valid access to the mem-

ory device within the page (see Figure 11-1 on page 23

).

In the event of an access request to an address outside any programmed page, an Abort signal is generated. Two types of Abort are possible: instruction prefetch abort and data abort. The corresponding exception vector addresses are respectively 0x0000000C and 0x00000010. It is up to the system programmer to program the error handling routine to use in case of an Abort (see the ARM7TDMI datasheet for further information).

If two chip selects are defined as having the same base address, an access to the overlapping address space asserts both NCS lines. The Chip Select Register with the smaller number defines the characteristics of the external access and the behavior of the control signals.

22

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 11-1.

External Memory Smaller than Page Size

Memory

Map

1M Byte Device

1M Byte Device

1M Byte Device

1M Byte Device

Hi

Low

Hi

Low

Hi

Low

Hi

Low

Base + 4M Bytes

Base + 3M Bytes

Base + 2M Bytes

Base + 1M Bytes

Base

Repeat 3

Repeat 2

Repeat 1

11.2

External Bus Interface Pin Description

Table 11-1.

EBI Pin Description

Name

A0 - A23

Description

Address bus (output)

D0 - D15

NCS0 - NCS3

CS4 - CS7

NRD

NWR0 - NWR1

NOE

NWE

NUB, NLB

NWAIT

Data bus (input/output)

Active low chip selects (output)

Active high chip selects (output)

Read enable (output)

Lower and upper write enable (output)

Output enable (output)

Write enable (output)

Upper and lower byte select (output)

Wait request (input)

The following table shows how certain EBI signals are multiplexed:

Table 11-2.

EBI Signals

Multiplexed Signals

A23 - A20 CS4 - CS7

A0

NRD

NWR0

NWR1

NLB

NOE

NWE

NUB

Functions

Allows from 4 to 8 chip select lines to be used

8- or 16-bit data bus

Byte write or byte select access

Byte write or byte select access

Byte write or byte select access

Type

Output

I/O

Output

Output

Output

Output

Output

Output

Output

Input

23

6410B–ATARM–12-Jan-10

11.3

Chip Select Lines

The EBI provides up to eight chip select lines:

• Chip select lines NCS0 - NCS3 are dedicated to the EBI (not multiplexed).

• Chip select lines CS4 - CS7 are multiplexed with the top four address lines A23 - A20.

By exchanging address lines for chip select lines, the user can optimize the EBI to suit the external memory requirements: more external devices or larger address range for each device.

The selection is controlled by the ALE field in EBI_MCR (Memory Control Register). The following combinations are possible:

A20, A21, A22, A23 (configuration by default)

A20, A21, A22, CS4

A20, A21, CS5, CS4

A20, CS6, CS5, CS4

CS7, CS6, CS5, CS4

Figure 11-2.

Memory Connections for Four External Devices

EBI

NCS0 - NCS3

NRD

NWRx

A0 - A23

D0 - D15

NCS3

NCS2

NCS1

Memory Enable

Memory Enable

Memory Enable

NCS0

Memory Enable

Output Enable

Write Enable

8 or 16

A0 - A23

D0 - D15 or D0 - D7

Note: For four external devices, the maximum address space per device is 16M bytes.

Figure 11-3.

Memory Connections for Eight External Devices

CS4 - CS7

EBI

NCS0 - NCS3

NRD

NWRx

A0 - A19

D0 - D15

CS7

Memory Enable

CS5

CS6

Memory Enable

Memory Enable

CS4

Memory Enable

NCS3

NCS2

Memory Enable

Memory Enable

NCS1

NCS0

Memory Enable

Memory Enable

Output Enable

8 or 16

Write Enable

A0 - A19

D0 - D15 or D0 - D7

Note: For eight external devices, the maximum address space per device is 1M byte.

24

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

11.4

Data Bus Width

A data bus width of 8 or 16 bits can be selected for each chip select. This option is controlled by the DBW field in the EBI_CSR (Chip Select Register) for the corresponding chip select.

Figure 11-4

shows how to connect a 512K x 8-bit memory on NCS2.

Figure 11-4.

Memory Connection for an 8-bit Data Bus

D0 - D7

EBI

D0 - D7

D8 - D15

A1 - A18

A0

NWR1

NWR0

NRD

NCS2

A1 - A18

A0

Write Enable

Output Enable

Memory Enable

Figure 11-5

shows how to connect a 512K x 16-bit memory on NCS2.

Figure 11-5.

Memory Connection for a 16-bit Data Bus

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

25

6410B–ATARM–12-Jan-10

11.5

Byte Write or Byte Select Access

Each chip select with a 16-bit data bus can operate with one of two different types of write access:

• Byte Write Access supports two byte write and a single read signal.

• Byte Select Access selects upper and/or lower byte with two byte select lines, and separate read and write signals.

This option is controlled by the BAT field in the EBI_CSR (Chip Select Register) for the corresponding chip select.

Byte Write Access is used to connect 2 x 8-bit devices as a 16-bit memory page.

• The signal A0/NLB is not used.

• The signal NWR1/NUB is used as NWR1 and enables upper byte writes.

• The signal NWR0/NWE is used as NWR0 and enables lower byte writes.

• The signal NRD/NOE is used as NRD and enables half-word and byte reads.

Figure 11-6

shows how to connect two 512K x 8-bit devices in parallel on NCS2.

Figure 11-6.

Memory Connection for 2 x 8-bit Data Busses

EBI

D0 - D7

D8 - D15

A1 - A19

A0

NWR1

NWR0

NRD

NCS2

D0 - D7

A0 - A18

Write Enable

Read Enable

Memory Enable

26

D8 - D15

A0 - A18

Write Enable

Read Enable

Memory Enable

Byte Select Access is used to connect 16-bit devices in a memory page.

• The signal A0/NLB is used as NLB and enables the lower byte for both read and write operations.

• The signal NWR1/NUB is used as NUB and enables the upper byte for both read and write operations.

• The signal NWR0/NWE is used as NWE and enables writing for byte or half word.

• The signal NRD/NOE is used as NOE and enables reading for byte or half word.

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 11-7

shows how to connect a 16-bit device with byte and half-word access (e.g. 16-bit

SRAM) on NCS2.

Figure 11-7.

Connection for a 16-bit Data Bus with Byte and Half-word Access

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

Figure 11-8

shows how to connect a 16-bit device without byte access (e.g. Flash) on NCS2.

Figure 11-8.

Connection for a 16-bit Data Bus without Byte Write Capability.

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Write Enable

Output Enable

Memory Enable

27

11.6

Boot on NCS0

Depending on the device and the BMS pin level during the reset, the user can select either an 8bit or 16-bit external memory device connected on NCS0 as the Boot Memory. In this case,

EBI_CSR0 (Chip Select Register 0) is reset at the following configuration for chip select 0:

• 8 wait states (WSE = 1, NWS = 7)

• 8-bit or 16-bit data bus width, depending on BMS

Byte access type and number of data float time are respectively set to Byte Write Access and 0.

With a non-volatile memory interface, any values can be programmed for these parameters.

Before the remap command, the user can modify the chip select 0 configuration, programming the EBI_CSR0 with exact boot memory characteristics. the base address becomes effective after the remap command, but the new number of wait states can be changed immediately. This is useful if a boot sequence needs to be faster.

11.7

Read Protocols

The EBI provides two alternative protocols for external memory read access: standard and early read. The difference between the two protocols lies in the timing of the NRD (read cycle) waveform.

The protocol is selected by the DRP field in EBI_MCR (Memory Control Register) and is valid for all memory devices. Standard read protocol is the default protocol after reset.

Note: In the following waveforms and descriptions, NRD represents NRD and NOE since the two signals have the same waveform. Likewise, NWE represents NWE, NWR0 and NWR1 unless NWR0 and

NWR1 are otherwise represented. ADDR represents A0 - A23 and/or A1 - A23.

11.7.1

Standard Read Protocol

Standard read protocol implements a read cycle in which NRD and NWE are similar. Both are active during the second half of the clock cycle. The first half of the clock cycle allows time to ensure completion of the previous access as well as the output of address and NCS before the read cycle begins.

During a standard read protocol, external memory access, NCS is set low and ADDR is valid at the beginning of the access while NRD goes low only in the second half of the master clock cycle to avoid bus conflict (see

Figure 11-9 ). NWE is the same in both protocols. NWE always goes low in the second half of the master clock cycle (see Figure 11-10

).

11.7.2

11.7.3

Early Read Protocol

Early read protocol provides more time for a read access from the memory by asserting NRD at the beginning of the clock cycle. In the case of successive read cycles in the same memory,

NRD remains active continuously. Since a read cycle normally limits the speed of operation of the external memory system, early read protocol can allow a faster clock frequency to be used.

However, an extra wait state is required in some cases to avoid contentions on the external bus.

Early Read Wait State

In early read protocol, an early read wait state is automatically inserted when an external write cycle is followed by a read cycle to allow time for the write cycle to end before the subsequent read cycle begins (see

Figure 11-11

). This wait state is generated in addition to any other programmed wait states (i.e. data float wait).

28

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

No wait state is added when a read cycle is followed by a write cycle, between consecutive accesses of the same type or between external and internal memory accesses.

Early read wait states affect the external bus only. They do not affect internal bus timing.

Figure 11-9.

Standard Read Protocol

MCKI

ADDR or

NCS

NRD

NWE

Figure 11-10.

Early Read Protocol

MCKI

ADDR or

NCS

NRD

NWE

29

Figure 11-11.

Early Read Wait State

Write Cycle

MCKI

Early Read Wait Read Cycle

ADDR

NCS

NRD

NWE

11.8

Write Data Hold Time

During write cycles in both protocols, output data becomes valid after the falling edge of the

NWE signal and remains valid after the rising edge of NWE, as illustrated in Figure 11-12

. The external NWE waveform (on the NWE pin) is used to control the output data timing to guarantee this operation.

It is therefore necessary to avoid excessive loading of the NWE pins, which could delay the write signal too long and cause a contention with a subsequent read cycle in standard protocol.

Figure 11-12.

Data Hold Time

MCK

ADDR

NWE

Data Output

In early read protocol the data can remain valid longer than in standard read protocol due to the additional wait cycle which follows a write access.

30

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

11.9

Wait States

11.9.1

The EBI can automatically insert wait states. The different types of wait states are listed below:

• Standard wait states

• Data float wait states

• External wait states

• Chip select change wait states

• Early read wait states (see

Section 11.7 “Read Protocols” on page 28

)

Standard Wait States

Each chip select can be programmed to insert one or more wait states during an access on the corresponding device. This is done by setting the WSE field in the corresponding EBI_CSR. The number of cycles to insert is programmed in the NWS field in the same register.

Below is the correspondence between the number of standard wait states programmed and the number of cycles during which the NWE pulse is held low:

0 wait states

1 wait state

1/2 cycle

1 cycle

For each additional wait state programmed, an additional cycle is added.

Figure 11-13.

One Wait State Access

1 Wait State Access

MCK

ADDR

NCS

NWE

NRD

(1)

(2)

11.9.2

Notes: 1. Early Read Protocol

2. Standard Read Protocol

Data Float Wait State

Some memory devices are slow to release the external bus. For such devices it is necessary to add wait states (data float waits) after a read access before starting a write access or a read access to a different external memory.

The Data Float Output Time (t

DF

) for each external memory device is programmed in the TDF field of the EBI_CSR register for the corresponding chip select. The value (0 - 7 clock cycles) indicates the number of data float waits to be inserted and represents the time allowed for the data output to go high impedance after the memory is disabled.

31

6410B–ATARM–12-Jan-10

Data float wait states do not delay internal memory accesses. Hence, a single access to an external memory with long t

DF will not slow down the execution of a program from internal memory.

The EBI keeps track of the programmed external data float time during internal accesses, to ensure that the external memory system is not accessed while it is still busy.

Internal memory accesses and consecutive accesses to the same external memory do not have added Data Float wait states.

Figure 11-14.

Data Float Output Time

MCK

ADDR

NCS

NRD

(1) (2) t

DF

D0 - D15

11.9.3

Notes: 1. Early Read Protocol

2. Standard Read Protocol

External Wait

The NWAIT input can be used to add wait states at any time. NWAIT is active low and is detected on the rising edge of the clock.

If NWAIT is low at the rising edge of the clock, the EBI adds a wait state and changes neither the output signals nor its internal counters and state. When NWAIT is de-asserted, the EBI finishes the access sequence.

The NWAIT signal must meet setup and hold requirements on the rising edge of the clock.

32

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 11-15.

External Wait

MCK

ADDR

NWAIT

NCS

NWE

NRD

(1)

(2)

11.9.4

Notes: 1. Early Read Protocol

2. Standard Read Protocol

Chip Select Change Wait States

A chip select wait state is automatically inserted when consecutive accesses are made to two different external memories (if no wait states have already been inserted). If any wait states have already been inserted, (e.g., data float wait) then none are added.

Figure 11-16.

Chip Select Wait

Mem 1

MCK

Chip Select Wait Mem 2

NCS1

NCS2

NRD

(1)

NWE

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

33

6410B–ATARM–12-Jan-10

11.10 Memory Access Waveforms

Figure 11-17

through

Figure 11-20

show examples of the two alternative protocols for external memory read access.

Figure 11-17.

Standard Read Protocol without t

DF

34

AT91FR40162SB

6410B–ATARM–12-Jan-10

MCK

A0 - A23

NRD

NWE

NCS1

NCS2

D0 - D15 (Mem 1)

D0- D15 (AT91)

D0 - D15 (Mem 2)

Read

Mem 1

Write

Mem 1

Early Read

Wait Cycle

Read

Mem 1

Read

Mem 2

Write

Mem 2

Early Read

Wait Cycle

Read

Mem 2

Long t

WHDX

Chip Select

Change Wait

Long t

WHDX

MCK

A0 - A23

NRD

NWE

NCS1

NCS2

D0 - D15 (Mem 1)

D0 - D15 (AT91)

D0 - D15 (Mem 2)

Read Mem 1

Data

Float Wait

Write

Mem 1

Read Mem 1

Data

Float Wait

Read

Mem 2

Read Mem 2

Data

Float Wait

Write

Mem 2

Write

Mem 2

Write

Mem 2 t

DF t

WHDX t

DF t

DF

MCK

A0 - A23

NRD

NWE

NCS1

NCS2

D0 - D15 (Mem 1)

D0 - D15 (AT91)

D0 - D15 (Mem 2)

Read Mem 1

Data

Float Wait

Write

Mem 1

Early

Read Wait

Read Mem 1

Data

Float Wait

Read

Mem 2

Read Mem 2

Data

Float Wait

Write

Mem 2

Write

Mem 2

Write

Mem 2 t

DF t

WHDX t

DF t

DF

Figure 11-21

through

Figure 11-27

show the timing cycles and wait states for read and write access to the various AT91FR40162SB external memory devices. The configurations described are shown in the following table:

Table 11-3.

Memory Access Waveforms

Figure Number

Figure 11-21

Number of Wait States

0

Figure 11-22

Figure 11-23

Figure 11-24

Figure 11-25

Figure 11-26

Figure 11-27

0

1

1

1

1

0

Bus Width

16

16

16

8

16

8

8

Size of Data Transfer

Word

Word

Half-word

Word

Half-word

Byte

Byte

38

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 11-21.

0 Wait States, 16-bit Bus Width, Word Transfer

MCK

A1 - A23

ADDR

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

B

2

B

1

B

2

B

1

X X B

2

B

1

ADDR+1

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

4

B

3

39

6410B–ATARM–12-Jan-10

Figure 11-22.

1 Wait, 16-bit Bus Width, Word Transfer

1 Wait State

MCK

A1 - A23

ADDR

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

1 Wair State

ADDR+1

B

4

B

3

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

40

AT91FR40162SB

6410B–ATARM–12-Jan-10

Figure 11-23.

1 Wait State, 16-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A1 - A23

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

AT91FR40162SB

41

6410B–ATARM–12-Jan-10

Figure 11-24.

0 Wait States, 8-bit Bus Width, Word Transfer

MCK

A0 - A23

ADDR ADDR+1

NCS

READ ACCESS

·

Standard Protocol

NRD

D0-D15

Internal Bus

·

Early Protocol

NRD

X B

1

X X X B

1

X B

2

X X B

2

B

1

ADDR+2

X B

3

X B

3

B

2

B

1

ADDR+3

X B

4

B

4

B

3

B

2

B

1

D0 - D15

WRITE ACCESS

X B

1

X B

2

X B

3

X B

4

NWR0

NWR1

D0 - D15 X B

1

X B

2

X B

3

X B

4

42

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 11-25.

1 Wait State, 8-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A0 - A23

ADDR

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

X B

1

X B

1

X X X B

1

1 Wait State

ADDR+1

X B

2

X B

2

X X B

2

B

1

NWR0

NWR1

D0 - D15

X B

1

X B

2

43

6410B–ATARM–12-Jan-10

Figure 11-26.

1 Wait State, 8-bit Bus Width, Byte Transfer

1 Wait State

MCK

A0 - A23

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

NWR0

NWR1

D0 - D15

X B

1

X B

1

XB

1

X X X B

1

44

AT91FR40162SB

6410B–ATARM–12-Jan-10

Figure 11-27.

0 Wait States, 16-bit Bus Width, Byte Transfer

MCK

A1 - A23

Internal Address

ADDR X X X 0

ADDR X X X 0

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

X B

1

X X X B

1

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write Option

NWR0

NWR1

D0 - D15

·

Byte Select Option

NWE

XB

1

B

1

B

1

6410B–ATARM–12-Jan-10

AT91FR40162SB

ADDR X X X 0

ADDR X X X 1

B

2

X

X X B

2

X

B

2

X

B

2

B

2

45

11.11 EBI User Interface

The EBI is programmed using the registers listed in the table below. The Remap Control Regis-

ter (EBI_RCR) controls exit from Boot Mode ( See “Boot on NCS0” on page 28.

) The Memory

Control Register (EBI_MCR) is used to program the number of active chip selects and data read protocol. Eight Chip Select Registers (EBI_CSR0 to EBI_CSR7) are used to program the parameters for the individual external memories. Each EBI_CSR must be programmed with a different base address, even for unused chip selects.

Base Address:

0xFFE00000 (Code Label EBI_BASE)

Table 11-4.

EBI Memory Map

Offset Register Name

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

0x24

Chip Select Register 0

Chip Select Register 1

Chip Select Register 2

Chip Select Register 3

Chip Select Register 4

Chip Select Register 5

Chip Select Register 6

Chip Select Register 7

Remap Control Register

Memory Control Register

EBI_CSR0

EBI_CSR1

EBI_CSR2

EBI_CSR3

EBI_CSR4

EBI_CSR5

EBI_CSR6

EBI_CSR7

EBI_RCR

EBI_MCR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Write-only

Read/Write

0x0000203E

(1)

0x0000203D

(2)

0x10000000

0x20000000

0x30000000

0x40000000

0x50000000

0x60000000

0x70000000

–

0

Notes: 1. 8-bit boot (if BMS is detected high)

2. 16-bit boot (if BMS is detected low)

46

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

11.11.1

EBI Chip Select Register

Register Name:

EBI_CSR0 - EBI_CSR7

Access Type:

Read/Write

Reset Value:

See Table 11-4 on page 46

Absolute Address:

0xFFE00000 - 0xFFE0001C

Offset:

0x00 - 0x1C

31 30 29 28 27 26 25 24

BA

23 22

BA

21

13

CSEN

5

WSE

20

12

BAT

4

19

–

11

18

–

10

TDF

2

17

–

9 15

–

7

PAGES

14

–

6

–

• DBW: Data Bus Width

3

NWS

1

1

1

0

1

1

0

0

0

DBW

0

0

1

1

0

1

0

1

• NWS: Number of Wait States

This field is valid only if WSE is set.

Data Bus Width

Code Label

EBI_DBW

Reserved –

16-bit data bus width

8-bit data bus width

Reserved

EBI_DBW_16

EBI_DBW_8

–

0

1

1

0

1

NWS

0

0

1

1

0

1

0

1

0

1

0

Number of Standard Wait States

1

2

3

6

7

4

5

8

• WSE: Wait State Enable (Code Label EBI_WSE)

0 = Wait state generation is disabled. No wait states are inserted.

1 = Wait state generation is enabled.

Code Label

EBI_NWS

EBI_NWS_1

EBI_NWS_2

EBI_NWS_3

EBI_NWS_4

EBI_NWS_5

EBI_NWS_6

EBI_NWS_7

EBI_NWS_8

DBW

16

–

8

PAGES

0

47

6410B–ATARM–12-Jan-10

• PAGES: Page Size

PAGES

1

1

0

0

0

1

0

1

• TDF: Data Float Output Time

Page Size

1M Byte

4M Bytes

16M Bytes

64M Bytes

Active Bits in Base Address

12 Bits (31 - 20)

10 Bits (31 - 22)

8 Bits (31 - 24)

6 Bits (31 - 26)

Code Label

EBI_PAGES

EBI_PAGES_1M

EBI_PAGES_4M

EBI_PAGES_16M

EBI_PAGES_64M

1

1

1

1

0

0

0

0

0

0

1

1

TDF

0

0

1

1

• BAT: Byte Access Type

0

1

0

1

0

1

0

1

Number of Cycles Added after the Transfer

0

1

4

5

2

3

6

7

Code Label

EBI_TDF

EBI_TDF_0

EBI_TDF_1

EBI_TDF_2

EBI_TDF_3

EBI_TDF_4

EBI_TDF_5

EBI_TDF_6

EBI_TDF_7

BAT

0

1

Selected BAT

Byte-write access type.

Byte-select access type.

Code Label

EBI_BAT

EBI_BAT_BYTE_WRITE

EBI_BAT_BYTE_SELECT

• CSEN: Chip Select Enable (Code Label EBI_CSEN)

0 = Chip select is disabled.

1 = Chip select is enabled.

• BA: Base Address (Code Label EBI_BA)

These bits contain the highest bits of the base address. If the page size is larger than 1M byte, the unused bits of the base address are ignored by the EBI decoder.

48

AT91FR40162SB

6410B–ATARM–12-Jan-10

11.11.2

EBI Remap Control Register

Register Name:

EBI_RCR

Access Type:

Write-only

Absolute Address:

0xFFE00020

Offset:

0x20

15

–

7

–

31

–

23

–

14

–

6

–

30

–

22

–

13

–

5

–

29

–

21

–

12

–

4

–

28

–

20

–

11

–

3

–

27

–

19

–

• RCB: Remap Command Bit (Code Label EBI_RCB)

0 = No effect.

1 = Cancels the remapping (performed at reset) of the page zero memory devices.

10

–

2

–

26

–

18

–

AT91FR40162SB

1

–

9

–

25

–

17

–

8

–

0

RCB

24

–

16

–

49

6410B–ATARM–12-Jan-10

11.11.3

EBI Memory Control Register

Register Name:

EBI_MCR

Access Type:

Read/Write

Reset Value:

0

Absolute Address:

0xFFE00024

Offset:

0x24

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

DRP

27

–

19

–

11

–

3

–

26

–

18

–

10

–

2

• ALE: Address Line Enable

This field determines the number of valid address lines and the number of valid chip select lines.

25

–

17

–

9

–

1

ALE

0

1

1

1

1

ALE

X

0

0

1

1

X

0

1

0

1

Valid Address Bits

A20, A21, A22, A23

A20, A21, A22

A20, A21

A20

None

• DRP: Data Read Protocol

DRP

0

1

Maximum Addressable Space

16M Bytes

8M Bytes

4M Bytes

2M Bytes

1M Byte

Valid Chip Select

None

CS4

CS4, CS5

CS4, CS5, CS6

CS4, CS5, CS6, CS7

Selected DRP

Standard read protocol for all external memory devices enabled

Early read protocol for all external memory devices enabled

Code Label

EBI_DRP

EBI_DRP_STANDARD

EBI_DRP_EARLY

Code Label

EBI_ALE

EBI_ALE_16M

EBI_ALE_8M

EBI_ALE_4M

EBI_ALE_2M

EBI_ALE_1M

24

–

16

–

8

–

0

50

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12. Flash Memory

The device powers on in the read mode. Command sequences are used to place the device in other operation modes such as program and erase. The device has the capability to protect the

data in any sector (see “Sector Lockdown” on page 55 ).

To increase the flexibility of the device, it contains an Erase Suspend and Program Suspend feature. This feature will put the erase or program on hold for any amount of time and let the user read data from or program data to any of the remaining sectors within the memory. The end of a program or an erase cycle is detected by the READY/BUSY pin, Data Polling or by the toggle bit.

A six-byte command (Enter Single Pulse Program Mode) sequence to remove the requirement of entering the three-byte program sequence is offered to further improve programming time.

After entering the six-byte code, only single pulses on the write control lines are required for writing into the device. This mode (Single Pulse Byte/Word Program) is exited by powering down the device, or by pulsing the RESET pin low for a minimum of 500 ns and then bringing it back to

V

CC

. Erase, Erase Suspend/Resume and Program Suspend/Resume commands will not work while in this mode; if entered they will result in data being programmed into the device. It is not recommended that the six-byte code reside in the software of the final product but only exist in external programming code.

The BYTE pin controls whether the device data I/O pins operate in the byte or word configuration. If the BYTE pin is set at logic “1”, the device is in word configuration, I/O0 - I/O15 are active and controlled by CE and OE.

If the BYTE pin is set at logic “0”, the device is in byte configuration, and only data I/O pins I/O0 -

I/O7 are active and controlled by CE and OE. The data I/O pins I/O8 - I/O14 are tri-stated, and the I/O15 pin is used as an input for the LSB (A-1) address function.

51

6410B–ATARM–12-Jan-10

12.1

Block Diagram

Figure 12-1.

Flash Memory Block Diagram

I/O0 - I/O15/A-1

Output

Buffer

Input

Buffer

A0 - A19

Input

Buffer

Address

Latch

Y-Decoder

X-Decoder

Identifier

Register

Status

Register

Data

Comparator

Y-GATING

Main Memory

Command

Register

Write State

Machine

Program/Erase

Voltage Switch

CE

WE

OE

RESET

BYTE

RDY/BUSY

VCC

GND

12.2

Device Operation

12.2.1

Read

The Flash Memory is accessed like an EPROM. When CE and OE are low and WE is high, the data stored at the memory location determined by the address pins are asserted on the outputs.

The outputs are put in the high impedance state whenever CE or OE is high. This dual-line control gives designers flexibility in preventing bus contention.

12.2.2

Command Sequences

When the device is first powered on, it will be reset to the read or standby mode, depending upon the state of the control line inputs. In order to perform other device functions, a series of command sequences are entered into the device. The command sequences are shown in the

“Command Definition Table” on page 63

(I/O8 - I/O15 are don’t care inputs for the command codes). The command sequences are written by applying a low pulse on the WE or CE input with CE or WE low (respectively) and OE high. The address is latched on the falling edge of CE or WE, whichever occurs last. The data is latched by the first rising edge of CE or WE. Standard microprocessor write timings are used. The address locations used in the command sequences are not affected by entering the command sequences.

52

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.2.3

Reset

A RESET input pin is provided to ease some system applications. When RESET is at a logic high level, the device is in its standard operating mode. A low level on the RESET input halts the present device operation and puts the outputs of the device in a high impedance state. When a high level is reasserted on the RESET pin, the device returns to the read or standby mode, depending upon the state of the control inputs.

12.2.4

12.2.4.1

Erasure

Before a byte/word can be reprogrammed, it must be erased. The erased state of memory bits is a logical “1”. The entire device can be erased by using the Chip Erase command or individual sectors can be erased by using the Sector Erase command.

Chip Erase

The entire device can be erased at one time by using the six-byte chip erase software code.

After the chip erase has been initiated, the device will internally time the erase operation so that no external clocks are required. The maximum time to erase the chip is t

EC

.

If the sector lockdown has been enabled, the chip erase will not erase the data in the sector that has been locked out; it will erase only the unprotected sectors. After the chip erase, the device will return to the read or standby mode.

12.2.4.2

12.2.5

12.2.6

Sector Erase

As an alternative to a full chip erase, the device is organized into 39 sectors (SA0 - SA38) that can be individually erased. The Sector Erase command is a six-bus cycle operation. The sector address is latched on the falling WE edge of the sixth cycle while the 30H data input command is latched on the rising edge of WE. The sector erase starts after the rising edge of WE of the sixth cycle. The erase operation is internally controlled; it will automatically time to completion. The maximum time to erase a sector is t

SEC

. When the sector programming lockdown feature is not enabled, the sector will erase (from the same Sector Erase command). An attempt to erase a sector that has been protected will result in the operation terminating immediately.

Byte/Word Programming

Once a memory block is erased, it is programmed (to a logical “0”) on a byte-by-byte or on a word-by-word basis. Programming is accomplished via the internal device command register and is a four-bus cycle operation. The device will automatically generate the required internal program pulses.

Any commands written to the chip during the embedded programming cycle will be ignored. If a hardware reset happens during programming, the data at the location being programmed will be corrupted. Please note that a data “0” cannot be programmed back to a “1”; only erase operations can convert “0”s to “1”s. Programming is completed after the specified t

BP

cycle time. The

Data Polling feature or the Toggle Bit feature may be used to indicate the end of a program cycle. If the erase/program status bit is a “1”, the device was not able to verify that the erase or program operation was performed successfully.

Program/Erase Status

The device provides several bits to determine the status of a program or erase operation: I/O2,

I/O5, I/O6 and I/O7. The

“Status Bit Table” on page 62

and the following four sections describe the function of these bits. To provide greater flexibility for system designers, the Flash Memory contains a programmable configuration register. The configuration register allows the user to specify the status bit operation. The configuration register can be set to one of two different val-

53

6410B–ATARM–12-Jan-10

12.2.7

12.2.8

12.2.9

ues, “00” or “01”. If the configuration register is set to “00”, the part will automatically return to the read mode after a successful program or erase operation. If the configuration register is set to a

“01”, a Product ID Exit command must be given after a successful program or erase operation before the part will return to the read mode. It is important to note that whether the configuration register is set to a “00” or to a “01”, any unsuccessful program or erase operation requires using the Product ID Exit command to return the device to read mode. The default value (after powerup) for the configuration register is “00”. Using the four-bus cycle Set Configuration Register command as shown in

Table 12-2, “Command Definition Table,” on page 63

, the value of the configuration register can be changed. Voltages applied to the RESET pin will not alter the value of the configuration register. The value of the configuration register will affect the operation of the I/O7 status bit as described below.

DATA Polling

The Flash Memory features Data Polling to indicate the end of a program cycle. If the status configuration register is set to a “00”, during a program cycle an attempted read of the last byte/word loaded will result in the complement of the loaded data on I/O7. Once the program cycle has been completed, true data is valid on all outputs and the next cycle may begin. During a chip or sector erase operation, an attempt to read the device will give a “0” on I/O7. Once the program or erase cycle has completed, true data will be read from the device. Data Polling may

begin at any time during the program cycle. Please see Table 12-1 on page 62

for more details.

If the status bit configuration register is set to a “01”, the I/O7 status bit will be low while the device is actively programming or erasing data. I/O7 will go high when the device has completed a program or erase operation. Once I/O7 has gone high, status information on the other pins can be checked.

The Data Polling status bit must be used in conjunction with the erase/program status bit as shown in the algorithm in

Figure 12-2 on page 58

and

Figure 12-3 on page 59

.

Toggle Bit

In addition to Data Polling the Flash Memory provides another method for determining the end of a program or erase cycle. During a program or erase operation, successive attempts to read data from the memory will result in I/O6 toggling between one and zero. Once the program cycle has completed, I/O6 will stop toggling and valid data will be read. Examining the toggle bit may begin at any time during a program cycle. Please see

“Status Bit Table” on page 62 for more

details.

The toggle bit status bit should be used in conjunction with the erase/program status bit as shown in the algorithm in

Figures 12-4 and

and 12-5

on page 60

.

Erase/Program Status Bit

The device offers a status bit on I/O5, which indicates whether the program or erase operation has exceeded a specified internal pulse count limit. If the status bit is a “1”, the device is unable to verify that an erase or a byte/word program operation has been successfully performed. If a program (Sector Erase) command is issued to a protected sector, the protected sector will not be programmed (erased). The device will go to a status read mode and the I/O5 status bit will be set high, indicating the program (erase) operation did not complete as requested. Once the erase/program status bit has been set to a “1”, the system must write the Product ID Exit command to return to the read mode. The erase/program status bit is a “0” while the erase or program operation is still in progress. Please see

“Status Bit Table” on page 62

for more details.

54

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.3

Sector Lockdown

Each sector has a programming lockdown feature. This feature prevents programming of data in the designated sectors once the feature has been enabled. These sectors can contain secure code that is used to bring up the system. Enabling the lockdown feature will allow the boot code to stay in the device while data in the rest of the device is updated. This feature does not have to be activated; any sector’s usage as a write-protected region is optional to the user.

At power-up or reset, all sectors are unlocked. To activate the lockdown for a specific sector, the six-bus cycle Sector Lockdown command must be issued. Once a sector has been locked down, the contents of the sector is read-only and cannot be erased or programmed.

12.3.1

12.3.2

12.3.3

12.3.4

Sector Lockdown Detection

A software method is available to determine if programming of a sector is locked down. When

the device is in the software product identification mode (see Section 12.8 ”Software Product

Identification Entry” and Section 12.9 “Software Product Identification Exit” on page 66

), a read from address location 00002H within a sector will show if programming the sector is locked down. If the data on I/O0 is low, the sector can be programmed; if the data on I/O0 is high, the program lockdown feature has been enabled and the sector cannot be programmed. The software product identification exit code should be used to return to standard operation.

Sector Lockdown Override

The only way to unlock a sector that is locked down is through reset or power-up cycles. After power-up or reset, the content of a sector that is locked down can be erased and reprogrammed.

Erase Suspend/Erase Resume

The Erase Suspend command allows the system to interrupt a sector or chip erase operation and then program or read data from a different sector within the memory. After the Erase Suspend command is given, the device requires a maximum time of 15 µs to suspend the erase operation. After the erase operation has been suspended, the system can then read data or program data to any other sector within the device. An address is not required during the Erase

Suspend command. During a sector erase suspend, another sector cannot be erased. To resume the sector erase operation, the system must write the Erase Resume command. The

Erase Resume command is a one-bus cycle command. The device also supports an erase suspend during a complete chip erase. While the chip erase is suspended, the user can read from any sector within the memory that is protected. The command sequence for a chip erase suspend and a sector erase suspend are the same.

Program Suspend/Program Resume

The Program Suspend command allows the system to interrupt a programming operation and then read data from a different byte/word within the memory. After the Program Suspend command is given, the device requires a maximum of 10 µs to suspend the programming operation.

After the programming operation has been suspended, the system can then read data from any other byte/word that is not contained in the sector in which the programming operation was suspended. An address is not required during the program suspend operation. To resume the programming operation, the system must write the Program Resume command. The program suspend and resume are one-bus cycle commands. The command sequence for the erase suspend and program suspend are the same, and the command sequence for the erase resume and program resume are the same.

55

6410B–ATARM–12-Jan-10

12.3.5

12.3.6

12.3.7

12.3.8

12.3.9

Product Identification

The product identification mode identifies the device and manufacturer as Atmel. It is accessed using a software operation.

For details, see “Software Product Identification Entry” and “Software Product Identification Exit” on page 66 .

128-bit Protection Register

The Flash Memory contains a 128-bit register that can be used for security purposes in system design. The protection register is divided into two 64-bit blocks. The two blocks are designated as block A and block B. The data in block A is non-changeable and is programmed at the factory with a unique number. The data in block B is programmed by the user and can be locked out such that data in the block cannot be reprogrammed. To program block B in the protection register, the four-bus cycle Program Protection Register command must be used as shown in

the Table 12-2, “Command Definition Table,” on page 63

. To lock out block B, the four-bus cycle

Lock Protection Register command must be used as shown in the

“Command Definition Table” .

Data bit D1 must be zero during the fourth bus cycle. All other data bits during the fourth bus cycle are don’t cares. To determine whether block B is locked out, the Product ID Entry command is given followed by a read operation from address 80H. If data bit D1 is zero, block B is

locked. If data bit D1 is one, block B can be reprogrammed. See Table 12-3 on page 64 for the

address locations in the protection register. To read the protection register, the Product ID Entry command is given followed by a normal read operation from an address within the protection register. After determining whether block B is protected or not, or reading the protection register, the Product ID Exit command must be given prior to performing any other operation.

RDY/BUSY

An open-drain READY/BUSY output pin provides another method of detecting the end of a program or erase operation. RDY/BUSY is actively pulled low during the internal program and erase cycles and is released at the completion of the cycle. The open-drain connection allows for OR-

tying of several devices to the same RDY/BUSY line. See Table 12-1, “Status Bit Table,” on page 62 for more details.

Common Flash Interface (CFI)

CFI is a published, standardized data structure that may be read from a flash device. CFI allows system software to query the installed device to determine the configurations, various electrical and timing parameters, and functions supported by the device. CFI is used to allow the system to learn how to interface to the flash device most optimally. The two primary benefits of using

CFI are ease of upgrading and second source availability. The command to enter the CFI Query mode is a one-bus cycle command which requires writing data 98h to address 55h. The CFI

Query command can be written when the device is ready to read data or can also be written when the part is in the product ID mode. Once in the CFI Query mode, the system can read CFI data at the addresses given in

Table 12-5, “Common Flash Interface Definition,” on page 68

. To exit the CFI Query mode, the product ID exit command must be given.

Hardware Data Protection

The Hardware Data Protection feature protects against inadvertent programs to the Flash Memory in the following ways: (a) V

CC

sense: if V

CC

is below 1.8V (typical), the program function is inhibited. (b) Program inhibit: holding any one of OE low, CE high or WE high inhibits program cycles.

56

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.3.10

Input Levels

While operating with a 2.65V to 3.6V power supply, the address inputs and control inputs (OE,

CE and WE) may be driven from 0 to 5.5V without adversely affecting the operation of the device. The I/O lines can only be driven from 0 to V

CC

+ 0.6V.

6410B–ATARM–12-Jan-10

57

Figure 12-2.

Data Polling Algorithm (Configuration Register = 00)

START

Read I/O7 - I/O0

Addr = VA

NO

I/O7 = Data?

NO

I/O5 = 1?

YES

YES

Read I/O7 - I/O0

Addr = VA

I/O7 = Data?

NO

Program/Erase

Operation

Not Successful,

Write Product ID

Exit Command

YES

Program/Erase

Operation

Successful,

Device in

Read Mode

Notes: 1. VA = Valid address for programming. During a sector erase operation, a valid address is any sector address within the sector being erased. During chip erase, a valid address is any nonprotected sector address.

2. I/O7 should be rechecked even if I/O5 = “1” because I/O7 may change simultaneously with

I/O5.

58

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 12-3.

Data Polling Algorithm (Configuration Register = 01)

START

Read I/O7 - I/O0

Addr = VA

NO

I/O7 = Data?

NO

I/O5 = 1?

YES

YES

Read I/O7 - I/O0

Addr = VA

I/O7 = Data?

NO

Program/Erase

Operation

Not Successful,

Write Product ID

Exit Command

YES

Program/Erase

Operation

Successful,

Write Product ID

Exit Command

Notes: 1. VA = Valid address for programming. During a sector erase operation, a valid address is any sector address within the sector being erased. During chip erase, a valid address is any nonprotected sector address.

2. I/O7 should be rechecked even if I/O5 = “1” because I/O7 may change simultaneously with

I/O5.

59

Figure 12-4.

Toggle Bit Algorithm (Configuration Register = 00)

START

Read I/O7 - I/O0

NO

Read I/O7 - I/O0

Toggle Bit =

Toggle?

YES

I/O5 = 1?

NO

YES

Read I/O7 - I/O0

Twice

Toggle Bit =

Toggle?

YES

Program/Erase

Operation

Not Successful,

Write Product ID

Exit Command

NO

Program/Erase

Operation

Successful,

Device in

Read Mode

Note: The system should recheck the toggle bit even if I/O5 = “1” because the toggle bit may stop toggling as I/O5 changes to “1”.

60

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

Figure 12-5.

Toggle Bit Algorithm (Configuration Register = 01)

START

Read I/O7 - I/O0

AT91FR40162SB

NO

Read I/O7 - I/O0

Toggle Bit =

Toggle?

YES

I/O5 = 1?

NO

YES

Read I/O7 - I/O0

Twice

Toggle Bit =

Toggle?

YES

Program/Erase

Operation

Not Successful,

Write Product ID

Exit Command

NO

Program/Erase

Operation

Successful,

Write Product ID

Exit Command

Note: The system should recheck the toggle bit even if I/O5 = “1” because the toggle bit may stop toggling as I/O5 changes to “1”.

61

12.4

Status Bit Table

Table 12-1.

Status Bit Table

Configuration Register

Programming

Erasing

Erase Suspended & Read

Erasing Sector

Erase Suspended & Read

Non-erasing Sector

Erase Suspended & Program

Non-erasing Sector

Erase Suspended & Program

Suspended and Reading from

Non-suspended Sectors

I/O7

00

I/O7

0

1

DATA

I/O7

DATA

I/O7

01

0

0

1

DATA

0

DATA

I/O6

00/01

Status Bit

I/O5

(1)

TOGGLE

TOGGLE

1

DATA

TOGGLE

DATA

00/01

0

0

0

DATA

0

DATA

I/O2

00/01

1

TOGGLE

TOGGLE

DATA

TOGGLE

DATA

RDY/BUSY

00/01

0

0

1

1

0

1

Program Suspended & Read

Programming Sector

I/O7 1 1 0 TOGGLE 1

Program Suspended & Read

Non-programming Sector

DATA DATA DATA DATA DATA 1

Note: 1. I/O5 switches to a “1” when a program or an erase operation has exceeded the maximum time limits or when a program or sector erase operation is performed on a protected sector.

62

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.5

Flash Memory Command Definition

Table 12-2.

Command Definition Table

Command

Sequence

Read

Chip Erase

Sector Erase

Byte/Word Program

Enter Single Pulse

Program Mode

Single Pulse

Byte/Word Program

Sector Lockdown

Erase/Program

Suspend

Erase/Program

Resume

Product ID Entry

Product ID Exit

(6)

Product ID Exit

(6)

Program Protection

Register

Lock Protection

Register - Block B

Status of Block B

Protection

Bus

Cycles

1

6

6

4

6

1

6

1

1

3

3

1

4

4

4

1st Bus

Cycle

Addr

Addr

Data

555

555

D

OUT

AA

AA

555 AA

555

Addr

555

XXX

XXX

555

555

XXX

555

555

555

AA

D

IN

AA

B0

30

AA

AA

F0

(8)

AA

AA

AA

2nd Bus

Cycle

Addr Data

AAA

(2)

AAA

AAA

AAA

AAA

(2)

AAA

AAA

AAA

AAA

AAA

55

55

55

55

55

55

55

55

55

55

3rd Bus

Cycle

Addr Data

555

555

555

555

555

555

555

555

555

555

80

80

A0

80

80

90

F0

(8)

C0

C0

90

4th Bus

Cycle

Addr Data

555

555

Addr

555

555

Addr

(10)

080

80

AA

AA

D

IN

AA

AA

D

IN

X0

D

OUT

(6)

5th Bus

Cycle

Addr Data

AAA

AAA

AAA

AAA

55

55

55

55

6th Bus

Cycle

Addr Data

555

SA

(3)(4)

555

SA

(3)(4)

10

30

A0

60

Set Configuration

Register

CFI Query

(9)

4 555 AA AAA 55 555 D0 XXX 00/01

(7)

1 X55 98

Notes: 1. The DATA FORMAT shown for each bus cycle is as follows; I/O7 - I/O0 (Hex). In word operation I/O15 - I/O8 are don’t care. The ADDRESS FORMAT shown for each bus cycle is as follows: A11 - A0 (Hex). Address A19 through A11 are don’t care in the word mode. Address A19 through A11 and A-1 are don’t care in the byte mode.

2. Since A11 is a Don’t Care, AAA can be replaced with 2AA.

3. SA = sector address. Any byte/word address within a sector can be used to designate the sector address (see

Section 12.7

“Sector Address” on page 65 for details).

4. Once a sector is in the lockdown mode, data in the protected sector cannot be changed unless the chip is reset or power cycled.

5. Either one of the Product ID Exit commands can be used.

6. If data bit D1 is “0”, block B is locked. If data bit D1 is “1”, block B can be reprogrammed.

7. The default state (after power-up) of the configuration register is “00”.

8. Bytes of data other than F0 may be used to exit the Product ID mode. However, it is recommended that F0 be used.

9. When accessing data in the CFI table, the address format is A15- A0 (Hex) in word mode, A14-A0 (Hex) and A-1 = 0 in byte mode.

10. Any address within the user programmable register region. Address locations are shown in Table 12-3 on page 64

.

63

6410B–ATARM–12-Jan-10

12.6

Protection Register Addressing

Table 12-3.

Protection Register Addressing Table

(1)

Word

0

1

2

Use

Factory

Factory

Factory

Block

A

A

A

A7

1

1

1

A6

0

0

0

A5

0

0

0

A4

0

0

0

A3

0

0

0

A2

0

0

0

A1

0

1

1

5

6

3

4

Factory

User

User

User

A

B

B

B

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

1

1

7 User B 1 0 0 0 1 0 0 0

Note: 1. All address lines not specified in the above table must be “0” when accessing the protection register, i.e., A19 - A8 = 0.

0

1

0

1

A0

1

0

1

64

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.7

Sector Address

Table 12-4.

Sector Address Table

SA4

SA5

SA6

SA7

SA8

SA9

SA10

SA11

Sector

SA0

SA1

SA2

SA3

SA12

SA13

SA14

SA15

SA16

SA17

SA18

SA19

SA20

SA21

SA32

SA33

SA34

SA35

SA36

SA37

SA38

SA22

SA23

SA24

SA25

SA26

SA27

SA28

SA29

SA30

SA31

Size (Bytes/Words)

8K/4K

8K/4K

8K/4K

8K/4K

8K/4K

8K/4K

8K/4K

8K/4K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

64K/32K

6410B–ATARM–12-Jan-10

x8

Address Range (A19 - A-1)

000000 - 001FFF

002000 - 003FFF

004000 - 005FFF

006000 - 007FFF

008000 - 009FFF

00A000 - 00BFFF

00C000 - 00DFFF

00E000 - 00FFFF

010000 - 01FFFF

020000 - 02FFFF

030000 - 03FFFF

040000 - 04FFFF

050000 - 05FFFF

060000 - 06FFFF

070000 - 07FFFF

080000 - 08FFFF

090000 - 09FFFF

0A0000 - 0AFFFF

0B0000 - 0BFFFF

0C0000 - 0CFFFF

0D0000 - 0DFFFF

0E0000 - 0EFFFF

0F0000 - 0FFFFF

100000 - 10FFFF

110000 - 11FFFF

120000 - 12FFFF

130000 - 13FFFF

140000 - 14FFFF

150000 - 15FFFF

160000 - 16FFFF

170000 - 17FFFF

180000 - 18FFFF

190000 - 19FFFF

1A0000 - 1AFFFF

1B0000 - 1BFFFF

1C0000 - 1CFFFF

1D0000 - 1DFFFF

1E0000 - 1EFFFF

1F0000 - 1FFFFF

x16

Address Range (A19 - A0)

00000 - 00FFF

01000 - 01FFF

02000 - 02FFF

03000 - 03FFF

04000 - 04FFF

05000 - 05FFF

06000 - 06FFF

07000 - 07FFF

08000 - 0FFFF

10000 - 17FFF

18000 - 1FFFF

20000 - 27FFF

28000 - 2FFFF

30000 - 37FFF

38000 - 3FFFF

40000 - 47FFF

48000 - 4FFFF

50000 - 57FFF

58000 - 5FFFF

60000 - 67FFF

68000 - 6FFFF

70000 - 77FFF

78000 - 7FFFF

80000 - 87FFF

88000 - 8FFFF

90000 - 97FFF

98000 - 9FFFF

A0000 - A7FFF

A8000 - AFFFF

B0000 - B7FFF

B8000 - BFFFF

C0000 - C7FFF

C8000 - CFFFF

D0000 - D7FFF

D8000 - DFFFF

E0000 - E7FFF

E8000 - EFFFF

F0000 - F7FFF

F8000 - FFFFF

65

12.8

Software Product Identification Entry

Figure 12-6.

Software Product Identification Entry

(1)

LOAD DATA AA

TO

ADDRESS 555

LOAD DATA 55

TO

ADDRESS AAA

LOAD DATA 90

TO

ADDRESS 555

ENTER PRODUCT

IDENTIFICATION

MODE

(2)(3)(5)

12.9

Software Product Identification Exit

Figure 12-7.

Software Product Identification Exit

(1) (6)

OR

LOAD DATA AA

TO

ADDRESS 555

LOAD DATA F0

TO

ANY ADDRESS

LOAD DATA 55

TO

ADDRESS AAA

LOAD DATA F0

TO

ADDRESS 555

EXIT PRODUCT

IDENTIFICATION

MODE

(4)

EXIT PRODUCT

IDENTIFICATION

MODE

(4)

Notes: 1. Data Format: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex) Address Format: A11 - A0 (Hex), A-

1, and A11 - A19 (Don’t Care).

2.

A

1 - A19 = V

IL

. Manufacturer Code is read for A0 = V

IL

; Device Code is read for A0 = V

IH

. Additional Device Code is read from address 0003H.

3. The device does not remain in identification mode if powered down.

4. The device returns to standard operation mode.

5. Manufacturer Code: 001FH

Device Code: 01C0H

6. Either one of the Product ID Exit commands can be used.

66

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

12.10 Sector Lockdown Enable Algorithm

Figure 12-8.

Sector Lockdown Enable Algorithm

(1)

LOAD DATA AA

TO

ADDRESS 555

LOAD DATA 55

TO

ADDRESS AAA

LOAD DATA 80

TO

ADDRESS 555

LOAD DATA AA

TO

ADDRESS 555

LOAD DATA 55

TO

ADDRESS AAA

LOAD DATA 60

TO

SECTOR ADDRESS

PAUSE 200

µs

(2)

Notes: 1. Data Format: I/O15 - I/O8 (Don’t Care); I/O7 - I/O0 (Hex) Address Format: A11 - A0 (Hex), A-

1, and A11 - A19 (Don’t Care).

2. Sector Lockdown feature enabled.

67

6410B–ATARM–12-Jan-10

12.11 Common Flash Interface Definition

Table 12-5.

Common Flash Interface Definition

Address

[x16 Mode]

10h

11h

Address

[x8 Mode]

20h

22h

Data

0051h

0052h

28h

29h

2Ah

2Bh

24h

25h

26h

27h

2Ch

2Dh

2Eh

2Fh

30h

31h

32h

1Fh

20h

21h

22h

23h

16h

17h

18h

19h

1Ah

12h

13h

14h

15h

1Bh

1Ch

1Dh

1Eh

50h

52h

54h

56h

48h

4Ah

4Ch

4Eh

58h

5Ah

5Ch

5Eh

60h

62h

64h

3Eh

40h

42h

44h

46h

2Ch

2Eh

30h

32h

34h

24h

26h

28h

2Ah

36h

38h

3Ah

3Ch

0004h

0000h

0009h

000Eh

0004h

0000h

0004h

0004h

0015h

0002h

0000h

0000h

0000h

0002h

0007h

0000h

0020h

0000h

001Eh

0000h

0059h

0002h

0000h

0041h

0000h

0000h

0000h

0000h

0000h

0027h

0036h

0000h

0000h

68

AT91FR40162SB

Comments

“Q”

“R”

“Y”

V

CC

min write/erase

V

CC

max write/erase

V

PP

min voltage

V

PP

max voltage

Typ word write – 10 µs

Typ sector erase: 500 ms

Typ chip erase: 16,000 ms

Max word write/typ time

N/A

Max sector erase/typ sector erase

Max chip erase/typ chip erase

Device size x8/x16 device x8/x16 device

Multiple byte write not supported

Multiple byte write not supported

2 regions, X = 2

8K bytes, Y = 7

8K bytes, Y = 7

8K bytes, Z = 32

8K bytes, Z = 32

64K bytes, Y = 30

64K bytes, Y = 30

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table 12-5.

Common Flash Interface Definition (Continued)

Address

[x16 Mode]

33h

34h

41h

42h

43h

44h

45h

46h

47h

48h

49h

4Ah

4Bh

4Ch

Address

[x8 Mode]

66h

68h

82h

84h

86h

88h

8Ah

8Ch

8Eh

90h

92h

94h

96h

98h

Data

0000h

0001h

Comments

64K bytes, Z = 256

64K bytes, Z = 256

Vendor Specific Extended Query

0050h “P”

0052h “R”

0049h

0031h

0030h

“I”

Major version number, ASCII

0087h

0000h (top) or

0001h (bottom)

0000h

0000h

Minor version number, ASCII

Bit 0 – chip erase supported, 0 – no, 1 – yes

Bit 1 – erase suspend supported, 0 – no, 1 – yes

Bit 2 – program suspend supported, 0 – no, 1 – yes

Bit 3 – simultaneous operations supported,

0 – no, 1 – yes

Bit 4 – burst mode read supported, 0 – no, 1 – yes

Bit 5 – page mode read supported, 0 – no, 1 – yes

Bit 6 – queued erase supported, 0 – no, 1 – yes

Bit 7 – protection bits supported, 0 – no, 1 – yes

Bit 8 – top (“0”) or bottom (“1”) boot block device undefined bits are “0”

Bit 0 – 4-word linear burst with wrap around,

0 – no, 1 – yes

Bit 1 – 8-word linear burst with wrap around,

0 – no, 1 – yes

Bit 2 – continuos burst, 0 – no, 1 – yes

Undefined bits are “0”

Bit 0 – 4-word page, 0 – no, 1 – yes

Bit 1 – 8-word page, 0 – no, 1 – yes

Undefined bits are “0”

0080h

0003h

0003h

Location of protection register lock byte, the section’s first byte

# of bytes in the factory prog section of prot register – 2*n

# of bytes in the user prog section of prot register – 2*n

69

6410B–ATARM–12-Jan-10

13. PS: Power-saving

The AT91X40 Series’ Power-saving feature enables optimization of power consumption. The PS controls the CPU and Peripheral Clocks. One control register (PS_CR) enables the user to stop the ARM7TDMI Clock and enter Idle Mode. One set of registers with a set/clear mechanism enables and disables the peripheral clocks individually.

The ARM7TDMI clock is enabled after a reset and is automatically re-enabled by any enabled interrupt in the Idle Mode.

13.1

Peripheral Clocks

The clock of each peripheral integrated in the AT91FR40162SB can be individually enabled and disabled by writing to the Peripheral Clock Enable (PS_PCER) and Peripheral Clock Disable

Registers (PS_PCDR). The status of the peripheral clocks can be read in the Peripheral Clock

Status Register (PS_PCSR).

When a peripheral clock is disabled, the clock is immediately stopped. When the clock is reenabled, the peripheral resumes action where it left off.

To avoid data corruption or erroneous behavior of the system, the system software only disables the clock after all programmed peripheral operations have finished.

The peripheral clocks are automatically enabled after a reset.

The bits that control the peripheral clocks are the same as those that control the Interrupt

Sources in the AIC.

70

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

13.2

Power Saving (PS) User Interface

Base Address

: 0xFFFF4000 (Code Label PS_BASE)

Table 13-1.

PS Memory Map

Offset

0x00

0x04

0x08

0x0C

Register

Control Register

Peripheral Clock Enable Register

Peripheral Clock Disable Register

Peripheral Clock Status Register

Name

PS_CR

PS_PCER

PS_PCDR

PS_PCSR

Write-only

Write-only

Write-only

Read-only

–

–

–

0x17C

6410B–ATARM–12-Jan-10

71

13.2.1

Name:

Access:

Offset:

PS Control Register

PS_CR

Write-only

0x00

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

–

27

–

19

–

11

–

3

–

• CPU: CPU Clock Disable

0 = No effect.

1 = Disables the CPU clock.

The CPU clock is re-enabled by any enabled interrupt or by hardware reset.

26

–

18

–

10

–

2

–

25

–

17

–

9

–

1

–

24

–

16

–

8

–

0

CPU

72

AT91FR40162SB

6410B–ATARM–12-Jan-10

13.2.2

Name

:

Access

:

Offset

:

PS Peripheral Clock Enable Register

PS_PCER

Write-only

0x04

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

TC2

29

–

21

–

13

–

5

TC1

28

–

20

–

12

–

4

TC0

• US0: USART 0 Clock Enable

0 = No effect.

1 = Enables the USART 0 clock.

• US1: USART 1 Clock Enable

0 = No effect.

1 = Enables the USART 1 clock.

• TC0: Timer Counter 0 Clock Enable

0 = No effect.

1 = Enables the Timer Counter 0 clock.

• TC1: Timer Counter 1 Clock Enable

0 = No effect.

1 = Enables the Timer Counter 1 clock.

• TC2: Timer Counter 2 Clock Enable

0 = No effect.

1 = Enables the Timer Counter 2 clock.

• PIO: Parallel IO Clock Enable

0 = No effect.

1 = Enables the Parallel IO clock.

27

–

19

–

11

–

3

US1

26

–

18

–

10

–

2

US0

AT91FR40162SB

25

–

17

–

9

–

1

–

24

–

16

–

8

PIO

0

–

73

6410B–ATARM–12-Jan-10

13.2.3

Name

:

Access

:

Offset

:

PS Peripheral Clock Disable Register

PS_PCDR

Write-only

0x08

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

TC2

29

–

21

–

13

–

5

TC1

28

–

20

–

12

–

4

TC0

• US0: USART 0 Clock Disable

0 = No effect.

1 = Disables the USART 0 clock.

• US1: USART 1 Clock Disable

0 = No effect.

1 = Disables the USART 1 clock.

• TC0: Timer Counter 0 Clock Disable

0 = No effect.

1 = Disables the Timer Counter 0 clock.

• TC1: Timer Counter 1 Clock Disable

0 = No effect.

1 = Disables the Timer Counter 1 clock.

• TC2: Timer Counter 2 Clock Disable

0 = No effect.

1 = Disables the Timer Counter 2 clock.

• PIO: Parallel IO Clock Disable

0 = No effect.

1 = Disables the Parallel IO clock.

27

–

19

–

11

–

3

US1

26

–

18

–

10

–

2

US0

25

–

17

–

9

–

1

–

24

–

16

–

8

PIO

0

–

74

AT91FR40162SB

6410B–ATARM–12-Jan-10

13.2.4

PS Peripheral Clock Status Register

Name

: PS_PCSR

Access

: Read-only

Reset Value

: 0x17C

Offset

: 0x0C

15

–

7

–

31

–

23

–

14

–

6

TC2

30

–

22

–

13

–

5

TC1

29

–

21

–

12

–

4

TC0

28

–

20

–

• US0: USART 0 Clock Status

0 = USART 0 clock is disabled.

1 = USART 0 clock is enabled.

• US1: USART 1 Clock Status

0 = USART 1 clock is disabled.

1 = USART 1 clock is enabled.

• TC0: Timer Counter 0 Clock Status

0 = Timer Counter 0 clock is disabled.

1 = Timer Counter 0 clock is enabled.

• TC1: Timer Counter 1 Clock Status

0 = Timer Counter 1 clock is disabled.

1 = Timer Counter 1 clock is enabled.

• TC2: Timer Counter 2 Clock Status

0 = Timer Counter 2 clock is disabled.

1 = Timer Counter 2 clock is enabled.

• PIO: Parallel IO Clock Status

0 = Parallel IO clock is disabled.

1 = Parallel IO clock is enabled.

11

–

3

US1

27

–

19

–

10

–

2

US0

26

–

18

–

AT91FR40162SB

1

–

9

–

25

–

17

–

8

PIO

0

–

24

–

16

–

75

6410B–ATARM–12-Jan-10

14. AIC: Advanced Interrupt Controller

The AT91FR40162SB has an 8-level priority, individually maskable, vectored interrupt controller. This feature substantially reduces the software and real-time overhead in handling internal and external interrupts.

The interrupt controller is connected to the NFIQ (fast interrupt request) and the NIRQ (standard interrupt request) inputs of the ARM7TDMI processor. The processor’s NFIQ line can only be asserted by the external fast interrupt request input: FIQ. The NIRQ line can be asserted by the interrupts generated by the on-chip peripherals and the external interrupt request lines: IRQ0 to

IRQ2.

The 8-level priority encoder allows the customer to define the priority between the different NIRQ interrupt sources.

Internal sources are programmed to be level sensitive or edge triggered. External sources can be programmed to be positive or negative edge triggered or high- or low-level sensitive.

The interrupt sources are listed in Table 14-1 on page 77

and the AIC programmable registers in

Table 14-3 on page 84

.

14.1

Block Diagram

Figure 14-1.

Advanced Interrupt Controller Block Diagram

FIQ Source Memorization

NFIQ

Manager

NFIQ

Advanced Peripheral

Bus (APB)

Control

Logic

ARM7TDMI

Core

Internal Interrupt Sources

External Interrupt Sources

Memorization

Priority

Controller

NIRQ

Manager

NIRQ

Note: After a hardware reset, the AIC pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

76

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table 14-1.

AIC Interrupt Sources

Interrupt Source

(1)

0

7

8

5

6

3

4

1

2

Interrupt Name

FIQ

SWIRQ

US0IRQ

US1IRQ

TC0IRQ

TC1IRQ

TC2IRQ

WDIRQ

PIOIRQ

Interrupt Description

Fast Interrupt

Software Interrupt

USART Channel 0 interrupt

USART Channel 1 interrupt

Timer Channel 0 interrupt

Timer Channel 1 interrupt

Timer Channel 2 interrupt

13

14

15

16

9

10

11

12

–

–

–

IRQ0

–

–

–

–

Watchdog interrupt

Parallel I/O Controller interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

21

22

23

24

17

18

19

20

–

–

–

–

IRQ1

IRQ2

–

–

Reserved

External interrupt 0

External interrupt 1

External interrupt 2

Reserved

Reserved

Reserved

Reserved

25

26

27

28

–

–

–

–

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

29

30

–

–

Reserved

Reserved

31 – Reserved

Note: Reserved interrupt sources are not available. Corresponding registers must not be used and read 0.

77

6410B–ATARM–12-Jan-10

14.2

Hardware Interrupt Vectoring

The hardware interrupt vectoring reduces the number of instructions to reach the interrupt handler to only one. By storing the following instruction at address 0x00000018, the processor loads the program counter with the interrupt handler address stored in the AIC_IVR register. Execution is then vectored to the interrupt handler corresponding to the current interrupt.

ldr PC,[PC,# - &F20]

The current interrupt is the interrupt with the highest priority when the Interrupt Vector Register

(AIC_IVR) is read. The value read in the AIC_IVR corresponds to the address stored in the

Source Vector Register (AIC_SVR) of the current interrupt. Each interrupt source has its corresponding AIC_SVR. In order to take advantage of the hardware interrupt vectoring it is necessary to store the address of each interrupt handler in the corresponding AIC_SVR, at system initialization.

14.3

Priority Controller

The NIRQ line is controlled by an 8-level priority encoder. Each source has a programmable priority level of 7 to 0. Level 7 is the highest priority and level 0 the lowest.

When the AIC receives more than one unmasked interrupt at a time, the interrupt with the highest priority is serviced first. If both interrupts have equal priority, the interrupt with the lowest

interrupt source number is serviced first (see Table 14-1 on page 77

).

The current priority level is defined as the priority level of the current interrupt at the time the register AIC_IVR is read (the interrupt which will be serviced).

In the case when a higher priority unmasked interrupt occurs while an interrupt already exists, there are two possible outcomes depending on whether the AIC_IVR has been read.

• If the NIRQ line has been asserted but the AIC_IVR has not been read, then the processor will read the new higher priority interrupt handler address in the AIC_IVR register and the current interrupt level is updated.

• If the processor has already read the AIC_IVR then the NIRQ line is reasserted. When the processor has authorized nested interrupts to occur and reads the AIC_IVR again, it reads the new, higher priority interrupt handler address. At the same time the current priority value is pushed onto a first-in last-out stack and the current priority is updated to the higher priority.

When the end of interrupt command register (AIC_EOICR) is written the current interrupt level is updated with the last stored interrupt level from the stack (if any). Hence at the end of a higher priority interrupt, the AIC returns to the previous state corresponding to the preceding lower priority interrupt which had been interrupted.

14.4

Interrupt Handling

The interrupt handler must read the AIC_IVR as soon as possible. This de-asserts the NIRQ request to the processor and clears the interrupt in case it is programmed to be edge triggered.

This permits the AIC to assert the NIRQ line again when a higher priority unmasked interrupt occurs.

At the end of the interrupt service routine, the end of interrupt command register (AIC_EOICR) must be written. This allows pending interrupts to be serviced.

78

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

14.5

Interrupt Masking

Each interrupt source, including FIQ, can be enabled or disabled using the command registers

AIC_IECR and AIC_IDCR. The interrupt mask can be read in the read-only register AIC_IMR. A disabled interrupt does not affect the servicing of other interrupts.

14.6

Interrupt Clearing and Setting

All interrupt sources which are programmed to be edge triggered (including FIQ) can be individually set or cleared by respectively writing to the registers AIC_ISCR and AIC_ICCR. This function of the interrupt controller is available for auto-test or software debug purposes.

14.7

Fast Interrupt Request

The external FIQ line is the only source which can raise a fast interrupt request to the processor.

Therefore, it has no priority controller.

The external FIQ line can be programmed to be positive or negative edge triggered or high- or low-level sensitive in the AIC_SMR0 register.

The fast interrupt handler address can be stored in the AIC_SVR0 register. The value written into this register is available by reading the AIC_FVR register when an FIQ interrupt is raised. By storing the following instruction at address 0x0000001C, the processor will load the program counter with the interrupt handler address stored in the AIC_FVR register.

ldr PC,[PC,# -&F20]

Alternatively the interrupt handler can be stored starting from address 0x0000001C as described in the ARM7TDMI datasheet.

14.8

Software Interrupt

Interrupt source 1 of the advanced interrupt controller is a software interrupt. It must be programmed to be edge triggered in order to set or clear it by writing to the AIC_ISCR and

AIC_ICCR.

This is totally independent of the SWI instruction of the ARM7TDMI processor.

14.9

Spurious Interrupt

When the AIC asserts the NIRQ line, the ARM7TDMI enters IRQ Mode and the interrupt handler reads the IVR. It may happen that the AIC de-asserts the NIRQ line after the core has taken into account the NIRQ assertion and before the read of the IVR.

This behavior is called a Spurious Interrupt.

The AIC is able to detect these Spurious Interrupts and returns the Spurious Vector when the

IVR is read. The Spurious Vector can be programmed by the user when the vector table is initialized.

A spurious interrupt may occur in the following cases:

• With any sources programmed to be level sensitive, if the interrupt signal of the AIC input is de-asserted at the same time as it is taken into account by the ARM7TDMI.

• If an interrupt is asserted at the same time as the software is disabling the corresponding source through AIC_IDCR (this can happen due to the pipelining of the ARM core).

79

6410B–ATARM–12-Jan-10

The same mechanism of spurious interrupt occurs if the ARM7TDMI reads the IVR (application software or ICE) when there is no interrupt pending. This mechanism is also valid for the FIQ interrupts.

Once the AIC enters the spurious interrupt management, it asserts neither the NIRQ nor the

NFIQ lines to the ARM7TDMI as long as the spurious interrupt is not acknowledged. Therefore, it is mandatory for the Spurious Interrupt Service Routine to acknowledge the “spurious” behavior by writing to the AIC_EOICR (End of Interrupt) before returning to the interrupted software. It also can perform other operation(s), e.g., trace possible undesirable behavior.

14.10 Protect Mode

The Protect Mode permits reading of the Interrupt Vector Register without performing the associated automatic operations. This is necessary when working with a debug system.

When a Debug Monitor or an ICE reads the AIC User Interface, the IVR could be read. This would have the following consequences in Normal Mode.

• If an enabled interrupt with a higher priority than the current one is pending, it would be stacked

• If there is no enabled pending interrupt, the spurious vector would be returned.

In either case, an End of Interrupt command would be necessary to acknowledge and to restore the context of the AIC. This operation is generally not performed by the debug system. Hence the debug system would become strongly intrusive, and could cause the application to enter an undesired state.

This is avoided by using Protect Mode.

The Protect Mode is enabled by setting the AIC bit in the SF Protect Mode Register (see

Section

17. “SF: Special Function Registers” on page 113 ).

When Protect Mode is enabled, the AIC performs interrupt stacking only when a write access is performed on the AIC_IVR. Therefore, the Interrupt Service Routines must write (arbitrary data) to the AIC_IVR just after reading it.

The new context of the AIC, including the value of the Interrupt Status Register (AIC_ISR), is updated with the current interrupt only when IVR is written.

An AIC_IVR read on its own (e.g. by a debugger), modifies neither the AIC context nor the

AIC_ISR.

Extra AIC_IVR reads performed in between the read and the write can cause unpredictable results. Therefore, it is strongly recommended not to set a breakpoint between these two actions, nor to stop the software.

The debug system must not write to the AIC_IVR as this would cause undesirable effects.

The following table shows the main steps of an interrupt and the order in which they are performed according to the mode:

80

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table 14-2.

Order of Interrupt Steps According to Mode

Action

Calculate active interrupt (higher than current or spurious)

Determine and return the vector of the active interrupt

Memorize interrupt

Normal Mode

Read AIC_IVR

Read AIC_IVR

Read AIC_IVR

Protect Mode

Read AIC_IVR

Read AIC_IVR

Read AIC_IVR

Push on internal stack the current priority level

Acknowledge the interrupt

(1)

Read AIC_IVR

Read AIC_IVR

Write AIC_IVR

Write AIC_IVR

No effect

(2)

Write AIC_IVR

Notes: 1. NIRQ de-assertion and automatic interrupt clearing if the source is programmed as level sensitive.

–

2. Software that has been written and debugged using Protect Mode will run correctly in Normal Mode without modification.

However, in Normal Mode the AIC_IVR write has no effect and can be removed to optimize the code.

14.11 Standard Interrupt Sequence

It is assumed that:

• The Advanced Interrupt Controller has been programmed, AIC_SVR are loaded with corresponding interrupt service routine addresses and interrupts are enabled.

• The Instruction at address 0x18(IRQ exception vector address) is ldr pc, [pc, # - &F20]

When NIRQ is asserted, if the bit I of CPSR is 0, the sequence is:

1. The CPSR is stored in SPSR_irq, the current value of the Program Counter is loaded in the IRQ link register (r14_irq) and the Program Counter (r15) is loaded with 0x18. In the following cycle during fetch at address 0x1C, the ARM core adjusts r14_irq, decrementing it by 4.

2. The ARM core enters IRQ Mode, if it is not already.

3. When the instruction loaded at address 0x18 is executed, the Program Counter is loaded with the value read in AIC_IVR. Reading the AIC_IVR has the following effects:

– Set the current interrupt to be the pending one with the highest priority. The current level is the priority level of the current interrupt.

– De-assert the NIRQ line on the processor. (Even if vectoring is not used, AIC_IVR must be read in order to de-assert NIRQ)

– Automatically clear the interrupt, if it has been programmed to be edge triggered

– Push the current level on to the stack

– Return the value written in the AIC_SVR corresponding to the current interrupt

4. The previous step has effect to branch to the corresponding interrupt service routine.

This should start by saving the Link Register(r14_irq) and the SPSR (SPSR_irq). Note that the Link Register must be decremented by 4 when it is saved, if it is to be restored directly into the Program Counter at the end of the interrupt.

5. Further interrupts can then be unmasked by clearing the I bit in the CPSR, allowing reassertion of the NIRQ to be taken into account by the core. This can occur if an interrupt with a higher priority than the current one occurs.

6. The Interrupt Handler can then proceed as required, saving the registers which will be used and restoring them at the end. During this phase, an interrupt of priority higher than the current level will restart the sequence from step 1. Note that if the interrupt is

81

6410B–ATARM–12-Jan-10

programmed to be level sensitive, the source of the interrupt must be cleared during this phase.

7. The I bit in the CPSR must be set in order to mask interrupts before exiting, to ensure that the interrupt is completed in an orderly manner.

8. The End Of Interrupt Command Register (AIC_EOICR) must be written in order to indicate to the AIC that the current interrupt is finished. This causes the current level to be popped from the stack, restoring the previous current level if one exists on the stack. If another interrupt is pending, with lower or equal priority than old current level but with higher priority than the new current level, the NIRQ line is re-asserted, but the interrupt sequence does not immediately start because the I bit is set in the core.

9. The SPSR (SPSR_irq) is restored. Finally, the saved value of the Link Register is restored directly into the PC. This has effect of returning from the interrupt to whatever was being executed before, and of loading the CPSR with the stored SPSR, masking or unmasking the interrupts depending on the state saved in the SPSR (the previous state of the ARM core).

Note: The I bit in the SPSR is significant. If it is set, it indicates that the ARM core was just about to mask

IRQ interrupts when the mask instruction was interrupted. Hence, when the SPSR is restored, the mask instruction is completed (IRQ is masked).

14.12 Fast Interrupt Sequence

It is assumed that:

• The Advanced Interrupt Controller has been programmed, AIC_SVR[0] is loaded with fast interrupt service routine address and the fast interrupt is enabled.

• The Instruction at address 0x1C(FIQ exception vector address) is:

• ldr pc, [pc, # - &F20].

• Nested Fast Interrupts are not needed by the user.

When NFIQ is asserted, if the bit F of CPSR is 0, the sequence is:

1. The CPSR is stored in SPSR_fiq, the current value of the Program Counter is loaded in the FIQ link register (r14_fiq) and the Program Counter (r15) is loaded with 0x1C. In the following cycle, during fetch at address 0x20, the ARM core adjusts r14_fiq, decrementing it by 4.

2. The ARM core enters FIQ Mode.

3. When the instruction loaded at address 0x1C is executed, the Program Counter is loaded with the value read in AIC_FVR. Reading the AIC_FVR has effect of automatically clearing the fast interrupt (source 0 connected to the FIQ line), if it has been programmed to be edge triggered. In this case only, it de-asserts the NFIQ line on the processor.

4. The previous step has effect to branch to the corresponding interrupt service routine. It is not necessary to save the Link Register(r14_fiq) and the SPSR (SPSR_fiq) if nested fast interrupts are not needed.

5. The Interrupt Handler can then proceed as required. It is not necessary to save registers r8 to r13 because FIQ Mode has its own dedicated registers and the user r8 to r13 are banked. The other registers, r0 to r7, must be saved before being used, and restored at the end (before the next step). Note that if the fast interrupt is programmed to be level sensitive, the source of the interrupt must be cleared during this phase in order to de-assert the NFIQ line.

6. Finally, the Link Register (r14_fiq) is restored into the PC after decrementing it by 4

(with instruction sub pc, lr, #4 for example). This has effect of returning from the inter-

82

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

rupt to whatever was being executed before, and of loading the CPSR with the SPSR, masking or unmasking the fast interrupt depending on the state saved in the SPSR.

The F bit in the SPSR is significant. If it is set, it indicates that the ARM core was just about to mask FIQ interrupts when the mask instruction was interrupted. Hence when the SPSR is restored, the interrupted instruction is completed (FIQ is masked).

6410B–ATARM–12-Jan-10

83

14.13 AIC User Interface

Base Address:

0xFFFFF000 (Code Label AIC_BASE)

Table 14-3.

AIC Memory Map

–

0x0FC

0x100

0x104

0x108

0x10C

0x110

0x114

Offset

0x000

0x004

–

0x07C

0x080

0x084

0x118

0x11C

0x120

0x124

0x128

0x12C

0x130

0x134

Register

Source Mode Register 0

Source Mode Register 1

–

Source Mode Register 31

Source Vector Register 0

Source Vector Register 1

–

Source Vector Register 31

IRQ Vector Register

FIQ Vector Register

Interrupt Status Register

Interrupt Pending Register

(1)

Interrupt Mask Register

Core Interrupt Status Register

Reserved

Reserved

Interrupt Enable Command Register

Interrupt Disable Command Register

Interrupt Clear Command Register

Interrupt Set Command Register

End of Interrupt Command Register

Spurious Vector Register

Name

AIC_SMR0

AIC_SMR1

–

AIC_SMR31

AIC_SVR0

AIC_SVR1

–

AIC_SVR31

AIC_IVR

AIC_FVR

AIC_ISR

AIC_IPR

AIC_IMR

AIC_CISR

–

–

AIC_IECR

AIC_IDCR

AIC_ICCR

AIC_ISCR

AIC_EOICR

AIC_SPU

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Read-only

Read-only

Read-only

Read-only

Read-only

–

–

Write-only

Write-only

Write-only

Write-only

Write-only

Read/Write

0

0

0

0

0

0

0

0

0

0

0

(1)

–

–

–

–

–

0

–

–

0

0

Note: 1. The reset value of this register depends on the level of the External IRQ lines. All other sources are cleared at reset.

84

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

14.13.1

AIC Source Mode Register

Register Name

: AIC_SMR0 - AIC_SMR31

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x000 - 0x07C

15

–

7

–

31

–

23

–

14

–

6

30

–

22

–

SRCTYPE

13

–

5

29

–

21

–

12

–

4

–

28

–

20

–

11

–

3

–

27

–

19

–

10

–

2

26

–

18

–

• PRIOR: Priority Level (Code Label AIC_PRIOR)

Program the priority level for all sources except source 0 (FIQ).

The priority level can be between 0 (lowest) and 7 (highest).

The priority level is not used for the FIQ, in the SMR0.

• SRCTYPE: Interrupt Source Type

Program the input to be positive or negative level sensitive or positive or negative edge triggered.

The active level or edge is not programmable for the internal sources.

25

–

17

–

9

–

1

PRIOR

0

0

1

1

SRCTYPE

0

1

0

1

External Sources

Low Level Sensitive

Negative Edge Triggered

High Level Sensitive

Positive Edge Triggered

Code Label

AIC_SRCTYPE

AIC_SRCTYPE_EXT_LOW_LEVEL

AIC_SRCTYPE_EXT_NEGATIVE_EDGE

AIC_SRCTYPE_EXT_HIGH_LEVEL

AIC_SRCTYPE_EXT_POSITIVE_EDGE

8

–

0

24

–

16

– x x

SRCTYPE

0

1

Internal Sources

Level Sensitive

Edge Triggered

Code Label

AIC_SRCTYPE

AIC_SRCTYPE_INT_LEVEL

AIC_SRCTYPE_INT_EDGE

85

6410B–ATARM–12-Jan-10

14.13.2

AIC Source Vector Register

Register Name

: AIC_SVR0 - AIC_SVR31

Access Type

:Read/Write

Reset Value: 0

Offset

: 0x080 - 0x0FC

31 30 29 28 27 26 25

VECTOR

23 22 21 20 19 18 17

VECTOR

15 14 13 12 11 10 9

VECTOR

7 6 5 4 3 2 1

VECTOR

• VECTOR: Interrupt Handler Address

The user may store in these registers the addresses of the corresponding handler for each interrupt source.

8

0

24

16

14.13.3

AIC Interrupt Vector Register

Register Name

: AIC_IVR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x100

31 30 29 28 27 26 25 24

IRQV

23 22 21 20 19 18 17 16

IRQV

15 14 13 12 11 10 9 8

IRQV

7 6 5 4 3 2 1 0

IRQV

• IRQV: Interrupt Vector Register

The IRQ Vector Register contains the vector programmed by the user in the Source Vector Register corresponding to the current interrupt.

The Source Vector Register (1 to 31) is indexed using the current interrupt number when the Interrupt Vector Register is read.

When there is no current interrupt, the IRQ Vector Register reads 0.

86

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

14.13.4

AIC_FIQ Vector Register

Register Name

: AIC_FVR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x104

31 30 29 28 27 26 25 24

FIQV

23 22 21 20 19 18 17 16

FIQV

15 14 13 12 11 10 9 8

FIQV

7 6 5 4 3 2 1 0

FIQV

• FIQV: FIQ Vector Register

The FIQ Vector Register contains the vector programmed by the user in the Source Vector Register 0 which corresponds to FIQ.

14.13.5

AIC Interrupt Status Register

Register Name

: AIC_ISR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x108

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

• IRQID: Current IRQ Identifier (Code Label AIC_IRQID)

The Interrupt Status Register returns the current interrupt source number.

27

–

19

–

11

–

3

26

–

18

–

10

–

2

IRQID

25

–

17

–

9

–

1

24

–

16

–

8

–

0

87

6410B–ATARM–12-Jan-10

14.13.6

AIC Interrupt Pending Register

Register Name

: AIC_IPR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x10C

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

• Interrupt Pending

0 = Corresponding interrupt is inactive.

1 = Corresponding interrupt is pending.

14.13.7

AIC Interrupt Mask Register

Register Name

: AIC_IMR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x110

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

• Interrupt Mask

0 = Corresponding interrupt is disabled.

1 = Corresponding interrupt is enabled.

28

–

20

–

12

–

4

TC0IRQ

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

28

–

20

–

12

–

4

TC0IRQ

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

25

–

17

IRQ1

9

–

1

SWIRQ

25

–

17

IRQ1

9

–

1

SWIRQ

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

88

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

14.13.8

AIC Core Interrupt Status Register

Register Name

: AIC_CISR

Access Type

:Read-only

Reset Value: 0

Offset

: 0x114

15

–

7

–

31

–

23

–

14

–

6

–

30

–

22

–

13

–

5

–

29

–

21

–

• NFIQ: NFIQ Status (Code Label AIC_NFIQ)

0 = NFIQ line inactive.

1 = NFIQ line active.

• NIRQ: NIRQ Status (Code Label AIC_NIRQ)

0 = NIRQ line inactive.

1 = NIRQ line active.

12

–

4

–

28

–

20

–

14.13.9

AIC Interrupt Enable Command Register

Register Name

: AIC_IECR

Access Type: Write-only

Offset

: 0x120

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

28

–

20

–

12

–

4

TC0IRQ

• Interrupt Enable

0 = No effect.

1 = Enables corresponding interrupt.

11

–

3

–

27

–

19

–

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

10

–

2

–

26

–

18

–

25

–

17

IRQ1

9

–

1

SWIRQ

9

–

1

NIRQ

25

–

17

–

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

8

–

0

NFIQ

24

–

16

–

89

6410B–ATARM–12-Jan-10

14.13.10 AIC Interrupt Disable Command Register

Register Name

: AIC_IDCR

Access Type: Write-only

Offset

: 0x124

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

28

–

20

–

12

–

4

TC0IRQ

• Interrupt Disable

0 = No effect.

1 = Disables corresponding interrupt.

14.13.11 AIC Interrupt Clear Command Register

Register Name

: AIC_ICCR

Access Type: Write-only

Offset

: 0x128

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

28

–

20

–

12

–

4

TC0IRQ

• Interrupt Clear

0 = No effect.

1 = Clears corresponding interrupt.

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

25

–

17

IRQ1

9

–

1

SWIRQ

25

–

17

IRQ1

9

–

1

SWIRQ

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

90

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

14.13.12 AIC Interrupt Set Command Register

Register Name

: AIC_ISCR

Access Type: Write-only

Offset

: 0x12C

31

–

23

–

15

–

7

WDIRQ

30

–

22

–

14

–

6

TC2IRQ

29

–

21

–

13

–

5

TC1IRQ

28

–

20

–

12

–

4

TC0IRQ

• Interrupt Set

0 = No effect.

1 = Sets corresponding interrupt.

27

–

19

–

11

–

3

US1IRQ

26

–

18

IRQ2

10

–

2

US0IRQ

25

–

17

IRQ1

9

–

1

SWIRQ

24

–

16

IRQ0

8

PIOIRQ

0

FIQ

14.13.13 AIC End of Interrupt Command Register

Register Name

: AIC_EOICR

Access Type: Write-only

Offset

:

15

–

7

–

31

–

23

–

0x130

14

–

6

–

30

–

22

–

13

–

5

–

29

–

21

–

12

–

4

–

28

–

20

–

11

–

3

–

27

–

19

–

10

–

2

–

26

–

18

–

1

–

9

–

25

–

17

–

0

–

8

–

24

–

16

–

The End of Interrupt Command Register is used by the interrupt routine to indicate that the interrupt treatment is complete.

Any value can be written because it is only necessary to make a write to this register location to signal the end of interrupt treatment.

91

6410B–ATARM–12-Jan-10

14.13.14 AIC Spurious Vector Register

Register Name

:AIC_SPU

Access Type

:Read/Write

Reset Value

: 0

Offset

:

31

0x134

30 29 28 27

SPUVEC

23 22 21 20 19

SPUVEC

15 14 13 12 11

SPUVEC

7 6 5 4 3

SPUVEC

• SPUVEC: Spurious Interrupt Vector Handler Address

The user may store the address of the spurious interrupt handler in this register.

26

18

10

2

25

17

9

1

24

16

8

0

92

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15. PIO: Parallel I/O Controller

The AT91FR40162SB has 32 programmable I/O lines. Six pins are dedicated as general purpose I/O pins (P16, P17, P18, P19, P23 and P24). Other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins (see

Table 15-1 on page 96 ). The PIO controller also provides an internal interrupt signal to the Advanced Interrupt

Controller.

15.1

Multiplexed I/O Lines

Some I/O lines are multiplexed with an I/O signal of a peripheral. After reset, the pin is generally controlled by the PIO Controller and is in Input Mode.

Table 15-1 on page 96 indicates which of

these pins are not controlled by the PIO Controller after reset.

When a peripheral signal is not used in an application, the corresponding pin can be used as a parallel I/O. Each parallel I/O line is bi-directional, whether the peripheral defines the signal as

input or output. Figure 15-1 on page 95

shows the multiplexing of the peripheral signals with

Parallel I/O signals.

If a pin is multiplexed between the PIO Controller and a peripheral, the pin is controlled by the registers PIO_PER (PIO Enable) and PIO_PDR (PIO Disable). The register PIO_PSR (PIO Status) indicates whether the pin is controlled by the corresponding peripheral or by the PIO

Controller.

If a pin is a general-purpose parallel I/O pin (not multiplexed with a peripheral), PIO_PER and

PIO_PDR have no effect and PIO_PSR returns 1 for the bits corresponding to these pins.

When the PIO is selected, the peripheral input line is connected to zero.

15.2

Output Selection

The user can enable each individual I/O signal as an output with the registers PIO_OER (Output

Enable) and PIO_ODR (Output Disable). The output status of the I/O signals can be read in the register PIO_OSR (Output Status). The direction defined has effect only if the pin is configured to be controlled by the PIO Controller.

15.3

I/O Levels

Each pin can be configured to be driven high or low. The level is defined in four different ways, according to the following conditions.

If a pin is controlled by the PIO Controller and is defined as an output (see “Output Selection”

above), the level is programmed using the registers PIO_SODR (Set Output Data) and

PIO_CODR (Clear Output Data). In this case, the programmed value can be read in PIO_ODSR

(Output Data Status).

If a pin is controlled by the PIO Controller and is not defined as an output, the level is determined by the external circuit.

If a pin is not controlled by the PIO Controller, the state of the pin is defined by the peripheral

(see peripheral datasheets).

In all cases, the level on the pin can be read in the register PIO_PDSR (Pin Data Status).

93

6410B–ATARM–12-Jan-10

15.4

Interrupts

Each parallel I/O can be programmed to generate an interrupt when a level change occurs. This is controlled by the PIO_IER (Interrupt Enable) and PIO_IDR (Interrupt Disable) registers which enable/disable the I/O interrupt by setting/clearing the corresponding bit in the PIO_IMR. When a change in level occurs, the corresponding bit in the PIO_ISR (Interrupt Status) is set whether the pin is used as a PIO or a peripheral and whether it is defined as input or output. If the corresponding interrupt in PIO_IMR (Interrupt Mask) is enabled, the PIO interrupt is asserted.

When PIO_ISR is read, the register is automatically cleared.

15.5

User Interface

Each individual I/O is associated with a bit position in the Parallel I/O user interface registers.

Each of these registers are 32 bits wide. If a parallel I/O line is not defined, writing to the corresponding bits has no effect. Undefined bits read zero.

94

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 15-1.

Parallel I/O Multiplexed with a Bi-directional Signal

Pad

Pad Output Enable

Pad Output

Pad Input

PIO_OSR

1

0

1

0

PIO_PSR

1

0

0

1

PIO_PSR

PIO_ODSR

PIO_PDSR

Event

Detection

PIO_IMR

PIO_ISR

Peripheral

Output

Enable

Peripheral

Output

Peripheral

Input

PIOIRQ

95

6410B–ATARM–12-Jan-10

Table 15-1.

Multiplexed Parallel I/Os

PIO Controller Peripheral

10

11

12

13

8

9

6

7

Bit

Number

(1)

0

1

4

5

2

3

P10

P11

P12

P13

P6

P7

P8

P9

Port Name

P0

P1

P2

P3

P4

P5

Port Name

TCLK0

TIOA0

TIOB0

TCLK1

TIOA1

TIOB1

TCLK2

TIOA2

TIOB2

IRQ0

IRQ1

IRQ2

FIQ

SCK0

Signal Description

Timer 0 Clock signal

Timer 0 Signal A

Timer 0 Signal B

Timer 1 Clock signal

Timer 1 Signal A

Timer 1 Signal B

Timer 2 Clock signal

Timer 2 Signal A

Timer 2 Signal B

External Interrupt 0

External Interrupt 1

External Interrupt 2

Fast Interrupt

USART 0 clock signal

Signal Direction

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Input

Input

Input

Bi-directional

18

19

20

21

14

15

16

17

P18

P19

P20

P21

P14

P15

P16

P17

TXD0

RXD0

–

–

–

–

SCK1

TXD1

–

–

USART 0 transmit data signal

USART 0 receive data signal

–

–

USART 1 clock signal

USART 1 transmit data signal

Output

Input

–

–

–

–

Bi-directional

Output

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

26

27

28

29

22

23

24

25

P22

P23

P24

P25

P26

P27

P28

P29

RXD1

–

–

MCKO

NCS2

NCS3

A20/CS7

A21/CS6

USART 1 receive data signal

–

–

Master Clock Output

Chip Select 2

Chip Select 3

Address 20/Chip Select 7

Address 21/Chip Select 6

Input

–

–

Output

Output

Output

Output

Output

PIO Input

PIO Input

PIO Input

MCKO

NCS2

NCS3

A20

A21

30 P30 A22/CS5 Address 22/Chip Select 5 Output A22

31 P31 A23/CS4 Address 23/Chip Select 4 Output A23

Note: 1. Bit Number refers to the data bit that corresponds to this signal in each of the User Interface registers.

Reset State

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

99

100

25

26

76

83

84

85

29

30

72

73

74

75

68

69

70

71

63

64

66

67

57

58

59

60

Pin

Number

49

50

51

54

55

56

96

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15.6

PIO User Interface

PIO Base Address

:0xFFFF0000 (Code Label PIO_BASE)

Table 15-2.

PIO Controller Memory Map

Offset

0x00

0x04

0x08

0x28

0x2C

0x30

0x34

0x38

0x3C

0x40

0x44

0x48

0x4C

0x0C

0x10

0x14

0x18

0x1C

0x20

0x24

Register

PIO Enable Register

PIO Disable Register

PIO Status Register

Reserved

Output Enable Register

Output Disable Register

Output Status Register

Reserved

Input Filter Enable Register

Input Filter Disable Register

Set Output Data Register

Clear Output Data Register

Output Data Status Register

Pin Data Status Register

(1)

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Interrupt Status Register

(2)

Name

PIO_PER

PIO_PDR

PIO_PSR

–

PIO_OER

PIO_ODR

PIO_OSR

–

PIO_IFER

PIO_IFDR

Input Filter Status Register PIO_IFSR

Reserved –

PIO_SODR

PIO_CODR

PIO_ODSR

PIO_PDSR

PIO_IER

PIO_IDR

PIO_IMR

PIO_ISR

Write-only

Write-only

Read-only

–

Write-only

Write-only

Read-only

–

Write-only

Write-only

Read-only

–

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

–

–

0x01FFFFFF

(see

Table 15-1

)

–

0

–

–

–

0

–

–

–

–

–

0

(1)

–

–

0

(2)

Notes: 1. The reset value of this register depends on the level of the external pins at reset.

2. This register is cleared at reset. However, the first read of the register can give a value not equal to zero if any changes have occurred on any pins between the reset and the read.

97

6410B–ATARM–12-Jan-10

15.6.1

PIO Enable Register

Register Name

:PIO_PER

Access Type

:Write-only

Offset

: 0x00

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable individual pins to be controlled by the PIO Controller instead of the associated peripheral.

When the PIO is enabled, the associated peripheral input (if any) is held at logic zero.

1 = Enables the PIO to control the corresponding pin (disables peripheral control of the pin).

0 = No effect.

15.6.2

PIO Disable Register

Register Name

: PIO_PDR

Access Type

:Write-only

Offset

: 0x04

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO control of individual pins. When the PIO control is disabled, the normal peripheral function is enabled on the corresponding pin.

1 = Disables PIO control (enables peripheral control) on the corresponding pin.

0 = No effect.

98

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15.6.3

PIO Status Register

Register Name

:PIO_PSR

Access Type

:Read-only

Reset Value

: 0x01FFFFFF

Offset

: 0x08

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins are enabled for PIO control. This register is updated when PIO lines are enabled or disabled.

1 = PIO is active on the corresponding line (peripheral is inactive).

0 = PIO is inactive on the corresponding line (peripheral is active).

15.6.4

PIO Output Enable Register

Register Name

:PIO_OER

Access Type

:Write-only

Offset

: 0x10

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable PIO output drivers. If the pin is driven by a peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Enables the PIO output on the corresponding pin.

0 = No effect.

99

6410B–ATARM–12-Jan-10

15.6.5

PIO Output Disable Register

Register Name

:PIO_ODR

Access Type

:Write-only

Offset

: 0x14

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO output drivers. If the pin is driven by the peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Disables the PIO output on the corresponding pin.

0 = No effect.

15.6.6

PIO Output Status Register

Register Name

:PIO_OSR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x18

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the PIO pin control (output enable) status which is programmed in PIO_OER and PIO ODR. The defined value is effective only if the pin is controlled by the PIO. The register reads as follows:

1 = The corresponding PIO is output on this line.

0 = The corresponding PIO is input on this line.

100

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15.6.7

PIO Input Filter Enable Register

Register Name

:PIO_IFER

Access Type

:Write-only

Offset

: 0x20

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Enables the glitch filter on the corresponding pin.

0 = No effect.

15.6.8

PIO Input Filter Disable Register

Register Name

:PIO_IFDR

Access Type

:Write-only

Offset

: 0x24

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Disables the glitch filter on the corresponding pin.

0 = No effect.

101

6410B–ATARM–12-Jan-10

15.6.9

PIO Input Filter Status Register

Register Name

:PIO_IFSR

Access Type

:Read-only

Reset Value

:0

Offset

: 0x28

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins have glitch filters selected. It is updated when PIO outputs are enabled or disabled by writing to PIO_IFER or PIO_IFDR.

1 = Filter is selected on the corresponding input (peripheral and PIO).

0 = Filter is not selected on the corresponding input.

15.6.10

PIO Set Output Data Register

Register Name

:PIO_SODR

Access Type

:Write-only

Offset

: 0x30

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to set PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is set.

0 = No effect.

102

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15.6.11

PIO Clear Output Data Register

Register Name

:PIO_CODR

Access Type

:Write-only

Offset

: 0x34

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to clear PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is cleared.

0 = No effect.

15.6.12

PIO Output Data Status Register

Register Name

:PIO_ODSR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x38

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the output data status which is programmed in PIO_SODR or PIO_CODR. The defined value is effective only if the pin is controlled by the PIO Controller and only if the pin is defined as an output.

1 = The output data for the corresponding line is programmed to 1.

0 = The output data for the corresponding line is programmed to 0.

103

6410B–ATARM–12-Jan-10

15.6.13

PIO Pin Data Status Register

Register Name

:PIO_PDSR

Access Type

:Read-only

Reset Value

: see Table 15-2

Offset

: 0x3C

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the state of the physical pin of the chip. The pin values are always valid regardless of whether the pins are enabled as PIO, peripheral, input or output. The register reads as follows:

1 = The corresponding pin is at logic 1.

0 = The corresponding pin is at logic 0.

15.6.14

PIO Interrupt Enable Register

Register Name

:PIO_IER

Access Type

:Write-only

Offset

: 0x40

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

This register is used to enable PIO interrupts on the corresponding pin. It has effect whether PIO is enabled or not.

1 = Enables an interrupt when a change of logic level is detected on the corresponding pin.

0 = No effect.

8

P8

0

P0

24

P24

16

P16

104

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

15.6.15

PIO Interrupt Disable Register

Register Name

:PIO_IDR

Access Type

:Write-only

Offset

: 0x44

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO interrupts on the corresponding pin. It has effect whether the PIO is enabled or not.

1 = Disables the interrupt on the corresponding pin. Logic level changes are still detected.

0 = No effect.

15.6.16

PIO Interrupt Mask Register

Register Name

:PIO_IMR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x48

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows which pins have interrupts enabled. It is updated when interrupts are enabled or disabled by writing to

PIO_IER or PIO_IDR.

1 = Interrupt is enabled on the corresponding input pin.

0 = Interrupt is not enabled on the corresponding input pin.

105

6410B–ATARM–12-Jan-10

15.6.17

PIO Interrupt Status Register

Register Name

:PIO_ISR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x4C

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates for each pin when a logic value change has been detected (rising or falling edge). This is valid whether the PIO is selected for the pin or not and whether the pin is an input or output.

The register is reset to zero following a read, and at reset.

1 = At least one change has been detected on the corresponding pin since the register was last read.

0 = No change has been detected on the corresponding pin since the register was last read.

106

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

16. WD: Watchdog Timer

The AT91FR40162SB has an internal watchdog timer which can be used to prevent system lock-up if the software becomes trapped in a deadlock. In normal operation the user reloads the watchdog at regular intervals before the timer overflow occurs. If an overflow does occur, the watchdog timer generates one or a combination of the following signals, depending on the parameters in WD_OMR (Overflow Mode Register):

• If RSTEN is set, an internal reset is generated (WD_RESET as shown in Figure 16-1 ).

• If IRQEN is set, a pulse is generated on the signal WDIRQ which is connected to the

Advanced Interrupt Controller

• If EXTEN is set, a low level is driven on the NWDOVF signal for a duration of 8 MCK cycles.

The watchdog timer has a 16-bit down counter. Bits 12-15 of the value loaded when the watchdog is restarted are programmable using the HPVC parameter in WD_CMR (Clock Mode). Four clock sources are available to the watchdog counter: MCK/8, MCK/32, MCK/128 or MCK/1024.

The selection is made using the WDCLKS parameter in WD_CMR. This provides a programmable time-out period of 1 ms to 2 sec. with a 33 MHz system clock.

All write accesses are protected by control access keys to help prevent corruption of the watchdog should an error condition occur. To update the contents of the mode and control registers it is necessary to write the correct bit pattern to the control access key bits at the same time as the control bits are written (the same write access).

16.1

Block Diagram

Figure 16-1.

Watchdog Timer Block Diagram

Advanced

Peripheral

Bus (APB)

WD_RESET

WDIRQ

Control Logic

Overflow

NWDOVF

MCKI/8

MCKI/32

MCKI/128

MCKI/1024

Clock Select

Clear

CLK_CNT

16-bit

Programmable

Down Counter

107

6410B–ATARM–12-Jan-10

16.2

WD Enabling Sequence

To enable the Watchdog Timer the sequence is as follows:

1. Disable the Watchdog by clearing the bit WDEN:

Write 0x2340 to WD_OMR

This step is unnecessary if the WD is already disabled (reset state).

2. Initialize the WD Clock Mode Register:

Write 0x373C to WD_CMR

(HPCV = 15 and WDCLKS = MCK/8)

3. Restart the timer:

Write 0xC071 to WD_CR

4. Enable the watchdog:

Write 0x2345 to WD_OMR (interrupt enabled)

108

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

16.3

WD User Interface

WD Base Address

: 0xFFFF8000 (Code Label WD_BASE)

Table 16-1.

WD Memory Map

Offset

0x00

0x04

0x08

0x0C

Register

Overflow Mode Register

Clock Mode Register

Control Register

Status Register

Name

WD_OMR

WD_CMR

WD_CR

WD_SR

Read/Write

Read/Write

Write-only

Read-only

0

0

–

0

6410B–ATARM–12-Jan-10

109

16.3.1

Name

:

WD Overflow Mode Register

WD_OMR

Access

: Read/Write

Reset Value

: 0

Offset

: 0x00

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

27

–

19

–

11

OKEY

7 6

OKEY

5 4 3

EXTEN

• WDEN: Watch Dog Enable (Code Label WD_WDEN)

0 = Watch Dog is disabled and does not generate any signals.

1 = Watch Dog is enabled and generates enabled signals.

• RSTEN: Reset Enable (Code Label WD_RSTEN)

0 = Generation of an internal reset by the Watch Dog is disabled.

1 = When overflow occurs, the Watch Dog generates an internal reset.

• IRQEN: Interrupt Enable (Code Label WD_IRQEN)

0 = Generation of an interrupt by the Watch Dog is disabled.

1 = When overflow occurs, the Watch Dog generates an interrupt.

• EXTEN: External Signal Enable (Code Label WD_EXTEN)

0 = Generation of a pulse on the pin NWDOVF by the Watch Dog is disabled.

1 = When an overflow occurs, a pulse on the pin NWDOVF is generated.

• OKEY: Overflow Access Key (Code Label WD_OKEY)

Used only when writing WD_OMR. OKEY is read as 0.

0x234 = Write access in WD_OMR is allowed.

Other value = Write access in WD_OMR is prohibited.

2

IRQEN

26

–

18

–

10

25

–

17

–

9

1

RSTEN

24

–

16

–

8

0

WDEN

110

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

16.3.2

Name

:

WD Clock Mode Register

WD_CMR

Access

: Read/Write

Reset Value

: 0

Offset

: 0x04

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

27

–

19

–

11

26

–

18

–

10

25

–

17

–

9

CKEY

7

CKEY

6

–

• WDCLKS: Clock Selection

5 4

HPCV

3 2 1

WDCLKS

0

0

0

1

1

WDCLKS

0

1

0

1

Clock Selected

MCK/8

MCK/32

MCK/128

MCK/1024

Code Label

WD_WDCLKS

WD_WDCLKS_MCK8

WD_WDCLKS_MCK32

WD_WDCLKS_MCK128

WD_WDCLKS_MCK1024

• HPCV: High Preload Counter Value (Code Label WD_HPCV)

Counter is preloaded when watchdog counter is restarted with bits 0 to 11 set (FFF) and bits 12 to 15 equaling HPCV.

• CKEY: Clock Access Key (Code Label WD_CKEY)

Used only when writing WD_CMR. CKEY is read as 0.

0x06E: Write access in WD_CMR is allowed.

Other value: Write access in WD_CMR is prohibited.

24

–

16

–

8

111

6410B–ATARM–12-Jan-10

16.3.3

Name

:

Access

:

Offset

:

WD Control Register

WD_CR

Write-only

0x08

31

–

30

–

23

–

15

7

22

–

14

6

29

–

21

–

13

5

• RSTKEY: Restart Key (Code Label WD_RSTKEY)

0xC071 = Watch Dog counter is restarted.

Other value = No effect.

28

–

20

–

12

RSTKEY

4

RSTKEY

27

–

19

–

11

3

26

–

18

–

10

2

25

–

17

–

9

1

16.3.4

Name

:

Access

:

WD Status Register

WD_SR

Read-only

Reset Value

: 0

Offset

: 0x0C

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

–

27

–

19

–

11

–

3

–

26

–

18

–

10

–

2

–

25

–

17

–

9

–

1

–

24

–

16

–

8

–

0

WDOVF

• WDOVF: Watchdog Overflow (Code Label WD_WDOVF)

0 = No watchdog overflow.

1 = A watchdog overflow has occurred since the last restart of the watchdog counter or since internal or external reset.

24

–

16

–

8

0

112

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

17. SF: Special Function Registers

The AT91FR40162SB provides registers to implement the following special functions.

• Chip identification

• RESET status

• Protect Mode (see

Section 14.10 “Protect Mode” on page 80 )

17.1

Chip Identification

Table 17-1 provides the Chip ID values for the products as listed.

Table 17-1.

Chip ID Values

Product

AT91M40800

AT91M40800A

AT91R40807

AT91M40807

AT91R40008

Chip

0x14080044

0x14080045

0x44080746

0x14080745

0x44000840

113

6410B–ATARM–12-Jan-10

17.2

SF User Interface

Chip ID Base Address

= 0xFFF00000 (Code Label SF_BASE)

Table 17-2.

SF Memory Map

Offset

0x00

0x04

0x08

0x10

0x14

0x18

Register

Chip ID Register

Chip ID Extension Register

Reset Status Register

Reserved

Reserved

Protect Mode Register

Name

SF_CIDR

SF_EXID

SF_RSR

–

–

SF_PMR

Read-only

Read-only

Read-only

–

–

Read/Write

Hardwired

Hardwired

See register description

–

–

0x0

114

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

17.2.1

Chip ID Register

Register Name

:SF_CIDR

Access Type

:Read-only

Reset Value

: Hardwired

Offset

: 0x00

30 31

EXT

23 22

ARCH

29

NVPTYP

21

15 14 13

NVDSIZ

7

0

6

1

5

0

28

20

12

4

27

19

11

3

26

ARCH

18

VDSIZ

10

2

VERSION

NVPSIZ

25

17

9

1

• VERSION: Version of the chip (Code Label SF_VERSION)

This value is incremented by one with each new version of the chip (from zero to a maximum value of 31).

• NVPSIZ: Non Volatile Program Memory Size

0

0

0

0

1

1

1

0

0

0

NVPSIZ

Others

0

1

0

1

0

1

1

0

1

0

Size

None

32K bytes

64K bytes

128K bytes

256K bytes

Reserved

Code Label

SF_NVPSIZ

SF_NVPSIZ_NONE

SF_NVPSIZ_32K

SF_NVPSIZ_64K

SF_NVPSIZ_128K

SF_NVPSIZ_256K

–

24

16

8

0

• NVDSIZ: Non Volatile Data Memory Size

0 0

NVDSIZ

Others

0 0

Size

None

Reserved

Code Label

SF_NVDSIZ

SF_NVDSIZ_NONE

–

115

6410B–ATARM–12-Jan-10

• VDSIZ: Volatile Data Memory Size

0

0

0

0

1

0

1

0

0

0

VDSIZ

1

0

0

0

0

0

0

0

1

0

Size

None

1K bytes

2K bytes

4K bytes

8K bytes

Reserved Others

• ARCH: Chip Architecture (Code Label SF_ARCH)

Code of Architecture: Two BCD digits.

0100 0000

• NVPTYP: Non Volatile Program Memory Type

AT91x40yyy

0

0

1

1

NVPTYP

0

0 x

0

0

1 x

0

Type

Reserved

“F” Series

Reserved

“R” Series

• EXT: Extension Flag (Code Label SF_EXT)

0 = Chip ID has a single register definition without extensions

1 = An extended Chip ID exists (to be defined in the future).

Code Label

SF_VDSIZ

SF_VDSIZ_NONE

SF_VDSIZ_1K

SF_VDSIZ_2K

SF_VDSIZ_4K

SF_VDSIZ_8K

–

Code Label

SF_ARCH_AT91x40

Code Label

SF_NVPTYP

–

SF_NVPTYP_M

–

SF_NVPTYP_R

116

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

17.2.2

Chip ID Extension Register

Register Name

:SF_EXID

Access Type

:Read-only

Reset Value

: Hardwired

Offset

: 0x04

This register is reserved for future use. It will be defined when needed.

17.2.3

Reset Status Register

Register Name

:SF_RSR

Access Type

:Read-only

Reset Value

: See Below

Offset

: 0x08

31

–

23

–

15

–

7

30

–

22

–

14

–

6

29

–

21

–

13

–

5

28

–

20

–

12

–

4

27

–

19

–

11

–

3

26

–

18

–

10

–

2

25

–

17

–

9

–

1

24

–

16

–

8

–

0

RESET

• RESET: Reset Status Information

This field indicates whether the reset was demanded by the external system (via NRST) or by the Watchdog internal reset request.

Reset

0x6C

0x53

Cause of Reset

External Pin

Internal Watchdog

Code Label

SF_RESET

SF_EXT_RESET

SF_WD_RESET

117

6410B–ATARM–12-Jan-10

17.2.4

SF Protect Mode Register

Register Name

:SF_PMR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x18

31 30 29 28 27

PMRKEY

23 22 21 20 19

PMRKEY

15

–

7

–

14

–

6

–

13

–

5

AIC

12

–

4

–

• PMRKEY: Protect Mode Register Key (Code Label SF_PMRKEY)

Used only when writing SF_PMR. PMRKEY is reads 0.

0x27A8: Write access in SF_PMR is allowed.

Other value: Write access in SF_PMR is prohibited.

• AIC: AIC Protect Mode Enable (Code Label SF_AIC)

0 = The Advanced Interrupt Controller runs in Normal Mode.

1 = The Advanced Interrupt Controller runs in Protect Mode.

See

Section 14.10 “Protect Mode” on page 80

.

11

–

3

–

26

18

10

–

2

–

25

17

1

–

9

–

24

16

0

–

8

–

118

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18. USART: Universal Synchronous Asynchronous Receiver Transmitter

The AT91FR40162SB provides two identical, full-duplex, universal synchronous/asynchronous receiver/transmitters that interface to the APB and are connected to the Peripheral Data

Controller.

The main features are:

• Programmable Baud Rate Generator

• Parity, Framing and Overrun Error Detection

• Line Break Generation and Detection

• Automatic Echo, Local Loopback and Remote Loopback channel modes

• Multi-drop Mode: Address Detection and Generation

• Interrupt Generation

• Two Dedicated Peripheral Data Controller channels

• 5-, 6-, 7-, 8- and 9-bit character length

18.1

Block Diagram

Figure 18-1.

USART Block Diagram

ASB

AMBA

Peripheral Data Controller

Receiver

Channel

Transmitter

Channel

APB

Control Logic

USART Channel

Receiver

PIO:

Parallel

I/O

Controller

RXD

USxIRQ

Interrupt Control

MCK

MCK/8

Baud Rate Generator

Baud Rate Clock

Transmitter TXD

SCK

119

6410B–ATARM–12-Jan-10

18.2

Pin Description

Each USART channel has the following external signals:

Table 18-1.

Name

SCK

TXD

RXD

Description

USART Serial clock can be configured as input or output:

SCK is configured as input if an External clock is selected (USCLKS[1] = 1)

SCK is driven as output if the External Clock is disabled (USCLKS[1] = 0) and Clock output is enabled (CLKO = 1)

Transmit Serial Data is an output

Receive Serial Data is an input

Notes: 1. After a hardware reset, the USART pins are not enabled by default (see

“PIO: Parallel I/O Controller” on page 93 ). The user

must configure the PIO Controller before enabling the transmitter or receiver.

2. If the user selects one of the internal clocks, SCK can be configured as a PIO.

120

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.3

Baud Rate Generator

The Baud Rate Generator provides the bit period clock (the Baud Rate clock) to both the

Receiver and the Transmitter.

The Baud Rate Generator can select between external and internal clock sources. The external clock source is SCK. The internal clock sources can be either the master clock (MCK) or the master clock divided by 8 (MCK/8).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock.

When the USART is programmed to operate in Asynchronous Mode (SYNC = 0 in the Mode

Register US_MR), the selected clock is divided by 16 times the value (CD) written in US_BRGR

(Baud Rate Generator Register). If US_BRGR is set to 0, the Baud Rate Clock is disabled.

Baud Rate

=

Selected Clock

16 x CD

When the USART is programmed to operate in Synchronous Mode (SYNC = 1) and the selected clock is internal (USCLKS[1] = 0 in the Mode Register US_MR), the Baud Rate Clock is the internal selected clock divided by the value written in US_BRGR. If US_BRGR is set to 0, the

Baud Rate Clock is disabled.

Baud Rate

=

Selected Clock

CD

In Synchronous Mode with external clock selected (USCLKS[1] = 1), the clock is provided directly by the signal on the SCK pin. No division is active. The value written in US_BRGR has no effect.

Figure 18-2.

Baud Rate Generator

MCK

MCK/8

USCLKS [0]

USCLKS [1]

0

0

1

CLK

SCK

1

CD

16-bit Counter

OUT

0

CD

>1

1

0

0

Divide by 16

SYNC

0

1

Baud Rate

Clock

1

SYNC

USCLKS [1]

121

6410B–ATARM–12-Jan-10

18.4

Receiver

18.4.1

Asynchronous Receiver

The USART is configured for asynchronous operation when SYNC = 0 (bit 7 of US_MR). In

Asynchronous Mode, the USART detects the start of a received character by sampling the RXD signal until it detects a valid start bit. A low level (space) on RXD is interpreted as a valid start bit if it is detected for more than 7 cycles of the sampling clock, which is 16 times the baud rate.

Hence a space which is longer than 7/16 of the bit period is detected as a valid start bit. A space which is 7/16 of a bit period or shorter is ignored and the receiver continues to wait for a valid start bit.

When a valid start bit has been detected, the receiver samples the RXD at the theoretical midpoint of each bit. It is assumed that each bit lasts 16 cycles of the sampling clock (one bit period) so the sampling point is 8 cycles (0.5 bit periods) after the start of the bit. The first sampling point is therefore 24 cycles (1.5 bit periods) after the falling edge of the start bit was detected. Each subsequent bit is sampled 16 cycles (1 bit period) after the previous one.

Figure 18-3.

Asynchronous Mode: Start Bit Detection

16 x Baud

Rate Clock

RXD

Sampling

True Start

Detection

Figure 18-4.

Asynchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

0.5 bit periods

1 bit period

RXD

D0

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

18.4.2

Synchronous Receiver

When configured for synchronous operation (SYNC = 1), the receiver samples the RXD signal on each rising edge of the Baud Rate clock. If a low level is detected, it is considered as a start.

Data bits, parity bit and stop bit are sampled and the receiver waits for the next start bit. See

example in Figure 18-5 .

122

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 18-5.

Synchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

SCK

RXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

18.4.3

18.4.4

18.4.5

18.4.6

Receiver Ready

When a complete character is received, it is transferred to the US_RHR and the RXRDY status bit in US_CSR is set. If US_RHR has not been read since the last transfer, the OVRE status bit in US_CSR is set.

Parity Error

Each time a character is received, the receiver calculates the parity of the received data bits, in accordance with the field PAR in US_MR. It then compares the result with the received parity bit.

If different, the parity error bit PARE in US_CSR is set.

Framing Error

If a character is received with a stop bit at low level and with at least one data bit at high level, a framing error is generated. This sets FRAME in US_CSR.

Time-out

This function allows an idle condition on the RXD line to be detected. The maximum delay for which the USART should wait for a new character to arrive while the RXD line is inactive (high level) is programmed in US_RTOR (Receiver Time-out). When this register is set to 0, no timeout is detected. Otherwise, the receiver waits for a first character and then initializes a counter which is decremented at each bit period and reloaded at each byte reception. When the counter reaches 0, the TIMEOUT bit in US_CSR is set. The user can restart the wait for a first character with the STTTO (Start Time-out) bit in US_CR.

Calculation of time-out duration:

Duration = Value x

4 x

Bit period

123

6410B–ATARM–12-Jan-10

18.5

Transmitter

The transmitter has the same behavior in both synchronous and asynchronous operating modes. Start bit, data bits, parity bit and stop bits are serially shifted, lowest significant bit first,

on the falling edge of the serial clock. See example in Figure 18-6.

The number of data bits is selected in the CHRL field in US_MR.

The parity bit is set according to the PAR field in US_MR.

The number of stop bits is selected in the NBSTOP field in US_MR.

When a character is written to US_THR (Transmit Holding), it is transferred to the Shift Register as soon as it is empty. When the transfer occurs, the TXRDY bit in US_CSR is set until a new character is written to US_THR. If Transmit Shift Register and US_THR are both empty, the

TXEMPTY bit in US_CSR is set.

18.5.1

Time-guard

The Time-guard function allows the transmitter to insert an idle state on the TXD line between two characters. The duration of the idle state is programmed in US_TTGR (Transmitter Timeguard). When this register is set to zero, no time-guard is generated. Otherwise, the transmitter holds a high level on TXD after each transmitted byte during the number of bit periods programmed in US_TTGR

18.5.2

Idle state duration between two characters

=

Time-guard

Value x

Bit

Period

Multi-drop Mode

When the field PAR in US_MR equals 11X (binary value), the USART is configured to run in

Multi-drop Mode. In this case, the parity error bit PARE in US_CSR is set when data is detected with a parity bit set to identify an address byte. PARE is cleared with the Reset Status Bits Command (RSTSTA) in US_CR. If the parity bit is detected low, identifying a data byte, PARE is not set.

The transmitter sends an address byte (parity bit set) when a Send Address Command

(SENDA) is written to US_CR. In this case, the next byte written to US_THR will be transmitted as an address. After this any byte transmitted will have the parity bit cleared.

Figure 18-6.

Synchronous and Asynchronous Modes: Character Transmission

Example: 8-bit, parity enabled 1 stop

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7 Parity

Bit

Stop

Bit

124

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.6

Break

18.6.1

A break condition is a low signal level which has a duration of at least one character (including start/stop bits and parity).

Transmit Break

The transmitter generates a break condition on the TXD line when STTBRK is set in US_CR

(Control Register). In this case, the character present in the Transmit Shift Register is completed before the line is held low.

To cancel a break condition on the TXD line, the STPBRK command in US_CR must be set. The

USART completes a minimum break duration of one character length. The TXD line then returns to high level (idle state) for at least 12 bit periods to ensure that the end of break is correctly detected. Then the transmitter resumes normal operation.

The BREAK is managed like a character:

• The STTBRK and the STPBRK commands are performed only if the transmitter is ready (bit

TXRDY = 1 in US_CSR)

• The STTBRK command blocks the transmitter holding register (bit TXRDY is cleared in

US_CSR) until the break has started

• A break is started when the Shift Register is empty (any previous character is fully transmitted). TXEMPTY is cleared in US_CSR. The break blocks the transmitter shift register until it is completed (high level for at least 12-bit periods after the STPBRK command is requested)

In order to avoid unpredictable states:

• STTBRK and STPBRK commands must not be requested at the same time

• Once an STTBRK command is requested, further STTBRK commands are ignored until the

BREAK is ended (high level for at least 12-bit periods)

• All STPBRK commands requested without a previous STTBRK command are ignored

• A byte written into the Transmit Holding Register while a break is pending but not started

(US_CSR.TXRDY = 0) is ignored

• It is not permitted to write new data in the Transmit Holding Register while a break is in progress (STPBRK has not been requested), even though TXRDY = 1 in US_CSR.

• A new STTBRK command must not be issued until an existing break has ended (TXEMPTY

= 1 in US_CSR)

The standard break transmission sequence is:

1. Wait for the transmitter ready

(US_CSR.TXRDY = 1)

2. Send the STTBRK command

(write 0x0200 to US_CR)

3. Wait for the transmitter ready

(TXRDY = 1 in US_CSR)

4. Send the STPBRK command

(write 0x0400 to US_CR)

The next byte can then be sent:

5. Wait for the transmitter ready

(TXRDY = 1 in US_CSR)

125

6410B–ATARM–12-Jan-10

18.6.2

6. Send the next byte

(write byte to US_THR)

Each of these steps can be scheduled by using the interrupt if the bit TXRDY in US_IMR is set.

For character transmission, the USART channel must be enabled before sending a break.

Receive Break

The receiver detects a break condition when all data, parity and stop bits are low. When the low stop bit is detected, the receiver asserts the RXBRK bit in US_CSR. An end of receive break is detected by a high level for at least 2/16 of a bit period in Asynchronous Mode or at least one sample in Synchronous Mode. RXBRK is also asserted when an end of break is detected.

Both the beginning and the end of a break can be detected by interrupt if the bit

US_IMR.RXBRK is set.

126

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.7

Peripheral Data Controller

Each USART channel is closely connected to a corresponding Peripheral Data Controller channel. One is dedicated to the receiver. The other is dedicated to the transmitter.

Note: The PDC is disabled if 9-bit character length is selected (MODE9 = 1) in US_MR.

The PDC channel is programmed using US_TPR (Transmit Pointer) and US_TCR (Transmit

Counter) for the transmitter and US_RPR (Receive Pointer) and US_RCR (Receive Counter) for the receiver. The status of the PDC is given in US_CSR by the ENDTX bit for the transmitter and by the ENDRX bit for the receiver.

The pointer registers (US_TPR and US_RPR) are used to store the address of the transmit or receive buffers. The counter registers (US_TCR and US_RCR) are used to store the size of these buffers.

The receiver data transfer is triggered by the RXRDY bit and the transmitter data transfer is triggered by TXRDY. When a transfer is performed, the counter is decremented and the pointer is incremented. When the counter reaches 0, the status bit is set (ENDRX for the receiver, ENDTX for the transmitter in US_CSR) which can be programmed to generate an interrupt. Transfers are then disabled until a new non-zero counter value is programmed.

18.8

Interrupt Generation

Each status bit in US_CSR has a corresponding bit in US_IER (Interrupt Enable) and US_IDR

(Interrupt Disable) which controls the generation of interrupts by asserting the USART interrupt line connected to the Advanced Interrupt Controller. US_IMR (Interrupt Mask Register) indicates the status of the corresponding bits.

When a bit is set in US_CSR and the same bit is set in US_IMR, the interrupt line is asserted.

127

6410B–ATARM–12-Jan-10

18.9

Channel Modes

The USART can be programmed to operate in three different test modes, using the field

CHMODE in US_MR.

Automatic Echo Mode allows bit by bit re-transmission. When a bit is received on the RXD line, it is sent to the TXD line. Programming the transmitter has no effect.

Local Loopback Mode allows the transmitted characters to be received. TXD and RXD pins are not used and the output of the transmitter is internally connected to the input of the receiver. The

RXD pin level has no effect and the TXD pin is held high, as in idle state.

Remote Loopback Mode directly connects the RXD pin to the TXD pin. The Transmitter and the

Receiver are disabled and have no effect. This mode allows bit by bit re-transmission.

Figure 18-7.

Channel Modes

Automatic Echo

Receiver RXD

Transmitter

Disabled

TXD

Local Loopback

Receiver

Transmitter

Remote Loopback

Receiver

V

DD

Disabled

Disabled

RXD

Disabled

V

DD

TXD

RXD

Transmitter

Disabled

TXD

128

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.10 USART User Interface

Base Address USART0

: 0xFFFD0000 (Code Label USART0_BASE)

Base Address USART1

: 0xFFFCC000 (Code Label USART1_BASE)

Table 18-2.

USART Memory Map

0x18

0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

Register

Control Register

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Channel Status Register

Receiver Holding Register

Transmitter Holding Register

Baud Rate Generator Register

Receiver Time-out Register

Transmitter Time-guard Register

Reserved

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Name

US_CR

US_MR

US_IER

US_IDR

US_IMR

US_CSR

US_RHR

US_THR

US_BRGR

US_RTOR

US_TTGR

–

US_RPR

US_RCR

US_TPR

US_TCR

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Read/Write

Read/Write

Read/Write

–

Read/Write

Read/Write

Read/Write

Read/Write

–

0

0

0

0

–

0

0

0

0

0

–

–

–

0

0x18

129

6410B–ATARM–12-Jan-10

18.10.1

USART Control Register

Name

: US_CR

Access Type

:Write-only

Offset

: 0x00

31

–

23

–

15

–

7

TXDIS

30

–

22

–

14

–

6

TXEN

29

–

21

–

13

–

5

RXDIS

28

–

20

–

12

SENDA

4

RXEN

27

–

19

–

11

STTTO

3

RSTTX

26

–

18

–

10

STPBRK

2

RSTRX

25

–

17

–

9

STTBRK

1

–

24

–

16

–

8

RSTSTA

0

–

• RSTRX: Reset Receiver (Code Label US_RSTRX)

0 = No effect.

1 = The receiver logic is reset.

• RSTTX: Reset Transmitter (Code Label US_RSTTX)

0 = No effect.

1 = The transmitter logic is reset.

• RXEN: Receiver Enable (Code Label US_RXEN)

0 = No effect.

1 = The receiver is enabled if RXDIS is 0.

• RXDIS: Receiver Disable (Code Label US_RXDIS)

0 = No effect.

1 = The receiver is disabled.

• TXEN: Transmitter Enable (Code Label US_TXEN)

0 = No effect.

1 = The transmitter is enabled if TXDIS is 0.

• TXDIS: Transmitter Disable (Code Label US_TXDIS)

0 = No effect.

1 = The transmitter is disabled.

• RSTSTA: Reset Status Bits (Code Label US_RSTSTA)

0 = No effect.

1 = Resets the status bits PARE, FRAME, OVRE and RXBRK in the US_CSR.

• STTBRK: Start Break (Code Label US_STTBRK)

0 = No effect.

1 = If break is not being transmitted, start transmission of a break after the characters present in US_THR and the Transmit

Shift Register have been transmitted.

130

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

• STPBRK: Stop Break (Code Label US_STPBRK)

0 = No effect.

1 = If a break is being transmitted, stop transmission of the break after a minimum of one character length and transmit a high level during 12 bit periods.

• STTTO: Start Time-out (Code Label US_STTTO)

0 = No effect.

1 = Start waiting for a character before clocking the time-out counter.

• SENDA: Send Address (Code Label US_SENDA)

0 = No effect.

1 = In Multi-drop Mode only, the next character written to the US_THR is sent with the address bit set.

6410B–ATARM–12-Jan-10

131

18.10.2

USART Mode Register

Name

: US_MR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x04

31

–

23

–

15

30

–

22

–

14

CHMODE

7 6

CHRL

29

–

21

–

13

5

NBSTOP

USCLKS

28

–

20

–

12

4

• USCLKS: Clock Selection (Baud Rate Generator Input Clock)

3

–

27

–

19

–

11

USCLKS

0

0

1

0

1

X

• CHRL: Character Length

Selected Clock

MCK

MCK/8

External (SCK)

0

0

1

1

CHRL

0

1

0

1

Character Length

Five bits

Six bits

Seven bits

Eight bits

Start, stop and parity bits are added to the character length.

• SYNC: Synchronous Mode Select (Code Label US_SYNC)

0 = USART operates in Asynchronous Mode.

1 = USART operates in Synchronous Mode.

26

–

18

CLKO

10

PAR

2

–

25

–

17

MODE9

9

1

–

24

–

16

–

8

SYNC

0

–

Code Label

US_CLKS

US_CLKS_MCK

US_CLKS_MCK8

US_CLKS_SCK

Code Label

US_CHRL

US_CHRL_5

US_CHRL_6

US_CHRL_7

US_CHRL_8

132

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

• PAR: Parity Type

0

0

0

0

1

1

0

1

1

1

PAR

0

0

0

1

0

1 x x

Parity Type

Even Parity

Odd Parity

Parity forced to 0 (Space)

Parity forced to 1 (Mark)

No parity

Multi-drop mode

• NBSTOP: Number of Stop Bits

The interpretation of the number of stop bits depends on SYNC.

Code Label

US_PAR

US_PAR_EVEN

US_PAR_ODD

US_PAR_SPACE

US_PAR_MARK

US_PAR_NO

US_PAR_MULTIDROP

0

0

1

1

NBSTOP

0

1

0

1

Asynchronous (SYNC = 0) Synchronous (SYNC = 1)

1 stop bit 1 stop bit

1.5 stop bits

2 stop bits

Reserved

Reserved

2 stop bits

Reserved

• CHMODE: Channel Mode

Code Label

US_NBSTOP

US_NBSTOP_1

US_NBSTOP_1_5

US_NBSTOP_2

–

0

CHMODE

0

0

1

1

1

0

1

Mode Description

Normal Mode

The USART Channel operates as an Rx/Tx USART.

Automatic Echo

Receiver Data Input is connected to TXD pin.

Local Loopback

Transmitter Output Signal is connected to Receiver Input Signal.

Remote Loopback

RXD pin is internally connected to TXD pin.

• MODE9: 9-bit Character Length (Code Label US_MODE9)

0 = CHRL defines character length.

1 = 9-bit character length.

• CKLO: Clock Output Select (Code Label US_CLKO)

0 = The USART does not drive the SCK pin.

1 = The USART drives the SCK pin if USCLKS[1] is 0.

Code Label

US_CHMODE

US_CHMODE_NORMAL

US_CHMODE_AUTOMATIC_ECH

O

US_CHMODE_LOCAL_LOOPBAC

K

US_CHMODE_REMODE_LOOPB

ACK

133

6410B–ATARM–12-Jan-10

18.10.3

USART Interrupt Enable Register

Name

: US_IER

Access Type

:Write-only

Offset

: 0x08

31

–

23

–

15

–

7

PARE

30

–

22

–

14

–

6

FRAME

29

–

21

–

13

–

5

OVRE

28

–

20

–

12

–

4

ENDTX

27

–

19

–

11

–

3

ENDRX

• RXRDY: Enable RXRDY Interrupt (Code Label US_RXRDY)

0 = No effect.

1 = Enables RXRDY Interrupt.

• TXRDY: Enable TXRDY Interrupt (Code Label US_TXRDY)

0 = No effect.

1 = Enables TXRDY Interrupt.

• RXBRK: Enable Receiver Break Interrupt (Code Label US_RXBRK)

0 = No effect.

1 = Enables Receiver Break Interrupt.

• ENDRX: Enable End of Receive Transfer Interrupt (Code Label US_ENDRX)

0 = No effect.

1 = Enables End of Receive Transfer Interrupt.

• ENDTX: Enable End of Transmit Interrupt (Code Label US_ENDTX)

0 = No effect.

1 = Enables End of Transmit Interrupt.

• OVRE: Enable Overrun Error Interrupt (Code Label US_OVRE)

0 = No effect.

1 = Enables Overrun Error Interrupt.

• FRAME: Enable Framing Error Interrupt (Code Label US_FRAME)

0 = No effect.

1 = Enables Framing Error Interrupt.

• PARE: Enable Parity Error Interrupt (Code Label US_PARE)

0 = No effect.

1 = Enables Parity Error Interrupt.

26

–

18

–

10

–

2

RXBRK

25

–

17

–

9

TXEMPTY

1

TXRDY

24

–

16

–

8

TIMEOUT

0

RXRDY

134

AT91FR40162SB

6410B–ATARM–12-Jan-10

• TIMEOUT: Enable Time-out Interrupt (Code Label US_TIMEOUT)

0 = No effect.

1 = Enables Reception Time-out Interrupt.

• TXEMPTY: Enable TXEMPTY Interrupt (Code Label US_TXEMPTY)

0 = No effect.

1 = Enables TXEMPTY Interrupt.

AT91FR40162SB

6410B–ATARM–12-Jan-10

135

18.10.4

USART Interrupt Disable Register

Name

: US_IDR

Access Type

:Write-only

Offset

: 0x0C

31

–

23

–

15

–

7

PARE

30

–

22

–

14

–

6

FRAME

29

–

21

–

13

–

5

OVRE

28

–

20

–

12

–

4

ENDTX

27

–

19

–

11

–

3

ENDRX

• RXRDY: Disable RXRDY Interrupt (Code Label US_RXRDY)

0 = No effect.

1 = Disables RXRDY Interrupt.

• TXRDY: Disable TXRDY Interrupt (Code Label US_TXRDY)

0 = No effect.

1 = Disables TXRDY Interrupt.

• RXBRK: Disable Receiver Break Interrupt (Code Label US_RXBRK)

0 = No effect.

1 = Disables Receiver Break Interrupt.

• ENDRX: Disable End of Receive Transfer Interrupt (Code Label US_ENDRX)

0 = No effect.

1 = Disables End of Receive Transfer Interrupt.

• ENDTX: Disable End of Transmit Interrupt (Code Label US_ENDTX)

0 = No effect.

1 = Disables End of Transmit Interrupt.

• OVRE: Disable Overrun Error Interrupt (Code Label US_OVRE)

0 = No effect.

1 = Disables Overrun Error Interrupt.

• FRAME: Disable Framing Error Interrupt (Code Label US_FRAME)

0 = No effect.

1 = Disables Framing Error Interrupt.

• PARE: Disable Parity Error Interrupt (Code Label US_PARE)

0 = No effect.

1 = Disables Parity Error Interrupt.

26

–

18

–

10

–

2

RXBRK

25

–

17

–

9

TXEMPTY

1

TXRDY

24

–

16

–

8

TIMEOUT

0

RXRDY

136

AT91FR40162SB

6410B–ATARM–12-Jan-10

• TIMEOUT: Disable Time-out Interrupt (Code Label US_TIMEOUT)

0 = No effect.

1 = Disables Receiver Time-out Interrupt.

• TXEMPTY: Disable TXEMPTY Interrupt (Code Label US_TXEMPTY)

0 = No effect.

1 = Disables TXEMPTY Interrupt.

AT91FR40162SB

6410B–ATARM–12-Jan-10

137

18.10.5

USART Interrupt Mask Register

Name

: US_IMR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x10

31

–

23

–

15

–

7

PARE

30

–

22

–

14

–

6

FRAME

29

–

21

–

13

–

5

OVRE

28

–

20

–

12

–

4

ENDTX

27

–

19

–

11

–

3

ENDRX

• RXRDY: Mask RXRDY Interrupt (Code Label US_RXRDY)

0 = RXRDY Interrupt is Disabled

1 = RXRDY Interrupt is Enabled

• TXRDY: Mask TXRDY Interrupt (Code Label US_TXRDY)

0 = TXRDY Interrupt is Disabled

1 = TXRDY Interrupt is Enabled

• RXBRK: Mask Receiver Break Interrupt (Code Label US_RXBRK)

0 = Receiver Break Interrupt is Disabled

1 = Receiver Break Interrupt is Enabled

• ENDRX: Mask End of Receive Transfer Interrupt (Code Label US_ENDRX)

0 = End of Receive Transfer Interrupt is Disabled

1 = End of Receive Transfer Interrupt is Enabled

• ENDTX: Mask End of Transmit Interrupt (Code Label US_ENDTX)

0 = End of Transmit Interrupt is Disabled

1 = End of Transmit Interrupt is Enabled

• OVRE: Mask Overrun Error Interrupt (Code Label US_OVRE)

0 = Overrun Error Interrupt is Disabled

1 = Overrun Error Interrupt is Enabled

• FRAME: Mask Framing Error Interrupt (Code Label US_FRAME)

0 = Framing Error Interrupt is Disabled

1 = Framing Error Interrupt is Enabled

• PARE: Mask Parity Error Interrupt (Code Label US_PARE)

0 = Parity Error Interrupt is Disabled

1 = Parity Error Interrupt is Enabled

26

–

18

–

10

–

2

RXBRK

138

AT91FR40162SB

25

–

17

–

9

TXEMPTY

1

TXRDY

24

–

16

–

8

TIMEOUT

0

RXRDY

6410B–ATARM–12-Jan-10

• TIMEOUT: Mask Time-out Interrupt (Code Label US_TIMEOUT)

0 = Receive Time-out Interrupt is Disabled

1 = Receive Time-out Interrupt is Enabled

• TXEMPTY: Mask TXEMPTY Interrupt (Code Label US_TXEMPTY)

0 = TXEMPTY Interrupt is Disabled.

1 = TXEMPTY Interrupt is Enabled.

AT91FR40162SB

6410B–ATARM–12-Jan-10

139

18.10.6

USART Channel Status Register

Name

: US_CSR

Access Type

:Read-only

Reset Value

: 0x18

Offset

: 0x14

31

–

23

–

15

–

7

PARE

30

–

22

–

14

–

6

FRAME

29

–

21

–

13

–

5

OVRE

28

–

20

–

12

–

4

ENDTX

27

–

19

–

11

–

3

ENDRX

26

–

18

–

10

–

2

RXBRK

25

–

17

–

9

TXEMPTY

1

TXRDY

24

–

16

–

8

TIMEOUT

0

RXRDY

• RXRDY: Receiver Ready (Code Label US_RXRDY)

0 = No complete character has been received since the last read of the US_RHR or the receiver is disabled.

1 = At least one complete character has been received and the US_RHR has not yet been read.

• TXRDY: Transmitter Ready (Code Label US_TXRDY)

0 = US_THR contains a character waiting to be transferred to the Transmit Shift Register, or an STTBRK command has been requested.

1 = US_THR is empty and there is no Break request pending TSR availability.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

• RXBRK: Break Received/End of Break (Code Label US_RXBRK)

0 = No Break Received nor End of Break has been detected since the last “Reset Status Bits” command in the Control

Register.

1 = Break Received or End of Break has been detected since the last “Reset Status Bits” command in the Control Register.

• ENDRX: End of Receiver Transfer (Code Label US_ENDRX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is active.

• ENDTX: End of Transmitter Transfer (Code Label US_ENDTX)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is active.

• OVRE: Overrun Error (Code Label US_OVRE)

0 = No byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last

“Reset Status Bits” command.

1 = At least one byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last “Reset Status Bits” command.

• FRAME: Framing Error (Code Label US_FRAME)

0 = No stop bit has been detected low since the last “Reset Status Bits” command.

140

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

1 = At least one stop bit has been detected low since the last “Reset Status Bits” command.

• PARE: Parity Error (Code Label US_PARE)

1 = At least one parity bit has been detected false (or a parity bit high in Multi-drop Mode) since the last “Reset Status Bits” command.

0 = No parity bit has been detected false (or a parity bit high in Multi-drop Mode) since the last “Reset Status Bits” command.

• TIMEOUT: Receiver Time-out (Code Label US_TIMEOUT)

0 = There has not been a time-out since the last “Start Time-out” command or the Time-out Register is 0.

1 = There has been a time-out since the last “Start Time-out” command.

• TXEMPTY: Transmitter Empty (Code Label US_TXEMPTY)

0 = There are characters in either US_THR or the Transmit Shift Register or a Break is being transmitted.

1 = There are no characters in US_THR and the Transmit Shift Register and Break is not active.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

6410B–ATARM–12-Jan-10

141

18.10.7

USART Receiver Holding Register

Name

: US_RHR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x18

15

–

7

31

–

23

–

14

–

6

30

–

22

–

13

–

5

29

–

21

–

12

–

4

28

–

20

–

11

–

3

27

–

19

–

10

–

2

26

–

18

–

9

–

1

25

–

17

–

RXCHR

• RXCHR: Received Character

Last character received if RXRDY is set. When number of data bits is less than 8 bits, the bits are right-aligned.

All non-significant bits read zero.

8

–

0

24

–

16

–

18.10.8

USART Transmitter Holding Register

Name

: US_THR

Access Type

:Write-only

Offset

: 0x1C

31

–

23

–

15

–

7

30

–

22

–

14

–

6

29

–

21

–

13

–

5

28

–

20

–

12

–

4

27

–

19

–

11

–

3

26

–

18

–

10

–

2

25

–

17

–

9

–

1

24

–

16

–

8

–

0

TXCHR

• TXCHR: Character to be Transmitted

Next character to be transmitted after the current character if TXRDY is not set. When number of data bits is less than 8 bits, the bits are right-aligned.

142

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.10.9

USART Baud Rate Generator Register

Name

: US_BRGR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x20

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

27

–

19

–

11

CD

7 6 5 4 3

CD

• CD: Clock Divisor

This register has no effect if Synchronous Mode is selected with an external clock.

2

26

–

18

–

10

1

CD

0

1

2 to 65535

Effect

Disables Clock

Clock Divisor Bypass

(1)

Baud Rate (Asynchronous Mode) = Selected Clock / (16 x CD)

Baud Rate (Synchronous Mode) = Selected Clock / CD

(2)

Notes: 1. Clock divisor bypass (CD = 1) must not be used when internal clock MCK is selected (USCLKS = 0).

2. In Synchronous Mode, the value programmed must be even to ensure a 50:50 mark:space ratio.

25

–

17

–

9

24

–

16

–

8

0

143

6410B–ATARM–12-Jan-10

18.10.10 USART Receiver Time-out Register

Name

: US_RTOR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x24

15

–

7

31

–

23

–

14

–

6

30

–

22

–

13

–

5

29

–

21

–

12

–

4

28

–

20

–

11

–

3

27

–

19

–

10

–

2

26

–

18

–

TO

• TO: Time-out Value

When a value is written to this register, a Start Time-out Command is automatically performed.

9

–

1

25

–

17

–

8

–

0

24

–

16

–

TO

0

1 - 255

Disables the RX Time-out function.

The Time-out counter is loaded with TO when the Start Time-out Command is given or when each new data character is received (after reception has started).

Time-out duration = TO x 4 x Bit period

144

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.10.11 USART Transmitter Time-guard Register

Name

: US_TTGR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x28

15

–

7

31

–

23

–

14

–

6

30

–

22

–

13

–

5

29

–

21

–

12

–

4

28

–

20

–

11

–

3

27

–

19

–

10

–

2

26

–

18

–

TG

• TG: Time-guard Value

TG

0

1 - 255

Disables the TX Time-guard function.

TXD is inactive high after the transmission of each character for the time-guard duration.

Time-guard duration = TG x Bit period

9

–

1

25

–

17

–

8

–

0

24

–

16

–

18.10.12 USART Receive Pointer Register

Name

: US_RPR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x30

31 30 29 28

RXPTR

23 22 21 20

RXPTR

15 14 13 12

RXPTR

7 6 5 4

RXPTR

• RXPTR: Receive Pointer

RXPTR must be loaded with the address of the receive buffer.

27

19

11

3

10

2

26

18

9

1

25

17

8

0

24

16

145

6410B–ATARM–12-Jan-10

18.10.13 USART Receive Counter Register

Name

: US_RCR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x34

31

–

23

–

15

7

30

–

22

–

14

6

29

–

21

–

13

5

28

–

4920

–

12

RXCTR

4

RXCTR

• RXCTR: Receive Counter

RXCTR must be loaded with the size of the receive buffer.

0: Stop Peripheral Data Transfer dedicated to the receiver.

1 - 65535: Start Peripheral Data transfer if RXRDY is active.

18.10.14 USART Transmit Pointer Register

Name

: US_TPR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x38

31 30 29 28

TXPTR

23 22 21 20

TXPTR

15 14 13 12

TXPTR

7 6 5 4

TXPTR

• TXPTR: Transmit Pointer

TXPTR must be loaded with the address of the transmit buffer.

27

–

19

–

11

3

27

19

11

3

26

–

18

–

10

2

25

–

17

–

9

1

10

2

26

18

9

1

25

17

8

0

24

16

24

–

16

–

8

0

146

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

18.10.15 USART Transmit Counter Register

Name

: US_TCR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x3C

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

TXCTR

7 6 5 4

TXCTR

• TXCTR: Transmit Counter

TXCTR must be loaded with the size of the transmit buffer.

0: Stop Peripheral Data Transfer dedicated to the transmitter.

1 - 65535: Start Peripheral Data transfer if TXRDY is active.

27

–

19

–

11

3

26

–

18

–

10

2

25

–

17

–

9

1

24

–

16

–

8

0

147

6410B–ATARM–12-Jan-10

19. TC: Timer Counter

The AT91FR40162SB features a Timer Counter block which includes three identical 16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse width modulation.

Each Timer Counter channel has 3 external clock inputs, 5 internal clock inputs, and 2 multi-purpose input/output signals which can be configured by the user. Each channel drives an internal interrupt signal which can be programmed to generate processor interrupts via the AIC

(Advanced Interrupt Controller).

The Timer Counter block has two global registers which act upon all three TC channels. The

Block Control Register allows the three channels to be started simultaneously with the same instruction. The Block Mode Register defines the external clock inputs for each Timer Counter channel, allowing them to be chained.

148

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.1

Block Diagram

Figure 19-1.

TC Block Diagram

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

TCLK0

TCLK1

TCLK2

TIOA1

TIOA2

TCLK0

TCLK1

TCLK2

TIOA0

TIOA2

TCLK0

TCLK1

TCLK2

TIOA0

TIOA1

XC0

XC1

XC2

TC0XC0S

XC0

XC1

XC2

TC1XC1S

XC0

XC1

XC2

TC2XC2S

Timer Counter

Channel 0

TIOA

TIOB

SYNC

INT

TIOA0

TIOB0

Timer Counter

Channel 1

TIOA

TIOB

TIOA1

TIOB1

SYNC

INT

Timer Counter

Channel 2

TIOA

TIOB

TIOA2

TIOB2

SYNC

INT

Timer Counter Block

Advanced

Interrupt

Controller

Parallel IO

Controller

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

TIOA2

TIOB2

149

6410B–ATARM–12-Jan-10

19.2

Signal Description

Table 19-1.

Signal Description

Channel Signal

XC0, XC1, XC2

TIOA

TIOB

Description

External Clock Inputs

Capture Mode: General Purpose Input

Waveform Mode: General Purpose Output

Capture Mode: General Purpose Input

Waveform Mode: General Purpose Input/Output

INT

SYNC

Block Signals

TCLK0, TCLK1, TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

Interrupt Signal Output

Synchronization Input Signal

Description

External Clock Inputs

TIOA Signal for Channel 0

TIOB Signal for Channel 0

TIOA Signal for Channel 1

TIOB Signal for Channel 1

TIOA2 TIOA Signal for Channel 2

TIOB2 TIOB Signal for Channel 2

Note: After a hardware reset, the Timer Counter block pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

19.3

Timer Counter Description

The three Timer Counter channels are independent and identical in operation. The registers for

channel programming are listed in Table 19-3 on page 159 .

19.3.1

Counter

Each Timer Counter channel is organized around a 16-bit counter. The value of the counter is incremented at each positive edge of the selected clock. When the counter has reached the value 0xFFFF and passes to 0x0000, an overflow occurs and the bit COVFS in TC_SR (Status

Register) is set.

The current value of the counter is accessible in real-time by reading TC_CV. The counter can be reset by a trigger. In this case, the counter value passes to 0x0000 on the next valid edge of the selected clock.

150

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.3.2

Clock Selection

At block level, input clock signals of each channel can either be connected to the external inputs

TCLK0, TCLK1 or TCLK2, or be connected to the configurable I/O signals TIOA0, TIOA1 or

TIOA2 for chaining by programming the TC_BMR (Block Mode).

Each channel can independently select an internal or external clock source for its counter:

• Internal clock signals: MCK/2, MCK/8, MCK/32,

MCK/128, MCK/1024

• External clock signals: XC0, XC1 or XC2

The selected clock can be inverted with the CLKI bit in TC_CMR (Channel Mode). This allows counting on the opposite edges of the clock.

The burst function allows the clock to be validated when an external signal is high. The BURST parameter in the Mode Register defines this signal (none, XC0, XC1, XC2).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock (MCK).

Figure 19-2.

Clock Selection

CLKS

CLKI

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

Selected

Clock

BURST

1

151

6410B–ATARM–12-Jan-10

19.3.3

Clock Control

The clock of each counter can be controlled in two different ways: it can be enabled/disabled and started/stopped.

• The clock can be enabled or disabled by the user with the CLKEN and the CLKDIS commands in the Control Register. In Capture Mode it can be disabled by an RB load event if

LDBDIS is set to 1 in TC_CMR. In Waveform Mode, it can be disabled by an RC Compare event if CPCDIS is set to 1 in TC_CMR. When disabled, the start or the stop actions have no effect: only a CLKEN command in the Control Register can re-enable the clock. When the clock is enabled, the CLKSTA bit is set in the Status Register.

• The clock can also be started or stopped: a trigger (software, synchro, external or compare) always starts the clock. The clock can be stopped by an RB load event in Capture Mode

(LDBSTOP = 1 in TC_CMR) or a RC compare event in Waveform Mode (CPCSTOP = 1 in

TC_CMR). The start and the stop commands have effect only if the clock is enabled.

Figure 19-3.

Clock Control

Selected

Clock

Trigger

CLKSTA CLKEN CLKDIS

Q S

R

Q S

R

Stop

Event

Disable

Event

Counter

Clock

19.3.4

19.3.5

Timer Counter Operating Modes

Each Timer Counter channel can independently operate in two different modes:

• Capture Mode allows measurement on signals

• Waveform Mode allows wave generation

The Timer Counter Operating Mode is programmed with the WAVE bit in the TC Mode Register.

In Capture Mode, TIOA and TIOB are configured as inputs. In Waveform Mode, TIOA is always configured to be an output and TIOB is an output if it is not selected to be the external trigger.

Trigger

A trigger resets the counter and starts the counter clock. Three types of triggers are common to both modes, and a fourth external trigger is available to each mode.

The following triggers are common to both modes:

152

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

• Software Trigger: Each channel has a software trigger, available by setting SWTRG in

TC_CCR.

• SYNC: Each channel has a synchronization signal SYNC. When asserted, this signal has the same effect as a software trigger. The SYNC signals of all channels are asserted simultaneously by writing TC_BCR (Block Control) with SYNC set.

• Compare RC Trigger: RC is implemented in each channel and can provide a trigger when the counter value matches the RC value if CPCTRG is set in TC_CMR.

The Timer Counter channel can also be configured to have an external trigger. In Capture Mode, the external trigger signal can be selected between TIOA and TIOB. In Waveform Mode, an external event can be programmed on one of the following signals: TIOB, XC0, XC1 or XC2.

This external event can then be programmed to perform a trigger by setting ENETRG in

TC_CMR.

If an external trigger is used, the duration of the pulses must be longer than the system clock

(MCK) period in order to be detected.

Whatever the trigger used, it will be taken into account at the following active edge of the selected clock. This means that the counter value may not read zero just after a trigger, especially when a low frequency signal is selected as the clock.

153

19.4

Capture Operating Mode

This mode is entered by clearing the WAVE parameter in TC_CMR (Channel Mode Register).

Capture Mode allows the TC Channel to perform measurements such as pulse timing, frequency, period, duty cycle and phase on TIOA and TIOB signals which are inputs.

Figure shows the configuration of the TC Channel when programmed in Capture Mode.

19.4.1

19.4.2

19.4.3

Capture Registers A and B (RA and RB)

Registers A and B are used as capture registers. This means that they can be loaded with the counter value when a programmable event occurs on the signal TIOA.

The parameter LDRA in TC_CMR defines the TIOA edge for the loading of register A, and the parameter LDRB defines the TIOA edge for the loading of Register B.

RA is loaded only if it has not been loaded since the last trigger or if RB has been loaded since the last loading of RA.

RB is loaded only if RA has been loaded since the last trigger or the last loading of RB.

Loading RA or RB before the read of the last value loaded sets the Overrun Error Flag (LOVRS) in TC_SR (Status Register). In this case, the old value is overwritten.

Trigger Conditions

In addition to the SYNC signal, the software trigger and the RC compare trigger, an external trigger can be defined.

Bit ABETRG in TC_CMR selects input signal TIOA or TIOB as an external trigger. Parameter

ETRGEDG defines the edge (rising, falling or both) detected to generate an external trigger. If

ETRGEDG = 0 (none), the external trigger is disabled.

Status Register

The following bits in the status register are significant in Capture Operating Mode.

• CPCS: RC Compare Status

There has been an RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow Status

The counter has attempted to count past $FFFF since the last read of the status

• LOVRS: Load Overrun Status

RA or RB has been loaded at least twice without any read of the corresponding register, since the last read of the status

• LDRAS: Load RA Status

RA has been loaded at least once without any read, since the last read of the status

• LDRBS: Load RB Status

RB has been loaded at least once without any read, since the last read of the status

• ETRGS: External Trigger Status An external trigger on TIOA or TIOB has been detected since the last read of the status

Note: All the status bits are set when the corresponding event occurs and they are automatically cleared when the Status Register is read.

154

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 19-4.

Capture Mode

TCCLKS

CLKI

CLKSTA CLKEN CLKDIS

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

SYNC

TIOB

Q S

R

Q S

R

MTIOB

MTIOA

1

LDBSTOP

BURST

Capture

Register A

SWTRG

ABETRG

ETRGEDG

Edge

Detector

If RA is not loaded or RB is loaded

LDRA

Edge

Detector

CLK

16-bit Counter

RESET

OVF

Trig

CPCTRG

If RA is loaded

LDRB

Edge

Detector

LDBDIS

Capture

Register B

TIOA

Register C

Compare RC =

Timer Counter Channel

INT

155

6410B–ATARM–12-Jan-10

19.5

Waveform Operating Mode

This mode is entered by setting the WAVE parameter in TC_CMR (Channel Mode Register).

Waveform Operating Mode allows the TC Channel to generate 1 or 2 PWM signals with the same frequency and independently programmable duty cycles, or to generate different types of one-shot or repetitive pulses.

In this mode, TIOA is configured as output and TIOB is defined as output if it is not used as an external event (EEVT parameter in TC_CMR).

Figure 19-5 shows the configuration of the TC Channel when programmed in Waveform Operat-

ing Mode.

19.5.1

19.5.2

Compare Register A, B and C (RA, RB, and RC)

In Waveform Operating Mode, RA, RB and RC are all used as compare registers.

RA Compare is used to control the TIOA output. RB Compare is used to control the TIOB (if configured as output). RC Compare can be programmed to control TIOA and/or TIOB outputs.

RC Compare can also stop the counter clock (CPCSTOP = 1 in TC_CMR) and/or disable the counter clock (CPCDIS = 1 in TC_CMR).

As in Capture Mode, RC Compare can also generate a trigger if CPCTRG = 1. A trigger resets the counter so RC can control the period of PWM waveforms.

External Event/Trigger Conditions

An external event can be programmed to be detected on one of the clock sources (XC0, XC1,

XC2) or TIOB. The external event selected can then be used as a trigger.

The parameter EEVT in TC_CMR selects the external trigger. The parameter EEVTEDG defines the trigger edge for each of the possible external triggers (rising, falling or both). If EEVTEDG is cleared (none), no external event is defined.

If TIOB is defined as an external event signal (EEVT = 0), TIOB is no longer used as output and the TC channel can only generate a waveform on TIOA.

When an external event is defined, it can be used as a trigger by setting bit ENETRG in

TC_CMR.

As in Capture Mode, the SYNC signal, the software trigger and the RC compare trigger are also available as triggers.

Output Controller

The output controller defines the output level changes on TIOA and TIOB following an event.

TIOB control is used only if TIOB is defined as output (not as an external event).

The following events control TIOA and TIOB: software trigger, external event and RC compare.

RA compare controls TIOA and RB compare controls TIOB. Each of these events can be programmed to set, clear or toggle the output as defined in the corresponding parameter in

TC_CMR.

156

AT91FR40162SB

6410B–ATARM–12-Jan-10

19.5.3

Status

AT91FR40162SB

The tables below show which parameter in TC_CMR is used to define the effect of each event.

Parameter

ASWTRG

AEEVT

ACPC

ACPA

TIOA Event

Software Trigger

External Event

RC Compare

RA Compare

Parameter

BSWTRG

BEEVT

BCPC

BCPB

TIOB Event

Software Trigger

External Event

RC Compare

RB Compare

If two or more events occur at the same time, the priority level is defined as follows:

1. Software Trigger

2. External Event

3. RC Compare

4. RA or RB Compare

The following bits in the status register are significant in Waveform Mode:

• CPAS: RA Compare Status

There has been a RA Compare match at least once since the last read of the status

• CPBS: RB Compare Status

There has been a RB Compare match at least once since the last read of the status

• CPCS: RC Compare Status

There has been a RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow

Counter has attempted to count past $FFFF since the last read of the status

• ETRGS: External Trigger

External trigger has been detected since the last read of the status

Note: All the status bits are set when the corresponding event occurs and they are automatically cleared when the Status Register is read.

157

6410B–ATARM–12-Jan-10

Figure 19-5.

Waveform Mode

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

SYNC

TCCLKS

1

BURST

SWTRG

CLKI

Q S

R

CLKSTA CLKEN CLKDIS

Q S

R

CPCDIS

CPCSTOP

Register A

CLK

16-bit Counter

RESET

OVF

Compare RA =

Register B

Compare RB =

Register C

Compare RC =

Trig

CPCTRG

EEVT

EEVTEDG

Edge

Detector

ENETRG

TIOB

Timer Counter Channel

INT

BCPC

BCPB

BEEVT

BSWTRG

ACPC

ACPA

AEEVT

ASWTRG

MTIOA

TIOA

MTIOB

TIOB

158

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.6

TC User Interface

TC Base Address

: 0xFFFE0000 (Code Label TC_BASE)

Table 19-2.

TC Global Memory Map

Offset

0x00

0x40

0x80

0xC0

0xC4

Channel/Register

TC Channel 0

TC Channel 1

TC Channel 2

TC Block Control Register

TC Block Mode Register

Name

TC_BCR

TC_BMR

Access

See Table 19-3

See Table 19-3

See Table 19-3

Write-only

Read/Write

Reset State

–

0

TC_BCR (Block Control Register) and TC_BMR (Block Mode Register) control the TC block. TC Channels are controlled

by the registers listed in Table 19-3. The offset of each of the Channel registers in Table 19-3 is in relation to the offset of the corresponding channel as mentioned in Table 19-2.

Table 19-3.

TC Channel Memory Map

0x18

0x1C

0x20

0x24

0x28

0x2C

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

Register

Channel Control Register

Channel Mode Register

Reserved

Reserved

Counter Value

Register A

Register B

Register C

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Note: 1. Read-only if WAVE = 0

Name

TC_CCR

TC_CMR

TC_CV

TC_RA

TC_RB

TC_RC

TC_SR

TC_IER

TC_IDR

TC_IMR

Write-only

Read/Write

Read/Write

Read/Write

(1)

Read/Write

(1)

Read/Write

Read-only

Write-only

Write-only

Read-only

0

0

0

0

–

–

–

0

–

0

0

–

159

6410B–ATARM–12-Jan-10

19.6.1

TC Block Control Register

Register Name

:TC_BCR

Access Type

:Write-only

Offset

: 0xC0

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

–

27

–

19

–

11

–

3

–

26

–

18

–

10

–

2

–

25

–

17

–

9

–

1

–

• SYNC: Synchro Command

0 = No effect.

1 = Asserts the SYNC signal which generates a software trigger simultaneously for each of the channels.

24

–

16

–

8

–

0

SYNC

160

AT91FR40162SB

6410B–ATARM–12-Jan-10

19.6.2

TC Block Mode Register

Register Name

:TC_BMR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0xC4

15

–

7

–

31

–

23

–

14

–

6

–

30

–

22

–

13

–

5

29

–

21

–

TC2XC2S

12

–

4

28

–

20

–

• TC0XC0S: External Clock Signal 0 Selection

0

0

1

1

TC0XC0S

0

1

0

1

Signal Connected to XC0

TCLK0

None

TIOA1

TIOA2

• TC1XC1S: External Clock Signal 1 Selection

11

–

3

27

–

19

–

TC1XC1S

10

–

2

26

–

18

–

1

1

0

0

TC1XC1S

0

1

0

1

Signal Connected to XC1

TCLK1

None

TIOA0

TIOA2

• TC2XC2S: External Clock Signal 2 Selection

0

0

1

1

TC2XC2S

0

1

0

1

Signal Connected to XC2

TCLK2

None

TIOA0

TIOA1

AT91FR40162SB

9

–

1

25

–

17

–

TC0XC0S

8

–

0

24

–

16

–

161

6410B–ATARM–12-Jan-10

19.6.3

TC Channel Control Register

Register Name

:TC_CCR

Access Type

:Write-only

Offset

: 0x00

31

–

23

–

15

–

7

–

30

–

22

–

14

–

6

–

29

–

21

–

13

–

5

–

28

–

20

–

12

–

4

–

27

–

19

–

11

–

3

–

• CLKEN: Counter Clock Enable Command (Code Label TC_CLKEN)

0 = No effect.

1 = Enables the clock if CLKDIS is not 1.

• CLKDIS: Counter Clock Disable Command (Code Label TC_CLKDIS)

0 = No effect.

1 = Disables the clock.

• SWTRG: Software Trigger Command (Code Label TC_SWTRG)

0 = No effect.

1 = A software trigger is performed: the counter is reset and clock is started.

26

–

18

–

10

–

2

SWTRG

25

–

17

–

9

–

1

CLKDIS

24

–

16

–

8

–

0

CLKEN

162

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.6.4

TC Channel Mode Register: Capture Mode

Register Name

:TC_CMR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x04

31

–

23

–

15

WAVE = 0

7

LDBDIS

30

–

22

–

14

CPCTRG

6

LDBSTOP

• TCCLKS: Clock Selection

13

–

5

29

–

21

–

BURST

1

1

0

1

1

0

0

0

0

1

1

0

1

0

0

1

1

0

1

0

1

0

1

0

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

• CLKI: Clock Invert (Code Label TC_CLKI)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

1

1

0

0

BURST

0

1

0

1

Selected BURST

The clock is not gated by an external signal

XC0 is ANDed with the selected clock

XC1 is ANDed with the selected clock

XC2 is ANDed with the selected clock

12

–

4

28

–

20

–

27

–

19

11

–

3

CLKI

26

–

18

LDRB

10

ABETRG

2

25

–

17

LDRA

9

ETRGEDG

1

TCCLKS

24

–

16

8

0

Code Label

TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

Code Label

TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

163

6410B–ATARM–12-Jan-10

• LDBSTOP: Counter Clock Stopped with RB Loading (Code Label TC_LDBSTOP)

0 = Counter clock is not stopped when RB loading occurs.

1 = Counter clock is stopped when RB loading occurs.

• LDBDIS: Counter Clock Disable with RB Loading (Code Label TC_LDBDIS)

0 = Counter clock is not disabled when RB loading occurs.

1 = Counter clock is disabled when RB loading occurs.

• ETRGEDG: External Trigger Edge Selection

1

1

ETRGEDG

0 0

0 1

0

1

Edge

None

Rising Edge

Falling Edge

Each Edge

• ABETRG: TIOA or TIOB External Trigger Selection

Code Label

TC_ETRGEDG

TC_ETRGEDG_EDGE_NONE

TC_ETRGEDG_RISING_EDGE

TC_ETRGEDG_FALLING_EDGE

TC_ETRGEDG_BOTH_EDGE

Code Label

TC_ABETRG

TC_ABETRG_TIOB

TC_ABETRG_TIOA

ABETRG

0

1

Selected ABETRG

TIOB is used as an external trigger.

TIOA is used as an external trigger.

• CPCTRG: RC Compare Trigger Enable (Code Label TC_CPCTRG)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 0 (Code Label TC_WAVE)

0 = Capture Mode is enabled.

1 = Capture Mode is disabled (Waveform Mode is enabled).

• LDRA: RA Loading Selection

1

1

0

0

LDRA

0

1

0

1

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

Code Label

TC_LDRA

TC_LDRA_EDGE_NONE

TC_LDRA_RISING_EDGE

TC_LDRA_FALLING_EDGE

TC_LDRA_BOTH_EDGE

164

AT91FR40162SB

6410B–ATARM–12-Jan-10

• LDRB: RB Loading Selection

1

1

0

0

LDRB

0

1

0

1

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

AT91FR40162SB

Code Label

TC_LDRB

TC_LDRB_EDGE_NONE

TC_LDRB_RISING_EDGE

TC_LDRB_FALLING_EDGE

TC_LDRB_BOTH_EDGE

6410B–ATARM–12-Jan-10

165

19.6.5

TC Channel Mode Register: Waveform Mode

Register Name

:TC_CMR

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x04

29 31 30

BSWTRG

23 22

15

WAVE = 1

7

CPCDIS

ASWTRG

14

CPCTRG

6

CPCSTOP

21

13

–

5

28

BEEVT

20

AEEVT

BURST

12

ENETRG

4

• TCCLKS: Clock Selection

1

1

0

1

1

0

0

0

TCCLKS

0

0

1

0

1

1

0

1

1

0

1

0

1

0

1

0

Clock Selected

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

• CLKI: Clock Invert (Code Label TC_CLKI)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

1

1

0

0

BURST

0

1

0

1

Selected BURST

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

27

19

11

3

CLKI

BCPC

26

18

ACPC

10

EEVT

2

25 24

BCPB

17

ACPA

9

1

TCCLKS

EEVTEDG

16

8

0

Code Label

TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

Code Label

TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

166

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

• CPCSTOP: Counter Clock Stopped with RC Compare (Code Label TC_CPCSTOP)

0 = Counter clock is not stopped when counter reaches RC.

1 = Counter clock is stopped when counter reaches RC.

• CPCDIS: Counter Clock Disable with RC Compare (Code Label TC_CPCDIS)

0 = Counter clock is not disabled when counter reaches RC.

1 = Counter clock is disabled when counter reaches RC.

• EEVTEDG: External Event Edge Selection

1

1

0

0

EEVTEDG

0

1

0

1

Edge

None

Rising edge

Falling edge

Each edge

• EEVT: External Event Selection

Code Label

TC_EEVTEDG

TC_EEVTEDG_EDGE_NONE

TC_EEVTEDG_RISING_EDGE

TC_EEVTEDG_FALLING_EDGE

TC_EEVTEDG_BOTH_EDGE

Code Label

0

0

EEVT

0

1

Signal Selected as

TIOB

XC0

External Event TIOB Direction

Input

(1)

Output

TC_EEVT

TC_EEVT_TIOB

TC_EEVT_XC0

1 0 XC1 Output TC_EEVT_XC1

1 1 XC2 Output TC_EEVT_XC2

Note: If TIOB is chosen as the external event signal, it is configured as an input and no longer generates waveforms.

• ENETRG: External Event Trigger Enable (Code Label TC_ENETRG)

0 = The external event has no effect on the counter and its clock. In this case, the selected external event only controls the

TIOA output.

1 = The external event resets the counter and starts the counter clock.

• CPCTRG: RC Compare Trigger Enable (Code Label TC_CPCTRG)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 1 (Code Label TC_WAVE)

0 = Waveform Mode is disabled (Capture Mode is enabled).

1 = Waveform Mode is enabled.

167

6410B–ATARM–12-Jan-10

• ACPA: RA Compare Effect on TIOA

1

1

0

0

ACPA

0

1

0

1

Effect

None

Set

Clear

Toggle

• ACPC: RC Compare Effect on TIOA

1

1

0

0

ACPC

0

1

0

1

Effect

None

Set

Clear

Toggle

• AEEVT: External Event Effect on TIOA

1

1

0

0

AEEVT

0

1

0

1

Effect

None

Set

Clear

Toggle

• ASWTRG: Software Trigger Effect on TIOA

1

1

0

0

ASWTRG

0

1

0

1

Effect

None

Set

Clear

Toggle

168

AT91FR40162SB

Code Label

TC_ACPA

TC_ACPA_OUTPUT_NONE

TC_ACPA_SET_OUTPUT

TC_ACPA_CLEAR_OUTPUT

TC_ACPA_TOGGLE_OUTPUT

Code Label

TC_ACPC

TC_ACPC_OUTPUT_NONE

TC_ACPC_SET_OUTPUT

TC_ACPC_CLEAR_OUTPUT

TC_ACPC_TOGGLE_OUTPUT

Code Label

TC_AEEVT

TC_AEEVT_OUTPUT_NONE

TC_AEEVT_SET_OUTPUT

TC_AEEVT_CLEAR_OUTPUT

TC_AEEVT_TOGGLE_OUTPUT

Code Label

TC_ASWTRG

TC_ASWTRG_OUTPUT_NONE

TC_ASWTRG_SET_OUTPUT

TC_ASWTRG_CLEAR_OUTPUT

TC_ASWTRG_TOGGLE_OUTPUT

6410B–ATARM–12-Jan-10

• BCPB: RB Compare Effect on TIOB

1

1

0

0

BCPB

0

1

0

1

Effect

None

Set

Clear

Toggle

• BCPC: RC Compare Effect on TIOB

1

1

0

0

BCPC

0

1

0

1

Effect

None

Set

Clear

Toggle

• BEEVT: External Event Effect on TIOB

1

1

0

0

BEEVT

0

1

0

1

Effect

None

Set

Clear

Toggle

• BSWTRG: Software Trigger Effect on TIOB

1

1

0

0

BSWTRG

0

1

0

1

Effect

None

Set

Clear

Toggle

6410B–ATARM–12-Jan-10

AT91FR40162SB

Code Label

TC_BCPB

TC_BCPB_OUTPUT_NONE

TC_BCPB_SET_OUTPUT

TC_BCPB_CLEAR_OUTPUT

TC_BCPB_TOGGLE_OUTPUT

Code Label

TC_BCPC

TC_BCPC_OUTPUT_NONE

TC_BCPC_SET_OUTPUT

TC_BCPC_CLEAR_OUTPUT

TC_BCPC_TOGGLE_OUTPUT

Code Label

TC_BEEVT

TC_BEEVT_OUTPUT_NONE

TC_BEEVT_SET_OUTPUT

TC_BEEVT_CLEAR_OUTPUT

TC_BEEVT_TOGGLE_OUTPUT

Code Label

TC_BSWTRG

TC_BSWTRG_OUTPUT_NONE

TC_BSWTRG_SET_OUTPUT

TC_BSWTRG_CLEAR_OUTPUT

TC_BSWTRG_TOGGLE_OUTPUT

169

19.6.6

TC Counter Value Register

Register Name

:TC_CVR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x10

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

7 6 5

• CV: Counter Value (Code Label TC_CV)

CV contains the counter value in real-time.

28

–

20

–

12

4

CV

CV

27

–

19

–

11

3

19.6.7

TC Register A

Register Name

:TC_RA

Access Type

:Read-only if WAVE = 0, Read/Write if WAVE = 1

Reset Value

: 0

Offset

: 0x14

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

RA

7 6 5 4

RA

• RA: Register A (Code Label TC_RA)

RA contains the Register A value in real-time.

27

–

19

–

11

3

26

–

18

–

10

2

25

–

17

–

9

1

26

–

18

–

10

2

25

–

17

–

9

1

24

–

16

–

8

0

24

–

16

–

8

0

170

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.6.8

TC Register B

Register Name

:TC_RB

Access Type

:Read-only if WAVE = 0, Read/Write if WAVE = 1

Reset Value

: 0

Offset

: 0x18

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

RB

7 6 5 4

RB

• RB: Register B (Code Label TC_RB)

RB contains the Register B value in real-time.

19.6.9

TC Register C

Register Name

:TC_RC

Access Type

:Read/Write

Reset Value

: 0

Offset

: 0x1C

31

–

23

–

15

30

–

22

–

14

29

–

21

–

13

28

–

20

–

12

RC

7 6 5 4

RC

• RC: Register C (Code Label TC_RC)

RC contains the Register C value in real-time.

27

–

19

–

11

3

27

–

19

–

11

3

26

–

18

–

10

2

25

–

17

–

9

1

26

–

18

–

10

2

25

–

17

–

9

1

24

–

16

–

8

0

24

–

16

–

8

0

171

6410B–ATARM–12-Jan-10

19.6.10

TC Status Register

Register Name

:TC_SR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x20

31

–

23

–

15

–

7

ETRGS

30

–

22

–

14

–

6

LDRBS

29

–

21

–

13

–

5

LDRAS

28

–

20

–

12

–

4

CPCS

27

–

19

–

11

–

3

CPBS

26

–

18

MTIOB

10

–

2

CPAS

25

–

17

MTIOA

9

–

1

LOVRS

24

–

16

CLKSTA

8

–

0

COVFS

• COVFS: Counter Overflow Status (Code Label TC_COVFS)

0 = No counter overflow has occurred since the last read of the Status Register.

1 = A counter overflow has occurred since the last read of the Status Register.

• LOVRS: Load Overrun Status (Code Label TC_LOVRS)

0 = Load overrun has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA or RB have been loaded at least twice without any read of the corresponding register since the last read of the Status Register, if WAVE = 0.

• CPAS: RA Compare Status (Code Label TC_CPAS)

0 = RA Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RA Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPBS: RB Compare Status (Code Label TC_CPBS)

0 = RB Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RB Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPCS: RC Compare Status (Code Label TC_CPCS)

0 = RC Compare has not occurred since the last read of the Status Register.

1 = RC Compare has occurred since the last read of the Status Register.

• LDRAS: RA Loading Status (Code Label TC_LDRAS)

0 = RA Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA Load has occurred since the last read of the Status Register, if WAVE = 0.

• LDRBS: RB Loading Status (Code Label TC_LDRBS)

0 = RB Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RB Load has occurred since the last read of the Status Register, if WAVE = 0.

• ETRGS: External Trigger Status (Code Label TC_ETRGS)

0 = External trigger has not occurred since the last read of the Status Register.

172

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

1 = External trigger has occurred since the last read of the Status Register.

• CLKSTA: Clock Enabling Status (Code Label TC_CLKSTA)

0 = Clock is disabled.

1 = Clock is enabled.

• MTIOA: TIOA Mirror (Code Label TC_MTIOA)

0 = TIOA is low. If WAVE = 0, this means that TIOA pin is low. If WAVE = 1, this means that TIOA is driven low.

1 = TIOA is high. If WAVE = 0, this means that TIOA pin is high. If WAVE = 1, this means that TIOA is driven high.

• MTIOB: TIOB Mirror (Code Label TC_MTIOB)

0 = TIOB is low. If WAVE = 0, this means that TIOB pin is low. If WAVE = 1, this means that TIOB is driven low.

1 = TIOB is high. If WAVE = 0, this means that TIOB pin is high. If WAVE = 1, this means that TIOB is driven high.

6410B–ATARM–12-Jan-10

173

19.6.11

TC Interrupt Enable Register

Register Name

:TC_IER

Access Type

:Write-only

Offset

: 0x24

31

–

23

–

15

–

7

ETRGS

30

–

22

–

14

–

6

LDRBS

29

–

21

–

13

–

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = No effect.

1 = Enables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = No effect.

1: Enables the Load Overrun Interrupt.

• CPAS: RA Compare (Code Label TC_CPAS)

0 = No effect.

1 = Enables the RA Compare Interrupt.

• CPBS: RB Compare (Code Label TC_CPBS)

0 = No effect.

1 = Enables the RB Compare Interrupt.

• CPCS: RC Compare (Code Label TC_CPCS)

0 = No effect.

1 = Enables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = No effect.

1 = Enables the RA Load Interrupt.

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = No effect.

1 = Enables the RB Load Interrupt.

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = No effect.

1 = Enables the External Trigger Interrupt.

28

–

20

–

12

–

4

CPCS

174

AT91FR40162SB

27

–

19

–

11

–

3

CPBS

26

–

18

–

10

–

2

CPAS

25

–

17

–

9

–

1

LOVRS

24

–

16

–

8

–

0

COVFS

6410B–ATARM–12-Jan-10

AT91FR40162SB

19.6.12

TC Interrupt Disable Register

Register Name

:TC_IDR

Access Type

:Write-only

Offset

: 0x28

31

–

23

–

15

–

7

ETRGS

30

–

22

–

14

–

6

LDRBS

29

–

21

–

13

–

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = No effect.

1 = Disables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = No effect.

1 = Disables the Load Overrun Interrupt (if WAVE = 0).

• CPAS: RA Compare (Code Label TC_CPAS)

0 = No effect.

1 = Disables the RA Compare Interrupt (if WAVE = 1).

• CPBS: RB Compare (Code Label TC_CPBS)

0 = No effect.

1 = Disables the RB Compare Interrupt (if WAVE = 1).

• CPCS: RC Compare (Code Label TC_CPCS)

0 = No effect.

1 = Disables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = No effect.

1 = Disables the RA Load Interrupt (if WAVE = 0).

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = No effect.

1 = Disables the RB Load Interrupt (if WAVE = 0).

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = No effect.

1 = Disables the External Trigger Interrupt.

28

–

20

–

12

–

4

CPCS

27

–

19

–

11

–

3

CPBS

26

–

18

–

10

–

2

CPAS

25

–

17

–

9

–

1

LOVRS

24

–

16

–

8

–

0

COVFS

175

6410B–ATARM–12-Jan-10

19.6.13

TC Interrupt Mask Register

Register Name

:TC_IMR

Access Type

:Read-only

Reset Value

: 0

Offset

: 0x2C

31

–

23

–

15

–

7

ETRGS

30

–

22

–

14

–

6

LDRBS

29

–

21

–

13

–

5

LDRAS

• COVFS: Counter Overflow (Code Label TC_COVFS)

0 = The Counter Overflow Interrupt is disabled.

1 = The Counter Overflow Interrupt is enabled.

• LOVRS: Load Overrun (Code Label TC_LOVRS)

0 = The Load Overrun Interrupt is disabled.

1 = The Load Overrun Interrupt is enabled.

• CPAS: RA Compare (Code Label TC_CPAS)

0 = The RA Compare Interrupt is disabled.

1 = The RA Compare Interrupt is enabled.

• CPBS: RB Compare (Code Label TC_CPBS)

0 = The RB Compare Interrupt is disabled.

1 = The RB Compare Interrupt is enabled.

• CPCS: RC Compare (Code Label TC_CPCS)

0 = The RC Compare Interrupt is disabled.

1 = The RC Compare Interrupt is enabled.

• LDRAS: RA Loading (Code Label TC_LDRAS)

0 = The Load RA Interrupt is disabled.

1 = The Load RA Interrupt is enabled.

• LDRBS: RB Loading (Code Label TC_LDRBS)

0 = The Load RB Interrupt is disabled.

1 = The Load RB Interrupt is enabled.

• ETRGS: External Trigger (Code Label TC_ETRGS)

0 = The External Trigger Interrupt is disabled.

1 = The External Trigger Interrupt is enabled.

28

–

20

–

12

–

4

CPCS

176

AT91FR40162SB

27

–

19

–

11

–

3

CPBS

26

–

18

–

10

–

2

CPAS

25

–

17

–

9

–

1

LOVRS

24

–

16

–

8

–

0

COVFS

6410B–ATARM–12-Jan-10

AT91FR40162SB

20. AT91FR40162SB Electrical Characteristics

20.1

Absolute Maximum Ratings

Table 20-1.

Absolute Maximum Ratings*

Operating Temperature (Industrial) . -40

⋅ C to + 85⋅ C *NOTICE: Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the

Storage Temperature..................... -60

⋅ C to + 150⋅ C

Voltage on Any Input Pin with Respect to Ground

................................................. -0.3V to max of V

DDIO

.......................................................... + 0.3V and 3.6V

device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Maximum Operating Voltage (V

DDIO

) ....................3.6V

Maximum Operating Voltage (V

DDCORE

) .............1.95V

6410B–ATARM–12-Jan-10

177

20.2

AT91FR40162SB DC Characteristics

The following characteristics are applicable to the Operating Temperature range: T

A specified and are certified for a Junction Temperature up to 100

⋅ C.

= -40

⋅ C to +85⋅ C, unless otherwise

Table 20-2.

DC Characteristics

Symbol Parameter

V

DDIO

DC Supply I/Os

V

DDCORE

V

IL

V

IH

DC Supply Core

Input Low Voltage

Input High Voltage

Conditions

V

OL

V

OH

Output Low Voltage

Output High Voltage

Pin Group 1

(2)

: I

OL

= 16 mA

(1)

Pin Group 2

(3)

: I

OL

= 8 mA

(1)

Pin Group 3

(4)

: I

OL

= 2 mA

(1)

All Output Pins: I

OL

= 0 mA

(1)

Pin Group 1

(2)

: I

OH

= 16 mA

(1)

Pin Group 2

(3)

: I

OH

= 8 mA

(1)

Pin Group 3

(4)

: I

OH

= 2 mA

(1)

All Output Pins: I

OH

= 0 mA

(1)

I

LEAK

I

PULL

Input Leakage Current

Input Pull-up Current

I

OUT

C

IN

I

SC

Output Current

Input Capacitance

Static Current

V

DDIO

= 3.6V, V

IN

= 0V

Pin Group 1

(2)

Pin Group 2

(3)

:

Pin Group 3

(4)

:

121-BGA Package

VDDIO= 3.6V, V

DDCORE

=

1.95V,

MCKI = 0Hz

All Inputs Driven

TMS, TCK, TDI, NRST = 1

T

A

= 25

⋅

C

T

A

= 85

⋅

C

Min

2.7

1.65

-0.3

2.0

V

DDIO

- 0.4

V

DDIO

- 0.4

V

DDIO

- 0.4

V

DDIO

- 0.2

Typ

Notes: 1. I

OL

= Output Current at low level. I

OH

= Output Current at high level.

2. Pin Group 1 = NUB/NWR1, NWE/NWR0, NOE/NRD1

3. Pin Group 2 = D0-D15, A0/NLB, A1-A19, P28/A20/CS7, P29/A21/CS6, P30/A22/CS5, P31/A23/CS4,

NCS0, NCS1, P26/NCS2, P27/NCS3

4. Pin Group 3 = All Others

Max

3.6

1.95

0.8

V

DDIO

+ 0.3

0.4

0.4

0.4

0.2

10

400

16

8

2

5.3

400

2.3

µA mA

µA

µA mA mA mA pF

Units

V

V

V

V

V

V

V

V

V

178

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

20.3

Flash DC Characteristics

Table 20-3.

Flash DC Characteristics

Symbol Parameter

I

LI

I

LO

Input Load Current

Output Leakage Current

I

SB

V

CC

Standby Current CMOS

I

CC

(1)

V

CC

Active Read Current

I

CC1

V

CC

Programming Current

V

IL

Input Low Voltage

V

IH

Input High Voltage

Note: 1. In the erase mode, I

CC

is 45 mA.

Condition

V

IN

= 0V to V

CC

V

I/O

= 0V to V

CC

CE = V

CC

- 0.3V to

V

CC f = 5 MHz; I

OUT

= 0 mA

Min

2.0

Typ

15

10 15

25

0.6

Max

2

2

25 mA mA

V

V

Units

µA

µA

µA

20.4

Flash Operating Modes

Table 20-4.

Flash Operating Modes

Read

Mode

Program/Erase

Standby/Program Inhibit

Program Inhibit

Output Disable

Reset

Product Identification Software

CE

V

IL

V

IL

V

IH

X

X

X

X

X

X

V

IL

X

V

IH

X

OE

V

IL

V

IH

X

(1)

WE RESET

V

IH

V

IL

X

V

IH

X

X

X

X

V

IH

V

IH

V

IH

V

IL

V

IH

V

IH

V

IH

V

IH

V

IH

Ai

Ai

Ai

X

X

A0 = V

IL

, A1 - A19 = V

IL

A0 = V

IH

, A1 - A19 = V

IL

Notes: 1. X can be V

IL

or V

IH

.

2. Manufacturer Code: 001FH, Device Code: 01C0H

I/O

D

OUT

D

IN

High-Z

High-Z

High-Z

Manufacturer

Code

(2)

Device Code

(2)

179

6410B–ATARM–12-Jan-10

20.5

Power Consumption

The values in the following tables are values measured in the typical operating conditions (i.e.,

V

DDIO

= 3.3V, V

DDCORE

= 1.8V, T

A as demonstrative values.

= 25

⋅ C) on the AT91EB40A Evaluation Board and are given

Table 20-5.

Power Consumption on VDDCORE

Mode

Reset

Conditions

Normal

Idle

Fetch in ARM mode from internal SRAM

All peripheral clocks activated

Fetch in ARM mode from internal SRAM

All peripheral clocks deactivated

Fetch in ARM mode from external SRAM

(1)

All peripheral clocks deactivated

Fetch in Thumb mode from external SRAM

(1)

All peripheral clocks deactivated

All peripheral clocks activated

All peripheral clocks deactivated

Consumption

0.02

0.83

0.73

0.20

0.24

0.16

0.06

Unit

mW/MHz

Note: 1. With two Wait States.

Table 20-6.

Power Consumption per Peripheral on VDDCORE

Peripheral

PIO Controller

Timer/Counter Channel

Timer/Counter Block (3 Channels)

USART

Consumption

15.3

15.0

36.3

27.8

Unit

µW/MHz

180

AT91FR40162SB

6410B–ATARM–12-Jan-10

20.6

Clock Waveforms

Table 20-7.

Master Clock Waveform Parameters

Symbol

1/(t

CP

) t

CP t

CH t

CL

Parameter

Oscillator Frequency

Oscillator Period

High Half-period

Low Half-period

Conditions

Table 20-8.

Clock Propagation Times

Symbol Parameter

t

CDLH

Rising Edge Propagation Time

Conditions

C

MCKO

= 0 pF

C

MCKO

derating

C

MCKO

= 0 pF

C

MCKO derating t

CDHL

Falling Edge Propagation Time

Figure 20-1.

Clock Waveform t

CH

MCKI

2.0V

2.0V

0.8V

t

CL

0.8V

t

CP

0.5 V

DDIO

0.5 V

DDIO

MCKO t

CDLH t

CDHL

Table 20-9.

NRST to MCKO

Symbol

t

D

Parameter

NRST Rising Edge to MCKO Valid Time

Min

12.2

5.0

5.5

Min

4.4

0.199

4.5

0.153

Min

3(t

CP

/2)

AT91FR40162SB

Max

82.1

Max

6.6

0.295

6.7

0.228

0.8V

Max

7(t

CP

/2)

Units

MHz ns ns ns

Units

ns ns/pF ns ns/pF

Units

ns

181

6410B–ATARM–12-Jan-10

Figure 20-2.

MCKO Relative to NRST

NRST t

D

MCKO

182

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

21. AC Characteristics

21.1

Applicable Conditions and Derating Data

21.1.1

Conditions and Timing Results

The delays are given as typical values in the following conditions:

• V

DDIO

= 3.0V

• V

DDCORE

= 1.8V

• Ambient Temperature = 25

⋅ C

• Load Capacitance = 0 pF

• The output level change detection is 0.5 x V

DDIO

• The input level is 0.8V for a low-level detection and is 2.0V for a high level detection.

The minimum and maximum values given in the AC characteristic tables of this datasheet take into account the process variation and the design.

In order to obtain the timing for other conditions, the following equation should be used:

t

=

δ

T

°

×

⎛

⎝

( δ

VDDCORE

×

t

DATASHEET

)

+

⎛

⎝

δ

VDDIO

×

∑

(

C

SIGNAL

× δ

CSIGNAL

)

⎞

⎠

⎞

⎠

Where:

•

•

δ

T

⋅

is the derating factor in temperature given in Figure 21-1 on page 184 .

δ

VDDCORE

is the derating factor for the Core Power Supply given in

Figure 21-2 on page 184 .

• t

DATASHEET

is the minimum or maximum timing value given in this datasheet for a load capacitance of 0 pF.

•

•

δ

VDDIO

is the derating factor for the I/O Power Supply given in

Figure 21-3 on page 185 .

• C

SIGNAL

is the capacitance load on the considered output pin.

(1)

δ

CSIGNAL

is the load derating factor depending on the capacitance load on the related output pins given in Min and Max values in this datasheet.

The input delays are given as typical values.

Note: 1. The user must take into account the package capacitance load contribution (C

IN

) described in

Table 20-2 on page 178

.

183

6410B–ATARM–12-Jan-10

21.1.2

Temperature Derating Factor

Figure 21-1.

Derating Curve for Different Operating Temperatures

1,2

1,1

1

0,9

Derating Factor for

Typ Case is 1

-60 -40 -20

0,8

0 20 40 60 80

Operating Temperature °C

100 120 140 160

21.1.3

Core Voltage Derating Factor

Figure 21-2.

Core Voltage Derating Factor

3

2,5

2

1,5

1

Derating Factor for Typ Case is 1

0,5

1 1,05 1,1 1,15 1,2 1,25 1,3 1,35 1,4 1,45 1,5 1,55 1,6 1,65 1,7 1,75 1,8 1,85 1,9 1,95

Core Supply Voltage (V)

184

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

21.1.4

IO Voltage Derating Factor

Figure 21-3.

Derating Factor for Different V

DDIO

Power Supply Levels

1,6

1,5

1,4

1,3

1,2

1,1

1

0,9

0,8

2 2,2 2,4 2,6 2,8 3

V

DDIO

Voltage Level

Derating Factor for

Typ Case is 1

3,2 3,4 3,6

185

6410B–ATARM–12-Jan-10

21.2

Peripheral Signals

21.2.1

USART Signals

The inputs have to meet the minimum pulse width and period constraints shown in Table 21-1

and

Table 21-2

, and represented in

Figure 21-4 .

Table 21-1.

USART Input Minimum Pulse Width

Symbol

US

1

Parameter

SCK/RXD Minimum Pulse Width

Min Pulse Width

5(t

CP

/2)

Units

ns

Table 21-2.

USART Minimum Input Period

Symbol

US

2

Parameter

SCK Minimum Input Period

Figure 21-4.

USART Signals

US

1

RXD

US

1

SCK

Min Input Period

9(t

CP

/2)

US

2

Units

ns

21.2.2

Timer/Counter Signals

Due to internal synchronization of input signals, there is a delay between an input event and a corresponding output event. This delay is 3(t

CP

) in Waveform Event Detection mode and 4(t

CP

) in Waveform Total-count Detection mode. The inputs have to meet the minimum pulse width and

minimum input period shown in Table 21-3 and Table 21-4

, and as represented in Figure 21-5

.

Table 21-3.

Timer Input Minimum Pulse Width

Symbol

TC

1

Parameter

TCLK/TIOA/TIOB Minimum Pulse Width

Min Pulse Width

3(t

CP

/2)

Units

ns

Table 21-4.

Timer Input Minimum Period

Symbol

TC

2

Parameter

TCLK/TIOA/TIOB Minimum Input Period

Min Input Period

5(t

CP

/2)

Units

ns

186

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 21-5.

Timer Input

TC

2

3(t

CP

/2)

3(t

CP

/2)

MCKI

TIOA/

TIOB/

TCLK

TC

1

21.2.3

Reset Signals

A minimum pulse width is necessary, as shown in Table 21-5 and as represented in Figure 21-6 .

Table 21-5.

Reset Minimum Pulse Width

Symbol

RST

1

Parameter

NRST Minimum Pulse Width

Min Pulse-width

10(t

CP

)

Units

ns

Figure 21-6.

Reset Signal

RST

1

NRST

21.2.4

Only the NRST rising edge is synchronized with MCKI. The falling edge is asynchronous.

Advanced Interrupt Controller Signals

Inputs have to meet the minimum pulse width and minimum input period shown in

Table 21-6

and

Table 21-7

and represented in

Figure 21-7

.

Table 21-6.

AIC Input Minimum Pulse Width

Symbol

AIC

1

Parameter

FIQ/IRQ0/IRQ1/IRQ2/IRQ3 Minimum

Pulse Width

Min Pulse Width

3(t

CP

/2)

Units

ns

Table 21-7.

AIC Input Minimum Period

Symbol

AIC

2

Parameter

AIC Minimum Input Period

Min Input Period

5(t

CP

/2)

Units

ns

187

6410B–ATARM–12-Jan-10

Figure 21-7.

AIC Signals

AIC

2

MCKI

AIC

1

FIQ/IRQ0/

IRQ1/IRQ2/

IRQ3 Input

21.2.5

Parallel I/O Signals

The inputs have to meet the minimum pulse width shown in Table 21-8 and represented in Figure 21-8

.

Table 21-8.

PIO Input Minimum Pulse Width

Symbol

PIO

1

Parameter

PIO Input Minimum Pulse Width

Min Pulse Width

3(t

CP

/2)

Units

ns

Figure 21-8.

PIO Signal

PIO

1

PIO

Inputs

21.2.6

ICE Interface Signals

188

Table 21-9.

ICE Interface Timing Specifications

Symbol

ICE

0

ICE

1

ICE

2

ICE

3

ICE

4

ICE

5

ICE

6

ICE

7

Parameter

NTRST Minimum Pulse

Width

NTRST High Recovery to

TCK High

NTRST High Removal from

TCK High

TCK Low Half-period

TCK High Half-period

TCK Period

TDI, TMS Setup before

TCK High

TDI, TMS Hold after TCK

High

Conditions

ICE

8

ICE

9

TDO Hold Time

TCK Low to TDO Valid

C

TDO

= 0 pF

C

TDO

derating

C

TDO

= 0 pF

C

TDO

derating

AT91FR40162SB

Min

10.9

0.9

-0.3

23.5

22.7

46.1

0.4

0.4

3.3

0.001

Max

7.4

0.28

Units

ns ns ns ns ns/pF ns ns/pF ns ns ns ns ns

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 21-9.

ICE Interface Signal

ICE

0

NTRST

TCK

ICE

3

ICE

1

ICE

5

ICE

2

ICE

4

TMS/TDI

ICE

6

ICE

7

TDO

ICE

8

ICE

9

189

21.3

EBI Signals Relative to MCKI

The following tables show timings relative to operating condition limits defined in the section

“Conditions and Timing

Results” on page 183

.

Table 21-10.

General-purpose EBI Signals

Symbol

EBI

1

EBI

2

EBI

3

EBI

4

EBI

5

EBI

6

Parameter

MCKI Falling to NUB Valid

MCKI Falling to NLB/A0 Valid

MCKI Falling to A1 - A23 Valid

MCKI Falling to Chip Select

Change

NWAIT Setup before MCKI Rising

NWAIT Hold after MCKI Rising

Conditions

C

NUB

= 0 pF

C

NUB

derating

C

NLB

= 0 pF

C

NLB

derating

C

ADD

= 0 pF

C

ADD

derating

C

NCS

= 0 pF

C

NCS derating

Min

4.4

0.030

3.7

0.045

3.4

0.045

3.7

0.045

1.7

1.7

Max

8.9

0.043

6.7

0.069

7.8

0.076

8.6

0.078

Units

ns ns/pF ns ns/pF ns ns/pF ns ns/pF ns ns

Table 21-11.

EBI Write Signals

Symbol Parameter

EBI

7

MCKI Rising to NWR Active (No Wait States)

MCKI Rising to NWR Active (Wait States)

EBI

12

EBI

13

EBI

14

EBI

15

EBI

8

EBI

9

EBI

10

EBI

11

MCKI Falling to NWR Inactive (No Wait States)

MCKI Rising to NWR Inactive (Wait States)

MCKI Rising to D0 - D15 Out Valid

NWR High to NUB Change

NWR High to NLB/A0 Change

NWR High to A1 - A23 Change

NWR High to Chip Select Inactive

Conditions

C

NWR

= 0 pF

C

NWR

derating

C

NWR

= 0 pF

C

NWR

derating

C

NWR

= 0 pF

C

NWR

derating

C

NWR

= 0 pF

C

NWR

derating

C

DATA

= 0 pF

C

DATA

derating

C

NUB

= 0 pF

C

NUB

derating

C

NLB

= 0 pF

C

NLB

derating

C

ADD

= 0 pF

C

ADD

derating

C

NCS

= 0 pF

C

NCS

derating

190

AT91FR40162SB

4.2

0.029

4.2

0.045

3.1

0.030

3.1

0.043

Min

3.9

0.029

4.4

0.029

3.8

0.029

2.9

0.043

2.9

0.052

ns ns/pF ns ns/pF ns ns/pF ns ns/pF

Units

ns ns/pF ns ns/pF ns ns/pF ns ns/pF ns ns/pF

6.7

0.044

7.5

0.080

7.0

0.043

5.4

0.073

Max

6.3

0.043

7.0

0.043

6.3

0.044

7.0

0.076

6.8

0.067

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table 21-11.

EBI Write Signals (Continued)

Symbol

EBI

16

EBI

17

Parameter

Data Out Valid before NWR High (No Wait States)

(1)

Data Out Valid before NWR High (Wait States)

(1)

Conditions

C = 0 pF

C

DATA

derating

C

NWR

derating

C = 0 pF

C

DATA

derating

C

NWR

derating

EBI

18

EBI

18 bis

Data Out Valid after NWR High (No Wait States)

Data Out Valid after NWR High (Wait States)

EBI

19

EBI

20

NWR Minimum Pulse Width (No Wait States)

(1)

NWR Minimum Pulse Width (Wait States)

(1)

C

NWR

= 0 pF

C

NWR

derating

C

NWR

= 0 pF

C

NWR

derating

Notes: 1. The derating factor should not be applied to t

CH

or t

CP

.

2. n = number of standard wait states inserted.

Table 21-12.

EBI Read Signals

Symbol

EBI

21

EBI

22

EBI

23

EBI

24

EBI

25

EBI

26

EBI

27

EBI

28

EBI

29

EBI

30

Parameter

MCKI Falling to NRD Active

(1)

MCKI Rising to NRD Active

(2)

MCKI Falling to NRD Inactive

(1)

MCKI Falling to NRD Inactive

(2)

D0 - D15 In Setup before MCKI Falling Edge

(5)

D0 - D15 In Hold after MCKI Falling Edge

(6)

NRD High to NUB Change

NRD High to NLB/A0 Change

NRD High to A1 - A23 Change

NRD High to Chip Select Inactive

Conditions

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

C

NRD

derating

C

NUB

= 0 pF

C

NUB

derating

C

NLB

= 0 pF

C

NLB

derating

C

ADD

= 0 pF

C

ADD

derating

C

NCS

= 0 pF

C

NCS

derating

0.030

1.5

1.2

3.2

0.030

3.2

0.043

2.8

Min

4.5

0.029

3.8

0.029

4.1

0.030

3.9

0.043

2.9

0.052

Min

t

CH

- 1.8

-0.080

0.044

n x t

CP

- 1.3

(2)

-0.080

0.044

2.2

t

CP

/2 + EBI

18 t

CH

- 0.6

0 n x t

CP

- 0.9

(2)

0

Max

ns/pF ns ns ns ns/pF ns ns/pF

Units

ns ns/pF ns/pF ns ns/pF

Max

7.9

0.043

7.3

0.043

6.5

0.044

5.8

0.044

7.1

0.043

4.6

0.073

6.1

0.076

6.2

0.067

ns/pF ns ns ns ns/pF ns ns/pF ns

Units

ns ns/pF ns ns/pF ns ns/pF ns ns/pF ns ns/pF

191

6410B–ATARM–12-Jan-10

Table 21-12.

EBI Read Signals (Continued)

Symbol Parameter Conditions

EBI

31

EBI

32

EBI

33

Data Setup before NRD High

(5)

Data Hold after NRD High

(6)

NRD Minimum Pulse Width

(1)(3)

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

C

NRD

derating

C

NRD

= 0 pF

EBI

34

NRD Minimum Pulse Width

(2)(3)

Notes: 1. Early Read Protocol.

2. Standard Read Protocol.

3. The derating factor should not be applied to t

CH

or t

CP

.

4. n = number of standard wait states inserted.

C

NRD

derating

5. Only one of these two timings, EB

25

or EBI

31

, needs to be met.

6. Only one of these two timings, EB

26

or EBI

32

, needs to be met.

Min

8.0

0.044

-3.1

-0.030

(n +1) t

CP

- 1.9

(4)

0.001

n x t

CP

+ (t

CH

- 1.5)

(4)

0.001

Max

Table 21-13.

EBI Read and Write Control Signals. Capacitance Limitation

Symbol Parameter Conditions Min Max Units

T

CPLNRD

(1)

Master Clock Low Due to NRD Capacitance

C

NRD

= 0 pF

C

NRD

derating

7.3

0.044

ns ns/pF

T

CPLNWR

(2)

Master CLock Low Due to NWR Capacitance

C

NWR

= 0 pF

C

NWR

derating

7.6

0.044

Notes: 1. If this condition is not met, the action depends on the read protocol intended for use.

• Early Read Protocol: Programing an additional t

DF

(Data Float Output Time) cycle.

• Standard Read Protocol: Programming an additional t

DF

Cycle and an additional wait state.

ns ns/pF

2. Applicable only for chip select programmed with 0 wait state. If this condition is not met, at least one wait state must be programmed.

Units

ns ns/pF ns ns/pF ns ns/pF ns ns/pF

192

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Figure 21-10.

EBI Signals Relative to MCKI

MCKI

EBI

4

NCS

EBI

4

CS

EBI

3

A1 - A23

EBI

5

EBI

6

NWAIT

EBI

1

/EBI

2

NUB/NLB/A0

EBI

21

EBI

33

EBI

23

EBI

27-30

NRD

(1)

NRD

(2)

EBI

22

EBI

24

EBI

34

EBI

31

EBI

25

EBI

26

EBI

32

D0 - D15 Read

NWR (No Wait States)

NWR (Wait States)

D0 - D15 to Write

EBI

11

EBI

7

EBI

9

EBI

19

EBI

8

EBI

12-15

EBI

16

No Wait

EBI

10

EBI

20

EBI

18

EBI

17

Notes: 1. Early Read Protocol.

2. Standard Read Protocol.

EBI

18 bis

Wait

193

6410B–ATARM–12-Jan-10

21.4

AC Flash Read Characteristics

21.4.1

Table 21-14.

AC Flash Read Characteristics

Symbol Parameter

t

RC t

ACC t

CE

(1) t

OE

(2) t

DF

(3)(4) t

OH t

RO

Read Cycle Time

Address to Output Delay

CE to Output Delay

OE to Output Delay

CE or OE to Output Float

Output Hold from OE, CE or Address, whichever occurred first

RESET to Output Delay

AC Read Waveforms

Figure 21-11.

AC Read Waveforms

(1) (2) (3) (4)

ADDRESS t

RC

ADDRESS VALID

Min

70

0

0

0

CE

Max

70

70

20

25

100

Units

ns ns ns ns ns ns ns t

CE t

OE

OE t

OH t

DF

RESET t

ACC t

RO

OUTPUT

HIGH Z OUTPUT

VALID

Notes: 1. CE may be delayed up to t

ACC

- t

CE

after the address transition without impact on t

ACC

.

2. OE may be delayed up to t

CE

- t

OE

after the falling edge of CE without impact on t

CE

or by t

ACC

- t

OE

after an address change without impact on t

ACC

.

3. t

DF

is specified from OE or CE, whichever occurs first (CL = 5 pF).

4. This parameter is characterized and is not 100% tested.

194

AT91FR40162SB

6410B–ATARM–12-Jan-10

21.4.2

Input Test Waveforms and Measurement Level

Figure 21-12.

Input Test Waveforms and Measurement Level

AT91FR40162SB

21.4.3

t

R

, t

F

< 5 ns

Output Test Load

Figure 21-13.

Output Test Load

21.4.4

Pin Capacitance

Table 21-15.

Pin Capacitance f = 1 MHz, T = 25°C

(1)

Symbol Conditions

C

IN

V

IN

= 0V

C

OUT

V

OUT

= 0V

Note: 1. This parameter is characterized and is not 100% tested.

Typ

4

8

Max

6

12

Units

pF pF

195

6410B–ATARM–12-Jan-10

21.5

AC Flash Byte/Word Load Waveforms

Table 21-16.

AC Byte/Word Load Waveforms

Symbol

t

AS

, t

OES t

AH t

CS t

CH t

WP t

WPH t

DS t

DH

, t

OEH

Parameter

Address, OE Setup Time

Address Hold Time

Chip Select Setup Time

Chip Select Hold Time

Write Pulse Width (WE or CE)

Write Pulse Width High

Data Setup Time

Data, OE Hold Time

21.5.1

WE Controlled

Figure 21-14.

WE Controlled

0

35

35

35

0

Min

0

35

0

Max

ns ns ns ns ns

Units

ns ns ns

196

AT91FR40162SB

6410B–ATARM–12-Jan-10

21.5.2

CE Controlled

Figure 21-15.

CE Controlled

AT91FR40162SB

6410B–ATARM–12-Jan-10

197

21.6

Flash Program Cycle Characteristics

Table 21-17.

Program Cycle Characteristics

Symbol

t

RP t

EC t

SEC1 t

SEC2 t

ES t

PS t

ERES t

DH t

WP t

WPH t

WC t

BP t

AS t

AH t

DS

Parameter

Byte/Word Programming Time

Address Setup Time

Address Hold Time

Data Setup Time

Data Hold Time

Write Pulse Width

Write Pulse Width High

Write Cycle Time

Reset Pulse Width

Chip Erase Cycle Time

Sector Erase Cycle Time (4K Word Sectors)

Sector Erase Cycle Time (32K Word Sectors)

Erase Suspend Time

Program Suspend Time

Delay between Erase Resume and Erase Suspend

21.6.1

Program Cycle Waveforms

Figure 21-16.

Program Cycle Waveforms

Min

0

35

35

70

500

0

35

35

500

PROGRAM CYCLE

OE

CE

WE

A0 - A19

DATA t

WP t

AS

555 t

WC t

AH t

DS

AAA t

DH

AA 55

555 t

WPH

A0

ADDRESS

INPUT

DATA

Typ

12

25

0.3

1.0

t

BP

3.0

6.0

15

10

Max

200 ns ns ns seconds seconds seconds

µs

µs ns

Units

µs ns ns ns ns ns

555

AA

198

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

21.6.2

Sector or Chip Erase Cycle Waveforms

Figure 21-17.

Sector or Chip Erase Cycle Waveforms

OE

(1)

CE t

WP t

WPH

WE

A0-A19

DATA t

AS t

AH t

DH

555 t

WC

AA

WORD 0 t

DS

AAA

55

WORD 1

555

80

WORD 2

555

AA

WORD 3

AAA

55

WORD 4

Note 2

Note 3

WORD 5 t

EC

Notes: 1. OE must be high only when WE and CE are both low.

2. For chip erase, the address should be 555. For sector erase, the address depends on what sector is to be erased. (See footnote

(3)

of

Table 12-2, “Command Definition Table,” on page 63 .)

3. For chip erase, the data should be 10H, and for sector erase, the data should be 30H.

199

6410B–ATARM–12-Jan-10

21.7

Flash Data Polling Characteristics

Table 21-18.

Data Polling Characteristics

(1)

Symbol Parameter

t t

DH

OEH t

OE

Data Hold Time

OE Hold Time

OE to Output Delay

(2)

t

WR

Write Recovery Time

Notes: 1. These parameters are characterized and not 100% tested.

2. See t

OE

spec in

“AC Flash Read Characteristics” on page 194 .

21.7.1

Data Polling Waveforms

Figure 21-18.

Data Polling Waveforms

WE

CE

OE t

OEH

t

DH

t

OE

HIGH Z

I/O7

Min

10

10

0

A0-A19

An An

An

Typ Max

t

WR

An An

Units

ns ns ns ns

200

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

21.8

Flash Toggle Bit Characteristics

Table 21-19.

Toggle Bit Characteristics

(1)

Symbol Parameter

t

DH t

OEH t

OE t

OEHP

Data Hold Time

OE Hold Time

OE to Output Delay

OE High Pulse

(2)

t

WR

Write Recovery Time

Notes: 1. These parameters are characterized and not 100% tested.

2. See t

OE

spec in

“AC Flash Read Characteristics” on page 194 .

21.8.1

Toggle Bit Waveforms

Figure 21-19.

Toggle Bit Waveforms

(1)(2)(3)

Min

10

10

50

0

Typ Max Units

ns ns ns ns ns

Notes: 1. Toggling either OE or CE or both OE and CE will operate toggle bit. The t

OEHP

specification must be met by the toggling input(s).

2. Beginning and ending state of I/O6 will vary.

3. Any address location may be used but the address should not vary.

201

6410B–ATARM–12-Jan-10

22. Mechanical Characteristics

22.1

Package Drawing

Figure 22-1.

AT91FR40162SBPackage

Table 22-1.

Device and 121-ball BGA Package Maximum Weight

194 mg

Table 22-2.

121-ball BGA Package Characteristics

Ball diameter

Ball land

Solder mask opening

Plating material

Solder ball material

Moisture Sensitivity Level

0.35 mm

0.4 ± 0.05 mm

0.3 ± 0.05 mm

Copper

Sn/Ag/Cu

3

202

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table 22-3.

Package Reference

JESD97 Classification e1

This package respects the recommendations of the NEMI User Group

22.2

Soldering Profile

Table 22-4

gives the recommended soldering profile from J-STD-20C.

Table 22-4.

Soldering Profile

Profile Feature

Average Ramp-up Rate (183

⋅ C to Peak)

Convection or IR/Convection

3

⋅ C/sec. max.

Preheat Temperature 125 max

Temperature Maintained Above 183

⋅ C

Time within 5

⋅ C of Actual Peak Temperature

Peak Temperature Range

60 sec. to 150 sec.

20 sec. to 40 sec.

260

⋅ C

Ramp-down Rate 6

⋅ C/sec.

Time 25

⋅ C to Peak Temperature

8 min. max

Note: It is recommended to apply a soldering temperature higher than 250°C.

A maximum of three reflow passes is allowed per component.

203

6410B–ATARM–12-Jan-10

23. Ordering Information

Table 23-1.

Ordering Information

Ordering Code

AT91FR40162SB-CU

Package

BGA 121

Package Type

Green

Temperature

Operating Range

Industrial

(-40

⋅ C to 85⋅ C)

204

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

24. AT91FR40162SB Errata

24.1

Marking

All devices are marked with the Atmel logo and the ordering code.

Additional marking has the following format:

YYWW V

XXXXXXXXX

ARM where

• “YY”: manufactory year

• “WW”: manufactory week

• “V”: revision

“XXXXXXXXX”: lot number

24.2

Flash

24.2.1

Flash: Erroneous Read of the first instruction out of the integrated Flash memory

At power-up when fetching the first instruction out of the integrated Flash memory, the ARM processor may read the first two 16-bit words at 0xFFFF instead of the prgrammed value, preventing the device to start-up correctly.

Problem Fix/Workaround

Software workaround is to add 0xFFFFFFFF, 32-bit instruction at the beginning of the program code. When reading instruction 0xFFFFFFFF, equivalent to a NOP instruction, the ARM7TDMI processor will execute the next instruction corresponding to the true first instruction of the program you want the processor to run.

205

6410B–ATARM–12-Jan-10

206

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

25. Revision History

Doc. Rev.

6410A

6410B

Change

Request Ref.

First Issue

Section 2.3.3 “Erase Cycle Timings” , updated section.

Section 24. “AT91FR40162SB Errata”

,

Section 24.2.1 “Flash: Wrong Read of the first instruction out of the integrated Flash memory” ,

added to errata.

5617

6942

6410B–ATARM–12-Jan-10

207

208

AT91FR40162SB

6410B–ATARM–12-Jan-10

AT91FR40162SB

Table of Contents

Features ..................................................................................................... 1

1 Description ............................................................................................... 2

2 Migrating from the AT91FR40162S to the AT91FR40162SB ................ 2

2.1

2.2

2.3

Hardware Requirements ....................................................................................2

Software Requirements .....................................................................................2

Flash Memory Difference ..................................................................................2

3 Pin Configuration ..................................................................................... 4

4 Signal Description ................................................................................... 5

5 Block Diagram .......................................................................................... 7

6 Architectural Overview ............................................................................ 8

6.1

6.2

Memories ...........................................................................................................8

Peripherals ........................................................................................................8

7 Product Overview .................................................................................. 10

7.1

7.2

7.3

7.4

7.5

7.6

7.7

Power Supply ..................................................................................................10

Input/Output Considerations ............................................................................10

Master Clock ....................................................................................................10

Reset ...............................................................................................................10

Emulation Functions ........................................................................................11

Memory Controller ...........................................................................................12

AT91 Flash Memory Uploader (FMU) Software ..............................................15

8 Peripherals ............................................................................................. 17

8.1

8.2

System Peripherals .........................................................................................18

User Peripherals ..............................................................................................19

9 Memory Map ........................................................................................... 20

10 Peripheral Memory Map ........................................................................ 21

11 EBI: External Bus Interface ................................................................... 22

11.1

External Memory Mapping ...............................................................................22

11.2

External Bus Interface Pin Description ...........................................................23

11.3

Chip Select Lines .............................................................................................24

11.4

Data Bus Width ................................................................................................25

11.5

Byte Write or Byte Select Access ....................................................................26

i

6410B–ATARM–12-Jan-10

ii

11.6

Boot on NCS0 ..................................................................................................28

11.7

Read Protocols ................................................................................................28

11.8

Write Data Hold Time ......................................................................................30

11.9

Wait States ......................................................................................................31

11.10

Memory Access Waveforms ............................................................................34

11.11

EBI User Interface ...........................................................................................46

12 Flash Memory ......................................................................................... 51

12.1

Block Diagram .................................................................................................52

12.2

Device Operation .............................................................................................52

12.3

Sector Lockdown .............................................................................................55

12.4

Status Bit Table ...............................................................................................62

12.5

Flash Memory Command Definition ................................................................63

12.6

Protection Register Addressing .......................................................................64

12.7

Sector Address ...............................................................................................65

12.8

Software Product Identification Entry ..............................................................66

12.9

Software Product Identification Exit .................................................................66

12.10

Sector Lockdown Enable Algorithm .................................................................67

12.11

Common Flash Interface Definition .................................................................68

13 PS: Power-saving ................................................................................... 70

13.1

Peripheral Clocks ............................................................................................70

13.2

Power Saving (PS) User Interface ...................................................................71

14 AIC: Advanced Interrupt Controller ..................................................... 76

14.1

Block Diagram .................................................................................................76

14.2

Hardware Interrupt Vectoring ..........................................................................78

14.3

Priority Controller .............................................................................................78

14.4

Interrupt Handling ............................................................................................78

14.5

Interrupt Masking .............................................................................................79

14.6

Interrupt Clearing and Setting ..........................................................................79

14.7

Fast Interrupt Request .....................................................................................79

14.8

Software Interrupt ............................................................................................79

14.9

Spurious Interrupt ............................................................................................79

14.10

Protect Mode ...................................................................................................80

14.11

Standard Interrupt Sequence ..........................................................................81

14.12

Fast Interrupt Sequence ..................................................................................82

14.13

AIC User Interface ...........................................................................................84

AT91FR40162SB

6410B–ATARM–12-Jan-10

6410B–ATARM–12-Jan-10

AT91FR40162SB

15 PIO: Parallel I/O Controller .................................................................... 93

15.1

Multiplexed I/O Lines .......................................................................................93

15.2

Output Selection ..............................................................................................93

15.3

I/O Levels ........................................................................................................93

15.4

Interrupts .........................................................................................................94

15.5

User Interface ..................................................................................................94

15.6

PIO User Interface ...........................................................................................97

16 WD: Watchdog Timer ........................................................................... 107

16.1

Block Diagram ...............................................................................................107

16.2

WD Enabling Sequence ................................................................................108

16.3

WD User Interface .........................................................................................109

17 SF: Special Function Registers .......................................................... 113

17.1

Chip Identification ..........................................................................................113

17.2

SF User Interface ..........................................................................................114

18 USART: Universal Synchronous Asynchronous Receiver Transmitter

................................................................................................................ 119

18.1

Block Diagram ...............................................................................................119

18.2

Pin Description ..............................................................................................120

18.3

Baud Rate Generator ....................................................................................121

18.4

Receiver ........................................................................................................122

18.5

Transmitter ....................................................................................................124

18.6

Break .............................................................................................................125

18.7

Peripheral Data Controller .............................................................................127

18.8

Interrupt Generation ......................................................................................127

18.9

Channel Modes .............................................................................................128

18.10

USART User Interface ...................................................................................129

19 TC: Timer Counter ............................................................................... 148

19.1

Block Diagram ...............................................................................................149

19.2

Signal Description ..........................................................................................150

19.3

Timer Counter Description .............................................................................150

19.4

Capture Operating Mode ...............................................................................154

19.5

Waveform Operating Mode ...........................................................................156

19.6

TC User Interface ..........................................................................................159

20

AT91FR40162SB Electrical Characteristics ...................................... 177

iii

20.1

Absolute Maximum Ratings ...........................................................................177

20.2

AT91FR40162SB DC Characteristics ...........................................................178

20.3

Flash DC Characteristics ...............................................................................179

20.4

Flash Operating Modes .................................................................................179

20.5

Power Consumption ......................................................................................180

20.6

Clock Waveforms ..........................................................................................181

21 AC Characteristics ............................................................................... 183

21.1

Applicable Conditions and Derating Data ......................................................183

21.2

Peripheral Signals .........................................................................................186

21.3

EBI Signals Relative to MCKI ........................................................................190

21.4

AC Flash Read Characteristics .....................................................................194

21.5

AC Flash Byte/Word Load Waveforms ..........................................................196

21.6

Flash Program Cycle Characteristics ............................................................198

21.7

Flash Data Polling Characteristics .................................................................200

21.8

Flash Toggle Bit Characteristics ....................................................................201

22 Mechanical Characteristics ................................................................. 202

22.1

Package Drawing ..........................................................................................202

22.2

Soldering Profile ............................................................................................203

23 Ordering Information ........................................................................... 204

24 AT91FR40162SB Errata ....................................................................... 205

24.1

Marking ..........................................................................................................205

24.2

Flash ..............................................................................................................205

25 Revision History ................................................................................... 207

Table of Contents....................................................................................... i

iv

AT91FR40162SB

6410B–ATARM–12-Jan-10

Headquarters

Atmel Corporation

2325 Orchard Parkway

San Jose, CA 95131

USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

International

Atmel Asia

Unit 1-5 & 16, 19/F

BEA Tower, Millennium City 5

418 Kwun Tong Road

Kwun Tong, Kowloon

Hong Kong

Tel: (852) 2245-6100

Fax: (852) 2722-1369

Atmel Europe

Le Krebs

8, Rue Jean-Pierre Timbaud

BP 309

78054 Saint-Quentin-en-

Yvelines Cedex

France

Tel: (33) 1-30-60-70-00

Fax: (33) 1-30-60-71-11

Atmel Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

Product Contact

Web Site

www.atmel.com

www.atmel.com/AT91SAM

Literature Requests

www.atmel.com/literature

Technical Support

AT91SAM Support

Atmel techincal support

Sales Contacts

www.atmel.com/contacts/

Disclaimer:

The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY

WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN-

TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF

THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

© 2010 Atmel Corporation. All rights reserved.

Atmel

®

, Atmel logo and combinations thereof and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. ARM

®

, the ARMPowered

®

logo, ARM7TDMI

®

, Thumb

®

and others are registered trademarks or trademarks of ARM Ltd. Windows

®

and others are registered trademarks or trademarks of Microsoft Corporation in the US and/or in other countries,

IBM

®

is a registered trademark of IBM Corporation. Other terms and product names may be trademarks of others.

6410B–ATARM–12-Jan-10

vi

AT91FR40162SB

6410B–ATARM–12-Jan-10
