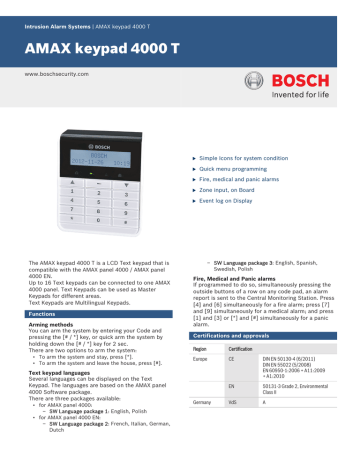

Intrusion Alarm Systems | AMAX keypad 4000 T
AMAX keypad 4000 T
www.boschsecurity.com
The AMAX keypad 4000 T is a LCD Text keypad that is
compatible with the AMAX panel 4000 / AMAX panel
4000 EN.
Up to 16 Text keypads can be connected to one AMAX
4000 panel. Text Keypads can be used as Master
Keypads for different areas.
Text Keypads are Multilingual Keypads.
Functions
Arming methods
You can arm the system by entering your Code and
pressing the [# / *] key, or quick arm the system by
holding down the [# / *] key for 2 sec.
There are two options to arm the system:
• To arm the system and stay, press [*].
• To arm the system and leave the house, press [#].
Text keypad languages
Several languages can be displayed on the Text
Keypad. The languages are based on the AMAX panel
4000 Software package.
There are three packages available:
• for
–
• for
–
AMAX panel 4000:
SW Language package 1: English, Polish
AMAX panel 4000 EN:
SW Language package 2: French, Italian, German,
Dutch
u
Simple Icons for system condition
u
Quick menu programming
u
Fire, medical and panic alarms
u
Zone input, on Board
u
Event log on Display
– SW Language package 3: English, Spanish,
Swedish, Polish
Fire, Medical and Panic alarms
If programmed to do so, simultaneously pressing the
outside buttons of a row on any code pad, an alarm
report is sent to the Central Monitoring Station. Press
[4] and [6] simultaneously for a fire alarm; press [7]
and [9] simultaneously for a medical alarm; and press
[1] and [3] or [*] and [#] simultaneously for a panic
alarm.
Certifications and approvals
Region
Certification
Europe
CE
DIN EN 50130-4 (6/2011)
DIN EN 55022 (5/2008)
EN 60950-1:2006 + A11:2009
+ A1:2010
EN
50131-3 Grade 2, Environmental
Class II
VdS
A
Germany
2 | AMAX keypad 4000 T
Technical specifications
Enclosure Design
Dimensions:
• 138 x 115 x 24 mm
(LxWxH)
Weight:
• 254g
Color:
• White
Enviromental Considerations
Operating Temperature
• -10°C to +55°C
Relative Humidity
• 10% to 95%
Power Requirements
Input Voltage range:
• 10.8VDC to 13.8VDC
Current Consumption:
• standby 31mA , max.
100mA
Cable requirements:
• four wire, AWG18 or
AWG22
• maximum length 200m
(Panel to last KP)
• maximum BUS 1 length
700m (max 14 devices,
max 8 KPs)
• maximum BUS 2 length
700m (max 14 devices,
max 8 KPs)
EN Type:
• B
Ordering information
AMAX keypad 4000 T
AMAX keypad 4000 T is a Text keypad
Approval: EN 50131-3 Grade2
Order number IUI-AMAX4-TEXT
Represented by:
