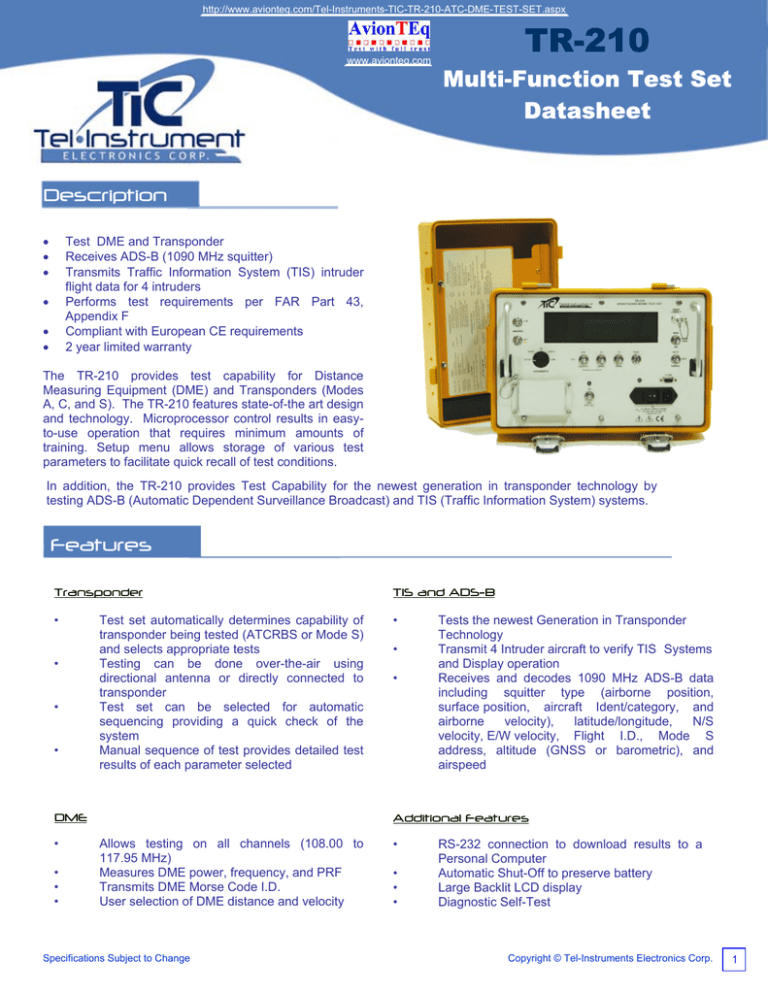

TR-210
Multi-Function Test Set
Datasheet
Description
•
•
•
Test DME and Transponder
Receives ADS-B (1090 MHz squitter)
Transmits Traffic Information System (TIS) intruder
flight data for 4 intruders
Performs test requirements per FAR Part 43,
Appendix F
Compliant with European CE requirements
2 year limited warranty
•
•
•
The TR-210 provides test capability for Distance
Measuring Equipment (DME) and Transponders (Modes
A, C, and S). The TR-210 features state-of-the art design
and technology. Microprocessor control results in easyto-use operation that requires minimum amounts of
training. Setup menu allows storage of various test
parameters to facilitate quick recall of test conditions.
In addition, the TR-210 provides Test Capability for the newest generation in transponder technology by
testing ADS-B (Automatic Dependent Surveillance Broadcast) and TIS (Traffic Information System) systems.
Features
Transponder
TIS and ADS-B
•
•
•
•
•
Test set automatically determines capability of
transponder being tested (ATCRBS or Mode S)
and selects appropriate tests
Testing can be done over-the-air using
directional antenna or directly connected to
transponder
Test set can be selected for automatic
sequencing providing a quick check of the
system
Manual sequence of test provides detailed test
results of each parameter selected
DME
•
•
•
•
•
•
Tests the newest Generation in Transponder
Technology
Transmit 4 Intruder aircraft to verify TIS Systems
and Display operation
Receives and decodes 1090 MHz ADS-B data
including squitter type (airborne position,
surface position, aircraft Ident/category, and
airborne
velocity),
latitude/longitude,
N/S
velocity, E/W velocity, Flight I.D., Mode S
address, altitude (GNSS or barometric), and
airspeed
Additional Features
Allows testing on all channels (108.00 to
117.95 MHz)
Measures DME power, frequency, and PRF
Transmits DME Morse Code I.D.
User selection of DME distance and velocity
Specifications Subject to Change
•
•
•
•
RS-232 connection to download results to a
Personal Computer
Automatic Shut-Off to preserve battery
Large Backlit LCD display
Diagnostic Self-Test
Copyright © Tel-Instruments Electronics Corp.
1
TR-210
Transponder Specifications
The TR-210 performs the following tests based on the Transponder capabilities:
•
Mode A - ID code, IDENT, percent reply, pulse spacing, pulse
width
Mode C - Altitude (feet and grey code), percent reply, pulse spacing,
pulse width
Side-lobe suppression (SLS) – Tests at P1/P2=0 and P1>P2=-9 dB
Mode A/S and C/S All Call - Mode S address, per-cent reply
Mode A Only and Mode C Only
Mode S Surveillance I.D. (DF5) – Mode S address, percent reply,
flight status (Air, Ground, Alert, SPI), Mode S/Mode A I.D. code
compare (Automatic mode)
Mode S Surveillance Altitude (DF4) – Mode S altitude, percent reply
Mode S/Mode C altitude compare (Automatic mode)
Mode S Surveillance Short (DF0) – Mode S ad-dress, vertical status
(Air, ground), percent reply, decoded country code, and tail number
(if applicable)
Mode S Comm. I.D. (UF5/DF21) – Mode S ID code, percent reply
Mode S Comm. Altitude (UF4DF20) – Mode S altitude, percent reply
Undesired replies (UF11) – Checks for reply to in-correct Mode S
interrogation
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Receiver
Frequency
Power
Measurement Range
Measurement Accuracy
Measurement Range
Measurement Accuracy
Sensitivity
Measurement Range
Measurement Accuracy
Reply %
Measurement Range
Measurement Accuracy
1086.5 to 1093.5 MHz
+ 200 kHz
47 to 64 dBm
+ 1 dB (direct connect)
+ 3 dB (radiated)
-50 to -87 dBm
+ 2 dB (direct connect)
+ 2 dB (radiated)
0 to 100%
+ 1%
•
Acquisition squitter – Pass/Fail indication of squitter period, decoded
Mode S address, interrogator code
Acquisition squitter – Pass/Fail indication of squitter period, decoded
Mode S address, interrogator code
Extended squitter – Pass/Fail indication of squitter period, decoded
Mode S address
Max Airspeed – Decodes and displays maximum airspeed
Diversity – Displays Pass/Fail indication and measured value of RF
leakage through Mode S transponder
Measures and displays transponder power (dBm or watts),
frequency, and receiver sensitivity
Decodes and displays Flight I.D.
Decodes and displays Mode S address in Octal and Hex
Mode S Enhanced Surv. parameters including Selected Altitude
(BDS4); Roll Angle, True Track Angle, Ground Speed, Track Angle
Rate, and True Airspeed (BDS5); Magnetic Heading, Indicated
Airspeed, Mach #, Barometric Altitude Rate, and Inertial Vertical
Velocity (BDS6)
Receives and decodes 1090 MHz ADS-B data including squitter type
(airborne position, surface position, aircraft Ident/category,
and airborne velocity), latitude/longitude, N/S velocity, E/W velocity,
Flight I.D., Mode S address, altitude (GNSS or barometric), and air
speed
Transmits TIS data for 4 intruder aircraft
Transmitter
Generator
Output Frequency
Output Power
Transmitter Modes
Antenna Beam width
1030 MHz / ±10 kHz
≥4 dB
1, 2, 3/A,C, S
15º using Sum & Diff ports
30º using Sum only
DME Specifications
TR-210 Receiver
The TR-210 provides test capability for testing DME by allowing
the test set operator to select a variety of test parameters and
make parametric measurements:
•
•
•
•
•
•
Frequency
Sensitivity
Selection of all DME channels
Selection of velocity (ground speed)
Displays DME PRF (scan rate)
Displays DME power
Displays DME frequency
Transmits Morse Code I.D.
Physical Characteristics
Packaging – MIL-PRF-28800, Style C
Size: 14.5 x 9.4 x 6.5 inches
Weight: 20 pounds
Operating Temperature: -28° to +55° C
Battery Operation: 8 hours at 20% Duty Cycle
AC Operation/Charging: 100-240 VAC, 50-400 Hz
Measurement Range
Measurement Accuracy
Measurement Range
Channel Freq. + 3.5 MHz
+ 200 KHz
< -35 dB
TR-210 Transmitter
Generator
Frequency Range
Frequency Accuracy
Output Power
962 to 1213 MHz
+ 10 KHz
≥4 dB
Accessories
•
•
•
•
•
•
AC Power Cord
Direct Connect Cable Assembly
Directional Antenna Cable Assembly
Directional Antenna Assembly
Directional Antenna Handle Assembly
Operators Manual
Antenna
Tel-Instrument Electronics Corp.
•
•
•
Directional antenna can be hand-held
or mounted on side of case
Antenna gains marked on attached decal
Range – 10 to 170 feet
Specifications Subject to Change
728 Garden Street
Carlstadt, NJ 07072
(201) 933-1600
www.telinstrument.com
Copyright © Tel-Instruments Electronics Corp.
2
