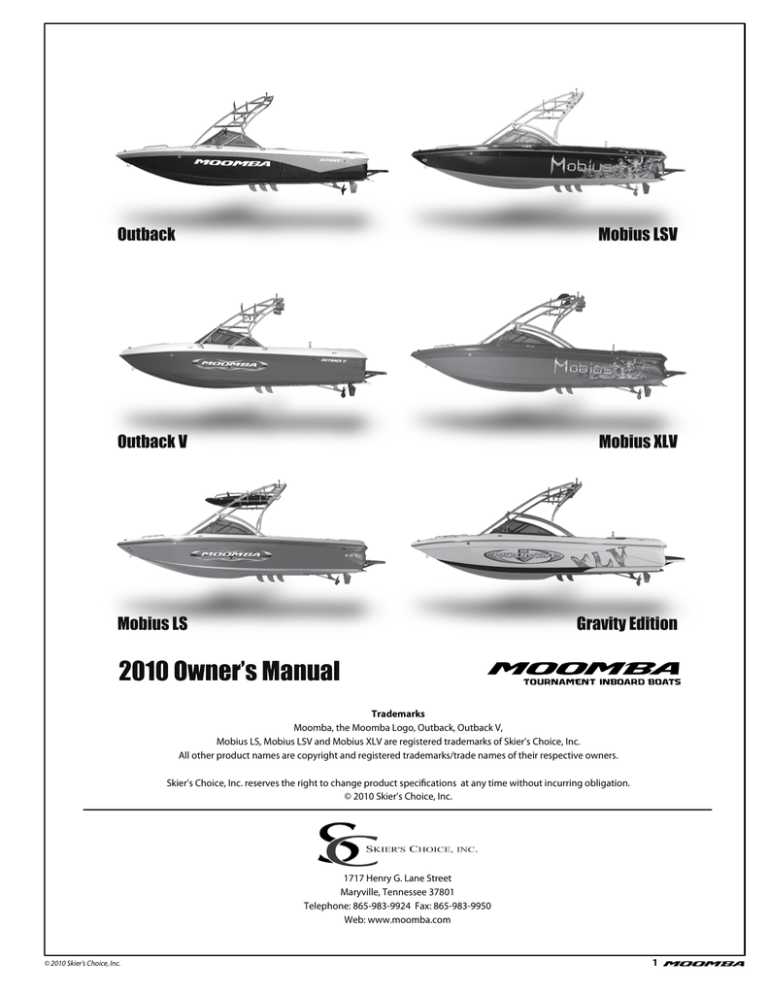

Moomba Owner's Manual: 2010
Trademarks
Moomba, the Moomba Logo, Outback, Outback V,
Mobius LS, Mobius LSV and Mobius XLV are registered trademarks of Skier’s Choice, Inc.
All other product names are copyright and registered trademarks/trade names of their respective owners.
Skier’s Choice, Inc. reserves the right to change product specifications at any time without incurring obligation.
© 2010 Skier’s Choice, Inc.
1717 Henry G. Lane Street
Maryville, Tennessee 37801
Telephone: 865-983-9924 Fax: 865-983-9950
Web: www.moomba.com
© 2010 Skier’s Choice, Inc.
Table of Contents
Section I
Section II
Section III
Section IV
Section V
Section VI
Section VII
Section VIII
Section IX
Section X
Section XI
Section XII
Section XIII
Section XIV
Section XV
Section XVI
Introduction
Boating Safety
Emergency Procedures
Boating Rules
Boat Specifications
Operating Information
Starting & Operation
Instrument Panel
Equipment & Options
Service & Maintenance
Cleaning, Care & Storage
Winterization & Dry Storage
Technical Information
Trailering Your Boat
Moomba Warranty
Index
3
5
13
17
21
25
27
31
45
63
69
71
73
75
81
85
Boat Information
Hull Identification Number:_______________________________________________________________________
Date of Purchase:_______________________________________________________________________________
Dealership:____________________________________________________________________________________
Dealer’s Phone Number:_________________________________________________________________________
Registration Number:___________________________________________________________________________
Engine Serial Number:__________________________________________________________________________
Trailer Serial Number:___________________________________________________________________________
Notes
_______________________________________________________________________________
______________________________________________________________________________
_____________________________________________________________________________________________
____________________________________________________________________________________________
_______________________________________________________________________________
______________________________________________________________________________
_____________________________________________________________________________________________
____________________________________________________________________________________________
_______________________________________________________________________________
______________________________________________________________________________
_____________________________________________________________________________________________
____________________________________________________________________________________________
© 2010 Skier’s Choice, Inc.
Section I
Introduction
Introduction
Moomba inboard ski boats are manufactured by Skier’s Choice, Inc. in Maryville, Tennessee and distributed throughout the United
States and the world.
This manual provides an overview for operating your Moomba boat. It should be considered a permanent part of your Moomba
boat and contains important information on Safety, Boating Rules, Proper Operation and Maintenance of your boat. Should the
boat be sold, this manual will provide the same important information to the next owner.
Be sure to read and understand all aspects of Boating Safety and Operation before using your boat. If you have any questions, your
dealer can provide the information you need to have a safe and pleasurable boating experience.
All information, illustrations and specifications in this manual are based on the latest product information available at the time of
printing. Moomba may discontinue models and equipment or change specifications and designs without any notice and without
incurring obligation.
This manual contains information about several Moomba models. Some information may not apply to your boat since standards
and optional equipment may vary from model to model.
As you read through this manual, you will find CAUTION,
WARNING and DANGER symbols which require special
attention. Please read them carefully! They may tell you how to
avoid problems and/or endangering yourself, your passengers,
and other boaters.
PLEASE REVIEW ALL SAFETY INFORMATION.
SPECIAL ATTENTION SYMBOLS
A maintenance schedule and accessory information are included to assure trouble-free operation of your boat. Should service
problems arise, remember that your Moomba dealer knows your boat best and is interested in your total satisfaction.
Thank you for purchasing a Moomba boat. We hope your ownership results in an enjoyable and rewarding boating experience.
Be safe and enjoy the fun!
© 2010 Skier’s Choice, Inc.
Daily Check List
Drain Plugs (Securely in place?)
Life-Saving Devices (One for every person on board?)
Steering System (Working smoothly and properly?)
Fuel System (Adequate fuel? Leaks? Fumes?)
Battery (Fully charged? Cable terminals clean and tight?)
Engine (In neutral?)
Capacity Plate (Are you overloaded or overpowered?)
Weather Conditions (Is it safe to go out?)
Electrical Equipment (Lights, horn, pump, etc.?)
Emergency Gear (Fire extinguisher, bailer, paddle, anchor & line, signaling device, tool kit, etc.?)
Bilge Pump (Working properly?)
NOTE: Bilge pump should be checked prior to each use to ensure proper operation.
Check BEFORE running your boat (where applicable).
Engine Oil Level
Transmission Lubricant Level
Engine Drain Plug, Transom Drain Plug and Center Drain Plug
Leakage (Fuel, water lines and connections)
DO NOT operate engine without cooling water flowing through water pump, or
pump will sustain damage and subsequent engine damage may result!
Check BEFORE running your boat.
Oil Pressure: Refer to Engine Owner’s Manual.
Water Temperature: 160 - 180 degrees for raw water systems (water is not recirculated), and
180 - 200 degrees for closed cooling systems (water is recirculated).
Idle RPM: (650 - 750) in gear.
Maximum Forward RPM: Refer to Engine Owner’s Manual.
Shifting Linkage (Forward, Neutral & Reverse).
GASOLINE VAPORS CAN EXPLODE. It is very important to check for fuel spillage
or leaks prior to each use of your boat.
Check engine compartment for gasoline vapors.
Operate blower for four minutes before starting the engine.
Always operate blower below cruising speed.
NOTE: Please refer to your Engine Owner’s Manual for maximum RPM and
engine break-in procedure.
© 2010 Skier’s Choice, Inc.
Section II
Boating Safety
Important Safety Information!
Safe Boating
Your safety, as well as the safety of others with and around
you, is a direct result of how you operate and maintain your
boat. Read and comprehend this manual. Make sure that
you understand all the controls and operating instructions
before attempting to operate the boat. Improper operation is
extremely dangerous.
Safe boating practices may seem obvious, but people have
thought up risky and dangerous activities in boats, with boats,
and behind boats. Just because you or your passengers have
seen a boating maneuver performed or have seen a particular
activity promoted, do not assume there is no risk of injury or
death. Before you or your passengers go out in the boat and
engage in any water sport activity, give careful consideration to
the risks. Plan ahead. Think twice before you try something new
behind your boat or with your boat. Know the limits of you, your
passengers and your equipment and do not exceed them.
The basic safety rules are outlined in this section of the manual.
Additional precautions throughout the manual are noted by
the following symbols:
This symbol indicates a potentially hazardous circumstance,
which, if not avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol indicates a potentially hazardous situation, which,
if not avoided, could result in death or serious injury.
This symbol indicates an imminently hazardous situation, which,
if not avoided, will result in death or serious injury. This is limited
to the most extreme situations.
The precautions listed in this manual and on the boat are
not exhaustive. If a procedure, method, tool or part is not
specifically recommended by Skier’s Choice, you must satisfy
yourself that it is safe for you and others, and that the boat will
not be damaged or made unsafe as a result of your decision.
In addition to careful review of this manual, you should be aware
as well that there are many sources of information available.
Skier’s Choice urges you to pursue additional training, such as
safety and seamanship courses offered by the U.S. Coast Guard
Auxiliary and the U.S. Power Squadron.
Safe boating and safe actions may seem obvious, yet every
year US Coast Guard statistics give evidence that many people
disregard safe boating practices. Do not take safety for granted.
Think twice. We want all our boat owners and their passengers,
friends, and families to have a safe and enjoyable experience
on the water.
US Coast Guard Auxiliary
Boating Safety Course
The purchaser of a new 2010 Moomba boat is entitled to a
USCGA Boating Safety Course that Moomba will pay for. Please
see the Certificate in your owner’s packet or your dealer for
more details.
REMEMBER: ALWAYS USE COMMON SENSE WHEN OPERATING,
SERVICING OR REPAIRING THE BOAT!
In addition to everyday safety, failure to observe safety
recommendations may result in severe personal injury or death
to you or to others. Use caution and common sense when
operating your boat. Don’t take unnecessary chances!
Be certain that all boat passengers are aware of this information
and conform to boat safety principles.
© 2010 Skier’s Choice, Inc.
Safety Training Organizations
Safety Equipment
The following is a listing of just some of the agencies and
organizations that offer safety training or information:
Your Moomba has been equipped at the factory with most of
the federally required safety equipment for inland waters (Class
1, 16’-to-26’).
American Red Cross, National HQ
17th & D Streets NW
Washington, DC 20006
(202) 639-3686
www.redcross.org
This equipment includes:
USA Waterski
799 Overlook Drive
Winter Haven, FL 33884
(941) 324-4341
www.usawaterski.org
Boat Owners Association of the United States (BOAT/US)
880 South Pickett Street
Alexandria, VA 22304
(703) 823-9550
www.boatus.com
National Safe Boating Council
2550 M Street NW, Suite 425
Washington, DC 20037
(202) 296-4588
www.safeboatingcouncil.org
U.S. Coast Guard Auxiliary Commandant (G-NAB)
2100 Second Street SW
Washington, DC 20593-0001
(800) 336-2628
www.cgaux.org
U.S. Power Squadron
www.usps.org
•
UL-approved Marine Fire Extinguisher, Type A-BC (2 lbs.),
good for solids, liquids, and electrical fire
•
ABYC-approved Marine Mufflers with water injection
•
USCG-approved Marine Flame Arrestor
•
USCG-approved Engine Box Ventilation with sparkless power
blower
•
ABYC-approved Electric Horn sound warning device
•
USCG-approved inland lighting
Federal law also requires at least one Type I, II or III Personal
Flotation Device (PFD) for each person on board or being towed
on water skis or other recreational equipment. In addition, one
throwable Type IV PFD must also be on board. As the owner,
obtaining the appropriate PFDs is your responsibility. Your
Moomba dealer can and will be happy to assist you.
NOTE: Requirements for coastal waters and inland
waters differ. Check with the local authorities for more
information.
A smart owner will avoid potential problems on an outing
by having additional equipment on board. Normally, this
equipment is dependent on the body of water and the length
of the trip.
We suggest the following—as a minimum. Your Moomba dealer
can also assist you with additional recommendations:
•
An anchor with at least 75 feet of line
On-Line Basic Boating Safety Course
www.boatsafe.com
•
A manual bailing device for removing water
•
A combination oar/boat hook
National Marine Manufacturers Association
200 E. Randolph Dr. Suite 5100
Chicago, IL. 60601
(312) 946-6200
www.nmma.org
•
A day-and-night visual distress signal
•
A first aid kit and manual
•
An airway breathing tube
•
A waterproof flashlight
•
A set of local navigation charts
•
Mooring lines and fenders
•
Extra engine oil
•
A tool kit
•
A portable AM/FM radio or weather radio
•
VHF handheld marine radio
Federal law requires certain safety equipment to be on board at
all times. In addition, responsible boaters carry other equipment
in case of emergency. Check with the local boating authorities
for any additional requirements over and above the federal
stipulations.
Boating-related accidents are generally caused by the operator’s
failure to follow basic safety rules or written precautions. Most
accidents can be avoided if the operator is completely familiar
with the boat, its operation, and can recognize potentially
hazardous situations before an accident occurs.
© 2010 Skier’s Choice, Inc.
General Safety Precautions
Failure to adhere to these precautions may result in
severe injury or death to you and/or others.
•
Improper operation is extremely dangerous. Operators must
read and understand all operating manuals supplied with
the boat before operation.
•
Remain seated at all times while boat is in motion.
•
Never stand or allow passengers to stand while the boat is
moving. You or others may be thrown from the boat.
•
Children in the bow of the boat should be accompanied by
an adult at all times.
•
Never operate the boat while under the influence of alcohol
or drugs.
•
On-board equipment must always conform to the governing
federal, state, and local regulations.
•
Gasoline vapors can explode. Before starting engine, open
engine box, check engine compartment for gasoline vapors,
and operate blower for at least four minutes.
•
Run blower below cruising speed.
•
Leaking fuel is a fire and explosion hazard. Inspect system
regularly. Examine fuel tanks for leaks or corrosion at least
annually.
•
Never override or modify the engine safety shut-off switch
or engine neutral starting safety switch in any way.
•
Never remove or modify components of the fuel system
in any way except for maintenance by qualified personnel
Tampering with fuel components may cause a hazardous
condition.
•
Never allow any type of spark or open flame on board. It
may result in fire or explosion.
•
It is the owner’s responsibility to check tightness of the
Rad-A-Cage Tower bolts BEFORE each use.
•
The Rad-A-Cage Tower is designed to pull a single (1)
individual. DO NOT climb or sit on the Rad-A-Cage Tower
Rope may loop on inverted tricks. DO NOT sit behind the
pulling point of the Rad-A-Cage Tower.
General Safety Precautions (continued)
•
The tow bar is not designed for vertical extensions. Any
modifications to the tow bar or its mountings may result in
damage to the boat and injury to the user.
•
Rear storage area is located above the gas tank and is
not designed for ballast. Weight limit is 150 lbs. equally
distributed.
•
The Rad-A-Cage Tower may strike low objects. Check
clearance height around docks, shore, overhanging objects,
bridges and power lines.
•
Do not pull past 45 degrees of the centerline of the boat.
Failure to follow this rule could result in the boat capsizing.
•
It is the driver’s responsibility to ensure all passengers are
seated when boat is underway.
Failure to adhere to these warnings may result in severe
injury or death to you and/or others.
•
Boaters must continuously be aware of weather
conditions.
•
To avoid serious personal injury, DO NOT be on or about the
swim platform while engine is running and keep away from
rear of boat while engine is running.
•
To avoid serious personal injury, DO NOT operate engine
while anyone is on or about the swim platform or in the
water near the boat.
© 2010 Skier’s Choice, Inc.
Sudden storms, wind, lightning, etc., can unexpectedly put
boaters in grave danger. Always check the local weather
report before going boating.
It is the driver’s responsibility to determine if weather or other
factors have created an unsafe boating environment.
•
•
This boat is a high-performance boat and capable of quick
and tight turns and changes in direction. It is the driver’s
responsibility to operate the boat in a manner to ensure the
safety of all passengers.
The driver is solely responsible for the consequences of
their actions.
Skiing Safety
Skiers are obligated to be as aware of the fundamental safety
rules as well as the boat operator. If you are new to water
skiing, seek certified training before starting. You will find it
especially helpful to join a local ski club and USA Waterski when
possible.
Always remember that the majority of water skiing injuries are
the result of impacts with other objects, so always look where
you are going and be aware of what is going on around you.
Failure to adhere to these warnings may result in severe
injury or death to you and/or others.
•
Every skier must always wear a USCG-approved personal
flotation device.
•
Maintain a distance of at least 100 feet from all other objects,
including other boats, piers, rafts, mooring and navigational
buoys, pilings, abutments, or any other items.
•
Always have an experienced driver and observer in the boat
when skiing.
•
Never ski in shallow water, close to shore, or in water
where you do not know the depth or what is beneath the
surface.
•
Never put your arm, head, or any other part of your body
through the handle-bridle of the ski line nor wrap the line
around any part of the body at any time.
•
Never ski at night, or directly in front of other boats.
•
Never jump from a boat that is moving at any speed, nor
enter or exit the water when the engine is running (ON).
•
Make sure that everyone knows and uses approved skiing
hand signals and common skiing courtesy.
Carbon Monoxide (CO) Safety
Carbon monoxide is a colorless, odorless and tasteless gas. It is
produced by gasoline engines and is a component of exhaust
fumes.
Shut off the engine when people are on the swim platform or
in the water around the rear of the boat.
Do not do any activities which put people in close proximity
of the transom when the engine is running.
For the most current information on carbon monoxide, you
may call, write or visit on-line any of the following:
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593-0001
www.uscgboating.org
1-800-368-5647
NMMA
National Marine Manufacturers Association
200 East Randolph Drive, Suite 5100
Chicago, IL 60601-6528
www.nmma.org
312-946-6200
American Boat & Yacht Council, Inc.
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050
Ski Pylon Extensions
Product Misuse
The use of a ski pylon extension or extensions in excess of 7-feet
vertical is not recommended by Moomba on our products. If
you elect to use merchandise such as these, be aware that they
could create excessive stress on your boat and subjectively
cause damages not covered by the warranty.
Misuse of the product or use of it in a manner for which it was
never intended can create dangerous situations. The driver and
passengers are responsible for using the product safely and as
intended. The driver must operate the boat in a manner that
ensures the safety of all passengers. If you or your passengers
are unsure about use of the product, about performing certain
boating maneuvers or are unsure about a particular water
activity, refer to this manual or contact a knowledgeable source
such as your local dealer, Skier’s Choice, Inc., the US Coast Guard,
or your local boating authority.
© 2010 Skier’s Choice, Inc.
Proper Seating
Contact Information
Proper seating is an important element of boating safety. Proper
seating consists of sitting with your buttocks in full contact with
a seat anytime the boat is underway and using hand holds and
grab handles to secure oneself and prevent loss of balance. Do
not sit in locations not designed as a seat. For instance, do not
sit on seat backs, do not sit on the sides or gunwale of the boat,
and do not sit on the sundeck while the boat is in motion. See
examples below of proper sitting positions.
If you have questions regarding the operation of your boat,
accessory or options or questions in regard to Boat Safety,
contact your dealer or Skier’s Choice, Inc. at 865-983-9924.
Notes:
The driver must be aware of all passenger’s locations and
positions, and passengers must stay alert to changes in
direction.
THE BOAT IS CAPABLE OF QUICK AND TIGHT TURNS.
SUCH MANEUVERS CAN CAUSE UNSEATED OCCUPANTS
TO BE THROWN AROUND OR OUT OF THE BOAT. ALERT
PASSENGERS BEFORE CHANGES IN DIRECTION.
© 2010 Skier’s Choice, Inc.
Typical Warning Label Locations — Direct Drive Models
Warning labels are placed
on your boat to alert you
to potential hazards that
may not be obvious. They
also tell you how to avoid
the hazard. Warning labels
should never be removed
and, if any label is damaged,
it should be replaced as soon
as possible.
Warning Plates & Labels
Read and note ALL warning plates and labels from bow to
stern that appear on the boat, including these.
If your warning decals should become damaged in any way,
please contact your Moomba Dealer or write Skier’s Choice,
Inc. to request replacement warning decals. The decals will be
provided free of charge. Your boat’s serial number (located on
the transom) must be included for warning decal requests.
Skier’s Choice, Inc. reserves the right to change warning labels without notification or incurring obligation. For a copy of the most current warning labels,
please contact your dealer or Skier’s Choice, Inc.
10
© 2010 Skier’s Choice, Inc.
Typical Warning Label Locations — V-Drive Models
Warning labels are placed
on your boat to alert you
to potential hazards that
may not be obvious. They
also tell you how to avoid
the hazard. Warning labels
should never be removed
and, if any label is damaged,
it should be replaced as soon
as possible.
Warning Plates & Labels
Read and note ALL warning plates and labels from bow to
stern that appear on the boat, including these.
If your warning decals should become damaged in any way,
please contact your Moomba Dealer or write Skier’s Choice,
Inc. to request replacement warning decals. The decals will be
provided free of charge. Your boat’s serial number (located on
the transom) must be included for warning decal requests.
Skier’s Choice, Inc. reserves the right to change warning labels without notification or incurring obligation. For a copy of the most current warning labels,
please contact your dealer or Skier’s Choice, Inc.
© 2010 Skier’s Choice, Inc.
11
Notes:
12
© 2010 Skier’s Choice, Inc.
Section III
Emergency Procedures
Reprinted from “Fishing and Skiing Boats Owner’s Manual” with permission
from the NMMA.
The time to think about emergencies is
before they happen. Plan ahead. Know what to do before
you encounter any of these situations. Wear a PFD (Personal
Flotation Device) when boating.
Explosion & Fire
EXPLOSION/FIRE/ASPHYXIATION HAZARD
ABANDONING SHIP
BURN HAZARD
•
Swim against the current or wind if you abandon ship.
Leaking fuel will float with the current and may ignite.
•
When clear of danger, account for all who were on board, and help those in need.
•
Use distress signal.
•
Keep everyone together to make rescue easier.
•
Open flame cooking appliances consume oxygen. This can
cause asphyxiation or death.
•
Maintain open ventilation.
•
Liquid fuel may ignite, causing severe burns.
•
Use fuel appropriate for type of stove.
• STAY WITH THE BOAT! A boat will usually float even if there
is major hull damage. Rescuers can spot a boat much easier
than a head bobbing in the water.
•
Turn off stove burner before filling.
•
•
Do not use stove for comfort heating.
FIRE/ASPHYXIATION HAZARD
Flooding, Swamping or Capsizing
Signal for help.
Collision
•
Use special care with flames or high temperatures near urethane
foam, if used in construction of your boat. Burning, welding,
lights, cigarettes, space heaters and the like can ignite urethane
foam. Once ignited, it burns rapidly, producing extreme heat,
releasing hazardous gases and consuming much oxygen.
•
Account for everyone on board.
•
Check for injuries.
•
Inspect structural damage.
•
Reduce flooding.
EXPLOSION
•
Signal for help.
•
• STAY WITH THE BOAT!
If explosion is imminent, put on PFDs, grab distress signals
and survival gear, and immediately abandon ship.
FIRE
•
Turn off engines, generators, stoves and blowers.
•
Extinguish smoking materials.
•
Fixed fire suppression system, if equipped, has heat
sensors that automatically flood machinery space with
a fire extinguishant. Allow extinguishant to “soak”
compartment for at least 15 minutes to cool hot metals or
fuel before cautiously inspecting fire area. Have portable
fire extinguishers ready. Do not breathe fumes or vapors
caused by the fire or extinguishant.
•
If no fixed firefighting system is installed and fire is in engine
compartment, discharge portable fire extinguishers through
engine compartment access plate, if equipped. Do not open
engine hatch as this feeds oxygen to the fire.
•
If you have access to fire, direct contents of extinguishers
at base of flames, not at the top.
•
Throw burning materials overboard if possible.
•
Move anyone not needed for firefighting operations away
from the flames.
•
Signal for help.
•
Put on PFDs, grab distress signals and survival gear, and
prepare to abandon ship.
© 2010 Skier’s Choice, Inc.
Grounding
Action depends on how hard the boat hits bottom and whether
the boat remains stranded. If it is a simple touch, you may need
only to inspect the hull. If you are aground, assess the situation
before reacting. In some cases, throwing the boat into reverse
can cause more damage.
Basic Guidelines
•
Inspect damage to hull, propulsion and steering systems.
•
Check for leaks. If water is coming in, stopping the flow takes
priority over getting free.
•
Determine water depth all around the boat and type of
bottom (sand, mud, rocks, etc.). This will help you decide
which way to move the boat.
•
Determine if tide, wind or current will drive the boat harder
aground or will help free it.
13
Leaks
•
Immediately switch on bilge pumps.
•
Assign crew to operate manual pumps, if needed.
•
If boat is taking on water, have someone take the helm while
you manage damage control.
•
Slow or stop to minimize inflow. However, if you can keep a
hole above water by maintaining speed, do so.
•
If possible, patch the outside with whatever material is
available.
Towing
Both Vessels
•
If you attach the towline to a fitting, be sure the fitting
is fastened with a through bolt and is reinforced on the
underside.
•
Creating a bridle with a line around the hull or superstructure
will distribute the load over a wide area; pad pressure points.
This technique can be used on both the towing and towed
boat.
•
Keep lines clear of propellers on both boats.
•
Keep hands and feet clear of the other boat.
•
Never hold a towline after it is pulled taut.
Person Overboard
PERSONAL INJURY HAZARD
Towing or being towed stresses the boats, hardware and lines.
Failure of any part can seriously injure people or damage the
boat.
A recreational boat towing another is usually a last resort
because of possible damage to one or both boats. The Coast
Guard or a private salvage company is better equipped. A
recreational boat may assist by standing by, and possibly
keeping the disabled boat’s bow at a proper angle until help
arrives. Only when conditions are ideal—that is, waters are calm,
disabled boat is small, and one or both skippers know correct
technique—should a recreational boat tow another.
Towing Vessel
•
Be sure your boat will not run aground too.
•
Because you are maneuverable and the grounded boat is not,
you should pass the towline to the grounded boat.
•
Use double-braided or braid-on-braid line. Never use three
strand twisted nylon; it has too much elasticity and can snap
back dangerously.
•
Fasten the towline as far forward as possible on the upwind or
up-current side of the towing boat. Fastening it to the stern
will restrict maneuverability of the towing boat.
•
If possible, use a bridle.
•
Move slowly to prevent sudden strain on slack line.
•
Be ready to cast loose or cut the line if the towing situation becomes hazardous.
•
Immediately sound an alarm and keep pointing to the
person overboard.
•
Throw a life preserver even if the person is wearing a PFD. It
will serve as a marker.
•
Immediately stop or slow the boat, then circle toward the
victim.
•
Keep person overboard on helm side so operator has the
person constantly in sight.
•
Approach from downwind and move alongside into the
wind for pickup.
•
When almost alongside, stop the engine in gear to prevent
dangerous propeller “windmilling.”
•
As part of your emergency plan, consider what to do if
you were alone and fell overboard (e.g., wear PFD, keep
signal device in PFD, attach emergency stop switch lanyard
to yourself).
Drowning
•
Swim to rescue a drowning victim only as a last resort.
•
Immediate resuscitation is critical! At least two people on
board should be certified in CPR.
•
Keep the victim warm.
•
Use care in handling. Spinal injury may exist if the victim
fell overboard.
•
Signal for help.
Vessel Being Towed
Medical Emergency
•
Attach the towline to the bow eye.
•
•
If the boat has eyebolts in the transom for pulling skiers, a
towline may be attached to a small bridle hooked to both
eyebolts.
•
If it is necessary to be towed after being freed, keep someone
at the wheel to steer.
14
In an emergency, you may be far from professional medical
assistance. Be prepared. Take a first aid course, and carry a
first aid kit. Be aware of special conditions that may affect
anyone on board.
© 2010 Skier’s Choice, Inc.
Carbon Monoxide
Carbon monoxide is an odorless, colorless, extremely toxic gas.
Symptoms of carbon monoxide poisoning are dizziness, ears
ringing, headaches, nausea and unconsciousness. A poisoning
victim’s skin often turns cherry red.
Have the victim breathe fresh air deeply. If breathing stops,
resuscitate. A victim often revives, then relapses because organs
are damaged by lack of oxygen. Seek immediate medical
attention.
Consult your national boating law enforcement agency.
Visual Distress Signals
U.S. Coast Guard regulations require boats in coastal waters and
the Great Lakes to carry visual distress signals for day or night
use, as appropriate for the time of operation. Exempt from the
day signals requirement, but not night signals, are boats less
than 4.8 meters (16 feet), open sailboats less than 7.9 meters (26
feet), boats participating in organized events, and manually propelled boats.
•
If you are required to have visual distress signals, at least
three safety-approved pyrotechnic devices in serviceable
condition must be readily accessible. They must be marked
with a date showing the service life, which must not be
expired.
•
Carry three signals for day use and three signals for night use.
Some pyrotechnic signals, such as red flares, meet both day
and night use requirements.
•
Store pyrotechnic signals in a cool, dry location. An orange
or red watertight container prominently marked “Distress
Signals” is recommended.
Propulsion, Control or Steering Failure
•
Shut off engine.
•
Put out an anchor to prevent drifting.
•
Determine if you can fix the problem yourself. See engine
operator’s manual if engine is flooded.
•
Signal for help.
Radio Communication
Other recognized visual distress signals include:
Radio is the boat operator’s main method of receiving safety
information and summoning aid. VHF-FM radio is the primary
means of short-range communication. Single sideband radio
(SSB) is used for longer range communication.
•
Flames in a bucket
•
Code flags November and Charlie
•
Square flag and ball
VHF-FM Channel 16 and SSB 2182 kHz are designated for
emergency use. Such situations can be categorized as:
•
Black square and ball on orange background flag
•
Orange flag (certified)
•
Electric distress light (certified) - for night use only.
•
Dye marker (any color)
•
Person waving arms
•
U.S. ensign flown upside down
• Emergency - “MAYDAY, MAYDAY, MAYDAY” - Used when a
life or vessel is in imminent danger.
• Urgency - “PAN-PAN,PAN-PAN, PAN-PAN”(pronounced PAHNPAHN) - Used when a person or vessel is in some jeopardy
less than indicated by a Mayday call.
• Safety - “SECURITY, SECURITY, SECURITY” (pronounced SAY-CURE-IT-TAY) - Used for navigational safety or weather warning.
An emergency situation will be hectic and there will not be time
to learn proper radio procedure. LEARN WHAT TO DO BEFORE
YOU NEED TO DO IT.
If you hear a distress call, stop all radio transmissions. If you
can directly assist, respond on the emergency frequency. If
you cannot assist, do not transmit on that frequency. However,
continue to monitor until it is obvious that help is being
provided.
Audible Distress Signals
U.S. Coast Guard regulations require one hand, mouth or poweroperated whistle or horn, audible for at least a half mile.
Other recognized audible distress signals include:
•
Radio communication (see Emergency Procedures - Radio
Procedures - Radio Communication)
•
Radiotelegraph alarm
•
Position indicating radio beacon
•
Morse Code SOS (3 short, 3 long, 3 short) sounded by any
means
•
Fog horn sounded continuously
© 2010 Skier’s Choice, Inc.
15
Notes:
16
© 2010 Skier’s Choice, Inc.
Section IV
Boating Rules
Basic Boating Rules
Encountering Other Vessels
You should be aware of these rules and follow them whenever
you encounter another vessel on the water.
There are three main situations in which you may encounter
other vessels and you must observe the Steering Rules in order
to avoid a collision. These are:
The rules presented in this manual are condensed and have
been provided as a convenience only. Consult your local U.S.
Coast Guard Auxiliary (USCGA) or Department of Motor Vehicles
(DMV) for a complete set of rules governing the waters in which
you will be using your boat. If you plan to travel—even for a
short trip—you would be well served to contact the regional
USCGA or DMV in the area where you will be boating.
Review and understand all local and state laws.
Any time two vessels on the water meet one another, one vessel
has the right-of-way. It is called the stand-on vessel. The vessel
which does NOT have the right-of-way is called the give-way or
burdened vessel.
• Meeting (you are approaching another vessel head-on)
• Crossing (you are traveling across the other vessel’s path)
• Overtaking (you are passing or being passed by another
vessel)
Using the following illustration in which you are the boat in
the center, you should give right-of-way to all vessels shown
in the white area. In this instance, you are the give-way vessel.
All vessels in the shaded area must yield to you as you are the
stand-on vessel. Both you and the meeting vessel must alter
course to avoid each other.
These rules determine which vessel has the right-of-way, and
accordingly, what each vessel should do.
The vessel with the right-of-way has the duty to continue its
course and speed, except to avoid an immediate collision. When
you maintain your direction and speed, the other vessel will be
able to determine how best to avoid you.
The vessel which does not have the right-of-way has the duty
to take positive and timely action to stay out of the way of the
stand-on vessel. Normally, the give-way vessel should not cross
in front of the stand-on vessel. Slow down or change directions
briefly and pass behind the other vessel. You should always
move in such a way that the stand-on operator can see what
you are doing.
This rule is called Rule 2 in the International Rules and says,
“In obeying and construing these rules due regard shall be had
to all dangers of navigation and collision, and to any special
circumstances, which may render a departure from the above rules
necessary in order to avoid immediate danger.”
© 2010 Skier’s Choice, Inc.
If you are meeting another power vessel head-on, and you
are close enough to run the risk of collision, neither of you has
the right-of-way. Both of you should alter course to avoid an
accident. You should keep the other vessel on your port (left)
side. This rule doesn’t apply if both of you can clear each other
by continuing your set course and speed.
17
When two power-driven vessels are crossing each other’s path
close enough to run the risk of collision, the vessel that views the
crossing vessel to the starboard (right) side must give-way.
All vessels which are fishing with nets, lines or trawls are
considered under International Rules to be fishing vessels. Boats
with trolling lines are not considered fishing vessels.
If the other vessel is to the port (left) side, maintain your course
and direction, provided the other vessel gives you the right-ofway as it should.
Fishing vessels have the right-of-way, regardless of position.
These vessels, however, cannot impede the passage of other
vessels in narrow channels.
Sailing vessels should normally be given the right-of-way. The
exceptions to this are:
If you are passing another vessel, you are the give-way vessel.
This means that the other vessel is expected to maintain its
course and speed. You must stay out of its way as you clear it,
altering course and speed as necessary.
Conversely, if you are being passed by another vessel, you
should maintain your speed and direction so that the other
vessel can steer itself around you.
•
When the sailing vessel is overtaking the power-drive vessel,
the power-driven vessel has the right-of-way.
•
Sailing vessels should keep clear of any fishing vessel.
•
In a narrow channel, a sailing vessel should not hamper the
safe passage of a power-driven vessel which can navigate
only in such a channel.
The waters of the United States are marked for safe navigation
by the lateral system of buoyage. The markers and buoys you
will encounter have an arrangement of shapes, colors, numbers
and lights to show which side of the buoy a boater should pass
when navigating in a particular direction.
The markings on these buoys are oriented from the perspective
of being entered from seaward while the boater is going
towards the port. This means that red buoys are passed on the
starboard (right) side when proceeding from open water into
port, and black buoys are to port (left) side. When navigating
out of port, your position to the buoys should be reversed: red
buoys to port and black buoys to starboard.
There are three other rules to always remember when driving
your boat around other vessels.
When navigating in narrow channels, you should keep to the
right when it is safe and practical to do so. If the operator of
a power-driven vessel is preparing to go around a bend that
may obstruct the view of other water vessels, the operator
should sound a prolonged blast on the whistle or horn—four
to six seconds.
If another vessel is around the bend, it too should sound the
whistle or horn. Even if no reply is heard, however, the vessel
should still proceed around the bend with caution.
If you navigate these type of waters, you should carry a portable
air horn, which are available from local marine supply stores.
18
Many boating bodies of water are entirely within the boundaries
of a single state. The Uniform State Waterway Marking Systems
has been devised for these waters. This system uses buoys and
signs with distinctive shapes and colors to show regulatory or
advisory information.
These markers are white with black letters and orange borders.
The information signifies speed zones, restricted areas, danger
areas and general information.
Remember: Markings may vary by geographic location. Always
consult local boating authorities before driving your boat in
unfamiliar waters.
(See examples of buoys and markers next page.)
© 2010 Skier’s Choice, Inc.
© 2010 Skier’s Choice, Inc.
19
Notes:
20
© 2010 Skier’s Choice, Inc.
Section V
Boat Specifications
Outback
Outback V
Specifications:
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
© 2010 Skier’s Choice, Inc.
Specifications:
20’ 6”—(6.25M)
22’ 6”—(6.86M)
23’ 10”—(7.26M)
95”—(2.41M)
102”—(2.59M)
22”—(0.56M)
2,750 lbs.—(1,247KG)
3,600 lbs.—(1,633KG)
10
1,400 lbs.—(635KG)
28 gals.—(106L)
325 HP, V-8—(5.7L)
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
20’—(6.10M)
22’—(6.71M)
24’ 2”—(7.37M)
96”—(2.44M)
102”—(2.59M)
24”—(0.61M)
3,200 lbs.—(1,452KG)
4,050 lbs.—(1,837KG)
12
1,700 lbs.—(771KG)
39 gals.—(148L)
325 HP, V-8—(5.7L)
21
Mobius LS
Mobius LSV
Specifications:
Specifications:
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
22
21’ 6”—(6.55M)
23’ 6”—(7.16M)
25’ 3”—(7.70M)
97”—(2.46M)
102”—(2.59M)
22”—(0.56M)
3,150 lbs.—(1,406KG)
4,000 lbs.—(1,814KG)
13
1,800 lbs.—(816KG)
34 gals.—(129L)
325 HP, V-8—(5.7L)
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
21’ 6”—(6.55M)
23’ 6”—(7.16M)
25’ 3”—(7.70M)
97”—(2.46M)
102”—(2.59M)
24”—(0.61M)
3,300 lbs.—(1,497KG)
4,150 lbs.—(1,882KG)
13
1,800 lbs.—(816KG)
39 gals.—(148L)
325 HP, V-8—(5.7L)
© 2010 Skier’s Choice, Inc.
Mobius XLV
Gravity Games Edition
Specifications:
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
© 2010 Skier’s Choice, Inc.
Specifications:
23’ —(7.01M)
25’ —(7.62M)
26’ 8”—(8.13M)
98”—(2.49M)
102”—(2.59M)
26”—(0.66M)
3,600 lbs.—(1,633KG)
4,700 lbs.—(2,132KG)
16
2,300 lbs.—(1,043KG)
50 gals.—(189L)
325 HP, V-8—(5.7L)
Length without Platform:
Length with Platform:
Length with Trailer:
Width (Beam):
Overall Width with Trailer:
Draft:
Weight (Boat Only):
Weight (Boat & Trailer):
Capacity - Passenger:
Capacity - Weight:
Capacity - Fuel:
Standard Power:
23’ —(7.01M)
25’ —(7.62M)
26’ 8”—(8.13M)
98”—(2.49M)
102”—(2.59M)
26”—(0.66M)
3,600 lbs.—(1,633KG)
4,700 lbs.—(2,132KG)
16
2,300 lbs.—(1,043KG)
50 gals.—(189L)
325 HP, V-8—(5.7L)
23
Notes:
24
© 2010 Skier’s Choice, Inc.
Section VI
Operating Information
BREAK IN
Taking care to properly break in your new engine will pay off in
the long run. In our years of field testing, we have proven that
an Indmar engine, when properly broken in according to our
simple procedures, will last longer, run better and have fewer
repairs over its lifetime.
Your new engine does not require an elaborate break-in
procedure. Just follow these simple instructions and you are
off to a great start.
The three (3) most important aspects of new engine break-in
are:
•
Avoid running engine at high speeds.
•
Do not carry a heavy load (passengers, gear, etc.).
•
Vary your boat speed during break-in. Do not run at the same
RPM for a long period of time.
BREAK-IN STEPS
•
For the first hour, do not exceed 2,000 RPM.
•
For the second hour, do not exceed 3,000 RPM.
•
For the next five hours, do not exceed 4,000 RPM.
BREAK-IN TIPS
•
Avoid fast accelerations and do not carry (or pull) a heavy
load during this period.
•
Always let engine warm up gradually before acceleration.
•
Check oil frequently. During the first 50 to 100 hours, an
engine can use more oil than usual. Maintain oil at a proper
level at all times (do not overfill).
•
Monitor transmission fluid levels.
•
Report abnormal noises or vibrations to your dealer.
•
Keep an eye out for loose mountings, fittings, nuts, bolts,
and clamps.
© 2010 Skier’s Choice, Inc.
During the BREAK-IN process, engine temperature should be
carefully monitored and speed should be reduced if overheating
is evident. ALSO, PLEASE REFER TO ENGINE OWNER’S
MANUAL FOR BREAK-IN INFORMATION.
NOTICE: PLEASE REFER TO ENGINE OWNER’S MANUAL for
maximum RPM and engine break-in procedure.
After the first 10 to 20 hours of operation, take your boat to
the dealer for its first oil and filter change, as well as an engine
checkup. Remember to keep a sharp eye on all gauges and
warning lights during these first hours of operation. Report
anything unusual to your dealer.
After the break-in procedure is over, your boat may be operated
continuously at any speed.
Do not exceed maximum RPM recommended for your
engine. Exceeding the maximum RPM may result in damage
to the engine.
Before starting your engine you must open the engine box
and check engine compartment and bilge for gasoline and
oil vapors.
25
Maximum Capacities
Canvas Cover
In compliance with United States Coast Guard Regulations,
Moomba Boats meet or exceed all safety standards designed for
recreational boats. To ensure safe handling and performance,
each Moomba boat displays a maximum capacity sticker
(see sample), stating the maximum passenger weight load
allowable.
Your Moomba boat cover is made from the finest canvas and
webbing to ensure that your boat will be protected in the off
season. The cover has been designed to fit securely around each
boat. If your new cover does not seem to be snug, a shrinkage
allowance has been sized in.
NOTE: Refer to the Maximum Capacity Sticker on your boat
for allowable loading.
•
Be sure that the cover fits snugly at the bow then unfold
from front to back.
•
Be sure to install cover pole(s) and adjust to proper height,
using set screw on pole(s). This will keep water from
gathering in the center, which can damage the cover.
•
Secure all fastening straps around the trailer frame.
•
Pull the draw cord equally from both sides and tie off to the
lifting eyes on the stern in accordance with the illustration.
Use the following procedure when covering the boat:
Do not exceed the maximum capacity of the boat.
Coast Guard Regulations
Folding Cover
The United States Coast Guard boating regulations prescribe
minimum standards of safety to be met and maintained by all
watercraft. It is necessary that your boat remain in compliance
with these regulations.
When folding the cover for storage, be sure the cover is dry. Take
care not to scratch the canvas finish against rough surfaces.
Store in a dry location.
The staff at Skier’s Choice, Inc. recommend that all boat operators
complete a Coast Guard approved boating safety course.
Cover Repair
If the cover becomes damaged, immediately patch and reseal
the area. Use a tent seam sealer to reseal any new stitches.
Spray fabric guard on scraped or worn surfaces. Canvas tears
should be repaired professionally and stitches sealed to prevent
leakage.
Your mooring cover is not designed for trailering. Trailering
with your cover installed may cause premature cover failure
and boat damage. This damage is not warrantable.
26
© 2010 Skier’s Choice, Inc.
Section VII
Starting & Operation
A standard pre-starting procedure should be always be followed before the first start-up of the day.
1.
2.
3.
4.
Check the engine oil level.
Check for gasoline fumes in bilge or engine compartment.
Operate engine blower for four minutes before starting the engine to remove any fumes.
Check manual operation of bilge pump. Make sure bilge areas are empty.
Other items might also be inspected, depending on the boat and its use. It is advisable to formulate a check list particular to
the equipment and operation of your boat.
REFER TO THE BOATMAN’S CHECKLIST OF THIS MANUAL.
Consult the local Coast Guard Auxiliary or Power Squadron for full details on boating safety.
NOTE: Add-on electrical accessories should never be connected to the ignition terminal or ignition circuit.
IMPORTANT: DO NOT continue to operate the starter for more than 15 seconds at a time without pausing to allow the starter
motor to cool down for at least two minutes. This will also allow the battery to recover between starting attempts. PLEASE
REFER TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.
Do not start engine if gas fumes are present!
BEFORE STARTING ENGINE, BE SURE THAT THE SHIFT SELECTOR IS IN NEUTRAL.
The correct starting procedure depends upon the type of engine. Please refer to the engine manual before starting.
To Start Electronic Fuel Injection (EFI) Engine
•
Place shift selector in Neutral with the throttle in the upright
(zero) position. (If throttle is not in the idle position, the
throttle position sensor will not allow the engine computer
to proceed with a normal starting procedure).
•
With the transmission disengaged, push the lever forward to
full throttle position. (This will cause the computer to shut
off the fuel injectors, which will allow the engine to clear of
excess fuel during starting).
•
Turn Ignition Key to Start Position to operate the starter.
•
•
Release the key when engine starts (key will return to run
position).
Turn the Ignition Key to Start Position and operate the starter
for no more than 15 seconds at a time, until the engine
starts.
•
Allow the engine to establish a good idle (30 to 60 seconds)
before getting underway.
•
When the engine starts, back off the throttle and allow the
engine to establish a good idle (30 to 60 seconds).
•
Shift slowly into forward or reverse, allowing the transmission
time to engage before powering up.
•
Return the throttle to idle position and the transmission
lockout will automatically reengage the transmission in
neutral position.
•
When ready to get underway, shift slowly into forward or
reverse, allowing the transmission time to engage the gearing
before powering up.
NOTE: It is normal for the idle to speed up in cold start
conditions.
DO NOT continue to operate the starter for more than 15
seconds at a time without pausing to allow the starter motor
to cool down for at least two minutes. This will also allow the
battery to recover between starting attempts. PLEASE REFER
TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.
Warm-Up
Always let engine warm up to normal operating temperature
before accelerating.
NOTE: Should the EFI engine become “flooded” use the
following procedure to start:
•
Place shift selector in Neutral and disengage the transmission
by pushing the transmission lockout button located at the
bottom of the lever.
© 2010 Skier’s Choice, Inc.
27
Throttle Lever
The throttle lever controls both the throttle and the transmission.
The idle position (normally vertical) is the zero throttle position
and the neutral position for the transmission. A safety ring
(umbrella) keeps the lever from being accidentally moved to
engage the transmission.
To place the transmission into gear, with your hand placed over
the lever ball, pull up on the safety ring (umbrella) and slowly
push the lever into forward gear or slowly pull the lever back
into reverse gear.
Never shift the lever directly from the neutral (vertical) position
into a speed position.
•
To prevent damage to the transmission, always allow
the transmission time to engage before accelerating the
engine.
•
Once the transmission is engaged, you may accelerate as
quickly as you like.
Transmission
Lockout Button
The Transmission Lockout button allows the transmission to
be disengaged while giving the throttle full operating range.
With the lever in the idle position (normally vertical), push the
button located at the bottom of the lever to disengage the
transmission. The throttle may then be operated in any open
position (forward of neutral or back of neutral upright position).
Return the throttle to idle position, and the transmission
lockout will automatically reengage the transmission in neutral
position.
28
© 2010 Skier’s Choice, Inc.
Center Drain Plug-Direct Drive Models
Center Drain Plug -V-Drive Models
Drain Plug
Cover Latch
On V-drive models the center drain plug is accessed via the
access cover in the center floor panel.
The bilge area drain plug is located at the front of the motor
well, in the center under the engine.
It is extremely important that the drain plug is always checked
before starting the engine. The drain plug should be secured
in place using a wrench.
DO NOT start engine until center drain plug is checked and
secured in place. DO NOT try to install center drain plug
while engine is running.
It is extremely important that the drain plug is always checked
before starting the engine. The drain plug should be secured
in place using a wrench.
DO NOT start engine until center drain plug is checked and
secured in place.
Some Moomba models DO NOT have mechanical devices to
hold the motor box cover in the open position. Please use
caution to prevent accidental closing.
Rear Drain Plug
The rear drain plug is located at the back of the boat, near
the bottom of the transom. It is extremely important that the
drain plug is always checked before starting the engine. The
drain plug should be secured in place using a wrench.
DO NOT start the engine until the drain plug is checked
and secured in place. DO NOT try to install the drain plug
while the engine is running!
© 2010 Skier’s Choice, Inc.
29
Fuel Precautions
Fueling
Indmar Assault MPI 325 & Assault 340
Use a gasoline with a minimum octane rating of 89. See engine
owner’s manual for more information.
Indmar Assault MPI 409
Use a gasoline with a minimum octane rating of 92. See engine
owner’s manual for more information.
DO NOT use gasoline containing methyl alcohol (methanol).
Methanol can damage your boat’s fuel system.
Sparks while fueling could cause an explosion!
Before Fueling:
E-10 fuels require fuel stabilizers that are specifically
designed for E-10 fuels to help prevent moisture absorbtion,
phase separation and gasoline stabilization.
1. Turn off engine.
2. Turn off ignition.
3. Extinguish cigarettes or any open flame.
While Fueling:
Gasoline stabilizer should be added to the fuel tank when the
boat is used infrequently or whenever your boat will not be
used for two weeks or more. During storage always add gasoline
stabilizer to reduce gumming or tank sludge.
•
Keep hose nozzle in contact with fill pipe to provide a ground
against static sparks.
•
Fill tank at a slow rate to avoid any spillage.
Filling the Tank
Fuel Cap
The fuel cap is located on the rear deck near the stern. To open,
lift “GAS” tab and turn.
Be especially careful when filling the fuel tank. DO NOT
over fill the tank. Fuel may empty through the fuel vent and
damage to finishes could result.
NOTE: The cap is sealed by a rubber O-ring. Please do not
over tighten.
If fuel is spilled on stripes or decals, apply a common bath
cleaner (nonabrasive) and wipe with a damp cloth. Rinse the
spill area with clean water.
30
© 2010 Skier’s Choice, Inc.
Section VIII
Instrument Panel & Controls
Moomba Dash
Speed Calibration
Speed may be checked using a stopwatch and a standard slalom
course. Adjust the speedometer needle by twisting the adjuster
knobs located beneath the dash panel.
Speed can also be set by using a hand-held GPS.
Slalom Course Speeds
(Times are from start gate to end gate)
MPH
+ or - 1/2 MPH
18
20
30
32
34
36
SECONDS
ALLOWABLE
32.19
28.97
19.31
18.11
16.95
16.08
32.0 - 32.6
28.0 - 28.6
19.0 - 19.6
17.9 - 18.3
16.8 - 17.2
15.9 - 16.3
Blank Gauge
The Moomba dash has extra slots for gauges
for accessories. If you add options in the future
that have a 2 inch gauge (I.e. wakeplate, depth
finder, etc.) this blank gauge can be removed
and the accessory gauge can be added in its
place.
© 2010 Skier’s Choice, Inc.
31
Warning Stickers
Tachometer
Always heed the dash mounted warning stickers.
GASOLINE VAPORS CAN EXPLODE!
BEFORE STARTING ENGINE:
•
Check engine compartment for gasoline or vapors.
•
Operate blower for four minutes before starting engine.
•
Run blower below cruising speed.
•
Turn off engine before using ski platform.
Speedometer
The tachometer registers the operating speed of the motor’s
shaft output and may be used as an alternative to speedometer
if weight and water conditions permit.
DO NOT exceed the recommended RPM during break-in and
normal operation of your motor. Exceeding the manufacturer’s
suggested RPM may cause damage to the engine.
Engine Hours
The speedometer indicates the water speed of the boat in
miles per hour. It is recommended that the speedometer be
checked for accuracy after each 100 engine hours.
Speed may be checked using a stopwatch and a standard
slalom course. Adjust the speedometer needle by turning
the knob at the bottom of the gauge.
NOTE: If the speedometer registers erratically, check
speedometer pickups.
ENGINE HOURS are shown on the face of the tachometer.
The engine hour gauge acts as an odometer for the engine.
Engine hours should always be noted and documented so that
required maintenance and lubricant changes may be performed
at the proper intervals.
Speedometer Pickups
The speedometer pickup is located on the bottom of the hull. The pickup measures the speed
of water passing the paddlewheel. Poor water conditions or foreign material may clog the
pickup causing the speedometer to register incorrectly.
Inspect the paddlewheel and remove any foreign material only when engine is off.
Please see paddlewheel owner manual in the Boat Owner’s Packet
for more information.
32
© 2010 Skier’s Choice, Inc.
Voltmeter (Inboard)
The voltmeter indicates whether the battery is charging or discharging.
The needle should be located in the normal range while the engine is
running.
If the voltmeter does not register in the normal range, there may be a
problem within the electrical system. It is normal for the voltmeter needle
to fall when starting the engine. Normal range is 12 to 14 volts.
Temp Gauge
The temperature gauge indicates the engine coolant temperature while
the coolant is circulating inside the engine. Engine operating temperatures
will vary depending on the weather conditions and engine load. Normal
operating temp range is between 160 degrees and 180 degrees.
NOTICE: Refer to your Engine Owner’s Manual for additional details.
Oil Pressure Gauge
Fuel Gauge
Running the
engine with low
oil pressure may
cause severe
engine damage.
The oil pressure gauge indicates the oil pressure in the engine
while the engine is running.
This gauge indicates the approximate quantity of fuel remaining
in the tank when the ignition switch is in the “ON” position.
If the oil pressure remains below the normal range of 10 to 80
psi, stop the engine immediately. If engine is allowed to run
while oil pressure is too low, permanent engine damage may
occur.
NOTE: DO NOT run the tank to empty. To prevent
condensation from forming in the tank, it is recommended
that the tank be filled when the gauge indicates 1/4 tank
of fuel remaining.
© 2010 Skier’s Choice, Inc.
33
Depth Sounder
Setting Deep Alarm (continued)
To set the deep alarm, perform the following:
1. Press the down button. The current deep alarm depth setting
will display.
2. Press the up or down button to increase or decrease
respectively the deep alarm depth value. Pressing either
button once will change the depth value in 1-foot or 0.1
meter increments. Holding either button will change the
depth value in 9-foot or 1-meter increments per second.
3. After setting the depth value, the alarm and down arrow
icons will blink for five seconds. Then the display will return
to normal operating mode with the alarm and down arrow
icons displayed.
Setting Units
The depth sounder can display depth in either standard or
metric units.
When triggered, an audible alarm sounds for ten seconds while
flashing the warning LED, alarm and down icons on the display.
After ten seconds, the audible alarm mutes but the LED and
display icons continue to flash.
NOTE: When power is removed from the instrument, all
depth settings are returned to “000”.
Perform the following steps to change the display units:
•
Simultaneously press the up and down buttons. Either the
FT or M units indicator display text will flash.
THEN...
•
To set feet units, press the up button. The FT indicator display
text will flash for five seconds and return to normal mode
display with feet as the current units.
Setting Shallow Alarm
The shallow alarm function can be set for depths ranging from
3 feet (1.0 Meter) to 200 feet (60.9 Meters). An alarm triggers
when the water depth is less than the set value.
To set the shallow alarm, perform the following:
OR...
•
To set meter units, press the down button. The M indicator
display text will flash for five seconds and return to normal
mode display with meters as the current units.
NOTE: When power is applied or removed and reapplied,
the units display defaults to feet units.
1. Press the up button. The current shallow alarm depth setting
will display.
2. Press the up or down button to increase or decrease
respectively the shallow alarm depth value. Pressing either
button once will change the depth value in 1-foot or 0.1
meter increments. Holding either button will change the
depth value in 9-foot or 1-meter increments per second.
3. After setting the depth value, the alarm and up arrow icons
will blink for five seconds. Then the display will return to
normal operating mode with the alarm and up arrow icons
displayed.
When triggered, an audible alarm sounds for ten seconds while
flashing the warning LED, alarm and up icons on the display.
After ten seconds, the audible alarm mutes, but the LED and
display icons continue to flash.
NOTE: When power is removed from the instrument, all
depth settings are returned to “000”.
Setting Deep Alarm
The deep alarm function can be set for depths ranging from 3
feet (1.0 meter) to 200 feet (60.9 meters). An alarm triggers when
the water depth is greater than the set value.
34
© 2010 Skier’s Choice, Inc.
Out of Range Display
TROUBLESHOOTIING
Instrument Does Not Turn On
•
If applicable, check main power supply fuse to the unit. If
it is blown, replace it with a 1 amp, normal blow fuse. If inline fuse is used, clean all corrosion from the fuse housing
or replace the fuse holder assembly if necessary.
Instrument Does Not Turn On (continued)
If the display indicates three horizontal bars as shown, the depth
sounder indicates an out of range, inaccurate or incomplete
data condition.
An out of range condition occurs when the depth reading is
less than 2.5 feet (3.0 meters) or greater than 200 feet (60.9
meters).
Inaccurate or incomplete data will cause an out of range
condition when operating in extremely dirty water, very soft
bottom or at high speeds. A faulty or improper transducer
connection can also cause an out of range error condition.
© 2010 Skier’s Choice, Inc.
•
Check the power cable connection. Be sure that the unit is
connected to a known power source:
•
RED wire to positive, BLACK wire to negative or ground.
•
Ensure that the power source is powered using a test light
or some other reliable form of testing 12 volt power.
•
If you are sure that the unit is receiving power and is still
not functioning, please contact Customer Service for
assistance.
Random or Flashing Bottom Reading
•
Under certain circumstances, the depth sounder may not
perform at the best of its ability. Extremely dirty water, very
soft bottom, high speeds, deep water, or a combination of
the above will result in incomplete or inaccurate readings.
•
Check the transducer cable connection on the back of the
unit.
•
Contact Customer Service for assistance if you are unable
to correct the problem.
35
Stereo
Adjusting The Boat Speed
1. The speed of the boat can be adjusted faster by pressing
and holding the “+” side of the momentary rocker switch,
which will increase the engine speed relative to the throttle
position, therefore to go faster than the initial set point.
2. The speed of the boat can be adjusted slower by pressing
and holding the “-” side of the momentary rocker switch,
which will decrease the engine speed. The engine will
decrease speed below the initial set point.
Disengaging The System
Please refer to your stereo owner’s manual for proper operation
instruction.
NOTE: Stereo unit is connected to the STEREO switch on
the dash.
1. The Digital Cruise System will disengage throttle control
when the throttle is brought back below the current speed
set position at that time. IF the engine speed has been
changed using the “+” or “-” momentary rocker switch during
operation, the latest speed position is the point where
the cruise system will disengage throttle control once the
throttle position is lower than that relative speed position.
The system will reengage once the throttle position is
advanced back above the last set speed position.
2. The system can be completely disengaged by turning the
system “OFF” using the rocker switch. If this is done while
the boat is at speed and the system is engaged, the throttle
will have to be moved below the set speed position before it
will completely disengage and allow the operator complete
throttle control.
Digital Cruise - Activating The Cruise System
1. Accelerate the boat up to the desired cruising speed.
2. Engage the Digital Cruise System by moving the rocker
switch from “OFF” to “SET”. At this point the cruise system
will take over throttle control and maintain the speed at
which it was set. The small red LED light will come on to let
the operator know that the system is engaged. The red LED
light will remain on until the system is turned “OFF” using
the rocker switch.
3. The system will not allow any more throttle input than the
position of the throttle arm. Therefore, the throttle arm
should be advanced completely after the initial engagement
of the system to allow the system to maintain the set speed
with different throttle positions required such as when the
boat turns.
36
© 2010 Skier’s Choice, Inc.
STANDARD MOOMBA PACKAGE
NAVIGATION LIGHTS SWITCH
The Navigation Light switch supplies power to
the Bow Light, the Stern Light and the Pole
Light.
Operation (Refer to Illustration Below):
When underway during night time operation,
set the switch in the NAV position to activate all
of the running lights.
COURTESY LIGHT SWITCH
The Courtesy switch supplies power to the
lighting throughout the boat.
When docked or at anchor, set the switch, in
the ANC position to activate only the pole light.
BILGE PUMP SWITCH
The Bilge Pump switch operates in two
positions. The manual position is used to verify
that the pump is operational.
The automatic pump function is engaged at all
other times so that any excess water in the
bilge may automatically be pumped out.
NAV Lights
STEREO SWITCH
The Stereo switch supplies power to the stereo
unit. The switch must be turned on before the
stereo can be played.
ANC Lights
NOTICE
If any lights, bilge, stereo,
courtesy lights, or accessories fail
to operate, press the appropriate
circuit breaker located under the
switch.
NAV/ANC
COURTESY
BILGE
STEREO
ACC
ACC
ACCESSORY SWITCH (2 POSITIONS)
The Accessory switch supplies power to an
extra circuit for accessories that may be added.
Switch configuration may vary slightly based on options.
If you have any questions regarding operation, please
contact your dealer or Skier's Choice, Inc.
© 2010 Skier’s Choice, Inc.
ACCESSORY SWITCH (3 POSITIONS)
The Accessory switch supplies power to an
extra circuit for accessories that may be added.
37
MOBIUS PACKAGE
NAVIGATION LIGHTS SWITCH
The Navigation Light switch supplies power to
the Bow Light, the Stern Light and the Pole
Light.
Operation (Refer to Illustration Below):
When underway during night time operation,
set the switch in the NAV position to activate all
of the running lights.
COURTESY LIGHT SWITCH
The Courtesy switch supplies power to the
lighting throughout the boat.
When docked or at anchor, set the switch, in
the ANC position to activate only the pole light.
BILGE PUMP SWITCH
The Bilge pump switch operates in two
positions. The manual position is used to verify
that the pump is operational.
The automatic pump function is engaged at
all other times so that any excess water in the
bilge may automatically be pumped out.
NAV Lights
STEREO SWITCH
The Stereo switch supplies power to the stereo
unit. The switch must be turned on before the
stereo can be played.
ANC Lights
NAV/ANC
COURTESY
BILGE
STEREO
ACC
ACC
NOTICE
If any lights, bilge, stereo,
courtesy lights, or accessories fail
to operate, press the appropriate
circuit breaker located under the
switch.
ACCESSORY SWITCH (2 POSITIONS)
The Accessory switch supplies power to an
extra circuit for accessories that may be added.
Switch configuration may vary slightly based on options.
If you have any questions regarding operation, please
contact your dealer or Skier's Choice, Inc.
38
ACCESSORY SWITCH (3 POSITIONS)
The Accessory switch supplies power to an
extra circuit for accessories that may be added.
© 2010 Skier’s Choice, Inc.
Ignition Switch
Tilt Steering
Located on the port side of the dashboard, the ignition switch
has four positions. In the vertical position, the ignition is
“OFF”.
Tilt steering may be adjusted up or down in five different locking
positions. To adjust, depress the tilt lever located beneath the
bezel and move the steering wheel to the desired position.
Release the lever to lock the wheel into place.
One position clockwise is the “ON” position and this will power
the switches and energize the motor.
The full clockwise position is the “START” position.
NOTE: All electrical equipment should be turned off when
the boat is in storage.
Horn
The Horn Switch is located on the switch panel to the left
of the steering wheel.
Horn / Whistle Signals
One Long Blast:
Warning Signal (Coming out of slip)
One Short Blast:
Pass on my Port Side
Two Short Blasts:
Pass on my Starboard Side
Three Short Blasts:
Engines in Reverse
Four or More Blasts:
Danger Signal
1.
2.
3.
© 2010 Skier’s Choice, Inc.
OVERTAKING / PASSING: Boat being passed has the right-of-way. KEEP CLEAR.
MEETING HEAD-ON: Keep to the right.
CROSSING: Boat on the right has the right-of-way. Slow down and permit him to pass.
39
Warning Light (V-Drives Only)
Check Engine Light
The warning light should be “on” at idle. If the light remains “on”
when the engine is above 1200 RPM, shut the engine off and
check V-Drive oil level.
Your boat has an red check engine light. It functions much the
same as the check engine light in your car. If the engine control
module senses certain engine parameters out of range or a
trouble code is set, the light will come on.
Safety Lanyard/Engine Shut-Off Switch
If the light does comes on, stop using the boat and see an
authorized Indmar or Skier’s Choice Service Center.
Your Moomba is equipped with a Safety Lanyard/Engine ShutOff switch. In order for the engine to run, the plastic tip of the
safety lanyard must be attached to the switch. If the clip is
removed from the switch, the engine will not run.
Avoid serious injury or death. Attach Safety Lanyard to
driver prior to operating the boat.
40
© 2010 Skier’s Choice, Inc.
Gravity Ballast System
2 Versions — Gravity 1 and Gravity 3
The optional Gravity Ballast System is an electronically controlled
ballast system that can be operated from the driver’s seat. The
Gravity System is available in a 1 or 3 position system. The switch
panel to the 3 position system is located directly below the
shifter mechanism, and the 1 position system is operated from
a switch on the dash. Each switch allows independent filling
and draining of each ballast container by simply hitting the fill
or drain switch. If the system fails to fill or drain, you may check
the resettable breaker on the switch panel, or the separate
ballast fuse block located under the dash area. The ballast bags
or tanks can be found in the front ski locker, under the rear seat,
or in the rear v-drive storage areas depending on the the model
and ballast system.
Each Gravity Ballast System also includes a manual shut off valve
in case of emergencies. If closed, the valve will prevent any
water from entering the system and is only used in emergency
situations. Under normal use the valve should remain open to
allow full flow of water into system.
Gravity I - 1 Position System
Priming the System
To allow water into the system, the Gravity 1 Ballast System
utilizes a scooped intake strainer to force water into the system.
This allows the ballast system to be filled while running or sitting
still. If air becomes trapped in the system, it may be necessary to
run the boat at planing speeds to force water into the system and
allows the fill pump to prime fully. Once the pump has primed
it is no longer necessary to run the boat for filling. This situation
may occur if the boat is trailered.
When bags begin to vent, shut off!
Care should be taken that the ballast bags are situated properly
with the fill hose on top and drain hose on bottom and that all
fittings are installed securely. The bags should not be twisted
and the bags should be free to expand and drain completely.
Care should be taken to prevent sharp objects from coming
in contact with the bags. Cuts and punctures to the bags are
not warrantable.
© 2010 Skier’s Choice, Inc.
DO NOT OVERFILL BALLAST BAGS!
41
The Gravity 1 Ballast System utilizes a manifold and a solenoid
valve to independently fill each bag or tank. The solenoid
valves have a small toggle switch that can manually override
the opening of the valve. The manual toggle switch needs to
be in the “down” position to allow the system to be controlled
by the switches in the dash area. If the manual toggle switch is
turned to the “up” position, the valve will be open all the time
and cannot be controlled by switches in the dash area. If the
ballast system fills continuously while running the boat, check
to make sure the manual override toggle switch is in the “down”
position. If it continues to fill and the manual toggle switch is
in the “down” position, check for debris that may have clogged
the solenoid valve forcing the valve to stay open. If the valves
continue to fill, closing the manual emergency shut-off valve
will prevent any water from entering the system.
Each Gravity Ballast System also includes an in-line water
strainer before the manifold. This strainer will keep debris out
of the solenoid valve and should prevent the valve from getting
clogged up and forced open. The strainer cover should be
removed periodically and the filter screen cleaned to prevent
debris buildup on the mesh screen. Be careful when removing
the cover not to lose the O-ring used to seal the cover. Also, the
strainer should be removed and drained during winterization.
To fill the ballast system, press the fill switch. To empty, press
the empty switch. With the ballast full, the boat may porpoise
at speeds above 25 mph.
Empty ballast before trailering the boat. DO NOT trailer
boat with ballast full!
Outback Optional Gravity Ballast System
NOTE: When filling the rear ballast bag in the Outback, the
rear seat should be raised to the upper position to allow
the bag to expand freely.
42
© 2010 Skier’s Choice, Inc.
Gravity 3 Ballast System
The optional Gravity 3 Ballast System is an electronically
controlled ballast system that can be operated from the driver’s
seat. The switch panel to the 3 position system is located
directly below the shifter mechanism. Each switch allows
independent filling and draining of each ballast container by
simply hitting the fill or drain switch. If the system fails to fill
or drain, you may check the resettable breaker on the switch
panel, or the separate ballast fuse block located under the dash
area. The ballast bags can be found in the front ski locker and
in the rear v-drive storage areas depending on the the model
and ballast system.
When bags begin to vent, shut off!
Do Not overfill ballast bags!
Care should be taken that the ballast bags are situated properly
with the fill hose on top and drain hose on bottom and that all
fittings are installed securely. The bags should not be twisted
and the bags should be free to expand and drain completely.
Care should be taken to prevent sharp objects from coming in
contact with the bags. Cuts and punctures to the bags are not
warrantable.
Each Gravity Ballast System also includes a manual shut off valve
in case of emergencies. If closed, the valve will prevent any
water from entering the system and is only used in emergency
situations. Under normal use the valve should remain open to
allow full flow of water into the system.
Gravity 3 Position System
Priming the System
To allow water into the system, the Gravity 3 Ballast System
utilizes a impeller pump to force water into the system. This
allows the ballast system to be filled while sitting still or running
slowly. If air becomes trapped in the system, it may be necessary
to idle the boat and allow the fill pump to prime fully.
Gravity 3 Auto Timers
The pumps have a pre-set run time. The pumps will shut off
automatically to prevent overfilling. If the switch is turned off
and back on, the pumps will run an additional minute. (See
dealer for additional information or reprogramming.)
2010 Moomba Ballast Fill Times
Boat Model
© 2010 Skier’s Choice, Inc.
Front Ballast
Rear Ballast Time
Outback V
3 minutes
4.5 minutes
Mobius LS
3 minutes
3.0 minutes
Mobius LSV
3 minutes
4.5 minutes
Mobius XLV
4 minutes
4.5 minutes
43
Gravity 3 Ballast System
2010 Ballast Trouble Shooting Guide
Ballast Switch LED Light Blink Codes
Blink Code
Cause
Reason
Correction
One Blink
Pump has run dry
Tanks empty or no water at inlet
Pump will shut down in approx. 15 seconds
and will not restart until switch is cycled off.
Two Blinks
High Amperage draw from
pump
(1) Line blocked, pump stalled
(1) Pump will shut down immediately and not
restart until switch is cycled to off. If problem
persists, unit will shut down immediately again
until problem is resolved.
(2) Low battery voltage
(2) Check the battery voltage. Have engine
running when turning on the pumps.
(3) Turning on all the pumps
at the same time.
(3) Turn the pumps on one at a time.
Three Blinks
Power loss between the
module and the pump
Open condition, winding breaks,
power removed between control
module and pump.
Module will shut down after 10 seconds of
loss of power between module and pump and
will not restart until cycled.
Four Blinks
Low voltage
Pump will not start if power
at control module is less than
10.5 VDC
Charge battery and/or run boat engine while
filling ballast.
Six Blinks
Timer limit
Programmed limit
Control module has reached programmed or
maximum run time. Additional ballast can be
added (bumped) in 1 minute increments by
pressing FILL. This will add extra water to ballast
but will not effect program time.
Problem
Possible Cause
Pump will not turn on, no
blinking light at switch
Ballast power wires not
connected to battery
Check ballast power wires
at battery
Connect power wires to battery
Pump will not turn on, no
blinking light at switch
Ballast breaker is tripped
Check 60 amp ballast breaker
at the battery
Reset ballast breaker at battery
Pump will not turn on, no
blinking light at switch
System needs reset
Check power to all areas
Turn power off to the system at the breaker
and then back on and retry
Pump turns on, but does
not pump water
Pump not priming
(1) Water intake ball valves are not
open
(1) Open ball valves
(2) Kink in hose
(2) Check hoses for kinks and straighten
as needed
Action
Correction
(3) Check hose connections and tighten if
loose.
Mobius LS Gravity III
These boats have an optional split rear tank which allows for
adjustment in weight from port or starboard.
44
© 2010 Skier’s Choice, Inc.
Section IX
Equipment & Options
Ignition Keys
Fuel Cap
Two ignition keys are provided with the boat. Key entry into
the ignition may sometimes be difficult due to the rubber boot
protector. Please do not unduly force the key into the ignition.
Key tumblers are located vertically, so the key should be vertical
when placed into the switch.
NOTE: The gas cap is sealed by a rubber O-ring. Please do
not over tighten.
NOTE: Ignition key blanks may be purchased through your
Moomba dealer.
Mirrors
The rear view mirror is
installed as a standard item.
The mirror is adjustable so
that it may be set for each
driver.
© 2010 Skier’s Choice, Inc.
•
Mirror should always
be checked before
driving.
•
Mirror angle will change
with each new driver.
45
Driver’s Seat & Seat Adjustment
The Rise-R Seat is a unique
driver seat enhancement. The
front edge of the driver’s seat
cushion lifts up to give the driver
a taller sightline. To switch the
seat to the raised position, use
two hands to lift and push the
front edge of the seat cushion
up and back until it is sitting on
the rear half of the driver’s seat
cushion. To switch to the lower
position, use two hands to push
the Rise-R seat cushion forward
and down.
Be careful of the articulating hinge. Do not place fingers or other objects in the hinge mechanism during use.
The driver’s seat may be adjusted forward or backward by moving the lever below the front of the seat. Use body pressure
to move the seat to the desired position. Release the lever then check to feel the seat lock into place.
After adjusting the seat, be sure that it has locked into place by pushing forward and backward until it has
securely latched.
DO NOT attempt to adjust the driver’s seat while the boat is moving.
Motor Box Cover
V-Drive Engine Compartment
The motor box encloses
the inboard engine and
quiets engine noise. When
opening, stand on either
side, grasp the handle
and pull up and back at
an angle. If the engine
requires maintenance,
open the box lid until it
rests open.
To access the engine compartment, turn latch and pull to
raise the center sun deck lid. When the ski lockers and engine
compartment lids are closed, the upholstered lids double as a
cushioned sun deck.
Never open the Motor Box while the boat is moving!
Some Moomba models DO NOT have mechanical devices
to hold the motor box cover in the open position. Please
use caution to prevent accidental closing.
46
© 2010 Skier’s Choice, Inc.
Fire Extinguisher
Glove Box
A standard Coast Guard approved fire extinguisher is provided
on all Moomba boats. The fire extinguisher is located on the
port side of the interior under the observer’s seat.
To open the glove box, press the black round cylinder down
while lifting the black finger tab. Once open, the lid is supported
by a spring.
(Refer to label instructions for use.)
Ski Pylon
The ski pylon is only to be used to pull skiers. DO NOT use
the ski pylon to hoist the boat. Only use the lifting rings for
this purpose.
NOTE: With use the ski pylon may loosen. Should this occur,
see your Moomba Dealer for service.
© 2010 Skier’s Choice, Inc.
The use of pylon extensions can severely effect the
overall handling of the boat. Follow pylon extension
manufacturer’s directions for mounting.
DO NOT mount any Pylon Extension on the rear pylon
(located at the rear sundeck).
47
Rad-A-Cage
The Moomba models are equipped with
a Moomba Rad-A-Cage towing tower.
The cage is designed as a stable tower to
enhance wakeboarding. It is NOT intended
to be used to tow skiers, barefooters, or
multiple wakeboarders. Such use will void
any warranties written or implied.
Be sure that all bolts are tightly in place
before use.
Be aware of and avoid low overhead
objects such as bridges, power lines,
overhanging trees, etc.
Style 1
To Lower Cage for Storage:
Tools required: 5/16” Allen wrench (for stainless steel 3/8-16 X
1-14” Allen head bolt)
•
Loosen, but DO NOT remove front leg allen bolts.
•
Loosen and remove the hand-knob bolts that connect the
rear legs to the feet.
•
Place the hand-knob bolts somewhere for safe storage.
•
While standing in the bow area, pull the cage forward, gently
placing it against the bow of the boat.
Place padding between the cage and the boat to protect
the gel coat.
Style 2
To Lower Cage for Storage:
•
Remove the four hand knobs from the top of the rear leg.
While holding the tower up, lower the side legs. Then lower
the tower downward into the boat.
To Raise Cage:
- Lift the tower and swing up the rear legs. Install the four hand knobs.
The threads in the aluminum foot could be damaged if the
bolts are not aligned and threaded correctly.
To Raise Cage:
•
Lift and rock the tower back into place until the rear legs
align with the rear feet. (Some manipulation of the cage may
be required to get the legs to line up with the feet.)
•
Install and tighten the rear head-knob bolts
•
Tighten the front leg’s allen bolts.
The Rad-A-Cage is designed to pull a single (1) wakeboarder,
trick skier, or kneeboarder.
NOTE: Apply a thin coat of anti-seize to the threads of the
hand knobs periodically.
The threads in the aluminum foot could be damaged if the
bolts are not aligned and threaded correctly.
The Rad-A-Cage is designed to pull a single (1) wakeboarder,
trick skier, or kneeboarder.
48
© 2010 Skier’s Choice, Inc.
Bow Light
Stern Pole Light
The removable pole light is
stored in the bow. Always
check for proper alignment
when inserting the pole light
into the receptacle.
The pole light must always
be in place and illuminated
when visibility is limited. The
pole light must be displayed
while under way from sunset
to sunrise. The pole light must
also be illuminated while
at anchor from sunset to
sunrise.
The bow light is located on the forward deck. To alert other
boaters to your position and direction while underway at night,
the light is green on the starboard side and red on the port side.
To replace the bulb, remove Phillips screw to lift cover.
Tower Pole Light
On boats equipped with factory
installed towers, the 360° White
Pole Light is mounted on the
tower. To raise the light, pull
the lever on the side of the
light and then carefully raise
the light to a vertical position.
Always lower the light after use
and before trailering to avoid
hitting low overhangs.
NOTE: If using tower pole
light, do not use stern pole
light.
N OT E : B o a t s t h a t a r e
equipped with fac tor y
installed towers do not
have a stern light pole even
though the rear light receptacle is installed. If you would
like a rear 360 pole light so you may operate your boat
after dark with the tower removed, you may purchase one
through your dealer.
DO NOT pull skier with tow rope attached to ski pylon while
pole light is in place.
Pop-Up Cleat
To use the cleat, pull
center up.
DO NOT tow objects
with the cleats.
Pole Light Receptacle
The pole light receptacle is located on the port side deck near
the stern. To install the pole light, open the cover completely
and with the plug correctly aligned, slide it into the socket until
the electrical contacts are firmly in place.
© 2010 Skier’s Choice, Inc.
49
Bow Eye
Lifting Rings
The bow eye is located at the front of the hull below the rub rail.
It is the point of attachment to lead the boat onto the trailer and
to secure the boat to the trailer or to a tie-off when docking.
Two lifting rings are located on the transom.
NOTE: See Hoisting Instructions before using the bow eye
to hoist the boat.
DO NOT use the bow eye ONLY to hoist the boat. You must
use a sling with the bow eye when hoisting the boat. Use
only the designated lifting rings to hoist the boat. (See
Hoisting Instructions.)
NOTE: The lifting rings should be the only point of attachment
for lifting cables. (See Hoisting Instructions.)
Ski Platform
Ski Platform
Detachable
Bracket
The ski platform is
fastened to the boat
with detachable
brackets. The
platform may be
removed from the
boat by pulling the
retaining pins from
the brackets.
All Moomba models are equipped with a ski platform on the
stern. The platform allows easy access to and from the water
for skiers and swimmers.
It is recommended that all entries to and exits from the water
be made from the platform to avoid accidents. (The fiberglass
deck can become slippery when wet.)
Shut Engine OFF when people are on the platform or in the
water near the platform.
Exhaust fumes contain carbon monoxide. Direct or
prolonged exposure to carbon monoxide will cause brain
damage or death.
50
© 2010 Skier’s Choice, Inc.
Propeller
Propeller Precaution
The research and design team at Skier’s Choice has carefully
explored and tested many different propellers and pitch angles
for use on Moomba boats. All tests indicate that the current
propeller installed on your model is the best for the variety of
boating performance required, whether skiing competitively
or for pleasure.
Moving propeller will cause injury. Propeller may rotate
with boat in neutral. Shut off the engine when people are
on the platform or in the water near the platform to avoid
injury from the prop rotation.
It is strongly recommended that your Moomba dealer be
notified before changing the propeller. In general, changing
to a lower pitched propeller may increase acceleration, but will
decrease top speed. Changing to a higher pitched propeller may
achieve higher top speed with a light load, while acceleration
and power may decrease.
NOTE: Under no circumstances should a propeller which
allows the engine to surpass recommended RPMs be
installed.
Avoid engine damage, do not exceed the Max RPM as listed
for your motor. Some props may allow the engine to over-rev
which can cause non-warrantable engine damage.
Outback Convertible Rear Seat/Sundeck
The Outback features a
convertible rear seat that can be
placed in normal seat cushion
setting (A) or in an upper
sundeck setting (B). To move
the seat from the low to high
position, pull the seat cushion
forward toward the motor box,
then place the cushion on top
of the rear seat sides. Be sure
to install the locking straps
(C) when the cushion is in the
upper position.
DO NOT exceed 45 MPH with
the sundeck in the upper
position. DO NOT trailer
the boat with cushion in the
upper position. Loss of a seat
cushion or damage associated
to the seat coming out of the
boat IS NOT covered by your
boat warranty.
© 2010 Skier’s Choice, Inc.
51
Optional Trim Switch and Gauge
Wakeplate
This switch controls the optional wakeplate. The gauge indicates the
position of the wakeplate.
The optional wakeplate allows the driver to control the running attitude
of the boat.
Battery Box
The battery box is mounted on the inside of the observer’s
seat storage compartment.
NOTE: It is recommended that the battery cables be
disconnected from the battery when the boat is placed
in storage. (Refer to Battery Cable Installation and
Precautions)
Avoid damage or injury from battery acid. Ensure that
battery is properly secured before using the boat.
52
© 2010 Skier’s Choice, Inc.
Fueling Conditions
Fuel Vent
The following conditions may be considered normal
operation of the fuel gauge and fuel system:
•
Gas station pumps may shut off before the fuel gauge
indicates FULL.
•
The amount of fuel required for fill-up may not exactly
correspond to the gauge.
•
The gauge needle may not move away from FULL until some
time after fill-up.
•
The gauge needle may move during turns, stops, and
acceleration.
NOTE: Become familiar with engine hourly fuel consumption
at various speeds and know when to check the fuel
gauge.
Walk-Through Windshield
The fuel vent is a part of the gas filler neck. This vent is connected
to the fuel tank via the vent hose, which releases gasoline fumes
from the fuel tank.
The moveable center windshield panel allows access to and
from the bow area on some models. To open, turn safety latches
to vertical and push. Carefully lay the hinged windshield panel
back against the fixed side panel.
© 2010 Skier’s Choice, Inc.
Gasoline vapors are highly explosive!
53
Fuel Tank Pump
The following USCG information is important to your
safety and safe operation of the boat:
”THIS BOAT COMPLIES WITH U.S. COAST GUARD SAFETY
STANDARDS IN EFFECT ON THE DATE OF CERTIFICATION WITH
THE EXCEPTION OF CERTAIN FUEL SYSTEM REQUIREMENTS
ASSOCIATED WITH ITS FUEL INJECTED ENGINE AS AUTHORIZED
BY U.S. COAST GUARD GRANT OF EXEMPTION (CGB 09-003).
MAINTENANCE OF THE FUEL SYSTEM IN THIS BOAT SHOULD
BE PERFORMED ONLY BY EXPERIENCED TECHNICIANS USING
IDENTICAL FUEL SYSTEM COMPONENTS.”
“SERVICE OF THE ENGINE INSTALLED IN THIS BOAT REQUIRES
SPECIAL TOOLS, TRAINING AND GENUINE REPLACEMENT PARTS
WHICH ARE ONLY AVAILABLE FROM SKIER’S CHOICE, INC. THE
FUEL SYSTEM SHOULD BE SERVICED ONLY BY A SKIER’S CHOICE
TRAINED CERTIFIED TECHNICIAN. DO NOT ATTEMPT TO SERVICE
THE SYSTEM YOURSELF.”
Your boat contains a fuel system that is designed using current
fuel delivery technology. The common terminology for this
type of system is: Pump in Tank.
The system consists of a dual high pressure pump canister that
is mounted inside the fuel tank. On the top of the canister there
is a fuel pressure regulator. The engine’s fuel lines are connected
to the in tank fuel pump via a specially designed shielded,
flexible high pressure fuel hose. This hose is pressurized. This
system requires special tools and knowledge to service and
maintain and as such is not owner serviceable.
The fuel filter for the boat’s fuel delivery system is in the fuel
tank. This style filter system is considered a lifetime filter under
normal circumstances.
The pump in tank fuel delivery system uses the fuel to lubricate
and cool the fuel pumps. Running the pumps with very low
fuel levels or running the pumps without fuel in the tank can
induce air into the pumps which may shorten the fuel pump’s
longevity. This type of fuel pump damage is not warrantable.
54
© 2010 Skier’s Choice, Inc.
Double-Up Seating
Optional Bimini Top Styles
Some Moomba models offer Double-Up Seating. This unique
seating can be stored flat for easy access to the bow or flipped
up for extra rear and forward facing seating. To use this seating,
lift and pull the seat back into the locked position. Be sure that
the metal arms are locked before applying pressure.
To lay seat back down, simply pull the seat section of the
backrest more upright to release the locking mechanism.
Optional Swivel and Non-swivel Wakeboard Racks
Wakeboard racks are a convenient way to transport and store
wakeboards while using your boat.
Check tightness of all mounting hardware before each
use.
DO NOT trailer the boat with wakeboards mounted in the
rack.
© 2010 Skier’s Choice, Inc.
The bimini top is designed as a sunshade. Please see the
mooring cover section for instructions on cleaning and caring
for your bimini top. When opening and latching the straps to
the eye hooks, twist the strap one to two times to prevent them
from vibrating in the wind.
DO NOT tow the boat above 45 MPH with the bimini top
open or the Z5 canvas on the frame. Damage to the canvas
may occur. This type of damage is not warrantable.
55
Courtesy Lights
Courtesy lights are installed at several locations in the interior of
the boat. The courtesy light switch is located on the instrument
panel and is marked “COURT”.
Cooler
Some Moomba models offer built-in coolers. They are foam
insulated and have drain holes that drain water into the bilge.
Be sure to thoroughly clean the cooler and allow it to dry after
each use to prevent mold and mildew.
NOTE: Damage from mildew and mold IS NOT covered under
your boat warranty.
Optional Satellite Radio
Satellite Antenna
The optional satellite radio option is designed to give the user
music access anywhere they go in North America. The system is
a 100 channel system which is broken down into different music
types such as: oldies, hard rock, easy listening, alternative, 80’s,
jazz, big bands, etc. This system does have a minimal subscription
fee that must be paid annually to continue service. Please see
satellite radio owner’s manual for more information.
NOTE: Location of satellite antenna may vary.
56
© 2010 Skier’s Choice, Inc.
Optional Digital Cruise Pro
Quick Start Information
The normal “CRUISE” screen displays the following items:
•
An ON/OFF icon in the upper left corner
•
Actual boat speed in the upper center portion of the
screen
•
Target boat speed in the bottom center of the screen (slightly
smaller font) with an indicator to the left showing whether
paddlewheel (PW) or GPS feedback is in effect
•
Water temperature in the lower right corner
To operate the boat under manual control, tap the ON/OFF
button so that the ON/OFF icon indicates “OFF”. This will disable
the cruise control and the driver will have full control of boat
behavior using the throttle lever. If the system is turned OFF
while the boat is under cruise control, the throttle lever must be
pulled back close to idle to regain manual throttle control.
Digital Cruise Pro combines an LCD display and push-button
inputs into a Cruise Control user interface, which is dashmounted in the boat. Its primary function is to provide the
driver with digital readouts of actual and desired boat speed,
and to allow the driver to modify the desired speed using the
push-buttons. Cruise control can be turned On and Off, and a
water temperature display is also provided.
Digital Cruise Pro uses boat speed information provided by a
paddlewheel speed sensor, and has provision for calibrating
the accuracy of the paddlewheel signal if the user has an
independent measure of actual boat speed available, such as
a hand-held GPS device. Digital Cruise Pro can optionally be
upgraded to ZeroOff GPS Cruise which uses GPS based speed
feedback for improved performance and overall accuracy.
Working together with the electronic engine control module
(ECM), Digital Cruise Pro provides true closed loop control of
boat speed. As long as the boat motor has enough power, the
boat automatically tracks the desired speed.
The Digital Cruise Pro faceplate includes the following:
•
A 128/64 pixel backlit LCD display
•
MENU button
•
ON/OFF button
•
UP button
•
DOWN button
Using the Faceplate Buttons
Use the four buttons, MENU, ON/OFF, and the UP and DOWN
arrow keys to navigate through menu options and modify
parameters. Buttons may be either tapped or held, depending
on the function being invoked. For functions where a button
hold is appropriate, the button should be held ON for 2 seconds
or so, and a double beep will be heard acknowledging the hold
action. For taps, a single beep acknowledgement is heard.
© 2010 Skier’s Choice, Inc.
To enable cruise, tap the ON/OFF button so that the ON/OFF
icon indicates “ON”. The driver can then advance the throttle
lever beyond the point required to allow the boat to reach the
current target speed. The boat will approach the target speed
as quickly as engine power and boat loading will permit, and
then settle quickly at and maintain the target speed as long
as the throttle lever remains sufficiently advanced. Throttle
lever position always sets a limit to what percentage of engine
output is available, and the driver can slow the boat at any time
by simply pulling back the throttle lever. If the engine output
required to maintain speed increases, for instance in a turn, the
driver may need to advance the throttle further to allow full
engine power to be applied.
To change the speed set point, tap or hold the UP/DOWN
buttons. Single taps will increase/decrease the set point by
0.1mph increments (0.2kph if metric units are selected) for
fine adjustments. Holding the UP/DOWN buttons results in
changing the set point at a rate that increases the longer the
button is held. The speed set point can be varied between 5
and 60 mph.
Using Digital Cruise Pro
Digital Cruise Pro automatically starts when the boat’s ignition
switch is turned ON. It starts in the same configuration in which
it was turned off, provided the battery was not disconnected.
This means the same configuration settings for boat speed and
setup selections are retained for the next operating session,
provided the battery was not disconnected. If the battery was
disconnected, Digital Cruise Pro starts in a default mode.
While bringing the boat up to speed to the point where the
Digital Cruise Pro speed control engages, you can manipulate
the throttle as desired if pulling a skier up. Digital Cruise Pro
beeps to acknowledge the point of engagement. Once the boat
has achieved the target speed, move the throttle handle all the
way forward to ensure load variations won’t result in loss of
speed regulation. A wide-open throttle handle position frees up
the engine to produce its maximum torque output and allows
the speed control to operate at its optimum level.
NOTE: If the system has been reconfigured as a ZeroOff GPS
Cruise, a satisfactory GPS fix is required to operate in speed
control mode, which usually occurs within 5-10 seconds after
turning on the ignition.
57
Digital Cruise Pro Screens
Digital Cruise Pro provides two screens, a CRUISE screen for
normal use and a DIAGNOSTICS screen for viewing system
information and trouble codes.
CRUISE Screen
Details of how to use this screen are listed earlier in the ”Quick
Start Information” section. If the system has been reconfigured
as a ZeroOff GPS Cruise, an additional feature appears on
this screen when “River Mode” is turned ON. Two additional
parameters appear in the center of the screen, which can be
highlighted by tapping the MENU button:
•
•
•
DNStream/UPStream: When highlighted, this parameter can
be toggled using the UP/DOWN buttons. When in UPStream
mode, the value to the right is subtracted from the base
speed set point to compensate for the additional speed over
water caused by traveling against the current. Conversely,
when in DNStream mode, the value to the right is added to
the base speed set point to compensate for the loss of speed
over water caused by traveling with the current.
Speed Offset: Appears to the right of the UPStream/
DNStream icon. This number is an estimate of how fast the
river current is flowing. It can be estimated by allowing the
boat to float in the current and reading off the boat speed.
The concept of operation is to highlight the Speed Offset
and use the UP/DOWN buttons to enter an estimate of river
current speed. Then move the highlight to the UP/DNStream
icon and use the UP/DOWN buttons to switch modes while
turning the boat to travel either upstream or downstream.
This allows the driver to achieve reasonably consistent speed
over the water while pulling a skier/wakeboarder by tapping
the UP or DOWN buttons as appropriate during the turns.
DIAGNOSTICS Screen
The Diagnostics screen provides part number information and
also lists active and historical error codes. This information
is useful for troubleshooting any problems, which may arise,
as well as for providing information necessary for generating
10-digit codes if a field reconfiguration to ZeroOff GPS Cruise
is required.
The unit’s part number (P/N:) and serial number (S/N:) are
displayed on the top line. The software revision level is shown
on the second line (SW:), followed by an instruction on how
to clear codes (tap the MENU button). The remainder of the
screen displays Active (left column) and Historic (right column)
trouble codes. The number of codes being stored is shown in
each case (e.g. 01 Active 02 Historic), and a short line of text as
listed below will appear in each column for each code being
stored. Possible codes include:
Screen Text
“H2O_maxv “H2O_minv “V_max “V_min “VE5_max “VE5_min “COPfail “RTI1 “RTI2 “RTI3 “ADloss “interrupt “flash_fail “RAM_fail “J1939_Txfai
58
“
“
“
“
“
“
“
“
“
“
“
“
“
“
”
Meaning
Water temp sensor Voltage too high
Water temp sensor voltage too low
Battery supply Voltage too high (> 32 volts)
Battery supply Voltage too low (< 9.5 volts)
5V output supply too high (>5.4 volts)
5V output supply too low (>4.6 volts)
Main CPU timeout failure, should be very rare
Main CPU failure, should be very rare
Main CPU failure, should be very rare
Main CPU failure, should be very rare
Main CPU failure, should be very rare
Main CPU failure, should be very rare
Main CPU flash memory failure, should be very rare
Main CPU RAM memory failure, should be very rare
CAN link failure, CAN wires probably not connected
Screen Text
“J1939_Rxfai ”
“EE_Write “
“EE_Read “
Meaning
CAN link failure, power supply related or bad connections on CAN wires
Onboard permanent memory write failure,
indicates circuit board failure
Onboard permanent memory read failure, indicates
circuit board failure
Fault codes can be cleared by tapping the MENU button. If an
active fault is still present, it will reappear after a short delay
in both active and historic column. If the source of a fault is
corrected (e.g. a disconnected water temperature sensor),
the active code will clear automatically, but the historic code
will remain until MENU is tapped. Note that if the battery is
disconnected all stored codes will be lost.
Note that when this screen has been selected, you can
return to the CRUISE screen by tapping either the UP or
DOWN buttons.
SPEED-RPM-GPS Screen
This screen is only available on units configured as a ZeroOff
GPS Cruise. It provides additional functionality that is only
possible if GPS antenna data is available. This screen allows the
user to operate the boat in either boat speed control mode, or
in an engine RPM control mode. Parameters displayed include
(clockwise from top left):
•
Time of day on left of top line
•
Date following time of day
•
Satellite fix status following date: X: No Fix, F: Non Differential
Fix, D: Differential Fix. Either F or D Fix Status is acceptable
for normal cruise performance
•
Page Change icon following fix status, a small diamond:
When highlighted, the UP/DOWN buttons can be used to
change to the CRUISE page
•
Compass arrow: If GPS satellite fix is available, this arrow
shows compass direction of boat motion. If no fix is available,
an “M” logo is displayed.
•
Boat speed, largest font number on screen, followed by units
indicator, either mph or kph
•
Latitude and Longitude are shown on the bottom line in
degrees and minutes
•
Boat speed set point, with a vertical “Set” icon to the left. The
“Set” icon is highlighted if cruise is ON in boat speed mode,
otherwise not highlighted
•
Engine RPM set point, with a vertical “Set” icon to the left.
The “Set” icon is highlighted if cruise is ON in Engine RPM
mode, otherwise not highlighted
•
Engine RPM, to the right of the RPM set point parameter.
This screen allows three parameters to be modified with the UP/
DOWN buttons. A highlight block can be moved amongst the
three parameters by tapping the MENU button. The UP/DOWN
buttons will operate on whichever of the three parameters is
highlighted:
•
Boat speed set point: UP/DOWN buttons function as they
do on the CRUISE page
•
Engine RPM set point: UP/DOWN buttons function similarly
to speed set point
•
Page change: UP/DOWN buttons will change page to CRUISE
page
Tapping ON/OFF will activate the cruise system in whichever of
the set point modes was last highlighted.
© 2010 Skier’s Choice, Inc.
Optional Tower Speakers
The optional tower speakers are an additional set of speakers
designed to allow the rider to be able to hear the music. The
tower speakers require the addition of an amplifier to power
the speakers.
Some lakes have noise restriction ordinances. The use of
tower speakers may not be allowed in your area. Please
check all applicable laws in your area regarding noise level
restrictions.
Optional Subwoofer
The optional sub-woofer is designed to increase the sound level
of the bass notes. The optional amplifier powers the sub-woofer.
The bass level can be adjusted on the amplifier. Please see stereo
amplifier owner’s manual for more information.
Optional Fresh Water Cooling System
The optional fresh water cooling system has a heat exchanger
which allows the engine to have an antifreeze mixture which
circulates in the engine. For more information, see your engine
owner’s manual.
Optional Fresh Water Flush
The optional Fresh Water Flush kit is a valve specifically designed
to allow you to attach a garden hose to your engine water intake
to flush brackish or salt water out of your engine. To use the
Fresh Water Flush, simply attach a garden hose to the valve. Turn
on the water to the valve. Start the engine. Monitor the exhaust
ports on the transom of your boat and engine temperature
gauge. Water should come out of the exhaust ports while the
engine is running. It is recommended that you run the engine
at a low RPM while flushing, since the engine’s raw water pump
at higher RPMs can pump more water than the garden hose can
supply. If you have questions on the operation of your Fresh
Water Flush kit, consult your Moomba Dealer.
Optional Walk-Through Curtain
Some Moomba models offer an optional Walk-Through Curtain
that snaps into the front walk-through to help prevent cool air
from flowing into the cockpit area.
© 2010 Skier’s Choice, Inc.
59
Optional Stereo Amp
Optional CD Changer
The optional 10 disc CD changer is mounted to the floor of the
boat and is controlled using the stereo controls. It can also be
controlled by the stereo remote. Please see CD changer owner’s
manual for more information.
Optional Tonneau Cover
The stereo amplifier is an optional piece of stereo equipment
that is designed to increase the wattage of the signal going to
the speakers while minimizing distortion of this signal. Please
see stereo amplifier owner’s manual for more information.
Using a stereo amplifier without boat engine running may
drain the battery to the point where the boat will not restart.
This condition may happen very quickly, depending on the
size of the battery!
Optional Tower Speaker and Light Bar Combo
The optional tonneau cover is designed to snap over the bow
of the boat. Its purpose is to minimize air flow into the cockpit
area when the boat is in use and as a storage cover when used
in combination with the optional cockpit cover.
DO NOT trailer the boat with the tonneau cover installed.
The tonneau cover is not designed as a trailer cover and
may come unsnapped or rip. This type of damage IS NOT
covered by your boat warranty!
Optional Cockpit Cover
The optional tower speaker and light bar combo is a unit that
houses both an additional set of tower speakers and lights. The
speakers are designed to allow the rider to be able to hear the
music. The tower speakers require the addition of an amplifier
to power the speakers. The tower lights are designed to make
docking, loading and unloading easier. The tower lights require
the addition of a dual-battery electrical system.
NOTE: Tower lights are not to be used as running lights at
night. USCG regulations mandate that a boat under power
after sunset must display a 360 degree white light and a
red/green bow light.
The optional cockpit cover is a snap down storage cover
designed to help protect the interior of your boat. To install the
cover, start at the windshield and work towards the transom. Be
sure to install the cover poles to prevent water pocketing.
DO NOT trailer the boat with the cockpit cover installed.
The cockpit cover IS NOT designed as a trailer cover and
may come unsnapped or rip. This type of damage IS NOT
covered by your boat warranty!
It is illegal to wakeboard, ski, tube, etc., after sunset and
before sunrise in most states. It has been outlawed because
it is dangerous. Tower lights do not make these activities
legal or safe.
60
© 2010 Skier’s Choice, Inc.
Optional Transom Mount Stereo Remote
Optional Automatic Fire Suppression System
The optional transom mounted stereo remote allows the stereo
to be controlled from the rear of the boat.
The optional Automatic Fire Suppression System has a sensor
in the engine compartment that is designed to detect a fire.
Under normal conditions, the dash area warning light will glow
green when the ignition is “ON”. If the engine compartment
sensor is activated by a fire, it will deploy the content of it’s fire
extinguisher and the dash mounted warning light will turn
red.
Keep away from rear of boat while the
engine is running. Do not be on or about the swim platform
while the engine is running or the boat is in motion.
Optional Bow Filler Cushion
Optional Swivel Pylon
The swivel pylon option has
a spool that swivels as the
rope goes back and forth.
The optional bow filler cushion is a cushion designed to fit in
the bow of the boat. It fits between the port and starboard bow
cushions and makes the bow area a solid cushion.
Optional Docking Lights
The optional docking lights are designed to help you dock, load
and unload your boat in low light or at night.
NOTE: Docking lights are not to be used as running lights at
night. USCG regulations mandate that a boat under power
after sunset must display a 360 degree white light and a
red/green bow light.
© 2010 Skier’s Choice, Inc.
61
Optional Boat Heater
Optional Engine Water Strainer
The optional engine water strainer is a filter for the engine
cooling water. It is recommended for boats that are going to
be operated in weedy conditions or other areas where debris
could clog the engine. It consists of a stainless steel mesh filter
inside a clear cup. It is located between the water intake on the
bottom of the boat and the engine’s raw water pump. It should
be checked periodically for debris as conditions dictate. To
remove debris, unscrew the clear sight cup, remove the o-ring
and stainless steel filter mesh and proceed to rinse out the cup.
Be sure to reinstall the filter mesh and o-ring before reattaching
the sight cup to the inlet.
The boat heater is a forced air heater that uses hot engine water
as a heat source. To use the heater, simply turn the heater switch
to the selected fan speed. In order for the heater to work, the
engine must be at operating temperature. One of the features
of the heater are the snorkel vents, which can be pulled out to
direct heat to specific areas.
NOTE: Location may vary by model.
62
© 2010 Skier’s Choice, Inc.
Dual Battery Option Hookup
The dual battery option is designed to give you extra battery
power to run accessories, but at the same time give you a
safety feature not commonly found in a dual battery setup.
The Moomba Dual battery option features a Voltage Sensitive
relay which always monitors the engine starting battery so
that your engine will always restart.
We recommend that the selector switch always be set to “1”.
In the “1” position, the Voltage Sensitive Relay monitors the
engine starting battery, which will ensure that you have a fully
charged battery to start your boat. The “house” or accessory”
battery may become drained during a high discharge cycle
since it does not get charged until the starting battery is
fully charged.
In position “1” when the sensed battery (engine starting
battery) reaches 13.7 volts, the relay closes and parallels
both batteries. When this happens the LED light on Voltage
Sensitive Relay comes on.
In position “2” the sensed battery is the accessory battery. We
do not recommend using this position since it can cause the
starting battery to drain, which would not allow the engine
battery to have enough power to restart your boat.
In position “both”, the batteries are paralleled and in a high
discharge cycle, both batteries can become drained, which
would not allow the engine battery to have enough power
to restart your boat.
NOTE: It is recommended that you fully recharge your
batteries using a battery charger periodically or after a
session of high discharge (lots of accessories running for
an extended period).
© 2010 Skier’s Choice, Inc.
NOTE: It is possible with this system for accessories to shut
down when the engine is running due to the accessory
battery draining down. This is a safety feature. This
system monitors the starting battery and will sacrifice
the accessory battery so that you are not stranded on the
water with a weak starting battery.
NOTE: We highly recommend using high quality “DualPurpose Batteries” in both the starting and house
position.
63
Notes:
64
© 2010 Skier’s Choice, Inc.
Section X
Service & Maintenance
The illustrations above denotes the areas which may need to be accessed or may require cleaning or maintenance. It is
important to have a basic understanding of the parts and their locations on the boat. However, it is recommended that any
service beyond routine maintenance be performed by an authorized Moomba dealer.
Service & Maintenance
For your convenience a maintenance chart has been included in this manual. The chart indicates when to perform safety
checks, lubrication, and general service to the boat. Engine hours or elapsed time determine when service is necessary.
It is recommended that any replacement parts used during maintenance or for repair be supplied by an authorized Moomba
dealer.
NOTE: You are responsible for keeping records of all maintenance on your boat. To maintain your new boat warranty,
you may be asked to show that required maintenance was performed.
© 2010 Skier’s Choice, Inc.
65
Maintenance Intervals @ Engine Hours
Maintenance To Perform
Change Engine Oil
Replace Oil Filter
Clean Oil Filler Cap
Check Transmission Fluid Level
Change Transmission Fluid
Check Water Strainer (if applicable)*
Clean Flame Arrestor
Clean Crankcase Ventilating System
Check Water Pump & Alternator Belt Tension
Check Fuel Lines & Connections for Leaks
Impeller Replacement
Clean Transmission Oil Strainer Screen
Lubricate Distributor Cam
Check Condition of Spark Plugs
Check Battery Electrolyte Level
Check All Electrical Connections
Check Cooling System Hoses for Leaks
Tighten Engine Mount Fasteners
Lubricate Shift Linkage Pivot Points
Check for Loose, Damaged or Missing Parts
Check Engine to Propeller Shaft Alignment
Check V-Drive Fluid Level**
Change V-Drive & Transmission Fluid**
Weekly
1st 25
50
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
100
X
X
X
X
X
X
Yearly
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* If engine overheats, visually check. If clogged, remove debris.
** Pertains to V-Drives only.
This inspection and maintenance schedule is recommended for average operating conditions in normal service.
Under severe operating conditions or service, intervals should be shortened.
Cooling Systems
Fresh Water Cooling System
The standard cooling system for Moomba boats is an open
circulating cooling system with water intake. This is preferred
for lakes and reservoirs with low salt content. If the engine
is occasionally operated in salt water, the cooling system
should be flushed with fresh water periodically and always
before storage. If your boat is regularly operated in salt
water, it should be equipped with the optional salt water
package.
Body Lubrication
Normal use of your Moomba causes metal to metal movement
at some parts in the boat. The driver seat track should be
lubricated with a water resistant chassis lubricant such as
silicon grease.
Salt Water Cooling System
The optional cooling system for use on salt water is a closed
system with a solution of 50% antifreeze and 50% fresh
water. The coolant is left in the closed system and replaced
once a year.
66
© 2010 Skier’s Choice, Inc.
Engine Oil & Filter
Dipstick
The oil filter is located below the engine. The engine
manufacturer recommends that you change the oil and oil filter
after the first 10-20 hours use of your new boat. Thereafter, to
maximize engine life, change oil and filter after every 50 hours
of use (See Engine Manual.)
REFER TO ENGINE MANUAL for more information.
If the oil pressure indication is too high or too low, stop the
engine immediately and check the oil level on the dipstick.
NOTE: The oil pressure varies with engine temperature
and speed. If oil pressure does not increase when throttle
is increased, shut off the engine immediately.
Continued operation while oil level is incorrect or without
pressure may result in serious engine damage. Report any
problem to your dealer as soon as possible, and do not
operate engine until corrected.
Engine Oil
Remote Oil Filter
In the V-drive engine configuration the remote oil filter is
mounted in a convenient spot in the engine compartment.
The engine crankcase oil should be selected to deliver the
highest performance for your operating conditions and climate.
In general, engine oils with lower viscosity ratings are used when
outdoor temperature remains low. Oils with higher viscosity are
used when outdoor temperature is warmer and when higher
performance is expected from the engine.
Indmar recommends 15W-40 Pennzoil Marine in their engines.
If not available, use a 15W40 motor oil with an A.P.I. classification
rating of SL/SJ/CI4/CH4/CG4 or equivalent. Synthetic oils are
not recommended until after the engine has been run for 100
hours.
Refer to Engine Manual for more information. For filter
and capacity information, see the Engine Data table in this
manual.
© 2010 Skier’s Choice, Inc.
67
Transmission
Direct Drive
V-Drive
Transmission fluid level should be checked regularly (such as every ten engine hours) and fluid added if necessary.
Maintain fluid level as follows:
•
Boat must be at rest.
•
Engine should be at operating temperature, but turned off while checking level.
•
Remove transmission fluid dipstick.
•
Wipe fluid clean from dipstick and replace.
•
Remove dipstick and note level indicated by the upper and lower marks.
•
If required, add fluid to bring the level to the upper mark.
Maintaining Fluid Level
Dripless Shaft Seal
Use only Dextron III transmission fluid in transmissions with 1:1
drive train. To check fluid level, refer to Engine Manual.
Your Moomba comes standard with a dripless shaft seal. If any
seepage occurs, contact your dealer.
Change Frequency:
Change transmission fluid every year (refer to Engine
Manual).
68
© 2010 Skier’s Choice, Inc.
V-Drive Location
The fluid level can be checked by using the oil level dipstick, which is located on top of the V-Drive transmission. This unit’s
located under the center cushion of the rear seat. Pull out the cushion to access the transmission.
V-Drive Fluid Check
Maintaining Fluid Level
V-Drive oil level should be checked regularly (such as every ten
engine hours) and fluid added if necessary.
Maintain fluid level as follows:
•
Boat must be at rest.
•
Engine should be at operating temperature, but turned off
while checking level.
•
Remove V-Drive Unit dipstick.
•
Wipe fluid clean from dipstick and replace.
•
Remove dipstick and note level indicated by the upper and
lower marks.
•
If required, add fluid to bring the level to the upper mark.
Propeller Warning
Pull the V-Drive Oil Level dipstick to check the fluid level. If the
level is low, add fluid to the correct mark on the dip stick. Use
SAE 30 motor oil.
NOTE: Only a trained and qualified technician should
perform the oil change on your V-Drive unit.
Change Frequency
The oil should be changed in the V-Drive transmission after the
first 100 hours of operation, then each year at the end of your
boating season.
Moving propeller will cause injury. Propeller may rotate
with boat in neutral. Shut off the engine when people are
on the platform or in the water near the platform to avoid
injury from the prop rotation.
© 2010 Skier’s Choice, Inc.
69
Battery Cable Installation & Precautions
Hydrogen and oxygen gases are produced during normal
battery operation and charging. Sparks or flames near the
battery vent openings can cause the mixture to ignite and
explode.
Your battery is an important part of your boat. It provides
all of the power to start your boat and also allows all of your
electrical components to work, even if the motor is not
running (bilge pump, blower, stereo, etc.).
Because of it’s important role, Moomba recommends using
a good quality “Marine Dual Purpose” battery. The “Dual
Purpose” rating means that it can provide the cranking
Amps needed to start your motor and also has an Amp
hour discharge rating so it can handle low electrical draw
-down cycle.
Sulfuric acid in the battery can cause serious burns. If spilled
on skin or in the eyes, flush with clean water immediately,
then seek medical attention.
Your Moomba electrical system is negative ground. The
negative battery cable is grounded on the engine block. The
positive battery cable is connected to the starter solenoid.
Connect the positive (+) battery cable to the positive (+) post
on the battery. Connect the negative (-) battery cable to the
negative (-) post on the battery.
Failure to connect battery cables as outlined will damage
the system and void the warranty.
70
© 2010 Skier’s Choice, Inc.
Section XI
Cleaning, Care & Storage
Fiberglass Care
Rub Rail Care
Washing and waxing the boat hull and deck regularly will extend
the life and beauty of your Moomba. It is a good routine to rinse
your boat with fresh water after each day’s use.
It is recommended that the hull and deck be cleaned and waxed
after every 50 hours of use. This will decrease water friction and
lessen the potential for staining or spotting on the gel coat
surface.
When the original gel coat shine cannot be restored by waxing,
the shine may be restored by hand buffing with a commercial
polishing compound . Be sure to apply a new coat of wax
containing Carnauba over the area that has been polished.
IMPORTANT: Porcelain cleaning powders are too abrasive
for use on gel coat and may cause permanent discoloration
if used. Household detergents containing ammonia or
chlorine should not be used on gel coat. Never use acetone
or ketone solvents to clean your boat finish.
Use a sponge or other soft material to wash and wax the rub
rail.
To wax, use a commercial automotive bumper wax.
NOTE: When tying up to a dock or another boat, always use
cushioned fenders (dock bumpers) to protect your boat
from hard surfaces.
Washing Your Moomba
The easiest way to preserve the beauty of your boat is to keep
it clean by frequent washing. Wash the boat with luke warm
or cold water. Wipe the boat down immediately after washing
to avoid water spots. Avoid using hot water or washing your
boat in direct sunlight. Avoid using strong soaps or chemical
detergents. To avoid spotting, all cleaning agents should be
thoroughly rinsed from the surface promptly and not allowed
to dry on the finish.
© 2010 Skier’s Choice, Inc.
Windshield Care
Clean the windshield regularly to ensure that visibility is not
obstructed.
Use a commercial glass cleaner to remove any spotting or
stubborn stains that develop on the windshield.
Never use abrasive cleaners on glass or plastic surfaces as they
may cause scratches.
71
Upholstery Cleaning
Foreign Deposits
Tree sap, bird droppings, airborne chemicals, petroleum
products and other foreign matter may damage the gel coat
surface if not removed promptly (See Washing Instructions).
Boat Hull Protection
If your Moomba is to remain in the water for an extended
period, the hull below the water line should be painted with
a marine bottom paint. Boats left in the water for extended
periods of time without bottom paint may experience blistering
or discolorization. This type of damage is not covered by your
boat’s warranty.
All upholstery items on your boat are made of tough marine
grade vinyl that is easily cleaned with a mild detergent.
Strong detergents and cleaners may shorten the life
of the vinyl. PLEASE SEE VINYL MANUFACTURER’S
RECOMMENDED CARE GUIDE INCLUDED IN YOUR OWNER’S
PACKAGE.
Drying Upholstery
Teakwood Care
If teakwood has been installed on your Moomba, a small amount
of maintenance will be required to retain the natural beauty.
Teakwood should not be varnished. Instead, teak oil or mineral
oil should be applied. Oil should be applied three to four times
per year. If teak has been allowed to become gray and dry, sand
with fine grit paper and reapply teak oil.
Damage caused by improper care, cleaning agents,
conditioner oils, waxes, gasoline, etc., IS NOT covered under
your boat’s warranty. Use only the recommended vinyl
cleaner as listed on the Vinyl Care Instruction Sheet.
Please refer to www.spradlingvinyl.com for more information
regarding vinyl care.
Wet Slipping Boats
• In the event of large storms, boats in wet slips are more
likely to be damaged.
• If you do not use the boat often, the battery can go dead
from pumping out water.
• The boat may develop organic growth which can greatly
reduce performance, attack and discolor the gelcoat.*
• The boat may develop osmotic blisters.*
It is important to provide for the drying of all upholstery and
carpet after each use of the boat. Open all storage compartments
and slide all removable cushions out about an inch to allow air
to circulate behind.
72
• The boat may get a stain line which cannot be
removed.*
* Painting the area below the waterline of the boat with Pettit or Interlux products
will reduce the likelihood of these last three.
© 2010 Skier’s Choice, Inc.
Section XII
Winterization & Dry Storage
Winterization
Summerization
When the boating and ski season comes to a close, it is important
to have your boat professionally winterized.
Before using the boat after it has been in dry storage requires
some special treatment. Moomba recommends having your
boat professionally summerized, preferably by the same facility
that prepped it for storage. They will be familiar with what items
were done in the fall and what items need to be addressed in
the spring.
If your boat is exposed to temperatures below 32 degrees F (0
degrees C), it is possible for water in the engine, ballast system,
heater core, etc., to freeze. As this water freezes, it expands and
can crack pumps, valves, heat exchangers, engine blocks, etc.
This type of damage usually requires the replacement of the
cracked item and can be very expensive to repair.
In addition to having your boat professionally summerized,
the following list of tasks should be done to ensure a
successful start to your boating season.
It is extremely important to follow the proper winterizing
procedure. The engine must be correctly winterized for
safe storage in your climate. This should be done by a
professional. Your Moomba dealer will know exactly what
must be done to ensure the longest possible life for your
boat.
In addition to having your boat professionally winterized,
the following tasks should be done to protect your boat
during storage:
•
Remove the center drain plug from the boat.
•
Thoroughly clean the boat inside and out. Inspect the hull
for any residue or algae growth and remove if required.
•
Clean the bilge area thoroughly and operate the bilge pump
to remove any water from the bilge hose.
•
Remove all seat cushions and open all storage areas to allow
air circulation in the boat interior.
•
When thoroughly dry, replace cushions and close storage
areas.
•
Top off fuel tank to prevent any condensation from
accumulating in the fuel system. Use a commercially available
fuel stabilizer to remove water and prevent gumming.
•
If the boat is stored on its trailer, ensure that the boat is
properly positioned. If possible, lift the tongue so that the
bow is slightly raised to promote drainage from the drain
hole.
•
Install the canvas cover and secure the straps in accordance
with cover instructions.
When launching the boat for the first time of the season, carefully
watch all gauges to ensure that the boat is not overheating, the
alternator is charging and the engine has proper oil pressure.
NOTE: During the winter months, water is a boat’s
worst enemy. Always store the boat when the interior is
completely dry. Periodically check on the condition of the
stored boat.
Damage due to improper winterization IS NOT covered
under your boat’s warranty.
E-10 fuels require fuel stabilizers that are specifically
designed for E-10 fuels to help prevent moisture absorbtion,
phase separation and gasoline stabilization.
© 2010 Skier’s Choice, Inc.
73
Hoisting
CORRECT HOISTING
If the boat ever needs to be hoisted, special attention should
be given to the following recommendations:
•
Hoist the boat using a horizontal lifting bar only.
•
Never attempt to lift the boat by means of a cable sling from
bow to stern lifting eyes.
•
Hoist operator should slowly and smoothly lift the boat
without jerking to avoid damage to the lifting eyes.
•
Use a clevis inserted through the lifting eye since a hook may
damage the lifting eye edges.
CORRECT HOISTING
INCORRECT HOISTING
Use only a proper sized sling in the designated lifting rings
to hoist the boat.
DO NOT use the ski pylon to hoist the boat.
Incorrect hoisting may invalidate the warranty on the
boat.
74
NOTE: For boat houses or other applications where the
boat will be lifted and held in that position, Moomba
recommends using a cradle. The bunk configuration should
mimic the trailer.
© 2010 Skier’s Choice, Inc.
Section XIII
Technical Information
Identification Number
Battery Specifications
A good Quality Marine Dual Purpose Battery is
recommended.
The hull identification number is located on the upper right
hand side of the transom below the rub rail.
© 2010 Skier’s Choice, Inc.
Hydrogen and oxygen gases are produced during normal
battery operation or charging. Sparks or flames can cause
this mixture to ignite and explode if it comes near the vent
openings. Sulfuric acid in the battery can cause serious
burns if spilled on skin or in eyes. Flush with clear water
immediately!
75
2010 Moomba Electrical Replacements
Fuses
Type
Size
Ballast Main (3 Position)
Breaker
50 Amp
Ballast Empty Pump (1 Position)
ATO
Ballast Fill Pump (1 Position)
Breaker
10 Amp
Stereo
Breaker
10 Amp
Wake Plate
Breaker
20 Amp
Amp Harness (5 Channel)
ANL
100 Amp
Amp Harness (4 Channel)
MAX
30 Amp
Amp Harness (2 Channel)
ATO
40 Amp
Fuel Pump
ATM
20 Amp
Engine Ignition
ATM
20 Amp
Starter
ATM
20 Amp
Bow Light
3175
12V8W
Pole Light
906
12V
Docking Lights
MR16
50W 24 Degree
Tower Light Bar
H3
12V55W
Courtesy Lights
Sealed
(See Dealer)
Under Dash
5 Amp
Battery Connection
Back of Engine
Bulbs
Fuse Panel - Under Dash
Fuse Panel - Battery Connection
Fuse Panel - Back of Engine
Main Dash Power-Circuit Breaker
The power to the dash circuit is protected by a circuit breaker that is located
in the observer seat storage area near the battery.
To turn off the power to the dash, manually press the red button and the circuit
breaker reset lever will flip down and the power to the dash circuit will be shut
off. To reset the breaker, push the reset lever back up.
If all of the dash switches fail to work, reset the main dash power-circuit
breaker.
76
© 2010 Skier’s Choice, Inc.
Section XIV
Trailering Your Boat
Connecting the Trailer
Trailer & Towing
The trailer supplied with your Moomba model was designed
especially for the boat with your convenience in mind. Please be
sure that you have an appropriate tow vehicle before attempting
to trailer your boat. Your vehicle must be capable of towing 3,500
— 6,000 lbs., depending on the model.
When connecting the trailer to your tow vehicle, use the
following procedure:
Read the trailer towing section of your vehicle owner’s manual
before towing your trailer.
2. Press down on the latch until it locks on the ball with a
“click.”
All Moomba trailers require a 2” ball and a five (5) pin marine
grade trailer wiring connector. The standard height from the
ground to the top of the hitch ball should be about 20 inches.
With the trailer attached to the tow vehicle, the trailer should
stand level.
Trailer Plug Wire Schematic
White: Ground
Green: Right Turn/Brake
Yellow: Left Turn/Brake
Brown: Running Lights
Blue: Reverse Lights
NOTE: Moomba trailers feature disk brakes. The fifth wire (blue)
on the wire connector needs to be connected to your vehicle’s
reverse lights to be operative. This wire (blue) provides power
to a solenoid which deactivates the brakes while in reverse.
You may still tow your trailer without the blue wire connected,
however, you may experience difficulty backing the trailer.
1. Raise the tongue with the trailer jack, position the trailer
tongue directly over the 2” ball, and lower the jack until the
tongue goes all the way down over the ball.
NOTE: If your hitch ball has an excessive flat spot on top, the
latch may not engage properly. If the latch does not catch, check
with your dealer or hitch installer before trailering.
3. Insert the locking pin into the tongue. Lock pin hole is on
the side of the tongue.
4. When all weight is off the trailer jack, pull the jack lock pin
and rotate the jack to the horizontal position and re-lock
the pin.
5. Attach the safety cables to the tow vehicle hitch. Cross the
cables and wrap them around each other once or possibly
twice allowing just enough slack to permit tight turns of the
vehicle and trailer.
6. Plug the trailer lights connector to the vehicle harness.
7. Clip the brake lockout cable to the vehicle hitch.
BEFORE USE, READ ALL INFORMATION SUPPLIED WITH THE TRAILER BY THE MANUFACTURER.
The following guidelines will prolong the life of the boat and trailer:
1. Always secure the boat to the trailer with tie-downs. Do not place straps around fenders or lights.
2. Always verify that the winch hook is securely in the bow eye, the strap is tight and the winch handle locked in place before
trailering.
3. Check the recommended pressure displayed on the side of the tires and assure that it is maintained.
4. Under-inflated tires could cause trailer sway and excessive tire wear.
5. Verify that the trailer hitch on the tow vehicle is the proper class and size to support the tongue weight and the trailer
load.
6. Check wheel bearing lube.
© 2010 Skier’s Choice, Inc.
77
Unloading Procedure
Loading Procedure
NOTE: DO NOT attempt to use excessive power to free the
boat from dry carpet runners. Power off of the trailer only
when the boat has floated free.
To re-trailer the boat, position the trailer in the water with
approximately 1 inch of the top of the fender showing as in
step 3. UNLOADING.
If the trailer is not submerged to the correct depth, the
bow of the boat could drop when powering off incorrectly,
possibly damaging the boat.
NOTE: Before operating your Moomba, refer to the Daily
Check List and the Boatman’s Check List.
Idle/coast the boat onto the trailer using as little power as
possible keeping it centered between the guide poles.
NOTE: DO NOT Power onto the trailer during rough
conditions.
When correctly positioned on the trailer turn off ignition. Use the
Hook and Trailer Winch to pull the boat up to the Roller Stop.
To unload the boat use the following procedure as a guide:
1. Make sure that all drain plugs are securely in place.
2. Unplug light cord before backing into the water.
3. With Bow Eye Hook fastened, back the trailer until the water
level is approximately one inch below the top of the trailer
fenders.
The trailer must be positioned for the correct water depth
for loading or you may damage the boat. Varying ramp
angles require different procedures. In general, the steeper
the ramp, the more shallow the trailer should be positioned
in the water. Your local dealer can help you understand this,
should you require additional assistance.
NOTE: Ramp slopes vary, so actual level of water on trailer
may be different.
Make sure that the engine water intake is fully
submerged.
4. Follow the cold start procedure recommended in this
manual.
5. With engine idling, center the steering wheel, engage the
transmission into reverse (pull back on lever,) then ease back
on the throttle.
NOTE: Because your Moomba is a direct drive inboard, when
backing the stern will have a tendency to drift left or right
depending on propeller rotation. This condition will selfcorrect as the rudder reaches control speed.
78
© 2010 Skier’s Choice, Inc.
Trailer Alignment
CORRECT ALIGNMENT
When pulling the boat onto the trailer, be sure that it is centered
on the trailer.
© 2010 Skier’s Choice, Inc.
INCORRECT ALIGNMENT
The distance between the boat and the wheel runner board
should be about equal on both sides.
79
Trailer Basics
See Trailer Owner’s Manual for additional product information,
safety information and warnings.
Swing-Away Tongue
Tandem Axle
With the swing tongue, you can shorten the trailer length for
storage by pulling the pin and swinging the tongue away to
the side.
DO NOT tow trailer without latch pin installed.
Some models come standard with a tandem axle trailer and
with some it is an option.
Second Axle Disc Brakes
Always install safety clip on end of latch pin.
Surge Brakes Fluid Reservoir
The standard second axle disk brakes give the trailer more
stopping power.
LED Package
To check brake fluid, twist black cap and remove. Pry rubber
plug out of reservoir. Follow instructions printed on plug. Use
DOT 3 Brake Fluid.
Vault Bearings
The standard LED lighting package replaces the traditional
trailer lights with LED lights. The LED lights are brighter than
the traditional lights.
NOTE: Vehicles with trailer light monitors may not function
properly with LED lights due to the low resistance of the LED
lights. Aftermarket resistor packages are available which
allow the monitors to work properly.
80
Your trailer features Vault bearings. See trailer owner’s manual
for more information.
© 2010 Skier’s Choice, Inc.
Optional Aluminum Step Plate
Optional Aluminum Wheels
The optional aluminum step plate gives the trailer a durable
long-lasting, nonskid surface on the trailer steps.
The optional aluminum wheels are a trailer grade wheel. They
are a great way to dress up your trailer.
Optional Laser Cut Steps
Optional Heavy Duty Trailer Jack
The optional laser cut steps are backlit so they illuminate when
the trailer’s running lights are illuminated.
Optional Spare Tire Bracket
The optional heavy duty trailer jack is a great way to dress up
your trailer.
The optional spare tire bracket allows you to conveniently carry
a spare tire.
© 2010 Skier’s Choice, Inc.
81
Notes:
82
© 2010 Skier’s Choice, Inc.
Section XV
Moomba Warranty
Moomba Limited Warranty
Taking care of our product after it becomes yours has always
been “standard policy” at Skier’s Choice, Inc., the proud
manufacturer of the Moomba line of boats. And to further prove
our point, we offer the following limited warranty.
Terms of Warranty
During the applicable Warranty Period (as defined below),
Skier’s Choice, Inc. (“Skier’s Choice” or the “Company”) warrants
to the original retail purchaser (the “First Owner”) that the
components and parts manufactured by Skier’s Choice (the
“Covered Components”) of each new Skier’s Choice boat are free
from any defects in material and workmanship, under normal
use and when operated and maintained according to boat’s
instructions (“Normal Use and Operation”).
Notification of a claim or defect must be properly made directly
to an Authorized Moomba Facility, who subsequently must
submit the claim information to Skier’s Choice, Inc. at 1717
Henry G. Lane Street, Maryville, Tennessee 37801. Information
needed for processing a claim includes (1) Name and address
of the owner; (2) Serial number of the boat; (3) Original retail
purchase date; (4) Detailed explanation of the defect; and (5)
Estimated repair cost.
Note: Warranty repair or replacement cannot be made until
this information is approved by Skier’s Choice.
•
This Limited Warranty applies to all Covered Components
other than the deck, hull, floor and stringers for a period of
one year (the “One-Year Warranty Period”) from the original
date of purchase by the First Owner (the “Original Purchase
Date”). Exclusions do apply.
•
This Limited Warranty applies to the deck, hull, floor
(excluding carpet) and stringers for the lifetime of the boat
(the “Lifetime Warranty Period”). Exclusions do apply.
In case of defect of a Covered Component, Skier’s Choice will
use its reasonable best efforts to repair or replace the Covered
Component within ninety (90) days of receipt thereof at its
factory or an Authorized Moomba Facility. Any warranty on
replaced or repaired components pursuant to this Limited
Warranty shall remain in effect only for the remainder of the
original Warranty Period. The repair or replacement of Covered
Components will be made by Skier’s Choice without charge to
the owner for parts or labor. The replacement or repair of the
defective part or component as stated in this Limited Warranty
shall be the sole remedy of the owner and the sole liability of the
Company under this Warranty and any implied warranties.
•
This Limited Warranty applies to the gel coat for a period of
one year (The “One-Year Warranty Period”) from the original
date of purchase by the First Owner (The “Original Purchase
Date”). Exclusions do apply.
There are no express or implied warranties on the parts and
components manufactured or sold by Skier’s Choice except as
set forth in this Limited Warranty.
This Moomba Limited Warranty may be transferred to a second
owner. The remaining duration of the Moomba limited warranty
from the first owner’s original purchase date is transferable.
A nominal warranty transfer fee and a dealer inspection are
required. Boats that are damaged or have been abused may not
be eligible for the warranty transfer. Inspection and Fee need to
be completed within 14 days of the sale to a subsequent owner
or the boat will not be eligible for the warranty to transfer.
Subject to the terms of this Limited Warranty, Skier’s Choice will
repair or replace, at its sole option, any Covered Component
which is returned during the applicable Warranty Period to the
Skier’s Choice factory or to any other Moomba authorized repair
facility (an “Authorized Moomba Facility”), provided that:
•
•
•
•
Only the Covered Components that are declared defective
upon examination by Skier’s Choice will be repaired or
replaced under this Limited Warranty;
Transportation of the boat, parts or components to and from
the Skier’s Choice factory or the Authorized Moomba Facility
must be prepaid by the owner;
Notice of any claim under this Limited Warranty must be
provided to Skier’s Choice by the Authorized Moomba
Facility no later than sixty (60) days after the owner becomes
aware of the defect.
The boat was purchased at a dealership authorized by Skier’s
Choice, Inc. to distribute the product in the country in which
the sale occurred.
© 2010 Skier’s Choice, Inc.
Exclusions
Claims or assertions relating to the following are specifically
excluded from coverage under this Limited Warranty and Skier’s
Choice disclaims any liability or obligation with respect to the
following:
1. Defects in or damage caused by or relating to the engine
or any part thereof. (Note: The engine may be covered by
warranty of the engine manufacturer. Please see engine
manufacturer warranty for details.)
2. Defects in or damage caused by or relating to the trailer
or any part thereof. (Note: The trailer may be covered by
warranty of the trailer manufacturer. Please see trailer
manufacturer warranty for details.)
3. Covered Components of a boat that has been sold by the First
Owner and the warranty transfer was not completed.
4. Damage caused by, related to, or resulting from failure of
components or parts which are not manufactured by Skier’s
Choice, including but not limited to bilge pump failure.
5. The Limited Lifetime Warranty on the deck, hull, floor
(excluding carpet) and stringers does not include hardware
or other components fastened or adhered to the hull, deck,
floor or stringers.
6. Normal maintenance and upkeep relating to the boat or
any part thereof, including but not limited to, alignment,
adjustments, connectors, tune-ups and wear items, such
as, shaft packing, belts, hoses, filters, seals, gaskets, strut
bushing, etc.
83
OTHER LIMITATIONS
7. Damage to or malfunction of a boat, or any component
thereof, resulting from owner use, lack of maintenance,
improper maintenance, impact, misuse, negligence, collision,
delay in repair, improper hoisting or cradling of the boat.
8. Any and all consequential damages including, but not
limited to, costs incurred for haul-out, launching, towing and
storage charges, telephone or rental charges of any type,
inconveniences, loss of use, or loss of time or income.
9. Equipment installed by anyone other than authorized factory
personnel at the Company’s production facility. Equipment
replaced at an Authorized Moomba Facility pursuant to
this warranty agreement remains under warranty until the
expiration of the Limited Warranty period.
10. Any boat which is: (a) used for rental or other commercial,
military or industrial purposes; (b) used in boat racing,
demonstrations, ski school, or similar events; (c) altered,
modified, repaired or replaced so as to increase the cubic
inch capacity or horsepower output of the engine and
boat as originally manufactured; (d) not properly stored or
maintained.
11. Any boat which is: (a) repossession from a retail customer; (b)
purchased at auction (bank auction, online auction, auction
house, etc.); (c) purchased from a salvage yard; (d) purchased
from an insurance company that obtained the product as a
result of an insurance claim.
12. Speeds, fuel consumption and other performance
characteristics because they are estimated and may vary.
13. Damage to or defects in paints, varnishes, gelcoat surfaces
and colors, finish distortions, chrome plated or anodized
finishes, floor covers and any other surface coatings.
14. Gelcoat discoloration, blisters or bubbles, including, but not
limited, to those which may result from a boat being left in
the water for long periods of time.
15. Upholstery cracks, mildew, stains or tears resulting from
owner use, lack of maintenance, improper maintenance,
impact, misuse, negligence, delay in repair, use of improper
cleaners or conditioners.
1. THIS LIMITED WARRANTY LIMITS THE DURATION OF ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE
TO THE PERIODS SPECIFIED HEREIN. Some states do not
allow limitations on how long an Implied Warranty lasts,
so this limitation may not apply to you.
2. THE REMEDIES OF REPAIR OR REPLACEMENT AT THE
OPTION OF SKIER’S CHOICE, AS SET FORTH HEREIN, ARE
THE ONLY REMEDIES AVAILABLE UNDER THIS WARRANTY.
SKIER’S CHOICE DISCLAIMS ANY OBLIGATION OR LIABILITY
FOR COSTS OR CHARGES DERIVED FROM INCONVENIENCE
OF LOSS OF USE, COMMERCIAL OR MONETARY LOSS DUE
TO LOSS OF TIME, INCONVENIENCE, OR ANY OTHER
CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES.
Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
3. THIS WARRANTY IS IN PLACE OF ANY OTHER EXPRESS
WARRANTIES.
4. THIS WARRANTY APPLIES TO THE FIRST OWNER. Unless
the warranty was properly transferred to a second
owner.
5. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
6. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY
CONTRACTUAL LIABILITIES, INCLUDING PRODUCT
LIABILITIES.
7. THE DEALER IS NOT THE AGENT OF SKIER’S CHOICE AND
SKIER’S CHOICE DOES NOT AUTHORIZE THE DEALER,
OR ANY OTHER PERSON, TO ASSUME ON BEHALF OF
SKIER’S CHOICE ANY LIABILITY OR EXPENSE INCURRED
IN THE COURSE OF REPAIRING ITS PRODUCTS OTHER
THAN THOSE EXPRESSLY AUTHORIZED IN THIS LIMITED
WARRANTY. THE DEALER MAY NOT EXTEND OR IN ANY
WAY CHANGE OR AMEND THIS LIMITED WARRANTY .
16. Gelcoat limited warranty is not transferable to second owner
and its duration is limited to one (1) year from the original
purchase date.
17. Any boat purchased from a dealer in another country, where
the primary use of the boat will require the boat to cross
an international border, except to the extent otherwise
expressly provided in a separate written agreement between
the First Owner and Skier’s Choice.
18. Skier’s Choice reserves the right to improve its products
through changes in design or material without being
obligated to incorporate such changes in products of prior
manufacture.
84
© 2010 Skier’s Choice, Inc.
Owner’s Responsibility
1. Before operating your Moomba, it is necessary to read
and fully understand this Owner’s Manual and all other
information delivered with the boat.
2. It is the owner’s responsibility to take the boat to an
authorized Moomba dealer to obtain warranty service.
3. It is the owner’s responsibility to properly operate and
maintain the boat in accordance with this manual and all
other information delivered with the boat.
4. The owner should keep maintenance records should it be
necessary to show that required maintenance has been
performed on the boat.
Dealer’s Responsibility
1. The Dealer should provide the buyer with an adequate
orientation in the general operation of the boat and review
all systems and accessories included with the boat.
Customer Assistance
The staff at Skier’s Choice, Inc. is concerned with your complete
satisfaction. This includes the prompt resolution of any problems
that may arise during the warranty period. Normally, problems
encountered may be efficiently and effectively resolved by your
Moomba Dealer. However, if a problem cannot be handled by
the Dealer or if a solution is not satisfactory to you as an Owner,
please follow these steps to get the matter resolved:
Step One
Discuss the problem with a member of your Moomba Dealer’s
management staff. It is most likely that the problem will be
resolved at this level.
Step Two
If the Dealer management does not resolve the problem to
your satisfaction, please have the problem and all action taken,
documented by the Dealer, then contact the factory Customer
Service Representative at Skier’s Choice, Inc.
Skier’s Choice, Inc.
1717 Henry G. Lane Street
Maryville, TN 37801
Tel: (865) 983-9924
Fax: (865) 983-9950
2. The Dealer should deliver a complete owner’s manual packet
with the boat consisting of Owner’s Manual, Registration,
Engine Manual, Stereo Manual, Moomba Warranty and all
warranties for separately warranted items aboard the boat.
3. The Dealer should review all warranty information with the
buyer and assist in filling out warranty cards if necessary.
4. The Dealer should ensure that any information or obligation
from either Skier’s Choice, Inc. or from the dealership is clearly
understood by the buyer.
5. The Dealer should instruct the buyer in obtaining local
service and out-of-area service for a Moomba boat.
Describe the original problem in detail to the Customer
Service Representative. Be prepared to furnish appropriate
documentation and the reasons why service by the Dealer
was unsatisfactory. If further action is required to resolve the
problem, the Customer Service Representative will dictate the
appropriate action.
Step Three
Finally, if after following these steps and providing documentation
and after obtaining necessary authorization from the Customer
Service Representative to take additional action, the problem
is still not resolved to your satisfaction, the President of Skier’s
Choice, Inc. will personally review the problem and make a
determination concerning final resolution.
© 2010 Skier’s Choice, Inc.
85
Notes:
86
© 2010 Skier’s Choice, Inc.
Section XVI
Index
A
Accessory Power Switch
B
Battery & Cable Installation
Battery Box
Battery - (Optional Dual Hookup)
Battery Specifications
Ballast System (Optional)
Bilge Area Drain Plug
Bilge Pump Switch
Bimini Top (Optional)
Blower Switch
Boating Rules
Boating Safety
Boat Specifications
Bow Eye
Bow Filler Cushion
Bow Light
Break-In
C
Canvas Cover CD Changer (Optional)
Cleaning Care
Cleats
Coast Guard Regulations
Cockpit Cover (Optional)
Cooler
Cooling Systems
Customer Assistance
D
Daily Checklist
Dealer’s Responsibilities
Depth Sounder
Digital Cruise Control
Double-Up Seating
Drain Plug Bilge Area
Drain Plug Rear
Driver’s Seat
E
Electrical Replacements (Bulbs & Fuses)
Emergency Procedures
Engine Check Light
Engine Data
Engine Hour Gauge
Engine Hours
Engine Warm-Up
F
Fiberglass Care
Filling Fuel Tank
Fire Extinguisher
Fire Suppression System
Fresh Water Flush
Foreign Material Deposits
Fuel
Fuel Cap
© 2010 Skier’s Choice, Inc.
37-38
70
52
63
75
41-44
28
37-38
55
37-38
17-19
5
21-23
50
61
49
25
26
60
71
49
15
60
56
59, 66
85
4
85
34-35
36, 57-58
55
29
29
46
F (continued)
Fuel Gauge
Fuel Information
Fuel Precautions
Fuel Tank Pump & Filter
Fuel Vent
33
53
30
54, 66
53
G
Glove Box
47
H
Heater (Optional)
Hoisting
Horn
Hull Identification Number
Hull Protection
62
74
39
75
72
I
Ignition
Ignition Key
Instrument Panel & Controls
Introduction
39
45
31
3
J
K
L
Lifting Rings
Lights, Courtesy
Lights, Docking
Lubrication - Body
50
56
61
66
M
Maintenance Chart
Maximum Capacities
Mirror
Motor Box Cover
66
26
45
46
N
76
13
40
75
32
32
27
71
30
47
61
59
72
30
30, 45
Navigation Lights
Neutral Lock Out
37-38
28
O
Oil Dipstick
Oil Level Check
Oil Pressure Gauge
Oil Specifications
Operating Instructions
Outback Hi-Low Rear Seat
67
67
33
67
25
51
P
Pole Light Receptacle
Propeller
Propeller Precaution
49
51
51, 69
(Continued Next Page)
87
Index (continued)
P (continued) Pulley & Belt Warning
Pylon - Swivel (Optional)
R
Rad-A-Cage
Rear Drain Plug
Rub Rail Care
46
61
48
29
71
S
Safety Lanyard/Engine Shut-Off
Safety Procedures
Satellite Radio (Optional)
Seat Adjustment
Service & Maintenance
Shaft - Dripless Seal
Ski Platform
Ski Pylon
Slalom Course Speeds
Speedometer
Speed Calibration
Speedometer Paddle Wheel (Pickups)
Starting & Operation
Stern Light
Stereo
Stereo Switch
Stereo Remote - Transom (Optional)
Stereo Amp (Optional)
Subwoofer (Optional)
Summerization
T
Tachometer
Technical Information
Teakwood Care
Temperature Gauge
Throttle Lever
Tilt Steering
Tonneau Cover (Optional)
Tower Pole Light
Tower Speakers (Optional)
Tower Speakers & Light Bar (Optional)
Trailer
Boat Hook Up
Loading Procedure
Trailer Alignment
Unloading Procedure
Transmission
Fluid Level Check
Fluid Specifications
Transmission Lockout Button
Trim Switch & Gauge (Optional)
40
5-9
56
46
65
68
50
47
31
32
31
32
27
49
36
36-37
61
60
59
73
V
V-Drive
Change Frequency
Engine Compartment
Fluid Check
Maintaining Fluid Level
Location
Remote Oil Filter
Warning Light
Voltmeter
W
Wakeboard Racks (Optional)
Wakeplate
Walk-Thru Windshield
Warning Plates & Labels
Warning Light
Warranty Information
Washing Boat
Water Strainer (Optional)
Wet Slipping Boats
Windshield Care
Winterization & Dry Storage
69
46
69
69
69
69
40
33
55
52
53
10-11
40
83-85
71
62
72
71
73
32
75
72
33
28
39
60
49
59
60
77-80
77
78
79
78
68
68
68, 69
28
52
U
Upholstery Care
88
72
© 2010 Skier’s Choice, Inc.
Watersports Responsibility Code
Be aware that there are elements of risk in boating, skiing, and riding that common sense and personal
awareness can help reduce. Know your ability level and stay within it.
To increase your enjoyment of the sport follow the “Watersports Responsibility Code”.
It is your responsibility to:
•
Familiarize yourself with all applicable laws, the risks inherent in the sport, and the proper use of
equipment.
•
Know the waterways where you will be skiing or riding. Do not ski or ride in shallow water, near
shore, docks, pilings, swimmers, or other watercraft.
•
Always have a person other than the boat driver as an observer and agree on hand signals before
starting.
•
Always wear a U.S. Coast Guard type III (PFD) vest.
•
Read your owner’s manual and inspect your
equipment prior to use.
•
Ski or ride within your limits. Always ski or ride
in control and at speeds appropriate for you
ability.
•
Always turn ignition off when anyone is near
watercraft power drive unit.
•
Carbon Monoxide (CO) poisoning from engine
exhaust may cause injury or death. Never
“Platform Drag” or touch a swim platform while
the engine is running.
•
Do not operate watercraft, ski or ride under the
influence of alcohol or drugs.
Water Sports Industry Association
© 2010 Skier’s Choice, Inc.
89
Notes:
90
© 2010 Skier’s Choice, Inc.
Notes:
© 2010 Skier’s Choice, Inc.
91
Notes:
92
© 2010 Skier’s Choice, Inc.
Notes:
© 2010 Skier’s Choice, Inc.
93
Notes:
94
© 2010 Skier’s Choice, Inc.
Notes:
© 2010 Skier’s Choice, Inc.
95
Notes:
96
© 2010 Skier’s Choice, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
