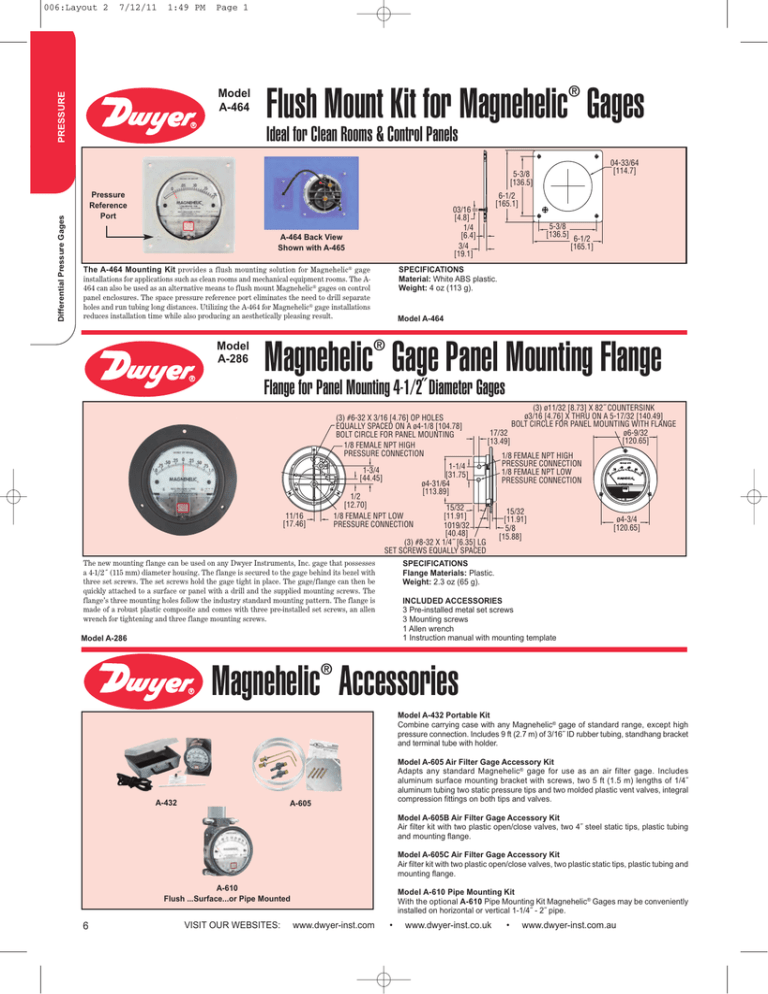

Model
A-464
PRESSURE
Differential Pressure Gages
Page 1
®
Flush Mount Kit for Magnehelic Gages
Ideal for Clean Rooms & Control Panels
04-33/64
[114.7]
5-3/8
[136.5]
Pressure
Reference
Port
A-464 Back View
Shown with A-465
The A-464 Mounting Kit provides a flush mounting solution for Magnehelic® gage
installations for applications such as clean rooms and mechanical equipment rooms. The A464 can also be used as an alternative means to flush mount Magnehelic® gages on control
panel enclosures. The space pressure reference port eliminates the need to drill separate
holes and run tubing long distances. Utilizing the A-464 for Magnehelic® gage installations
reduces installation time while also producing an aesthetically pleasing result.
Model
A-286
6-1/2
[165.1]
03/16
[4.8]
1/4
[6.4]
3/4
[19.1]
5-3/8
[136.5]
6-1/2
[165.1]
SPECIFICATIONS
Material: White ABS plastic.
Weight: 4 oz (113 g).
Model A-464
®
Magnehelic Gage Panel Mounting Flange
Flange for Panel Mounting 4-1/2˝ Diameter Gages
(3) #6-32 X 3/16 [4.76] OP HOLES
EQUALLY SPACED ON A ø4-1/8 [104.78]
BOLT CIRCLE FOR PANEL MOUNTING
1/8 FEMALE NPT HIGH
PRESSURE CONNECTION
1-3/4
[44.45]
1/2
[12.70]
1/8 FEMALE NPT LOW
PRESSURE CONNECTION
(3) ø11/32 [8.73] X 82˝ COUNTERSINK
ø3/16 [4.76] X THRU ON A 5-17/32 [140.49]
BOLT CIRCLE FOR PANEL MOUNTING WITH FLANGE
ø6-9/32
17/32
[120.65]
[13.49]
1-1/4
[31.75]
ø4-31/64
[113.89]
15/32
[11.91]
1019/32
[40.48]
(3) #8-32 X 1/4˝ [6.35] LG
SET SCREWS EQUALLY SPACED
11/16
[17.46]
1/8 FEMALE NPT HIGH
PRESSURE CONNECTION
1/8 FEMALE NPT LOW
PRESSURE CONNECTION
15/32
[11.91]
5/8
[15.88]
ø4-3/4
[120.65]
SPECIFICATIONS
Flange Materials: Plastic.
Weight: 2.3 oz (65 g).
The new mounting flange can be used on any Dwyer Instruments, Inc. gage that possesses
a 4-1/2˝ (115 mm) diameter housing. The flange is secured to the gage behind its bezel with
three set screws. The set screws hold the gage tight in place. The gage/flange can then be
quickly attached to a surface or panel with a drill and the supplied mounting screws. The
flange’s three mounting holes follow the industry standard mounting pattern. The flange is
made of a robust plastic composite and comes with three pre-installed set screws, an allen
wrench for tightening and three flange mounting screws.
INCLUDED ACCESSORIES
3 Pre-installed metal set screws
3 Mounting screws
1 Allen wrench
1 Instruction manual with mounting template
Model A-286
®
Magnehelic Accessories
Model A-432 Portable Kit
Combine carrying case with any Magnehelic® gage of standard range, except high
pressure connection. Includes 9 ft (2.7 m) of 3/16˝ ID rubber tubing, standhang bracket
and terminal tube with holder.
A-432
Model A-605 Air Filter Gage Accessory Kit
Adapts any standard Magnehelic® gage for use as an air filter gage. Includes
aluminum surface mounting bracket with screws, two 5 ft (1.5 m) lengths of 1/4˝
aluminum tubing two static pressure tips and two molded plastic vent valves, integral
compression fittings on both tips and valves.
A-605
Model A-605B Air Filter Gage Accessory Kit
Air filter kit with two plastic open/close valves, two 4˝ steel static tips, plastic tubing
and mounting flange.
Model A-605C Air Filter Gage Accessory Kit
Air filter kit with two plastic open/close valves, two plastic static tips, plastic tubing and
mounting flange.
A-610
Flush ...Surface...or Pipe Mounted
6
VISIT OUR WEBSITES:
www.dwyer-inst.com
•
Model A-610 Pipe Mounting Kit
With the optional A-610 Pipe Mounting Kit Magnehelic® Gages may be conveniently
installed on horizontal or vertical 1-1/4˝ - 2˝ pipe.
www.dwyer-inst.co.uk
•
www.dwyer-inst.com.au
