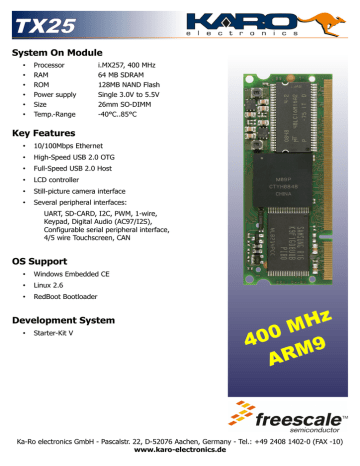

TX25

System On Module

Processor

RAM

ROM

Power supply

Size

Temp.-Range i.MX257, 400 MHz

64 MB SDRAM

128MB NAND Flash

Single 3.0V to 5.5V

26mm SO-DIMM

-40°C..85°C

Key Features

10/100Mbps Ethernet

High-Speed USB 2.0 OTG

Full-Speed USB 2.0 Host

LCD controller

Still-picture camera interface

Several peripheral interfaces:

UART, SD-CARD, I2C, PWM, 1-wire,

Keypad, Digital Audio (AC97/I2S),

Configurable serial peripheral interface,

4/5 wire Touchscreen, CAN

OS Support

Windows Embedded CE

Linux 2.6

RedBoot Bootloader

Development System

Starter-Kit V

400

MH

ARM

9 z

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

Board highlights:

The i.MX257 processor introduces several key new features such as 3.3V I/O support, three general-purpose 12-bit ADCs, a touch screen controller and integrated 128K SRAM to improve system performance or low-power LCD refresh.

Standard TX-DIMM pinout:

Lowest cost 400MHz ARM9

Industrial temperature range

Standard TX-DIMM pinout as small as possible - only 26mm

System on module

4-wire UARTs (x3)

LCD

CSI (CMOS Sensor Interface)

I2C / 1-wire / PWM

The TX25 is a member of a module series, specially designed for Freescales i.MX25 multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. TX modules includes a Freescale® i.MX

SSI/AC97/I2S (x2)

4-wire SD-Card/SDIO

Keypad 4x4

CSPI (Configurable serial peripheral interface) processor, SDRAM and Flash memory. The integrated LCD-controller enables direct connection of an LCD screen. The TX25 is specifically targeted at embedded applications where size, high cpu-performance and cost are critical factors.

High-Speed communication interfaces incl. onboard Ethernet PHY / on-chip

USB PHY allows direct use of connectors/magnetics on the baseboard without the need for additional logic:

10/100 Mbps Ethernet

480 Mbps USB OTG

12 Mbps USB Host

Freescale® i.MX257, 400 MHz

64 MByte SDRAM (16bit)

128 MByte NAND Flash memory

DIMM200-module (67,6mm x 26 mm x 3,6mm)

Operating temperature range -40..85°C

Additional interfaces like CAN, 4/5-wire resistive touch-screen, 2 UARTs and external memory interface are available on TX25 specific pins. Some interfaces are multiplexed with other functions.

Processor

Power Supply

The TX25 accepts an input voltage from various sources:

1-cell Li-Ion/Polymer (3.0V to 4.2V)

5.0V USB supply or AC wall adapter

3.3V

Ordering Information

Order Number

TX25/400/64S/128F/I

CPU

400MHz i.MX257

SDRAM

64MB

Flash

128MB

Temp.

-40°C..85°C

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

STARTER-KIT V

The Starter-Kit V is a ready-to-use development system for building applications based on the TX embedded processor boards.

DIMM200 TX socket

Two SD-card sockets

USB 2.0 OTG and USB 2.0 Host connector

D-SUB 15 VGA connector

40pin LCD flat cable header

3.5mm headphone connector

JTAG interface

SGTL5000 audio codec

TSC2007 touchscreen controller

RS232 on 10pin flat cable and SUB-D header

All pins of the TX socket are connected to daughter board slot for easy application design-in

10/100 Mbit/s Ethernet

5VDC Power Supply by USB-OTG or power jack.

100mm x 160mm

Schematics of the base board are included for reference.

DISPLAY OPTION

The optional display comes with an FFC cable and a small adapter PCB which can be plugged directly onto the Starter-Kit 40pin LCD header.

5,7 inch TFT display

640 x 480 dots

White LED backlight

Touchsceen

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PINOUT

PIN Type Function i.MX25 Pad Name

POWER SUPPLY & RESET

1-4 power VIN

5-7,

9-12 power VOUT

8 3V3 BOOTMODE

13 power BAT_VDD

14 NC

VSTBY_ACK 15 3V3

16 3V3 #POR

RESET_IN_B 17 3V3 RESET_IN_B

18 GND GND

Ethernet

19 analog ETN_TXN

20 3V3 #ETN_LINKLED

21 analog ETN_TXP

22 power ETN_3V3

23 analog ETN_RXN

24 3V3 #ETN_ACTLED

25 analog ETN_RXP

26 GND GND

USB-HOST

27 3V3 USBH_VBUSEN

28 3V3 #USBH_OC

29 analog USBH_DM

30 NC

31 analog USBH_DP

32 GND GND

USB-OTG

33 3V3 USBOTG_ID

34 3V3 USBOTG_VBUSEN

35 analog USBOTG_DM

36 3V3 #USBOTG_OC

37 analog USBOTG_DP

38 analog USBOTG_VBUS

39

I2C

40

GND GND

3V3 I2C_DATA

D9

D8

USBPHY2_DM

USBPHY2_DP

USBPHY1_UID

GPIO_A

USBPHY1_DP

GPIO_B

USBPHY1_DP

USBPHY1_VBUS

-

I2C1_DAT

Marked yellow: Not connected

Alternate functions GPIO

HRESET_B

SS3

EPITO

LCDC_LD[22]

USBH2_PWR

LCDC_LD[23]

USBH2_OC

USBOTG_PWR

ROW[4] / SCL

TXCAN / PWM0

INT_MUX_OUT

USBOTG_OC

ROW[5] / SDA

RXCAN / PWMO

SLCDC_DATA[7]

Description (refer to I.MX25 manuals for details)

10K-PU

Module power supply input (3.0V-5.5V)

3.3V power supply output (up to 0.2A)

Boot mode select H: Boot from NAND / L: Boot from UART/USB

DRYICE backup power supply input (max. 1.55V) not connected

GPIO3[18]

“Pulse” indication on finish of internal system reset, by visibility of

“hreset_b“ signal. After reset, this pin can be used for other purposes.

Power On Reset - active low input signal. Typically a push button reset. Pull low to force a reset. Leave unconnected or connect to

3V3 if unused. 63.5kΩ pull-up resistor.

Master Reset - external active low Schmitt trigger input signal.

When this signal goes active, all modules (except the reset module,

SDRAMC module, and the clock control module) are reset.

Transmit Data Negative: 100Base-TX or 10Base-T differential transmit output to magnetics.

Active low LINK ON indication: Active indicates that the link is on.

Transmit Data Positive: 100Base-TX or 10Base-T differential transmit output to magnetics.

+3.3V analog power supply output to magnetics

Receive Data Negative: 100Base-TX or 10Base-T differential receive input from magnetics.

Active low ACTIVITY indication: Active indicates that there is Carrier sense (CRS) from the active PMD.

Receive Data Positive: 100Base-TX or 10Base-T differential receive input from magnetics.

GPIO4[12]

10K-PU

Active low over-current indicator input connected to a GPIO. This signal can be used as an input only. 10kΩ pull-up resistor.

D- pin of the USB cable not connected

D+ pin of the USB cable

GPIO1[0]

ID pin of the USB cable. For an A-Device ID is grounded. For a B-

Device ID is floated.

Active high external 5V supply enable. This pin is used to enable the external VBUS power supply.

GPIO1[1]

10K-PU

D- pin of the USB cable

Active low over-current indicator input connected to a GPIO. 10kΩ pull-up resistor.

D+ pin of the USB cable

VBUS pin of the USB cable. This pin is used for the VBUS comparator inputs.

GPIO1[13] I2C Data

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PIN Type Function i.MX25 Pad Name Alternate functions

41 3V3 I2C_CLK

I2C1_CLK

SLCDC_DATA[6]

PWM

42 3V3 PWM

PWM

PWMO

CMPOUT1

USBH2_OC

BT_LPB_FREQ[2]

1-WIRE

43 3V3 OWDAT RTCK

LINE

DAT7

SDMA_DBG_PC_13

CSPI – Configurable Serial Peripheral Interface

44

45

46

47

48

49

3V3 CSPI_SS0

3V3 CSPI_SS1

3V3 CSPI_MOSI

3V3 CSPI_MISO

3V3 CSPI_SCLK

3V3 CSPI_RDY

CSPI1_SS0

CSPI1_SS1

CSPI1_MOSI

CSPI1_MISO

CSPI1_SCLK

CSPI1_RDY

LCDC_LD[16]

PWMO

SDMA_DBG_EVT_2

SLCDC_CS

TRACE[6]

SDA / UART3_RTS

SDMA_DBG_EVT_3

SLCDC_RS

TRACE[7]

UART3_RXD_MUX

SDMA_DBG_EVT_0

SLCDC_DATA[12]

TRACE[4]

UART3_TXD_MUX

SDMA_DBG_EVT_1

SLCDC_DATA[13]

TRACE[5]

UART3_CTS

SDMA_DBG_EVT_4

SLCDC_DATA[14]

TRACE[8]

SDMA_DBG_EVT_5

SLCDC_DATA[15]

TRACE[9]

50 GND GND

SD – Secure Digital Interface 1

51

52

53

54

55

56

57

3V3 SD1_CD

3V3 SD1_D[0]

3V3 SD1_D[1]

3V3 SD1_D[2]

3V3 SD1_D[3]

3V3 SD1_CMD

3V3 SD1_CLK

BCLK

SD1_DATA0

SD1_DATA1

SD1_DATA2

SD1_DATA3

SD1_CMD

SD1_CLK

EIM_BCLK

SCLK / TDATA[2]

AUD7_TXFS

SDMA_DBG_STAT_1

SLCDC_DATA[2]

TRACE[12]

RDY / TDATA[3]

AUD7_RXD

SDMA_DBG_STAT_2

SLCDC_DATA[3]

TRACE[13]

SS0 / RX_CLK

AUD7_RXC

SDMA_DBG_STAT_3

SLCDC_DATA[4]

TRACE[14]

SS1 / CRS

AUD7_RXFS

SLCDC_DATA[5]

TRACE[15]

MOSI / RDATA[2]

SDMA_DBG_EVT_SEL

SLCDC_DATA[0]

TRACE[10]

MISO / RDATA[3]

SDMA_DBG_STAT_0

SLCDC_DATA[1]

TRACE[11]

58 GND GND

1 st UART

59 3V3 UART1_TXD

UART1_TXD

UART2_DSR

LCDC_SPL

SLCDC_DATA[9]

GPIO Description (refer to I.MX25 manuals for details)

GPIO1[12] I2C Clock

GPIO1[26]

47K-PU

PWM Output

GPIO3[14]

1-Wire bus. Requires an external pull-up resistor. The recommended resistor is specified by the generic 1-Wire device used in a given system.

GPIO1[16] Slave Select (Selectable polarity) signal

GPIO1[17] Slave Select (Selectable polarity) signal

GPIO1[14] Master Out/Slave In signal

GPIO1[15] Master In/Slave Out signal

GPIO1[18] Serial Clock signal

GPIO2[22] Serial Data Ready signal

GPIO4[4] SD Card Detect – connected to a GPIO

GPIO2[25]

SD Data bidirectional signals—If the system designer does not want to make use of the internal pull-up, via the Pull-up enable register, a

50 K–69 K external pull up resistor must be added.

GPIO2[26]

GPIO2[27]

GPIO2[28]

GPIO2[23] SD Command bidirectional signal

GPIO2[24] SD Output Clock.

GPIO4[23] Transmit Data output signal

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PIN Type

60

61

62

Function

3V3 UART1_RXD

3V3 UART1_RTS

3V3 UART1_CTS

i.MX25 Pad Name

UART1_RXD

UART1_RTS

UART1_CTS

Alternate functions

UART2_DTR

LCDC_CLS

SLCDC_DATA[8]

CSI_D[0] / CAPIN1

DCD_2 / LCDC_PS

SLCDC_DATA[10]

CSI_D[1] / CMPOUT1

RI_2 / LCDC_REV

SLCDC_DATA[11]

GPIO Description (refer to I.MX25 manuals for details)

GPIO4[22] Receive Data input signal

GPIO4[24] Request to Send input signal

GPIO4[25] Clear to Send output signal

2 nd UART

63

64

65

66

3V3 UART2_TXD

3V3 UART2_RXD

3V3 UART2_RTS

3V3 UART2_CTS

UART2_TXD

UART2_RXD

UART2_RTS

UART2_CTS

UART2_TXD_MUX

DAT6 / TX_ERR

EXTDMA_0

UART2_RXD_MUX

GPIO4[27] Transmit Data output signal

DAT7

DAT5 / COL / CAPIN1

CMPOUT1 / SS3

EXTDMA_2

GPIO4[26] Receive Data input signal

EPITO / SS3 / EXTDMA_1 GPIO4[28] Request to Send input signal

DAT4 / RX_ERR

GPIO4[29] Clear to Send output signal

3 rd UART

67

68

69

70

3V3 UART5_TXD

3V3 UART5_RXD

3V3 UART5_RTS

3V3 UART5_CTS

ECB

LBA

CS5

CS4

EIM_ECB

UART5_TXD_MUX

SCLK

EIM_LBA

UART5_RXD_MUX

RDY

EIM_CS5

NANDF_CE2

DTACK_B / RTS_5

AUD4_RXFS

MISO / TRCLK

EIM_CS4

NANDF_CE1

CTS_5 / AUD4_RXC

MOSI / TRSYNC

GPIO3[23] Transmit Data output signal

GPIO3[24] Receive Data input signal

GPIO3[21] Request to Send input signal

GPIO3[20] Clear to Send output signal

71 GND GND

KEYPAD

72

73

74

75

76

77

78

79

80

81

3V3 KP_COL[0]

3V3 KP_COL[1]

3V3 KP_COL[2]

3V3 KP_COL[3]

3V3 TXCAN

3V3 KP_ROW[0]

3V3 KP_ROW[1]

3V3 KP_ROW[2]

3V3 KP_ROW[3]

3V3 RXCAN

KPP_COL0

KPP_COL1

KPP_COL2

KPP_COL3

GPIO_C

KPP_ROW0

KPP_ROW1

KPP_ROW2

KPP_ROW3

GPIO_D

UART4_RXD_MUX

AUD5_TXD

SDMA_DBG_PC_4

UART4_TXD_MUX

AUD5_RXD

SDMA_DBG_PC_5

RTS_4 / AUD5_TXC

SDMA_DBG_PC_6

M3IF_CHOSEN_

MASTER_1

CTS_4 / AUD5_TXFS

SDMA_DBG_PC_7

M3IF_CHOSEN_

MASTER_2

PWMO / SCL CAPIN1 /

SS2

TXCAN

UART3_RXD / DTR_1

SDMA_DBG_PC_0

UART3_TXD / DSR_1

SDMA_DBG_PC_1

RTS_3 / AUD5_RXC

CSI_D[0] / DCD_1

SDMA_DBG_PC_2

CTS_3 / AUD5_RXFS

CSI_D[1] / RI_1

SDMA_DBG_PC_3

WDOG_B / SDA

COL[5] / CMPOUT1

RXCAN / SS2

GPIO3[1] Keypad Column selection signals.

GPIO3[2]

GPIO3[3]

GPIO3[4]

GPIO1[2] Module specific function

GPIO2[29] Keypad Row selection signals.

GPIO2[30]

GPIO2[31]

GPIO3[0]

GPIO1[3] Module specific function

82 GND GND

SSI 1 - Serial Audio Port 1 (Configurable to I2S Protocol and AC97)

83 3V3 SSI1_INT EXT_ARMCLK

GPIO3

[15]

GPIO

84 3V3 SSI1_RXD EB1

EIM_EB1_B

AUD4_RXD / SS1

GPIO2[13] Receive serial data

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

97

98

99

100

101

PIN Type

85

86

87

Function

3V3 SSI1_TXD

3V3 SSI1_CLK

3V3 SSI1_FS

EB0

OE

RW

i.MX25 Pad Name Alternate functions

EIM_EB0_B

AUD4_TXD / SS0

EIM_OE

AUD4_TXC

EIM_RW

AUD4_TXFS

GPIO Description (refer to I.MX25 manuals for details)

GPIO2[12] Transmit serial data

GPIO2[14] Serial clock

GPIO3[25] Frame Sync

88 GND GND

SSI 2 - Serial Audio Port 2 (Configurable to I2S Protocol and AC97)

89 3V3 SSI2_INT UPLL_BYPCLK

GPIO3

[16]

GPIO

90

91

92

93

3V3 SSI2_RXD

3V3 SSI2_TXD

3V3 SSI2_CLK

3V3 SSI2_FS

POWER_FAIL

GPIO_E

GPIO_F

VSTBY_REQ

POWER_FAIL_INT

AUD7_RXD / CTS_4

SCL / LCDC_LD[16]

AUD7_TXD

UART4_RXD_MUX

CTI_TRIG_IN0_6

LCDC_LD[17]

EPITO / AUD7_TXC

UART4_TXD_MUX

CTI_TRIG_OUT0_6

AUD7_TXFS

UART4_RTS

GPIO3[19] Receive serial data

GPIO1[4] Transmit serial data

GPIO1[5] Serial clock

GPIO3[17] Frame Sync

94 GND GND

Secure Digital Interface 2

95 NC not connected

96 NC not connected

NC

NC

NC

NC

NC

102 GND GND

CMOS Sensor Interface

not connected not connected not connected not connected not connected

103

104

105

106

107

108

109

110

3V3 CSI_D0

3V3 CSI_D1

3V3 CSI_D2

3V3 CSI_D3

3V3 CSI_D4

3V3 CSI_D5

3V3 CSI_D6

3V3 CSI_D7

CSI_D2

CSI_D3

CSI_D4

CSI_D5

CSI_D6

CSI_D7

CSI_D8

CSI_D9

UART5_RXD / DAT4

SCKR / CLK0 / MOSI

USBOTG_DATA[0]

UART5_TXD / DAT5

FSR / RST0 / MISO

USBOTG_DATA[1]

RTS_5 / DAT6 / HCKR

VEN0 / SCLK

USBOTG_DATA[2]

CTS_5 / DAT7 / SCKT

TX0 / RDY

USBOTG_DATA[3]

ROW[6] / CMD / FST

PD0 / SS0

USBOTG_DATA[4]

ROW[7] / CLK / HCKT

RX0 / SS1

USBOTG_DATA[5]

COL[6] / AUD6_RXC

TX5_RX0 / CLK0/ SS2

USBOTG_DATA[6]

COL[7] / AUD6_RXFS

TX4_RX1 / RST0/ SS3

USBOTG_DATA[7]

GPIO1[27] Sensor port data

GPIO1[28] Sensor port data

GPIO1[29] Sensor port data

GPIO1[30] Sensor port data

GPIO1[31] Sensor port data

GPIO1[6] Sensor port data

GPIO1[7] Sensor port data

GPIO4[21] Sensor port data

111 GND GND

112

113

3V3 CSI_HSYNC

3V3 CSI_VSYNC

CSI_HSYNC

CSI_VSYNC

AUD6_TXC / DAT2

TX1 / PD0

BT_RES[2]

USBOTG_NXT

AUD6_RXD / DAT1

TX2_RX3 / TX0

USBOTG_STP

BT_RES[1]

GPIO1[10] Sensor port horizontal sync

GPIO1[9] Sensor port vertical sync

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PIN Type

114

115

Function

3V3 CSI_PIXCLK

3V3 CSI_MCLK

i.MX25 Pad Name

CSI_PIXCLK

CSI_MCLK

Alternate functions

AUD6_TXFS

DAT3 / TX0 / RX0

USBOTG_CLK

BT_RES[3]

AUD6_TXD / DAT0

TX3_RX2 / VEN0

USBOTG_DIR

BT_RES[0]

116 GND GND

LCD Controller and Smart LCD Controller

117 3V3 GPIO CLKO

118

119

120

121

122

123

124

125

126

127

128

3V3 CONTRAST

3V3 LD0

3V3 LD1

3V3 LD2

3V3 LD3

3V3 LD4

3V3 LD5

3V3 GPIO

3V3 GPIO

3V3 LD6

3V3 LD7

CONTRAST

LD0

LD1

LD2

LD3

LD4

LD5

A13

A15

LD6

LD7

CAPIN1 / SS1 / DA_2

PWMO / CRS

USBH2_PWR

WDOG_B

SLCDC_DATA[0]

CSI_D[0] / DATA[0]

CLK1 / USBH2_CLK

BT_MEM_CTRL[0]

SLCDC_DATA[1]

CSI_D[1] / DATA[1]

RST1 / USBH2_DIR

BT_MEM_CTRL[1]

SLCDC_DATA[2]

CSI_D[15] / DATA[2]

VEN1 / USBH2_STP

BT_MEM_TYPE[0]

SLCDC_DATA[3]

CSI_D[14] / DATA[3]

TX1 / USBH2_NXT

BT_MEM_TYPE[1]

SLCDC_DATA[4]

CSI_D[13] / DATA[4]

PD1/ USBH2_DATA[0]

BT_PAGE_SIZE[0]

SLCDC_DATA[5]

CSI_D[12] / DATA[5]

RX1/ USBH2_DATA[1]

BT_PAGE_SIZE[1]

EIM_DA_H[13]

LCDC_CLS

EIM_DA_H2[15]

RST1 / LCDC_PS

SLCDC_DATA[6]

CSI_D[11] / DATA[6]

CLK1 USBH2_DATA[2]

BT_BUS_WIDTH[0]

SLCDC_DATA[7]

CSI_D[10] / DATA[7]

RST1 USBH2_DATA[3]

BT_BUS_WIDTH[1]

129 GND GND

130

131

132

133

134

135

136

3V3 LD8

3V3 LD9

3V3 LD10

3V3 LD11

3V3 GPIO

3V3 GPIO

3V3 LD12

LD8

LD9

LD10

LD11

A16

A14

LD12

SLCDC_DATA[8]

UART4_RXD/DATA[8]

AUD3_TXD / TX_ERR

CMD BT_USB_SRC[0]

SLCDC_DATA[9]

UART4_TXD/DATA[9]

AUD3_RXD / COL

CLK BT_USB_SRC[1]

SLCDC_DATA[10]

RTS_4 / DATA[10]

AUD3_TXC / RX_ERR

DAT0 / BT_MLC_SEL

SLCDC_DATA[11]

CTS_4 / DATA[11]

AUD3_TXFS

RDATA[2] / DAT1

EIM_A[16]

VEN1 / LCDC_REV

EIM_DA_H2[14]

CLK1 / LCDC_SPL

SLCDC_DATA[12]

MOSI / DATA[12]

ROW[6] / RDATA[3]

DAT2 / BT_SRC[0]

GPIO Description (refer to I.MX25 manuals for details)

GPIO1[11] Sensor port data latch clock

GPIO1[8] Sensor port master clock

GPIO2[15]

47K-PU

LCD Data Bus

GPIO2[16]

10K-PD

LCD Data Bus

GPIO2[17]

10K-PD

LCD Data Bus

GPIO2[18]

10K-PD

LCD Data Bus

GPIO2[19]

47K-PU

LCD Data Bus

GPIO1[19]

10K-PD

LCD Data Bus

GPIO4[1]

GPIO2[1]

GPIO1[20]

10K-PD

LCD Data Bus

GPIO1[21]

10K-PD

LCD Data Bus

10K-PD LCD Data Bus

10K-PD LCD Data Bus

10K-PD LCD Data Bus

10K-PD LCD Data Bus

GPIO2[2]

Signal for common electrode driving signal preparation (Sharp panel dedicated signal).

GPIO2[0] Sampling start signal for left and right scanning.

LCD Data Bus

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PIN Type

137 3V3 LD13

Function

138 3V3 LD14

139 3V3 LD15

140

141

142

3V3 LD16 / GPIO

3V3 LD17 / GPIO

GND GND

143 3V3 HSYNC

144 3V3 VSYNC

145 3V3 OE_ACD

146 3V3 LSCLK

LSCLK

163

164

165

166

167

159

160

161

162

153

154

155

156

149

150

151

152

157

158

3V3 GPIO

GND GND

3V3 D[0]

3V3 D[1]

3V3 D[2]

3V3 D[3]

3V3 D[4]

3V3 D[5]

3V3 D[6]

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

3V3 GPIO

147 GND GND

Module Specific Signals

148 3V3 GPIO A10

A21

A22

A23

A24

A17

A18

A19

A20

A25

CS0

CS1

D[0]

D[1]

D[2]

D[3]

D[4]

D[5]

D[6]

i.MX25 Pad Name

LD13

LD14

LD15

D15

D14

HSYNC

VSYNC

OE_ACD

Alternate functions

SLCDC_DATA[13]

MISO / DATA[13]

ROW[7] / TDATA[2]

DAT3 / BT_SRC[1]

SLCDC_DATA[14]

SCLK / DATA[14]

COL[6] / TDATA[3]

AUD3_RXC

BT_EEPROM_CFG

SLCDC_DATA[15]

RDY / DATA[15]

COL[7] / RX_CLK

AUD3_RXFS

BT_UART_SRC[0]

EIM_D[15] / DAT7

LCDC_LD[16]

EIM_D[14] / DAT6

LCDC_LD[17]

GPIO

47K-PU

10K-PD

Description (refer to I.MX25 manuals for details)

LCD Data Bus

LCD Data Bus

LCD Data Bus

GPIO4[5] LCD Data Bus

GPIO4[6] LCD Data Bus

SCL / BUFFER_EN

VEN1

USBH2_DATA[4]

BT_UART_SRC[1]

SDA / DMARQ / TX1

USBH2_DATA[5]

BT_UART_SRC[2]

SLCDC_RS

SS0 / DA_1 / RX1

USBH2_DATA[7]

BT_LPB_FREQ[1]

SLCDC_CS

DA_0 / PD1

USBH2_DATA[6]

BT_LPB_FREQ[0]

GPIO1[22]

10K-PD

GPIO1[23]

10K-PD

GPIO1[25]

47K-PU

Line Pulse or HSync

Frame Sync or Vsync—This signal also serves as the clock signal output for gate; driver (dedicated signal SPS for Sharp panel HR-

TFT)

Alternate Crystal Direction/Output Enable

GPIO1[24]

47K-PU

Shift Clock

TX1

TX_ERR

PD1

COL

RX1

RX_ERR

CLK1

RDATA[2]

RST1

RDATA[3]

VEN1

TDATA[2]

TX1

TDATA[3]

PD1

RX_CLK

RX1

CRS

NANDF_CE3

GPIO4[0]

GPIO2[3]

GPIO2[4]

GPIO2[5]

GPIO2[6]

GPIO2[7]

GPIO2[8]

GPIO2[9]

GPIO2[10]

GPIO2[11]

GPIO4[2]

GPIO4[3]

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX25

PIN Type

168 3V3 D[7]

Function

169

170

3V3

3V3

A [0]

A [1]

171

172

173

GND GND

NVDD_DR

YICE

NVDD_DR

YICE

TAMPER_A

TAMPER_B

174

NVDD_DR

YICE

MESH_C

175

NVDD_DR

YICE

MESH_D

180

181

182

183

176

177

178

179

3V3

3V3

3V3

3V3

3V3

3V3

3V3

GND

A [2]

A [3]

A [4]

A [5]

A [6]

A [7]

A [8]

GND

184 analog REF

185 analog XN

186 analog XP

187 analog YN

188 analog YP

189 analog WIPER

190 analog INAUX0

191 analog INAUX1

192 analog INAUX2

193 power NVCC_DRYICE

194

195

196

197

198

199

200

3V3 A [9]

3V3 A [11]

3V3 A [12]

NC

NC

NC

GND GND

D[7]

GND

i.MX25 Pad Name

A [0]

A [1]

TAMPER_A

TAMPER_B

MESH_C

MESH_D

A [2]

A [3]

A [4]

A [5]

A [6]

A [7]

A [8]

REF

XN

XP

YN

YP

WIPER

INAUX0

INAUX1

INAUX2

NVCC_DRYICE

A [9]

A [11]

A [12]

Alternate functions GPIO Description (refer to I.MX25 manuals for details)

DRYICE external tamper detect pins, active high. If either

TAMPER_A or TAMPER_B asserted, then external tampering is detected. Should be tied to pull-down if no tamper detection is required on board.

Wire-mesh tamper detect pins which can be routed at the PCB board to detect attempted tampering of a protected wire. MESH_C is active high and should be connected to an on-board pull-down if no tamper detection is required. MESH_D is active low and should be connected to an on-board pull-up if no tamper detection is required.

Touchscreen ADC External reference voltage (2.5 V). REF may be left floating if the internally generated 2.5 V supply is enabled. Use of an external reference is recommended.

Touscreen ADC input channels

General purpose measurements channels

DRYICE power supply output. Source can be SoC supply or backup supply. This pin can be used to power external tamper detect components.

not connected not connected not connected

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
