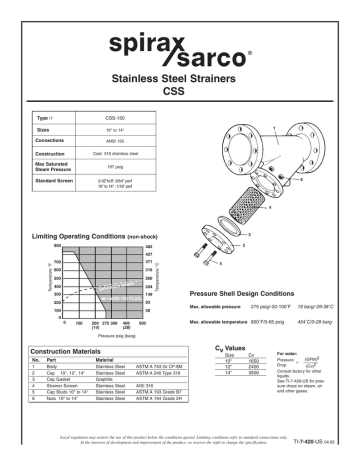

Stainless Steel Strainers
CSS
Type ➪
CSS-150
Sizes
10" to 14"
1
Connections
ANSI 150
Construction
Cast 316 stainless steel
Max Saturated
Steam Pressure
197 psig
Standard Screen
6
2-1/2" to 8": 3/64" perf
10" to 14" : 1/16" perf
4
3
Limiting Operating Conditions (non-shock)
900
2
482
700
371
600
316
500
260
team
ation S
Satur
400
204
300
Temperature °C
Temperature °F
427
149
ANSI 150 FLDG.
200
Pressure Shell Design Conditions
93
38
100
5
Max. allowable pressure
275 psig/-20-100˚F
19 barg/-29-38˚C
0
0
100
200 275 300
(14)
400
(28)
500
Max. allowable temperature 850˚F/0-65 psig
454˚C/0-28 barg
Pressure psig (barg)
Cv Values
Construction Materials
No.
Part
Material
1
2
3
4
5
6
Body
Cap 10", 12", 14"
Cap Gasket
Strainer Screen
Cap Studs 10" to 14"
Nuts 10" to 14"
Stainless
Stainless
Graphite
Stainless
Stainless
Stainless
Steel
Steel
ASTM A 743 Gr CF-8M
ASTM A 240 Type 316
Steel
Steel
Steel
AISI 316
ASTM A 193 Grade B7
ASTM A 194 Grade 2H
Size
10"
12"
14"
Cv
1650
2400
3500
For water:
(GPM)2
Pressure
=
Drop
(Cv)2
Consult factory for other
liquids.
See TI-7-429-US for pressure drops on steam, air
and other gases.
Local regulation may restrict the use of this product below the conditions quoted. Limiting conditions refer to standard connections only.
In the interests of development and improvement of the product, we reserve the right to change the specification.
TI-7-420-US
04.05
Stainless Steel Strainers
CSS
Spare Parts
A
B
A
B
C
F
Dimensions
(nominal) in inches and millimeters
Strainer Screen
A
B
C
Weight
10"
30.01
765
20.5
520
2"
NPT
132 lb
290 kg
12"
33.5
850
24.0
610
2"
NPT
180 lb
397 kg
14"
38.6
980
24.8
630
2"
NPT
1212 lb
550 kg
A
state material, size of perf or mesh, and size of strainer
Cap Gasket
Cap
Size
B
F
Installation
© Spirax Sarco, Inc. 2005
The strainer should be installed with the flow direction as
indicated on the body, in a vertical down or horizontal pipeline.
The strainer must be accessible for periodic removal of
accumulated debris, by either blowing down or removal and
cleaning of the screen.
TI-7-420-US
Spirax Sarco, Inc., 1150 Northpoint Blvd, Blythewood, SC 29016
04.05
Telephone: (803) 714-2000 FAX (803) 714-2222
