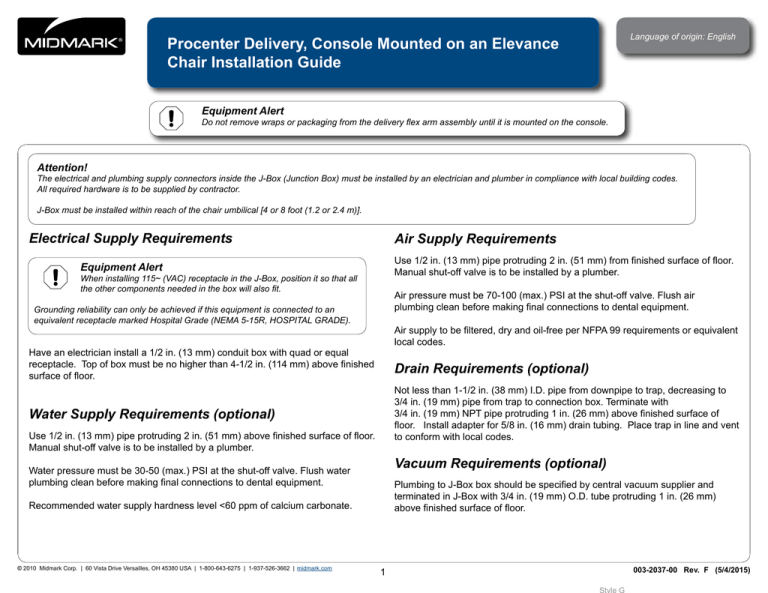

Procenter Delivery, Console Mounted on an Elevance
Chair Installation Guide
Language of origin: English
Equipment Alert
Do not remove wraps or packaging from the delivery flex arm assembly until it is mounted on the console.
Attention!
The electrical and plumbing supply connectors inside the J-Box (Junction Box) must be installed by an electrician and plumber in compliance with local building codes.
All required hardware is to be supplied by contractor.
J-Box must be installed within reach of the chair umbilical [4 or 8 foot (1.2 or 2.4 m)].
Electrical Supply Requirements
Air Supply Requirements
Use 1/2 in. (13 mm) pipe protruding 2 in. (51 mm) from finished surface of floor.
Manual shut-off valve is to be installed by a plumber.
Equipment Alert
When installing 115~ (VAC) receptacle in the J-Box, position it so that all the other components needed in the box will also fit.
Air pressure must be 70-100 (max.) PSI at the shut-off valve. Flush air
plumbing clean before making final connections to dental equipment.
Grounding reliability can only be achieved if this equipment is connected to an
equivalent receptacle marked Hospital Grade (NEMA 5-15R, HOSPITAL GRADE).
Air supply to be filtered, dry and oil-free per NFPA 99 requirements or equivalent
local codes.
Have an electrician install a 1/2 in. (13 mm) conduit box with quad or equal
receptacle. Top of box must be no higher than 4-1/2 in. (114 mm) above finished
surface of floor.
Drain Requirements (optional)
Not less than 1-1/2 in. (38 mm) I.D. pipe from downpipe to trap, decreasing to
3/4 in. (19 mm) pipe from trap to connection box. Terminate with
3/4 in. (19 mm) NPT pipe protruding 1 in. (26 mm) above finished surface of
floor. Install adapter for 5/8 in. (16 mm) drain tubing. Place trap in line and vent
to conform with local codes.
Water Supply Requirements (optional)
Use 1/2 in. (13 mm) pipe protruding 2 in. (51 mm) above finished surface of floor.
Manual shut-off valve is to be installed by a plumber.
Vacuum Requirements (optional)
Water pressure must be 30-50 (max.) PSI at the shut-off valve. Flush water
plumbing clean before making final connections to dental equipment.
Plumbing to J-Box box should be specified by central vacuum supplier and
terminated in J-Box with 3/4 in. (19 mm) O.D. tube protruding 1 in. (26 mm)
above finished surface of floor.
Recommended water supply hardness level <60 ppm of calcium carbonate.
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
1
003-2037-00 Rev. F (5/4/2015)
Color Page
J-Box Connections
WARNING
Always disconnect power before removing covers. Failure to do so may
result in personal injury.
Step 1: Verify proper installation of J-Box.
A) J-Box frame is properly secured to floor.
B) J-Box lid completely covers plumbing and electrical connections.
C) J-Box is within reach of the umbilical provided (4 or 8 foot [1.2 or 2.4 m]).
17.8 “
(43.3 cm)
Water
Air
6.5"
(16.5 cm)
40
20
2
60
3
4
5
0
80
0
1
6
7
100
40
20
2
60
3
4
5
0
80
0
1
6
7
100
4.75"
(12.7 cm)
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
2
003-2037-00
Install the Procenter Delivery on the Console
Step 2: Remove the inside and outside console covers.
Step 3: Install console bearing and secure
with 3 screws.
Note: Position console bearing so the set screws are
accessible through holes.
Mounting Post
Rotate Stop Screw
Bearing Washer
Step 5: Rotate arm to verify operation
For LH mounted consoles only
Move rotation stop screw to opposite hole.
Console Bearing
Access holes for
set screws
Step 4: Install bearing washer.
Insert mounting post into console bearing.
Inside cover lip fits under
console frame and is secured
with screw on bottom.
Outside cover lip fits under
console top, then push in
until ball studs snap into
fittings in frame.
Step 6: To adjust rotational drag:
Tighten or loosen console
bearing set screws.
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
3
Delivery Flex Arm Setup for a Right or Left Mounted Console
Right Mounted
Console
Step 7: Move the flex arms so the delivery is positioned over the foot of the chair.
Rotation Stop
Screw
Step 8: Install 2 stop pins as shown (depending
on which side of the chair the console is mounted).
Rotation Stop
Screw (hidden)
Left Mounted
Console
DA2403i
Note
Rotation stop screw will be between the two stop pins.
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
4
003-2037-00
Color Page
Step 9: Install tubing adapter (from hardware kit) and connect like colored tubing as shown.
Note: Tubing and connectors are provided for connecting a delivery
unit, a cuspidor, an assistant’s unit and bottled water . Leave any unused tubing capped.
Syringe Air
Instrument Water
Handpiece Drive Air
Supply Air to Master ON/Off Switch
Supply Air from Master ON/Off Switch
Handpiece Pilot Air for Coolant Water
Handpiece Coolant Water
Tubing Connections
Delivery Umbilical
Tubing Adapter
Chair Umbilical
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
5
003-2037-00
Color Page
Electrical Connections
Note:
All connectors are uniquely shaped to fit only into properly mated connections.
Step 10: Connect Delivery Umbilical.
A)
B)
Plug the delivery unit power into J6 or J10 on the Elevance Procenter Interface PCB.
Plug keypad control into J1 or J2 on the Elevance
Procenter Interface PCB.
Delivery
Umbilical
Unit
Power
J1
Keypad
Control
J2
Communication
Lines
Jumper
J4
Power
Grounds
J10
J6
J9
BLK
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
Connect ground wire to ensure system ground continuity. Failure to do so may result in electric shock.
Step 12: Screw all grounds into the two holes in the console frame as shown.
WHT
Elevance Procenter
Interface PCB
Caution
Chair
Umbilical
Step 11: Connect Chair Umbilical.
A)
B)
C)
Plug jumper into J6 or J10 on the Elevance Procenter
Interface PCB.
Plug power connector into jumper.
Plug one communication line into J4 on the Elevance Procenter Interface PCB.
6
003-2037-00
For Units Having Deluxe Rheostat with Chip Air Foot Controls Only:
Make Chip Air Connection in Delivery Head.
Chip Air
A) Cut green 1/8" Coolant Air Supply tubing.
B) Locate clear 1/8” tubing coming into the unit head.
C) Use barbed tee and sleeves to tee the 1/8" clear tubing into the 1/8" green coolant air tubing.
Deluxe Rheostat with Chip Air
Unit Foot Control
Procenter Delivery Unit
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
7
003-2037-00
Remove the Shipping Stabilizer from the Flex Arm
Step 14: Remove the wire tie (shipping stabilizer) from the
lock pawls.
Slide the cover back in place and install the end cap.
Step 13: Remove the Flex Arm end cap (1 screw) and slide the
cover back.
Button head
screws (3)
1
2
3
4
Leveling set
screws (3)
DA2404i
Step 15: Remove the bottom cover on the delivery unit (4 screws).
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
8
Step 16: Loosen 3 button head screws
and adjust the 3 leveling set
screws to level the flex arm.
Replace the bottom cover once the flex
arm is level.
003-2037-00
Install Covers and Check Installation
Step 17: Install the inside and outside console covers.
Installation Checklist
Test Verify the following:
Note: All electrical connections should be covered by the inner cover.
Outside cover lip fits under
console top, then push in
until ball studs snap into
fittings in frame.
Stud fittings
Inside cover lip fits under
console frame and is secured
with screw on bottom.
Ball studs
© 2010 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
9
1
Flex Arm and Delivery are level.
2
Flex Arm and Delivery unit move easily and stay where
placed.
3
Electrical connections to PC board are tight.
4
PC board is secure inside the mounting box and is
properly grounded to the console frame.
5
All console covers (4 total) are securely in place.
6
No wires or tubing are pinched by covers or
mountings.
7
Wipe Console with a soft dry cloth to remove any dirt
or smudges.
8
Test hand controls to make sure they work properly.

003-2037-00
